Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Frame

42 part groups · 27 illustrations

Illustrations

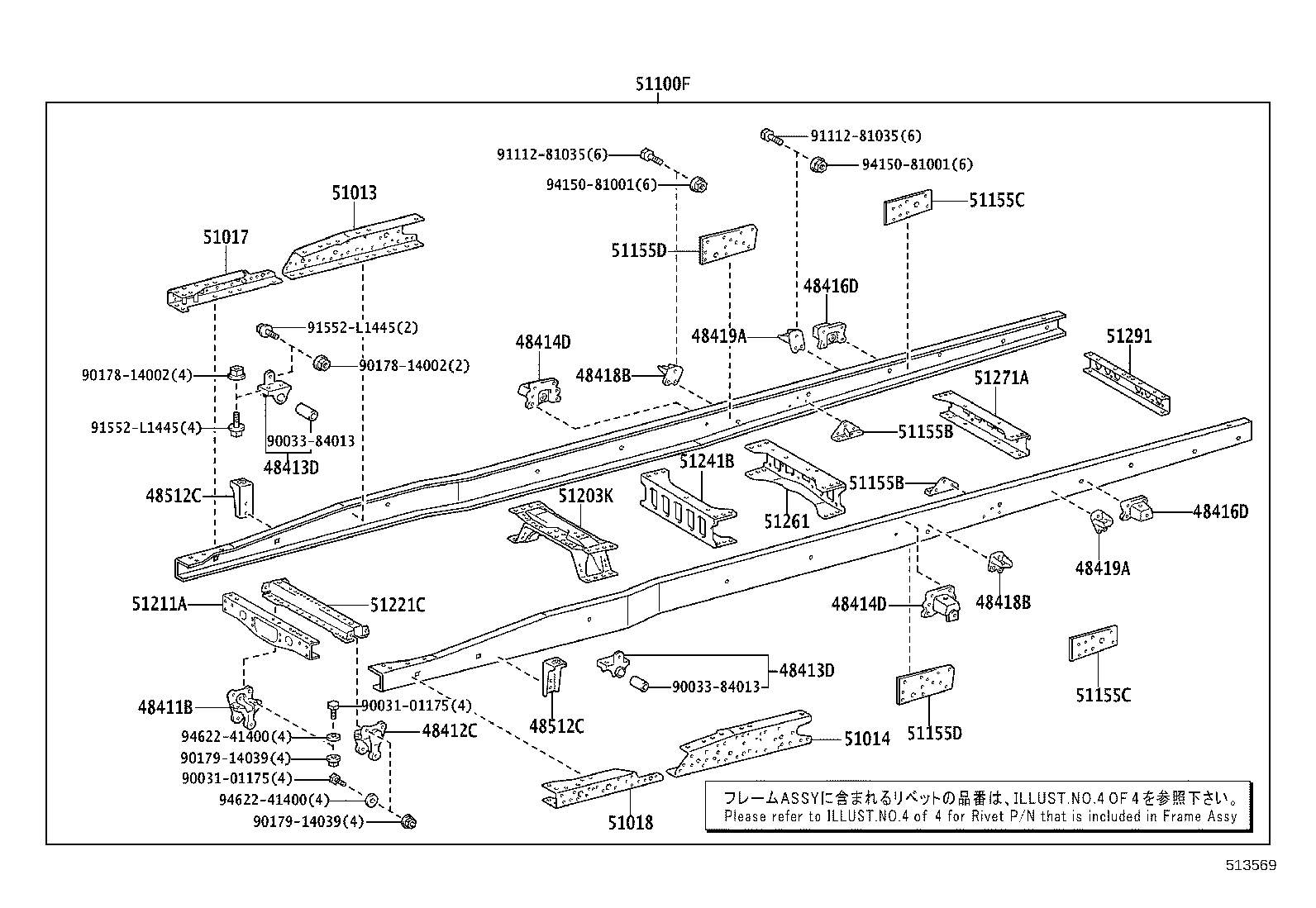

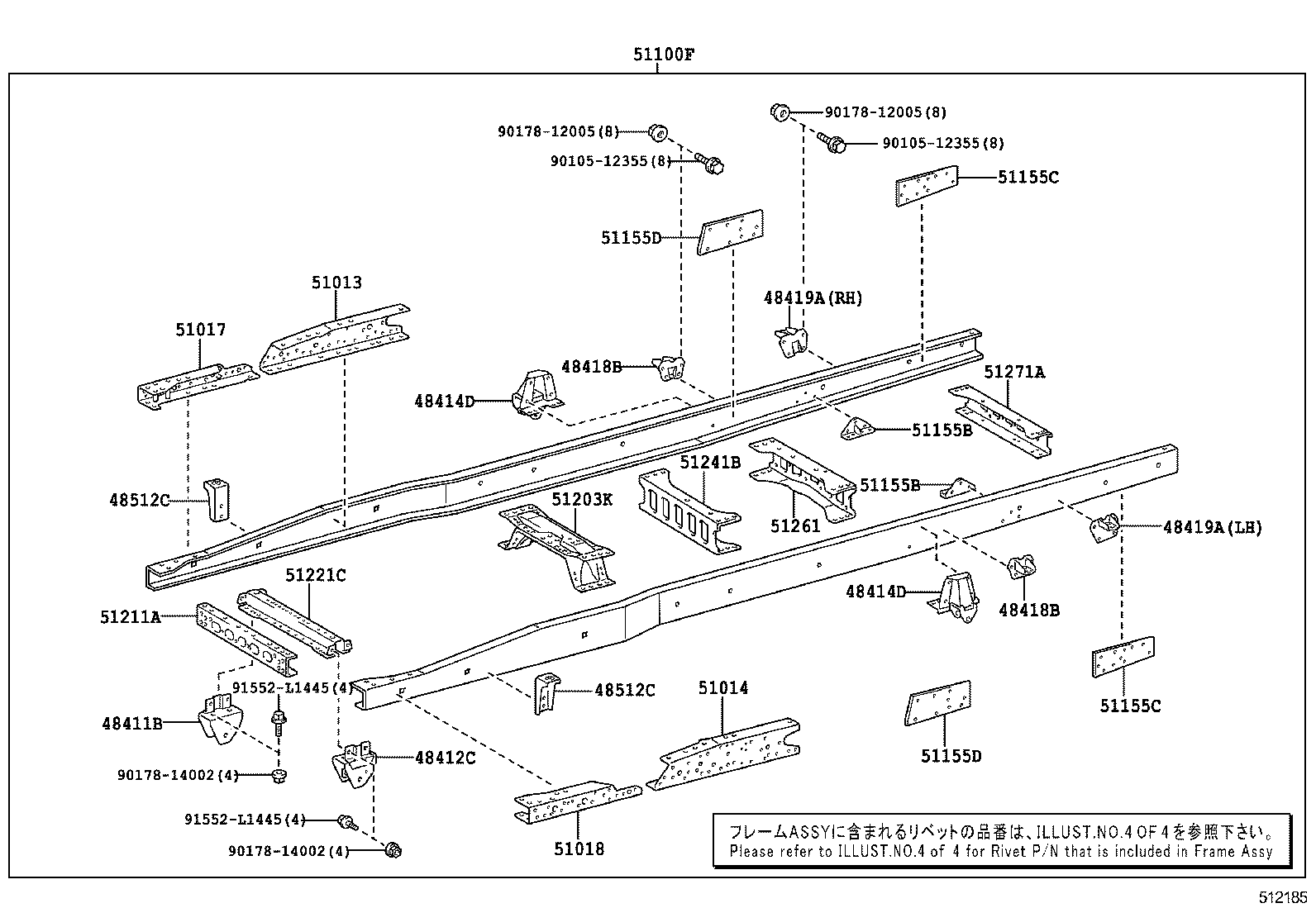

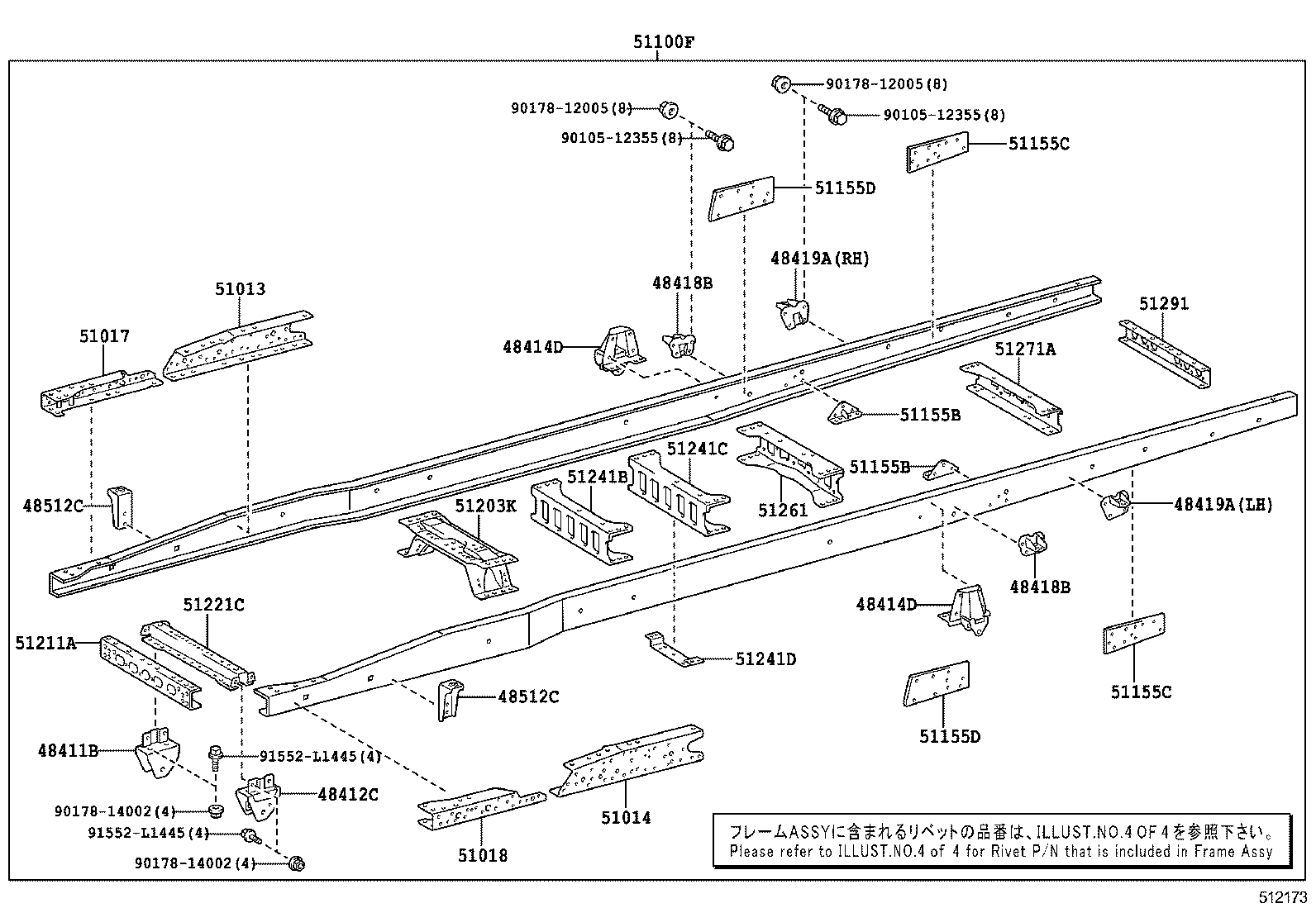

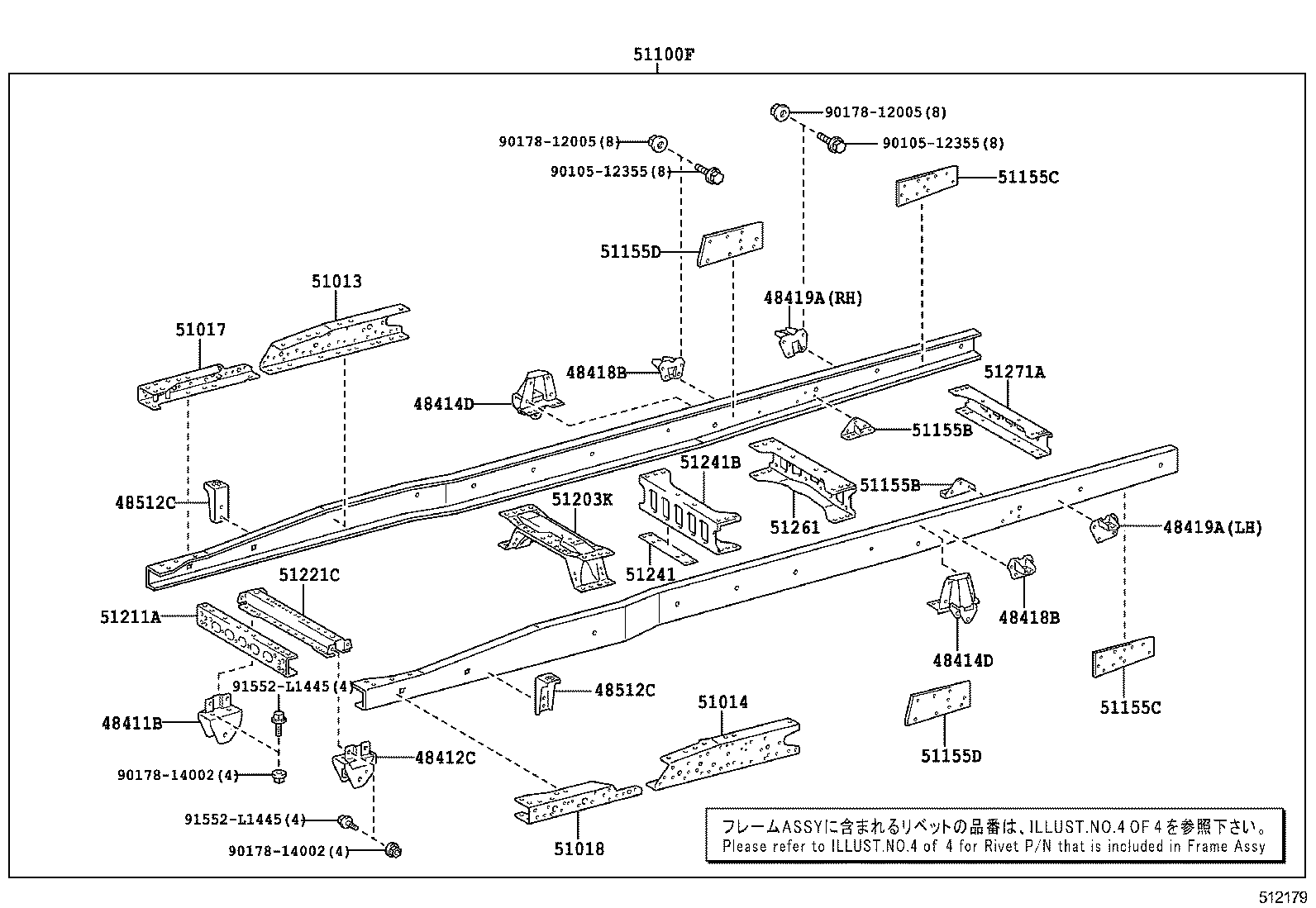

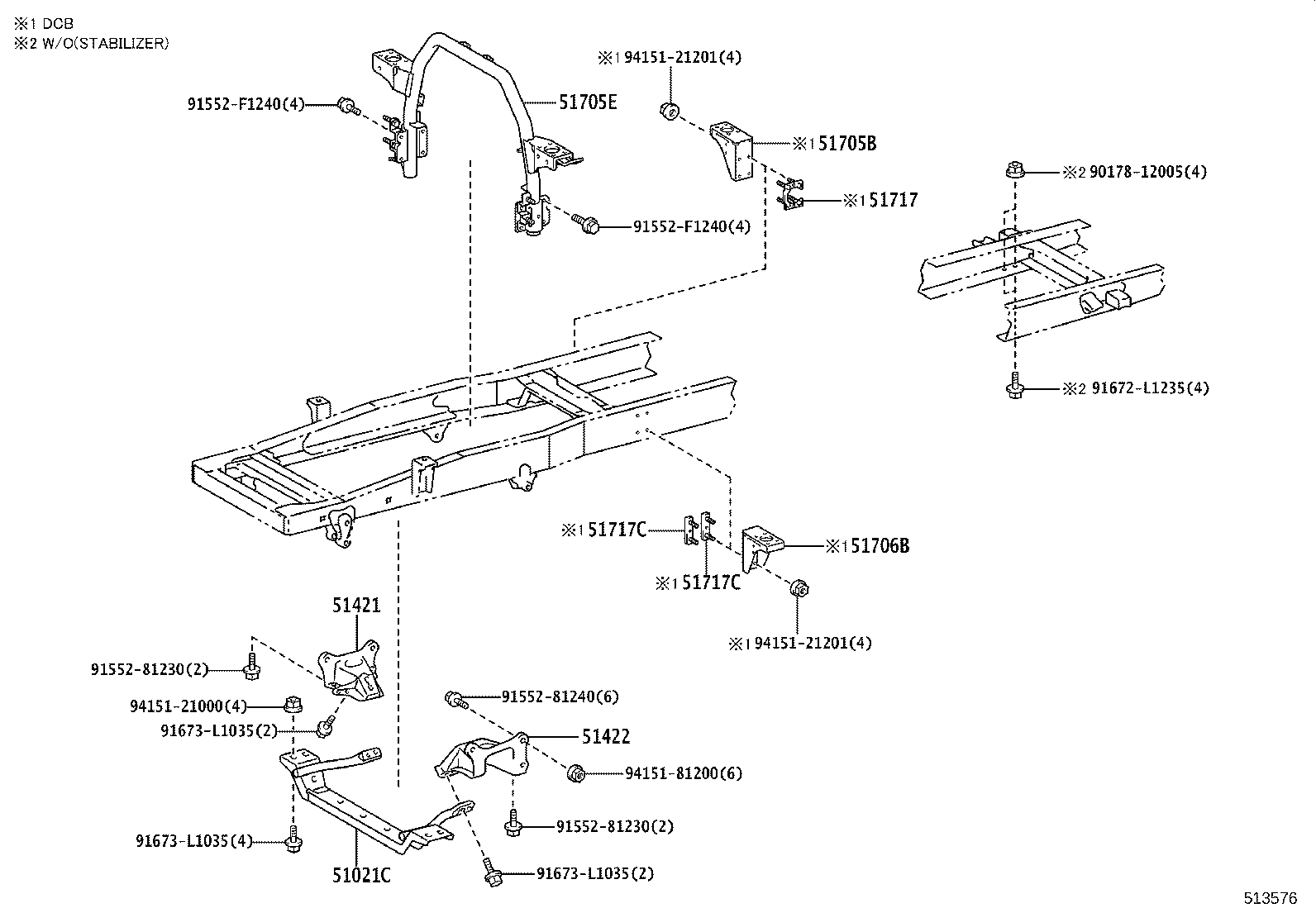

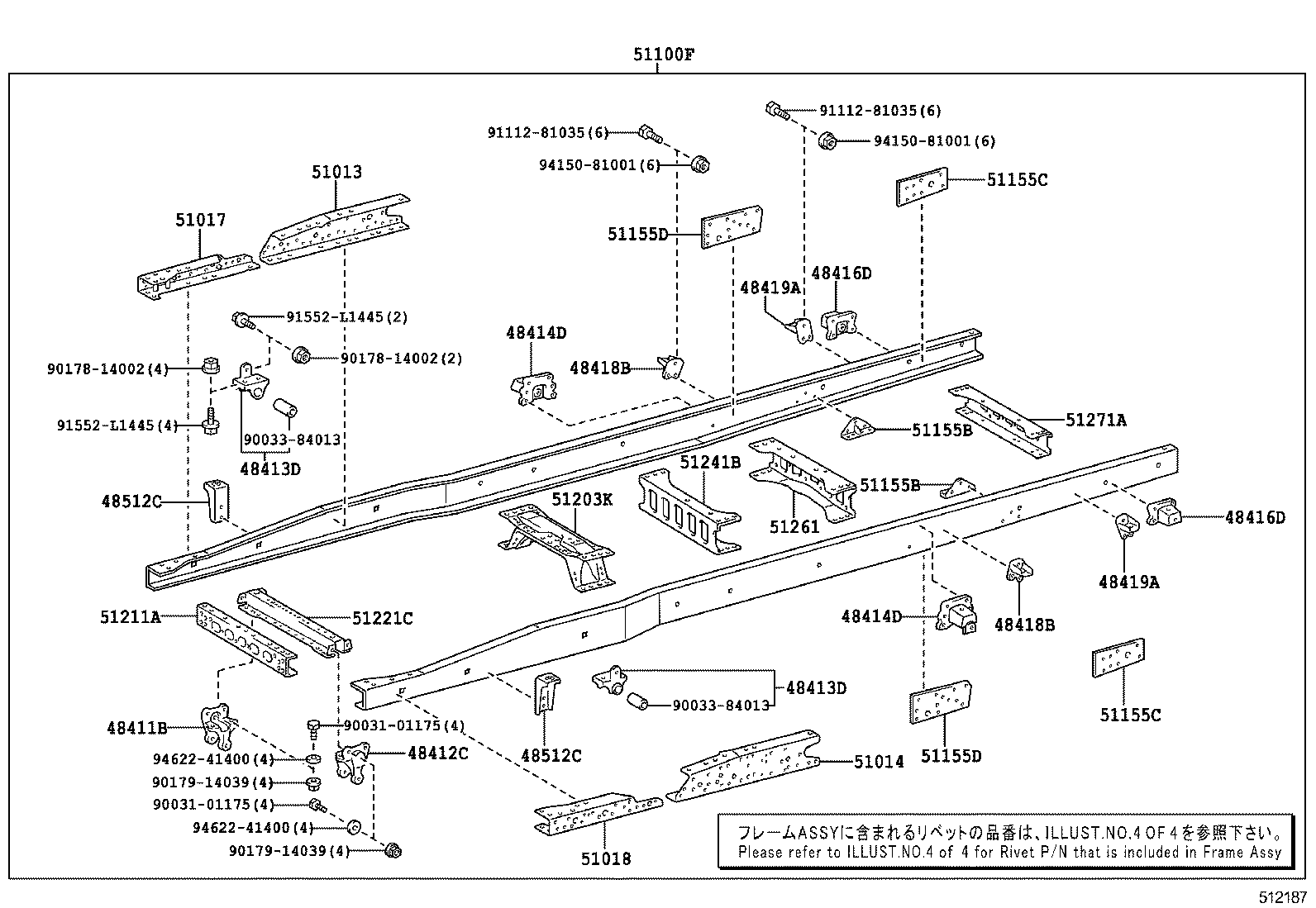

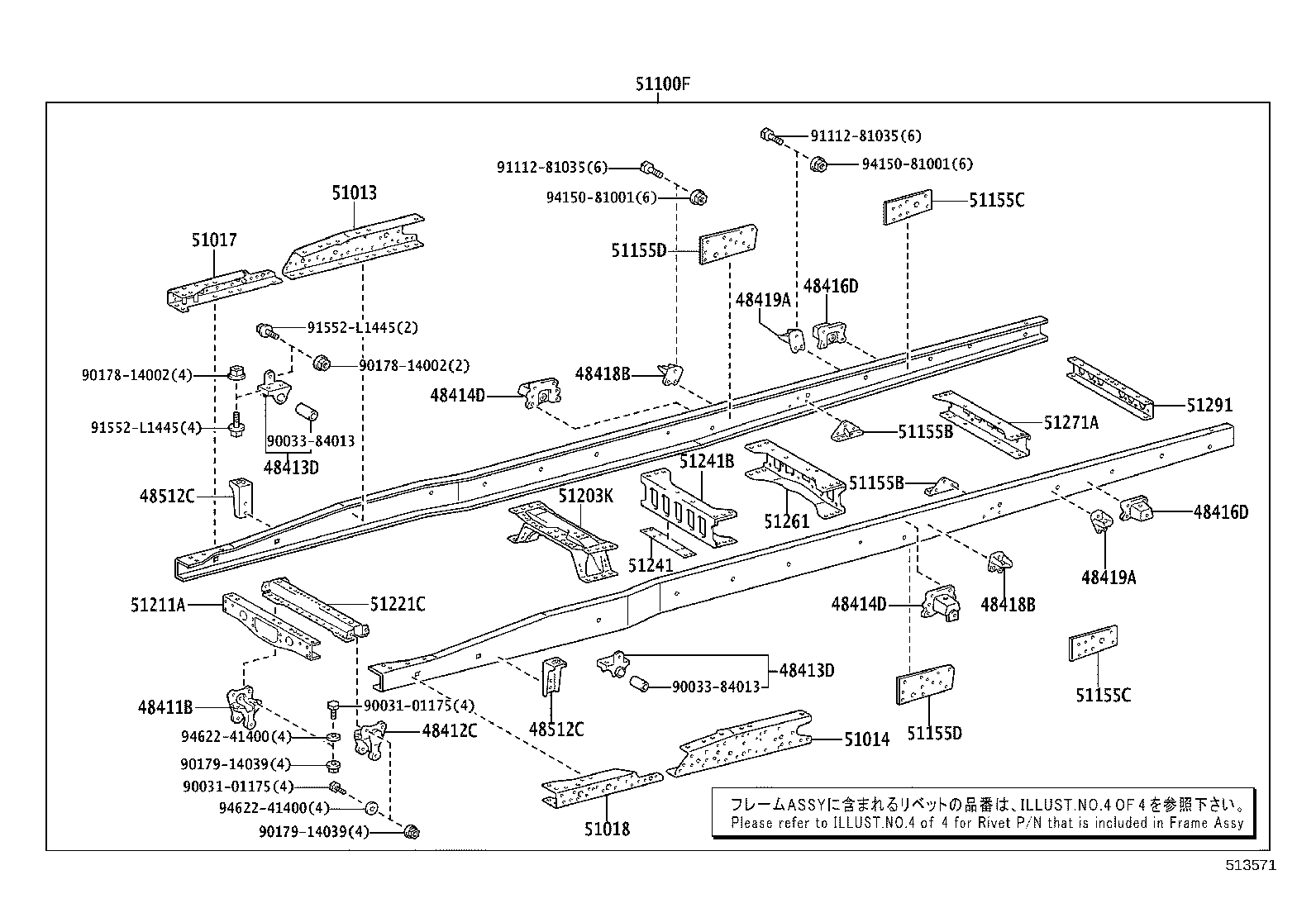

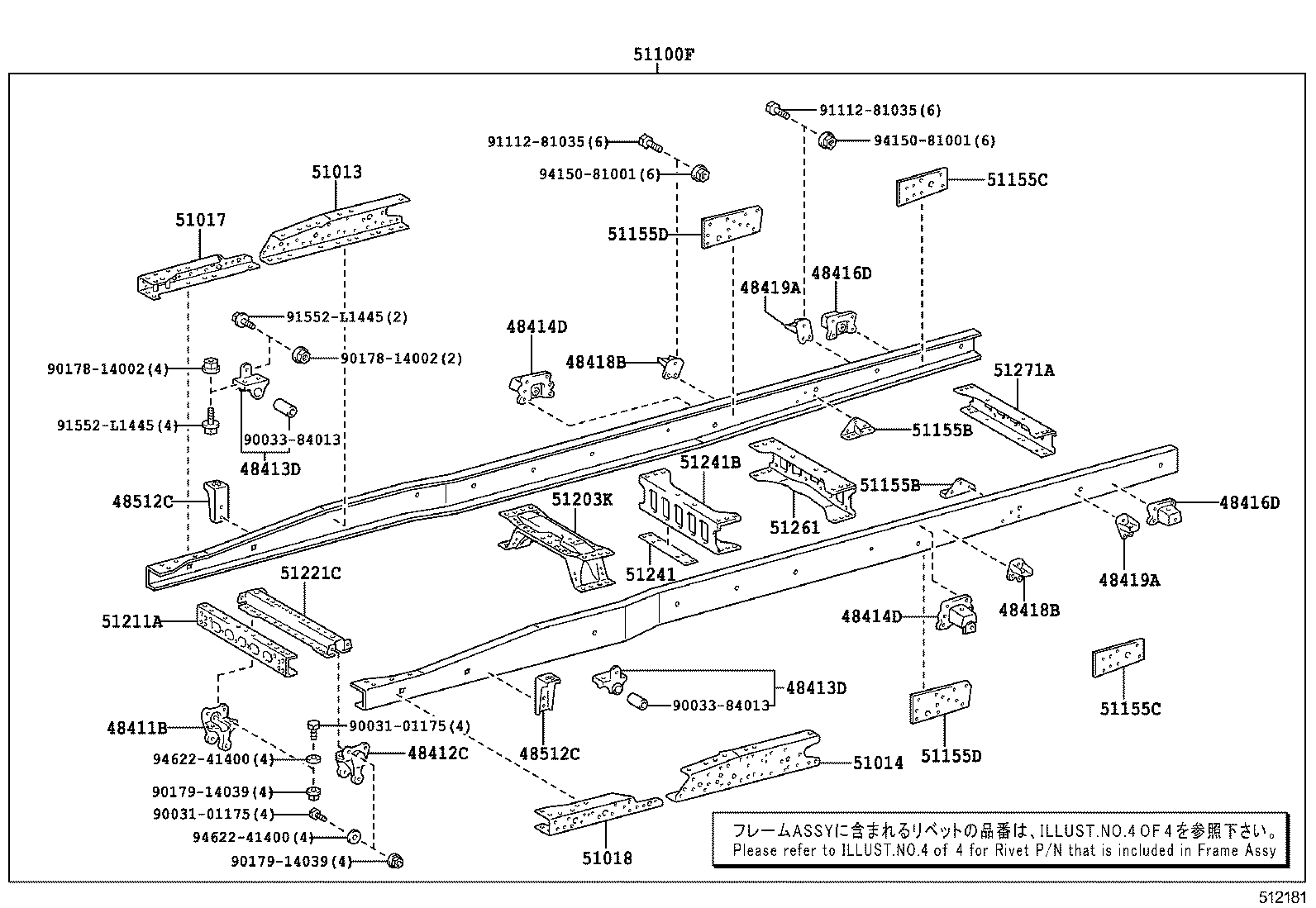

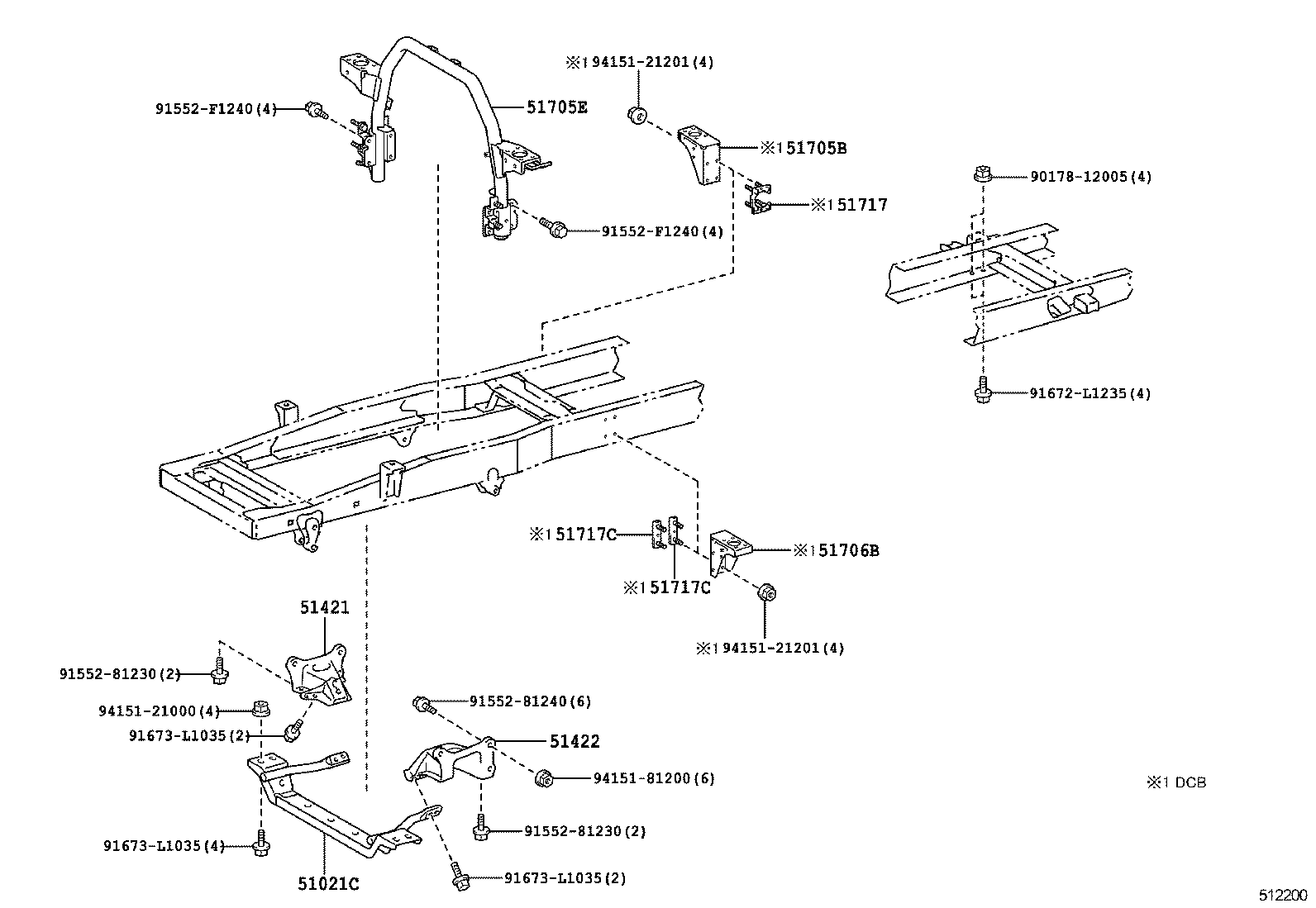

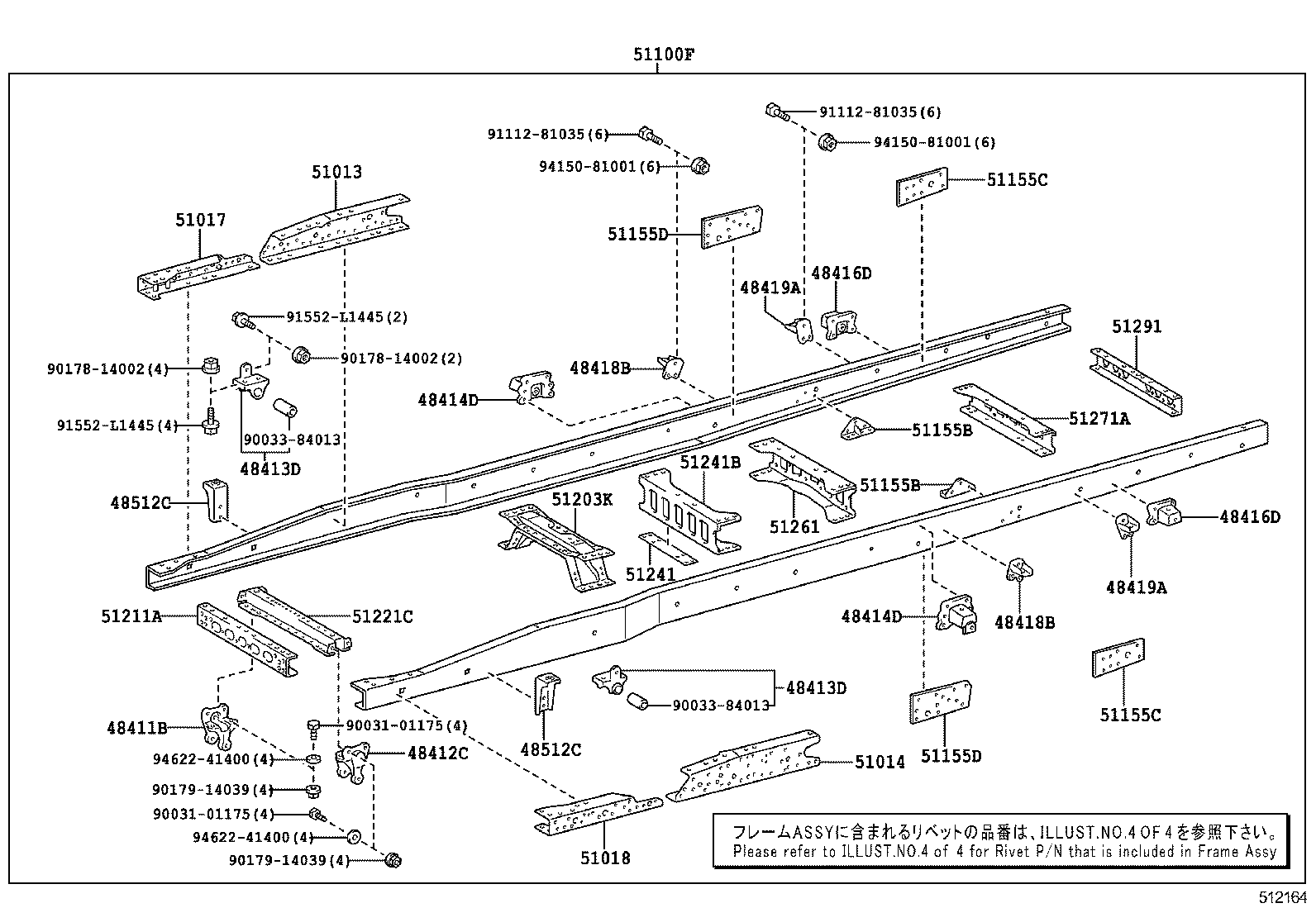

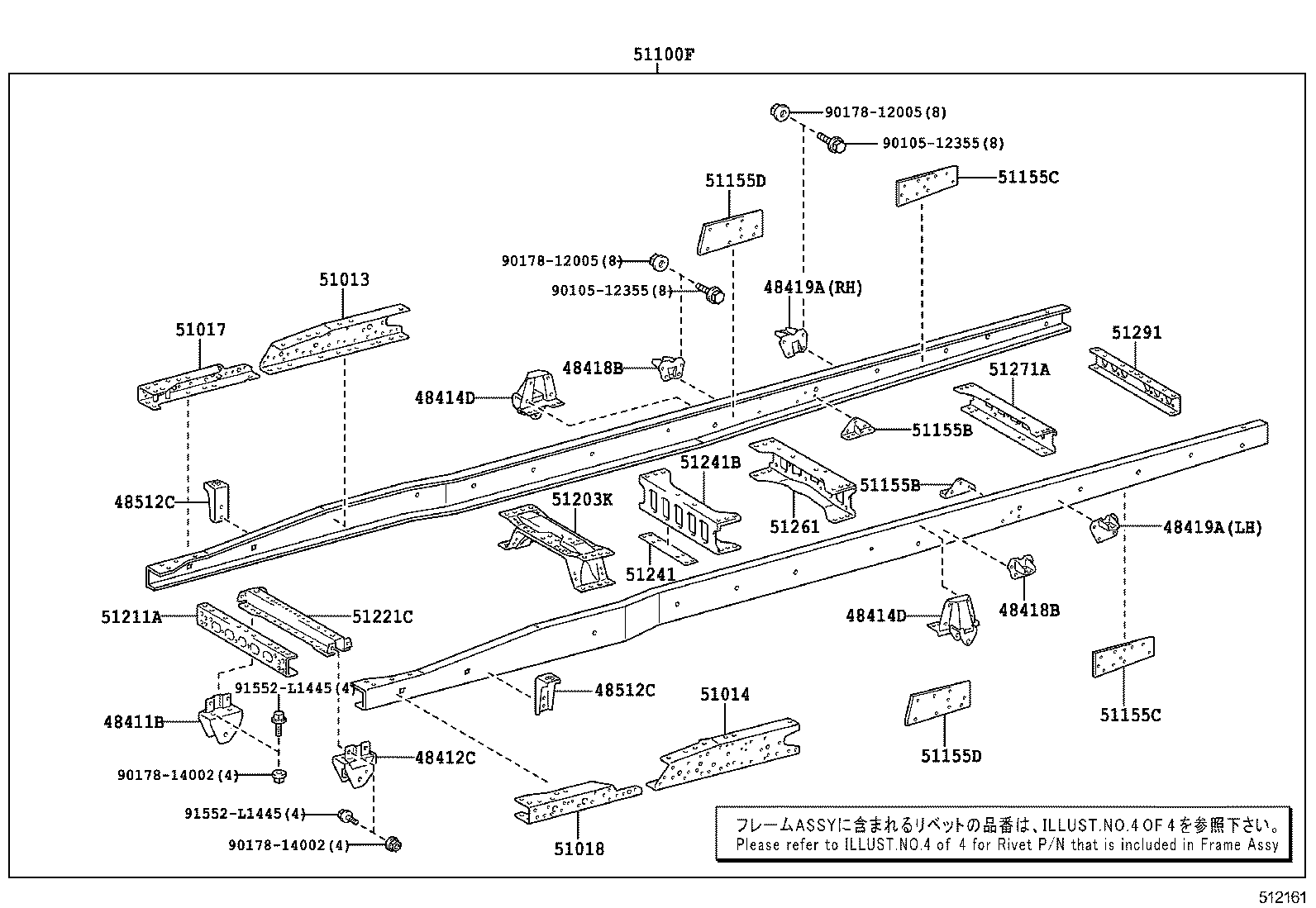

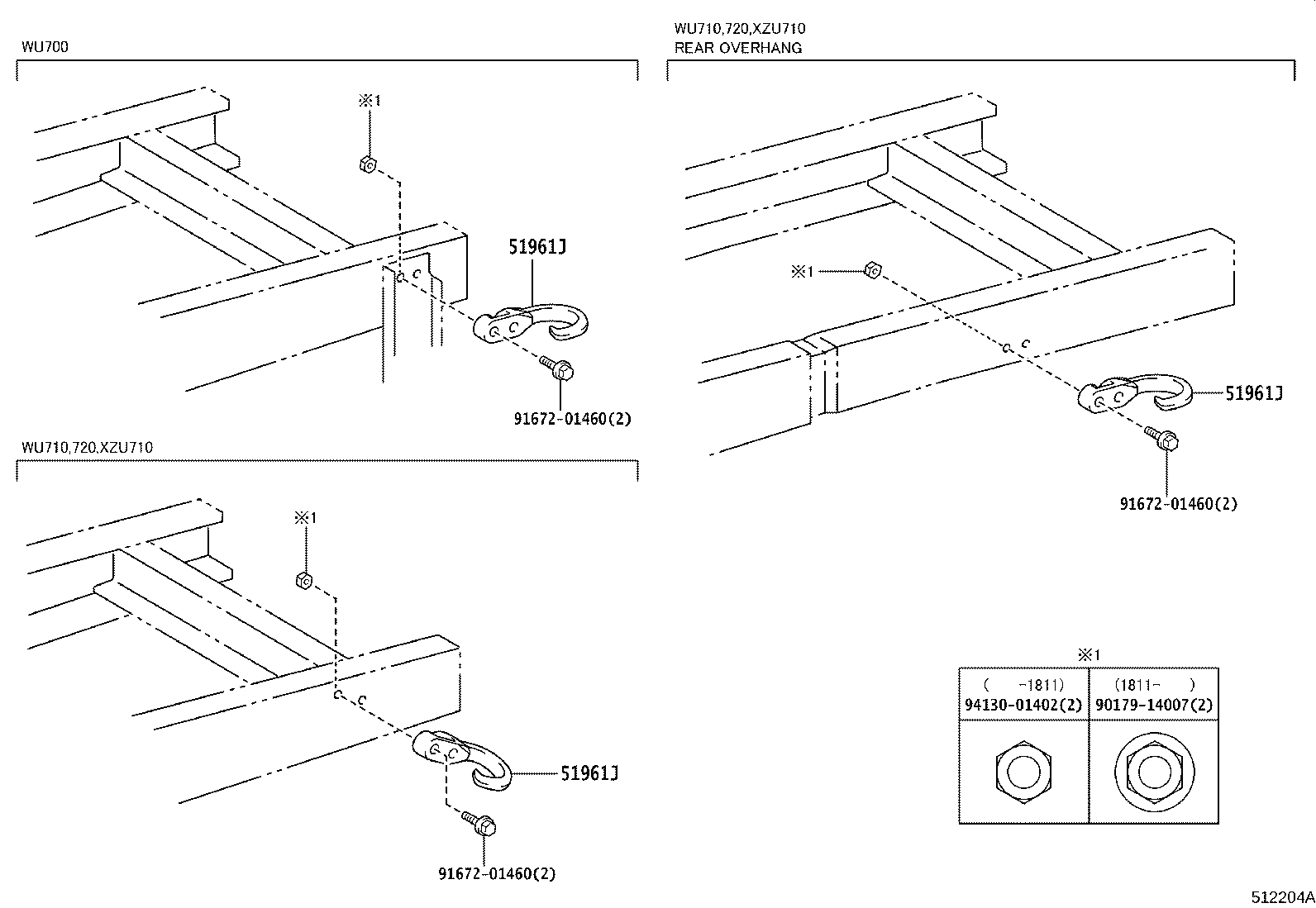

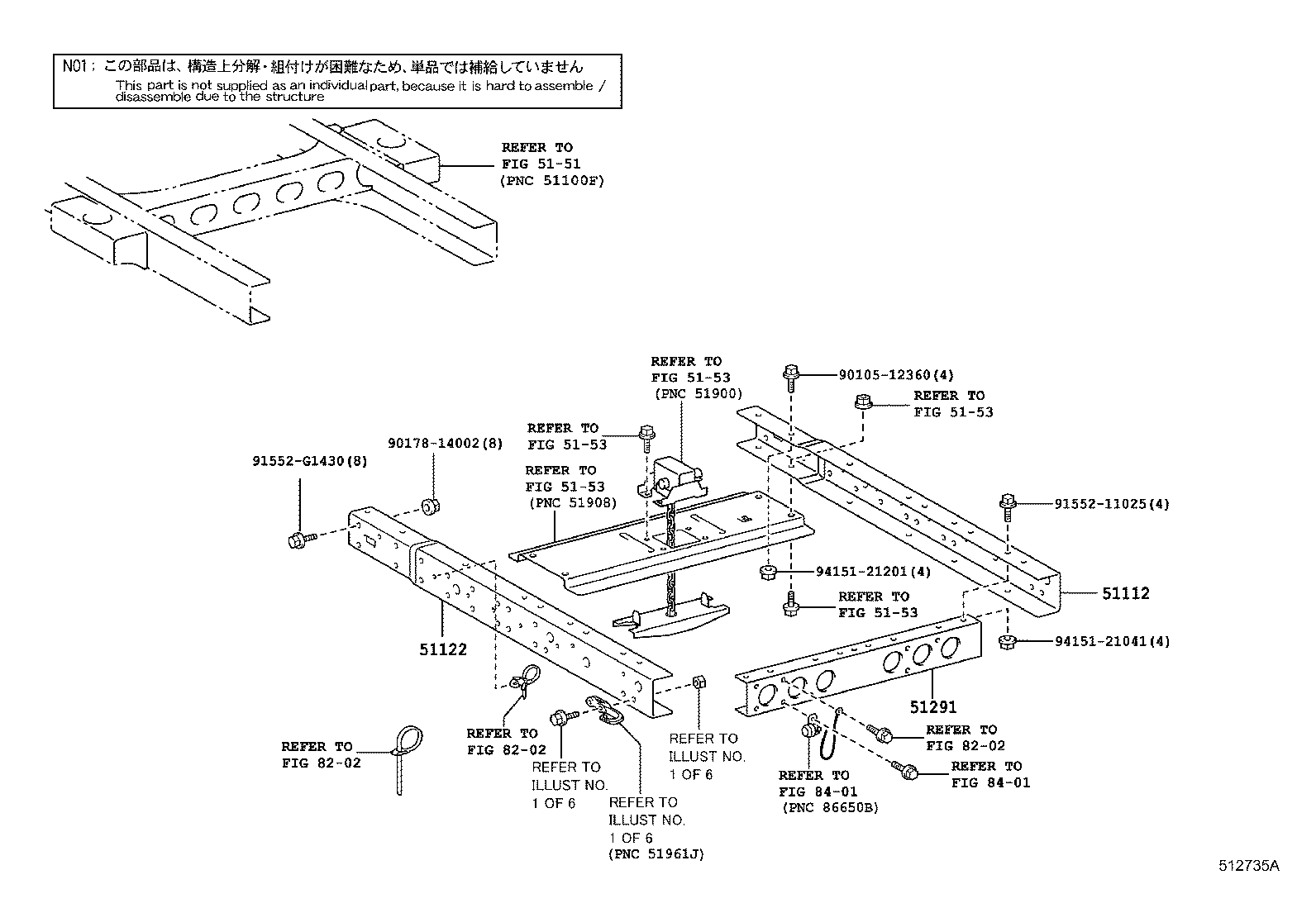

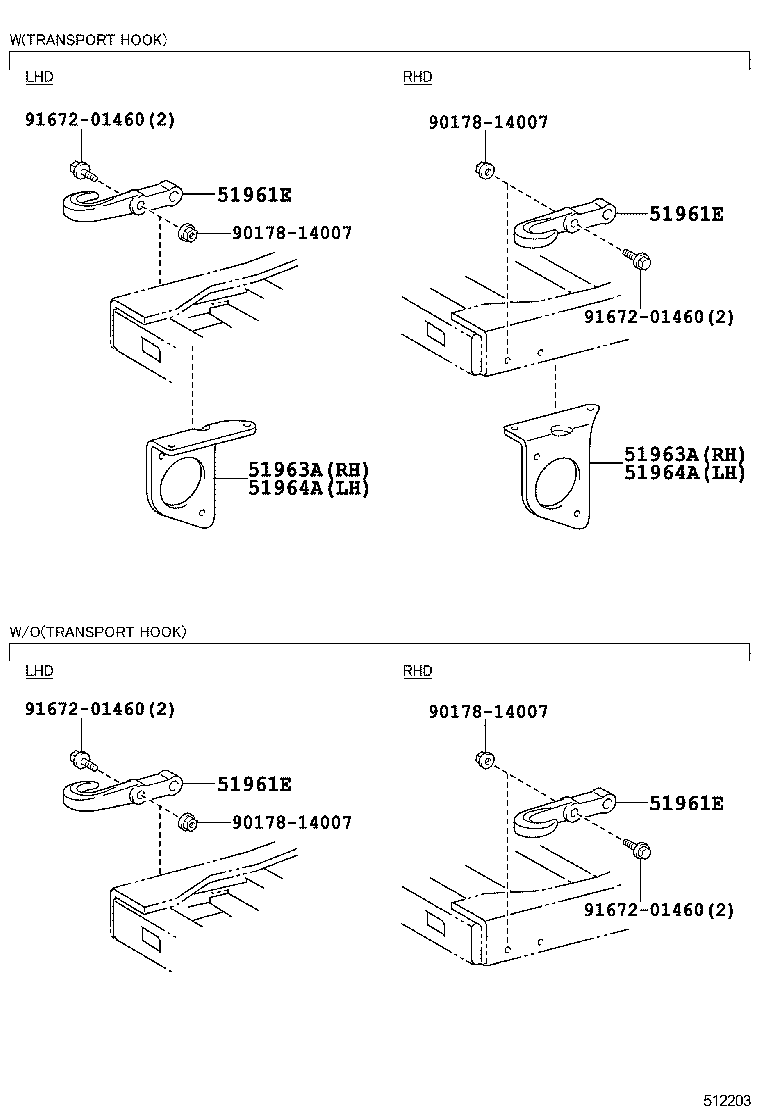

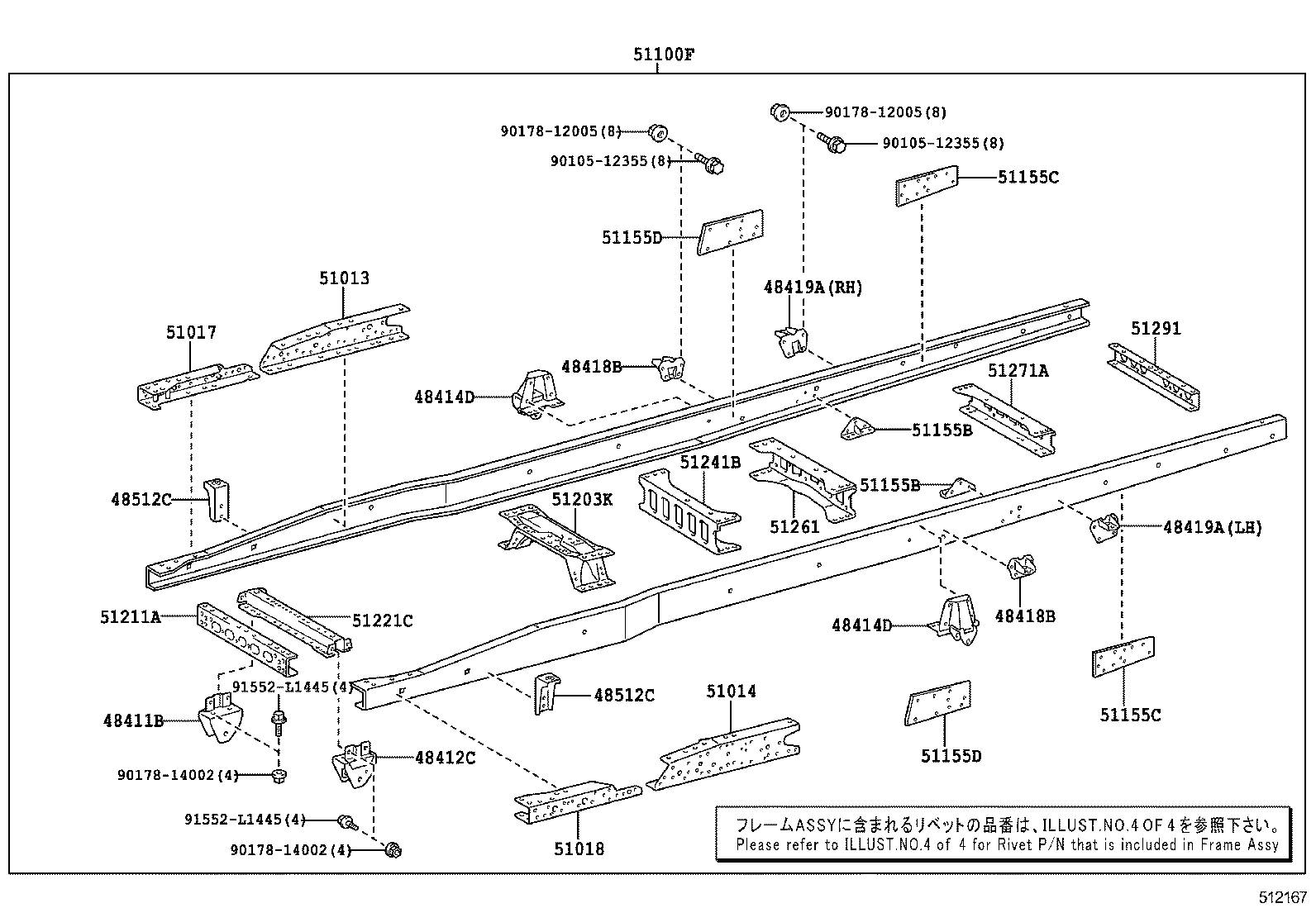

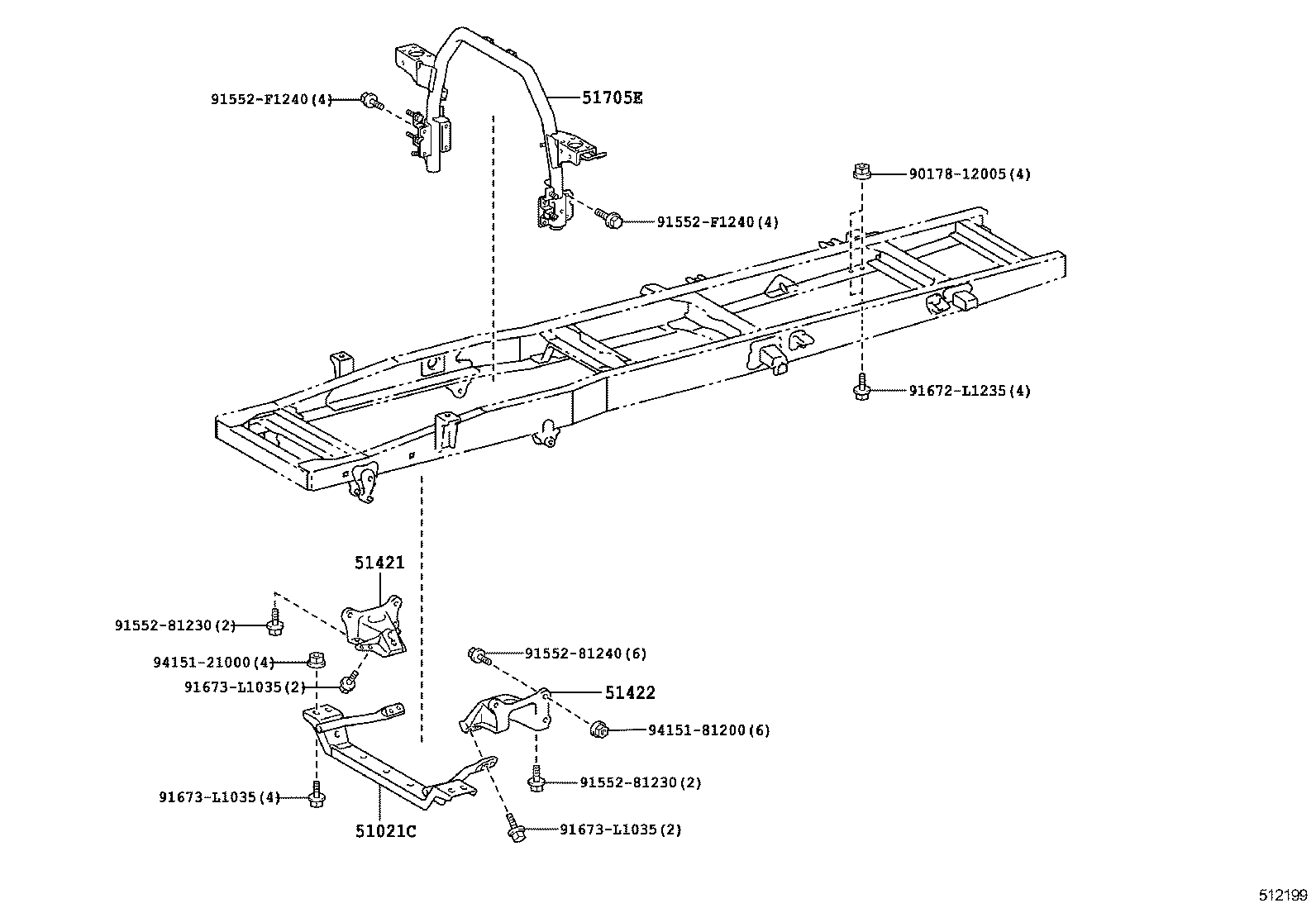

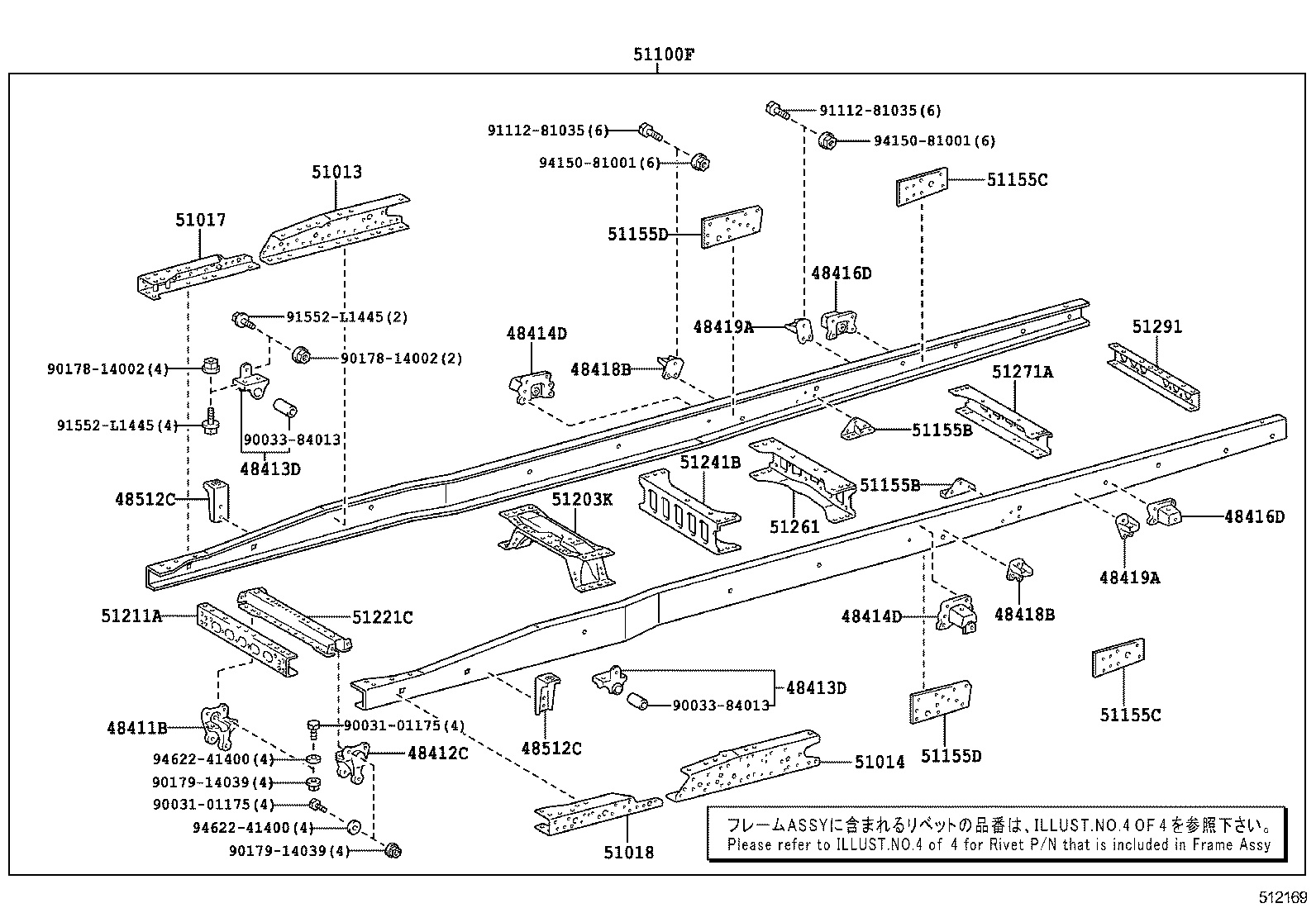

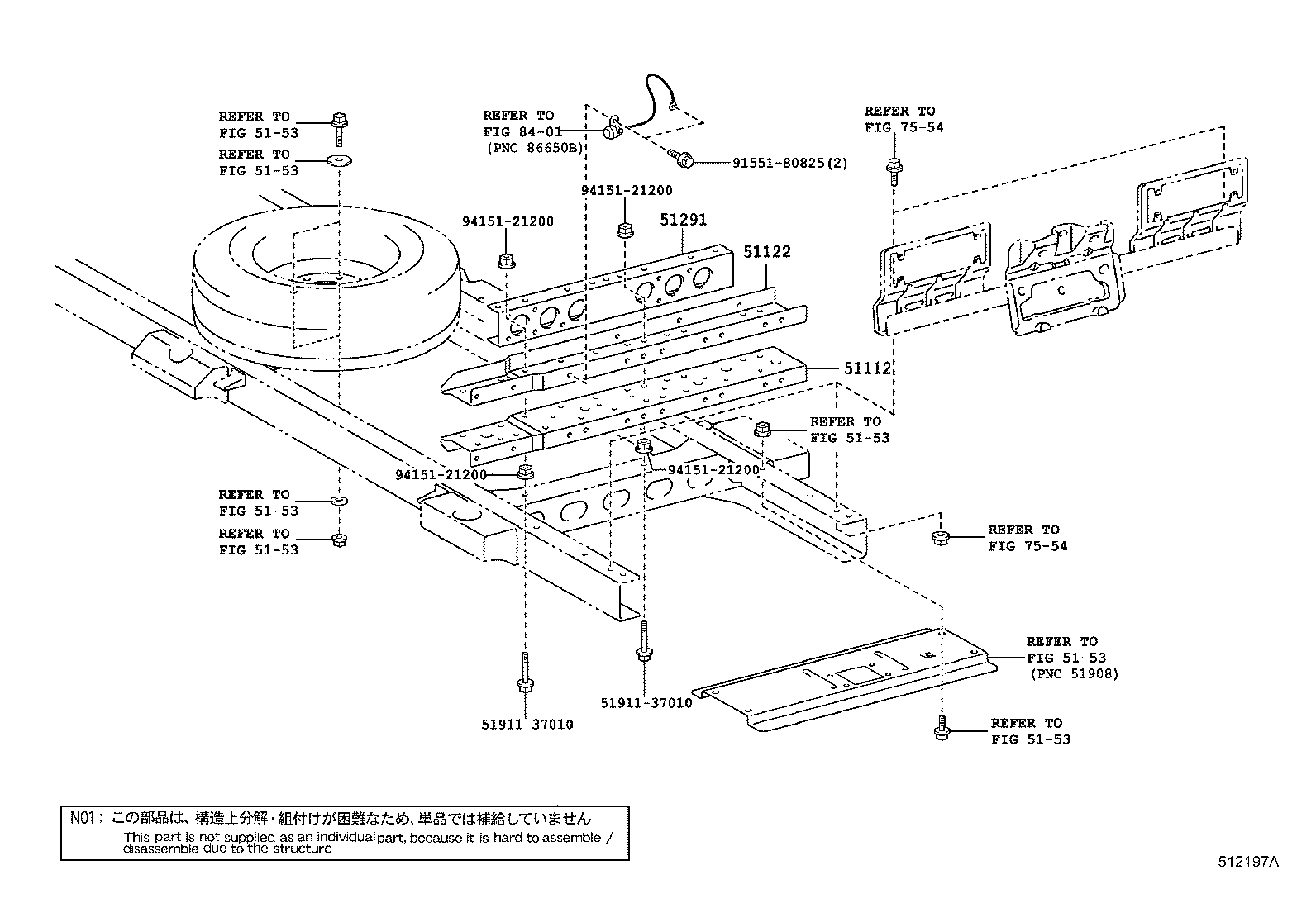

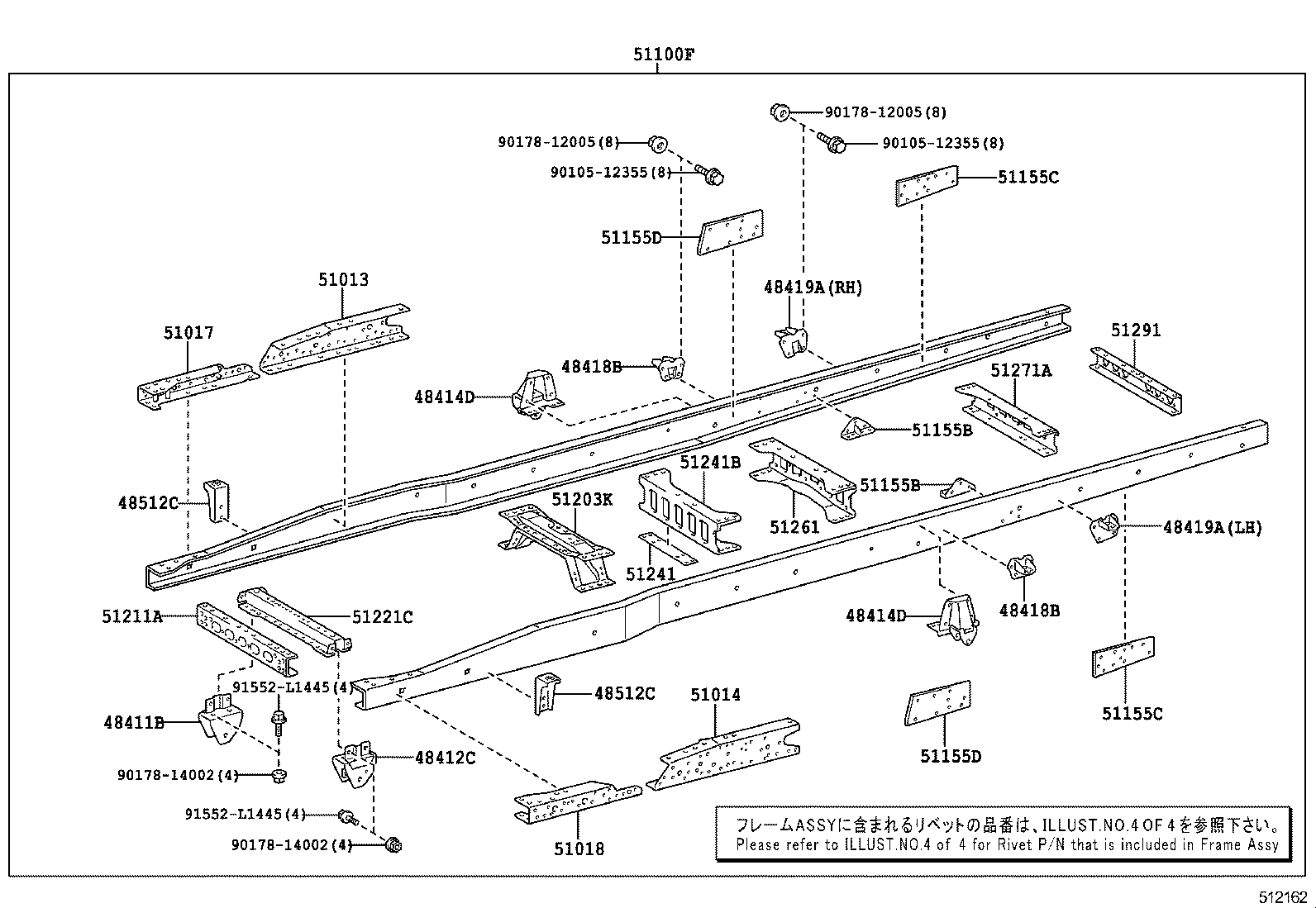

Figure 512158 512158 2011-07 → — Figure 512161 512161 2011-07 → — Figure 512161 512161 2011-08 → — Figure 512162 512162 2011-07 → — Figure 512163 512163 2011-07 → — Figure 512164 512164 2011-07 → — Figure 512167 512167 2011-07 → — Figure 512167 512167 2012-11 → — Figure 512169 512169 2011-07 → — Figure 512173 512173 2012-07 → — Figure 512179 512179 2011-07 → — Figure 512179 512179 2011-08 → — Figure 512181 512181 2011-07 → — Figure 512181 512181 2011-08 → — Figure 512185 512185 2011-07 → — Figure 512187 512187 2011-07 → — Figure 513569 513569 2019-11 → — Figure 513571 513571 2019-11 → — Figure 512197A 512197A 2011-07 → — Figure 512735A 512735A 2011-07 → — Figure 512199 512199 2011-07 → — Figure 512200 512200 2011-07 → — Figure 513576 513576 2019-11 → — Figure 512203 512203 2011-07 → — Figure 512501 512501 2012-11 → — Figure 512204A 512204A 2011-07 → — Figure 512208 512208 2011-07 → —

Part groups

PNCDescription
48411B Bracket, Spring, NO.1 RH
48412C Bracket, Spring, NO.1 LH
48413D Bracket, Spring, NO.2
48414D Bracket, Spring, NO.3
48416D Bracket, Spring, NO.4
48418B Bracket, Spring, NO.6
48419A Bracket, Spring, NO.7
48512C Bracket, Front Shock Absorber, Upper
51013 Channel Sub-assy, Side Rail, Inner Front RH
51014 Channel Sub-assy, Side Rail, Inner Front LH
51017 Reinforcement Sub-assy, Side Rail, NO.1 RH
51018 Reinforcement Sub-assy, Side Rail, NO.1 LH
51021C Member Sub-assy, Engine Front Support
51100F Frame Sub-assy
51112 Extension, Side Rail, RH
51122 Extension, Side Rail, LH
51155B Stiffener, Frame Side Rail, Rear NO.2
51155C Stiffener, Frame Side Rail, Rear NO.3
51155D Stiffener, Frame Side Rail, Rear NO.1
51203K Crossmember Sub-assy, Frame, NO.3
51211A Crossmember, Frame, Front
51221C Crossmember, Frame, NO.2
51241 Bracket, Center Bearing Support
51241B Crossmember, Frame, NO.4
51241C Crossmember, Frame, NO.5
51241D Bracket, Center Bearing Support, NO.1
51261 Crossmember, Frame, NO.6
51271A Crossmember, Frame, NO.7
51291 Crossmember, Frame, Rear
51421 Bracket, Engine Front Mounting, RH
51422 Bracket, Engine Front Mounting, LH
51705B Bracket Sub-assy, Cab Mounting, NO.3 RH
51705E Bracket Sub-assy, Cab Rear Mounting
51706B Bracket Sub-assy, Cab Mounting, NO.3 LH
51717 Plate, Body Support Bracket
51717C Plate, Body Support Bracket
51961E Hook, Front
51961J Hook, Rear
51962C Retainer, Front Hook
51963A Hook, Transport, Front RH
51963C Retainer, Front Hook, LH
51964A Hook, Transport, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
