Toyota Land Cruiser

1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

31 part groups · 11 illustrations

Illustrations

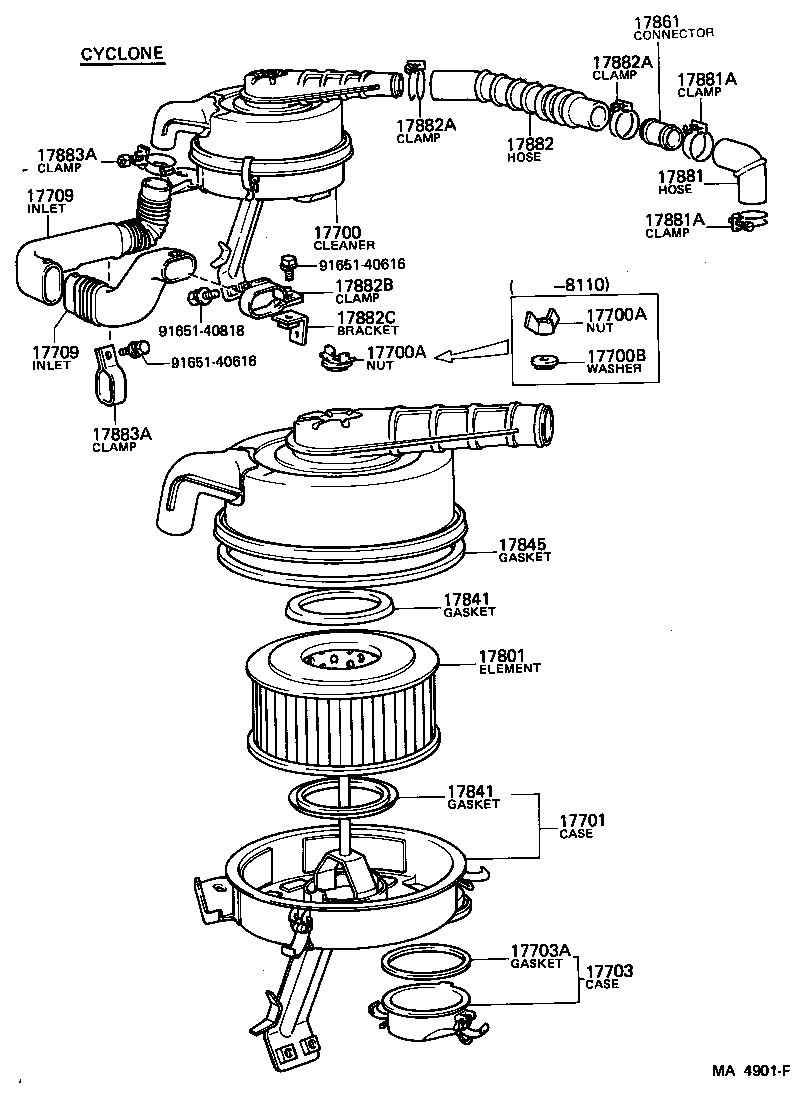

Figure MA4899D MA4899D 1980-08 → 1984-10 Figure MA4900D MA4900D 1980-08 → 1984-10 Figure MA4901F MA4901F 1980-08 → 1984-10 Figure MA4829B MA4829B 1980-08 → — Figure MA4831C MA4831C 1980-08 → — Figure MA4832C MA4832C 1980-08 → — Figure MA4905C MA4905C 1980-08 → 1985-10 Figure MA4874A MA4874A 1980-08 → 1985-06 Figure MA4875A MA4875A 1980-08 → 1985-06 Figure MA4876A MA4876A 1980-08 → 1985-06 Figure MA8205 MA8205 1984-07 → 1984-10

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17701 Case Sub-assy, Air Cleaner
17703 Case Sub-assy, Bottom Air Cleaner Filter
17703A Gasket(FOR BOTTOM AIR CLEANER FILTER CASE)
17705 Cap Sub-assy, Air Cleaner
17709 Inlet Sub-assy, Air Cleaner
17710A Bracket Sub-assy, Air Cleaner Inlet Duct
17728 Valve, Thermostatic
17728A Bush
17730 Precleaner Assy, Air W/Hose
17751 Inlet, Air Cleaner, NO.1
17765 Stay, Air Cleaner, NO.1
17775 Wing, Cyclone
17801 Element Sub-assy, Air Cleaner Filter
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17851 Bracket, Air Cleaner Support
17852 Bracket, Air Creaner Support, NO.2
17861 Connector, Intake Air
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17882B Clamp(FOR COOL AIR INTAKE)
17882C Bracket(FOR COOL AIR INTAKE)
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
