Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

100 part groups · 14 illustrations

Illustrations

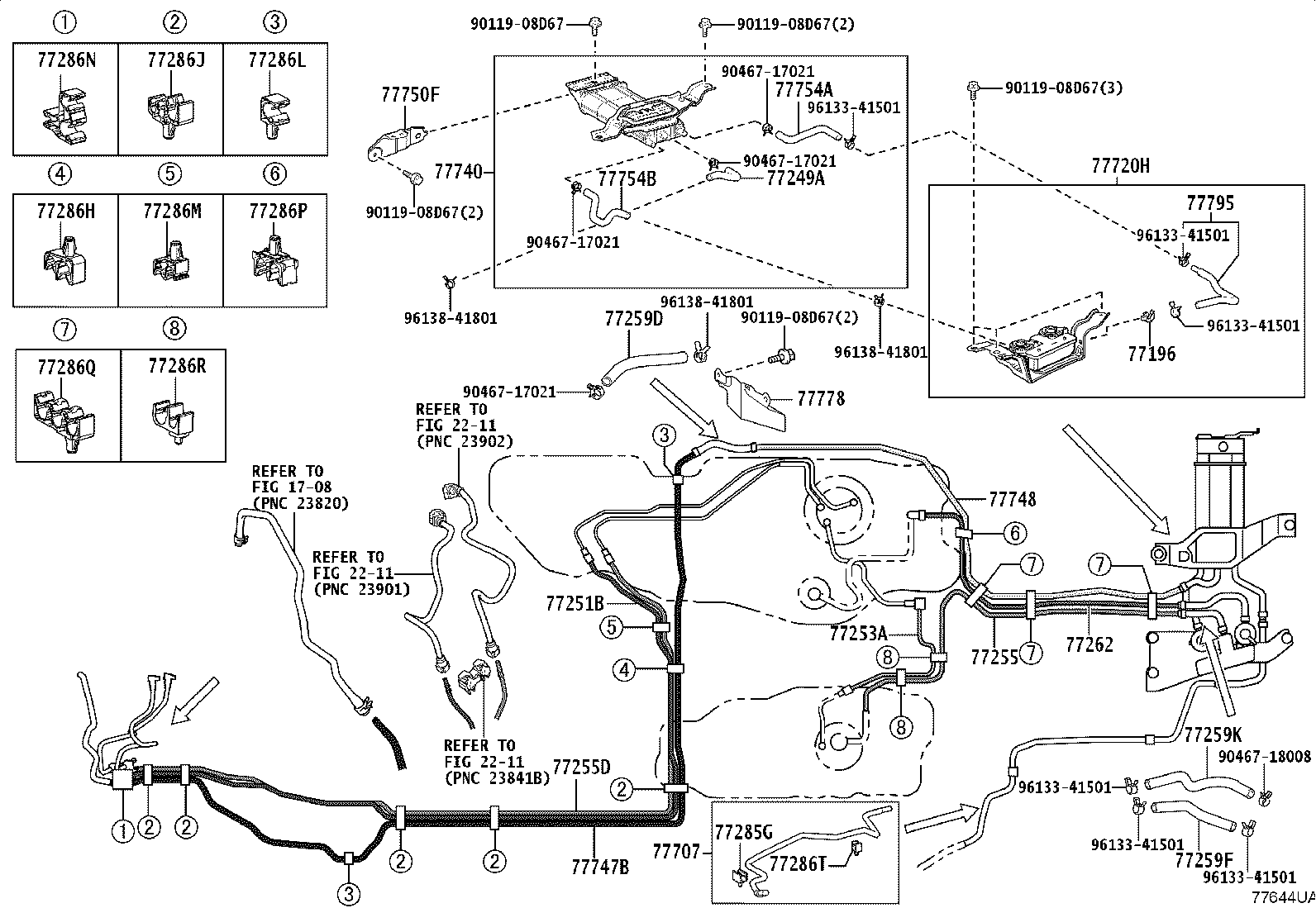

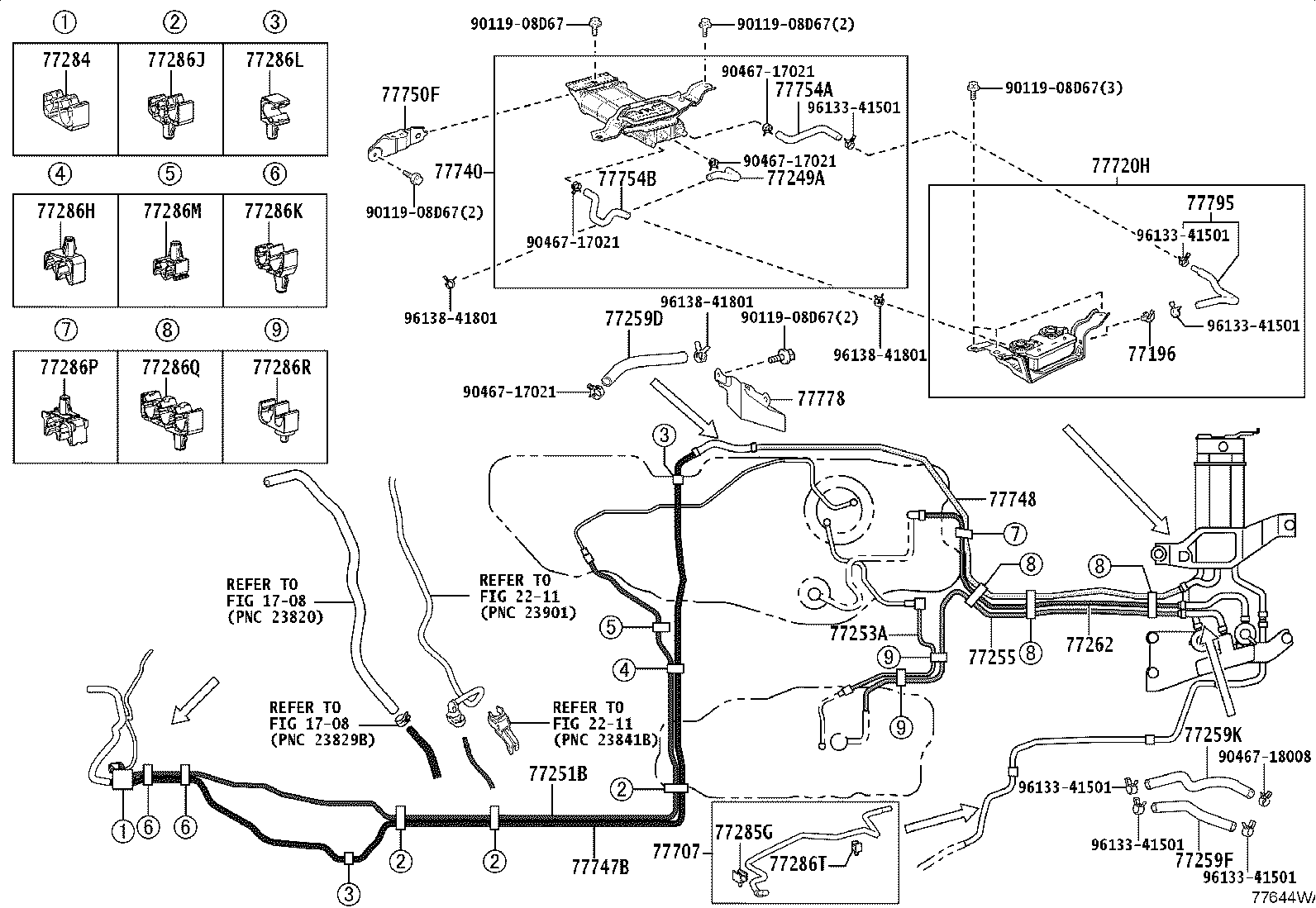

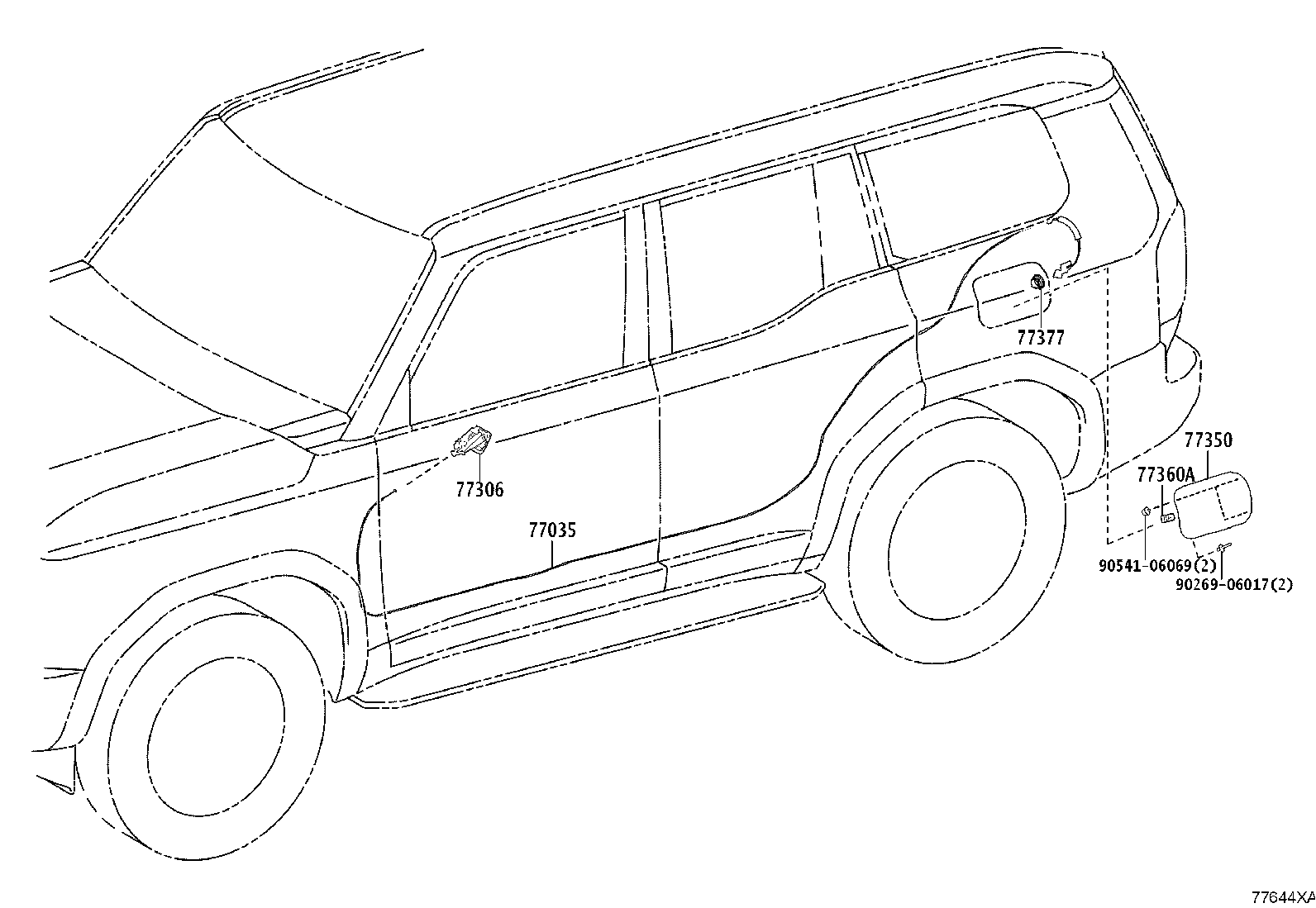

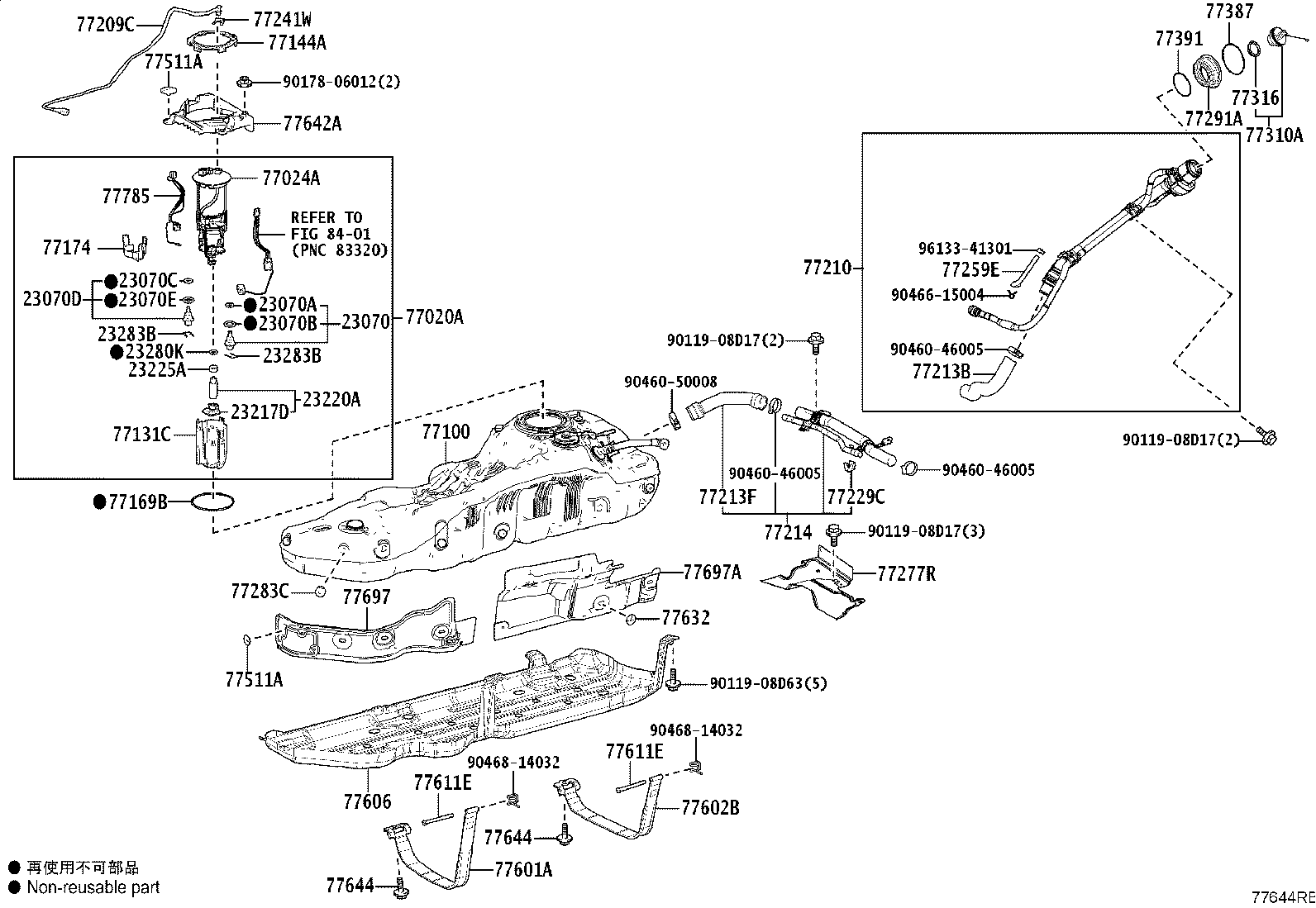

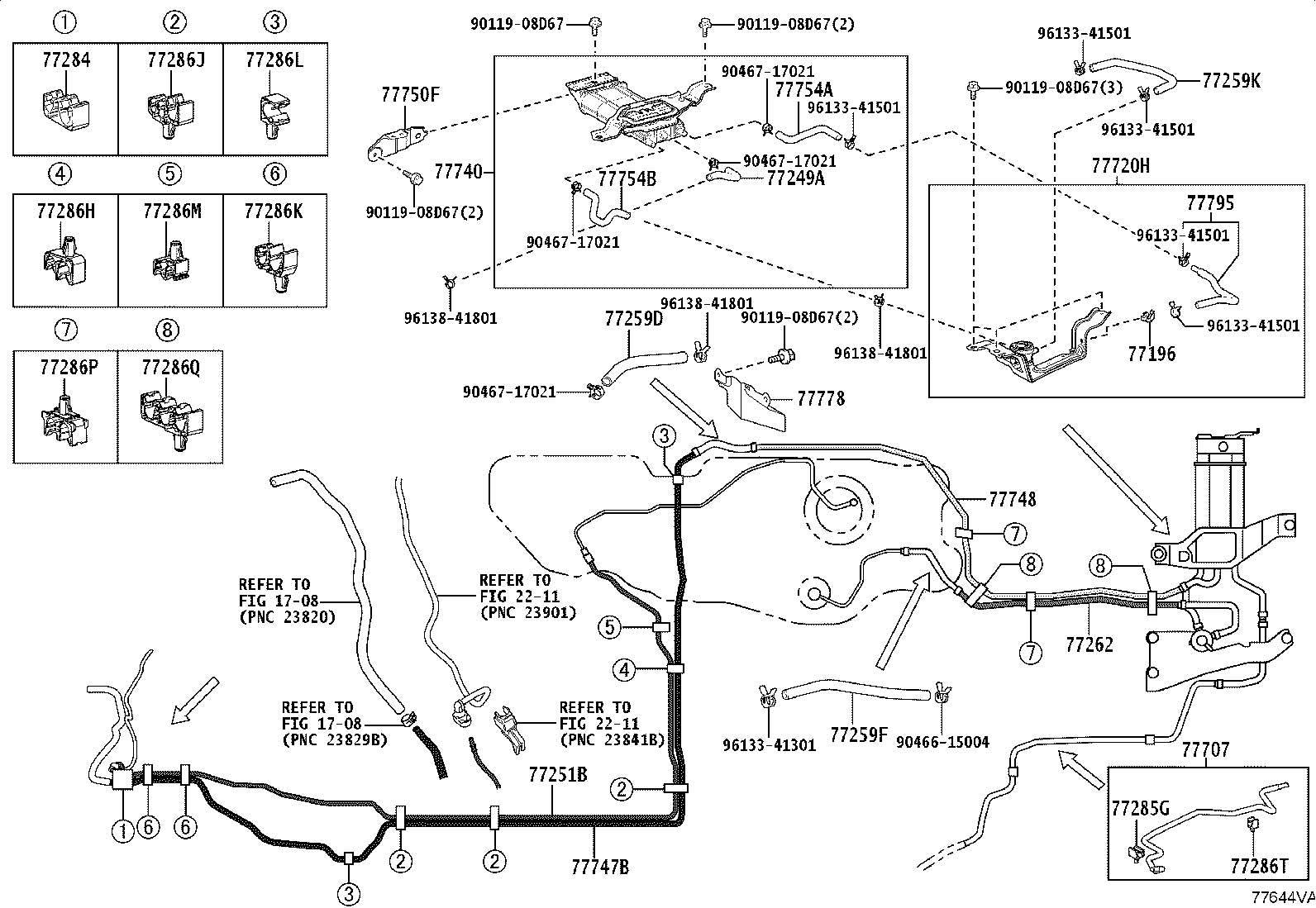

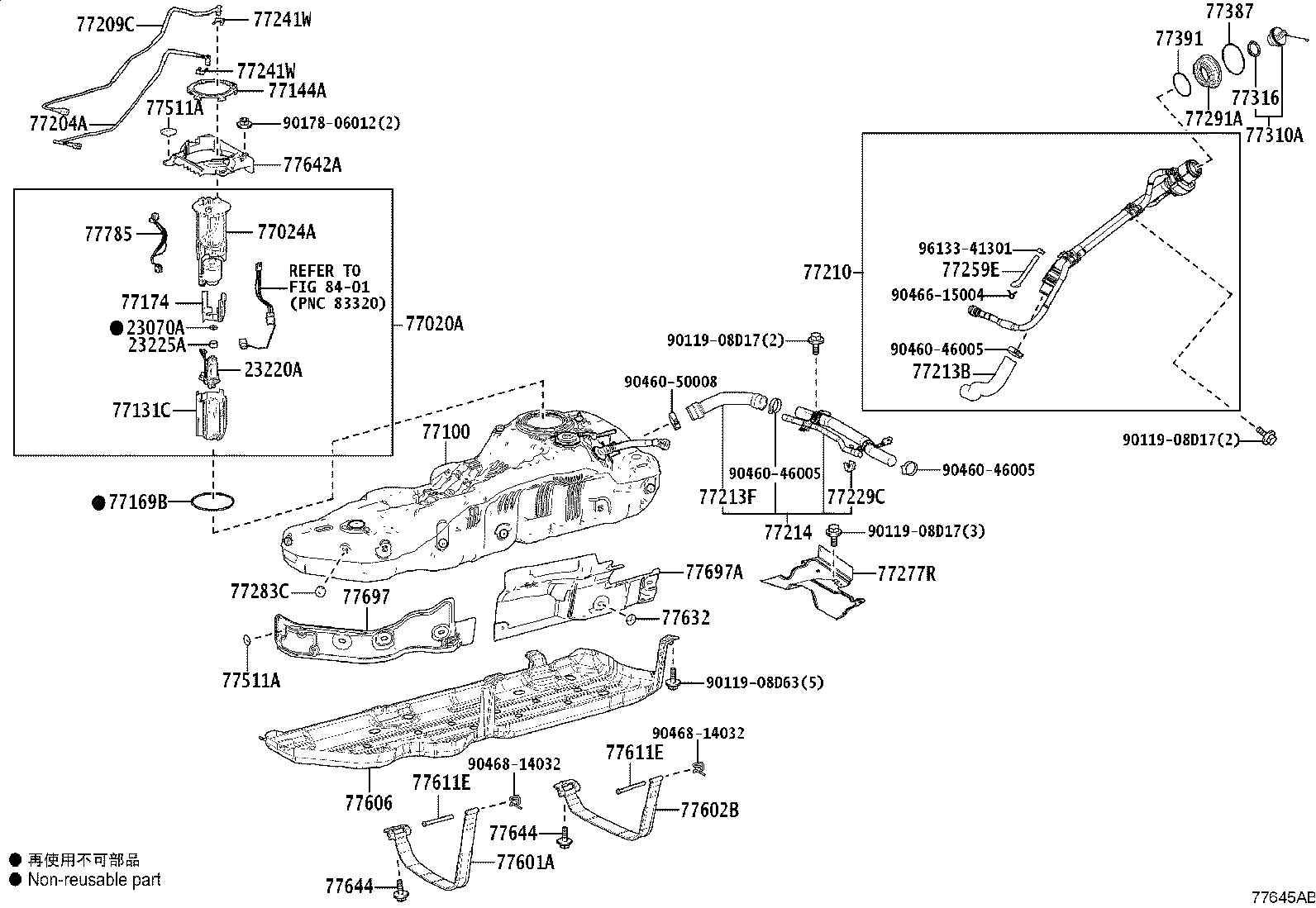

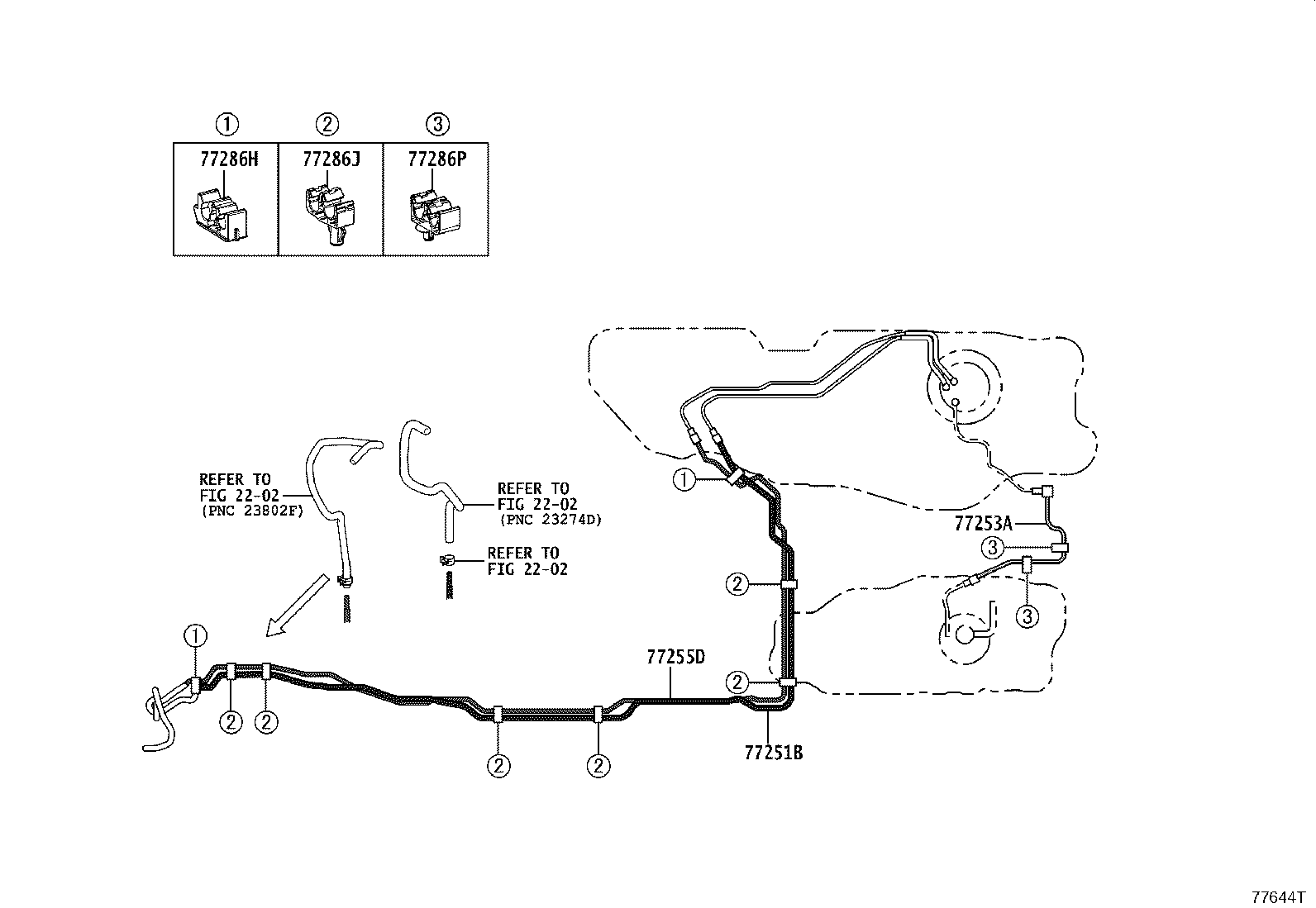

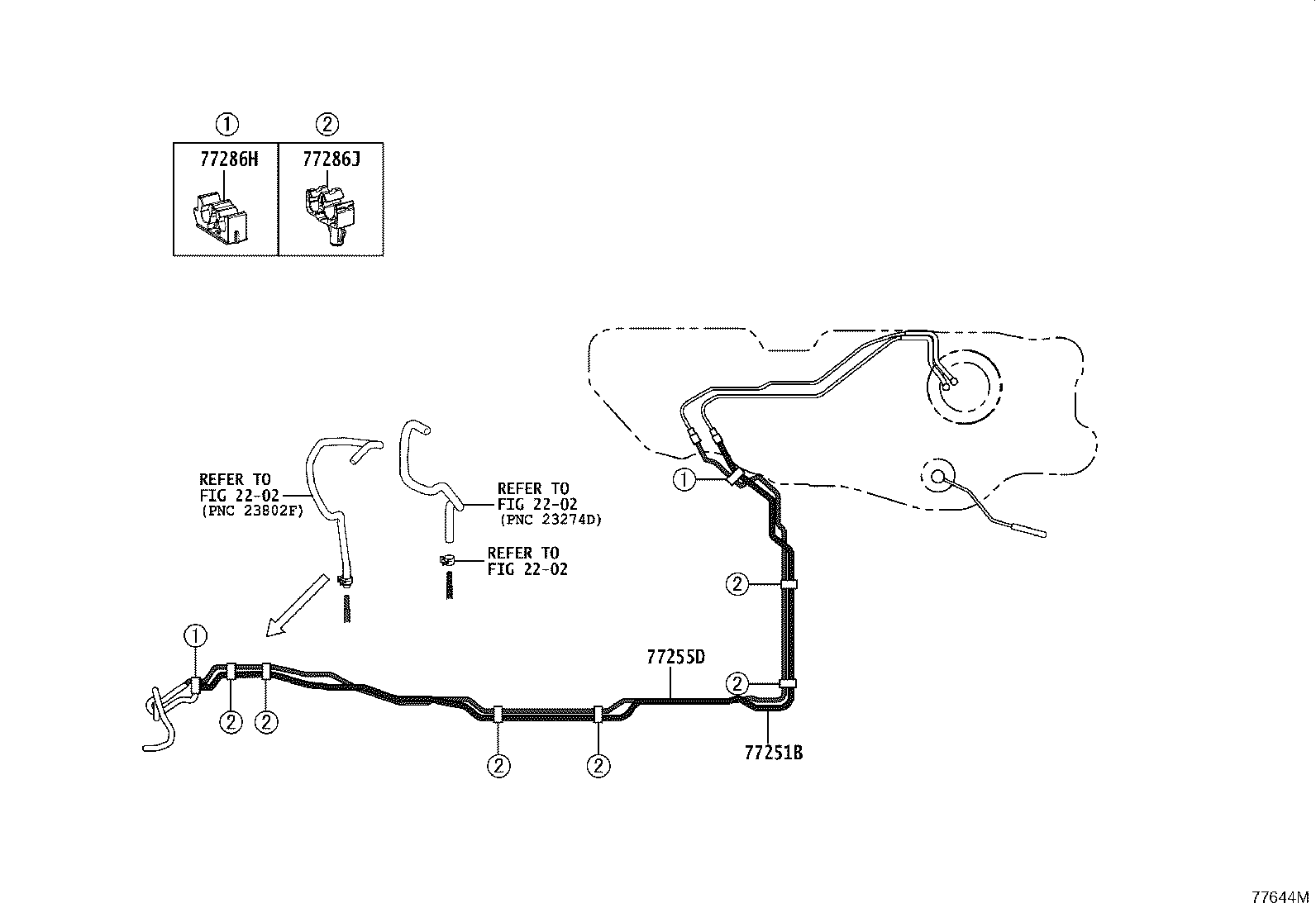

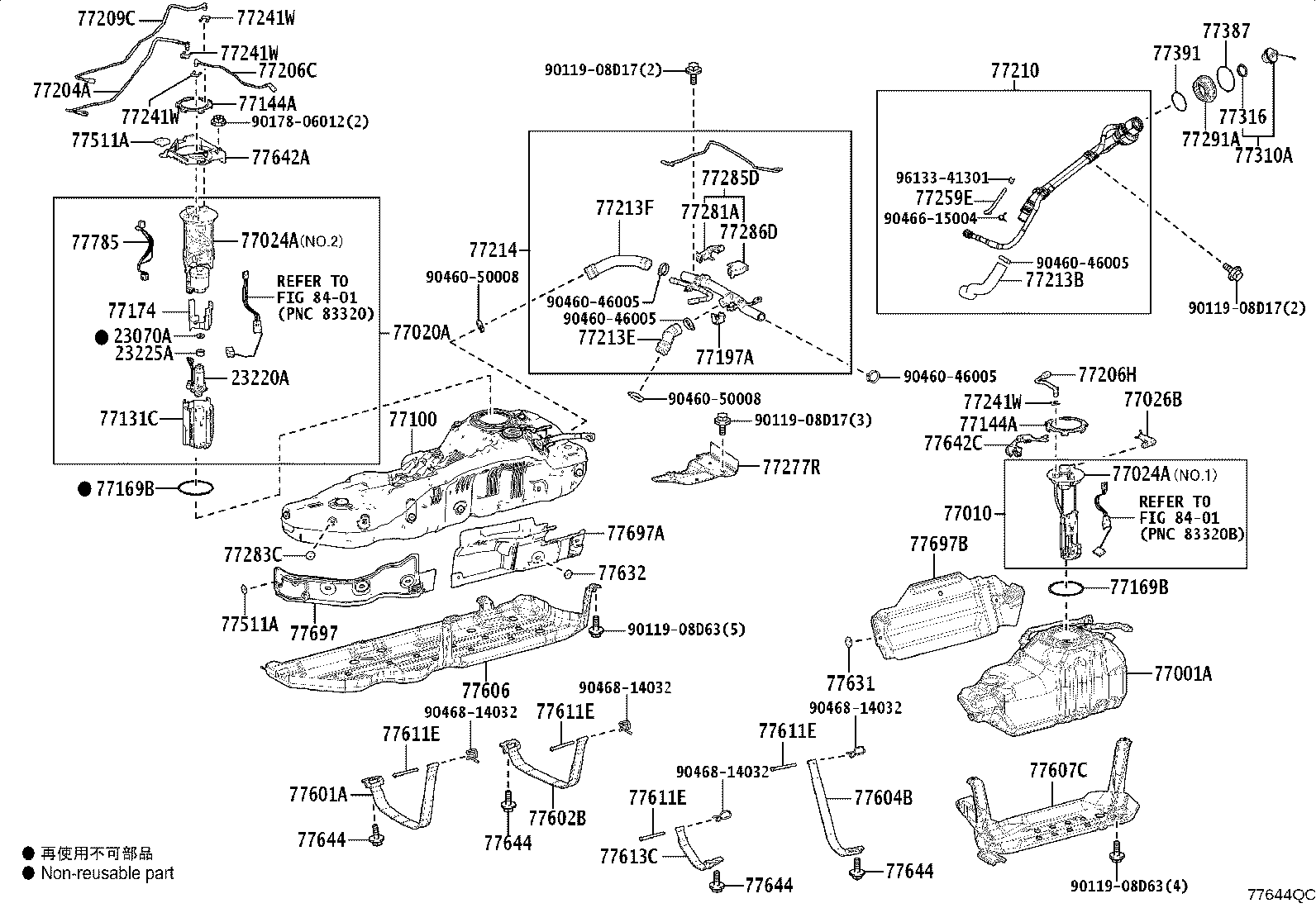

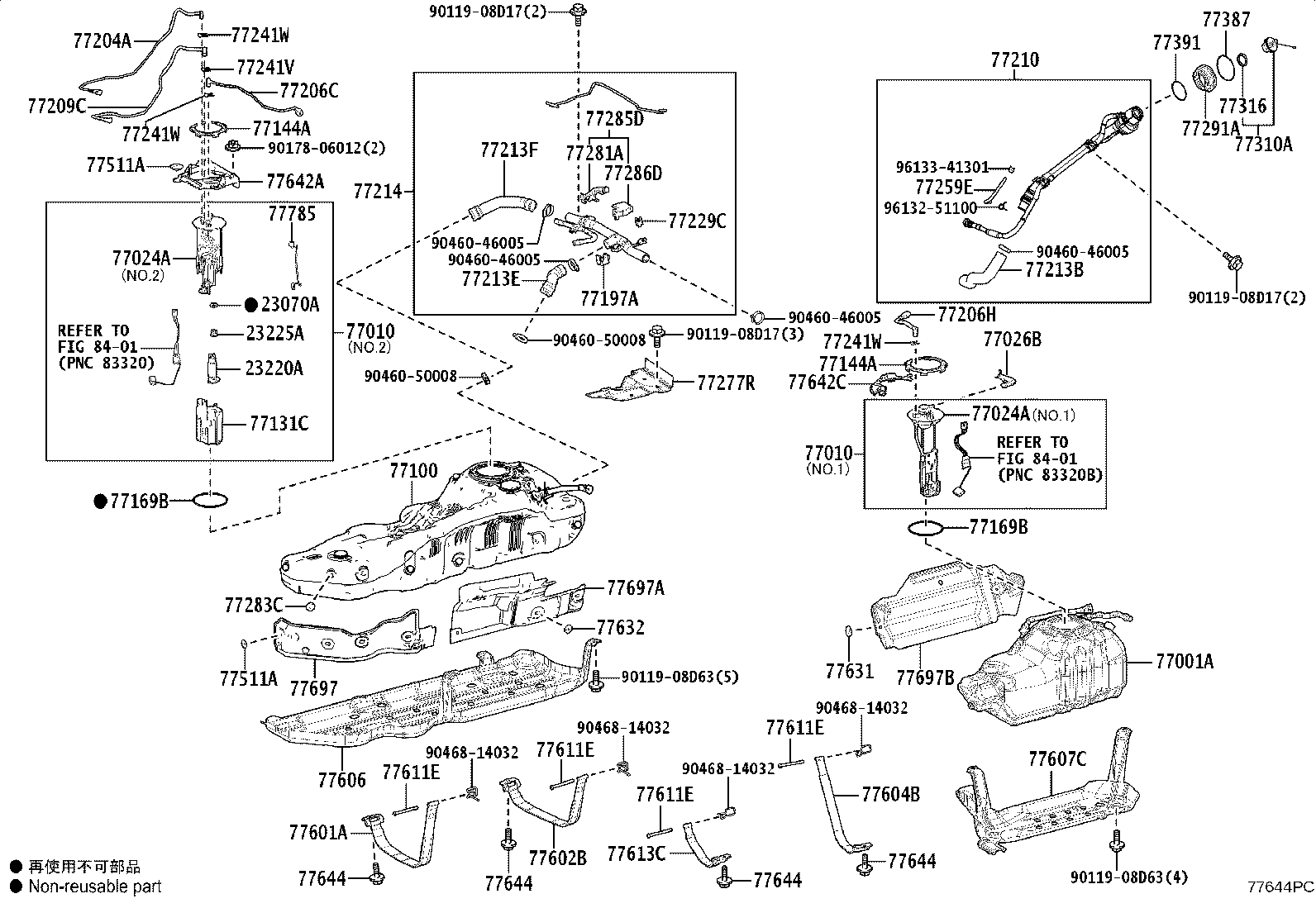

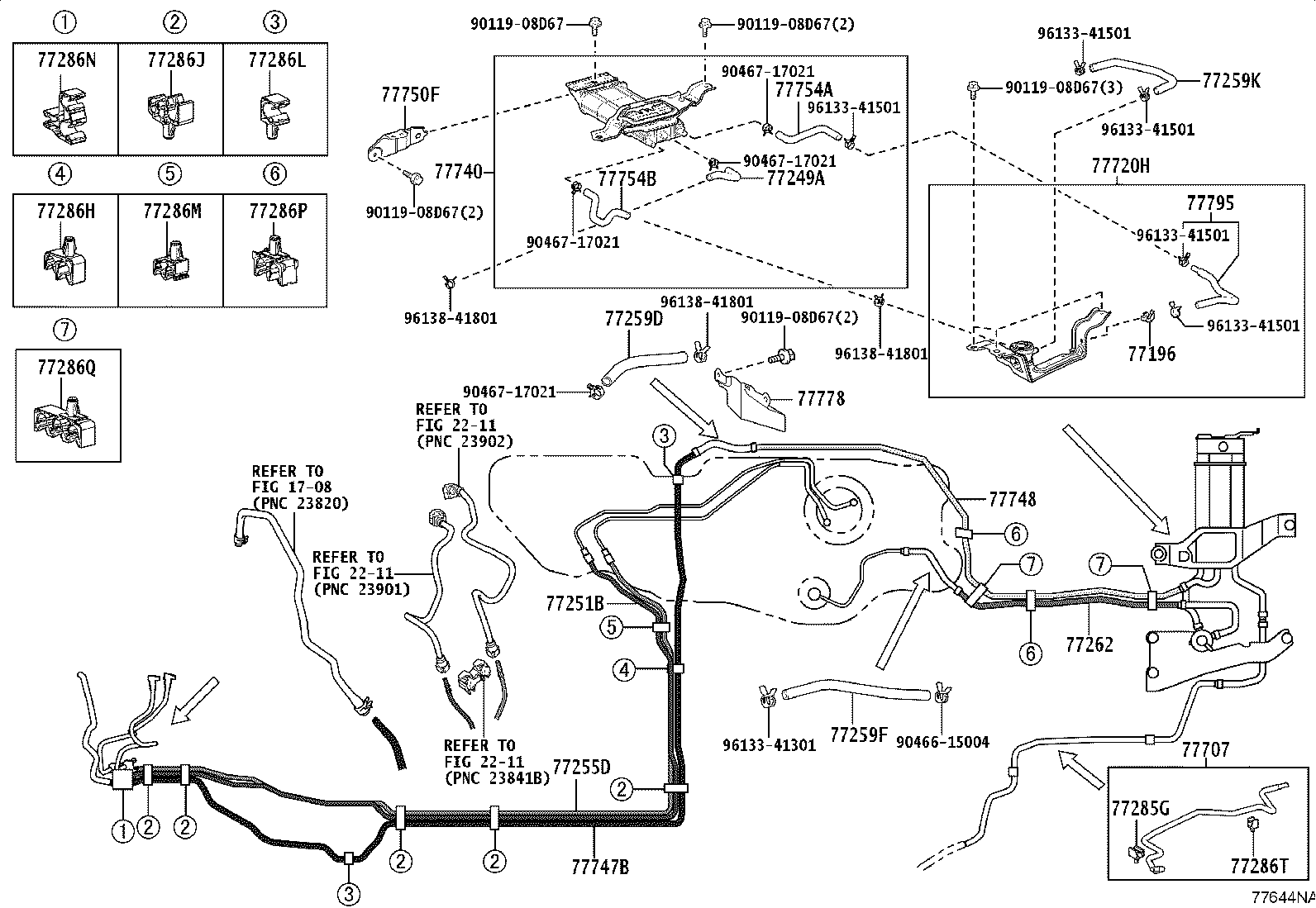

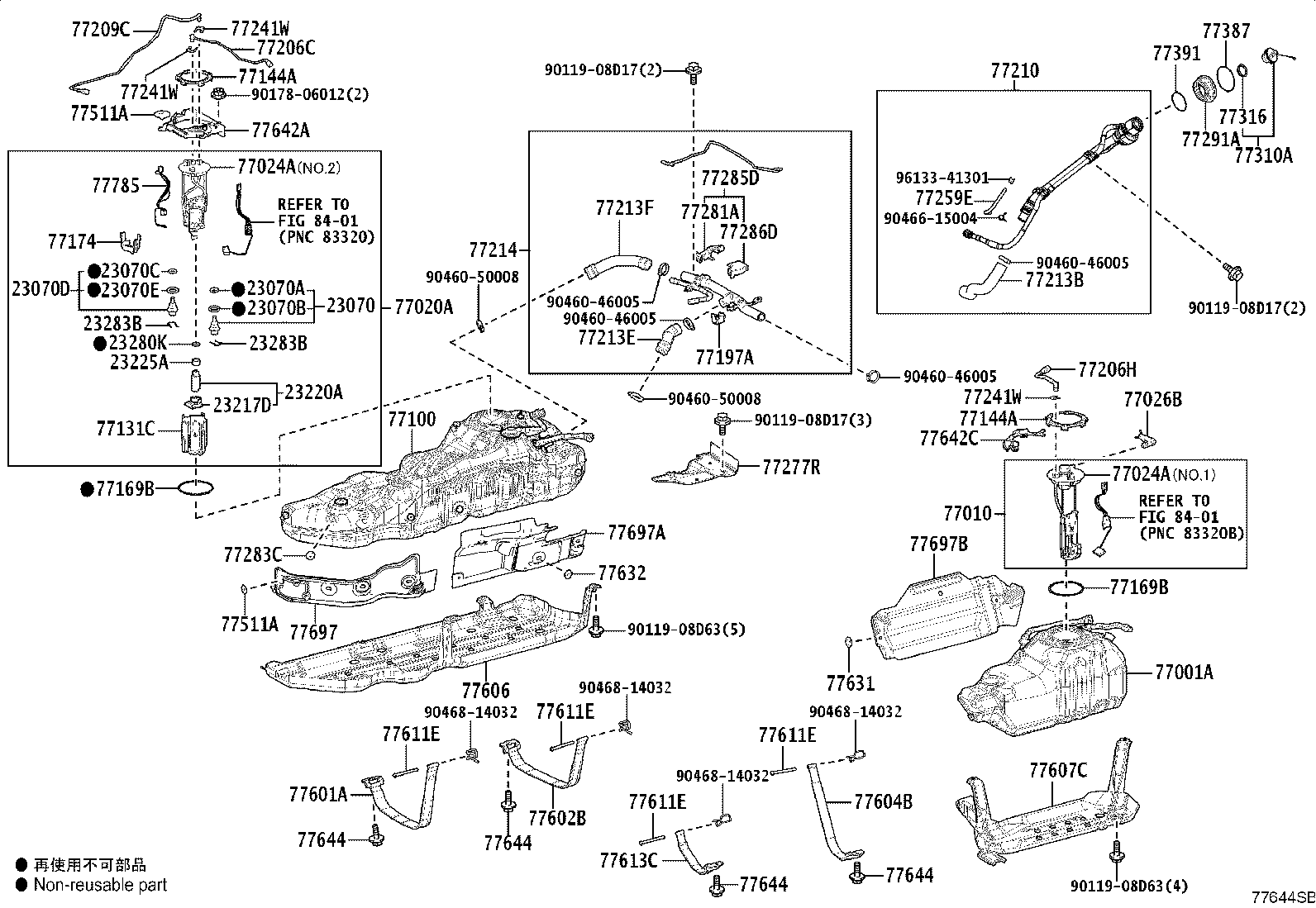

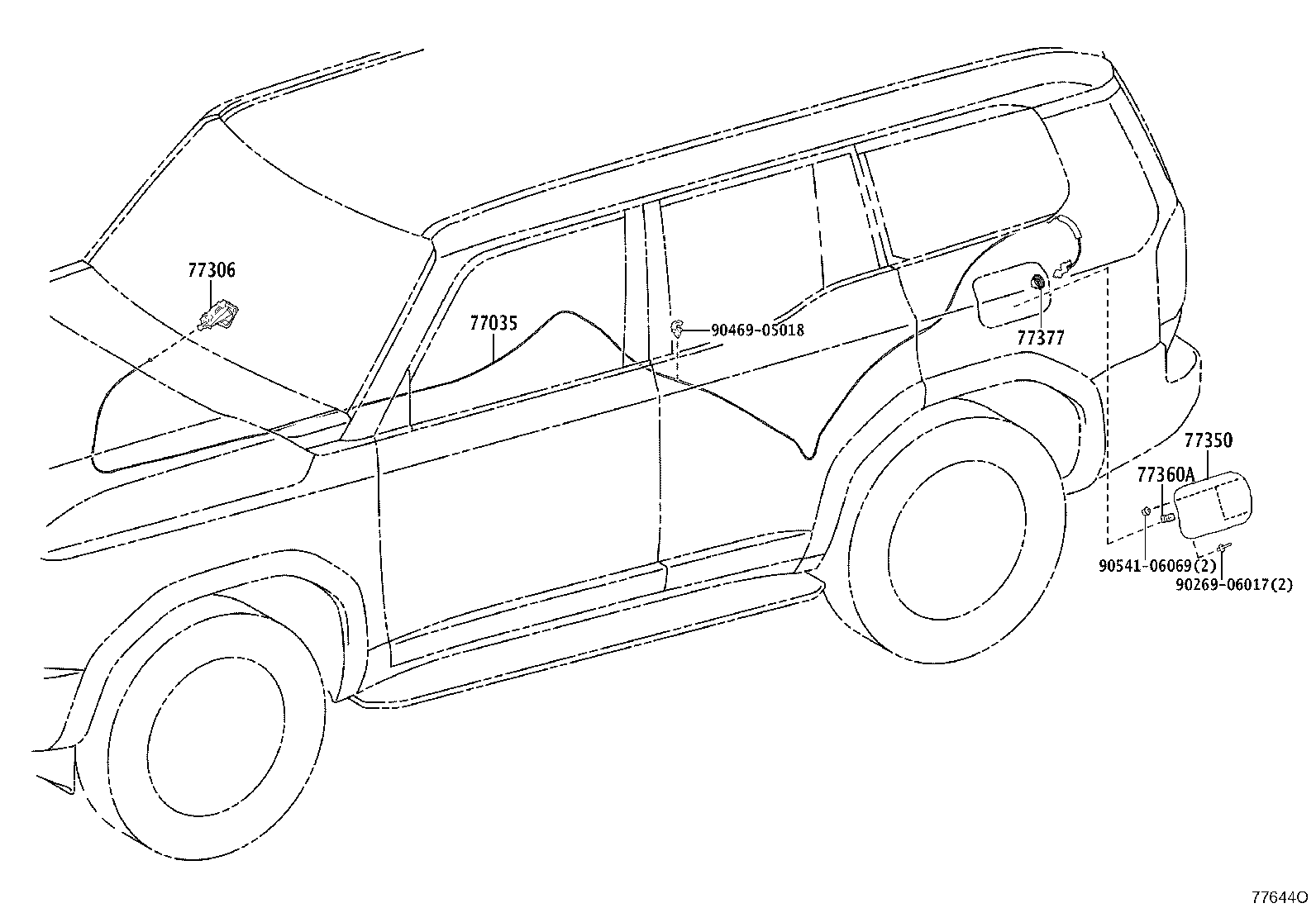

Figure 77644KB 77644KB 2024-01 → — Figure 77644PC 77644PC 2024-01 → — Figure 77645AB 77645AB 2024-01 → — Figure 77644QC 77644QC 2024-01 → — Figure 77644RB 77644RB 2024-01 → — Figure 77644SB 77644SB 2024-01 → — Figure 77644M 77644M 2024-01 → — Figure 77644T 77644T 2024-01 → — Figure 77644NA 77644NA 2024-01 → — Figure 77644UA 77644UA 2024-01 → — Figure 77644VA 77644VA 2024-01 → — Figure 77644WA 77644WA 2024-01 → — Figure 77644XA 77644XA 2024-01 → — Figure 77644O 77644O 2024-01 → —

Part groups

PNCDescription
23070 Valve Assy, Fuel Main
23070A Ring, O, NO.1(FOR FUEL MAIN VALVE)
23070B Ring, O, NO.2(FOR FUEL MAIN VALVE)
23070C Ring, O, NO.3(FOR FUEL MAIN VALVE)
23070D Valve Assy, Fuel Main, NO.2
23070E Ring, O, NO.4(FOR FUEL MAIN VALVE)
23217D Filter, Fuel Pump
23220A Pump Assy, Fuel W/Filter
23225A Spacer, Fuel Pump
23280K Ring, O(FOR FUEL PRESSURE REGULATOR)
23283B Holder, Fuel Pressure Regulator
77001A Tank Sub-assy, Fuel
77010 Tube Assy, Fuel Tank Vent
77020A Tube Assy, Fuel Suction W/Pump & Gage
77024A Plate Sub-assy, Fuel Suction
77026B Tube Sub-assy, Fuel Evaporation, NO.1
77035 Cable Sub-assy, Fuel Lid Lock Control
77100 Tank Assy, Fuel
77131C Sub-tank, Fuel, NO.1
77144A Retainer, Fuel Pump Gauge
77169B Gasket, Fuel Suction Tube Set, NO.1
77174 Support, Fuel Suction, NO.1
77196 Clamp, Evaporation Vent Tube, NO.1
77197A Clamp, Evaporation Vent Tube, NO.2
77204A Tube, Fuel Tank Return
77206C Tube Sub-assy, Fuel Main, NO.2
77206H Tube Sub-assy, Fuel Main, NO.2
77209C Tube Sub-assy, Fuel Tank Main
77210 Pipe Assy, Fuel Tank Filler
77213B Hose, Fuel Tank TO Filler Pipe
77213E Hose, Fuel Tank TO Filler Pipe
77213F Hose, Fuel Tank TO Filler Pipe
77214 Pipe, Fuel Tank Filler
77229C Clamp, Breather Tube
77229E Clamp, Breather Tube
77241V Clip, Tube Joint
77241W Clip, Tube Joint
77249A Hose, Fuel Emission
77251B Tube, Fuel Main
77253A Tube, Fuel Main, NO.3
77255 Tube, Fuel Emission, NO.2
77255D Tube, Fuel Return
77259D Hose, Fuel, NO.1
77259E Hose, Fuel
77259F Hose, Fuel
77259K Hose, Fuel
77262 Tube, Fuel Emission, NO.2
77277R Protector, Fuel Tank Filler Pipe
77281A Clamp, Fuel Filler Pipe
77283C Bracket, Fuel Tank Protector
77284 Clamp, Fuel Tube
77285D Clamp, Fuel Tube, NO.1
77285G Clamp, Fuel Tube, NO.1
77286D Clamp, Fuel Tube, NO.2
77286H Clamp, Fuel Tube, NO.3
77286J Clamp, Fuel Tube, NO.4
77286K Clamp, Fuel Tube, NO.2
77286L Clamp, Fuel Tube, NO.5
77286M Clamp, Fuel Tube, NO.6
77286N Clamp, Fuel Tube, NO.7
77286P Clamp, Fuel Tube, NO.8
77286Q Clamp, Fuel Tube, NO.9
77286R Clamp, Fuel Tube, NO.10
77286T Clamp, Fuel Tube, NO.11
77291A Shield, Fuel Tank Filler Pipe
77306 Lever Sub-assy, Fuel Lid Lock Open
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77360A Spring Assy, Fuel Filler Opening Lid
77377 Retainer, Fuel Filler Opening Lid Lock
77387 Ring, Fuel Inlet Box
77391 Ring, Fuel Inlet Box
77511A Bracket, Fuel Tank
77601A Band Sub-assy, Fuel Tank, NO.1
77602B Band Sub-assy, Fuel Tank, NO.1 LH
77604B Band Sub-assy, Fuel Tank, NO.2 LH
77606 Protector Sub-assy, Fuel Tank, NO.1
77607C Protector Sub-assy, Fuel Tank, NO.2
77611E Pin, Fuel Tank Band
77613C Band, Fuel Tank, NO.3
77631 Bracket, Fuel Tank, NO.1
77632 Bracket, Fuel Tank, NO.2
77642A Protector, Fuel Tank, NO.2
77642C Protector, Fuel Tank, NO.2
77644 Bolt, Fuel Tank
77697 Insulator, Fuel Tank Heat, NO.1
77697A Insulator, Fuel Tank Heat, NO.2
77697B Insulator, Fuel Tank Heat, NO.3
77707 Tube Sub-assy, Charcoal Canister Outlet
77720H Valve Assy, Fuel Outlet
77740 Canister Assy, Charcoal
77747B Tube, Charcoal Canister, NO.1
77748 Pipe, Charcoal Canister, NO.2
77750F Bracket Assy, Charcoal Canister, NO.1
77754A Hose, Charcoal Canister Outlet, NO.2
77754B Hose, Charcoal Canister Outlet
77778 Bracket, Fuel Hose Protector
77785 Harness, Fuel Pump
77795 Hose, Charcoal Canister Outlet, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
