Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

26 part groups · 12 illustrations

Illustrations

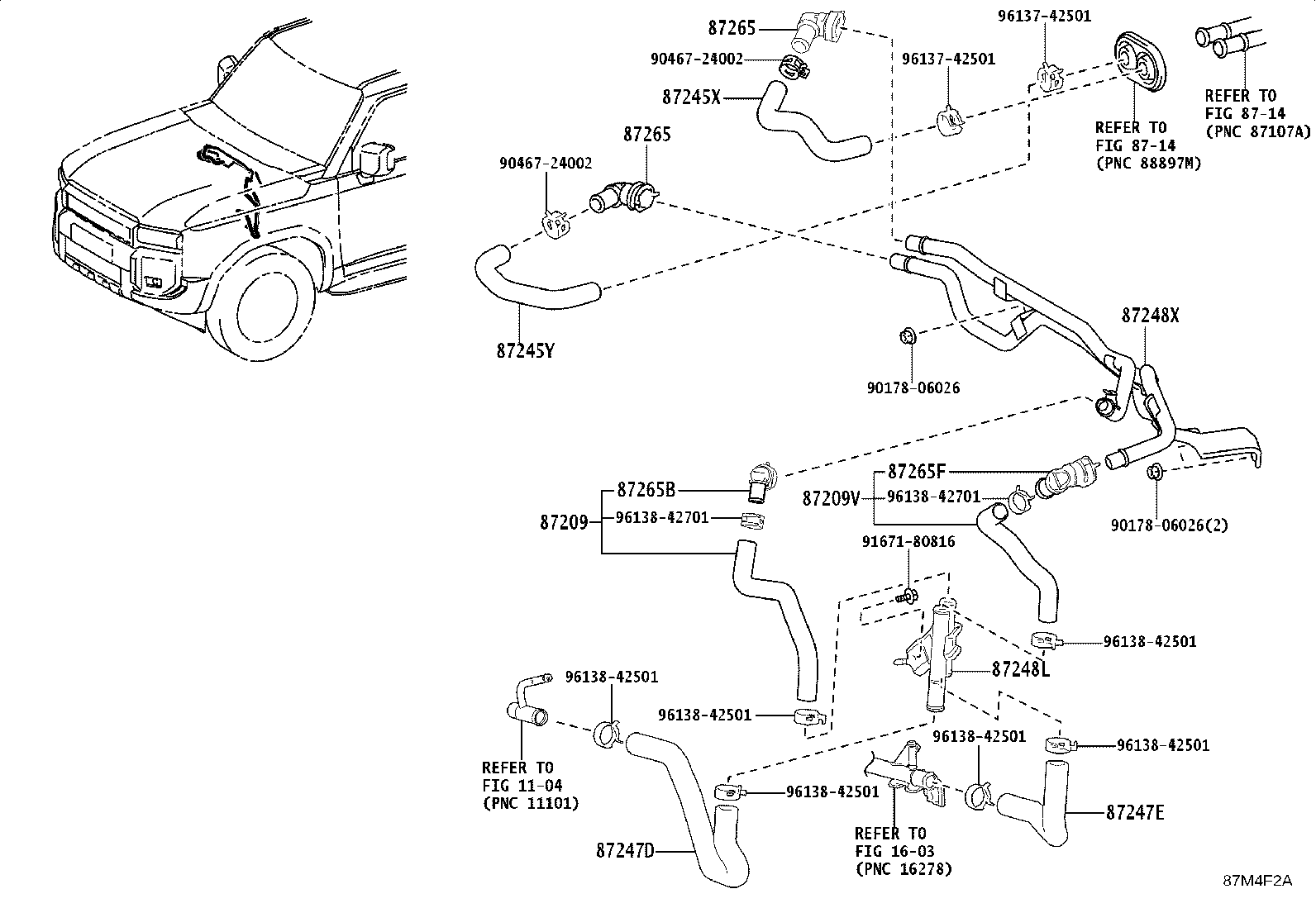

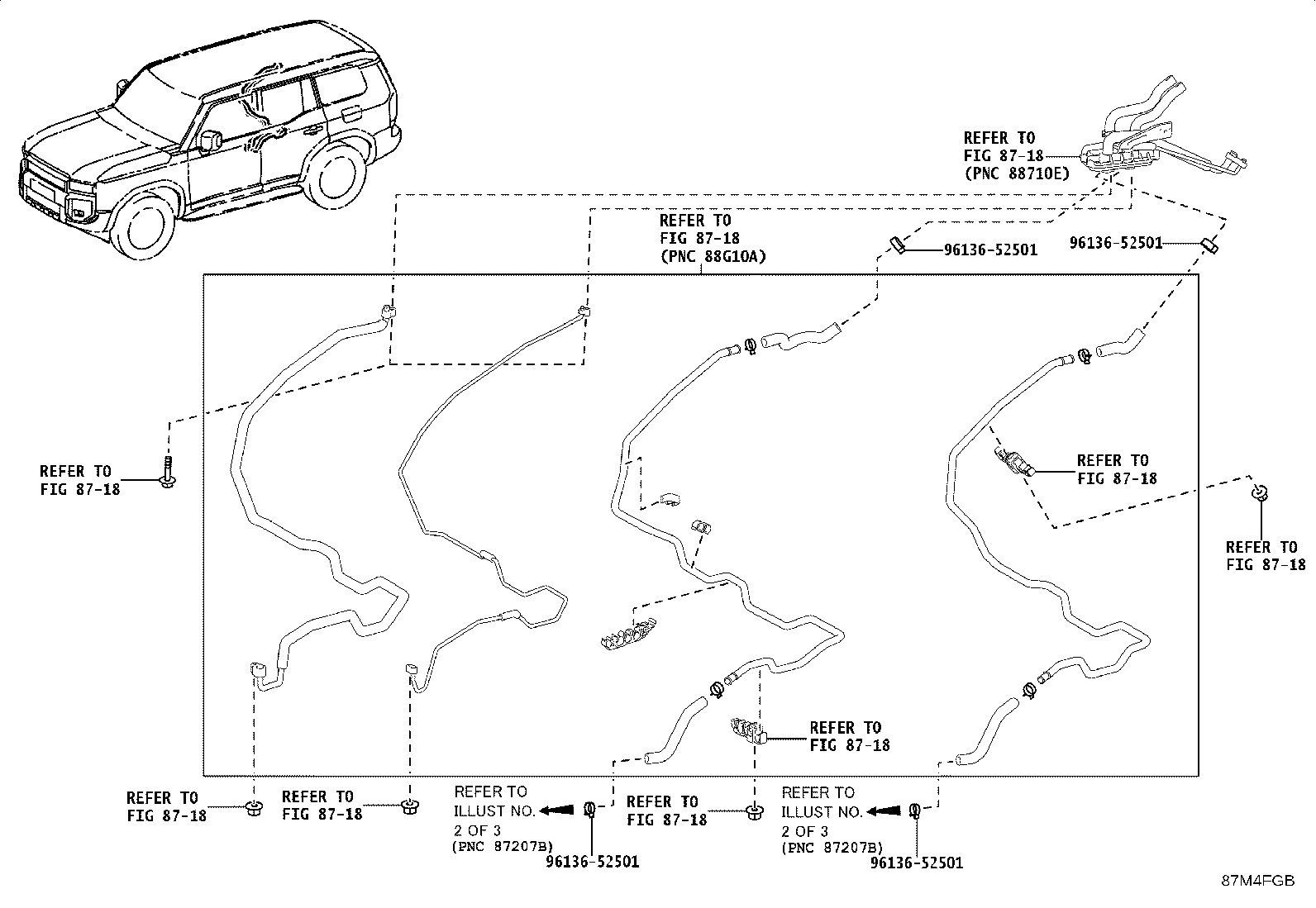

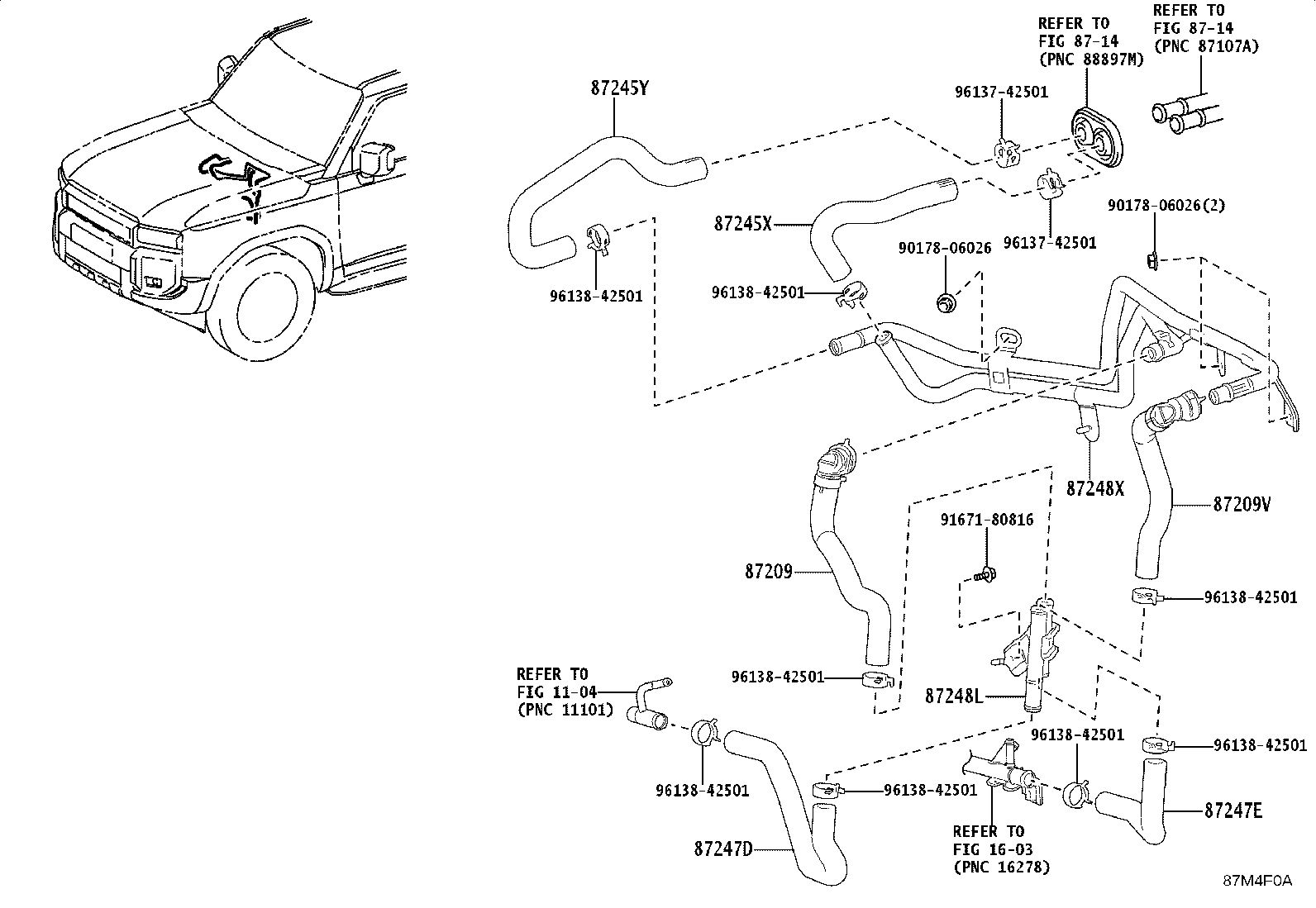

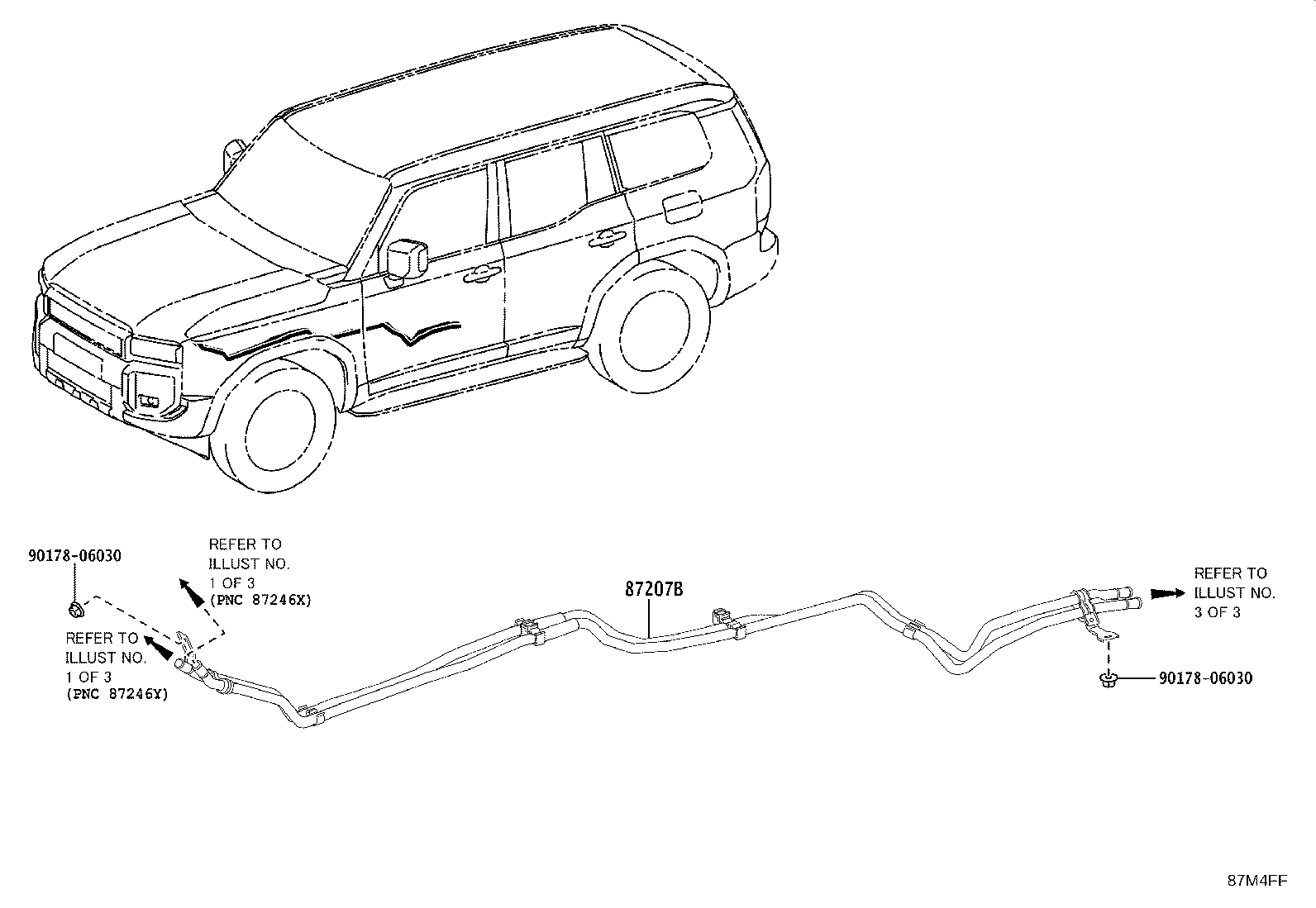

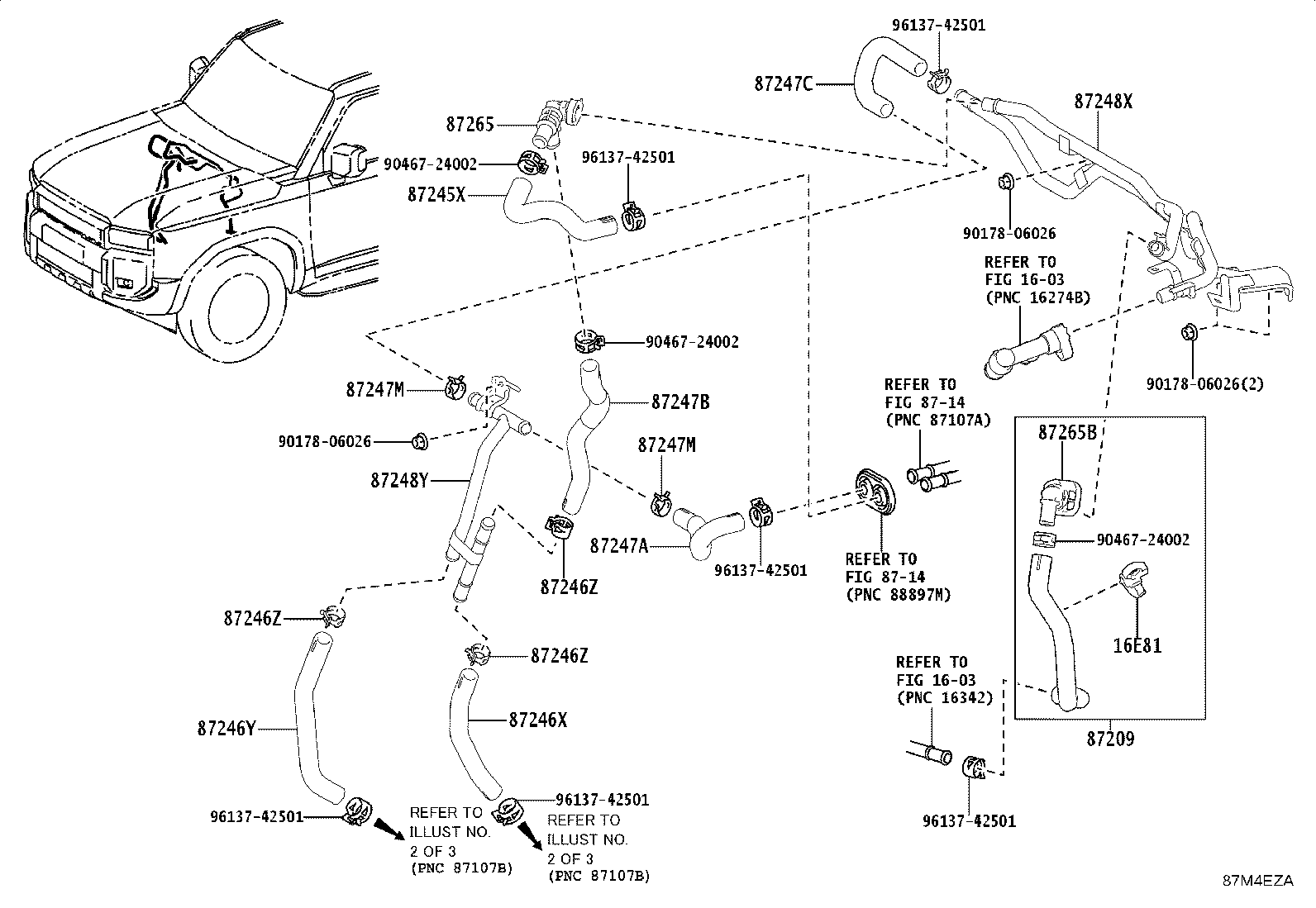

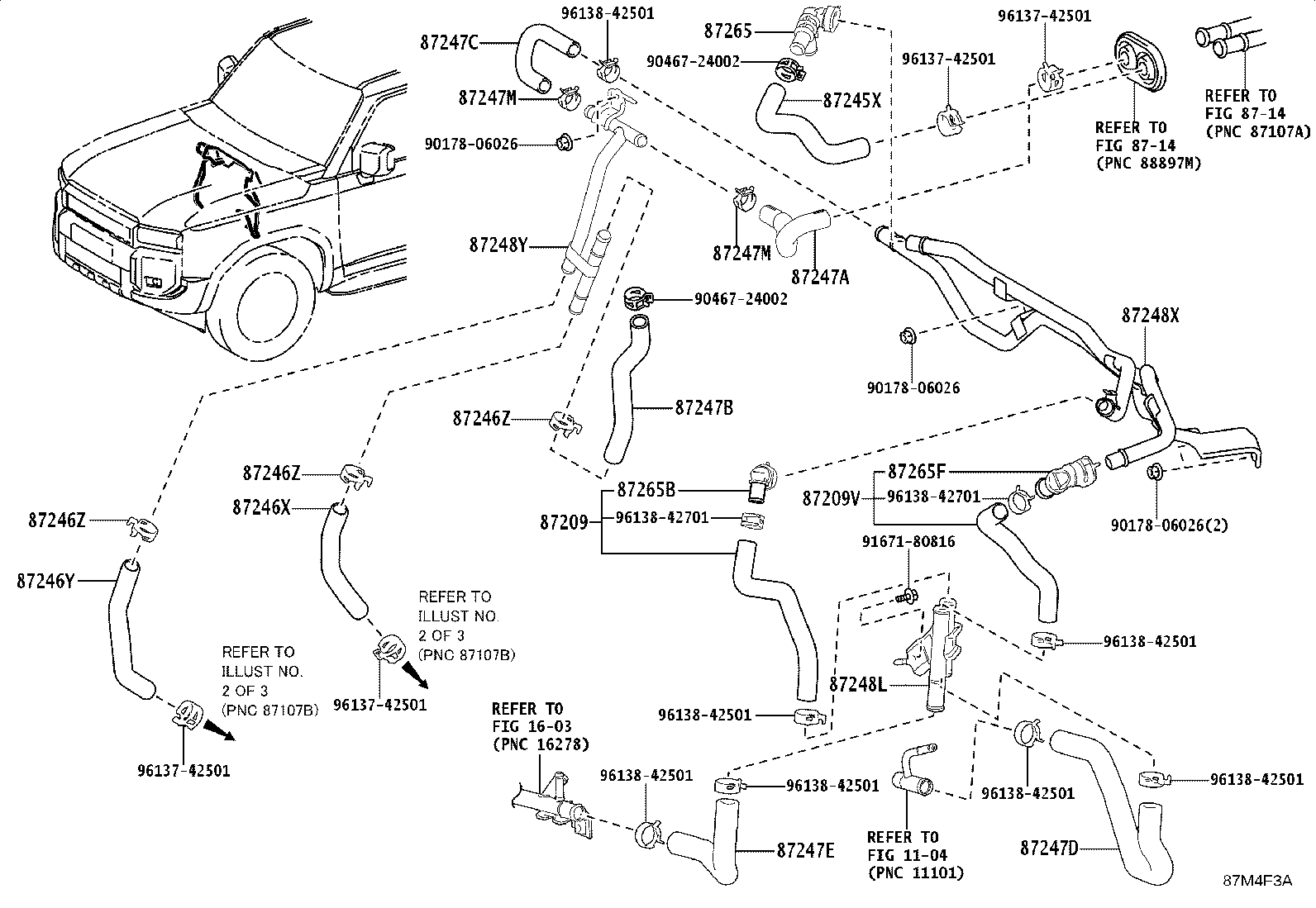

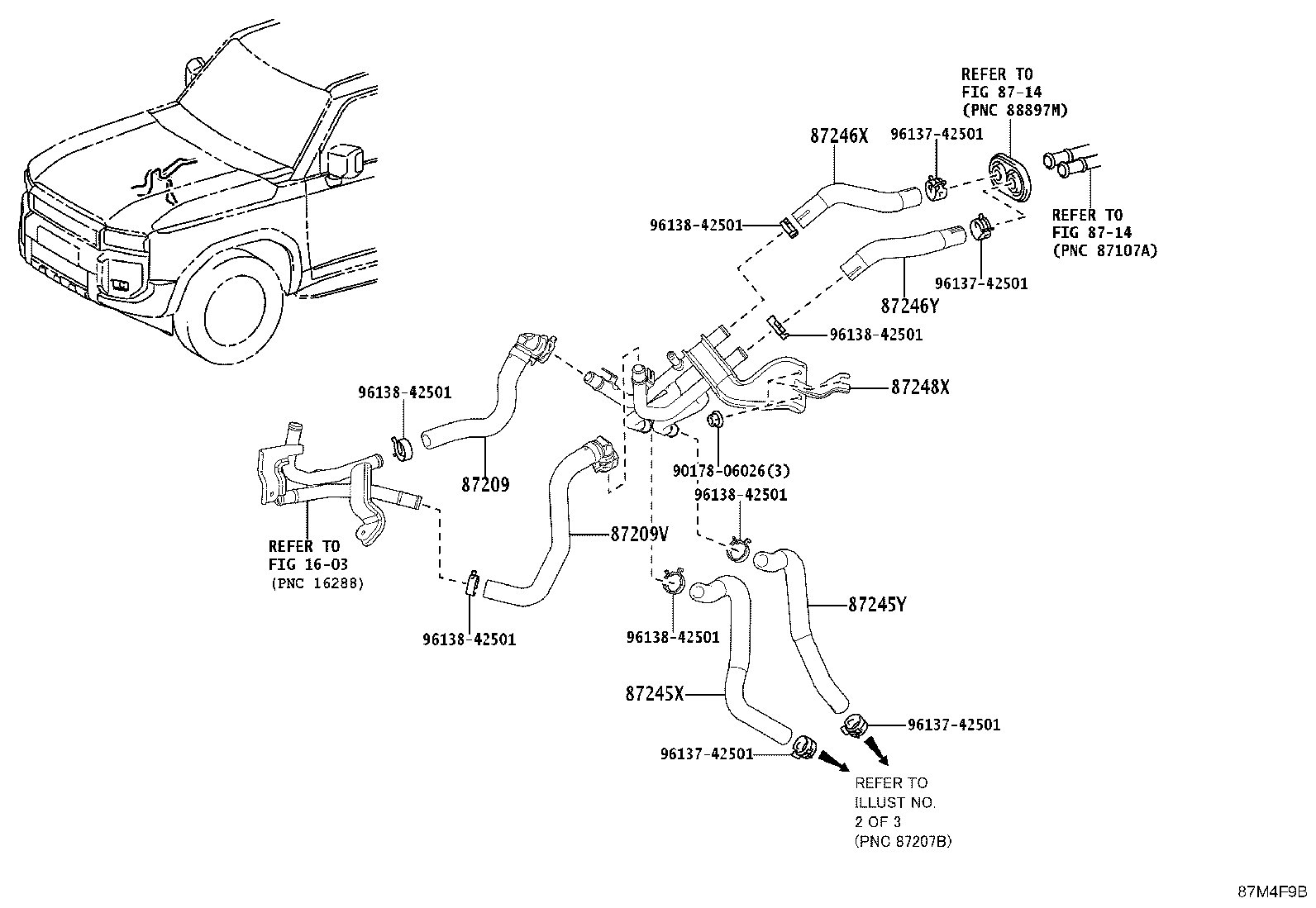

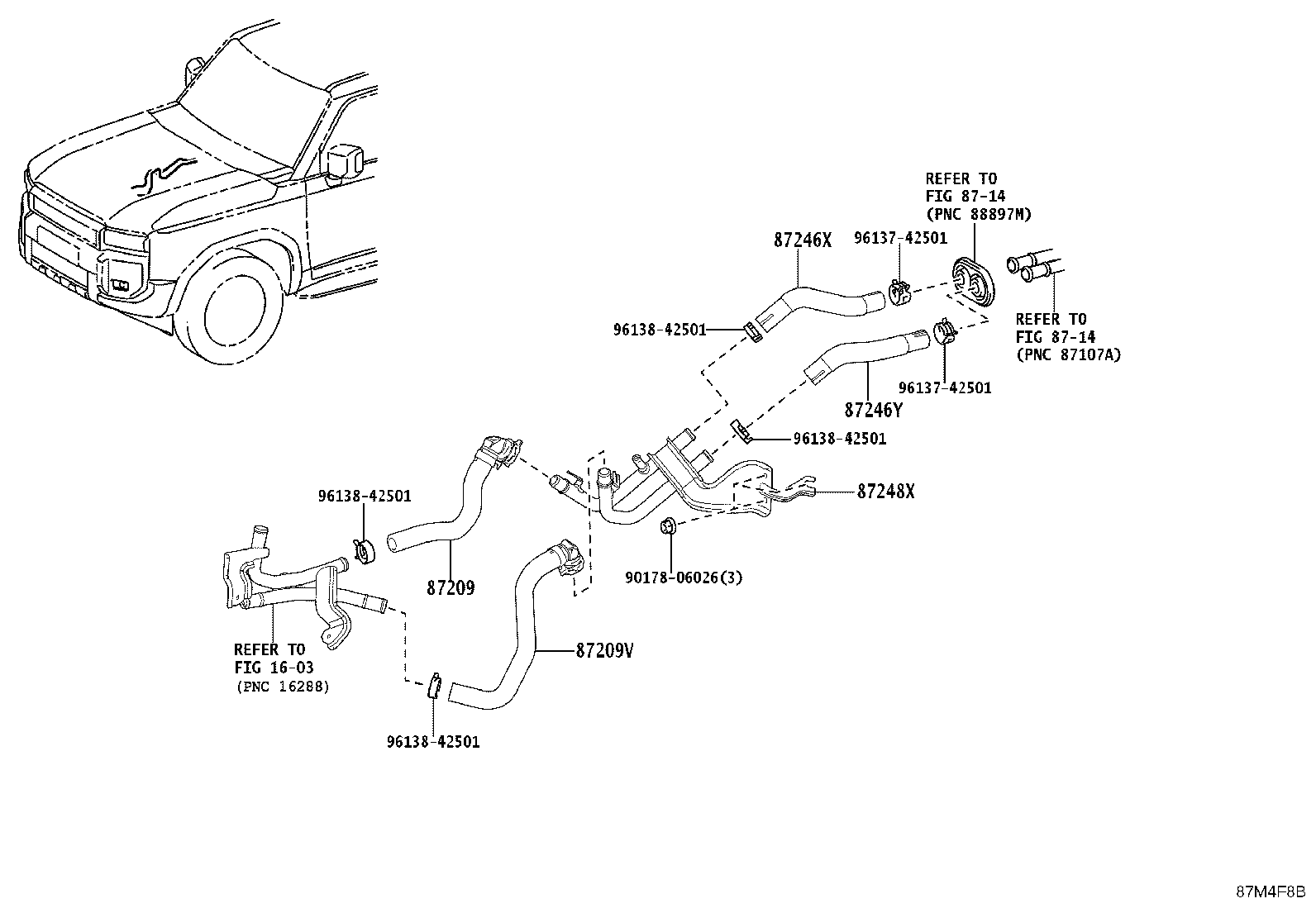

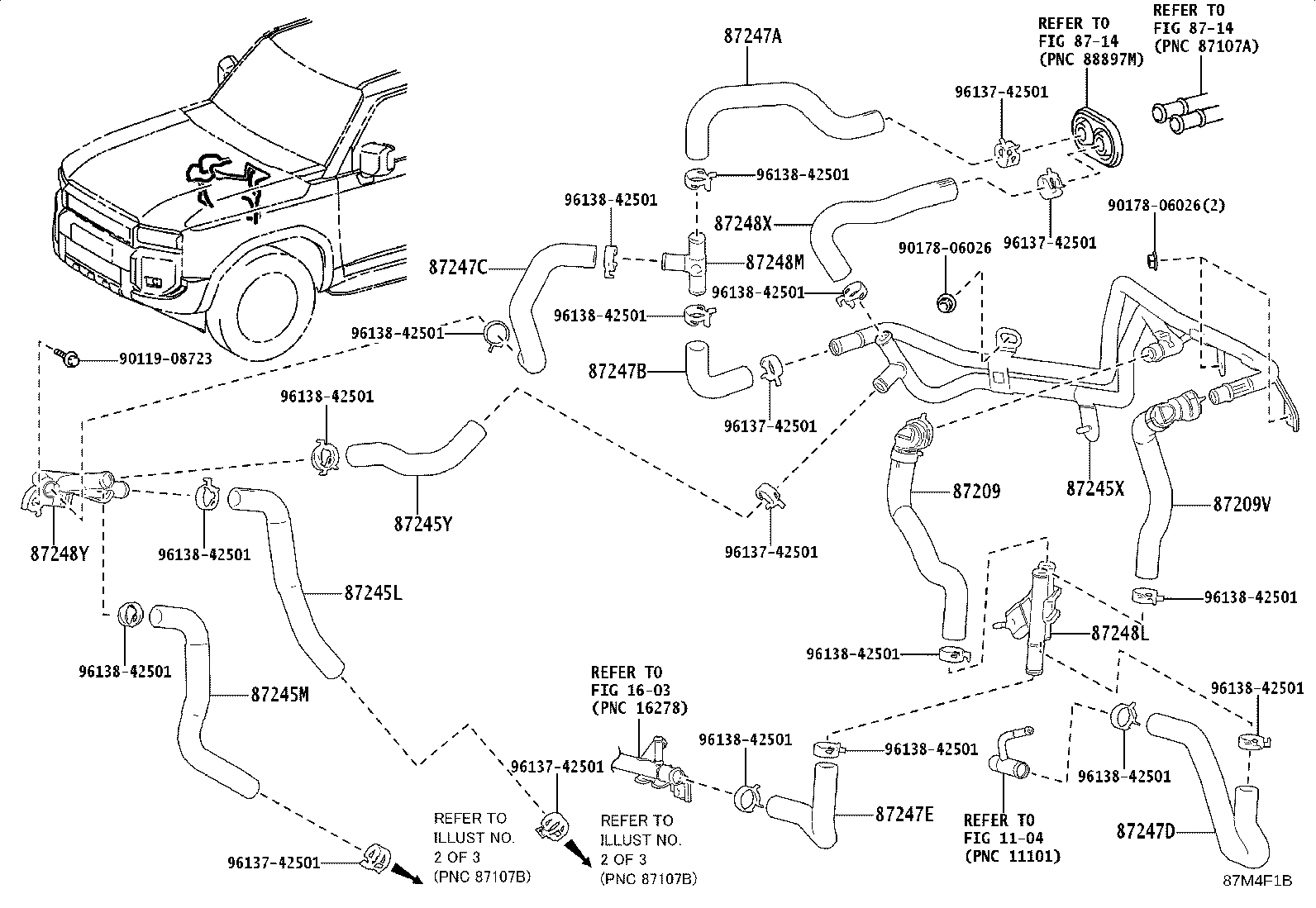

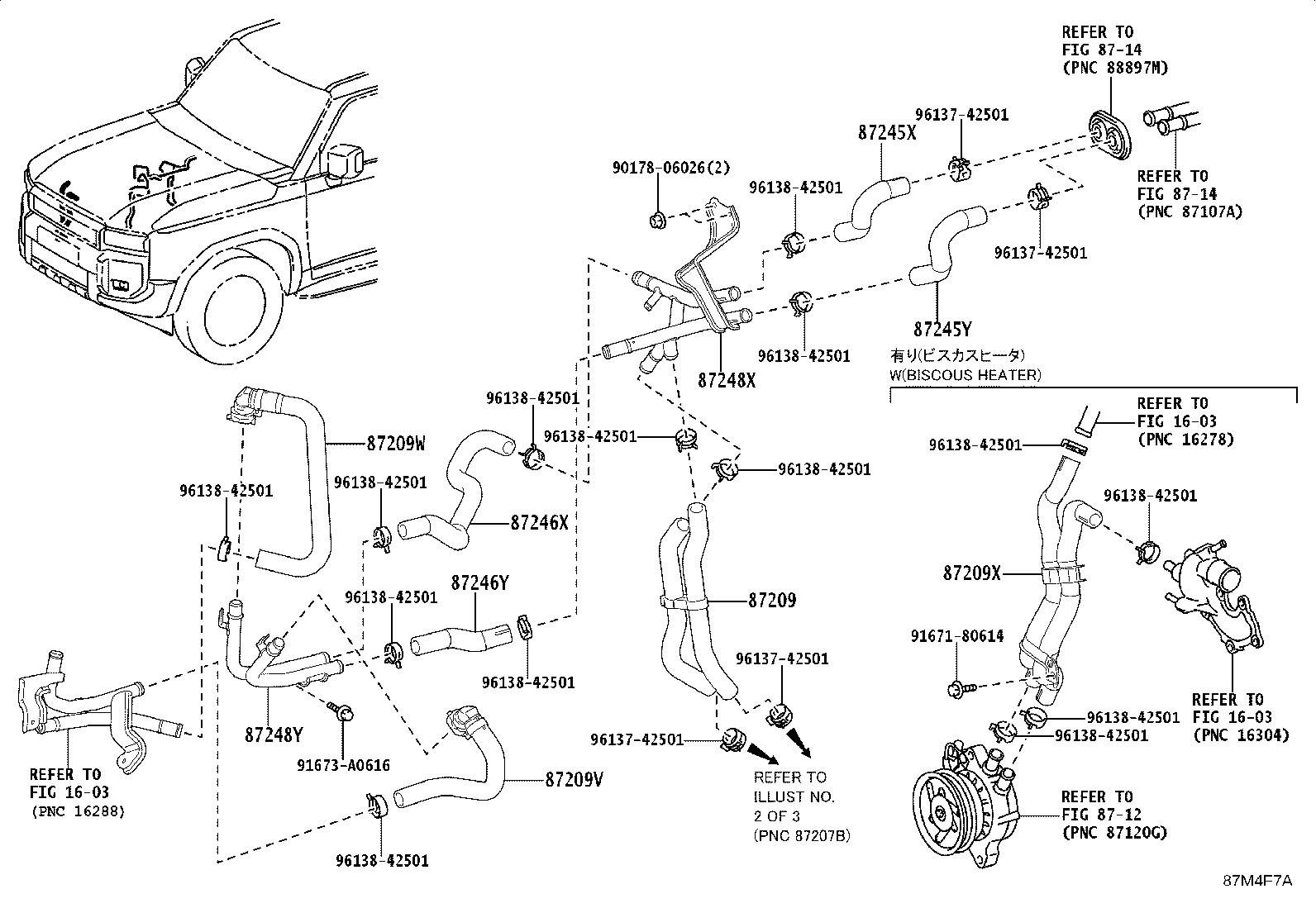

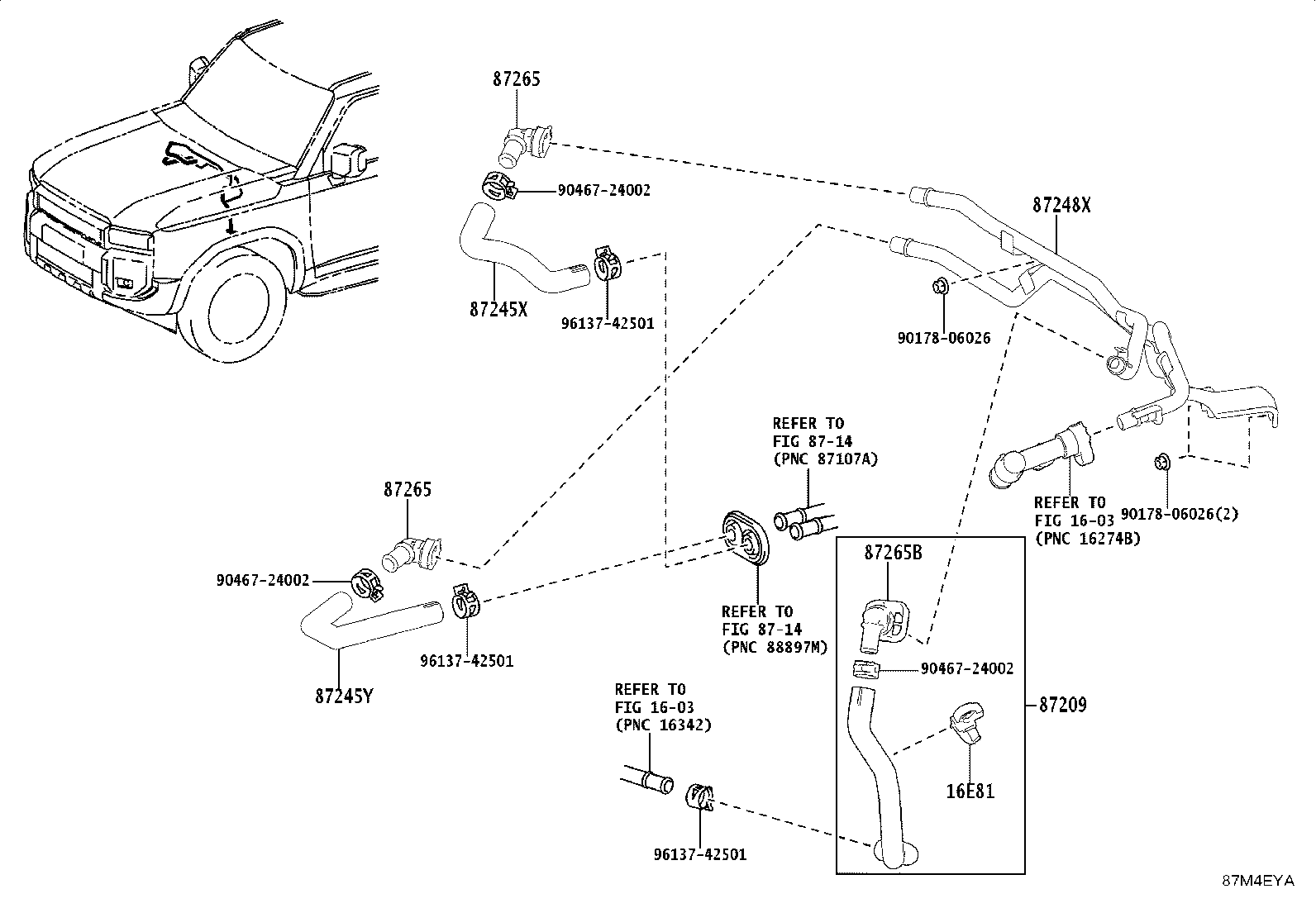

Figure 87M4F6A 87M4F6A 2024-01 → — Figure 87M4F7A 87M4F7A 2024-01 → — Figure 87M4F8B 87M4F8B 2024-01 → — Figure 87M4F9B 87M4F9B 2024-01 → — Figure 87M4EYA 87M4EYA 2024-01 → — Figure 87M4EZA 87M4EZA 2024-01 → — Figure 87M4F2A 87M4F2A 2024-01 → — Figure 87M4F3A 87M4F3A 2024-01 → — Figure 87M4F0A 87M4F0A 2024-01 → — Figure 87M4F1B 87M4F1B 2024-01 → — Figure 87M4FF 87M4FF 2024-01 → — Figure 87M4FGB 87M4FGB 2024-01 → —

Part groups

PNCDescription
16E81 Clamp, Hose(FOR WATER HOSE)
87207B Pipe & Hose Sub-assy, Water B
87209 Hose Sub-assy, Water
87209V Hose Sub-assy, Water, NO.2
87209W Hose Sub-assy, Water, NO.3
87209X Hose Sub-assy, Water, NO.4
87245L Hose, Heater Water, L
87245M Hose, Heater Water, M
87245X Hose, Heater Water
87245Y Hose, Heater Water
87246X Hose, Heater Water
87246Y Hose, Heater Water
87246Z Clip
87247A Hose, Heater Water, A
87247B Hose, Heater Water, B
87247C Hose, Heater Water, C
87247D Hose, Heater Water, D
87247E Hose, Heater Water, E
87247M Clip, Hose
87248L Pipe, Heater Water, L
87248M Pipe, Heater Water, M
87248X Pipe, Heater Water
87248Y Pipe, Heater Water, NO.2
87265 Connector, Heater Water Hose
87265B Connector, Heater Water Hose, NO.2
87265F Connector, Water Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
