Toyota Land Cruiser Prado
2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe
Supported model
Data version 2018-02

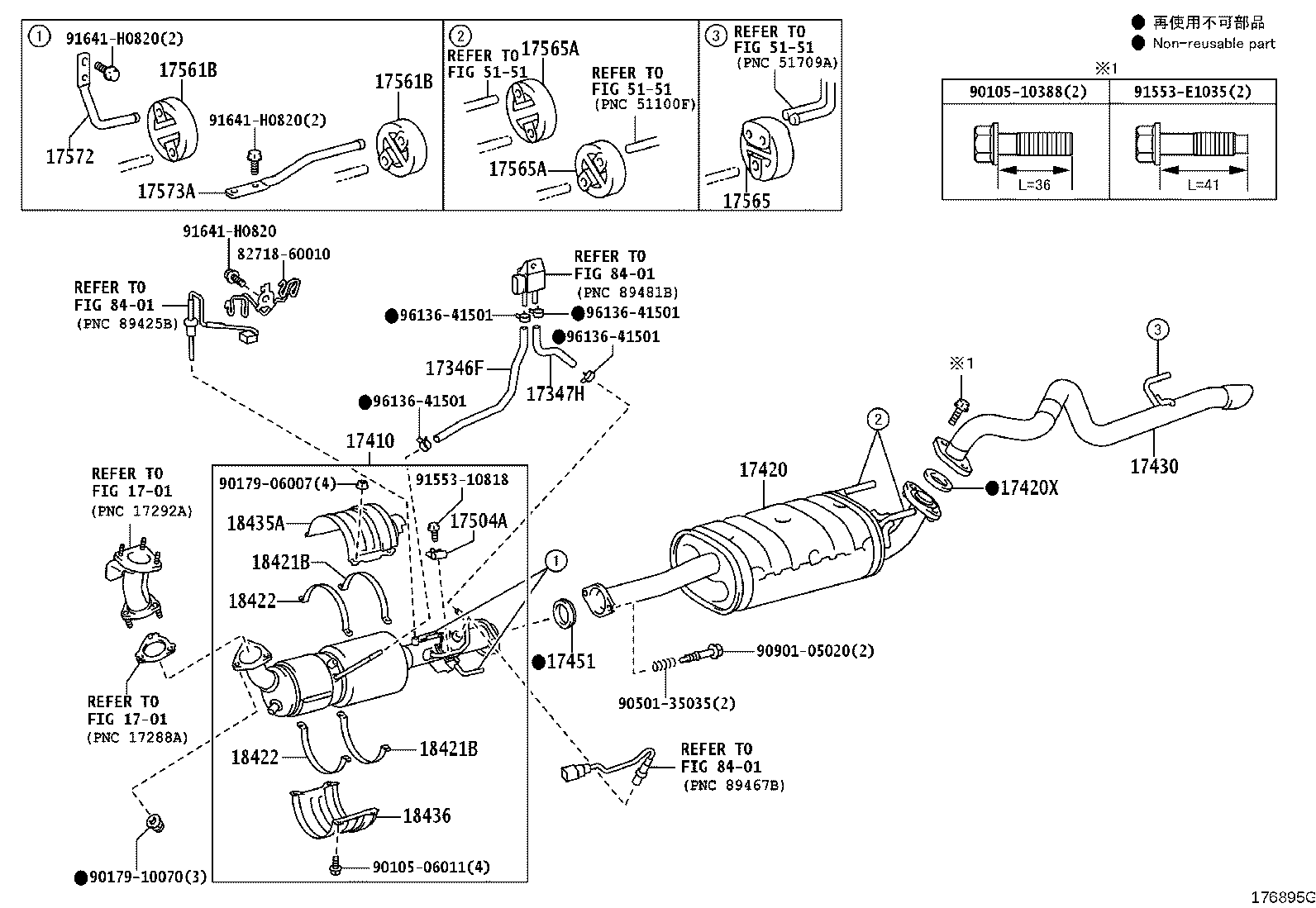

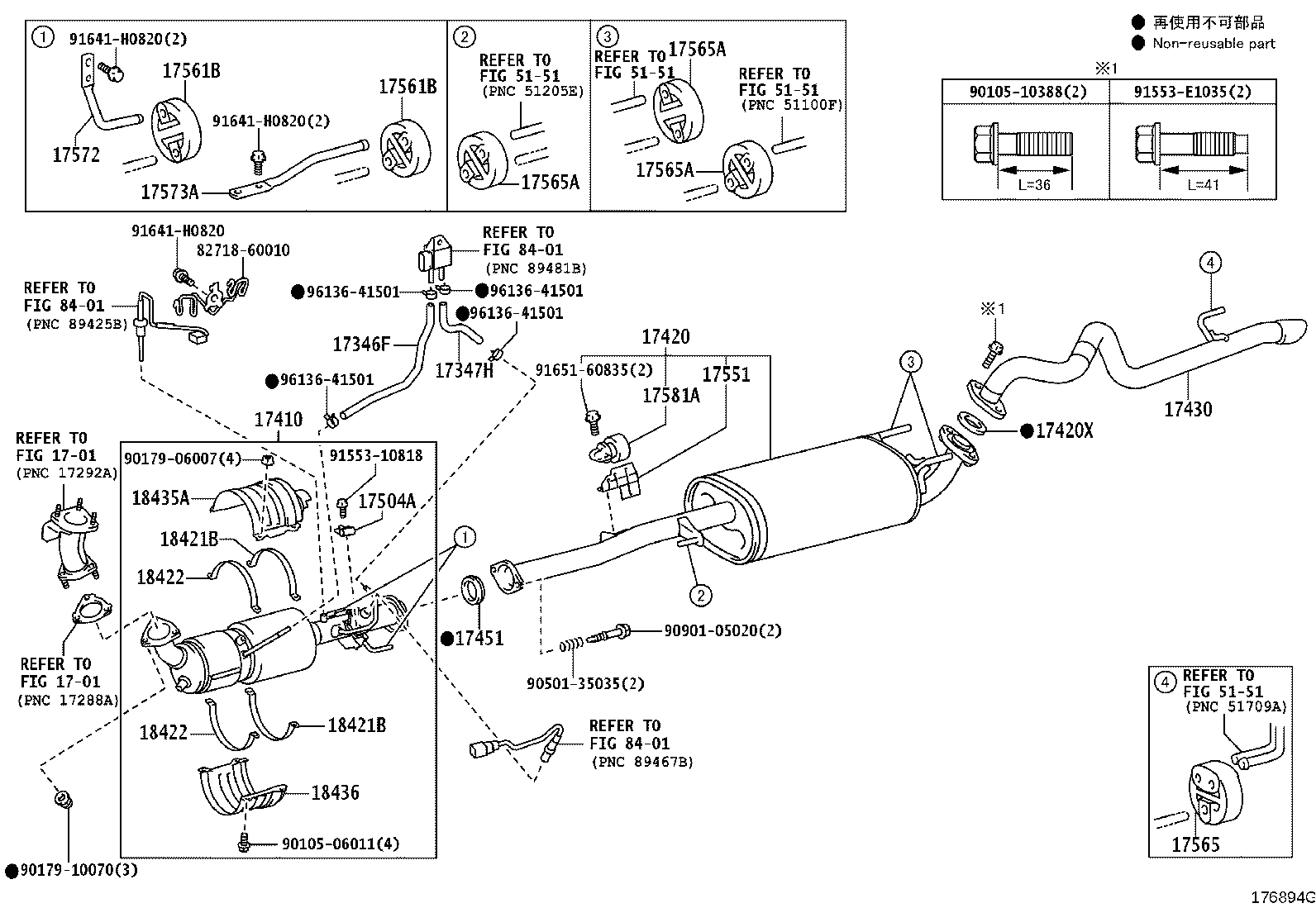

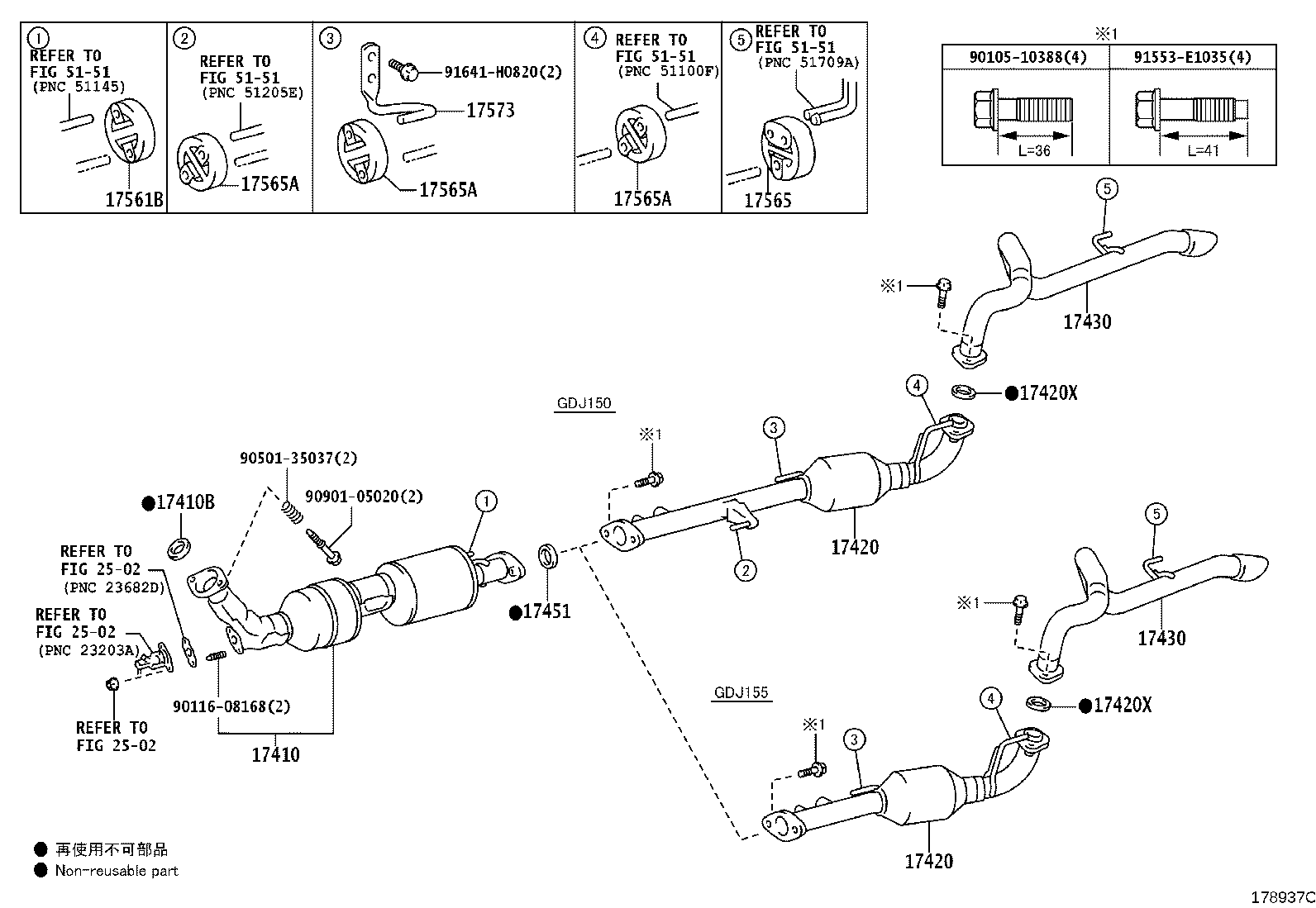

Exhaust Pipe
27 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 17346F | Hose, Air, NO.6 |
| 17347H | Hose, Air, NO.7 |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17450B | Pipe Assy, Exhaust, Front NO.2 |
| 17451 | Gasket, Exhaust Pipe |
| 17451A | Gasket, Exhaust Pipe, NO.2 |
| 17504A | Clamp Sub-assy, Exhaust Pipe |
| 17548 | Bracket, Exhaust Pipe Stopper |
| 17551 | Insulator, Exhaust Pipe Heat, NO.1 |
| 17561B | Support, Exhaust Pipe, NO.1 |
| 17565 | Support, Exhaust Pipe, NO.5 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17572 | Bracket, Exhaust Pipe NO.1 Support |
| 17572B | Bracket, Exhaust Pipe Support, NO.2 |
| 17573 | Bracket, Exhaust Pipe NO.1 Support, Lower |
| 17573A | Bracket, Exhaust Pipe Support, NO.3 |
| 17581A | Damper, Exhaust Pipe |
| 18421A | Stay, Converter Protector, LH |
| 18421B | Stay, Converter Protector, NO.2 |
| 18422 | Stay, Converter Protector, NO.2 |
| 18435A | Protector, Monolithic Converter |
| 18436 | Protector, Monolithic Converter, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
