Toyota Land Cruiser
2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe
Supported model
Data version 2018-06

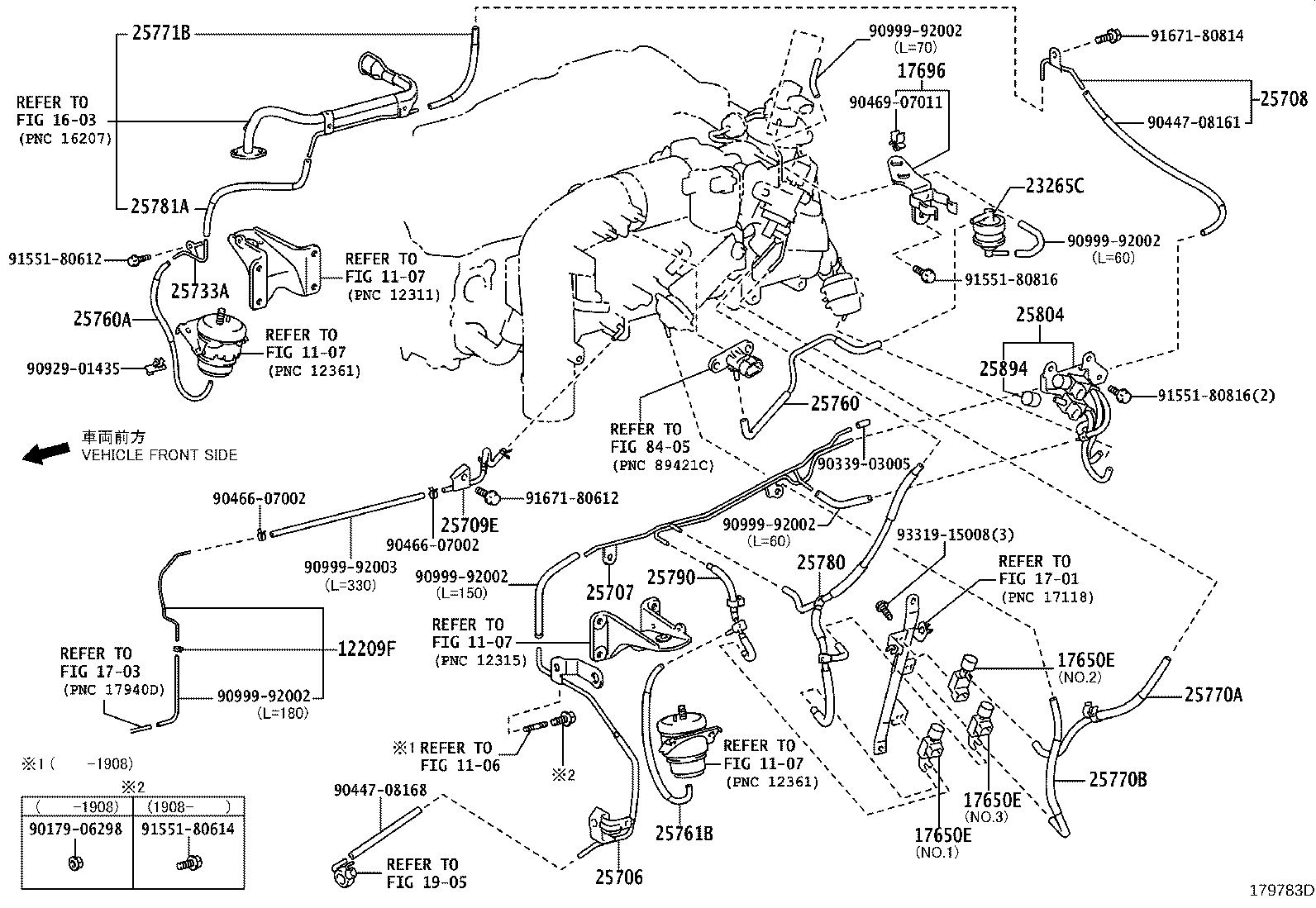

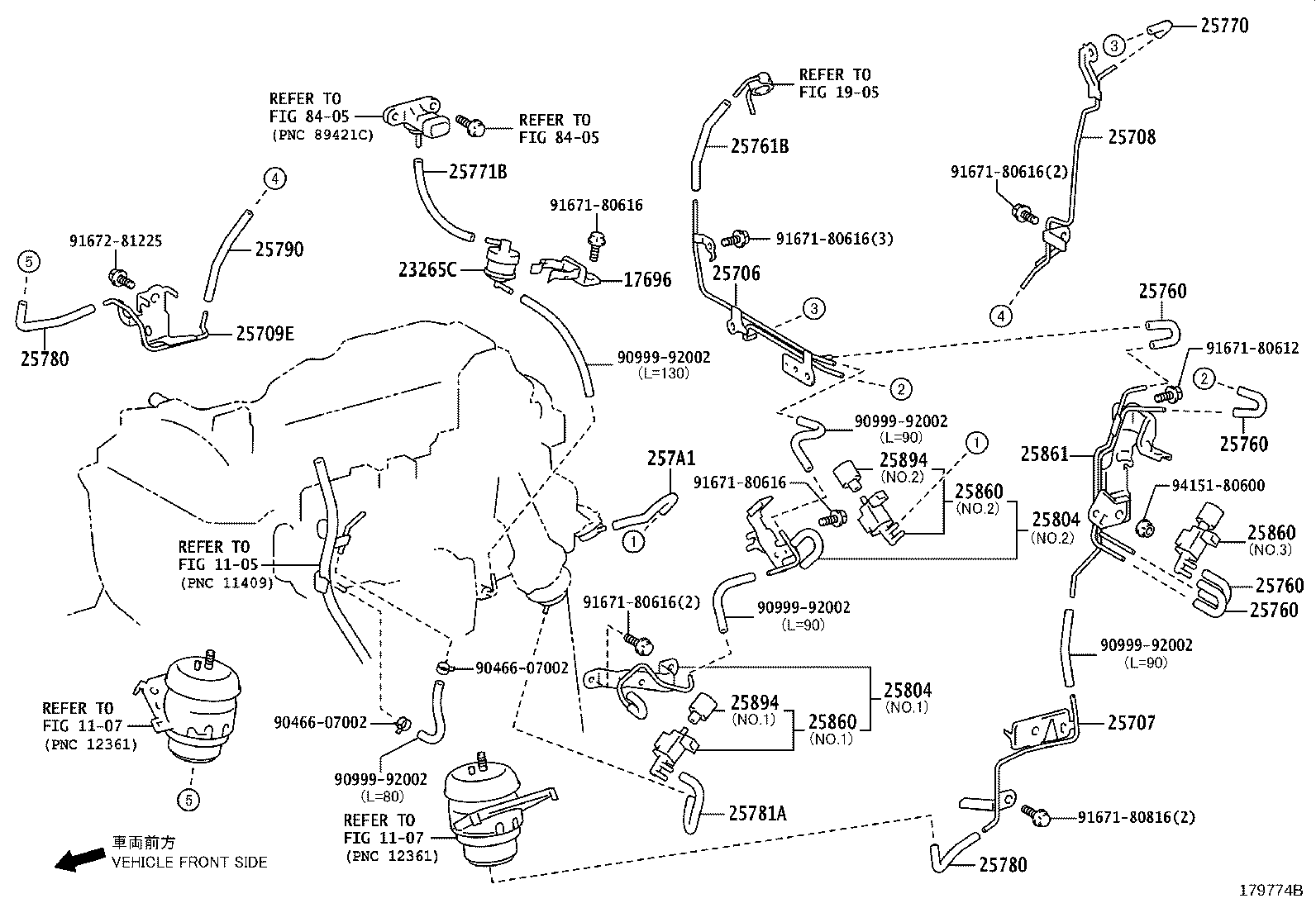

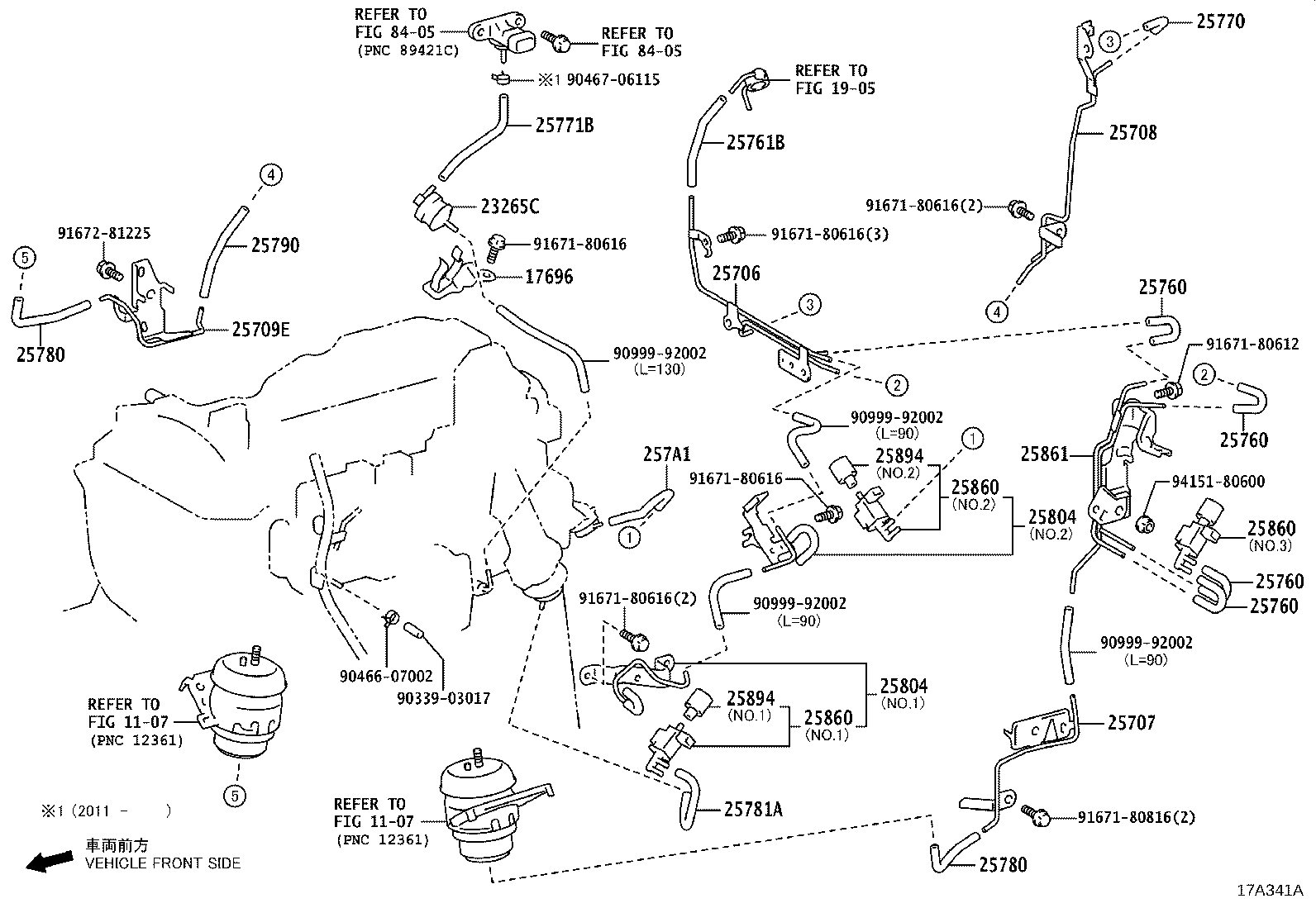

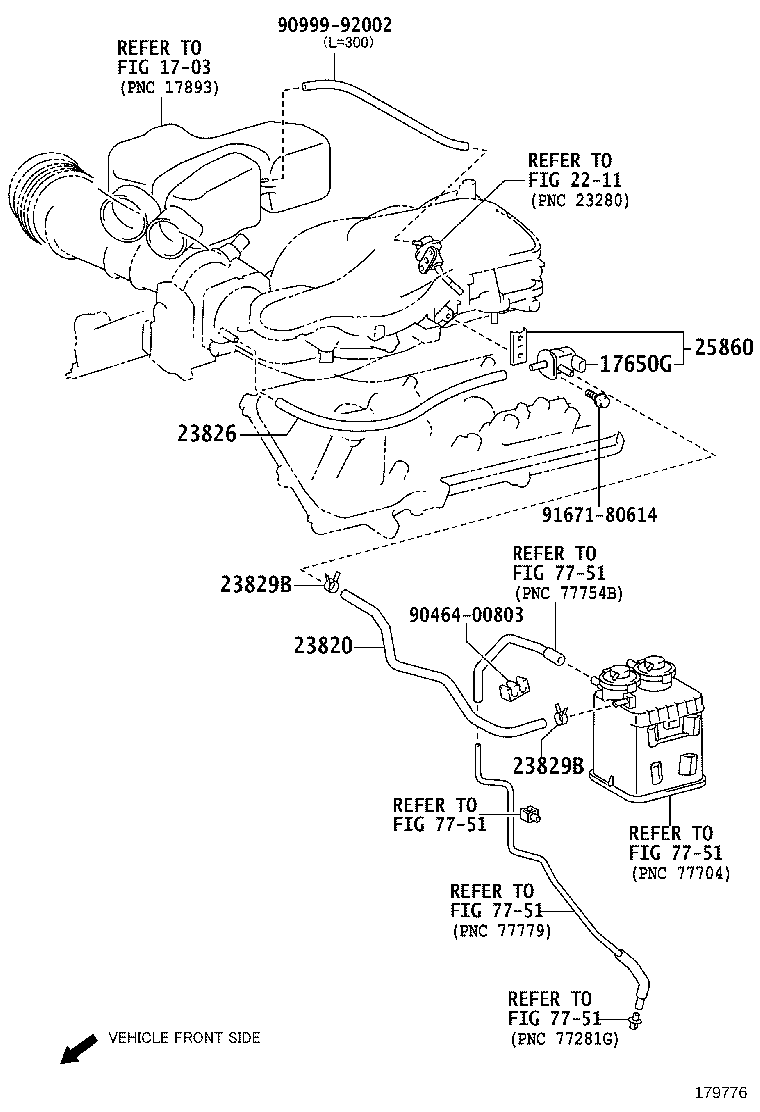

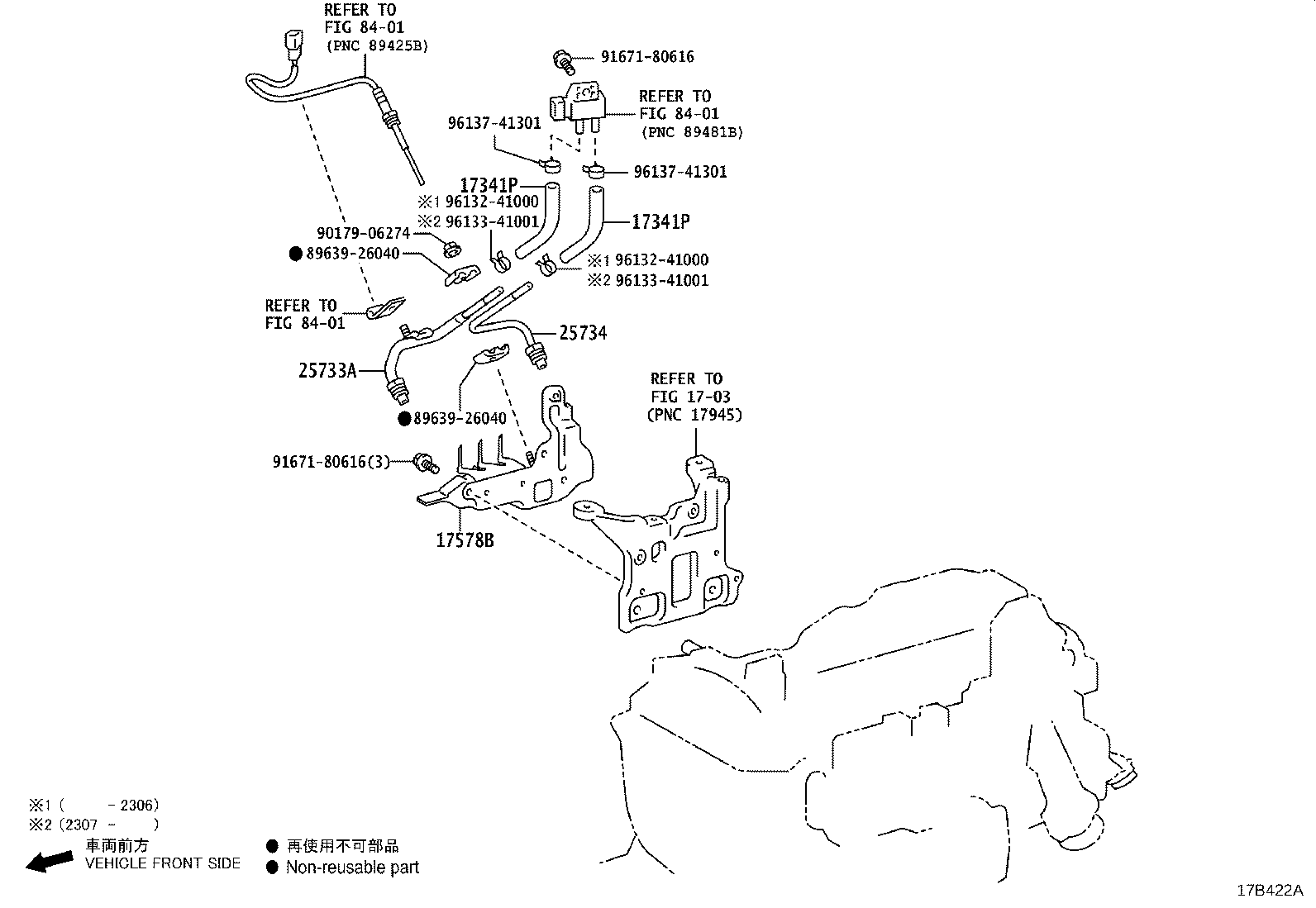

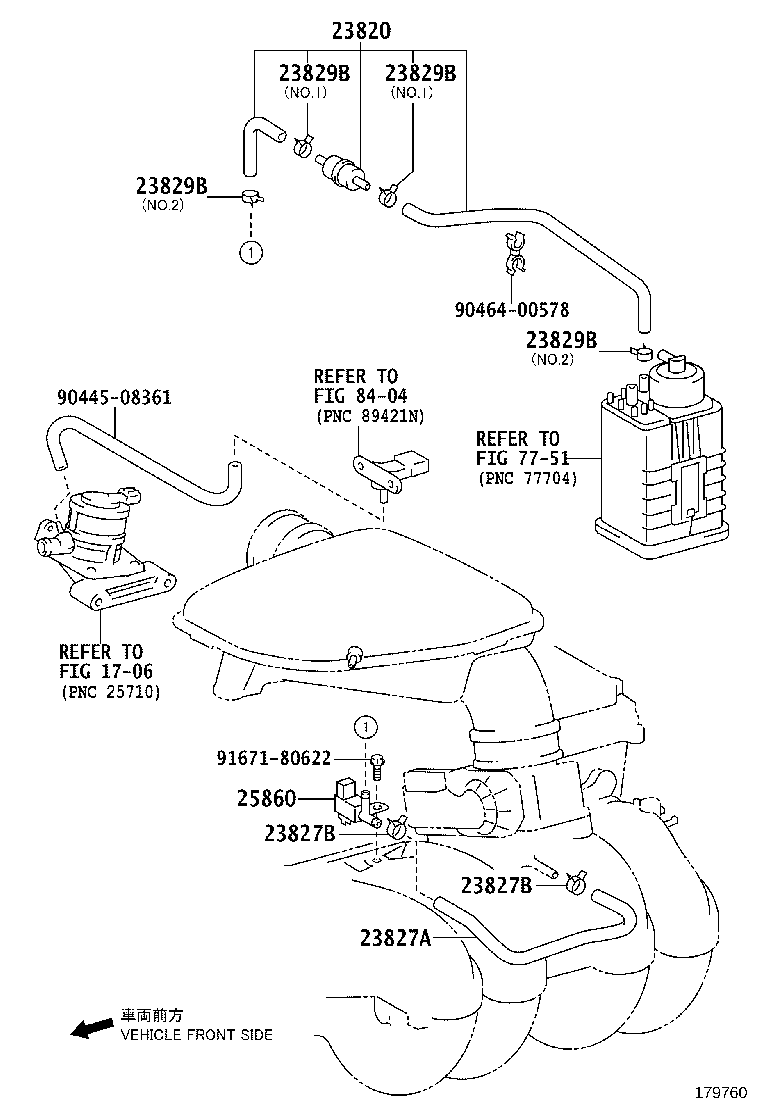

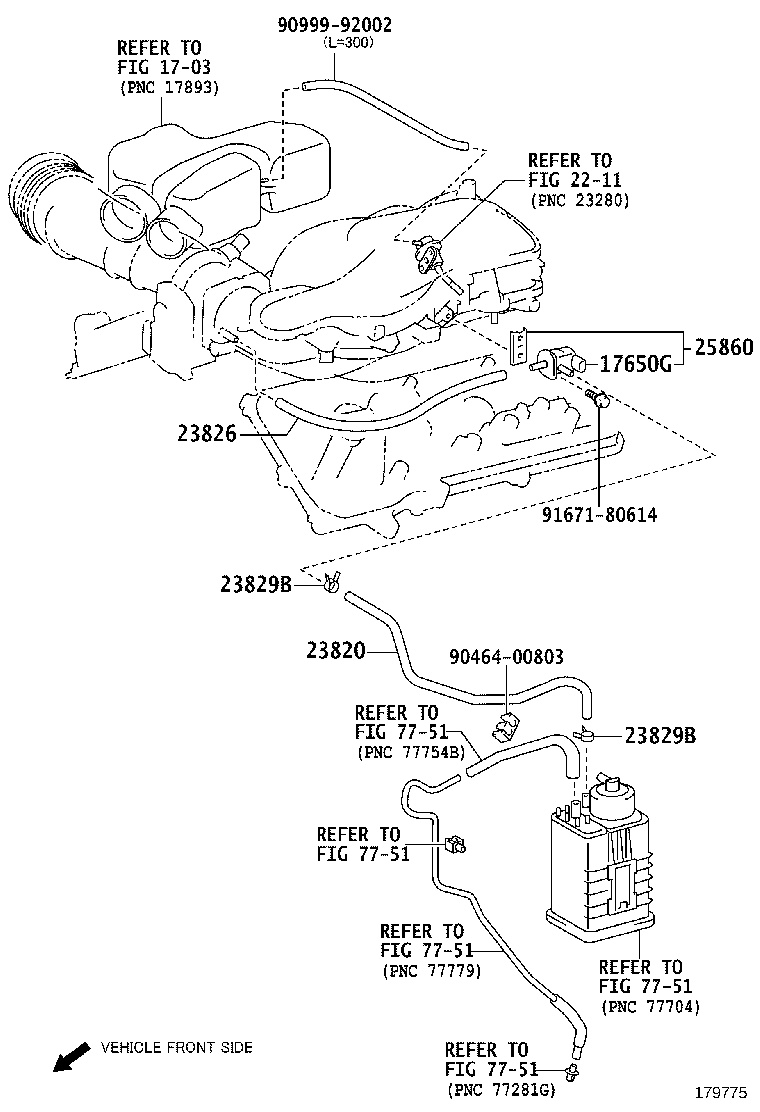

Vacuum Piping
33 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 12209F | Pipe Sub-assy, Oil Return |
| 17341P | Hose, Air |
| 17578B | Clamp, Pipe |
| 17650E | Valve, Vacuum Switching |
| 17650G | Valve, Duty Vacuum Switching |
| 17696 | Bracket, Gas Filter |
| 23265C | Filter, Gas |
| 23820 | Hose Assy, Fuel Vapor Feed |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23827B | Clip(FOR FUEL VAPOR FEED HOSE, NO.2) |
| 23829B | Clip(FOR FUEL VAPOR FEED HOSE) |
| 25706 | Pipe Sub-assy, Vacuum Transmitting, NO.1 |
| 25707 | Pipe Sub-assy, Vacuum Transmitting, NO.2 |
| 25708 | Pipe Sub-assy, Vacuum Transmitting, NO.3 |
| 25709E | Pipe Sub-assy, Vacuum Transmitting, NO.4 |
| 25733A | Pipe, Vacuum, NO.1 |
| 25734 | Pipe, Vacuum, NO.2 |
| 25760 | Hose Assy, Vacuum Transmitting |
| 25760A | Hose Assy, Vacuum Transmitting |
| 25761B | Hose, Vaccum Transmitting, NO.1 |
| 25770 | Hose Assy, Vacuum Transmitting, NO.2 |
| 25770A | Hose Assy, Vacuum Transmitting, NO.2 |
| 25770B | Hose Assy, Vacuum Transmitting, NO.3 |
| 25771B | Hose, Vaccum Transmitting, NO.2 |
| 25780 | Hose Assy, Vacuum Transmitting, NO.3 |
| 25781A | Hose, Vacuum Transmitting, NO.3 |
| 25790 | Hose Assy, Vacuum Transmitting, NO.4 |
| 257A1 | Hose, Vacuum Transmitting, NO.5 |
| 25804 | Valve Set, Vacuum Control |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25861 | Bracket, Vacuum Switching Valve |
| 25894 | Filter, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
