Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

9 part groups · 6 illustrations

Illustrations

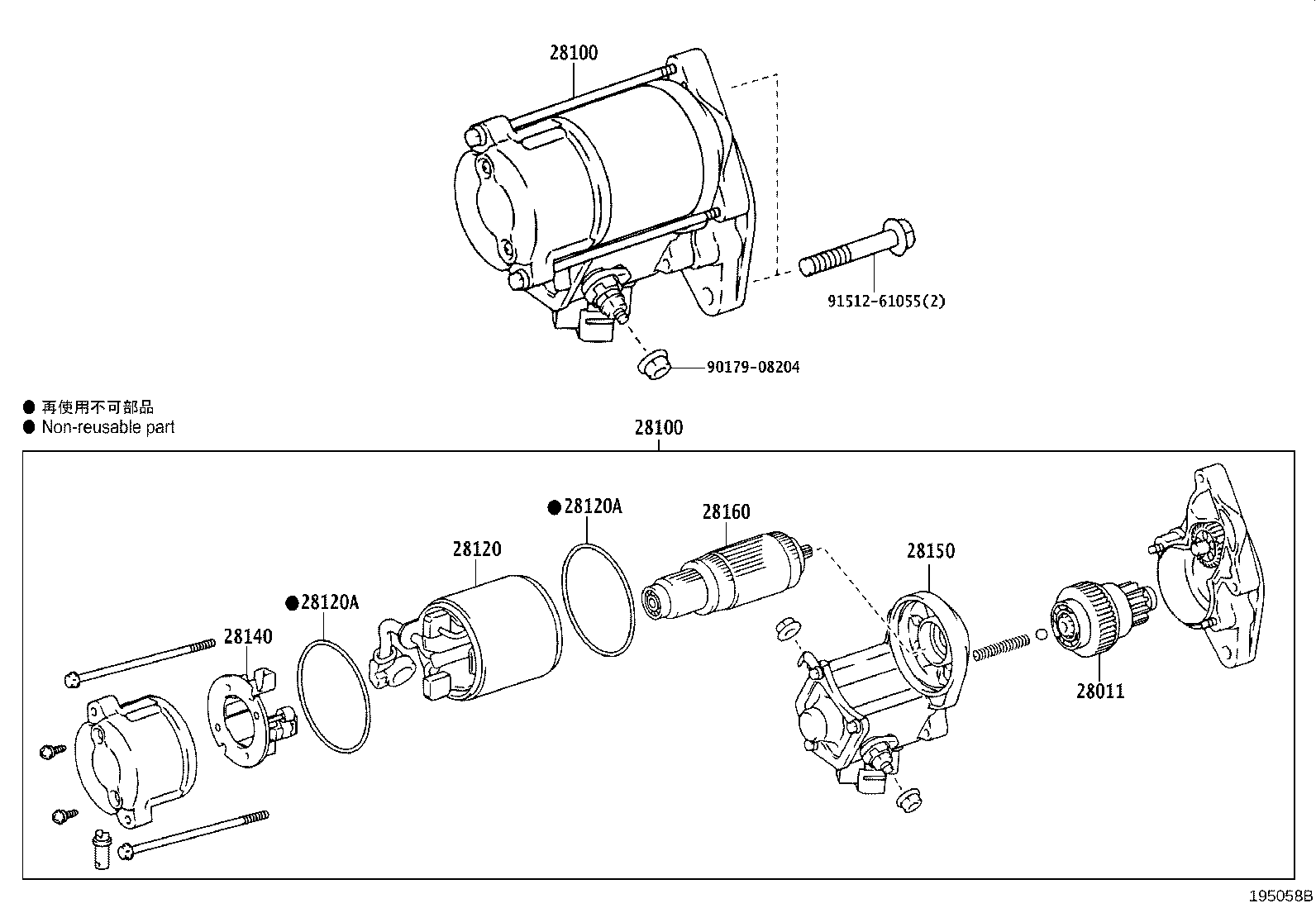

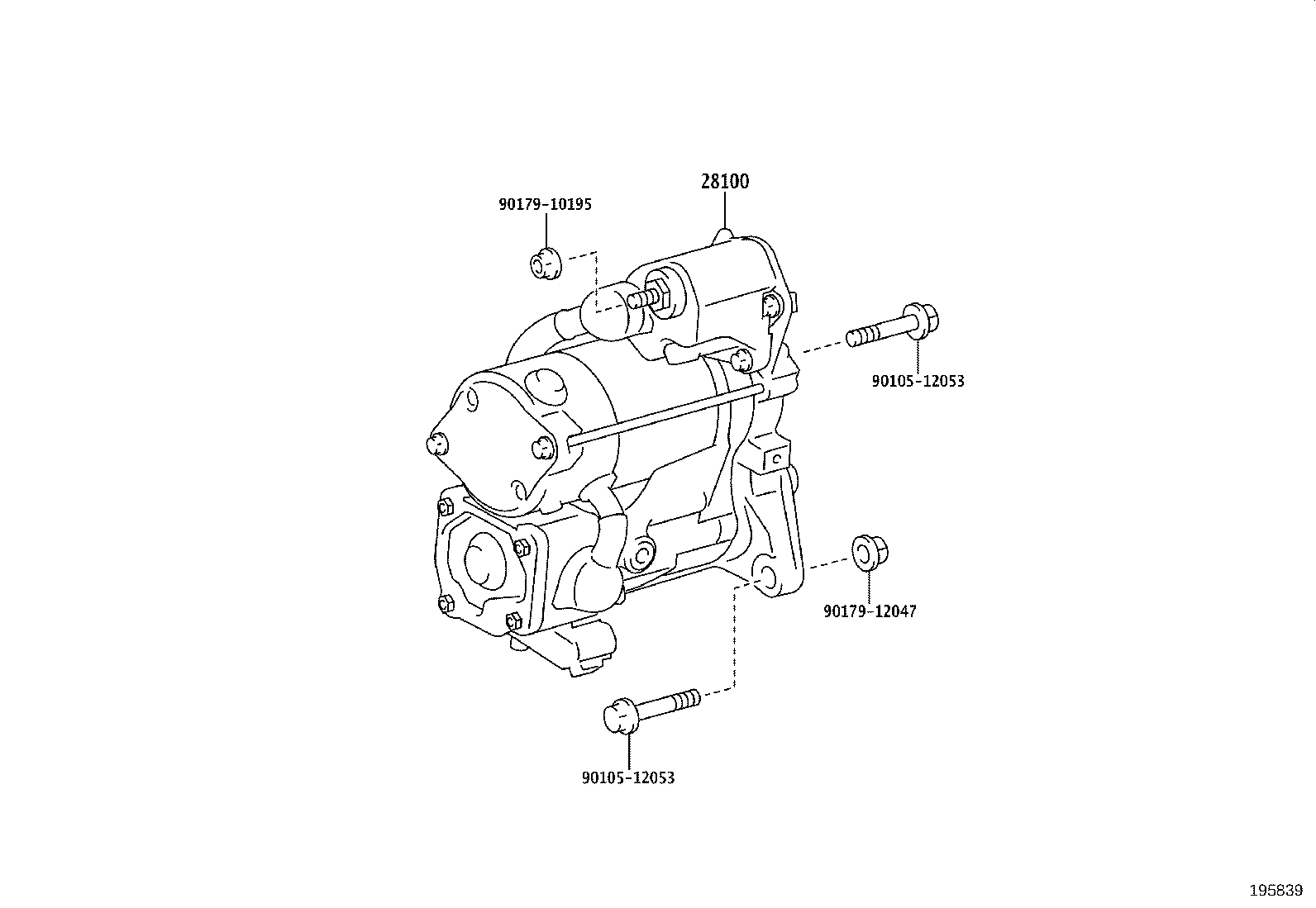

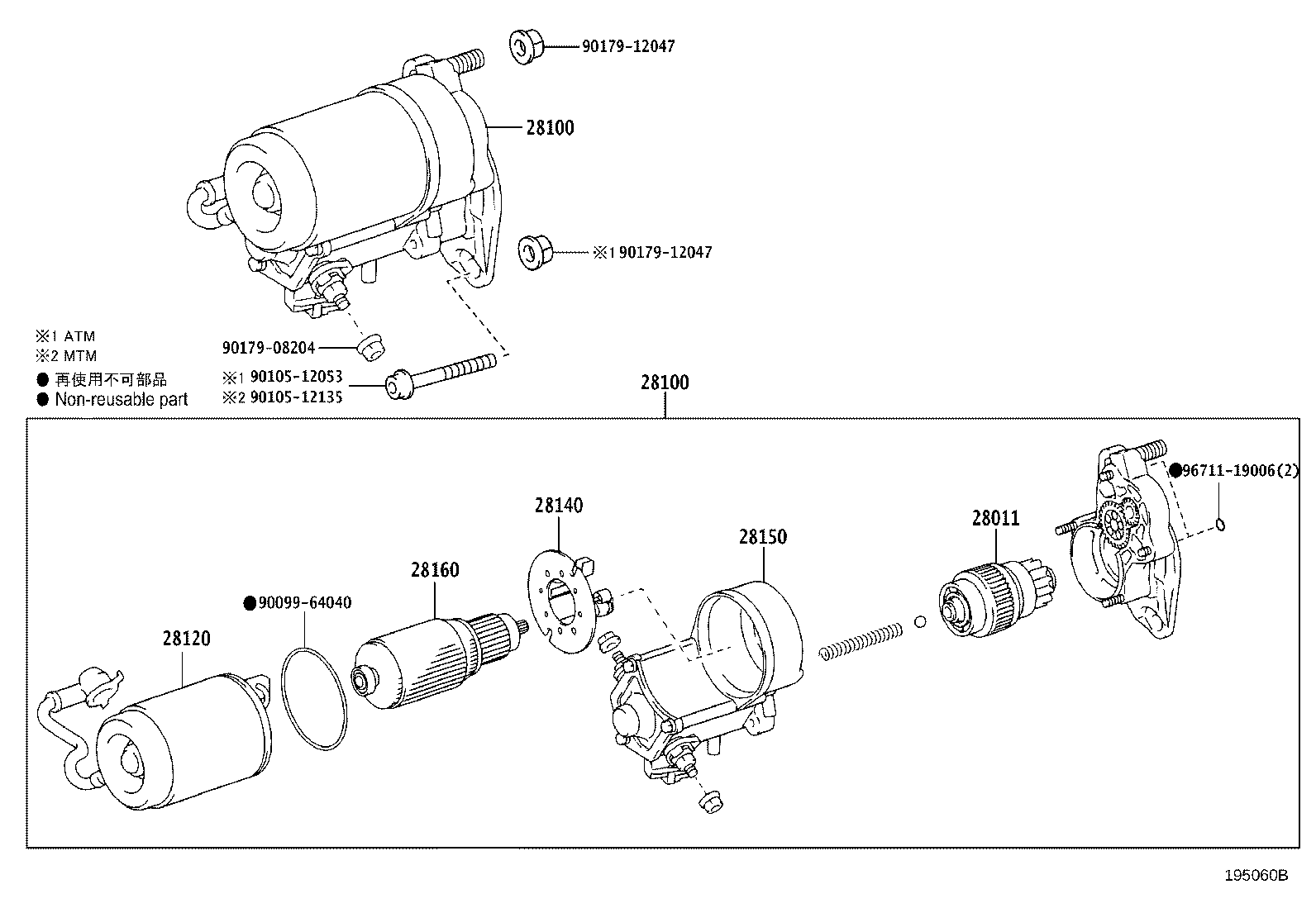

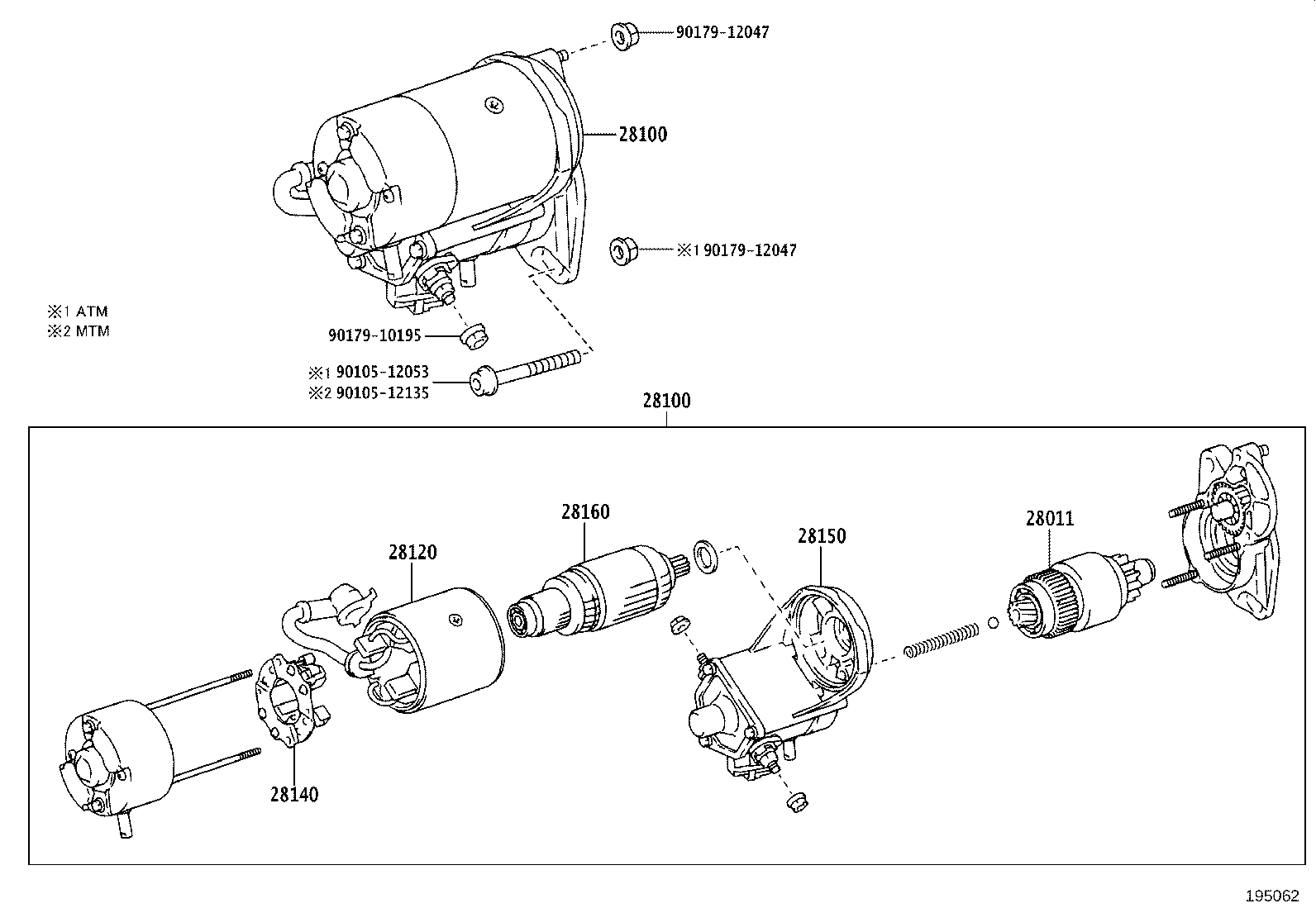

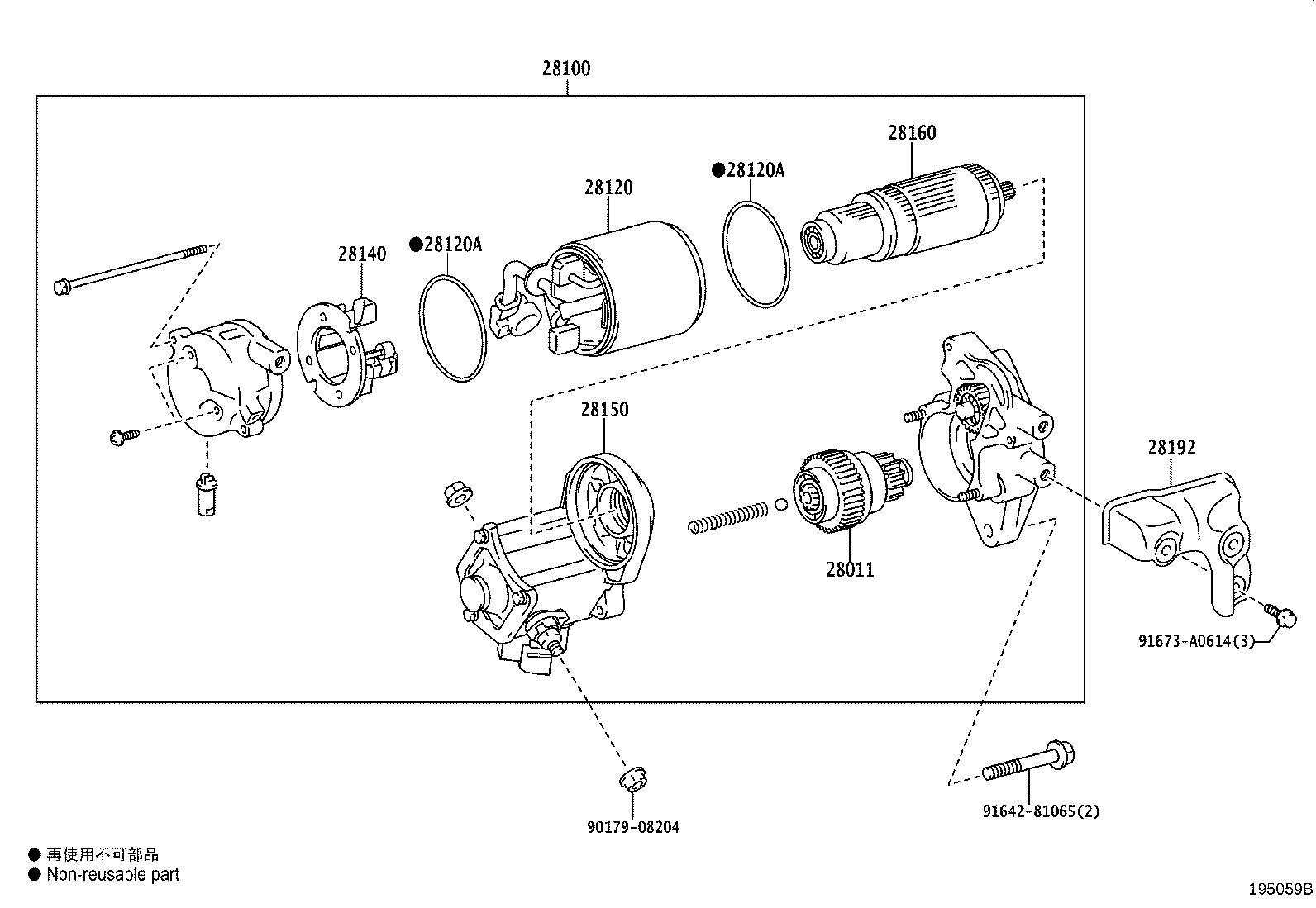

Figure 195061 195061 2017-08 → — Figure 195062 195062 2017-08 → — Figure 195059B 195059B 2017-08 → — Figure 195060B 195060B 2017-08 → — Figure 195058B 195058B 2017-08 → — Figure 195839 195839 2020-08 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28100 Starter Assy
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28140 Holder Assy, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28192 Cover, Starter
28226B Starter Kit, Repair Service
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
