Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06

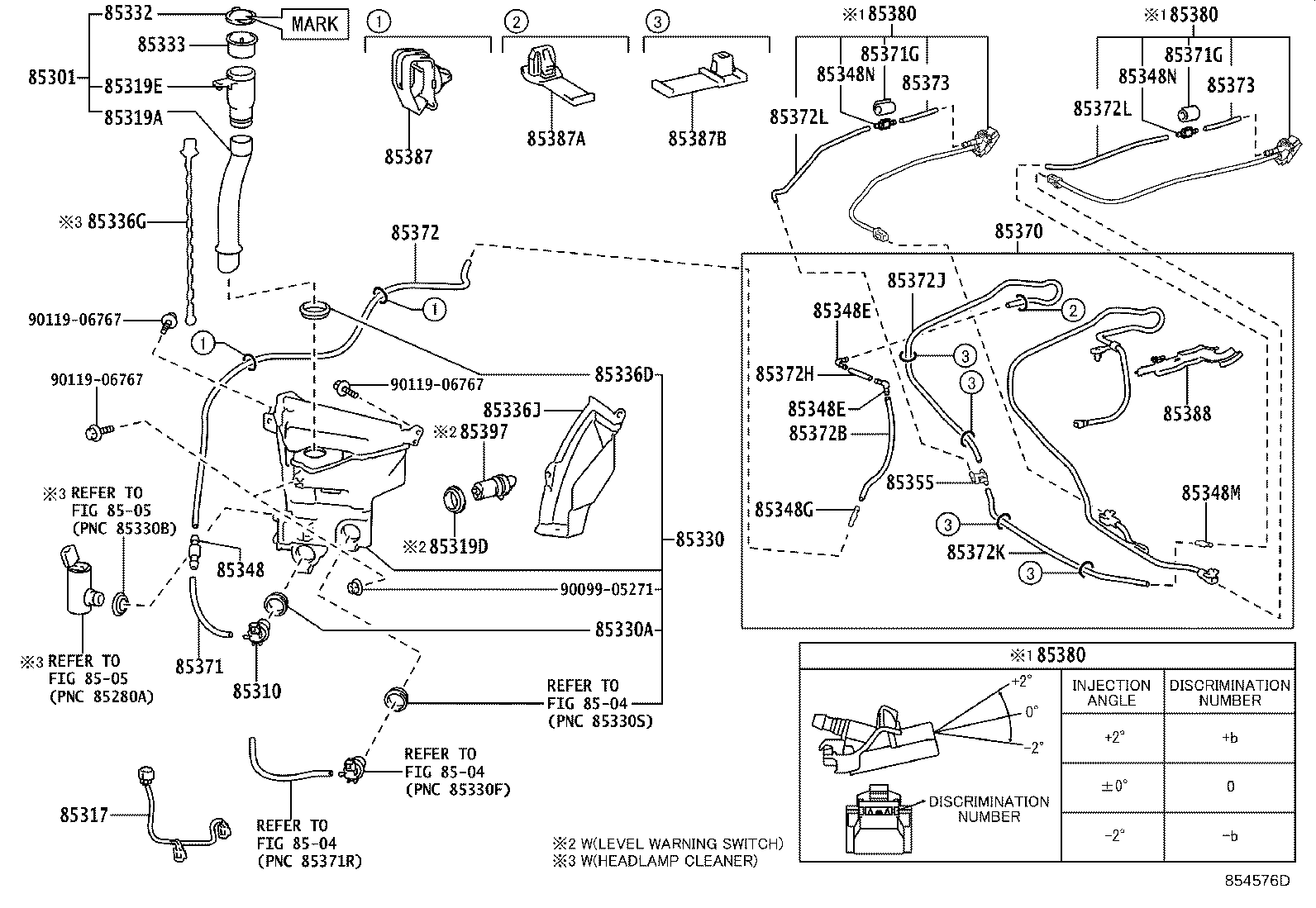

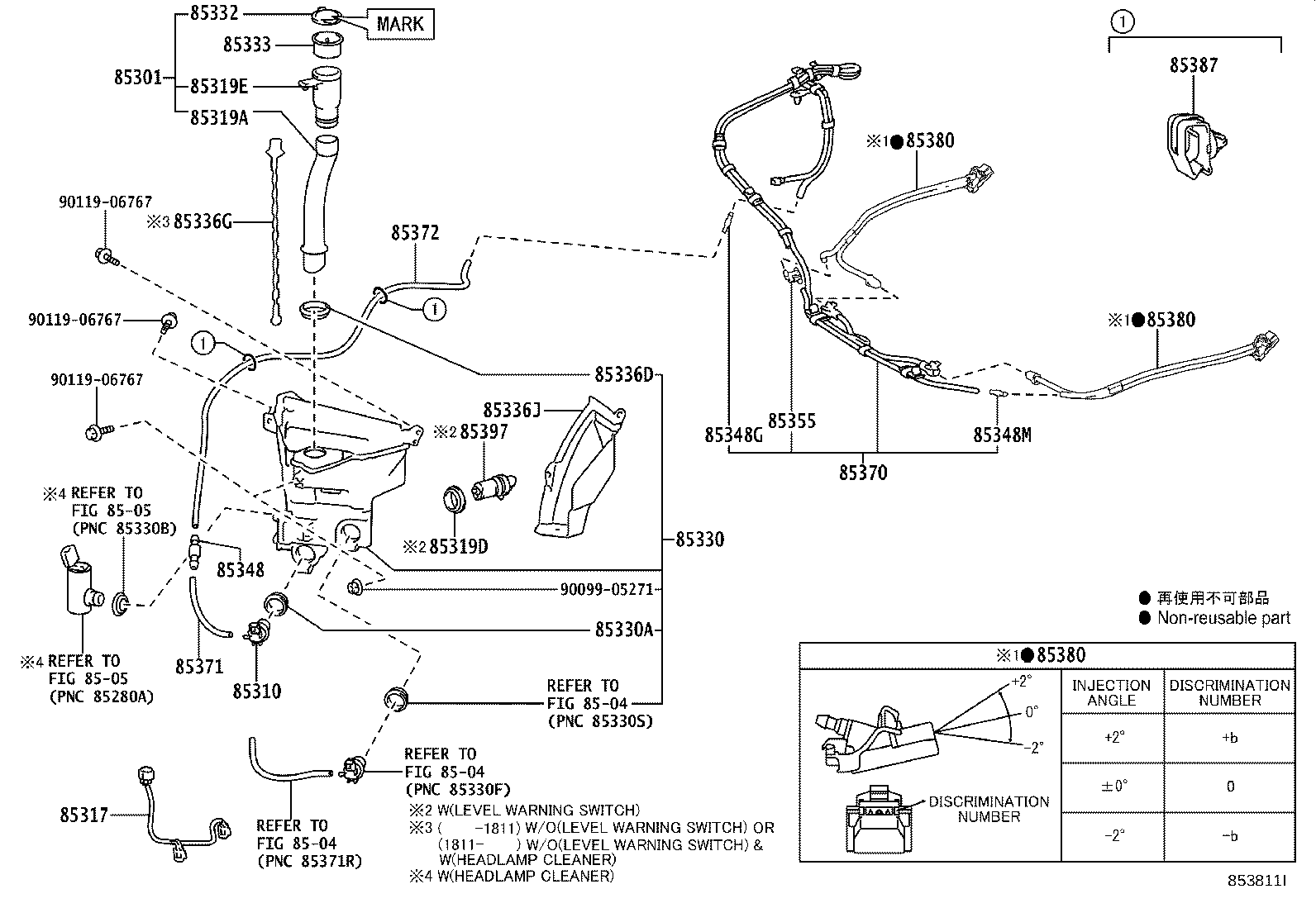

Windshield Washer

38 part groups · 3 illustrations

PNC	Description
85035	Nozzle Sub-assy, Washer
85301	Inlet Sub-assy, Washer
85310	Motor And Pump Assy, Windshield Washer
85317	Wiring Assy, Washer
85319A	Hose, Inlet
85319D	Packing, Front Washer
85319E	Inlet Washer
85330	Jar Assy, Windshield Washer
85330A	Bush, Windshield Washer Jar
85332	Cap, Windshield Washer Jar
85333	Filter, Windshield Washer Jar
85336D	Packing, Windshield Washer Jar
85336G	Gage, Water Level
85336J	Protector, Washer Jar
85348	Joint, Windshield Washer Hose, NO.1
85348D	Joint, Windshield Washer Elbow, NO.1
85348E	Joint, Windshield Washer Elbow, NO.2
85348G	Joint, Windshield Washer Hose, NO.2
85348M	Joint, Windshield Washer Hose, NO.3
85348N	Joint, Windshield Washer Hose, NO.4
85355	Valve, Windshield Washer Hose
85369	Clamp
85370	Hose Assy, Windshield Washer
85371	Hose, Windshield Washer (FROM MOTOR TO JOINT)
85371G	Protector, Front Washer
85372	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85372H	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
85372J	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4
85372K	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.5
85372L	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.6
85373	Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85380	Nozzle & Hose Assy, FR Washer
85387	Clamp NO.1 (FOR WINDSEIELD WASHER)
85387A	Clamp, Washer, NO.2
85387B	Clamp, Washer, NO.3
85388	Clamp NO.2 (FOR WINDSEIELD WASHER)
85397	Switch Assy,Level Warning

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
