Toyota Lexus GX550/550H

2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

175 part groups · 17 illustrations

Illustrations

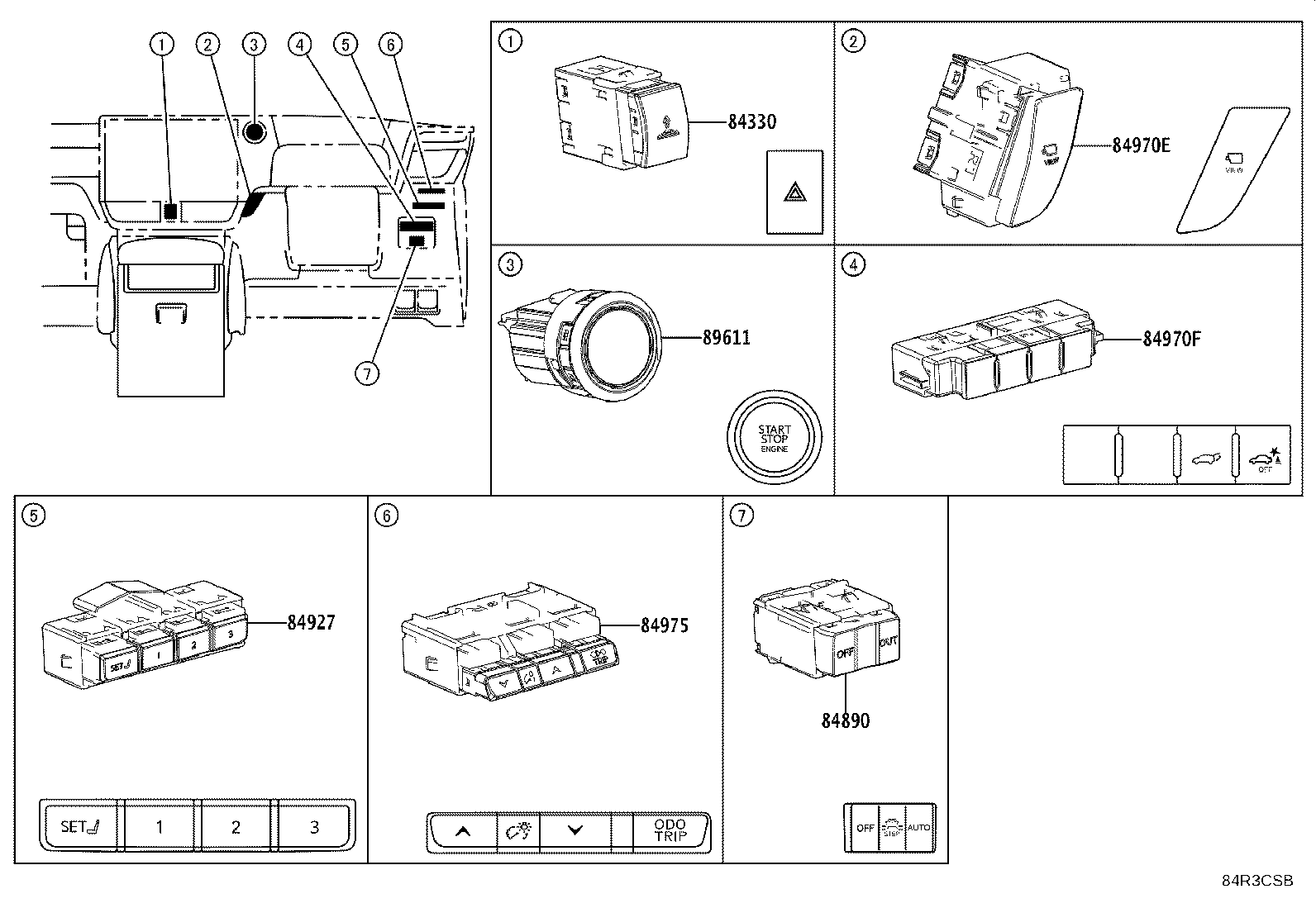

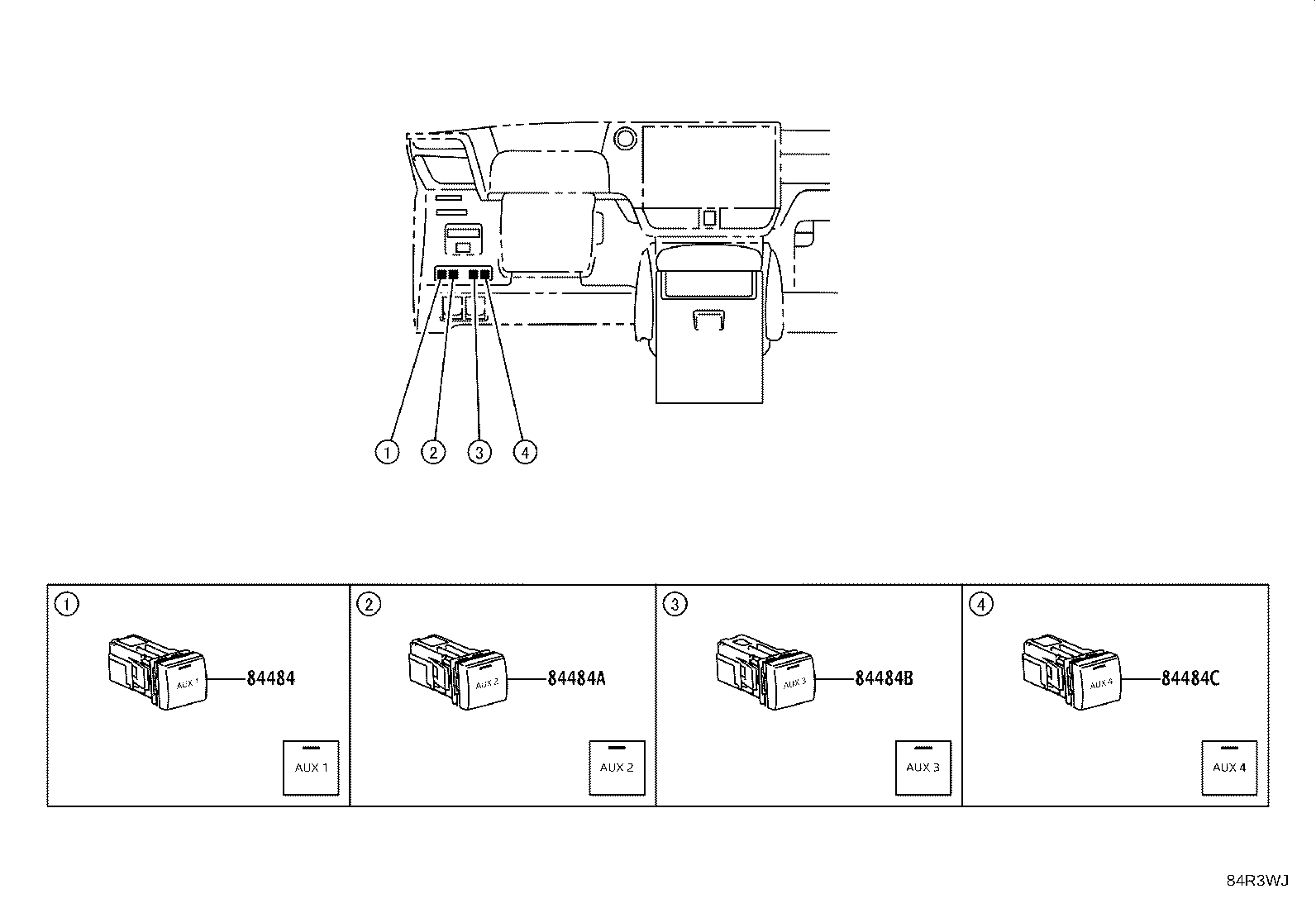

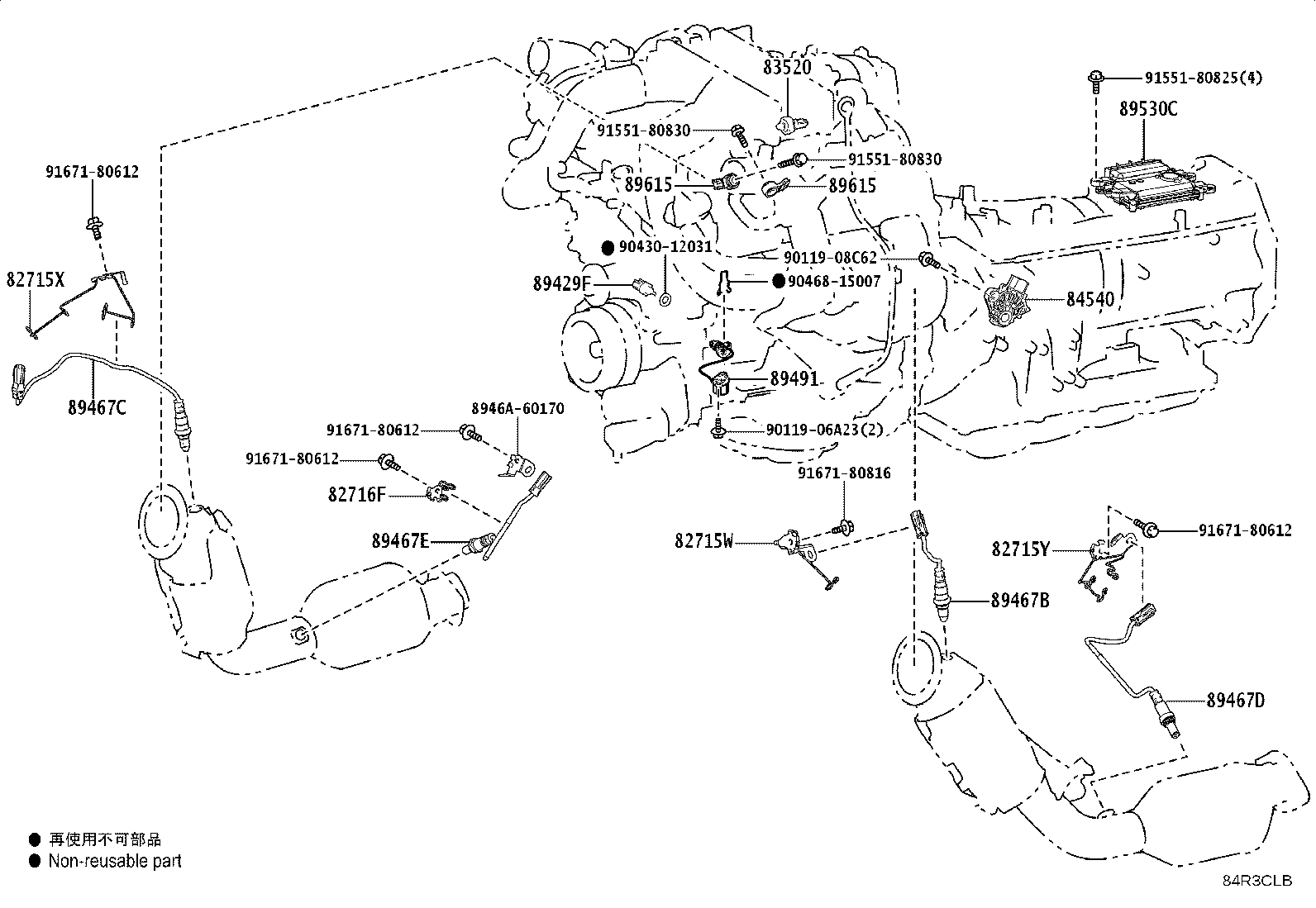

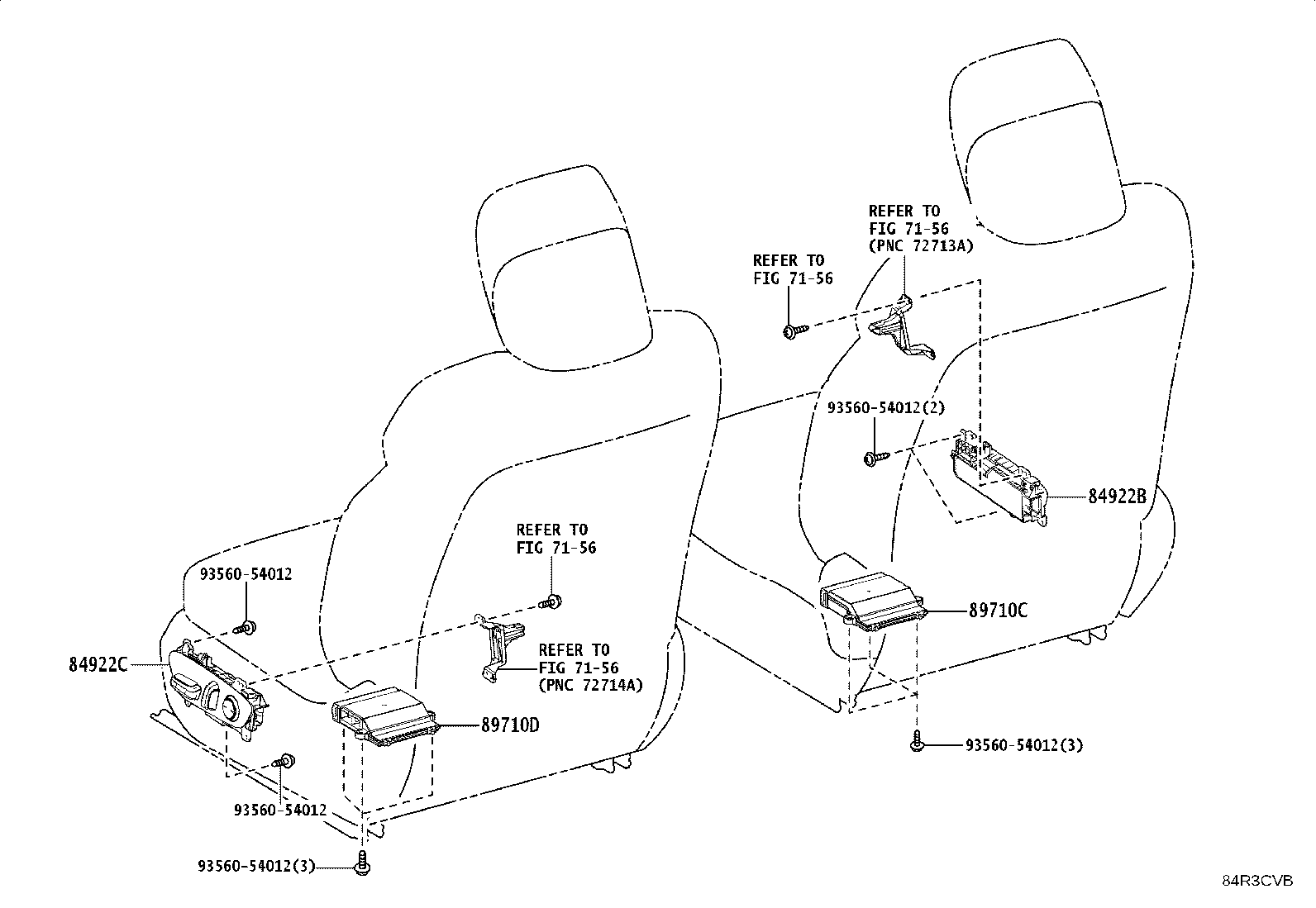

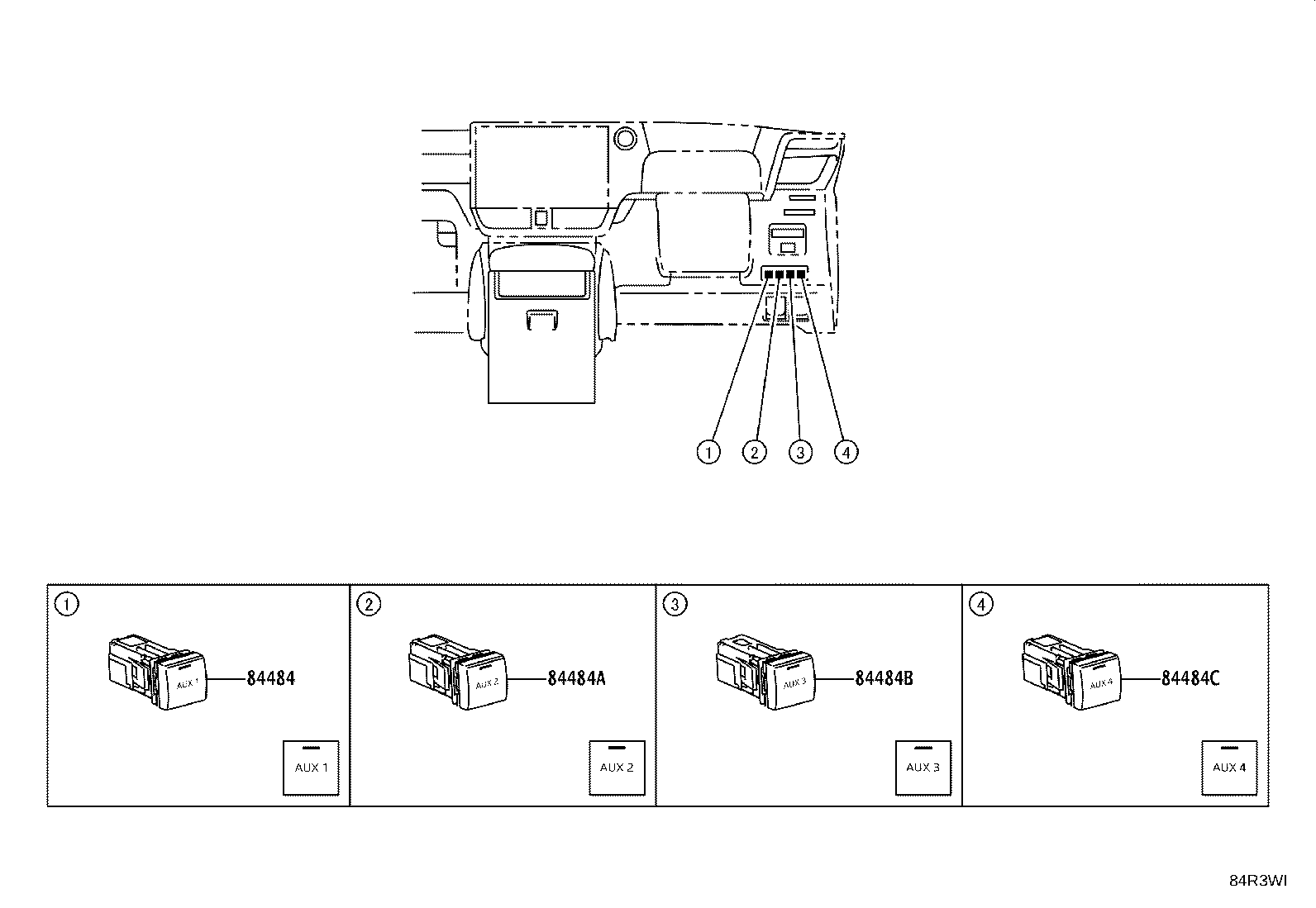

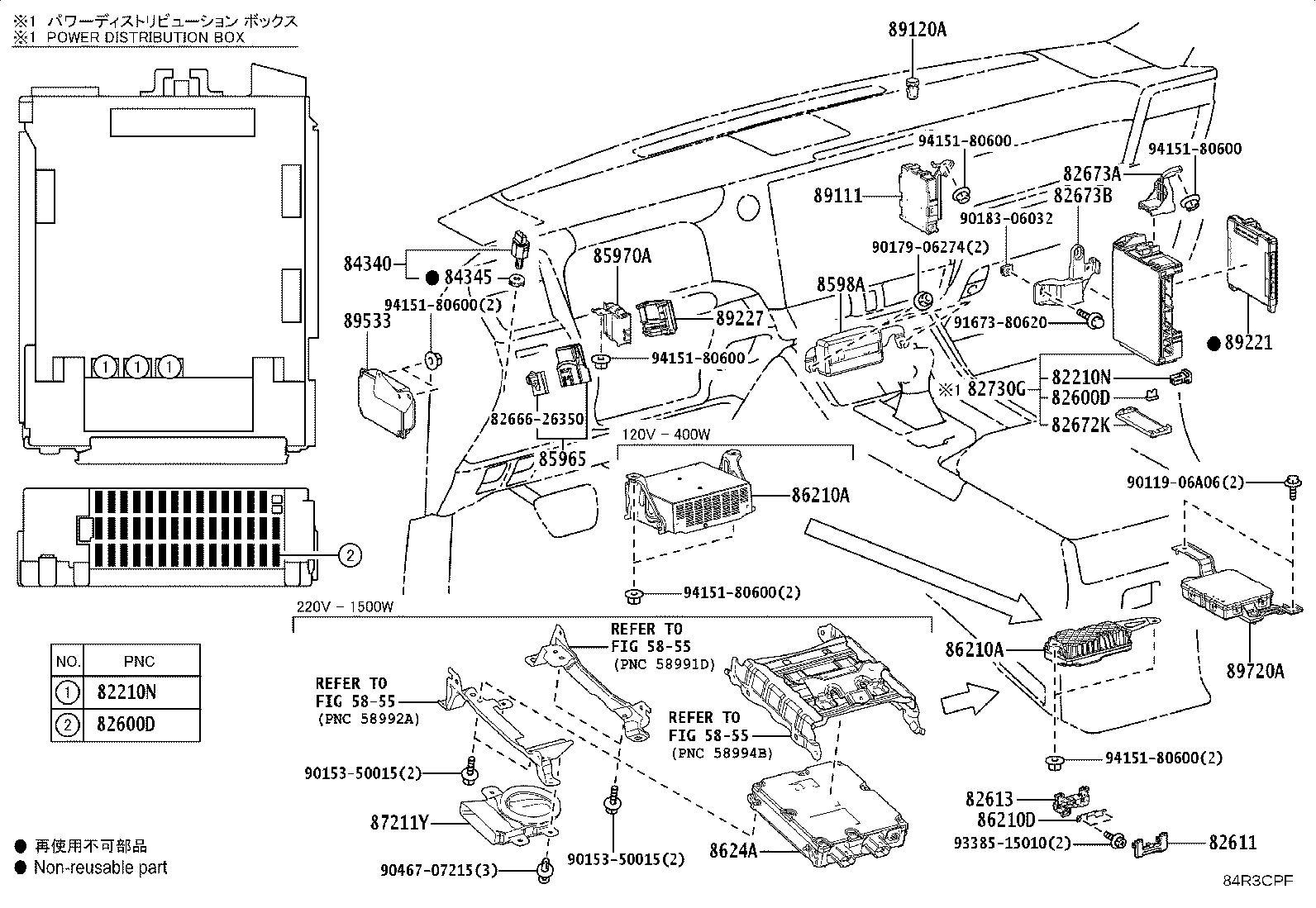

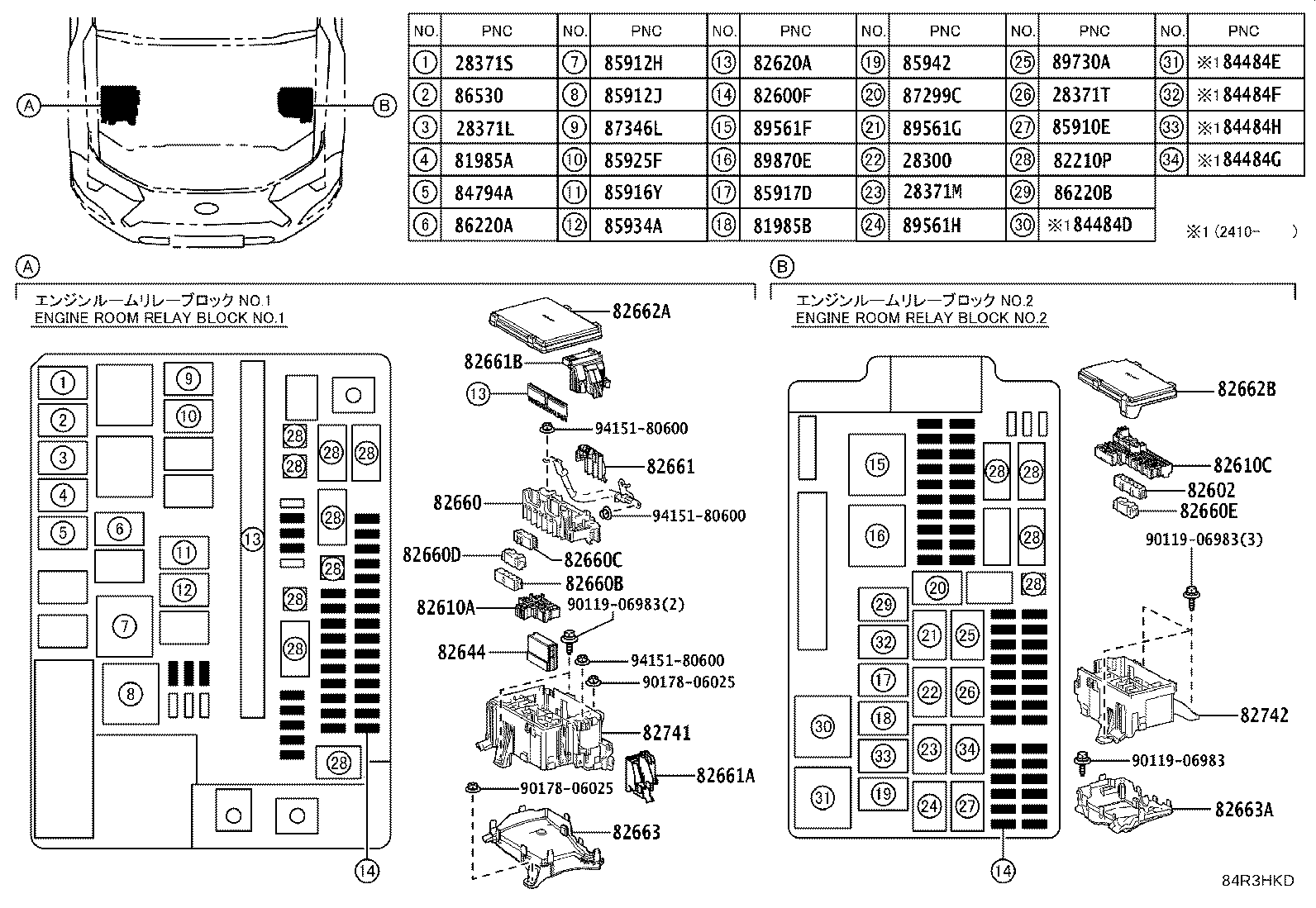

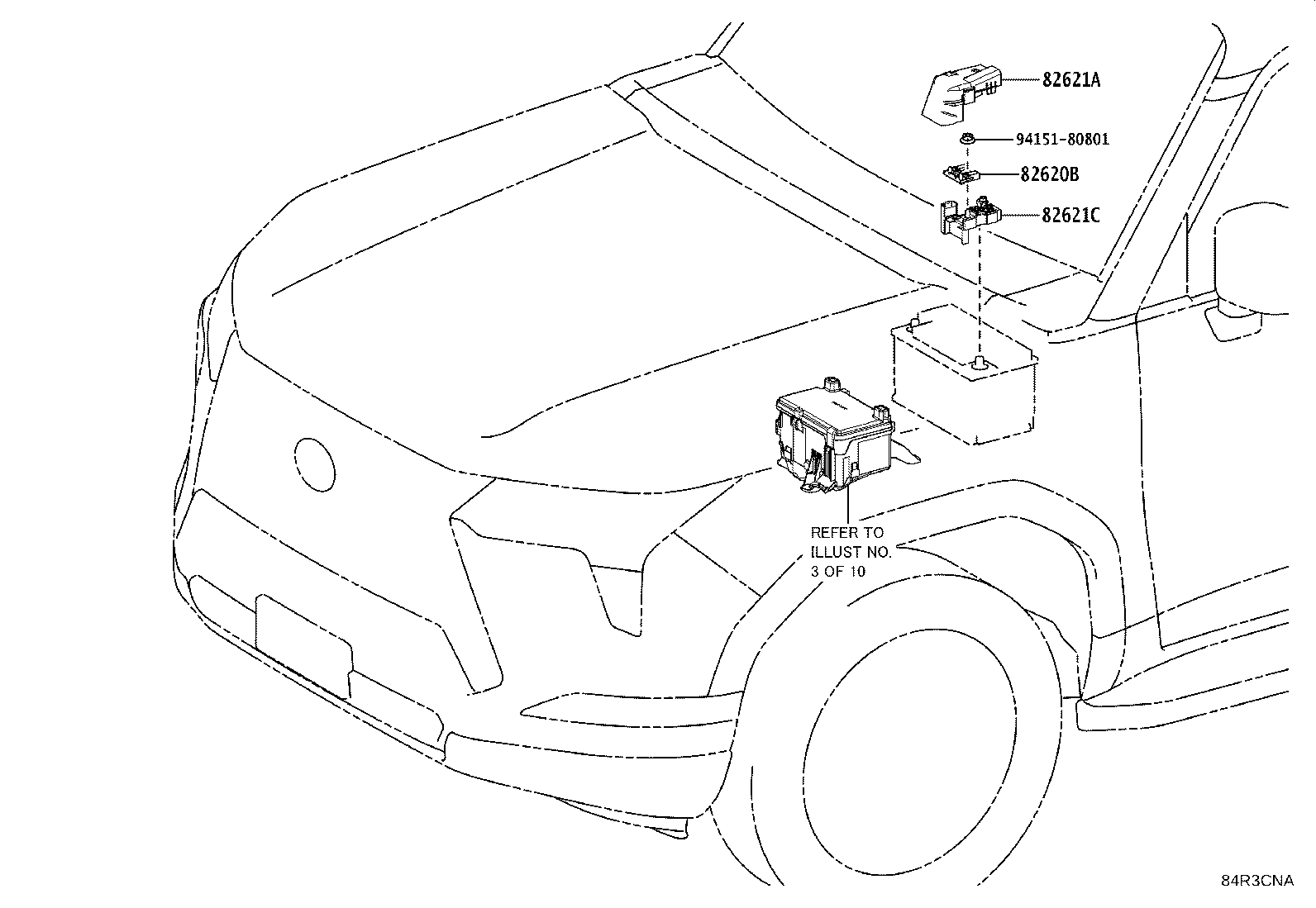

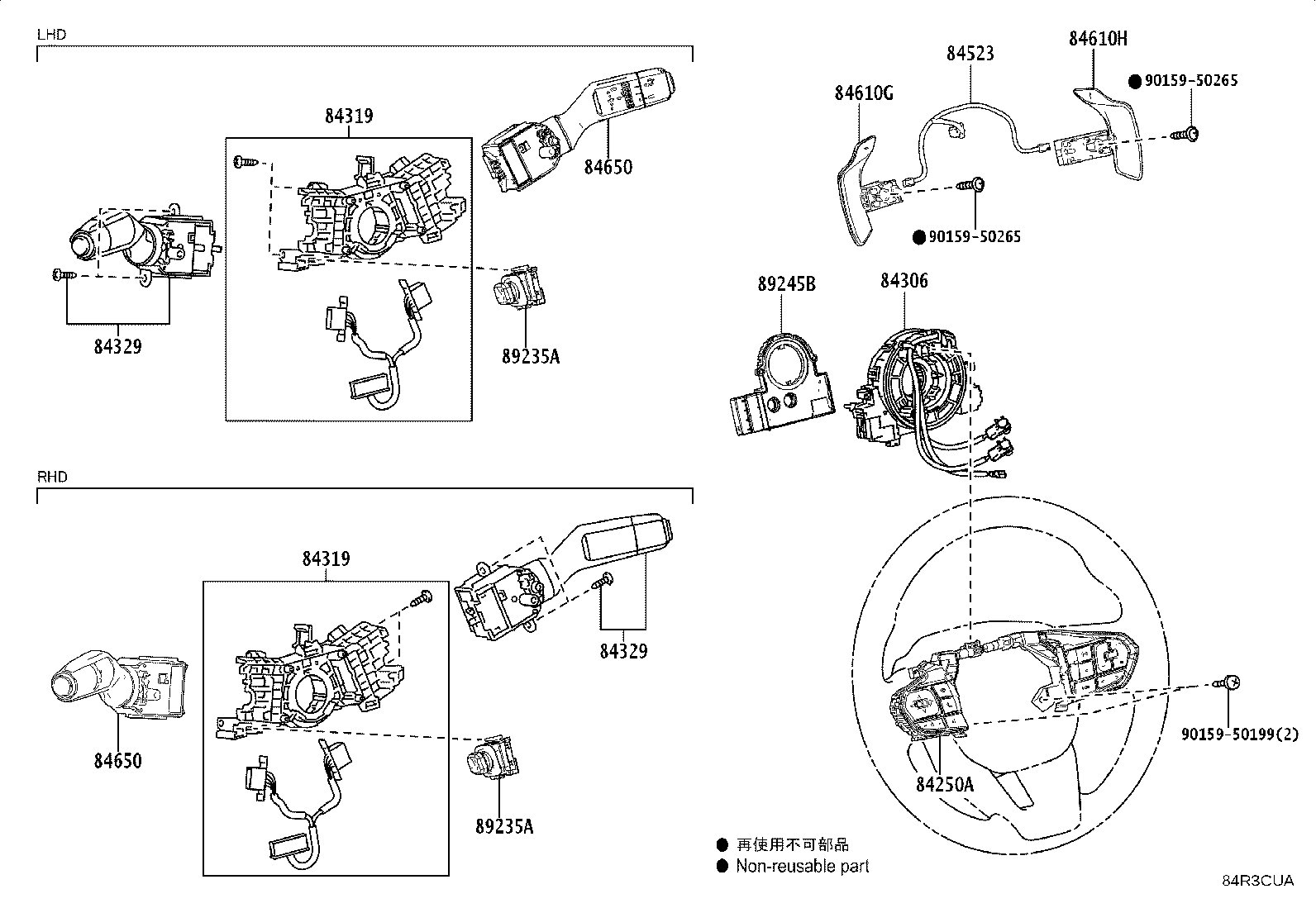

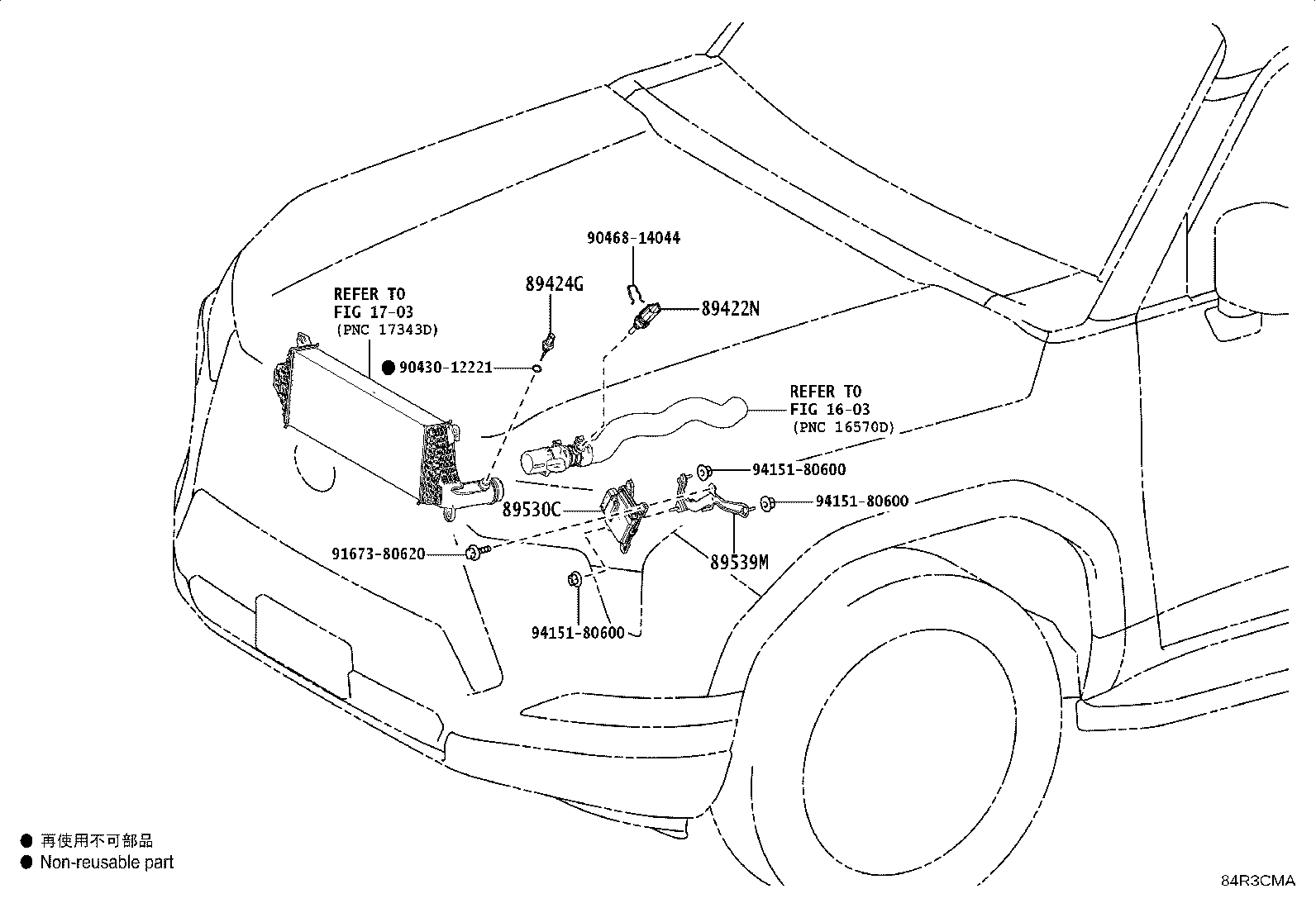

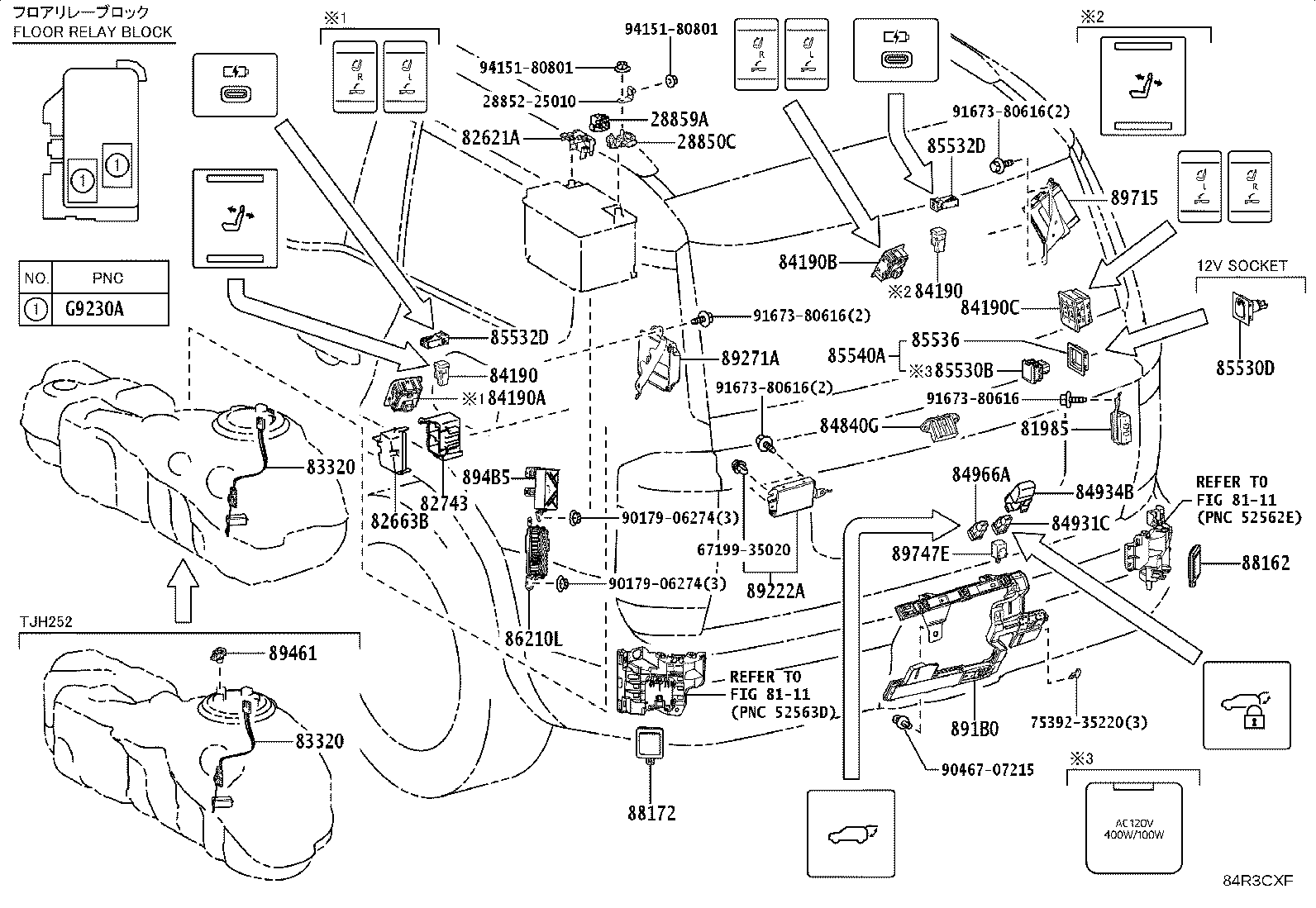

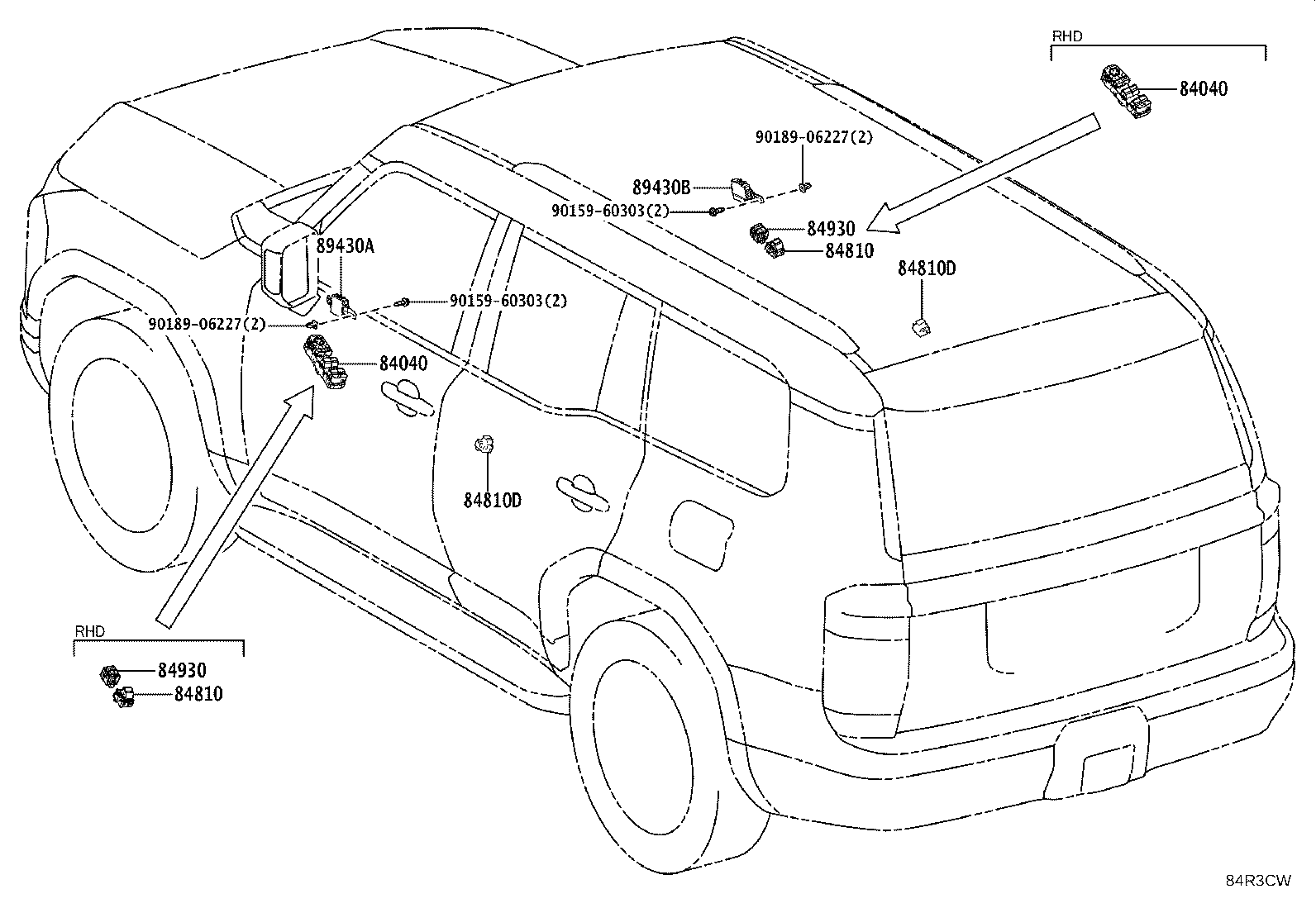

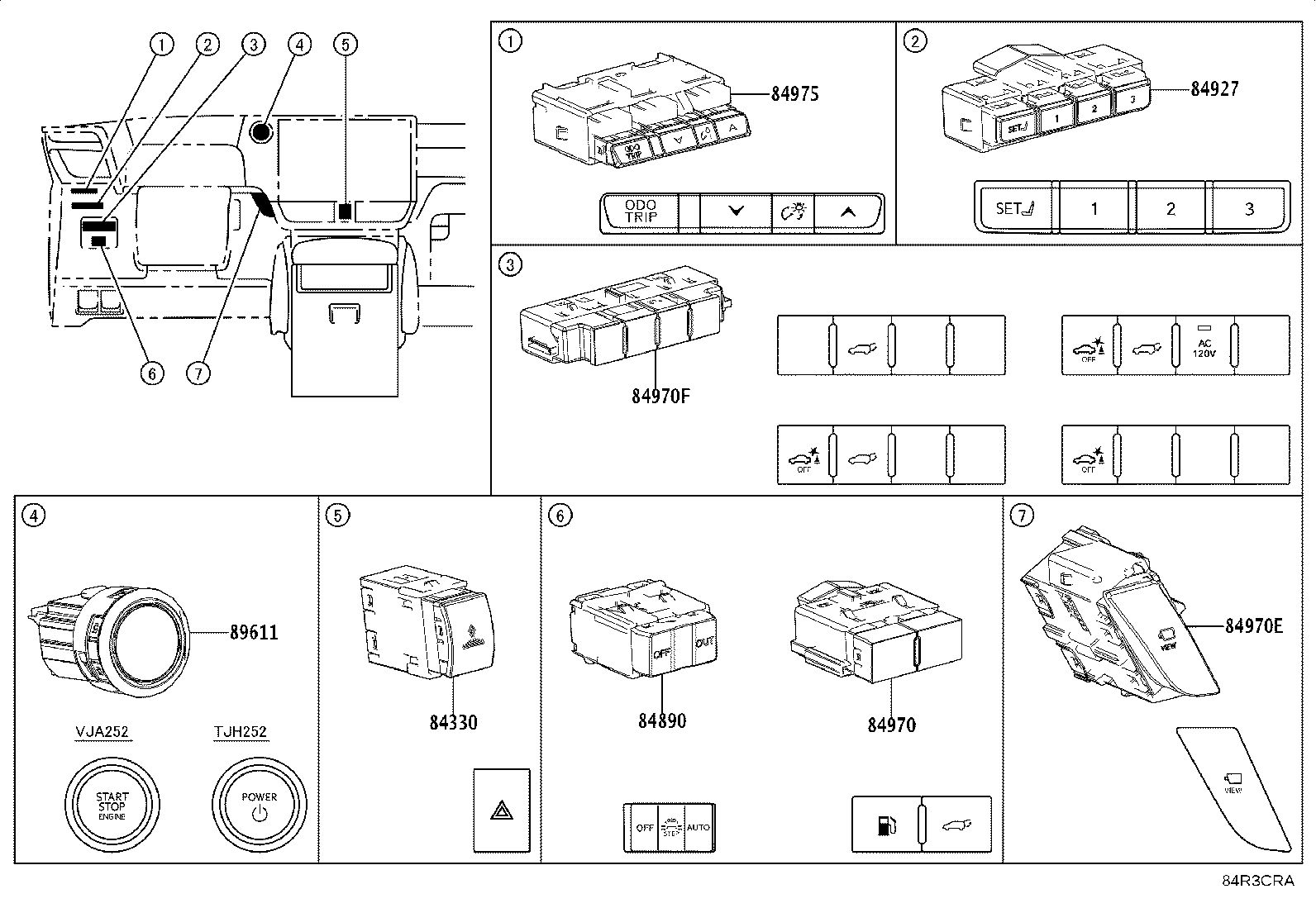

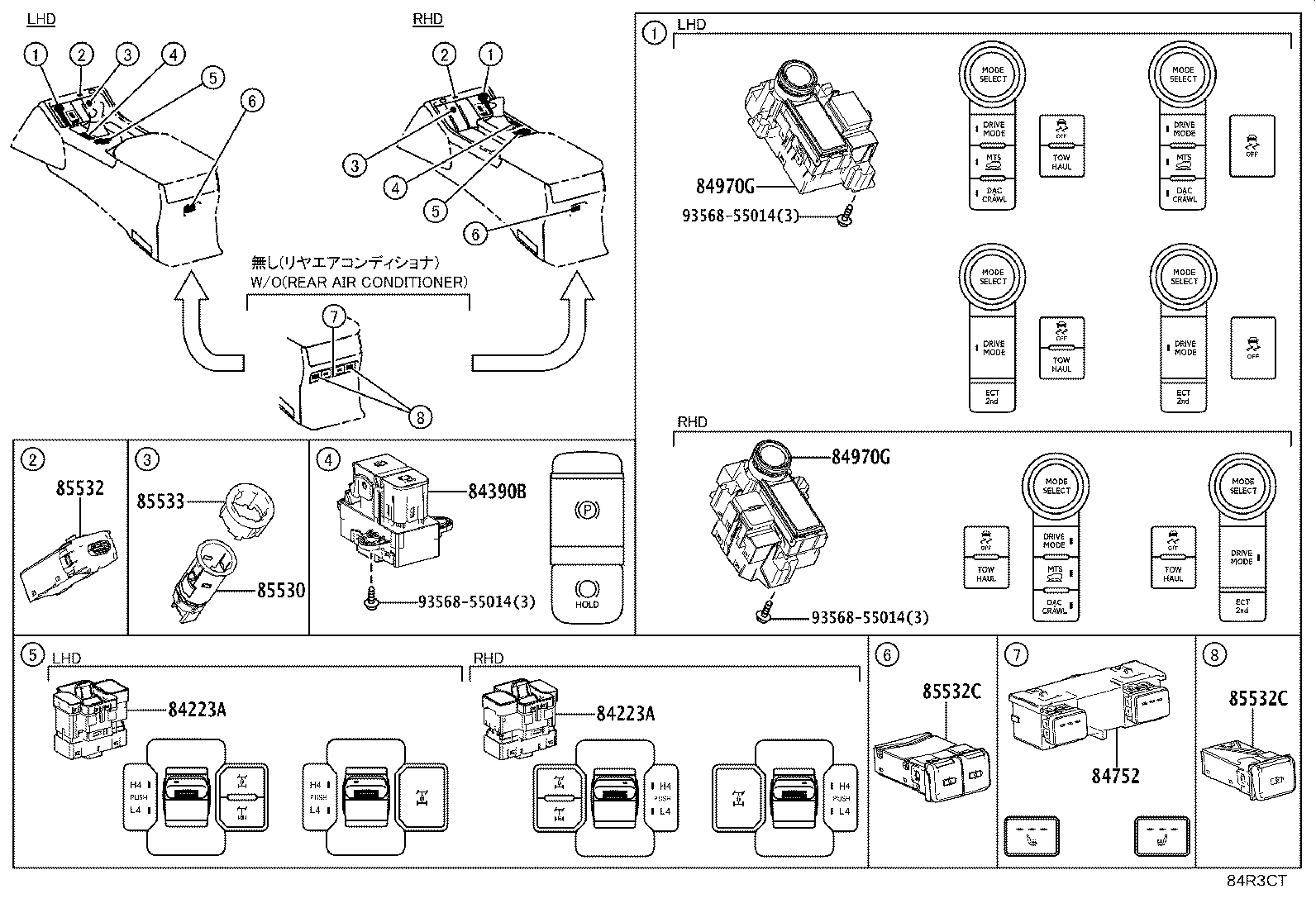

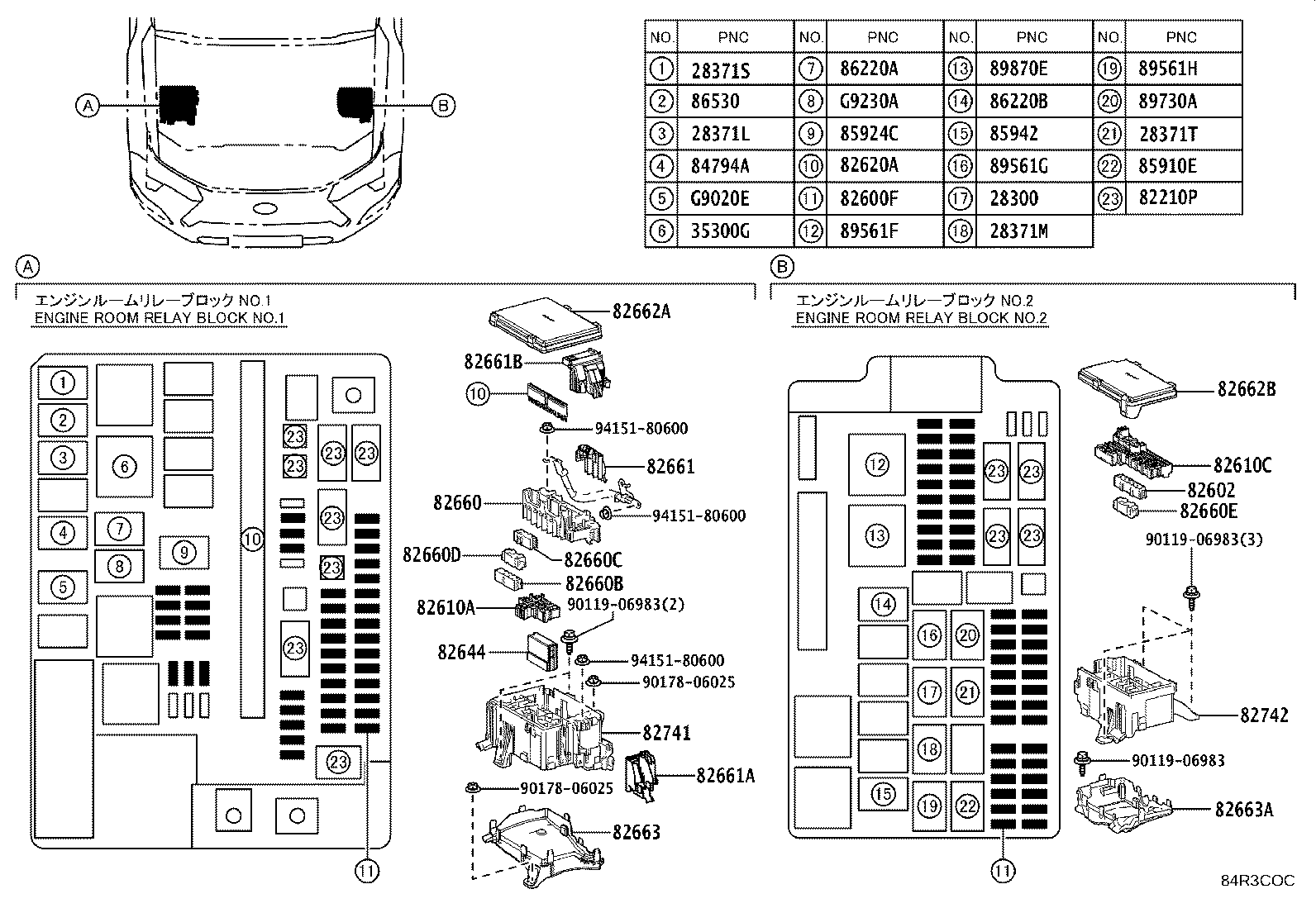

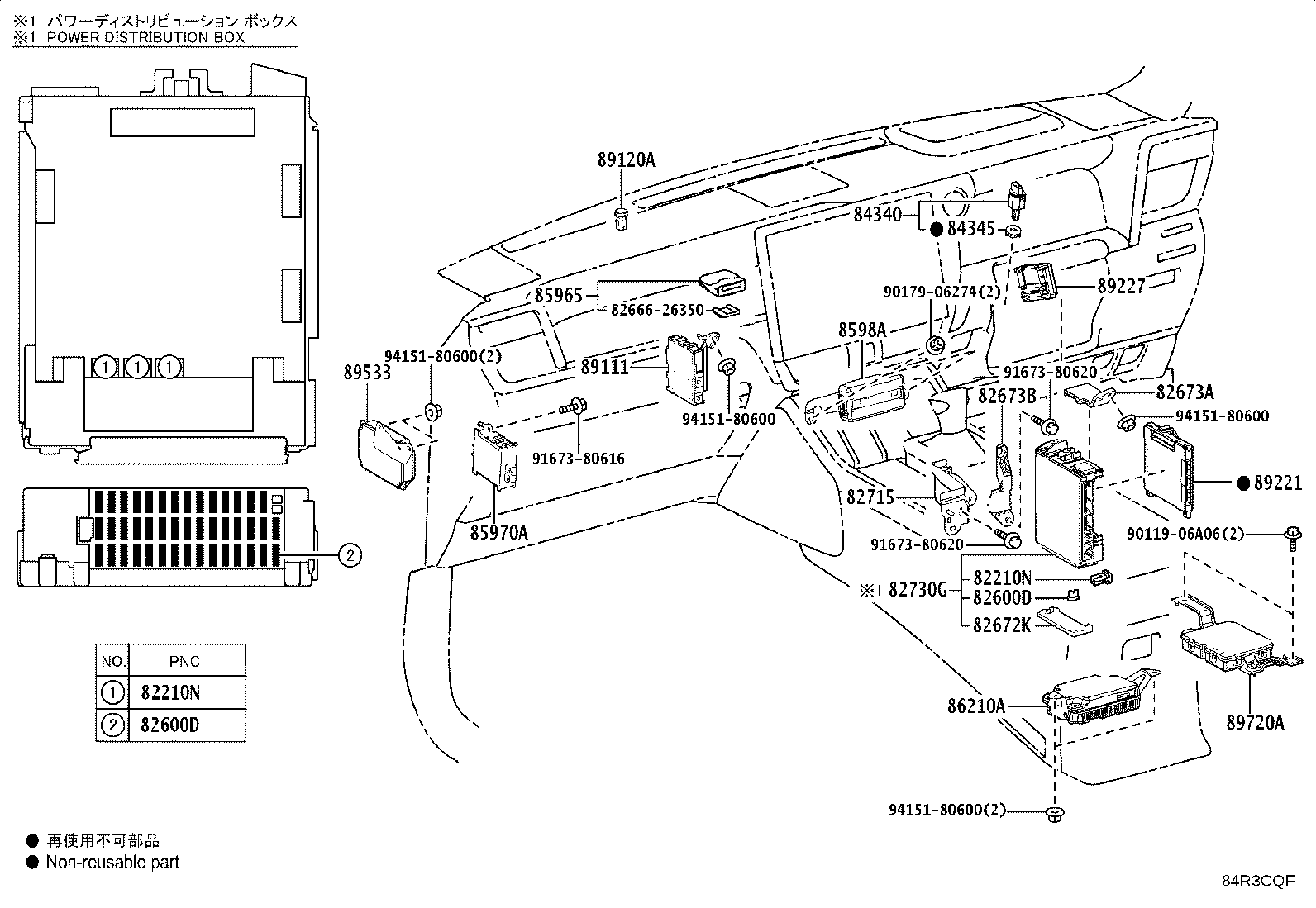

Figure 84R3CKA 84R3CKA 2024-03 → — Figure 84R3CLB 84R3CLB 2024-02 → — Figure 84R3CMA 84R3CMA 2024-03 → — Figure 84R3CNA 84R3CNA 2024-02 → — Figure 84R3COC 84R3COC 2024-03 → — Figure 84R3HKD 84R3HKD 2024-02 → — Figure 84R3CPF 84R3CPF 2024-02 → — Figure 84R3CQF 84R3CQF 2024-02 → — Figure 84R3CRA 84R3CRA 2024-02 → — Figure 84R3WJ 84R3WJ 2024-10 → — Figure 84R3CSB 84R3CSB 2024-02 → — Figure 84R3WI 84R3WI 2024-10 → — Figure 84R3CT 84R3CT 2024-02 → — Figure 84R3CUA 84R3CUA 2024-02 → — Figure 84R3CVB 84R3CVB 2024-02 → — Figure 84R3CW 84R3CW 2024-02 → — Figure 84R3CXF 84R3CXF 2024-02 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371L Relay, Igp
28371M Relay, Igp, NO.2
28371S Relay, Igr, NO.3
28371T Relay, Igr, NO.4
28850C Sensor Assy, Battery State
28859A Holder, Battery Current Sensor
35300G Relay, Oil Pump
81985 Relay, Towing Converter
81985A Relay, Towing Back-up
81985B Relay, Towing Stop Lamp
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600F Fuse, Fuse Block
82602 Block Sub-assy, Relay
82610A Block Assy, Fuse
82610C Block Assy, Fuse
82611 Cover, Fuse Block
82613 Cover, Fuse Block
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82621A Cover, Fusible Link
82621C Cover, Fusible Link, NO.2
82644 Computer, Semiconductor Power Integration
82660 Block Assy, Relay, Engine Room
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82661 Cover, Relay Block, NO.1
82661A Cover, Relay Block, NO.2
82661B Cover, Relay Block, NO.3
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82672K Cover, Power Distribution Box
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82715 Bracket,Wiring Harness Clamp
82715W Bracket, Wiring Harness Clamp
82715X Bracket, Wiring Harness Clamp, NO.2
82715Y Bracket, Wiring Harness Clamp, NO.3
82716F Bracket, Wiring Harness Clamp, NO.4
82730G Box Assy, Power Distribution
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82743 Block, Engine Room Relay, NO.3
83320 Gage Assy, Fuel Sender
83520 Gage Assy,Oil Pressure Sender
84040 Master Switch Assy,Multiplex Network
84190 Switch Assy, Fold Seat
84190A Switch Assy, Fold Seat, NO.1
84190B Switch Assy, Fold Seat, NO.2
84190C Switch Assy, Fold Seat, NO.3
84223A Switch, Transfer Position
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84319 Housing, Steering Wheel Switch
84329 Switch, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84390B Switch Assy, Electric Parking Brake
84484 Switch, Auxiliary Direct Current, NO.1
84484A Switch, Auxiliary Direct Current, NO.2
84484B Switch, Auxiliary Direct Current, NO.3
84484C Switch, Auxiliary Direct Current, NO.4
84484D Relay, Auxiliary Direct Current, NO.1
84484E Relay, Auxiliary Direct Current, NO.2
84484F Relay, Auxiliary Direct Current, NO.3
84484G Relay, Auxiliary Direct Current, NO.4
84484H Relay, Auxiliary Direct Current, NO.5
84523 Wire, Switch NO.1
84540 Switch Assy, Neutral Start
84610G Switch Assy, Transmission Shift, NO.1
84610H Switch Assy, Transmission Shift, NO.2
84650 Switch Assy, Windshield Wiper
84752 Switch, Refreshing Seat
84794A Relay, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840G Switch Assy, Back Door Opener
84890 Switch Assy, Side Auto Step
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84927 Switch, Seat Memory
84930 Switch Assy, Door Control
84931C Switch, Back Door Control
84934B Cover, Door Control Switch
84966A Switch, Power Back Door Control, NO.1
84970 Switch Assy, Combination
84970E Switch Assy, Combination NO.2
84970F Switch Assy, Combination, NO.3
84970G Switch Assy, Combination, NO.4
84975 Switch, Trip
85530 Socket Assy, Power Outlet, NO.1
85530B Socket Assy, Power Outlet, Rear NO.1
85530D Socket Assy, Power Outlet, NO.2
85532 Socket, Usb Charger
85532C Socket, Usb Charger, NO.2
85532D Socket, Usb Charger, NO.3
85533 Lens, Cigarette Lighter Indicator
85536 Bezel, Power Outlet Socket
85540A Bezel Assy, Power Outlet Socket
85910E Relay, Injector
85912H Relay, Hwd, NO.1
85912J Relay, Hwd, NO.2
85916Y Relay, Towing Tail
85917D Relay, Heater(FOR AIR FUEL RATIO SENSOR)
85924C Relay, Igct
85925F Relay, Ptc Heater NO.2
85934A Relay Condenser Fan
85942 Relay, Headlamp Cleaner Control
85965 Relay, Room Lamp Control
85970A Relay Assy, Double Lock Door Control
8598A Battery, Door Control
86210A Inverter Assy, Voltage
86210D Fuse, High Voltage
86210L Inverter Assy, Voltage, NO.2
86220A Relay, Inverter
86220B Relay, Inverter, NO.2
8624A Inverter, Voltage
86530 Relay Assy, Horn
87211Y Duct, Air
87299C Relay, Washer Nozzle Heater
87346L Relay, Ptc Heater
88162 Sensor, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
891B0 Sensor Assy, Kick Door Control
89221 Computer, Multiplex Network Body
89222A Computer, Multiplex Network Door
89227 Computer, Multiplex Tilt & Telescopic
89235A Switch, Tilt & Telescopic
89245B Sensor, Steering
89271A Computer, Stabilizer Control
89422A Sensor, Water Temperature
89422N Sensor, Water Temperature, NO.2
89424G Sensor, Inlet Air Temperature
89425 Sensor, Exhaust Gas Temperature
89425A Sensor, Exhaust Gas Temperature, NO.2
89429F Sensor, Temperature
89430A Computer Assy, Outer Mirror Control, LH
89430B Computer Assy, Outer Mirror Control, RH
89461 Sensor, Vapor Pressure
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89467D Sensor, Air Fuel Ratio, NO.3
89467E Sensor, Air Fuel Ratio, NO.4
8946A Bracket, Exhaust Sensor Clamp
8946AA Bracket, Exhaust Sensor Clamp, NO.2
89481B Sensor, Differential Pressure
89491 Sensor, Engine Oil Level
894B5 Filter, Solar Roof
89530C Computer Assy, Transmission Control
89533 Computer, 4 Wheel Drive Control
89539M Bracket, Transmission Control Computer, NO.1
89561F Relay, Electronic Fuel Injection Main, NO.1
89561G Relay, Electronic Fuel Injection Main, NO.2
89561H Relay, Electronic Fuel Injection Main, NO.3
89611 Switch, Push Start
89615 Sensor, Knock Control
89710C Computer Assy, Position Control, RH
89710D Computer Assy, Position Control, LH
89715 Computer, Fold Seat Control
89720A Computer Assy, Side Auto Step Controller
89730A Relay(FOR SECURITY WARNING)
89747E Buzzer, Power Back Door Warning
89870E Relay, Electronic Driver Unit
G9020E Relay, Hybrid Water Pump
G9230A Relay, Battery Fan, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
