Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

44 part groups · 10 illustrations

Illustrations

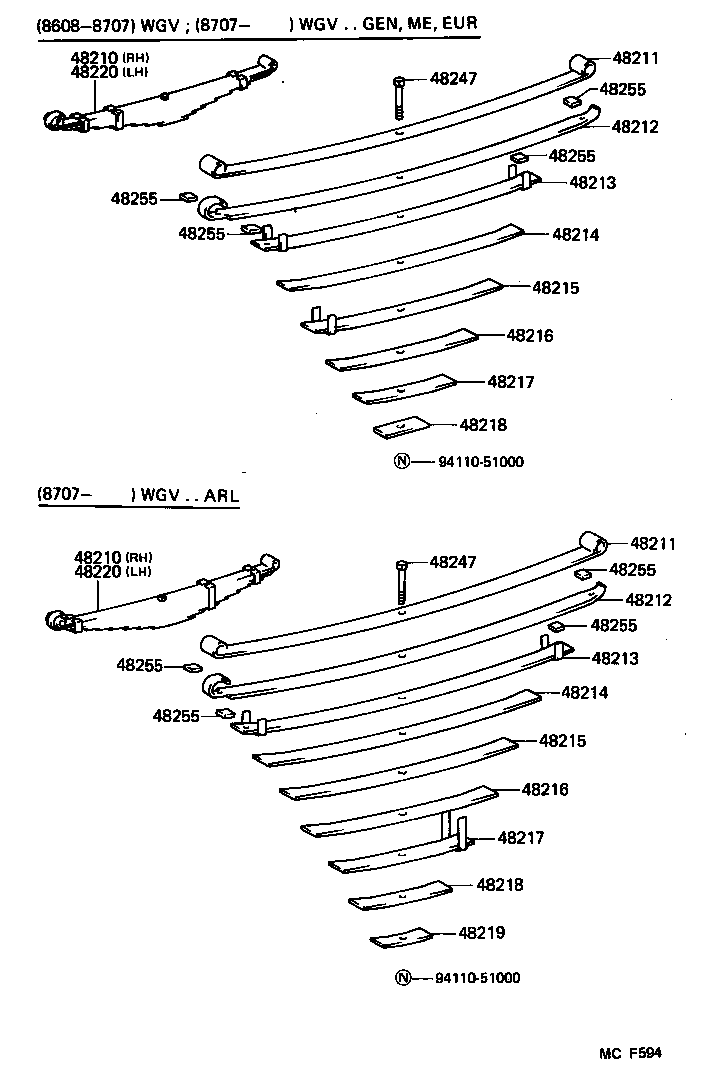

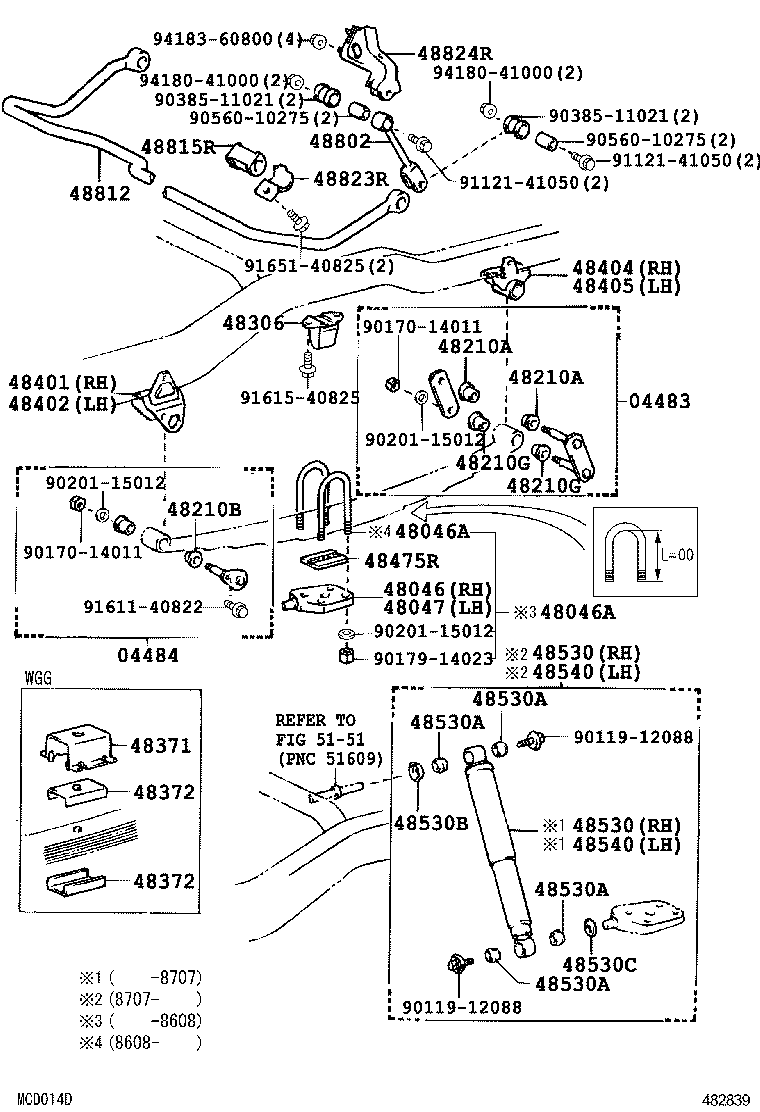

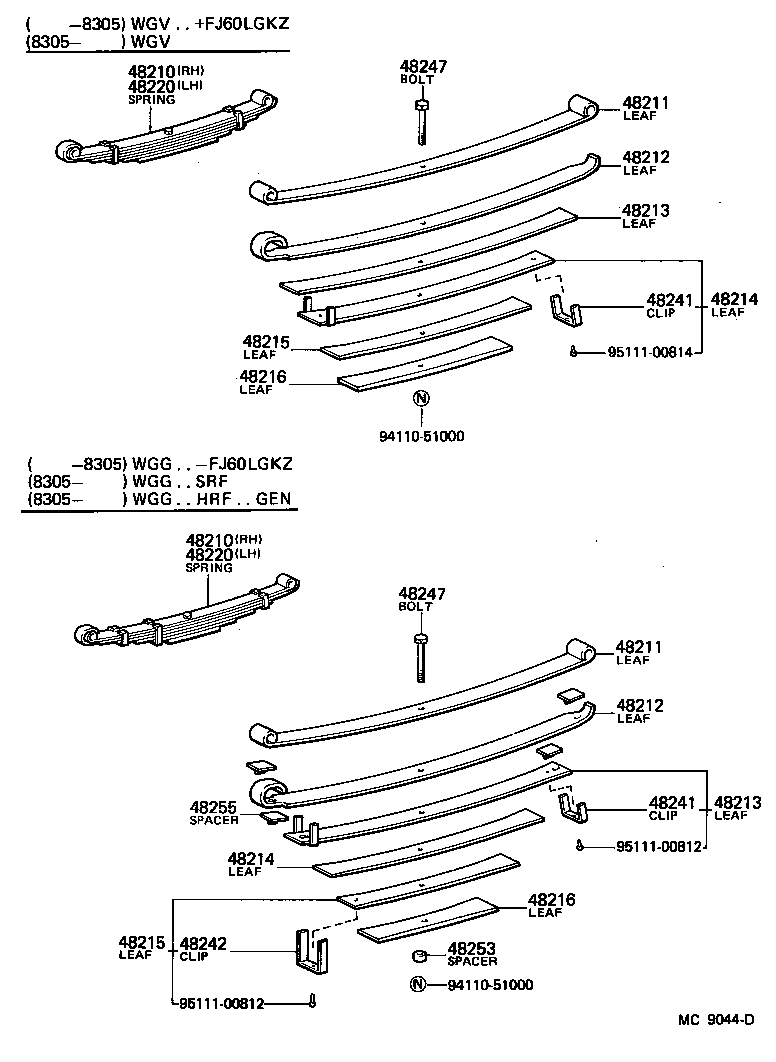

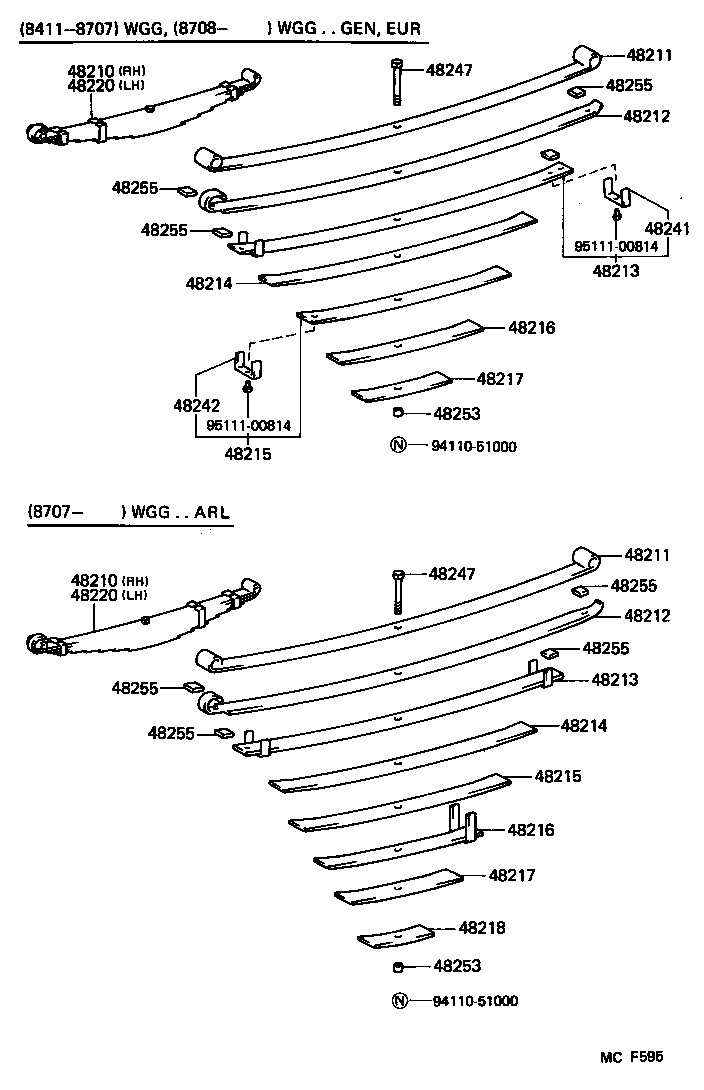

Figure 482838 482838 1980-08 → 1985-10 Figure 482839 482839 1985-10 → — Figure MC9044D MC9044D 1980-05 → 1983-05 Figure MC9044D MC9044D 1983-05 → 1983-11 Figure MC9044D MC9044D 1983-05 → 1986-08 Figure MC9044D MC9044D 1983-11 → 1984-11 Figure MCF594 MCF594 1986-08 → — Figure MCF595 MCF595 1983-11 → 1984-11 Figure MCF595 MCF595 1984-11 → — Figure MC9902 MC9902 1983-05 → 1984-11

Part groups

PNCDescription
04483 Shackle Kit, Rear Spring
04484 Pin Kit, Rear Spring
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210A Bush(FOR REAR SPRING SHACKLE UPPER)
48210B Bush(FOR REAR SPRING PIN)
48210G Bush(FOR REAR SPRING SHACKLE LOWER)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48216 Leaf, Rear Spring, NO.6
48217 Leaf, Rear Spring, NO.7
48218 Leaf, Rear Spring, NO.8
48219 Leaf, Rear Spring, NO.9
48220 Spring Assy, Rear LH
48241 Clip, Rear Spring, NO.1
48242 Clip, Rear Spring, NO.2
48247 Bolt, Rear Spring, Center
48253 Spacer, Rear Spring, NO.1
48255 Spacer, Rear Spring Leaf
48306 Bumper Sub-assy, Rear Spring
48371 Retainer, Rear Spring Pad
48372 Pad, Rear Spring
48401 Bracket Sub-assy, Rear Spring, Front RH
48402 Bracket Sub-assy, Rear Spring, Front LH
48404 Bracket Sub-assy, Rear Spring, Rear RH
48405 Bracket Sub-assy, Rear Spring, Rear LH
48475R Plate, Distance(FOR REAR)
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530D Washer, Rear Shock Absorber Cushion, NO.3
48530E Washer, Rear Shock Absorber Cushion, NO.4
48540 Absorber Assy, Shock, Rear LH
48802 Link Sub-assy, Stabilizer
48812 Bar, Stabilizer, Rear
48815R Bush, Stabilizer(FOR REAR)
48823R Cover, Stabilizer Link(FOR REAR)
48824R Bracket, Stabilizer(FOR REAR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
