Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

140 part groups · 14 illustrations

Illustrations

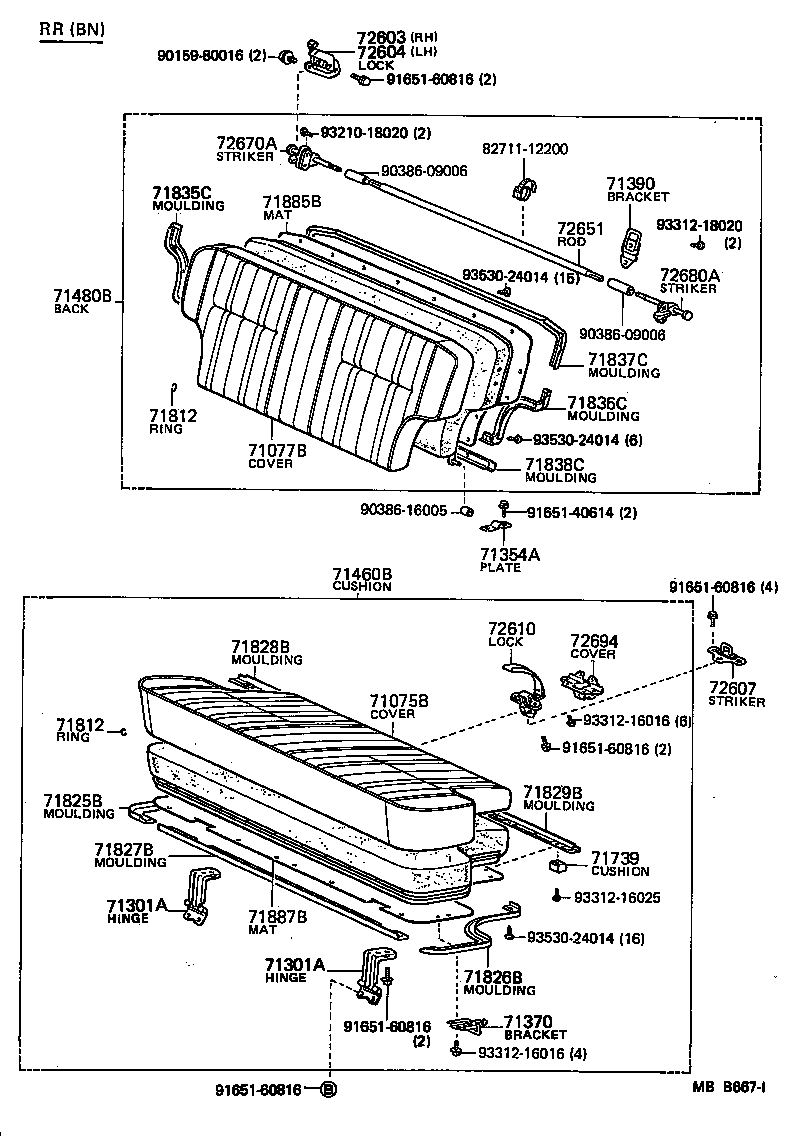

MBB667I 1980-08 → 1984-11

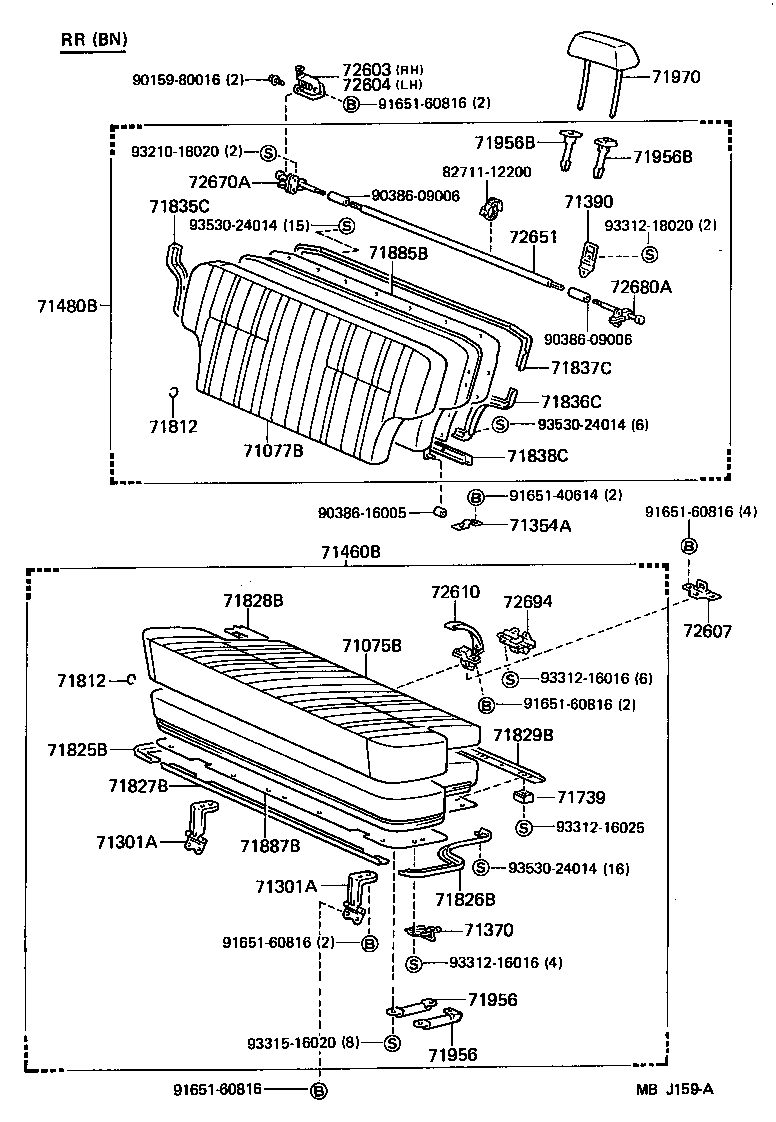

MBJ159A 1984-11 → 1985-04

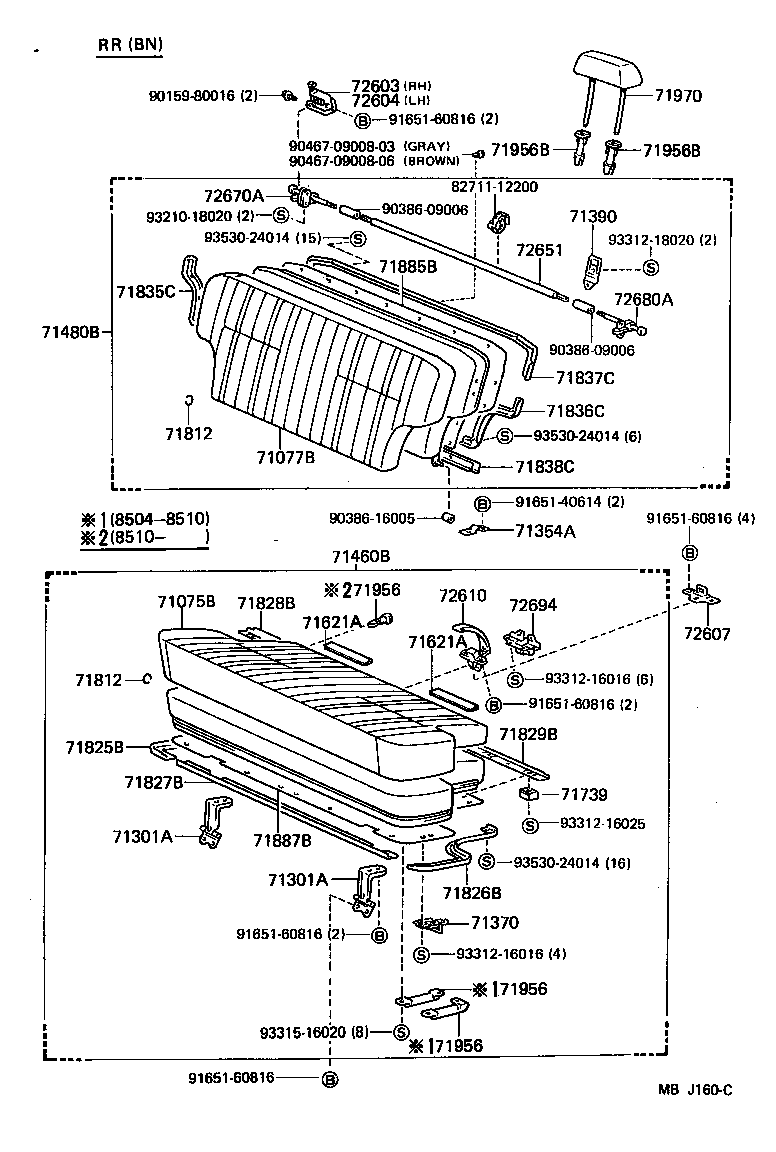

MBJ160C 1985-04 → 1985-10

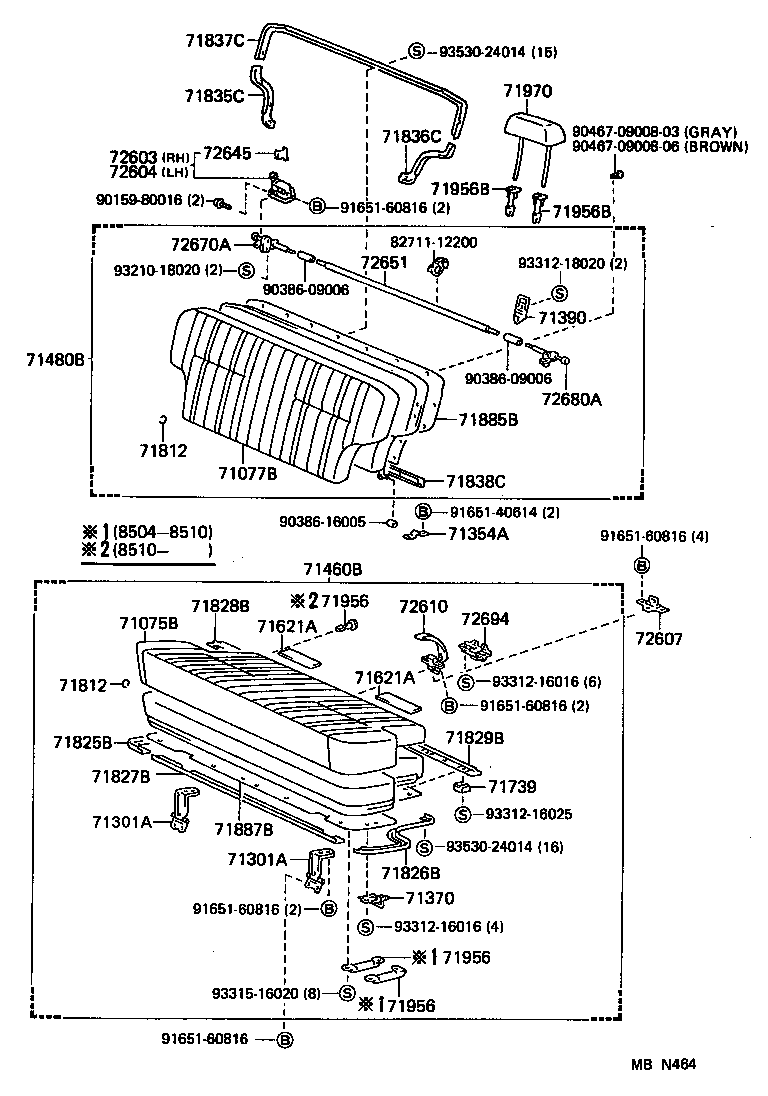

MBN464 1985-10 → —

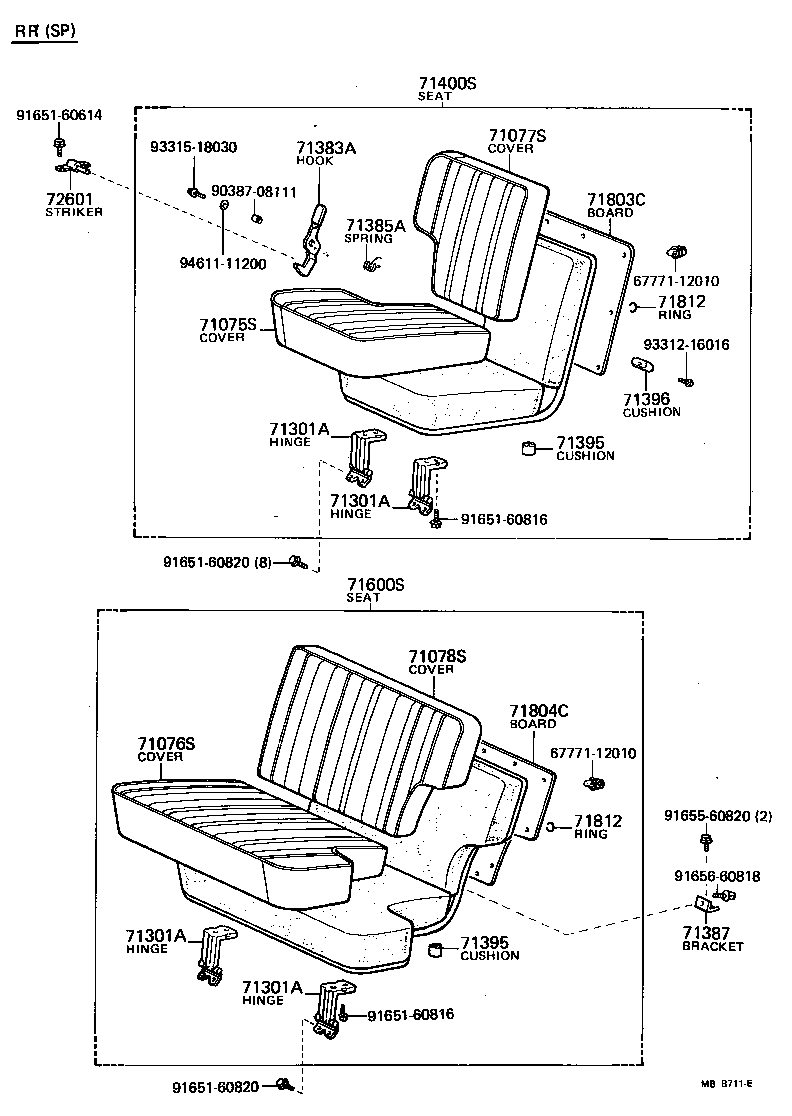

MBB711E 1980-08 → 1983-05

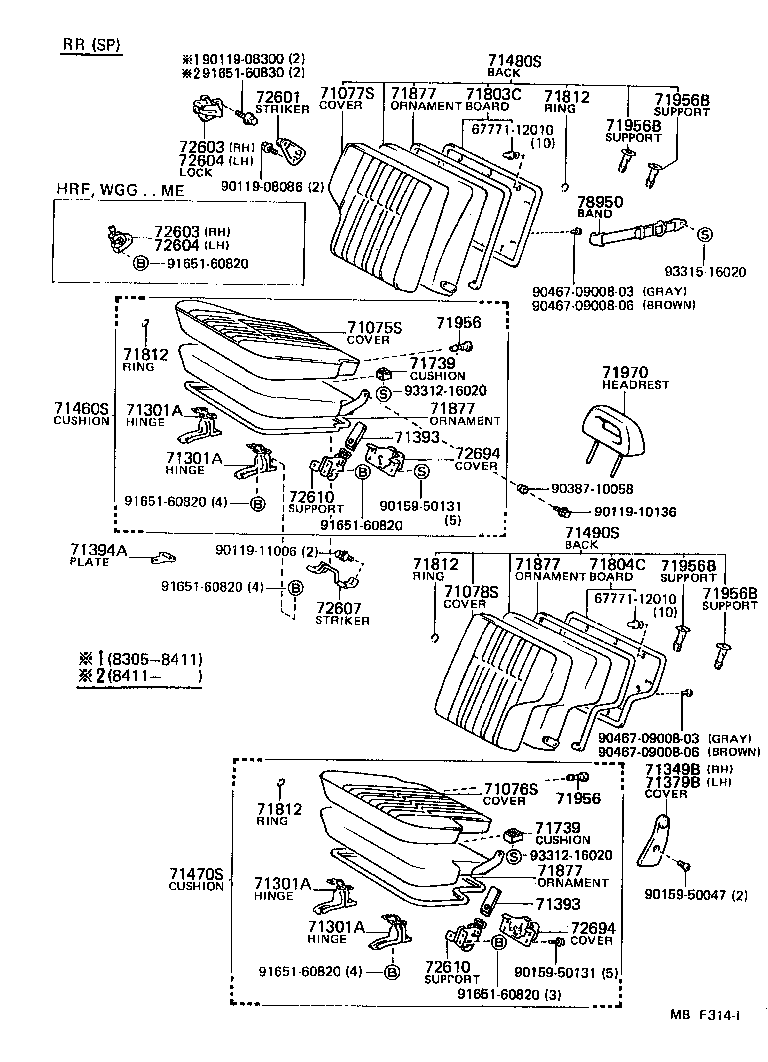

MBF314I 1983-05 → —

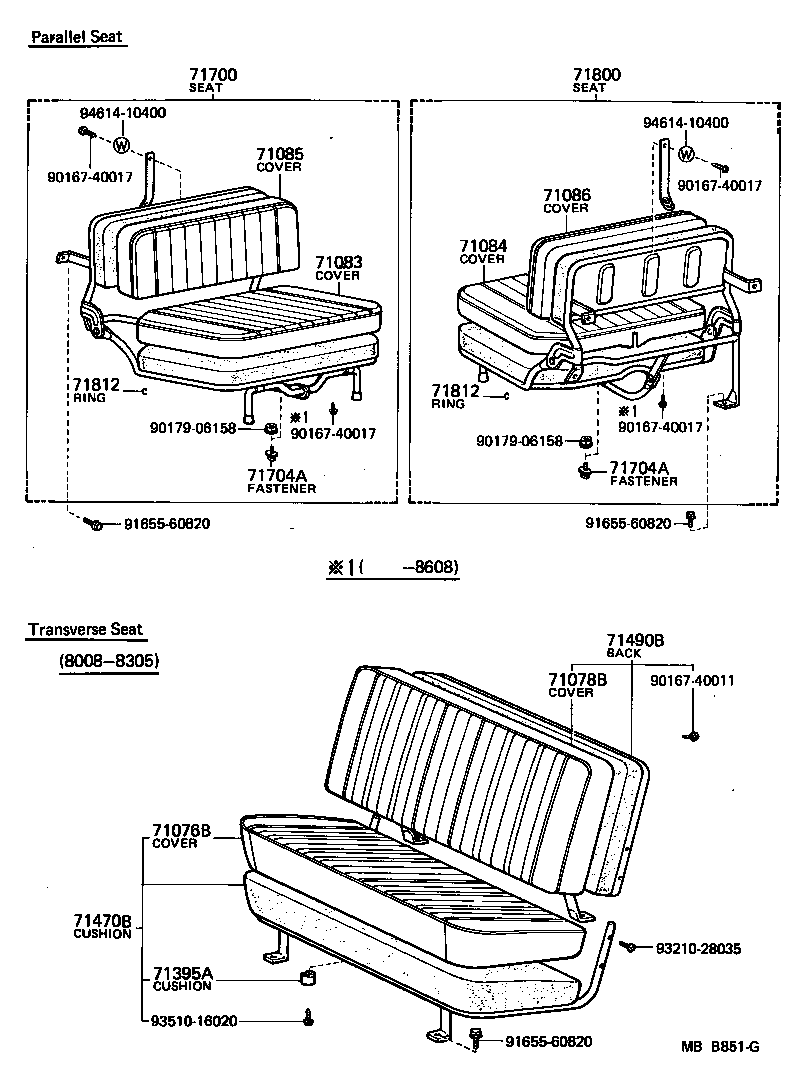

MBB851G 1980-08 → —

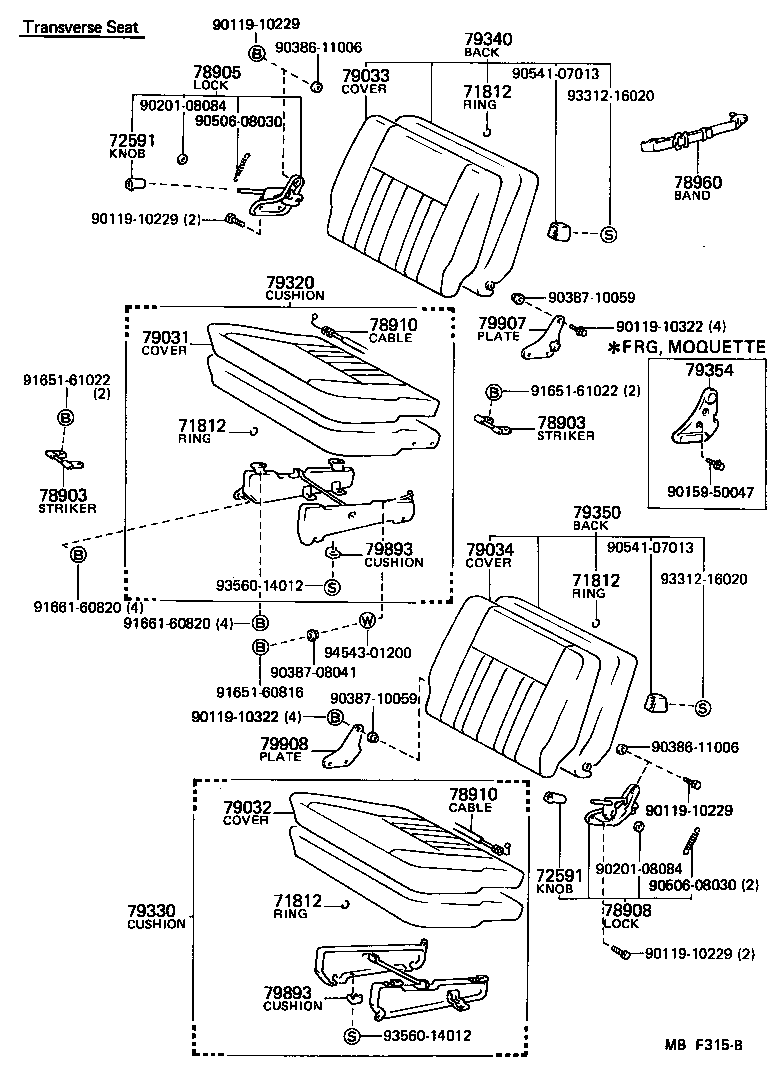

MBF315B 1983-05 → —

Part groups

PNC	Description
71023	Plate Sub-assy, Front Seat Hinge, RH
71024	Plate Sub-assy, Front Seat Hinge, LH
71071B	Cover, Front Seat Cushion(FOR BENCH TYPE)
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073B	Cover, Front Seatback(FOR BENCH TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076B	Cover, 3RD Seat Cushion (FOR BENCH TYPE)
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077B	Cover, Rear Seatback (FOR BENCH TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078B	Cover, 3RD Seatback(FOR BENCH TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71083	Cover Sub-assy, Rear Side Seat Cushion, RH
71084	Cover Sub-assy, Rear Side Seat Cushion, LH
71085	Cover Sub-assy, Rear Side Seatback, RH
71086	Cover Sub-assy, Rear Side Seatback, LH
71113	Leg, Front Seat Cushion, RH
71114	Leg, Front Seat Cushion, LH
71146	Silencer, Front Seatback
71301A	Hinge Sub-assy, Rear Seat Cushion
71349B	Cover, Rear Seatback Stay, RH
71354A	Plate, Rear Seatback Set
71370	Bracket Sub-assy, Rear Seat Cushion Holder
71379B	Cover, Rear Seatback Hinge, LH
71383A	Hook, NO.2 Seat Lock, RH
71385A	Spring, NO.2 Seat Lock, RH
71387	Bracket, NO.2 LH Seat Set
71390	Bracket Sub-assy, Rear Seatback Holder
71393	Band, Rear Seat Cushion
71394A	Plate, Rear Seat Cushion Band Support, Lower
71395	Cushion, Rear Seat Support, Lower
71395A	Cushion, 3RD Seat Support, Lower
71396	Cushion, Rear Seat Support, Rear
71400S	Seat Assy, Rear, LH (FOR SEPARATE TYPE)
71410B	Cushion Assy, Front Seat(FOR BENCH TYPE)
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430B	Back Assy, Front Seat(FOR BENCH TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71460B	Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460S	Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71470B	Cushion Assy, 3RD Seat (FOR BENCH TYPE)
71470S	Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71480B	Back Assy, Rear Seat (FOR BENCH TYPE)
71480S	Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490B	Back Assy, 3RD Seat (FOR BENCH TYPE)
71490S	Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71579A	Washer, Front Seatback Board Setting
71600S	Seat Assy, Rear, LH (FOR SEPARATE TYPE)
71621A	Pad, Rear Seat Cushion Silencer, A
71700	Seat Assy, Rear Side, RH
71704A	Fastener, Seat (FOR SIDE SEAT)
71705	Board Sub-assy, Front Seatback, RH
71705B	Cap(FOR FRONT SEATBACK BOARD)
71706	Board Sub-assy, Front Seatback, LH
71739	Cushion, Seat Support
71800	Seat Assy, Rear Side, LH
71803C	Board Sub-assy, Rear RH Seatback(FOR SEPARATE SEAT)
71804C	Board Sub-assy, Rear LH Seatback(FOR SEPARATE SEAT)
71812	Clip (FOR FRONT SEAT CUSHION COVER)
71825B	Moulding, Rear Seat Cushion, RH
71826B	Moulding, Rear Seat Cushion, LH
71827B	Moulding, Rear Seat Cushion, Front
71828B	Moulding, Rear Seat Cushion, Rear RH
71829B	Moulding, Rear Seat Cushion, Rear LH
71835C	Moulding, Rear Seatback, RH
71836C	Moulding, Rear Seatback, LH
71837C	Moulding, Rear Seatback, Upper
71838C	Moulding, Rear Seatback, Lower
71877	Ornament, Rear Seat Cushion Panel
71885B	Mat, Rear Seatback
71887B	Mat, Rear Seat Cushion
71950	Headrest Assy, Front Seat
71956	Support, Headrest
71956A	Support, Front Seat Headrest
71956B	Support, Rear Seat Headrest
71970	Headrest Assy, Rear Seat
72011	Adjuster Sub-assy, Front Seat, Outer RH
72110B	Track Assy, Seat, Outer RH (FOR BENCH SEAT)
72110S	Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72116B	Bracket, RH Seat Set Outside (FOR BENCH SEAT)
72117B	Bracket, RH Seat Set Inside (FOR BENCH SEAT)
72118B	Bracket, LH Seat Set Inside (FOR BENCH SEAT)
72119B	Bracket, LH Seat Set Outside (FOR BENCH SEAT)
72120B	Track Assy, Seat, Outer LH (FOR BENCH SEAT)
72120S	Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
72127	Support, RH Seat, Outer
72128	Support, LH Seat, Outer
72130B	Track Assy, RH Seat, Inner (FOR BENCH SEAT)
72130S	Track Assy, RH Seat, Inner (FOR SEPARATE SEAT)
72140B	Track Assy, LH Seat, Inner (FOR BENCH SEAT)
72140S	Track Assy, LH Seat, Inner (FOR SEPARATE SEAT)
72145A	Bracket, Front Inner Seat Track, Lower Front RH
72146A	Bracket, Front Inner Seat Track, Lower Front LH
72457A	Knob, Seat Adjuster
72457C	Knob, Side Support Adjuster
72498	Cover, Vertical Adjuster Bracket
72510	Adjuster Assy, Reclining Seatback, RH
72520	Adjuster Assy, Reclining Seatback, LH
72524	Handle, Reclining Adjuster Release
72537	Cover, Reclining Hinge Outer, RH
72538	Cover, Reclining Hinge Outer, LH
72591	Knob, Reclining Remote Control Lever
72601	Striker Sub-assy, Rear Seat Lock
72603	Lock Sub-assy, Rear Seatback, RH
72604	Lock Sub-assy, Rear Seatback, LH
72607	Striker Sub-assy, Rear Seat Cushion Lock
72610	Lock Assy, Rear Seat Cushion
72645	Cushion, Rear Seatback Lock
72651	Rod, Rear Seatback Lock
72670A	Striker Assy, Rear Seatback Lock, RH
72680A	Striker Assy, Rear Seatback Lock, LH
72694	Cover, Rear Seat Cushion Lock
72760A	Adjuster Assy, Lumbar Support
73800	Suspension Assy, Seat, RH
73847	Cushion, Seat Suspension Stopper
73888	Handle, Seat Suspension Control
78903	Striker Sub-assy, Fold Seat Leg Lock
78905	Lock Sub-assy, Fold RH Seatback, RH
78908	Lock Sub-assy, Fold LH Seatback, LH
78910	Cable Assy, Fold Seat Lock Control, NO.1
78950	Band Assy, Fold Seat Stopper, NO.1
78960	Band Assy, Fold Seat Stopper, NO.2
79031	Cover Sub-assy, NO.3 Seat Cushion, RH
79032	Cover Sub-assy, NO.3 Seat Cushion, LH
79033	Cover Sub-assy, NO.3 Seatback, RH
79034	Cover Sub-assy, NO.3 Seatback, LH
79320	Cushion Assy, NO.3 Seat, RH
79330	Cushion Assy, NO.3 Seat, LH
79340	Back Assy, NO.3 Seat, RH
79350	Back Assy, NO.3 Seat, LH
79354	Cover, NO.3 Seatback Hinge
79893	Cushion, Fold Seat Leg
79907	Plate Sub-assy, Seat Hinge, RH
79908	Plate Sub-assy, Seat Hinge, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
