Toyota Lexus LX Series

2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · Europe

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

259 part groups · 21 illustrations

Illustrations

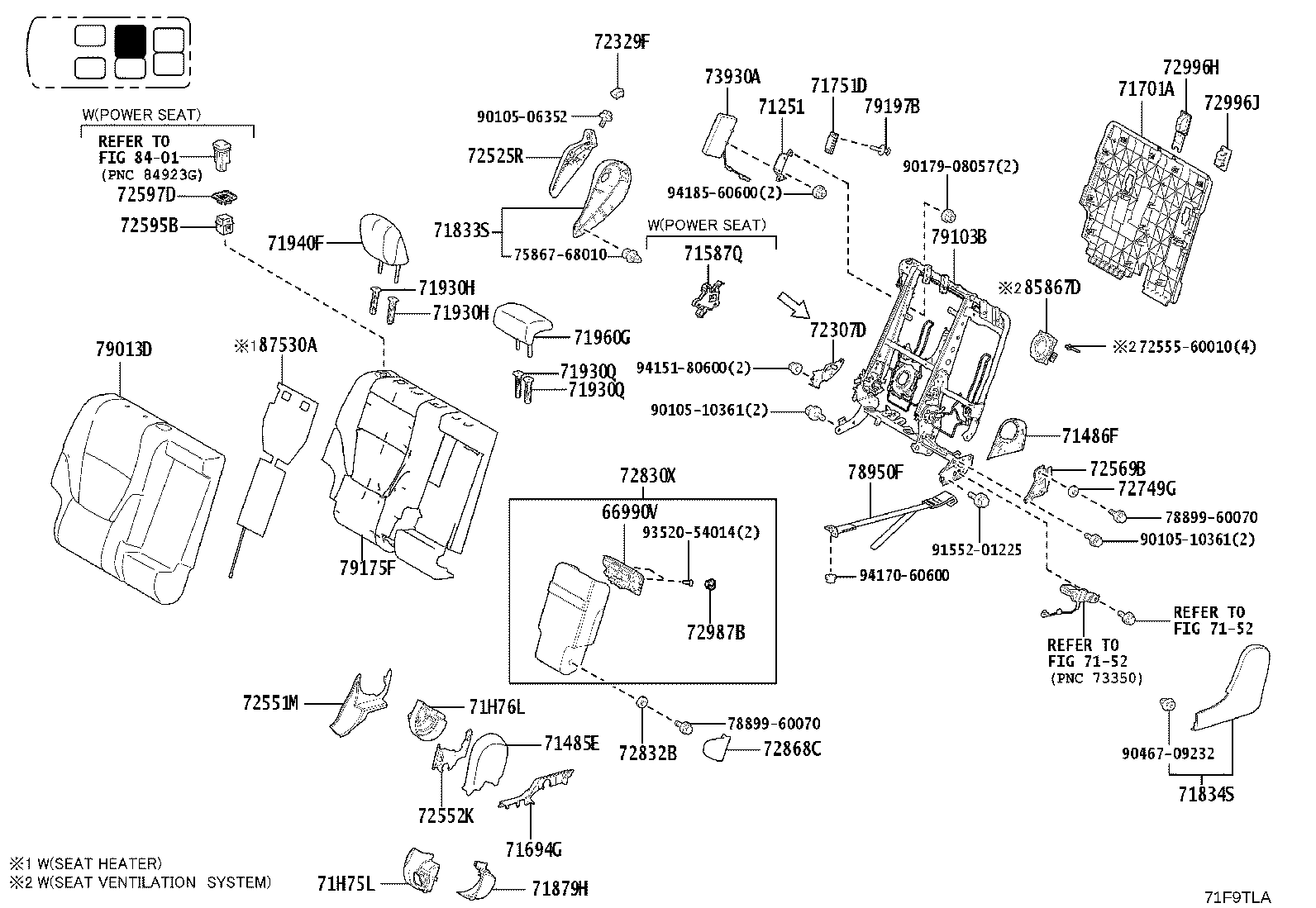

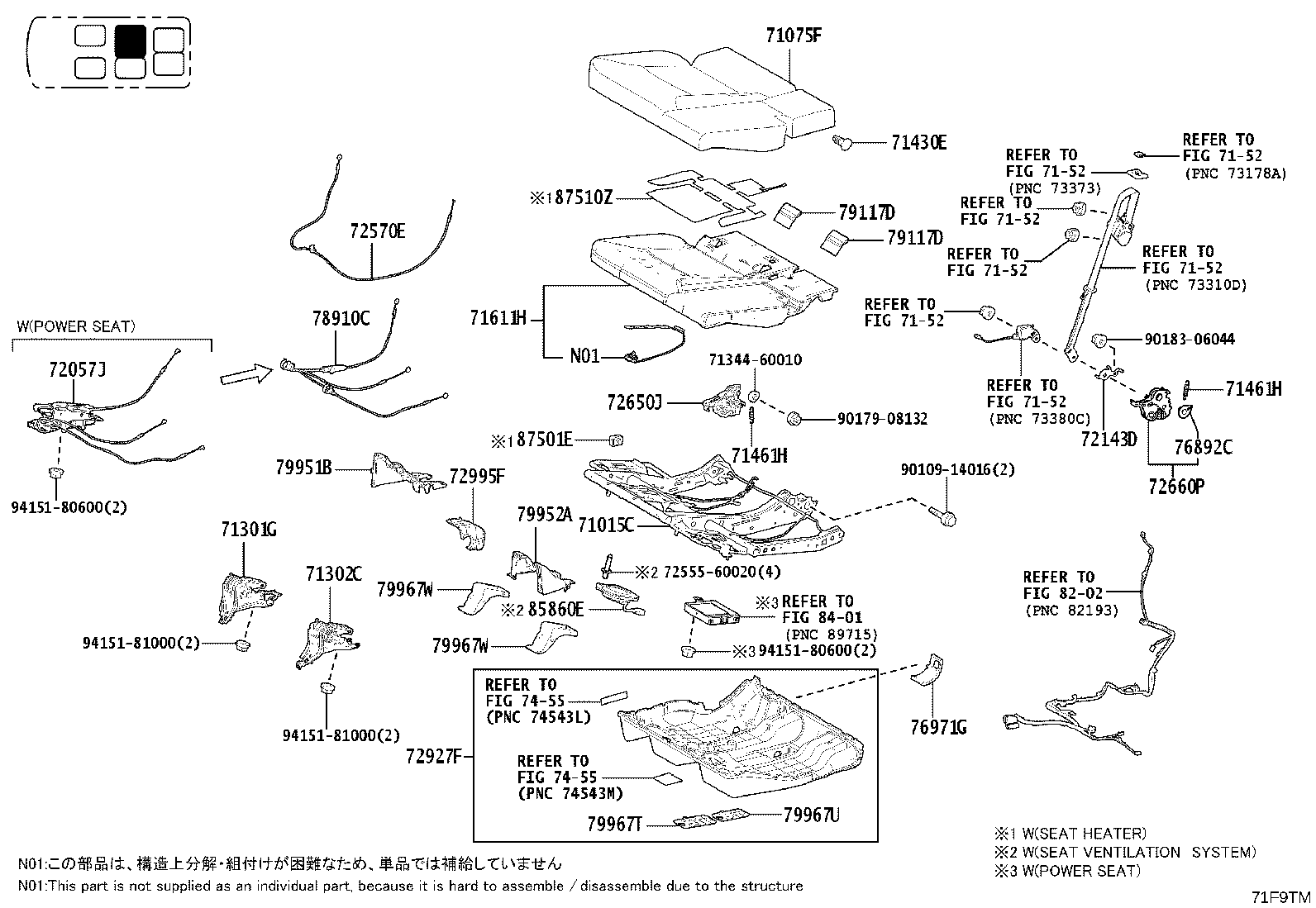

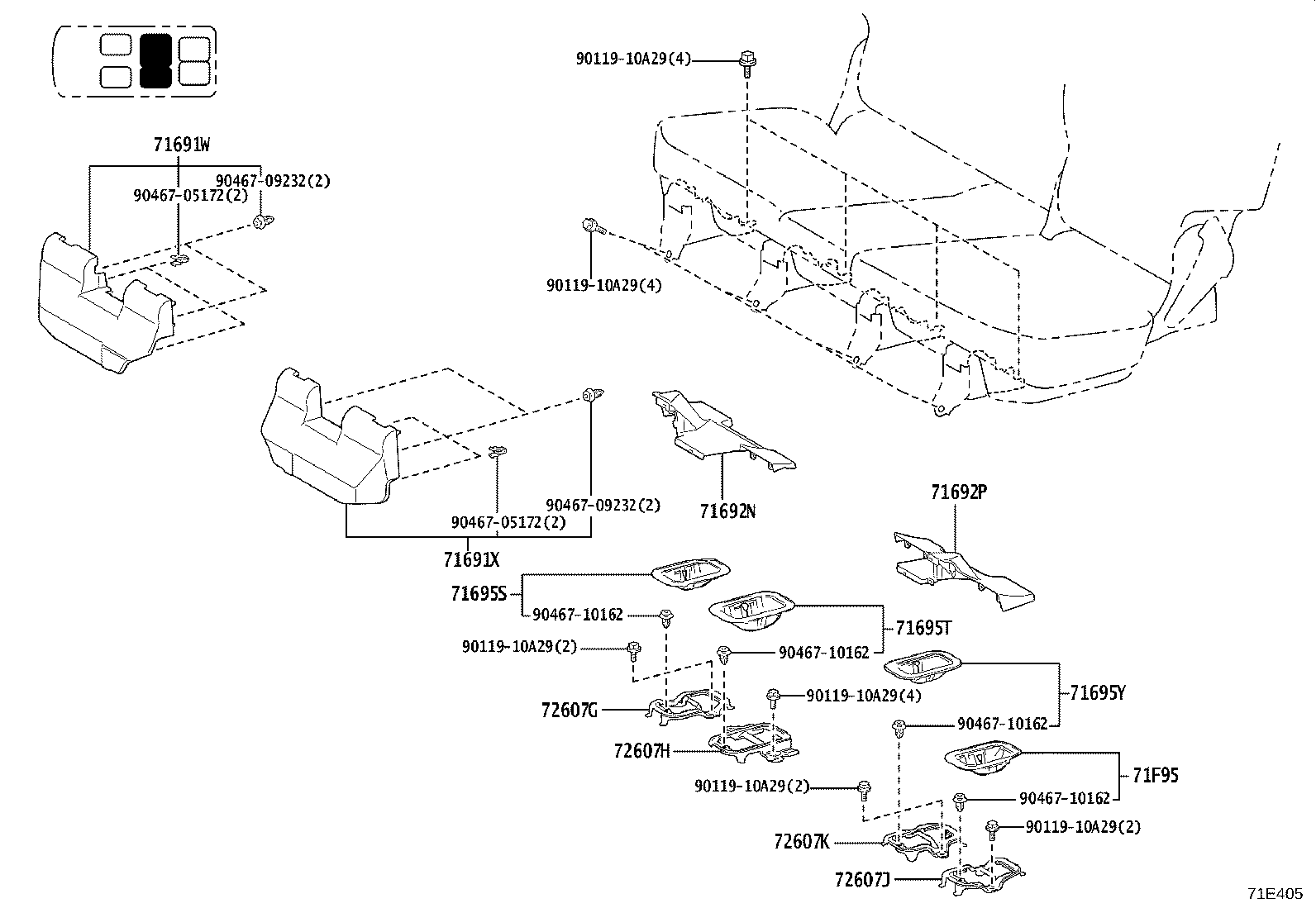

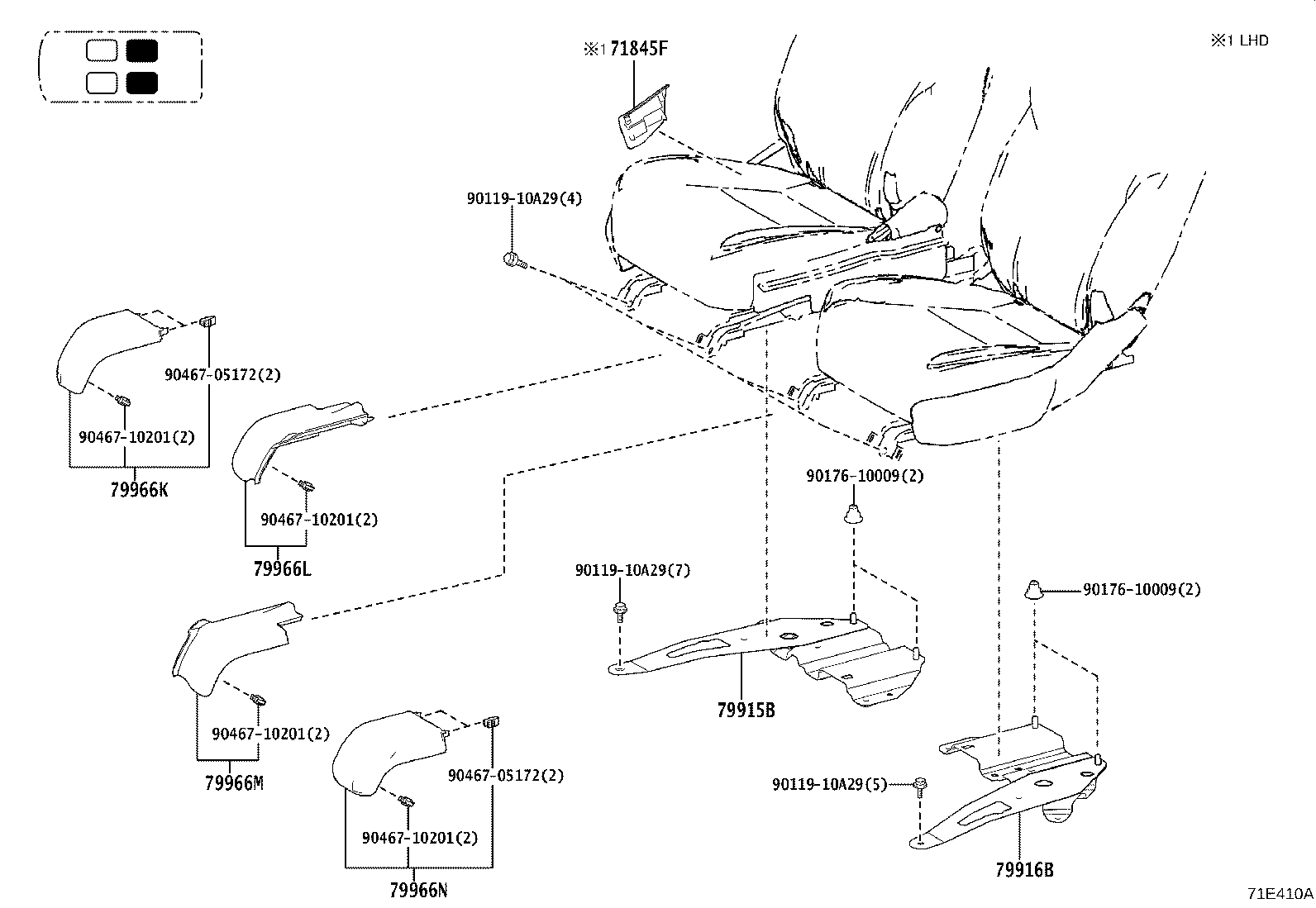

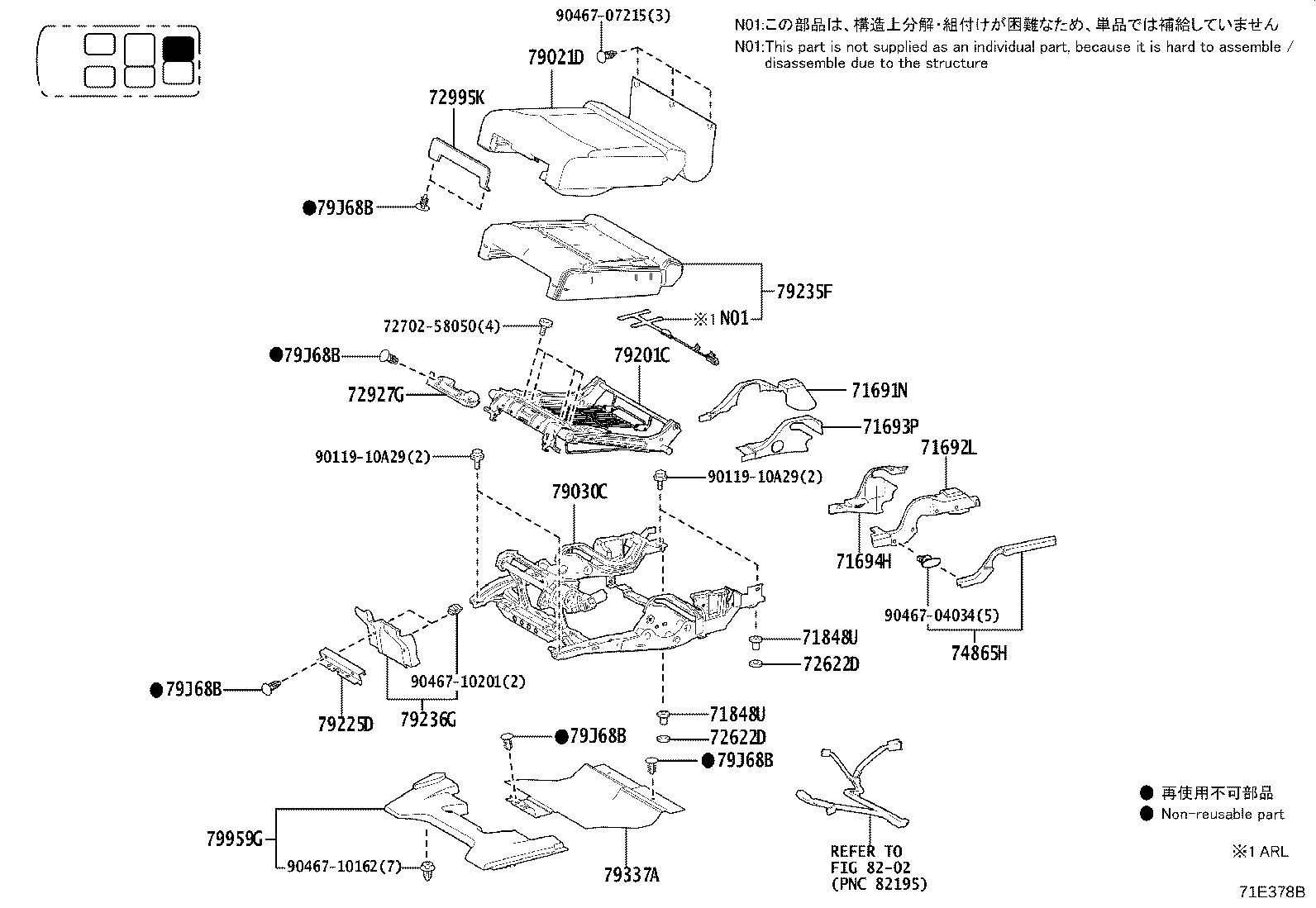

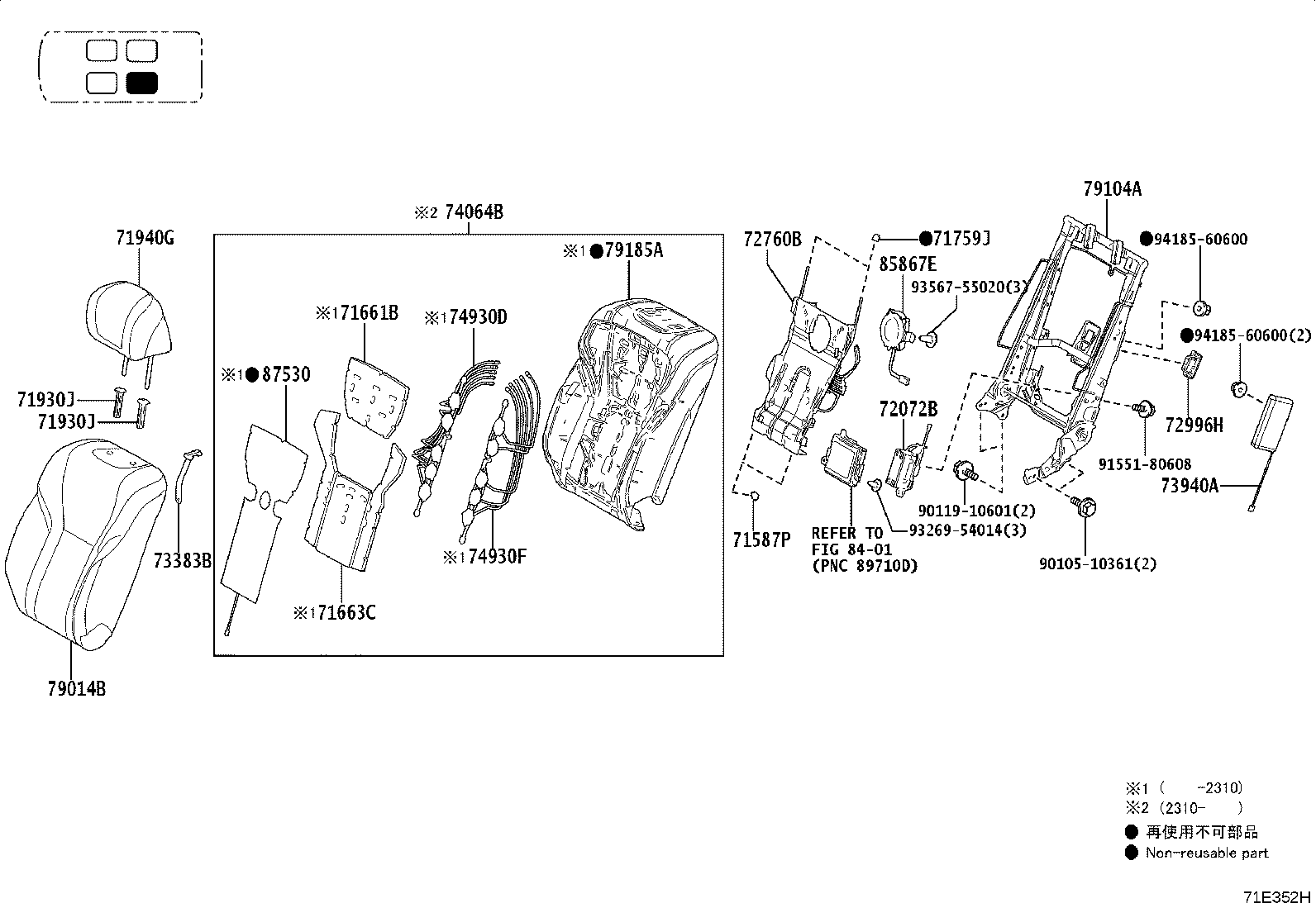

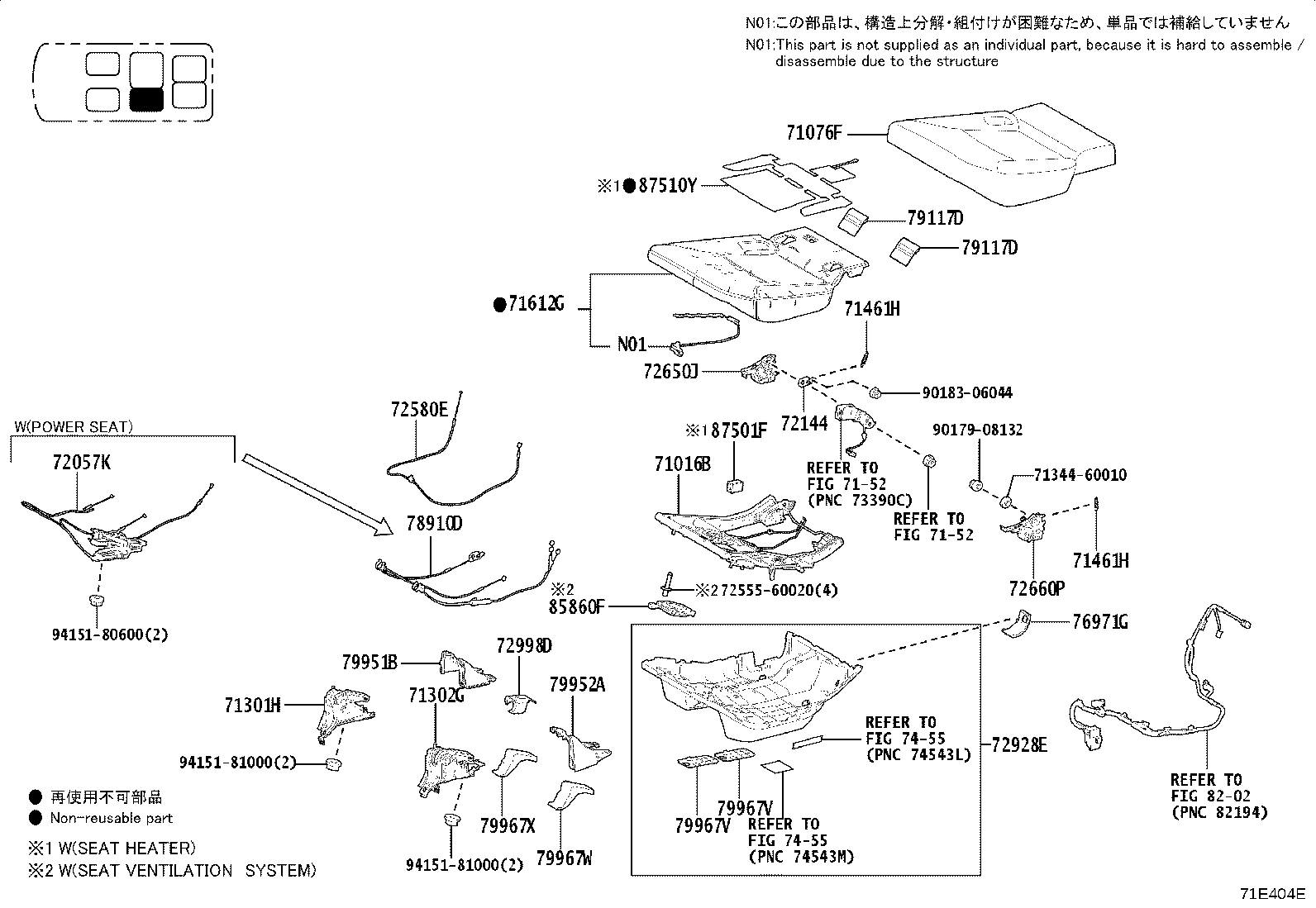

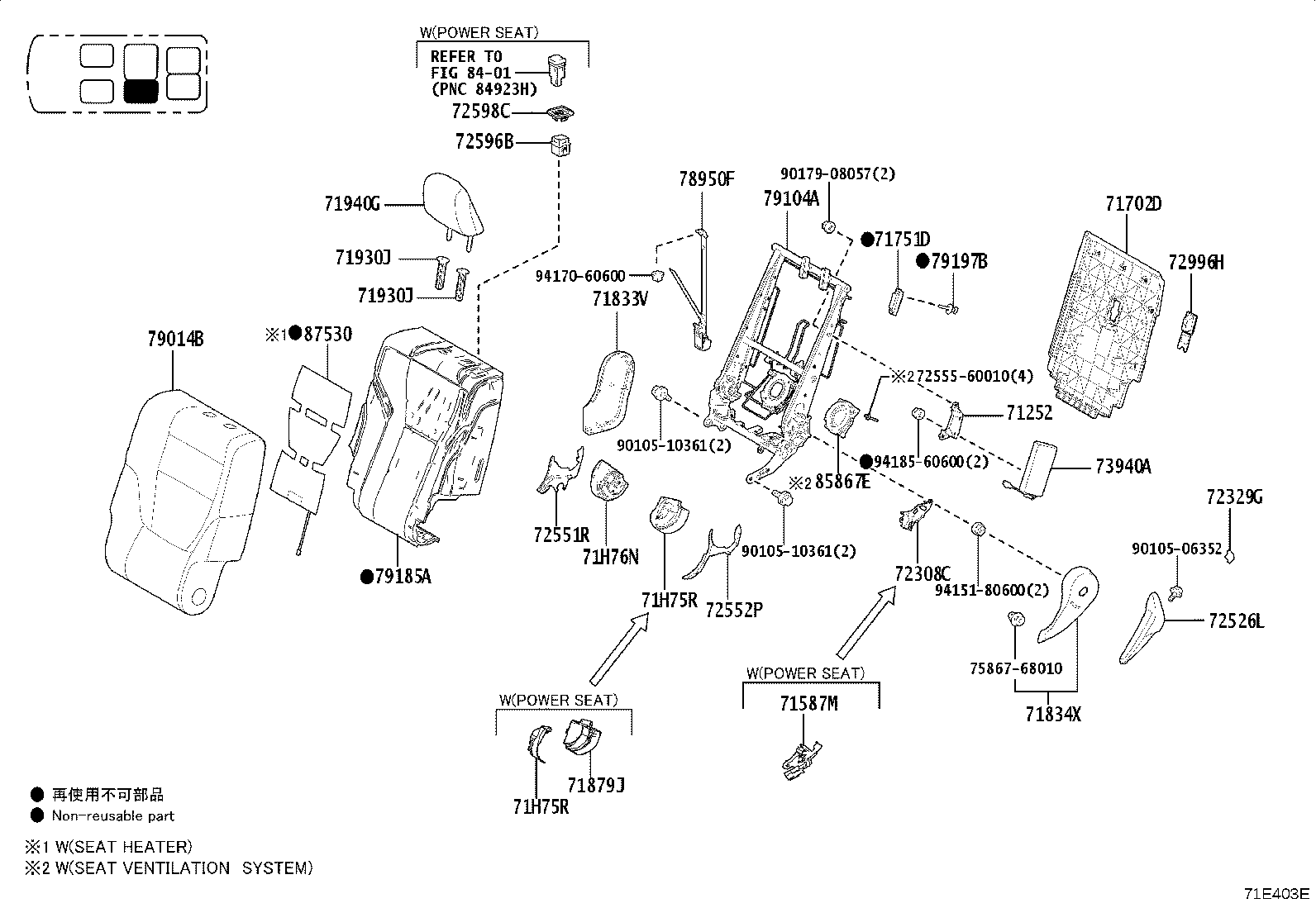

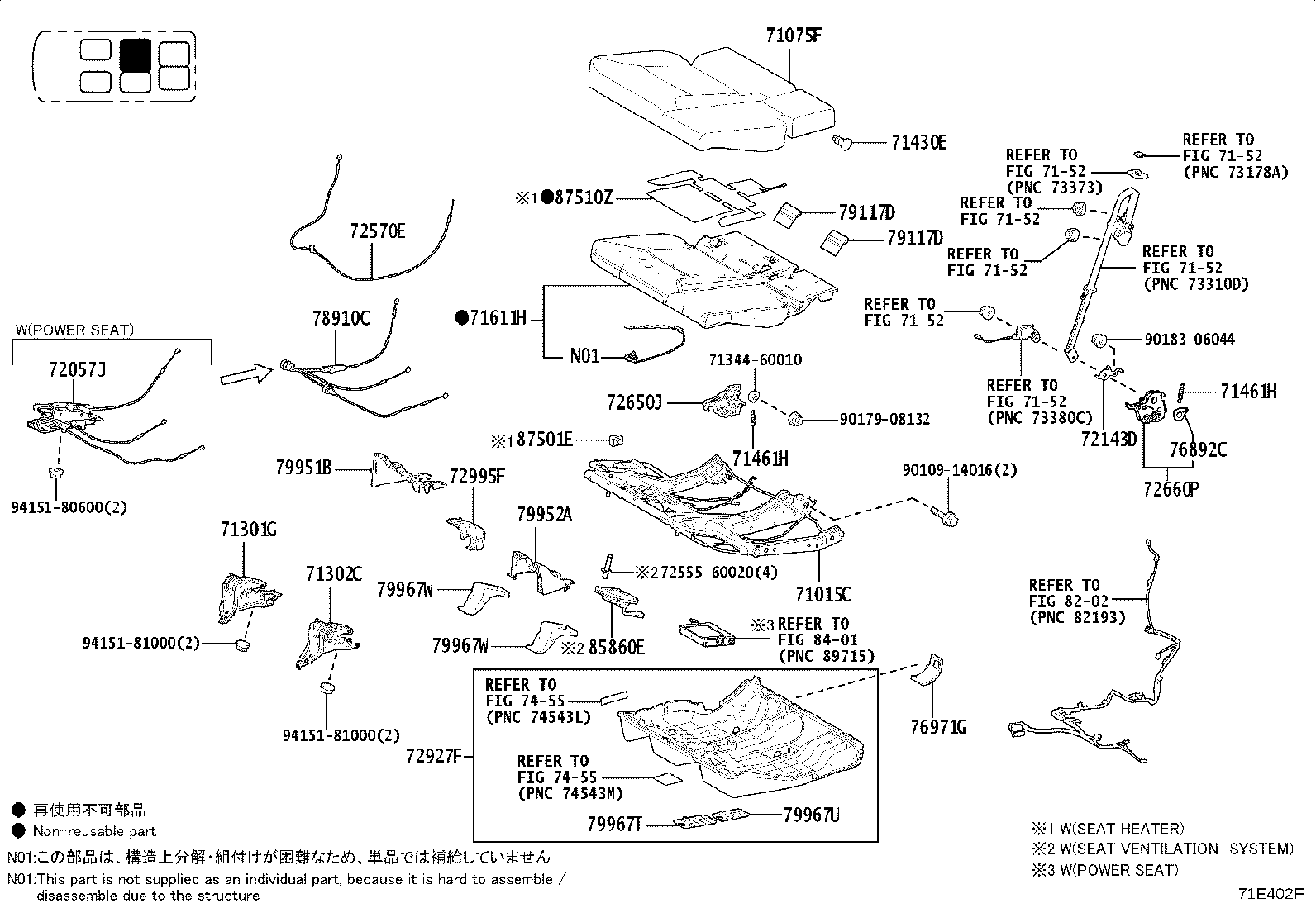

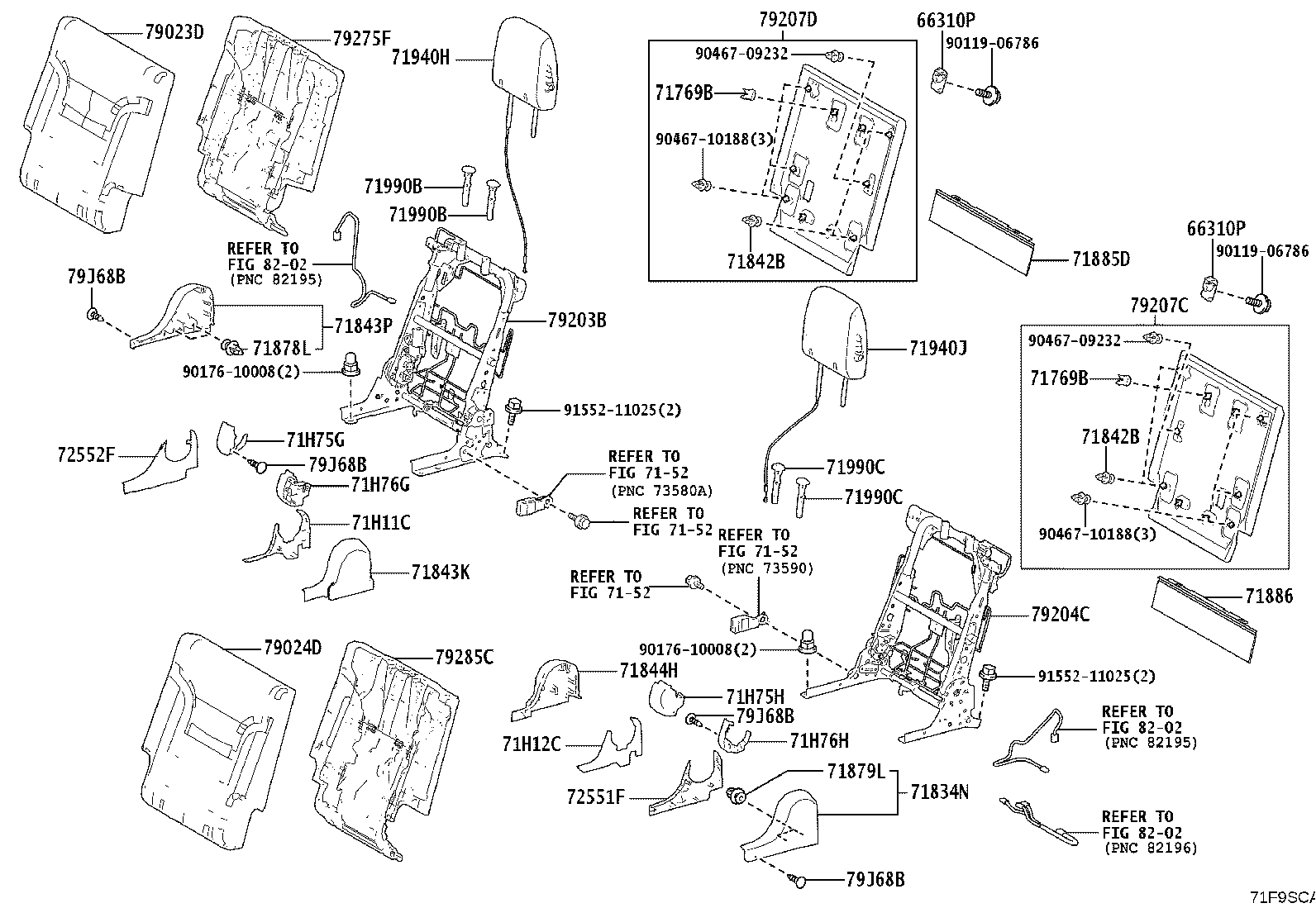

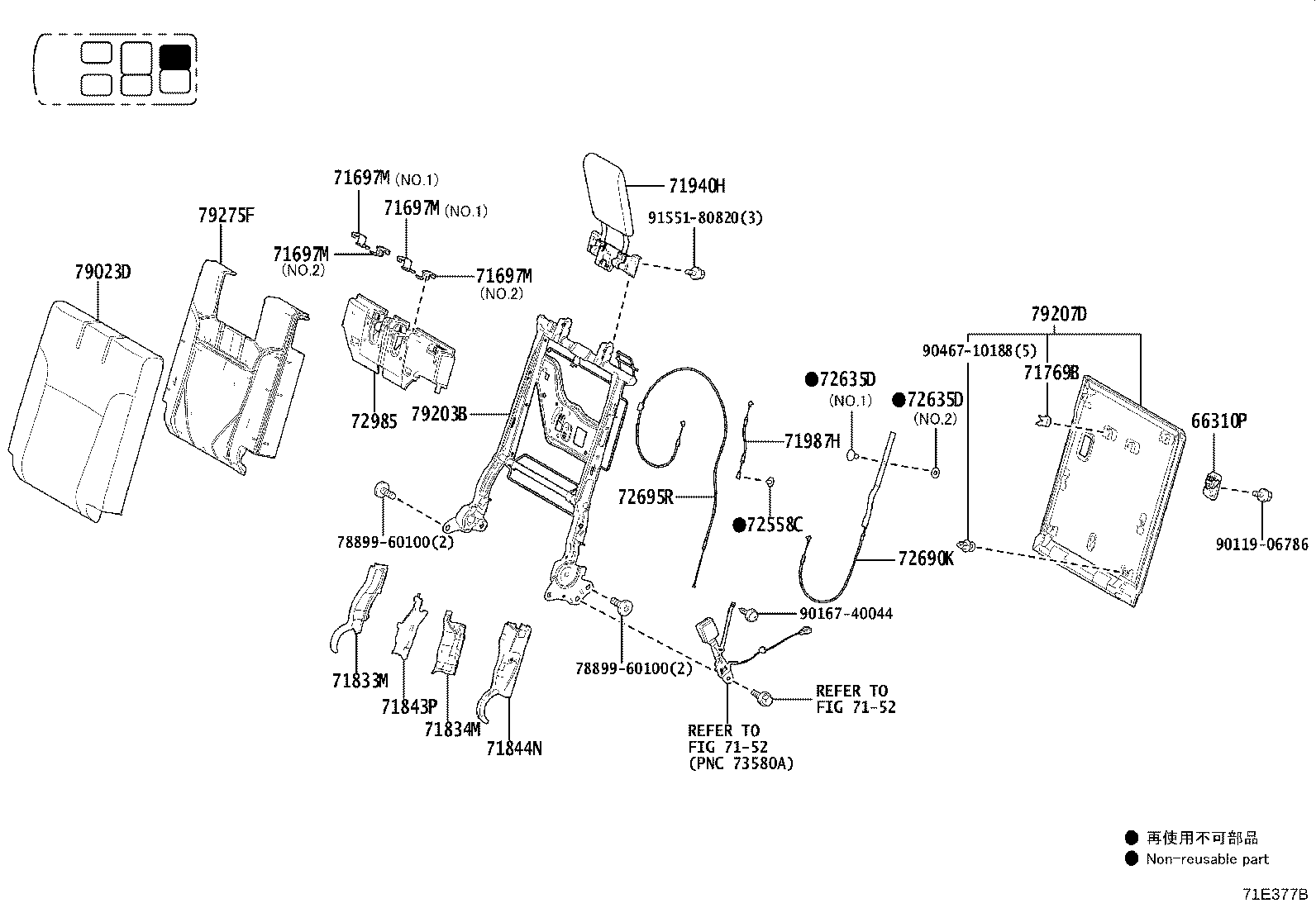

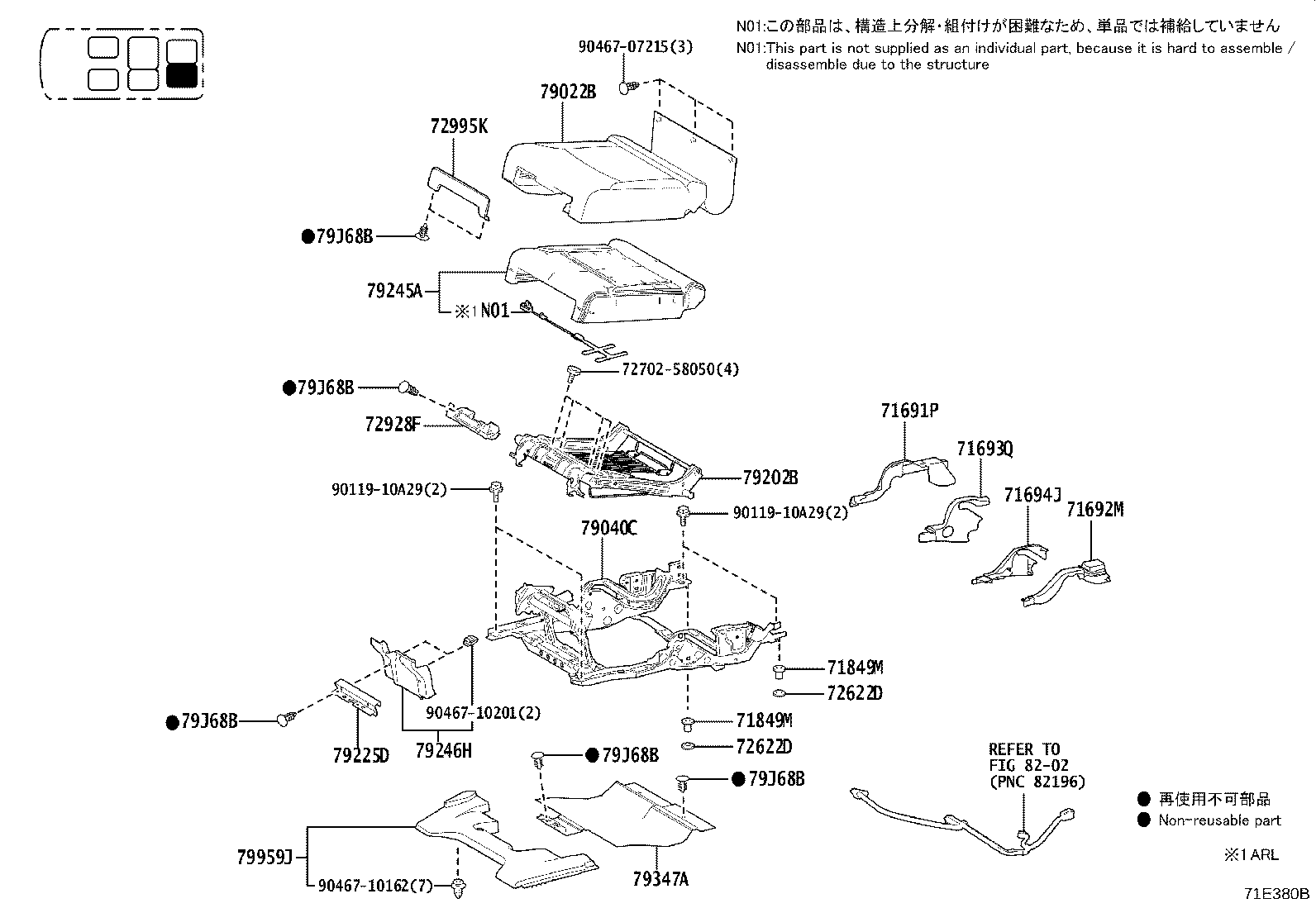

Figure 71E401D 71E401D 2021-12 → — Figure 71E402F 71E402F 2021-12 → — Figure 71E403E 71E403E 2021-12 → — Figure 71E404E 71E404E 2021-12 → — Figure 71F9TLA 71F9TLA 2024-11 → — Figure 71F9TM 71F9TM 2024-11 → — Figure 71F9TN 71F9TN 2024-11 → — Figure 71F9TO 71F9TO 2024-11 → — Figure 71E350H 71E350H 2021-12 → — Figure 71E349I 71E349I 2021-12 → — Figure 71E352H 71E352H 2021-12 → — Figure 71E351I 71E351I 2021-12 → — Figure 71E405 71E405 2021-12 → — Figure 71E410A 71E410A 2021-12 → — Figure 71E377B 71E377B 2021-12 → — Figure 71E378B 71E378B 2021-12 → — Figure 71E379B 71E379B 2021-12 → — Figure 71E380B 71E380B 2021-12 → — Figure 71F9SCA 71F9SCA 2024-11 → — Figure 71F9SDA 71F9SDA 2024-11 → — Figure 71F9E2 71F9E2 2021-12 → —

Part groups

PNCDescription
66310P Hook Assy, Rope
66990V Holder Assy, Cup
71015C Frame Sub-assy, NO.1 Seat Cushion, RH
71016B Frame Sub-assy, NO.1 Seat Cushion, LH
71033H Leg Sub-assy, Rear Seat Cushion
71075F Cover Sub-assy, NO.1 Seat Cushion, RH
71076F Cover Sub-assy, NO.1 Seat Cushion, LH
71251 Frame, Rear Seatback, RH
71252 Frame, Rear Seatback, LH
71293B Plate, Rear Seatback, Upper
71301G Hinge Sub-assy, Rear NO.1 Seat, RH(FOR RH SEAT)
71301H Hinge Sub-assy, Rear NO.1 Seat, RH(FOR LH SEAT)
71302C Hinge Sub-assy, Rear NO.1 Seat, LH(FOR RH SEAT)
71302G Hinge Sub-assy, Rear NO.1 Seat, LH(FOR LH SEAT)
71370H Holder Assy, Rear Seat Cushion
71430E Clip
71461H Spring, Rear Seat Cushion
71485E Cover, Rear Seat Hinge
71486F Cover, Rear Seat Hinge, LH
71587M Protector, Rear Seatback Edge, LH
71587P Protector, Rear Seatback Edge
71587Q Protector, Rear Seatback Edge, RH
71611H Pad, Rear NO.1 Seat Cushion, RH
71612G Pad, Rear NO.1 Seat Cushion, LH
71647L Protector, Rear Seat Cushion Edge
71661B Pad, Rear Seatback, Upper
71663C Pad, Rear Seatback, Lower
71691N Cover, Rear Seat Cushion Hinge, Upper RH NO.1
71691P Cover, Rear Seat Cushion Hinge, Upper RH NO.2
71691W Cover, Rear Seat Cushion Hinge, NO.1
71691X Cover, Rear Seat Cushion Hinge, NO.2
71692L Cover, Rear Seat Cushion Hinge, Upper LH NO.1
71692M Cover, Rear Seat Cushion Hinge, Upper LH NO.2
71692N Cover, Rear Seat Cushion Hinge, NO.3
71692P Cover, Rear Seat Cushion Hinge, NO.4
71693P Cover, Rear Seat Cushion Hinge, Lower RH NO.1
71693Q Cover, Rear Seat Cushion Hinge, Lower RH NO.2
71694G Cover, Rear Seat Cushion Hinge, Inner LH
71694H Cover, Rear Seat Cushion Hinge, Lower LH NO.1
71694J Cover, Rear Seat Cushion Hinge, Lower LH NO.2
71695S Protector, Rear Seat, NO.1
71695T Protector, Rear Seat, NO.2
71695Y Protector, Rear Seat, NO.3
71697M Protector, Rear Seatback
71701A Board Sub-assy, Rear Seatback, RH
71702D Board Sub-assy, Rear Seatback, LH
71751D Hanger, Rear Seat Cover
71759J Hook, Rear Seatback
71769B Clip, Seatback Board
71833L Cover, Rear Seat Reclining, RH
71833M Cover, Rear NO.2 Seat Reclining, NO.1 RH(FOR RH SEAT)
71833N Cover, Rear NO.2 Seat Reclining, NO.1 RH(FOR LH SEAT)
71833S Cover, Rear Seat Reclining, NO.1 RH
71833V Cover, NO.1 Seat Reclining, NO.2 RH
71833Y Clip, NO.1 Seat Reclining Cover(FOR RH SEAT)
71834L Cover, Rear Seat Reclining, LH
71834M Cover, Rear NO.2 Seat Reclining, NO.1 LH(FOR RH SEAT)
71834N Cover, Rear NO.2 Seat Reclining, NO.1 LH(FOR LH SEAT)
71834S Cover, Rear Seat Reclining, NO.1 LH
71834W Clip, NO.1 Seat Reclining Cover(FOR LH SEAT)
71834X Cover, Rear Seat Reclining, NO.2 LH
71842B Clip(FOR REAR SEAT)
71843K Cover, Rear NO.2 Seat Reclining, NO.2 RH
71843M Cover, Rear Seat Reclining, NO.2 RH
71843P Cover, Rear NO.2 Seat Reclining, NO.2 RH(FOR RH SEAT)
71843Q Cover, Rear NO.2 Seat Reclining, NO.2 RH(FOR LH SEAT)
71844H Cover, Rear Seat Reclining, NO.2 LH
71844M Cover, Rear Seat Reclining, NO.2 LH
71844N Cover, Rear NO.2 Seat Reclining, NO.2 LH(FOR RH SEAT)
71844P Cover, Rear NO.2 Seat Reclining, NO.2 LH(FOR LH SEAT)
71845F Cap, Rear Seat Cover
71848U Cap, NO.2 Seat Adjuster Cover, RH
71849M Cap, NO.2 Seat Adjuster Cover, LH
71878L Clip, Rear NO.2 Seat Reclining Cover, RH
71879H Cover, Rear Seat Reclining, Inner LH
71879J Cover, Rear NO.1 Seat Reclining, Inner LH
71879L Clip, Rear NO.2 Seat Reclining Cover, LH
71881E Board, Rear NO.1 Seatback, Center
71885D Carpet, Rear Seatback, RH
71886 Carpet, Rear Seatback, LH
71930H Support Assy, NO.1 Seat Headrest, RH
71930J Support Assy, NO.1 Seat Headrest, LH
71930Q Support Assy, Rear Seat Headrest
71935C Clip
71940F Headrest Assy, NO.1 Seat, RH
71940G Headrest Assy, NO.1 Seat, LH
71940H Headrest Assy, NO.2 Seat, RH
71940J Headrest Assy, NO.2 Seat, LH
71960G Headrest Assy, Rear NO.1 Seat, Center
71987H Cable, Rear Seat Headrest
71990B Support Assy, Rear NO.2 Seat Headrest, RH
71990C Support Assy, Rear NO.2 Seat Headrest, LH
71F95 Protector, Rear Seat, NO.4
71H11C Cover, Reclining Adjuster, RH
71H12C Cover, Reclining Adjuster, LH
71H75G Cover, Reclining Adjuster Inside, RH(FOR REAR NO.2 RH SEAT)
71H75H Cover, Reclining Adjuster Inside, RH(FOR REAR NO.2 LH SEAT)
71H75L Cover, Reclining Adjuster Inside, RH NO.1(FOR RH SEAT)
71H75R Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEAT)
71H76G Cover, Reclining Adjuster Inside, LH(FOR REAR NO.2 RH SEAT)
71H76H Cover, Reclining Adjuster Inside, LH(FOR REAR NO.2 LH SEAT)
71H76L Cover, Reclining Adjuster Inside, LH NO.1(FOR RH SEAT)
71H76N Cover, Reclining Adjuster Inside, LH NO.1(FOR LH SEAT)
72057J Lever Sub-assy, Rear Seat Lock Control(FOR RH SEAT)
72057K Lever Sub-assy, Rear Seat Lock Control(FOR LH SEAT)
72071D Pump Sub-assy, Lumber Support, RH
72072B Pump Sub-assy, Lumber Support, LH
72143D Bracket, Rear Seat Track, Lower Rear RH
72144 Bracket, Rear Seat Track, Lower Rear LH
72307D Link Sub-assy, Reclining Control, RH NO.1
72308C Link Sub-assy, Reclining Control, LH NO.1
72329F Cover, Rear Seat Adjuster Bolt
72329G Cover, Rear Seat Adjuster Bolt, NO.2
72525R Handle, Reclining Adjuster Release, RH
72526L Handle, Reclining Adjuster Release, LH
72551F Cover, Reclining Link, RH NO.1
72551M Cover, Reclining Hinge, RH NO.1(FOR RH SEAT)
72551R Cover, Reclining Hinge, RH NO.1(FOR LH SEAT)
72552F Cover, Reclining Link, LH NO.1
72552K Cover, Reclining Hinge, LH NO.1(FOR RH SEAT)
72552P Cover, Reclining Hinge, LH NO.1(FOR LH SEAT)
72556 Clip(FOR REAR SEAT)
72558C Stopper, Reclining, NO.1
72569B Plate, Seatback Stopper
72570E Cable Assy, NO.1 Seat Reclining Adjusting, RH
72574B Lever, Reclining Control, RH
72580E Cable Assy, Reclining Adjusting, LH
72595B Base, Reclining Remote Control, RH
72596B Base, Reclining Remote Control, LH
72597D Bezel, Reclining Remote Control, RH
72598C Bezel, Reclining Remote Control, LH
72607G Striker Sub-assy, Rear Seat Cushion Lock, NO.1
72607H Striker Sub-assy, Rear Seat Cushion Lock, NO.2
72607J Striker Sub-assy, Rear Seat Cushion Lock, NO.3
72607K Striker Sub-assy, Rear Seat Cushion Lock, NO.4
72622D Bush(FOR REAR NO.2 SEAT LEG)
72630H Lock Assy, NO.1 Seatback
72635D Hook, Seatback Lock
72650J Lock Assy, Rear Seat, RH
72660P Lock Assy, Rear Seat, LH
72690K Strap Assy, Rear Seat Lock Release
72695R Cable, Rear NO.2 Seat Lock Control, RH
72695S Cable, Rear NO.2 Seat Lock Control, LH
72749G Spacer, Rear Seat Reclining, RH
72750J Adjuster Assy, Lumbar Support, RH
72760B Adjuster Assy, Lumbar Support, LH
72810L Armrest Assy, NO.1 Seat, NO.1
72810M Armrest Assy, NO.1 Seat, NO.2
72830X Armrest Assy, Rear Seat, Center
72832B Plate, Rear Seat Armrest
72868C Cover, Center Armrest Hinge, RH
72869A Cover, Center Armrest Hinge, LH
72927F Cover, Rear Seat Cushion Under, RH
72927G Cover, Rear NO.2 Seat Cushion Under, RH
72928E Cover, Rear Seat Cushion Under, LH
72928F Cover, Rear NO.2 Seat Cushion Under, LH
72985 Cover, Rear Headrest, RH
72985A Cover, Rear Headrest, LH
72987B Cover, Rear Seat Center Armrest
72995F Cover, Rear Seat Cushion, RH
72995K Cover, Rear NO.2 Seat Cushion
72996G Cover, Rear Seat, NO.2 RH
72996H Cover, Rear Seatback
72996J Cover, Rear Seatback, NO.2
72996R Cover, Rear NO.1 Seatback, RH
72996S Cover, Rear NO.1 Seatback, LH
72997F Cover, Rear Seat, NO.2 LH
72998D Cover, Rear Seat Cushion, LH
73383B Hook, Rear Seat Belt
73930A Airbag Assy, Rear Seat, RH
73940A Airbag Assy, Rear Seat, LH
739A0 Airbag Assy, Rear Seat Cushion, RH
739B0 Airbag Assy, Rear Seat Cushion, LH
74061A Bag Sub-assy, Seat Cushion Pad, RH
74062A Bag Sub-assy, Seat Cushion Pad, LH
74063B Bag Sub-assy, Seatback Pad, RH
74064B Bag Sub-assy, Seatback Pad, LH
74865H Cover, Center Protector
74930A Cushion Assy, Main Stretcher, RH(FOR SEAT CUSHION)
74930B Cushion Assy, Main Stretcher, LH(FOR SEAT CUSHION)
74930C Cushion Assy, Main Stretcher, RH NO.1(FOR SEATBACK)
74930D Cushion Assy, Main Stretcher, LH NO.1(FOR SEATBACK)
74930E Cushion Assy, Main Stretcher, RH NO.2(FOR SEATBACK)
74930F Cushion Assy, Main Stretcher, LH NO.2(FOR SEATBACK)
74930G Cushion Assy, Main Stretcher, RH NO.2(FOR SEAT CUSHION)
74930H Cushion Assy, Main Stretcher, LH NO.2(FOR SEAT CUSHION)
76892C Bush, Rear Seat Lock Assy
76971G Cover, Rear Under
77278H Valve, Check W/Hose, RH(FOR SEAT CUSHION)
77278J Valve, Check W/Hose, LH(FOR SEAT CUSHION)
78910C Cable Assy, Fold Seat Lock Control, NO.1(FOR RH SEAT)
78910D Cable Assy, Fold Seat Lock Control, NO.1(FOR LH SEAT)
78950F Band Assy, Fold Seat Stopper, NO.1
79013D Cover Sub-assy, NO.1 Seatback, RH
79014B Cover Sub-assy, NO.1 Seatback, LH
79021D Cover Sub-assy, NO.2 Seat Cushion, RH
79022B Cover Sub-assy, NO.2 Seat Cushion, LH
79023D Cover Sub-assy, NO.2 Seatback, RH
79024D Cover Sub-assy, NO.2 Seatback, LH
79030C Leg Assy, Rear NO.2 Seat, RH
79040C Leg Assy, Rear NO.2 Seat, LH
79103B Frame Sub-assy, NO.1 Seatback, RH
79103C Frame Sub-assy, NO.1 Seatback, Center
79104A Frame Sub-assy, NO.1 Seatback, LH
79117D Carpet, NO.1 Seat Cushion
79135D Pad, NO.1 Seat Cushion
79157B Cover, NO.1 Seatback Board
79175F Pad, NO.1 Seatback, RH
79185A Pad, NO.1 Seatback, LH
79197B Rivet
79201C Frame Sub-assy, NO.2 Seat Cushion, RH
79202B Frame Sub-assy, NO.2 Seat Cushion, LH
79203B Frame Sub-assy, NO.2 Seatback, RH
79204C Frame Sub-assy, NO.2 Seatback, LH
79207C Board Sub-assy, NO.2 Seatback, LH
79207D Board Sub-assy, NO.2 Seatback, RH
79225D Carpet, Rear NO.2 Seat Cushion
79235F Pad, NO.2 Seat Cushion, RH
79235G Pad, NO.2 Seat Cushion
79236G Cover, NO.2 Seat Leg, RH
79236H Cover, NO.3 Seat Leg, RH
79236L Cover, Rear Seat Leg, RH
79245A Pad, NO.2 Seat Cushion, LH
79246H Cover, NO.2 Seat Leg, LH
79246J Cover, NO.3 Seat Leg, LH
79246M Cover, Rear Seat Leg, LH
79275F Pad, NO.2 Seatback, RH
79285C Pad, NO.2 Seatback, LH
79337A Carpet, NO.2 Seat Cushion Under, RH
79347A Carpet, NO.2 Seat Cushion Under, LH
79391B Spring, Rear Seat Cushion
79873A Wire, Fold Seatback
79915B Bracket, Seat Leg
79916B Bracket, Seat Leg, NO.2
79951B Cover, NO.1 Seat Cushion, NO.1
79952A Cover, NO.1 Seat Cushion, NO.2
79959G Cover, NO.2 Seat Leg, RH NO.1
79959J Cover, NO.2 Seat Leg, LH NO.1
79966K Cover, Rear Seat Leg, RH(FOR RH SEAT)
79966L Cover, Rear Seat Leg, LH(FOR RH SEAT)
79966M Cover, Rear Seat Leg, RH(FOR LH SEAT)
79966N Cover, Rear Seat Leg, LH(FOR LH SEAT)
79967T Cover, Rear NO.1 Seat Leg Side, NO.1
79967U Cover, Rear NO.1 Seat Leg Side, NO.2
79967V Cover, Rear NO.1 Seat Leg Side, NO.3
79967W Cover, Rear NO.1 Seat Leg Side, NO.4
79967X Cover, Rear NO.1 Seat Leg Side, NO.5
79J68B Clip
82G11 Clamp, Wiring Harness
85860E Blower Assy, NO.1 Seat Cushion Climate Control(FOR RH SEAT)
85860F Blower Assy, NO.1 Seat Cushion Climate Control(FOR LH SEAT)
85867D Blower, NO.1 Seatback Climate Control(FOR RH SEAT)
85867E Blower, NO.1 Seatback Climate Control(FOR LH SEAT)

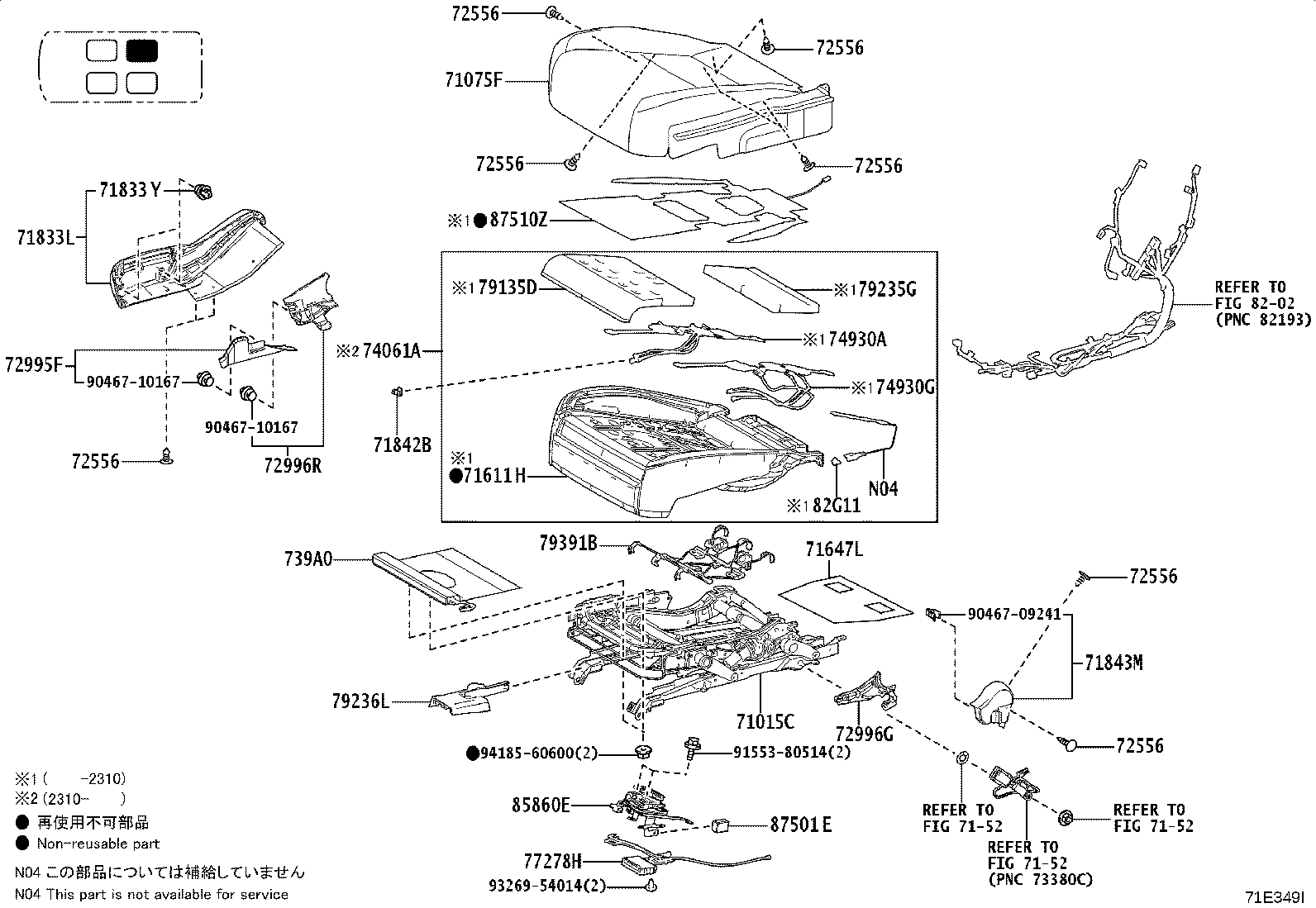

87501E Control Sub-assy, Seat Heater, RH

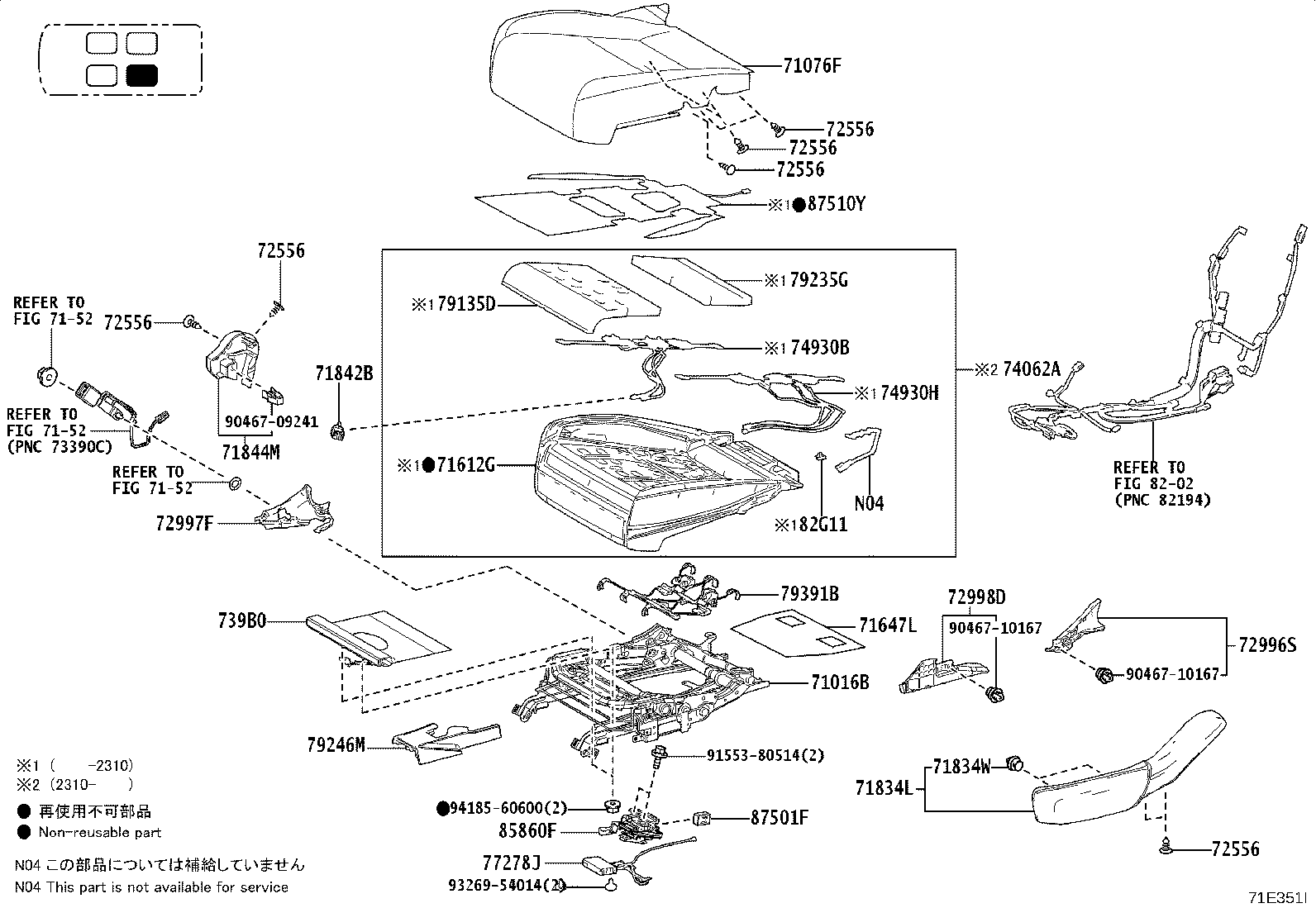

87501F Control Sub-assy, Seat Heater, LH

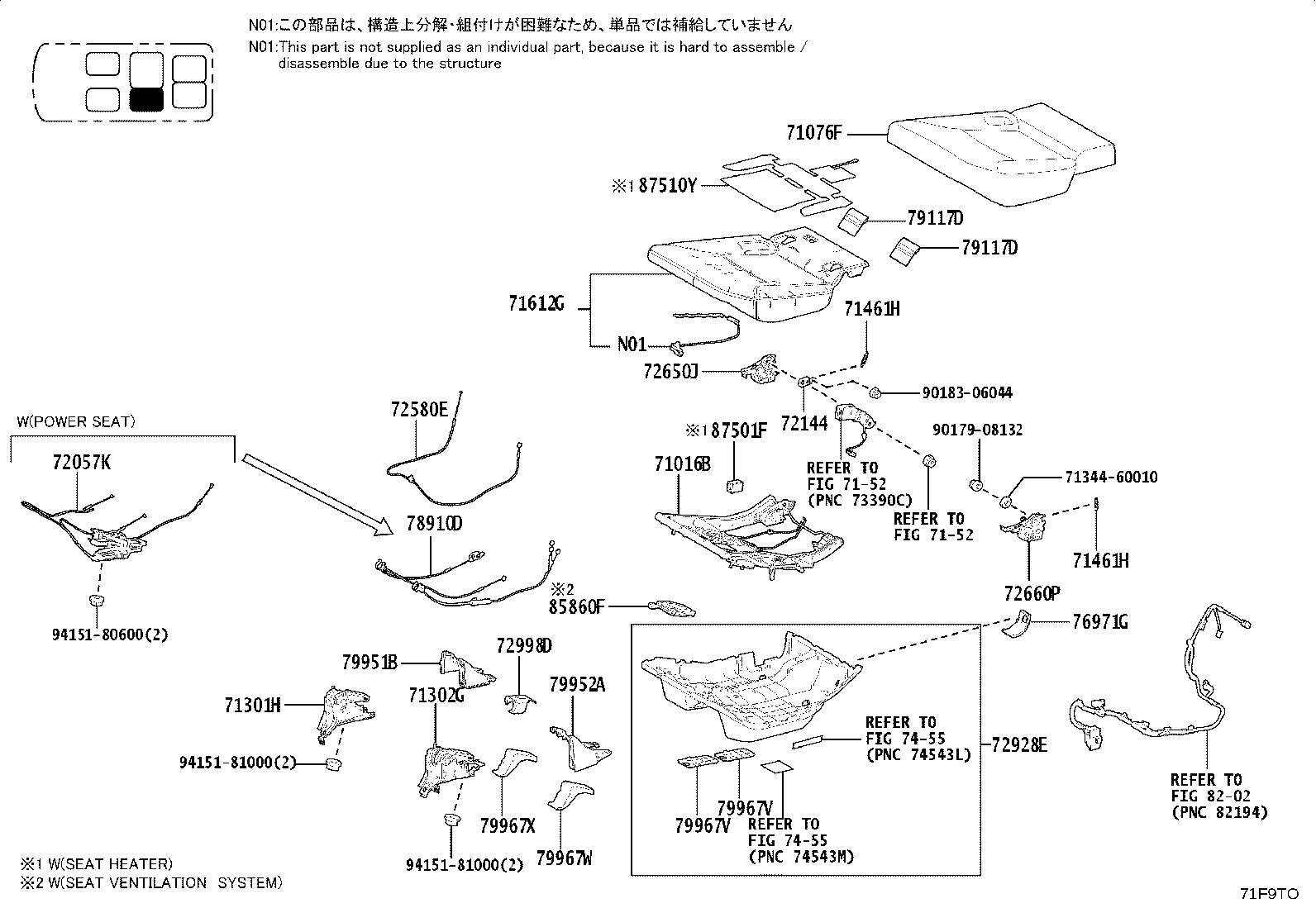

87510Y Heater Assy, Rear NO.1 Seat Cushion, LH
87510Z Heater Assy, Rear NO.1 Seat Cushion, RH

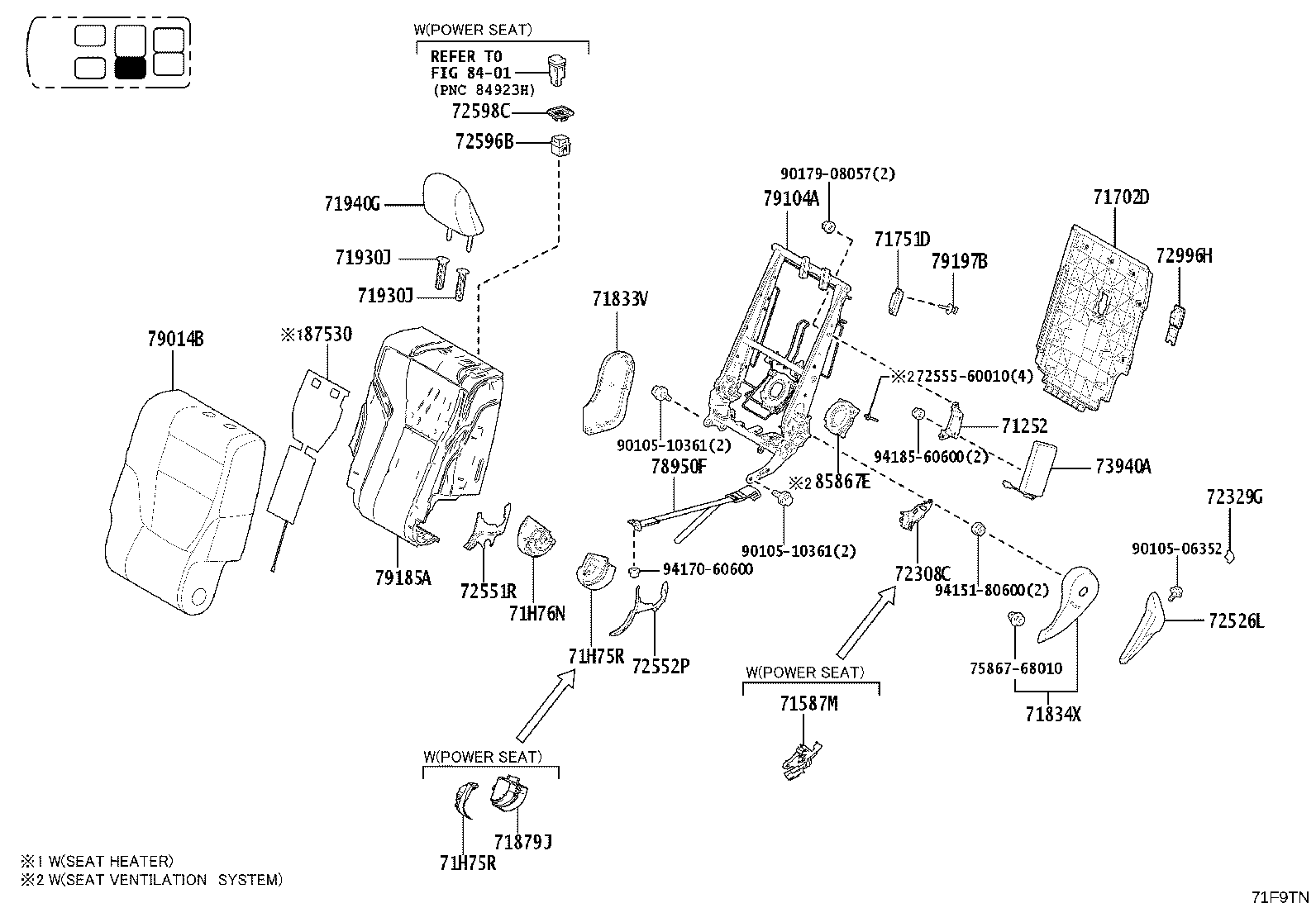

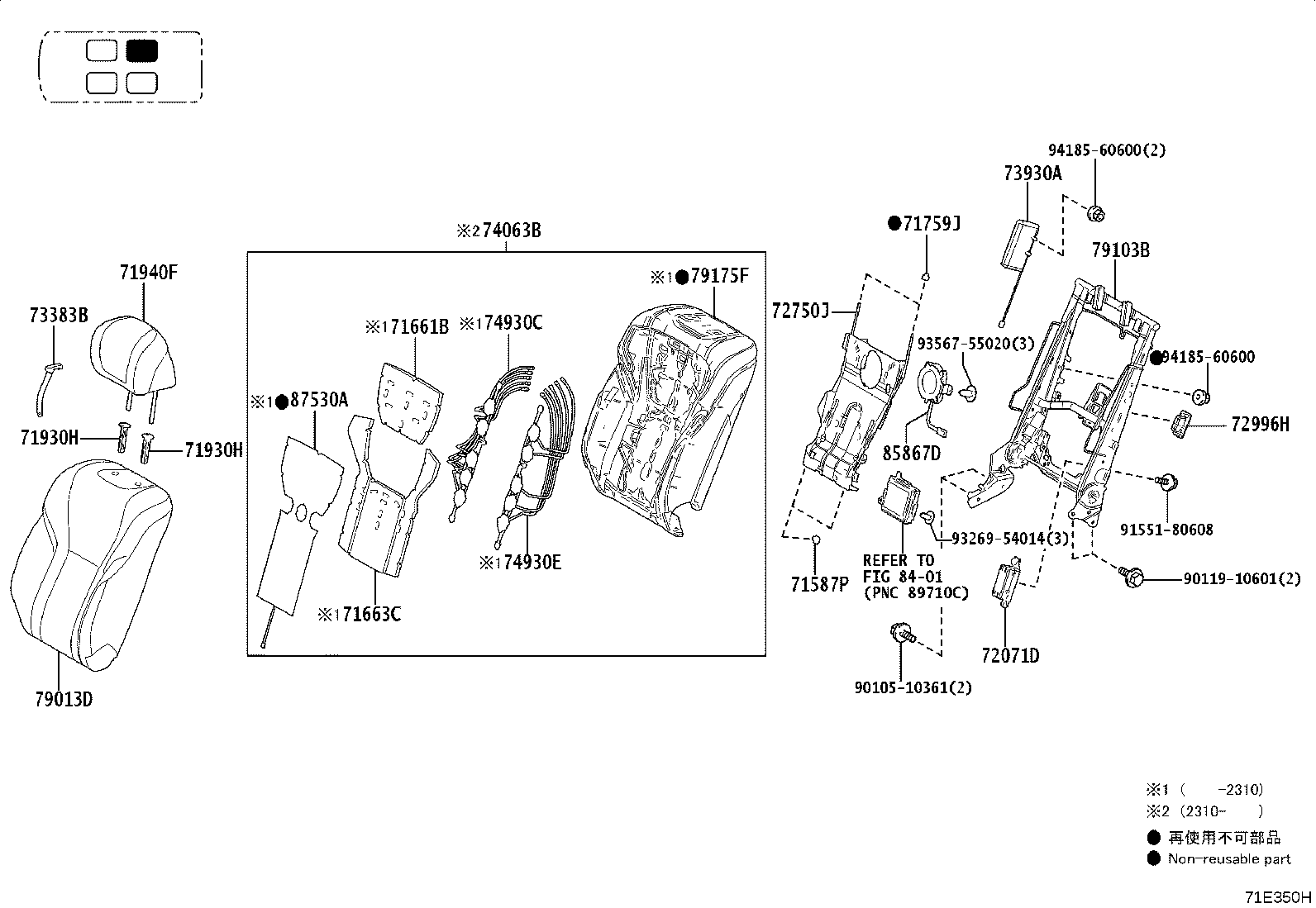

87530 Heater Assy, Rear NO.1 Seatback, LH
87530A Heater Assy, Rear NO.1 Seatback, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
