Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,FB30,HDB30,HZB30 · catalogue 811220 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

70 part groups · 8 illustrations

Illustrations

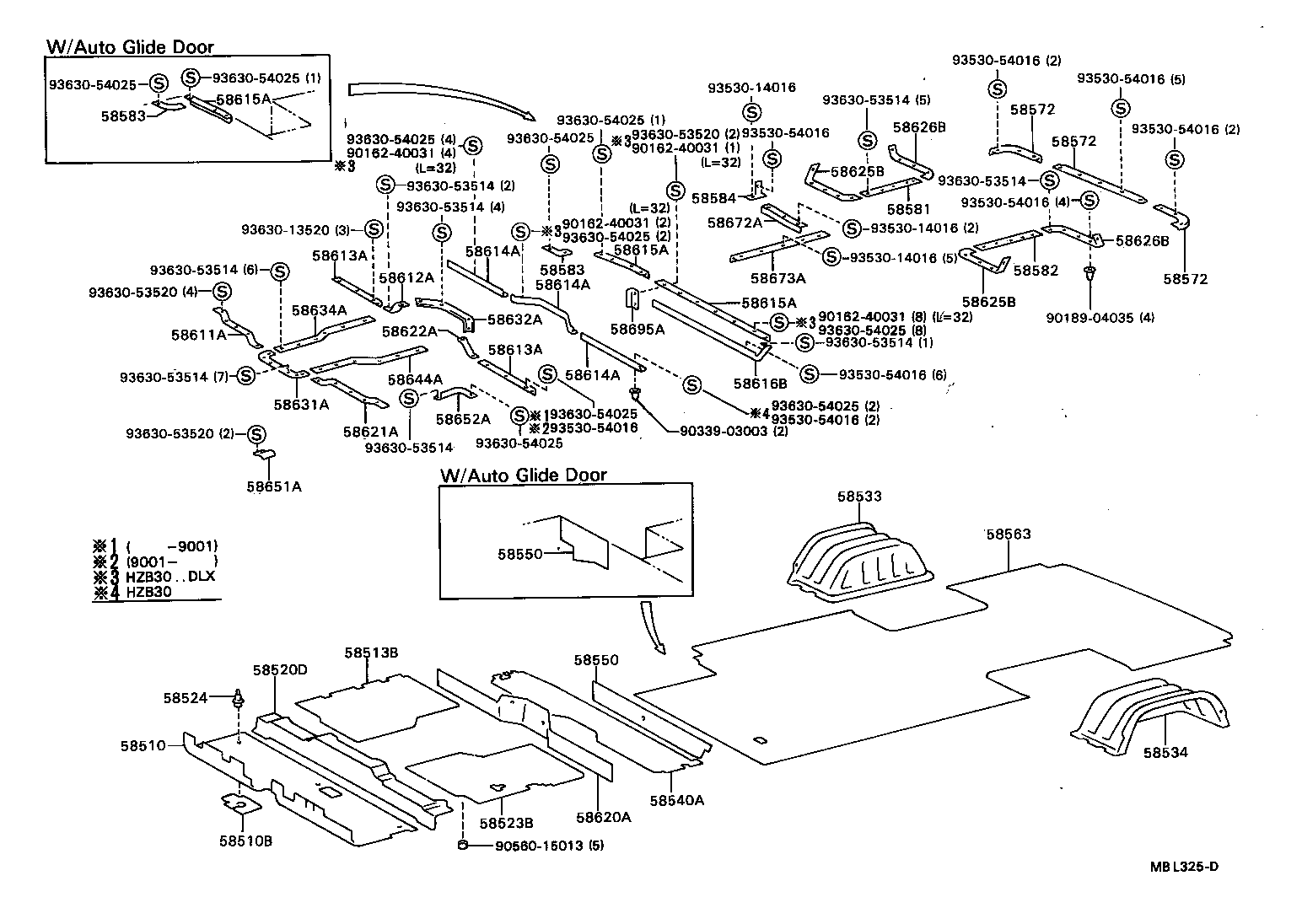

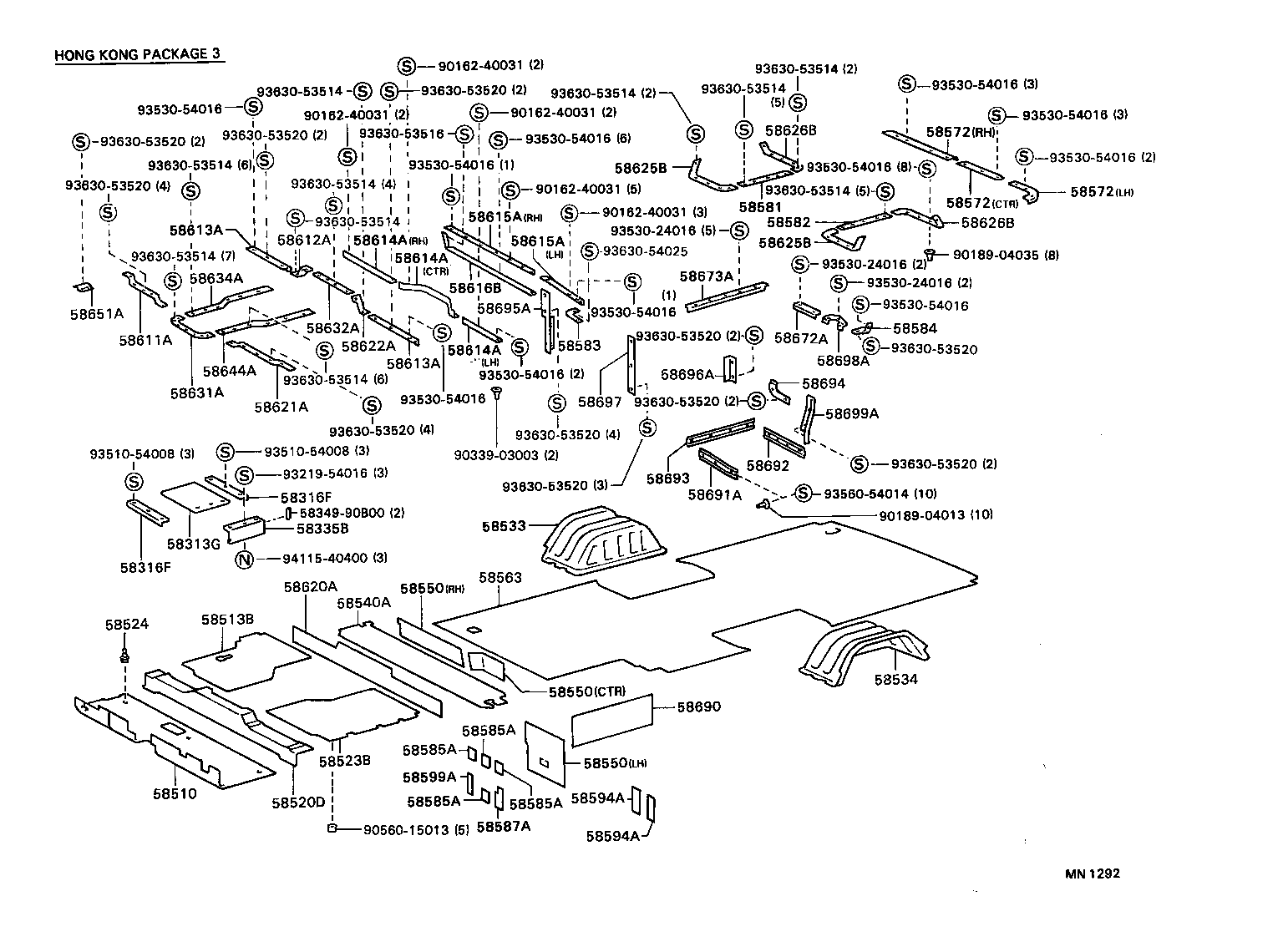

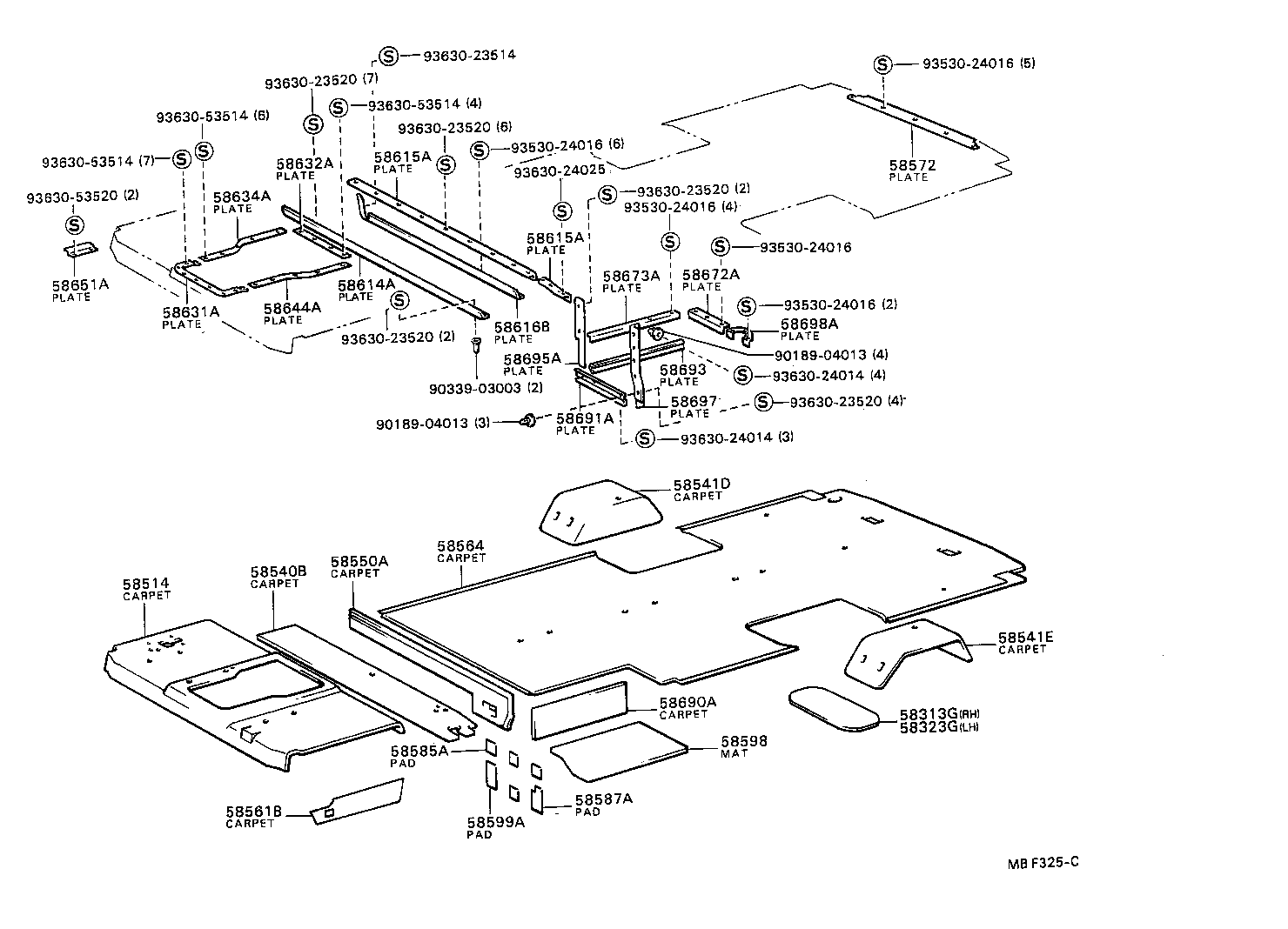

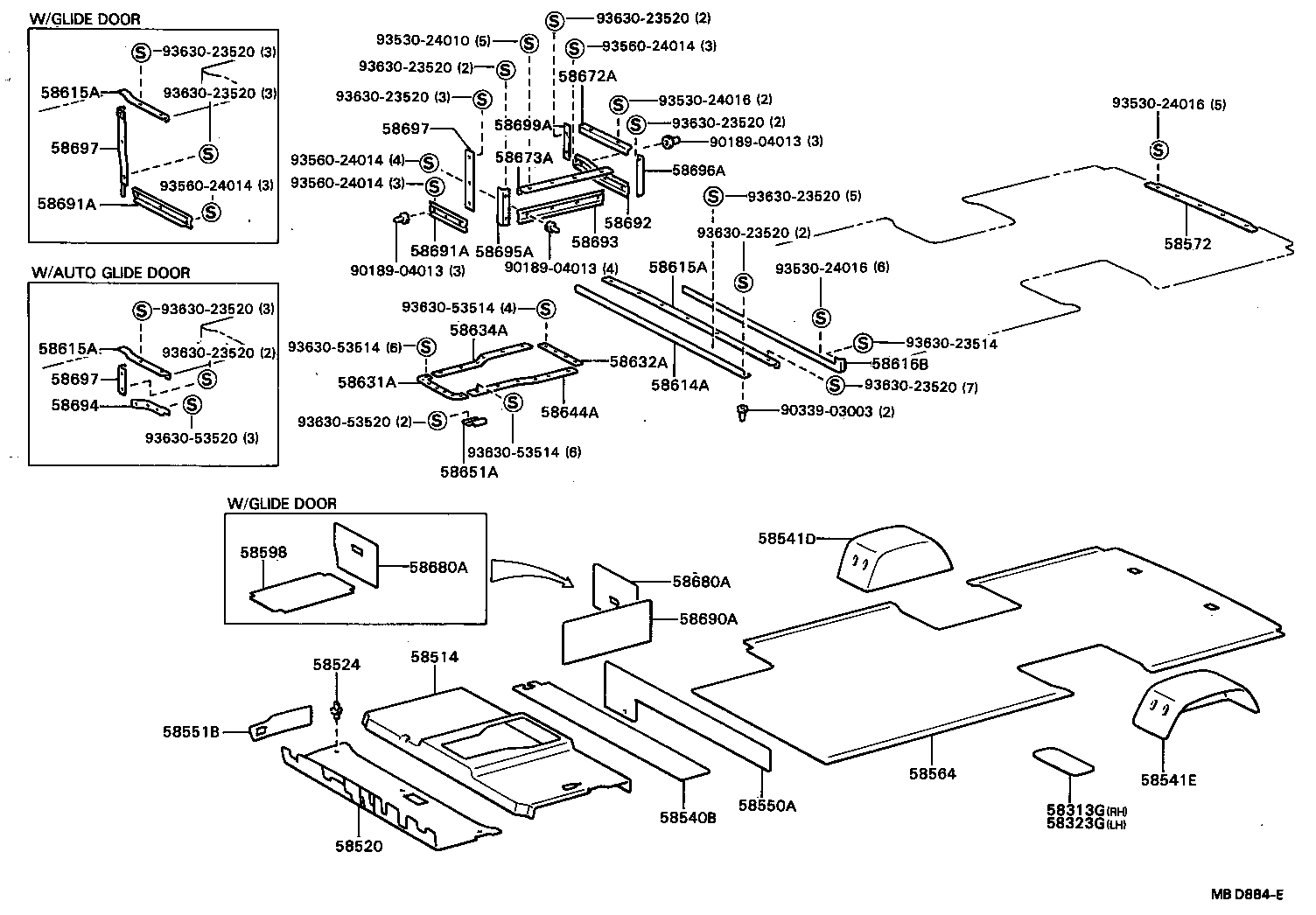

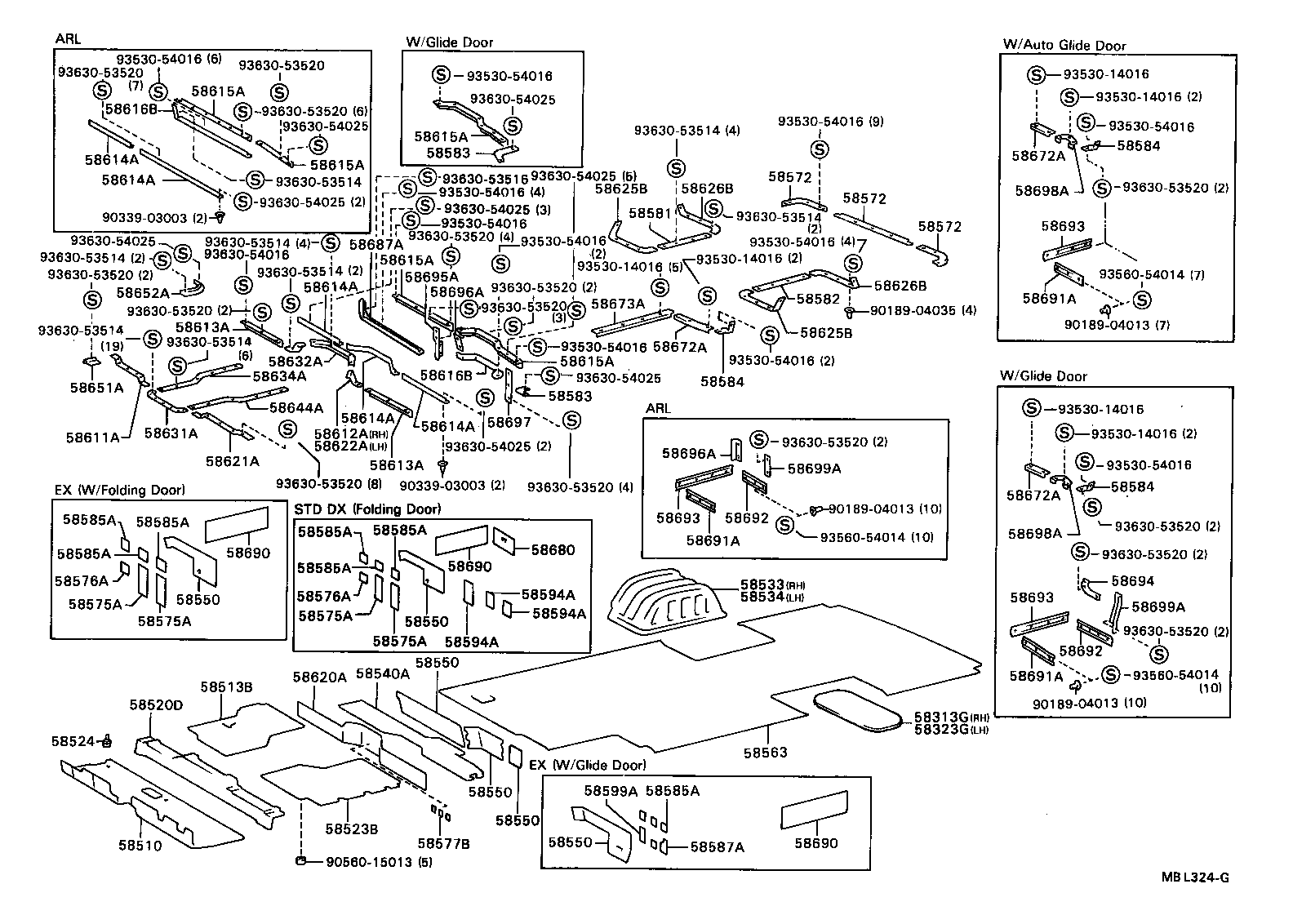

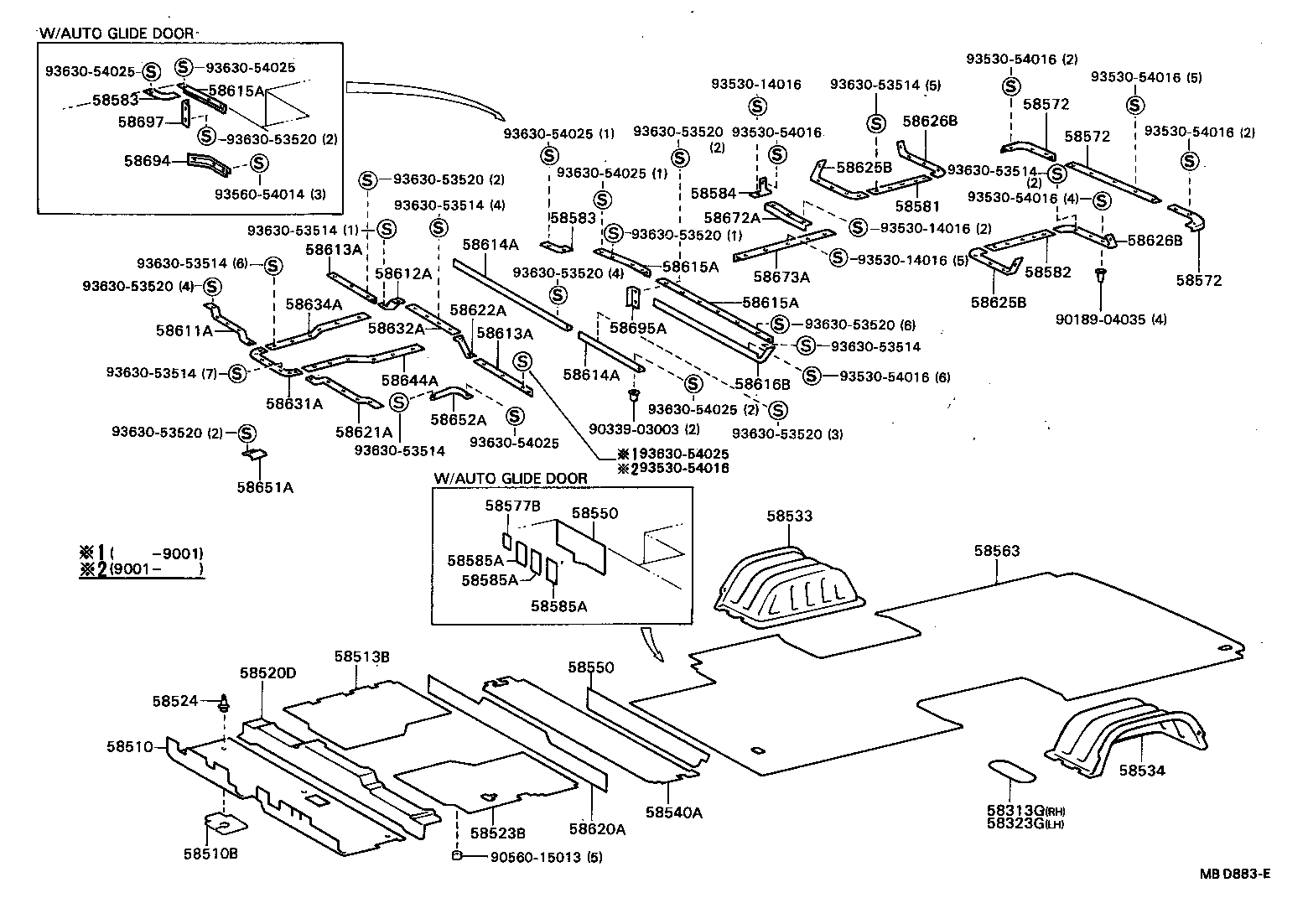

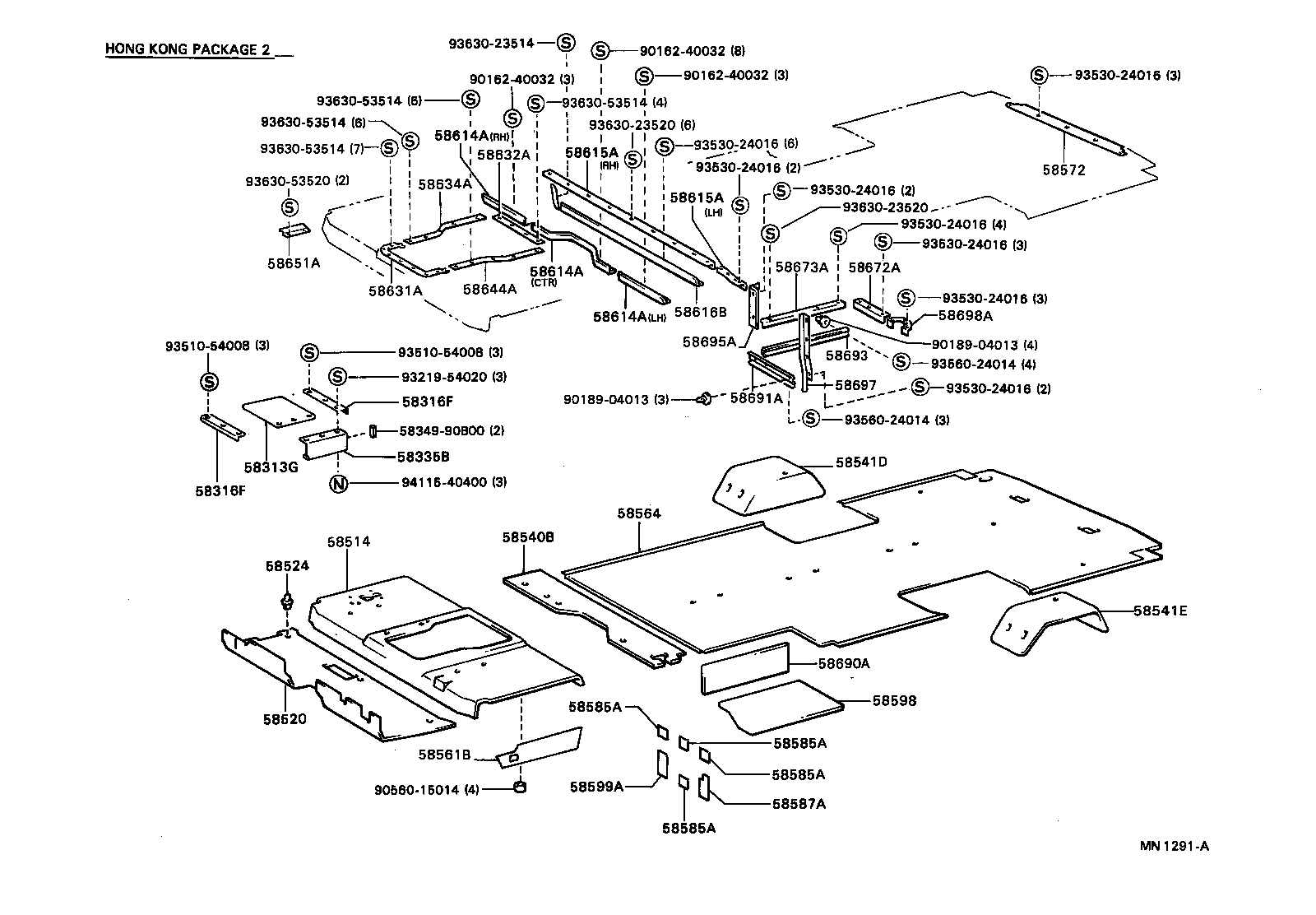

Figure MBD882F MBD882F 1982-05 → — Figure MBF325C MBF325C 1983-03 → — Figure MBD883E MBD883E 1982-05 → — Figure MBD884E MBD884E 1982-05 → — Figure MBL324G MBL324G 1986-10 → — Figure MBL325D MBL325D 1986-10 → — Figure MN1291A MN1291A 1990-12 → — Figure MN1292 MN1292 1990-12 → —

Part groups

PNCDescription
58313G Mat, Footrest, RH
58316F Plate, Footrest, Rear
58323G Mat, Footrest, LH
58335B Plate, RH Footrest Coner, NO.1
58510 Mat Assy, Front Floor, Front NO.1
58510B Mat, Front Floor, Front
58513B Mat, Front Floor Center, NO.1 RH
58514 Carpet, Floor, Front Center
58520 Carpet Assy, Front Floor
58520D Mat Assy, Front Floor, Front NO.2
58523B Mat, Front Floor, Center NO.1 LH
58524 Fastener, Floor Mat, Male
58533 Mat, Rear Wheel House, RH
58534 Mat, Rear Wheel House, LH
58540A Mat Assy, Front Floor, Rear NO.1
58540B Carpet Assy, Front Floor, Rear NO.1
58541D Carpet, Rear Wheel House, RH
58541E Carpet, Rear Wheel House, LH
58550 Mat Assy, Front Floor, Rear NO.2
58550A Carpet Assy, Front Floor, Rear NO.2
58551B Carpet, Front Floor Side, RH
58561B Carpet, Front Floor Side, LH
58563 Mat, Rear Floor
58564 Carpet, Rear Floor
58572 Set Plate, Rear Floor Mat, Rear
58575A Pad, Front Floor, Rear A
58576A Pad, Front Floor, Rear B
58577B Pad, Front Floor, Rear NO.3
58581 Plate, Wheel House Mat Set, RH
58582 Plate, Wheel House Mat Set, LH
58583 Plate, Rear Floor Mat Set Door Pillar, Front
58584 Plate, Rear Floor Mat Set Door Pillar, Rear
58585A Pad, Front Floor, Rear NO.4
58587A Pad, Front Floor, Rear NO.6
58594A Pad, Center Door Step, Rear
58598 Mat, Center Door Step Floor
58599A Pad, Front Floor, Rear NO.7
58611A Plate, Mat Set, NO.1 RH
58612A Plate, Mat Set, NO.2 RH
58613A Plate, Mat Set, NO.3
58614A Plate, Mat Set, NO.4
58615A Plate, Mat Set, NO.5
58616B Plate, Mat Set, NO.6
58620A Mat Assy, Front Floor, Center NO.2
58621A Plate, Mat Set, NO.1 LH
58622A Plate, Mat Set, NO.2 LH
58625B Plate, Rear Wheel House Mat, Front
58626B Plate, Rear Wheel House Mat, Rear
58631A Plate, Engine Service Hole Mat, Front
58632A Plate, Engine Service Hole Mat, Rear
58634A Plate, Engine Service Hole Mat, RH
58644A Plate, Engine Service Hole Mat, LH
58651A Plate, Front Door Mat, NO.1
58652A Plate, Front Door Mat, NO.2
58672A Plate, Center Door Step Mat, Rear
58673A Plate, Center Door Step Mat Side
58680 Mat Assy, Center Door Step, Rear
58680A Carpet Assy, Center Door Step, Rear
58687A Plate, Mat Set, NO.7
58690 Mat Assy, Center Door Step
58690A Carpet Assy, Center Door Step
58691A Plate, Center Door Step Mat, Lower Front
58692 Plate, Center Door Step Mat, Lower Rear
58693 Plate, Center Door Step Mat, Lower Side
58694 Plate, Center Door Step Mat, Upper Front
58695A Plate, Rear Floor Mat Vertical, NO.1
58696A Plate, Rear Floor Mat Vertical, NO.2
58697 Plate, Rear Floor Mat Vertical, NO.3
58698A Plate, Center Door Step Mat, Side Outer
58699A Plate, Rear Floor Mat Vertical, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
