Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

35 part groups · 17 illustrations

Illustrations

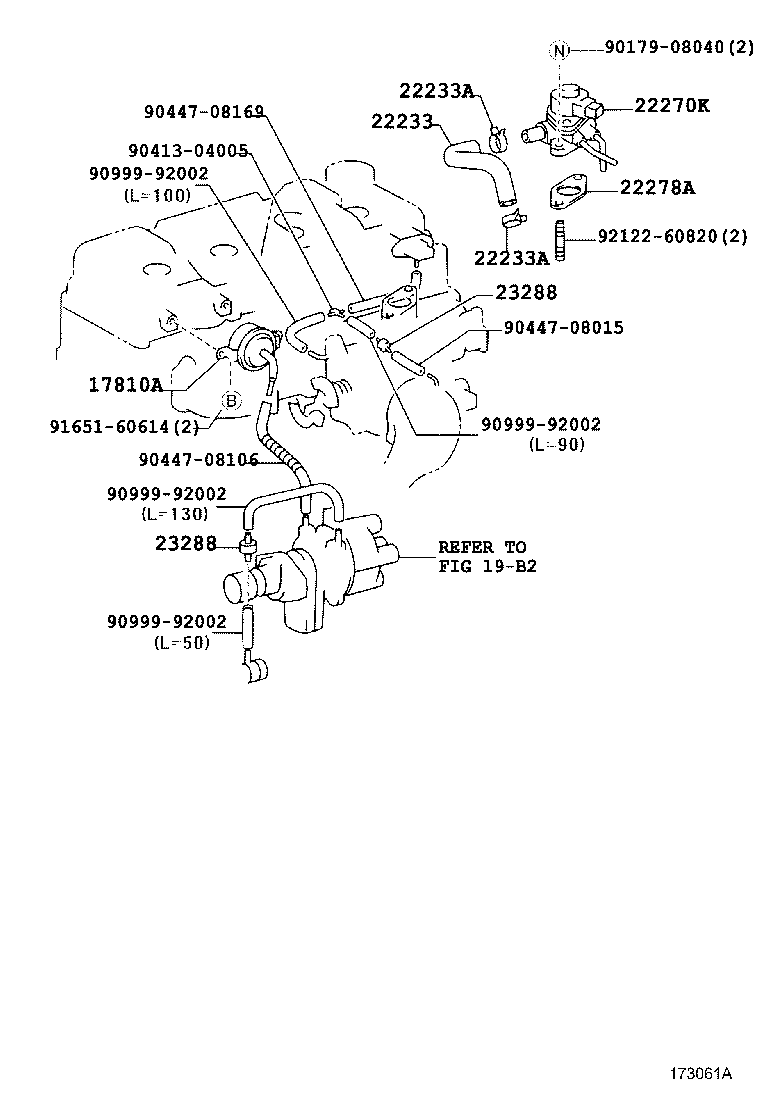

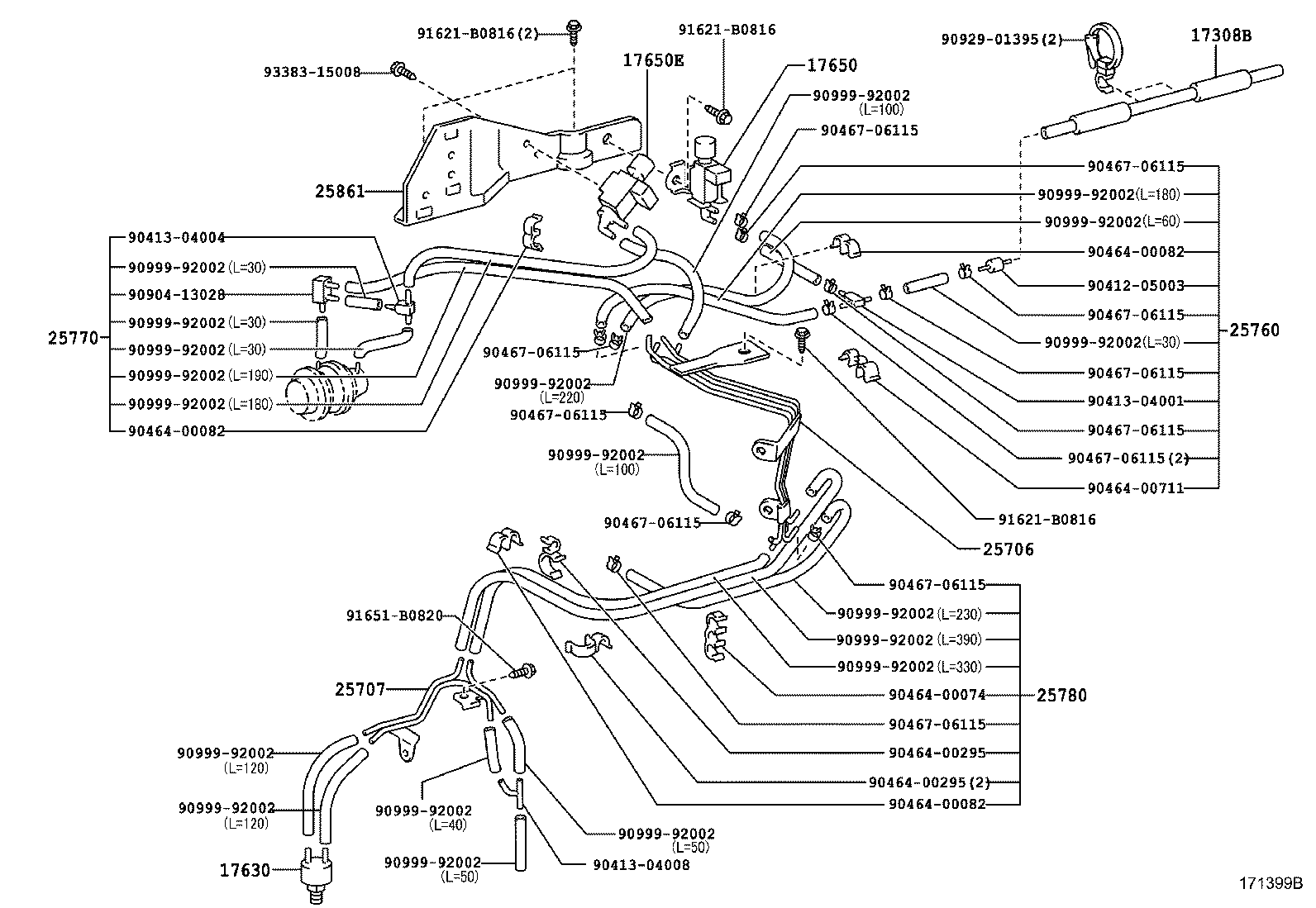

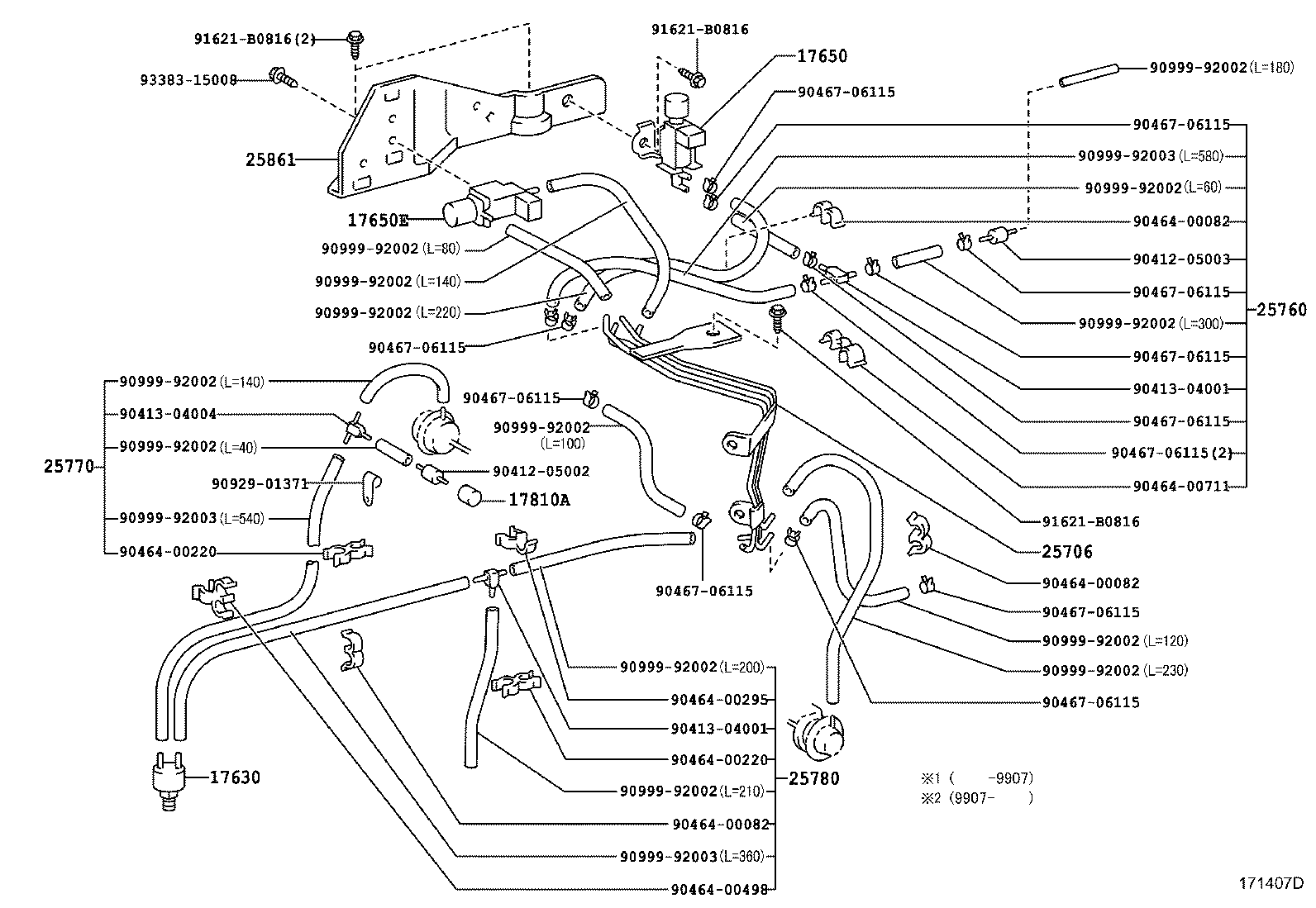

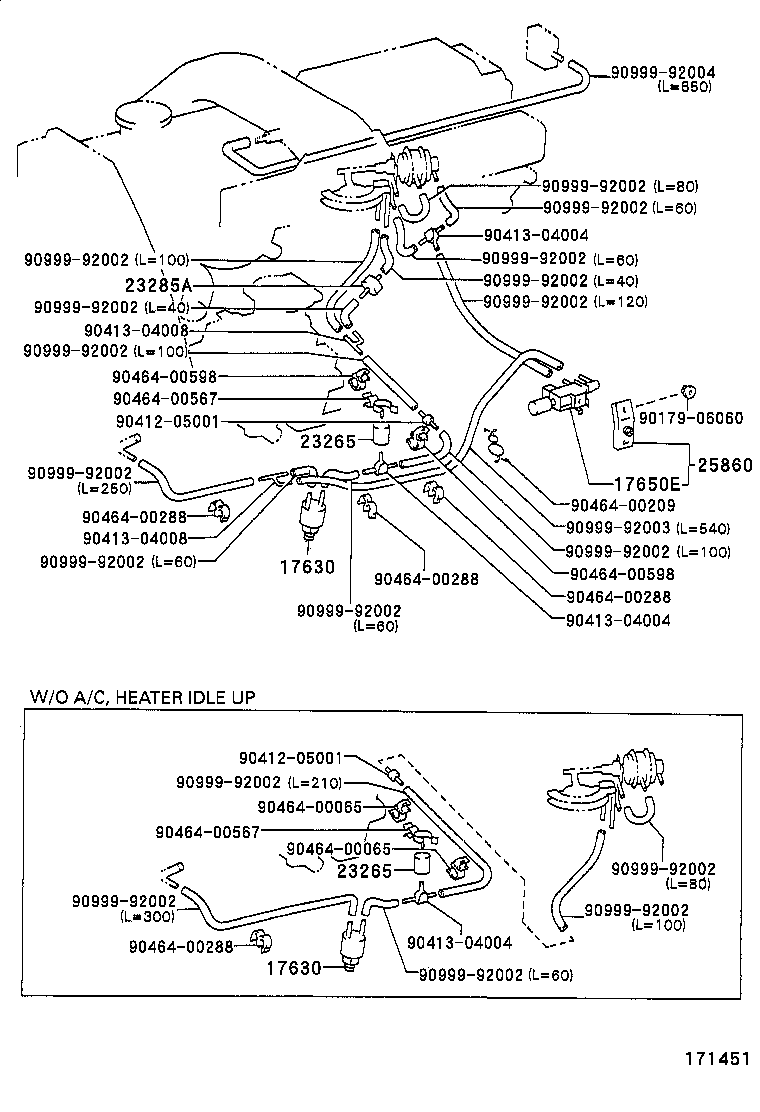

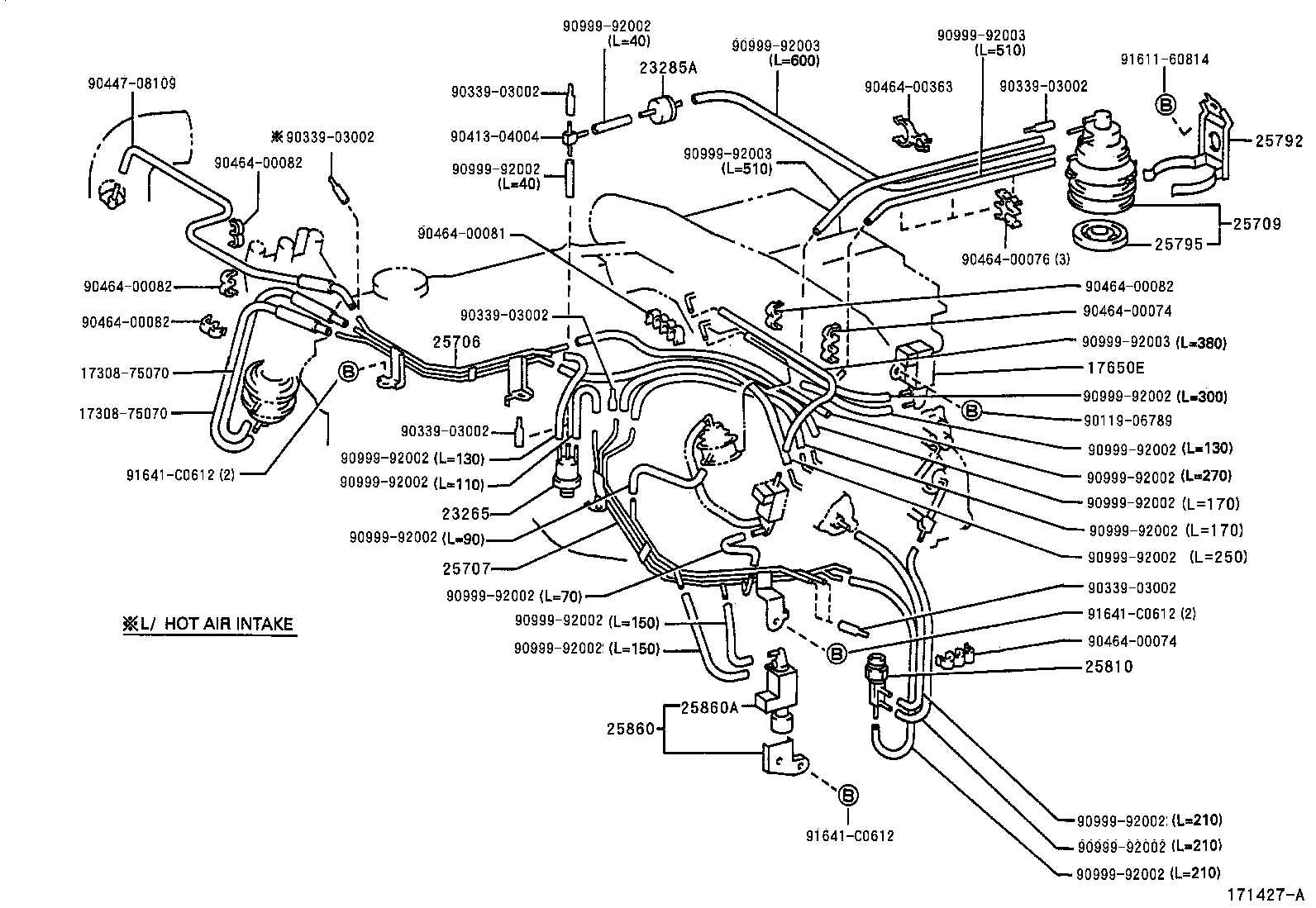

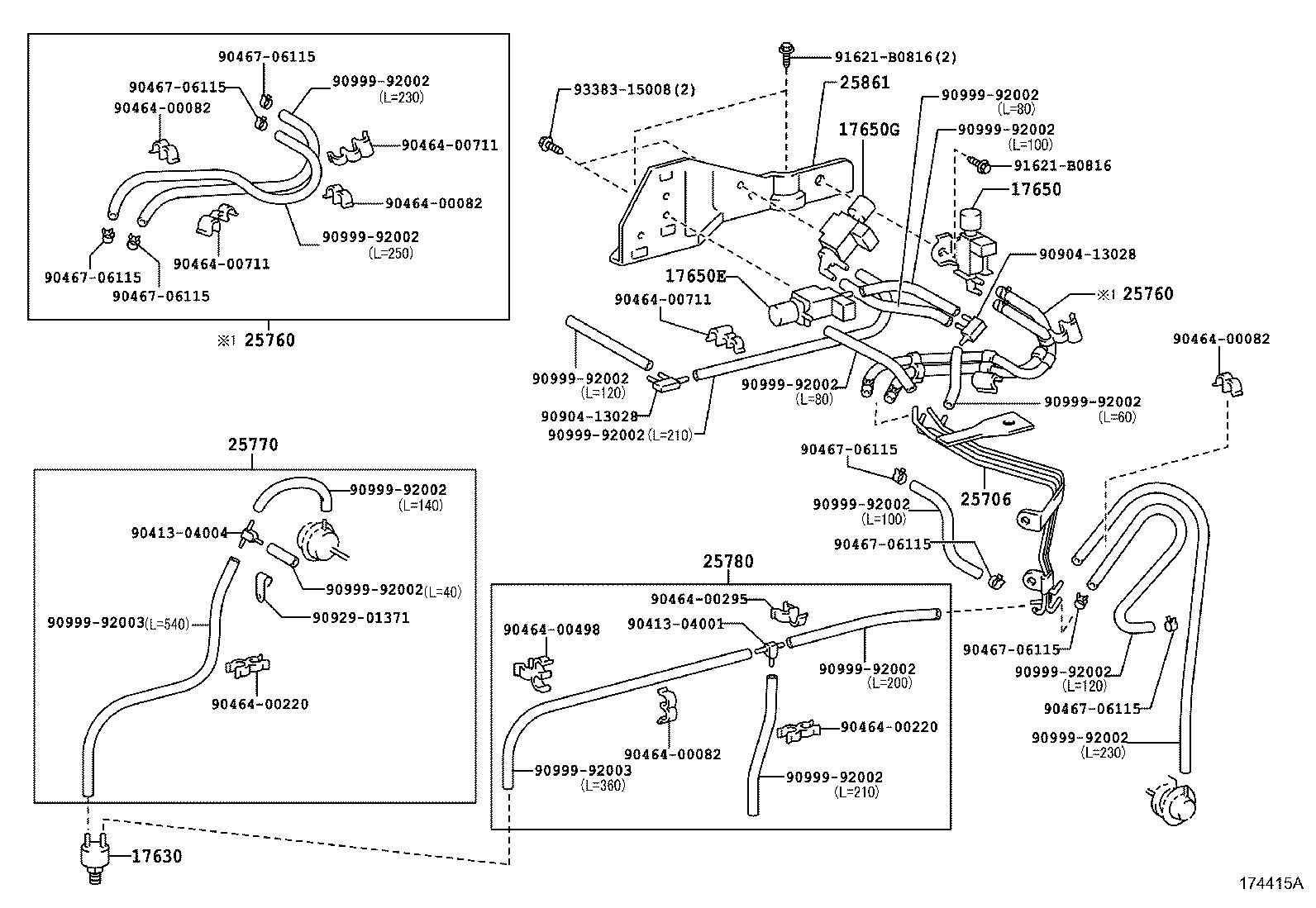

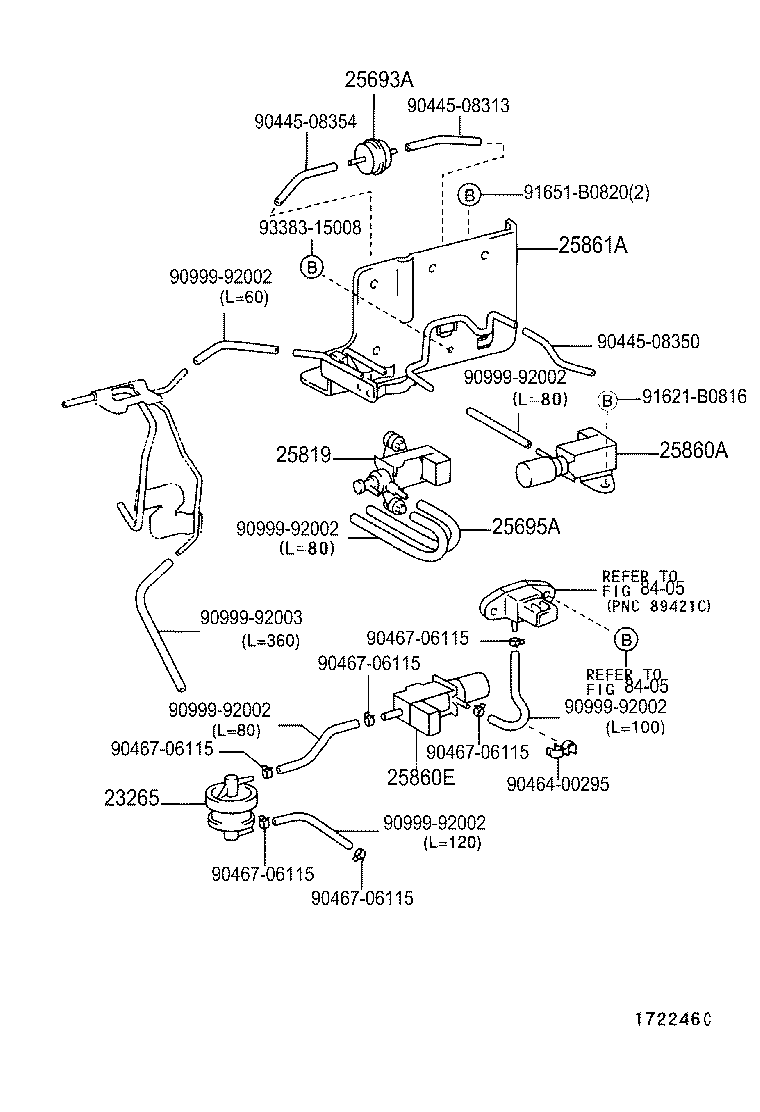

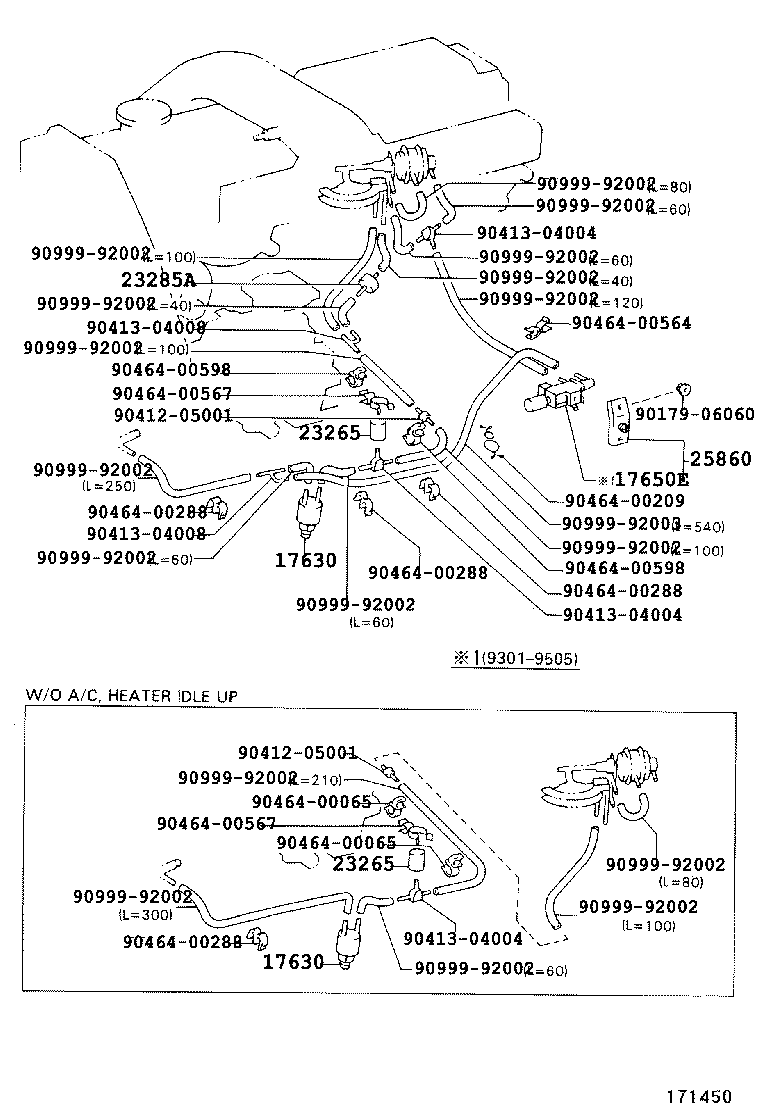

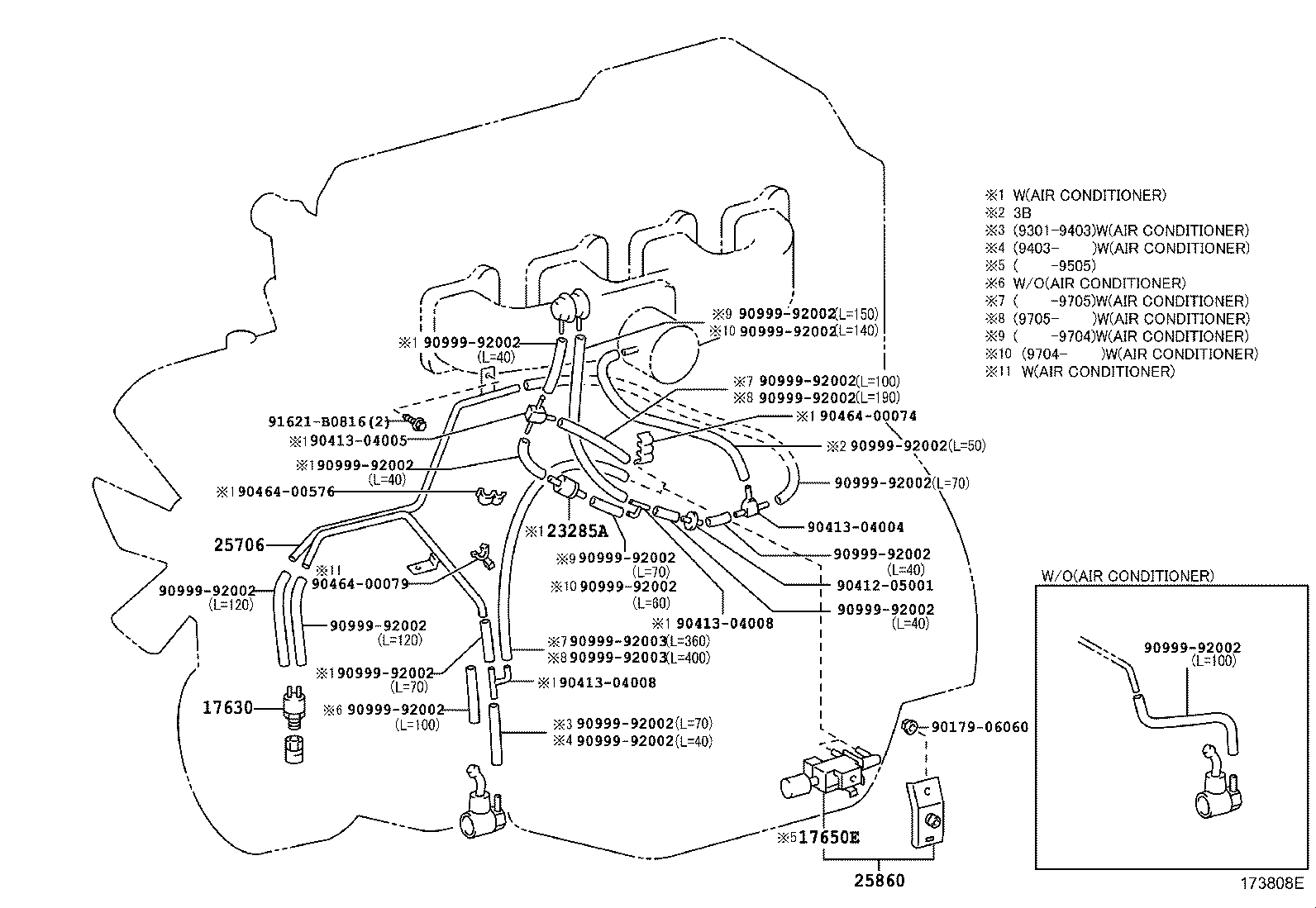

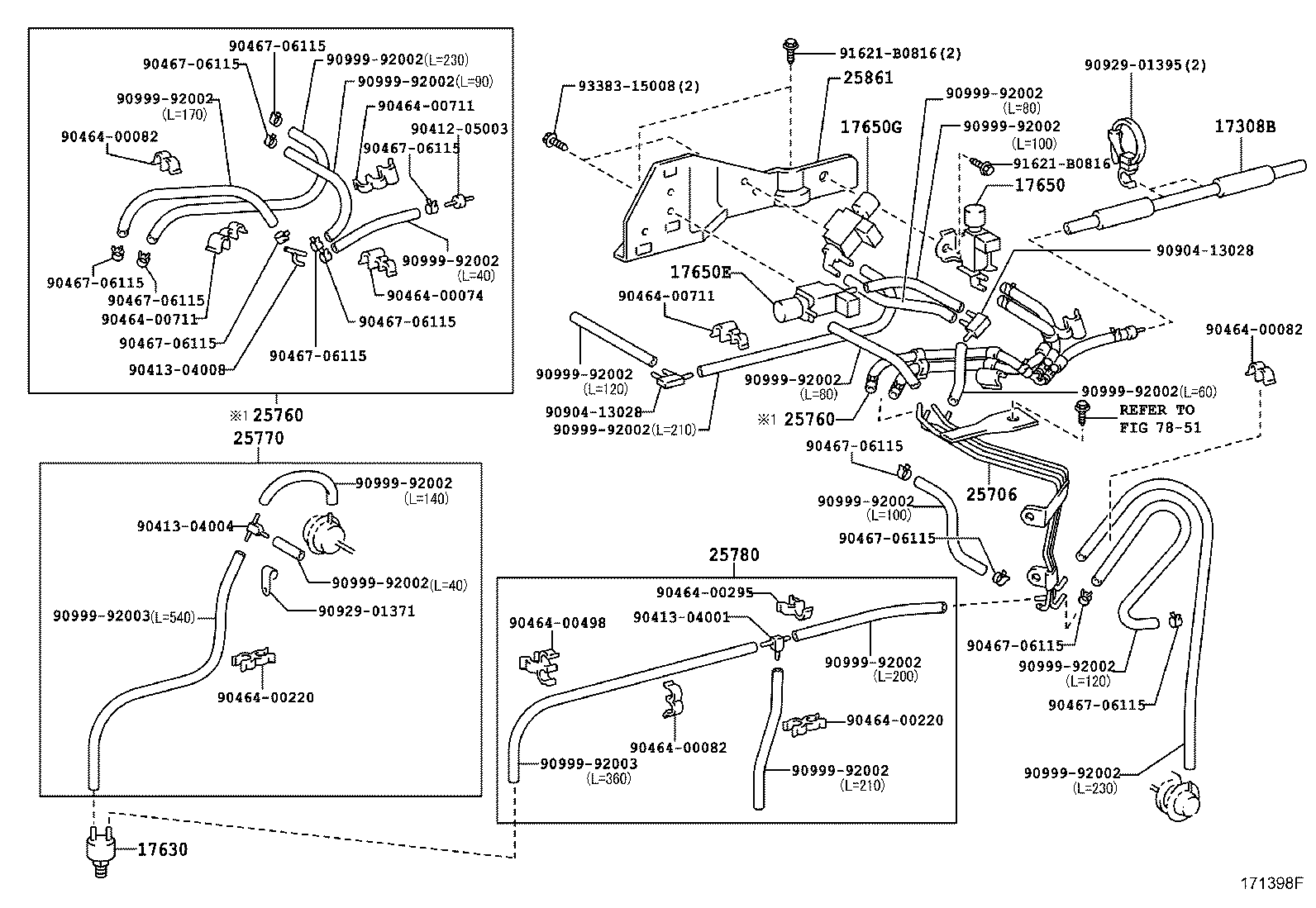

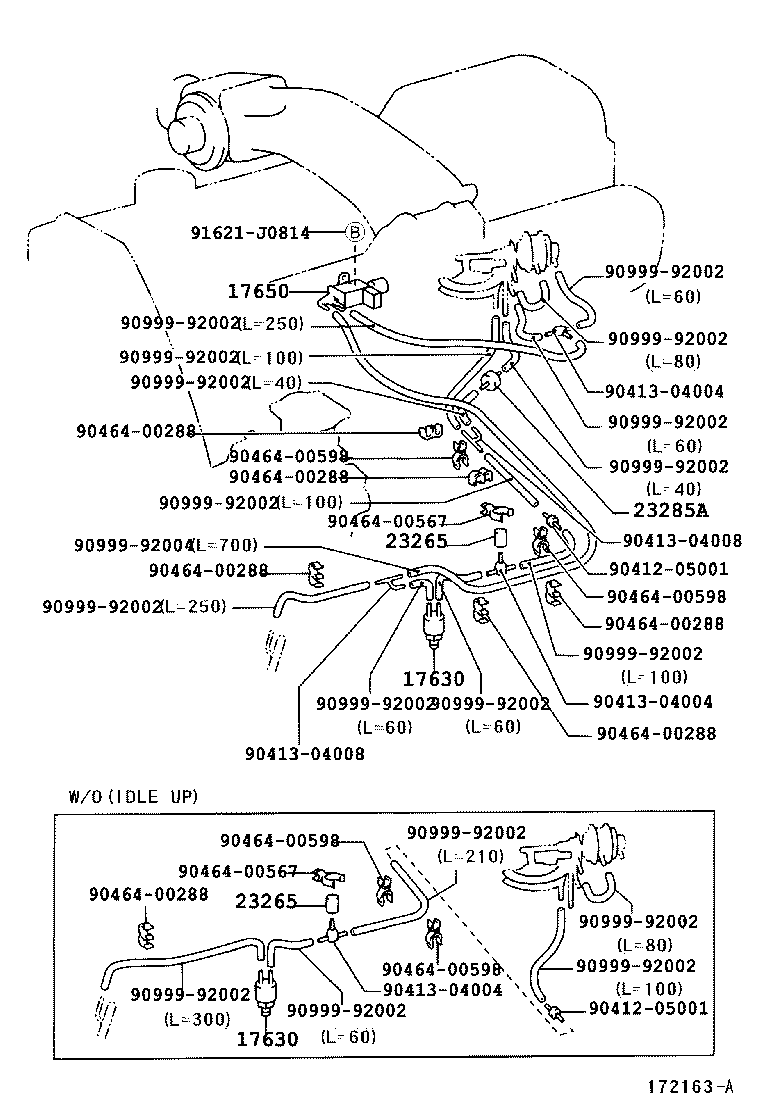

Figure 170021 170021 1993-01 → — Figure 173808E 173808E 1993-01 → — Figure 171407D 171407D 1996-05 → 1999-07 Figure 171399B 171399B 1997-05 → 1999-07 Figure 171399B 171399B 1997-05 → 2001-08 Figure 171398F 171398F 1997-05 → 2004-08 Figure 171398F 171398F 1999-07 → 2004-08 Figure 174415A 174415A 2004-08 → — Figure 174225D 174225D 2004-08 → — Figure 172246C 172246C 1999-07 → — Figure 173061A 173061A 2001-08 → — Figure 171450 171450 1993-01 → 1999-07 Figure 172163A 172163A 1999-07 → — Figure 171451 171451 1993-01 → 1996-05 Figure 171427A 171427A 1993-09 → 1999-07 Figure 172119B 172119B 1999-07 → — Figure 176366A 176366A 2006-08 → —

Part groups

PNCDescription
17308B Hose Sub-assy, Vacuum
17325A Bracket, Air Valve
17340 Hose Assy, Vacuum Switching Valve
17342K Clip(FOR VACUUM HOSE)
17342L Hose, Air, NO.2
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650E Valve, Vacuum Switching
17650G Valve, Duty Vacuum Switching
17810A Filter Assy, Air
22233 Hose, Lpg Auxiliary Air Valve, NO.1
22233A Clip(FOR LPG AUXILIARY AIR VALVE NO.1)
22270K Valve Assy, Lpg Idle Speed Control
22278A Gasket, Lpg Idle Speed Control Valve
23265 Filter, Gas, NO.1
23285A Valve, Check, NO.1
23288 Jet, NO.1
23829 Hose, Fuel Vapor Feed, NO.3
25693A Damper, Egr Vacuum Modulator
25695A Hose, Egr Vacuum Modulator
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25709 Valve Sub-assy, High Altitude Compensator
25760 Hose Assy, Vacuum Transmitting
25770 Hose Assy, Vacuum Transmitting, NO.2
25780 Hose Assy, Vacuum Transmitting, NO.3
25792 Bracket, Altitude Compensator Valve
25795 Element, Altitude Compensator Filter
25810 Valve Assy, Bimetal
25819 Valve Assy, Vacuum Regulating
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
25860E Valve, Vacuum Switching, NO.2
25861 Bracket, Vacuum Switching Valve
25861A Bracket, Vacuum Switching Valve, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
