Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

96 part groups · 28 illustrations

Illustrations

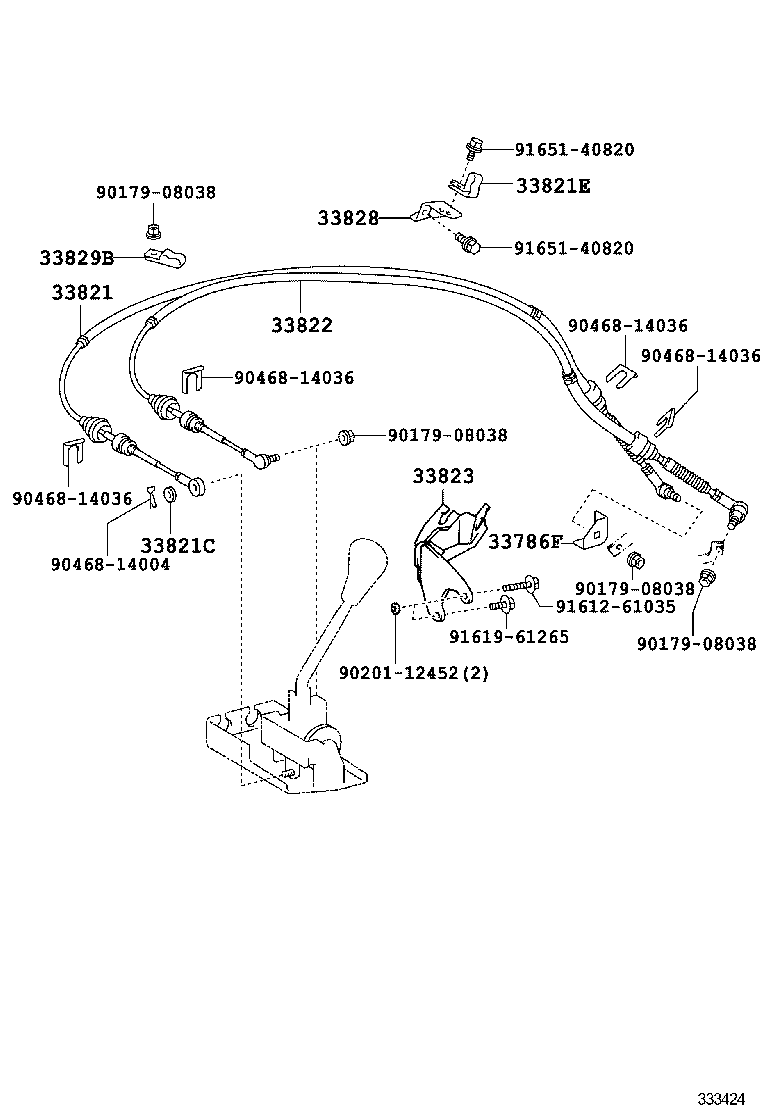

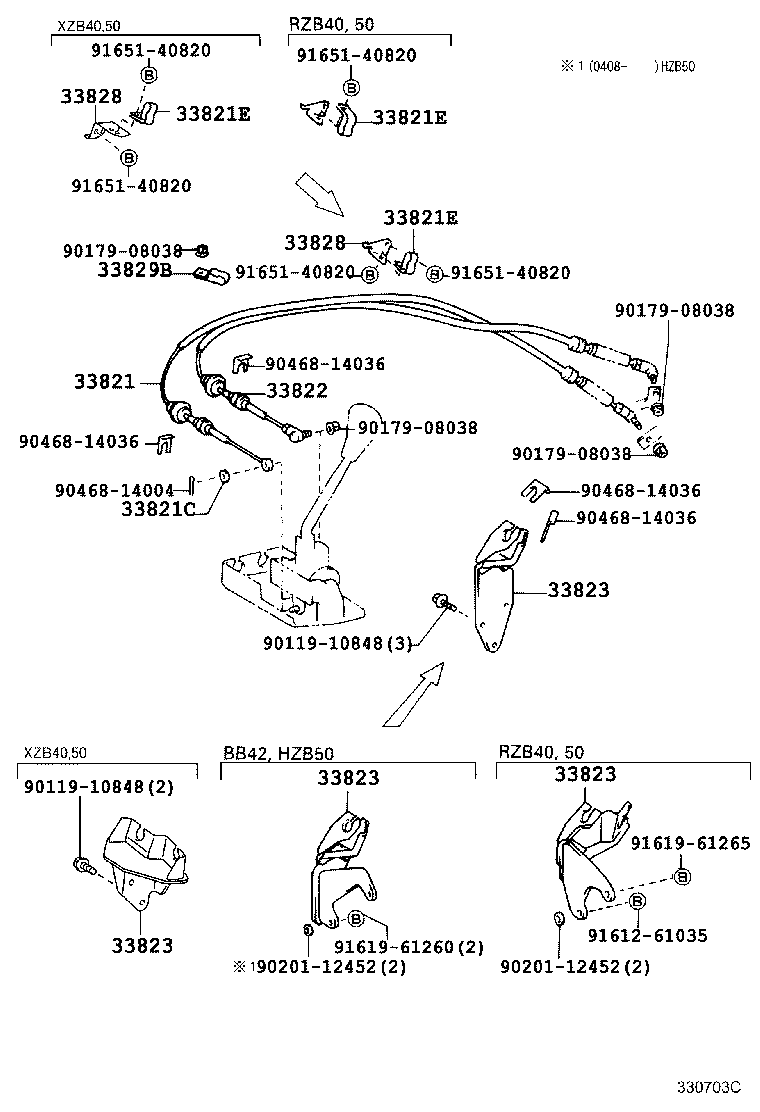

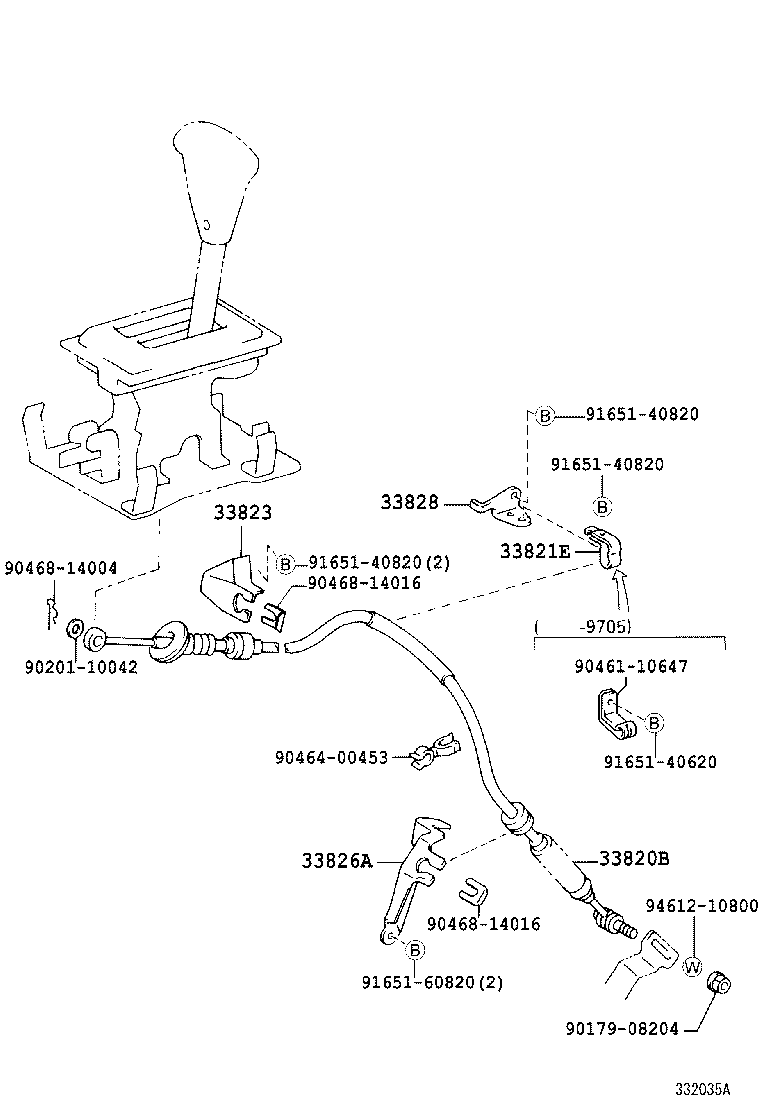

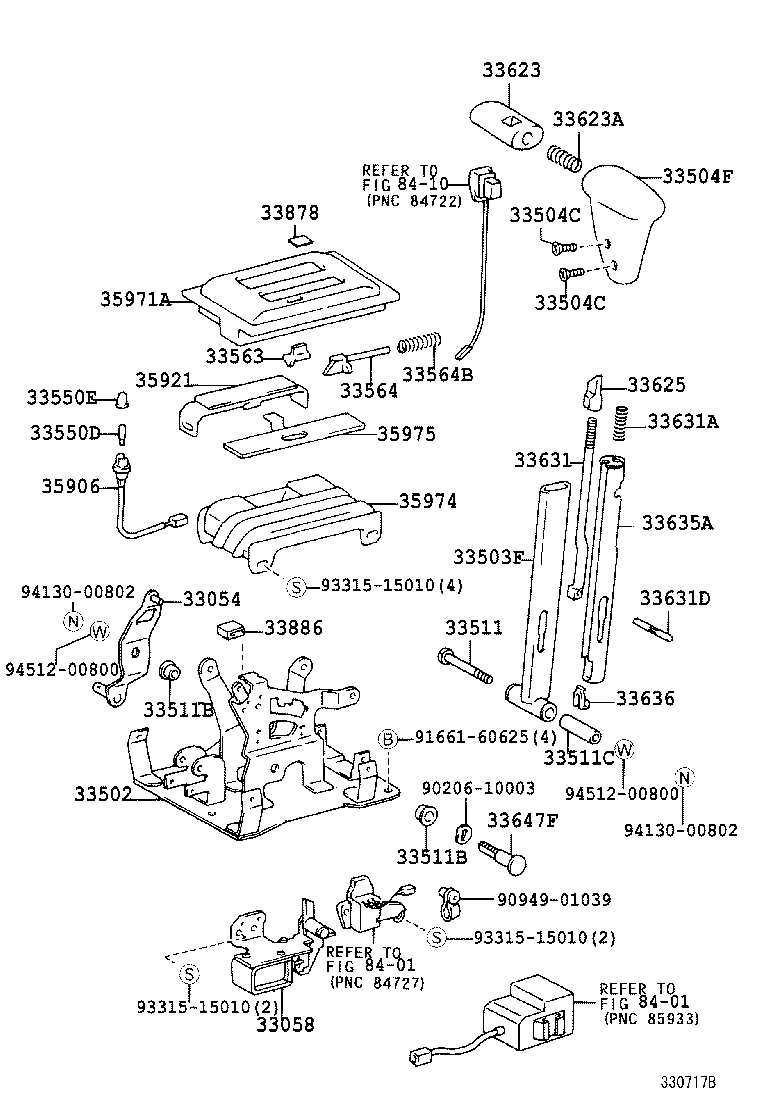

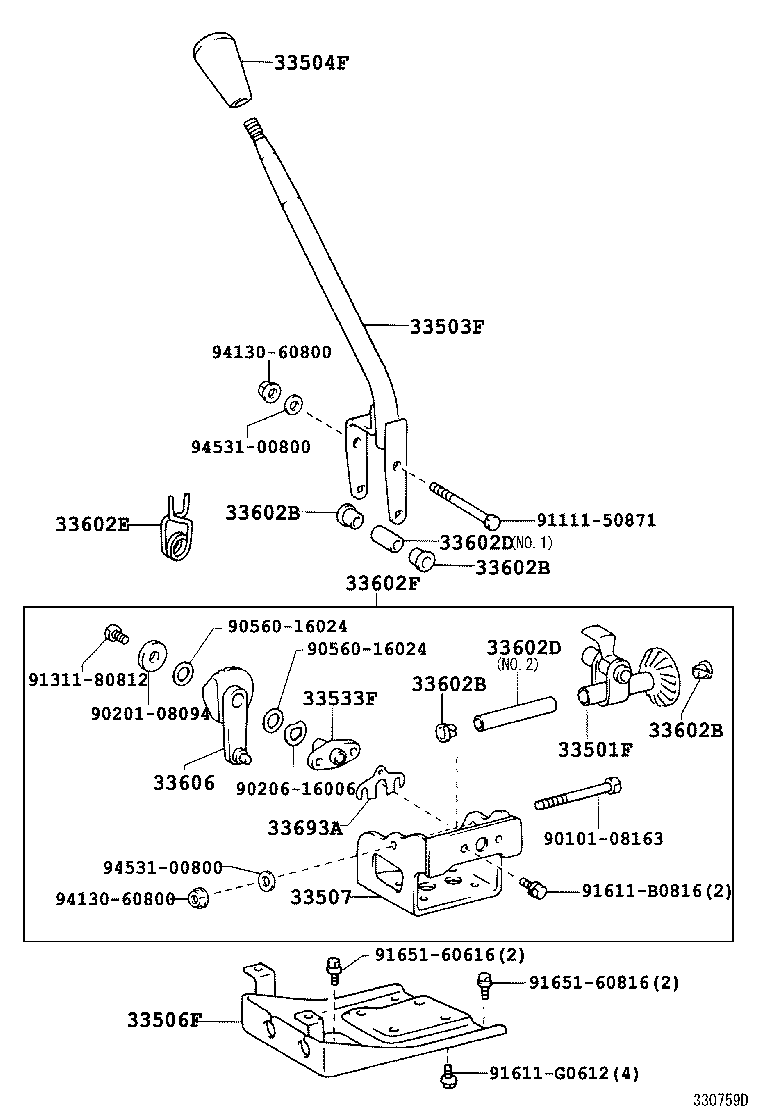

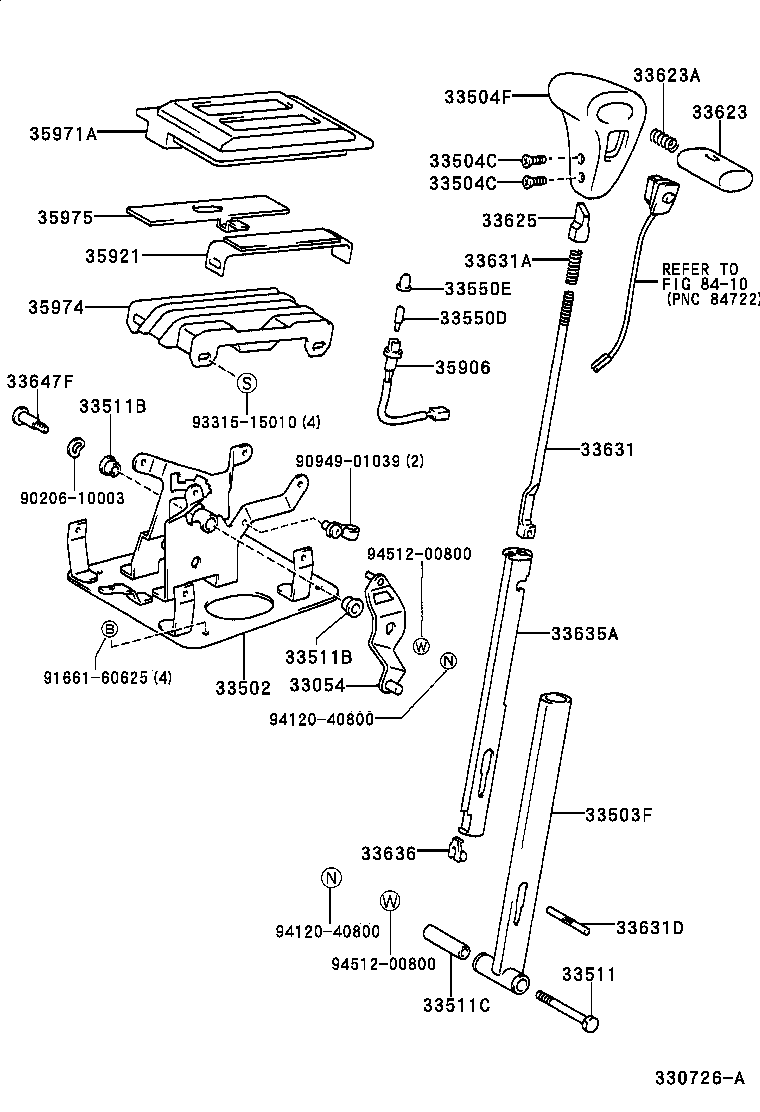

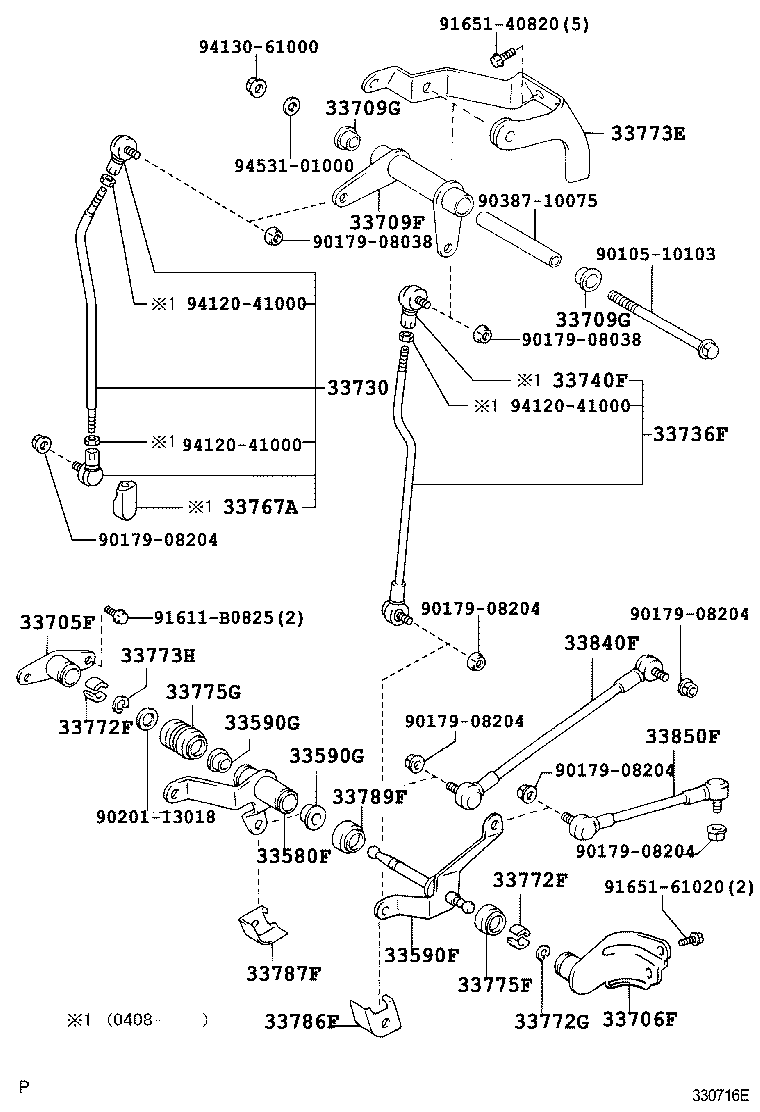

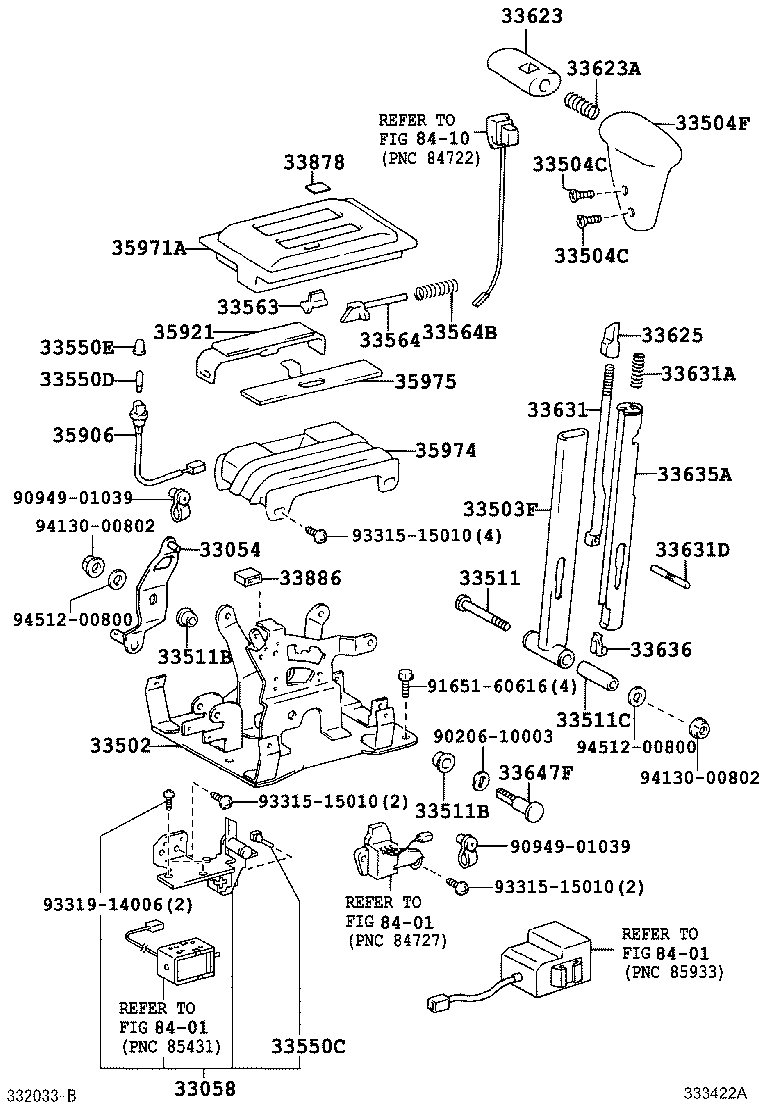

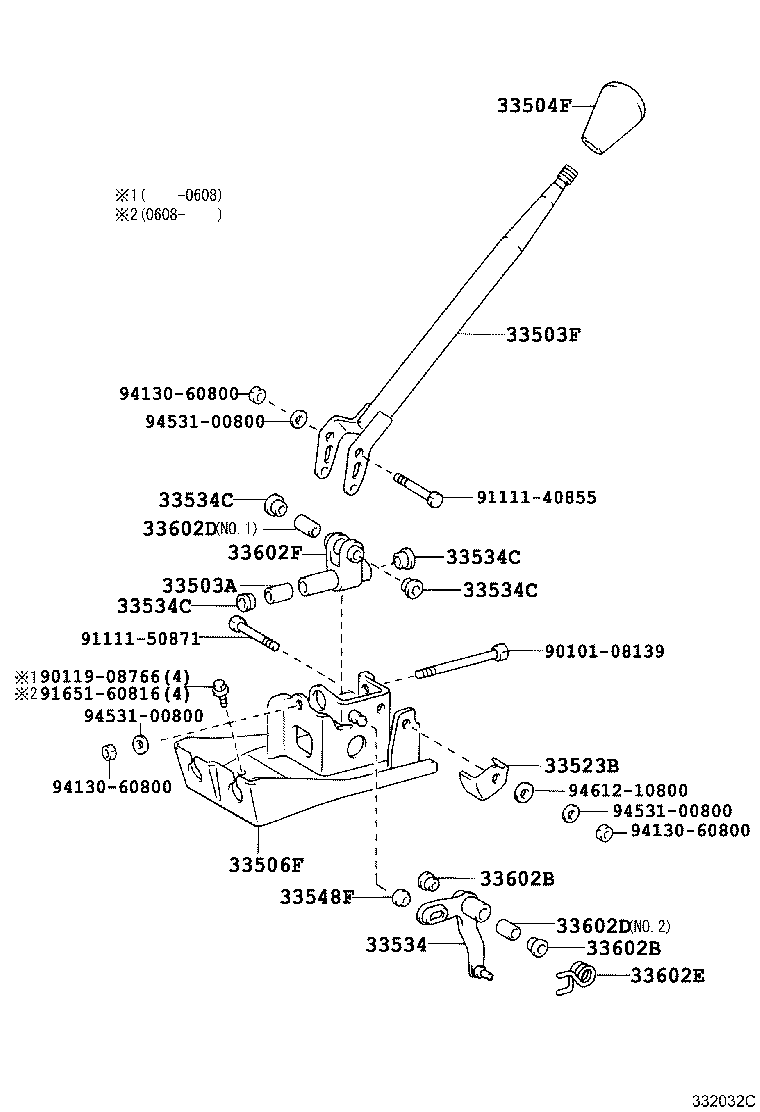

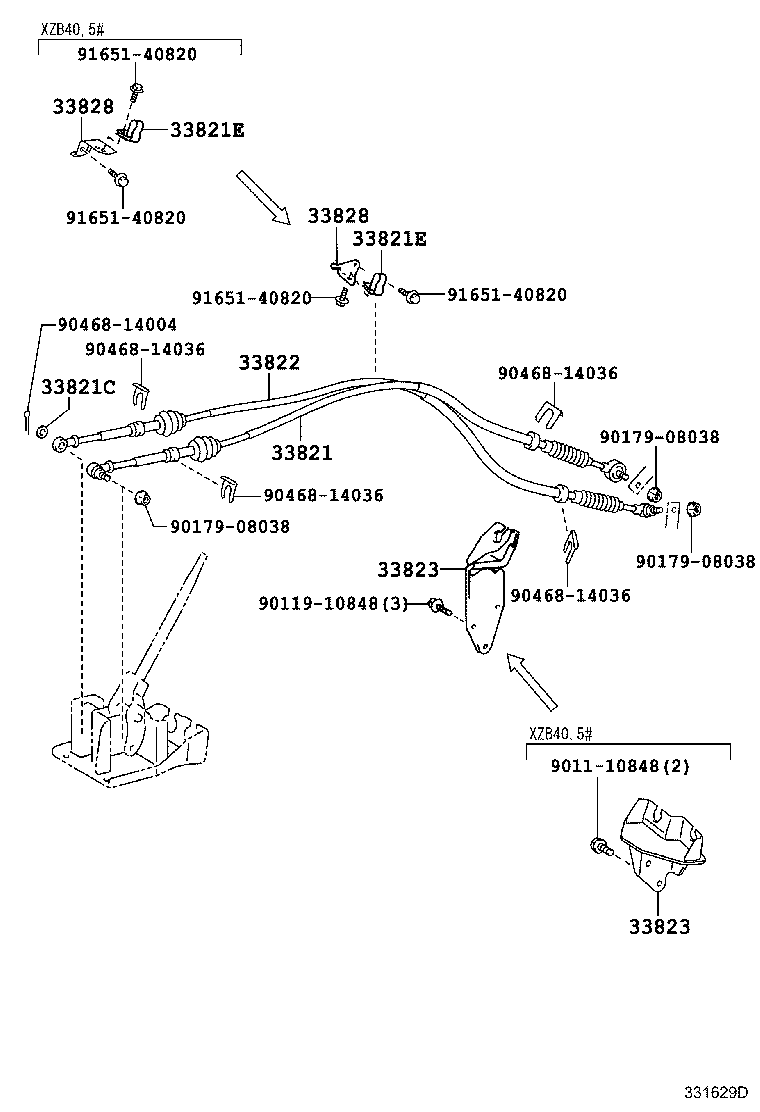

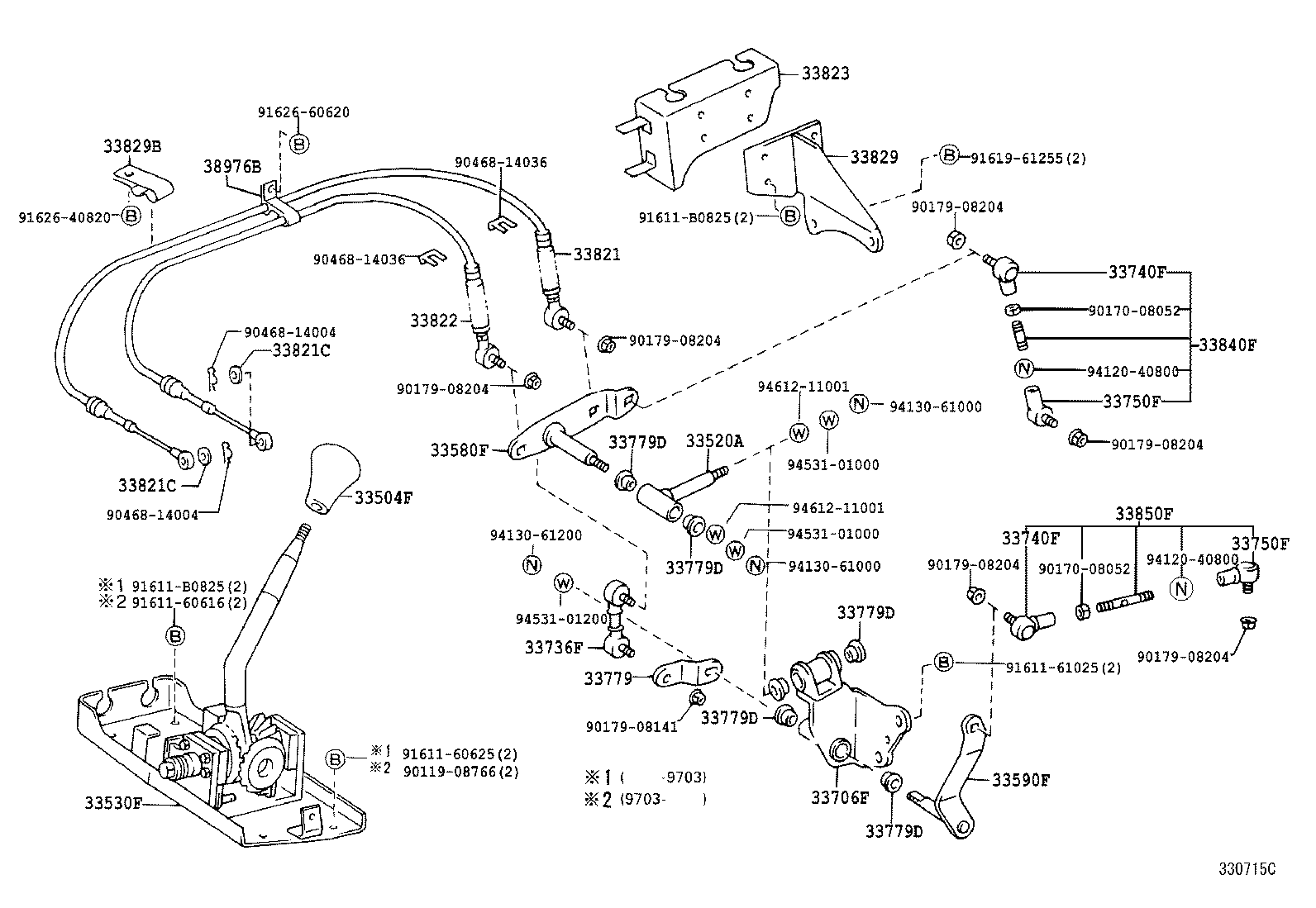

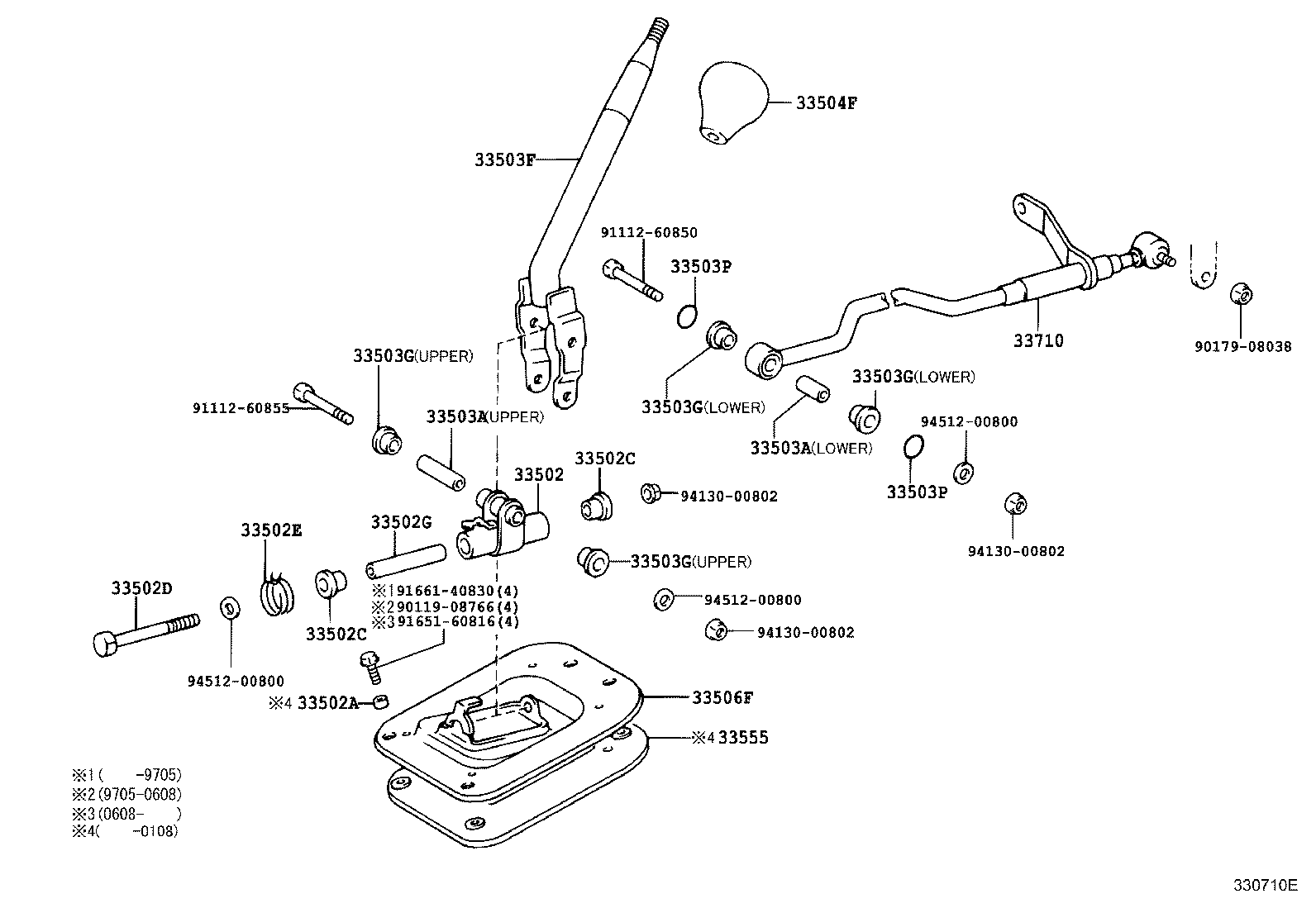

Figure 330714B 330714B 1993-01 → 1999-07 Figure 330715C 330715C 1996-05 → 1997-05 Figure 330715C 330715C 1997-05 → 1999-07 Figure 330710E 330710E 1993-01 → — Figure 330759D 330759D 1997-05 → — Figure 332032C 332032C 1997-05 → — Figure 332032C 332032C 1998-02 → — Figure 332032C 332032C 1999-07 → — Figure 332032C 332032C 2001-05 → — Figure 332032C 332032C 2001-08 → — Figure 332032C 332032C 2006-08 → — Figure 330726A 330726A 1993-01 → 1997-05 Figure 330717B 330717B 1995-05 → 2001-08 Figure 333422A 333422A 2007-08 → — Figure 330716E 330716E 1993-01 → 1997-05 Figure 330716E 330716E 1993-01 → — Figure 330703C 330703C 1997-05 → — Figure 331629D 331629D 1997-05 → — Figure 331629D 331629D 1998-02 → — Figure 331629D 331629D 1999-07 → — Figure 331629D 331629D 2001-05 → — Figure 331629D 331629D 2001-08 → — Figure 331629D 331629D 2006-08 → — Figure 332478 332478 1993-01 → 1997-05 Figure 332035A 332035A 1995-05 → 2001-08 Figure 335048 335048 1997-05 → — Figure 333424 333424 2007-08 → — Figure 333423A 333423A 2007-08 → —

Part groups

PNCDescription
33054 Lever Sub-assy, Shift, NO.2(FOR FLOOR SHIFT)
33058 Bracket Sub-assy, Shift Lock Solenoid
33501F Shaft Sub-assy, Control (FOR FLOOR SHIFT)
33502 Plate Sub-assy, Shift Lever
33502A Collar (FOR FLOOR SHIFT SETTING)
33502C Bush (FOR FLOOR SHIFT SETTING)
33502D Bolt, Hexagon (FOR SHIFT LEVER PLATE)
33502E Spring, Torsion (FOR SHIFT LEVER PLATE)
33502G Collar (FOR SHIFT LEVER PLATE)
33503A Collar(FOR SHIFT LEVER)
33503F Lever Sub-assy, Shift(FOR FLOOR SHIFT)
33503G Bush(FOR SHIFT LEVER)
33503P Ring, O(FOR SHIFT LEVER)
33504C Screw (FOR SHIFT LEVER KNOB SETTING)
33504F Knob Sub-assy, Shift Lever
33506F Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
33507 Bracket Sub-assy, Shift Lever Housing
33511 Shaft, Control (FOR FLOOR SHIFT)
33511B Bush (FOR CONTROL SHAFT)
33511C Collar (FOR CONTROL SHAFT)
33520A Shaft Assy, Floor Shift Control
33523B Pin, Shift Lever (FOR FLOOR SHIFT)
33524B Bracket, Control Cable
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33533F Shaft, Bellcrank (FOR FLOOR SHIFT)
33534 Bellcrank, Selecting
33534C Bush (FOR SELECTING BELLCRANK NO.1)
33548F Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
33550C Cushion(FOR FLOOR SHIFT)
33550D Bulb, Position Indicator Lamp
33550E Cap, Position Indicator Lamp
33555 Boot, Shift Lever
33563 Button, Shift Lock Release
33564 Link, Shift Lock Release, NO.1
33564B Spring, Compression (FOR SHIFT LOCK RELEASE LINK)
33580F Bellcrank Assy, Shifting (FOR FLOOR SHIFT)
33590F Crank Assy, Selecting Bell (FOR FLOOR SHIFT)
33590G Bush (FOR SELECTING BELL CRANK)
33602B Bushing (FOR SELECT LEVER)
33602D Collar (FOR SELECT LEVER)
33602E Spring, Torsion (FOR SELECT LEVER)
33602F Lever Sub-assy, Select (FOR FLOOR SHIFT)
33606 Lever Sub-assy, Wire Pull
33623 Button, Shift Lever Knob
33623A Spring, Compression (FOR SHIFT LEVER KNOB BUTTON)
33625 Sleeve, Shift Lever Knob
33631 Rod, Detent
33631A Spring, Compression (FOR DETENT ROD)
33631D Pin, Grooved (FOR DETENT ROD)
33635A Guide, Wire, NO.1 (FOR SHIFT LEVER)
33636 Guide, Wire, NO.2 (FOR SHIFT LEVER)
33647F Shaft, Control Link (FOR FLOOR SHIFT)
33693A Shim, Shift Lever Adjusting (FOR FLOOR SHIFT)
33705F Support Sub-assy, Cross Shaft, NO.1 (FOR FLOOR SHIFT)
33706F Support Sub-assy, Cross Shaft, NO.2 (FOR FLOOR SHIFT)
33709F Shaft Sub-assy, Cross, NO.1 (FOR FLOOR SHIFT)
33709G Bush (For Cross Shaft, NO.1
33710 Rod Assy, Gear Shifting, NO.1
33723F Swivel, Connecting Rod (FOR FLOOR SHIFT)
33730 Rod Assy, Gear Shifting, NO.2 (FOR FLOOR SHIFT)
33736F Rod, Gear Selecting, NO.2(FOR FLOOR SHIFT)
33740F End Assy, Connecting Rod, NO.1(FOR FLOOR SHIFT)
33750F End, Connecting Rod, NO.2 (FOR FLOOR SHIFT)
33767A Insulator, Connecting Rod Heat (FOR FLOOR SHIFT)
33772F Bush, Cross Shaft Support, NO.1 (FOR FLOOR SHIFT)
33772G Ring, Snap (FOR CROSS SAFT SUPPORT BUSH)
33773E Support, Cross Shaft, NO.1
33773H Ring, Snap (FOR CROSS SHAFT SUPPORT SNAP)
33775F Cover, Cross Shaft Dust, NO.1 (FOR FLOOR SHIFT)
33775G Cover, Cross Shaft Dust, NO.2 (FOR FLOOR SHIFT)
33779 Arm, Shift Lever Housing, NO.2
33779D Bushing, NO.1 (FOR SHIFT LEVER HOUSING ARM, NO.2)
33786F Insulator, Cross Shaft Lever Heat, NO.2 (FOR FLOOR SHIFT)
33787F Insulator, Cross Shaft Lever Heat, NO.3
33789F Cover, Cross Shaft Dust, NO.1(FOR FLOOR SHIFT)
33820B Cable Assy, Transmission Control
33821 Cable Transmission Control Shift (FOR FLOOR SHIFT)
33821C Washer, Plate (FOR TRANSMISSION CONTROL CABLE)
33821E Clamp, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33822 Cable Transmission Control Select (FOR FLOOR SHIFT)
33823 Bracket, Transmission Control Cable, NO.1
33826A Bracket, Transmission Control Cable, NO.2
33827 Bracket, Transmission Control Cable, NO.3
33828 Bracket, Transmission Control Cable, NO.4
33829 Support, Transmission Control Cable
33829B Clamp, Transmission Control Cable
33840F Rod Assy, Gear Shifting, NO.3
33850F Rod Assy, Gear Selecting, NO.3
33878 Label, Shift Lock Information, NO.2
33886 Stopper, Shift Lever
35906 Wire Sub-assy, Indicator Lamp
35921 Plate, Control Position Indicator
35971A Housing, Position Indicator, Upper
35974 Housing, Position Indicator, Lower
35975 Cover, Slide (FOR POSITION INDICATOR)
38976B Clamp, Push Pull Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
