Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

81 part groups · 68 illustrations

Illustrations

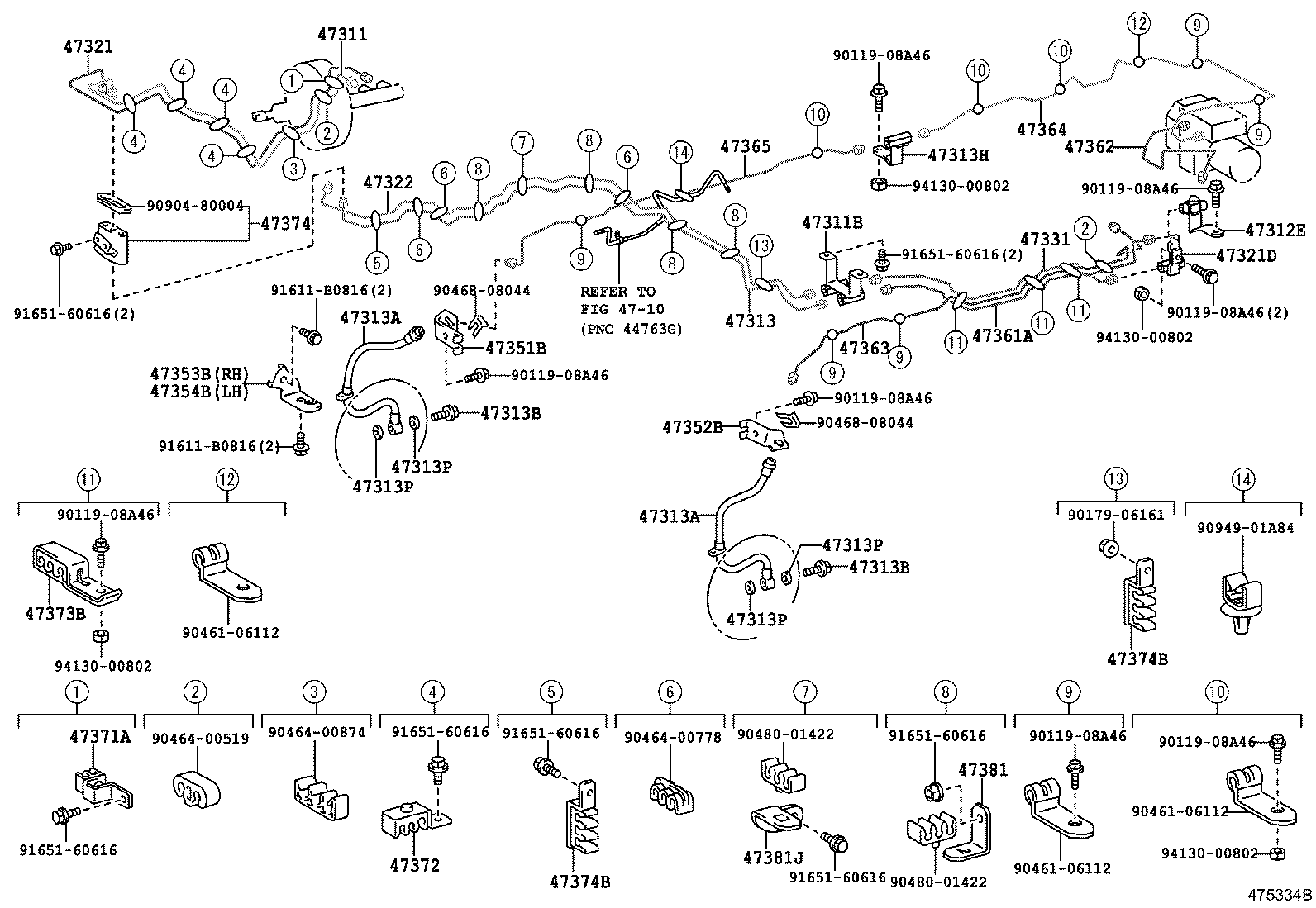

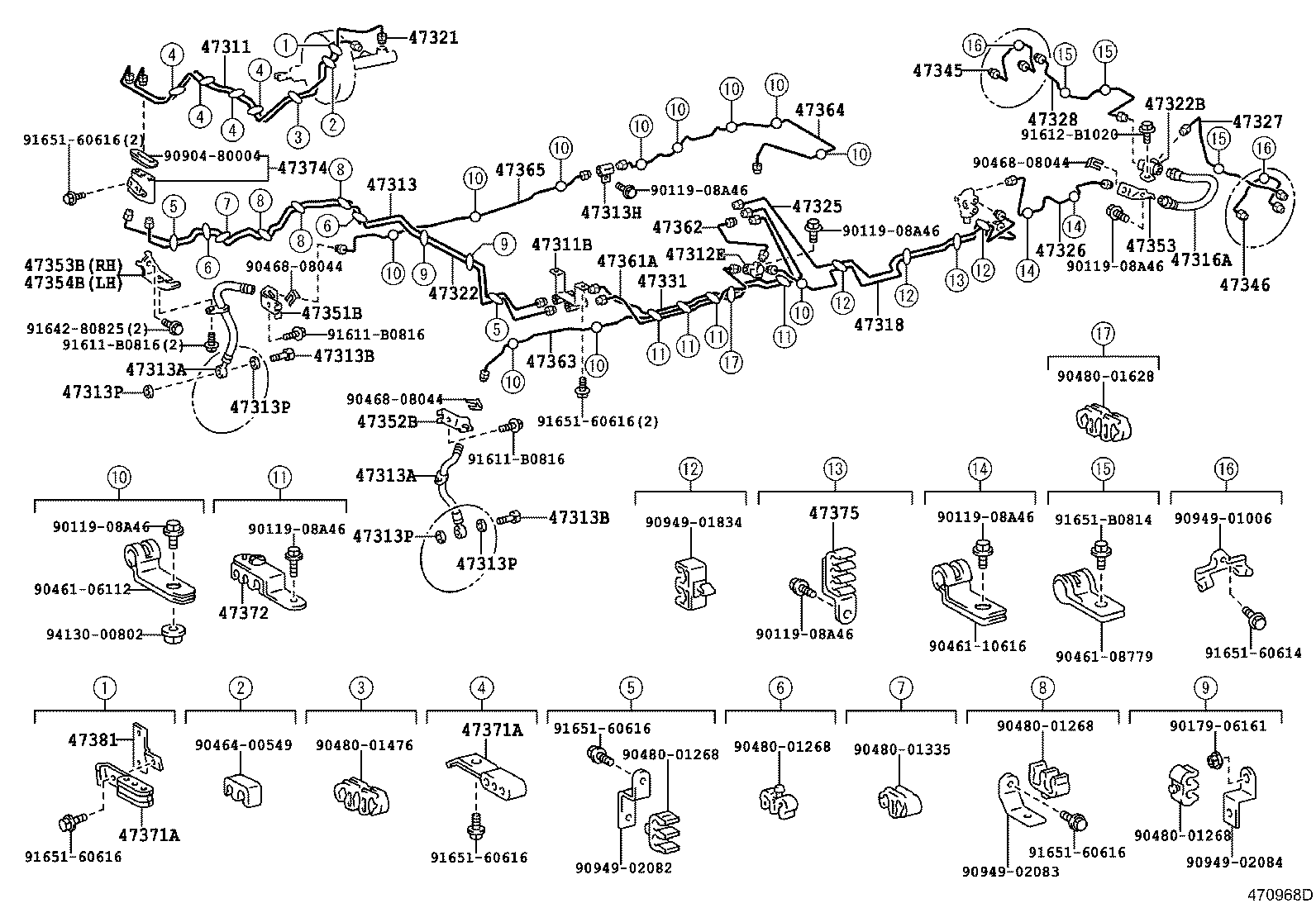

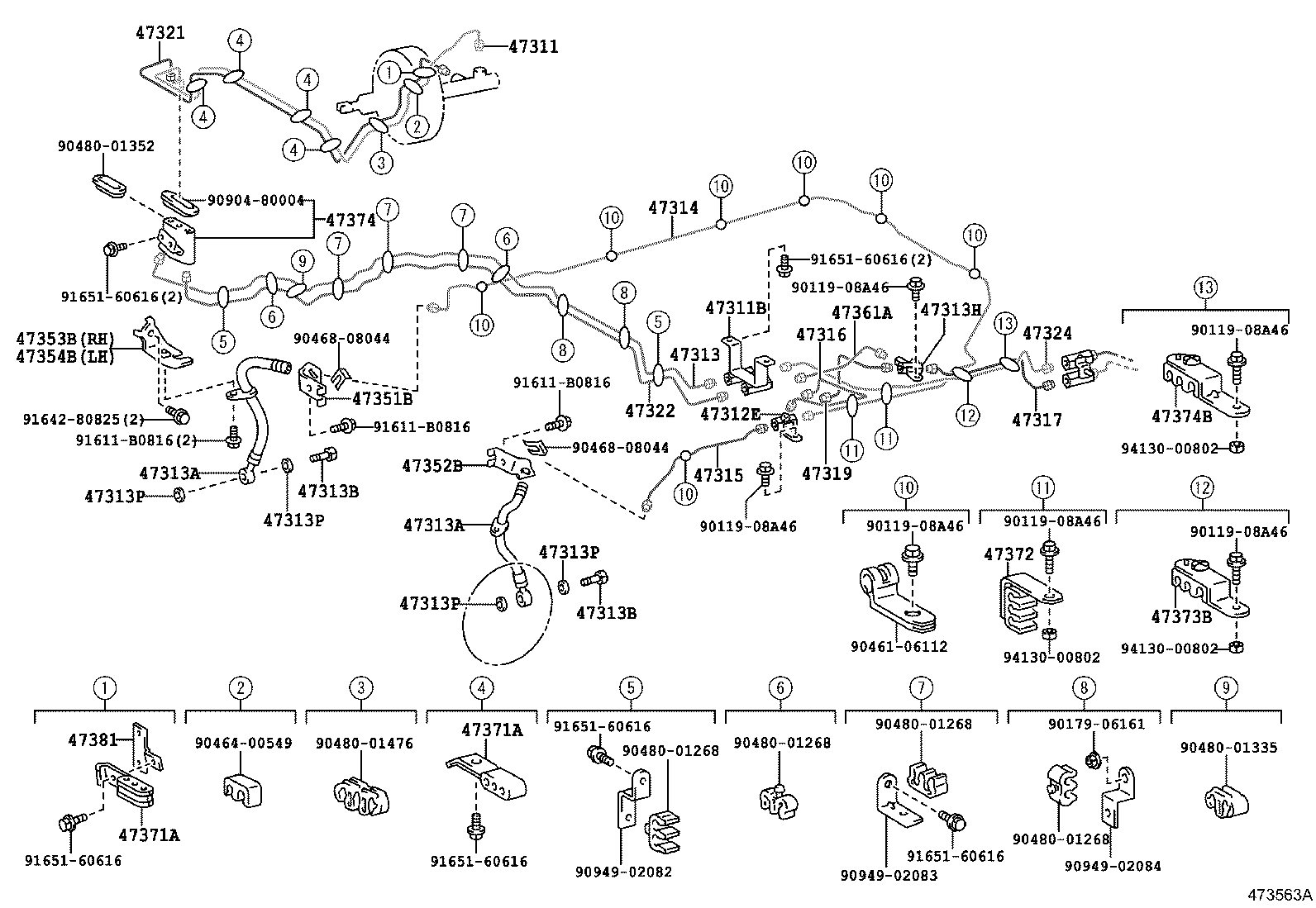

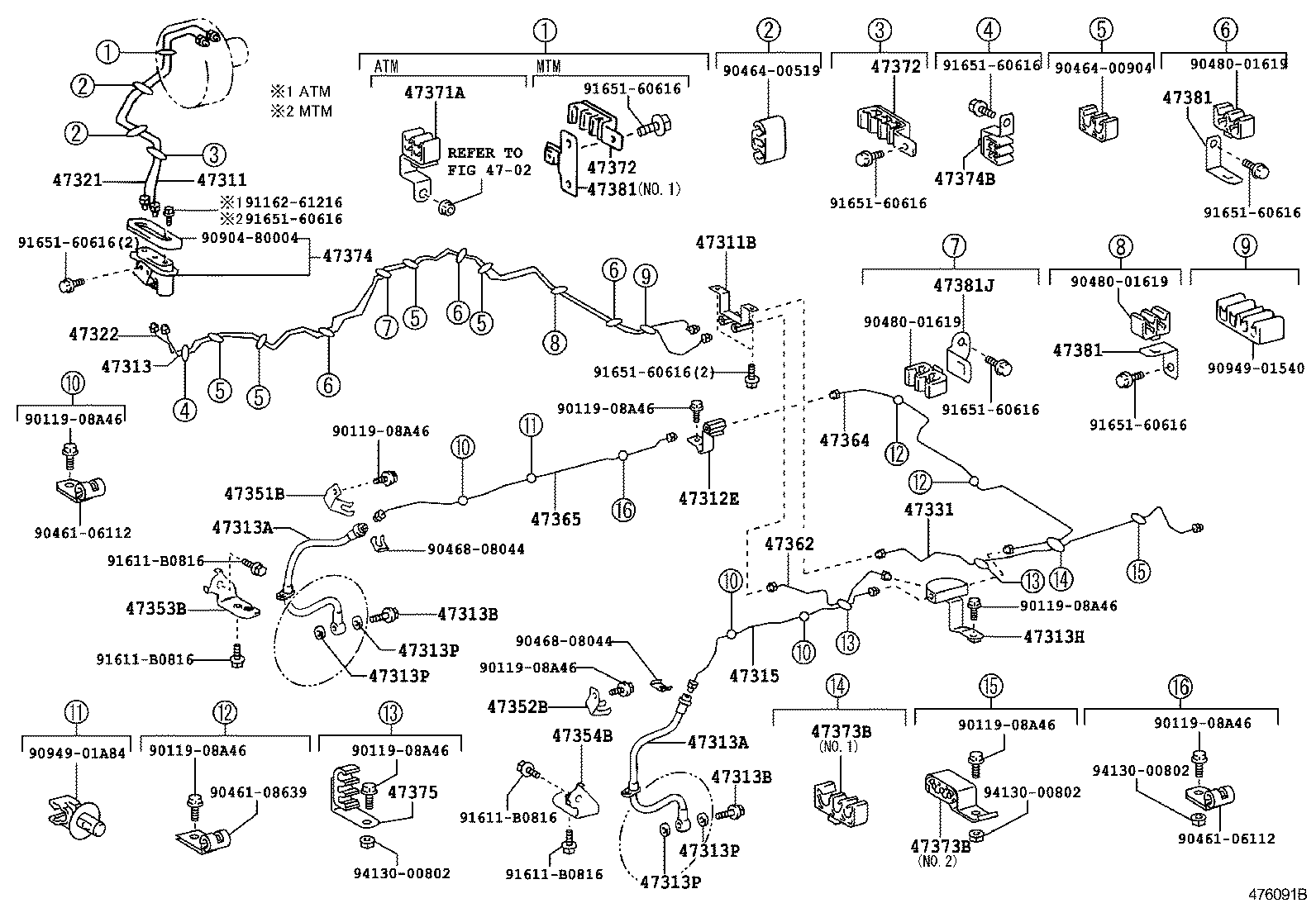

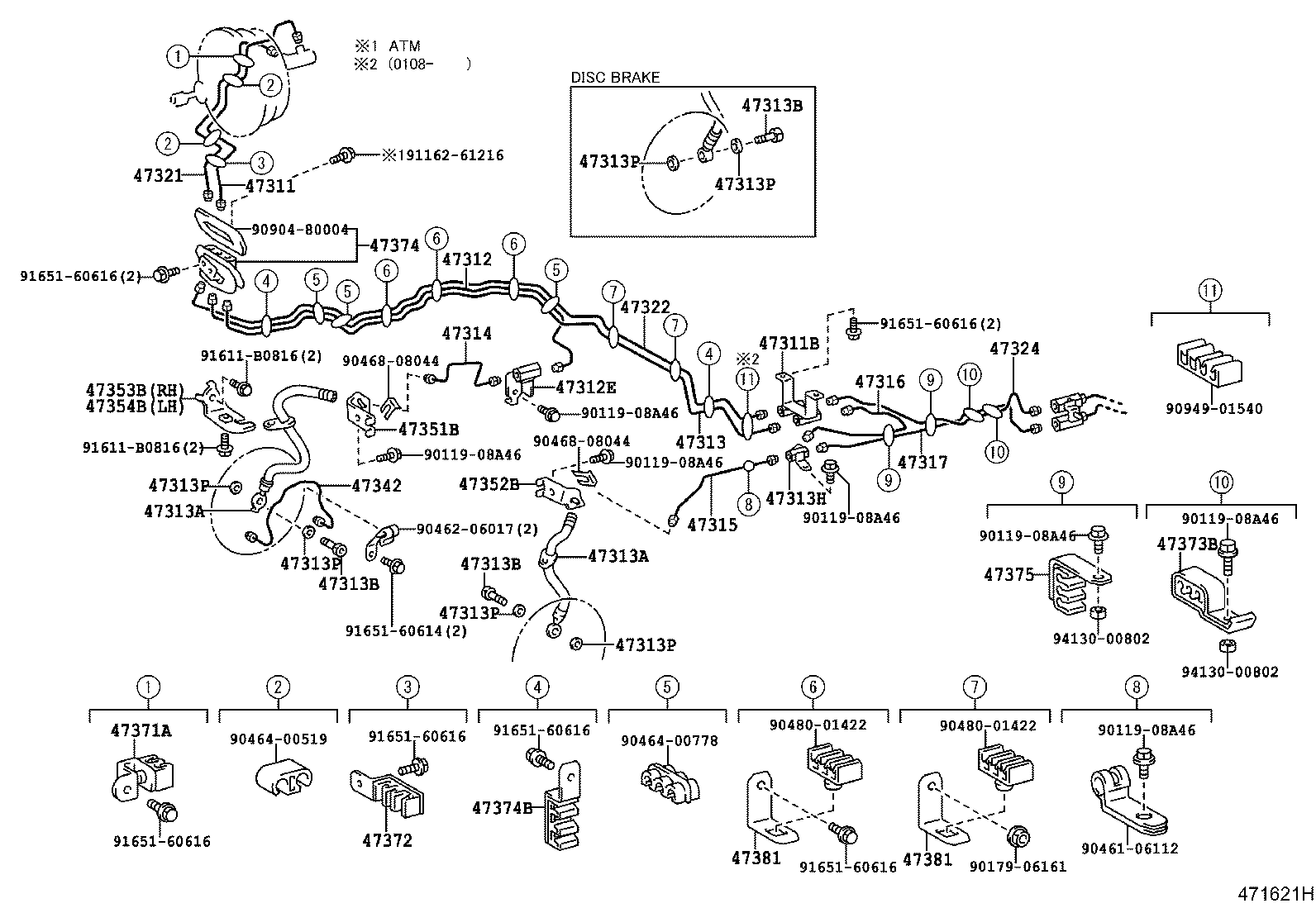

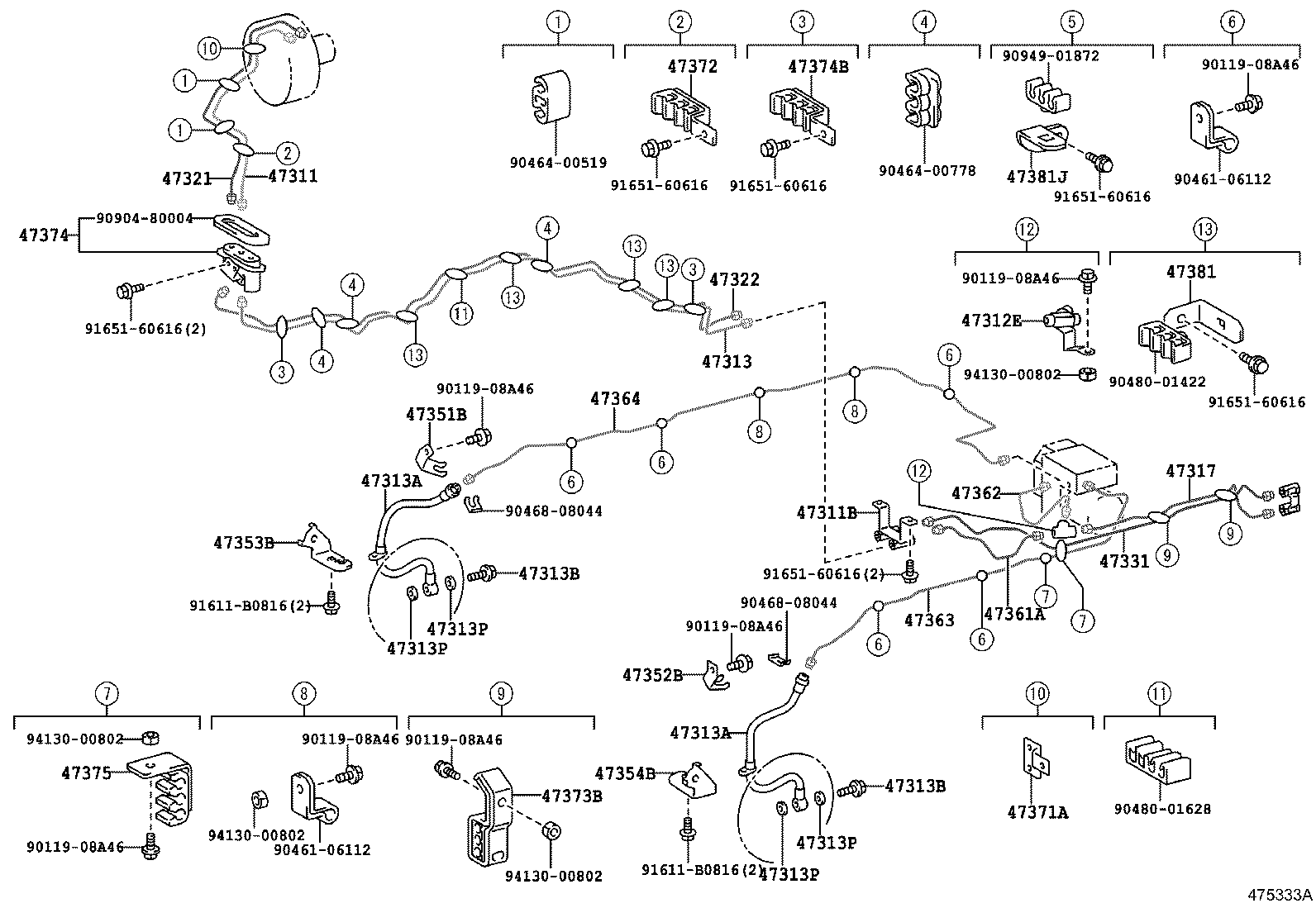

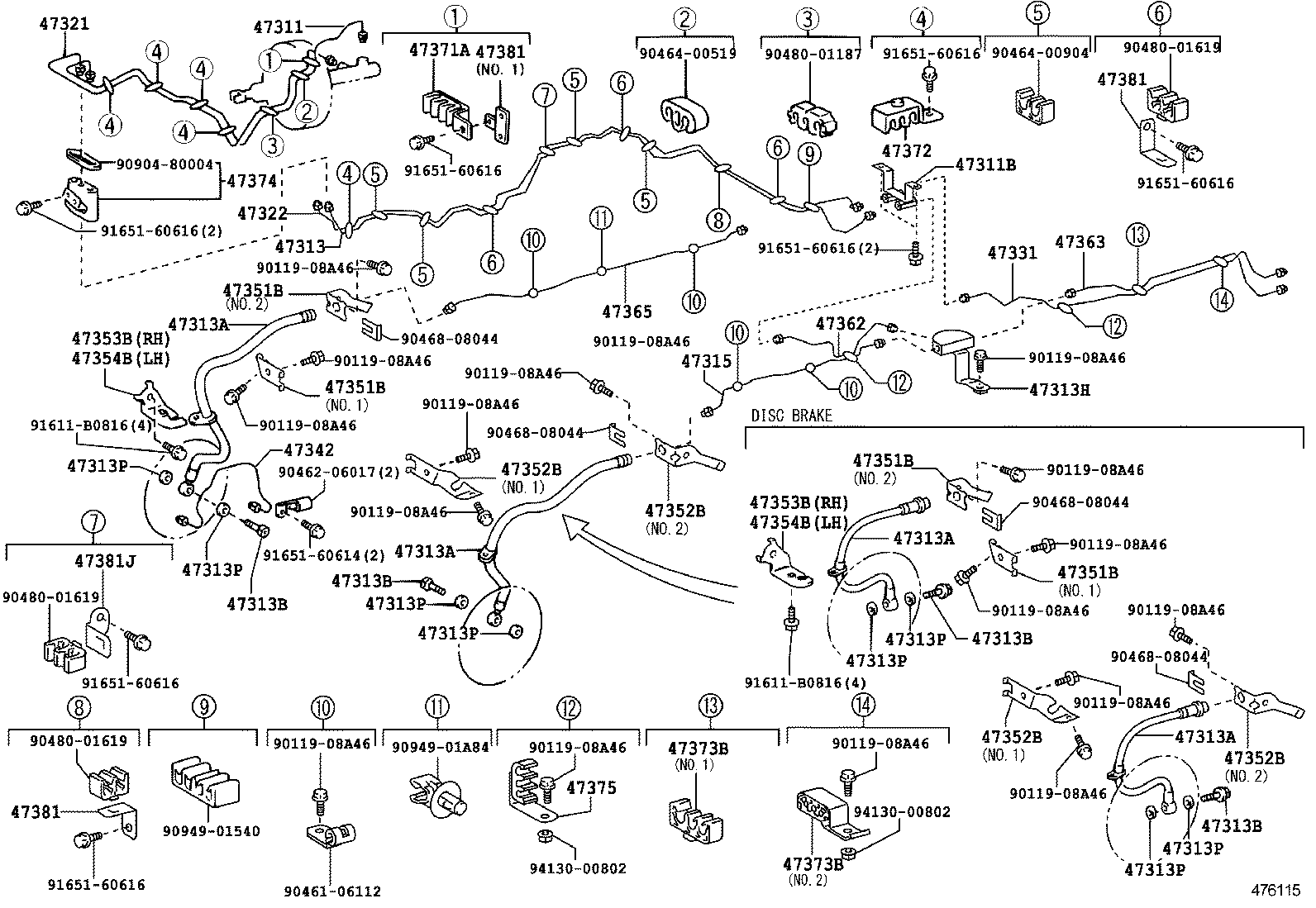

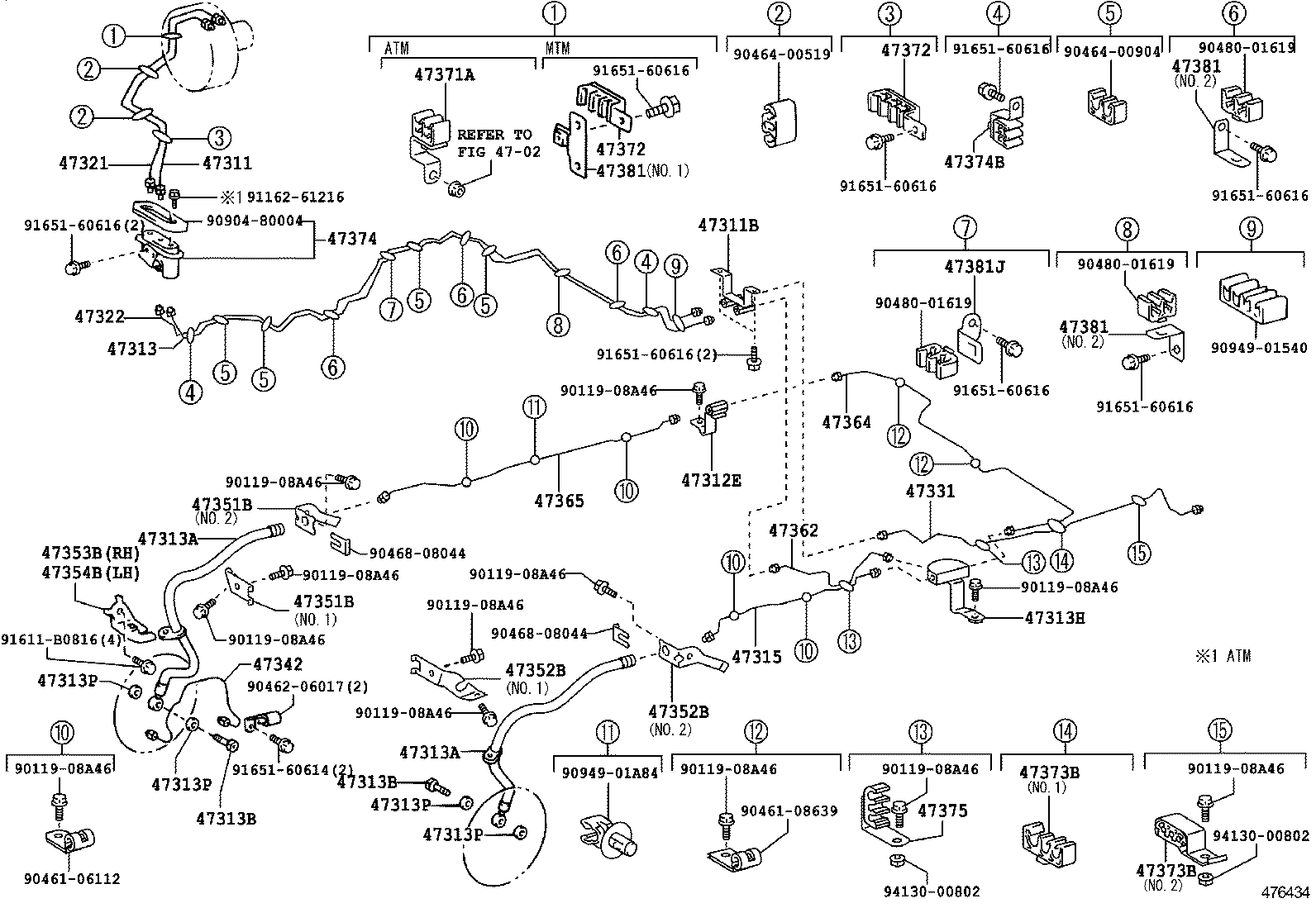

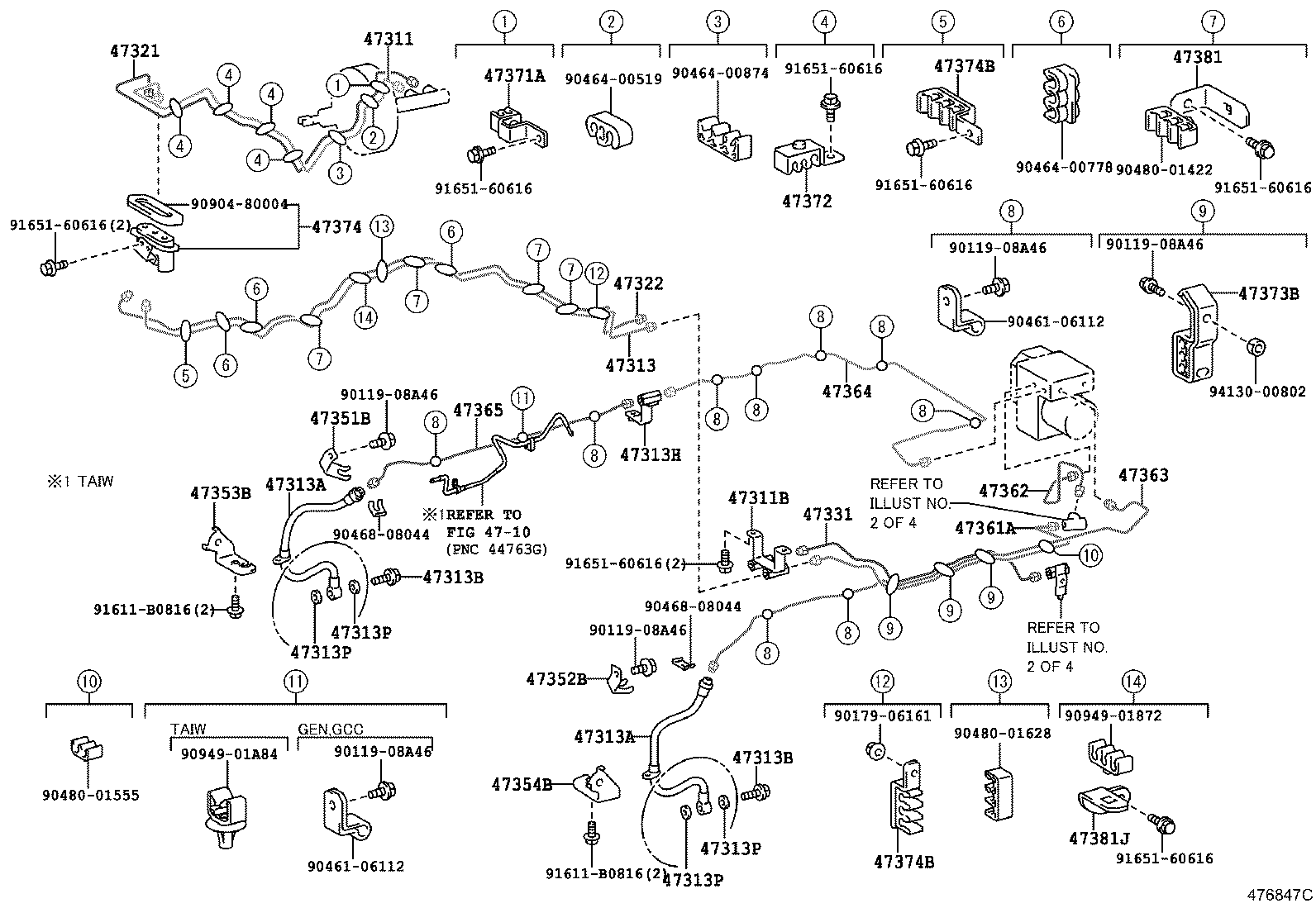

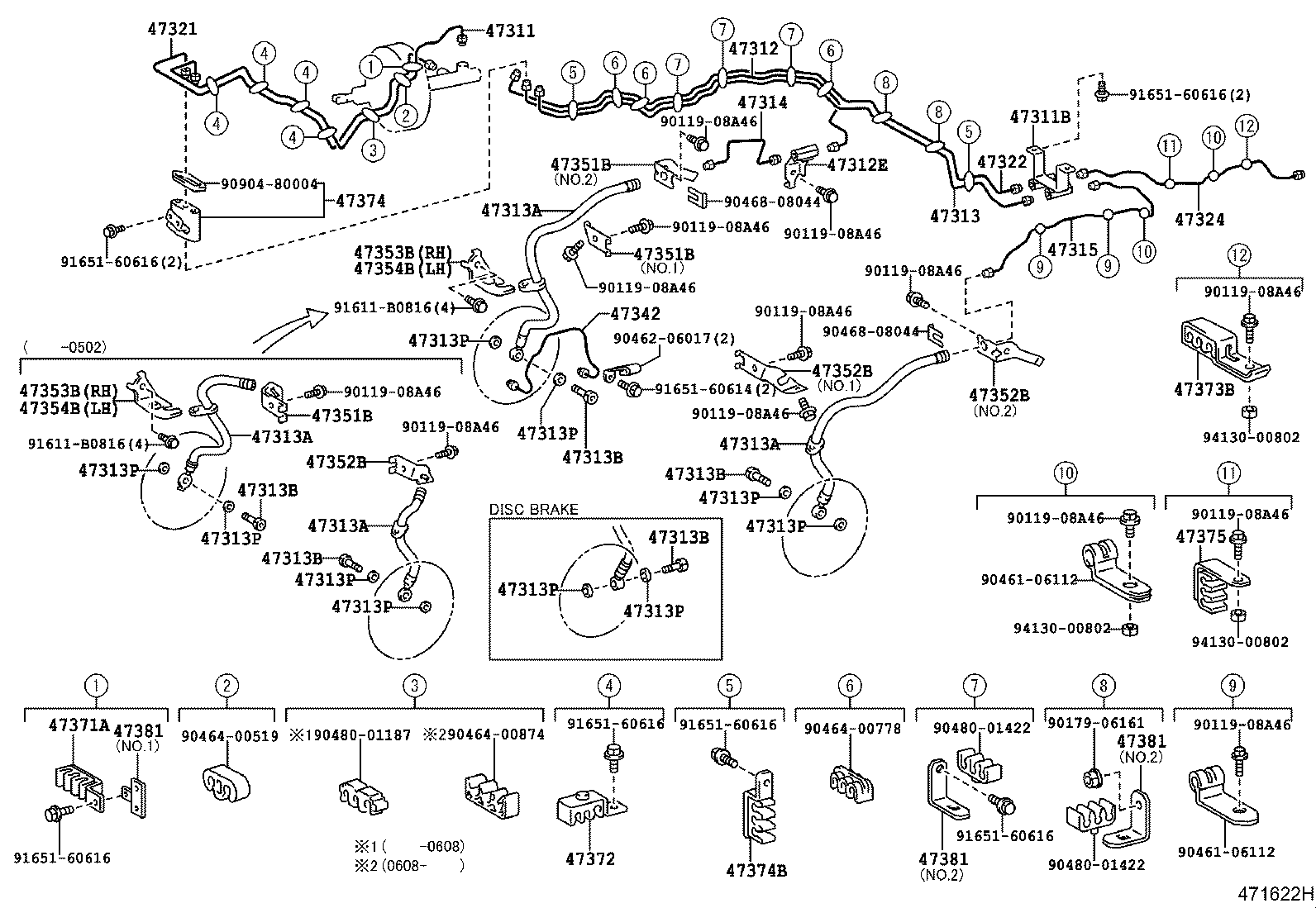

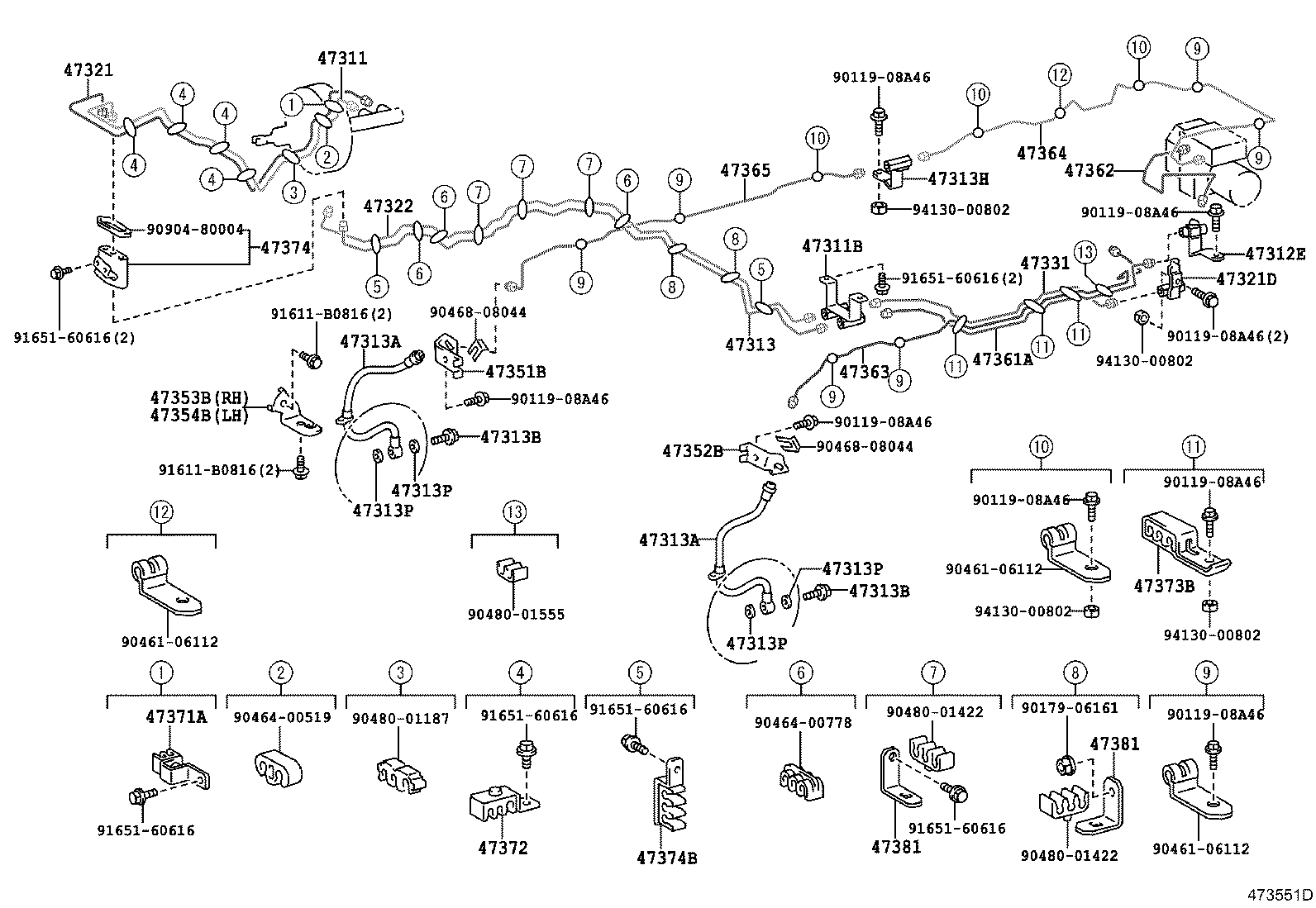

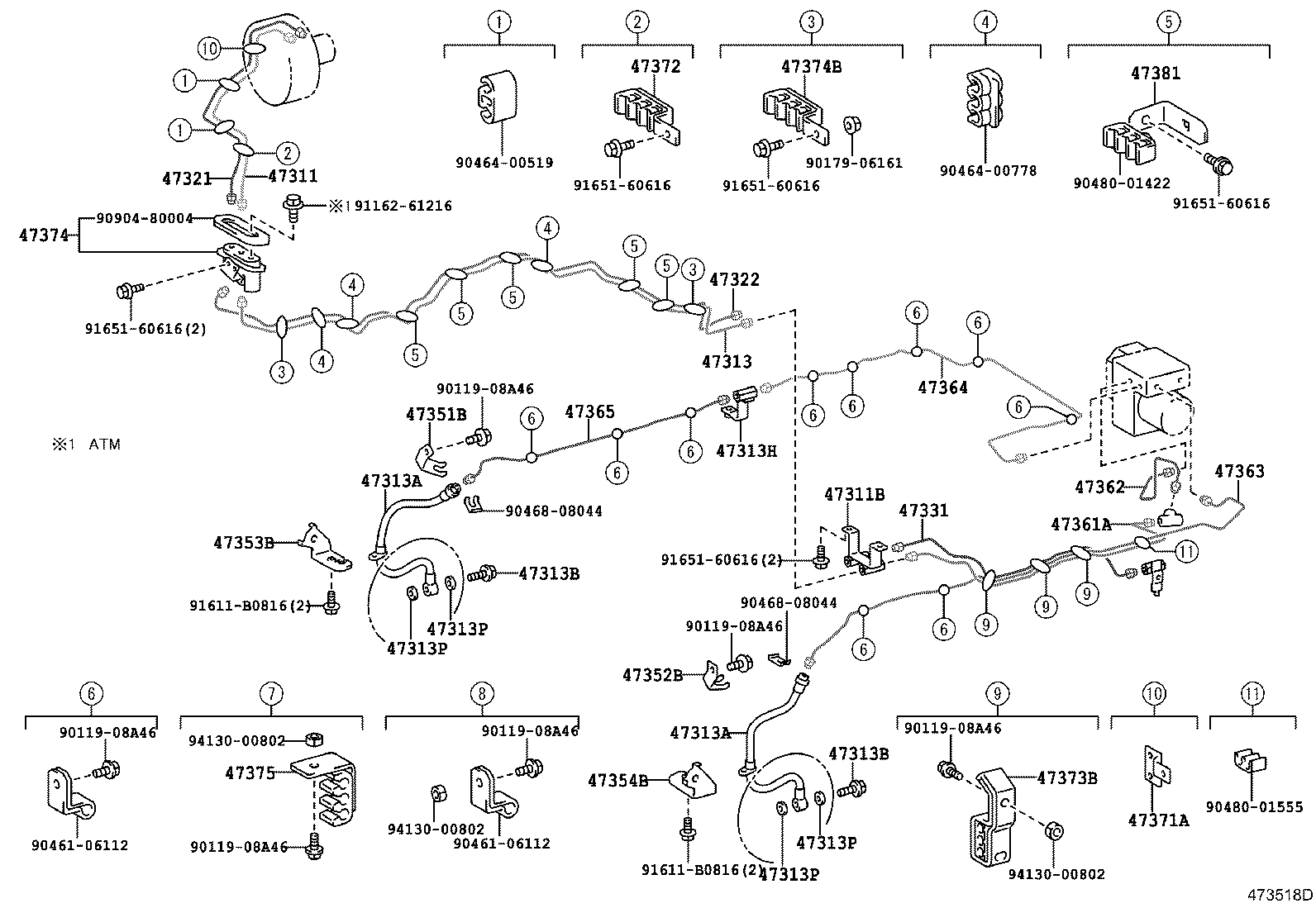

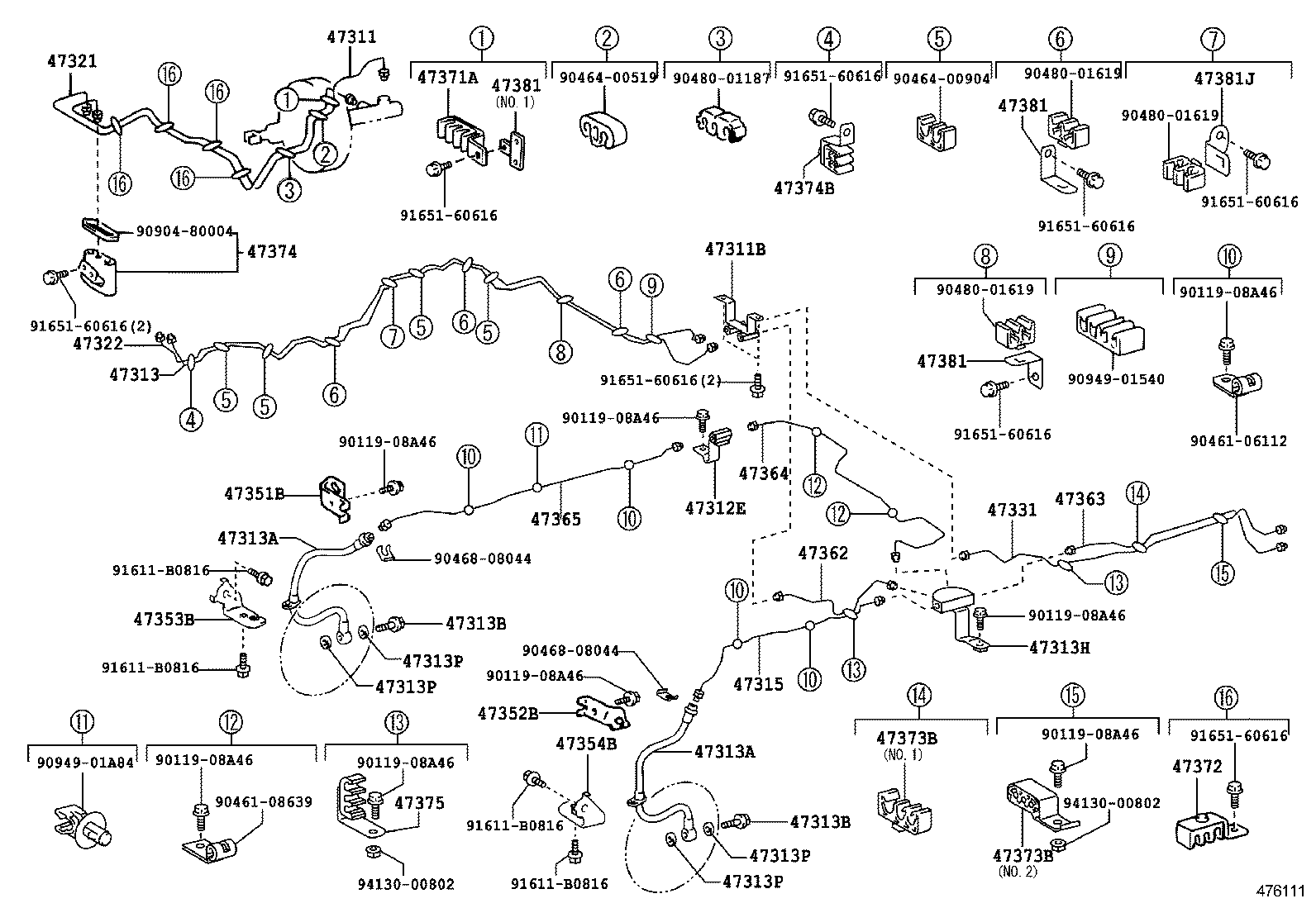

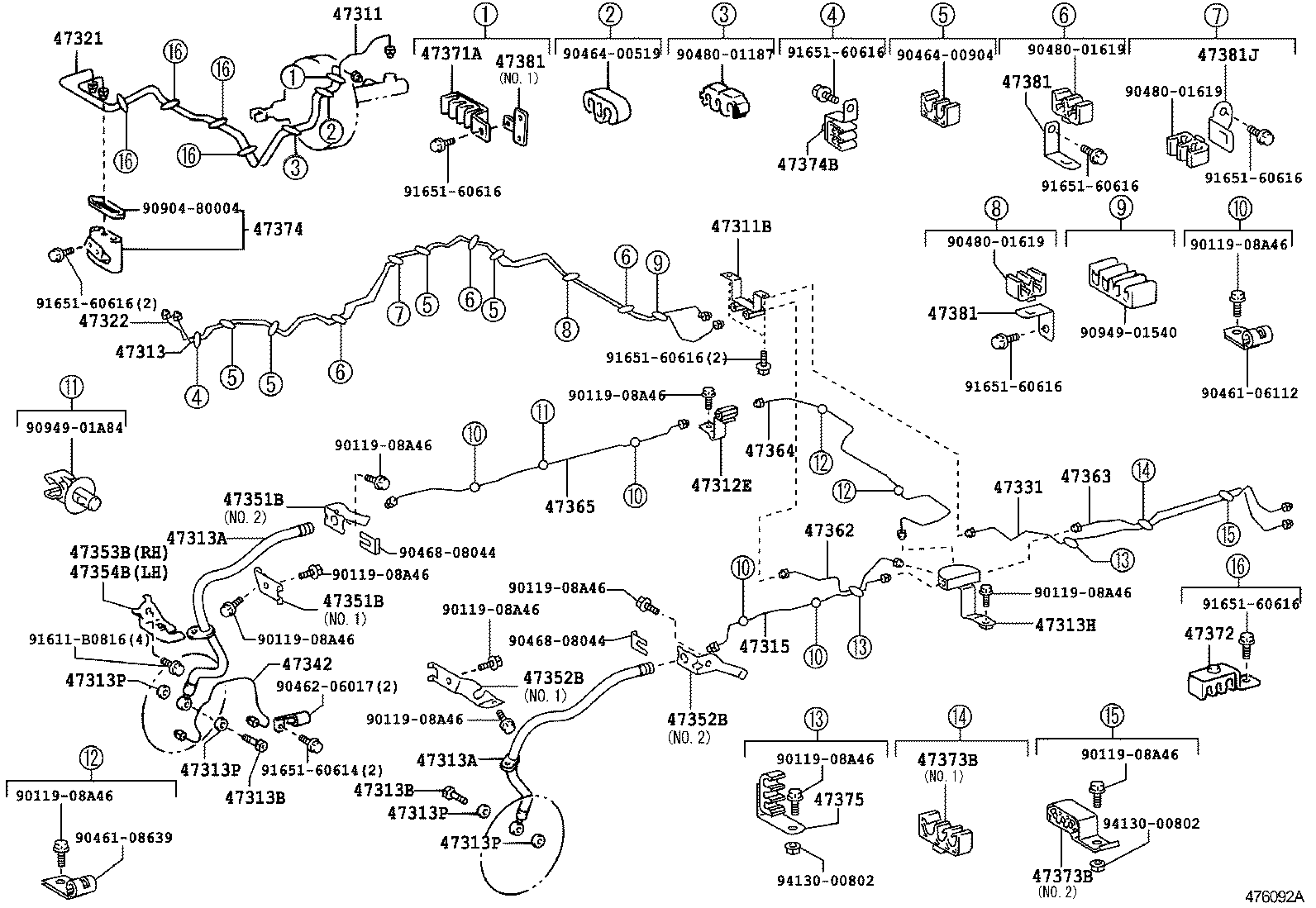

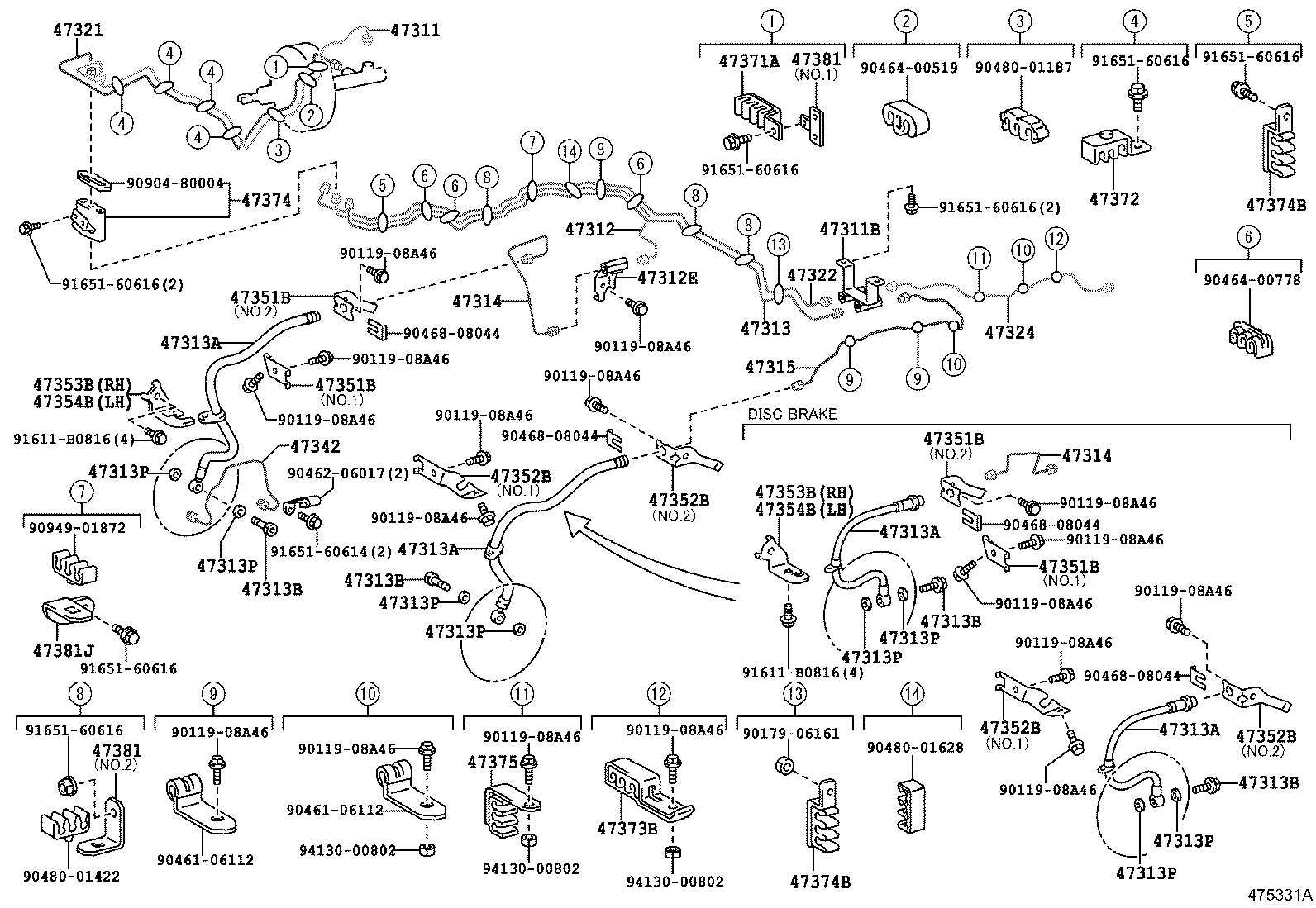

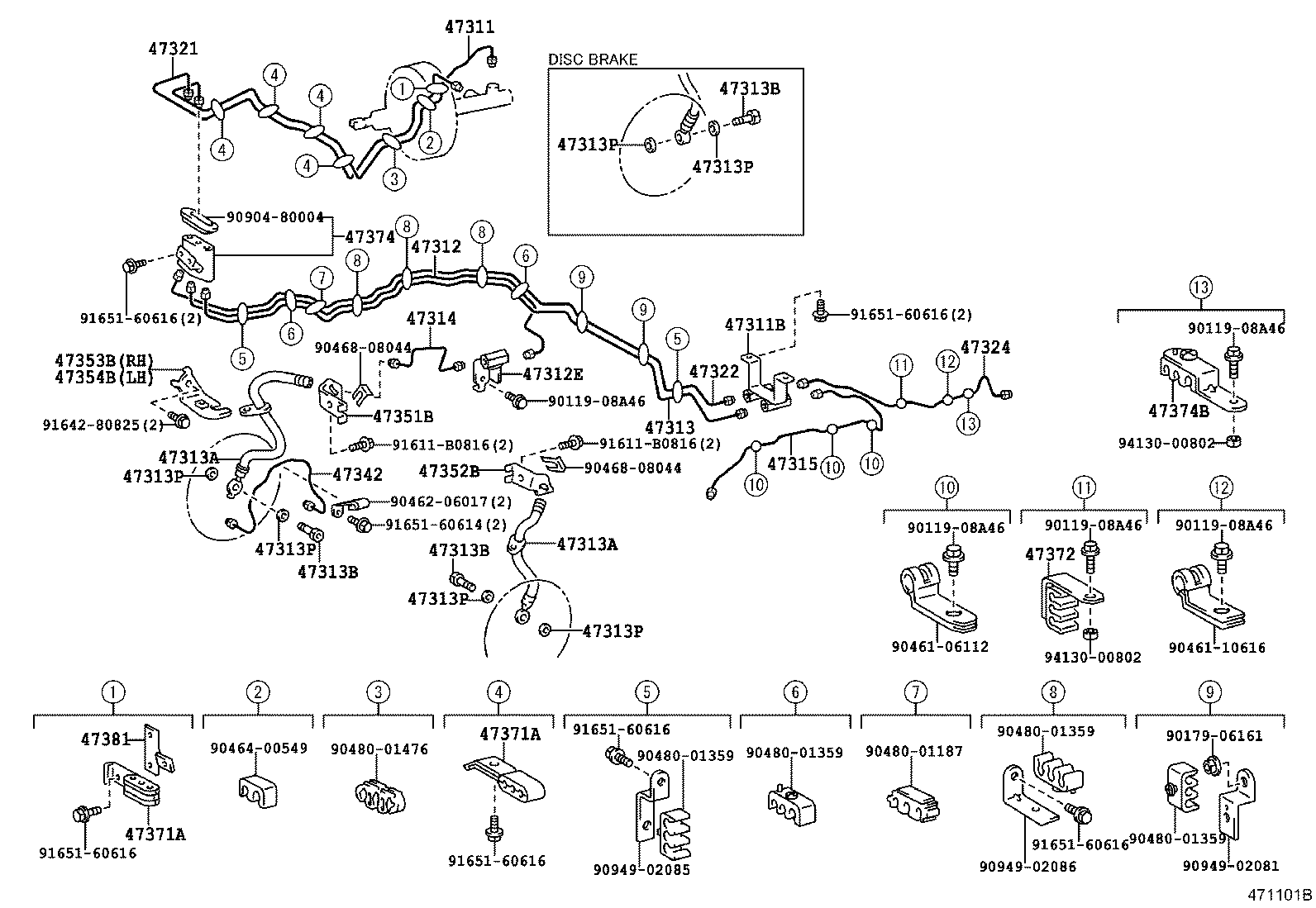

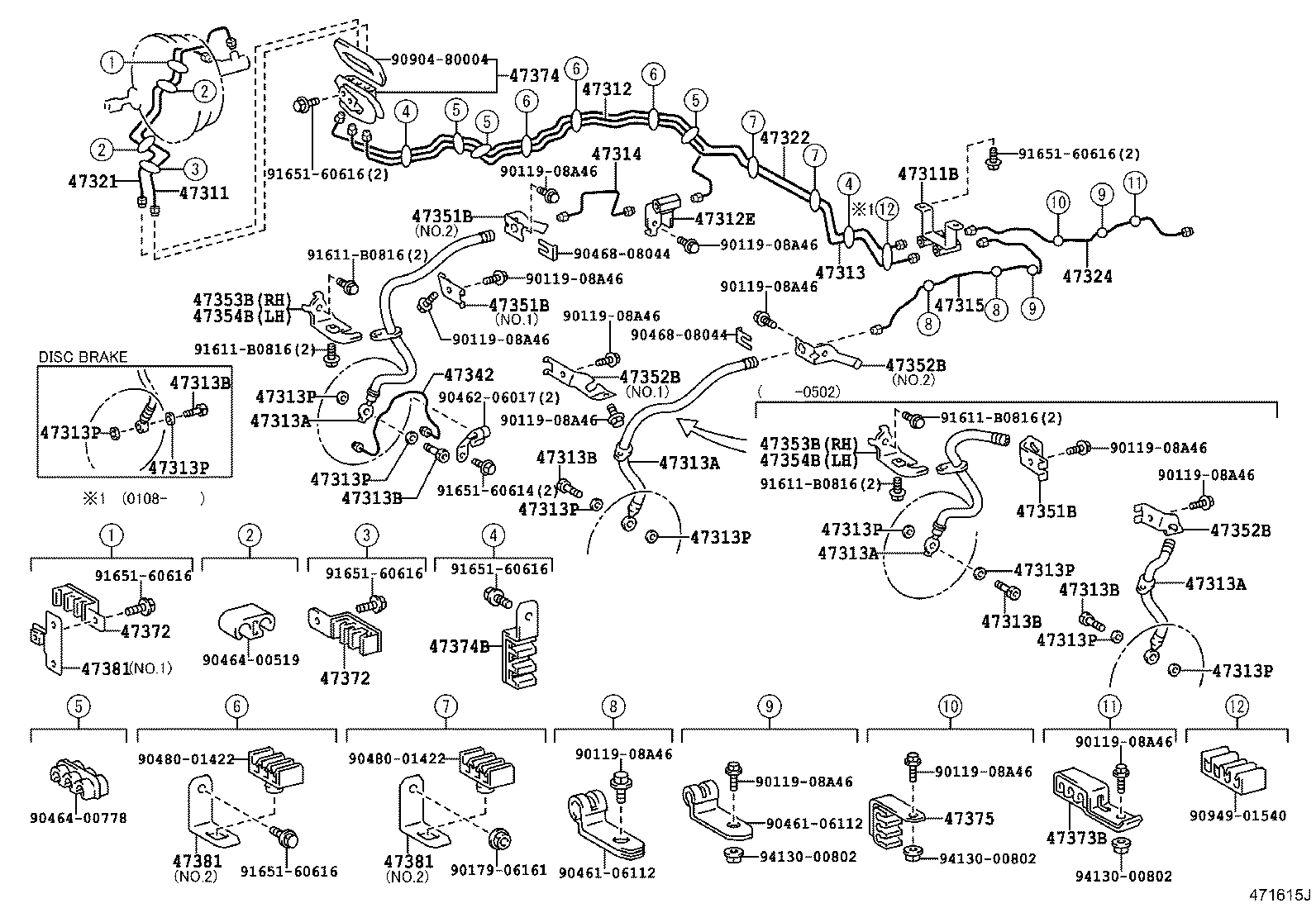

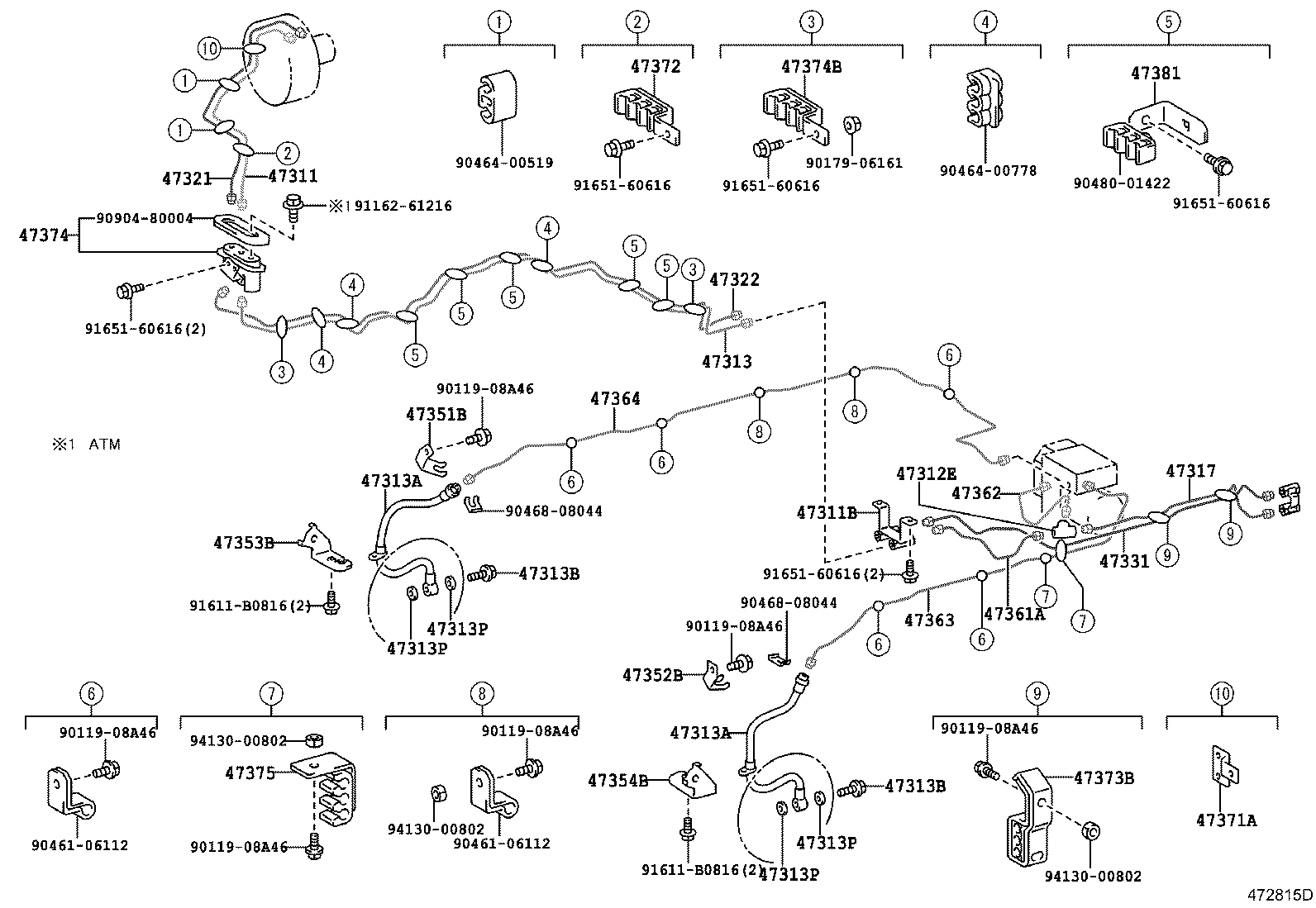

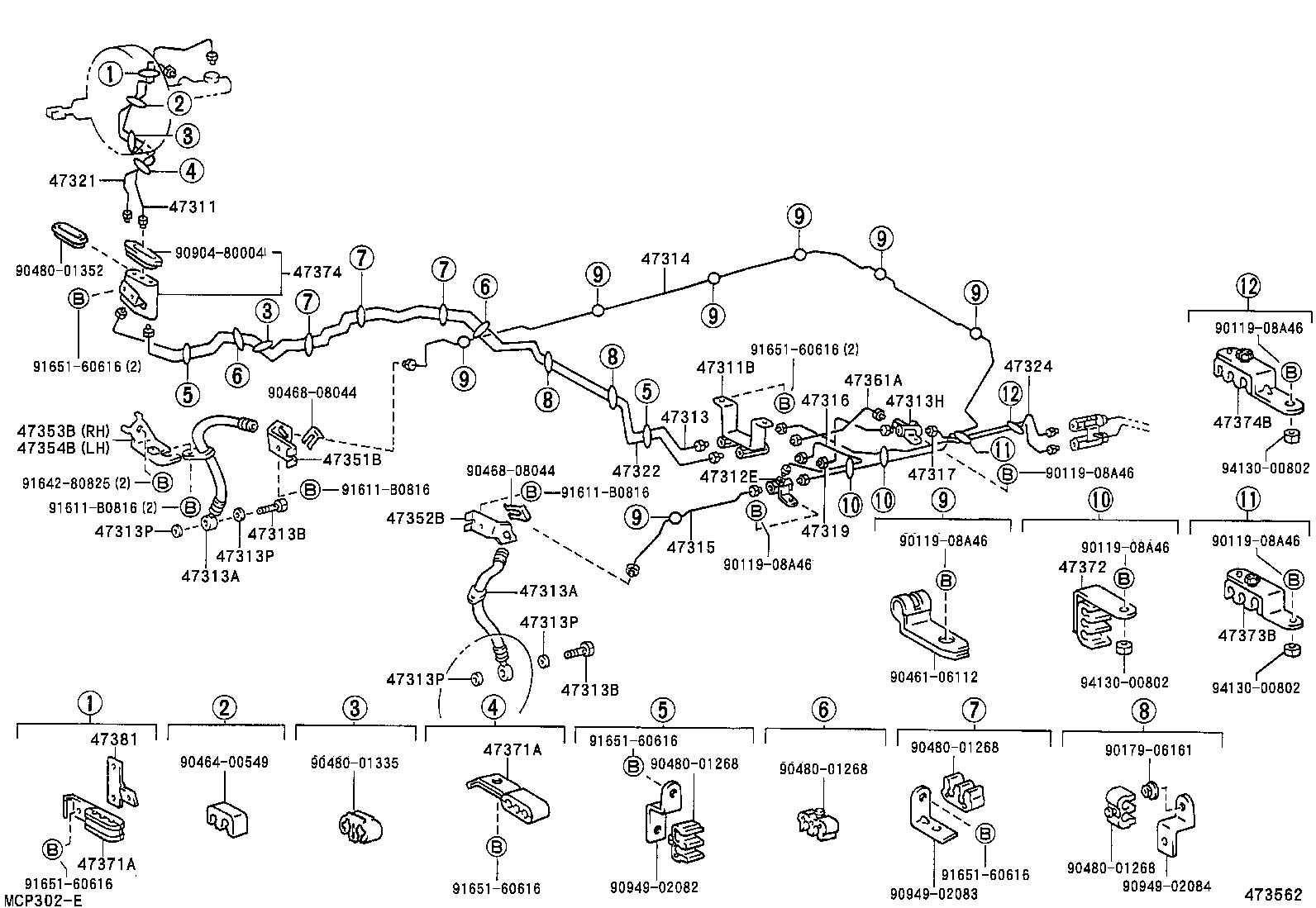

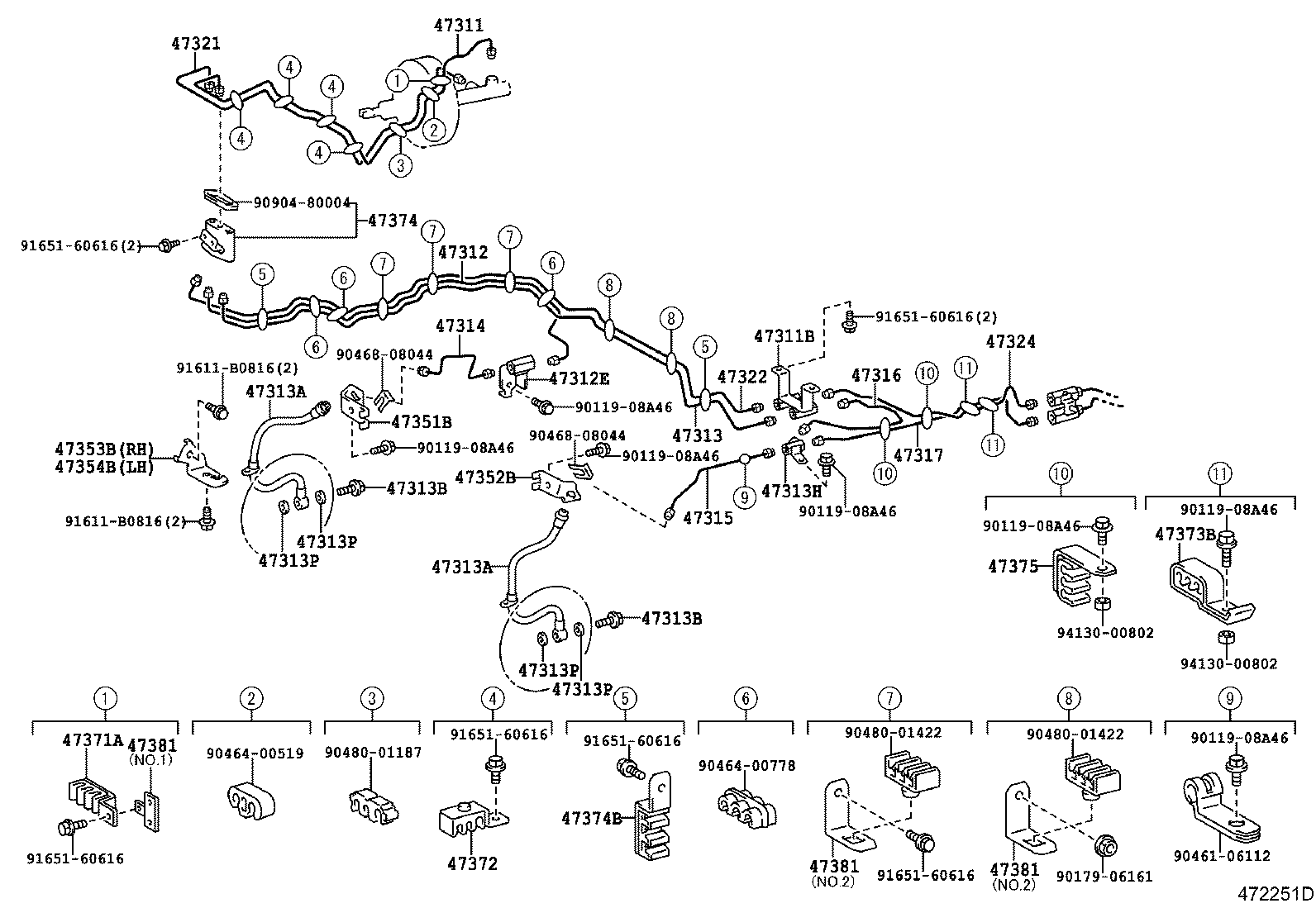

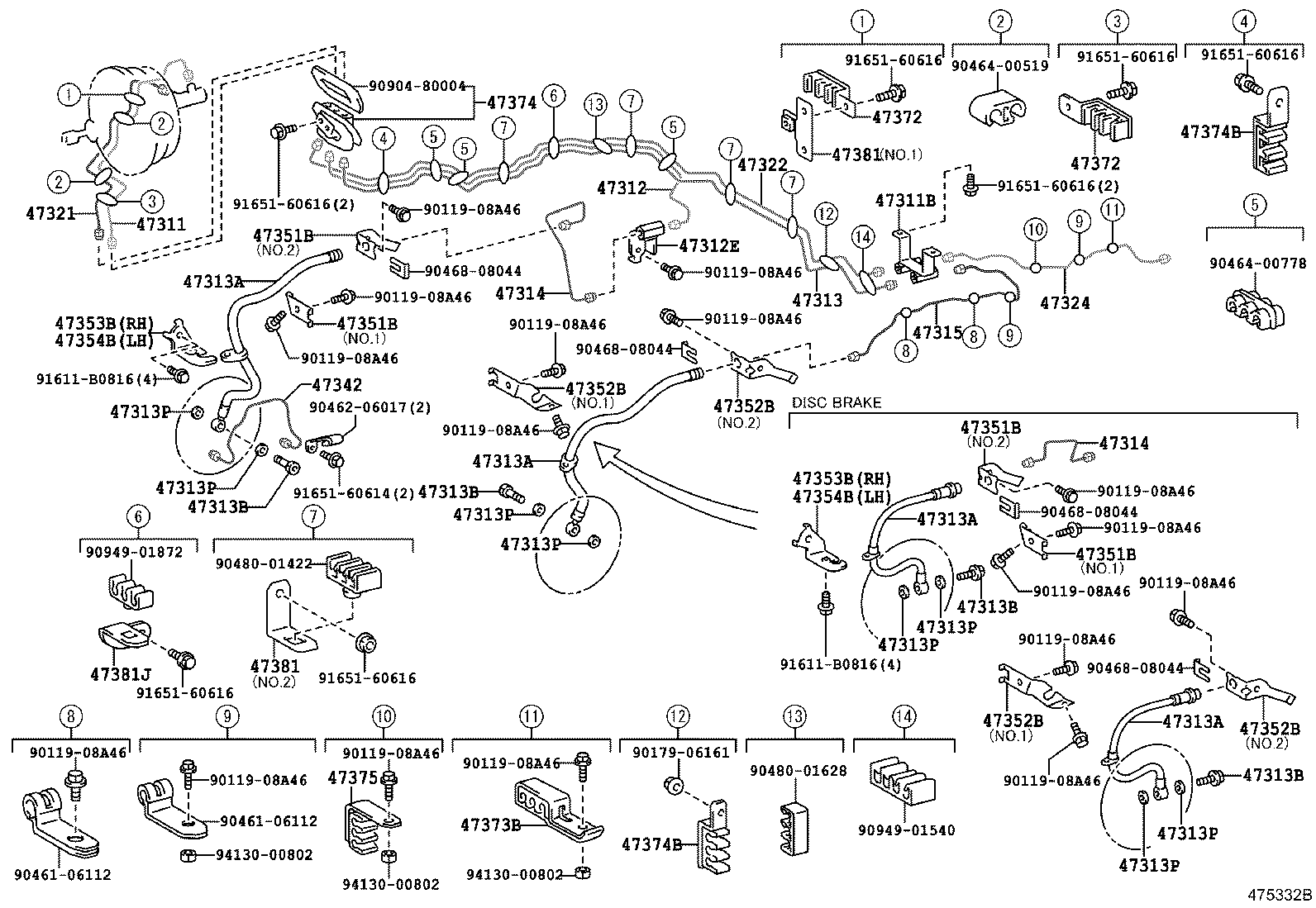

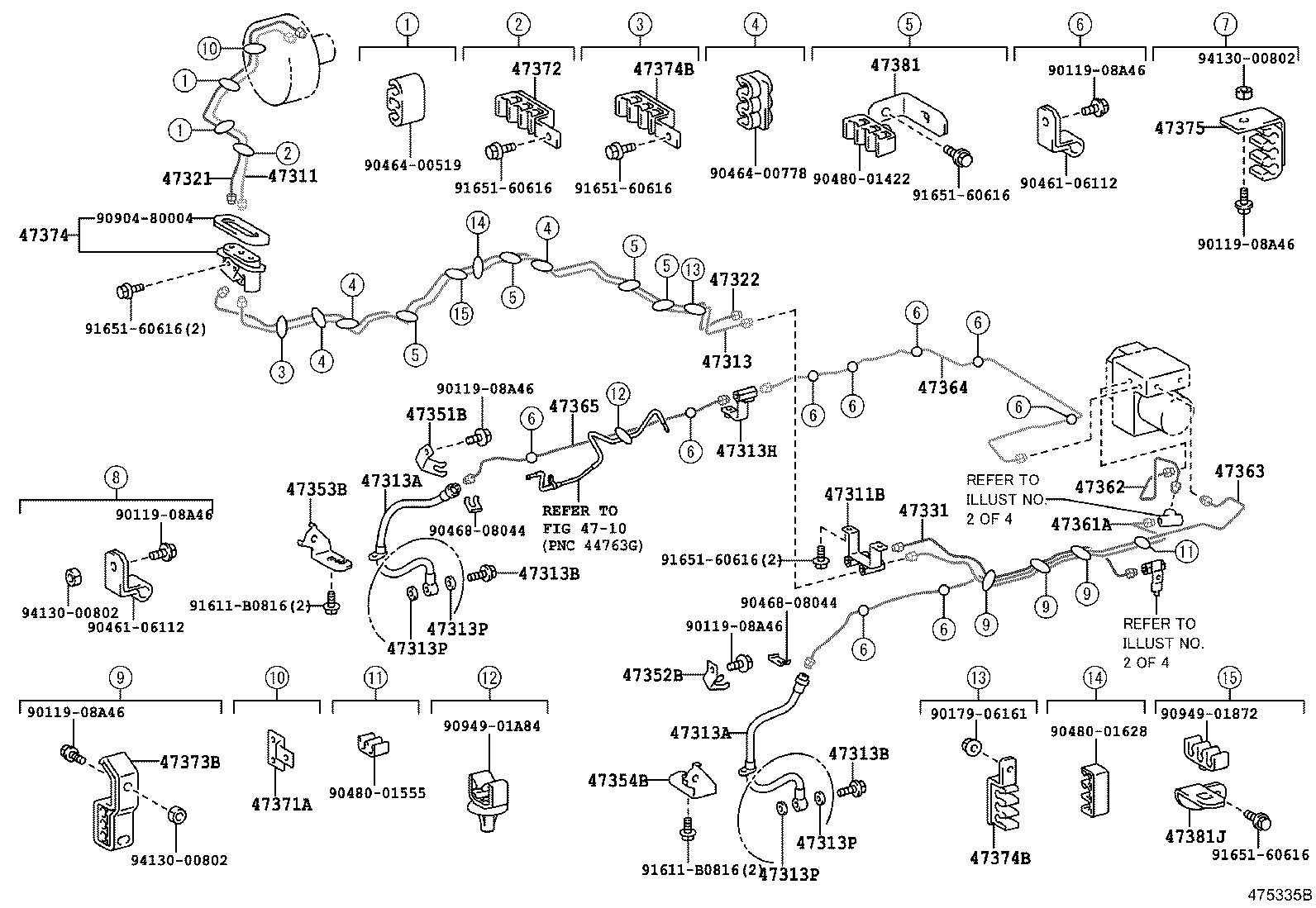

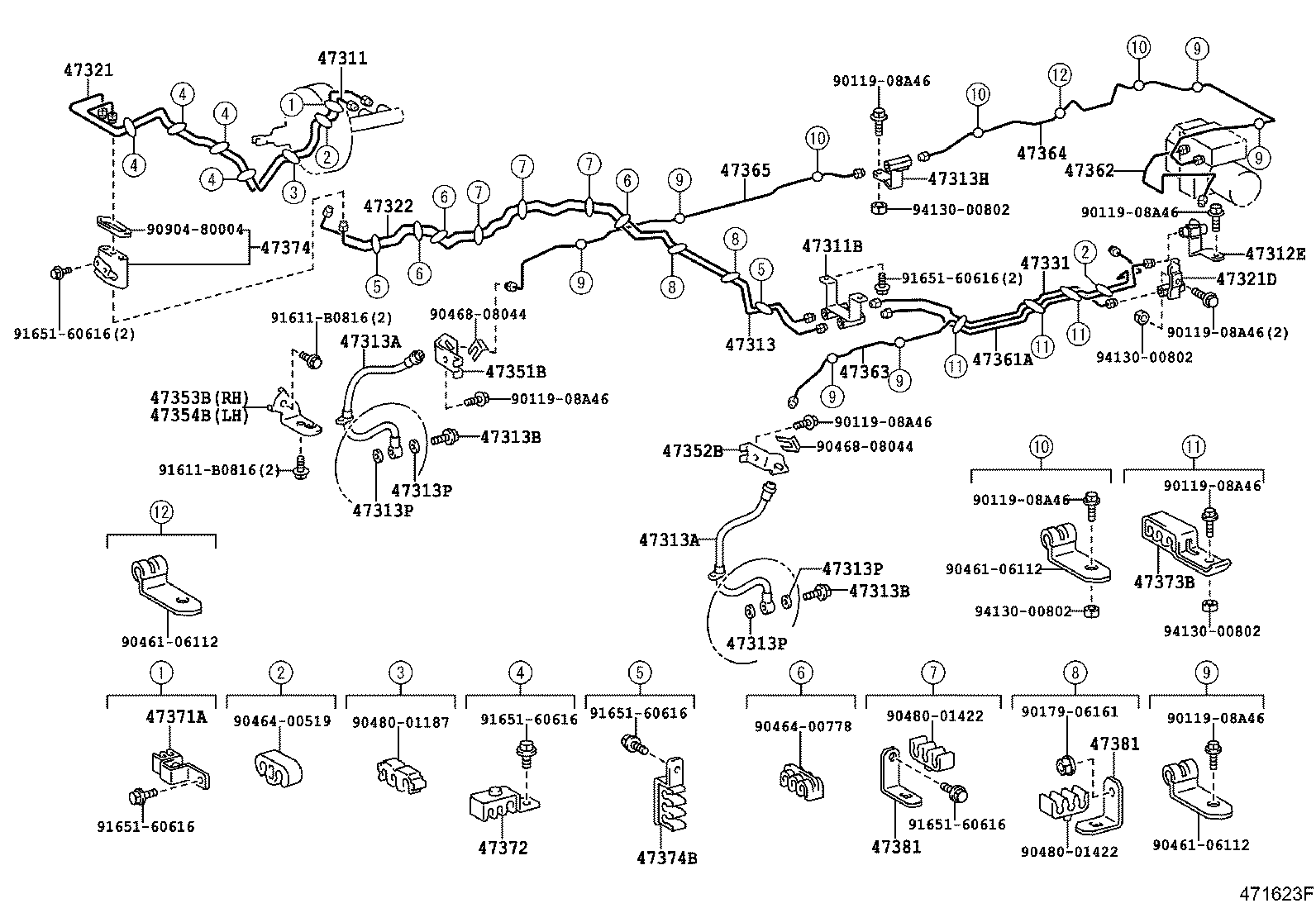

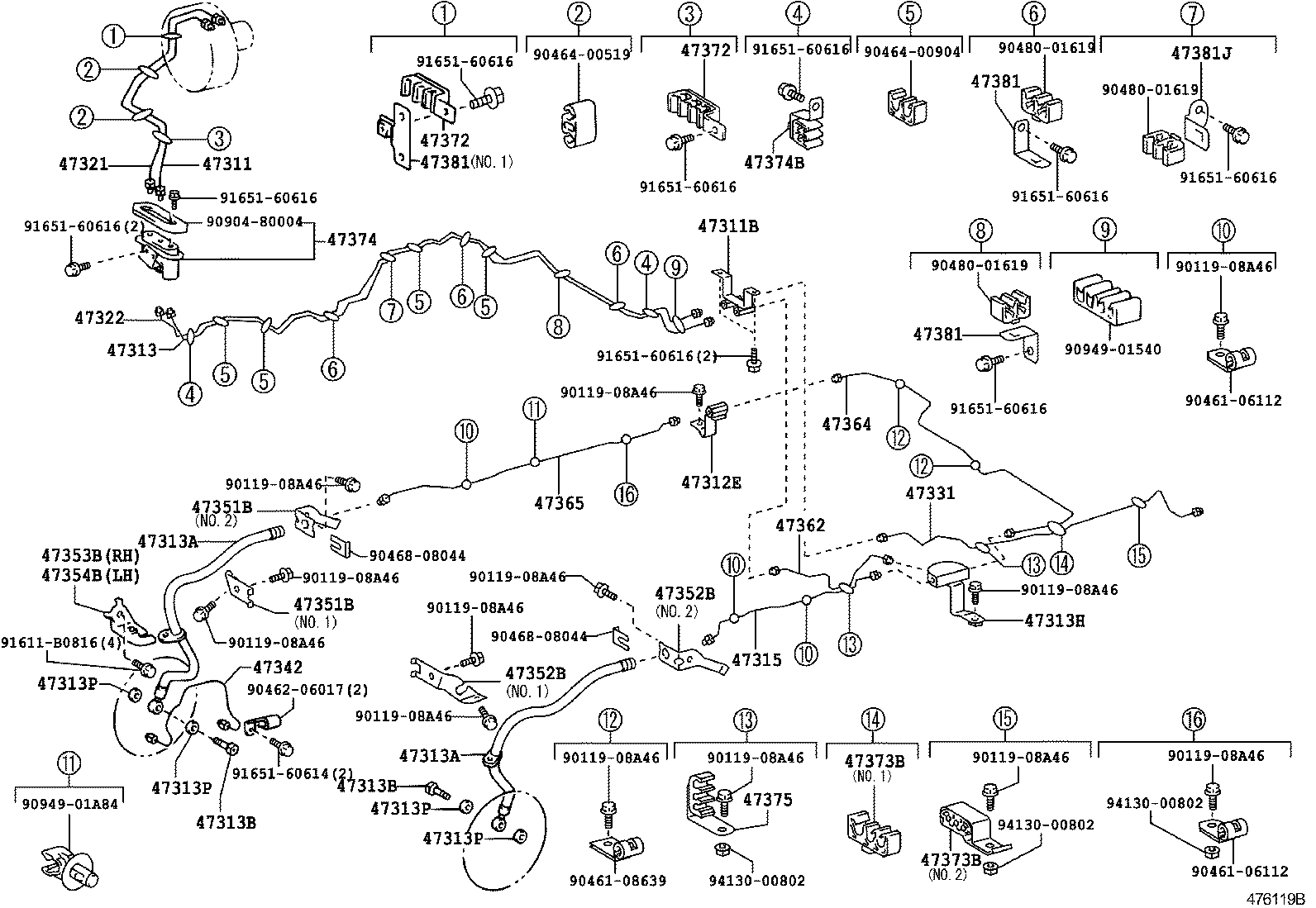

Figure 470959A 470959A 1993-01 → 1999-07 Figure 473562 473562 1993-01 → 1999-07 Figure 471101B 471101B 1993-01 → 1999-07 Figure 473563A 473563A 1993-01 → 1999-07 Figure 470968D 470968D 1997-05 → 1999-07 Figure 471615J 471615J 1999-07 → — Figure 471615J 471615J 2005-01 → — Figure 471621H 471621H 1999-07 → 2002-11 Figure 471621H 471621H 2002-11 → — Figure 471622H 471622H 1999-07 → — Figure 472251D 472251D 2000-08 → — Figure 472815D 472815D 1999-07 → 2003-02 Figure 472815D 472815D 2003-02 → — Figure 473518D 473518D 2003-02 → 2006-08 Figure 471623F 471623F 1999-07 → 2003-02 Figure 471623F 471623F 2003-02 → — Figure 473551D 473551D 2003-02 → — Figure 475331A 475331A 2006-08 → 2007-08 Figure 475332B 475332B 2006-08 → 2007-08 Figure 475333A 475333A 2006-08 → — Figure 475334B 475334B 2006-08 → — Figure 475335B 475335B 2006-08 → — Figure 476434 476434 2007-08 → 2011-08 Figure 476434 476434 2015-01 → — Figure 476119B 476119B 2007-08 → 2011-08 Figure 476119B 476119B 2007-08 → — Figure 476091B 476091B 2007-08 → 2011-08 Figure 476091B 476091B 2007-08 → — Figure 476115 476115 2007-08 → 2009-08 Figure 476092A 476092A 2007-08 → — Figure 476111 476111 2007-08 → — Figure 476847C 476847C 2009-08 → — Figure 476847C 476847C 2012-09 → — Figure 477505A 477505A 2011-08 → — Figure 470960C 470960C 1993-01 → 1999-07 Figure 473353B 473353B 1993-01 → 1999-07 Figure 471626G 471626G 1999-07 → 2001-08 Figure 471616F 471616F 1999-07 → 2002-11 Figure 471616F 471616F 2000-08 → — Figure 471616F 471616F 2002-11 → — Figure 472660K 472660K 2001-08 → 2007-08 Figure 472660K 472660K 2001-08 → — Figure 471629D 471629D 1999-07 → 2001-05 Figure 471624E 471624E 1999-07 → — Figure 472659F 472659F 2001-05 → 2003-02 Figure 472659F 472659F 2003-02 → — Figure 473531C 473531C 2003-02 → — Figure 473531C 473531C 2009-08 → — Figure 473531C 473531C 2012-09 → — Figure 473531C 473531C 2012-09 → — Figure 475336A 475336A 2006-08 → — Figure 476093C 476093C 2007-08 → 2011-08 Figure 476093C 476093C 2007-08 → — Figure 476094 476094 2007-08 → 2009-08 Figure 477509 477509 2011-08 → — Figure 479790 479790 1997-05 → 1999-07 Figure 471897B 471897B 1999-07 → 2003-02 Figure 471897B 471897B 2003-02 → — Figure 471897B 471897B 2009-08 → — Figure 471897B 471897B 2011-08 → — Figure 471897B 471897B 2012-09 → — Figure 471897B 471897B 2012-09 → — Figure 473499 473499 2003-02 → — Figure 471212H 471212H 1993-01 → — Figure 471212H 471212H 2009-08 → — Figure 471212H 471212H 2011-08 → — Figure 471212H 471212H 2012-09 → — Figure 471212H 471212H 2012-09 → —

Part groups

PNCDescription
04477 Bush & Boot Kit, Load Sensing Spring
31478D Cap, Bleeder Plug(FOR LSPV)

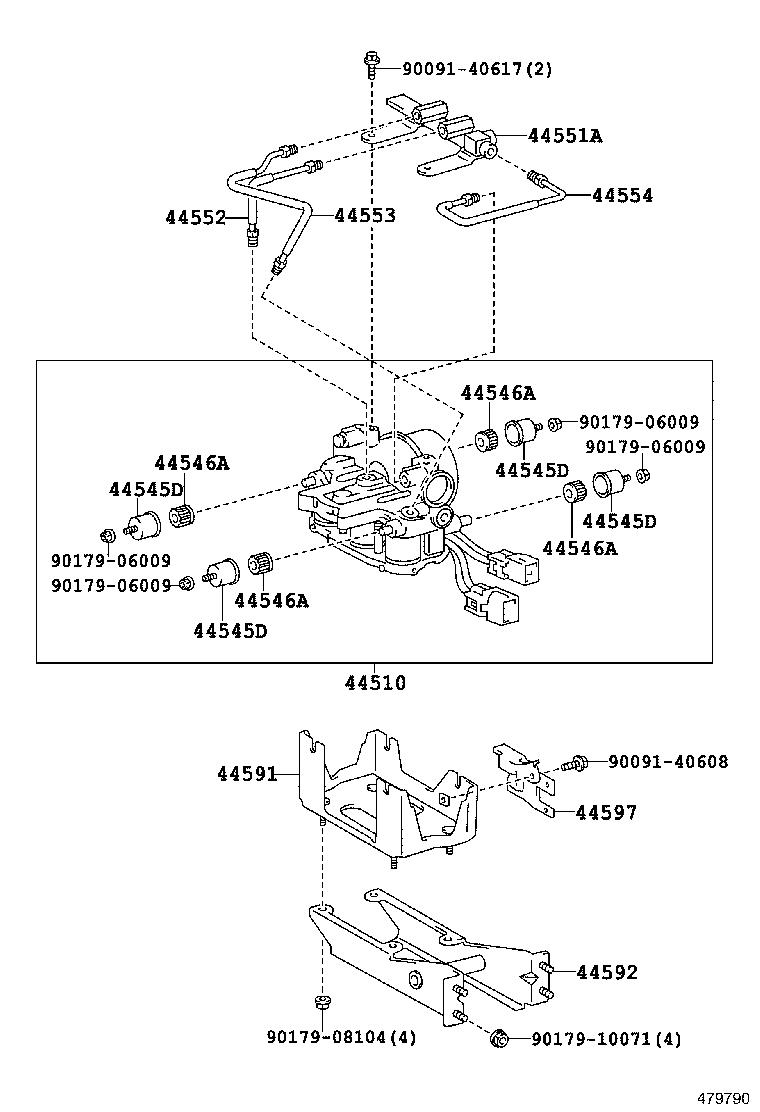

44510 Actuator Assy, Brake
44545D Holder, Brake Actuator Bolt
44546A Cushion, Brake Actuator Bolt
44551A Way, NO.1(FOR BRAKE ACTUATOR)
44552 Tube, Brake Actuator, NO.2
44553 Tube, Brake Actuator, NO.3
44554 Tube, Brake Actuator, NO.4
44590 Bracket Assy, Brake Actuator
44591 Bracket, Brake Actuator, NO.1
44592 Bracket, Brake Actuator, NO.2
44597 Clamp, Brake Actuator Connector, NO.1
47190 Valve Assy, Proportioning & By-pass
47190A Cap, Bleeder Plug(FOR BRAKE INCREASEA VALVE)
47311 Tube, Front Brake, NO.1
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312E Way, NO.2(FOR FRONT BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313H Way, NO.3(FOR FRONT BRAKE TUBE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47318 Tube, Front Brake, NO.8
47319 Tube, Front Brake, NO.9
47321 Tube, Rear Brake, NO.1
47321B Hose, Flexible(FOR REAR BRAKE TUBE)
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47322B Way, NO.2(FOR REAR BRAKE TUBE)
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47329 Tube, Rear Brake, NO.9
47331 Tube, Rear Brake, NO.10
47332 Tube, Rear Brake, NO.11
47333 Tube, Rear Brake, NO.12
47334 Tube, Rear Brake, NO.13
47342 Tube, Wheel Cylinder, Front RH NO.2
47345 Tube, Wheel Cylinder, Rear RH
47346 Tube, Wheel Cylinder, Rear LH
47351B Bracket, Flexible Hose, NO.1
47352B Bracket, Flexible Hose, NO.2
47353 Bracket, Flexible Hose(FOR REAR)
47353B Bracket, Flexible Hose, NO.3
47354B Bracket, Flexible Hose, NO.4
47355A Bracket, Flexible Hose, NO.5
47361A Tube, Front Brake, NO.10
47362 Tube, Front Brake, NO.11
47363 Tube, Front Brake, NO.12
47364 Tube, Front Brake, NO.13
47365 Tube, Front Brake, NO.14
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374 Connector, Tube
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47381 Bracket, Brake Tube Clamp NO.1
47381J Bracket, Brake Tube Clamp, NO.2

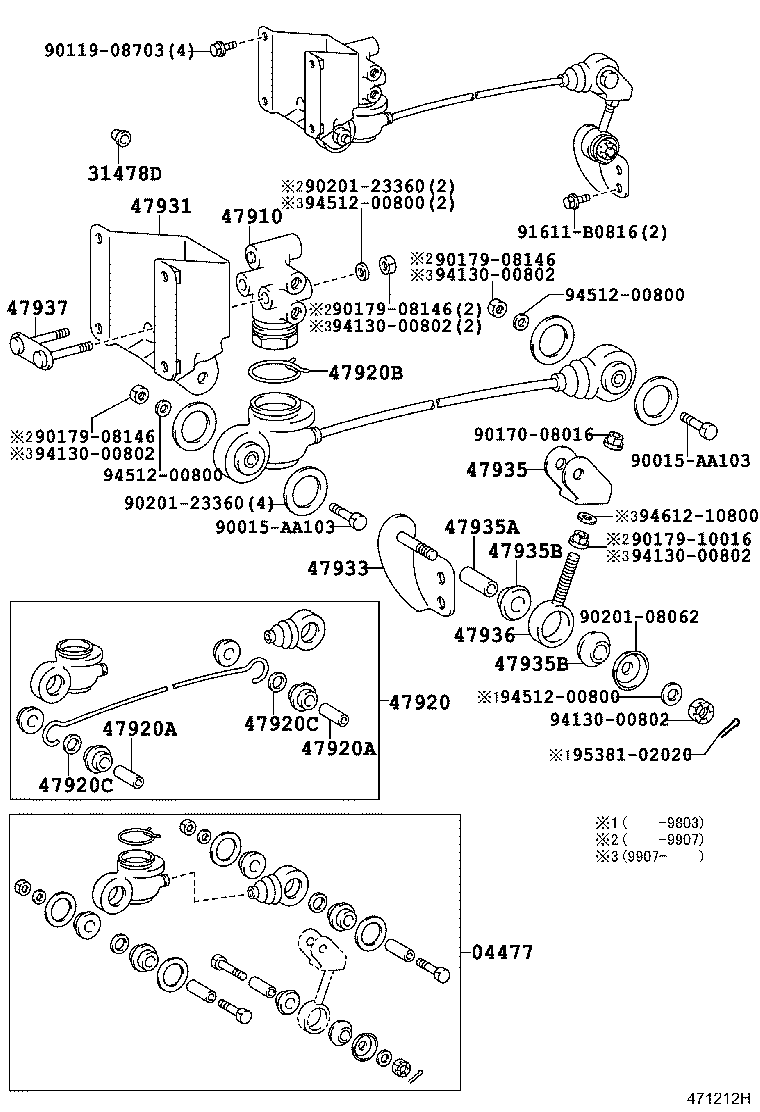

47910 Valve Assy, Load Sensing Proportioning
47920 Spring Assy, Load Sensing
47920A Collar(FOR LOAD SENSING SPRING)
47920B Clip(FOR LOAD SENSING VALVE BOOT)
47920C Washer(FOR LOAD SENSING SPRING)
47931 Bracket, Load Sensing Valve
47933 Bracket, Load Sensing Shackle, NO.1
47935 Shackle, Load Sensing Spring, NO.1
47935A Collar(FOR LOAD SENSING SPRING SHACKLE)
47935B Bush(FOR LOAD SENSING SPRING SHACKLE)
47936 Shackle, Load Sensing Spring, NO.2
47937 Plate, Load Sensing Valve Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
