Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe
Discontinued model
Data version 2016-12

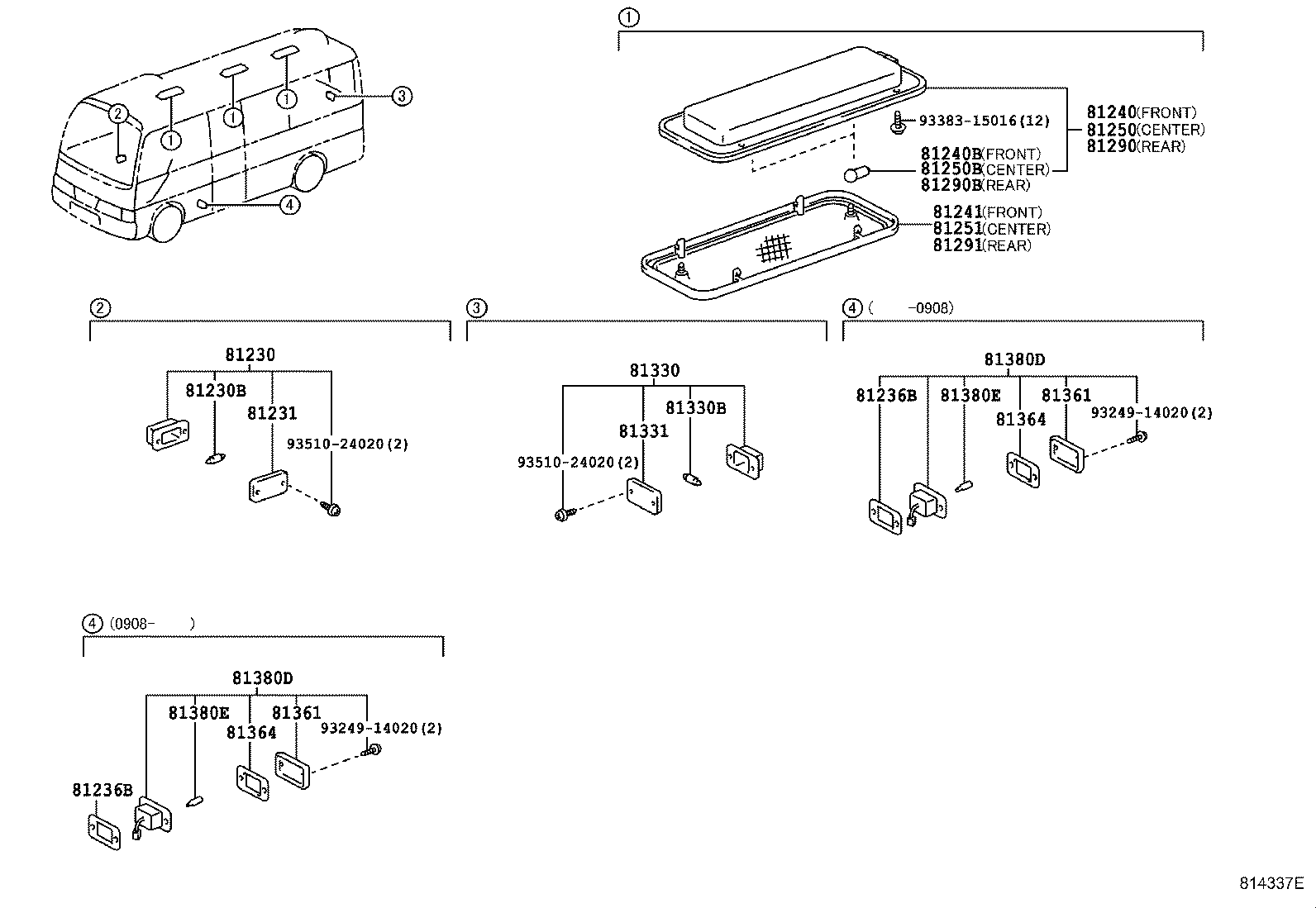

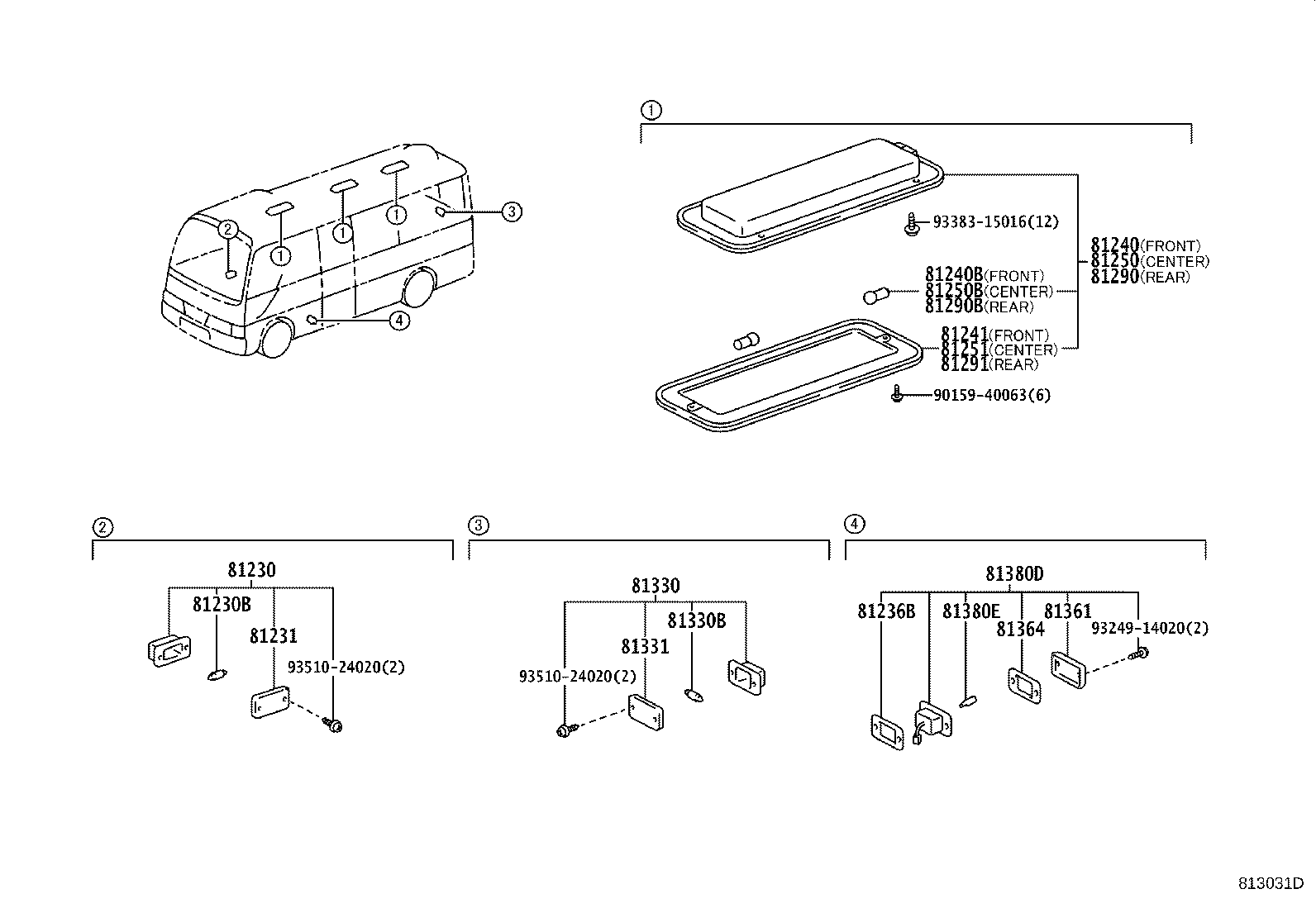

Interior Lamp
20 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81231 | Lens, Courtesy Lamp |
| 81236B | Rim,Step Lamp |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81241 | Lens, Room Lamp, NO.1 |
| 81250 | Lamp Assy, Room, NO.2 |
| 81250B | Bulb, Room Lamp, NO.2 |
| 81251 | Lens, Room Lamp, NO.2 |
| 81290 | Lamp Assy, Room, NO.3 |
| 81290B | Bulb, Room Lamp, NO.3 |
| 81291 | Lens, Room Lamp, NO.3(FOR REAR) |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81331 | Lens, Luggage Compartment Lamp |
| 81361 | Lens, Step Lamp |
| 81364 | Gasket, Step Lamp |
| 81380D | Lamp Assy, Step |
| 81380E | Bulb (FOR STEP LAMP) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
