Toyota Agya/Wigo

2012-12 → 2023-03 · chassis B10# · catalogue 136310 · General

Discontinued model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

16 part groups · 8 illustrations

Illustrations

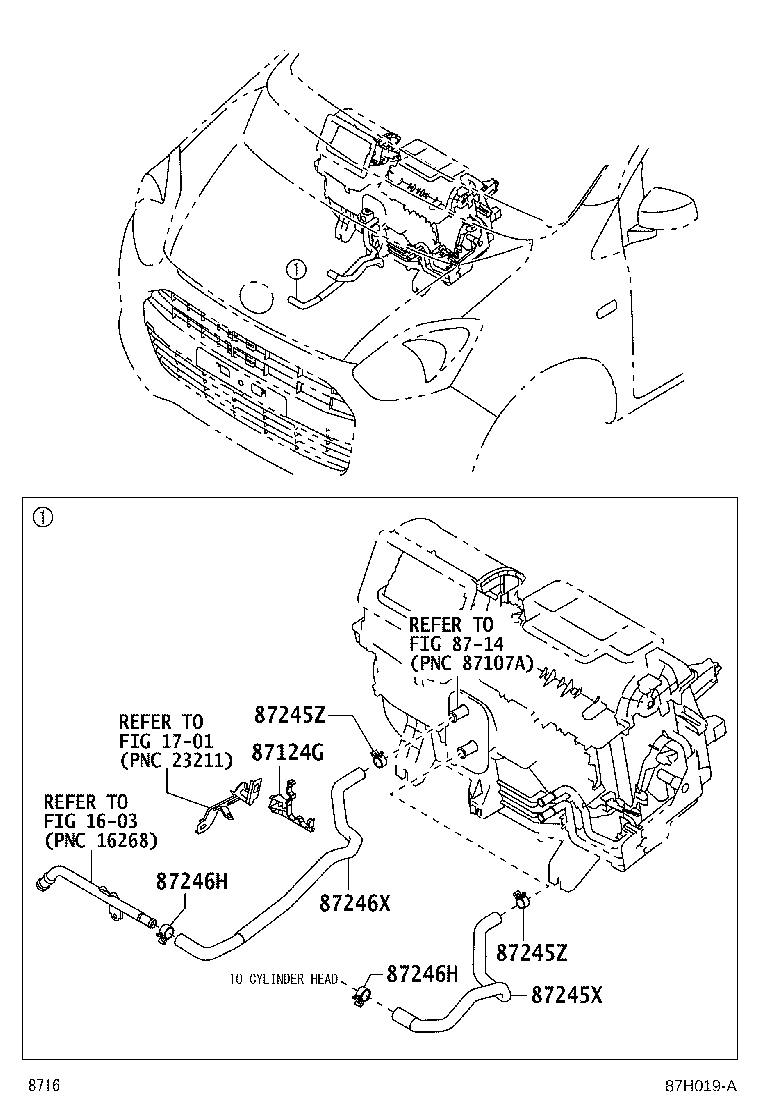

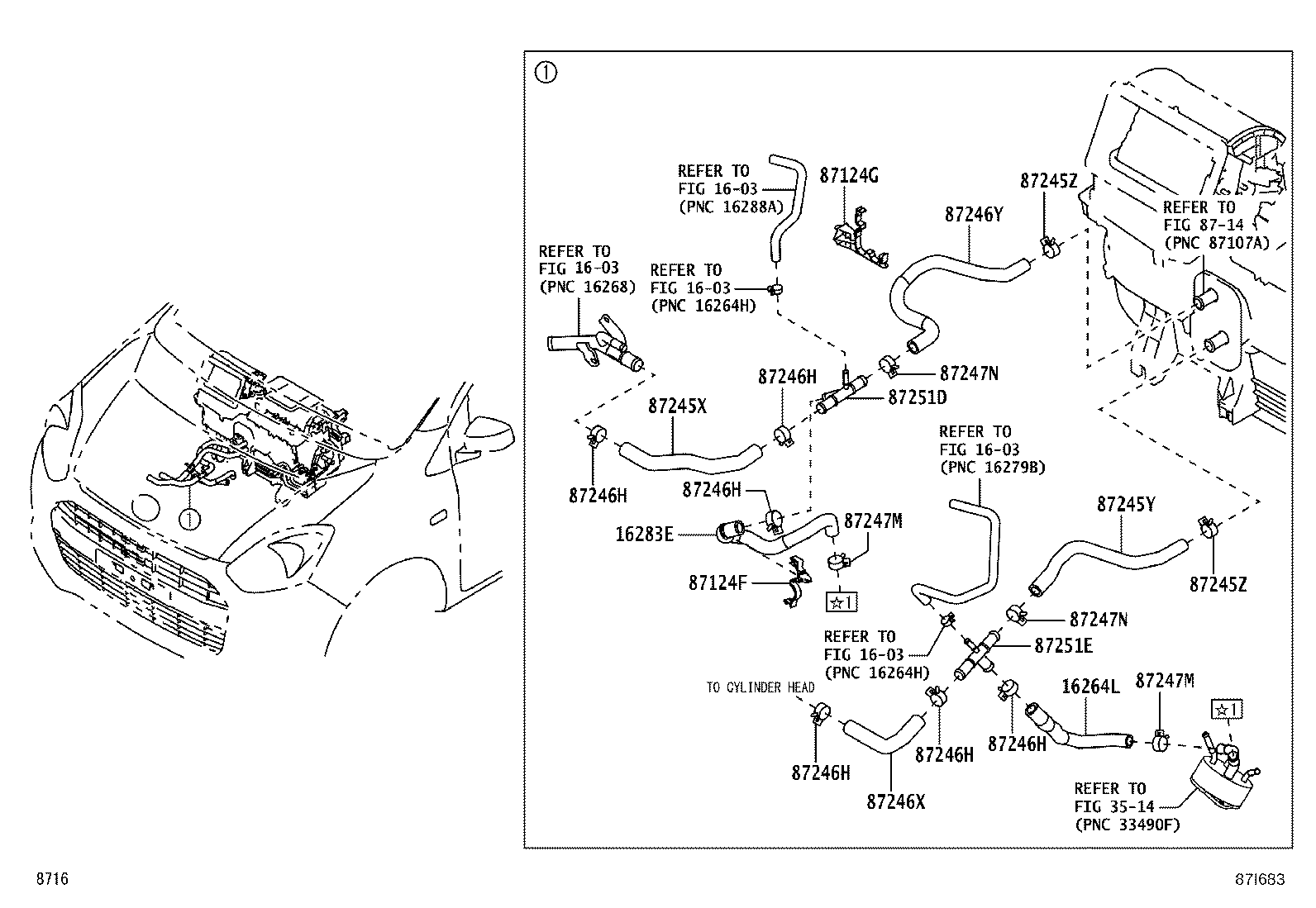

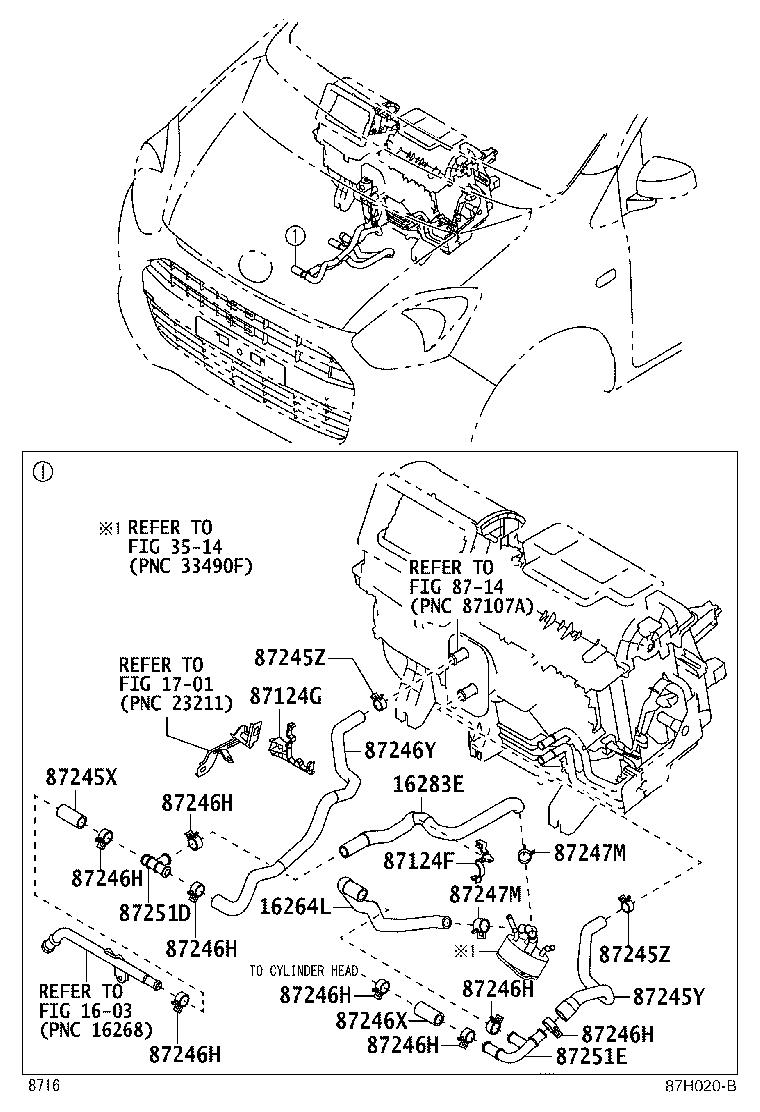

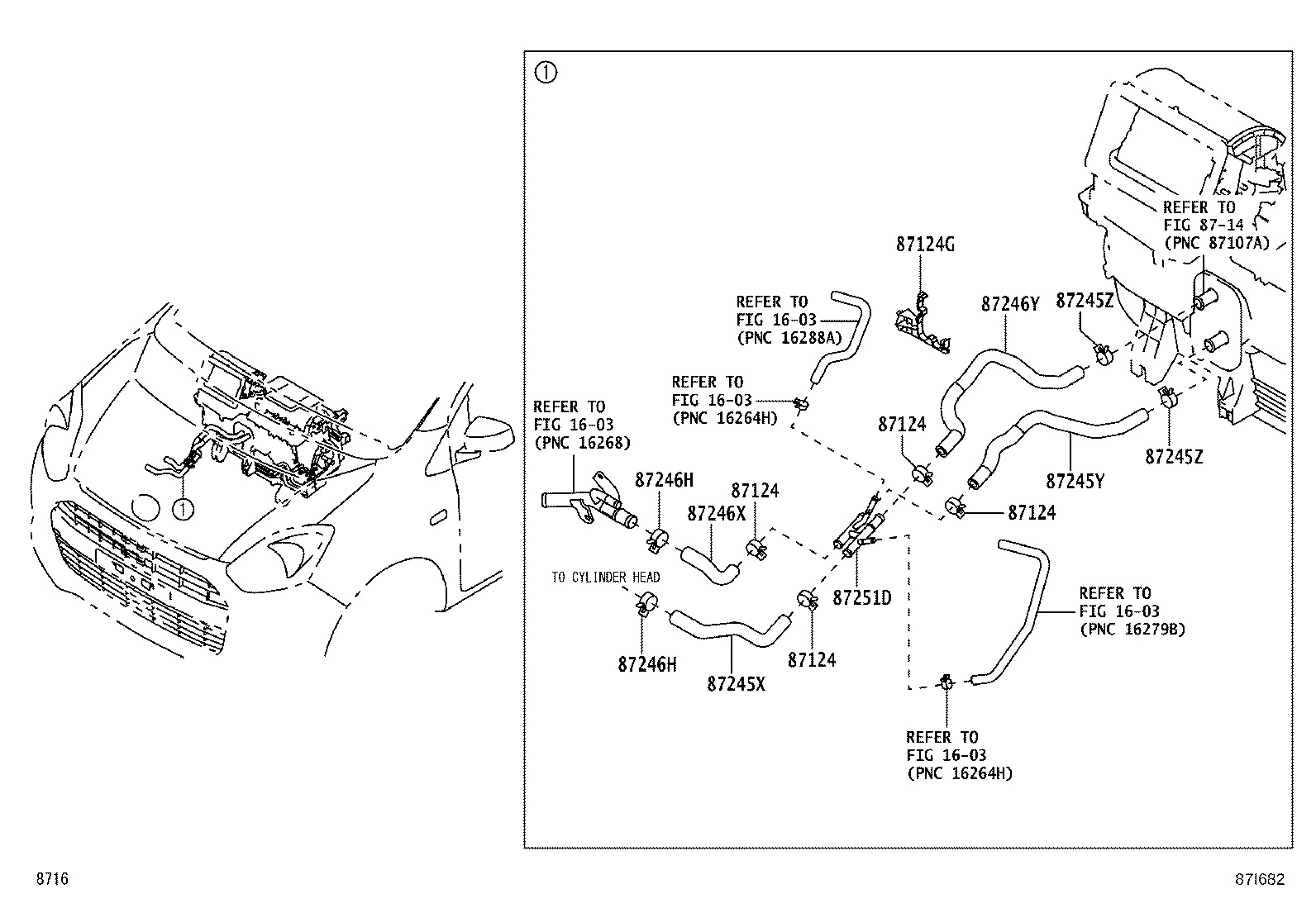

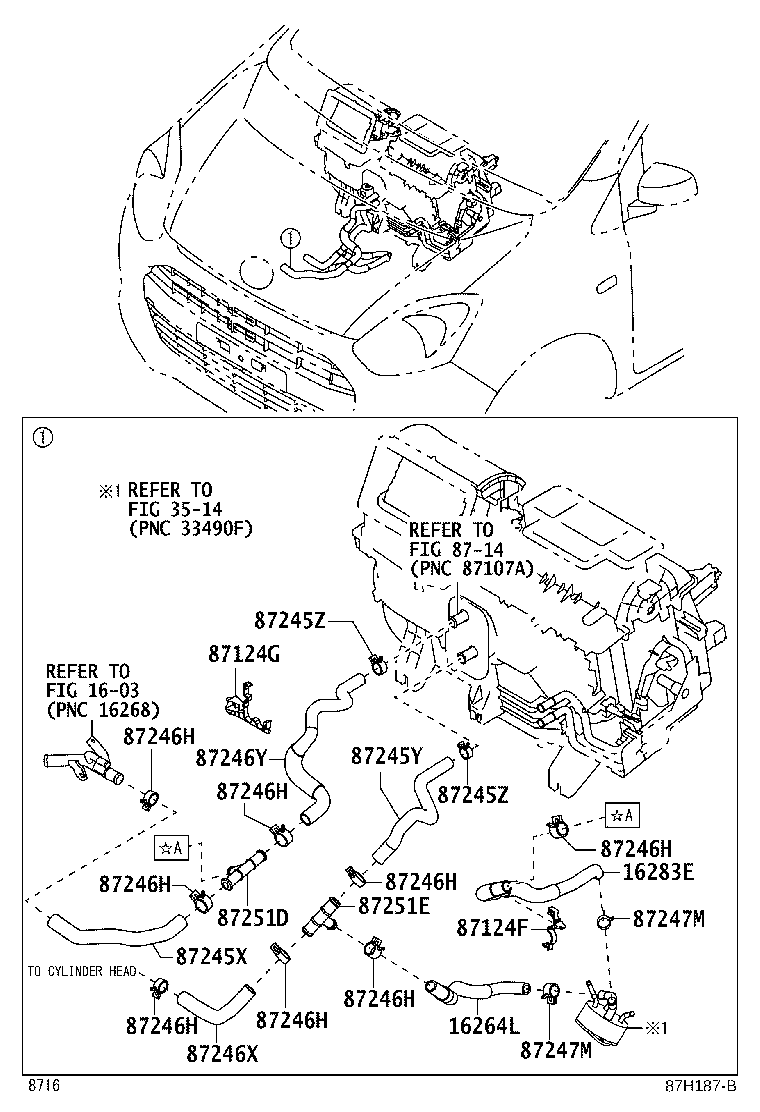

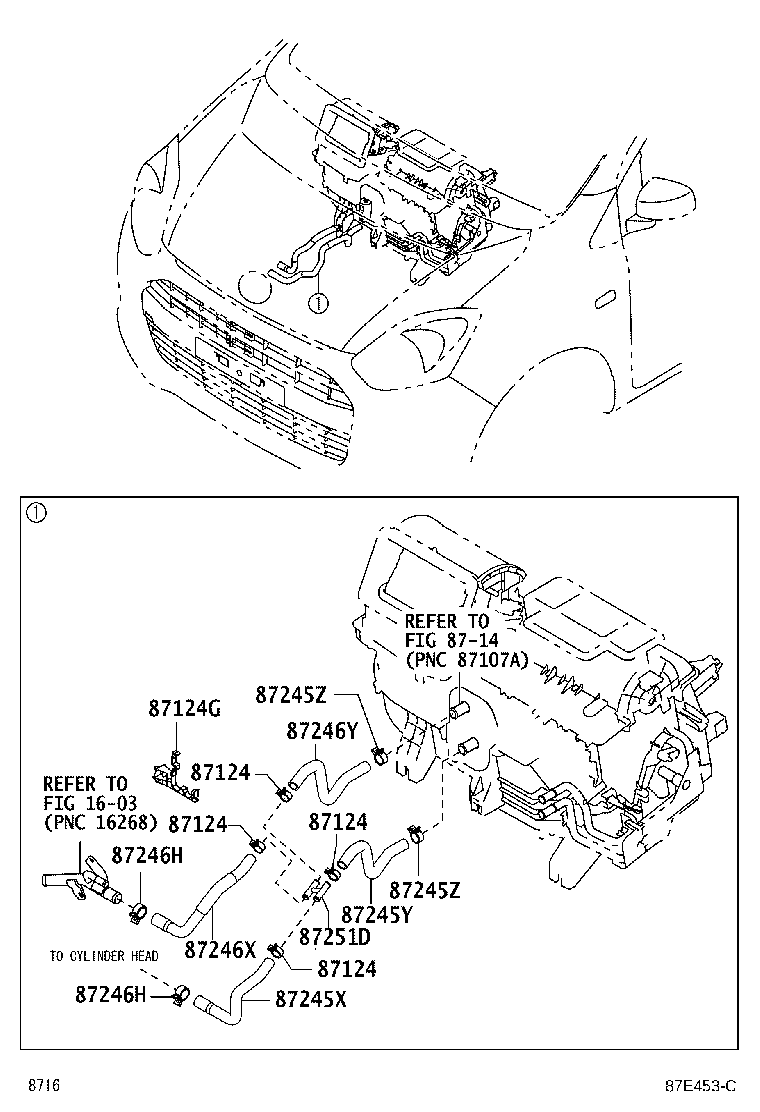

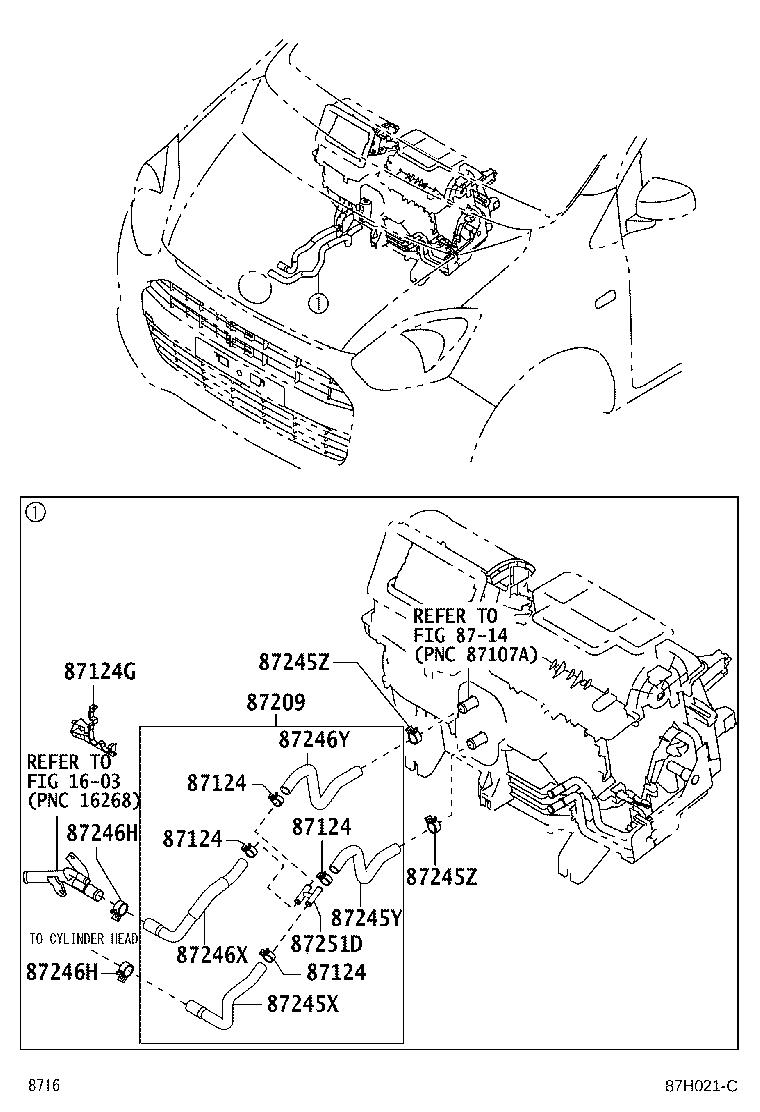

Figure 87E112C 87E112C 2014-01 → 2014-11 Figure 87E453C 87E453C 2014-11 → 2017-04 Figure 87H021C 87H021C 2018-04 → — Figure 87H187B 87H187B 2018-04 → — Figure 87H019A 87H019A 2017-12 → — Figure 87H020B 87H020B 2017-12 → — Figure 87I682 87I682 2020-07 → — Figure 87I683 87I683 2020-07 → —

Part groups

PNCDescription
16264L Hose, Water By-pass, NO.2
16283E Hose, Water By-pass, NO.6
87124 Clamp, Heater
87124F Clamp, Heater Hose, NO.1
87124G Clamp, Heater Hose, NO.2
87209 Hose Sub-assy, Water
87245X Hose, Heater Water
87245Y Hose, Heater Water
87245Z Clip OR Clamp (FOR HEATER WATER HOSE)
87246H Clip OR Clamp(FOR HEATER WATER HOSE)
87246X Hose, Heater Water
87246Y Hose, Heater Water
87247M Clip, Hose
87247N Clip, Hose
87251D Joint, Water, NO.1
87251E Joint, Water, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
