Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

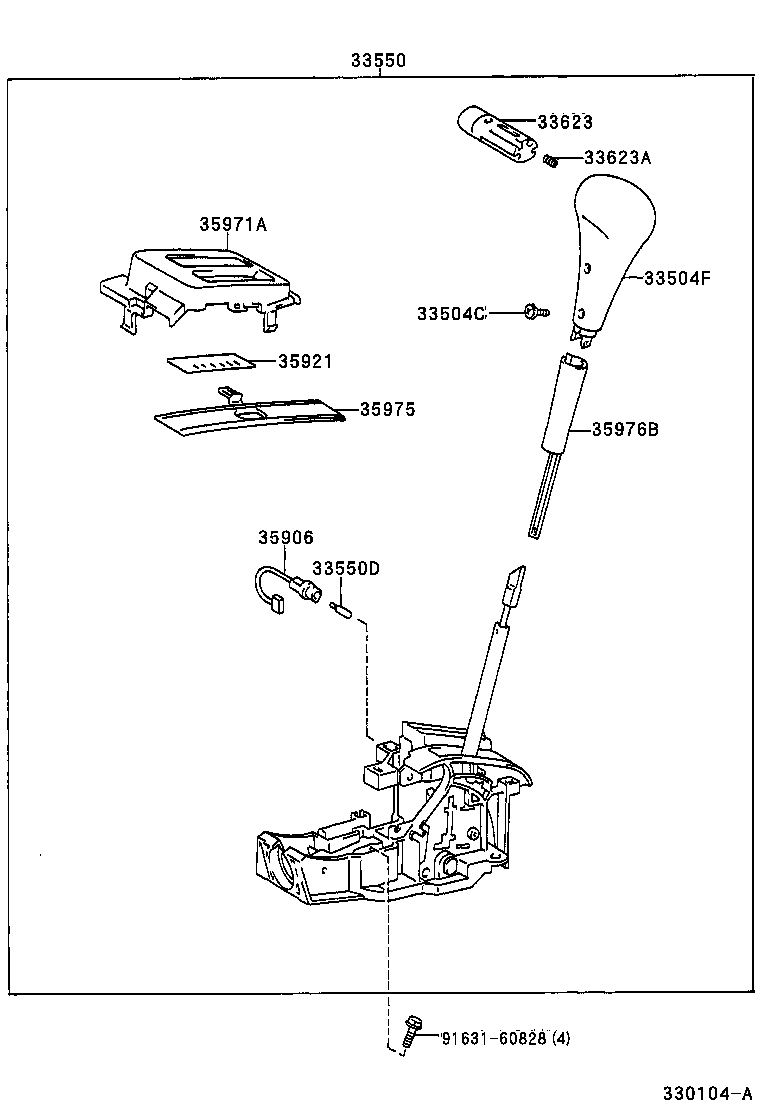

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33504C — Screw (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40134 |
Screw (FOR SHIFT LEVER KNOB SETTING)
1994-09 → —
|
EL50 RHD 3FC | — | |
| 90159-40221 |
Screw (FOR SHIFT LEVER KNOB SETTING)
1994-09 → —
|
EL5# LHD ATM | — | |
| 33504F — Knob Sub-assy, Shift Lever | ||||
| 33504-24010-B1 note |
Knob Sub-assy, Shift Lever
1995-08 → —
|
EL5# 5F | — | |
| 33504-24010-B4 note |
Knob Sub-assy, Shift Lever
1994-09 → 1995-08
ended
|
EL5# 5F | — | |
| 33504-24010-E3 note |
Knob Sub-assy, Shift Lever
1994-09 → 1997-12
ended
|
EL5# 5F | — | |
| 33504-24010-E8 note |
Knob Sub-assy, Shift Lever
1997-12 → —
|
EL5# 5F | — | |
| 33542-12171-B0 note |
Knob Sub-assy, Shift Lever
1995-08 → 1996-08
ended
|
EL50 RHD 3FC | — | |
| 33542-12171-B1 note |
Knob Sub-assy, Shift Lever
1994-09 → 1995-08
ended
|
EL50 RHD 3FC | — | |
| 33542-12171-E0 note |
Knob Sub-assy, Shift Lever
1994-09 → 1996-08
ended
|
EL50 RHD 3FC | — | |
| 33542-12172-B0 note |
Knob Sub-assy, Shift Lever
1996-08 → —
|
EL50 RHD 3FC | — | |
| 33542-12172-E0 note |
Knob Sub-assy, Shift Lever
1996-08 → 1997-12
ended
|
EL50 RHD 3FC | — | |
| 33542-12172-E1 note |
Knob Sub-assy, Shift Lever
1997-12 → —
|
EL50 RHD 3FC | — | |
| 33542-16060-B0 note |
Knob Sub-assy, Shift Lever
1994-09 → 1995-08
ended
|
EL5# LHD ATM | — | |
| 33542-16060-B1 note |
Knob Sub-assy, Shift Lever
1995-08 → —
|
EL5# LHD ATM | — | |
| 33542-16060-E0 note |
Knob Sub-assy, Shift Lever
1994-09 → 1997-12
ended
|
EL5# LHD ATM | — | |
| 33542-16060-E1 note |
Knob Sub-assy, Shift Lever
1997-12 → —
|
EL5# LHD ATM | — | |
| 33550 — Floor Shift Assy, Transmission | ||||
| 33550-16370-B0 note |
Floor Shift Assy, Transmission
1994-09 → 1995-08
ended
|
EL50 RHD 3FC | — | |
| 33550-16370-B1 note |
Floor Shift Assy, Transmission
1995-08 → 1996-08
ended
|
EL50 RHD 3FC | — | |
| 33550-16370-E0 note |
Floor Shift Assy, Transmission
1994-09 → 1996-08
ended
|
EL50 RHD 3FC | — | |
| 33550-16371-B1 note |
Floor Shift Assy, Transmission
1996-08 → —
|
EL50 RHD 3FC | — | |
| 33550-16371-E0 note |
Floor Shift Assy, Transmission
1996-08 → 1997-12
ended
|
EL50 RHD 3FC | — | |
| 33550-16371-E1 note |
Floor Shift Assy, Transmission
1997-12 → —
|
EL50 RHD 3FC | — | |
| 33550-16390-B0 note |
Floor Shift Assy, Transmission
1994-09 → 1995-08
ended
|
EL53 4FC | — | |
| 33550-16390-B1 note |
Floor Shift Assy, Transmission
1995-08 → 1996-08
ended
|
EL53 4FC | — | |
| 33550-16390-E0 note |
Floor Shift Assy, Transmission
1995-08 → 1996-08
ended
|
EL53 4FC | — | |
| 33550-16391-B1 note |
Floor Shift Assy, Transmission
1996-08 → —
|
EL53 4FC | — | |
| 33550-16391-E0 note |
Floor Shift Assy, Transmission
1996-08 → 1997-12
ended
|
EL53 4FC | — | |
| 33550-16391-E1 note |
Floor Shift Assy, Transmission
1997-12 → —
|
EL53 4FC | — | |
| 33550-16410-B0 note |
Floor Shift Assy, Transmission
1994-09 → 1995-08
ended
|
EL50 LHD 3FC | — | |
| 33550-16410-B1 note |
Floor Shift Assy, Transmission
1995-08 → 1996-08
ended
|
EL50 LHD 3FC | — | |
| 33550-16410-E0 note |
Floor Shift Assy, Transmission
1995-08 → 1996-08
ended
|
EL50 LHD 3FC | — | |
| 33550-16411-B1 note |
Floor Shift Assy, Transmission
1996-08 → —
|
EL50 LHD 3FC | — | |
| 33550-16411-E0 note |
Floor Shift Assy, Transmission
1996-08 → 1997-12
ended
|
EL50 LHD 3FC | — | |
| 33550-16411-E1 note |
Floor Shift Assy, Transmission
1997-12 → —
|
EL50 LHD 3FC | — | |
| 33550D — Bulb, Position Indicator Lamp | ||||
| 90981-11014 note |
Bulb, Position Indicator Lamp
1994-09 → —
|
EL5# LHD ATM | — | |
| 90981-11018 note |
Bulb, Position Indicator Lamp
1994-09 → —
|
EL50 RHD 3FC | — | |
| 33623 — Button, Shift Lever Knob | ||||
| 33623-16070-B0 note |
Button, Shift Lever Knob
1994-09 → 1995-08
ended
|
EL5# LHD ATM | — | |
| 33623-16070-B1 note |
Button, Shift Lever Knob
1995-08 → 1996-08
ended
|
EL5# LHD ATM | — | |
| 33623-16070-B1 note |
Button, Shift Lever Knob
1998-11 → —
|
EL5# LHD ATM | — | |
| 33623-16070-E0 note |
Button, Shift Lever Knob
1995-08 → 1996-08
ended
|
EL5# LHD ATM | — | |
| 33623-16070-E1 note |
Button, Shift Lever Knob
1998-11 → —
|
EL5# LHD ATM | — | |
| 33623-16080-B0 note |
Button, Shift Lever Knob
1994-09 → 1995-08
ended
|
EL50 RHD 3FC | — | |
| 33623-16080-B1 note |
Button, Shift Lever Knob
1995-08 → 1996-08
ended
|
EL50 RHD 3FC | — | |
| 33623-16080-E0 note |
Button, Shift Lever Knob
1994-09 → 1996-08
ended
|
EL50 RHD 3FC | — | |
| 33623-16081-B1 note |
Button, Shift Lever Knob
1996-08 → —
|
EL50 RHD 3FC | — | |
| 33623-16081-E0 note |
Button, Shift Lever Knob
1996-08 → 1997-12
ended
|
EL50 RHD 3FC | — | |
| 33623-16081-E1 note |
Button, Shift Lever Knob
1997-12 → —
|
EL50 RHD 3FC | — | |
| 33623-16090-B0 note |
Button, Shift Lever Knob
1996-08 → 1998-11
ended
|
EL5# LHD ATM | — | |
| 33623-16090-E0 note |
Button, Shift Lever Knob
1996-08 → 1997-12
ended
|
EL5# LHD ATM | — | |
| 33623-16090-E1 note |
Button, Shift Lever Knob
1997-12 → 1998-11
ended
|
EL5# LHD ATM | — | |
| 33623A — Spring, Compression (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-05040 |
Spring, Compression (FOR SHIFT LEVER KNOB BUTTON)
1994-09 → —
|
EL50 RHD 3FC | — | |
| 35906 — Wire Sub-assy, Indicator Lamp | ||||
| 35906-16060 |
Wire Sub-assy, Indicator Lamp
1994-09 → —
|
EL5# LHD ATM | — | |
| 35906-16090 |
Wire Sub-assy, Indicator Lamp
1994-09 → —
|
EL50 RHD 3FC | — | |
| 35921 — Plate, Control Position Indicator | ||||
| 35921-16130 |
Plate, Control Position Indicator
1994-09 → —
|
EL5# LHD ATM | — | |
| 35921-16150 |
Plate, Control Position Indicator
1994-09 → —
|
EL50 RHD 3FC | — | |
| 35971A — Housing, Position Indicator, Upper | ||||
| 35971-16120 |
Housing, Position Indicator, Upper
1994-09 → 1996-08
ended
|
EL5# LHD ATM | — | |
| 35971-16121 |
Housing, Position Indicator, Upper
1996-08 → —
|
EL5# LHD ATM | — | |
| 35971-16140 |
Housing, Position Indicator, Upper
1994-09 → —
|
EL50 RHD 3FC | — | |
| 35975 — Cover, Slide (FOR POSITION INDICATOR) | ||||
| 35975-16080 |
Cover, Slide (FOR POSITION INDICATOR)
1994-09 → —
|
EL5# LHD ATM | — | |
| 35975-16090 |
Cover, Slide (FOR POSITION INDICATOR)
1994-09 → —
|
EL50 RHD 3FC | — | |
| 35976B — Cover, Shift Lever Knob (FOR FLOOR SHIFT) | ||||
| 35976-16030-B0 note |
Cover, Shift Lever Knob (FOR FLOOR SHIFT)
1994-09 → 1995-08
ended
|
EL5# LHD ATM | — | |
| 35976-16030-B1 note |
Cover, Shift Lever Knob (FOR FLOOR SHIFT)
1995-08 → —
|
EL5# LHD ATM | — | |
| 35976-16030-E0 note |
Cover, Shift Lever Knob (FOR FLOOR SHIFT)
1994-09 → 1997-12
ended
|
EL5# LHD ATM | — | |
| 35976-16030-E1 note |
Cover, Shift Lever Knob (FOR FLOOR SHIFT)
1997-12 → —
|
EL5# LHD ATM | — | |
| 35976-16040-B0 note |
Cover, Shift Lever Knob (FOR FLOOR SHIFT)
1994-09 → 1995-08
ended
|
EL50 RHD 3FC | — | |
| 35976-16040-B1 note |
Cover, Shift Lever Knob (FOR FLOOR SHIFT)
1995-08 → —
|
EL50 RHD 3FC | — | |
| 35976-16040-E0 note |
Cover, Shift Lever Knob (FOR FLOOR SHIFT)
1994-09 → 1997-12
ended
|
EL50 RHD 3FC | — | |
| 35976-16040-E1 note |
Cover, Shift Lever Knob (FOR FLOOR SHIFT)
1997-12 → —
|
EL50 RHD 3FC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
