Toyota Yaris

2019-11 → present · chassis NSP15# · catalogue 14B310 · General

Supported model Data version 2021-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

36 part groups · 4 illustrations

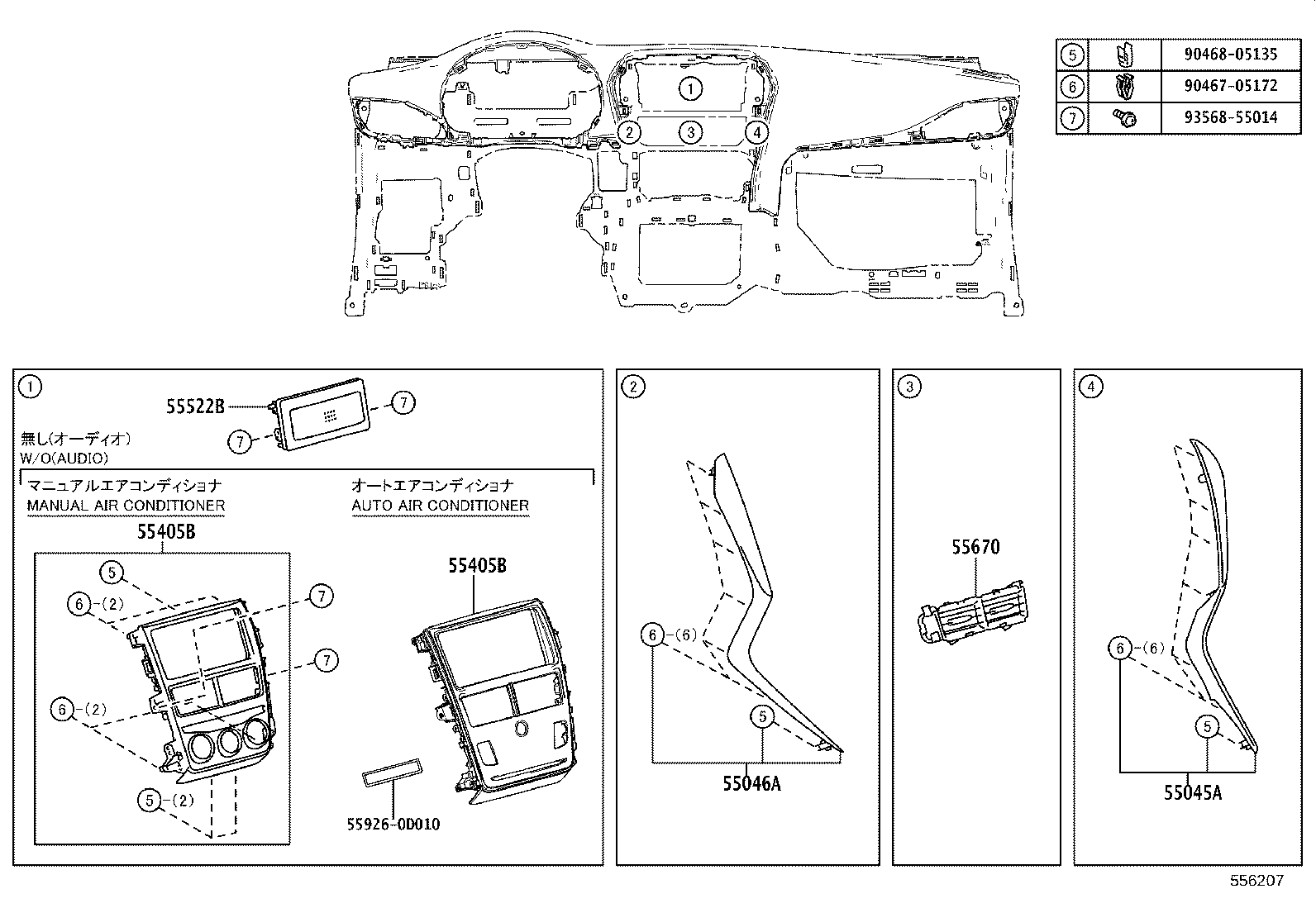

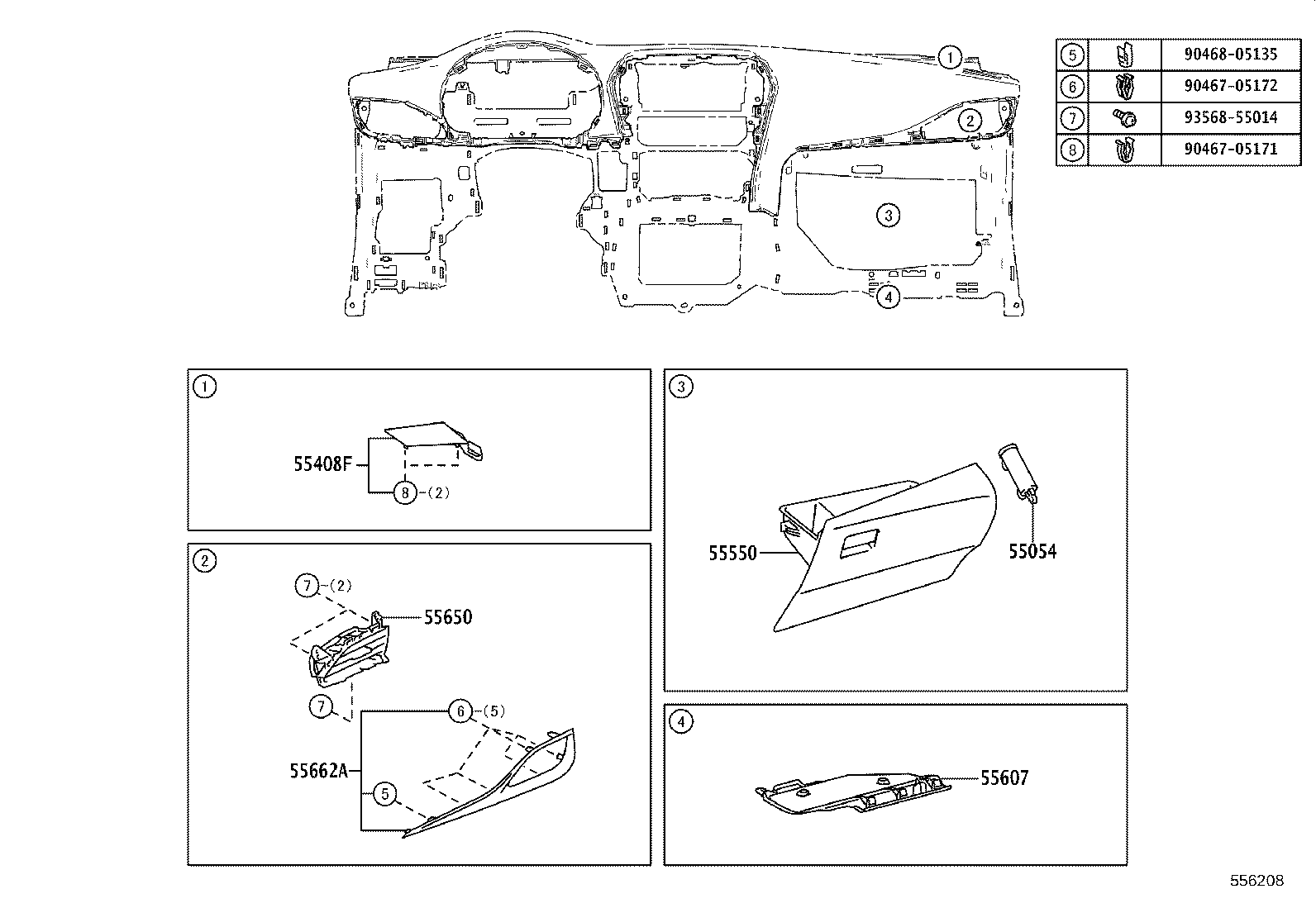

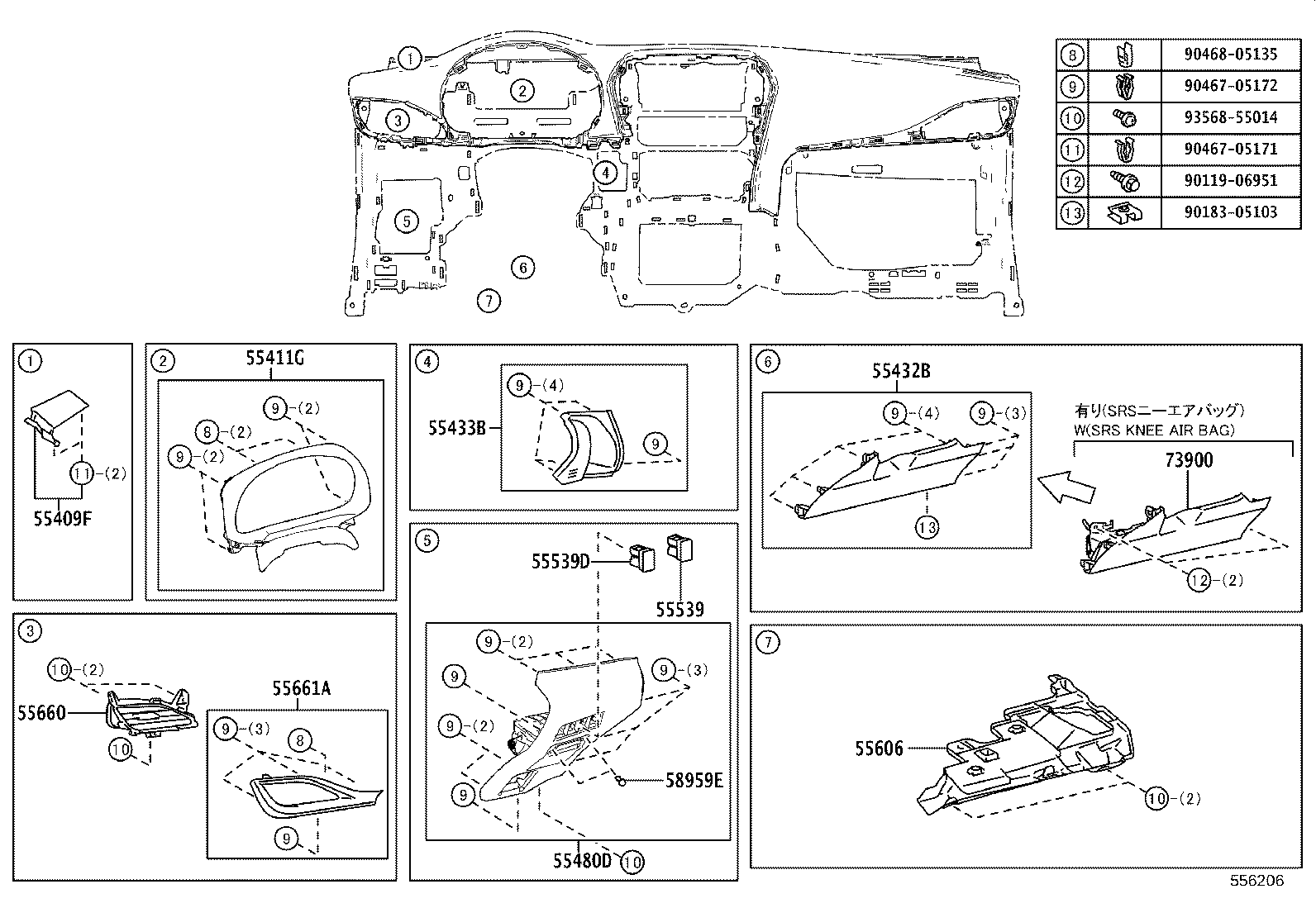

Illustrations

Part groups

PNC	Description
52161V	Piece, Instrument Panel
55045A	Panel Sub-assy, Instrument Panel Finish, Lower RH
55046A	Panel Sub-assy, Instrument Panel Finish, Lower LH
55054	Stopper Sub-assy, Glove Compartment Door
55302A	Panel Sub-assy, Instrument, Upper
55303B	Panel Sub-assy, Instrument, Lower
55306A	Brace Sub-assy, Instrument Panel, NO.1
55307C	Brace Sub-assy, Instrument Panel, NO.2
55317A	Panel, Instrument Side, RH
55318C	Panel, Instrument Side, LH
55331	Reinforcement, Instrument Panel
55349C	Cushion, Instrument Panel
55355	Cushion, Instrument Panel, NO.1
55394C	Bolt, Instrument Panel
55405B	Panel Sub-assy, Instrument Cluster Finish, Center
55408F	Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F	Panel Sub-assy, Instrument Panel Speaker, NO.2
55411G	Panel, Instrument Cluster Finish, NO.1
55432B	Panel, Instrument Panel Finish, Lower
55433B	Panel, Instrument Panel Finish, Lower NO.2
55480D	Panel Assy, Instrument Panel Finish, Lwr
55522B	Cover, Radio Tuner Opening
55539	Cover, Spare Switch Hole
55539D	Cover, Spare Switch Hole
55550	Door Assy, Glove Compartment
55557A	Cushion, Glove Compartment Door Check
55606	Cover Sub-assy, Instrument Panel Under, NO.1
55607	Cover Sub-assy, Instrument Panel Under, NO.2
55650	Register Assy, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2
55661A	Bezel, Instrument Panel Register
55662A	Bezel, Instrument Panel Resister, NO.2
55670	Register Assy, Instrument Panel, NO.3
58959E	Cushion, Console Compartment Door
73900	Airbag Assy, Instrument Panel, Lower NO.1
73960A	Airbag Assy, Instrument Panel Passenger W/O Door

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
