Toyota Corolla (CHINA)

2004-02 → 2017-02 · chassis ZRE120,ZZE122 · catalogue 150310 · General

Discontinued model Data version 2017-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

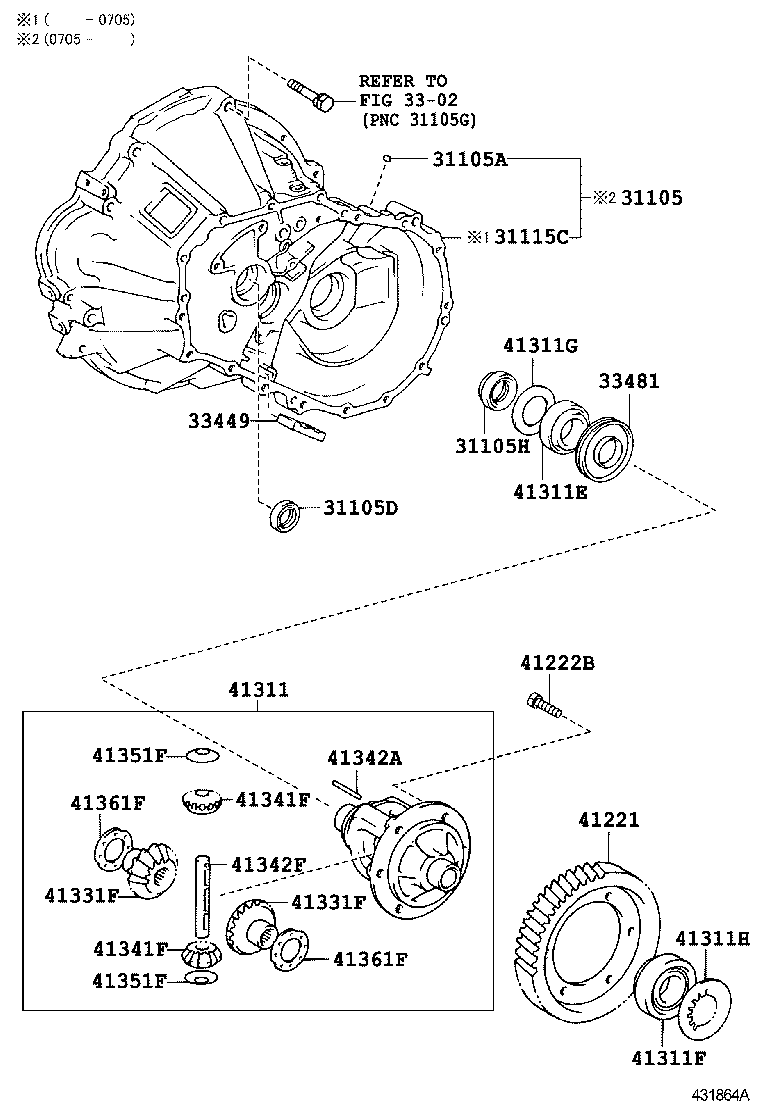

Exploded illustration 431864A 41311 — CASE, FRONT DIFFERENTIAL (8 parts) 31105H — SEAL, OIL, NO.2(FOR TRANSAXLE CASE) (12 parts) 41311G — WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT) (4 parts) 41311E — BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT) (8 parts) 41331F — GEAR, FRONT DIFFERENTIAL SIDE (5 parts) 31105D — SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) (11 parts) 33449 — MAGNET, TRANSMISSION (5 parts) 31105A — PLUG, TIGHT(FOR FRONT TRANSAXLE CASE) (3 parts) 31115C — CASE, FRONT TRANSAXLE(MTM) (1 parts) 31105 — CASE SUB-ASSY, TRANSAXLE(MTM) (4 parts) 41221 — GEAR, FRONT DIFFERENTIAL RING (10 parts) 41222B — BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) (7 parts) 41311F — BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR) (8 parts) 41311H — WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR) (57 parts) 41361F — WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 (36 parts) 41361F — WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 (36 parts) 41351F — WASHER, FRONT DIFFERENTIAL PINION THRUST (3 parts) 41351F — WASHER, FRONT DIFFERENTIAL PINION THRUST (3 parts) 41341F — PINION, FRONT DIFFERENTIAL (5 parts) 41341F — PINION, FRONT DIFFERENTIAL (5 parts) 41331F — GEAR, FRONT DIFFERENTIAL SIDE (5 parts) 41342A — PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) (3 parts) 41342F — SHAFT, FRONT DIFFERENTIAL PINION, NO.1 (7 parts) 33481 — GEAR, SPEEDOMETER DRIVE (MTM) (3 parts) 3302 — not listed in this catalogue
431864A · 24 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
200 parts on this figure
Part number Description Fitment Price
31105 — Case Sub-assy, Transaxle(MTM)
31105-02070 Case Sub-assy, Transaxle(MTM)
2007-05 → 2012-10 ended
ZRE120 5F —
31105-02070 Case Sub-assy, Transaxle(MTM)
2012-10 → 2013-12 ended
ZRE120 5F —
31105-02080 Case Sub-assy, Transaxle(MTM)
2013-12 → 2015-12 ended
ZRE120 5F —
31105-02081 Case Sub-assy, Transaxle(MTM)
2015-12 → —
ZRE120 5F —
31105A — Plug, Tight(FOR FRONT TRANSAXLE CASE)
90331-08002 Plug, Tight(FOR FRONT TRANSAXLE CASE)
2005-02 → 2007-05 ended
ZZE122 5F —
90331-08002 Plug, Tight(FOR FRONT TRANSAXLE CASE)
2007-05 → 2012-10 ended
ZRE120 5F —
90331-08002 Plug, Tight(FOR FRONT TRANSAXLE CASE)
2012-10 → —
ZRE120 5F —
31105D — Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25011 Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
2005-02 → 2005-09 ended
ZZE122 5F —
90311-25028 Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
2005-09 → 2007-05 ended
ZZE122 5F —
90311-35046 Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
2004-02 → 2005-02 ended
ZZE122 —
90311-35054 Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
2005-02 → 2005-08 ended
ZZE122 4FC —
90311-35054 Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
2005-08 → 2007-05 ended
ZZE122 4FC —
90311-25028 Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
2007-05 → 2008-02 ended
ZRE120 5F —
90311-34030 Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
2007-05 → 2012-01 ended
ZRE120 4FC —
90311-34044 Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
2012-01 → 2012-10 ended
ZRE120 4FC —
90311-C0009 Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
2008-02 → 2012-10 ended
ZRE120 5F —
90311-34044 Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
2012-10 → —
ZRE120 4FC —
90311-C0009 Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
2012-10 → —
ZRE120 5F —
31105H — Seal, Oil, NO.2(FOR TRANSAXLE CASE)
90311-35045 Seal, Oil, NO.2(FOR TRANSAXLE CASE)
2004-02 → 2005-02 ended
ZZE122 —
90311-35051 Seal, Oil, NO.2(FOR TRANSAXLE CASE)
2005-02 → 2005-09 ended
ZZE122 5F —
90311-35055 Seal, Oil, NO.2(FOR TRANSAXLE CASE)
2005-02 → 2005-08 ended
ZZE122 4FC —
90311-35055 Seal, Oil, NO.2(FOR TRANSAXLE CASE)
2005-08 → 2007-05 ended
ZZE122 4FC —
90311-35057 Seal, Oil, NO.2(FOR TRANSAXLE CASE)
2005-09 → 2007-05 ended
ZZE122 5F —
90311-34031 Seal, Oil, NO.2(FOR TRANSAXLE CASE)
2007-05 → 2012-10 ended
ZRE120 4FC —
90311-34033 Seal, Oil, NO.2(FOR TRANSAXLE CASE)
2007-05 → 2008-02 ended
ZRE120 5F —
90311-C0005 Seal, Oil, NO.2(FOR TRANSAXLE CASE)
2011-01 → 2012-10 ended
ZRE120 5F —
90311-C0010 Seal, Oil, NO.2(FOR TRANSAXLE CASE)
2008-02 → 2011-01 ended
ZRE120 5F —
90311-34031 Seal, Oil, NO.2(FOR TRANSAXLE CASE)
2012-10 → 2012-12 ended
ZRE120 4FC —
90311-34045 Seal, Oil, NO.2(FOR TRANSAXLE CASE)
2012-12 → —
ZRE120 4FC —
90311-C0005 Seal, Oil, NO.2(FOR TRANSAXLE CASE)
2012-10 → —
ZRE120 5F —
31115C — Case, Front Transaxle(MTM)
31115-12111 Case, Front Transaxle(MTM)
2005-02 → 2007-05 ended
ZZE122 5F —
33449 — Magnet, Transmission
33449-12020 Magnet, Transmission
2005-02 → 2007-05 ended
ZZE122 5F —
33449-0D020 Magnet, Transmission
2008-02 → 2012-10 ended
ZRE120 5F —
33449-12020 Magnet, Transmission
2007-05 → 2008-02 ended
ZRE120 5F —
33449-0D020 Magnet, Transmission
2012-10 → 2013-10 ended
ZRE120 5F —
33449-0D030 Magnet, Transmission
2013-10 → —
ZRE120 5F —
33481 — Gear, Speedometer Drive (MTM)
33481-20160 note Gear, Speedometer Drive (MTM)
2005-02 → 2007-05 ended
ZZE122 5F —
33481-12040 note Gear, Speedometer Drive (MTM)
2007-05 → 2012-10 ended
ZRE120 5F —
33481-12040 note Gear, Speedometer Drive (MTM)
2012-10 → —
ZRE120 5F —
41221 — Gear, Front Differential Ring
41221-20350 Gear, Front Differential Ring
2005-02 → 2007-05 ended
ZZE122 5F —
41221-52060 Gear, Front Differential Ring
2004-02 → 2006-06 ended
ZZE122 4FC —
41221-52090 note Gear, Front Differential Ring
2005-06 → 2007-05 ended
ZZE122 4FC —
41221-02090 Gear, Front Differential Ring
2007-05 → 2010-11 ended
ZRE120 5F —
41221-0D090 Gear, Front Differential Ring
2010-11 → 2012-10 ended
ZRE120 5F —
41221-52060 Gear, Front Differential Ring
2007-05 → 2011-04 ended
ZRE120 4FC —
41221-52061 Gear, Front Differential Ring
2011-04 → 2012-10 ended
ZRE120 4FC —
41221-0D090 Gear, Front Differential Ring
2012-10 → 2013-10 ended
ZRE120 5F —
41221-0D160 Gear, Front Differential Ring
2013-10 → —
ZRE120 5F —
41221-52061 Gear, Front Differential Ring
2012-10 → —
ZRE120 4FC —
41222B — Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
90101-11003 Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
2004-02 → 2007-05 ended
ZZE122 4FC —
90105-11040 Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
2005-02 → 2007-05 ended
ZZE122 5F —
90101-11003 Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
2007-05 → 2012-10 ended
ZRE120 4FC —
90105-11040 Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
2007-05 → 2012-10 ended
ZRE120 5F —
90101-11003 Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
2012-10 → —
ZRE120 4FC —
90105-11040 Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
2012-10 → 2013-10 ended
ZRE120 5F —
90105-C0221 Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
2013-10 → —
ZRE120 5F —
41311 — Case, Front Differential
41301-12210 Case, Front Differential
2004-02 → 2007-05 ended
ZZE122 4FC —
41301-32061 Case, Front Differential
2005-02 → 2007-05 ended
ZZE122 5F —
41301-0D010 Case, Front Differential
2008-02 → 2012-10 ended
ZRE120 5F —
41301-12041 Case, Front Differential
2007-05 → 2008-02 ended
ZRE120 5F —
41301-52070 Case, Front Differential
2007-05 → 2012-10 ended
ZRE120 4FC —
41301-0D010 Case, Front Differential
2012-10 → 2013-10 ended
ZRE120 5F —
41301-0D030 Case, Front Differential
2013-10 → —
ZRE120 5F —
41301-52070 Case, Front Differential
2012-10 → —
ZRE120 4FC —
41311E — Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
90366-40016 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
2004-02 → 2007-05 ended
ZZE122 4FC —
90366-40097 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
2005-02 → 2007-05 ended
ZZE122 5F —
90366-38004 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
2007-05 → 2008-02 ended
ZRE120 5F —
90366-40016 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
2007-05 → 2012-10 ended
ZRE120 4FC —
90366-C0007 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
2008-02 → 2012-10 ended
ZRE120 5F —
90366-40016 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
2012-10 → —
ZRE120 4FC —
90366-C0007 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
2012-10 → 2013-10 ended
ZRE120 5F —
90366-C0013 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
2013-10 → —
ZRE120 5F —
41311F — Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
90366-40094 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
2005-02 → 2007-05 ended
ZZE122 5F —
90366-44001 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
2004-02 → 2007-05 ended
ZZE122 4FC —
90366-44001 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
2007-05 → 2012-10 ended
ZRE120 4FC —
90366-C0010 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
2008-02 → 2012-10 ended
ZRE120 5F —
90368-38010 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
2007-05 → 2008-02 ended
ZRE120 5F —
90366-44001 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
2012-10 → —
ZRE120 4FC —
90366-C0010 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
2012-10 → 2013-10 ended
ZRE120 5F —
90366-C0016 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
2013-10 → —
ZRE120 5F —
41311G — Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
90560-41003 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
2005-02 → 2007-05 ended
ZZE122 5F —
90560-41003 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
2007-05 → 2012-10 ended
ZRE120 5F —
90560-41003 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
2012-10 → 2016-03 ended
ZRE120 5F —
90560-C0008 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
2016-04 → —
ZRE120 5F —
41311H — Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
90564-41014 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2005-02 → 2007-05 ended
ZZE122 5F —
90564-41015 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2005-02 → 2007-05 ended
ZZE122 5F —
90564-41016 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2005-02 → 2007-05 ended
ZZE122 5F —
90564-41017 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2005-02 → 2007-05 ended
ZZE122 5F —
90564-41018 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2005-02 → 2007-05 ended
ZZE122 5F —
90564-41019 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2005-02 → 2007-05 ended
ZZE122 5F —
90564-41020 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2005-02 → 2007-05 ended
ZZE122 5F —
90564-41021 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2005-02 → 2007-05 ended
ZZE122 5F —
90564-41022 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2005-02 → 2007-05 ended
ZZE122 5F —
90564-41023 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2005-02 → 2007-05 ended
ZZE122 5F —
90564-41024 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2005-02 → 2007-05 ended
ZZE122 5F —
90564-41025 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2005-02 → 2007-05 ended
ZZE122 5F —
90564-41026 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2005-02 → 2007-05 ended
ZZE122 5F —
90564-41027 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2005-02 → 2007-05 ended
ZZE122 5F —
90564-41028 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2005-02 → 2007-05 ended
ZZE122 5F —
90564-41029 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2005-02 → 2007-05 ended
ZZE122 5F —
90564-41030 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2005-02 → 2007-05 ended
ZZE122 5F —
90564-41031 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2005-02 → 2007-05 ended
ZZE122 5F —
90564-41032 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2005-02 → 2007-05 ended
ZZE122 5F —
90564-41014 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2007-05 → 2012-10 ended
ZRE120 5F —
90564-41015 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2007-05 → 2012-10 ended
ZRE120 5F —
90564-41016 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2007-05 → 2012-10 ended
ZRE120 5F —
90564-41017 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2007-05 → 2012-10 ended
ZRE120 5F —
90564-41018 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2007-05 → 2012-10 ended
ZRE120 5F —
90564-41019 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2007-05 → 2012-10 ended
ZRE120 5F —
90564-41020 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2007-05 → 2012-10 ended
ZRE120 5F —
90564-41021 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2007-05 → 2012-10 ended
ZRE120 5F —
90564-41022 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2007-05 → 2012-10 ended
ZRE120 5F —
90564-41023 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2007-05 → 2012-10 ended
ZRE120 5F —
90564-41024 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2007-05 → 2012-10 ended
ZRE120 5F —
90564-41025 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2007-05 → 2012-10 ended
ZRE120 5F —
90564-41026 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2007-05 → 2012-10 ended
ZRE120 5F —
90564-41027 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2007-05 → 2012-10 ended
ZRE120 5F —
90564-41028 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2007-05 → 2012-10 ended
ZRE120 5F —
90564-41029 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2007-05 → 2012-10 ended
ZRE120 5F —
90564-41030 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2007-05 → 2012-10 ended
ZRE120 5F —
90564-41031 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2007-05 → 2012-10 ended
ZRE120 5F —
90564-41032 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2007-05 → 2012-10 ended
ZRE120 5F —
90564-41014 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2012-10 → —
ZRE120 5F —
90564-41015 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2012-10 → —
ZRE120 5F —
90564-41016 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2012-10 → —
ZRE120 5F —
90564-41017 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2012-10 → —
ZRE120 5F —
90564-41018 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2012-10 → —
ZRE120 5F —
90564-41019 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2012-10 → —
ZRE120 5F —
90564-41020 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2012-10 → —
ZRE120 5F —
90564-41021 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2012-10 → —
ZRE120 5F —
90564-41022 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2012-10 → —
ZRE120 5F —
90564-41023 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2012-10 → —
ZRE120 5F —
90564-41024 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2012-10 → —
ZRE120 5F —
90564-41025 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2012-10 → —
ZRE120 5F —
90564-41026 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2012-10 → —
ZRE120 5F —
90564-41027 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2012-10 → —
ZRE120 5F —
90564-41028 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2012-10 → —
ZRE120 5F —
90564-41029 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2012-10 → —
ZRE120 5F —
90564-41030 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2012-10 → —
ZRE120 5F —
90564-41031 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2012-10 → —
ZRE120 5F —
90564-41032 note Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
2012-10 → —
ZRE120 5F —
41331F — Gear, Front Differential Side
41331-32010 Gear, Front Differential Side
2004-02 → 2004-08 ended
ZZE122 —
41331-32010 Gear, Front Differential Side
2005-02 → 2007-05 ended
ZZE122 5F —
41331-12011 Gear, Front Differential Side
2007-05 → 2012-10 ended
ZRE120 5F —
41331-0D040 Gear, Front Differential Side
2013-10 → —
ZRE120 5F —
41331-12011 Gear, Front Differential Side
2012-10 → 2013-10 ended
ZRE120 5F —
41341F — Pinion, Front Differential
41341-30011 Pinion, Front Differential
2004-02 → 2004-08 ended
ZZE122 —
41341-30011 Pinion, Front Differential
2005-02 → 2007-05 ended
ZZE122 5F —
41341-12030 Pinion, Front Differential
2007-05 → 2012-10 ended
ZRE120 5F —
41341-0D040 Pinion, Front Differential
2013-10 → —
ZRE120 5F —
41341-12030 Pinion, Front Differential
2012-10 → 2013-10 ended
ZRE120 5F —
41342A — Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058 Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT)
2004-02 → 2007-05 ended
ZZE122 —
90250-06058 Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT)
2007-05 → 2012-10 ended
ZRE120 —
90250-06058 Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT)
2012-10 → —
ZRE120 —
41342F — Shaft, Front Differential Pinion, NO.1
41342-32020 Shaft, Front Differential Pinion, NO.1
2004-02 → 2007-05 ended
ZZE122 —
41342-12140 Shaft, Front Differential Pinion, NO.1
2007-05 → 2012-10 ended
ZRE120 5F —
41342-20060 Shaft, Front Differential Pinion, NO.1
2007-05 → 2011-02 ended
ZRE120 4FC —
41342-20090 Shaft, Front Differential Pinion, NO.1
2011-02 → 2012-10 ended
ZRE120 4FC —
41342-0D020 Shaft, Front Differential Pinion, NO.1
2013-10 → —
ZRE120 5F —
41342-12140 Shaft, Front Differential Pinion, NO.1
2012-10 → 2013-10 ended
ZRE120 5F —
41342-20090 Shaft, Front Differential Pinion, NO.1
2012-10 → —
ZRE120 4FC —
41351F — Washer, Front Differential Pinion Thrust
41351-32010 Washer, Front Differential Pinion Thrust
2004-02 → 2007-05 ended
ZZE122 —
41351-12020 Washer, Front Differential Pinion Thrust
2007-05 → 2012-10 ended
ZRE120 —
41351-12020 Washer, Front Differential Pinion Thrust
2012-10 → —
ZRE120 —
41361F — Washer, Front Differential Side Gear Thrust, NO.1
41361-17010 note Washer, Front Differential Side Gear Thrust, NO.1
2004-02 → 2007-05 ended
ZZE122 4FC —
41361-17020 note Washer, Front Differential Side Gear Thrust, NO.1
2004-02 → 2007-05 ended
ZZE122 4FC —
41361-17030 note Washer, Front Differential Side Gear Thrust, NO.1
2004-02 → 2007-05 ended
ZZE122 4FC —
41361-17040 note Washer, Front Differential Side Gear Thrust, NO.1
2004-02 → 2007-05 ended
ZZE122 4FC —
41361-17050 note Washer, Front Differential Side Gear Thrust, NO.1
2004-02 → 2007-05 ended
ZZE122 4FC —
41361-17060 note Washer, Front Differential Side Gear Thrust, NO.1
2004-02 → 2007-05 ended
ZZE122 4FC —
41361-22020 note Washer, Front Differential Side Gear Thrust, NO.1
2005-02 → 2007-05 ended
ZZE122 5F —
41361-22030 note Washer, Front Differential Side Gear Thrust, NO.1
2005-02 → 2007-05 ended
ZZE122 5F —
41361-22040 note Washer, Front Differential Side Gear Thrust, NO.1
2005-02 → 2007-05 ended
ZZE122 5F —
41361-22140 note Washer, Front Differential Side Gear Thrust, NO.1
2005-02 → 2007-05 ended
ZZE122 5F —
41361-22150 note Washer, Front Differential Side Gear Thrust, NO.1
2005-02 → 2007-05 ended
ZZE122 5F —
41361-22160 note Washer, Front Differential Side Gear Thrust, NO.1
2005-02 → 2007-05 ended
ZZE122 5F —
41361-17010 note Washer, Front Differential Side Gear Thrust, NO.1
2007-05 → 2012-10 ended
ZRE120 4FC —
41361-17020 note Washer, Front Differential Side Gear Thrust, NO.1
2007-05 → 2012-10 ended
ZRE120 4FC —
41361-17030 note Washer, Front Differential Side Gear Thrust, NO.1
2007-05 → 2012-10 ended
ZRE120 4FC —
41361-17040 note Washer, Front Differential Side Gear Thrust, NO.1
2007-05 → 2012-10 ended
ZRE120 4FC —
41361-17050 note Washer, Front Differential Side Gear Thrust, NO.1
2007-05 → 2012-10 ended
ZRE120 4FC —
41361-17060 note Washer, Front Differential Side Gear Thrust, NO.1
2007-05 → 2012-10 ended
ZRE120 4FC —
41361-22020 note Washer, Front Differential Side Gear Thrust, NO.1
2007-05 → 2012-10 ended
ZRE120 5F —
41361-22030 note Washer, Front Differential Side Gear Thrust, NO.1
2007-05 → 2012-10 ended
ZRE120 5F —
41361-22040 note Washer, Front Differential Side Gear Thrust, NO.1
2007-05 → 2012-10 ended
ZRE120 5F —
41361-22140 note Washer, Front Differential Side Gear Thrust, NO.1
2007-05 → 2012-10 ended
ZRE120 5F —
41361-22150 note Washer, Front Differential Side Gear Thrust, NO.1
2007-05 → 2012-10 ended
ZRE120 5F —
41361-22160 note Washer, Front Differential Side Gear Thrust, NO.1
2007-05 → 2012-10 ended
ZRE120 5F —
41361-17010 note Washer, Front Differential Side Gear Thrust, NO.1
2012-10 → —
ZRE120 4FC —
41361-17020 note Washer, Front Differential Side Gear Thrust, NO.1
2012-10 → —
ZRE120 4FC —
41361-17030 note Washer, Front Differential Side Gear Thrust, NO.1
2012-10 → —
ZRE120 4FC —
41361-17040 note Washer, Front Differential Side Gear Thrust, NO.1
2012-10 → —
ZRE120 4FC —
41361-17050 note Washer, Front Differential Side Gear Thrust, NO.1
2012-10 → —
ZRE120 4FC —
41361-17060 note Washer, Front Differential Side Gear Thrust, NO.1
2012-10 → —
ZRE120 4FC —
41361-22020 note Washer, Front Differential Side Gear Thrust, NO.1
2012-10 → —
ZRE120 5F —
41361-22030 note Washer, Front Differential Side Gear Thrust, NO.1
2012-10 → —
ZRE120 5F —
41361-22040 note Washer, Front Differential Side Gear Thrust, NO.1
2012-10 → —
ZRE120 5F —
41361-22140 note Washer, Front Differential Side Gear Thrust, NO.1
2012-10 → —
ZRE120 5F —
41361-22150 note Washer, Front Differential Side Gear Thrust, NO.1
2012-10 → —
ZRE120 5F —
41361-22160 note Washer, Front Differential Side Gear Thrust, NO.1
2012-10 → —
ZRE120 5F —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
