Toyota Corolla Sed/WG

2007-04 → 2014-03 · chassis CE140,NZE141,ZRE14#,ZZE14# · catalogue 151360 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

15 part groups · 5 illustrations

Illustrations

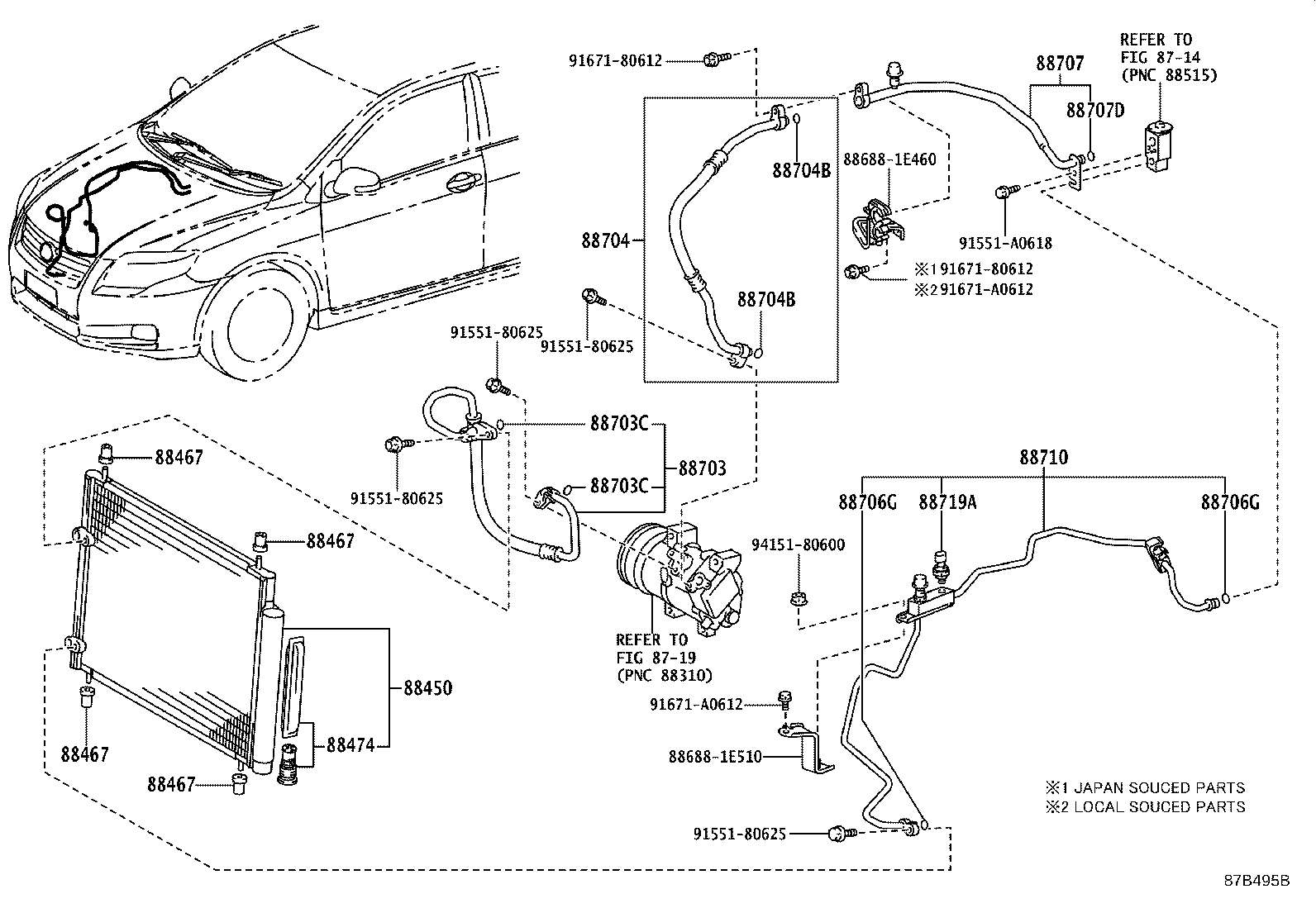

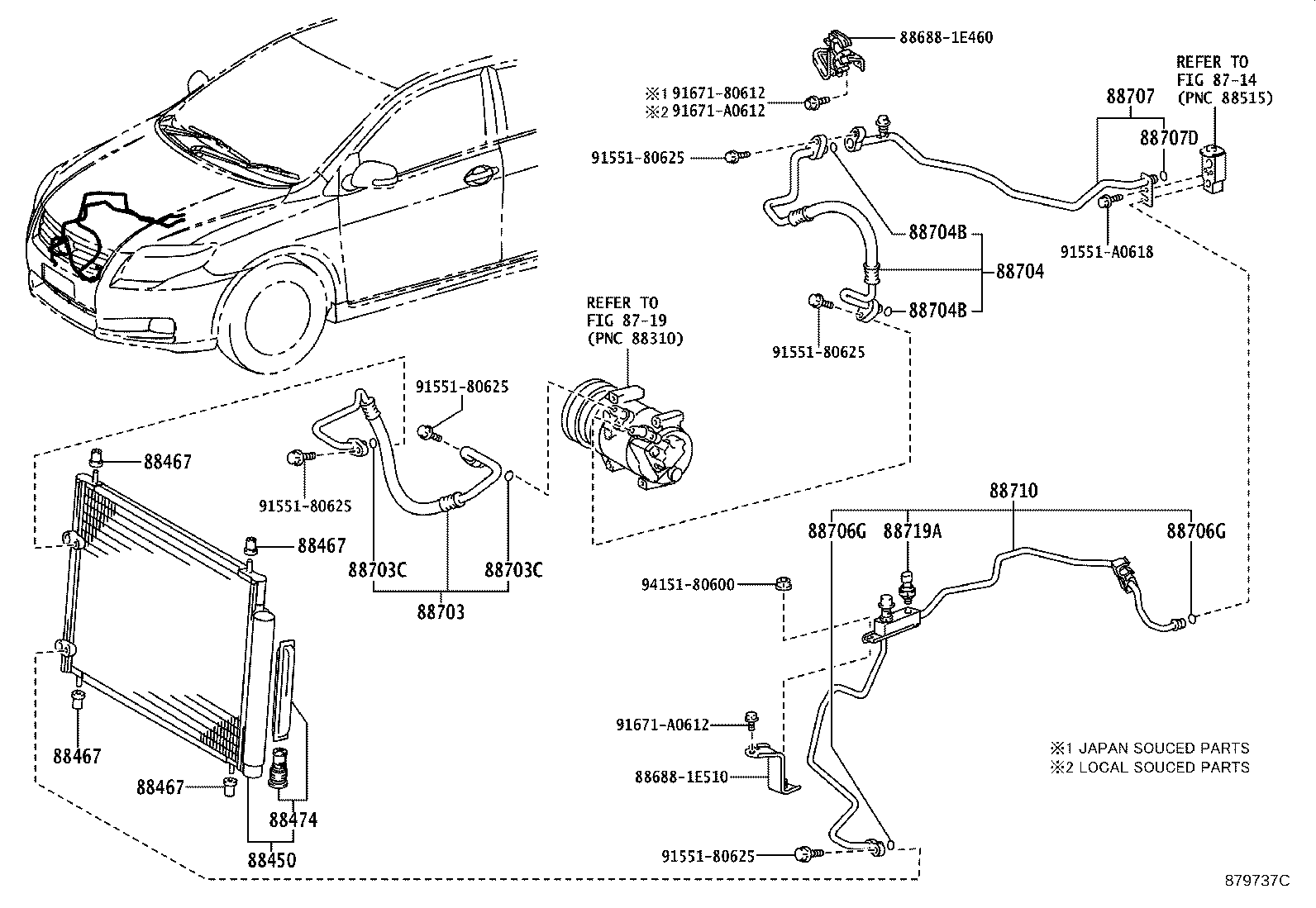

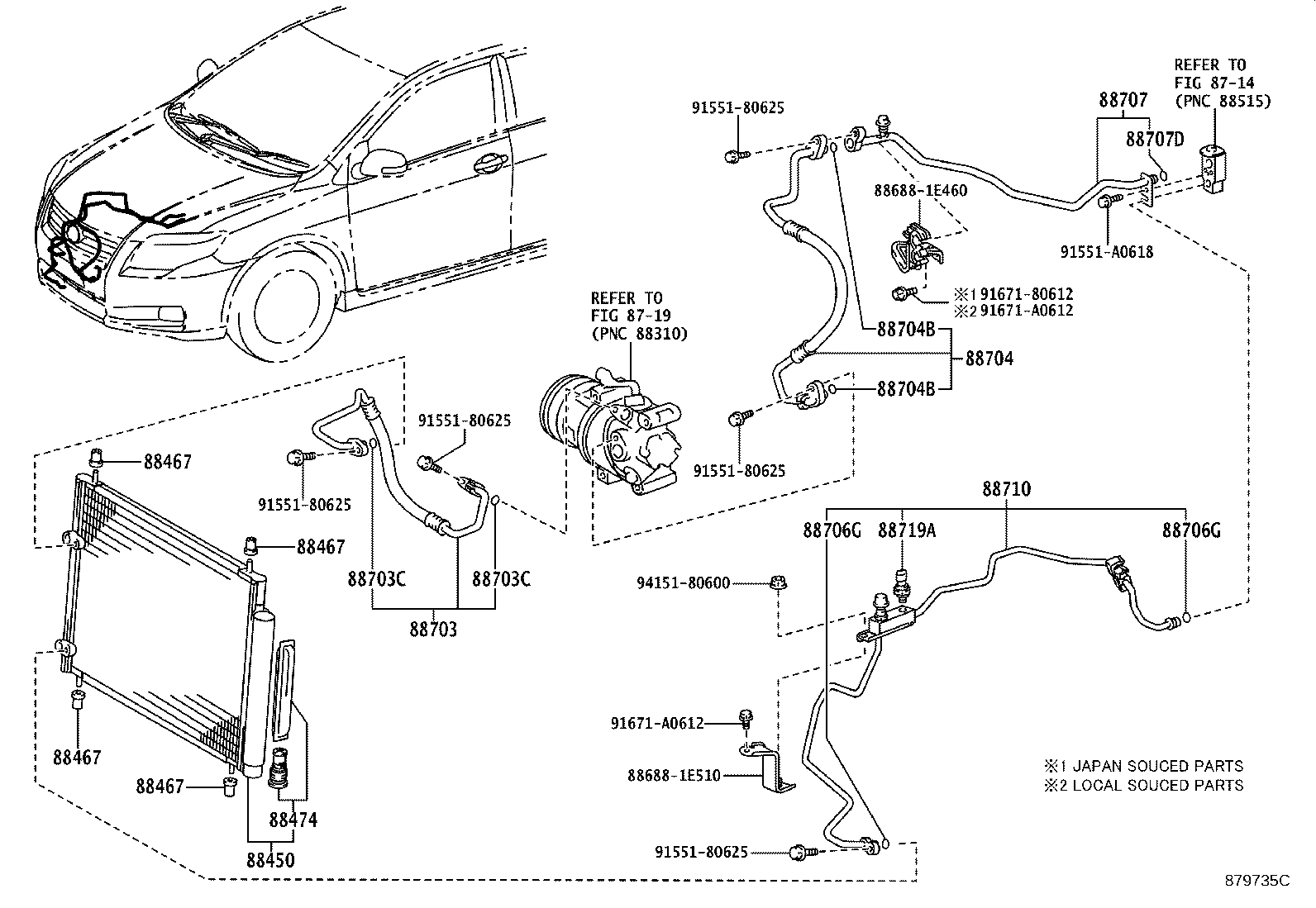

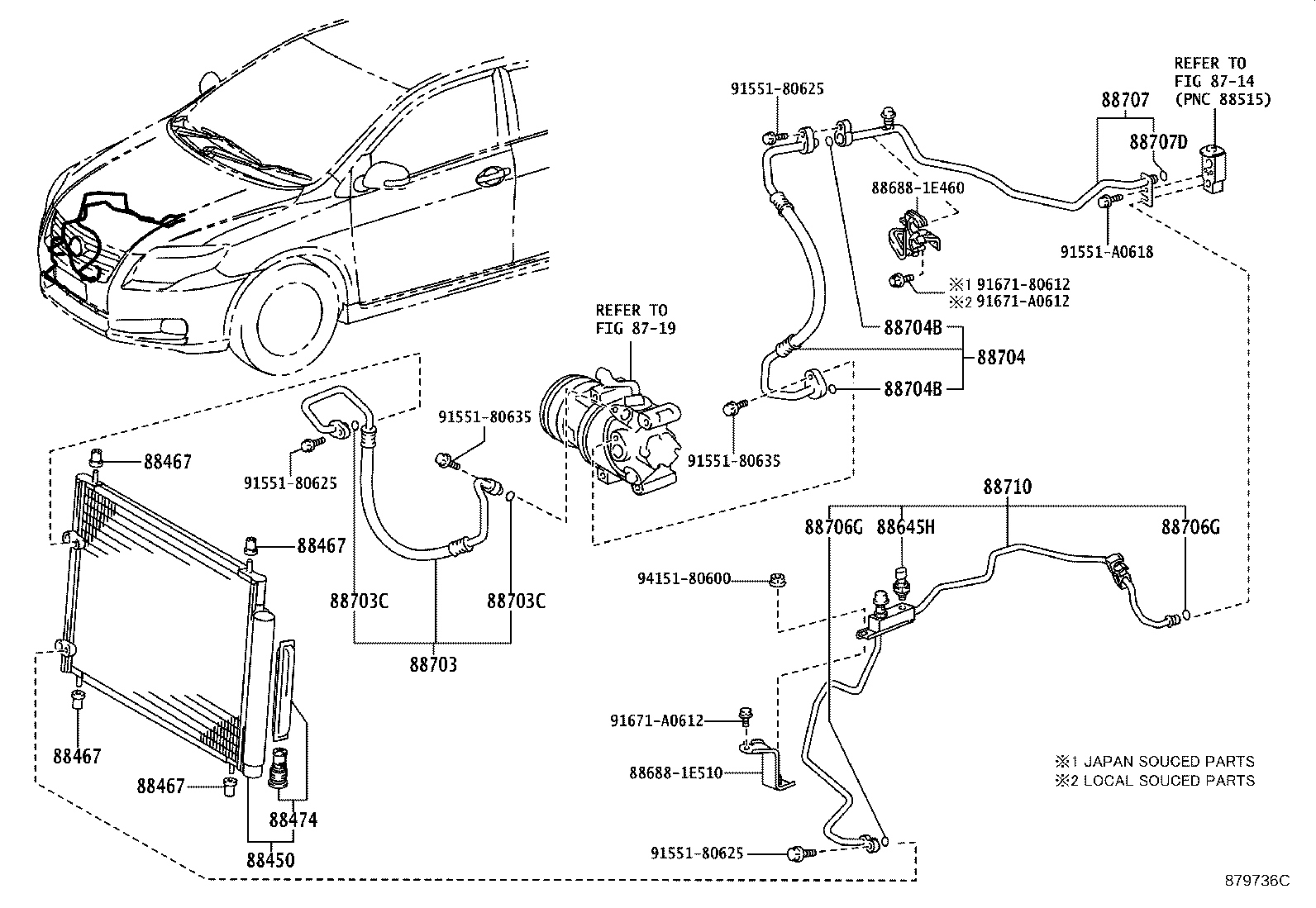

Figure 87F584A 87F584A 2007-04 → — Figure 879736C 879736C 2007-08 → — Figure 879735C 879735C 2007-08 → — Figure 879737C 879737C 2007-08 → — Figure 87B495B 87B495B 2010-07 → —

Part groups

PNCDescription
88374C Valve, Service, NO.2
88375D Cap, Service Valve, NO.2
88450 Condenser Assy, W/Receiver
88467 Cushion, Cooler Condenser, NO.1
88474 Dryer, Cooler
88645H Switch, Pressure NO.1
88703 Hose Sub-assy, Discharge
88703C Ring, O(FOR DISCHARGE HOSE)
88704 Hose Sub-assy, Suction
88704B Ring, O(FOR SUCTION HOSE)
88706G Ring, O(FOR LIQUID TUBE)
88707 Pipe Sub-assy, Suction
88707D Ring, O(FOR SUCTION TUBE)
88710 Tube Assy, Air Conditioner
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
