Toyota Corolla/Altis
2007-12 → 2014-07 · chassis CE140,NDE140,NZE140,ZRE14#,ZZE14# · catalogue 156360 · General
Supported model
Data version 2015-01

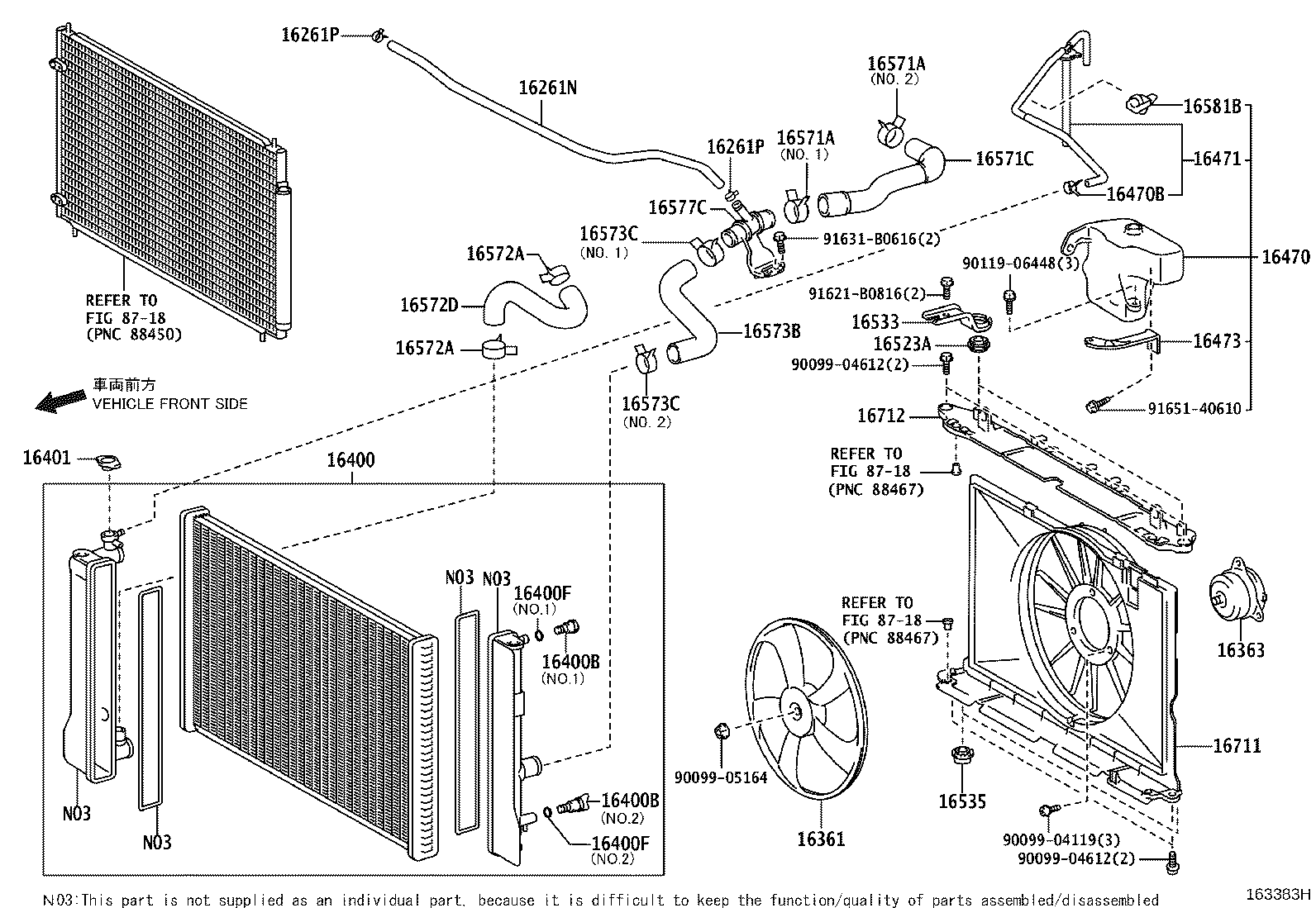

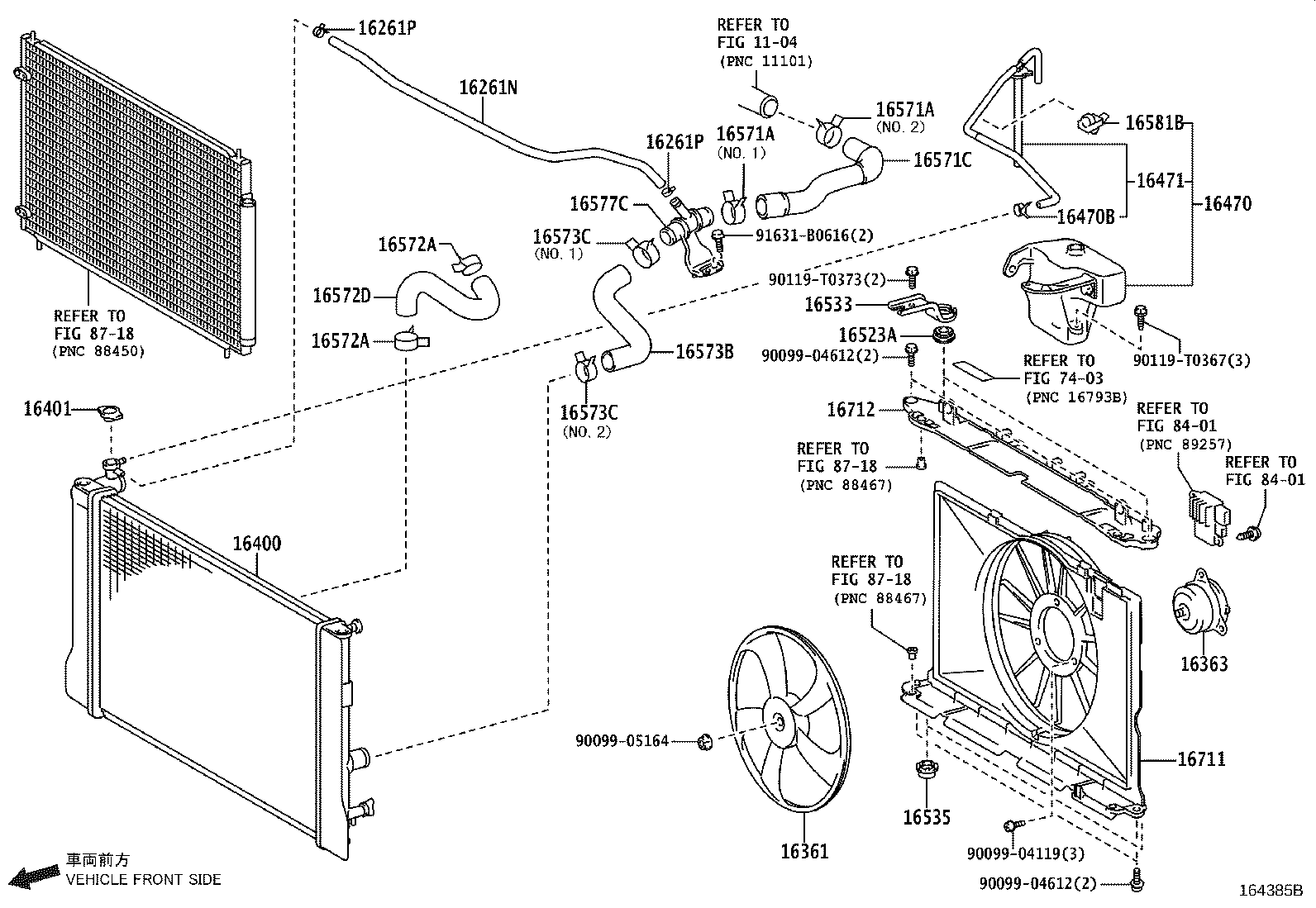

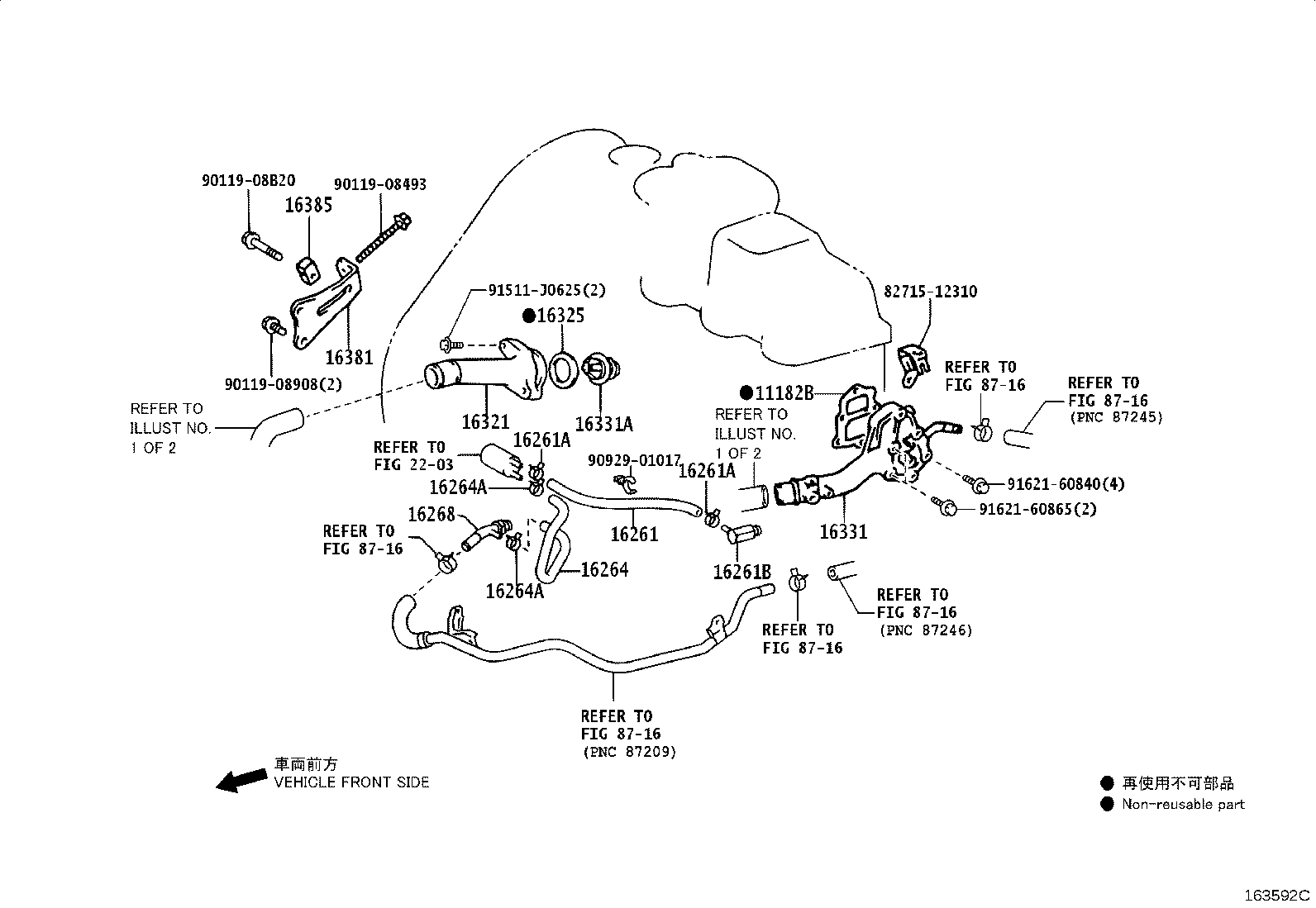

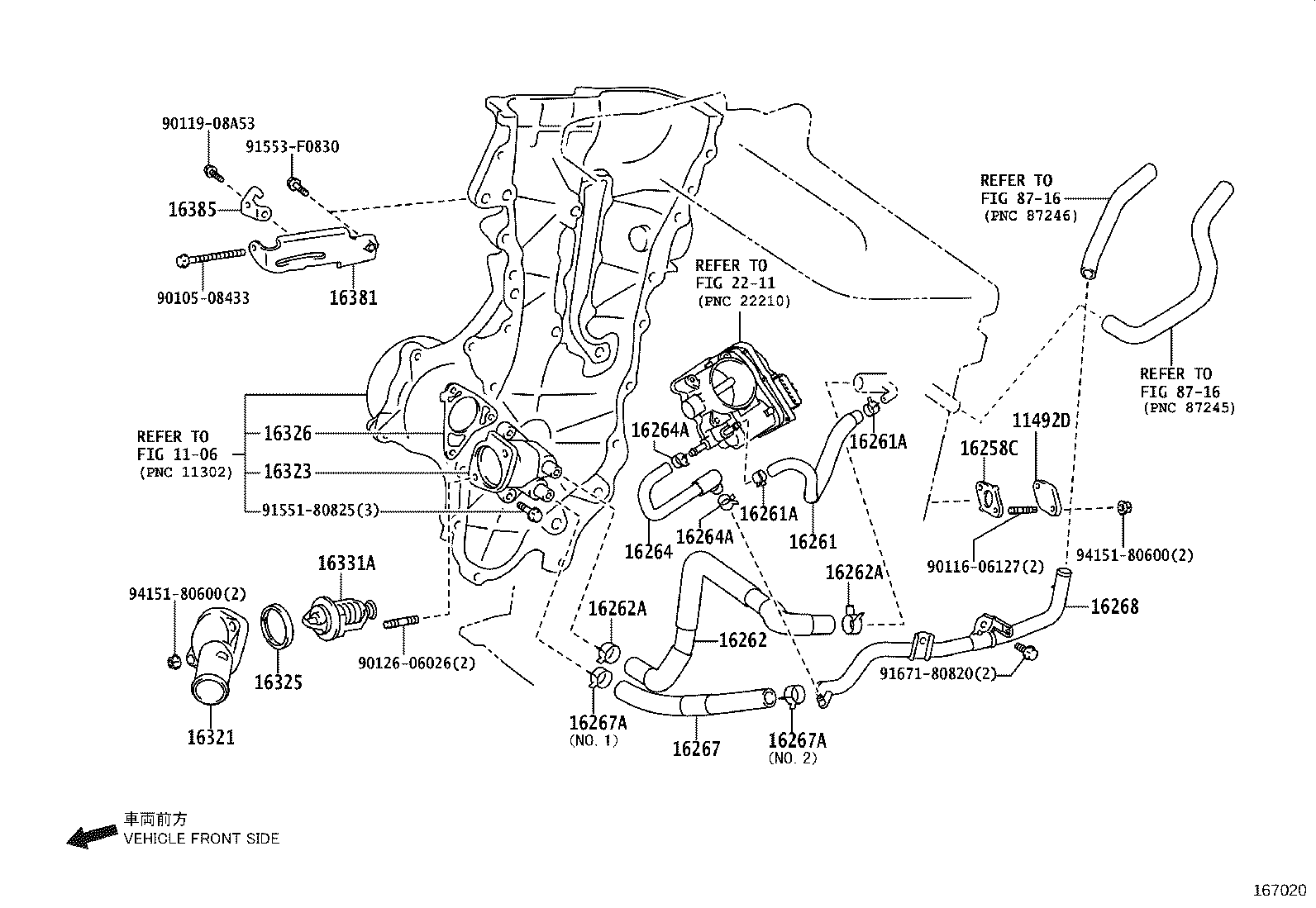

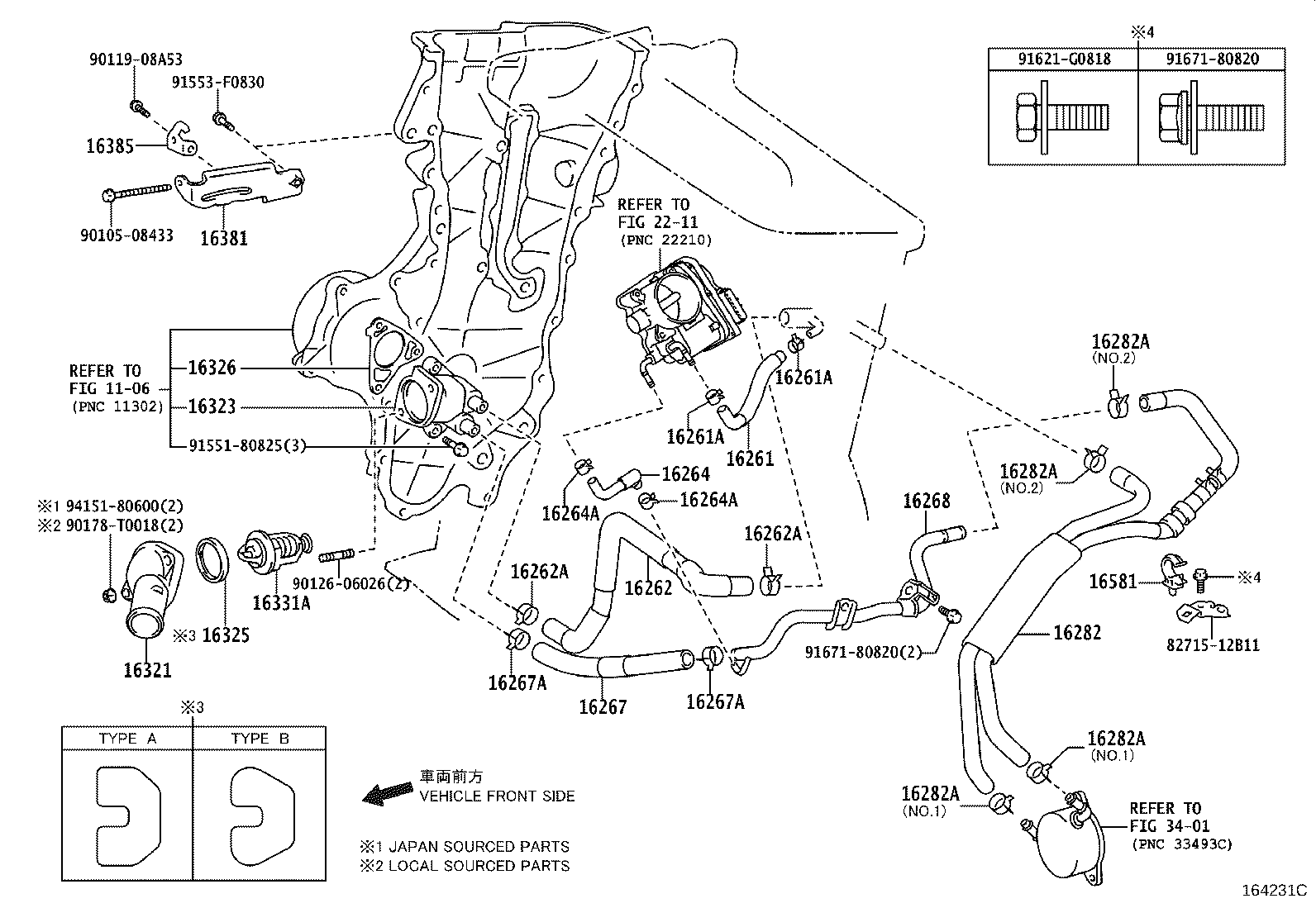

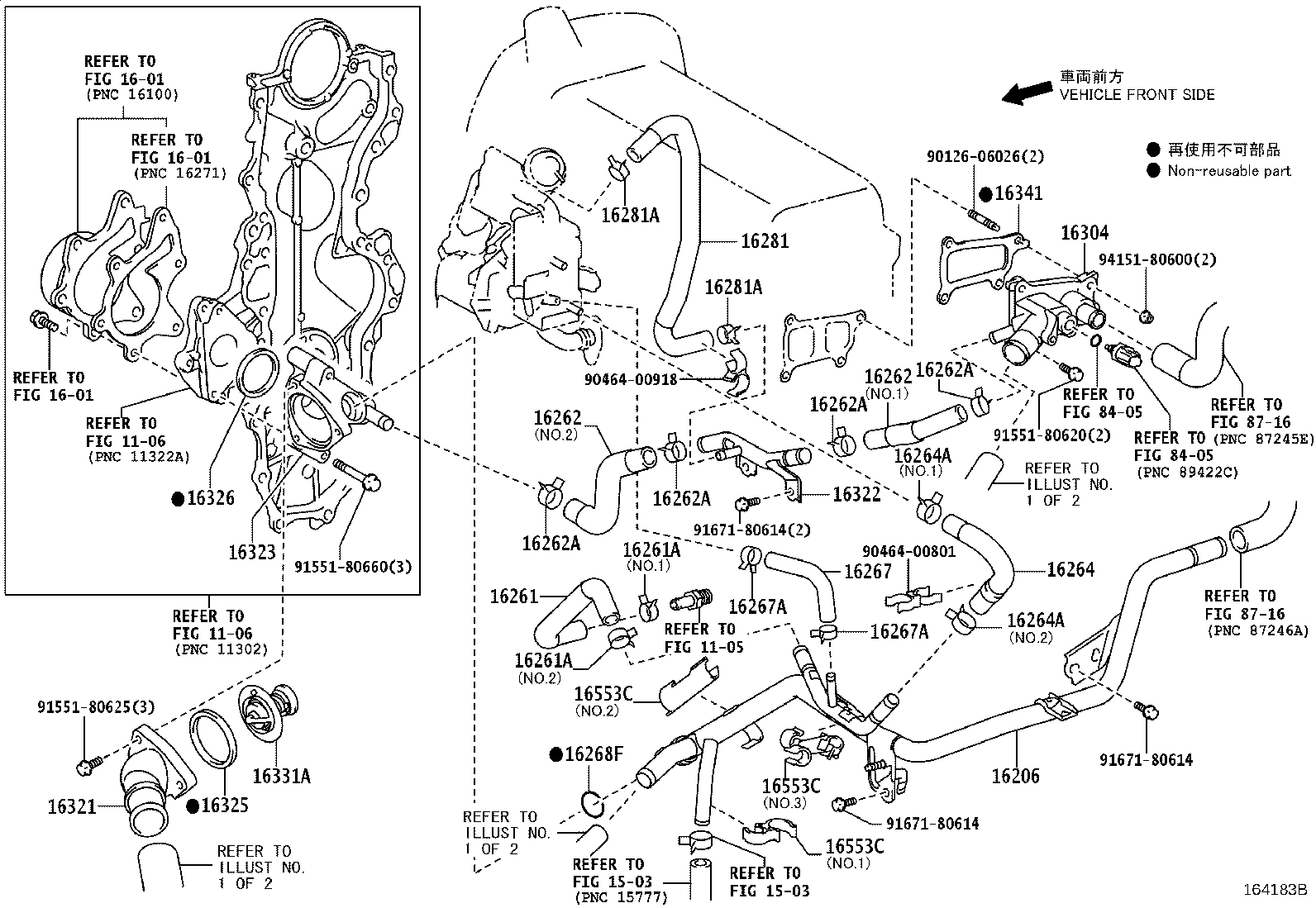

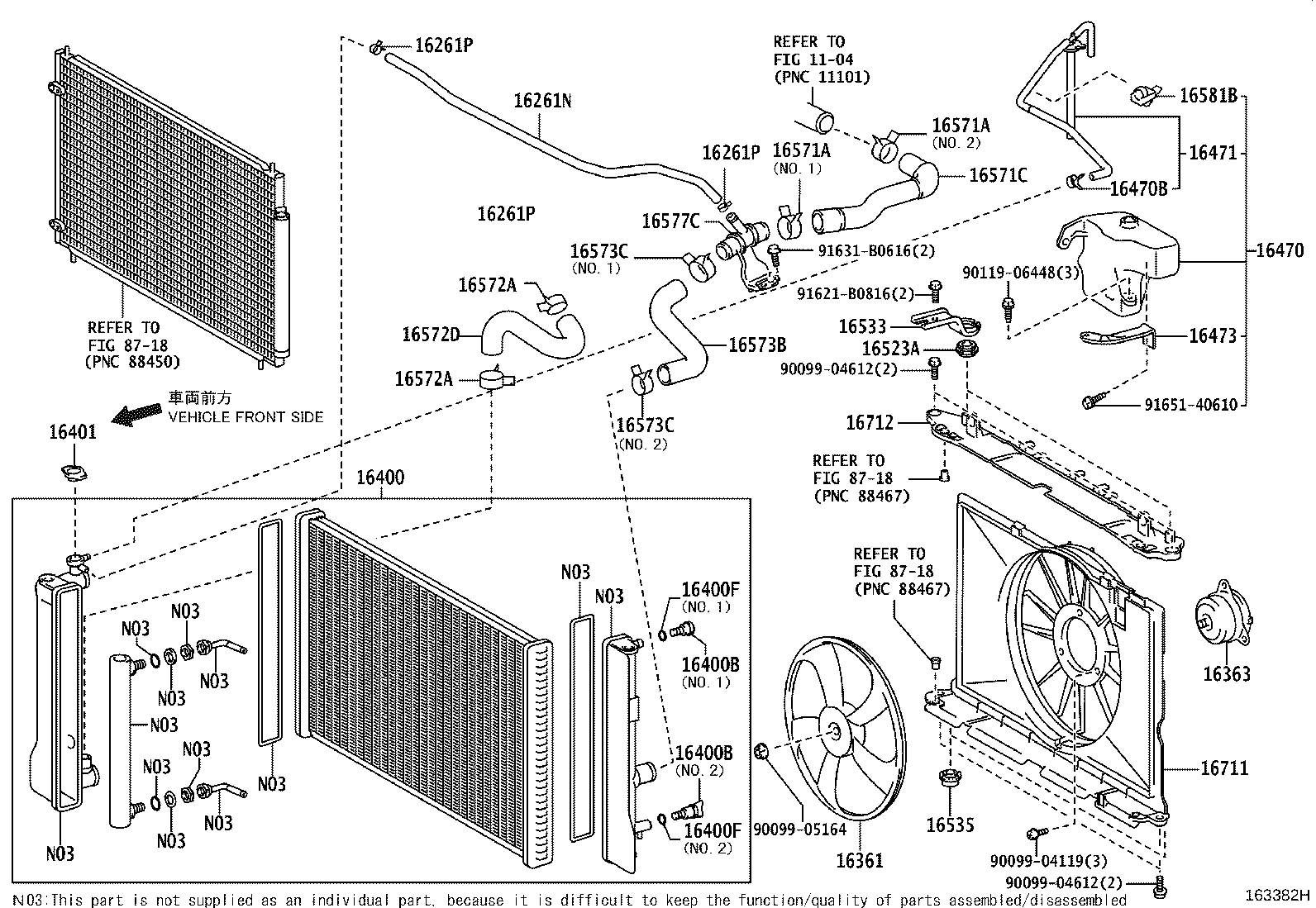

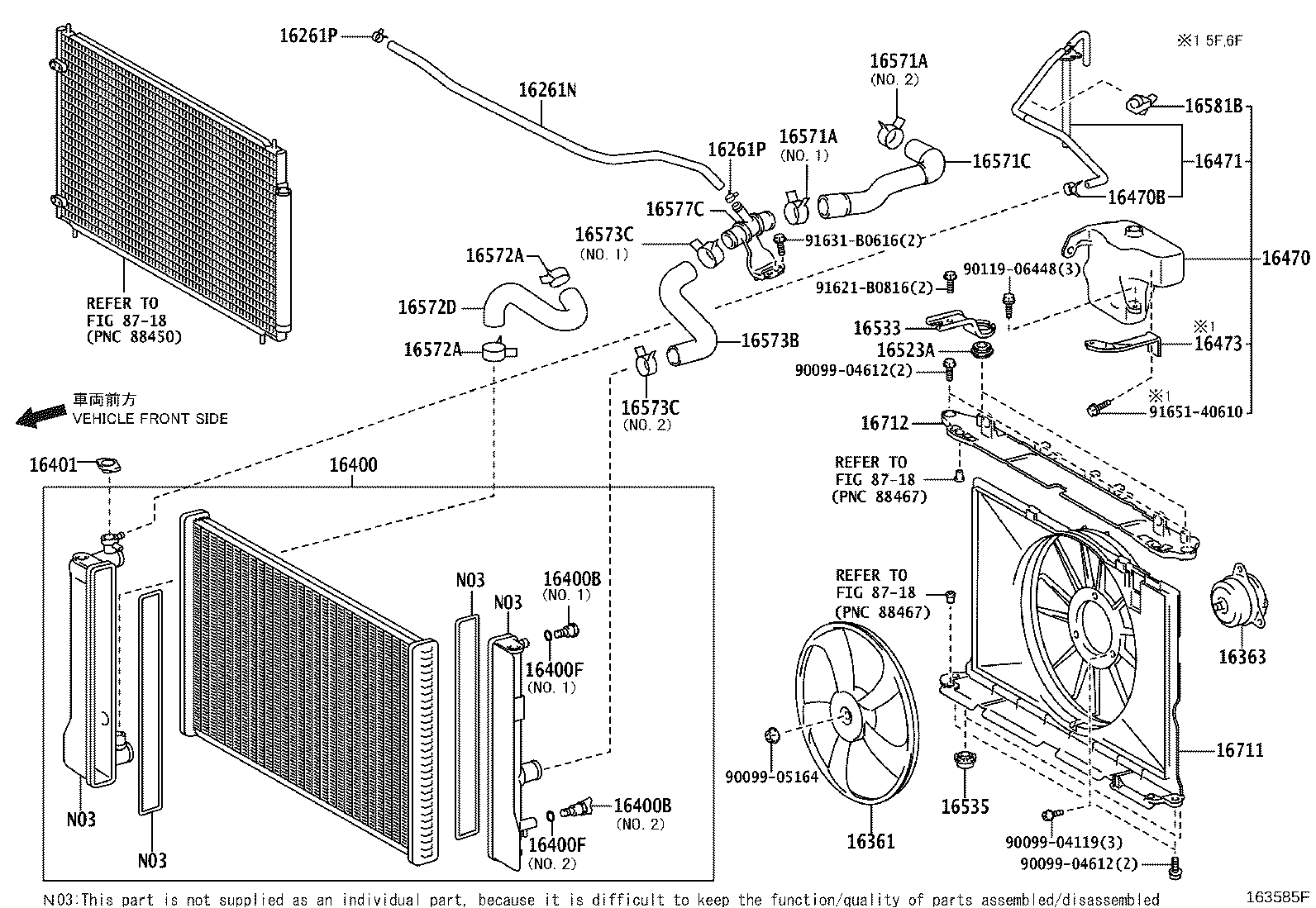

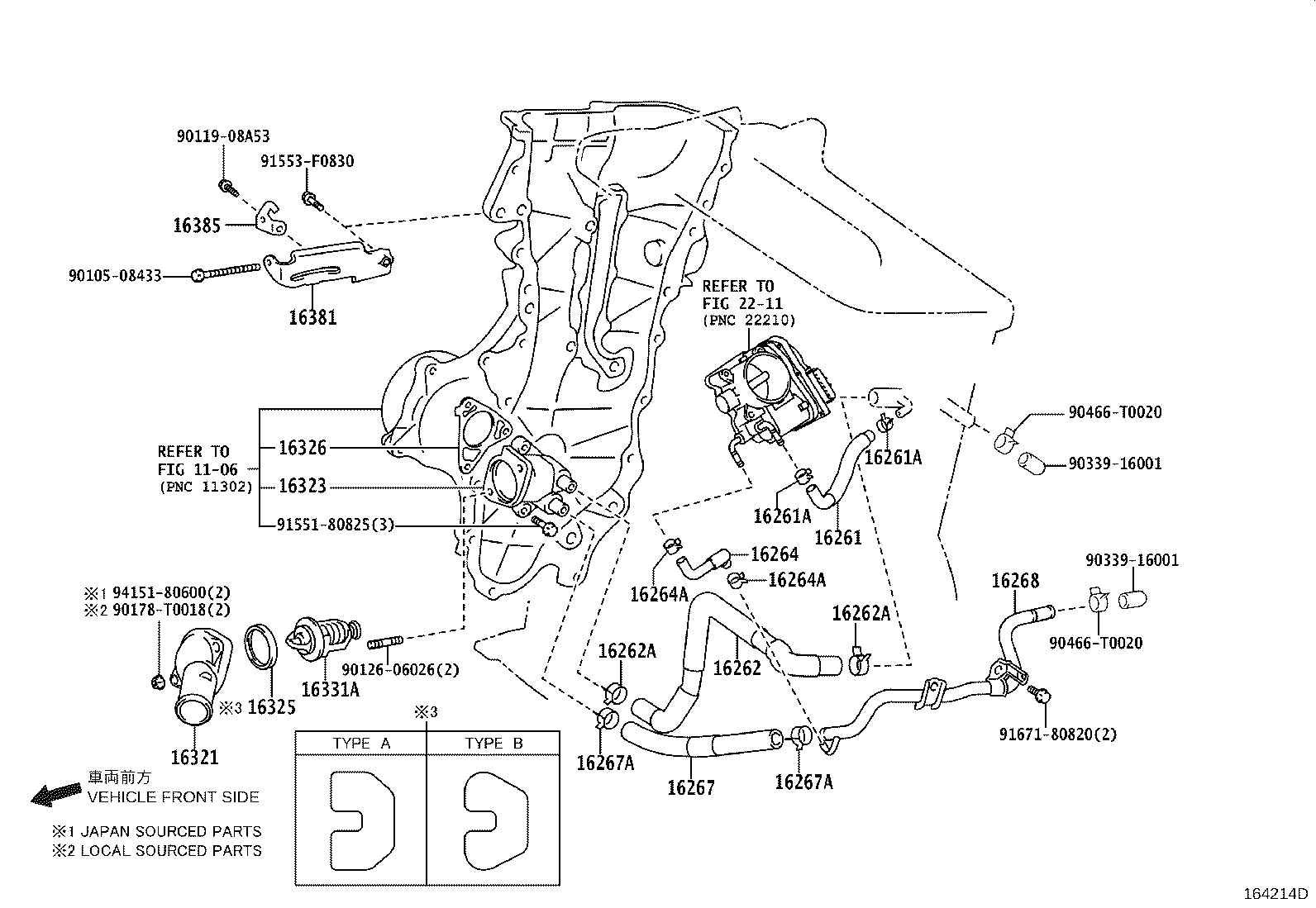

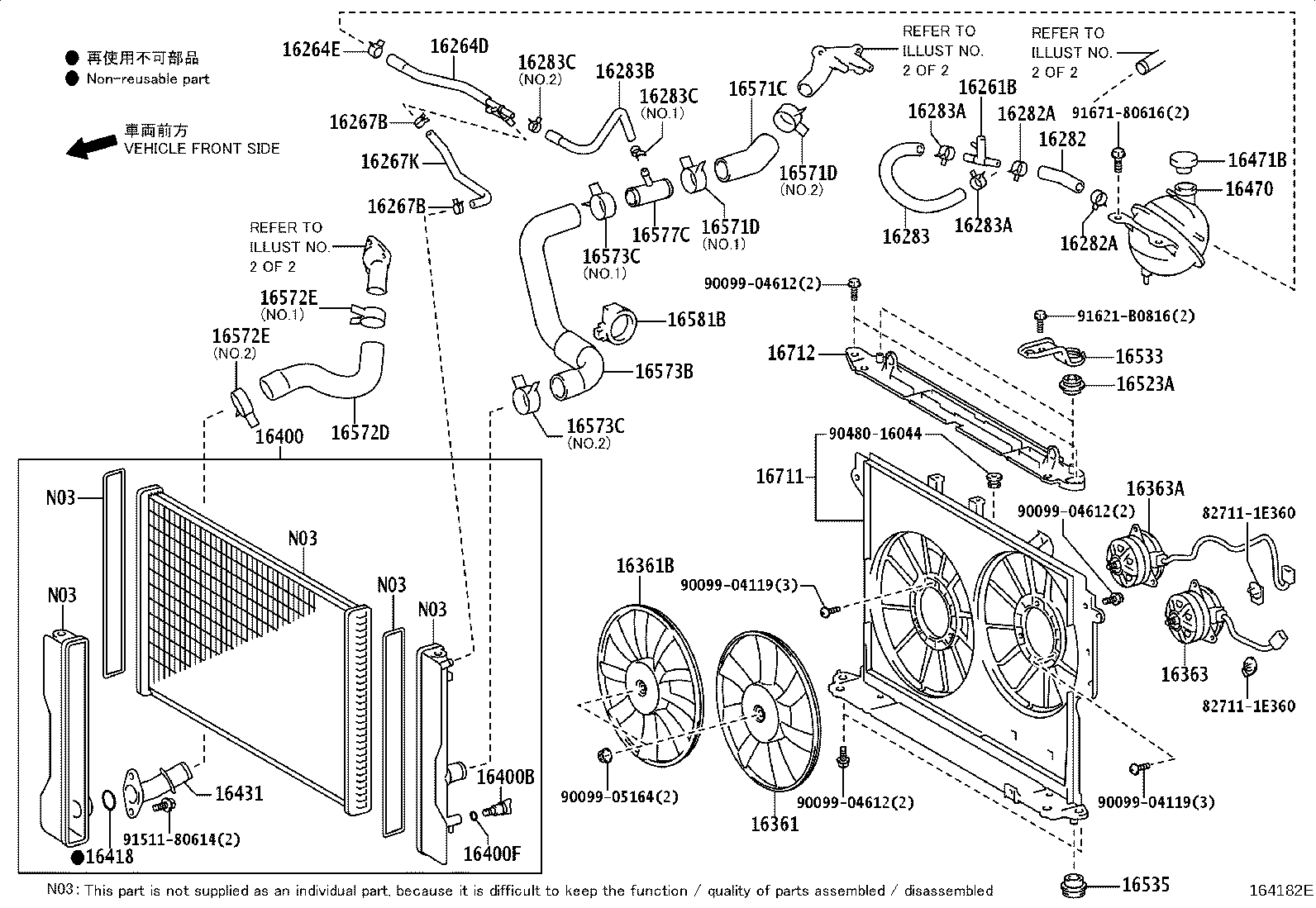

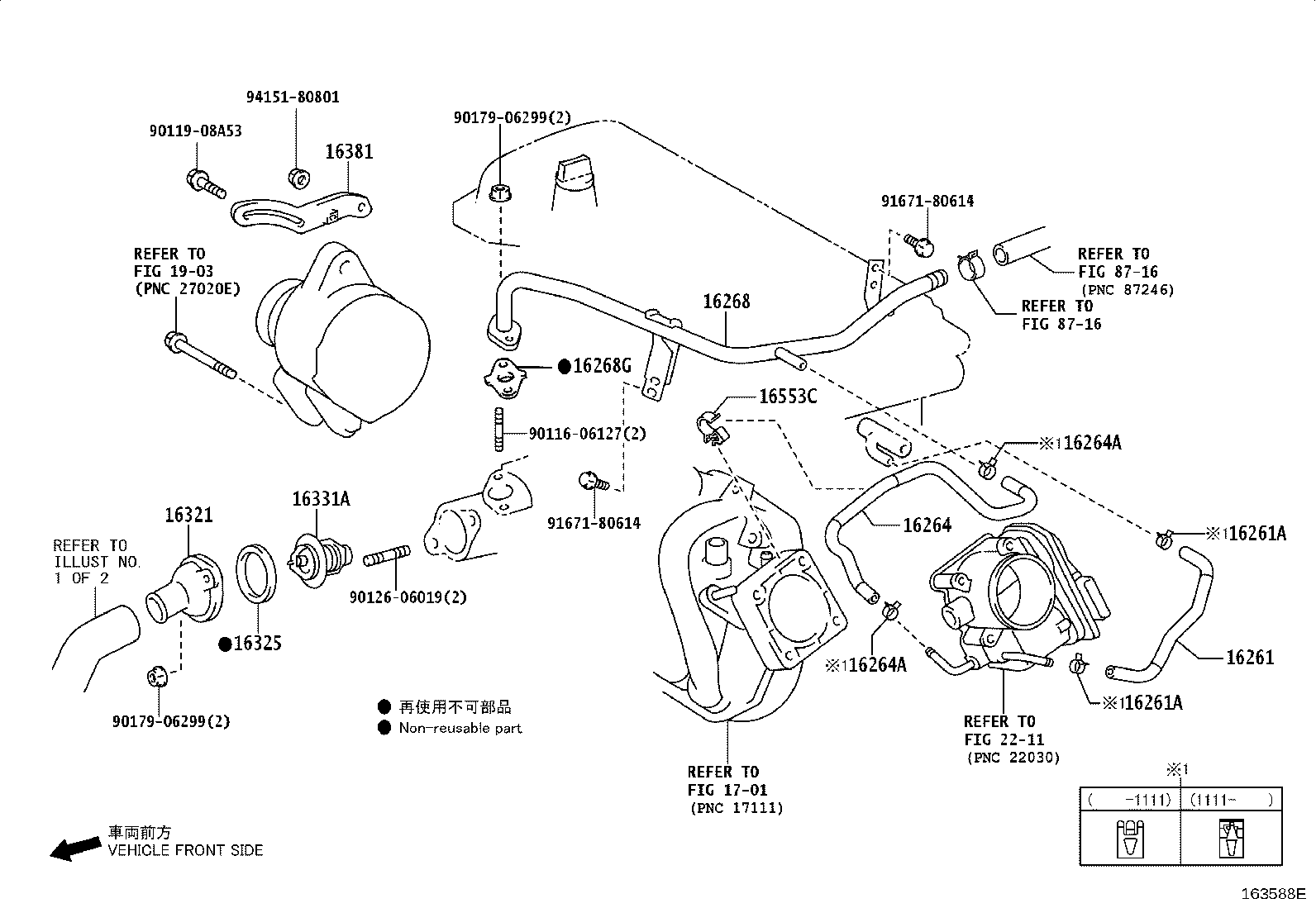

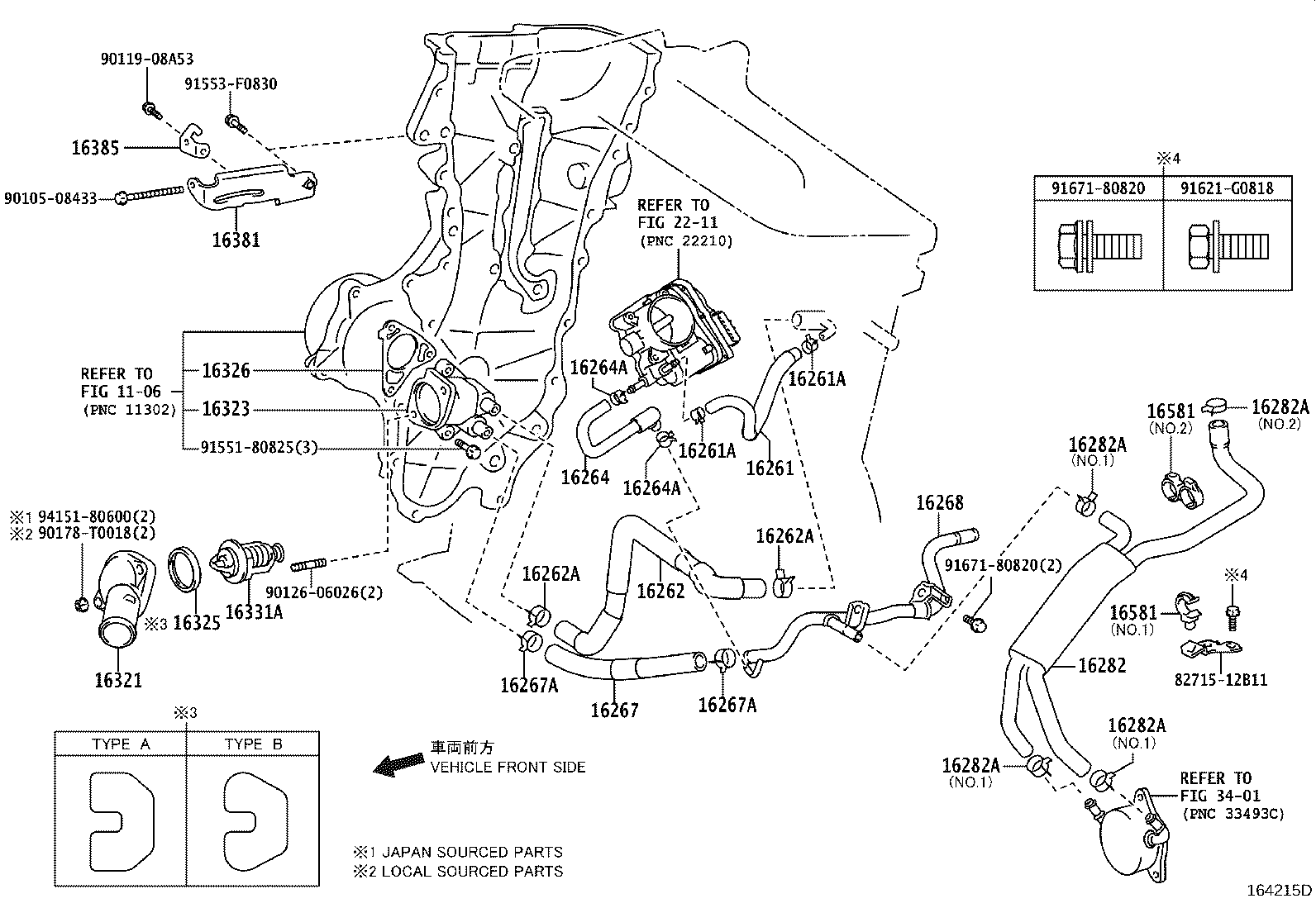

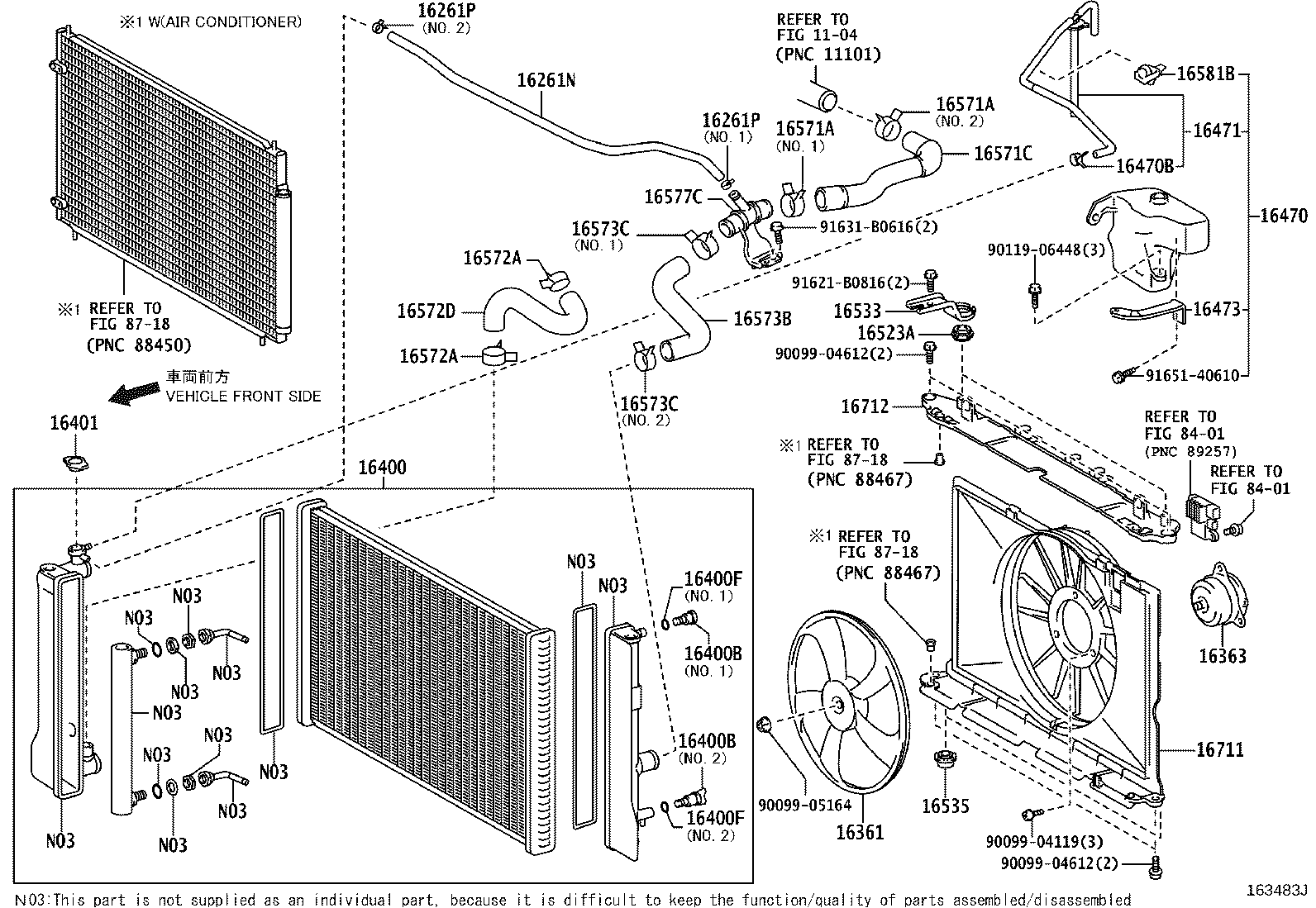

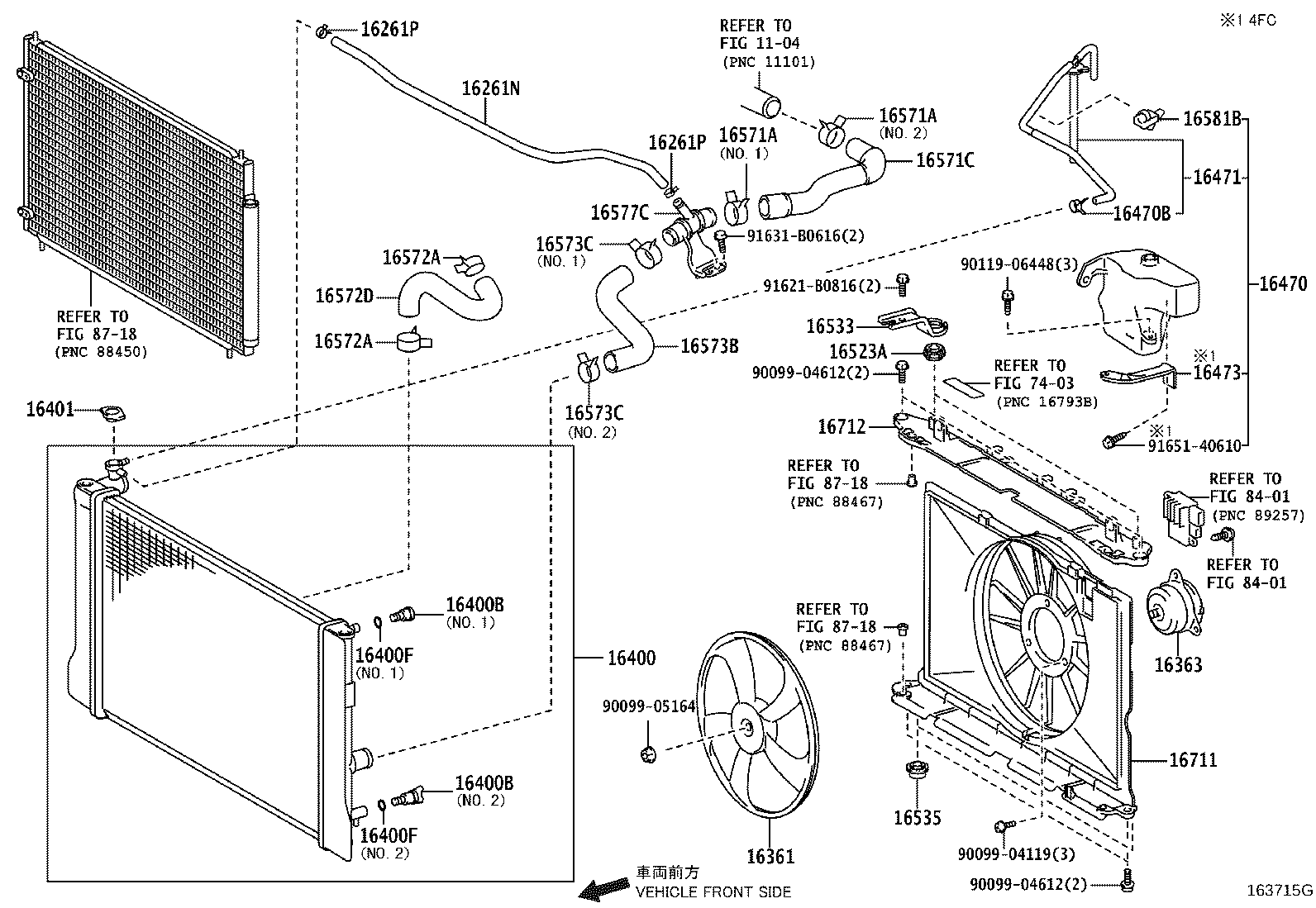

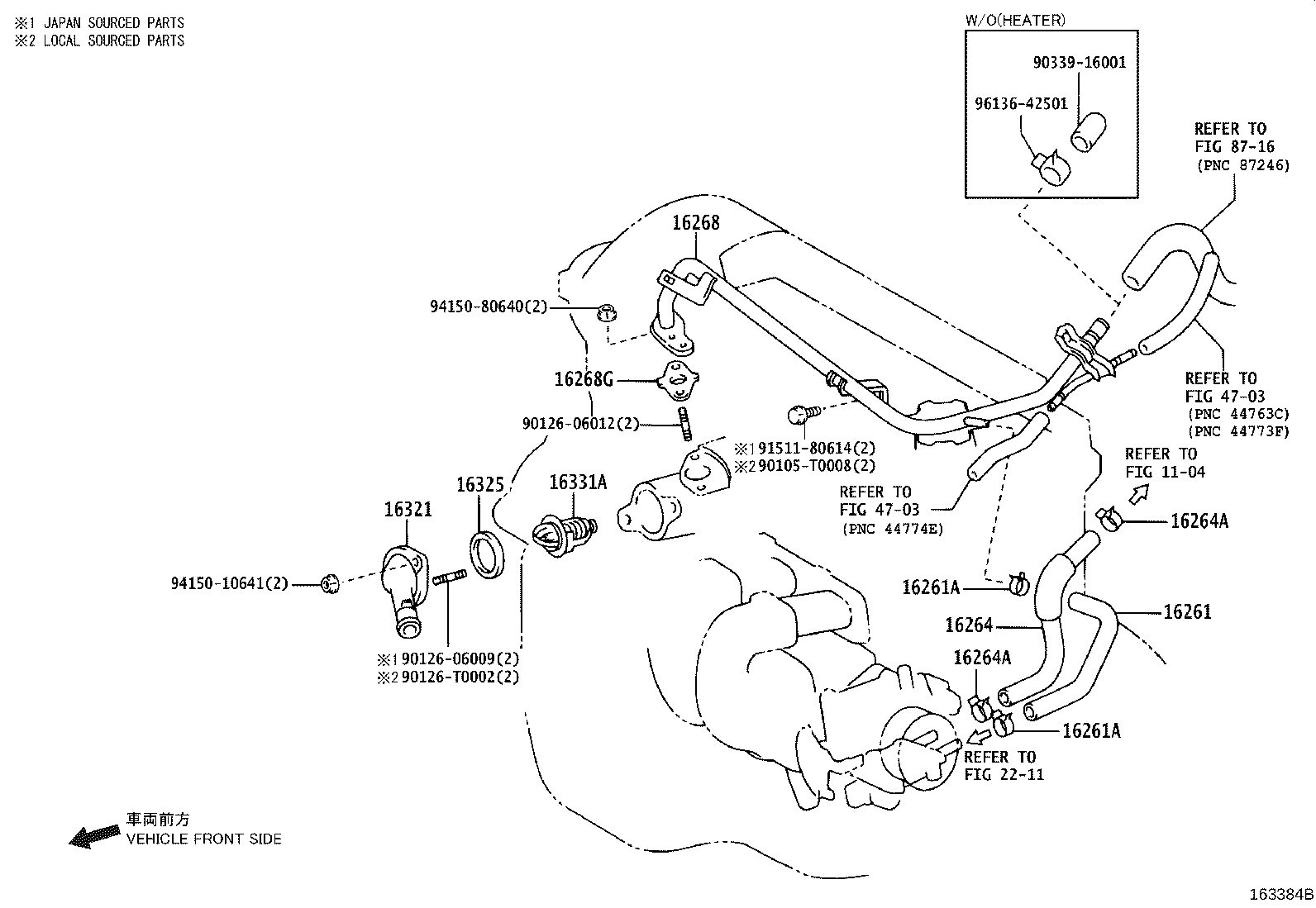

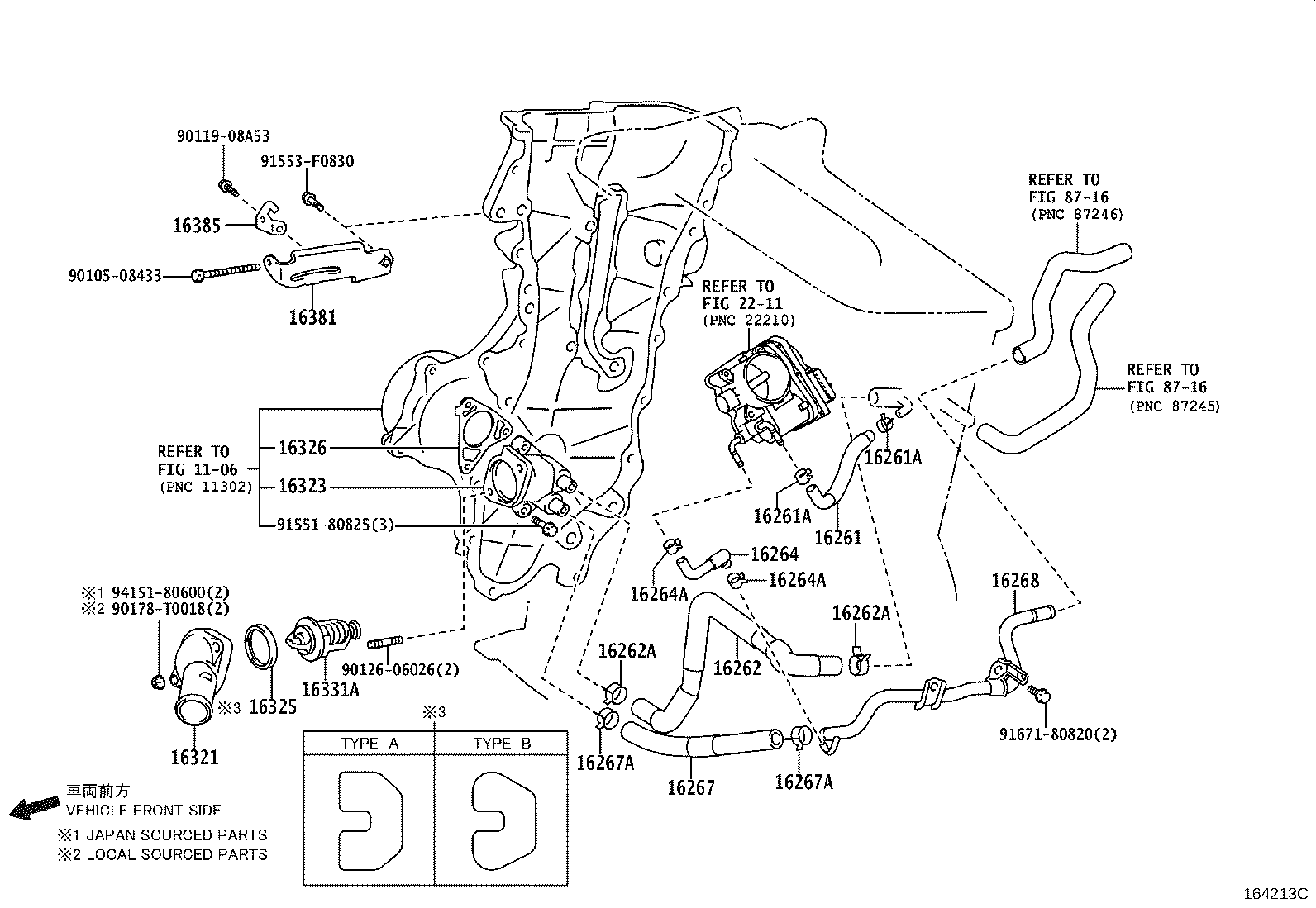

Radiator & Water Outlet
84 part groups · 26 illustrations

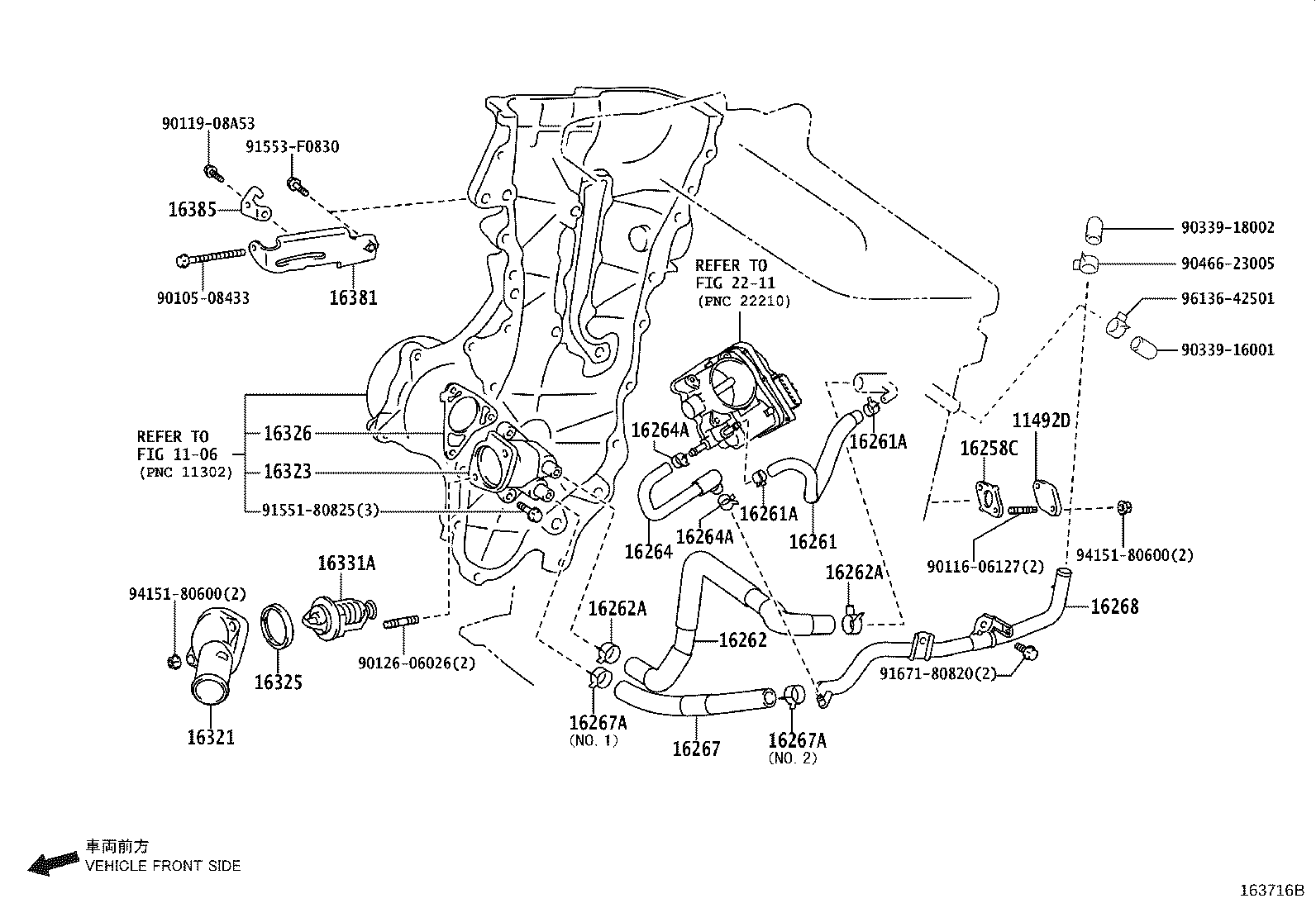

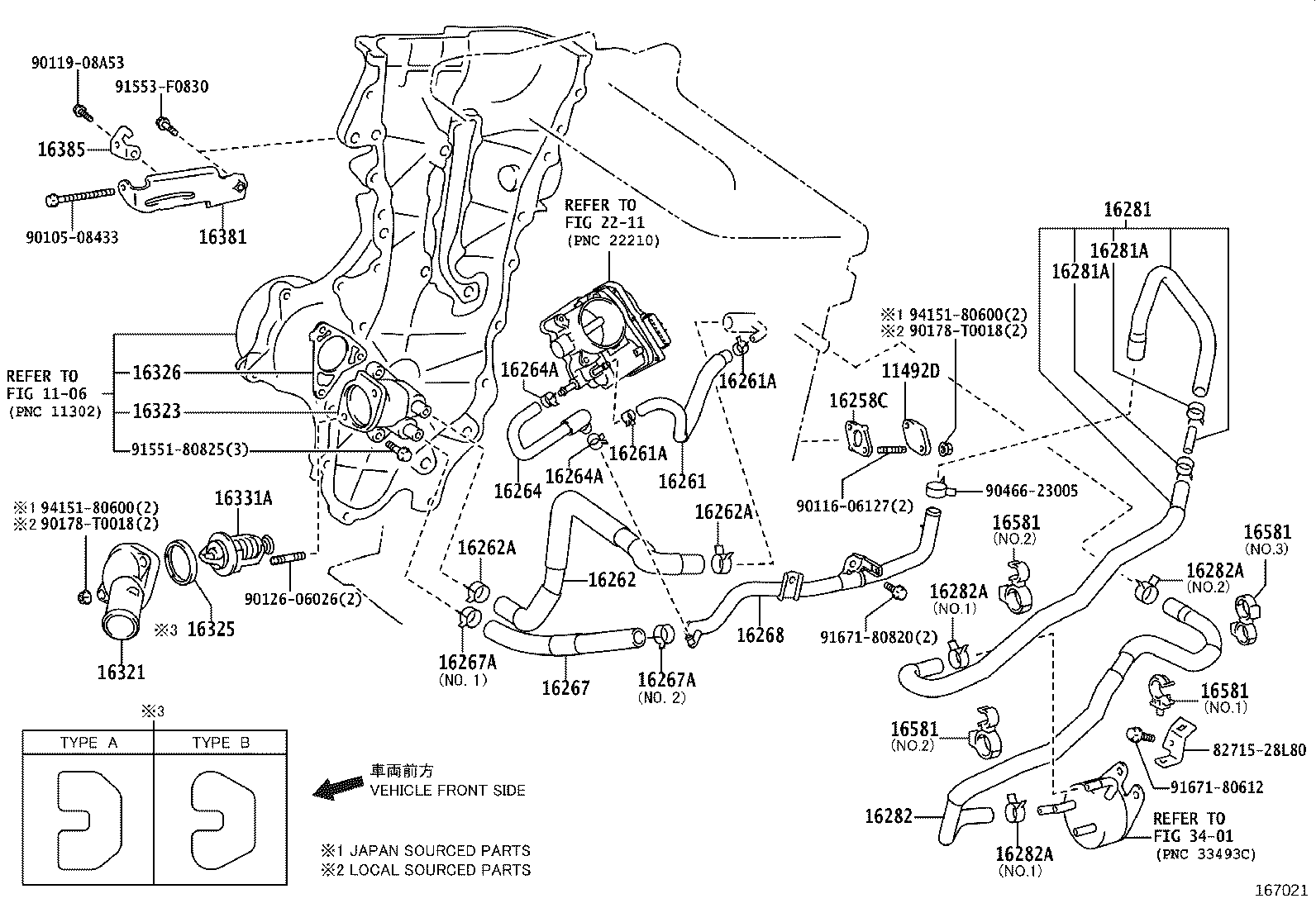

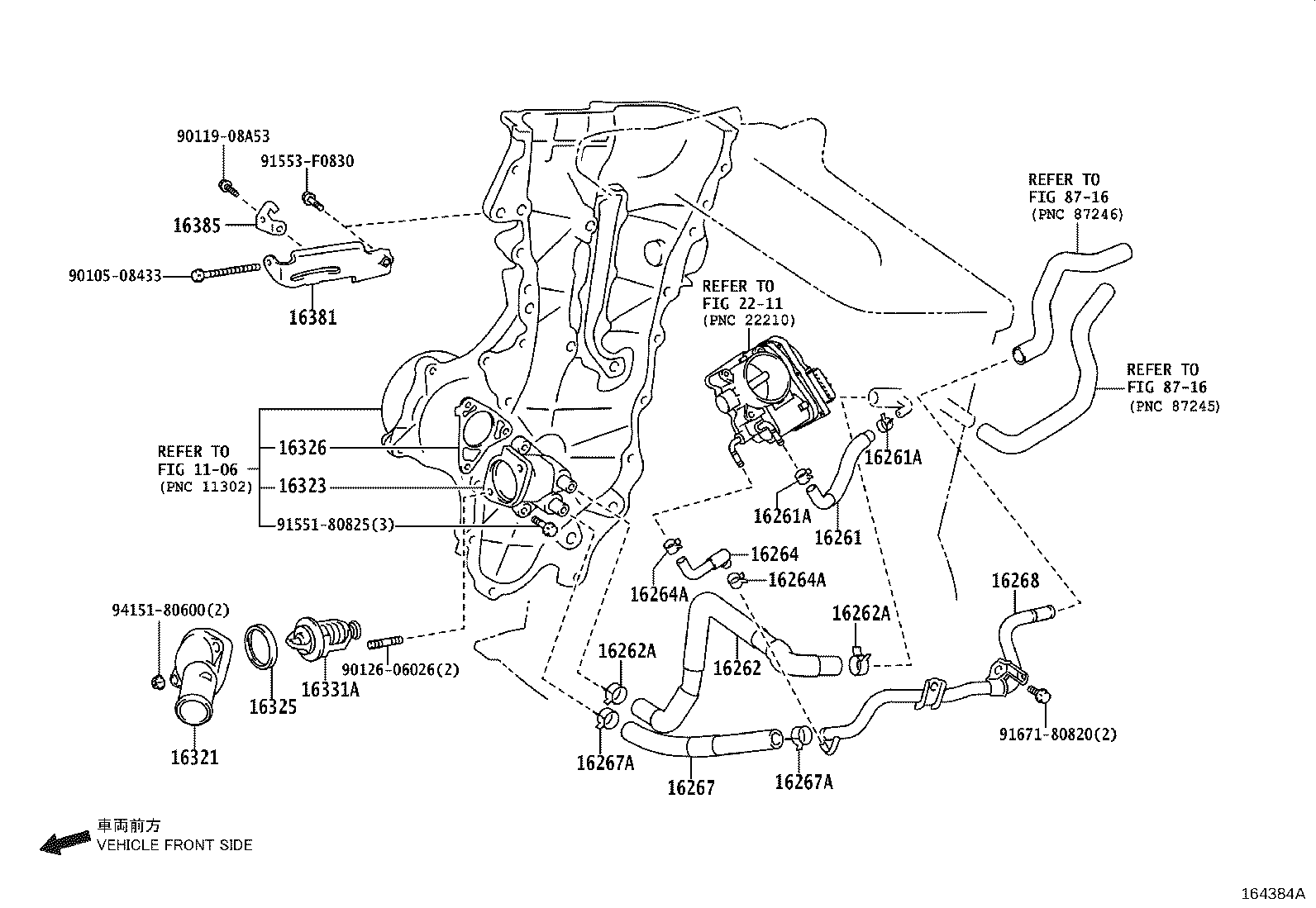

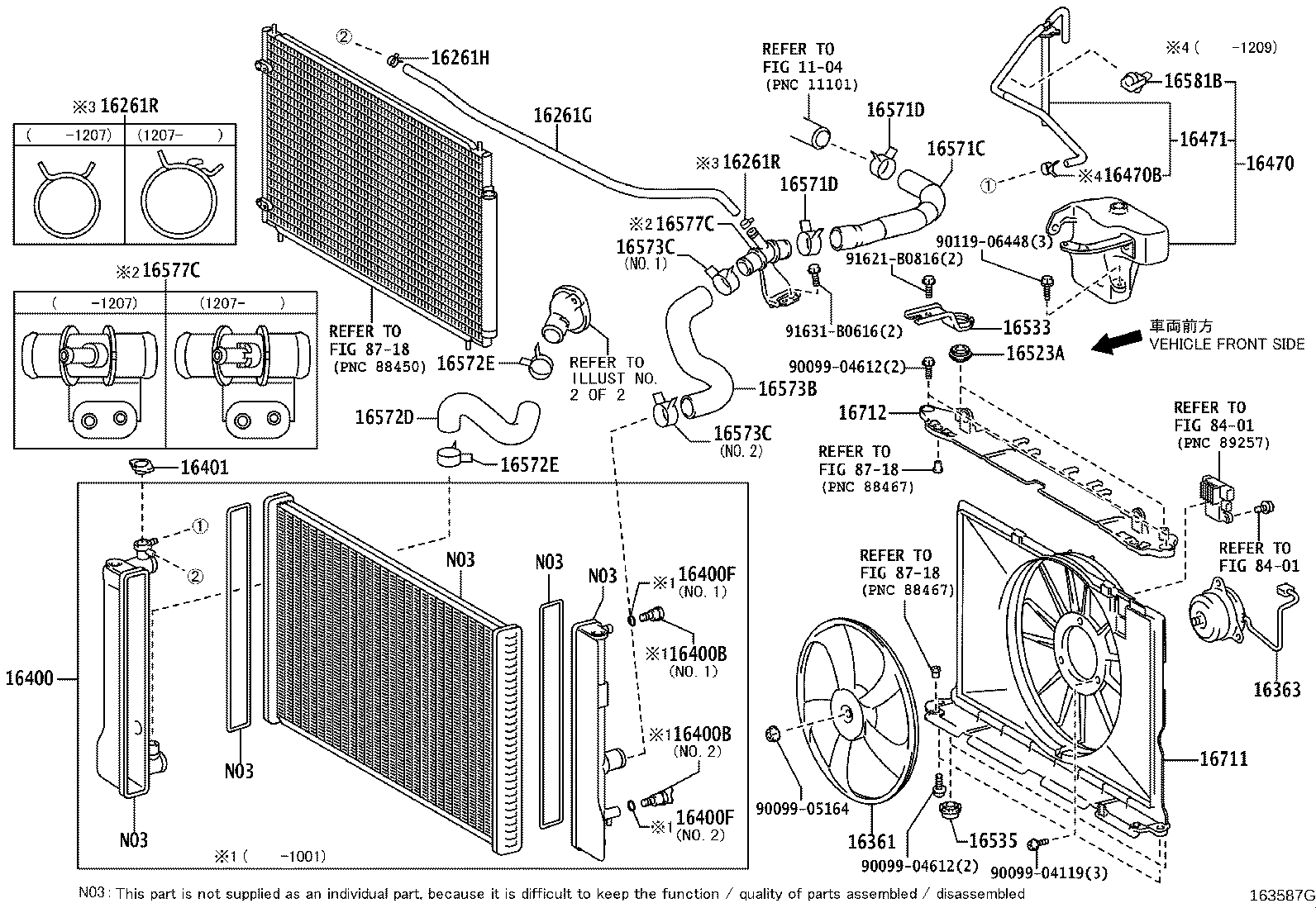

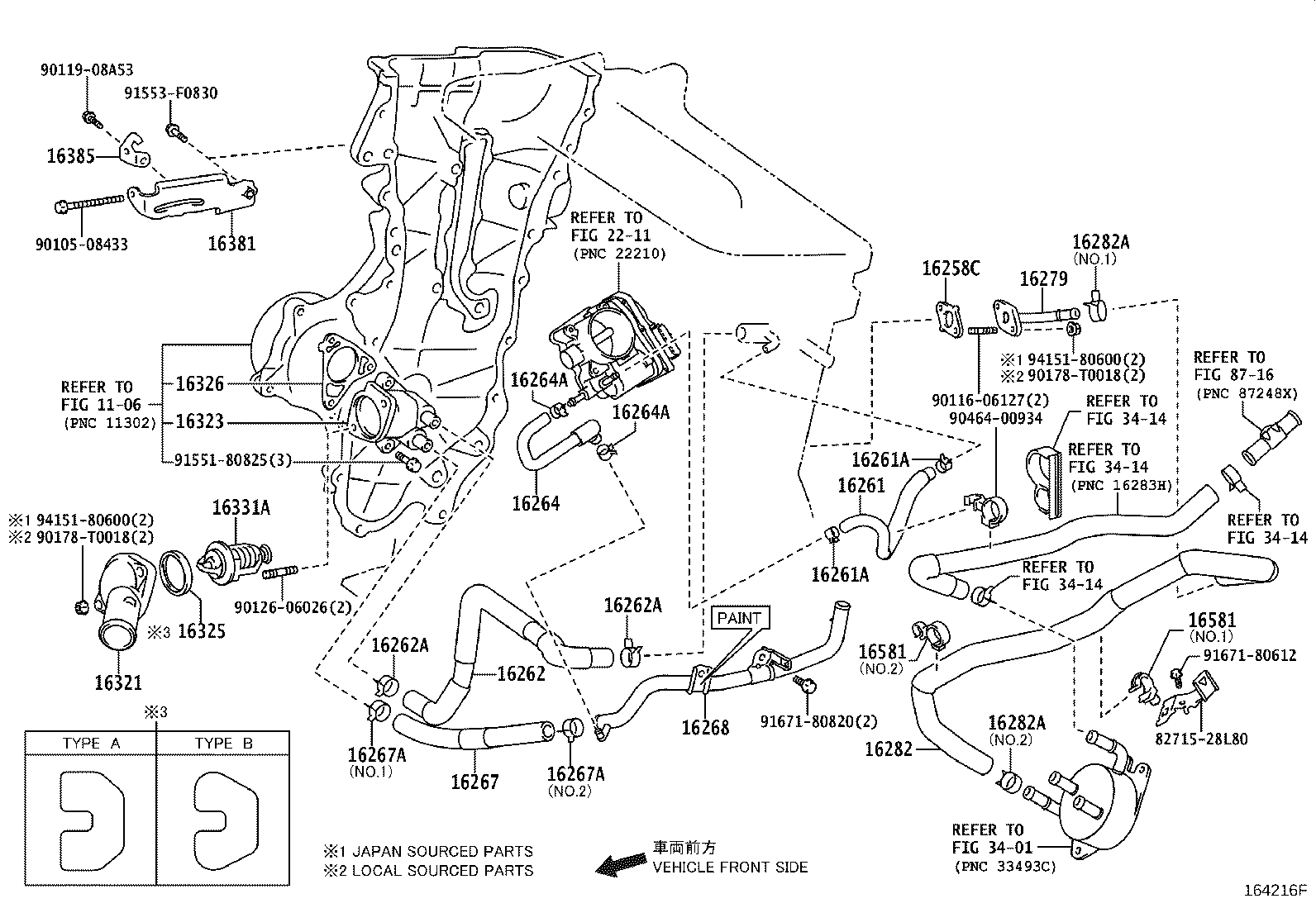

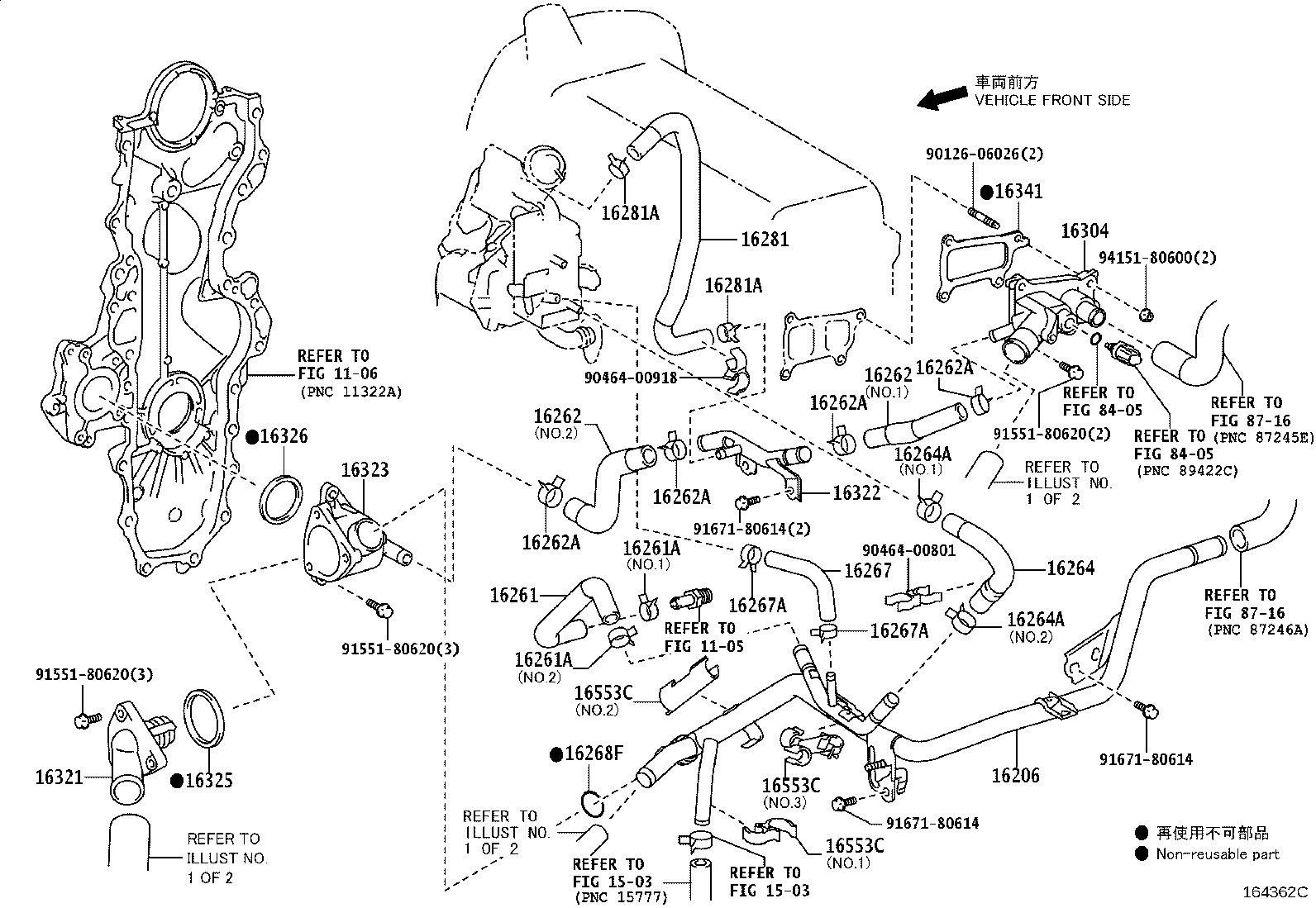

Illustrations
Part groups
| PNC | Description |
|---|---|
| 11182B | Gasket, Cylinder Head Rear Plate |
| 11492D | Plate, Seal, NO.1 |
| 16206 | Pipe Sub-assy, Water By-pass |
| 16258C | Gasket(FOR WATER BY-PASS PIPE) |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261B | Union(FOR WATER BY-PASS HOSE) |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16261N | Hose, Water By-pass, NO.2 |
| 16261P | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16261R | Clamp OR Clip(FOR WATER BY-PASS HOSE) |
| 16262 | Hose, Water Inlet |
| 16262A | Clip(FOR WATER INLET HOSE) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264D | Hose, Water By-pass, NO.2 |
| 16264E | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16267B | Clip(FOR WATER BY-PASS HOSE) |
| 16267K | Hose, Water By-pass, NO.3 |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16268F | Ring, O(FOR WATER BY-PASS PIPE) |
| 16268G | Gasket(FOR WATER BY-PASS PIPE) |
| 16279 | Pipe, Water By-pass, NO.3 |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16281F | Hose, Water By-pass, NO.5 |
| 16281G | Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16282 | Hose, Water By-pass, NO.5 |
| 16282A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16283 | Hose, Water By-pass, NO.6 |
| 16283A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) |
| 16283B | Hose, Water By-pass |
| 16283C | Clamp OR Clip(FOR WATER BY-PASS HOSE) |
| 16304 | Outlet Sub-assy, Water |
| 16321 | Inlet, Water |
| 16322 | Pipe, Water Inlet |
| 16323 | Housing, Water Inlet |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16331 | Outlet, Water |
| 16331A | Thermostat |
| 16341 | Gasket, Water Outlet |
| 16361 | Fan |
| 16361B | Fan, NO.2 |
| 16363 | Motor, Cooling Fan |
| 16363A | Motor, Cooling Fan, NO.2 |
| 16381 | Bar, Fan Belt Adjusting |
| 16385 | Slider, Fan Belt Adjusting |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16418 | Packing |
| 16431 | Inlet, Radiator Water |
| 16441 | Tank, Radiator, Upper |
| 16442 | Ring, O(FOR RADIATOR UPPER TANK) |
| 16461 | Tank, Radiator, Lower |
| 16462 | Ring, O(FOR RADIATOR LOWER TANK) |
| 16470 | Tank Assy, Radiator Reserve |
| 16470B | Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16471B | Cap, Reserve Tank |
| 16473 | Support(FOR RADIATOR RESERVE TANK) |
| 16523A | Cushion, Radiator Support |
| 16533 | Support, Radiator, Upper |
| 16535 | Support, Radiator, Lower |
| 16553C | Clamp, Hose |
| 16571A | Clamp OR Clip, Hose(FOR RADIATOR INLET) |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16572A | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16573B | Hose, Radiator, NO.3 |
| 16573C | Clamp OR Clip, Radiator Hose, NO.3 |
| 16577C | Pipe, Radiator |
| 16581 | Clamp, Hose(FOR WATER HOSE) |
| 16581B | Clamp, Hose(FOR RADIATOR HOSE) |
| 16581C | Clamp, Hose(FOR RADIATOR HOSE NO.2) |
| 16711 | Shroud, Fan |
| 16712 | Shroud, Fan, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
