Toyota Corolla/Altis

2013-10 → present · chassis NDE170,NZE170,ZRE17#,ZZE172 · catalogue 156370 · General

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

5 part groups · 10 illustrations

Illustrations

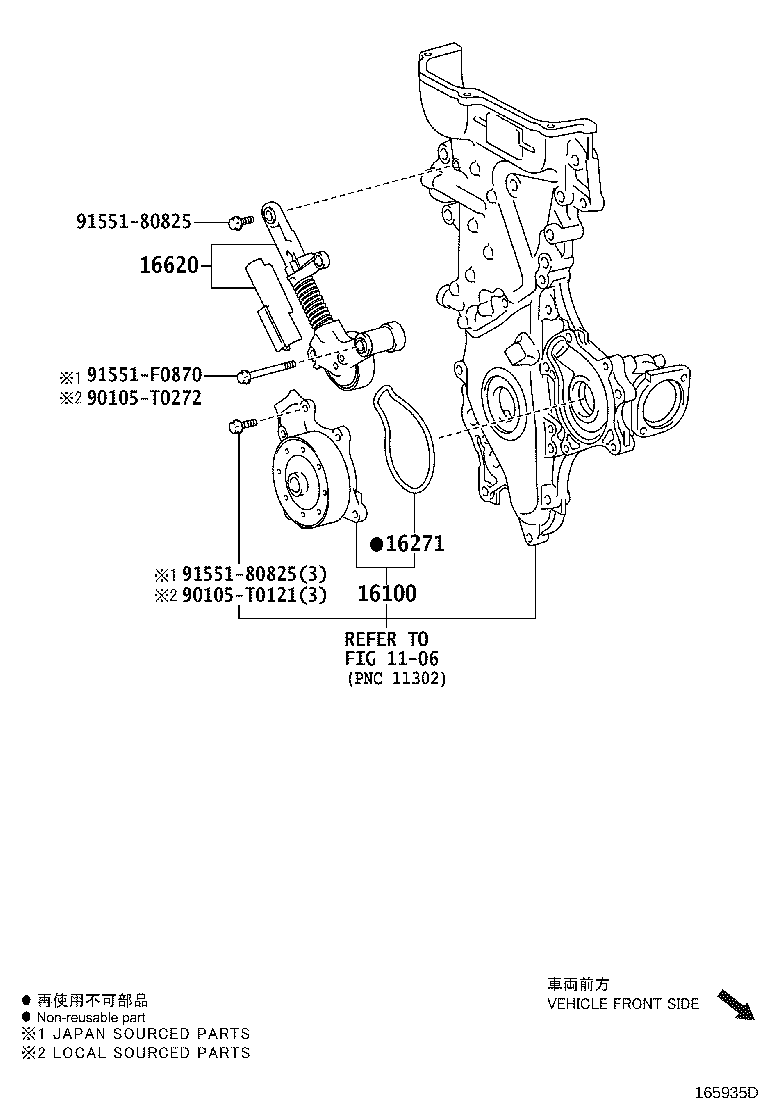

Figure 165618B 165618B 2014-05 → — Figure 165619B 165619B 2014-07 → — Figure 165482B 165482B 2013-10 → 2014-09 Figure 165483B 165483B 2013-10 → 2015-12 Figure 165483B 165483B 2013-10 → 2016-01 Figure 165483B 165483B 2013-10 → — Figure 165483B 165483B 2013-10 → — Figure 165935D 165935D 2015-12 → — Figure 165935D 165935D 2016-01 → — Figure 165935D 165935D 2016-01 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100H Ring, O(FOR WATER PUMP)
16173 Pulley, Water Pump
16271 Gasket, Water Pump
16620 Tensioner Assy, V-ribbed Belt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
