Toyota Corolla/Altis

2013-10 → present · chassis NDE170,NZE170,ZRE17#,ZZE172 · catalogue 156370 · General

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

67 part groups · 44 illustrations

Illustrations

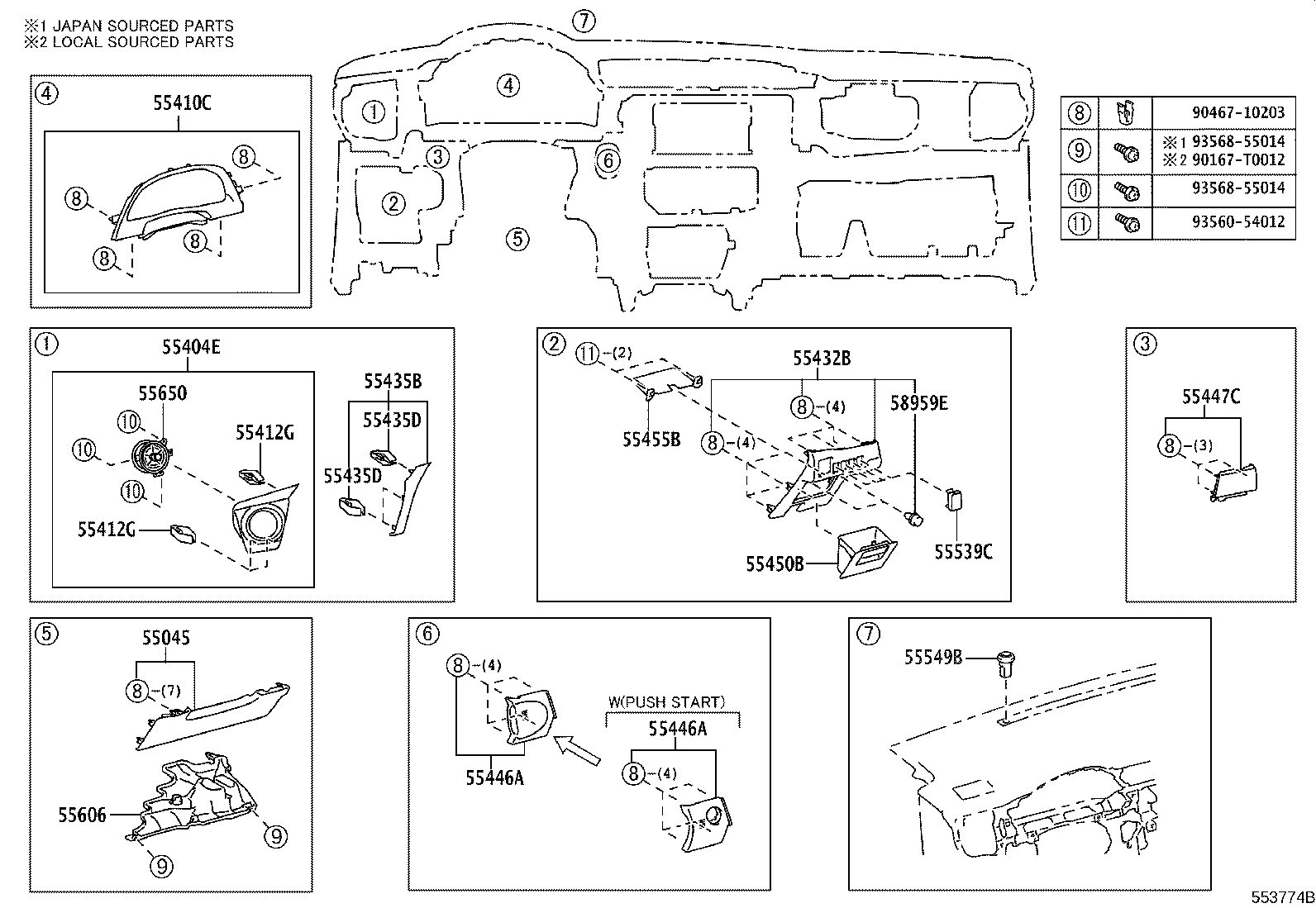

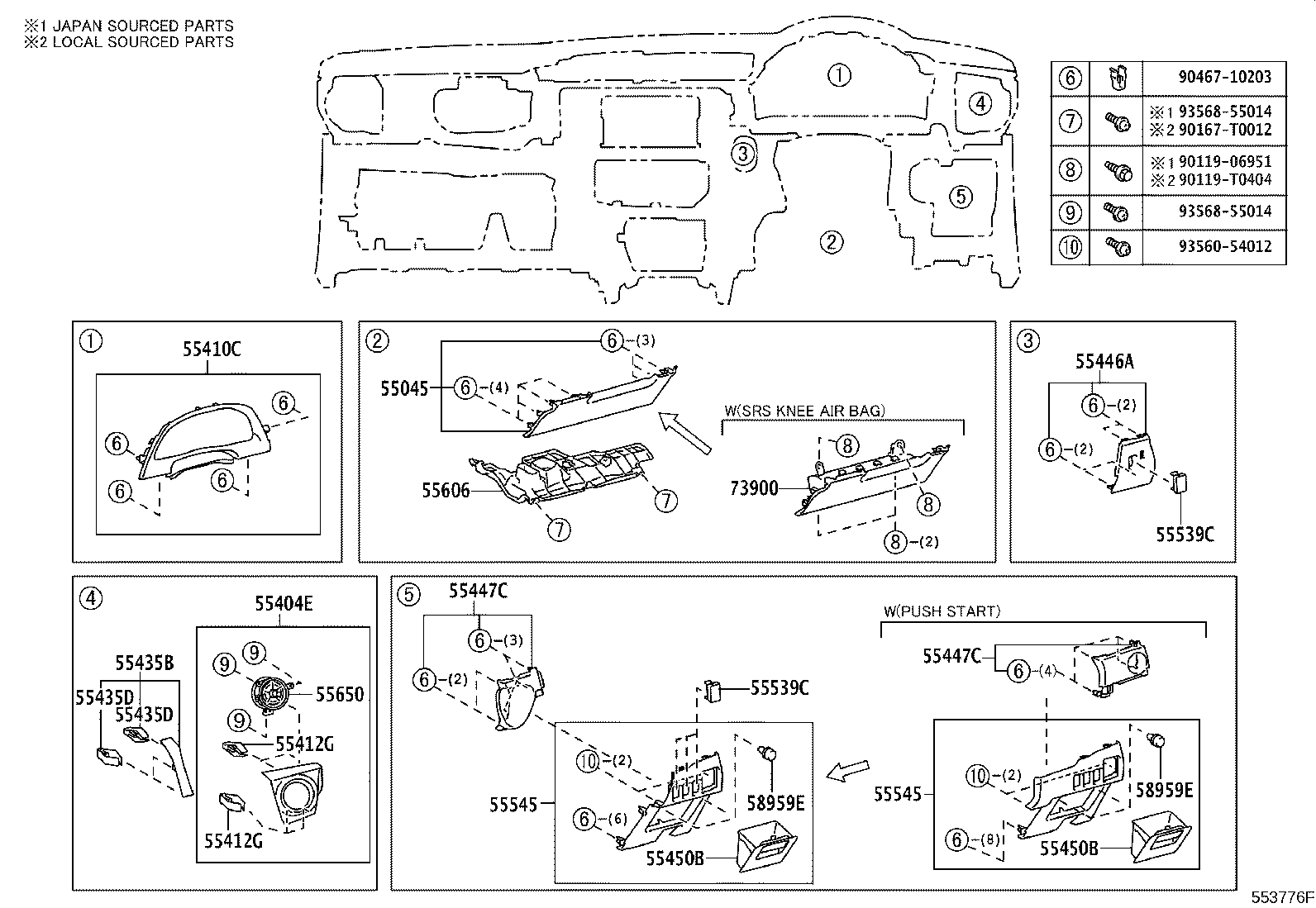

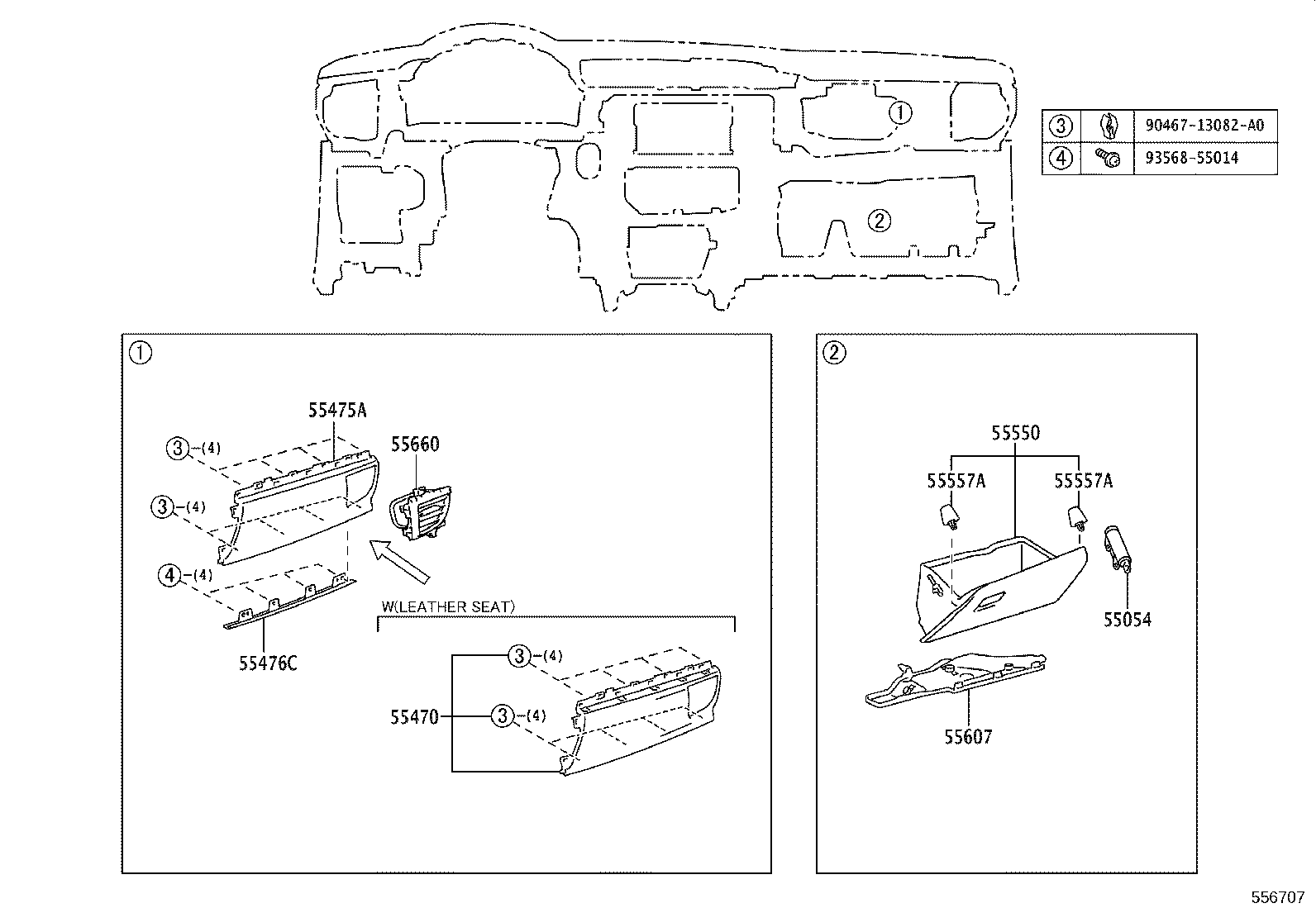

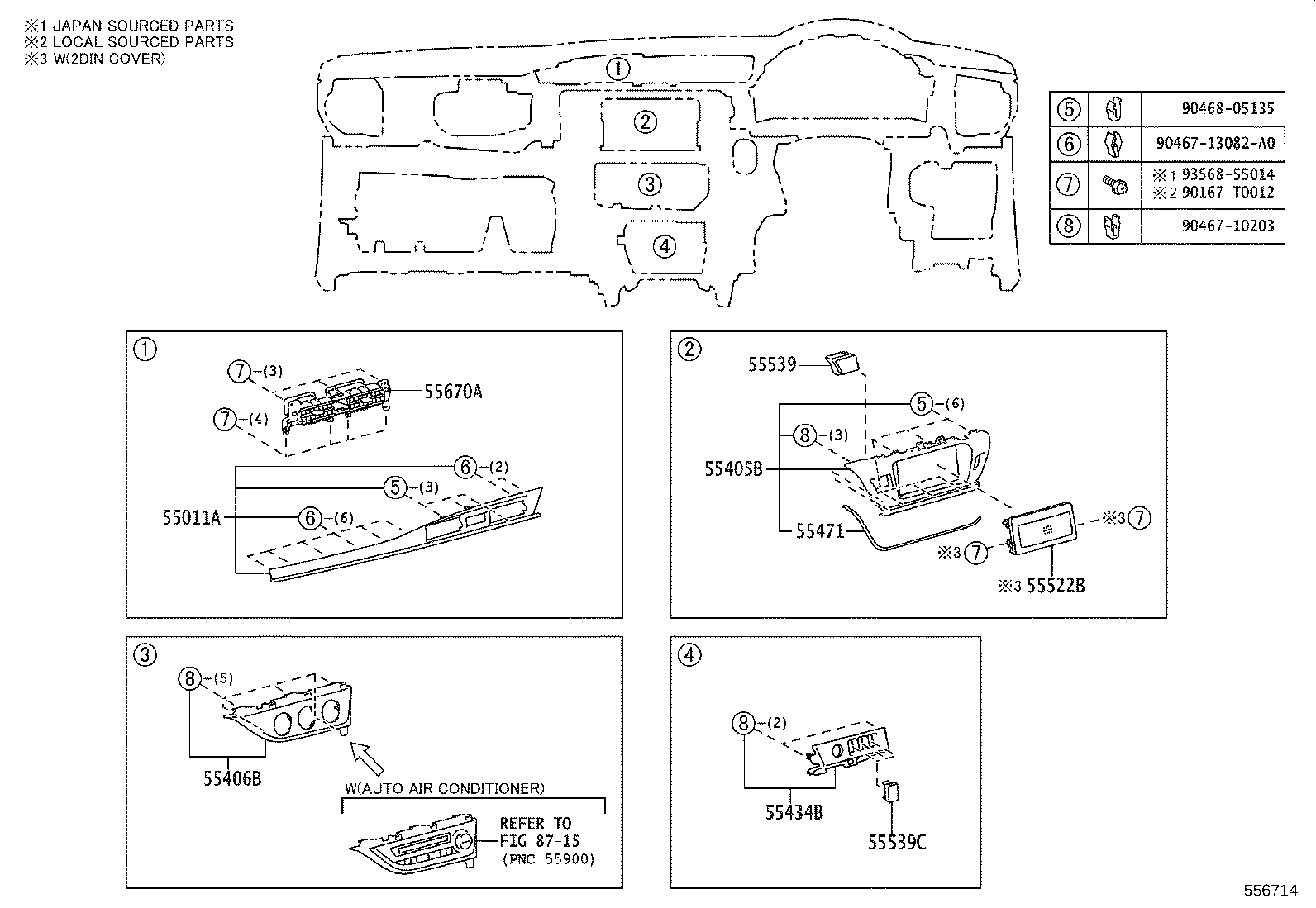

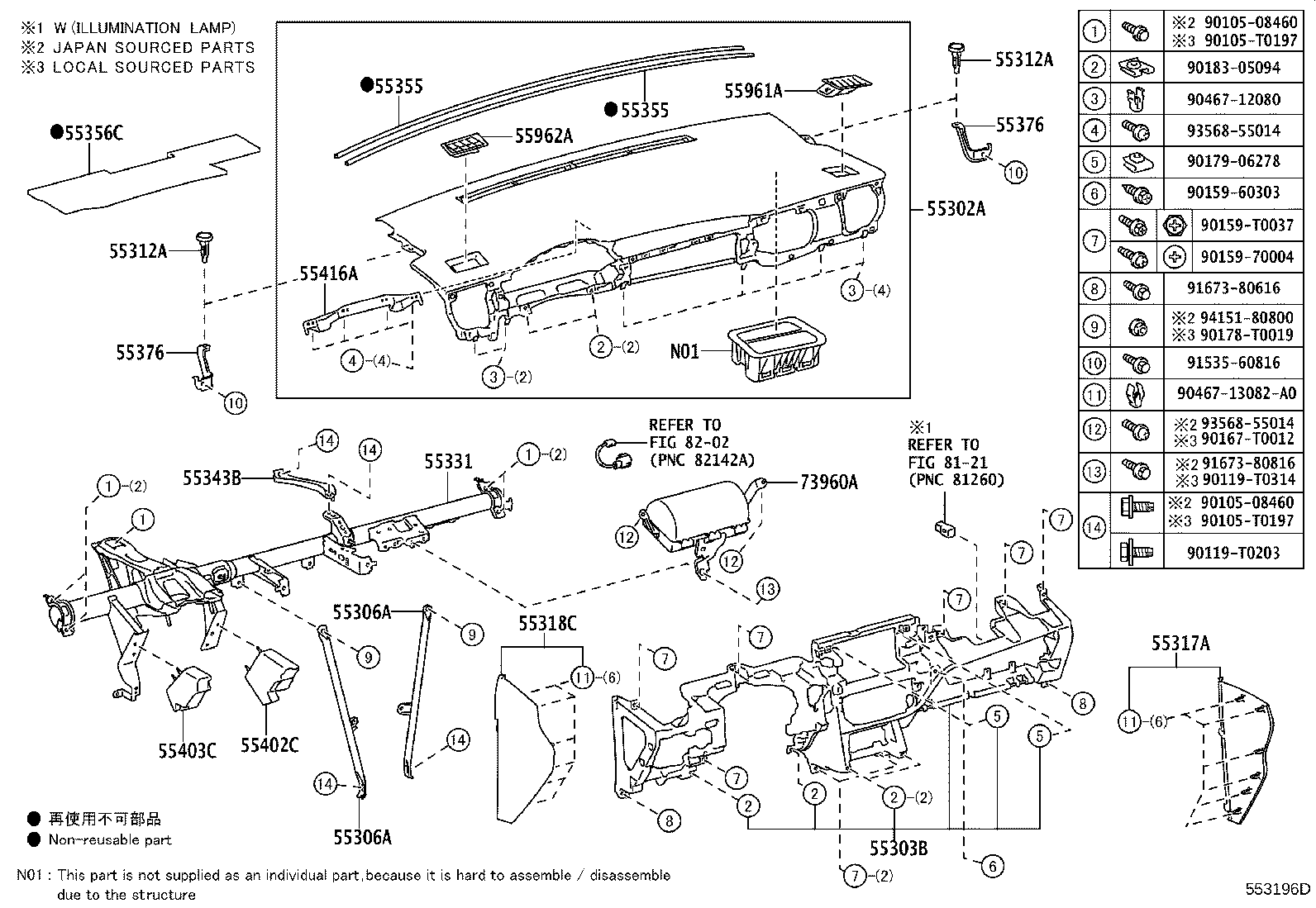

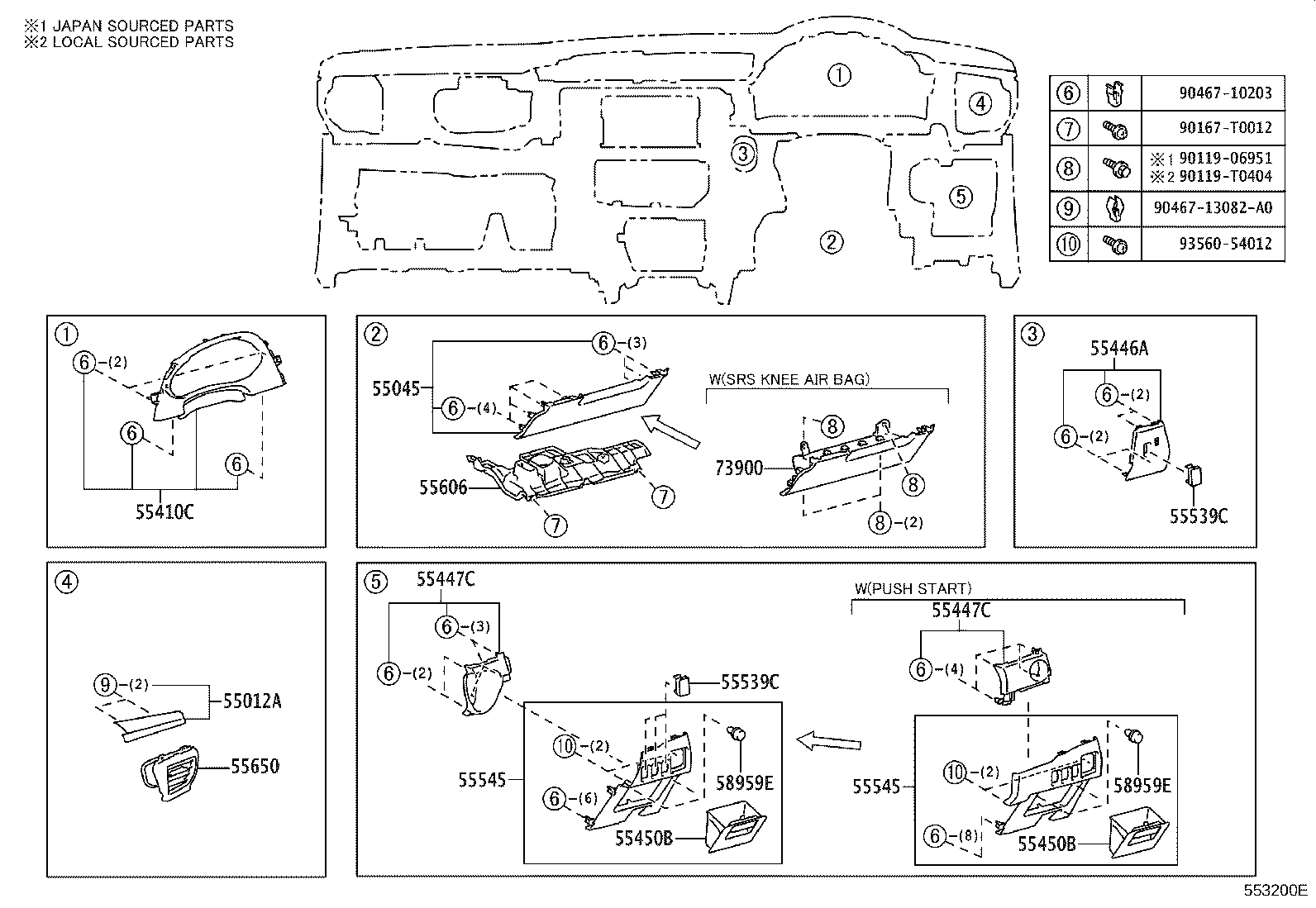

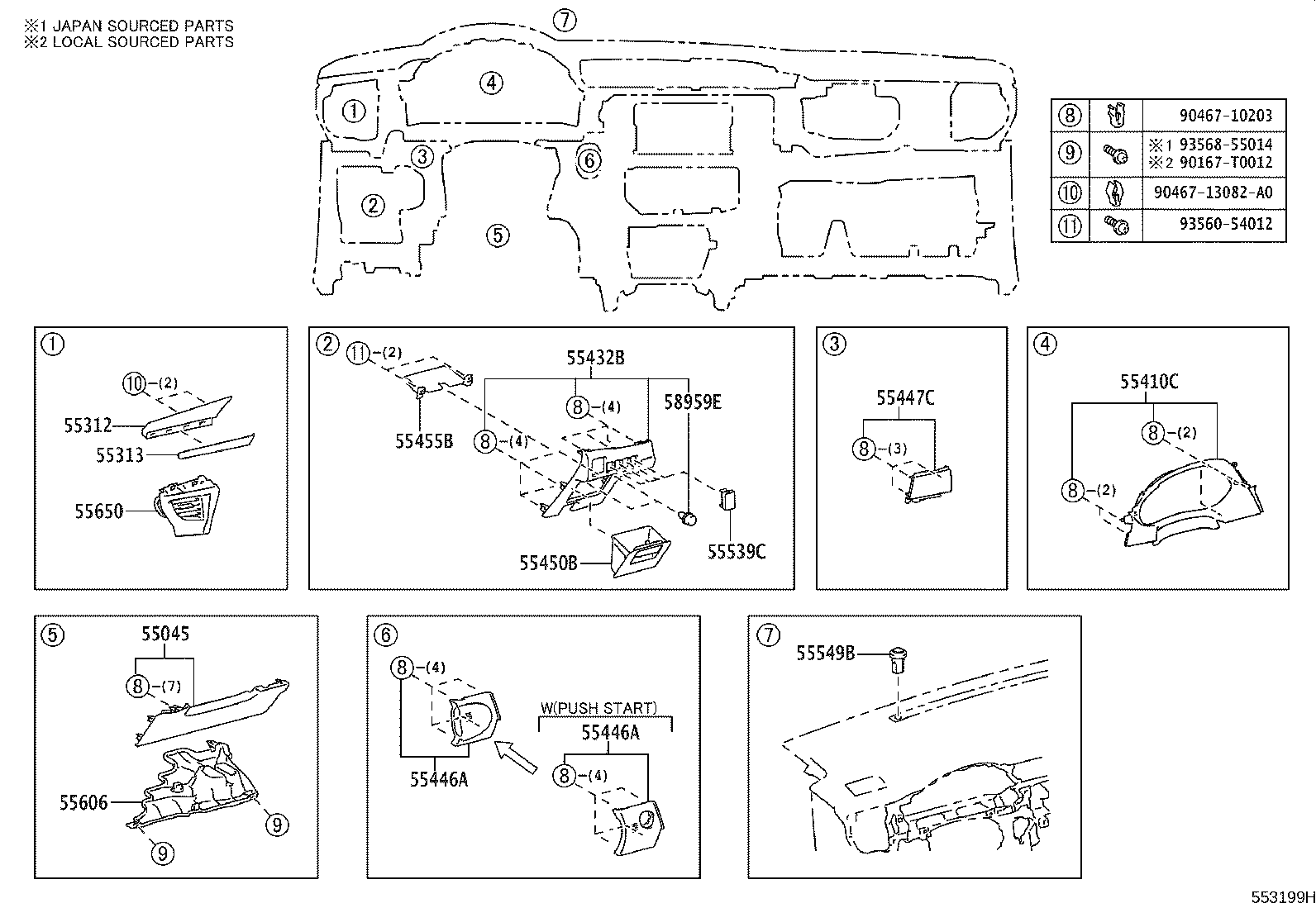

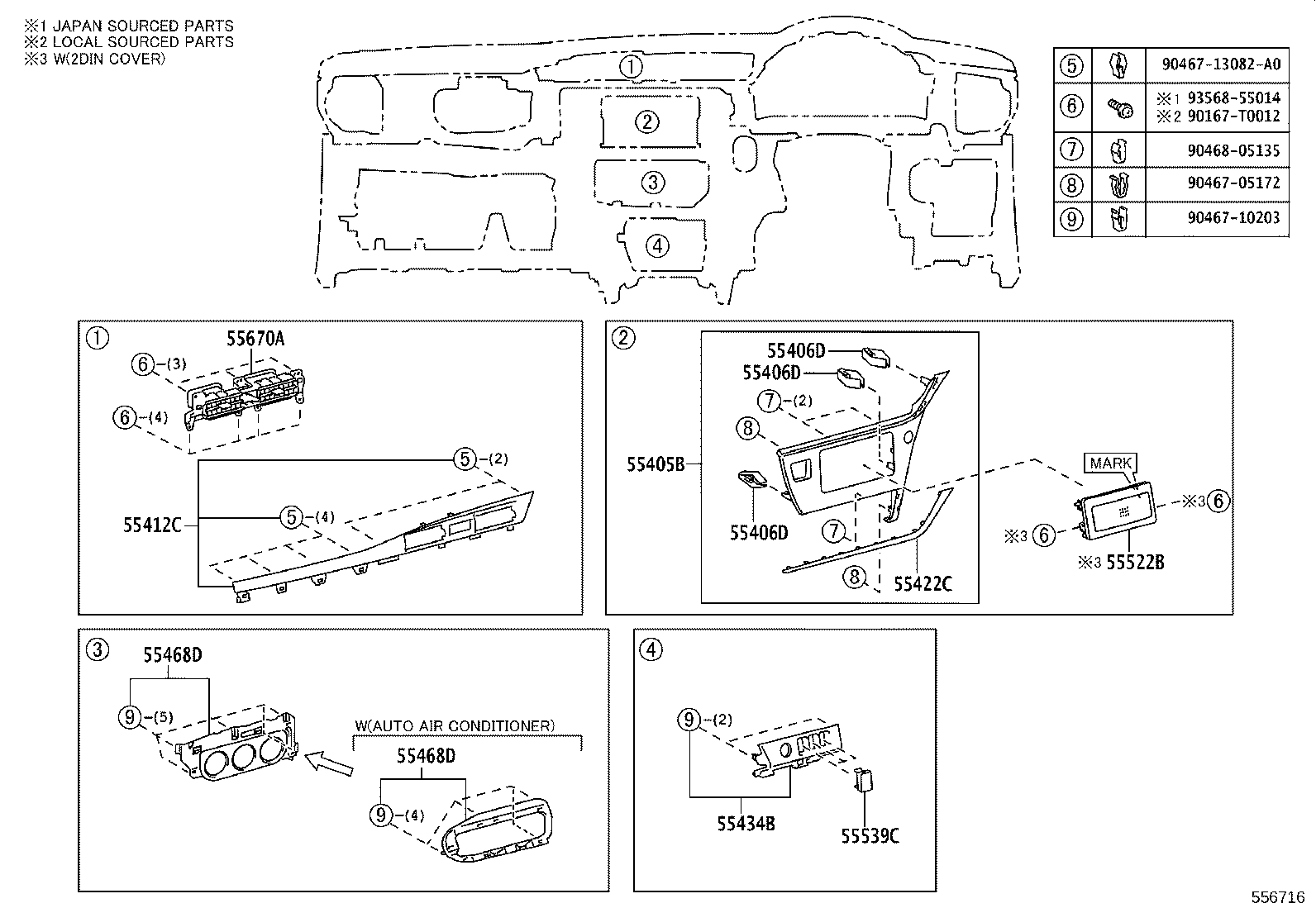

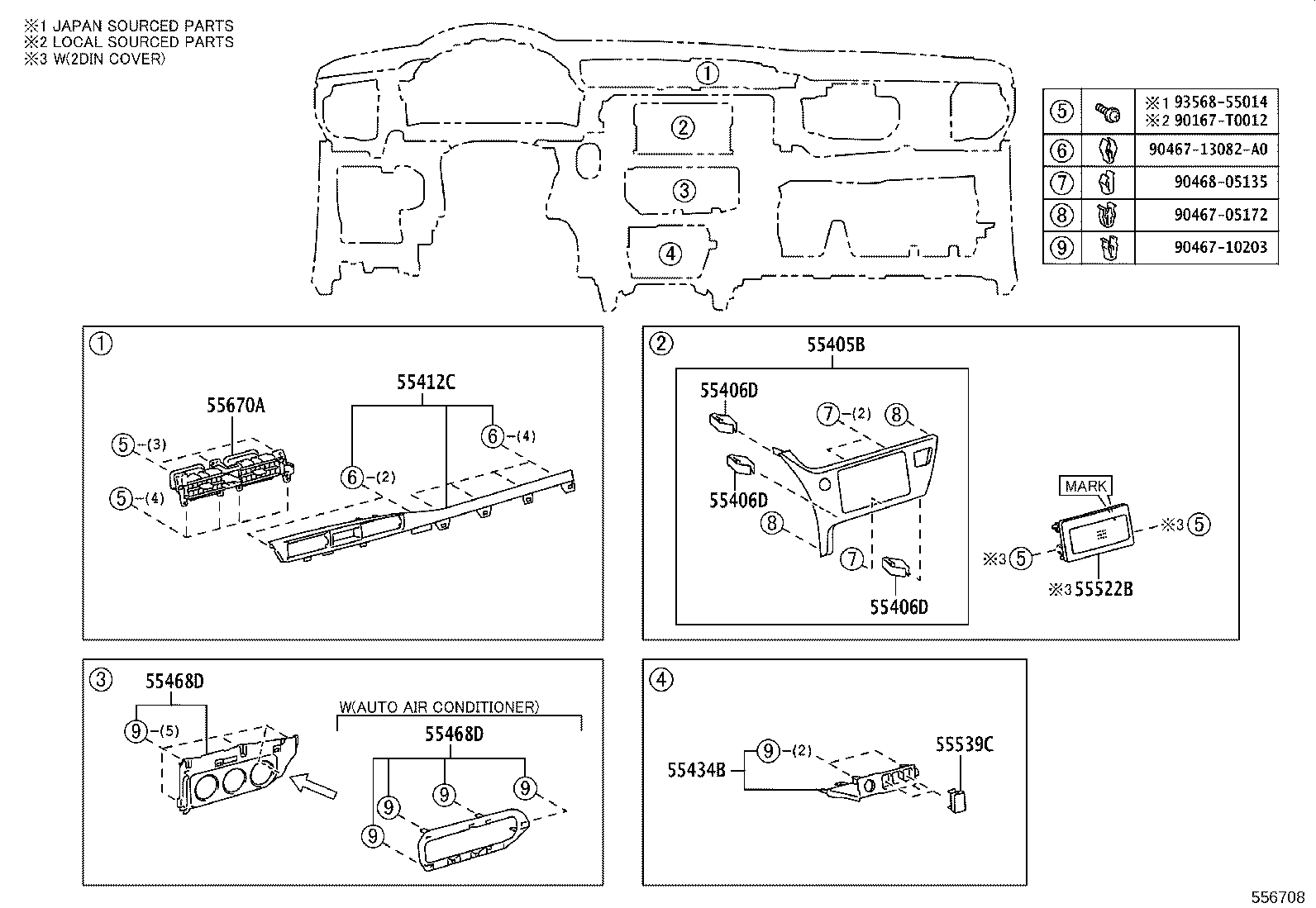

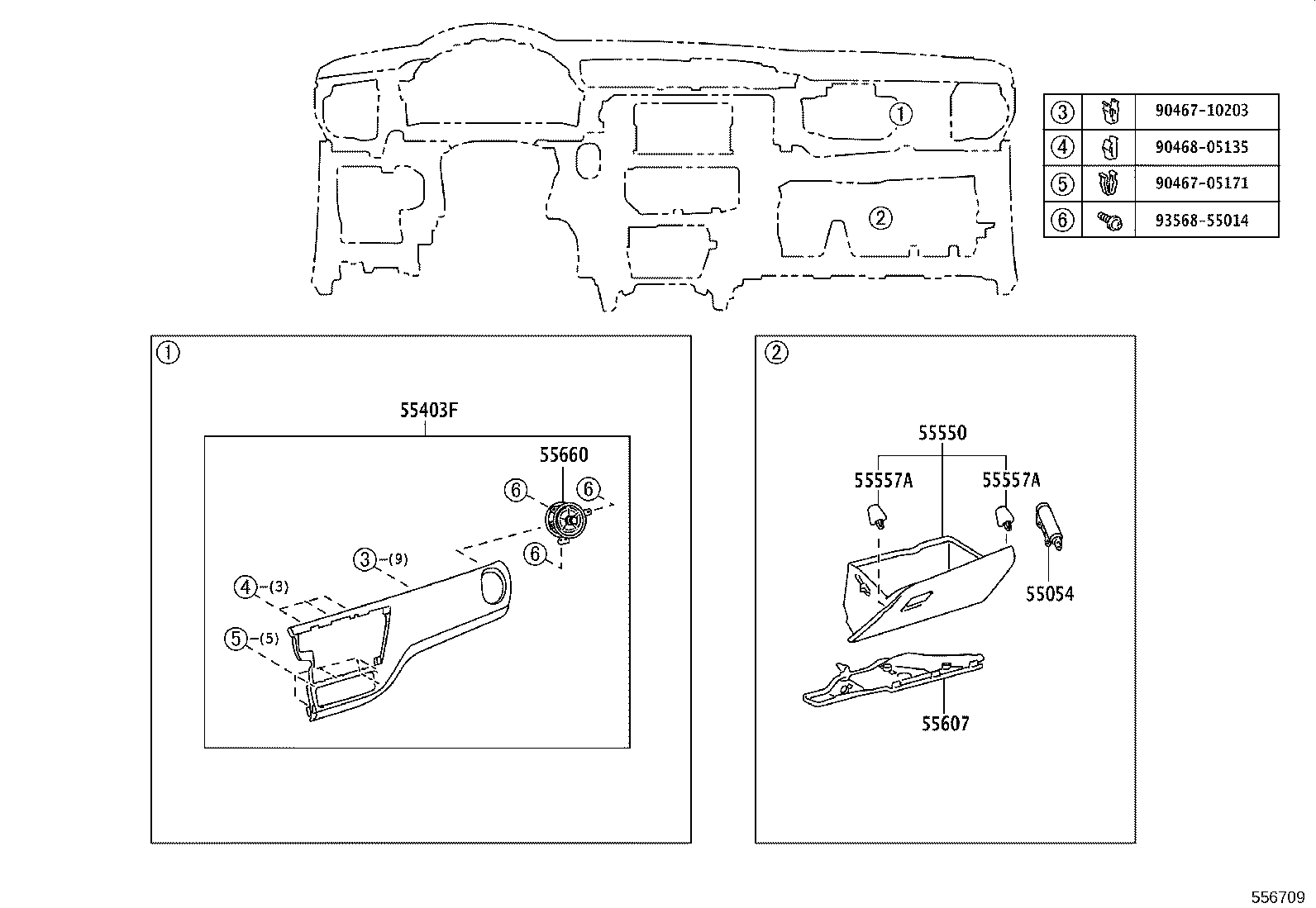

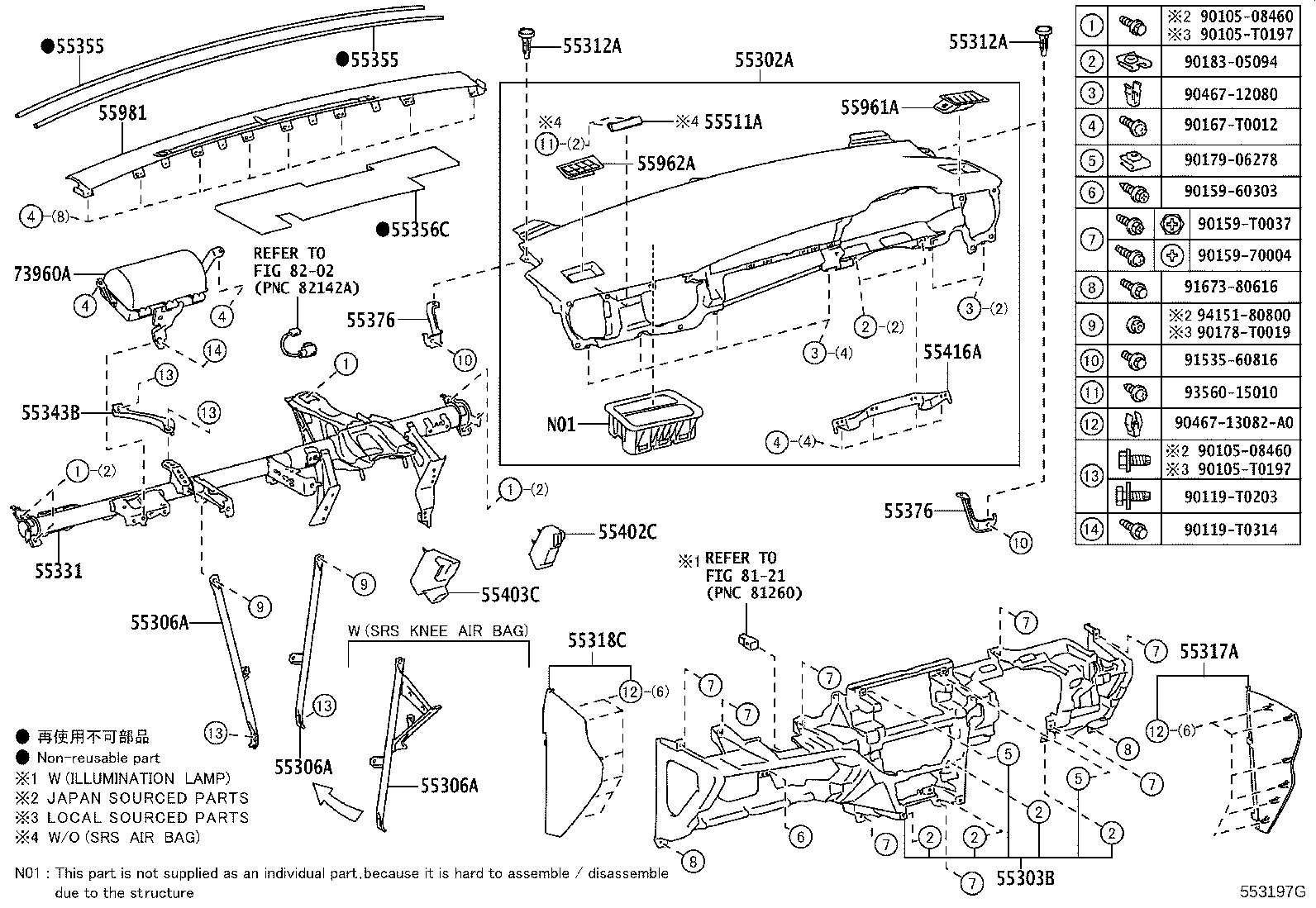

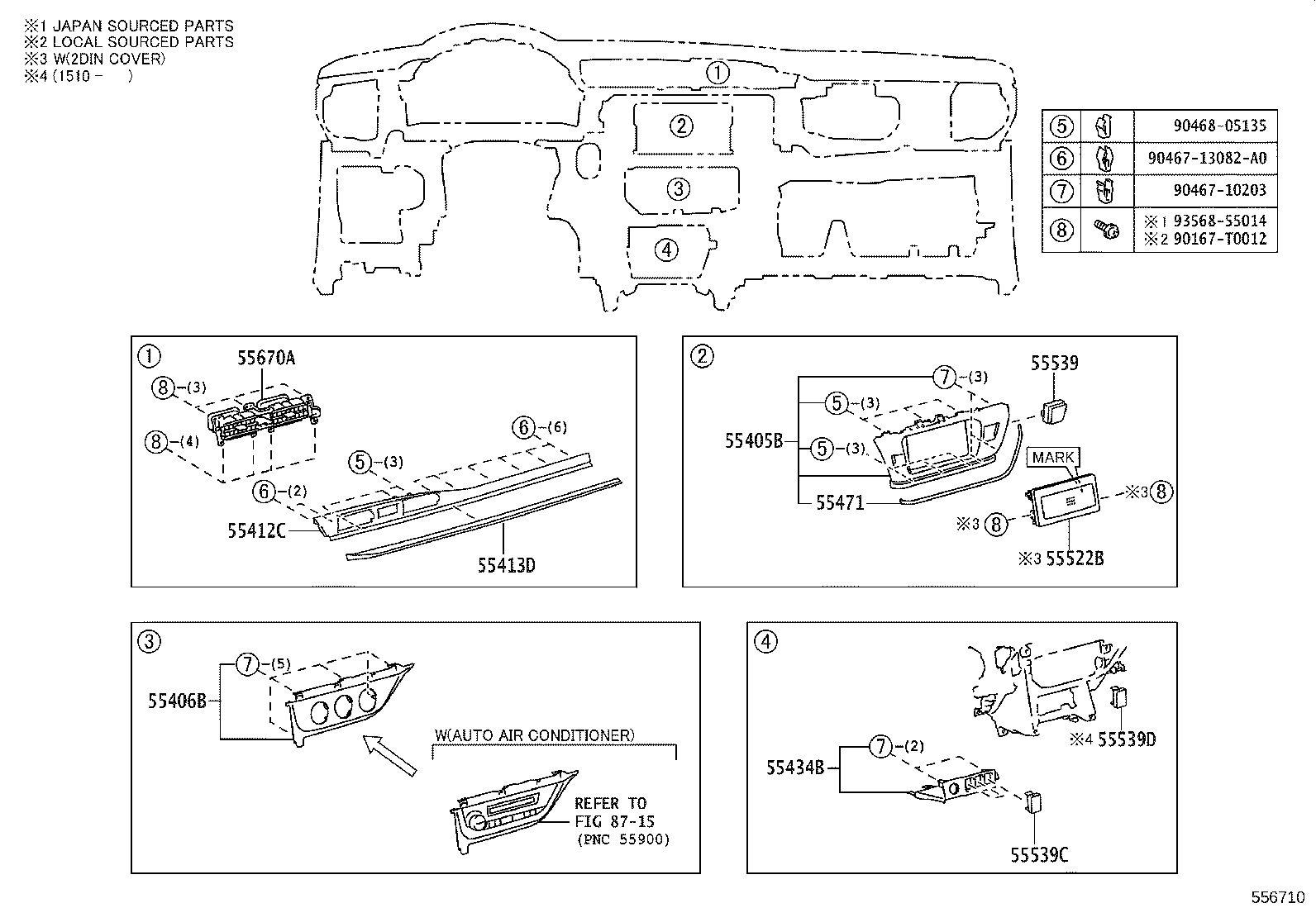

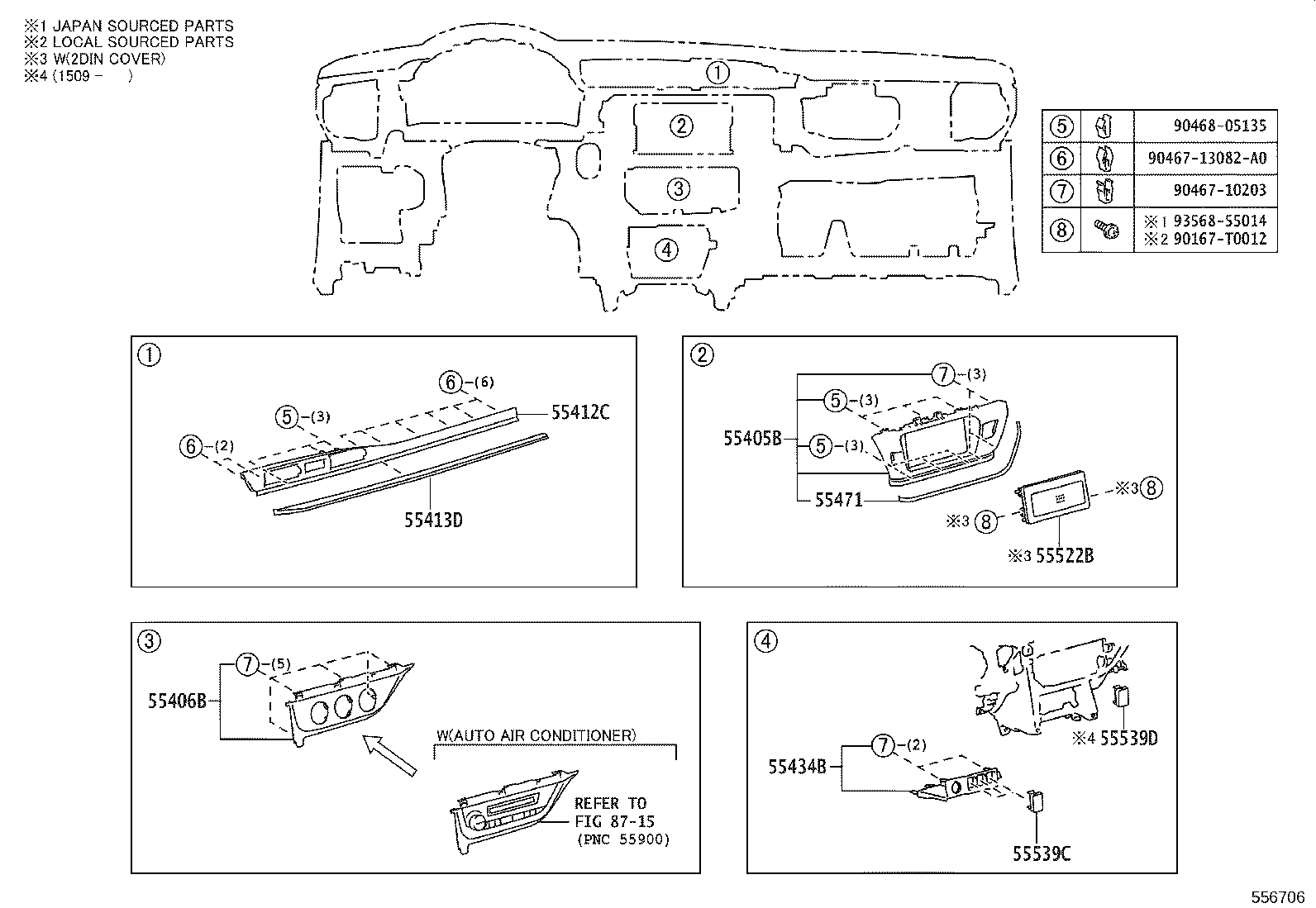

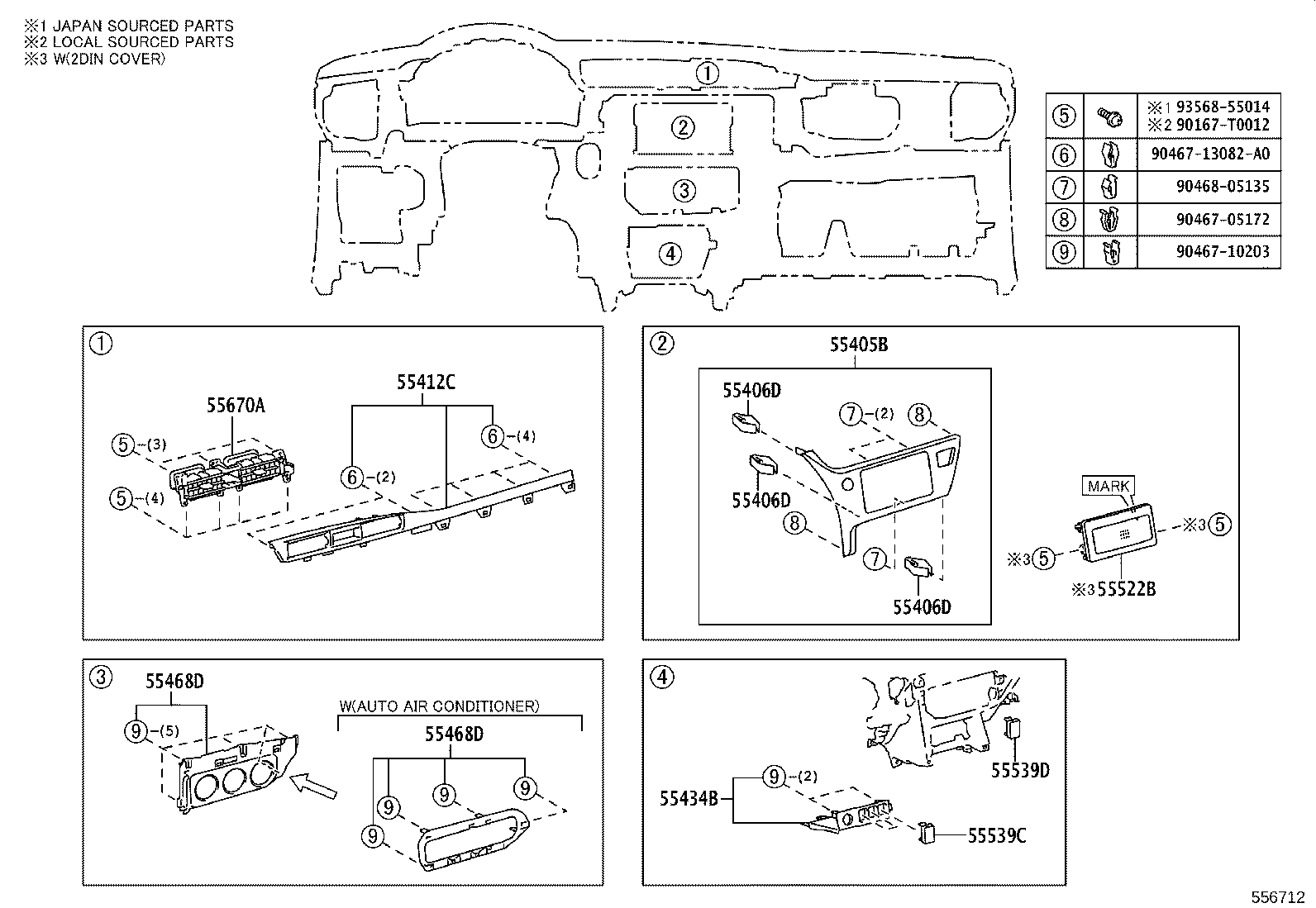

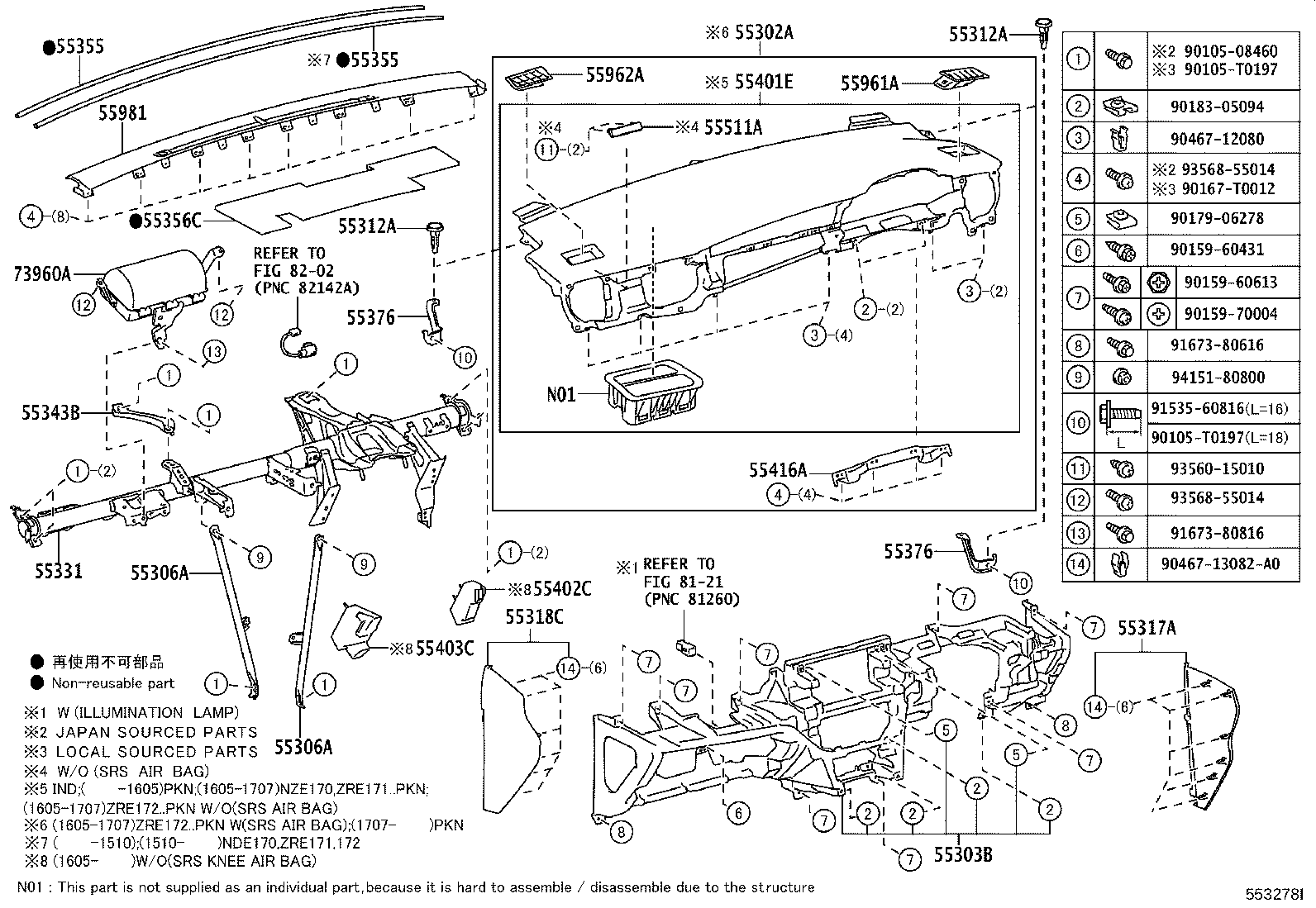

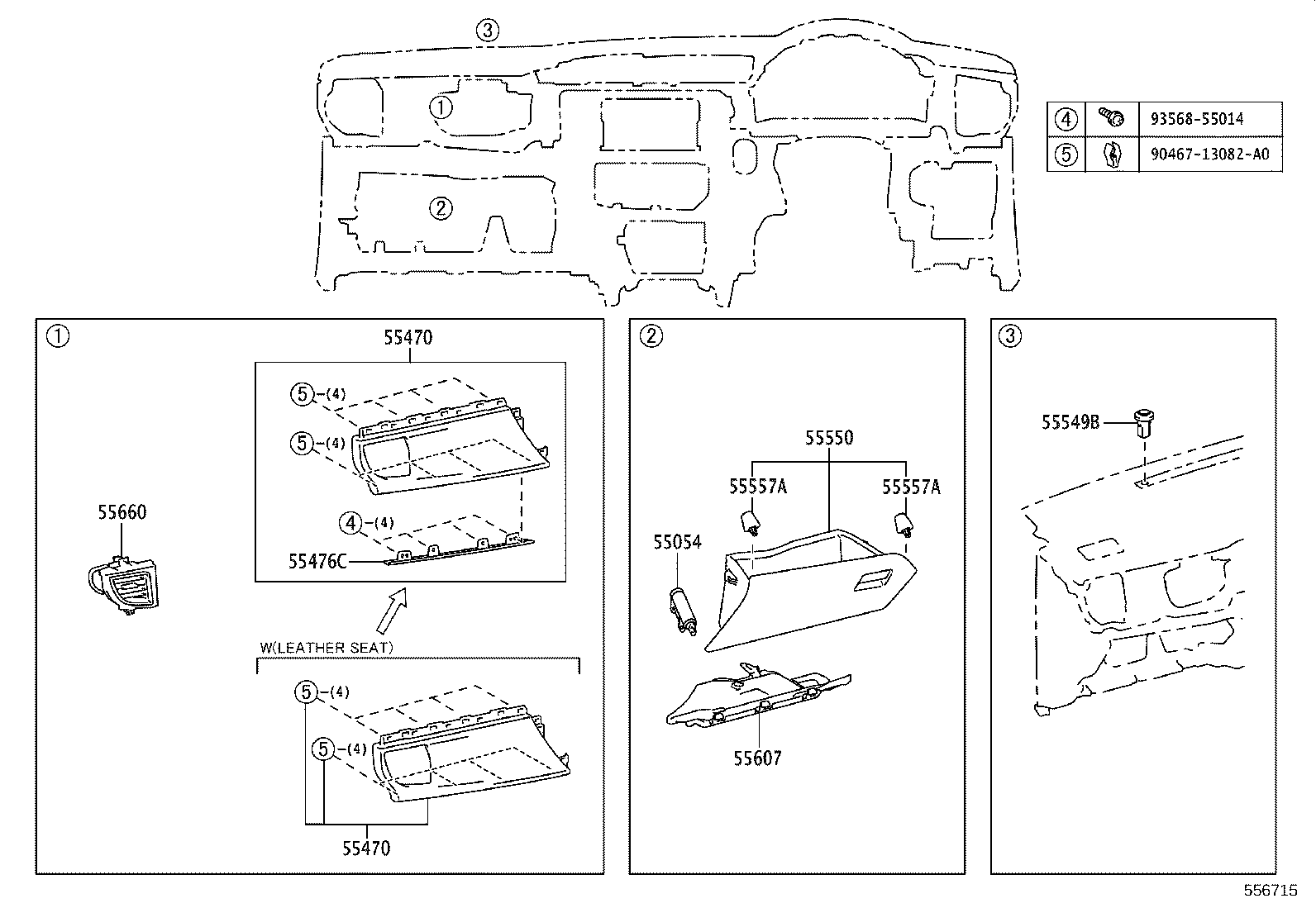

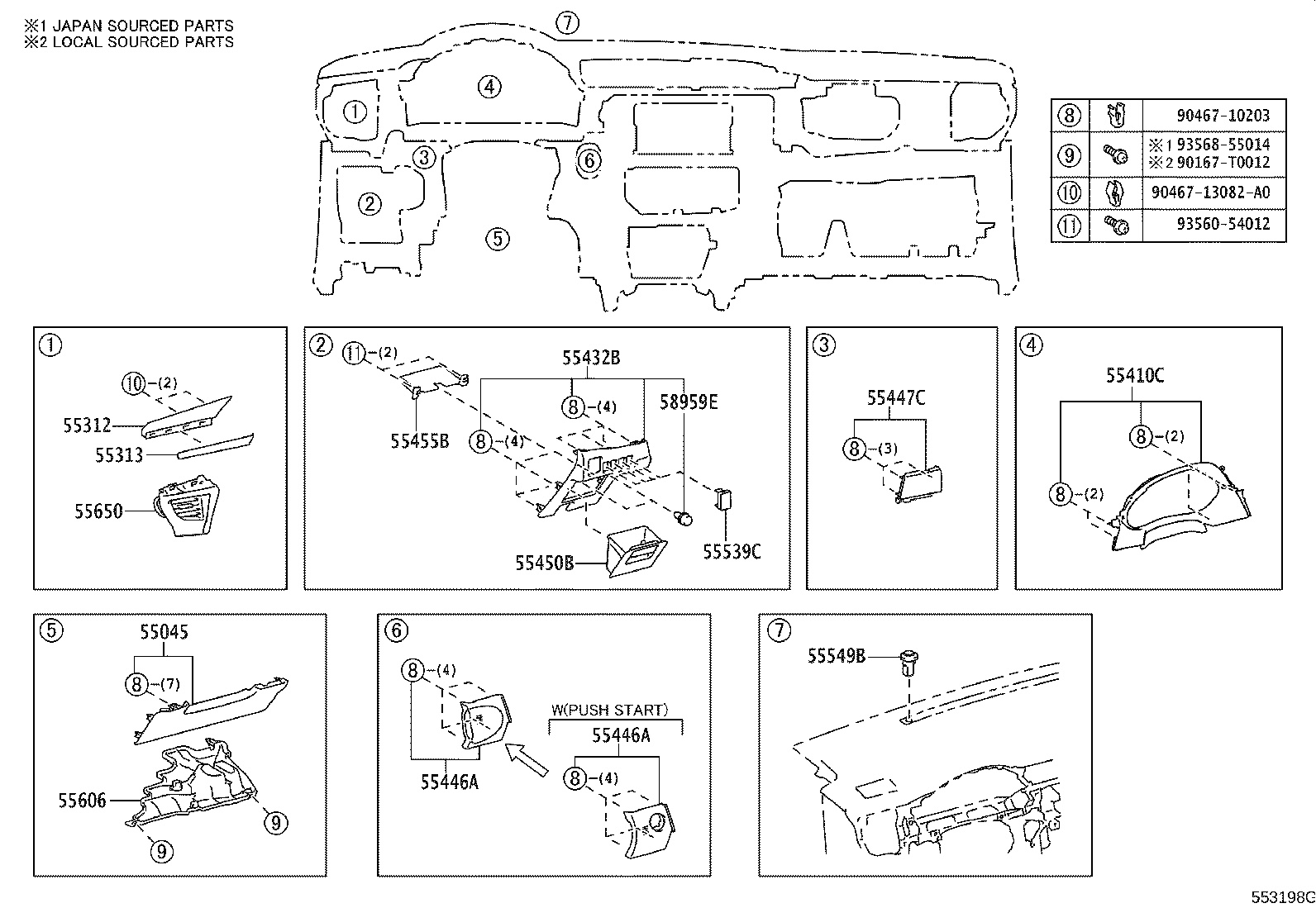

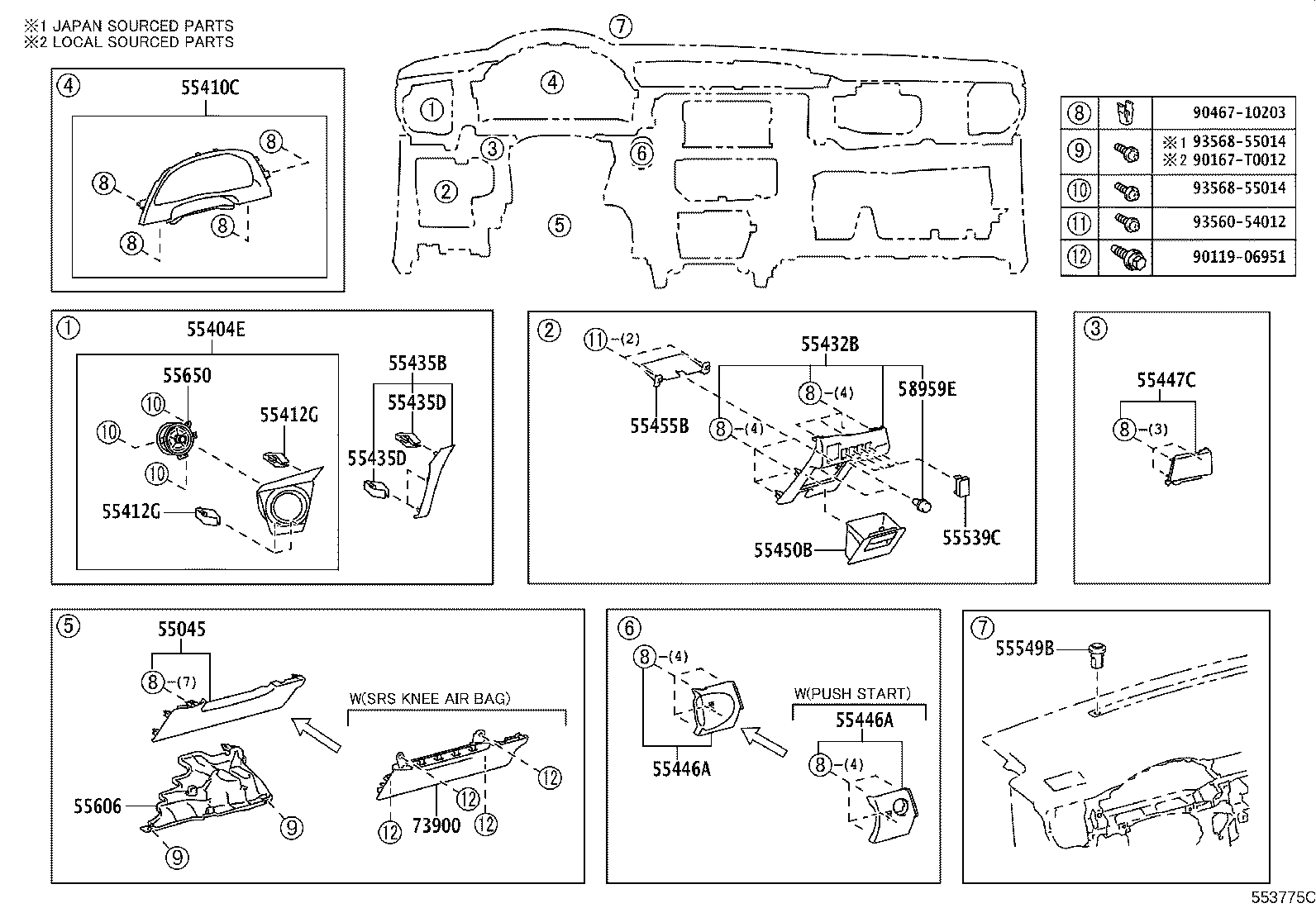

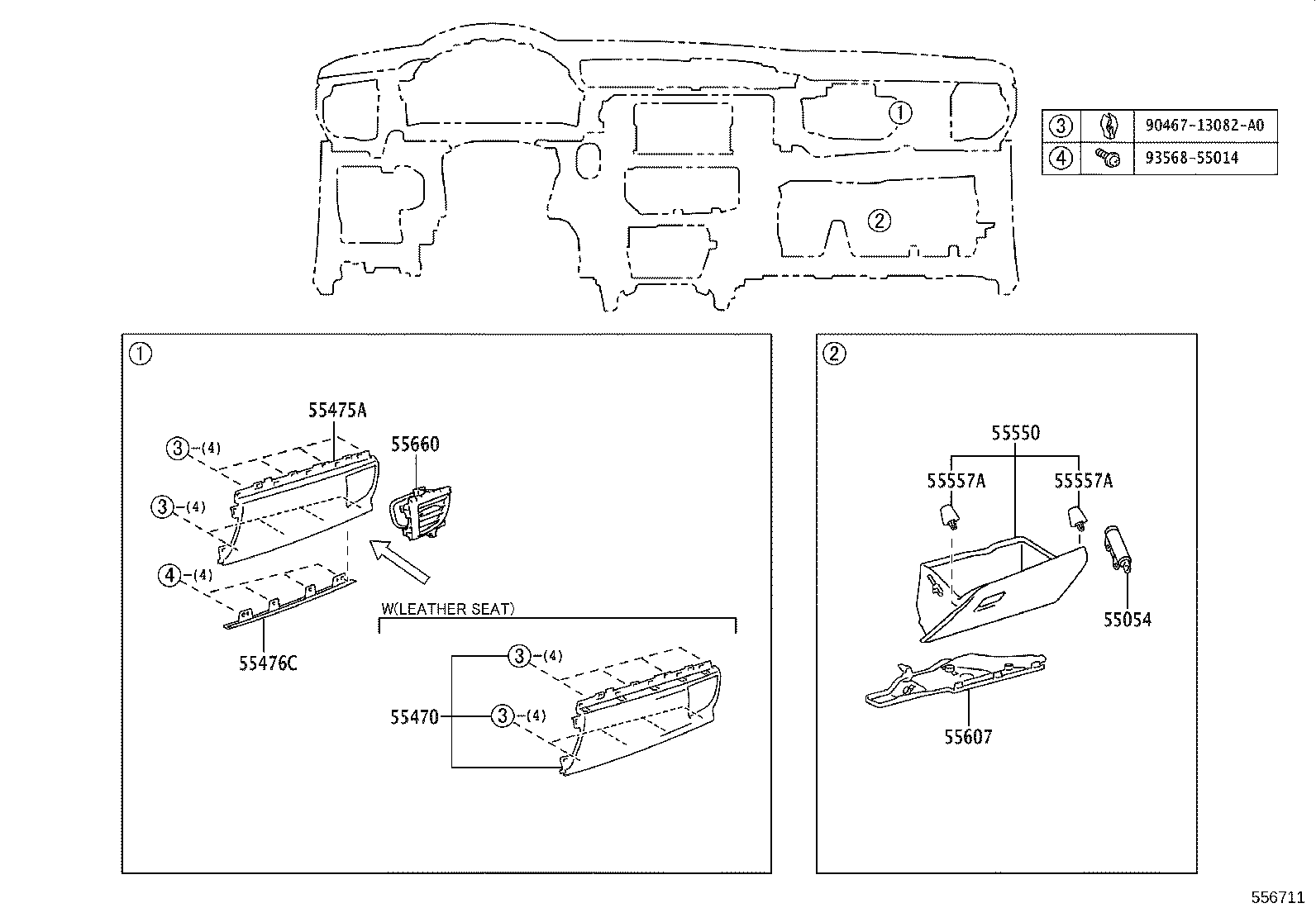

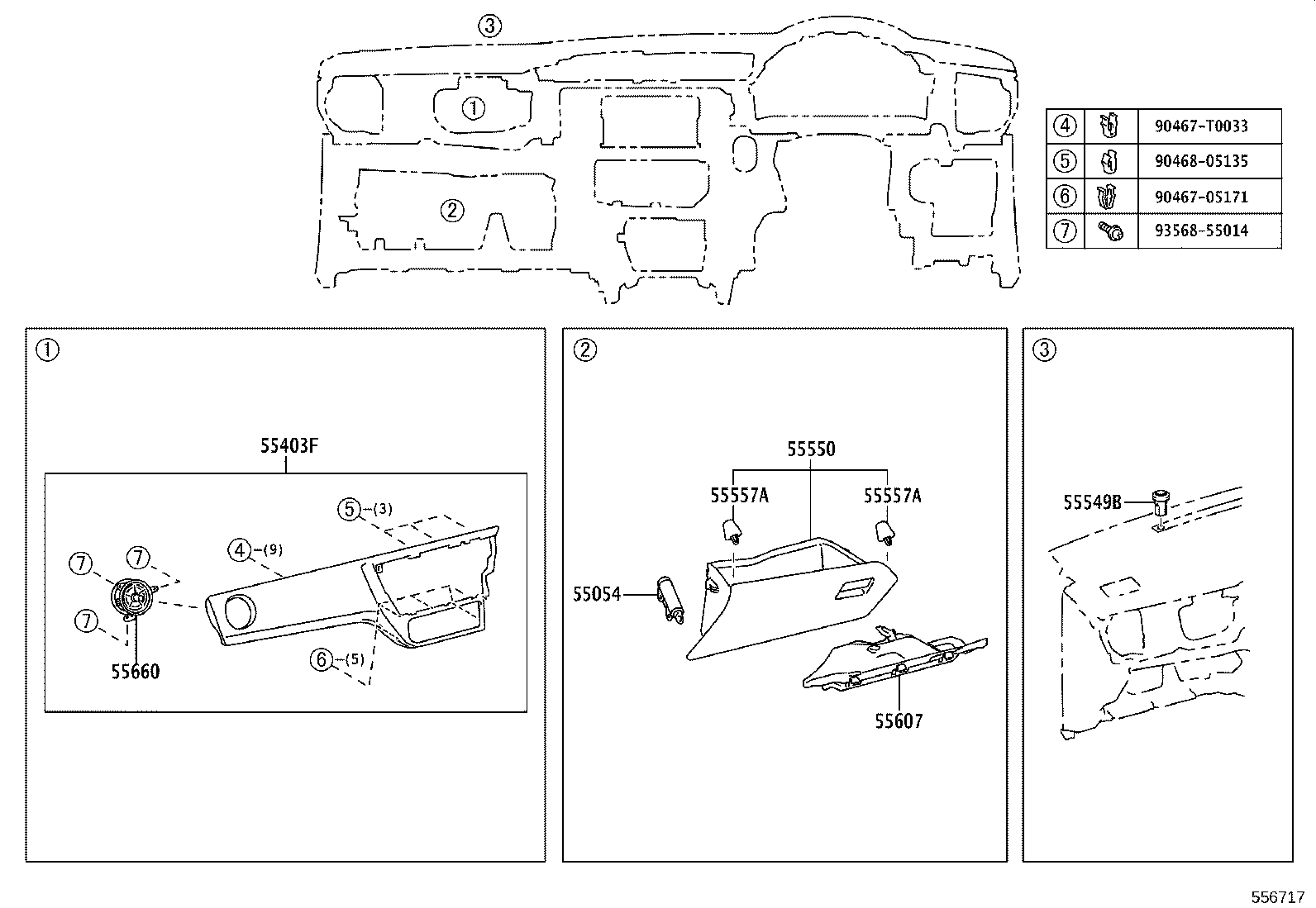

Figure 553195A 553195A 2013-10 → 2014-09 Figure 553195A 553195A 2013-10 → — Figure 553196D 553196D 2013-12 → — Figure 553197G 553197G 2013-12 → — Figure 553278I 553278I 2014-05 → — Figure 553198G 553198G 2013-10 → 2014-09 Figure 553198G 553198G 2013-10 → 2016-10 Figure 556706 556706 2013-10 → 2014-09 Figure 556706 556706 2013-10 → 2016-10 Figure 556707 556707 2013-10 → 2014-09 Figure 556707 556707 2013-10 → 2016-10 Figure 553774B 553774B 2016-10 → — Figure 556708 556708 2016-10 → — Figure 556709 556709 2016-10 → — Figure 553199H 553199H 2013-12 → 2016-11 Figure 553199H 553199H 2014-09 → 2017-09 Figure 556710 556710 2013-12 → 2016-11 Figure 556710 556710 2014-09 → 2017-09 Figure 556711 556711 2013-12 → 2016-11 Figure 556711 556711 2014-09 → 2017-09 Figure 553775C 553775C 2016-11 → — Figure 556712 556712 2016-11 → — Figure 556713 556713 2016-11 → — Figure 553200E 553200E 2013-12 → 2016-11 Figure 553200E 553200E 2013-12 → — Figure 556714 556714 2013-12 → 2016-11 Figure 556714 556714 2013-12 → — Figure 556715 556715 2013-12 → 2016-11 Figure 556715 556715 2013-12 → — Figure 553776F 553776F 2016-11 → — Figure 553776F 553776F 2017-03 → — Figure 553776F 553776F 2017-07 → — Figure 556716 556716 2016-11 → — Figure 556716 556716 2017-03 → — Figure 556716 556716 2017-07 → — Figure 556717 556717 2016-11 → — Figure 556717 556717 2017-03 → — Figure 556717 556717 2017-07 → — Figure 553279E 553279E 2014-05 → 2017-03 Figure 553279E 553279E 2014-07 → 2017-07 Figure 556718 556718 2014-05 → 2017-03 Figure 556718 556718 2014-07 → 2017-07 Figure 556719 556719 2014-05 → 2017-03 Figure 556719 556719 2014-07 → 2017-07

Part groups

PNCDescription
55011A Garnish Sub-assy, Instrument Panel, NO.1
55012A Garnish Sub-assy, Instrument Panel, NO.2
55045 Panel Sub-assy, Instrument Panel Finish, Lower
55054 Stopper Sub-assy, Glove Compartment Door
55301 Panel Sub-assy, Instrument
55302A Panel Sub-assy, Instrument, Upper
55303B Panel Sub-assy, Instrument, Lower
55306A Brace Sub-assy, Instrument Panel, NO.1
55312 Panel, Instrument, Lower
55312A Clip, Instrument Panel
55313 Panel, Instrument, Lower LH
55317A Panel, Instrument Side, RH
55318C Panel, Instrument Side, LH
55331 Reinforcement, Instrument Panel
55343B Brace, Instrument Panel TO Cowl, Center
55355 Cushion, Instrument Panel, NO.1
55356C Cushion, Instrument Panel, NO.2
55376 Bracket, Instrument Panel Mounting, NO.1
55401E Pad Sub-assy, Instrument Panel Safety
55402C Pad Sub-assy, Instrument Panel, Lower RH
55403C Pad Sub-assy, Instrument Panel, Lower LH
55403F Panel Sub-assy, Instrument Panel Finish
55404E Panel Sub-assy, Instrument Cluster Finish, Upr
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55406B Panel Sub-assy, Instrument Cluster Finish, Lower Center
55406D Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
55410C Panel Assy, Instrument Cluster Finish
55412C Panel, Instrument Cluster Finish, Center NO.1
55412G Clip(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL)
55413D Panel, Instrument Cluster Finish, Center Lower
55416A Retainer, Meter Hood, NO.1
55422C Panel, Instrument Cluster Finish, Center Upper
55432B Panel, Instrument Panel Finish, Lower
55434B Panel, Instrument Panel Finish, Lower Center
55435B Cluster, Meter Hood, NO.1
55435D Clip, Meter Hood Cluster
55446A Base, Switch Hole, NO.1
55447C Base, Switch Hole, NO.2
55450B Box Assy, Coin
55455B Coin Box
55468D Retainer, Instrument Panel Safety Pad, Center
55470 Garnish Assy, Instrument Cluster Finish Panel
55471 Moulding, Instrument Cluster, NO.1
55475A Garnish, Instrument Cluster Finish Panel, NO.2
55476C Garnish, Instrument Panel Finish Plate
55511A Plate, Instrument Panel, Name
55521C Cover, Stereo Opening
55521F Cover, Stereo Opening, NO.2
55522B Cover, Radio Tuner Opening
55539 Cover, Spare Switch Hole
55539C Cover, Spare Switch Hole
55539D Cover, Spare Switch Hole
55545 Cover, Fuse Box Opening
55549B Cover, Instrument Panel Hole, NO.2
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670A Register Assy, Instrument Panel, Center
55961A Nozzle, Side Defroster, RH
55962A Nozzle, Side Defroster, LH
55981 Garnish, Defroster Nozzle, NO.1
58959E Cushion, Console Compartment Door
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
