Toyota Corolla/Altis
2013-10 → present · chassis NDE170,NZE170,ZRE17#,ZZE172 · catalogue 156370 · General
Supported model
Data version 2022-08
Seat Belt & Child Restraint Seat

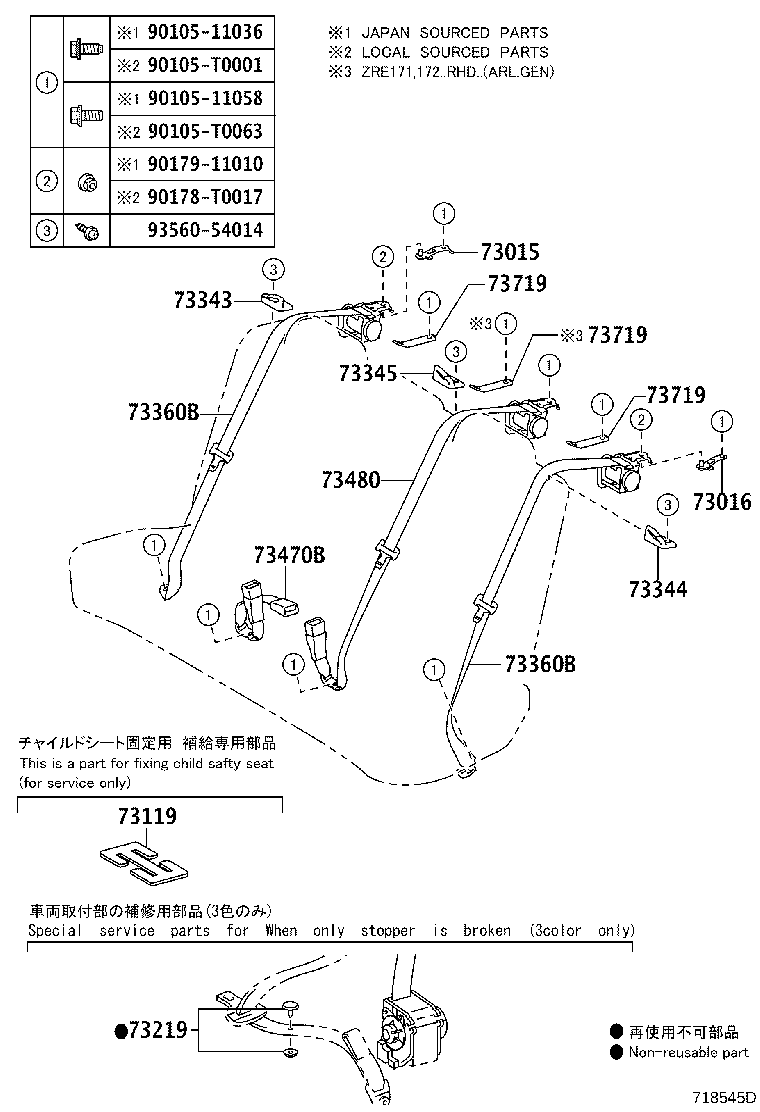

21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 73015 | Bracket Sub-assy, Belt Outer Anchor, RH |
| 73016 | Bracket Sub-assy, Belt Outer Anchor, LH |
| 73023 | Plate Sub-assy, Front Shoulder Belt Anchor, RH |
| 73024 | Plate Sub-assy, Front Shoulder Belt Anchor, LH |
| 73119 | Plate, Seat Belt Webbing Clip |
| 73135 | Cover, Shoulder Belt Anchorage Plate |
| 73136A | Cover, Shoulder Belt Anchor, LH |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73233 | Cover, Lap Belt Outer Anchor |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73343 | Guide, Rear Seat Shoulder Belt, RH |
| 73344 | Guide, Rear Seat Shoulder Belt, LH |
| 73345 | Guide, Rear Seat Shoulder Belt, Center |
| 73360B | Belt Assy, Rear Seat, Outer |
| 73470B | Belt Assy, Rear Seat Inner W/Center, RH |
| 73480 | Belt Assy, Rear Seat Inner W/Center, LH |
| 73719 | Bracket, Child Restraint Seat Tether Anchor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
