Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

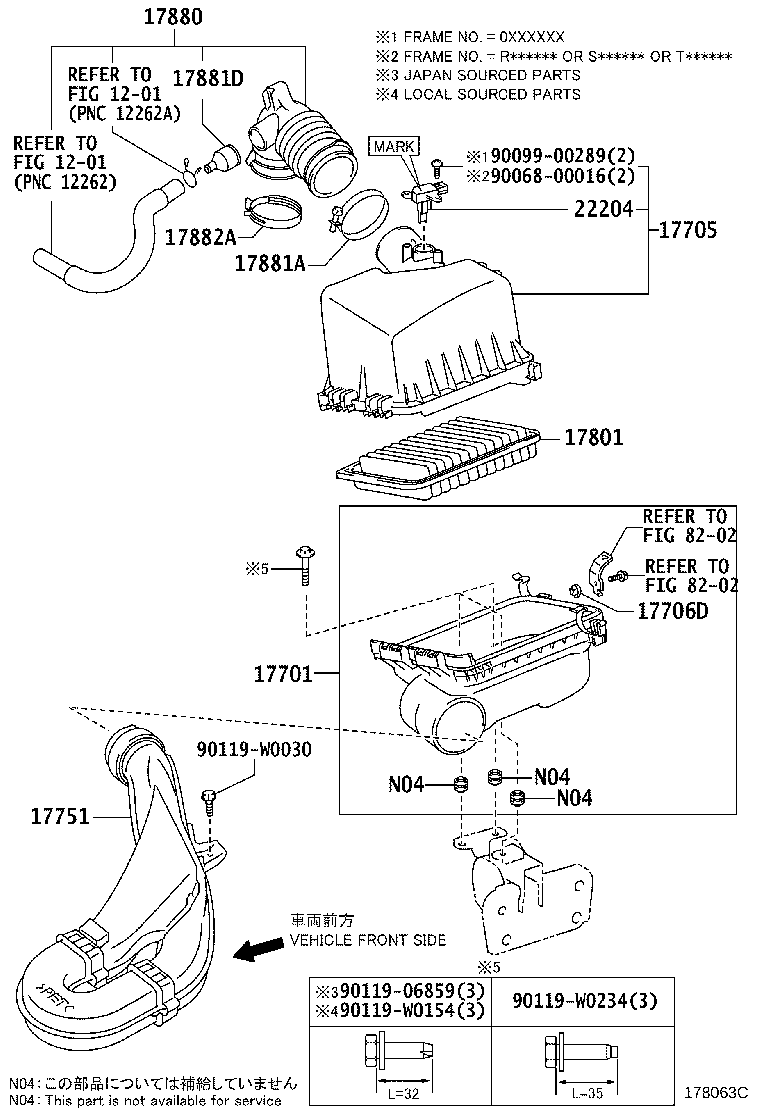

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17701 — Case Sub-assy, Air Cleaner | ||||
| 17701-0D160 note |
Case Sub-assy, Air Cleaner
2014-01 → 2015-04
ended
|
1NRFE NRE180 | — | |
| 17701-0D160 |
Case Sub-assy, Air Cleaner
2015-04 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 17701-0D160 note |
Case Sub-assy, Air Cleaner
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 17701-0R020 |
Case Sub-assy, Air Cleaner
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 17701-0R020 |
Case Sub-assy, Air Cleaner
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 17701-0T080 note |
Case Sub-assy, Air Cleaner
2014-01 → 2015-04
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 17701-0T080 note |
Case Sub-assy, Air Cleaner
2014-01 → 2015-04
ended
|
1NRFE NRE180 | — | |
| 17701-0D160 |
Case Sub-assy, Air Cleaner
2017-01 → —
|
1NRFE NRE180 SAP | — | |
| 17701-0D160 |
Case Sub-assy, Air Cleaner
2017-01 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 17701-0R020 |
Case Sub-assy, Air Cleaner
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 17701-0R020 |
Case Sub-assy, Air Cleaner
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 17701-0T080 |
Case Sub-assy, Air Cleaner
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 17701-0T080 |
Case Sub-assy, Air Cleaner
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 17701-0D160 |
Case Sub-assy, Air Cleaner
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-0N070 |
Cap Sub-assy, Air Cleaner
2013-06 → 2014-07
ended
|
1NDTV NDE180 | — | |
| 17705-0N071 |
Cap Sub-assy, Air Cleaner
2014-08 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 17705-0N071 |
Cap Sub-assy, Air Cleaner
2014-08 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 17705-0T051 note |
Cap Sub-assy, Air Cleaner
2014-01 → 2015-04
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 17705-0T091 note |
Cap Sub-assy, Air Cleaner
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 17705-0Y021 note |
Cap Sub-assy, Air Cleaner
2014-01 → 2015-04
ended
|
1NRFE NRE180 | — | |
| 17705-0Y041 |
Cap Sub-assy, Air Cleaner
2015-04 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 17705-0Y041 note |
Cap Sub-assy, Air Cleaner
2014-01 → 2015-04
ended
|
1NRFE NRE180 | — | |
| 17705-0N071 |
Cap Sub-assy, Air Cleaner
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 17705-0N071 |
Cap Sub-assy, Air Cleaner
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 17705-0T051 |
Cap Sub-assy, Air Cleaner
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 17705-0T091 |
Cap Sub-assy, Air Cleaner
2017-01 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 17705-0Y021 |
Cap Sub-assy, Air Cleaner
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 17705-0Y041 |
Cap Sub-assy, Air Cleaner
2017-01 → —
|
1NRFE NRE180 SAP | — | |
| 17705-0T091 |
Cap Sub-assy, Air Cleaner
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 17706D — Stay Sub-assy, Air Cleaner | ||||
| 17706-21010 |
Stay Sub-assy, Air Cleaner
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 17706-21010 |
Stay Sub-assy, Air Cleaner
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 17706-21010 |
Stay Sub-assy, Air Cleaner
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 17751 — Inlet, Air Cleaner, NO.1 | ||||
| 17751-0N080 |
Inlet, Air Cleaner, NO.1
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 17751-0N080 |
Inlet, Air Cleaner, NO.1
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 17751-0Y120 |
Inlet, Air Cleaner, NO.1
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 17751-0Y120 |
Inlet, Air Cleaner, NO.1
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 17751-0N080 |
Inlet, Air Cleaner, NO.1
2016-06 → 2019-12
ended
|
1NDTV NDE180 | — | |
| 17751-0Y120 |
Inlet, Air Cleaner, NO.1
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 17751-0Y120 |
Inlet, Air Cleaner, NO.1
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 17751-0Y120 |
Inlet, Air Cleaner, NO.1
2016-06 → 2019-12
ended
|
1NRFE NRE180 | — | |
| 17751-0Y120 |
Inlet, Air Cleaner, NO.1
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-0D060 note |
Element Sub-assy, Air Cleaner Filter
2014-01 → 2015-04
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 17801-0D060 note |
Element Sub-assy, Air Cleaner Filter
2014-01 → 2015-04
ended
|
1NRFE NRE180 | — | |
| 17801-0D090 note |
Element Sub-assy, Air Cleaner Filter
2014-01 → 2015-04
ended
|
1NRFE NRE180 | — | |
| 17801-0D090 |
Element Sub-assy, Air Cleaner Filter
2015-04 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 17801-0D090 note |
Element Sub-assy, Air Cleaner Filter
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 17801-0R030 |
Element Sub-assy, Air Cleaner Filter
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 17801-0R030 |
Element Sub-assy, Air Cleaner Filter
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 17801-26040 note |
Element Sub-assy, Air Cleaner Filter
2015-02 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 17801-0D060 |
Element Sub-assy, Air Cleaner Filter
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 17801-0D060 note |
Element Sub-assy, Air Cleaner Filter
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 17801-0D090 note |
Element Sub-assy, Air Cleaner Filter
2017-01 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 17801-0D090 |
Element Sub-assy, Air Cleaner Filter
2017-01 → —
|
1NRFE NRE180 SAP | — | |
| 17801-0R030 |
Element Sub-assy, Air Cleaner Filter
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 17801-0R030 |
Element Sub-assy, Air Cleaner Filter
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 17801-0D090 |
Element Sub-assy, Air Cleaner Filter
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 17880 — Hose Assy, Air Cleaner | ||||
| 17880-0N070 |
Hose Assy, Air Cleaner
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 17880-0N070 |
Hose Assy, Air Cleaner
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 17880-0Y020 |
Hose Assy, Air Cleaner
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 17880-0N070 |
Hose Assy, Air Cleaner
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 17880-0N070 |
Hose Assy, Air Cleaner
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 17880-0Y020 |
Hose Assy, Air Cleaner
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 17880-0Y020 |
Hose Assy, Air Cleaner
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 17881A — Clamp(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 96111-10750 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2013-06 → 2017-01
ended
|
1N# NDE180,NRE180 SAP | — | |
| 96111-10750 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 96111-10750 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 96111-10750 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 96111-10750 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 96111-10750 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 96111-10750 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2016-06 → —
|
1N# NDE180,NRE180 SAP | — | |
| 96111-10750 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 17881D — Tube, Union(FOG AIR CLEANER HOSE) | ||||
| 12229-21010 |
Tube, Union(FOG AIR CLEANER HOSE)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90904-06008 |
Tube, Union(FOG AIR CLEANER HOSE)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 12229-21010 |
Tube, Union(FOG AIR CLEANER HOSE)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 12229-21010 |
Tube, Union(FOG AIR CLEANER HOSE)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90904-06008 |
Tube, Union(FOG AIR CLEANER HOSE)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90904-06008 |
Tube, Union(FOG AIR CLEANER HOSE)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 12229-21010 |
Tube, Union(FOG AIR CLEANER HOSE)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 17882A — Clamp(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90466-54002 |
Clamp(FOR AIR CLEANER HOSE, NO.2)
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 90466-54002 |
Clamp(FOR AIR CLEANER HOSE, NO.2)
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 90466-62002 |
Clamp(FOR AIR CLEANER HOSE, NO.2)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 96111-10780 |
Clamp(FOR AIR CLEANER HOSE, NO.2)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90466-54002 |
Clamp(FOR AIR CLEANER HOSE, NO.2)
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 90466-54002 |
Clamp(FOR AIR CLEANER HOSE, NO.2)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 90466-62002 |
Clamp(FOR AIR CLEANER HOSE, NO.2)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90466-62002 |
Clamp(FOR AIR CLEANER HOSE, NO.2)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 96111-10780 |
Clamp(FOR AIR CLEANER HOSE, NO.2)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 96111-10780 |
Clamp(FOR AIR CLEANER HOSE, NO.2)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 96111-10780 |
Clamp(FOR AIR CLEANER HOSE, NO.2)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 22204 — Meter Sub-assy, Intake Air Flow | ||||
| 22204-0V010 note |
Meter Sub-assy, Intake Air Flow
2014-01 → 2015-04
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 22204-0V010 note |
Meter Sub-assy, Intake Air Flow
2014-01 → 2015-04
ended
|
1NRFE NRE180 | — | |
| 22204-0V020 note |
Meter Sub-assy, Intake Air Flow
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 22204-0V020 note |
Meter Sub-assy, Intake Air Flow
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 22204-26010 |
Meter Sub-assy, Intake Air Flow
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 22204-26010 |
Meter Sub-assy, Intake Air Flow
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 22204-28010 note |
Meter Sub-assy, Intake Air Flow
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 22204-28010 note |
Meter Sub-assy, Intake Air Flow
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 22204-0V010 note |
Meter Sub-assy, Intake Air Flow
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 22204-0V010 note |
Meter Sub-assy, Intake Air Flow
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 22204-0V020 note |
Meter Sub-assy, Intake Air Flow
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 22204-0V020 note |
Meter Sub-assy, Intake Air Flow
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 22204-0V020 note |
Meter Sub-assy, Intake Air Flow
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 22204-0V020 note |
Meter Sub-assy, Intake Air Flow
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 22204-26010 |
Meter Sub-assy, Intake Air Flow
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 22204-26010 |
Meter Sub-assy, Intake Air Flow
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 22204-28010 note |
Meter Sub-assy, Intake Air Flow
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 22204-28010 note |
Meter Sub-assy, Intake Air Flow
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 22204-28010 note |
Meter Sub-assy, Intake Air Flow
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 22204-28010 note |
Meter Sub-assy, Intake Air Flow
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 22204-0V020 note |
Meter Sub-assy, Intake Air Flow
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 22204-28010 note |
Meter Sub-assy, Intake Air Flow
2019-12 → —
|
2ZRFE ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
