Toyota Corolla

2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

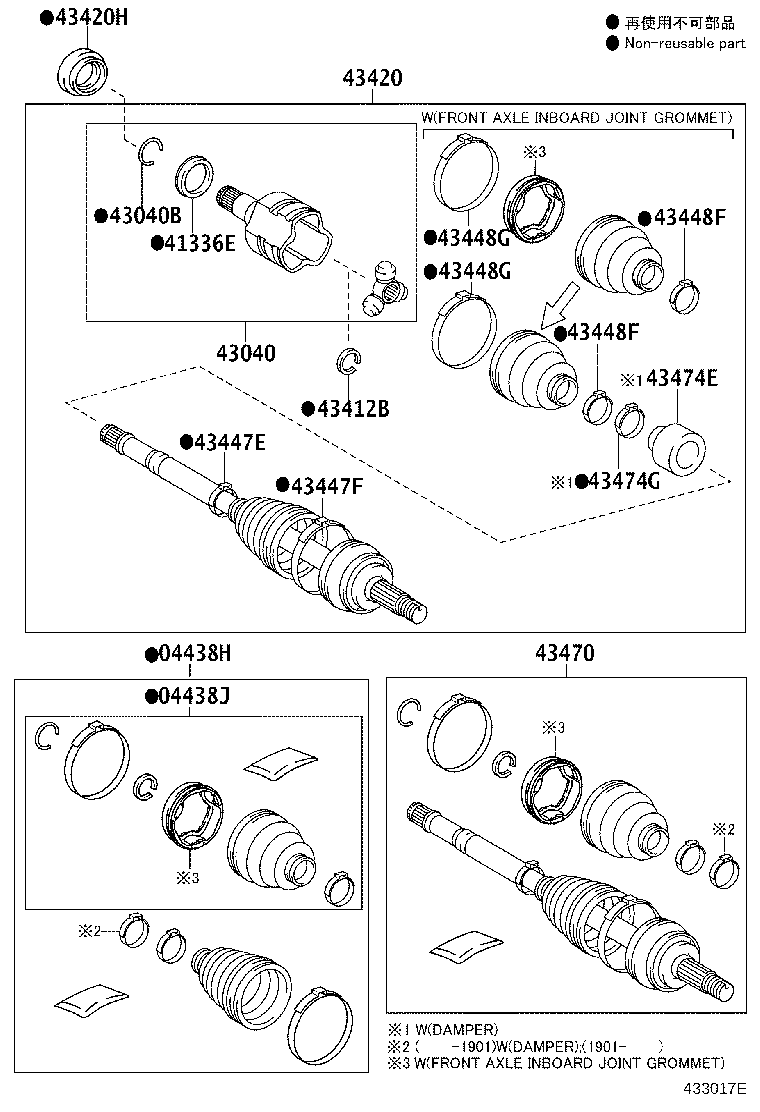

Exploded illustration 433017E 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (16 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (16 parts) 41336E — COVER, FRONT DRIVE SHAFT DUST, LH (10 parts) 43420 — SHAFT ASSY, FRONT DRIVE, LH (30 parts) 43040 — JOINT ASSY, FRONT DRIVE INBOARD, LH (18 parts) 43040B — RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT LH) (10 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (17 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (9 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (9 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (17 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (17 parts) 43470 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH (16 parts) 43420H — OIL SEAL, FRONT DRIVE SHAFT, LH (15 parts) 43474E — DAMPER, FRONT DRIVE SHAFT, LH (4 parts) 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (4 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (17 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (17 parts)
433017E · 17 callouts Full size ↗
208 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04427-02580 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2014-01 → 2017-01 ended
NRE180 SAP —
04428-02651 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2014-01 → 2017-01 ended
ZRE18# SAP —
04428-02661 note Boot Kit, Front Drive Shaft, IN & Outboard, LH
2014-01 → 2017-01 ended
ZRE18# SAP —
04428-02670 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2013-06 → 2016-06 ended
NDE180 SAP —
04428-02670 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2013-06 → 2016-05 ended
NDE180 TUP —
04428-02850 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2016-06 → 2017-01 ended
NDE180 SAP —
04427-02580 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2016-06 → 2018-08 ended
NRE180 TUP —
04427-02580 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2016-06 → 2019-12 ended
NRE180 SAP —
04428-02651 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2016-06 → 2019-01 ended
ZRE18# TUP —
04428-02651 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2016-06 → 2019-12 ended
ZRE18# SAP —
04428-02661 note Boot Kit, Front Drive Shaft, IN & Outboard, LH
2016-06 → 2019-01 ended
ZRE18# TUP —
04428-02661 note Boot Kit, Front Drive Shaft, IN & Outboard, LH
2016-06 → 2019-12 ended
ZRE18# SAP —
04428-02670 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2016-06 → 2016-11 ended
NDE180 TUP —
04428-02850 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2016-11 → 2019-01 ended
NDE180 TUP —
04428-02850 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2016-11 → 2019-12 ended
NDE180 SAP —
04428-02661 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2019-12 → 2020-12 ended
ZRE182 —
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04437-02420 Boot Kit, Front Drive Shaft Inboard Joint, LH
2014-01 → 2017-01 ended
NRE180 SAP —
04437-02430 Boot Kit, Front Drive Shaft Inboard Joint, LH
2014-01 → 2017-01 ended
ZRE18# SAP —
04437-0F010 Boot Kit, Front Drive Shaft Inboard Joint, LH
2016-06 → 2017-01 ended
NDE180 SAP —
04438-02580 note Boot Kit, Front Drive Shaft Inboard Joint, LH
2014-01 → 2017-01 ended
ZRE18# SAP —
04438-02590 Boot Kit, Front Drive Shaft Inboard Joint, LH
2013-06 → 2016-05 ended
NDE180 TUP —
04438-02590 Boot Kit, Front Drive Shaft Inboard Joint, LH
2013-06 → 2016-06 ended
NDE180 SAP —
04437-02420 Boot Kit, Front Drive Shaft Inboard Joint, LH
2016-06 → 2019-12 ended
NRE180 SAP —
04437-02420 Boot Kit, Front Drive Shaft Inboard Joint, LH
2016-06 → 2018-08 ended
NRE180 TUP —
04437-02430 Boot Kit, Front Drive Shaft Inboard Joint, LH
2016-06 → 2019-01 ended
ZRE18# TUP —
04437-02430 Boot Kit, Front Drive Shaft Inboard Joint, LH
2016-06 → 2019-12 ended
ZRE18# SAP —
04437-0F010 Boot Kit, Front Drive Shaft Inboard Joint, LH
2016-11 → 2019-01 ended
NDE180 TUP —
04437-0F010 Boot Kit, Front Drive Shaft Inboard Joint, LH
2016-11 → 2019-12 ended
NDE180 SAP —
04438-02580 note Boot Kit, Front Drive Shaft Inboard Joint, LH
2016-06 → 2019-01 ended
ZRE18# TUP —
04438-02580 note Boot Kit, Front Drive Shaft Inboard Joint, LH
2016-06 → 2019-12 ended
ZRE18# SAP —
04438-02590 Boot Kit, Front Drive Shaft Inboard Joint, LH
2016-06 → 2016-11 ended
NDE180 TUP —
04438-02580 Boot Kit, Front Drive Shaft Inboard Joint, LH
2019-12 → 2020-12 ended
ZRE182 —
41336E — Cover, Front Drive Shaft Dust, LH
41336-05010 Cover, Front Drive Shaft Dust, LH
2014-01 → 2017-01 ended
NRE180 SAP —
41336-05140 Cover, Front Drive Shaft Dust, LH
2016-06 → 2017-01 ended
NDE180 SAP —
41336-05140 Cover, Front Drive Shaft Dust, LH
2013-06 → 2017-01 ended
ZRE18# SAP —
41336-05140 Cover, Front Drive Shaft Dust, LH
2013-06 → 2016-05 ended
NDE180 TUP —
41336-05140 Cover, Front Drive Shaft Dust, LH
2014-01 → 2015-08 ended
NDE180 SAP —
41336-05010 Cover, Front Drive Shaft Dust, LH
2016-06 → 2018-08 ended
NRE180 TUP —
41336-05010 Cover, Front Drive Shaft Dust, LH
2016-06 → 2019-12 ended
NRE180 SAP —
41336-05140 Cover, Front Drive Shaft Dust, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
41336-05140 Cover, Front Drive Shaft Dust, LH
2016-06 → 2019-12 ended
NDE180,ZRE18# SAP —
41336-05140 Cover, Front Drive Shaft Dust, LH
2019-12 → —
ZRE182 —
43040 — Joint Assy, Front Drive Inboard, LH
43040-02030 Joint Assy, Front Drive Inboard, LH
2014-01 → 2017-01 ended
NRE180 SAP —
43040-05150 Joint Assy, Front Drive Inboard, LH
2014-01 → 2017-01 ended
ZRE18# SAP —
43040-0D010 note Joint Assy, Front Drive Inboard, LH
2014-01 → 2017-01 ended
ZRE18# SAP —
43040-0F020 Joint Assy, Front Drive Inboard, LH
2016-06 → 2017-01 ended
NDE180 SAP —
43040-0F030 Joint Assy, Front Drive Inboard, LH
2014-01 → 2015-08 ended
NDE180 SAP —
43040-0F030 Joint Assy, Front Drive Inboard, LH
2013-06 → 2016-05 ended
NDE180 TUP —
43040-02030 Joint Assy, Front Drive Inboard, LH
2016-06 → 2019-12 ended
NRE180 SAP —
43040-02030 Joint Assy, Front Drive Inboard, LH
2016-06 → 2018-08 ended
NRE180 TUP —
43040-05150 Joint Assy, Front Drive Inboard, LH
2016-06 → 2019-01 ended
ZRE18# TUP —
43040-05150 Joint Assy, Front Drive Inboard, LH
2016-06 → 2019-12 ended
ZRE18# SAP —
43040-0D010 note Joint Assy, Front Drive Inboard, LH
2016-06 → 2019-01 ended
ZRE18# TUP —
43040-0D010 note Joint Assy, Front Drive Inboard, LH
2016-06 → 2019-12 ended
ZRE18# SAP —
43040-0F020 Joint Assy, Front Drive Inboard, LH
2016-11 → 2019-12 ended
NDE180 SAP —
43040-0F020 Joint Assy, Front Drive Inboard, LH
2016-11 → 2019-01 ended
NDE180 TUP —
43040-0F030 Joint Assy, Front Drive Inboard, LH
2016-06 → 2016-10 ended
NDE180 TUP —
43040-02630 Joint Assy, Front Drive Inboard, LH
2022-01 → —
ZRE182 —
43040-0D010 Joint Assy, Front Drive Inboard, LH
2019-12 → 2020-12 ended
ZRE182 —
43040-0D011 Joint Assy, Front Drive Inboard, LH
2020-12 → 2021-12 ended
ZRE182 —
43040B — Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
90080-52055 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
2014-01 → 2015-08 ended
NDE180 SAP —
90080-52055 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
2013-06 → 2016-05 ended
NDE180 TUP —
90080-52055 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
2013-06 → 2017-01 ended
ZRE18# SAP —
90080-52055 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
2016-06 → 2017-01 ended
NDE180 SAP —
90080-52056 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
2014-01 → 2017-01 ended
NRE180 SAP —
90080-52055 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90080-52055 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
2016-06 → 2019-12 ended
ZRE18# SAP —
90080-52056 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
2016-06 → 2018-08 ended
NRE180 TUP —
90080-52056 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
2016-06 → 2019-12 ended
NRE180 SAP —
90080-52055 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
2019-12 → —
ZRE182 —
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-05080 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2014-01 → 2017-01 ended
ZRE18# SAP —
43425-05110 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2014-01 → 2015-08 ended
NDE180 SAP —
43425-05110 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2013-06 → 2016-05 ended
NDE180 TUP —
43425-05120 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2014-01 → 2017-01 ended
ZRE18# SAP —
43425-05120 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2016-06 → 2017-01 ended
NDE180 SAP —
90080-52093 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2014-01 → 2017-01 ended
NRE180 SAP —
43425-05080 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2016-06 → 2019-12 ended
ZRE18# SAP —
43425-05080 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2016-06 → 2019-01 ended
ZRE18# TUP —
43425-05110 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2016-06 → 2016-10 ended
NDE180 TUP —
43425-05120 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2016-06 → 2019-01 ended
ZRE18# TUP —
43425-05120 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2016-11 → 2019-01 ended
NDE180 TUP —
43425-05120 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2016-06 → 2019-12 ended
ZRE18# SAP —
43425-05120 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2016-11 → 2019-12 ended
NDE180 SAP —
90080-52093 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2016-06 → 2019-12 ended
NRE180 SAP —
90080-52093 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2016-06 → 2018-08 ended
NRE180 TUP —
43425-02260 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2020-12 → —
ZRE182 —
43425-05120 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2019-12 → 2020-12 ended
ZRE182 —
43420 — Shaft Assy, Front Drive, LH
43420-02A30 Shaft Assy, Front Drive, LH
2014-01 → 2015-05 ended
NRE180 —
43420-02A40 Shaft Assy, Front Drive, LH
2014-01 → 2015-05 ended
ZRE18# 6F —
43420-02B20 Shaft Assy, Front Drive, LH
2014-01 → 2015-05 ended
ZRE18# CVT —
43420-02B30 note Shaft Assy, Front Drive, LH
2014-01 → 2015-05 ended
ZRE18# 6F —
43420-02B40 note Shaft Assy, Front Drive, LH
2014-01 → 2015-05 ended
ZRE18# CVT —
43420-02B50 Shaft Assy, Front Drive, LH
2014-01 → 2015-05 ended
NDE180 SAP —
43420-02D30 Shaft Assy, Front Drive, LH
2015-05 → 2017-01 ended
NRE180 SAP —
43420-02D40 Shaft Assy, Front Drive, LH
2015-05 → 2017-01 ended
ZRE18# 6F SAP —
43420-02D50 Shaft Assy, Front Drive, LH
2015-05 → 2017-01 ended
ZRE18# CVT SAP —
43420-02D60 note Shaft Assy, Front Drive, LH
2015-05 → 2017-01 ended
ZRE18# 6F SAP —
43420-02D70 note Shaft Assy, Front Drive, LH
2015-05 → 2017-01 ended
ZRE18# CVT SAP —
43420-02D80 Shaft Assy, Front Drive, LH
2015-05 → 2015-08 ended
NDE180 SAP —
43420-02D80 Shaft Assy, Front Drive, LH
2013-06 → 2016-05 ended
NDE180 TUP —
43420-02E60 Shaft Assy, Front Drive, LH
2015-08 → 2017-01 ended
NDE180 SAP —
43420-02D30 Shaft Assy, Front Drive, LH
2016-06 → 2018-08 ended
NRE180 TUP —
43420-02D30 Shaft Assy, Front Drive, LH
2016-06 → 2019-12 ended
NRE180 SAP —
43420-02D40 Shaft Assy, Front Drive, LH
2016-06 → 2019-01 ended
ZRE181 6F TUP —
43420-02D40 Shaft Assy, Front Drive, LH
2016-06 → 2019-12 ended
ZRE18# 6F SAP —
43420-02D50 Shaft Assy, Front Drive, LH
2016-06 → 2019-12 ended
ZRE18# CVT SAP —
43420-02D50 Shaft Assy, Front Drive, LH
2016-06 → 2019-01 ended
ZRE18# CVT TUP —
43420-02D60 note Shaft Assy, Front Drive, LH
2016-06 → 2019-01 ended
ZRE181 6F TUP —
43420-02D60 note Shaft Assy, Front Drive, LH
2016-06 → 2019-12 ended
ZRE18# 6F SAP —
43420-02D70 note Shaft Assy, Front Drive, LH
2016-06 → 2019-01 ended
ZRE18# CVT TUP —
43420-02D70 note Shaft Assy, Front Drive, LH
2016-06 → 2019-12 ended
ZRE18# CVT SAP —
43420-02D80 Shaft Assy, Front Drive, LH
2016-06 → 2016-10 ended
NDE180 TUP —
43420-02E60 Shaft Assy, Front Drive, LH
2017-01 → 2019-12 ended
NDE180 SAP —
43420-02F00 Shaft Assy, Front Drive, LH
2016-11 → 2019-01 ended
NDE180 TUP —
43420-02D70 Shaft Assy, Front Drive, LH
2019-12 → 2020-12 ended
ZRE182 —
43420-02K60 Shaft Assy, Front Drive, LH
2020-12 → 2021-12 ended
ZRE182 —
43420-02L20 Shaft Assy, Front Drive, LH
2022-01 → —
ZRE182 —
43420H — Oil Seal, Front Drive Shaft, LH
90311-35066 Oil Seal, Front Drive Shaft, LH
2013-06 → 2016-05 ended
NDE180 TUP —
90311-35066 Oil Seal, Front Drive Shaft, LH
2013-06 → 2017-01 ended
NDE180,ZRE18# 6F SAP —
90311-35068 Oil Seal, Front Drive Shaft, LH
2014-01 → 2017-01 ended
ZRE18# CVT SAP —
90311-W0016 Oil Seal, Front Drive Shaft, LH
2014-01 → 2017-01 ended
NRE180 SAP —
90311-35066 Oil Seal, Front Drive Shaft, LH
2016-06 → 2017-03 ended
NDE180,ZRE18# 6F —
90311-35068 Oil Seal, Front Drive Shaft, LH
2016-06 → 2018-08 ended
ZRE18# CVT —
90311-35075 Oil Seal, Front Drive Shaft, LH
2017-03 → 2019-01 ended
NDE180,ZRE181 6F TUP —
90311-35075 Oil Seal, Front Drive Shaft, LH
2017-03 → 2019-12 ended
NDE180,ZRE18# 6F SAP —
90311-35080 Oil Seal, Front Drive Shaft, LH
2018-08 → 2019-01 ended
ZRE18# CVT TUP —
90311-35080 Oil Seal, Front Drive Shaft, LH
2018-08 → 2019-12 ended
ZRE18# CVT SAP —
90311-W0016 Oil Seal, Front Drive Shaft, LH
2016-06 → 2018-08 ended
NRE180 TUP —
90311-W0016 Oil Seal, Front Drive Shaft, LH
2016-06 → 2019-08 ended
NRE180 SAP —
90311-W0023 Oil Seal, Front Drive Shaft, LH
2019-08 → 2019-12 ended
NRE180 —
90311-35075 Oil Seal, Front Drive Shaft, LH
2019-12 → —
ZRE182 6F —
90311-35080 Oil Seal, Front Drive Shaft, LH
2019-12 → —
ZRE182 CVT —
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-02110 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2013-06 → 2016-05 ended
NDE180 TUP —
42345-02110 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2016-06 → 2017-01 ended
NDE180 SAP —
42345-02110 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2014-01 → 2015-08 ended
NDE180 SAP —
42345-02110 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2013-06 → 2017-01 ended
ZRE18# SAP —
42345-05140 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2014-01 → 2017-01 ended
NRE180 SAP —
42345-02110 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2016-06 → 2019-12 ended
NDE180,ZRE18# —
42345-05140 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2016-06 → 2019-12 ended
NRE180 —
42345-02110 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2019-12 → 2020-12 ended
ZRE182 —
42345-02C50 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2020-12 → —
ZRE182 —
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-02100 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2014-01 → 2015-08 ended
NDE180 SAP —
42345-02100 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2013-06 → 2016-05 ended
NDE180 TUP —
42345-02100 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2013-06 → 2017-01 ended
ZRE18# SAP —
42345-02100 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2016-06 → 2017-01 ended
NDE180 SAP —
42345-05130 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2014-01 → 2017-01 ended
NRE180 SAP —
42345-02100 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2016-06 → 2019-12 ended
NDE180,ZRE18# —
42345-05130 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2016-06 → 2019-12 ended
NRE180 —
42345-02100 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2019-12 → 2020-12 ended
ZRE182 —
42345-02C60 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2020-12 → —
ZRE182 —
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-02090 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2014-01 → 2015-08 ended
NDE180 SAP —
42345-02090 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2013-06 → 2016-05 ended
NDE180 TUP —
42345-02240 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2014-01 → 2017-01 ended
NRE180 SAP —
42345-05100 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2014-01 → 2017-01 ended
ZRE18# SAP —
42345-05340 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2014-01 → 2017-01 ended
ZRE18# SAP —
42345-0F060 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-06 → 2017-01 ended
NDE180 SAP —
42345-02090 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-06 → 2016-10 ended
NDE180 TUP —
42345-02240 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-06 → 2018-08 ended
NRE180 TUP —
42345-02240 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-06 → 2019-12 ended
NRE180 SAP —
42345-05100 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-06 → 2019-01 ended
ZRE18# TUP —
42345-05100 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-06 → 2019-12 ended
ZRE18# SAP —
42345-05340 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-06 → 2019-01 ended
ZRE18# TUP —
42345-05340 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-06 → 2019-12 ended
ZRE18# SAP —
42345-0F060 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-11 → 2019-01 ended
NDE180 TUP —
42345-0F060 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-11 → 2019-12 ended
NDE180 SAP —
42345-02C50 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2020-12 → —
ZRE182 —
42345-05100 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2019-12 → 2020-12 ended
ZRE182 —
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-02040 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2014-01 → 2017-01 ended
ZRE18# SAP —
42345-05030 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2014-01 → 2017-01 ended
NRE180 SAP —
42345-05300 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2014-01 → 2015-08 ended
NDE180 SAP —
42345-05300 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2013-06 → 2016-05 ended
NDE180 TUP —
42345-05320 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2014-01 → 2017-01 ended
ZRE18# SAP —
42345-0F050 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-06 → 2017-01 ended
NDE180 SAP —
42345-02040 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-06 → 2019-01 ended
ZRE18# TUP —
42345-02040 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-06 → 2019-12 ended
ZRE18# SAP —
42345-05030 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-06 → 2018-08 ended
NRE180 TUP —
42345-05030 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-06 → 2019-12 ended
NRE180 SAP —
42345-05300 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-06 → 2016-10 ended
NDE180 TUP —
42345-05320 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-06 → 2019-01 ended
ZRE18# TUP —
42345-05320 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-06 → 2019-12 ended
ZRE18# SAP —
42345-0F050 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-11 → 2019-01 ended
NDE180 TUP —
42345-0F050 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2016-11 → 2019-12 ended
NDE180 SAP —
42345-02040 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2019-12 → 2020-12 ended
ZRE182 —
42345-05130 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2020-12 → —
ZRE182 —
43470 — Shaft Assy, Front Drive Outboard Joint, LH
43470-8Z046 Shaft Assy, Front Drive Outboard Joint, LH
2014-01 → 2017-01 ended
NRE180 SAP —
43470-8Z050 Shaft Assy, Front Drive Outboard Joint, LH
2014-01 → 2016-06 ended
NDE180 SAP —
43470-8Z230 Shaft Assy, Front Drive Outboard Joint, LH
2013-06 → 2016-05 ended
NDE180 TUP —
43470-8Z231 Shaft Assy, Front Drive Outboard Joint, LH
2014-01 → 2017-01 ended
ZRE18# SAP —
43470-8Z232 note Shaft Assy, Front Drive Outboard Joint, LH
2014-01 → 2017-01 ended
ZRE18# SAP —
43470-8Z267 Shaft Assy, Front Drive Outboard Joint, LH
2016-06 → 2017-01 ended
NDE180 SAP —
43470-8Z046 Shaft Assy, Front Drive Outboard Joint, LH
2017-01 → 2019-12 ended
NRE180 SAP —
43470-8Z225 Shaft Assy, Front Drive Outboard Joint, LH
2016-06 → 2018-08 ended
NRE180 TUP —
43470-8Z226 Shaft Assy, Front Drive Outboard Joint, LH
2016-06 → 2019-01 ended
ZRE181 6F TUP —
43470-8Z227 Shaft Assy, Front Drive Outboard Joint, LH
2016-06 → 2019-01 ended
ZRE18# CVT TUP —
43470-8Z229 note Shaft Assy, Front Drive Outboard Joint, LH
2016-06 → 2019-01 ended
ZRE18# TUP —
43470-8Z230 Shaft Assy, Front Drive Outboard Joint, LH
2016-06 → 2016-11 ended
NDE180 TUP —
43470-8Z231 Shaft Assy, Front Drive Outboard Joint, LH
2017-01 → 2019-12 ended
ZRE18# SAP —
43470-8Z232 note Shaft Assy, Front Drive Outboard Joint, LH
2017-01 → 2019-12 ended
ZRE18# SAP —
43470-8Z267 Shaft Assy, Front Drive Outboard Joint, LH
2017-01 → 2019-12 ended
NDE180 SAP —
43470-8Z277 Shaft Assy, Front Drive Outboard Joint, LH
2016-11 → 2019-01 ended
NDE180 TUP —
43474E — Damper, Front Drive Shaft, LH
43474-02410 Damper, Front Drive Shaft, LH
2014-01 → 2017-01 ended
ZRE18# CVT SAP —
43474-02410 Damper, Front Drive Shaft, LH
2016-06 → 2019-01 ended
ZRE18# CVT TUP —
43474-02410 Damper, Front Drive Shaft, LH
2016-06 → 2019-12 ended
ZRE18# CVT SAP —
43474-02410 Damper, Front Drive Shaft, LH
2019-12 → —
ZRE182 —
43474G — Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-0D770 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2014-01 → 2017-01 ended
ZRE18# CVT SAP —
42345-0D770 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2016-06 → 2019-01 ended
ZRE18# CVT TUP —
42345-0D770 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2016-06 → 2019-12 ended
ZRE18# CVT SAP —
42345-0D770 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2019-12 → —
ZRE182 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
