Toyota Auris (UKP)
2012-10 → 2018-11 · chassis ZRE181 · catalogue 166320 · General
Supported model
Data version 2019-04

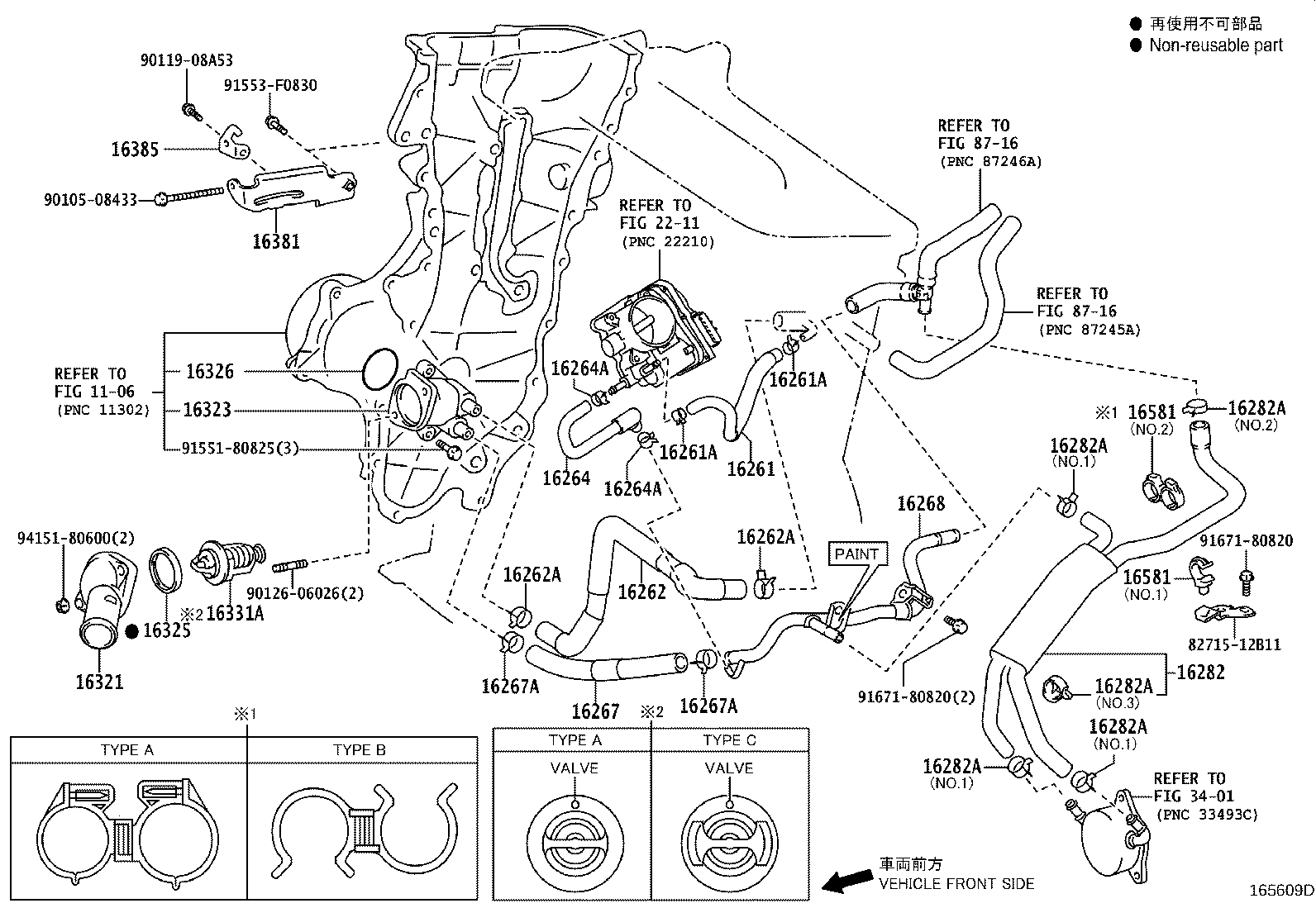

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16261 — Hose, Water By-pass | ||||
| 16261-0T240 note |
Hose, Water By-pass
2014-06 → 2015-05
ended
|
1ZRFAE ZRE181 | — | |
| 16261-37052 |
Hose, Water By-pass
2012-10 → 2014-06
ended
|
1ZRFAE ZRE181 | — | |
| 16261-37052 note |
Hose, Water By-pass
2014-06 → 2015-05
ended
|
1ZRFAE ZRE181 | — | |
| 16261-0T240 note |
Hose, Water By-pass
2015-05 → —
|
1ZRFAE ZRE181 | — | |
| 16261-37052 note |
Hose, Water By-pass
2015-05 → —
|
1ZRFAE ZRE181 | — | |
| 16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2012-10 → 2015-05
ended
|
1ZRFAE ZRE181 | — | |
| 96137-41501 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-05 → —
|
1ZRFAE ZRE181 | — | |
| 16262 — Hose, Water Inlet | ||||
| 16262-0T050 note |
Hose, Water Inlet
2014-06 → 2014-09
ended
|
1ZRFAE ZRE181 | — | |
| 16262-37010 |
Hose, Water Inlet
2012-10 → 2014-06
ended
|
1ZRFAE ZRE181 | — | |
| 16262-37010 note |
Hose, Water Inlet
2014-06 → 2014-09
ended
|
1ZRFAE ZRE181 | — | |
| 16262-37010 |
Hose, Water Inlet
2014-09 → 2015-05
ended
|
1ZRFAE ZRE181 | — | |
| 16262-0T050 note |
Hose, Water Inlet
2016-05 → —
|
1ZRFAE ZRE181 | — | |
| 16262-37010 |
Hose, Water Inlet
2015-05 → 2016-05
ended
|
1ZRFAE ZRE181 | — | |
| 16262-37010 note |
Hose, Water Inlet
2016-05 → —
|
1ZRFAE ZRE181 | — | |
| 16262A — Clip(FOR WATER INLET HOSE) | ||||
| 90466-W0007 note |
Clip(FOR WATER INLET HOSE)
2013-08 → 2015-05
ended
|
1ZRFAE ZRE181 | — | |
| 96136-42501 |
Clip(FOR WATER INLET HOSE)
2012-10 → 2013-08
ended
|
1ZRFAE ZRE181 | — | |
| 96136-42501 note |
Clip(FOR WATER INLET HOSE)
2013-08 → 2015-05
ended
|
1ZRFAE ZRE181 | — | |
| 90466-W0007 note |
Clip(FOR WATER INLET HOSE)
2015-05 → —
|
1ZRFAE ZRE181 | — | |
| 96136-42501 note |
Clip(FOR WATER INLET HOSE)
2015-05 → —
|
1ZRFAE ZRE181 | — | |
| 16264 — Hose, Water By-pass, NO.2 | ||||
| 16264-37042 |
Hose, Water By-pass, NO.2
2012-10 → 2015-05
ended
|
1ZRFAE ZRE181 | — | |
| 16264-37042 |
Hose, Water By-pass, NO.2
2015-05 → —
|
1ZRFAE ZRE181 | — | |
| 16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2012-10 → 2015-05
ended
|
1ZRFAE ZRE181 | — | |
| 96137-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2015-05 → —
|
1ZRFAE ZRE181 | — | |
| 16267 — Hose, Water By-pass, NO.3 | ||||
| 16267-37010 |
Hose, Water By-pass, NO.3
2012-10 → 2015-05
ended
|
1ZRFAE ZRE181 | — | |
| 16267-37010 |
Hose, Water By-pass, NO.3
2015-05 → —
|
1ZRFAE ZRE181 | — | |
| 16267A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2013-08 → 2015-05
ended
|
1ZRFAE ZRE181 | — | |
| 96136-42501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2012-10 → 2013-08
ended
|
1ZRFAE ZRE181 | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2013-08 → 2015-05
ended
|
1ZRFAE ZRE181 | — | |
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2015-05 → —
|
1ZRFAE ZRE181 | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2015-05 → —
|
1ZRFAE ZRE181 | — | |
| 16268 — Pipe, Water By-pass, NO.1 | ||||
| 16268-0T020 note |
Pipe, Water By-pass, NO.1
2014-06 → 2014-09
ended
|
1ZRFAE ZRE181 CVT | — | |
| 16268-0T140 note |
Pipe, Water By-pass, NO.1
2014-06 → 2014-09
ended
|
1ZRFAE ZRE181 6F | — | |
| 16268-37021 |
Pipe, Water By-pass, NO.1
2012-10 → 2014-05
ended
|
1ZRFAE ZRE181 CVT | — | |
| 16268-37021 |
Pipe, Water By-pass, NO.1
2014-09 → 2015-05
ended
|
1ZRFAE ZRE181 CVT | — | |
| 16268-37031 |
Pipe, Water By-pass, NO.1
2012-10 → 2014-05
ended
|
1ZRFAE ZRE181 6F | — | |
| 16268-37031 |
Pipe, Water By-pass, NO.1
2014-09 → 2015-05
ended
|
1ZRFAE ZRE181 6F | — | |
| 16268-37060 note |
Pipe, Water By-pass, NO.1
2014-06 → 2014-09
ended
|
1ZRFAE ZRE181 CVT | — | |
| 16268-37070 note |
Pipe, Water By-pass, NO.1
2014-06 → 2014-09
ended
|
1ZRFAE ZRE181 6F | — | |
| 16268-0T020 note |
Pipe, Water By-pass, NO.1
2016-05 → —
|
1ZRFAE ZRE181 CVT | — | |
| 16268-0T140 note |
Pipe, Water By-pass, NO.1
2016-05 → —
|
1ZRFAE ZRE181 6F | — | |
| 16268-37021 |
Pipe, Water By-pass, NO.1
2015-05 → 2016-05
ended
|
1ZRFAE ZRE181 CVT | — | |
| 16268-37031 |
Pipe, Water By-pass, NO.1
2015-05 → 2016-05
ended
|
1ZRFAE ZRE181 6F | — | |
| 16268-37060 note |
Pipe, Water By-pass, NO.1
2016-05 → —
|
1ZRFAE ZRE181 CVT | — | |
| 16268-37070 note |
Pipe, Water By-pass, NO.1
2016-05 → —
|
1ZRFAE ZRE181 6F | — | |
| 16282 — Hose, Water By-pass, NO.5 | ||||
| 16260-37080 |
Hose, Water By-pass, NO.5
2012-10 → 2015-05
ended
|
1ZRFAE ZRE181 CVT | — | |
| 16260-37080 |
Hose, Water By-pass, NO.5
2015-05 → —
|
1ZRFAE ZRE181 CVT | — | |
| 16282A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) | ||||
| 16581-37090 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2012-10 → 2015-05
ended
|
1ZRFAE ZRE181 CVT | — | |
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2013-08 → 2015-05
ended
|
1ZRFAE ZRE181 CVT | — | |
| 96134-41900 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2012-10 → 2015-05
ended
|
1ZRFAE ZRE181 CVT | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2012-10 → 2013-08
ended
|
1ZRFAE ZRE181 CVT | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2013-08 → 2015-05
ended
|
1ZRFAE ZRE181 CVT | — | |
| 16581-37090 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2015-05 → —
|
1ZRFAE ZRE181 CVT | — | |
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2015-05 → —
|
1ZRFAE ZRE181 CVT | — | |
| 96134-41900 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2015-05 → —
|
1ZRFAE ZRE181 CVT | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2015-05 → —
|
1ZRFAE ZRE181 CVT | — | |
| 16321 — Inlet, Water | ||||
| 16321-0T010 note |
Inlet, Water
2012-10 → 2015-05
ended
|
1ZRFAE ZRE181 | — | |
| 16321-37010 note |
Inlet, Water
2012-10 → 2015-05
ended
|
1ZRFAE ZRE181 | — | |
| 16321-0T010 note |
Inlet, Water
2015-05 → —
|
1ZRFAE ZRE181 | — | |
| 16321-37010 note |
Inlet, Water
2015-05 → —
|
1ZRFAE ZRE181 | — | |
| 16323 — Housing, Water Inlet | ||||
| 16323-0T030 note |
Housing, Water Inlet
2012-10 → 2015-05
ended
|
1ZRFAE ZRE181 | — | |
| 16323-37021 note |
Housing, Water Inlet
2012-10 → 2015-05
ended
|
1ZRFAE ZRE181 | — | |
| 16323-0T030 note |
Housing, Water Inlet
2015-05 → —
|
1ZRFAE ZRE181 | — | |
| 16323-37021 note |
Housing, Water Inlet
2015-05 → —
|
1ZRFAE ZRE181 | — | |
| 16325 — Gasket, Water Inlet Housing, NO.1 | ||||
| 16325-28010 |
Gasket, Water Inlet Housing, NO.1
2012-10 → 2015-05
ended
|
1ZRFAE ZRE181 | — | |
| 16325-28010 |
Gasket, Water Inlet Housing, NO.1
2015-05 → —
|
1ZRFAE ZRE181 | — | |
| 16326 — Gasket, Water Inlet Housing, NO.2 | ||||
| 16326-37010 |
Gasket, Water Inlet Housing, NO.2
2012-10 → 2015-05
ended
|
1ZRFAE ZRE181 | — | |
| 16326-37010 |
Gasket, Water Inlet Housing, NO.2
2015-05 → —
|
1ZRFAE ZRE181 | — | |
| 16331A — Thermostat | ||||
| 90916-03144 note |
Thermostat
2012-10 → 2015-05
ended
|
1ZRFAE ZRE181 | — | |
| 90916-03145 note |
Thermostat
2012-10 → 2015-05
ended
|
1ZRFAE ZRE181 | — | |
| 90916-A3003 note |
Thermostat
2014-02 → 2015-05
ended
|
1ZRFAE ZRE181 | — | |
| 90916-03144 note |
Thermostat
2015-05 → —
|
1ZRFAE ZRE181 | — | |
| 90916-03145 note |
Thermostat
2015-05 → —
|
1ZRFAE ZRE181 | — | |
| 90916-A3003 note |
Thermostat
2015-05 → —
|
1ZRFAE ZRE181 | — | |
| 16381 — Bar, Fan Belt Adjusting | ||||
| 16381-37030 |
Bar, Fan Belt Adjusting
2012-10 → 2015-05
ended
|
1ZRFAE ZRE181 | — | |
| 16381-37030 |
Bar, Fan Belt Adjusting
2015-05 → —
|
1ZRFAE ZRE181 | — | |
| 16385 — Slider, Fan Belt Adjusting | ||||
| 16385-37010 |
Slider, Fan Belt Adjusting
2012-10 → 2015-05
ended
|
1ZRFAE ZRE181 | — | |
| 16385-37010 |
Slider, Fan Belt Adjusting
2015-05 → —
|
1ZRFAE ZRE181 | — | |
| 16581 — Clamp, Hose(FOR WATER HOSE) | ||||
| 16581-21030 note |
Clamp, Hose(FOR WATER HOSE)
2012-10 → 2015-05
ended
|
1ZRFAE ZRE181 CVT | — | |
| 16581-21060 note |
Clamp, Hose(FOR WATER HOSE)
2012-10 → 2015-05
ended
|
1ZRFAE ZRE181 CVT | — | |
| 90464-00763 note |
Clamp, Hose(FOR WATER HOSE)
2012-10 → 2015-05
ended
|
1ZRFAE ZRE181 CVT | — | |
| 16581-21030 note |
Clamp, Hose(FOR WATER HOSE)
2015-05 → —
|
1ZRFAE ZRE181 CVT | — | |
| 16581-21060 note |
Clamp, Hose(FOR WATER HOSE)
2015-05 → —
|
1ZRFAE ZRE181 CVT | — | |
| 90464-00763 note |
Clamp, Hose(FOR WATER HOSE)
2015-05 → —
|
1ZRFAE ZRE181 CVT | — | |
