Toyota Levin/Hybrid

2014-08 → 2019-05 · chassis NRE181,ZRE18#,ZWE182 · catalogue 168310 · General

Supported model Data version 2019-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

3 part groups · 3 illustrations

Illustrations

Figure 166556B

166556B 2016-12 → —

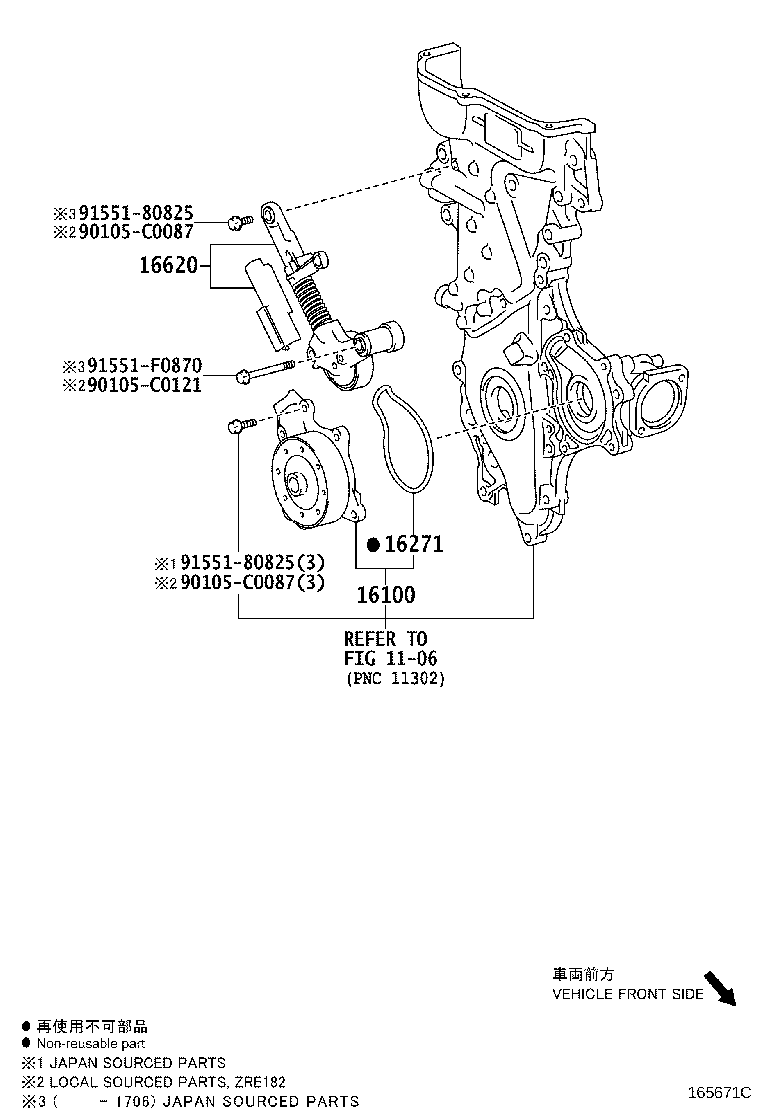

Figure 165671C

165671C 2014-08 → —

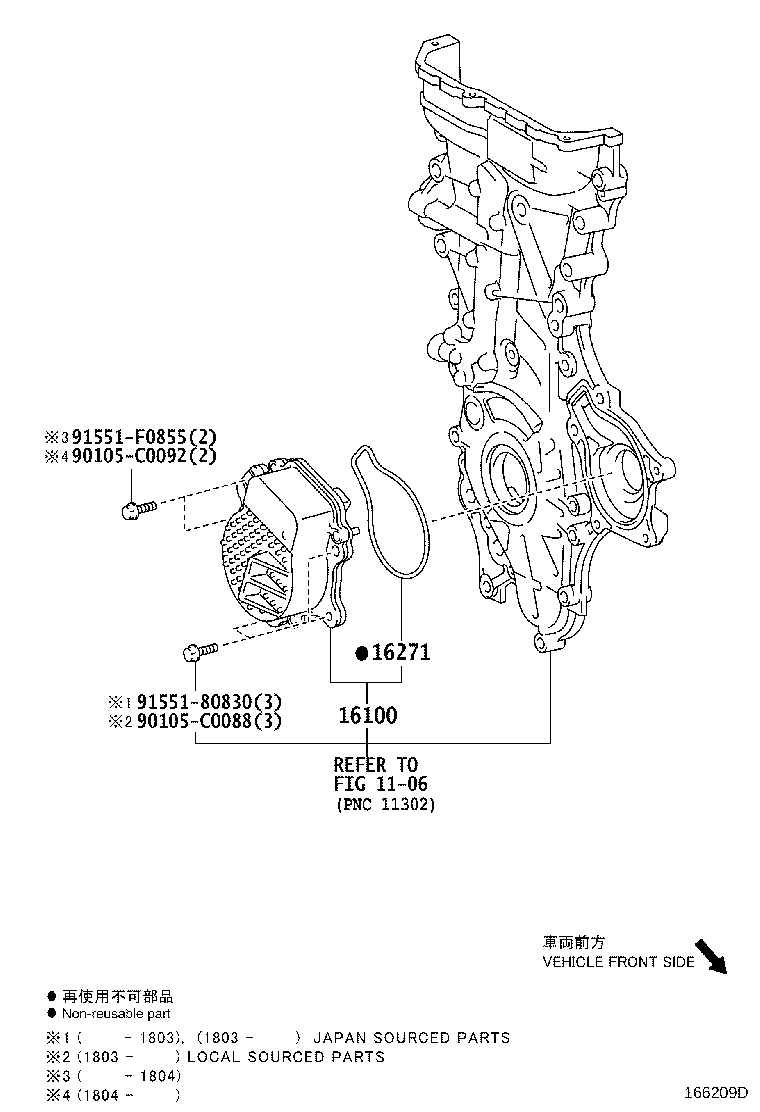

Figure 166209D

166209D 2015-12 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16271	Gasket, Water Pump
16620	Tensioner Assy, V-ribbed Belt

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
