Toyota Levin/Hybrid
2014-08 → 2019-05 · chassis NRE181,ZRE18#,ZWE182 · catalogue 168310 · General
Supported model
Data version 2019-05
Radiator & Water Outlet

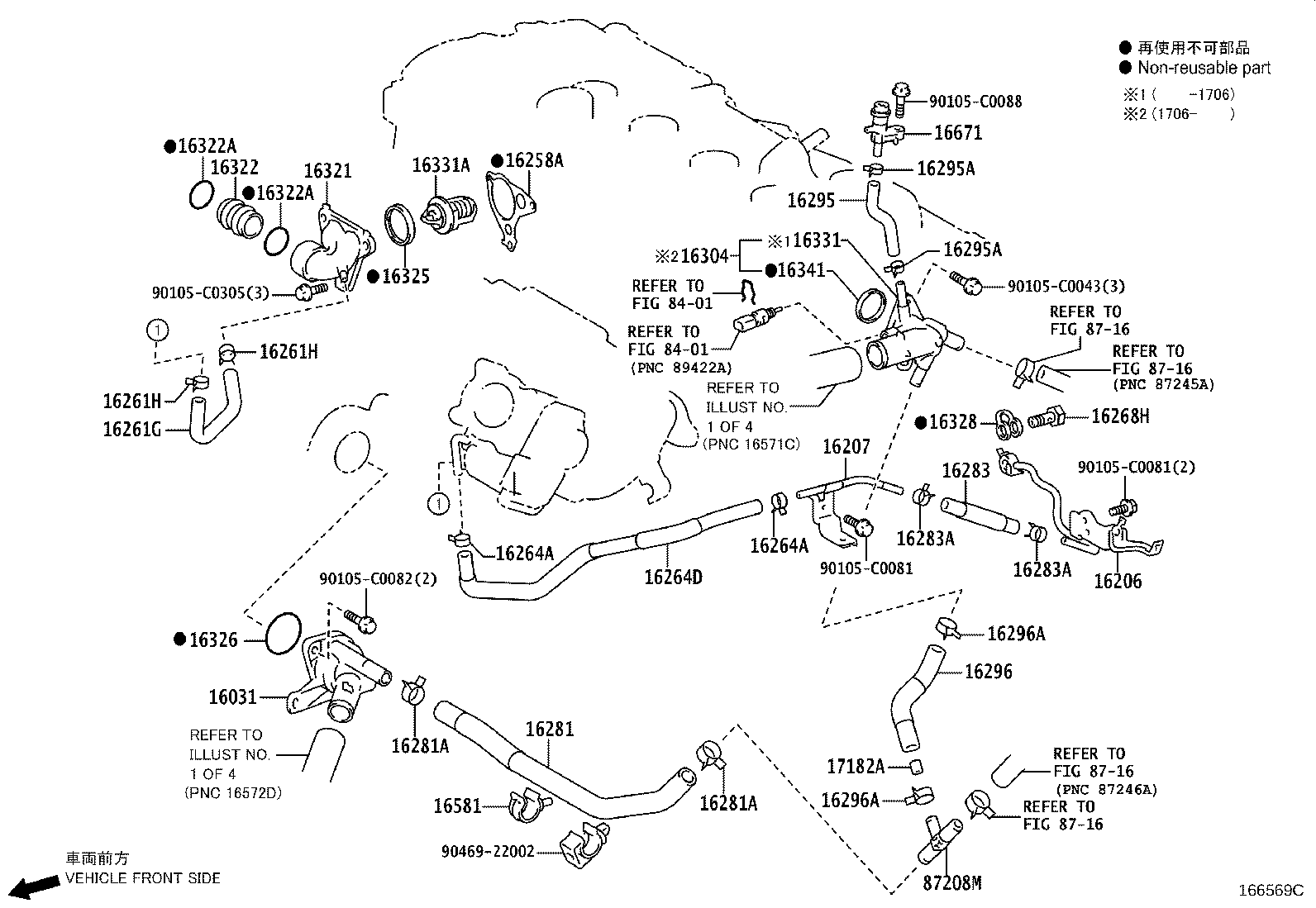

112 part groups · 10 illustrations
Part groups

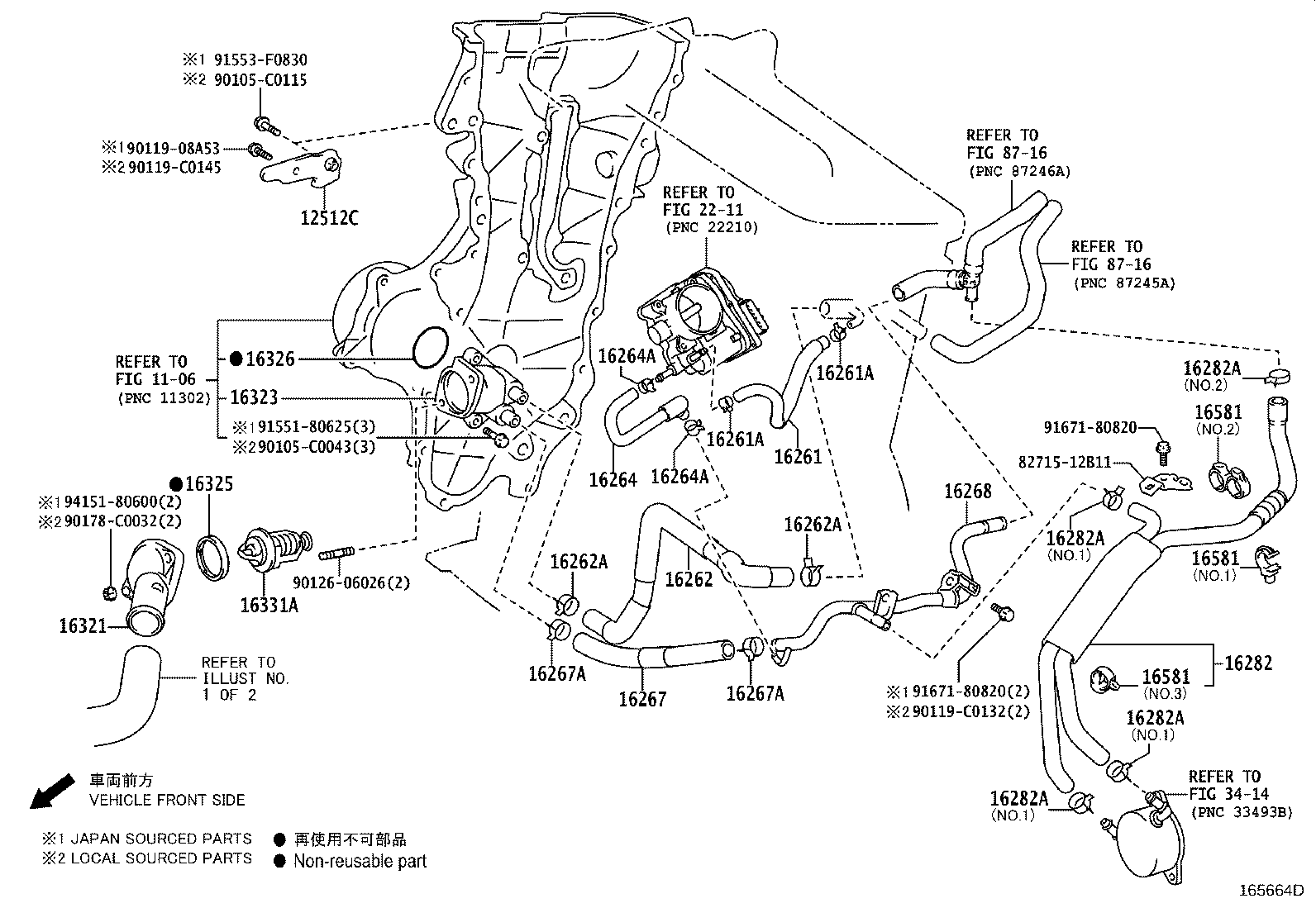

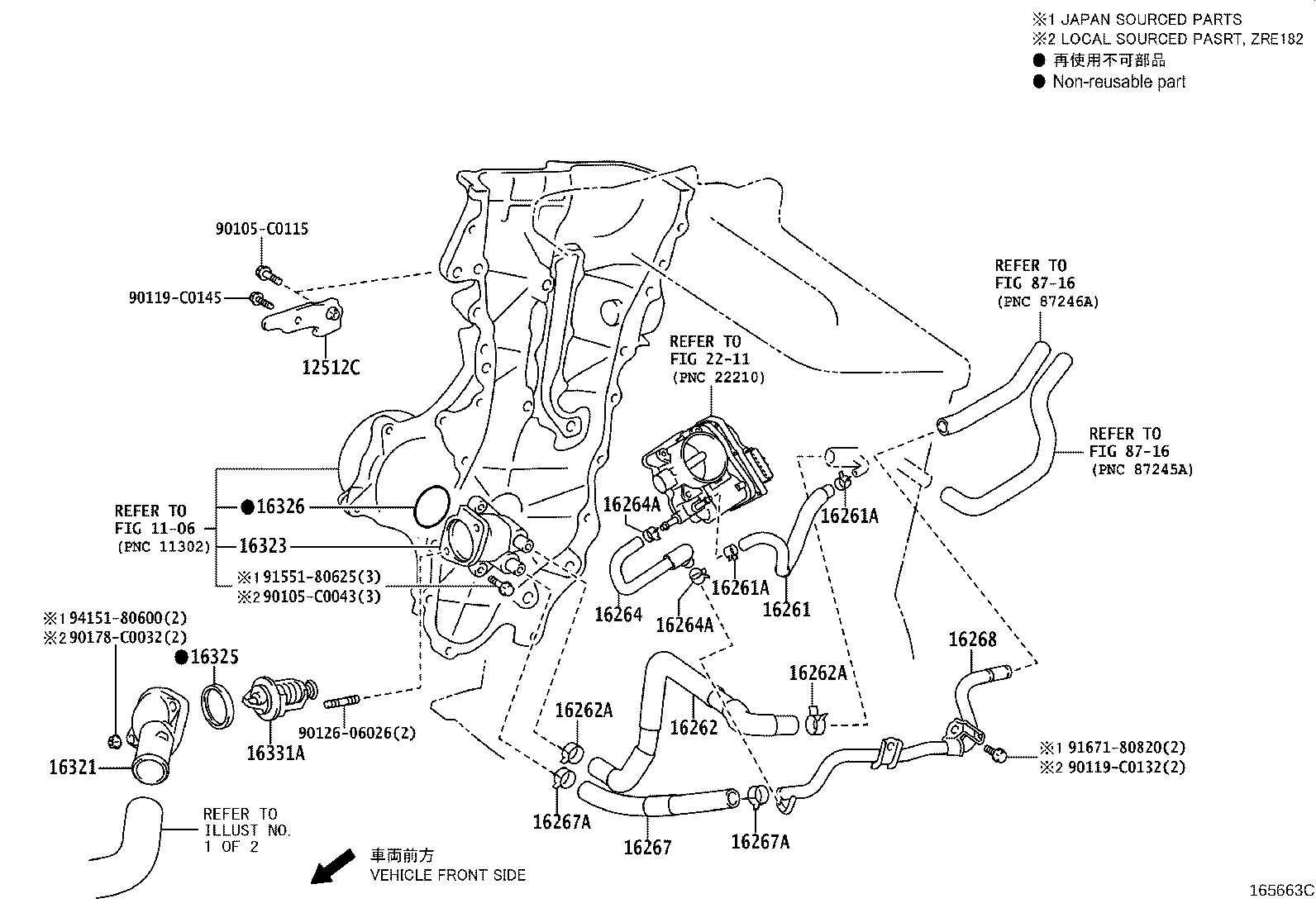

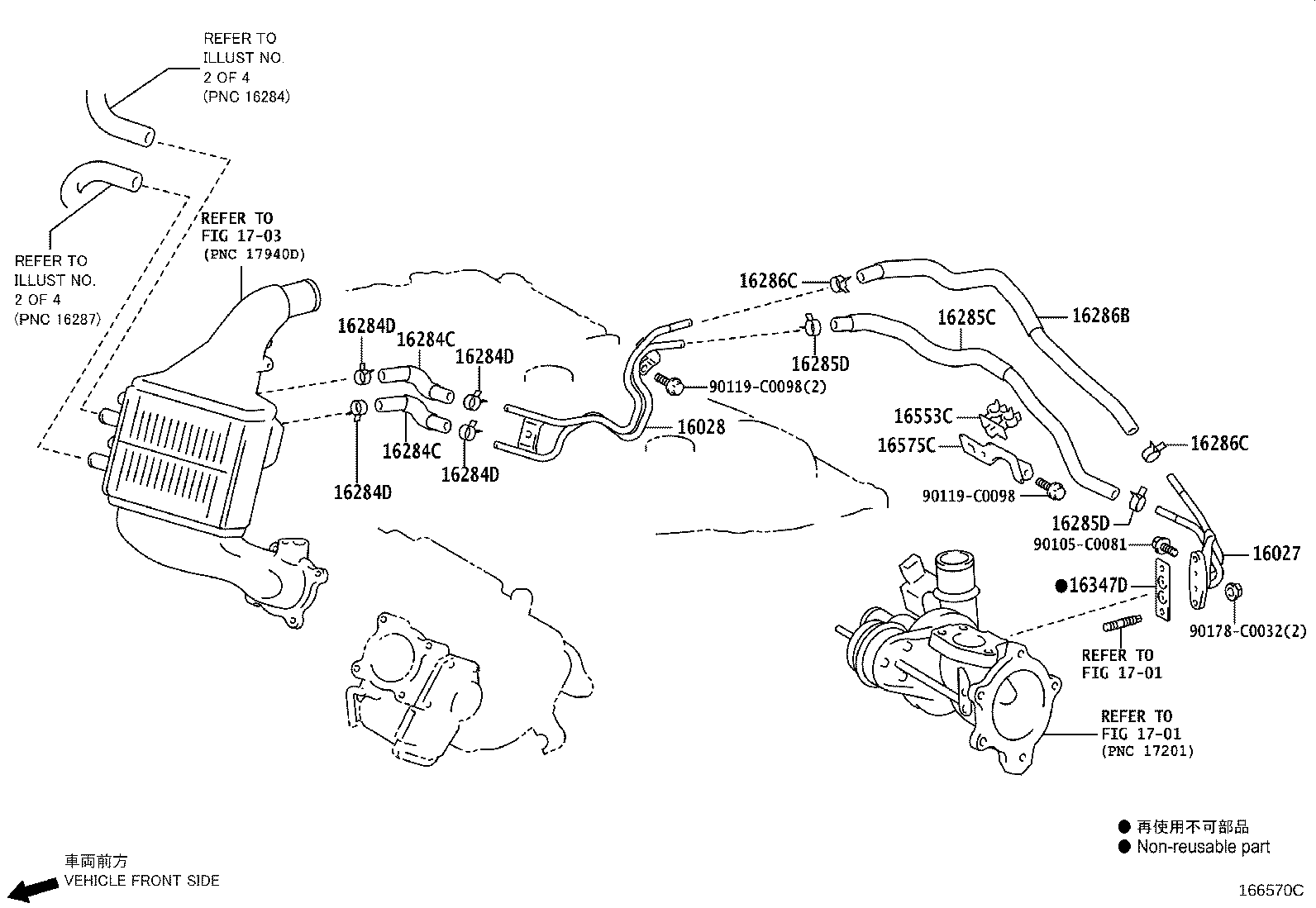

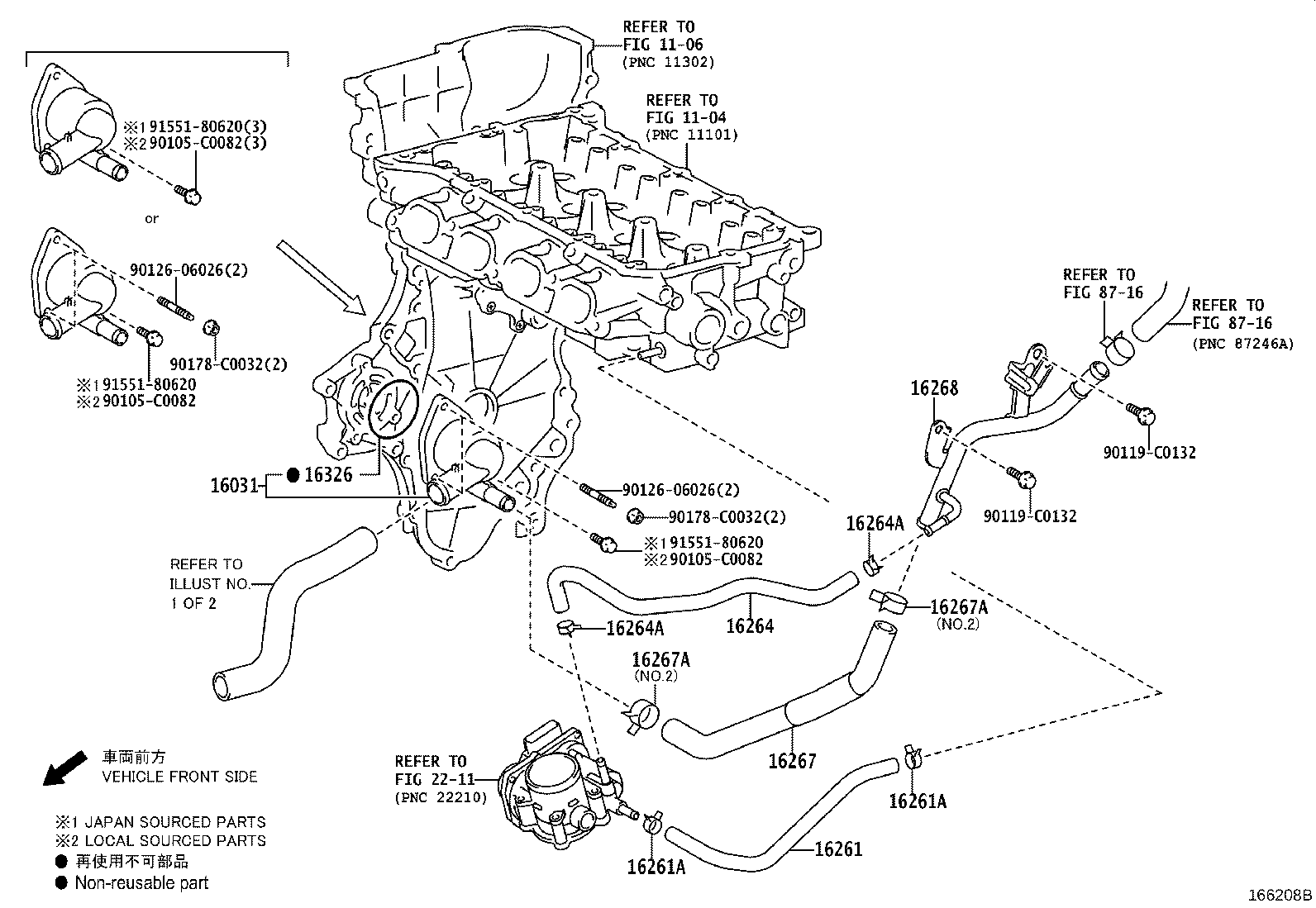

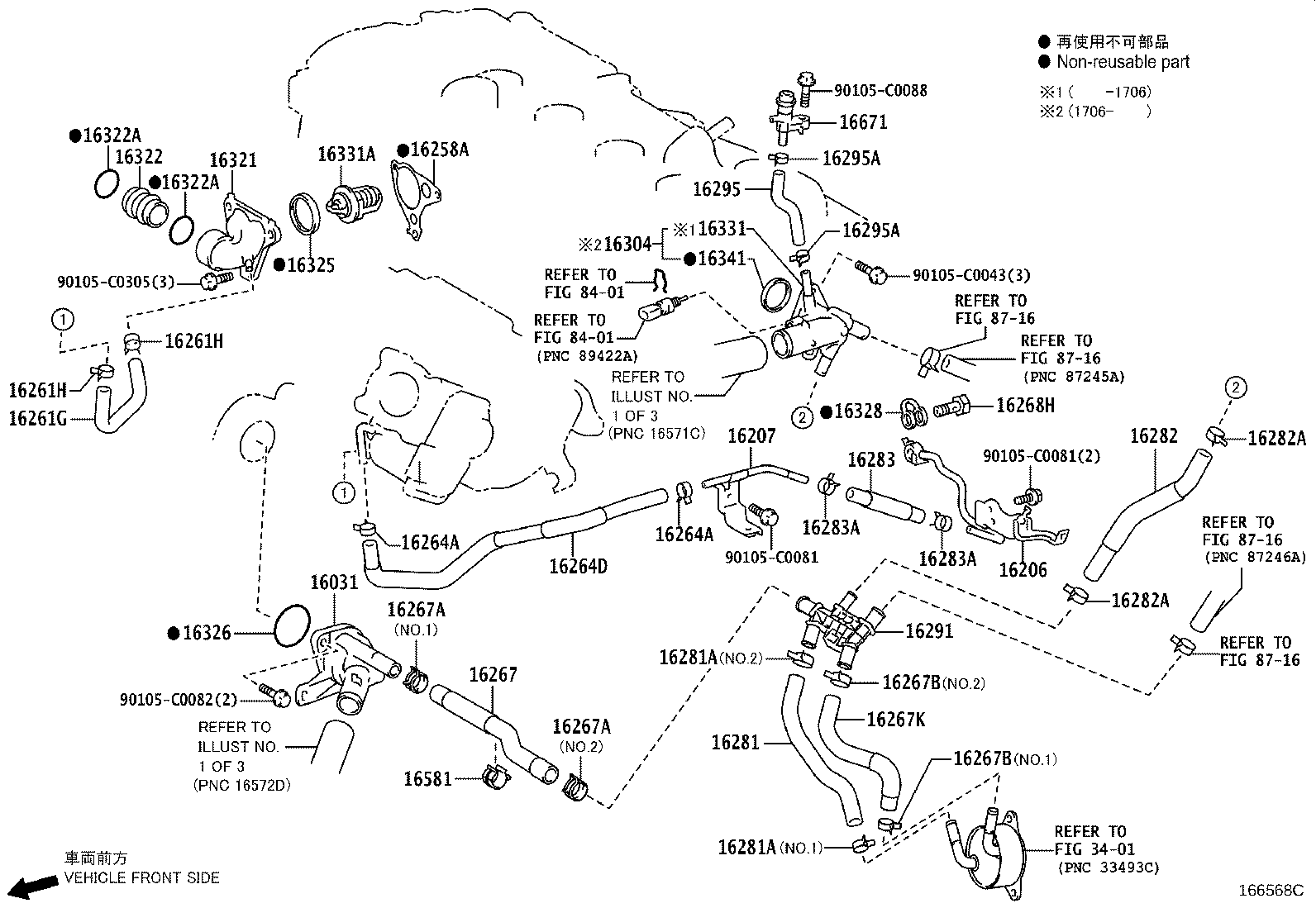

| PNC | Description |
|---|---|
| 12512C | Bracket, Alternator, NO.2 |
| 16027 | Pipe Sub-assy, Turbo Water, NO.1 |
| 16028 | Pipe Sub-assy, Turbo Water, NO.2 |
| 16031 | Water Inlet Sub-assy, W/Thermostat |
| 161B0 | Pump Assy, Electric Water |
| 16206 | Pipe Sub-assy, Water By-pass |
| 16207 | Pipe Sub-assy, Water By-pass, NO.2 |
| 16258A | Gasket(FOR HEATER RETURN) |
| 16260 | Hose Assy, Water By-pass |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16261N | Hose, Water By-pass, NO.2 |
| 16261P | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16262 | Hose, Water Inlet |
| 16262A | Clip(FOR WATER INLET HOSE) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264D | Hose, Water By-pass, NO.2 |
| 16264E | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264G | Hose, Water By-pass, NO.3 |
| 16264H | Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16267B | Clip(FOR WATER BY-PASS HOSE) |
| 16267C | Hose, Water By-pass, NO.4 |
| 16267D | Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16267K | Hose, Water By-pass, NO.3 |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16268H | Bolt, Union(FOR WATER BY-PASS PIPE) |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16281F | Hose, Water By-pass, NO.5 |
| 16281G | Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16282 | Hose, Water By-pass, NO.5 |
| 16282A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16283 | Hose, Water By-pass, NO.6 |
| 16283A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) |
| 16284 | Hose, Turbo Water, NO.1 |
| 16284A | Clip(FOR TURBO WATER HOSE NO.1) |
| 16284C | Hose, Intercooler Water, NO.1 |
| 16284D | Clip(FOR INTERCOOLER WATER HOSE NO.1) |
| 16285 | Hose, Turbo Water, NO.2 |
| 16285A | Clip(FOR TURBO WATER HOSE NO.2) |
| 16285C | Hose, Intercooler Water, NO.2 |
| 16285D | Clip(FOR INTERCOOLER WATER HOSE NO.2) |
| 16286 | Hose, Turbo Water, NO.3 |
| 16286A | Clip(FOR TURBO WATER HOSE NO.3) |
| 16286B | Hose, Intercooler Water, NO.3 |
| 16286C | Clip(FOR INTERCOOLER WATER HOSE NO.3) |
| 16287 | Hose, Turbo Water, NO.4 |
| 16287A | Clip(FOR TURBO WATER HOSE NO.4) |
| 16291 | Joint, Water Hose |
| 16295 | Hose, Water By-pass, NO.7 |
| 16295A | Clip(FOR WATER BY-PASS HOSE NO.7) |
| 16296 | Hose, Water By-pass, NO.8 |
| 16296A | Clip(FOR WATER BY-PASS HOSE NO.8) |
| 16304 | Outlet Sub-assy, Water |
| 16321 | Inlet, Water |
| 16322 | Pipe, Water Inlet |
| 16322A | Ring, O(FOR WATER INLET) |
| 16323 | Housing, Water Inlet |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16328 | Gasket, Water Inlet Pipe |
| 16331 | Outlet, Water |
| 16331A | Thermostat |
| 16341 | Gasket, Water Outlet |
| 16347D | Gasket, Water By-pass |
| 16361 | Fan |
| 16361J | Fan, RH |
| 16361K | Fan, LH |
| 16363 | Motor, Cooling Fan |
| 16363F | Motor, Cooling Fan, RH |
| 16363G | Motor, Cooling Fan, LH |

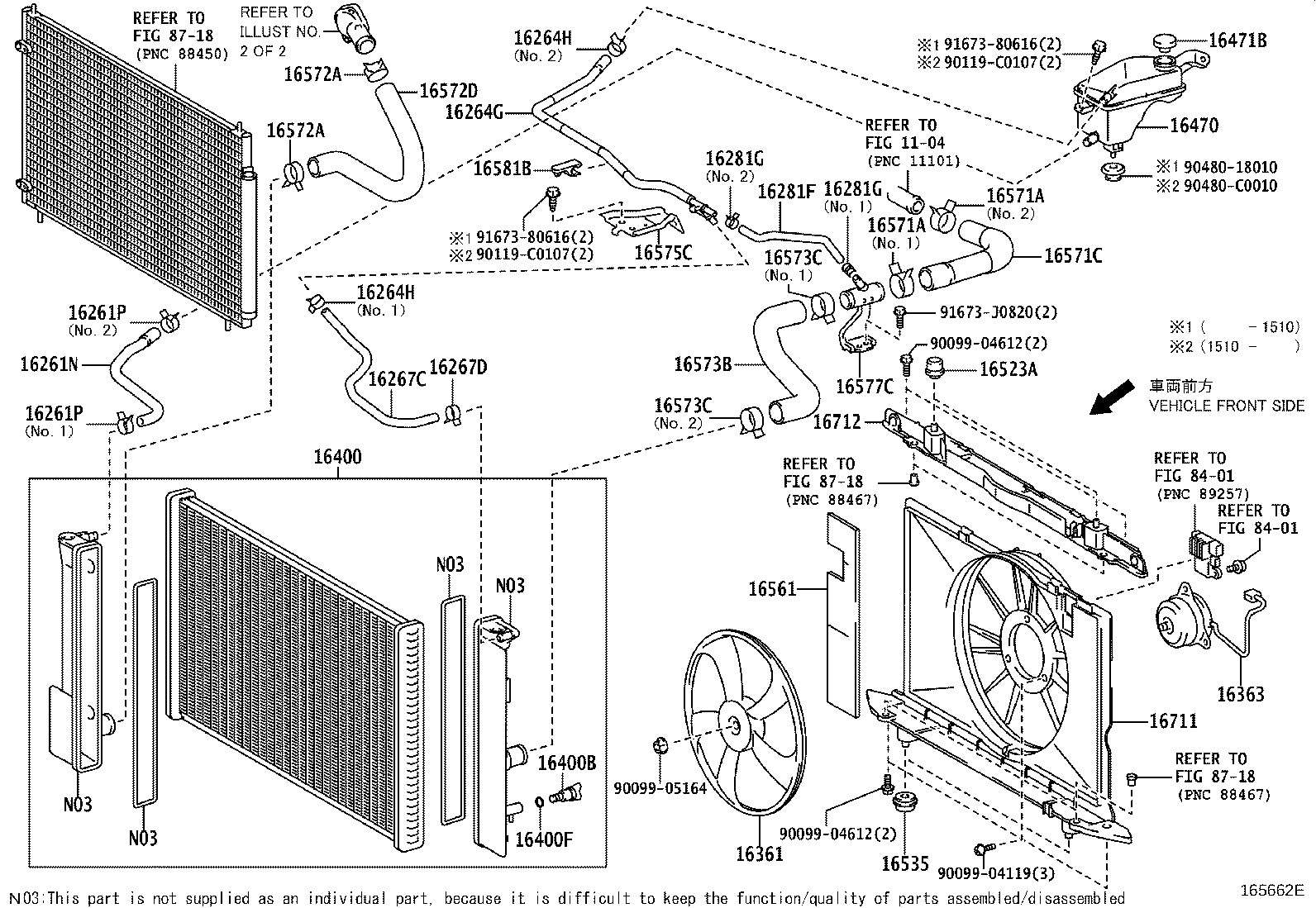

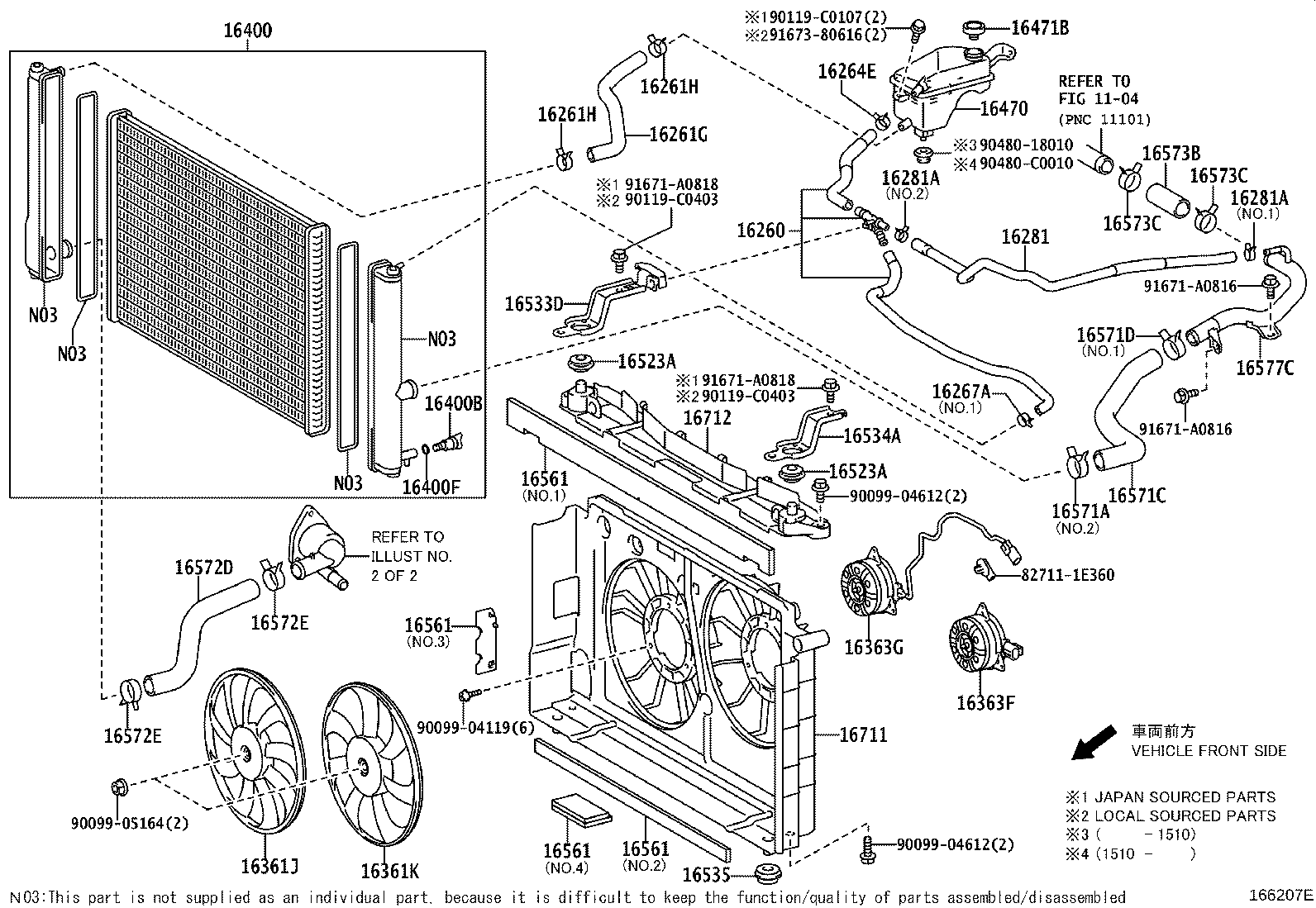

| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16407A | Cock Sub-assy, Radiator Drain |
| 16470 | Tank Assy, Radiator Reserve |
| 16470M | Grommet |
| 16471B | Cap, Reserve Tank |
| 16475A | Cap, Reserve Tank |
| 16523A | Cushion, Radiator Support |
| 16533 | Support, Radiator, Upper |
| 16533D | Support, Radiator, RH |
| 16534A | Support, Radiator, LH |
| 16535 | Support, Radiator, Lower |

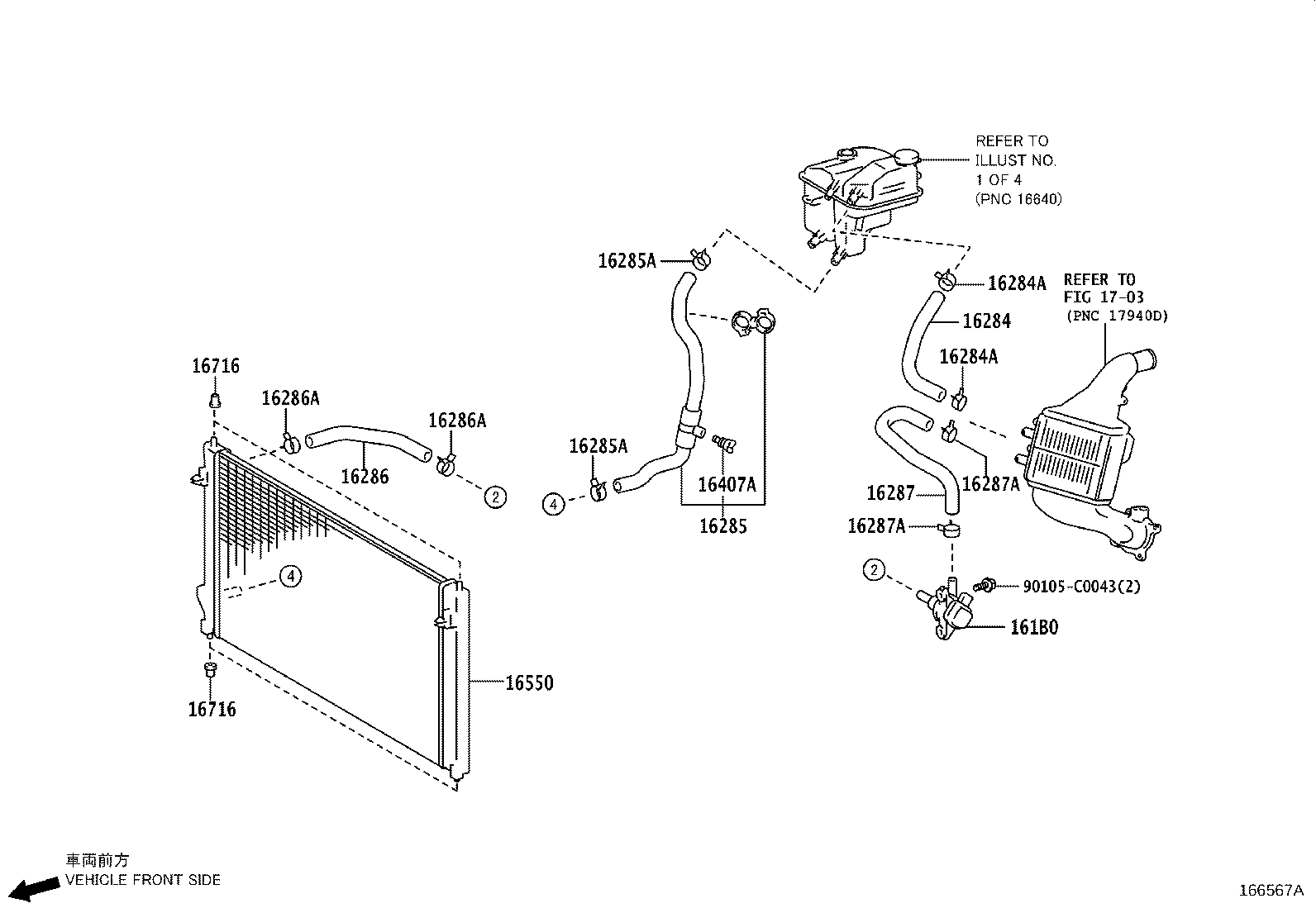

| 16550 | Radiator Assy, Intercooler Cooling |
| 16553C | Clamp, Hose |
| 16561 | Seal, Radiator TO Support, NO.1 |
| 16571A | Clamp OR Clip, Hose(FOR RADIATOR INLET) |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16572A | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16573B | Hose, Radiator, NO.3 |
| 16573C | Clamp OR Clip, Radiator Hose, NO.3 |
| 16575C | Bracket, Water Hose Clamp, NO.1 |
| 16577C | Pipe, Radiator |
| 16581 | Clamp, Hose(FOR WATER HOSE) |
| 16581B | Clamp, Hose(FOR RADIATOR HOSE) |
| 16611 | Bracket, Radiator Reserve Tank |
| 16640 | Tank Assy, Intercooler Reserve |
| 16671 | Valve, Water |
| 16711 | Shroud, Fan |
| 16712 | Shroud, Fan, NO.2 |
| 16716 | Cushion, Fan Shroud |
| 17182A | Orifice, Water |
| 87208M | Pipe Sub-assy, Water |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
