Toyota Carina
1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · General
Discontinued model
Data version 1977-09

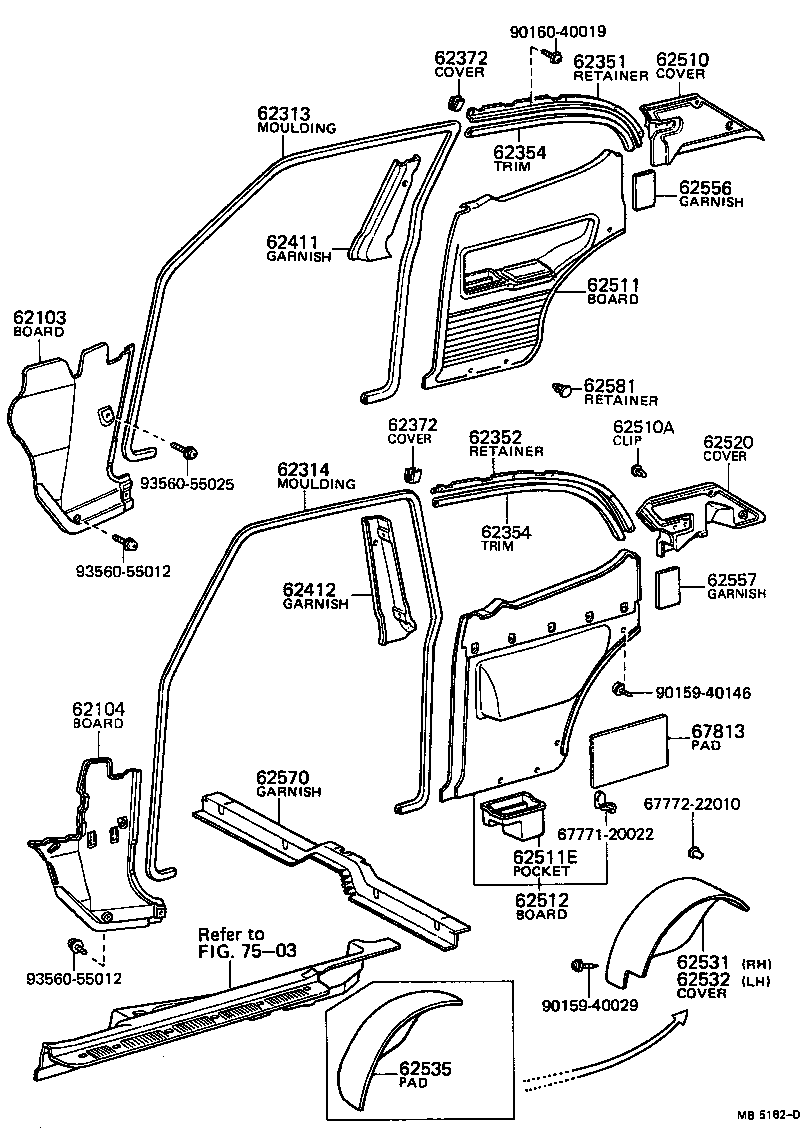

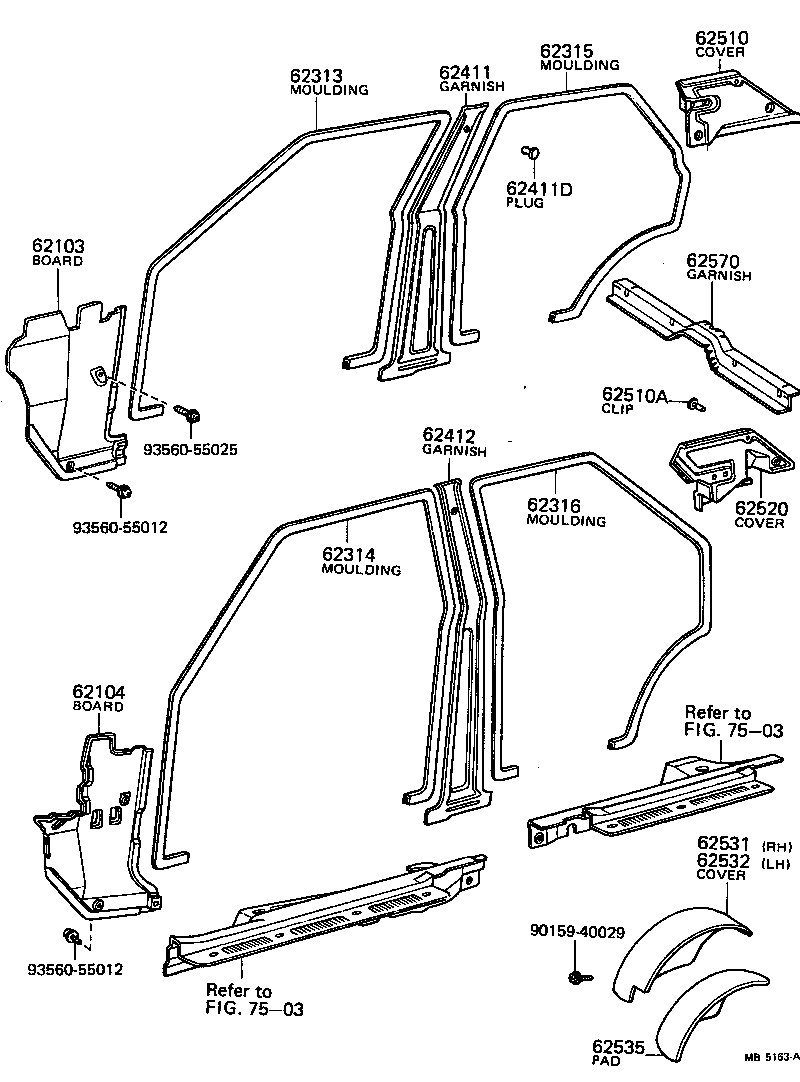

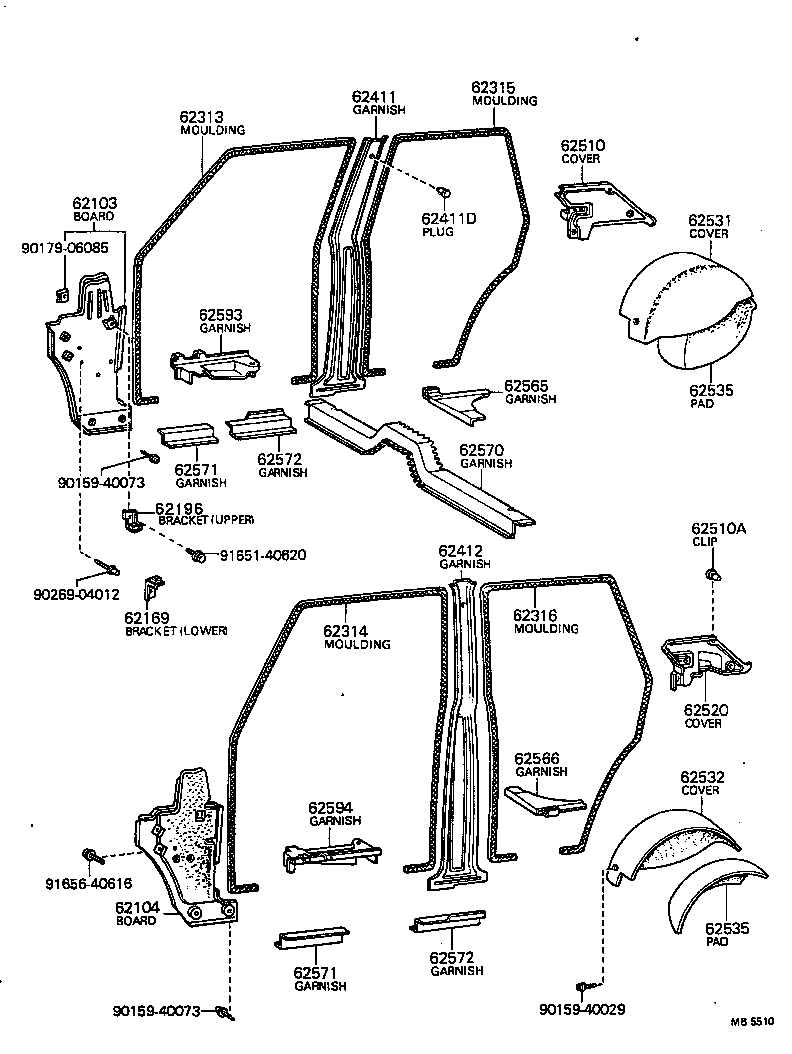

Inside Trim Board & Door Opening Trim Moulding
36 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62103 | Board Sub-assy, Cowl Side Trim, RH |
| 62104 | Board Sub-assy, Cowl Side Trim, LH |
| 62196 | Bracket, Fuse Block, Lower |
| 62313 | Moulding, Front Door Opening Trim, RH |
| 62314 | Moulding, Front Door Opening Trim, LH |
| 62315 | Moulding, Rear Door Opening Trim, RH |
| 62316 | Moulding, Rear Door Opening Trim, LH |
| 62351 | Retainer, Quarter Window Inside Trim, RH |
| 62352 | Retainer, Quarter Window Inside Trim, LH |
| 62354 | Trim, Quarter Window, Inside |
| 62372 | Cover, Quarter Window Inside Trim |
| 62411 | Garnish, Center Pillar, RH |
| 62411D | Plug, Hole (FOR CENTER PILLAR GARNISH) |
| 62412 | Garnish, Center Pillar, LH |
| 62507 | Garnish Sub-assy, Rear Body Pillar, RH |
| 62508 | Garnish Sub-assy, Rear Body Pillar, LH |
| 62510 | Cover Assy, Back Window Side Garnish, RH |
| 62510A | Clip, Back Window Side Garnish Cover |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511E | Pocket, Quarter Trim |
| 62512 | Board, Quarter Inside Trim, LH |
| 62520 | Cover Assy, Back Window Side Garnish, LH |
| 62531 | Cover, Wheel House Trim, RH |
| 62532 | Cover, Wheel House Trim, LH |
| 62535 | Pad, Quarter Wheel House Trim |
| 62556 | Garnish, Quarter Window Lower, RH |
| 62557 | Garnish, Quarter Window Lower, LH |
| 62565 | Garnish, Rear Seat Side, RH |
| 62566 | Garnish, Rear Seat Side, LH |
| 62570 | Garnish Assy, Center Floor Crossmember |
| 62571 | Garnish, Rocker Panel Inner, Front |
| 62572 | Garnish, Rocker Panel Inner, Rear |
| 62581 | Retainer, Quarter Trim |
| 62593 | Garnish, Front Seat Bracket, RH |
| 62594 | Garnish, Front Seat Bracket, LH |
| 67813 | Pad, Quarter Panel Silencer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
