Toyota Lexus IS2###/3###

2013-04 → present · chassis ASE30,AVE30,GSE3# · catalogue 242330 · General

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

101 part groups · 51 illustrations

Illustrations

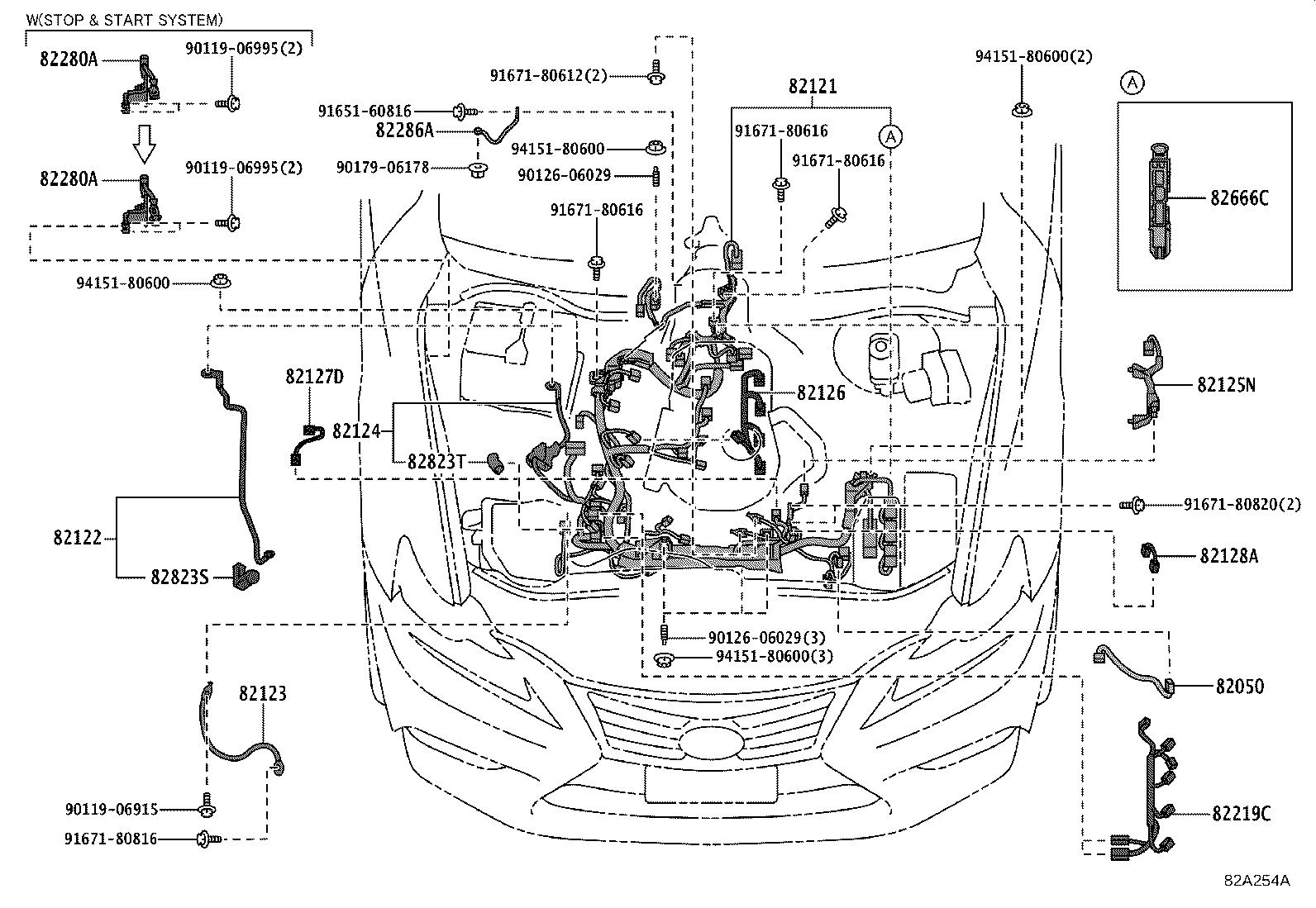

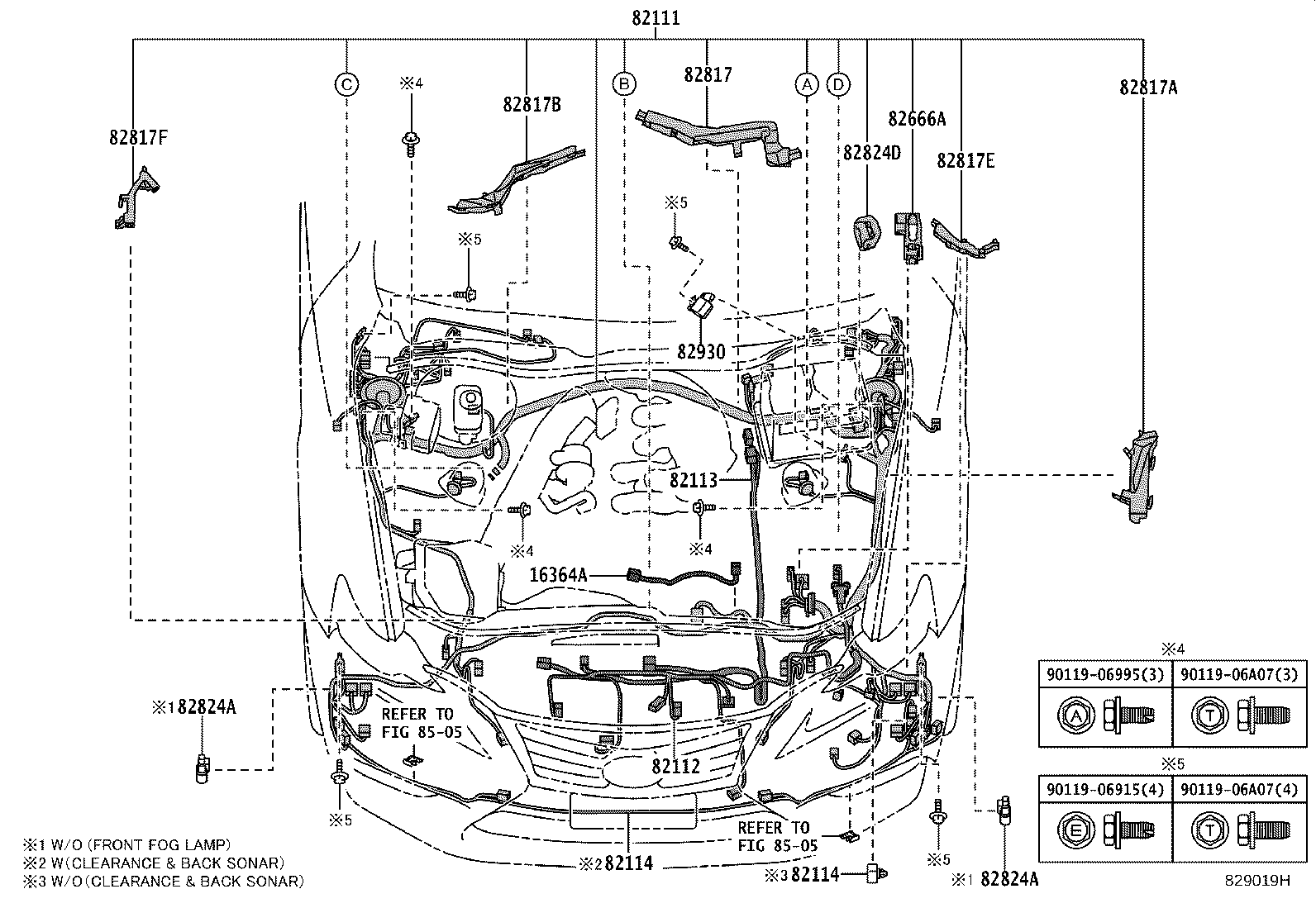

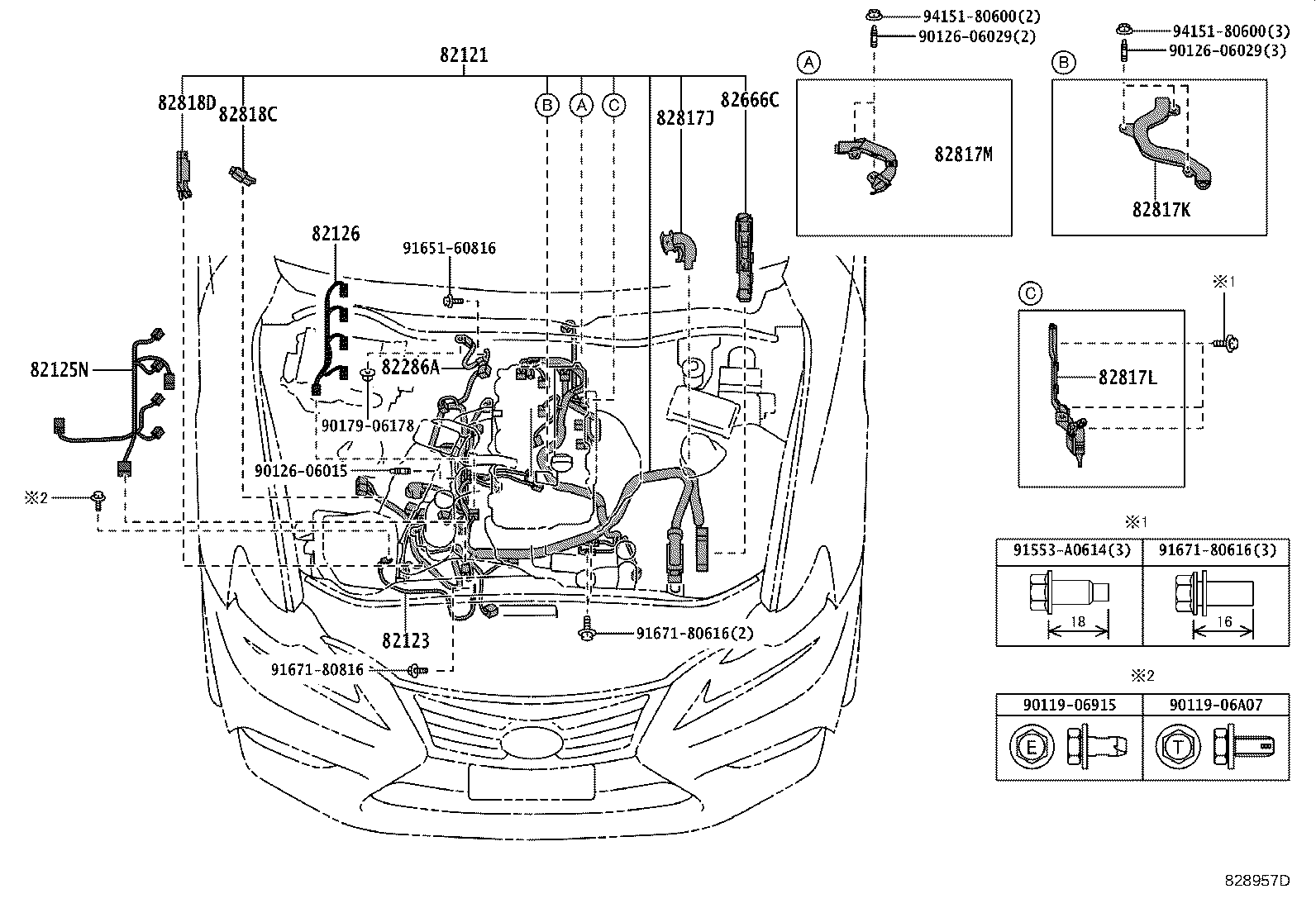

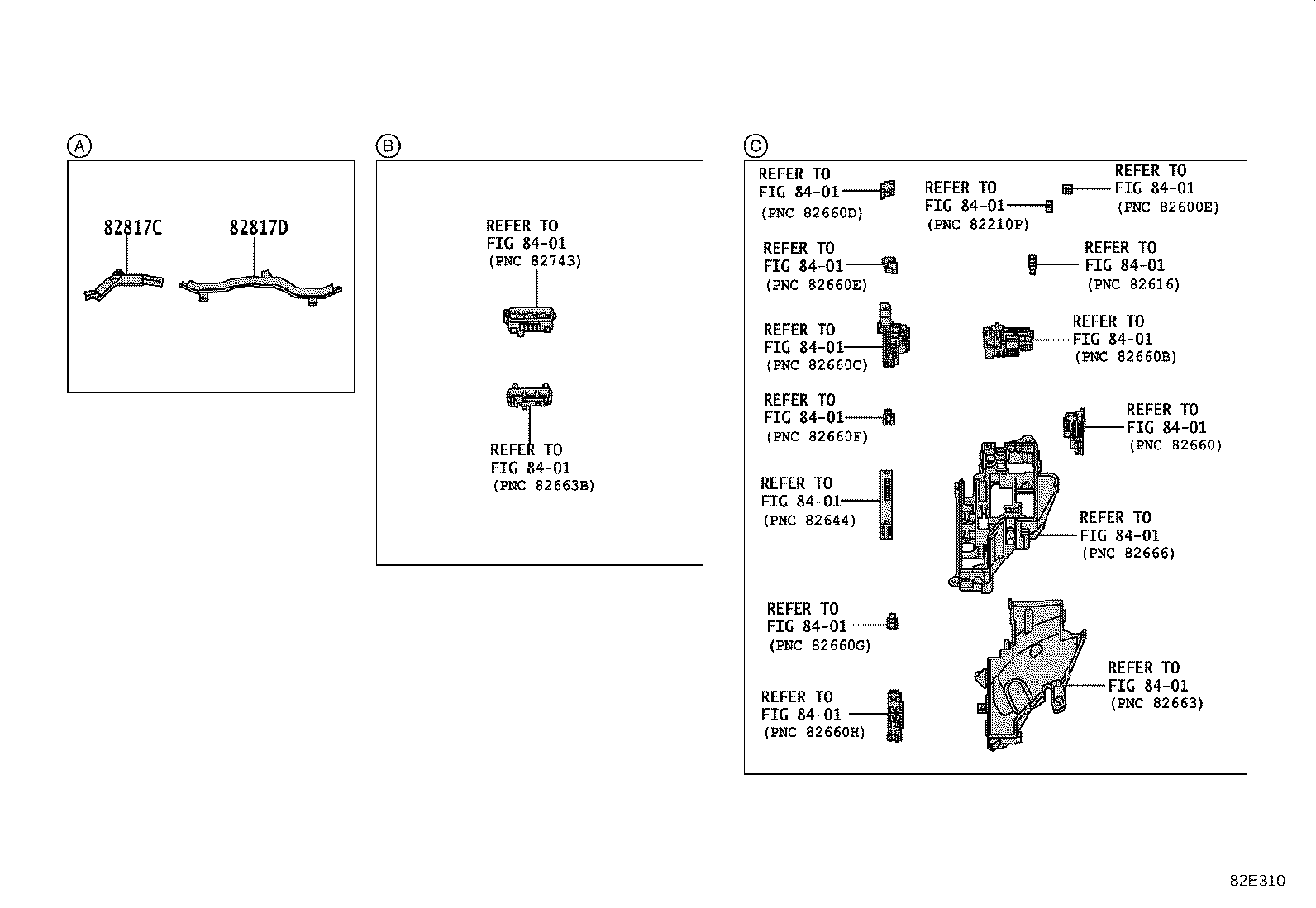

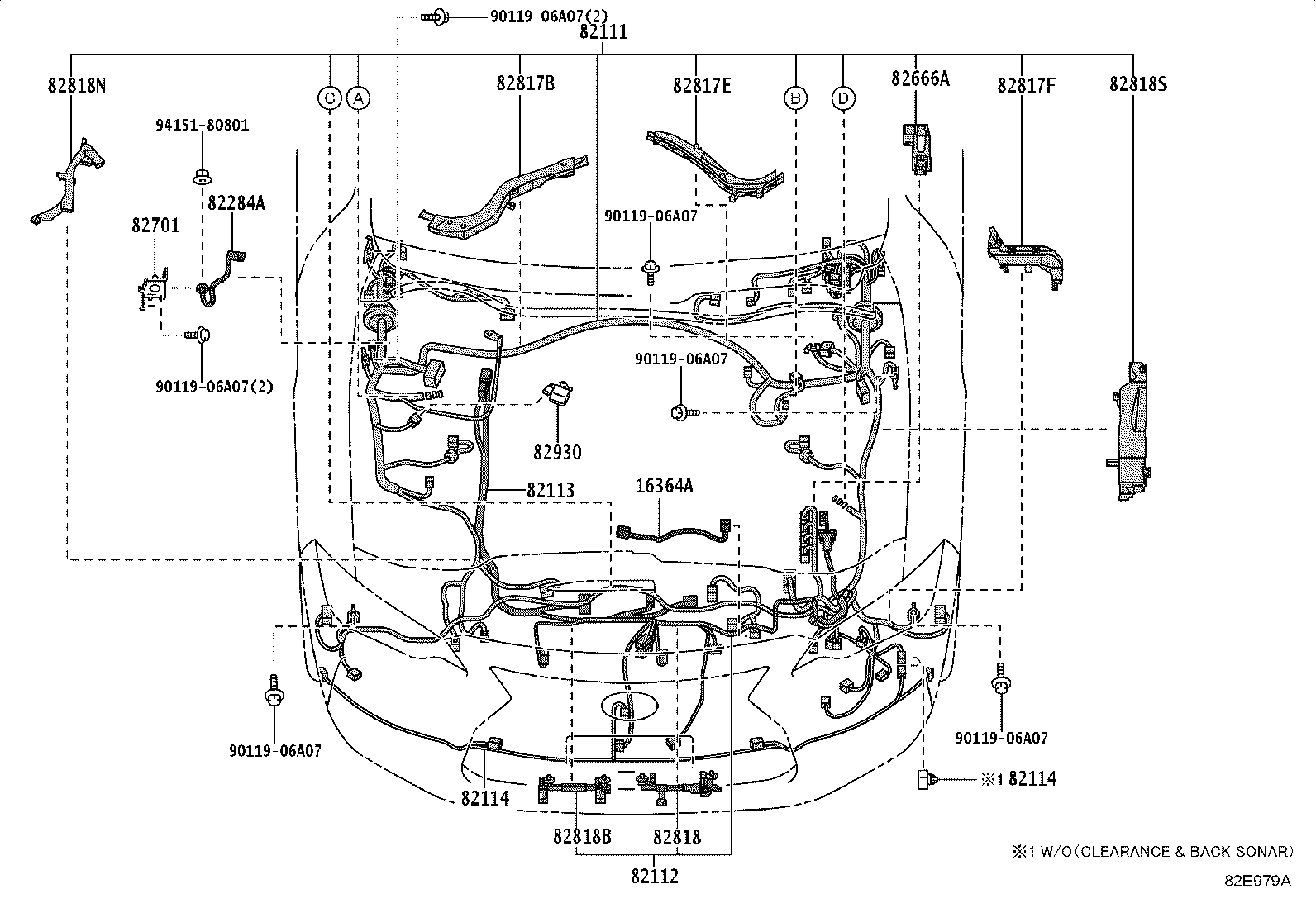

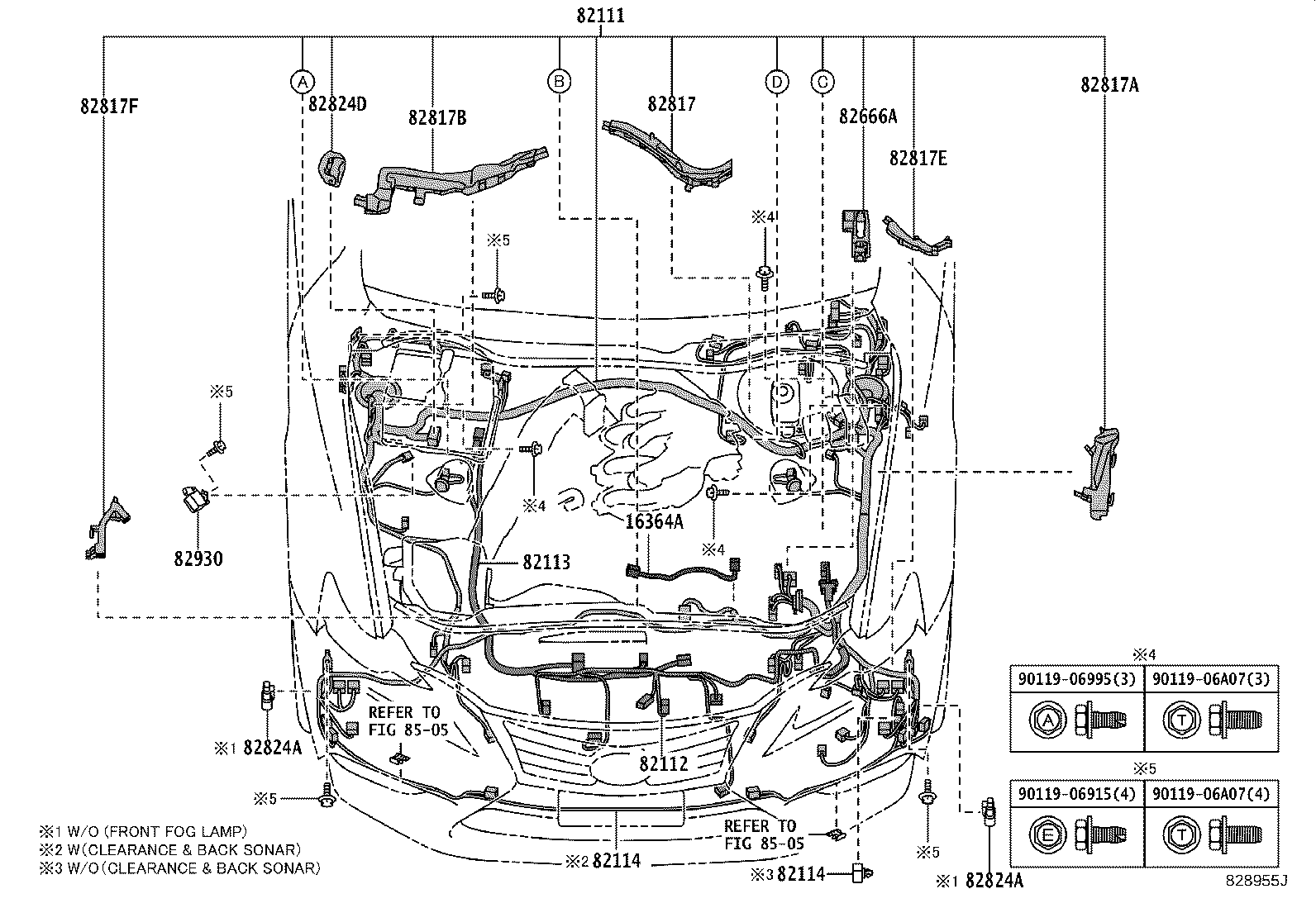

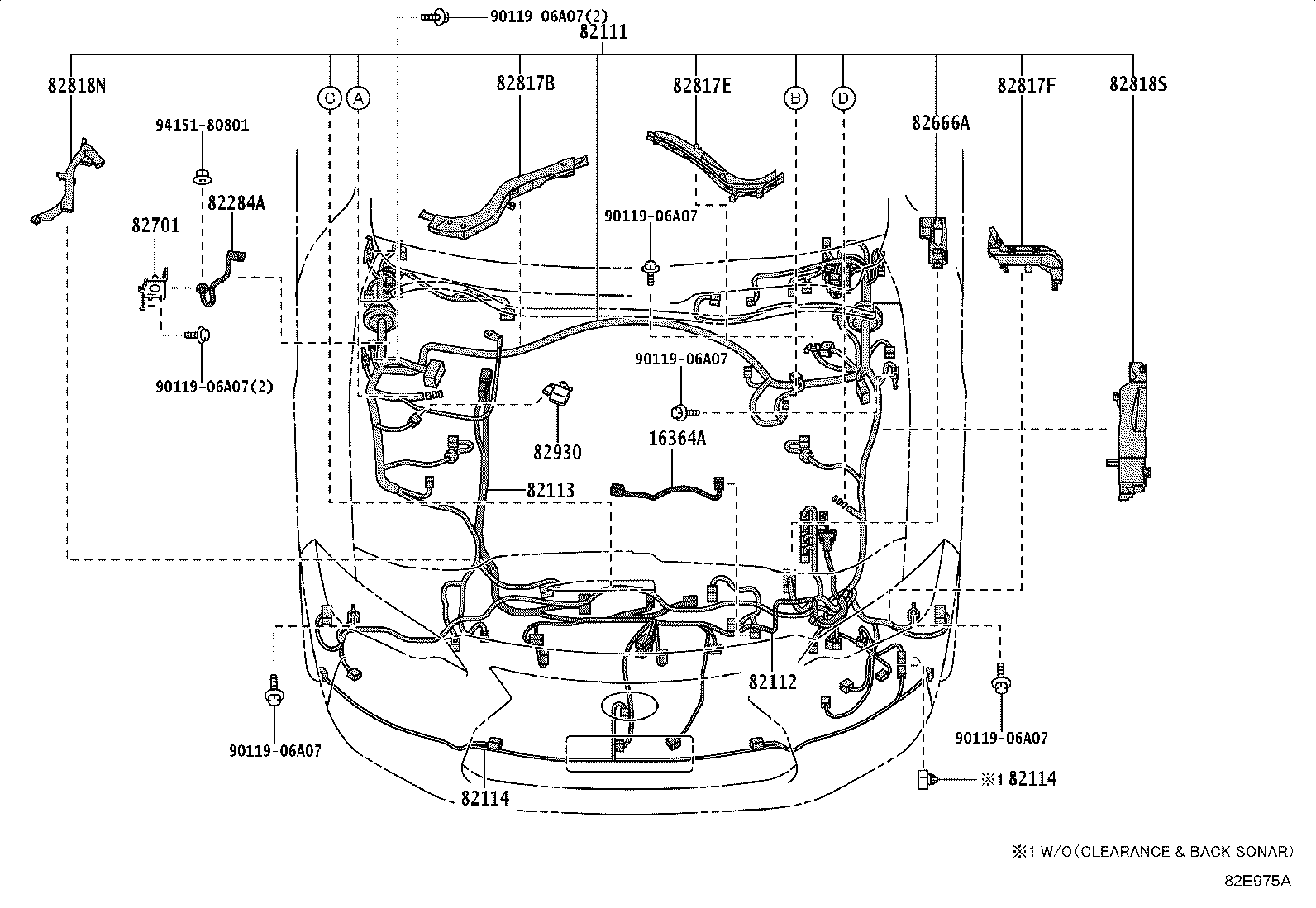

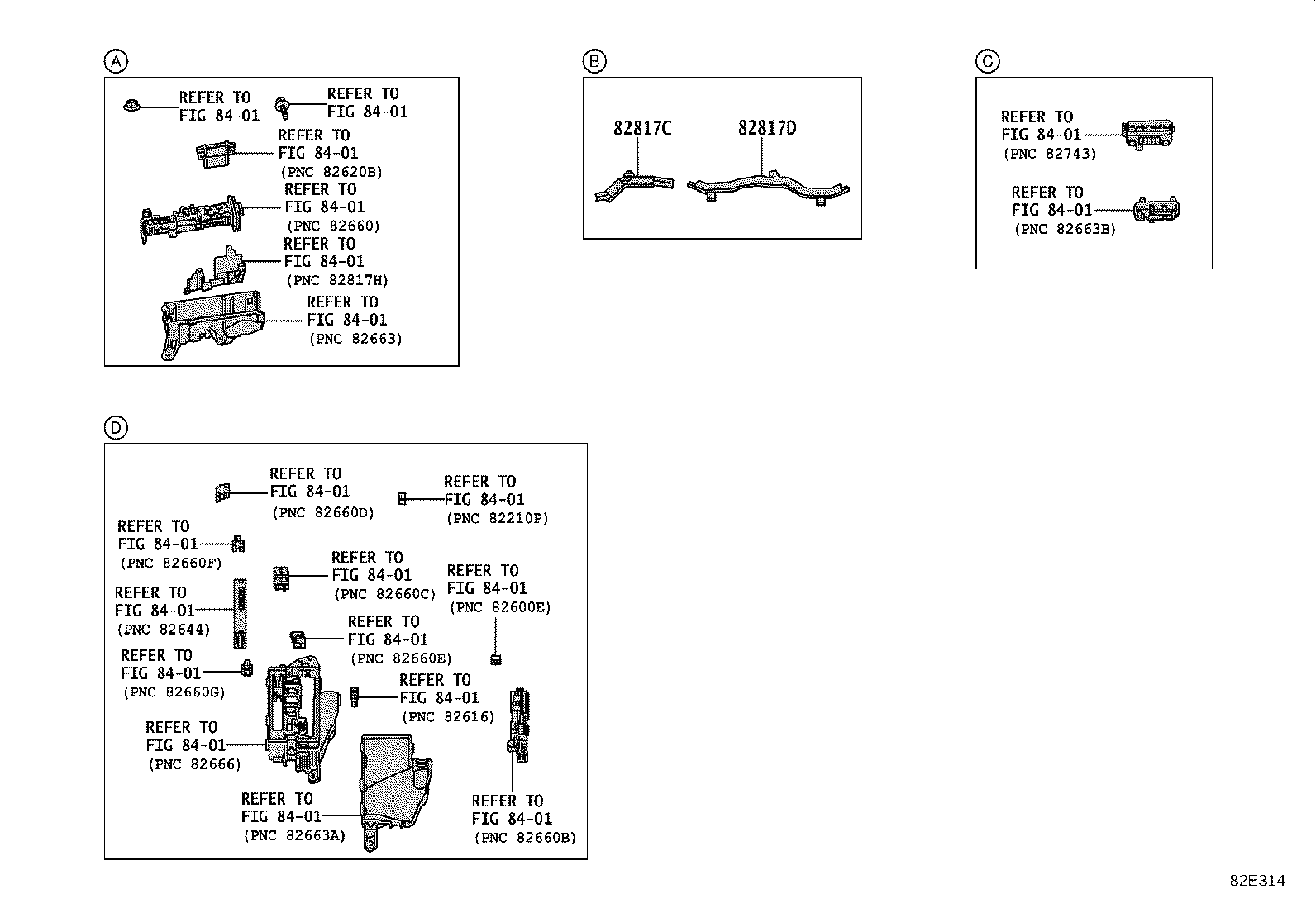

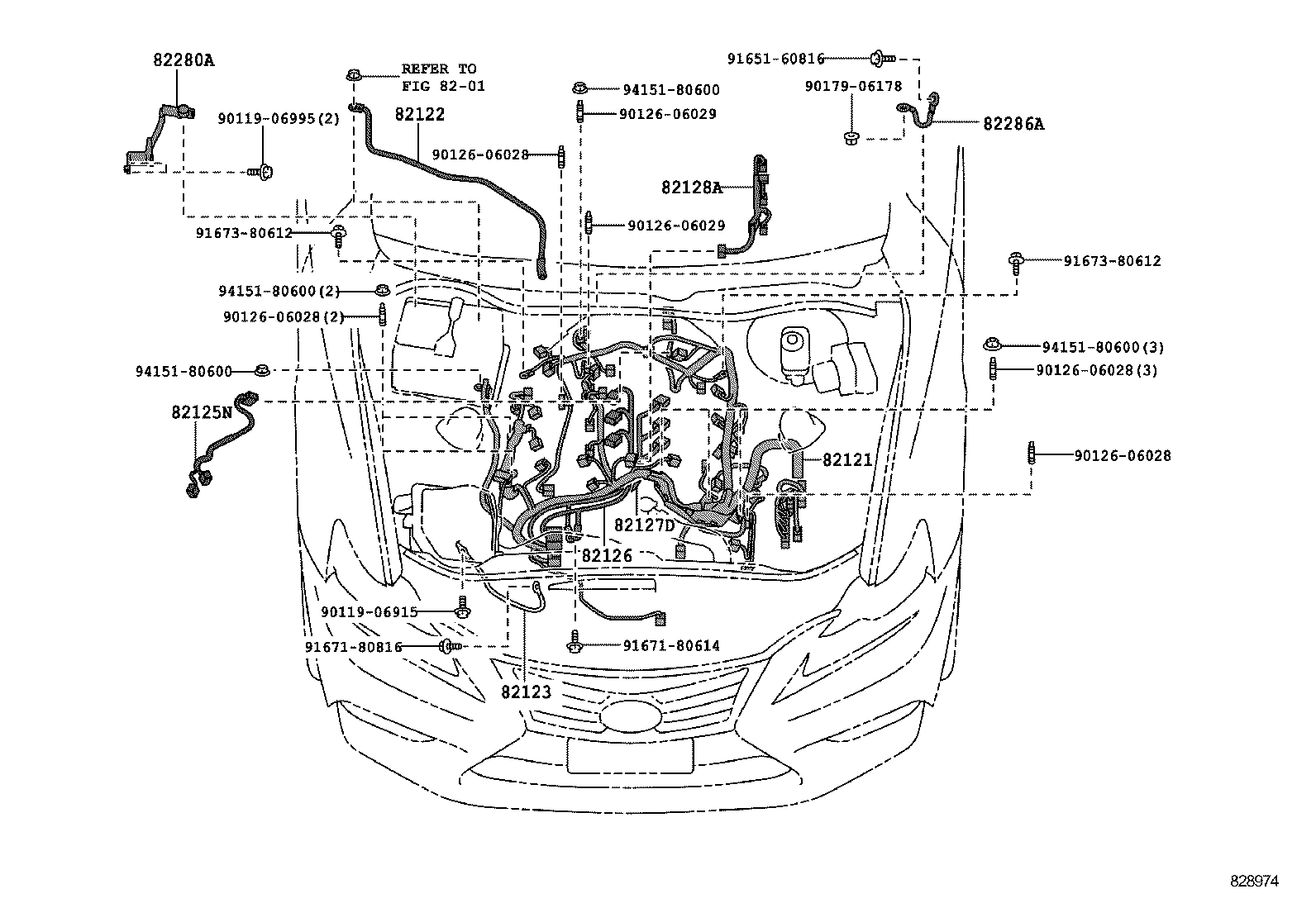

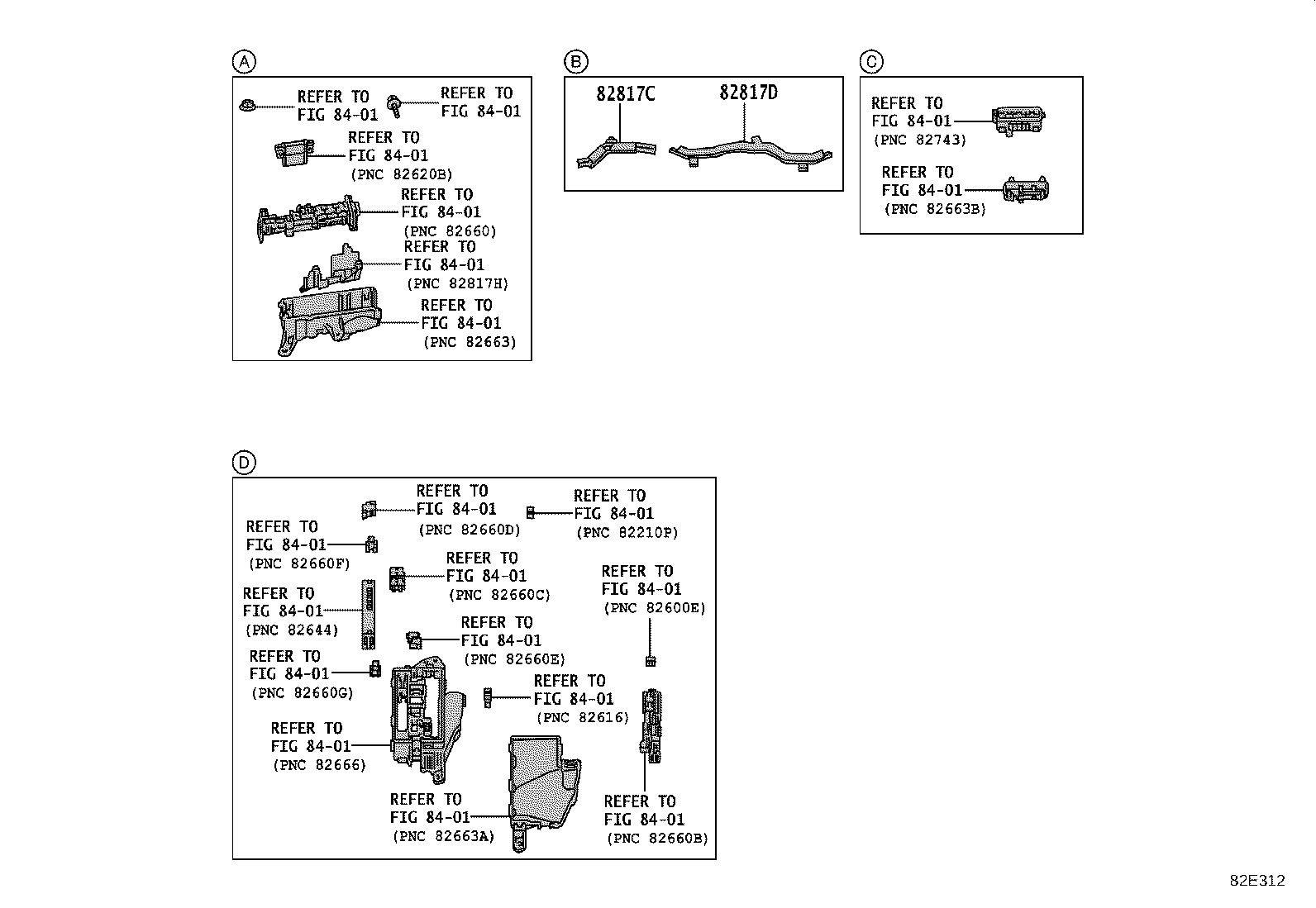

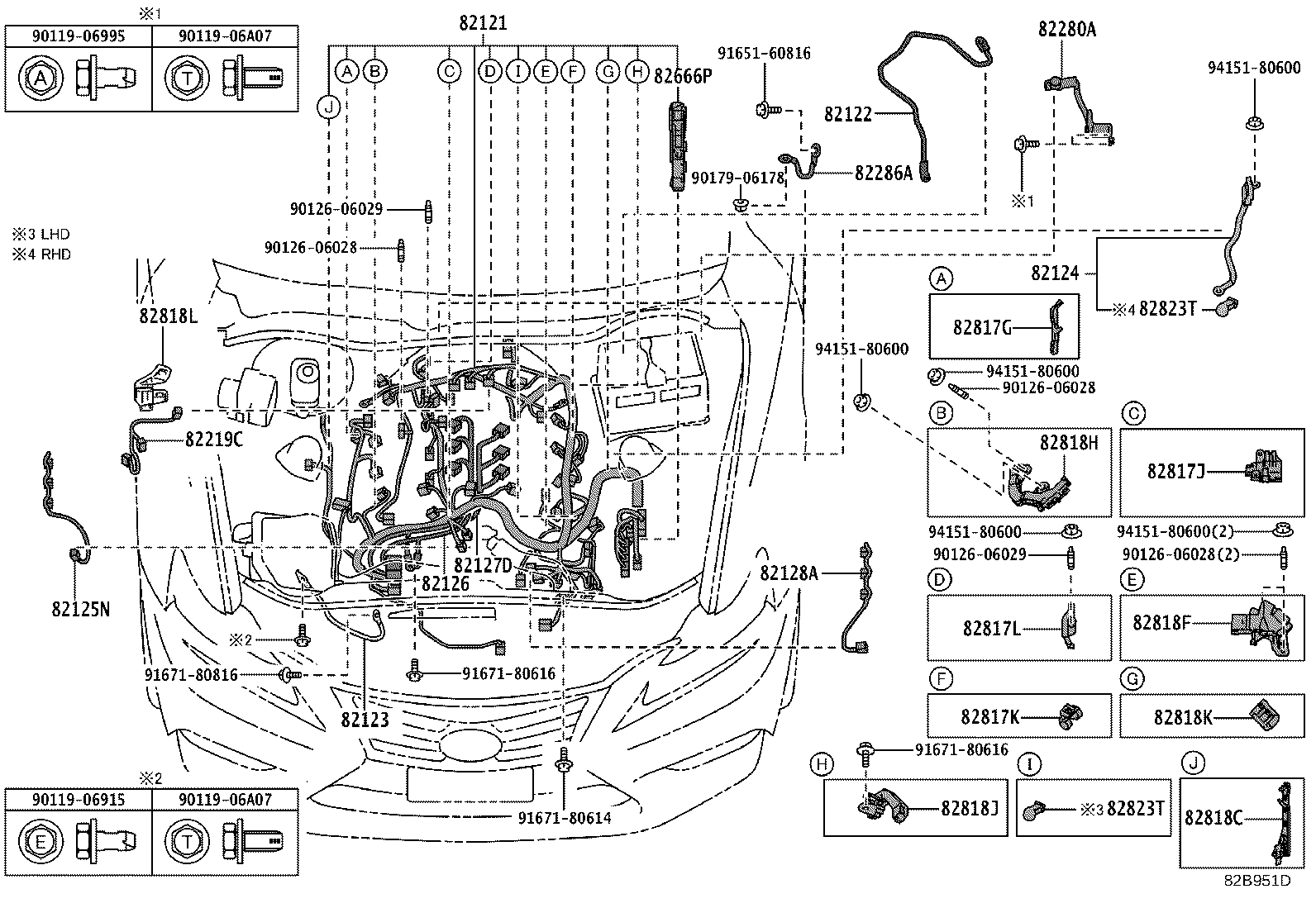

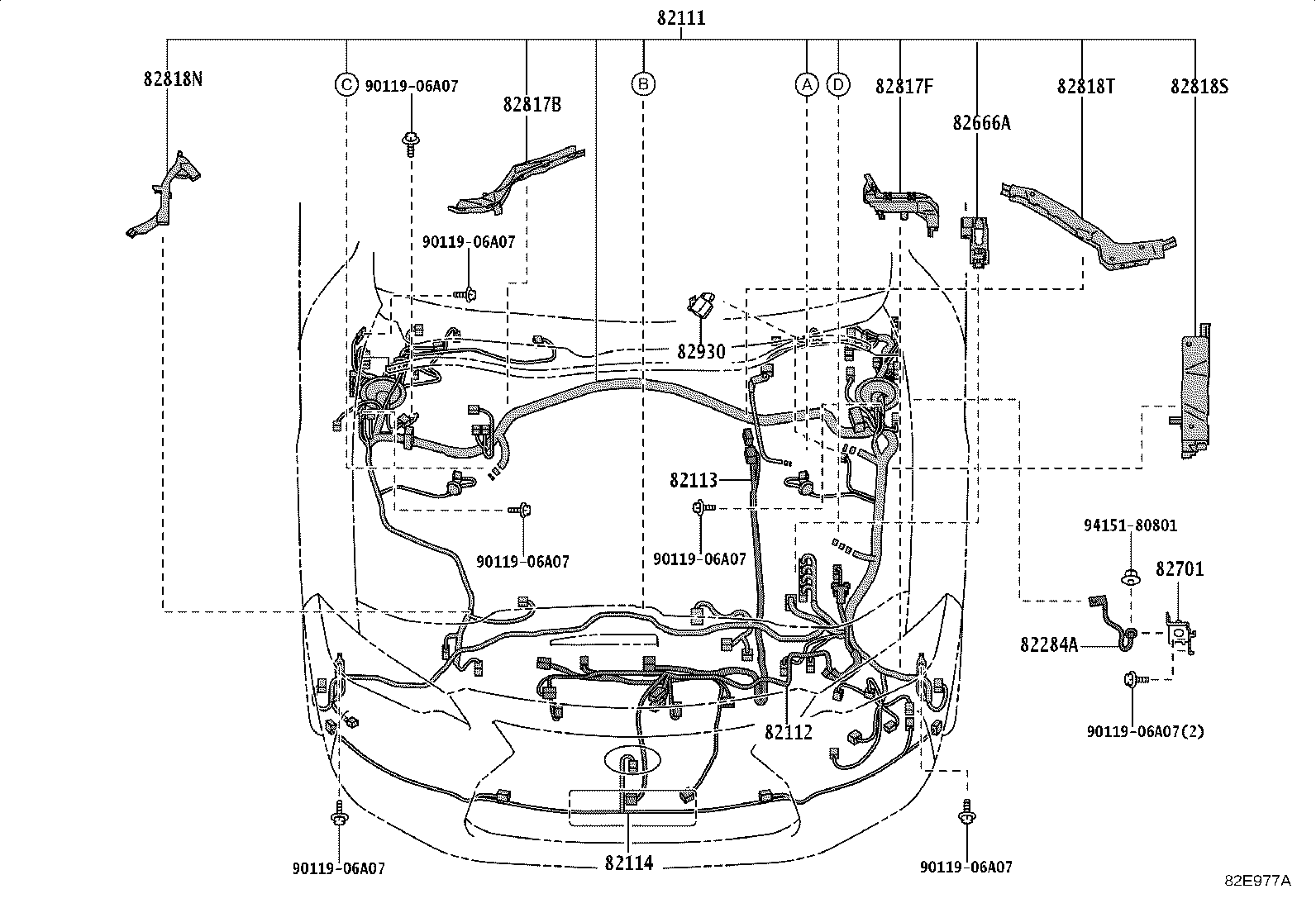

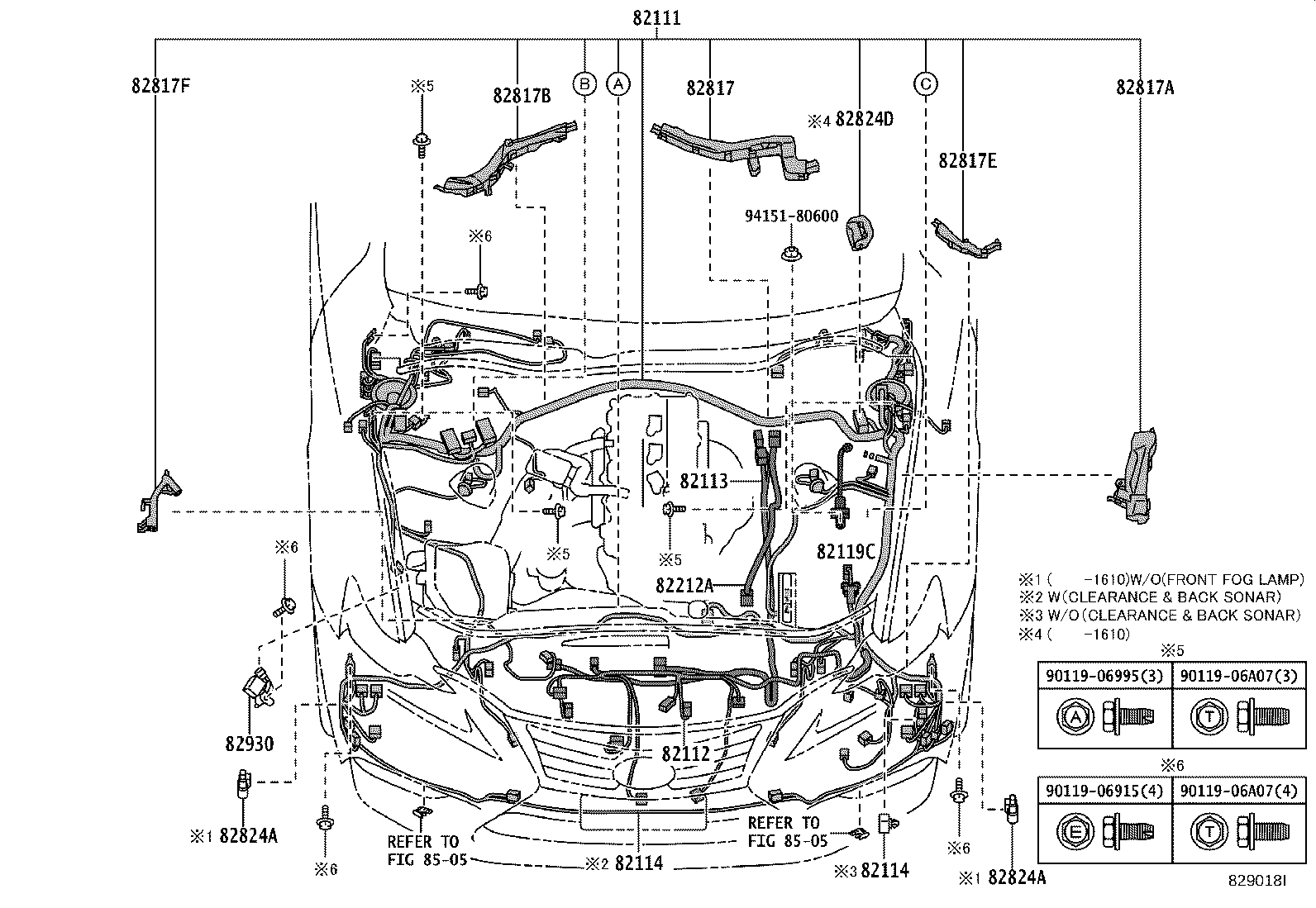

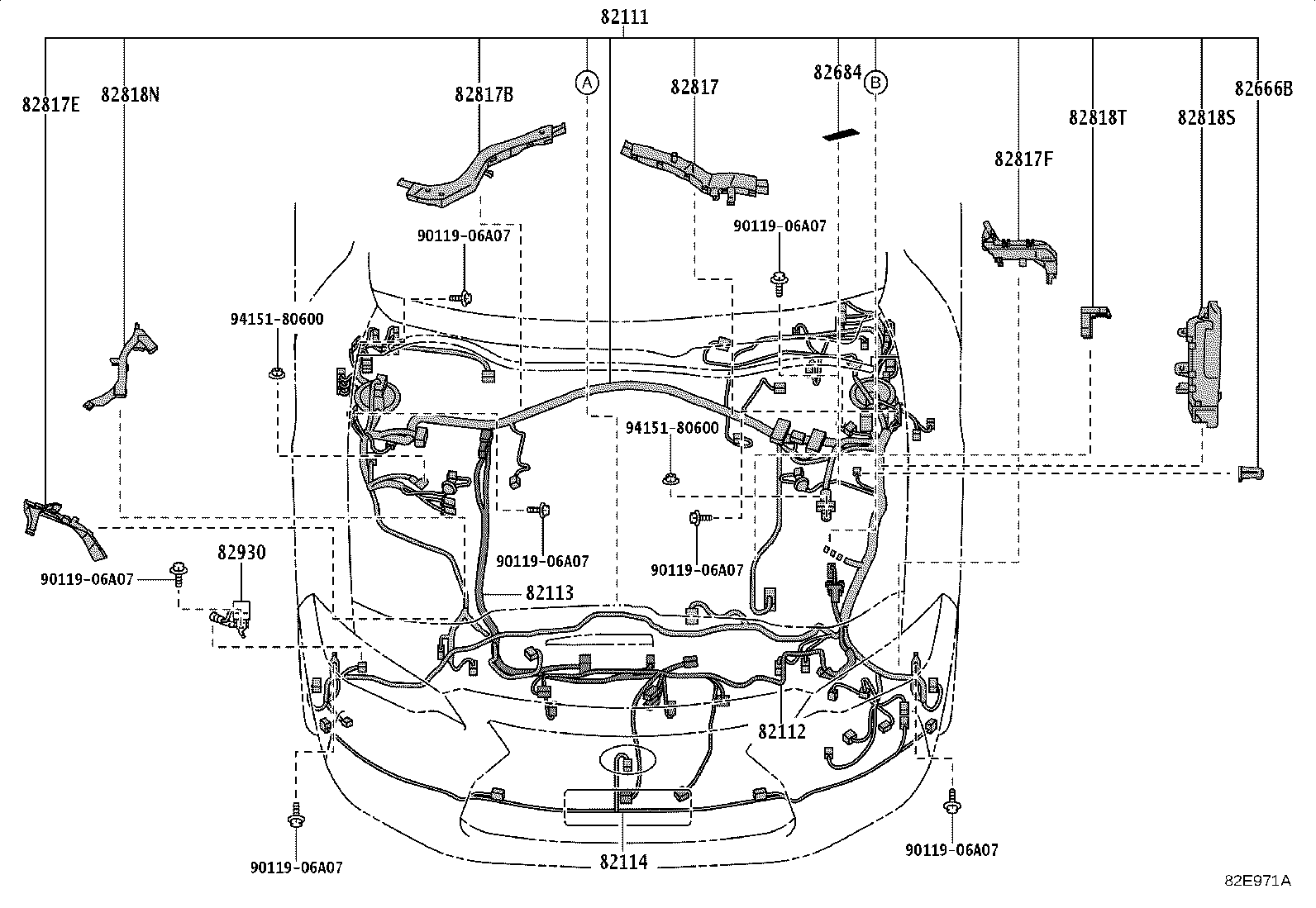

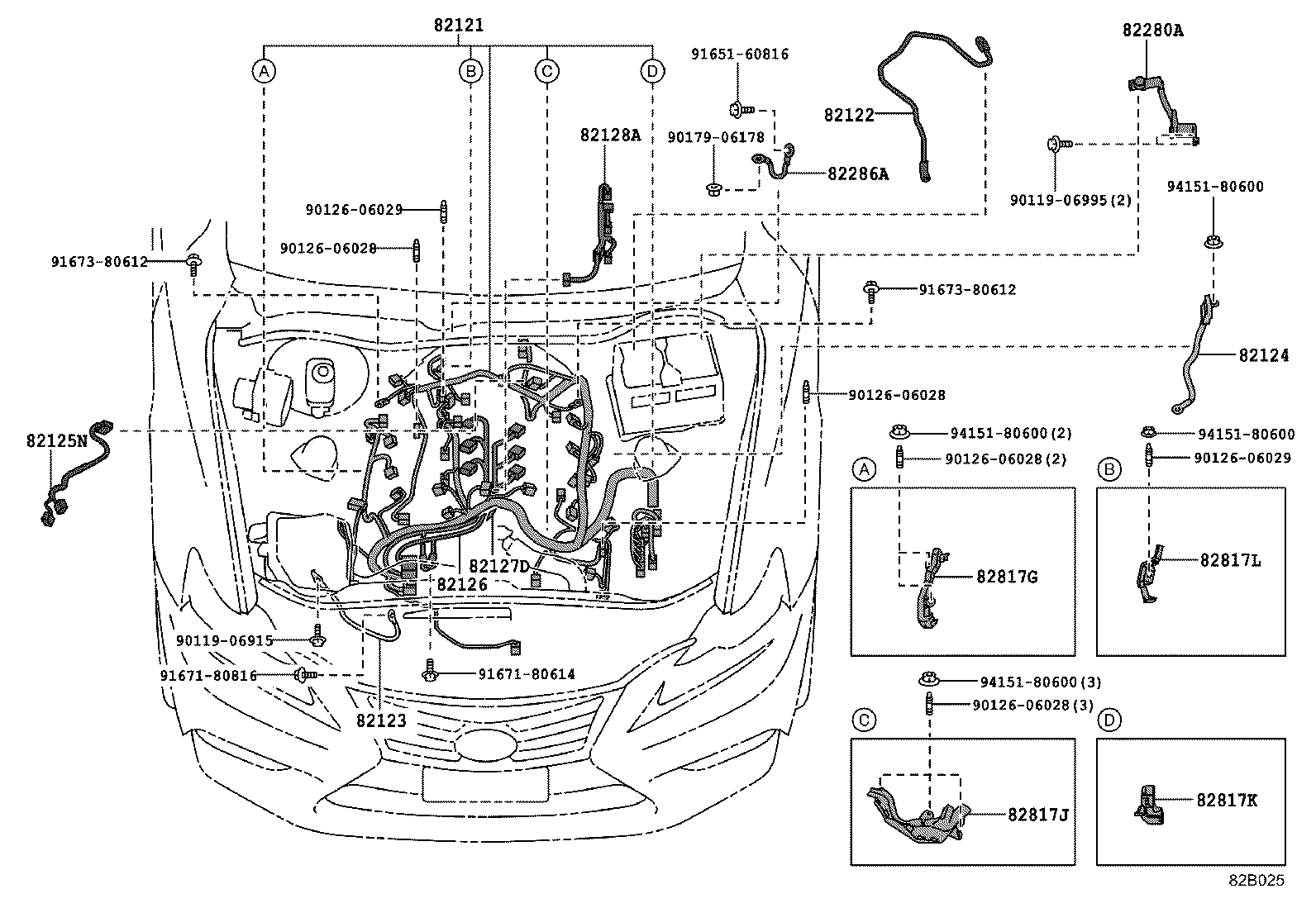

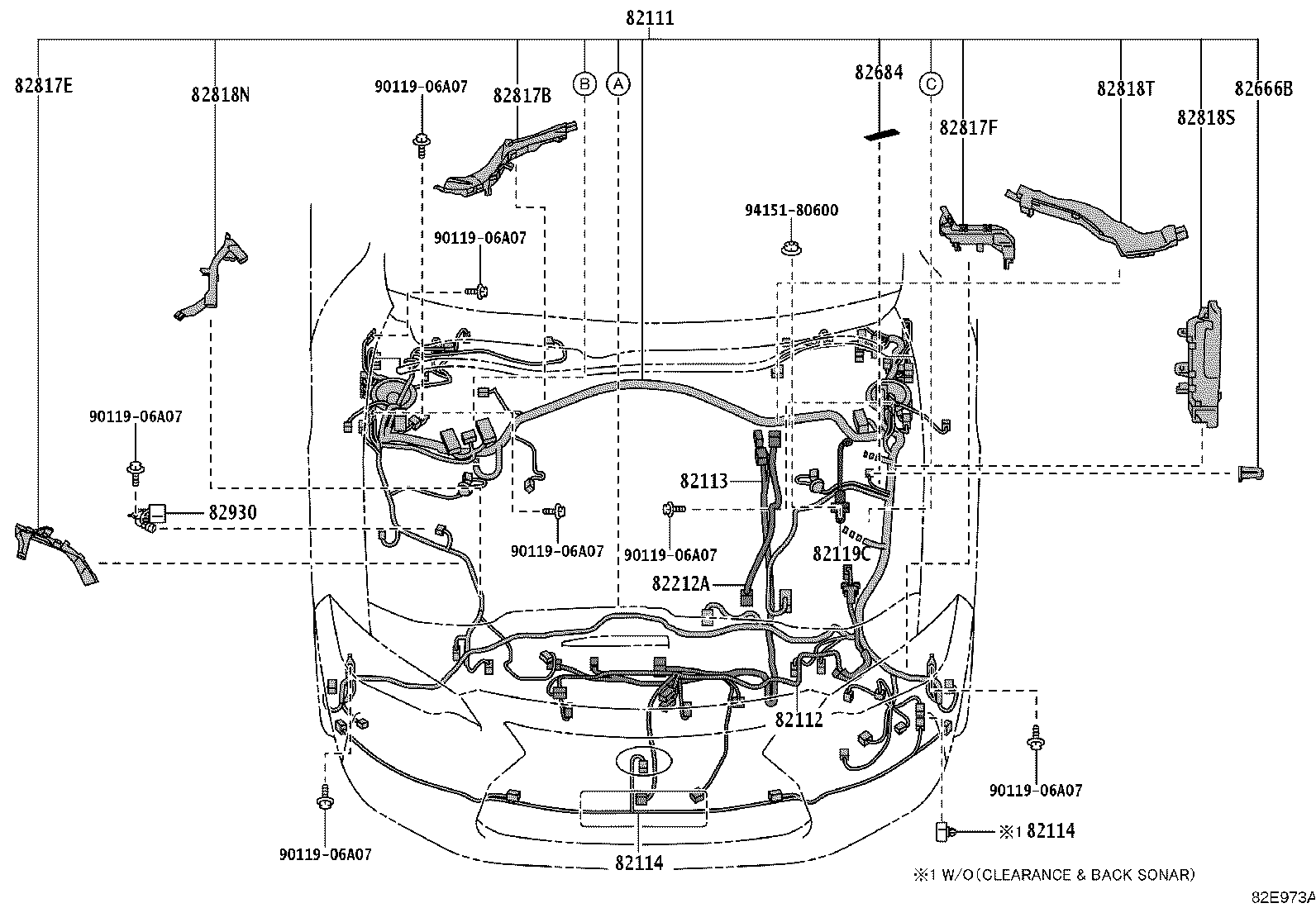

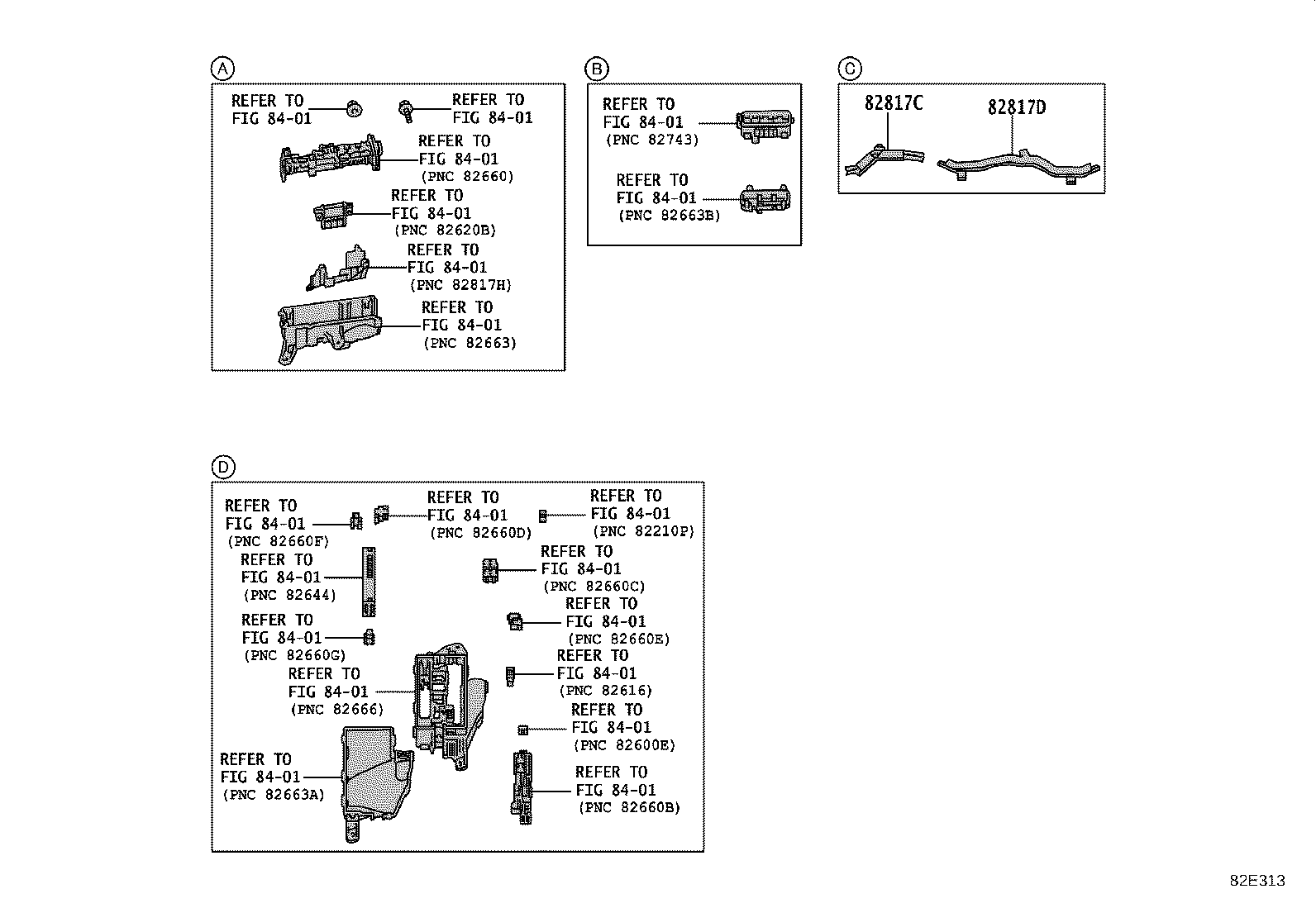

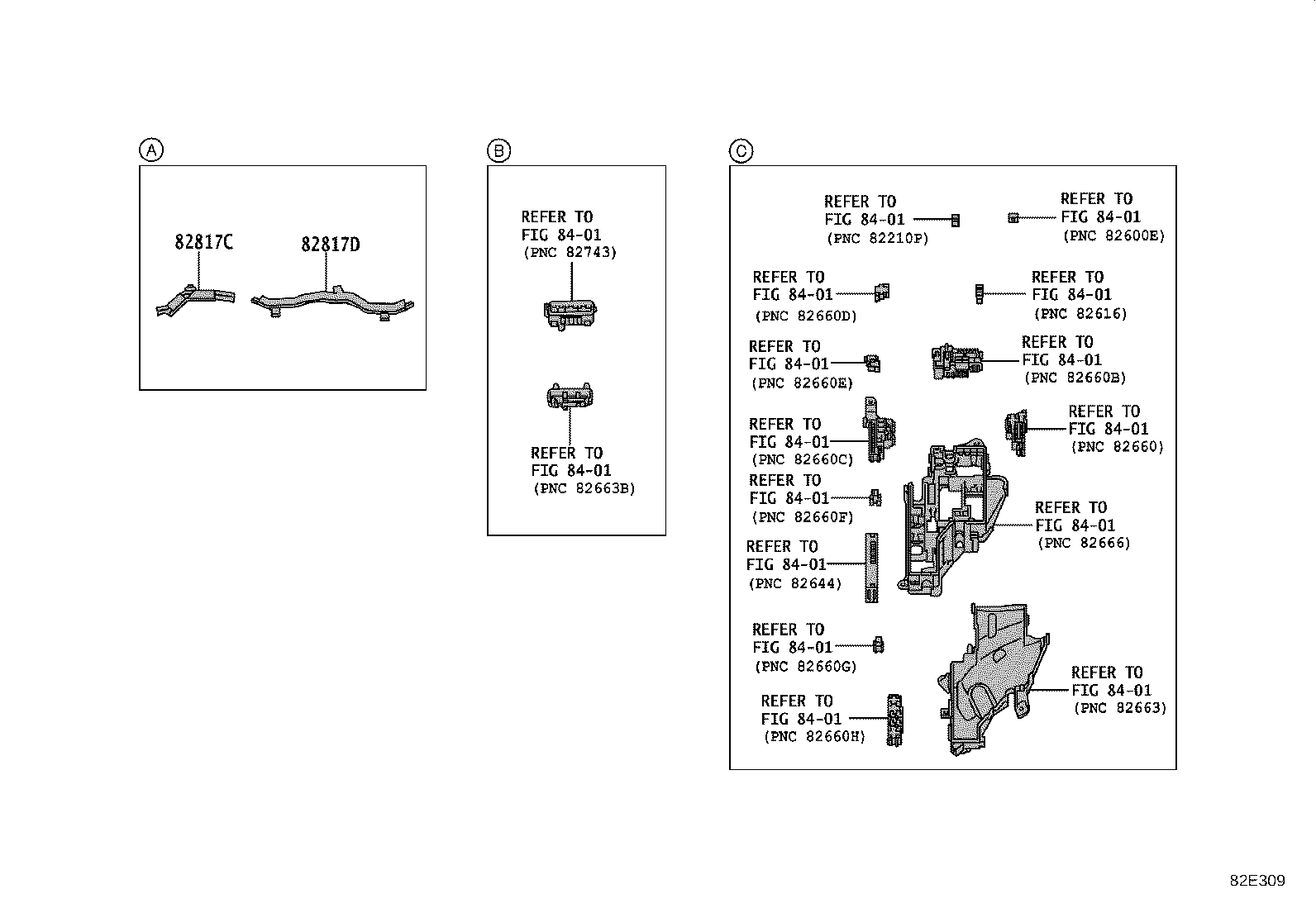

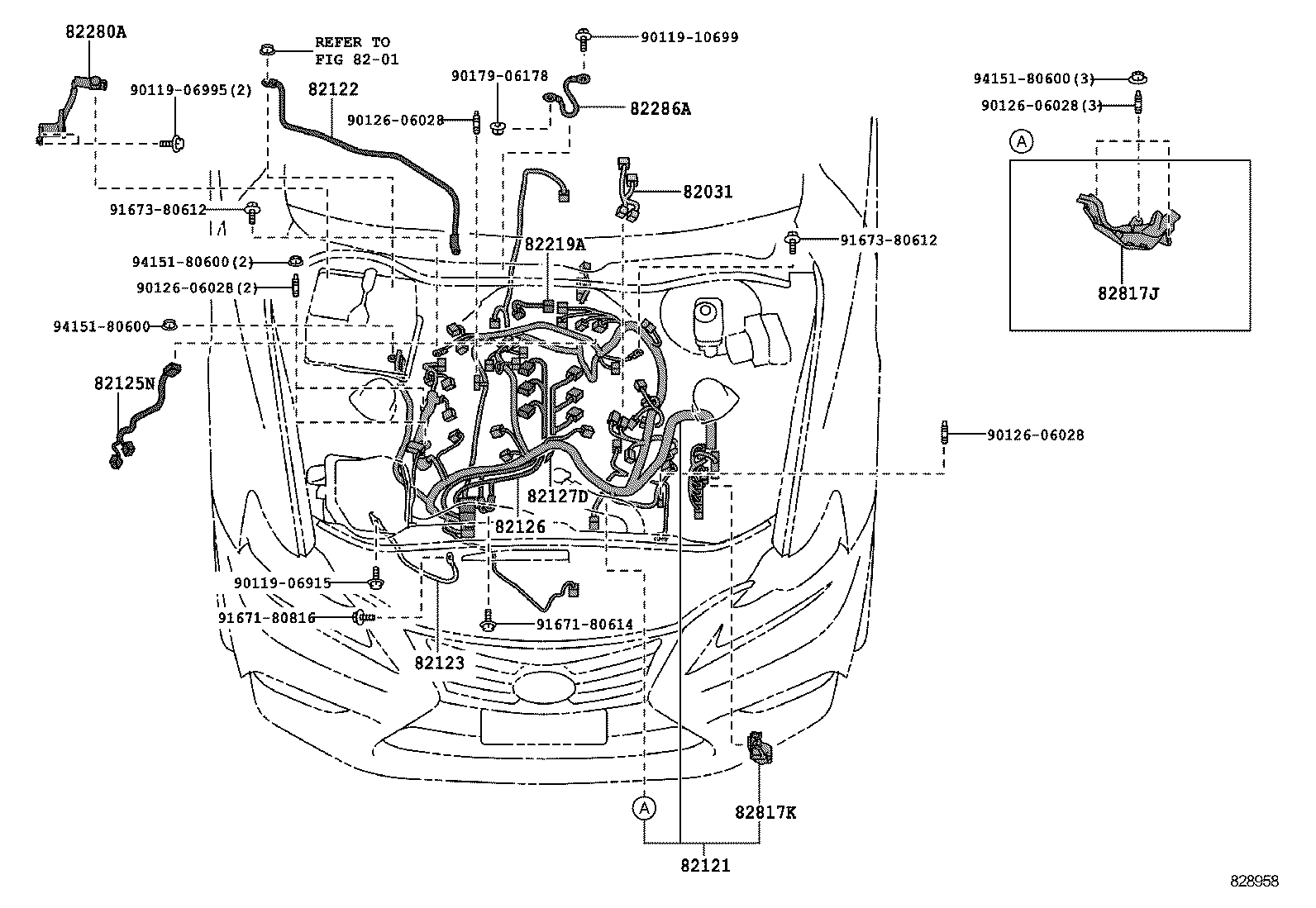

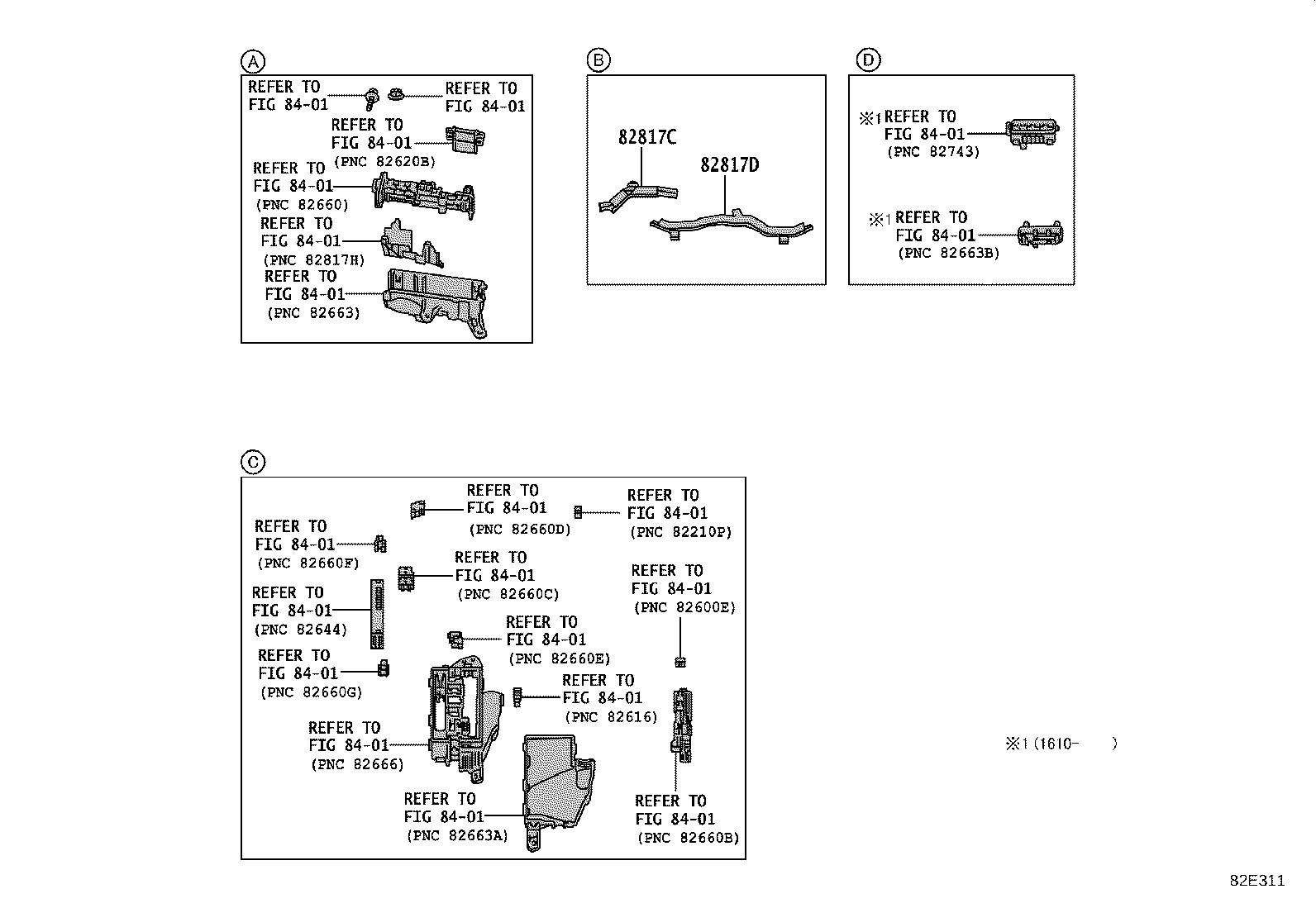

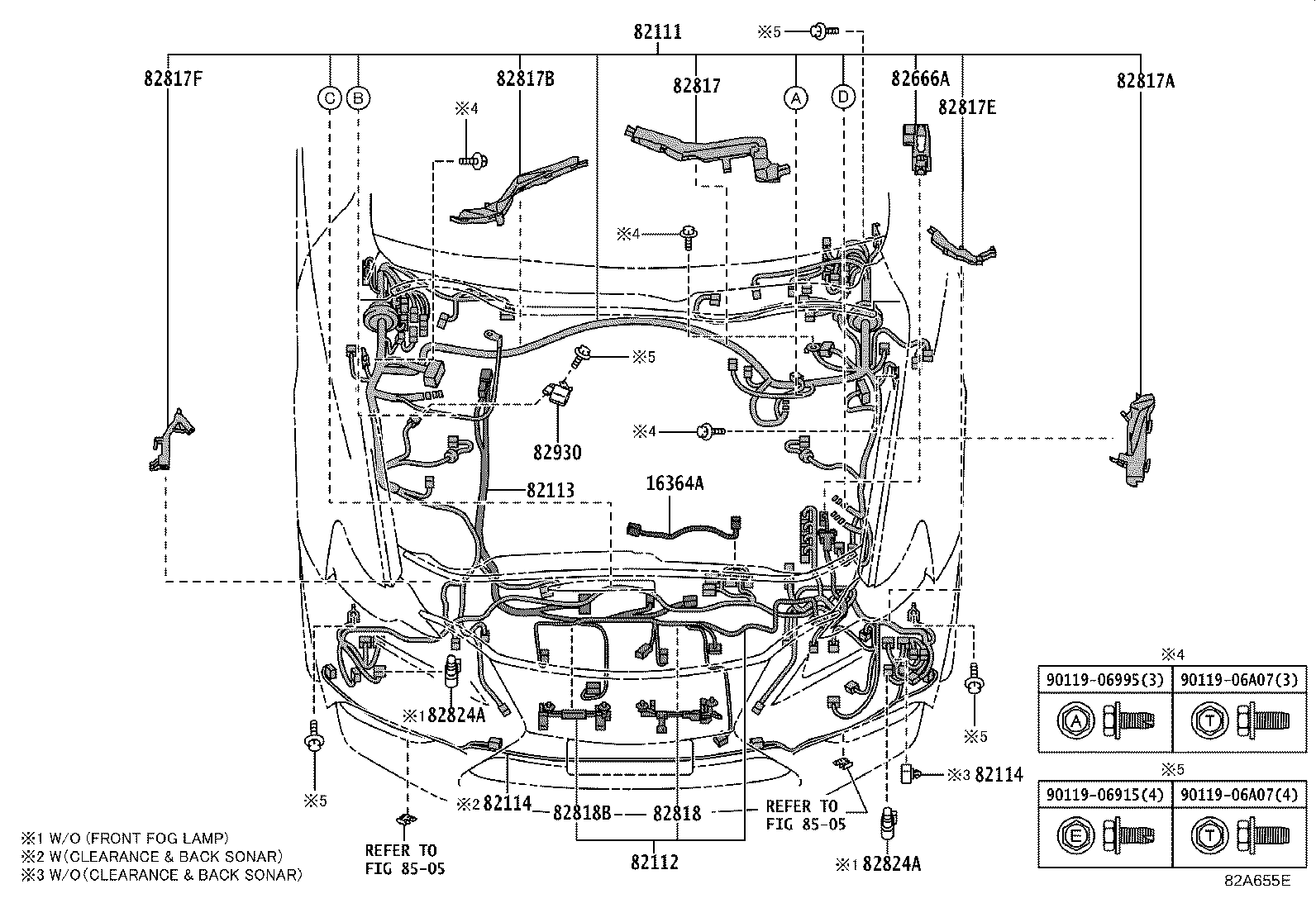

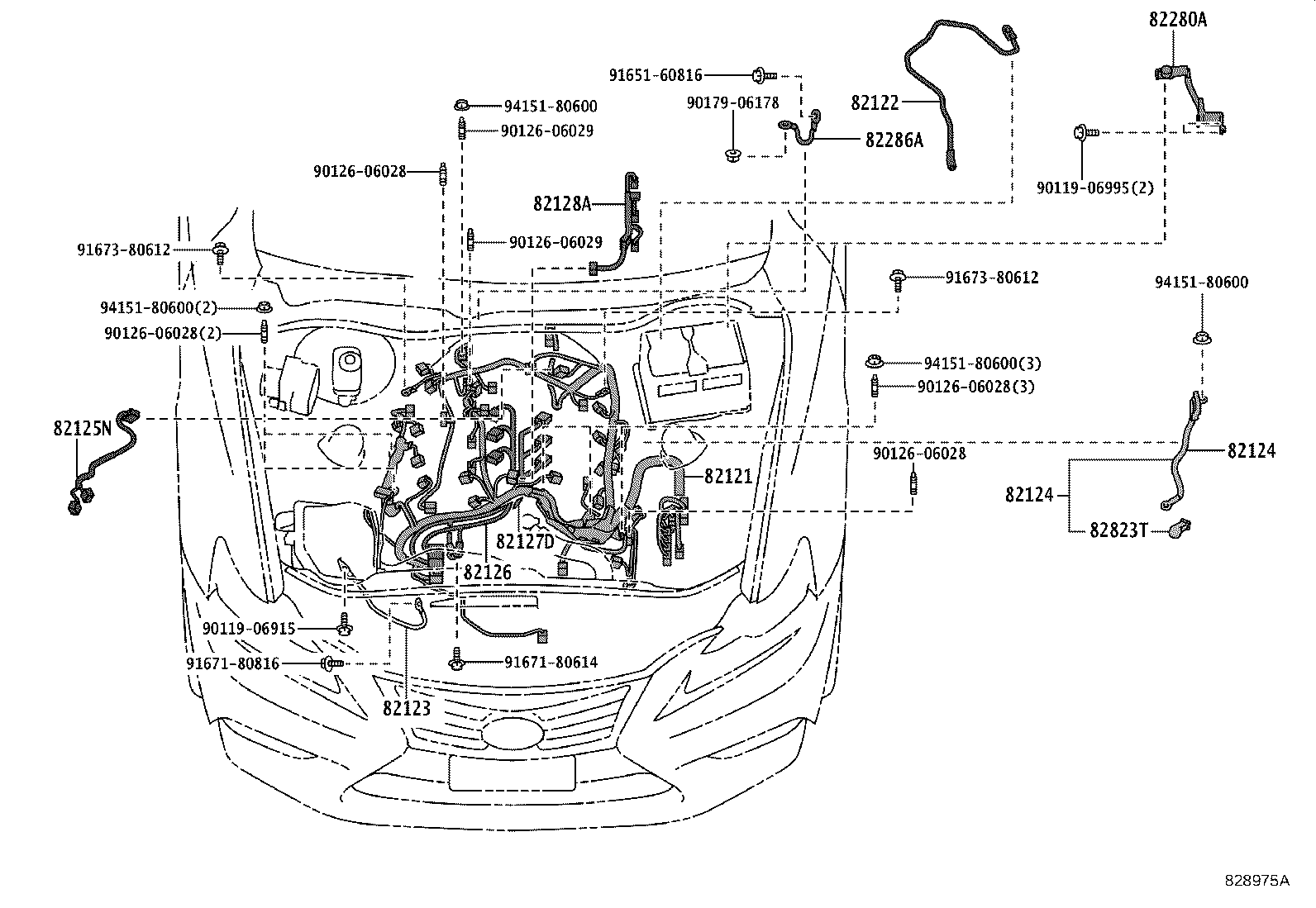

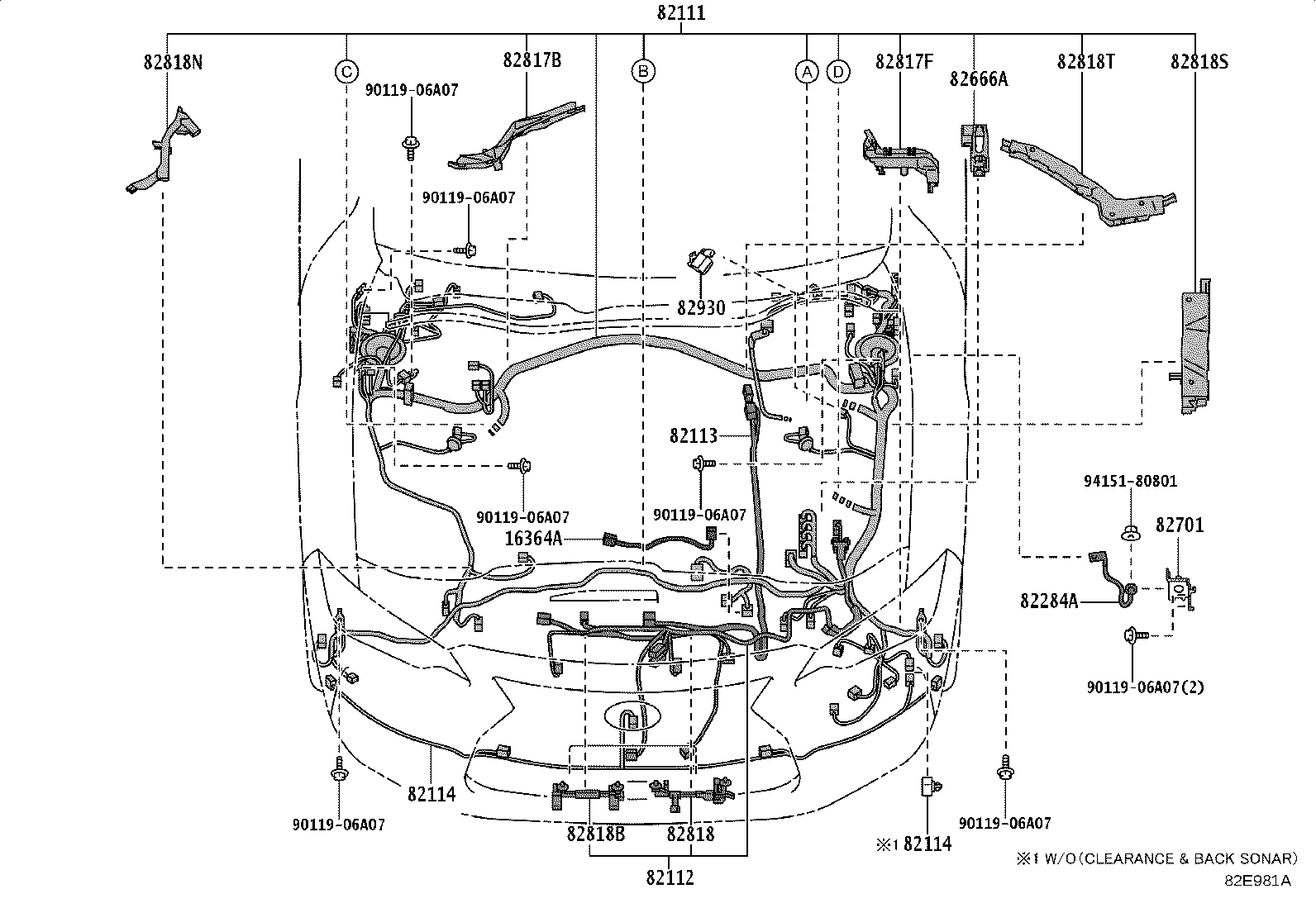

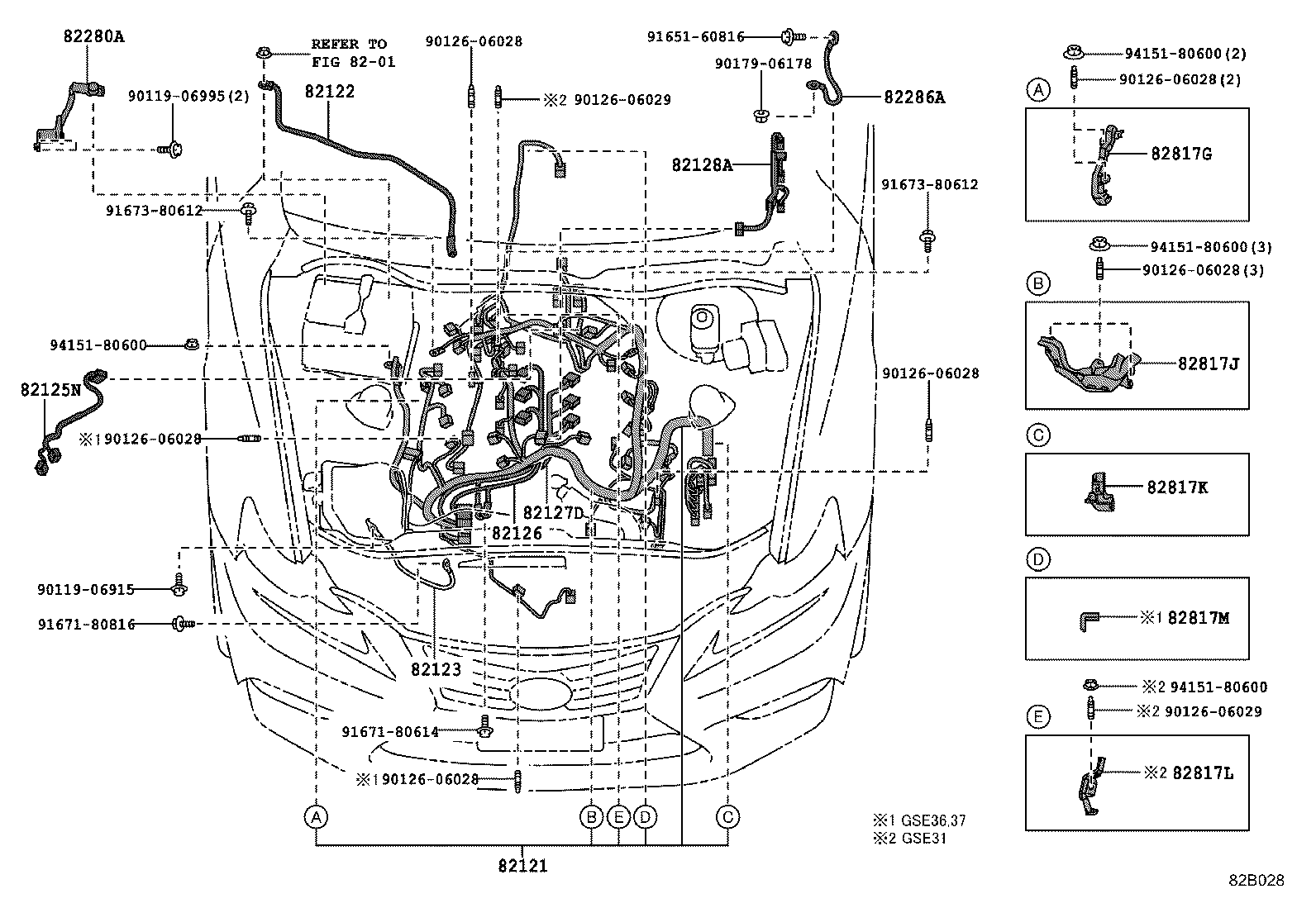

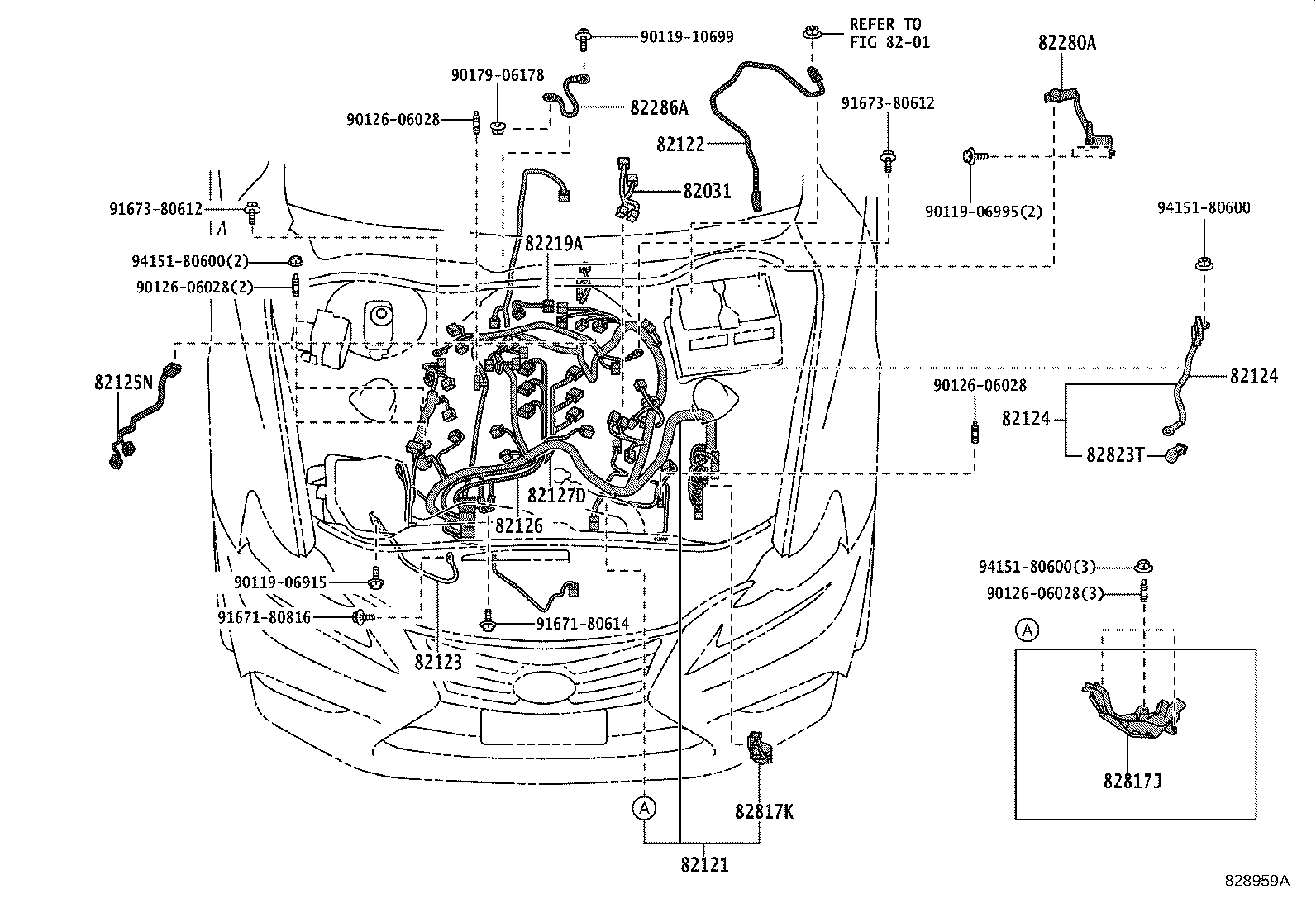

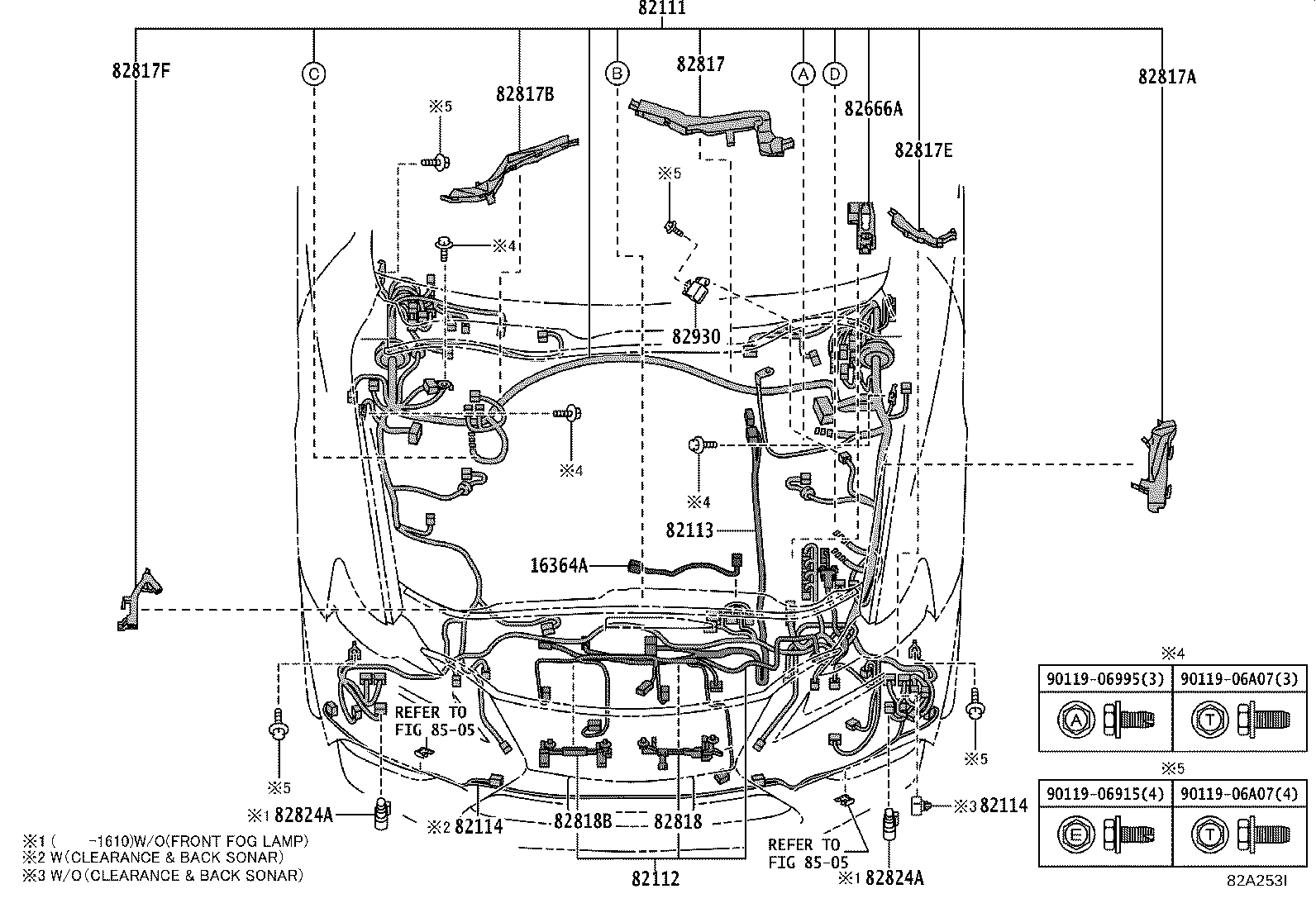

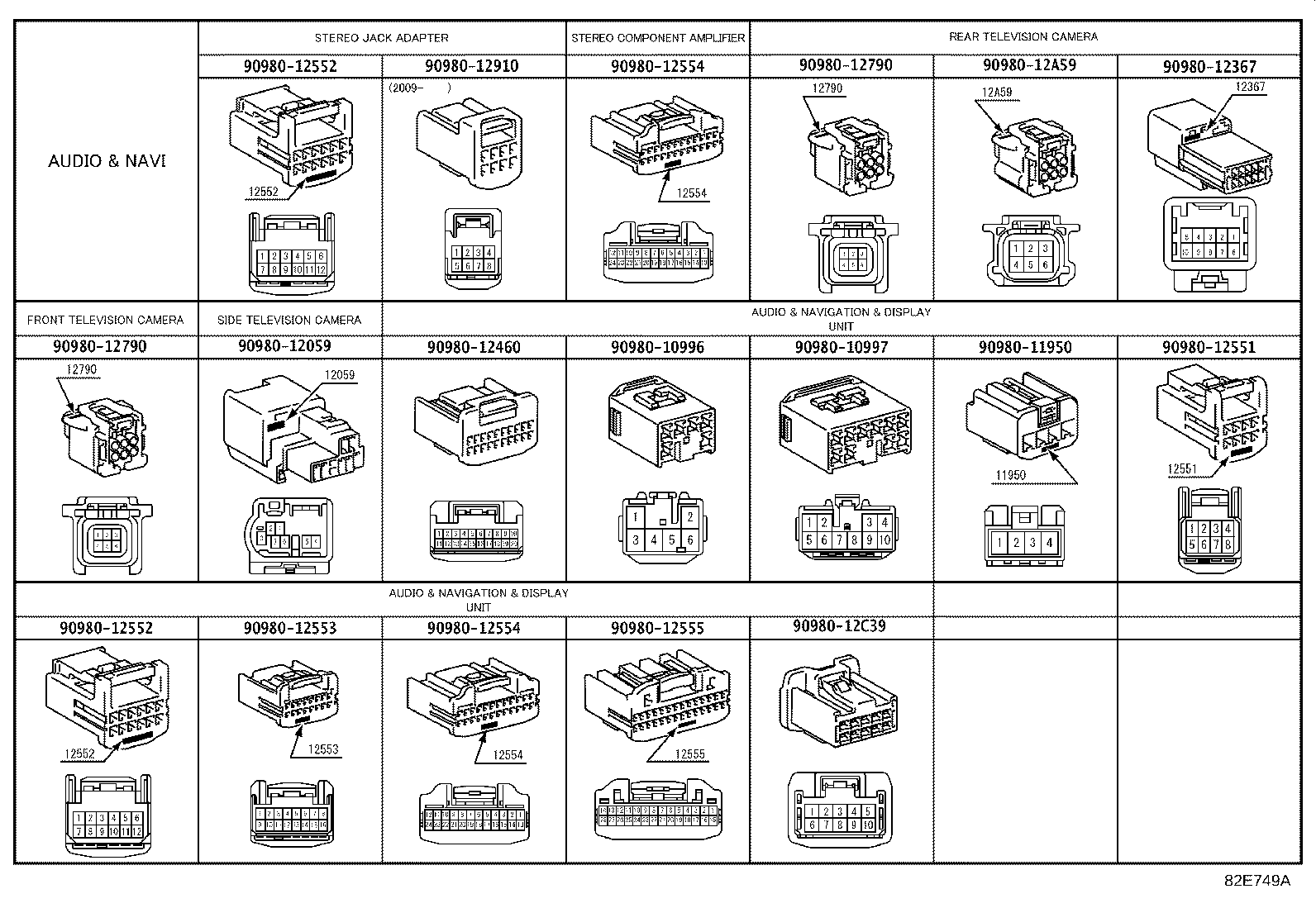

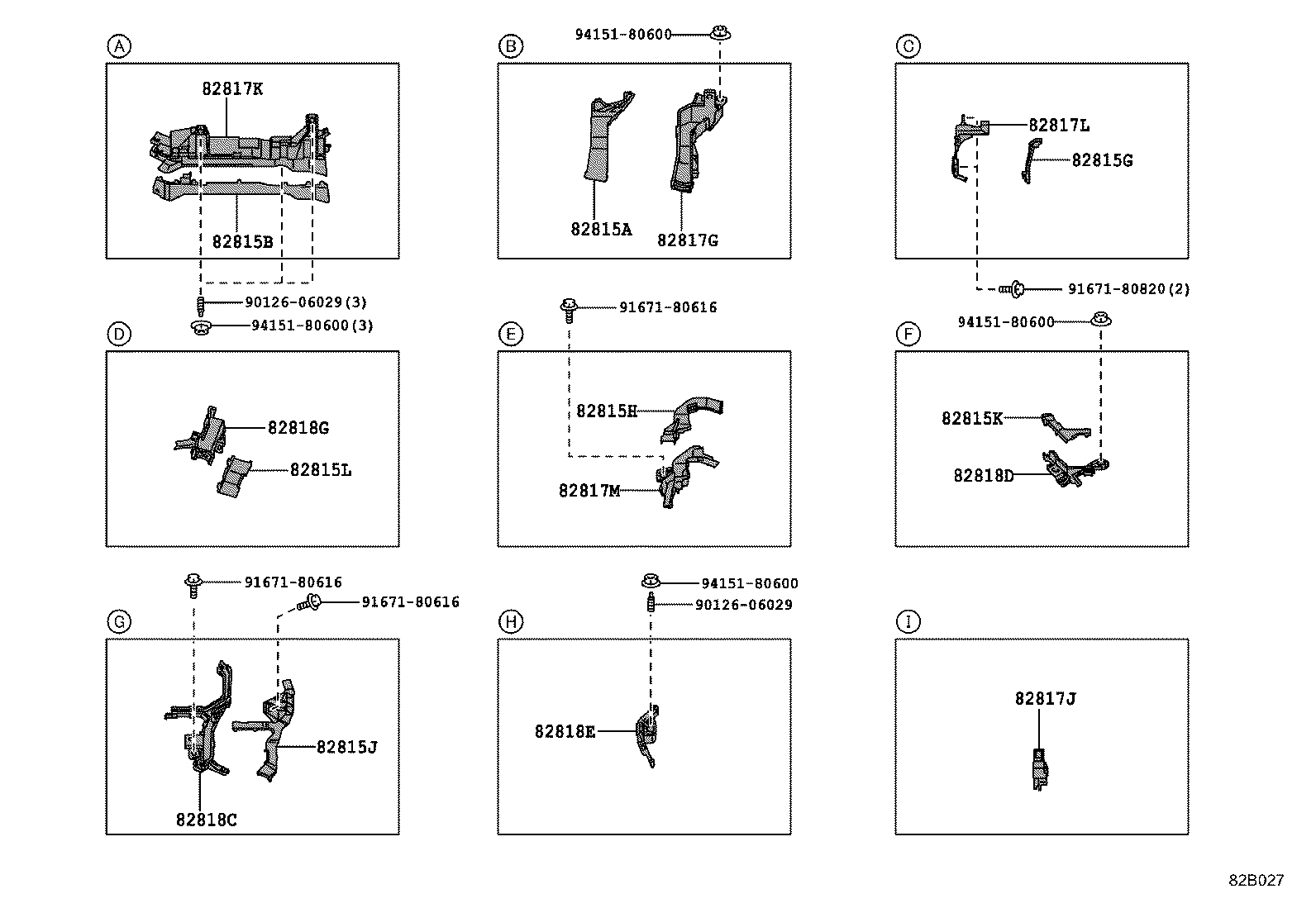

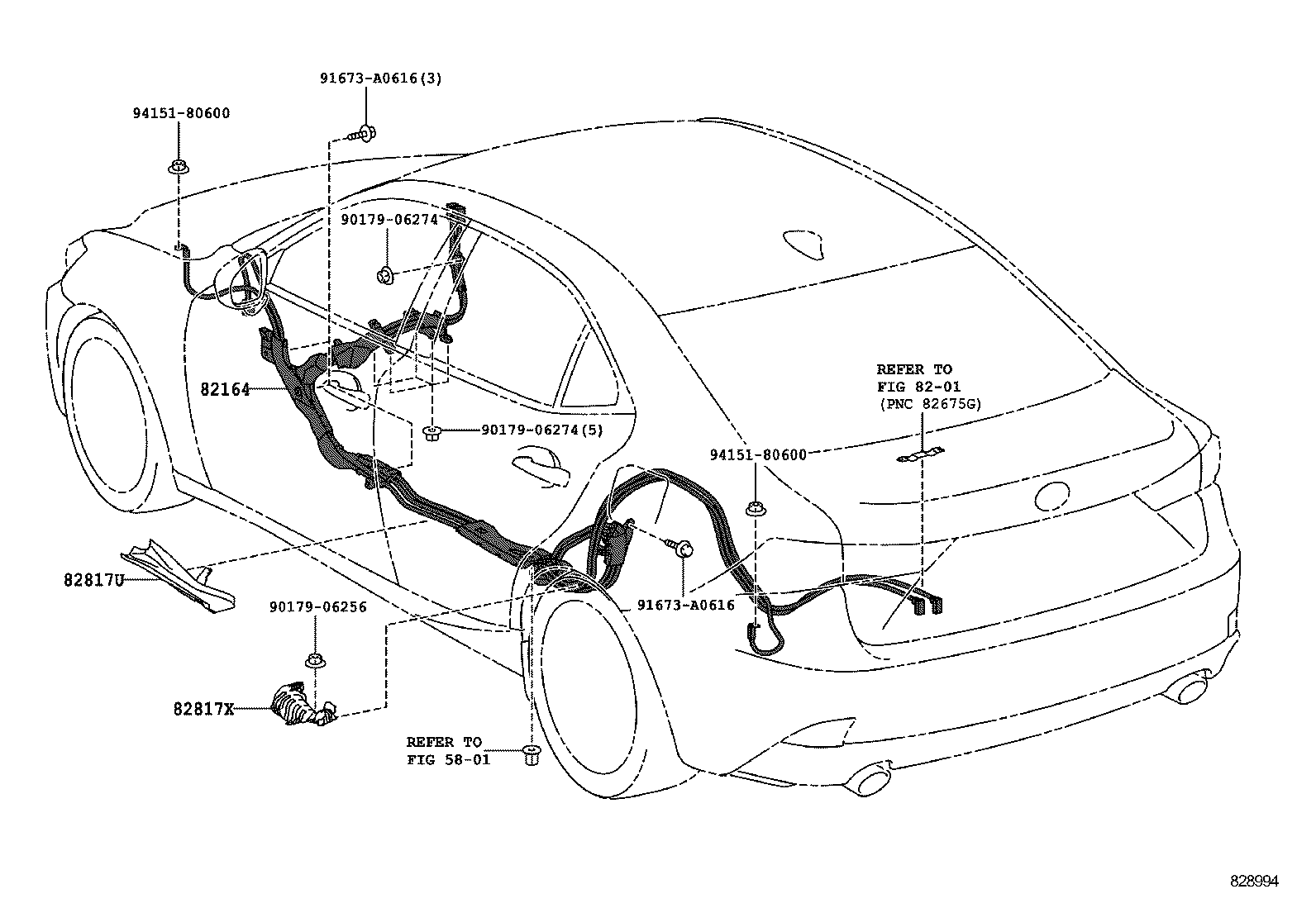

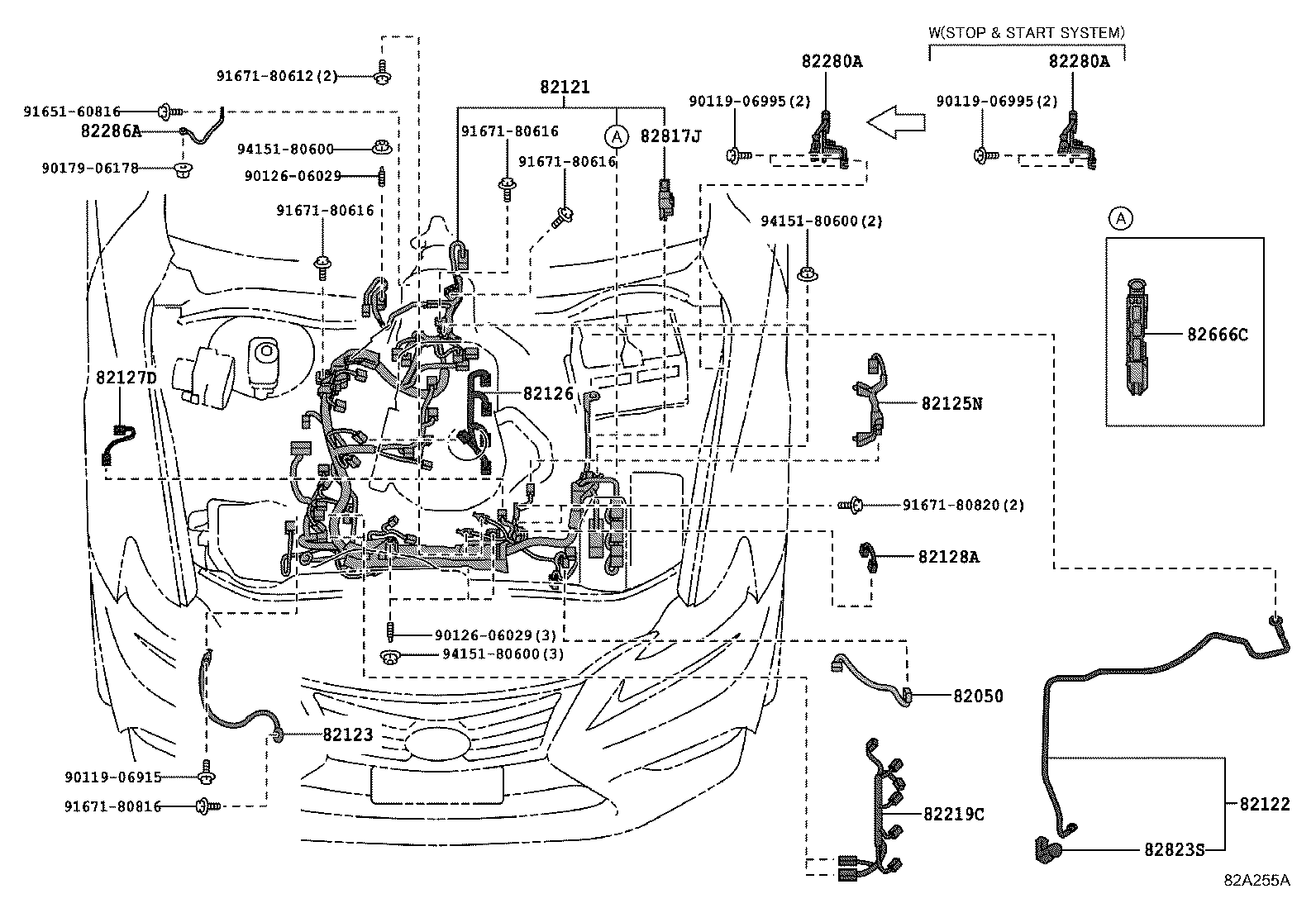

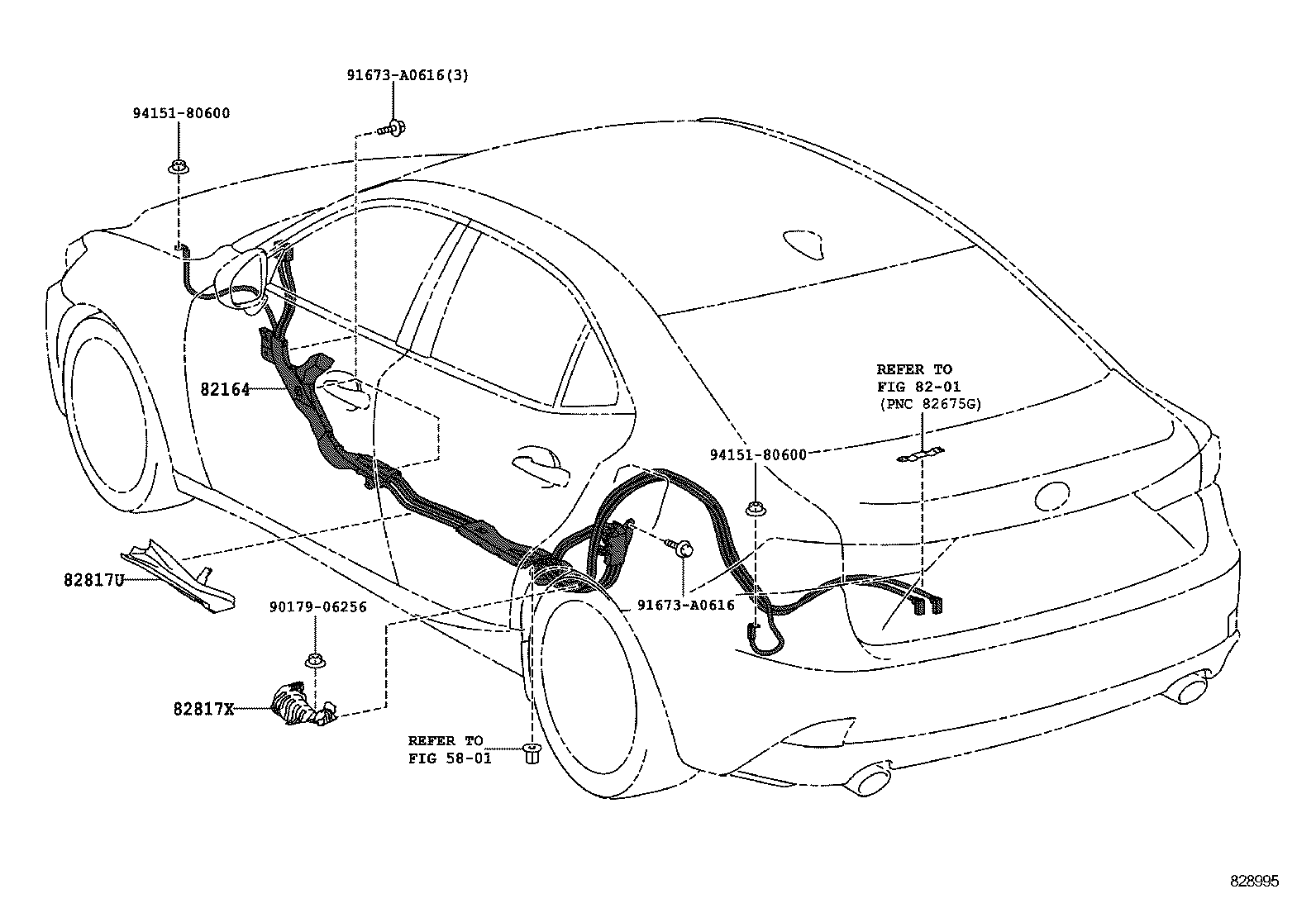

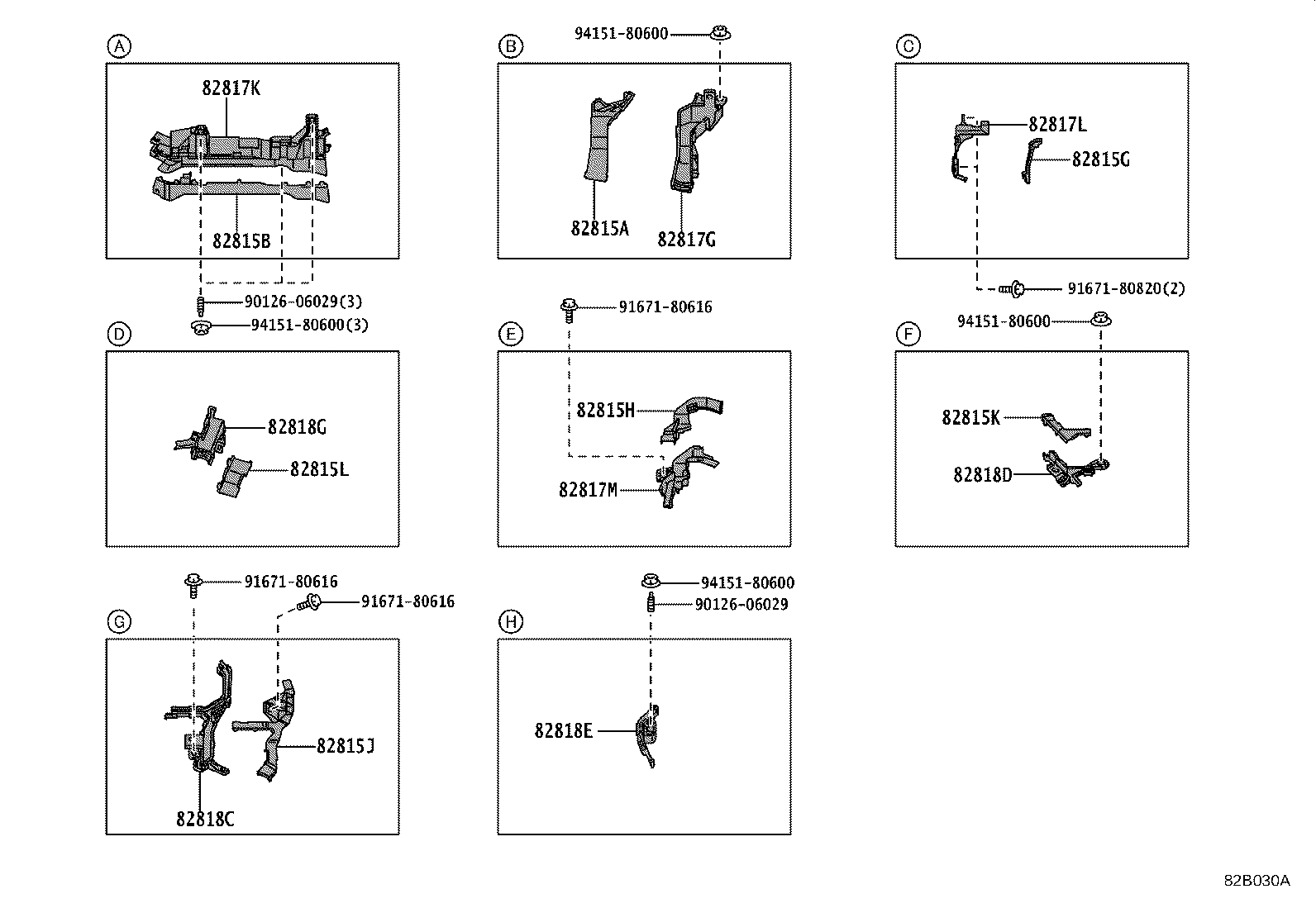

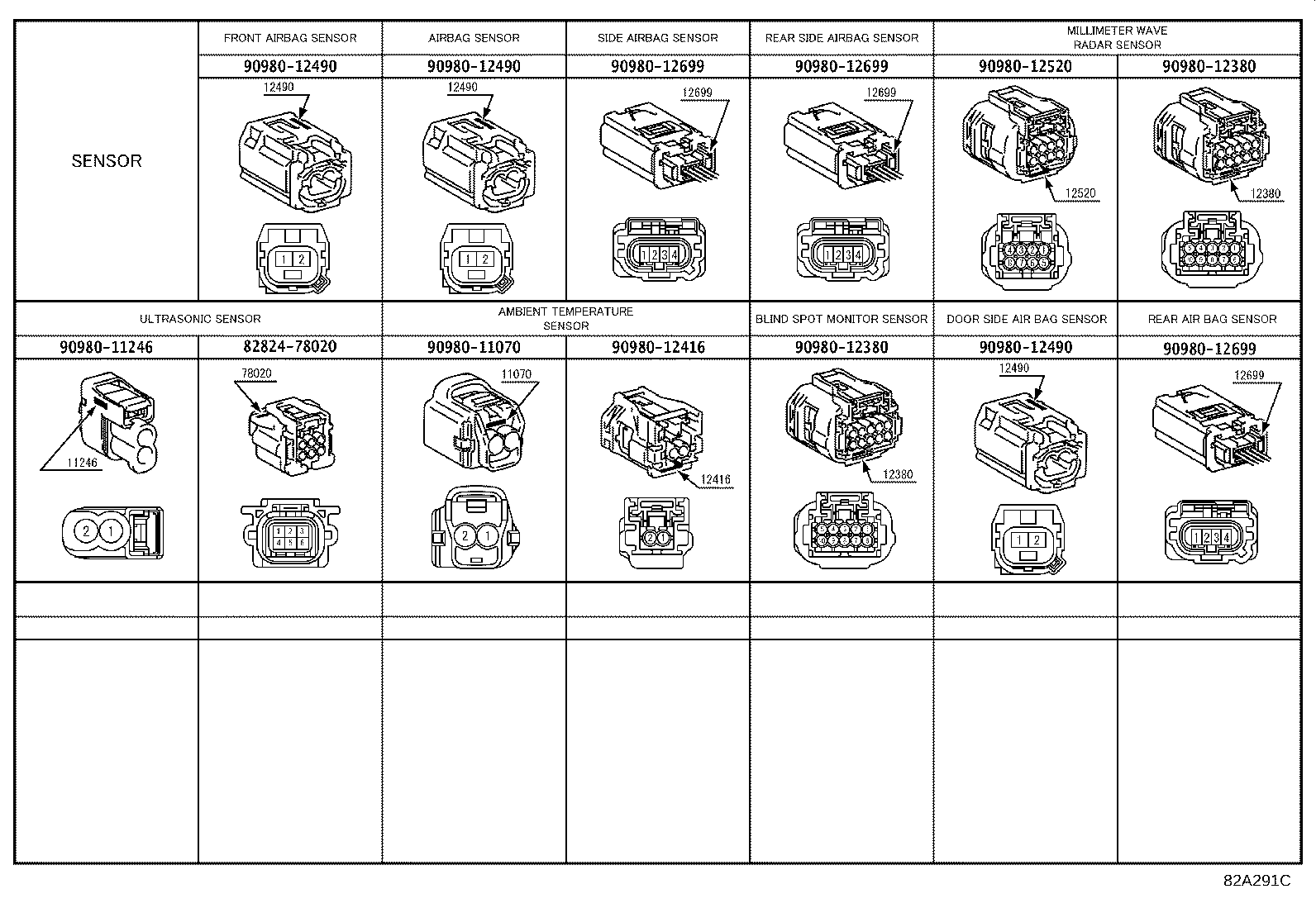

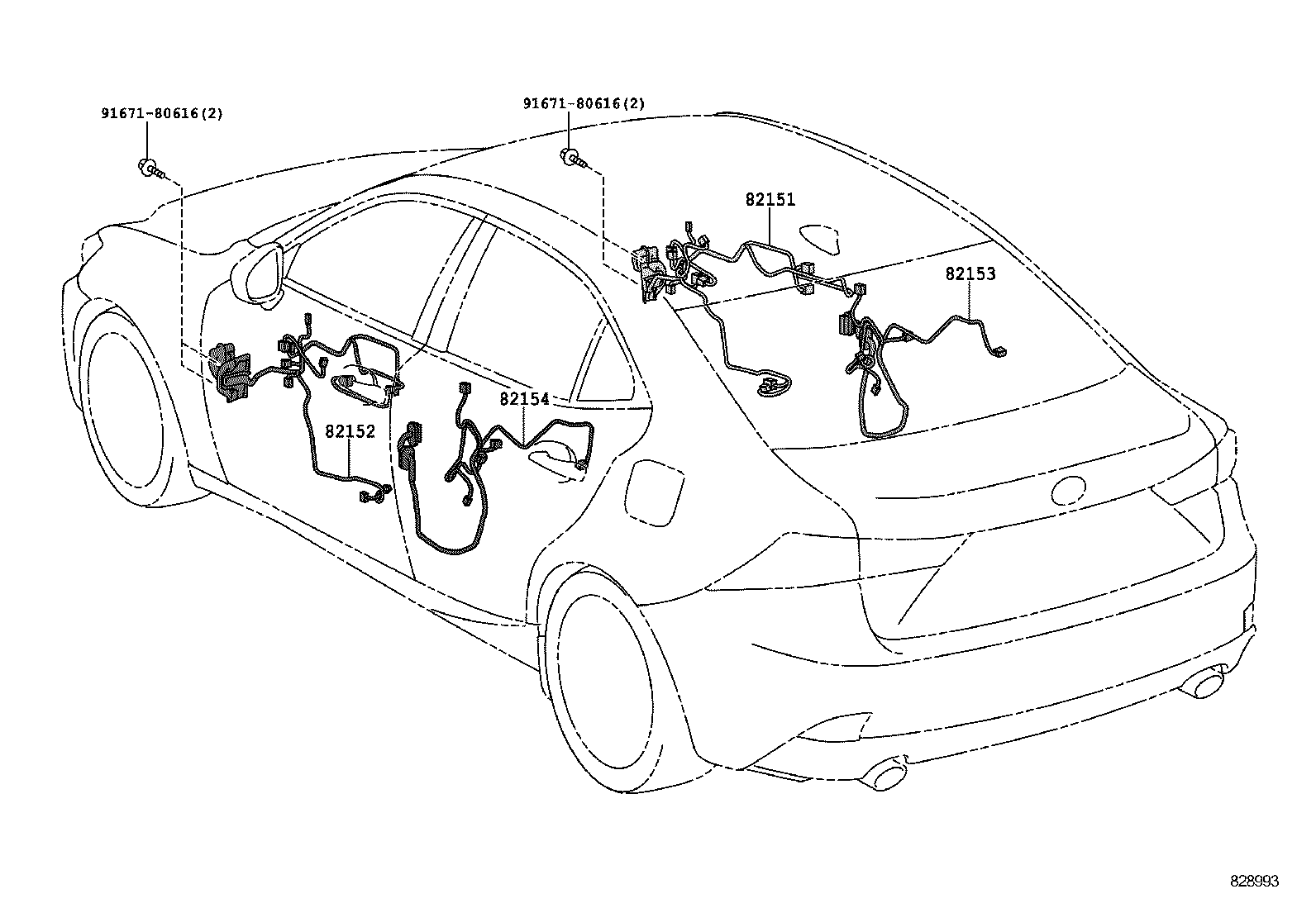

Figure 828953J 828953J 2013-04 → 2020-09 Figure 82E309 82E309 2013-04 → 2020-09 Figure 82E971B 82E971B 2020-09 → — Figure 82E972 82E972 2020-09 → — Figure 829018I 829018I 2013-04 → 2020-09 Figure 82E310 82E310 2013-04 → 2020-09 Figure 82E973B 82E973B 2020-09 → — Figure 82E974 82E974 2020-09 → — Figure 828955J 828955J 2013-04 → 2020-09 Figure 82E311 82E311 2013-04 → 2020-09 Figure 82E975A 82E975A 2020-09 → — Figure 82E976 82E976 2020-09 → — Figure 829019H 829019H 2013-04 → 2020-09 Figure 82E312 82E312 2013-04 → 2020-09 Figure 82E977A 82E977A 2020-09 → — Figure 82E978 82E978 2020-09 → — Figure 82A655E 82A655E 2015-08 → 2020-09 Figure 82E313 82E313 2015-08 → 2020-09 Figure 82E979A 82E979A 2020-09 → — Figure 82E980 82E980 2020-09 → — Figure 82A253I 82A253I 2015-08 → 2020-09 Figure 82E314 82E314 2015-08 → 2020-09 Figure 82E981A 82E981A 2020-09 → — Figure 82E982 82E982 2020-09 → — Figure 828957D 828957D 2013-04 → — Figure 828958 828958 2013-04 → 2015-08 Figure 828974 828974 2013-04 → 2016-10 Figure 82B028 82B028 2016-10 → 2017-10 Figure 828959A 828959A 2013-04 → 2015-08 Figure 828975A 828975A 2013-04 → 2016-10 Figure 82B025 82B025 2016-10 → 2017-10 Figure 82B951D 82B951D 2017-10 → — Figure 82A254A 82A254A 2015-08 → 2016-10 Figure 82B029C 82B029C 2016-10 → — Figure 82B030A 82B030A 2016-10 → — Figure 82A255A 82A255A 2015-08 → 2016-10 Figure 82B026E 82B026E 2016-10 → — Figure 82B027 82B027 2016-10 → — Figure 828960C 828960C 2013-04 → — Figure 828961E 828961E 2013-04 → — Figure 828993 828993 2013-04 → — Figure 82B042I 82B042I 2013-04 → — Figure 828994 828994 2013-04 → — Figure 828995 828995 2013-04 → — Figure 828992 828992 2013-04 → — Figure 828976C 828976C 2013-04 → — Figure 828977H 828977H 2013-04 → — Figure 82B950A 82B950A 2013-04 → — Figure 828985I 828985I 2013-04 → — Figure 82A291C 82A291C 2013-04 → — Figure 82E749A 82E749A 2013-04 → —

Part groups

PNCDescription
16364A Wire, Cooling Fan
82031 Wire Sub-assy, Ignition Coil
82050 Wire Assy, Engine
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82119C Wire, Engine Room, NO.5

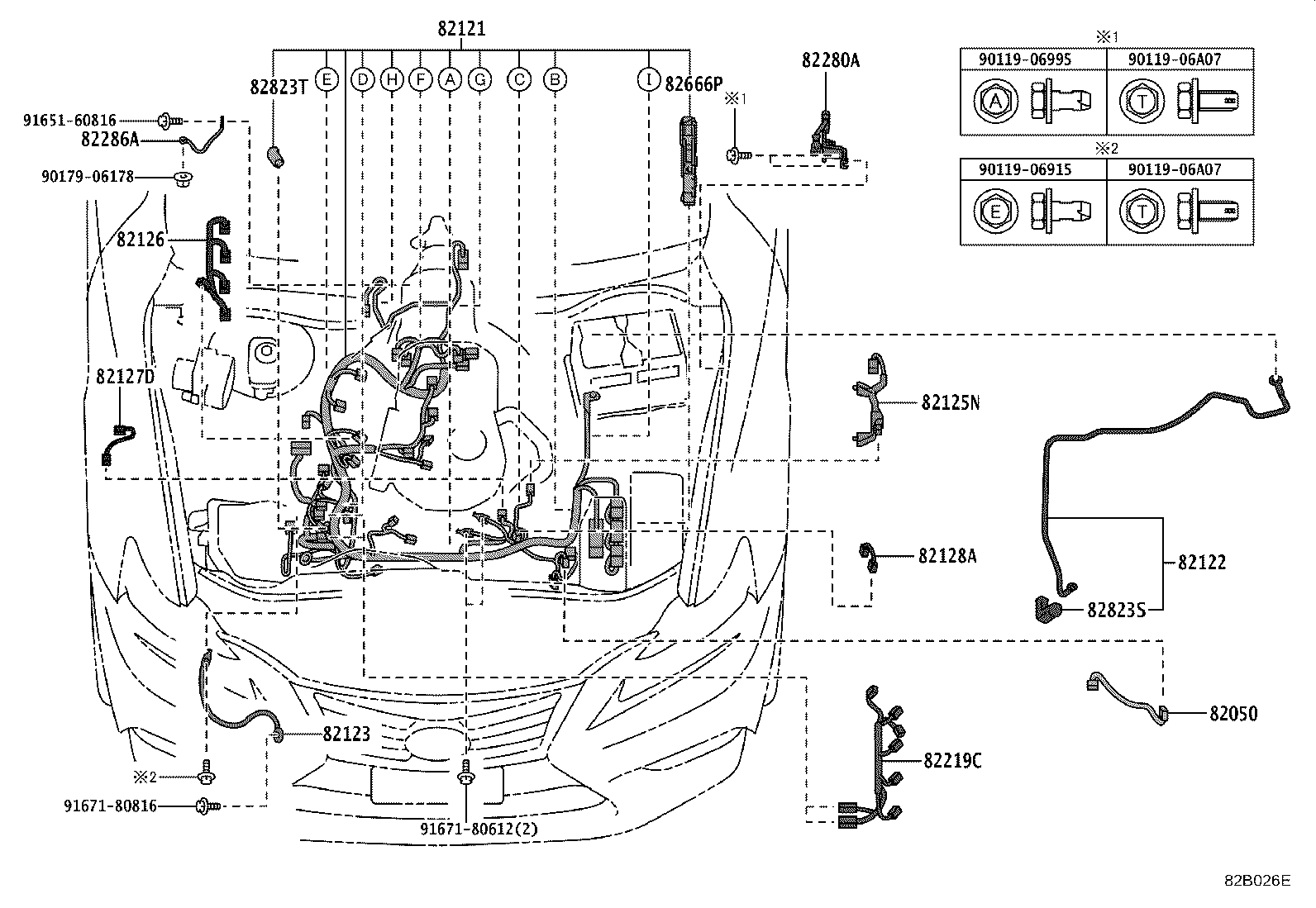

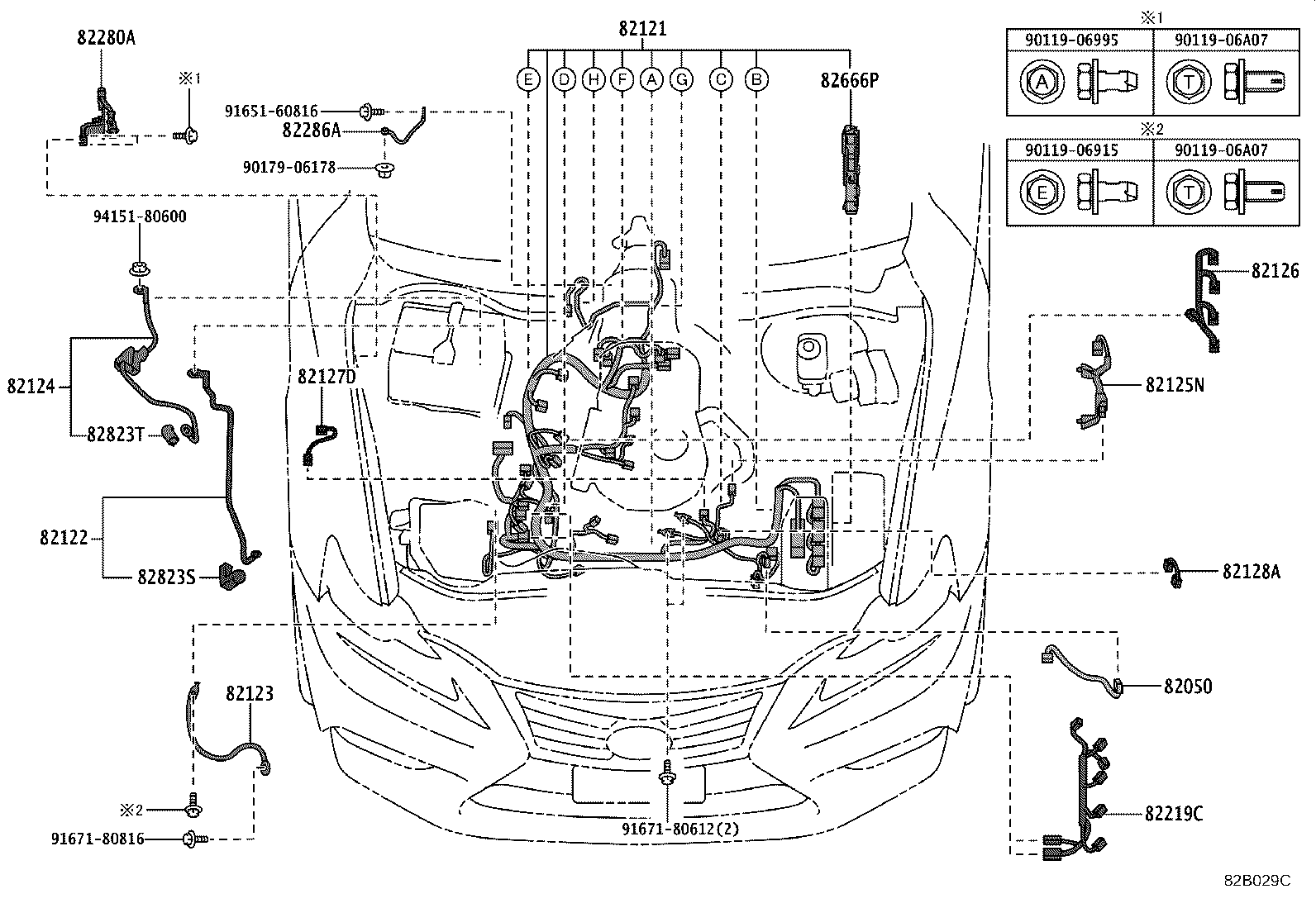

82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125N Wire, Engine, NO.5
82126 Wire, Engine
82127D Wire, Engine, NO.7
82128A Wire, Engine, NO.8

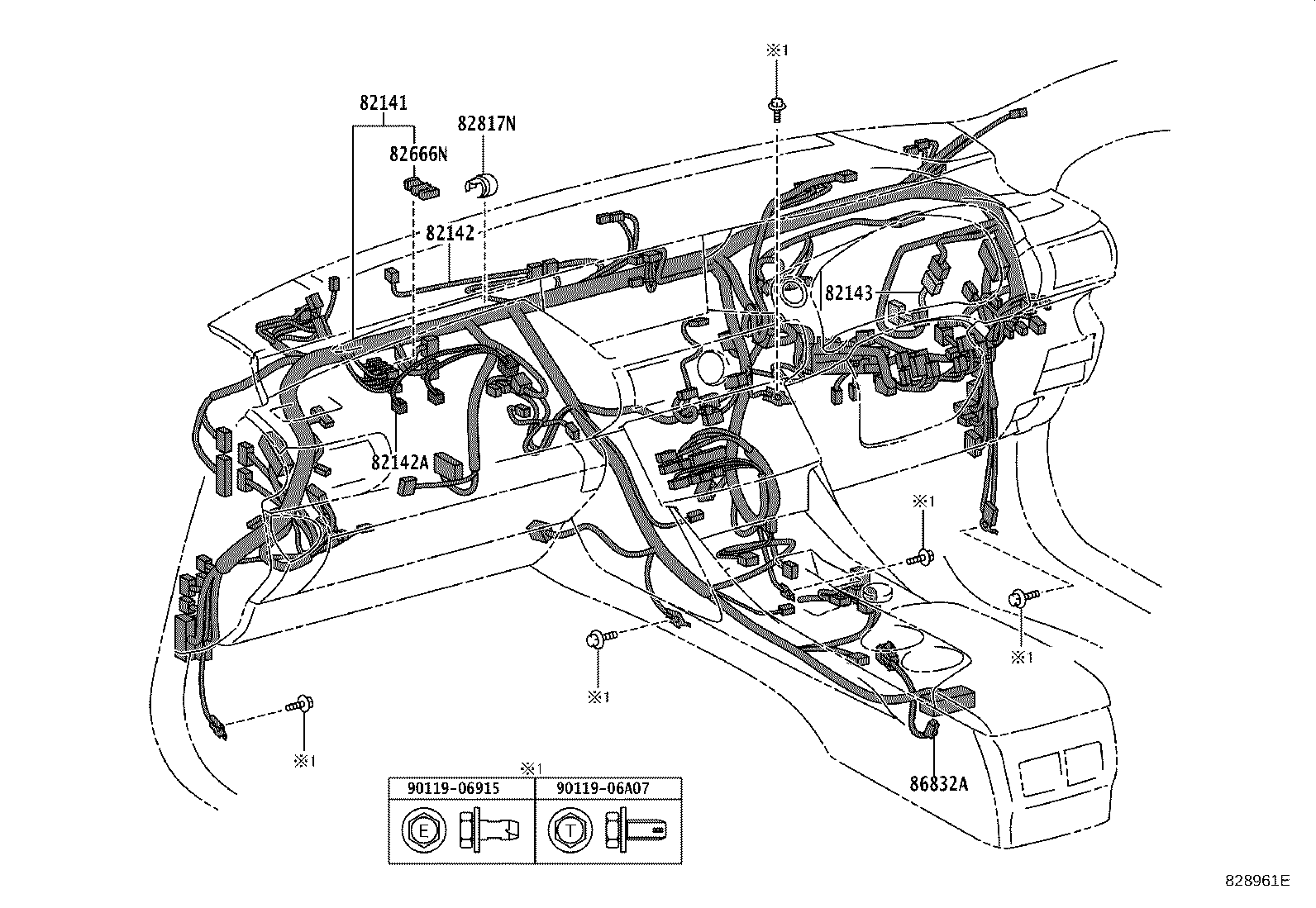

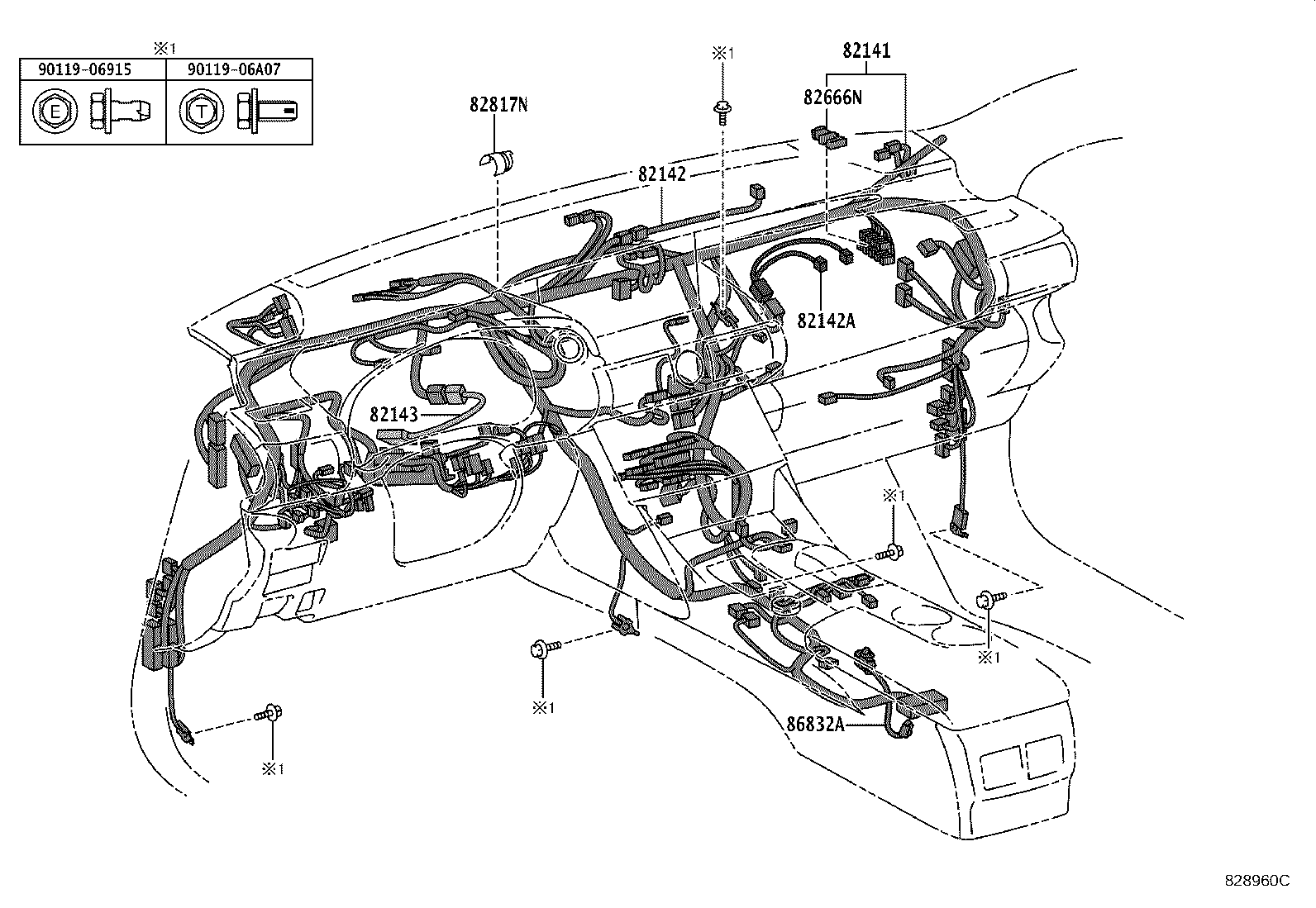

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

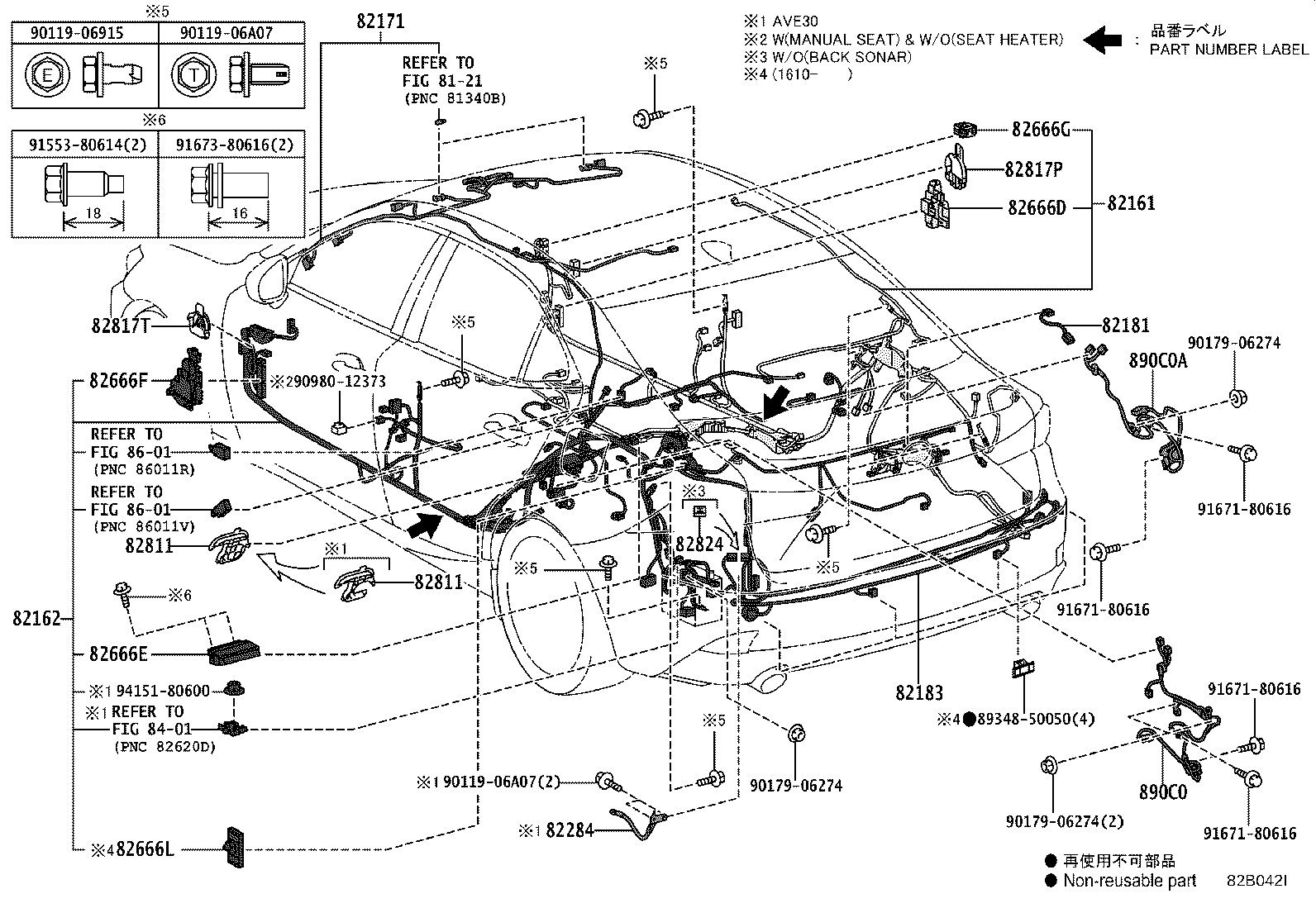

82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82183 Wire, Luggage Room, NO.3
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
82212A Harness, Air Conditioner
82219A Wire, Sensor
82219C Wire, Sensor
82280A Wire Assy, Battery TO Cowl Top Side
82284 Wire, Earth
82284A Wire, Earth NO.2
82286A Wire, Earth, NO.2
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82684 Label, Cut High Voltage Electricity

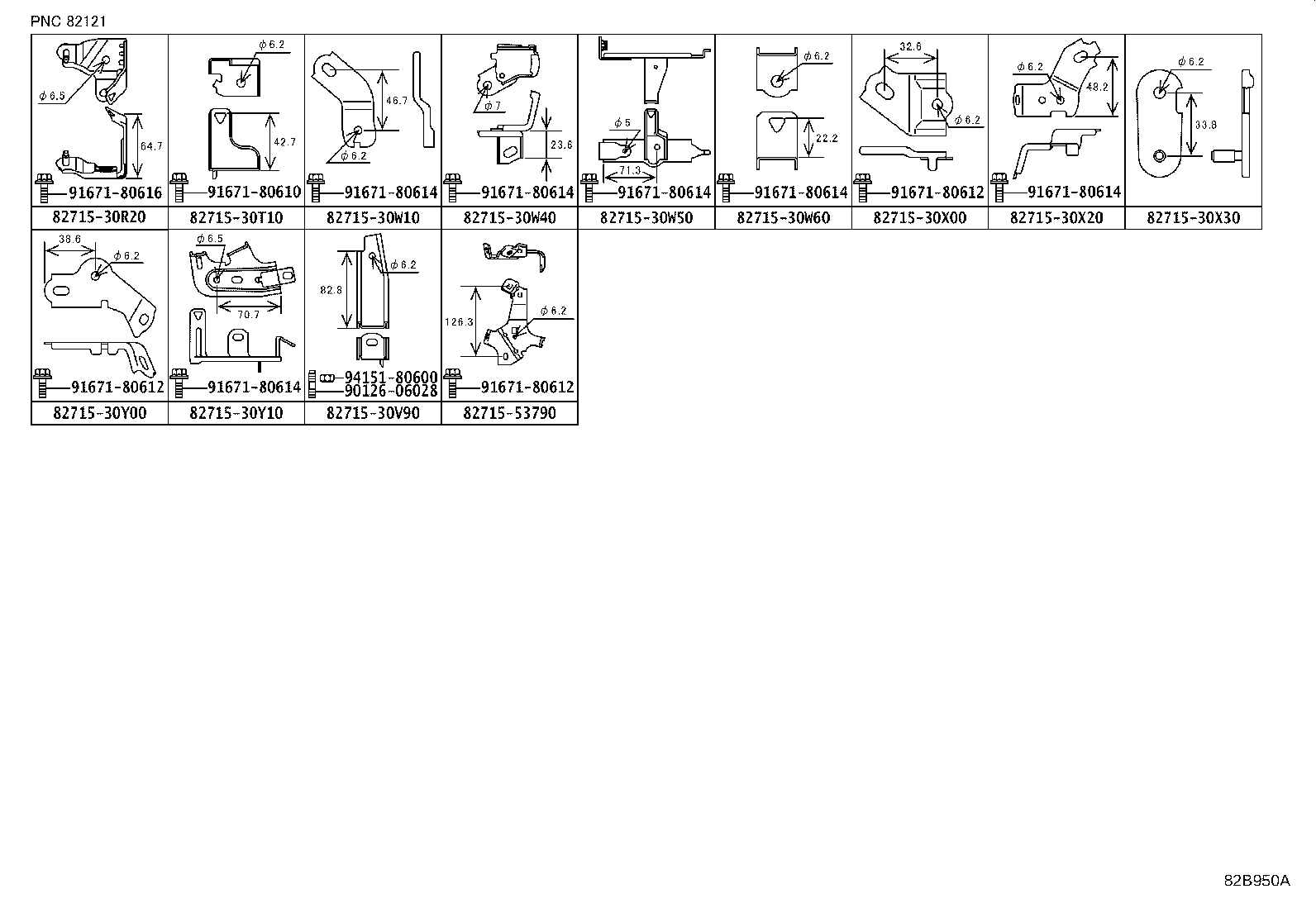

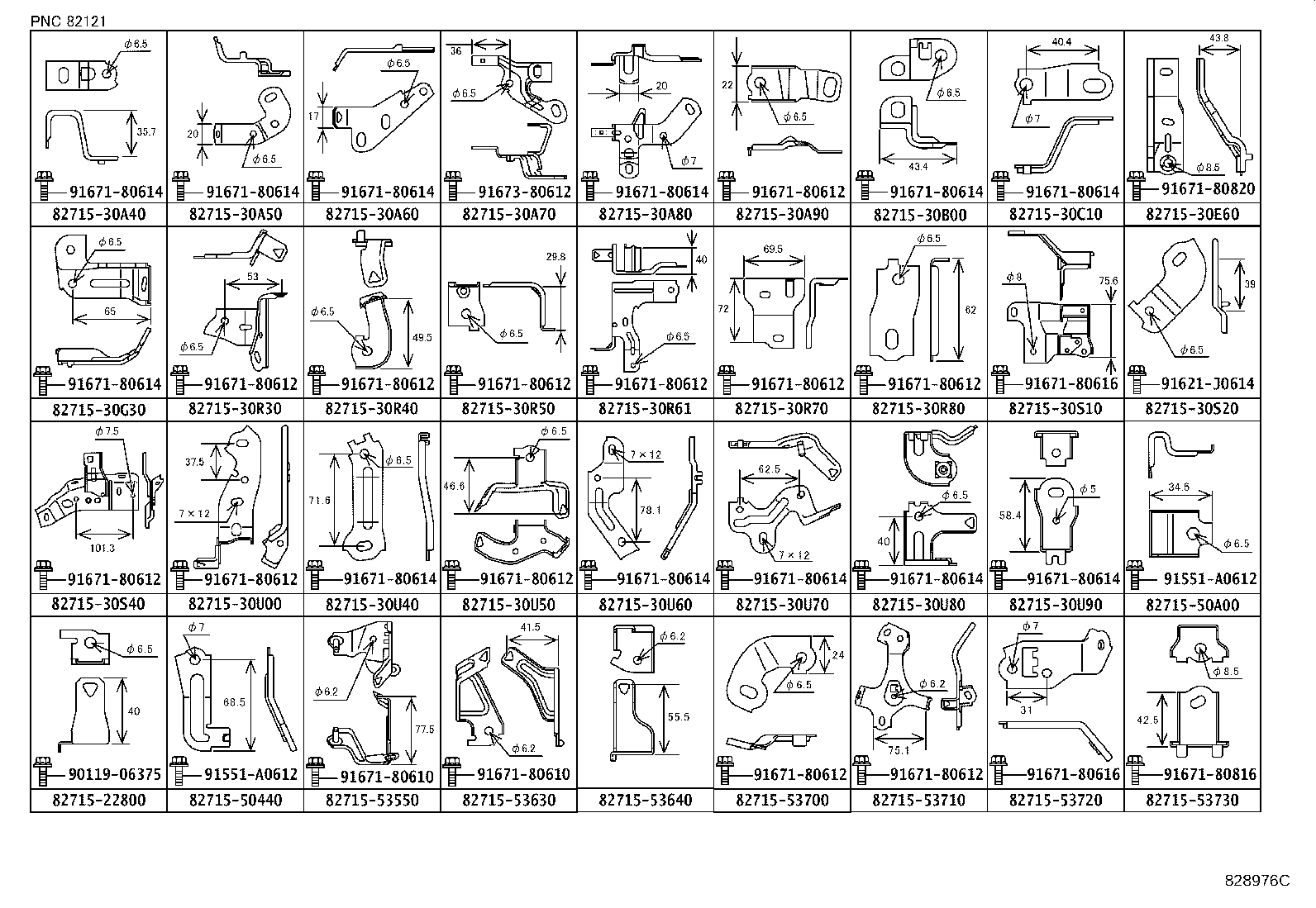

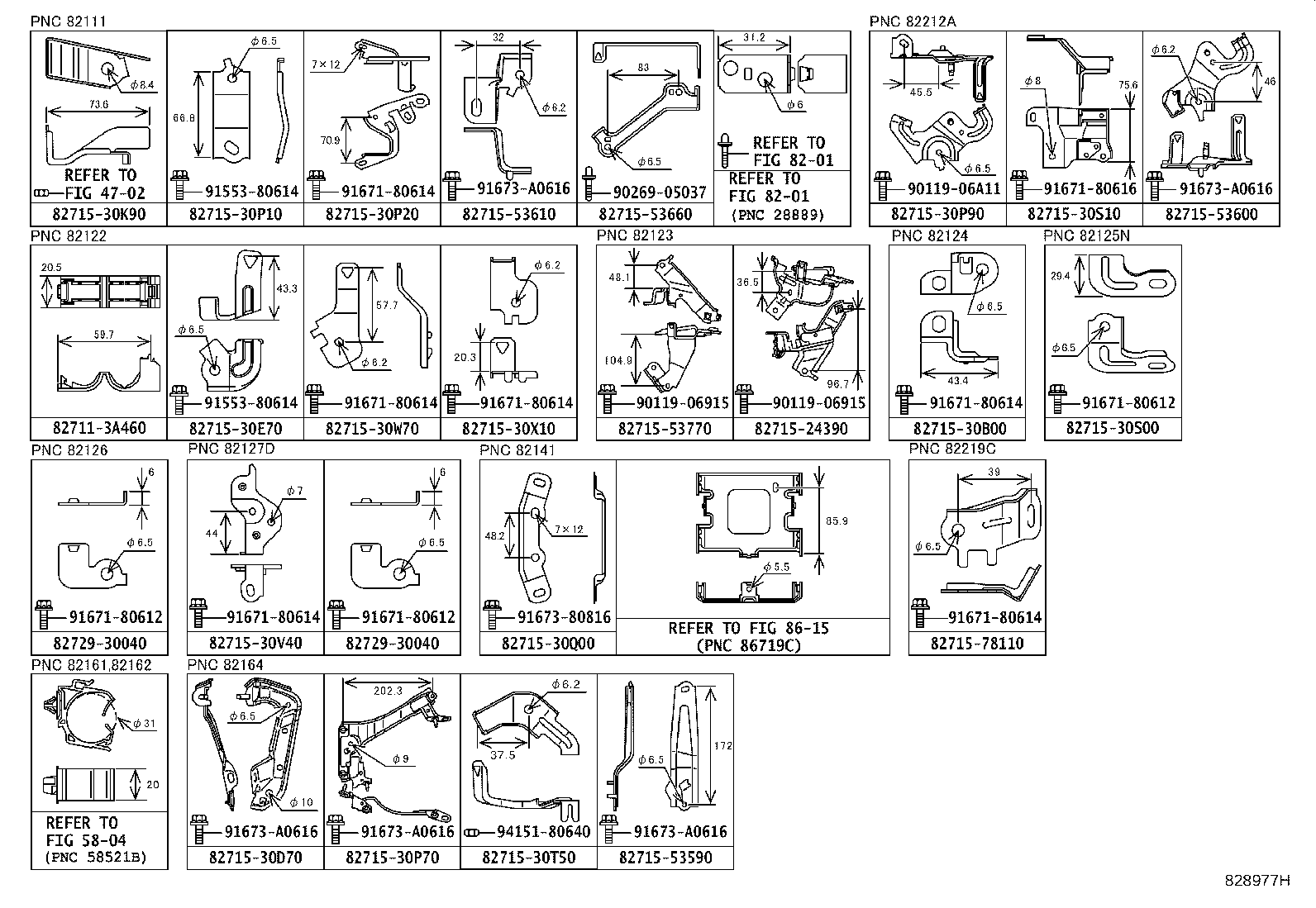

82701 Bracket Sub-assy, Wire Harness
82811 Plate, Wiring Harness Through Hole, NO.1
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818J Protector, Wiring Harness, NO.10
82818K Protector, Wiring Harness, NO.11
82818L Protector, Wiring Harness, NO.12
82818N Protector, Wiring Harness, NO.14
82818S Protector, Wiring Harness, NO.15
82818T Protector, Wiring Harness, NO.16
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal

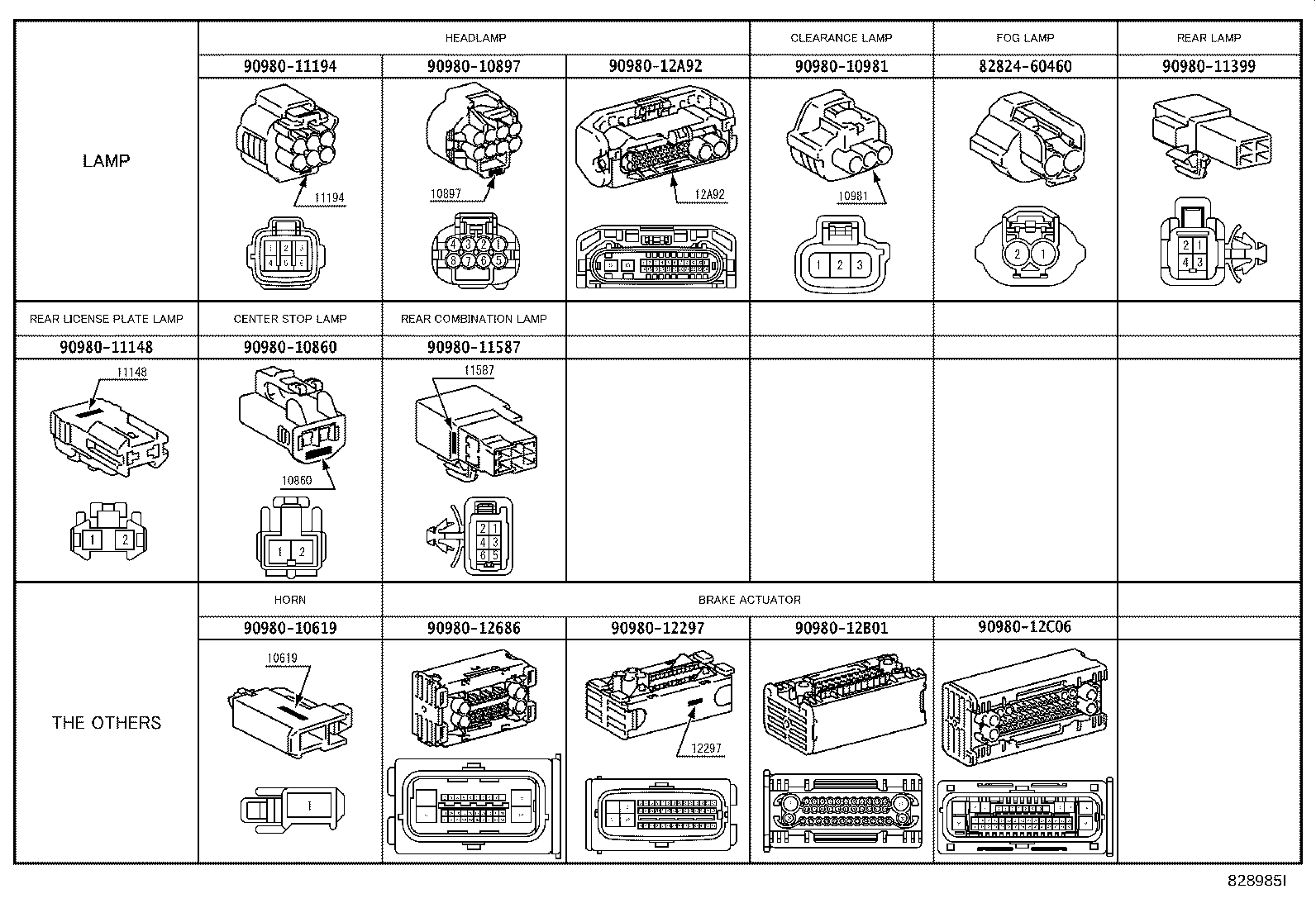

82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
82824D Connector, Wiring Harness
82930 Condenser Assy, Wiring Harness, NO.1
86832A Wire, Accessory Socket
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
