Toyota Corona/Carina 2

1987-12 → 1992-11 · chassis AT17#,CT17#,ST171 · catalogue 271320 · General

Discontinued model Data version 1993-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

62 part groups · 58 illustrations

Illustrations

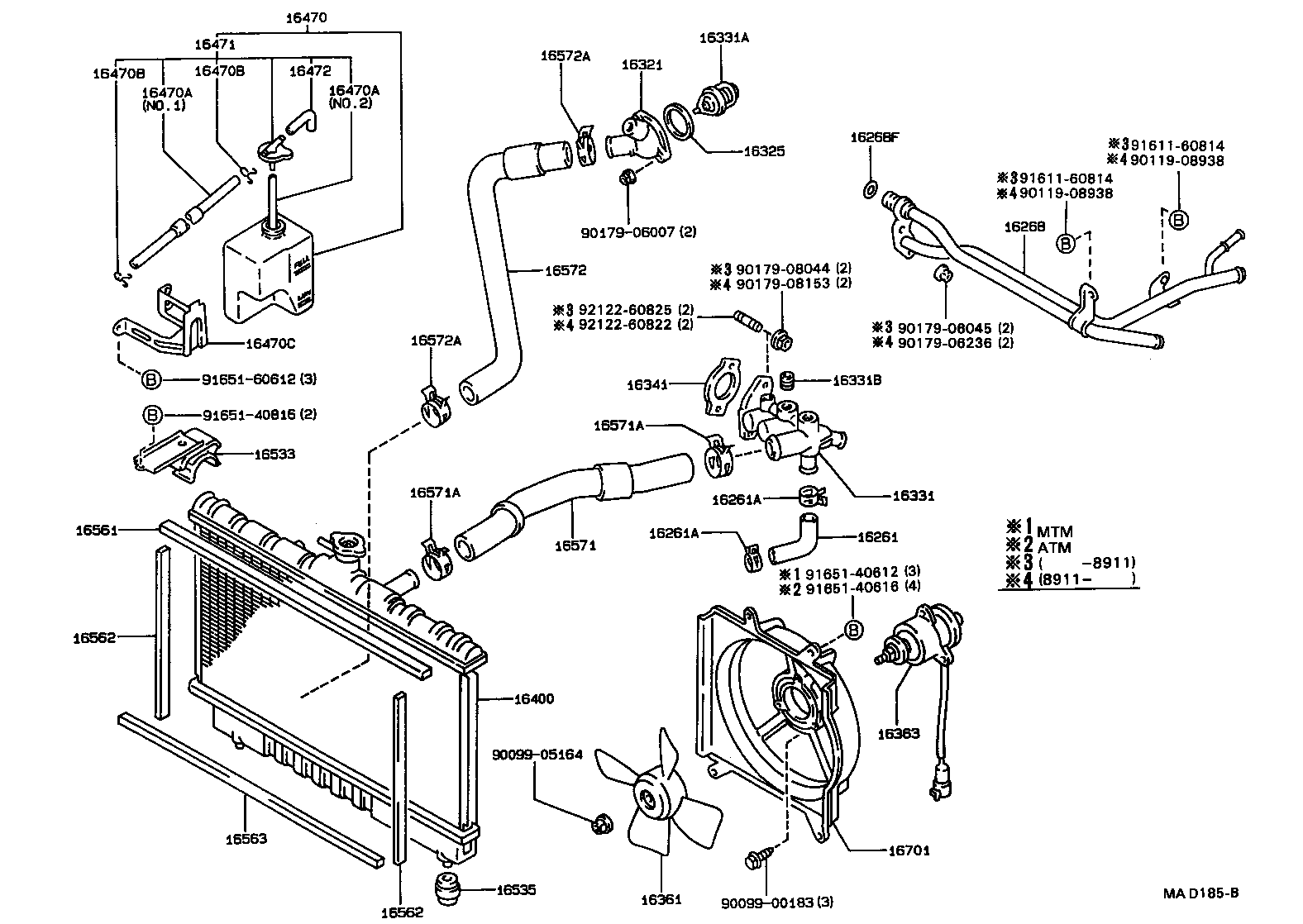

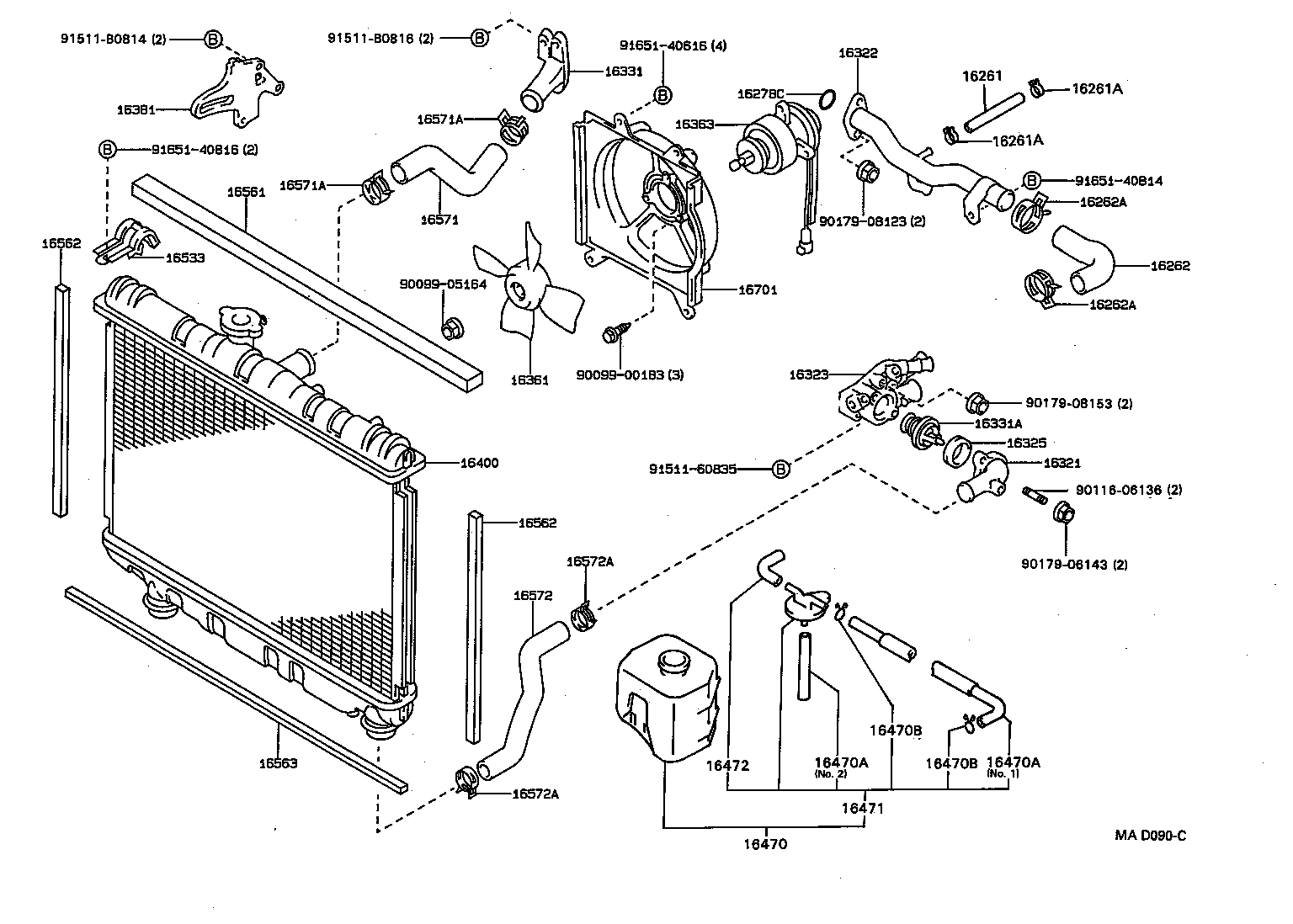

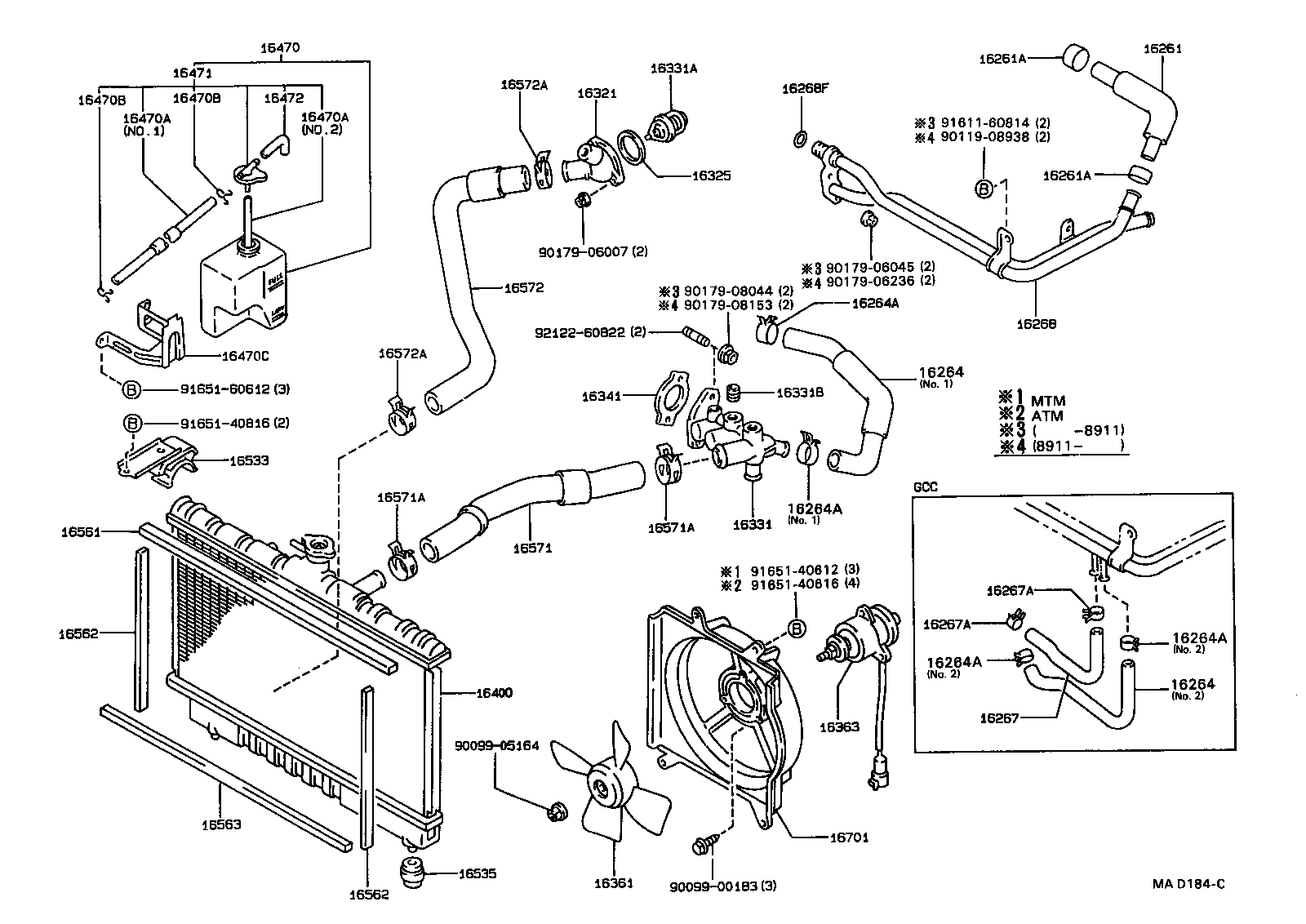

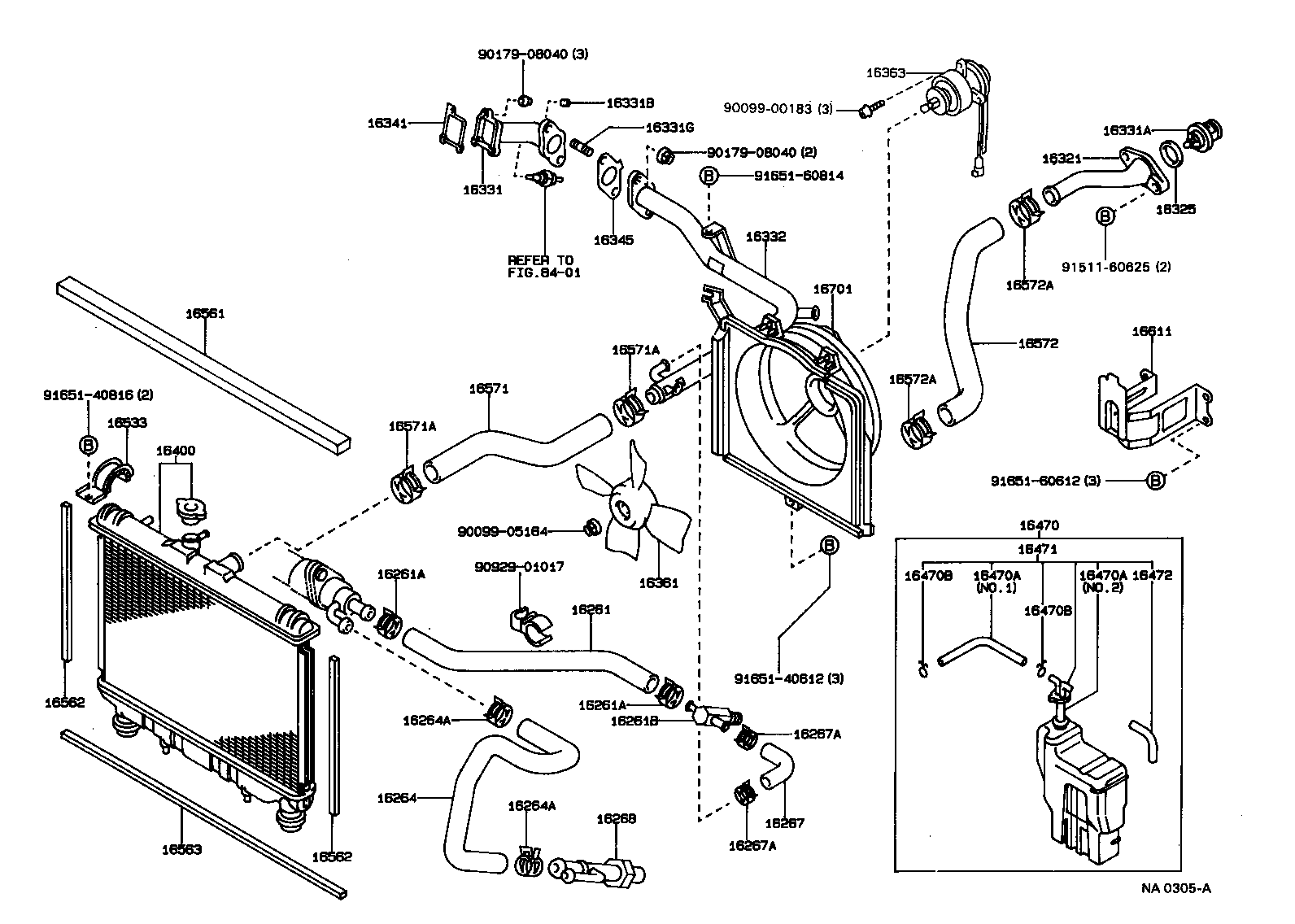

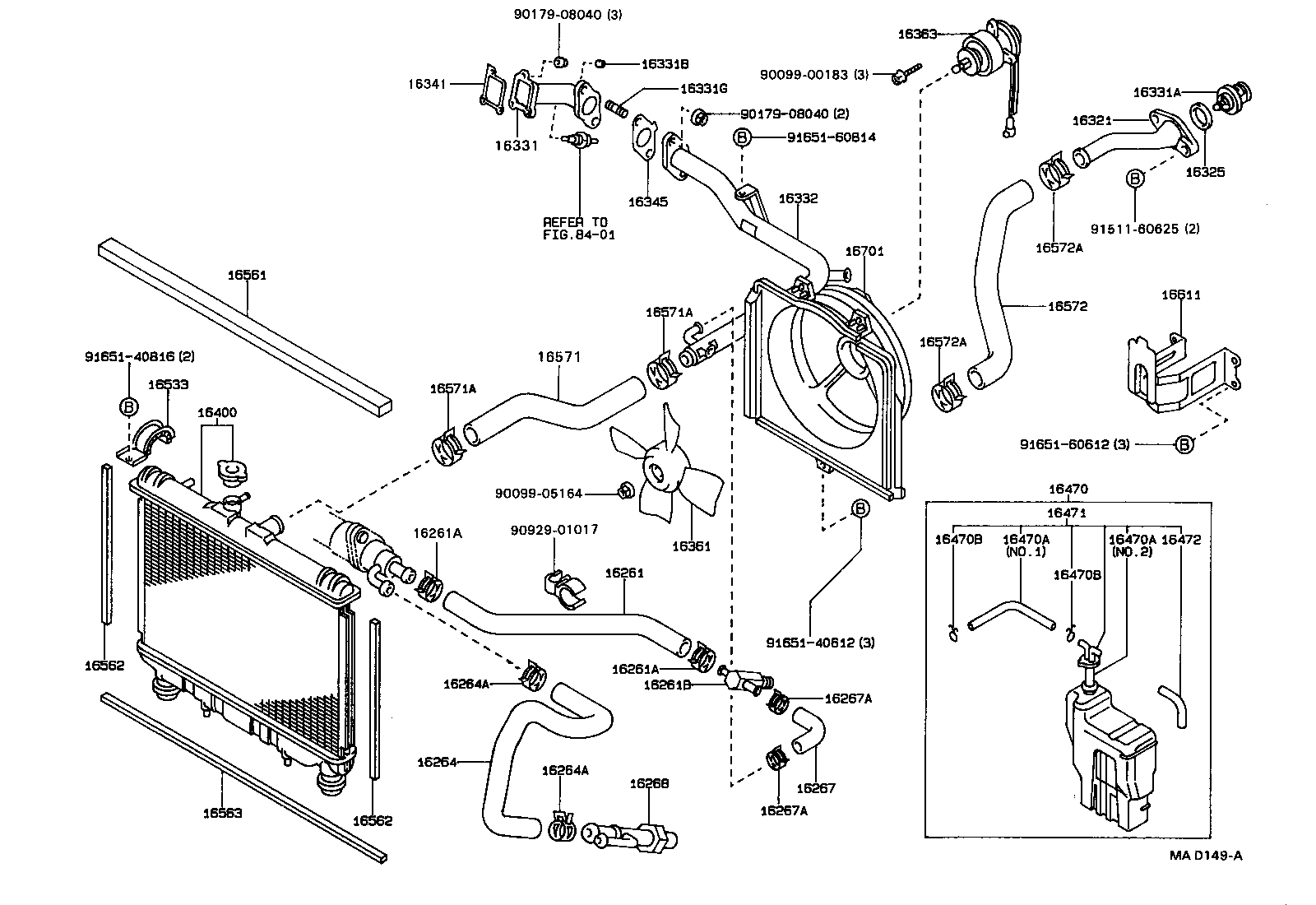

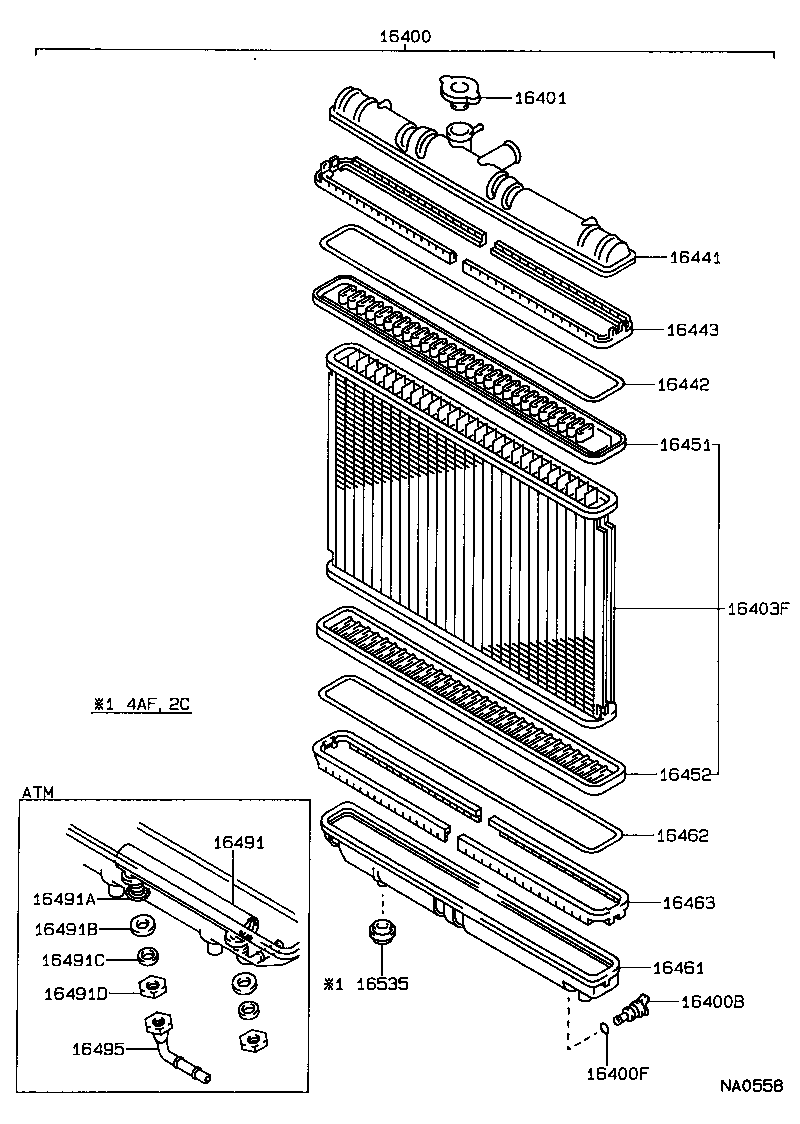

Figure NA0353D NA0353D 1987-12 → 1989-11 Figure MAD090C MAD090C 1989-11 → — Figure NA0558 NA0558 1987-12 → — Figure NA0353D NA0353D 1987-12 → 1989-11 Figure MAD090C MAD090C 1989-11 → — Figure MAD184C MAD184C 1987-12 → — Figure MAD185B MAD185B 1987-12 → — Figure NA0305A NA0305A 1987-12 → 1989-11 Figure MAD149A MAD149A 1989-11 → — Figure NA0558 NA0558 1987-12 → — Figure NA0305A NA0305A 1987-12 → 1989-11 Figure MAD149A MAD149A 1989-11 → — Figure NA0558 NA0558 1987-12 → — Figure NA0353D NA0353D 1987-12 → 1989-11 Figure MAD090C MAD090C 1989-11 → — Figure MAD184C MAD184C 1987-12 → — Figure MAD185B MAD185B 1987-12 → — Figure NA0305A NA0305A 1987-12 → 1989-11 Figure MAD149A MAD149A 1989-11 → — Figure NA0558 NA0558 1987-12 → — Figure NA0353D NA0353D 1987-12 → 1989-11 Figure MAD090C MAD090C 1989-11 → — Figure MAD184C MAD184C 1987-12 → — Figure MAD185B MAD185B 1987-12 → — Figure NA0305A NA0305A 1987-12 → 1989-11 Figure MAD149A MAD149A 1989-11 → — Figure NA0558 NA0558 1987-12 → — Figure NA0353D NA0353D 1987-12 → 1989-11 Figure MAD090C MAD090C 1989-11 → — Figure MAD184C MAD184C 1987-12 → — Figure MAD185B MAD185B 1987-12 → — Figure NA0305A NA0305A 1987-12 → 1989-11 Figure MAD149A MAD149A 1989-11 → — Figure NA0558 NA0558 1987-12 → — Figure NA0353D NA0353D 1987-12 → 1989-11 Figure MAD090C MAD090C 1989-11 → — Figure MAD184C MAD184C 1987-12 → — Figure MAD185B MAD185B 1987-12 → — Figure NA0305A NA0305A 1987-12 → 1989-11 Figure MAD149A MAD149A 1989-11 → — Figure NA0558 NA0558 1987-12 → — Figure NA0353D NA0353D 1987-12 → 1989-11 Figure MAD090C MAD090C 1989-11 → — Figure MAD184C MAD184C 1987-12 → — Figure MAD185B MAD185B 1987-12 → — Figure NA0305A NA0305A 1987-12 → 1989-11 Figure MAD149A MAD149A 1989-11 → — Figure NA0558 NA0558 1987-12 → — Figure NA0353D NA0353D 1987-12 → 1989-11 Figure MAD090C MAD090C 1989-11 → — Figure MAD184C MAD184C 1987-12 → — Figure MAD185B MAD185B 1987-12 → — Figure NA0305A NA0305A 1987-12 → 1989-11 Figure MAD149A MAD149A 1989-11 → — Figure NA0558 NA0558 1987-12 → — Figure MAD184C MAD184C 1987-12 → — Figure MAD185B MAD185B 1987-12 → — Figure NA0558 NA0558 1987-12 → —

Part groups

PNCDescription
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261B Union(FOR WATER BY-PASS HOSE)
16262 Hose, Water Inlet
16262A Clip(FOR WATER INLET HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16268 Pipe, Water By-pass, NO.1
16268F Ring, O(FOR WATER BY-PASS PIPE)
16278C Ring, O(FOR WATER BY-PASS PIPE NO.2)
16321 Inlet, Water
16322 Pipe, Water Inlet
16323 Housing, Water Inlet
16325 Gasket, Water Inlet Housing, NO.1
16331 Outlet, Water
16331A Thermostat
16331B Plug(FOR WATER OUTLET)
16331G Bolt, Stud(FOR WATER INLET)
16332 Pipe, Water Outlet, NO.1
16341 Gasket, Water Outlet
16345 Gasket, Water Outlet Pipe
16361 Fan
16363 Motor, Cooling Fan
16381 Bar, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16403F Core Sub-assy, Radiator
16441 Tank, Radiator, Upper
16442 Ring, O(FOR RADIATOR UPPER TANK)
16443 Plate, Radiator Tank, Lock, Upper
16451 Plate, Radiator Core, Upper
16452 Plate, Radiator Core, Lower
16461 Tank, Radiator, Lower
16462 Ring, O(FOR RADIATOR LOWER TANK)
16463 Plate, Radiator Tank, Lock, Lower
16470 Tank Assy, Radiator Reserve
16470A Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16470B Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
16470C Bracket(FOR RADIATOR RESERVE TANK)
16471 Cap Sub-assy, Reserve Tank
16472 Hose, Breather
16491 Cooler, Oil(FOR ATM)
16491A Ring, O(FOR ATM OIL COOLER)
16491B Washer, Plate(FOR ATM OIL COOLER)
16491C Washer, Spring(FOR ATM OIL COOLER)
16491D Nut(FOR ATM OIL COOLER)
16495 Nut, Flare(FOR ATM OIL COOLER)
16533 Support, Radiator, Upper
16535 Support, Radiator, Lower
16561 Seal, Radiator TO Support, NO.1
16562 Seal, Radiator TO Support, NO.2
16563 Seal, Radiator TO Support, NO.3
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16611 Bracket, Radiator Reserve Tank
16701 Shroud Sub-assy, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
