Toyota Camry (JPP/SED)

1992-08 → 2001-04 · chassis SXV1#,VCV10,MCV10 · catalogue 281350 · General

Discontinued model Data version 2001-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

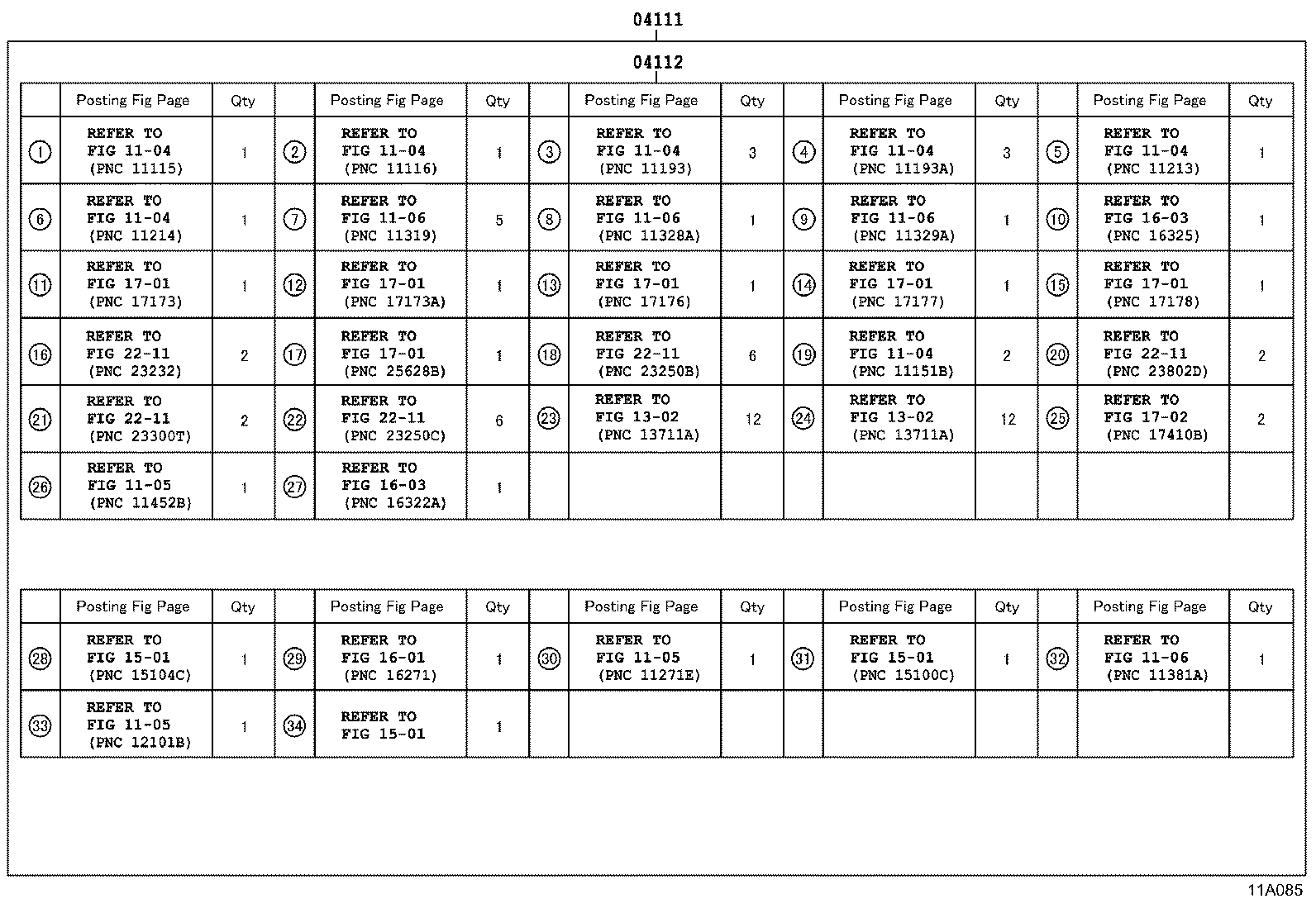

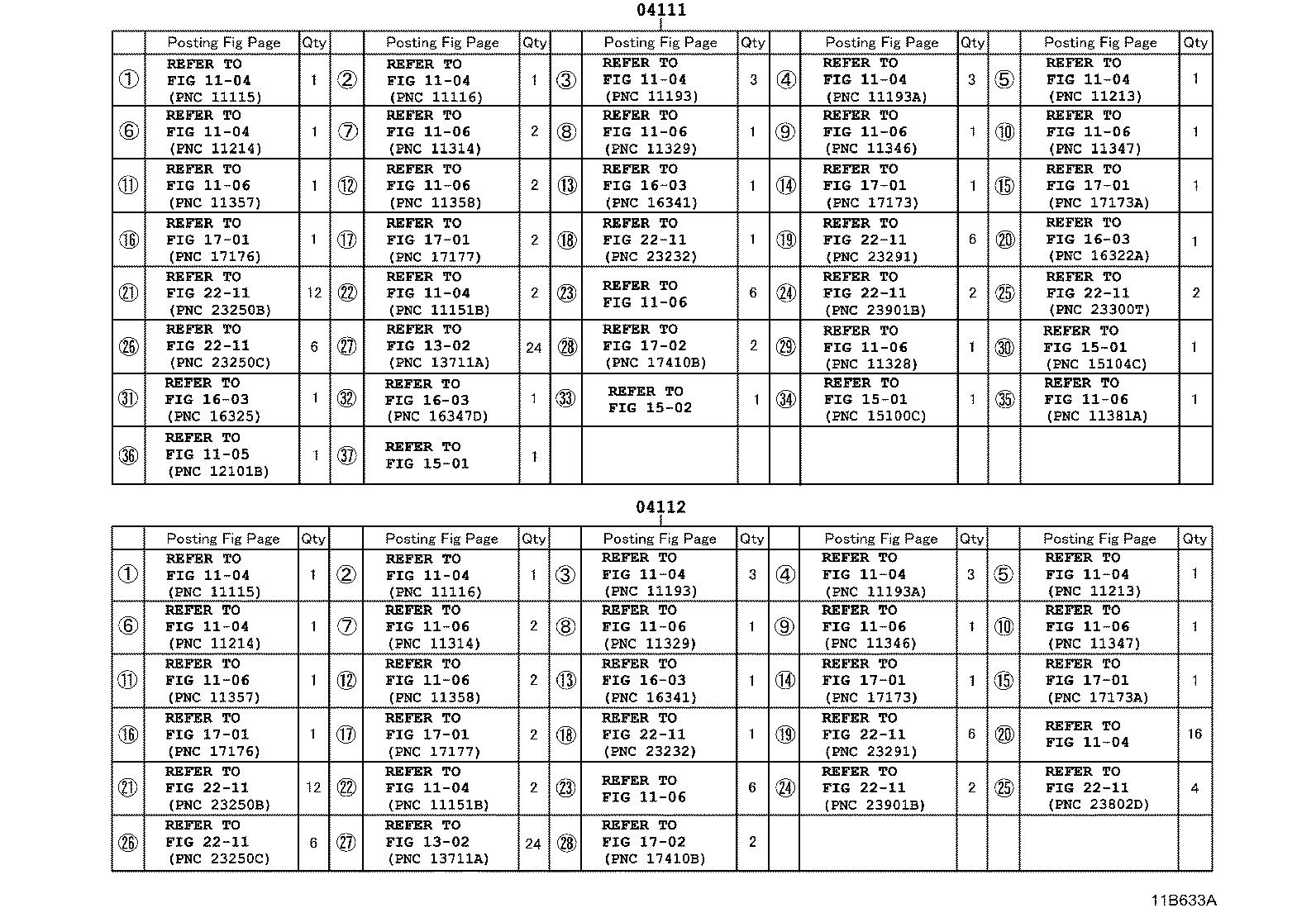

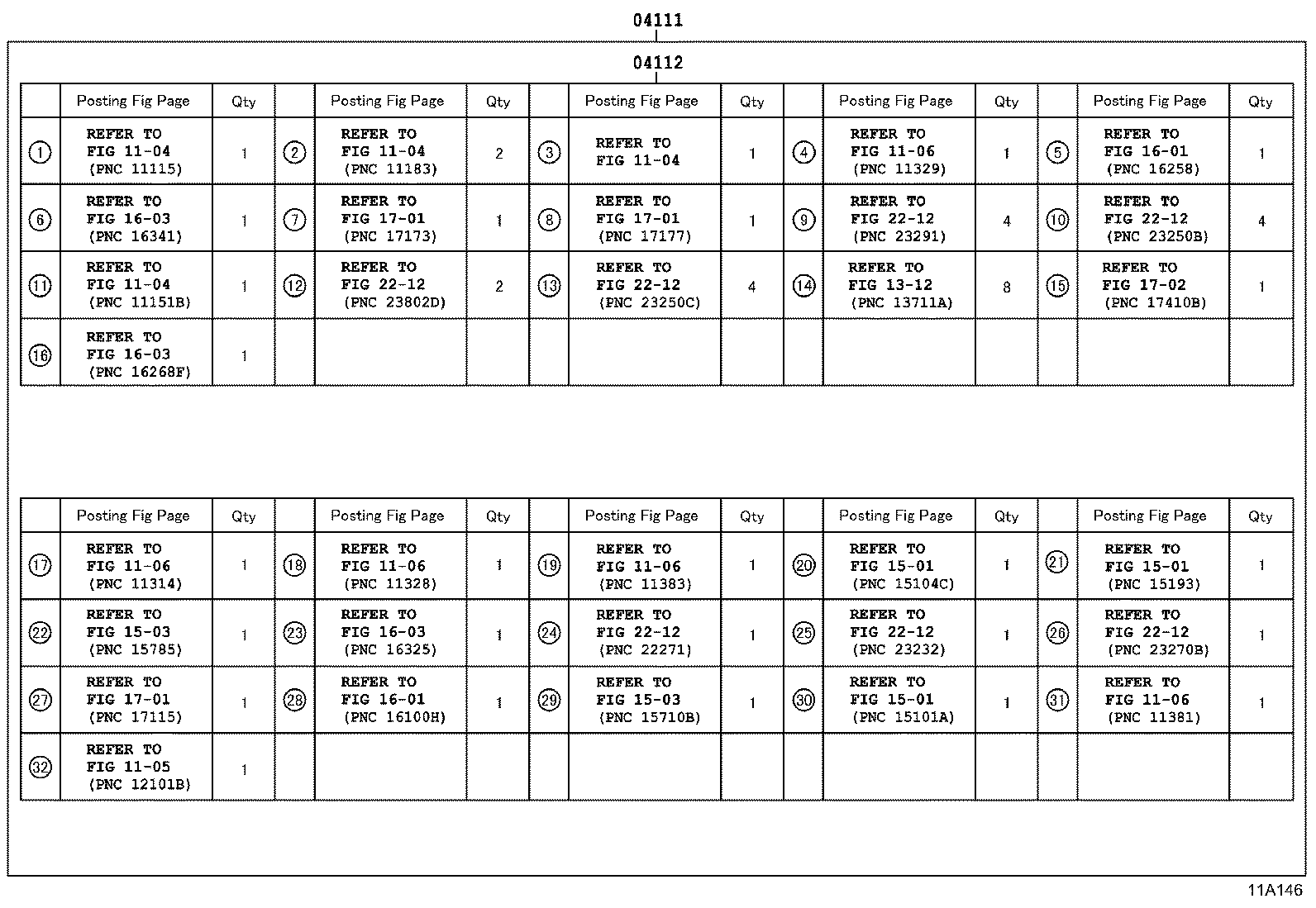

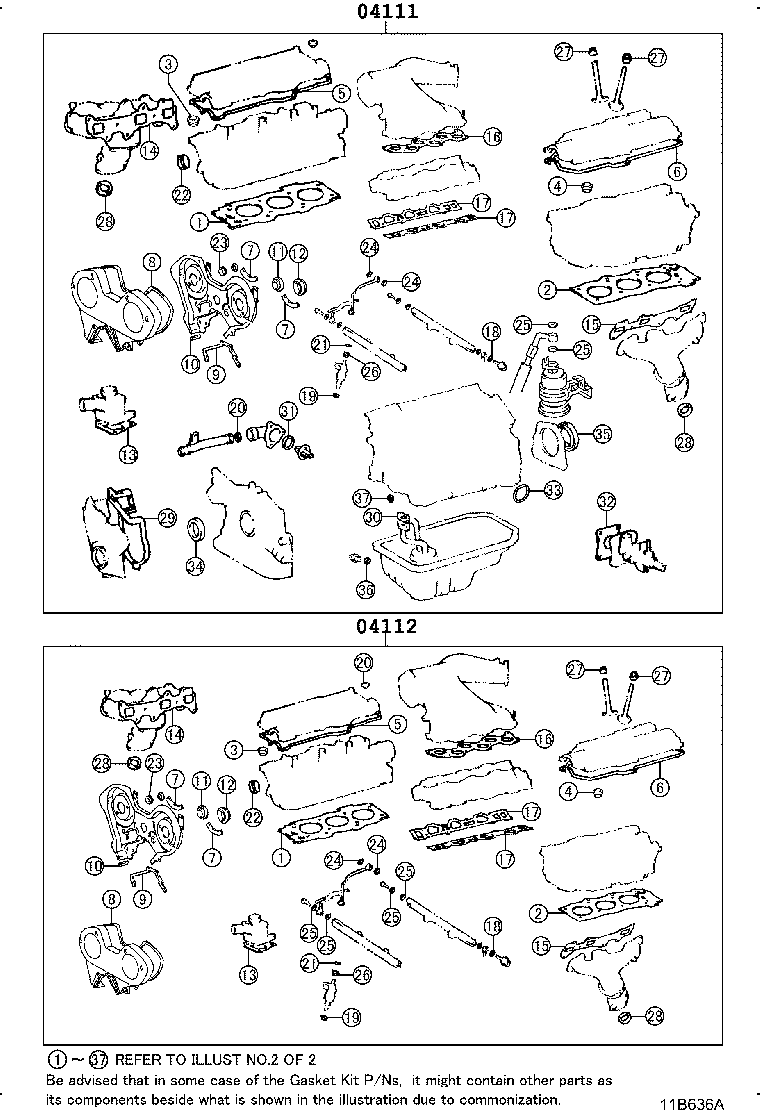

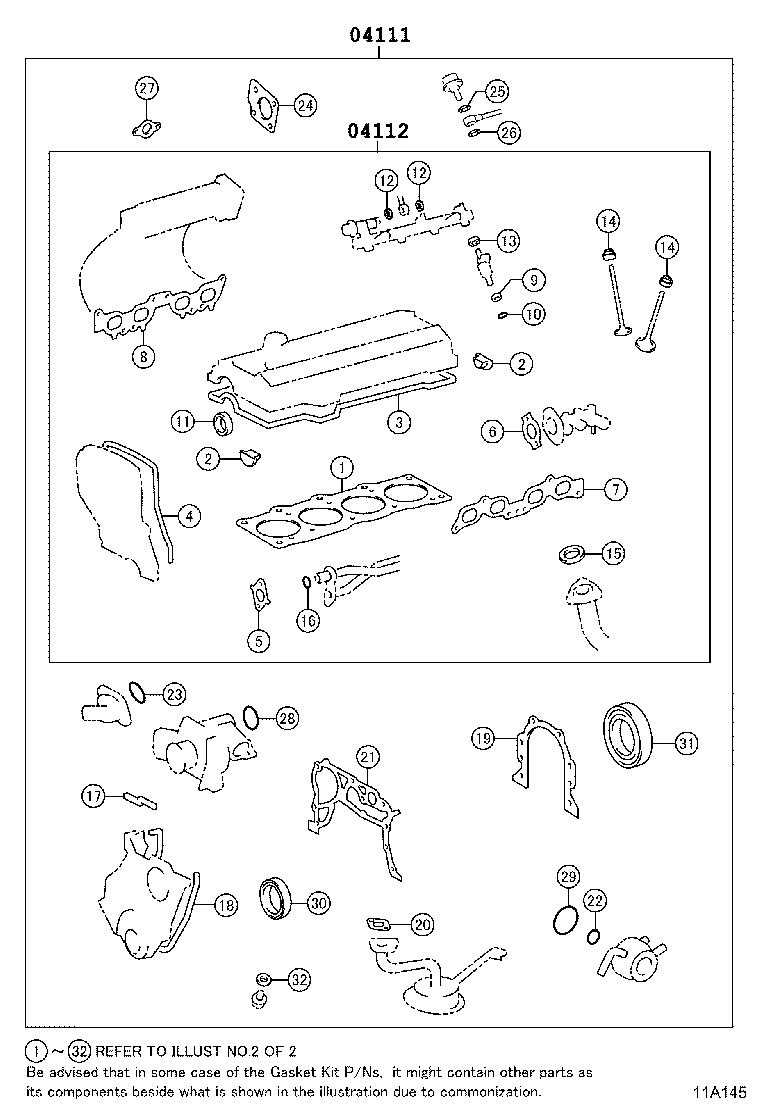

Figure 11A084 11A084 1997-08 → — Figure 11A085 11A085 1997-08 → — Figure 11A145 11A145 1992-08 → — Figure 11A146 11A146 1992-08 → — Figure 11B636A 11B636A 1992-08 → 1997-08 Figure 11B633A 11B633A 1992-08 → 1997-08

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
