Toyota Camry/Hybrid (ASIA)
2018-10 → present · chassis ASV7#,AXVA70,AXVH71,MXVA71 · catalogue 287320 · General
Supported model
Data version 2021-11
Wiring & Clamp
128 part groups · 40 illustrations
Illustrations
82C311
82C312

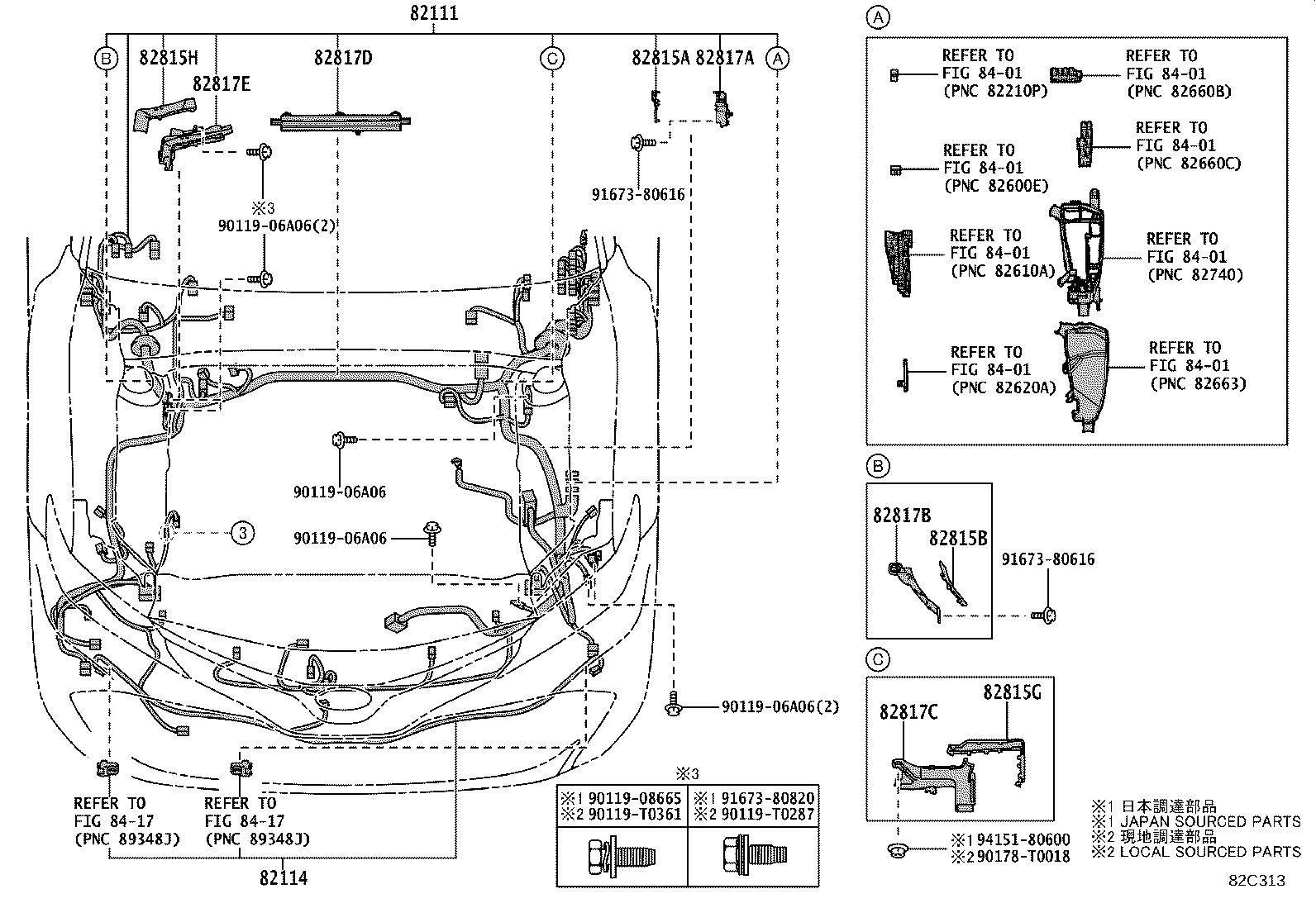

82C313

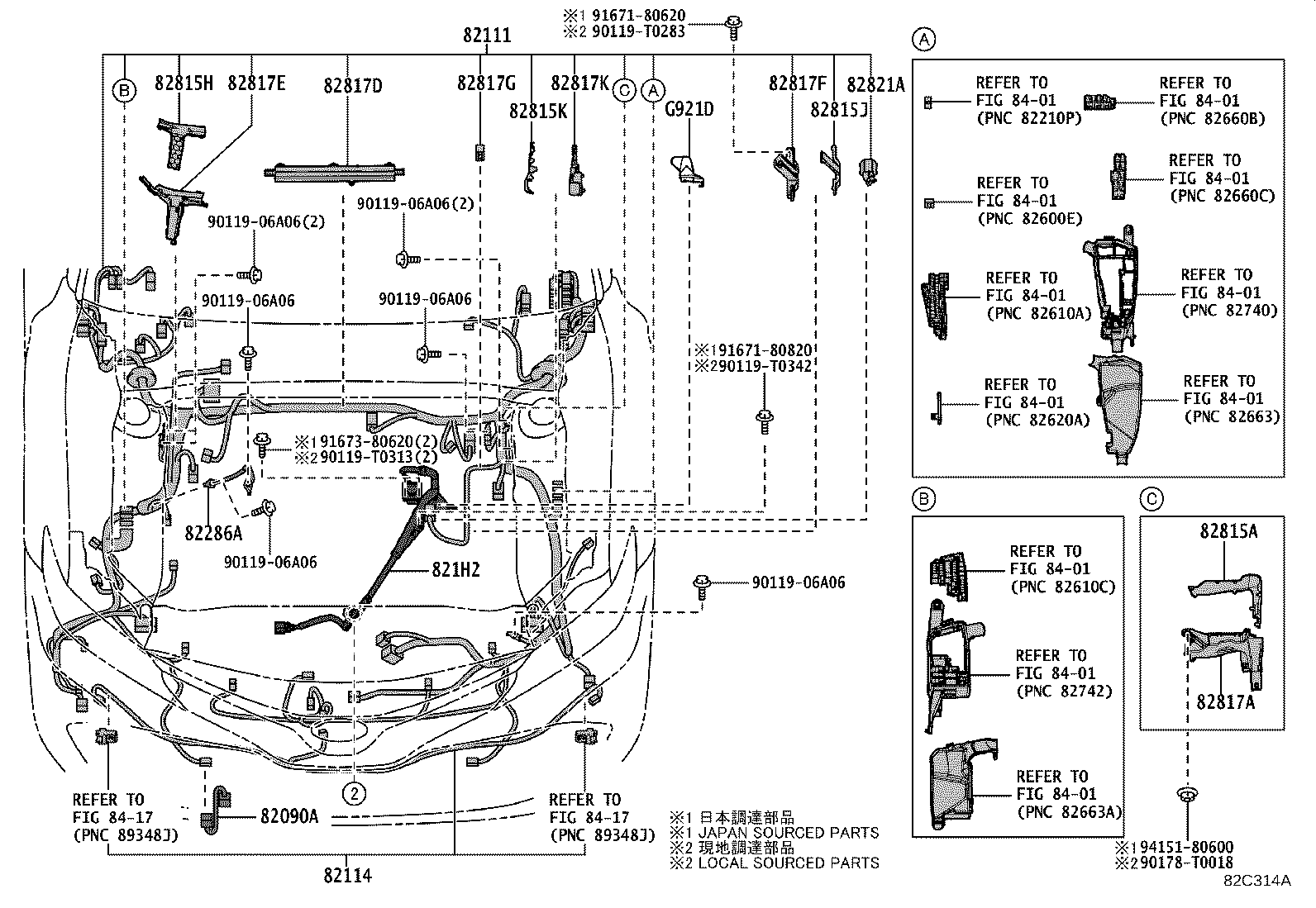

82C314A
82E947A

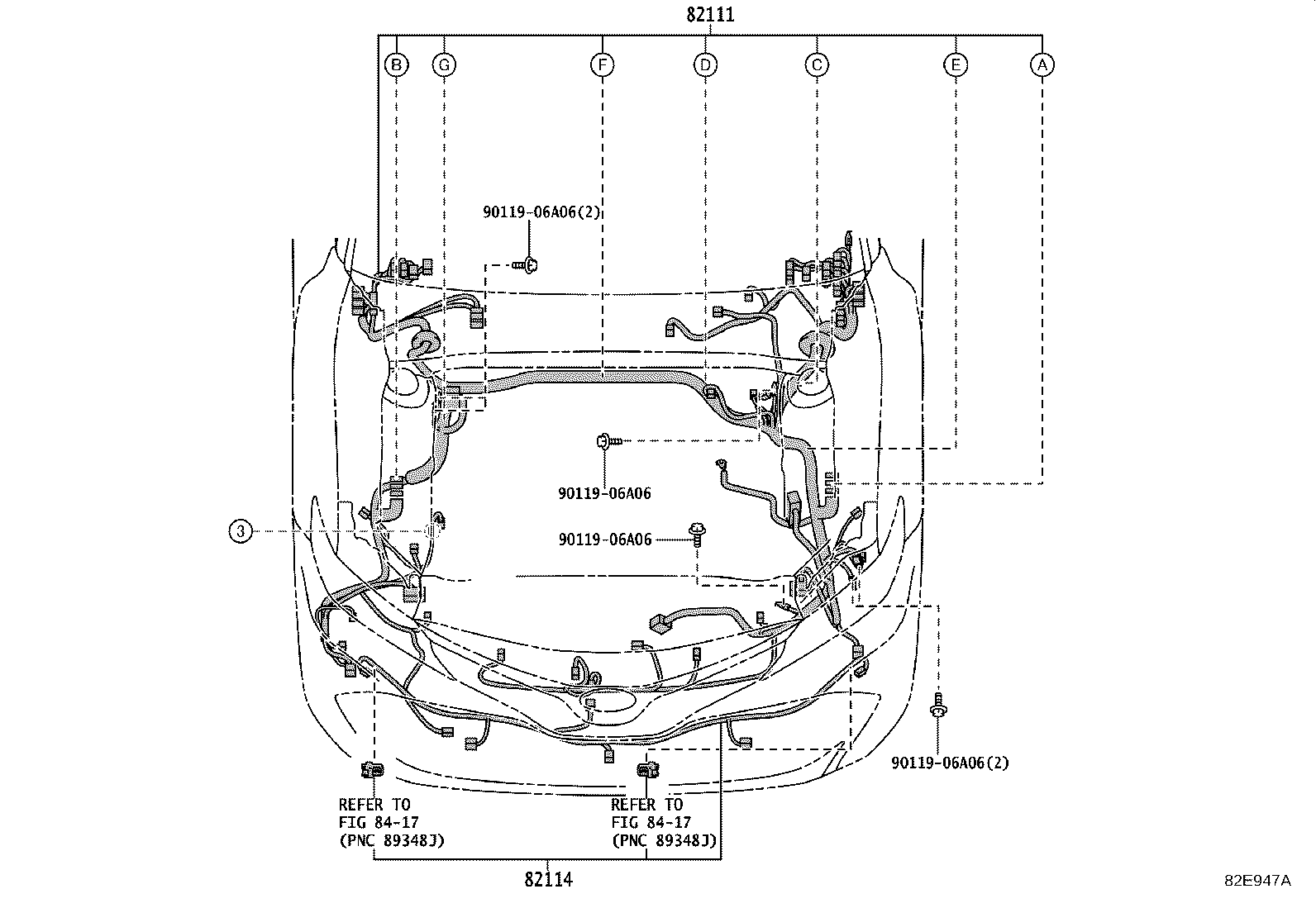

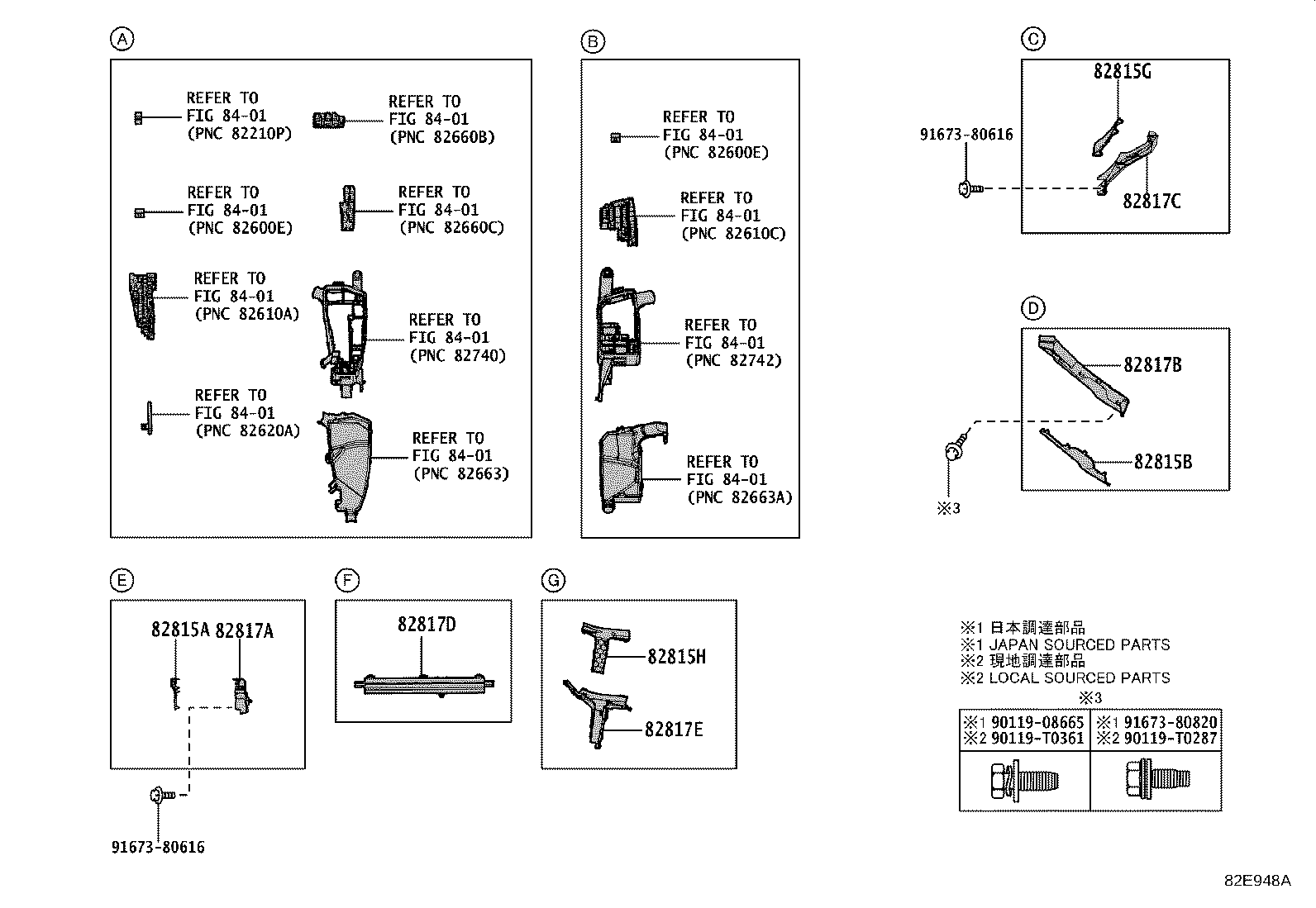

82E948A

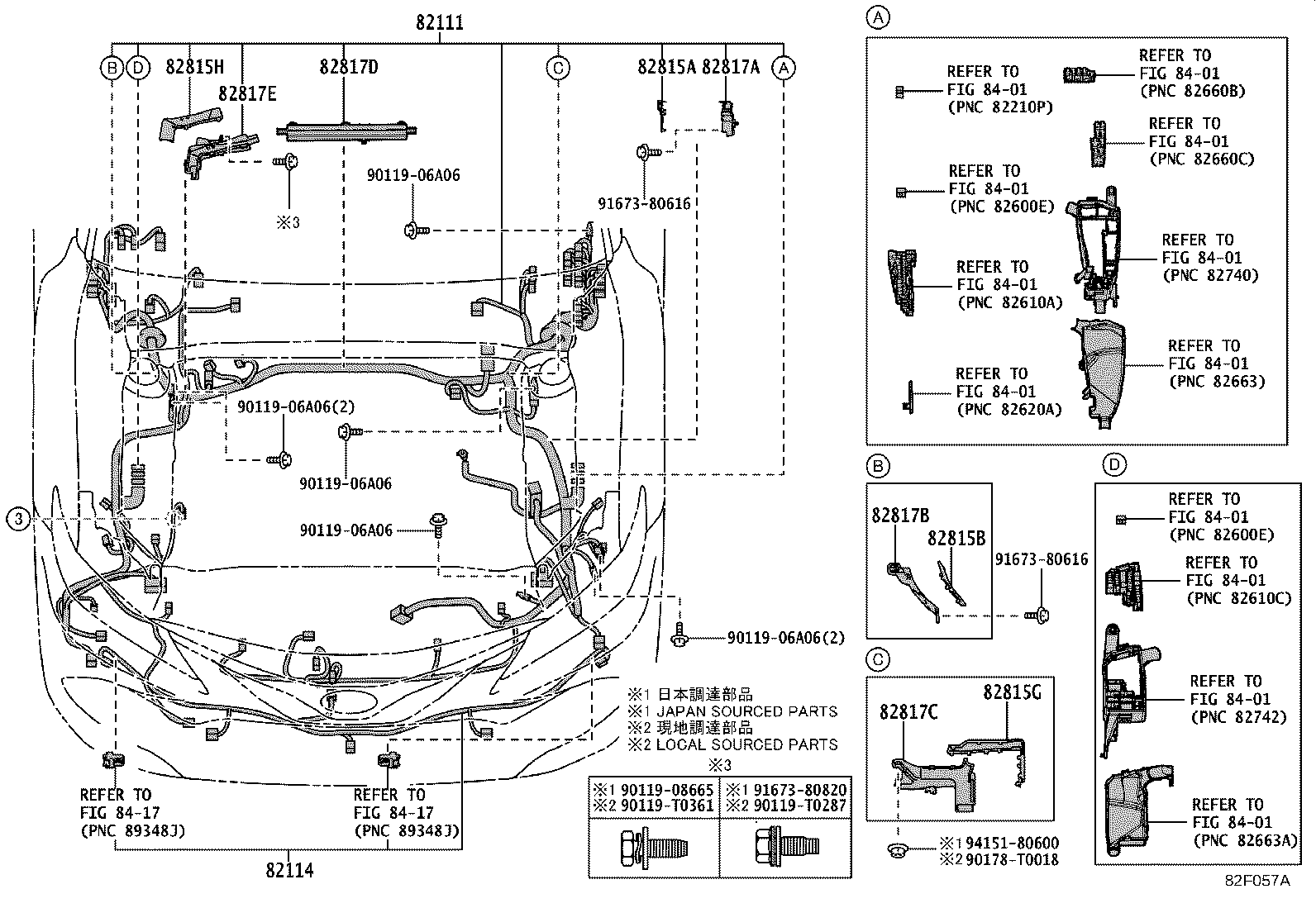

82F057A

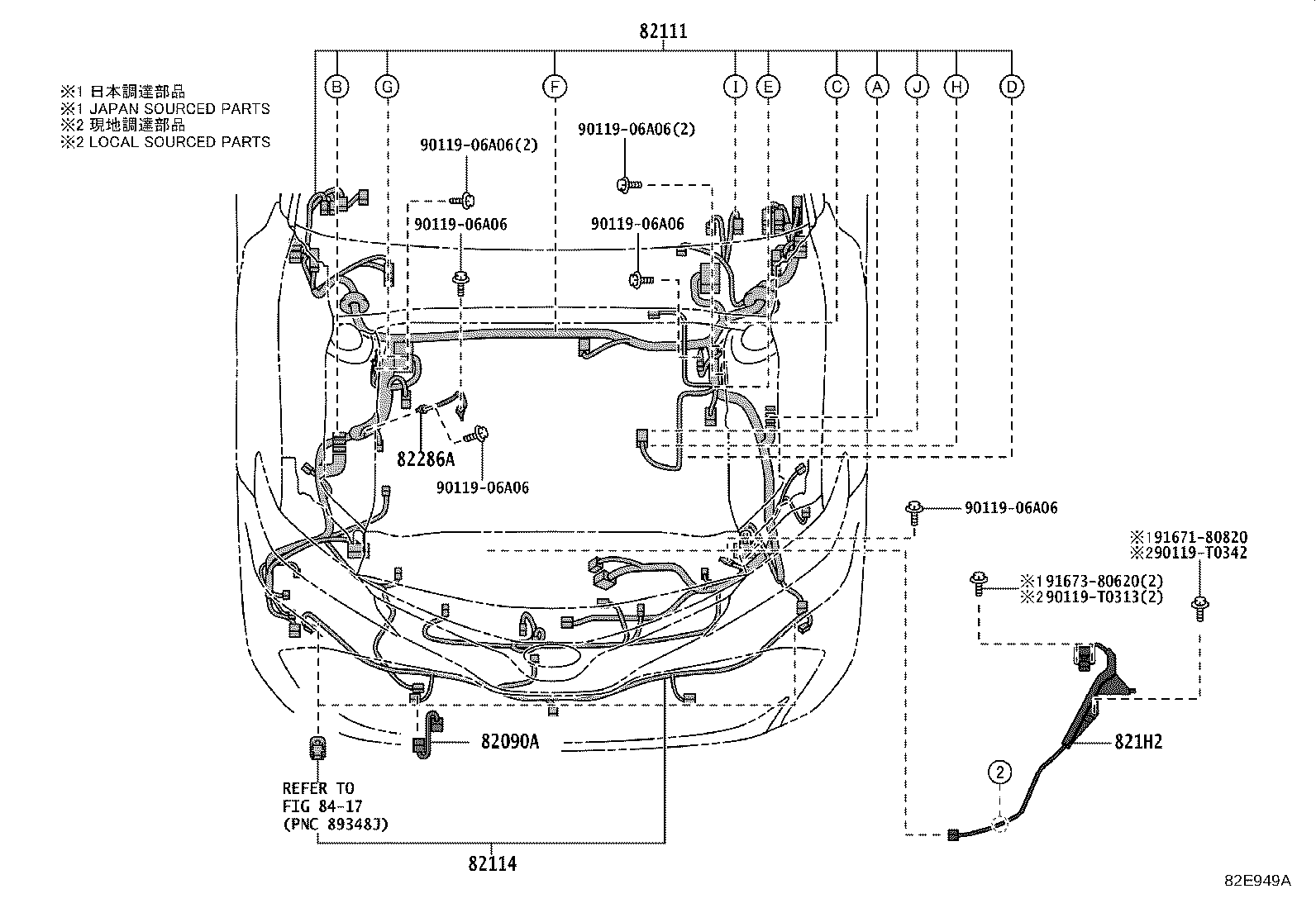

82E949A
82E950A

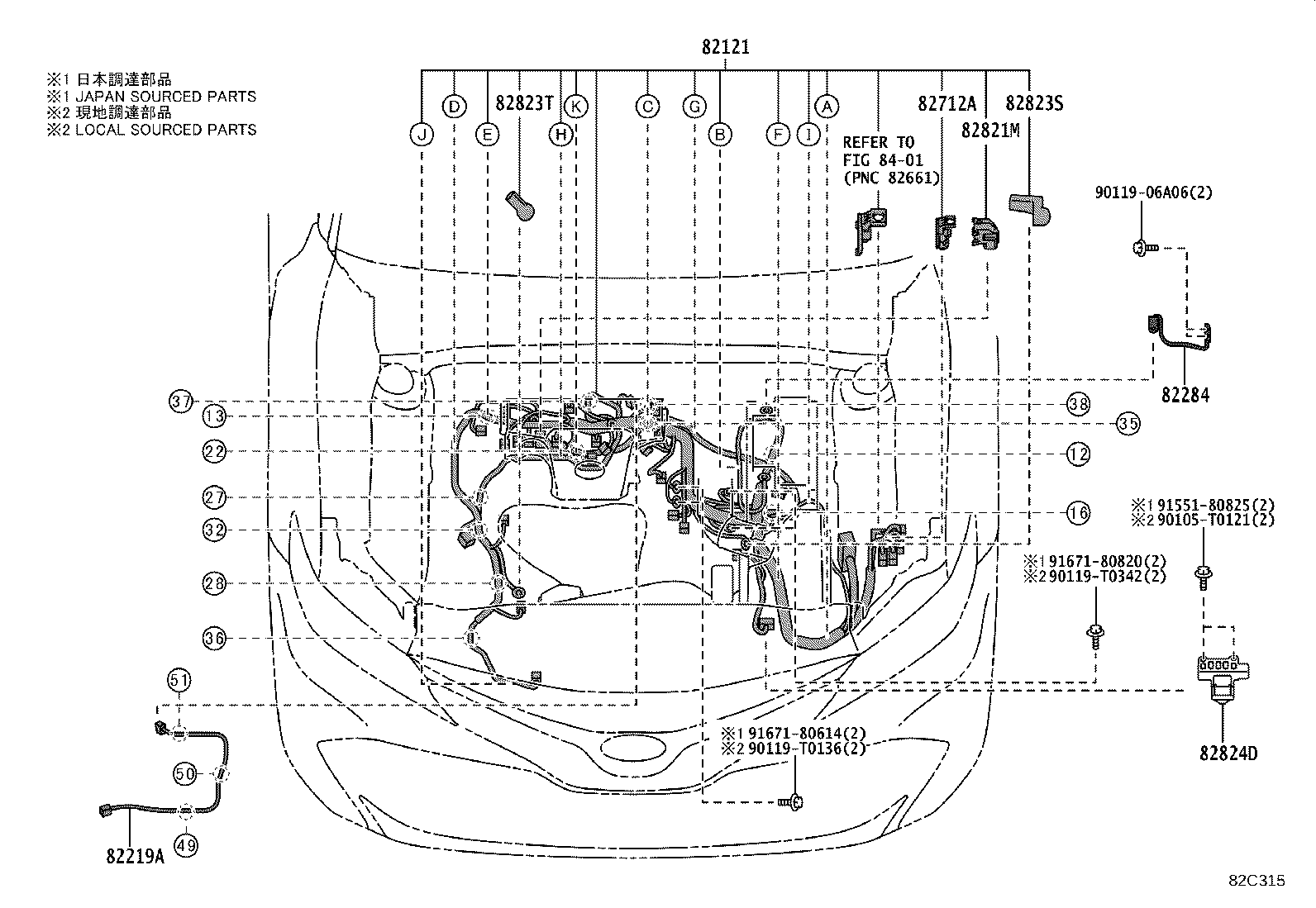

82C315
82C316B

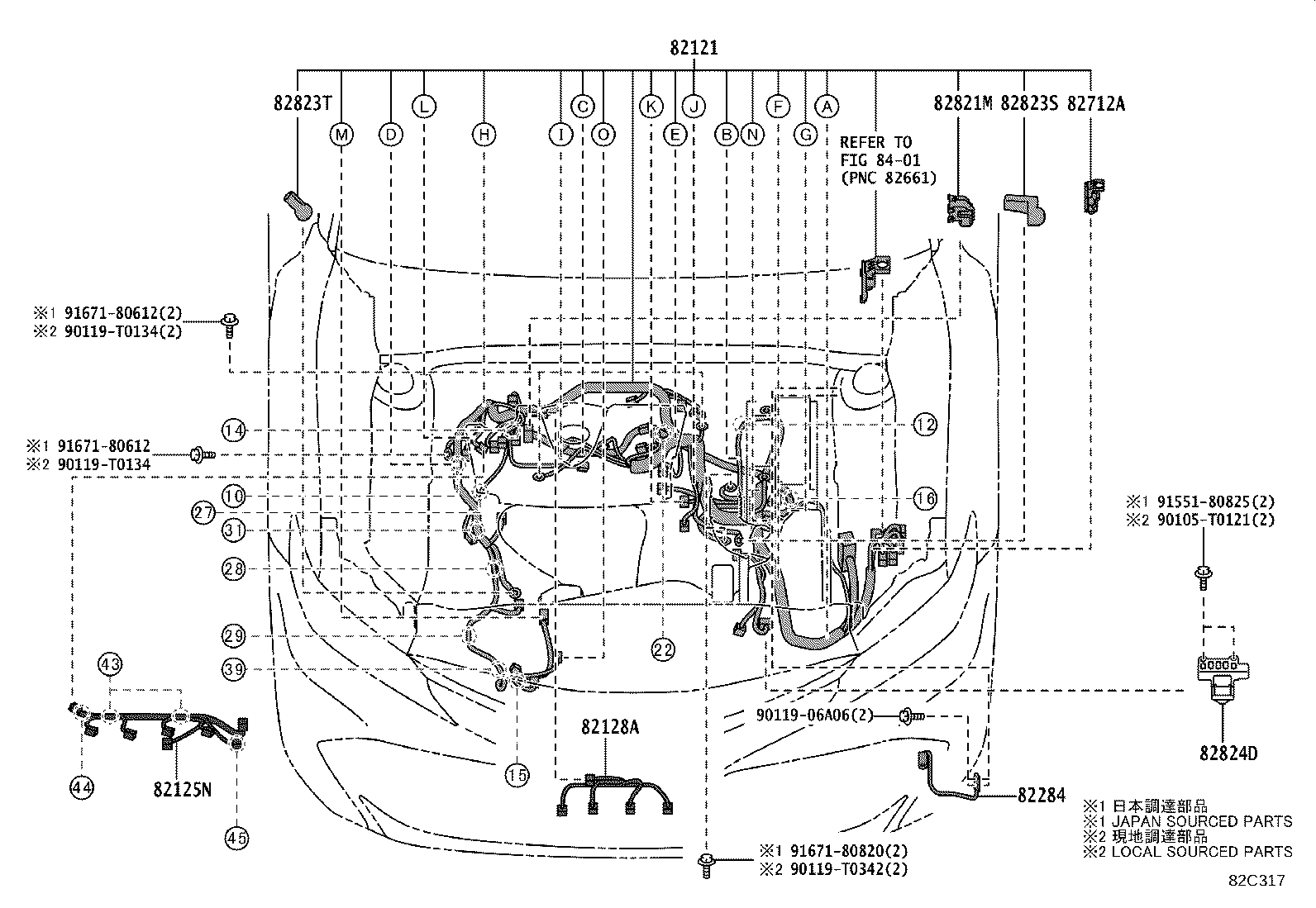

82C317
82C318A

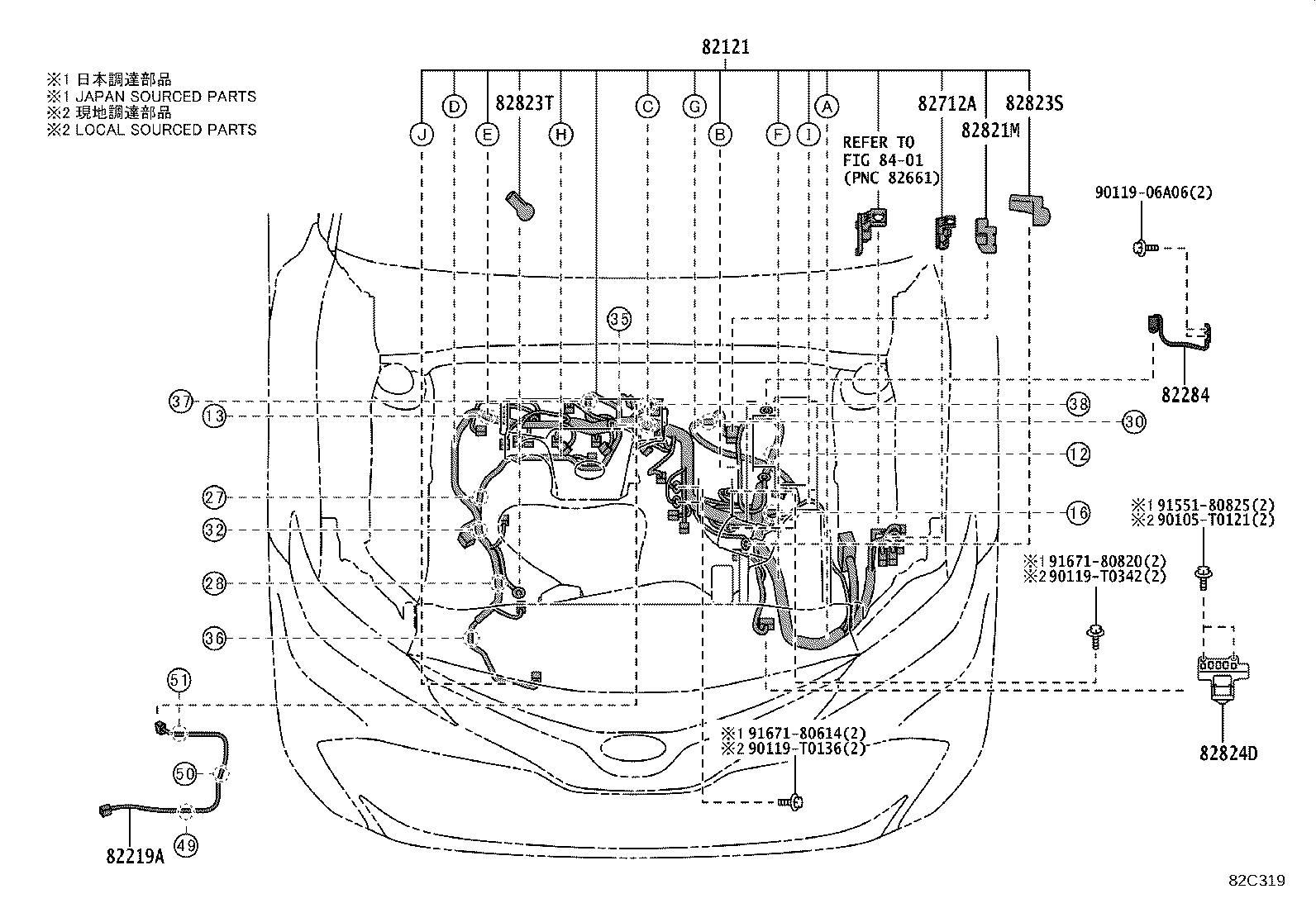

82C319

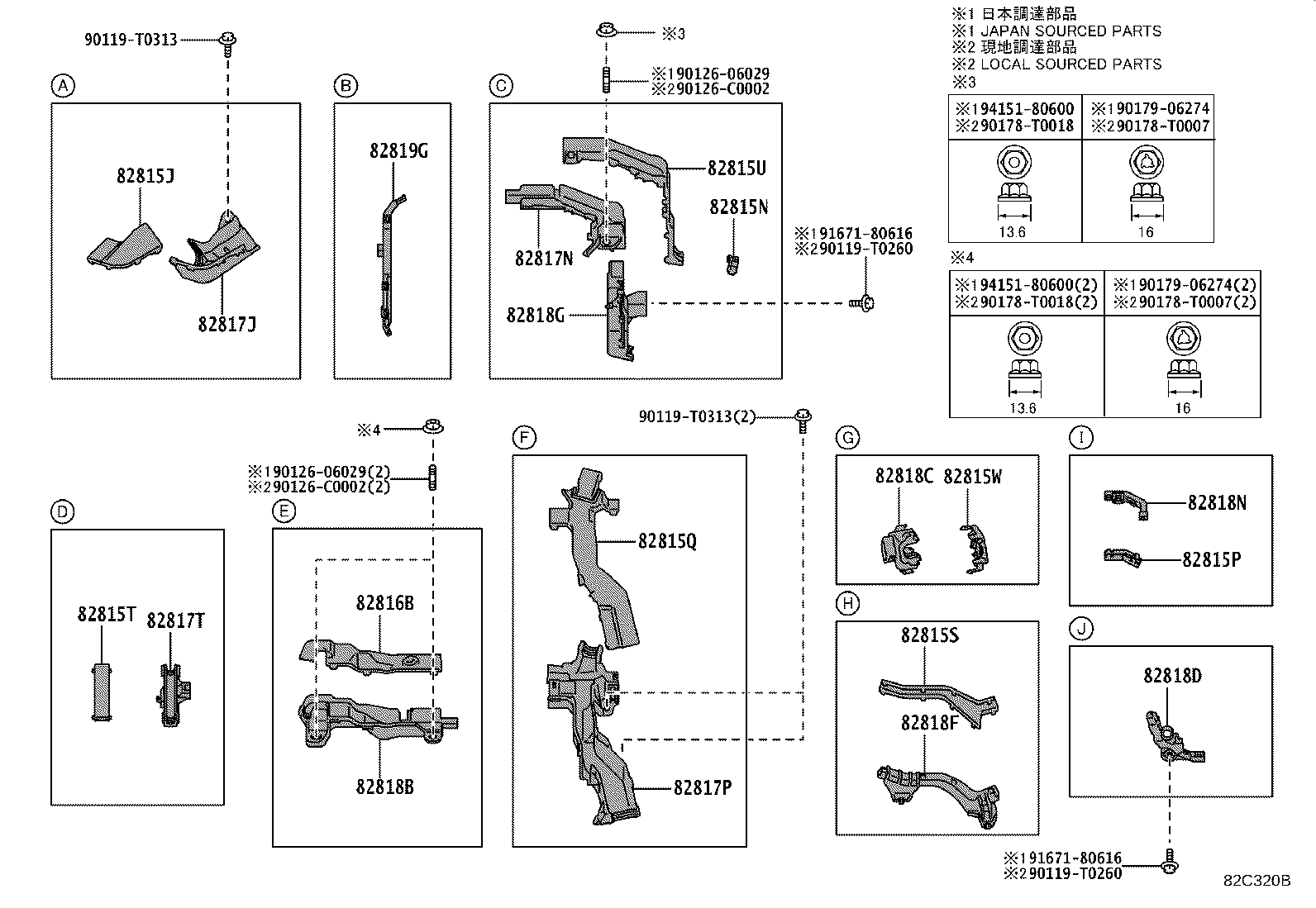

82C320B

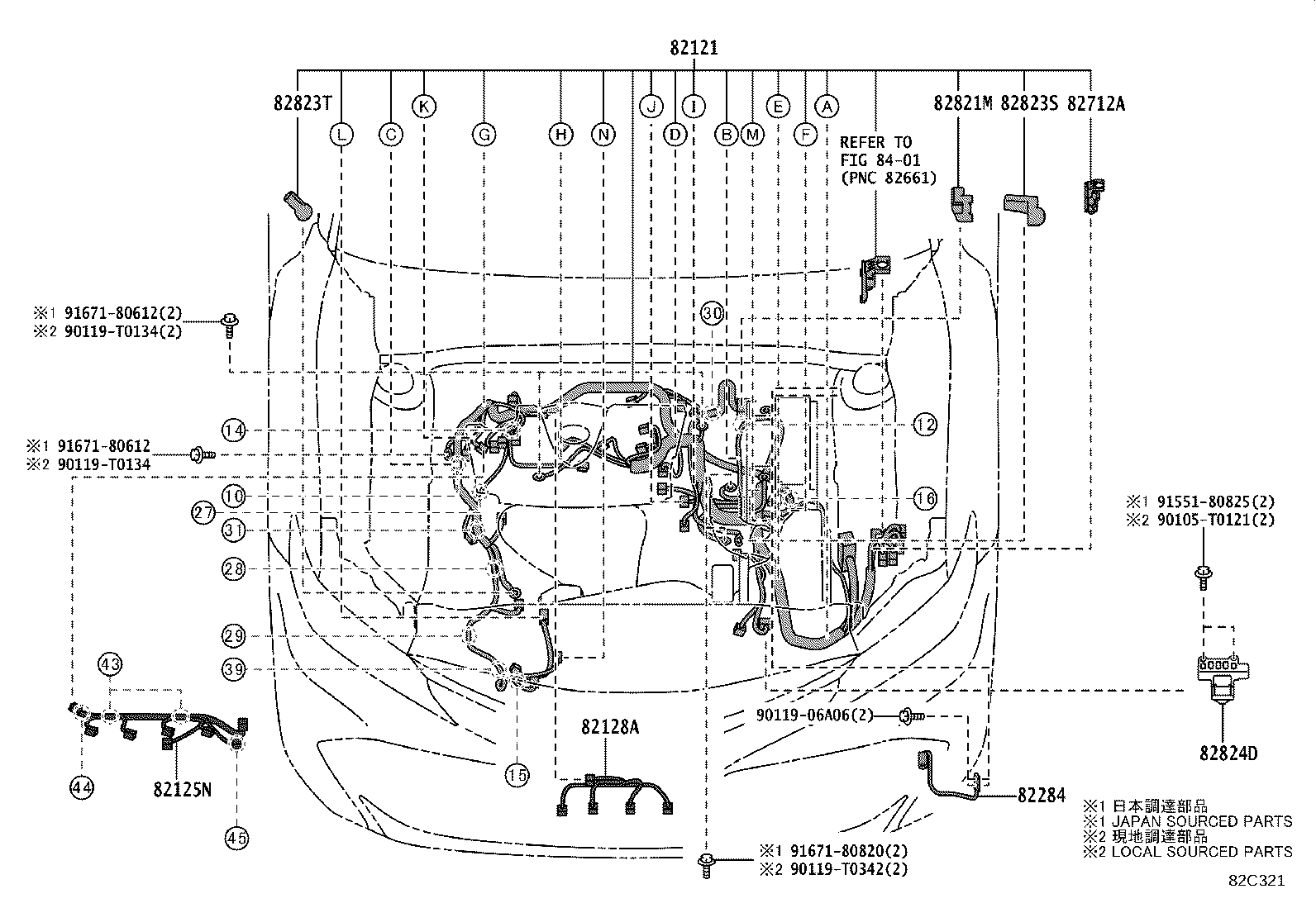

82C321

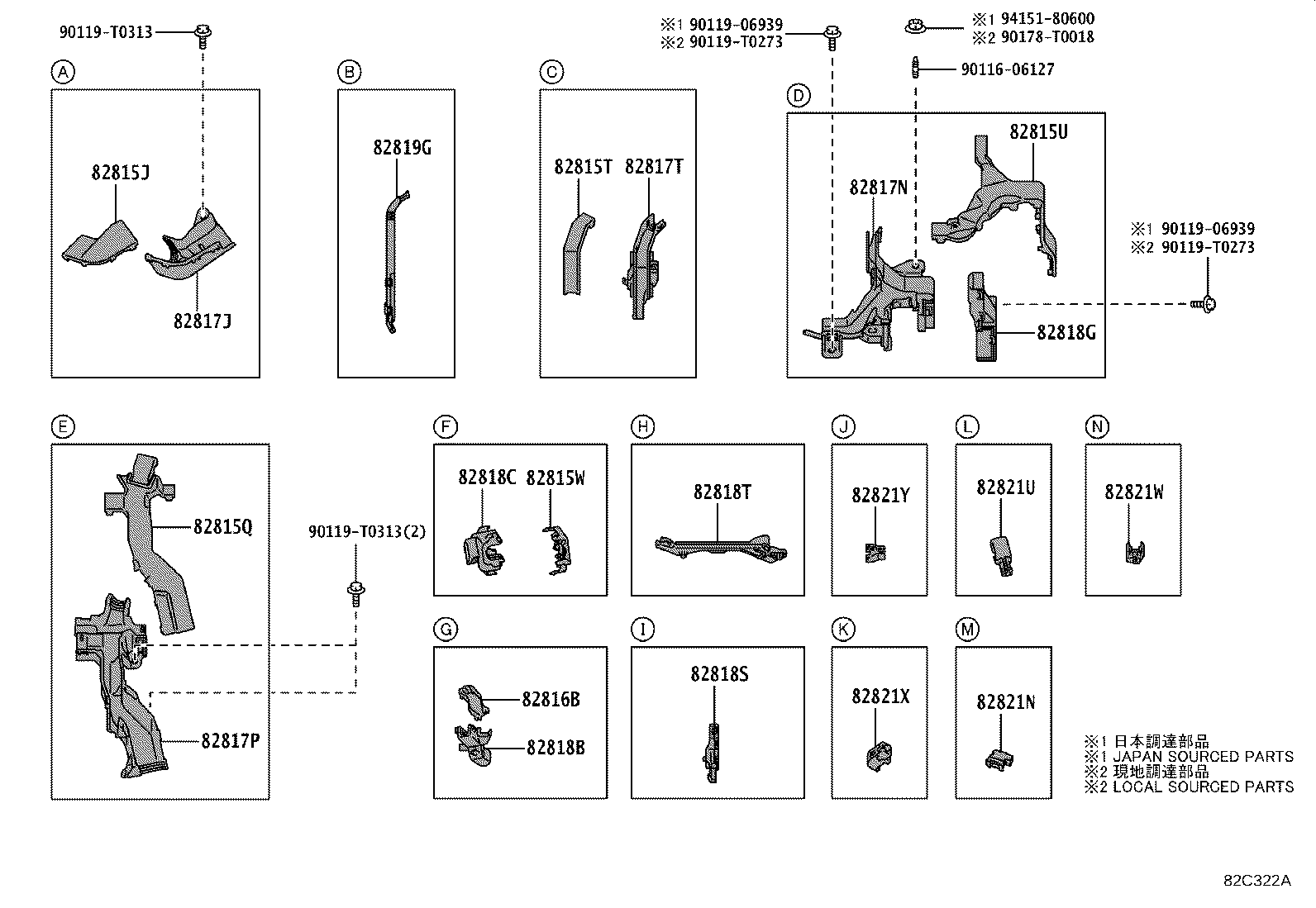

82C322A

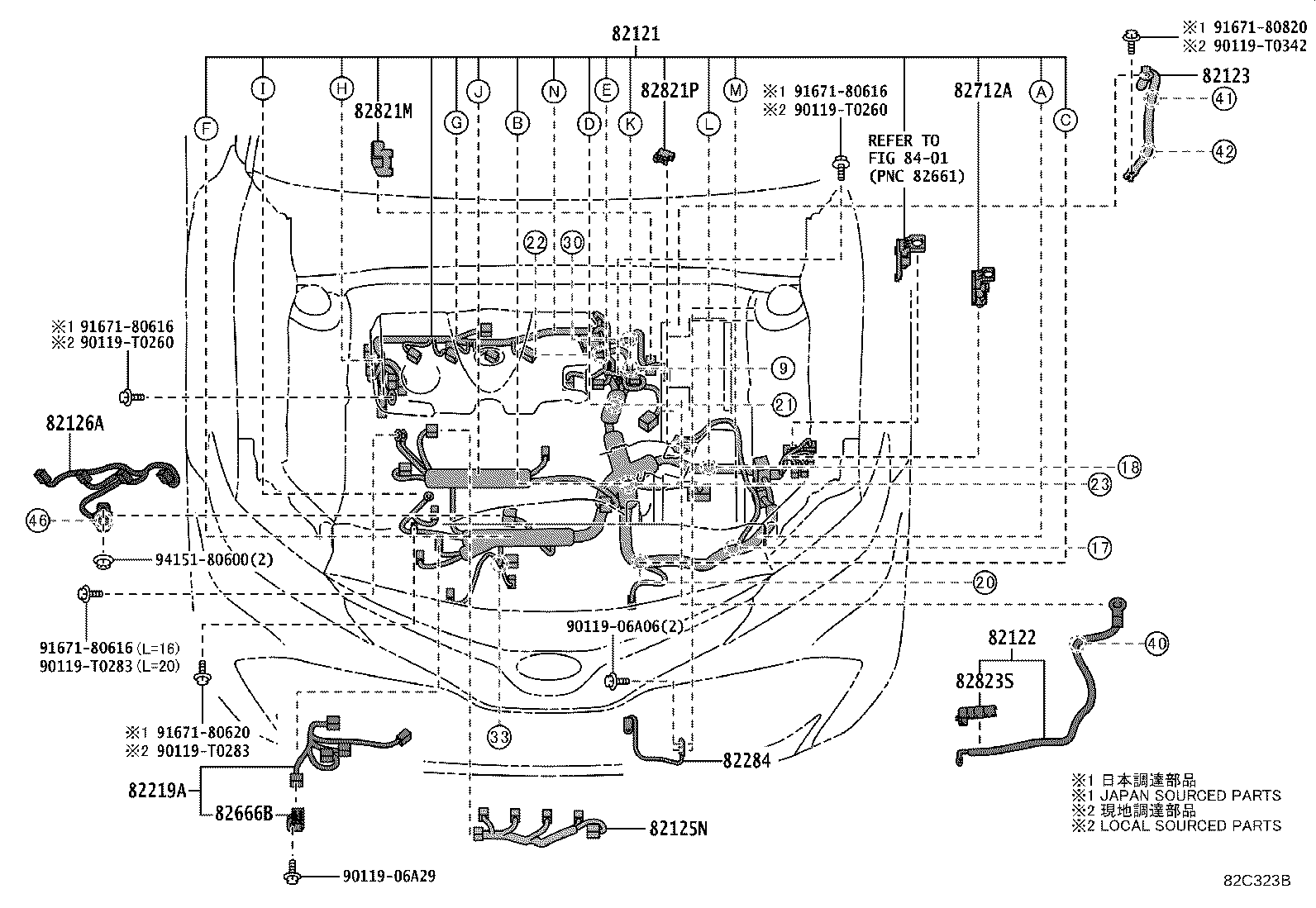

82C323B

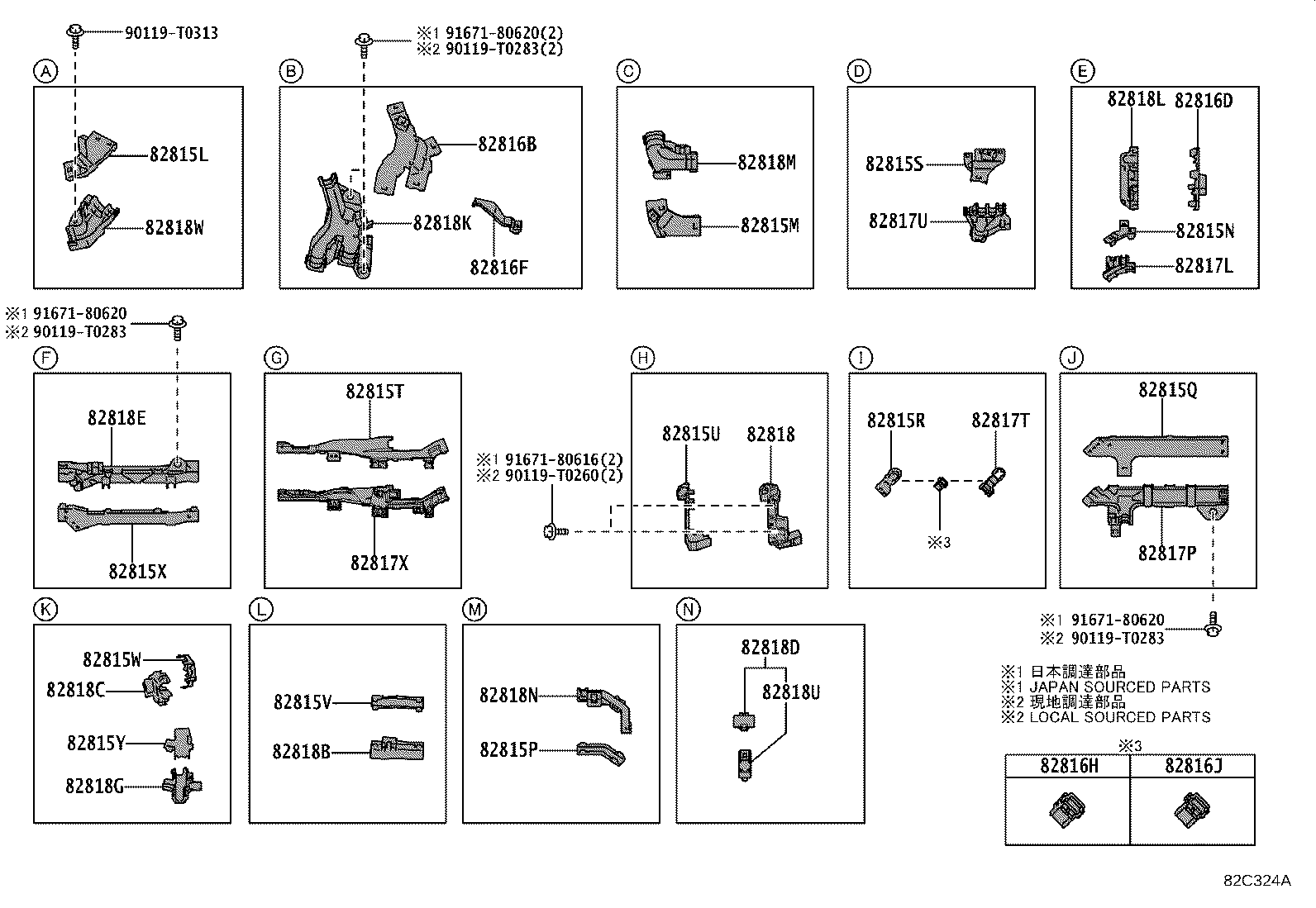

82C324A

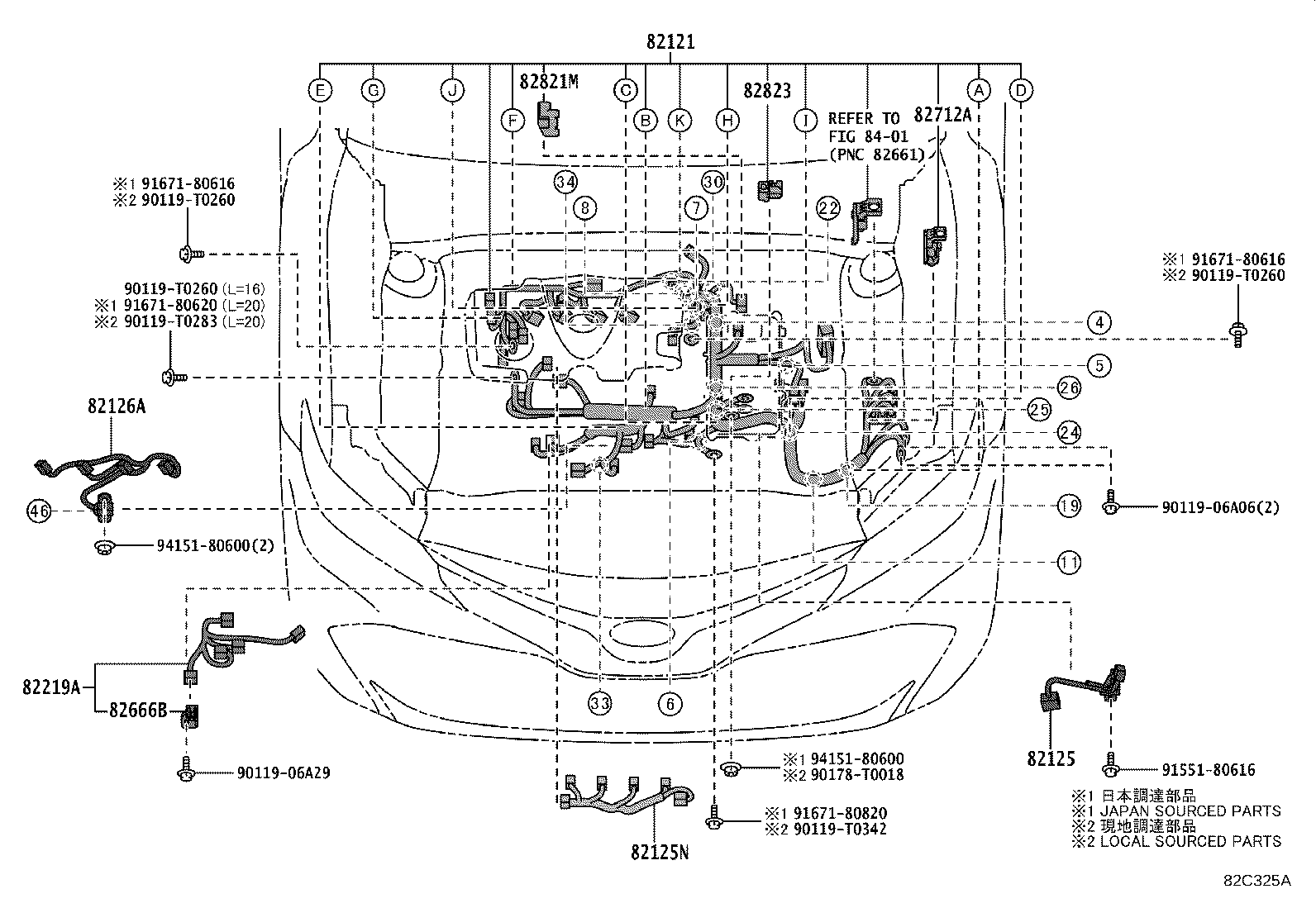

82C325A

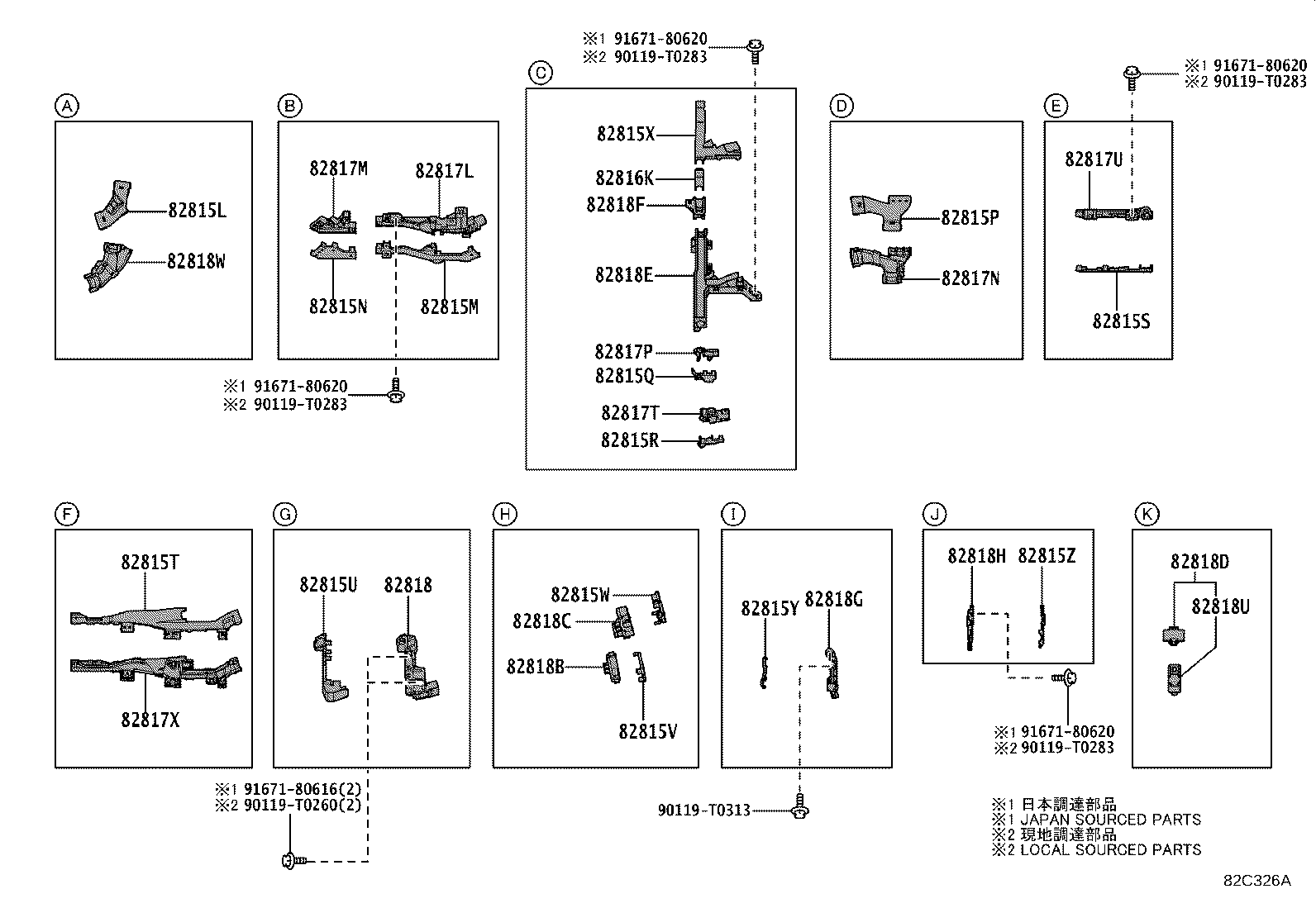

82C326A

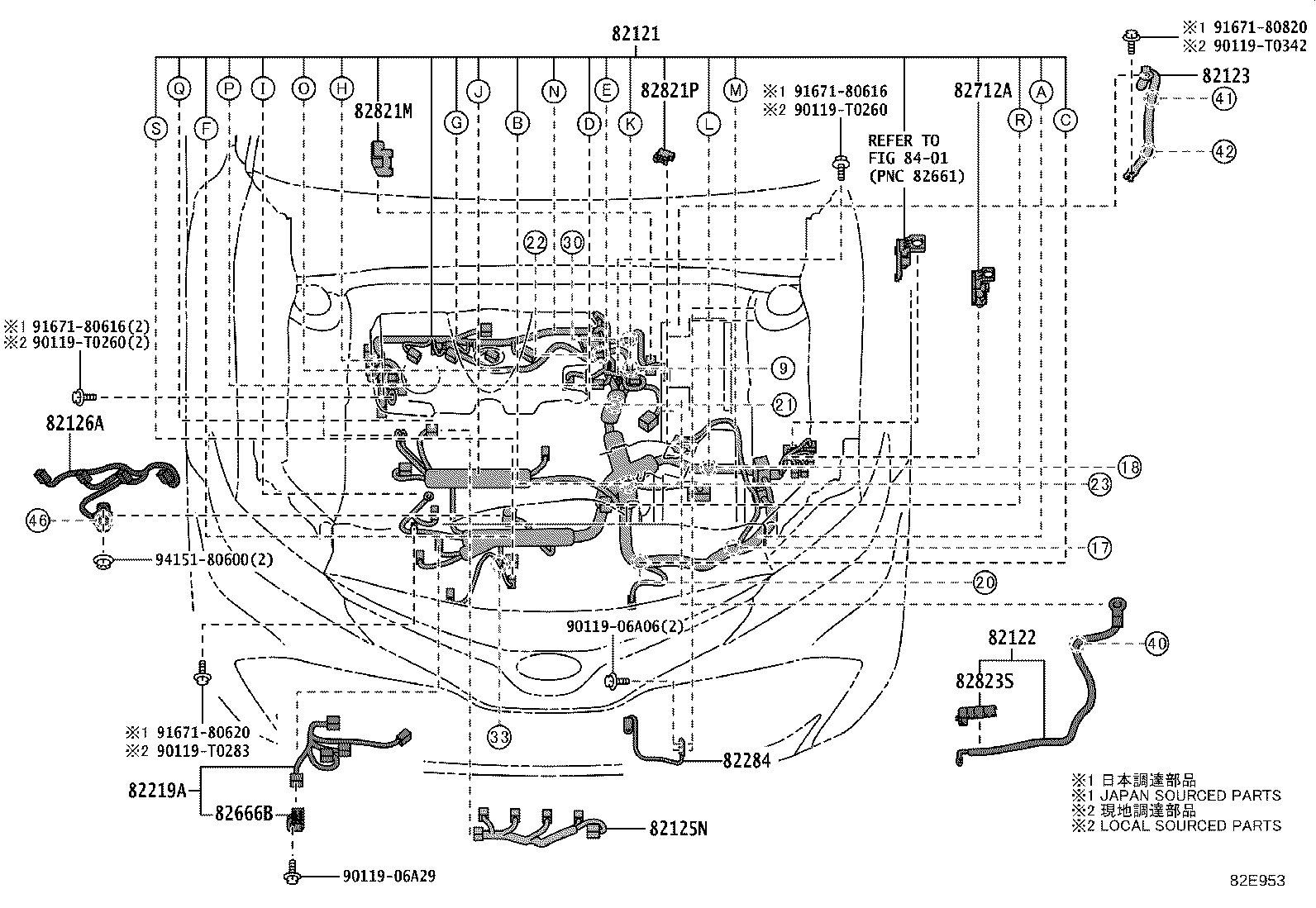

82E953

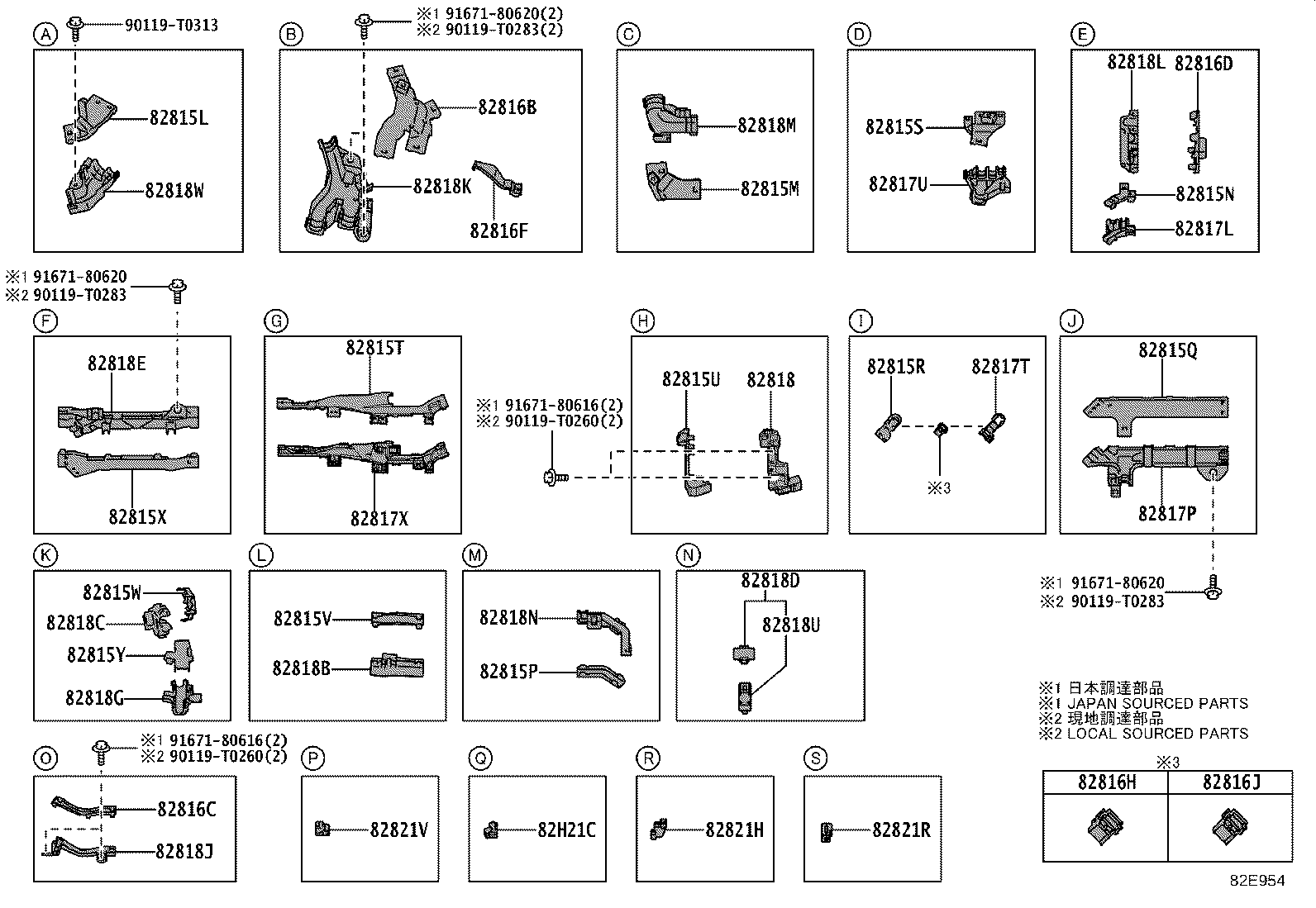

82E954

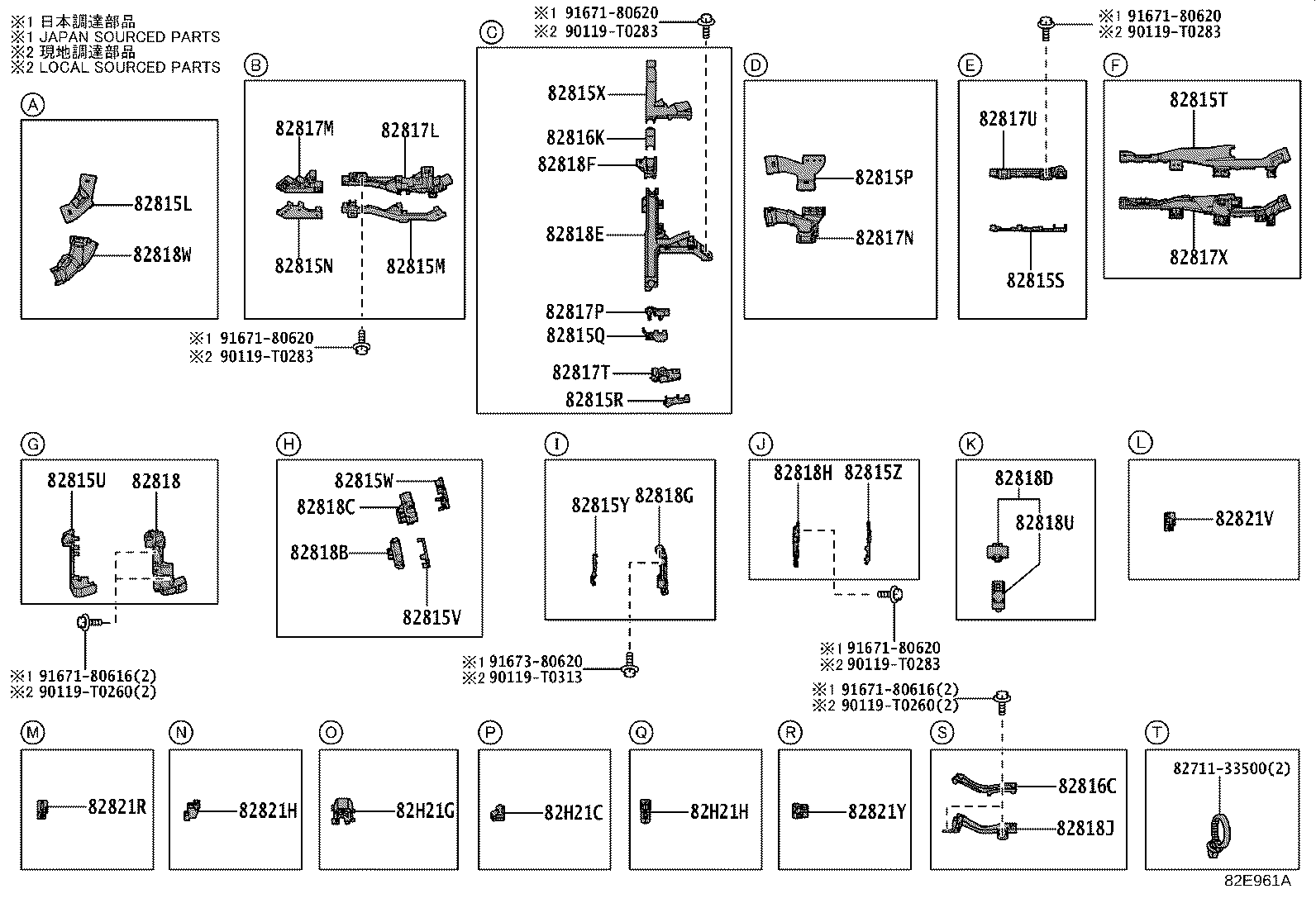

82E960A
82E961A

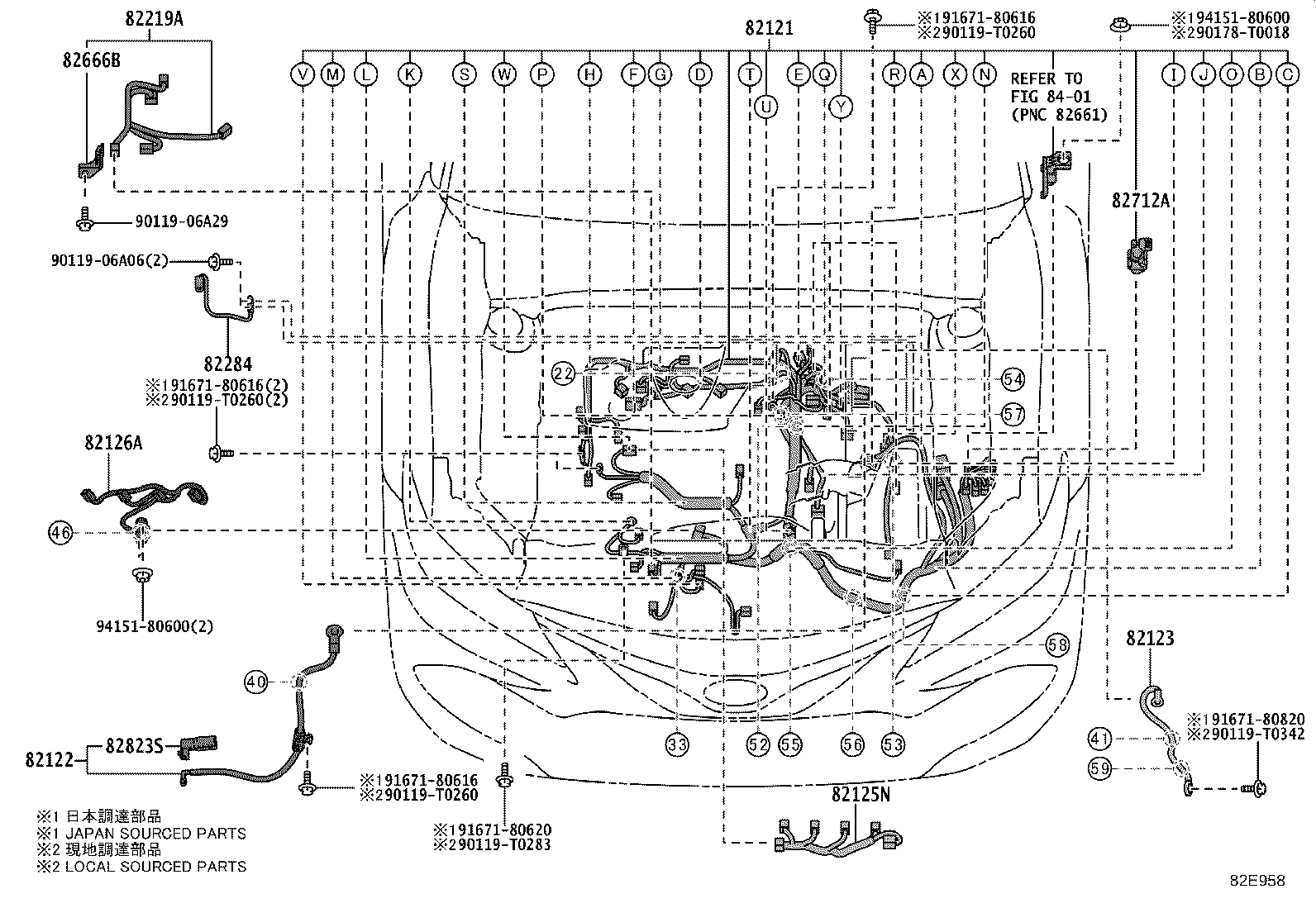

82E958
82E959
82C327B

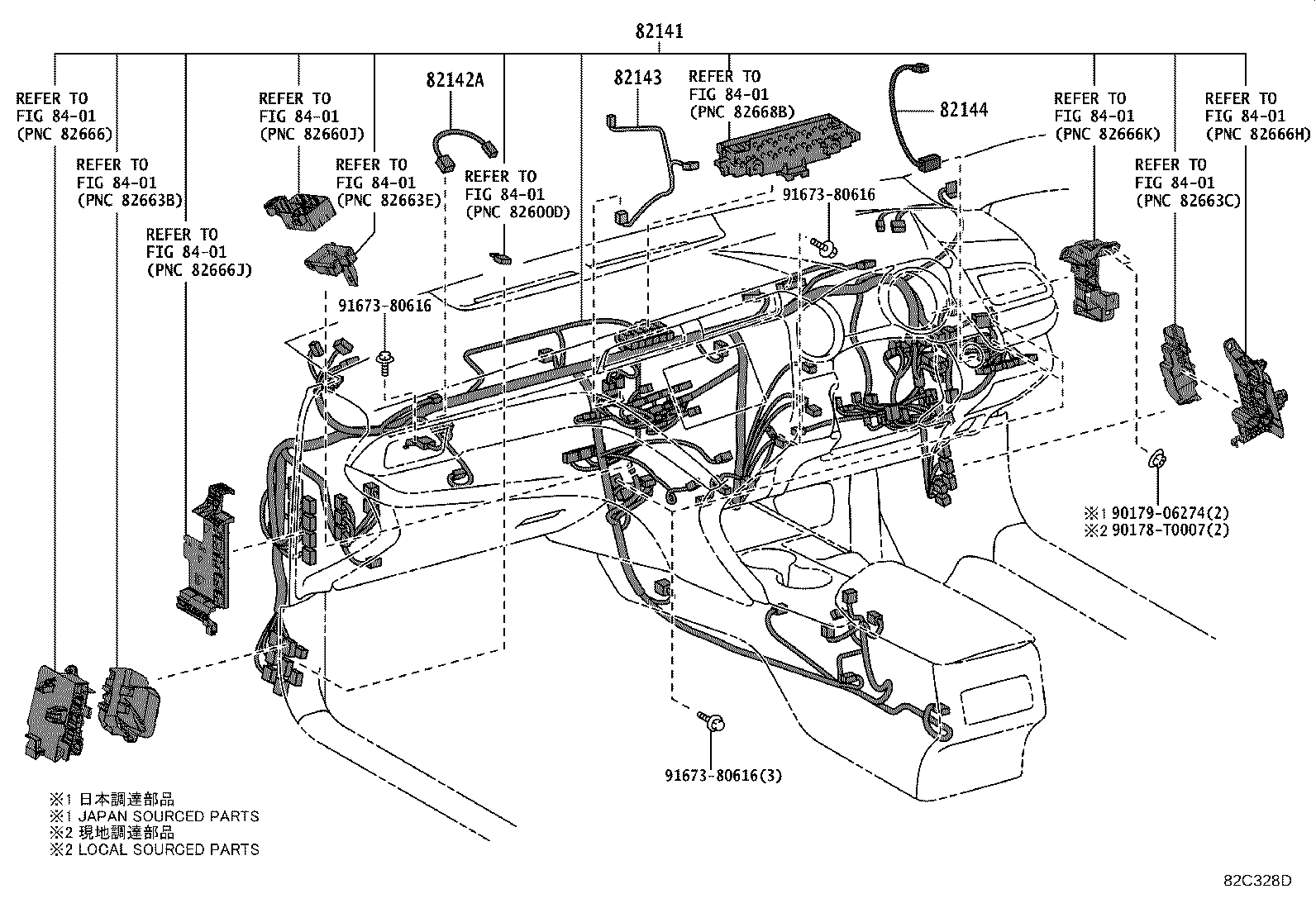

82C328D

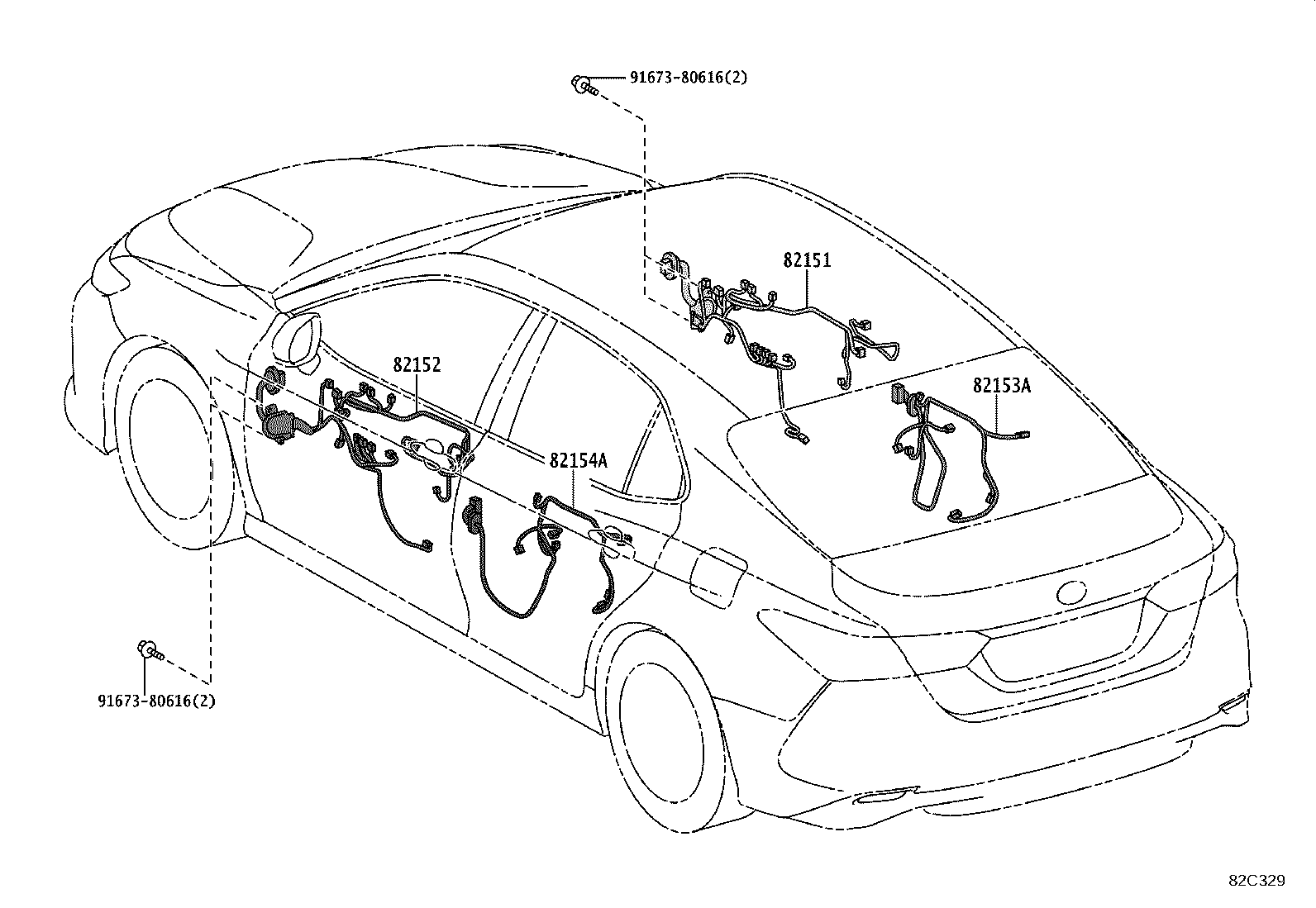

82C329

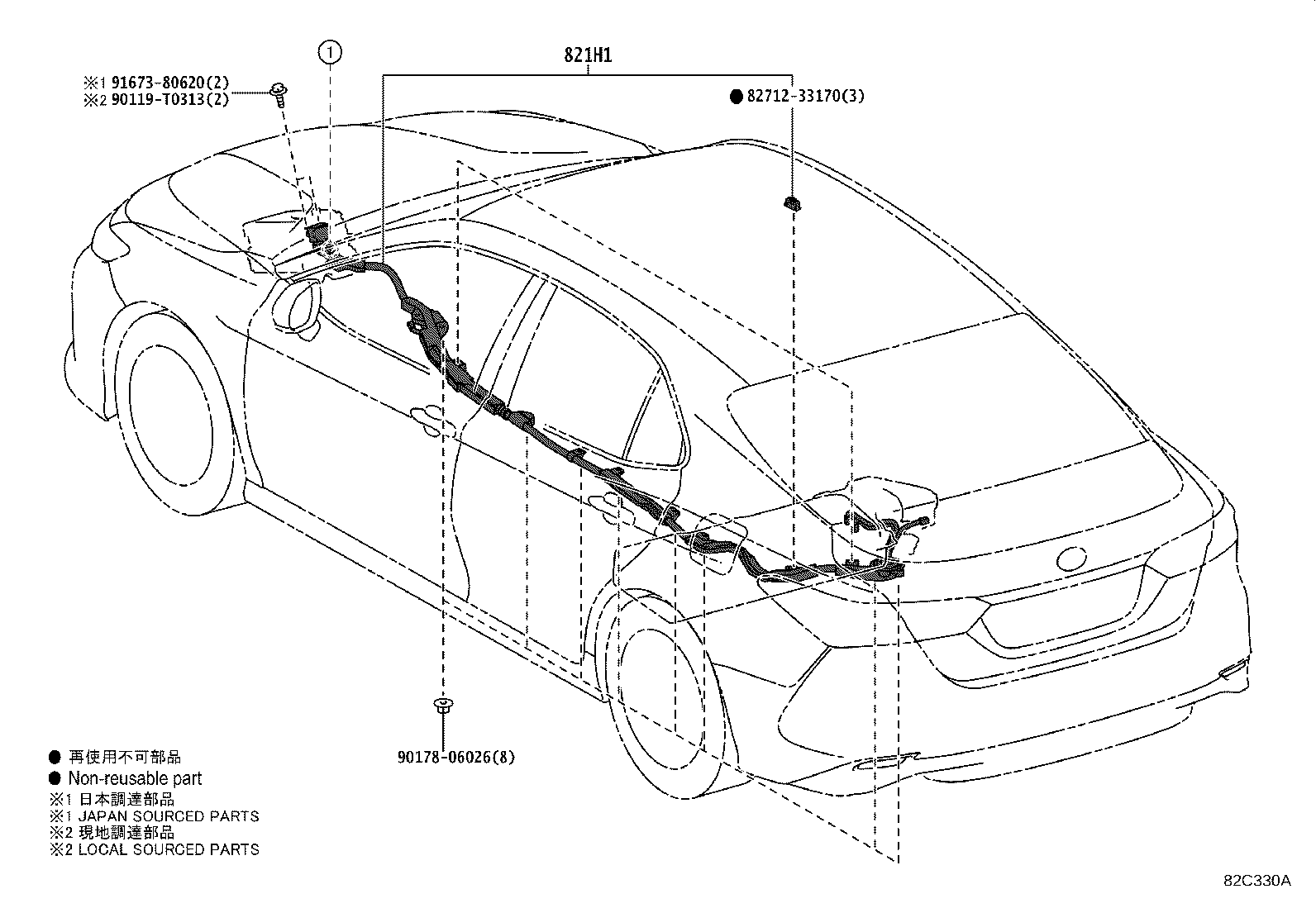

82C330A

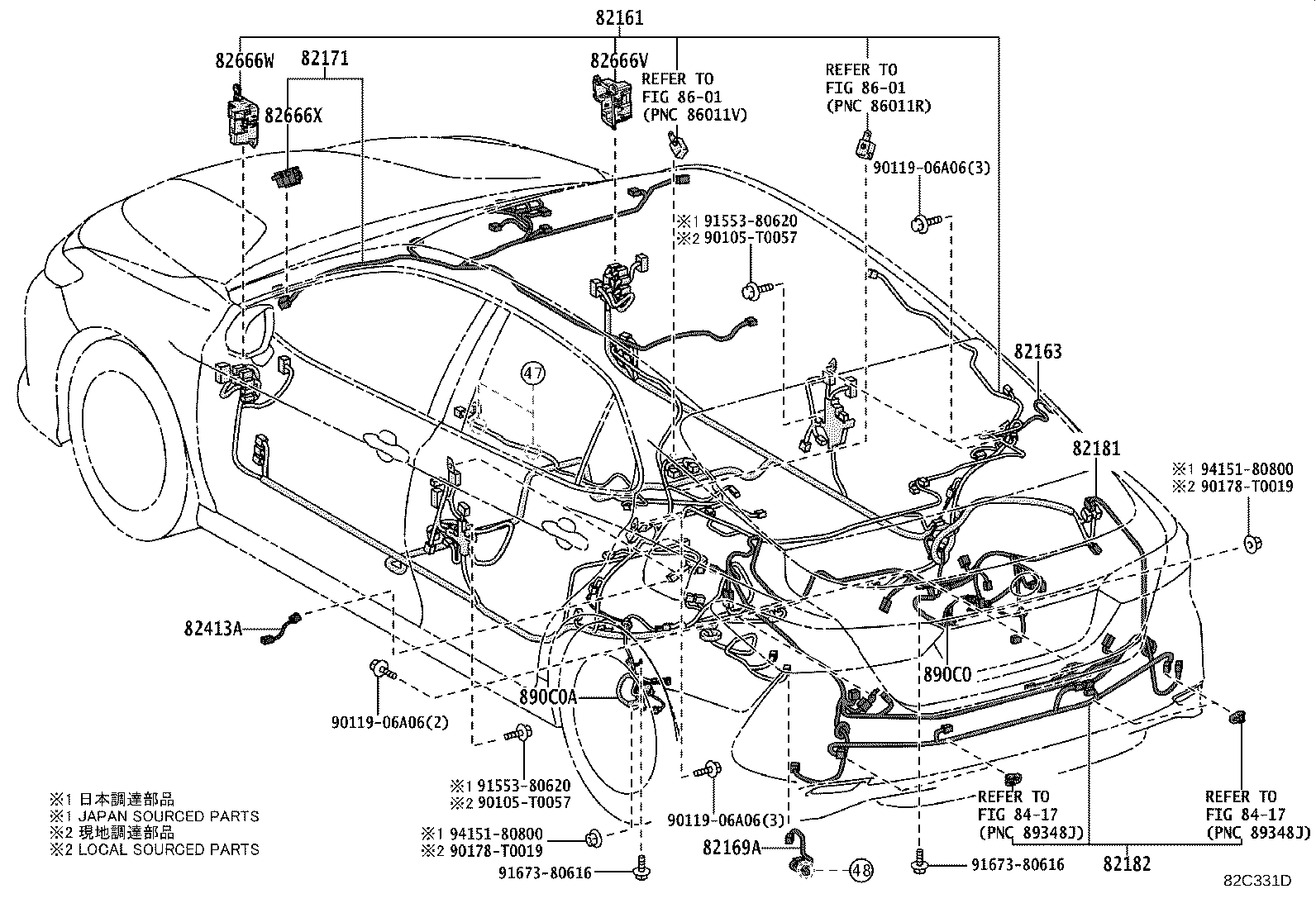

82C331D

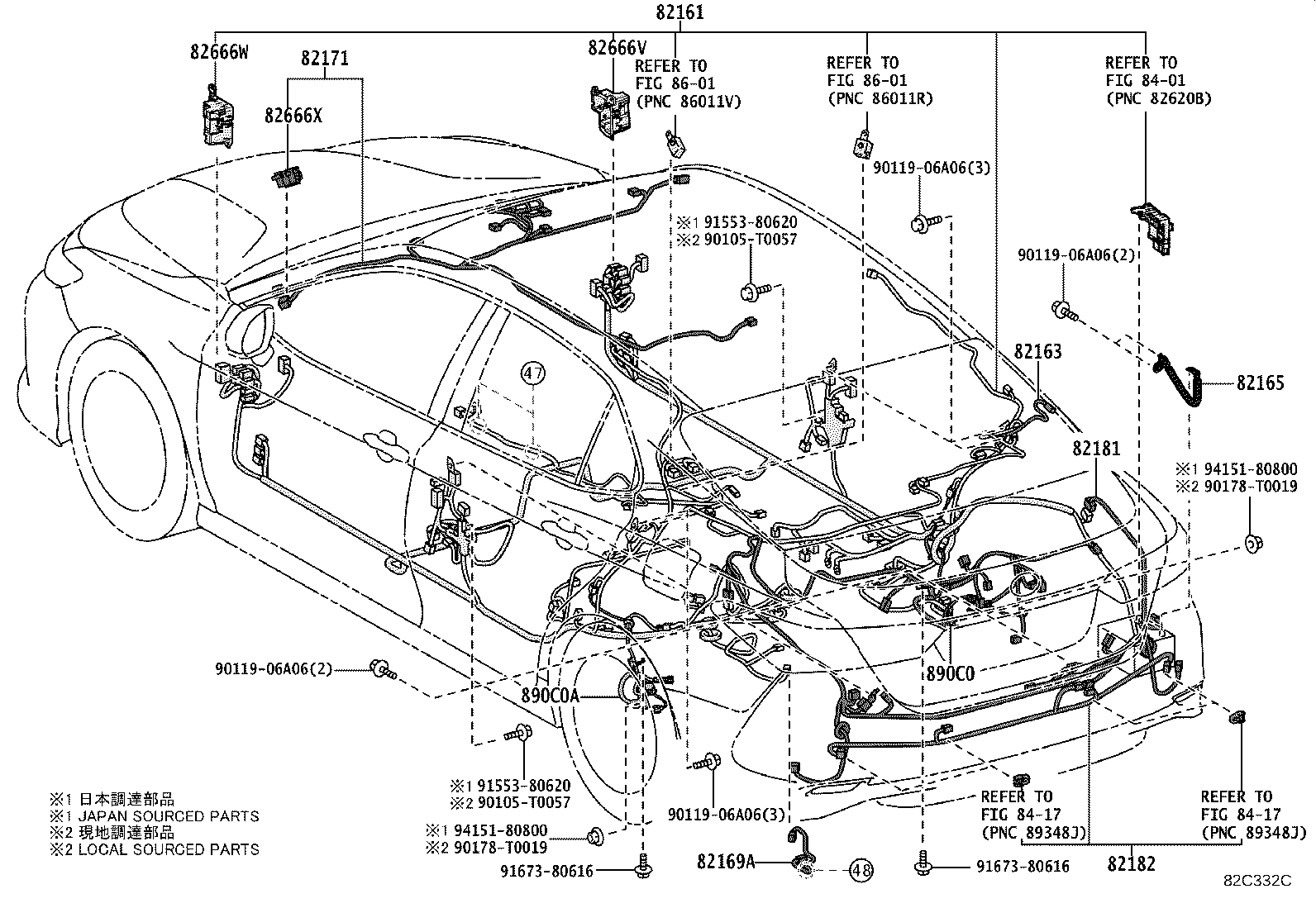

82C332C

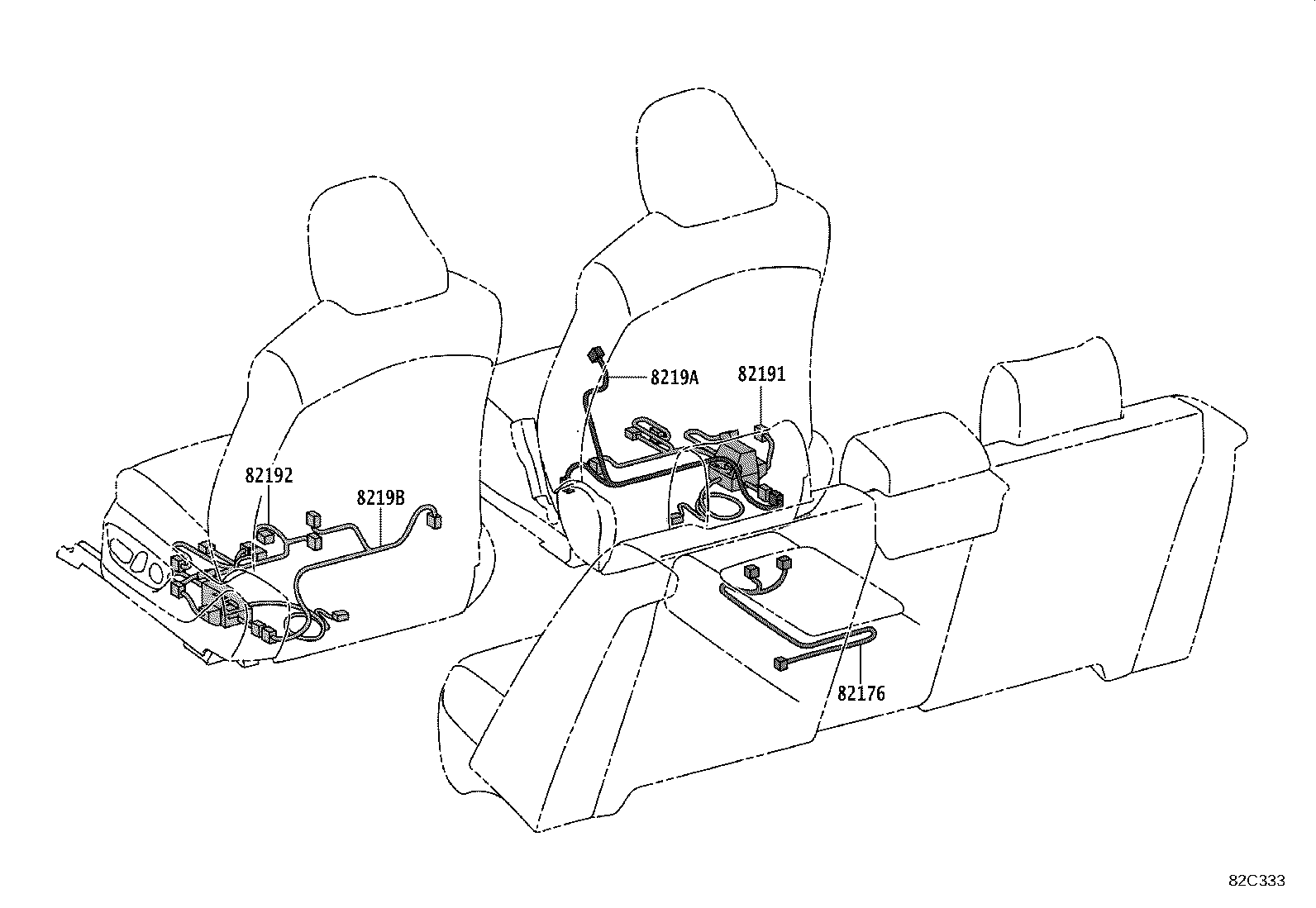

82C333
82C334

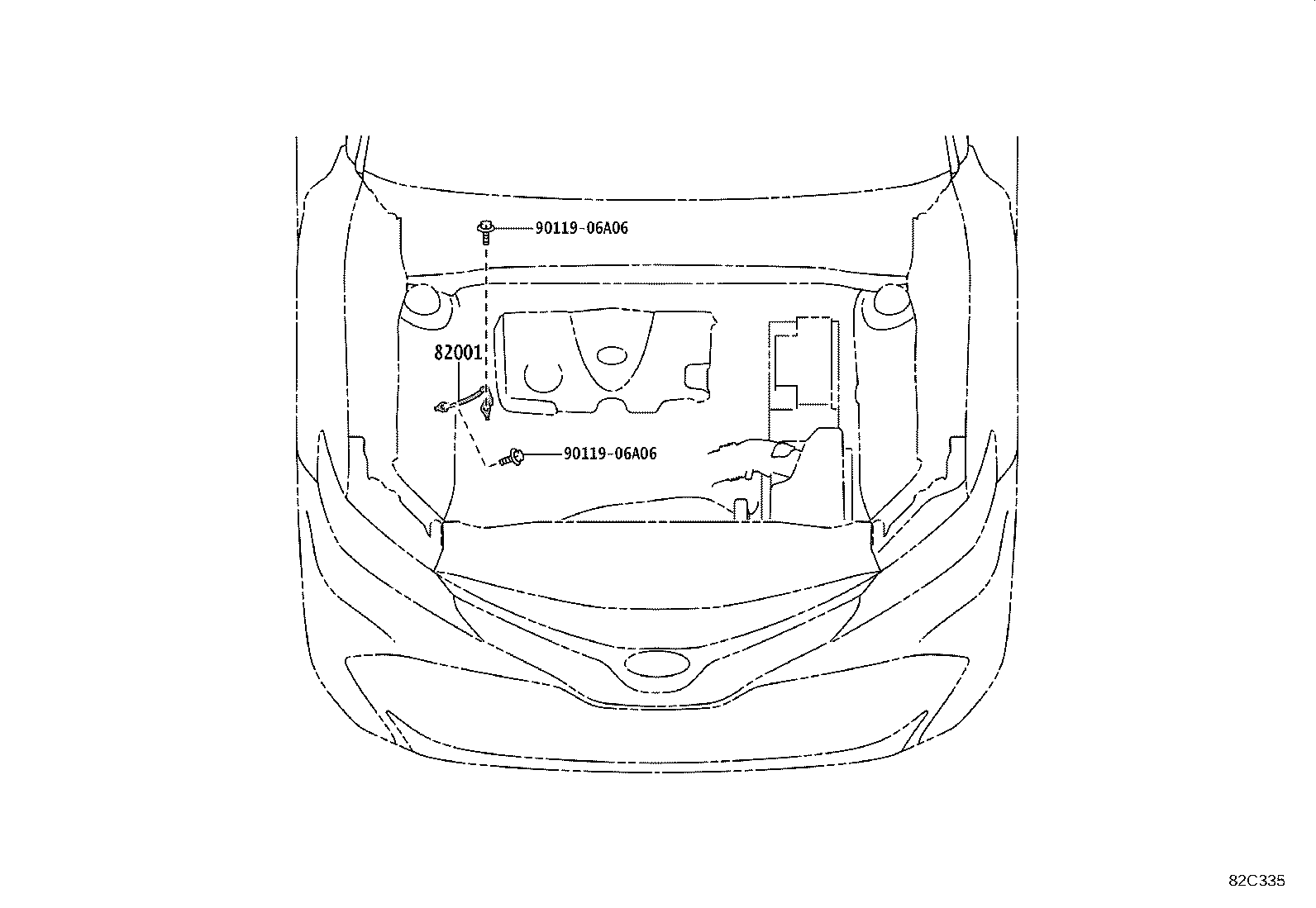

82C335

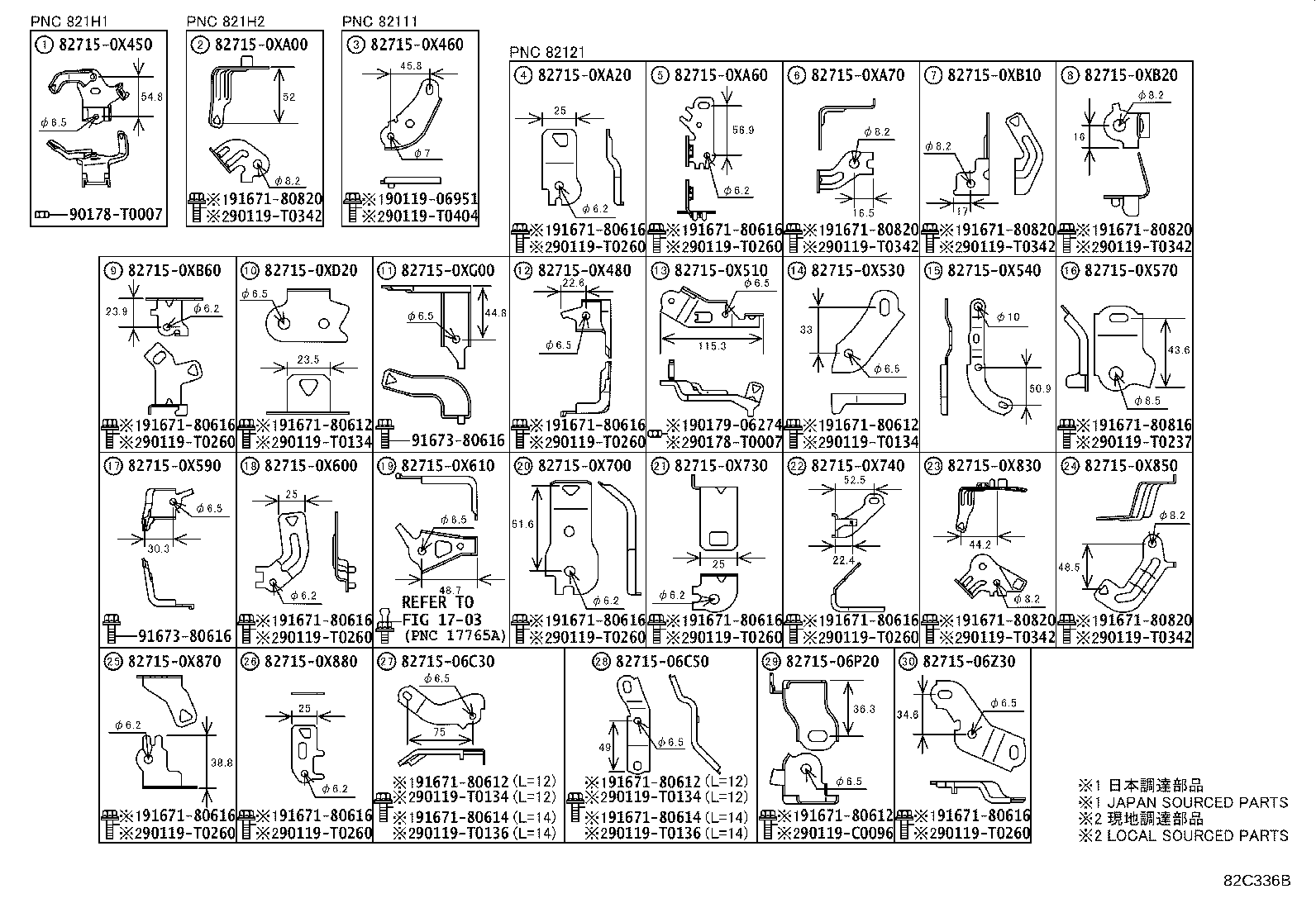

82C336B

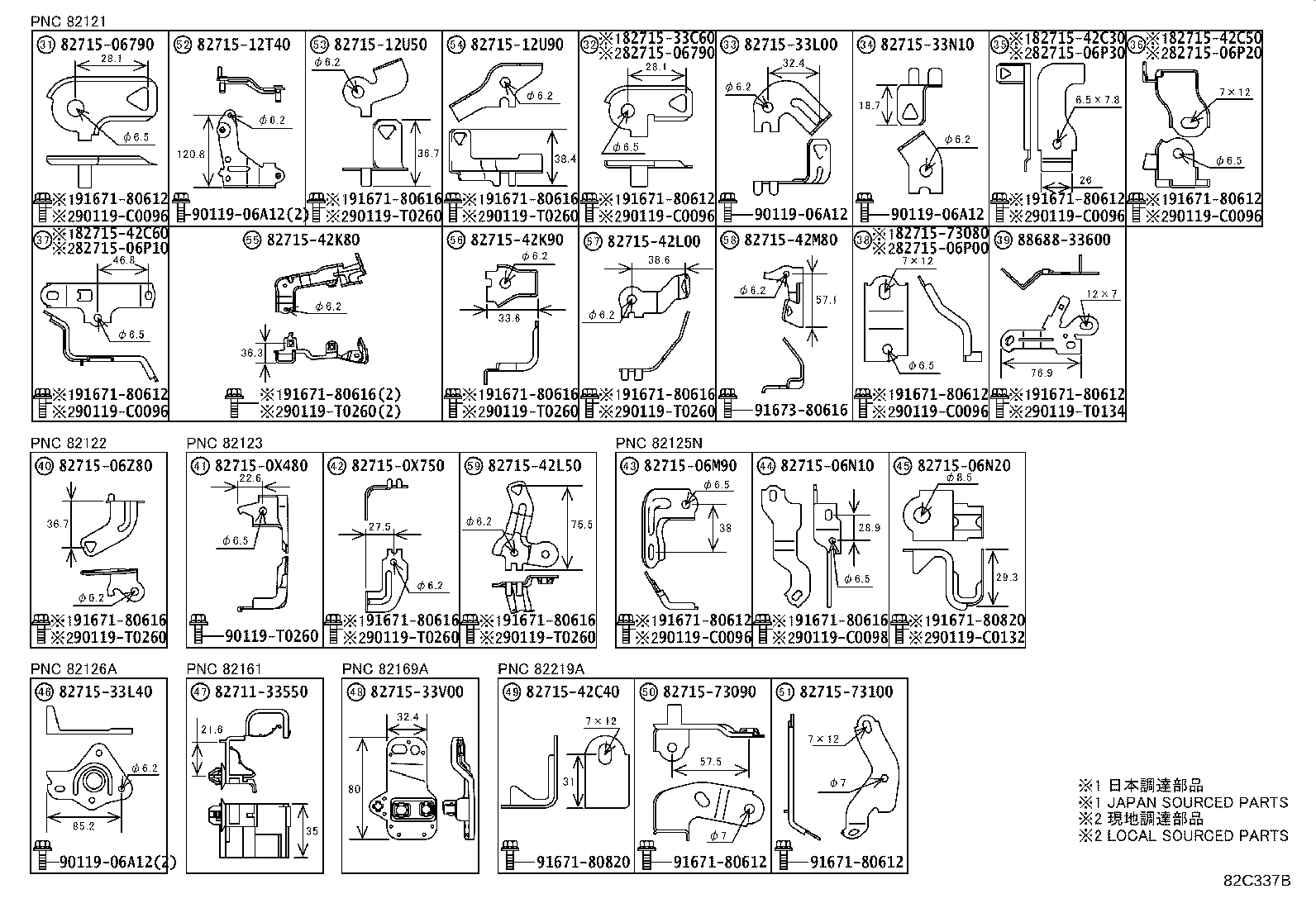

82C337B

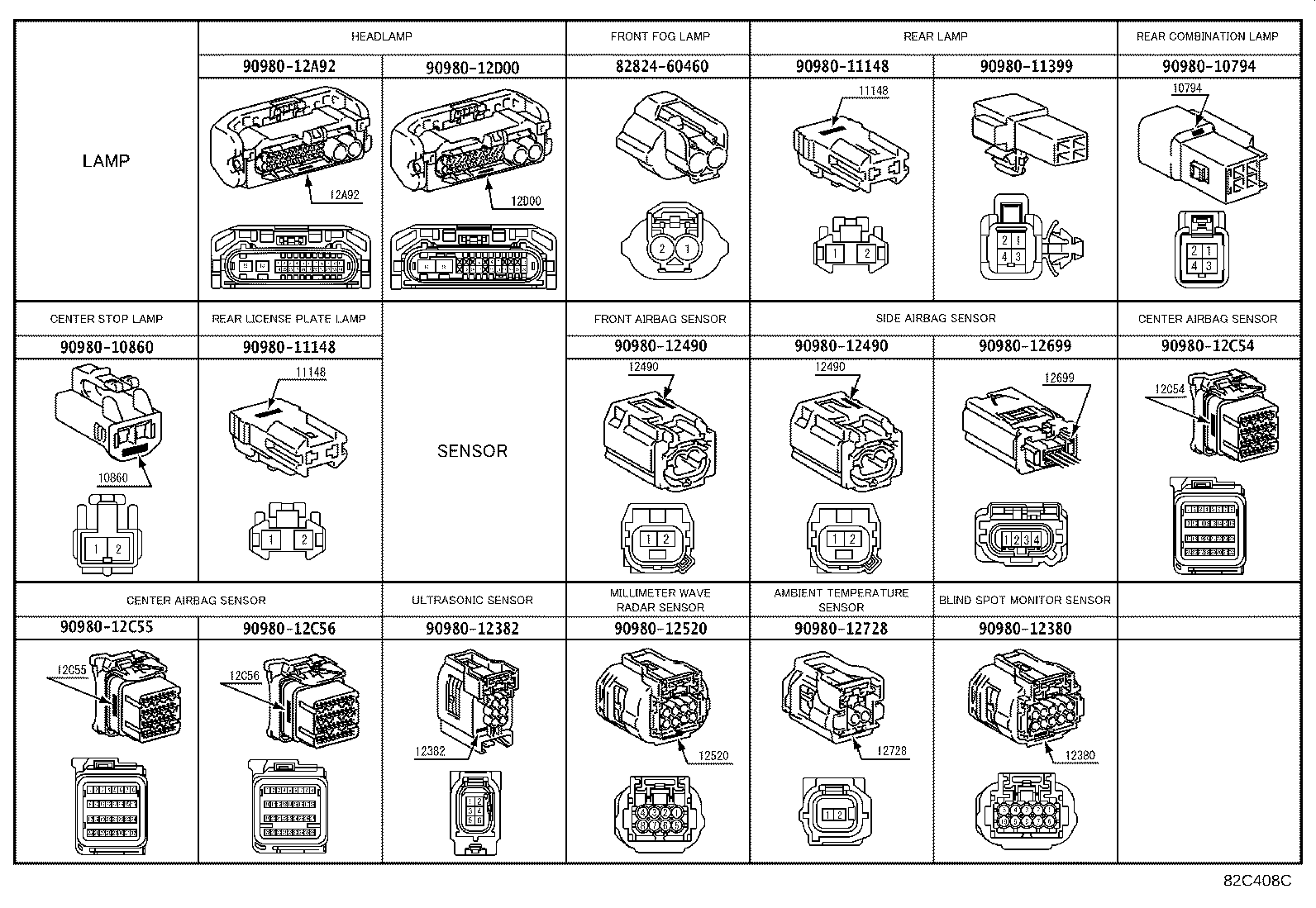

82C408C

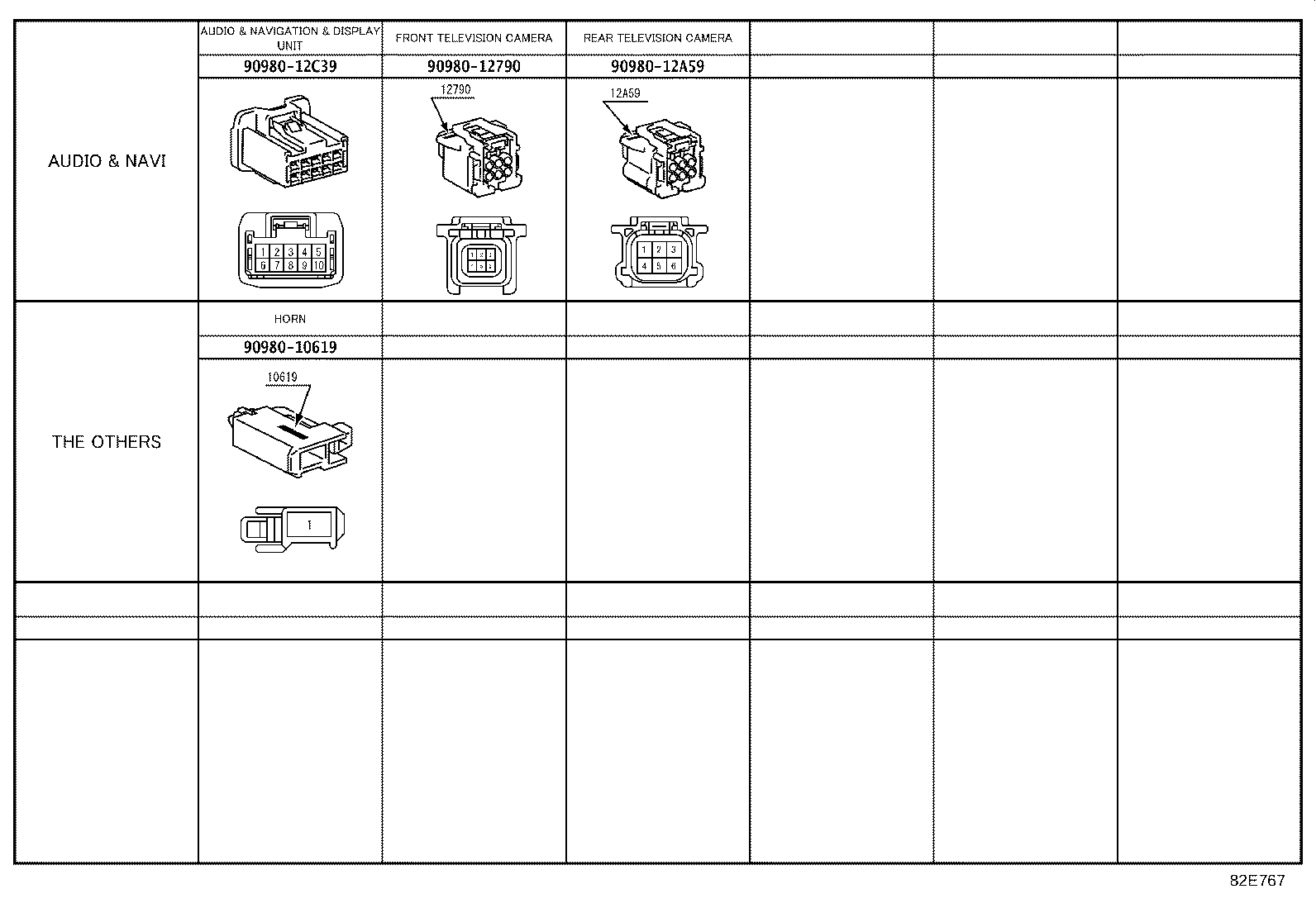

82E767
Part groups
| PNC | Description |
|---|---|
| 82001 | Cable, Bond, NO.1 |
| 82090A | Wire Assy, Extension |

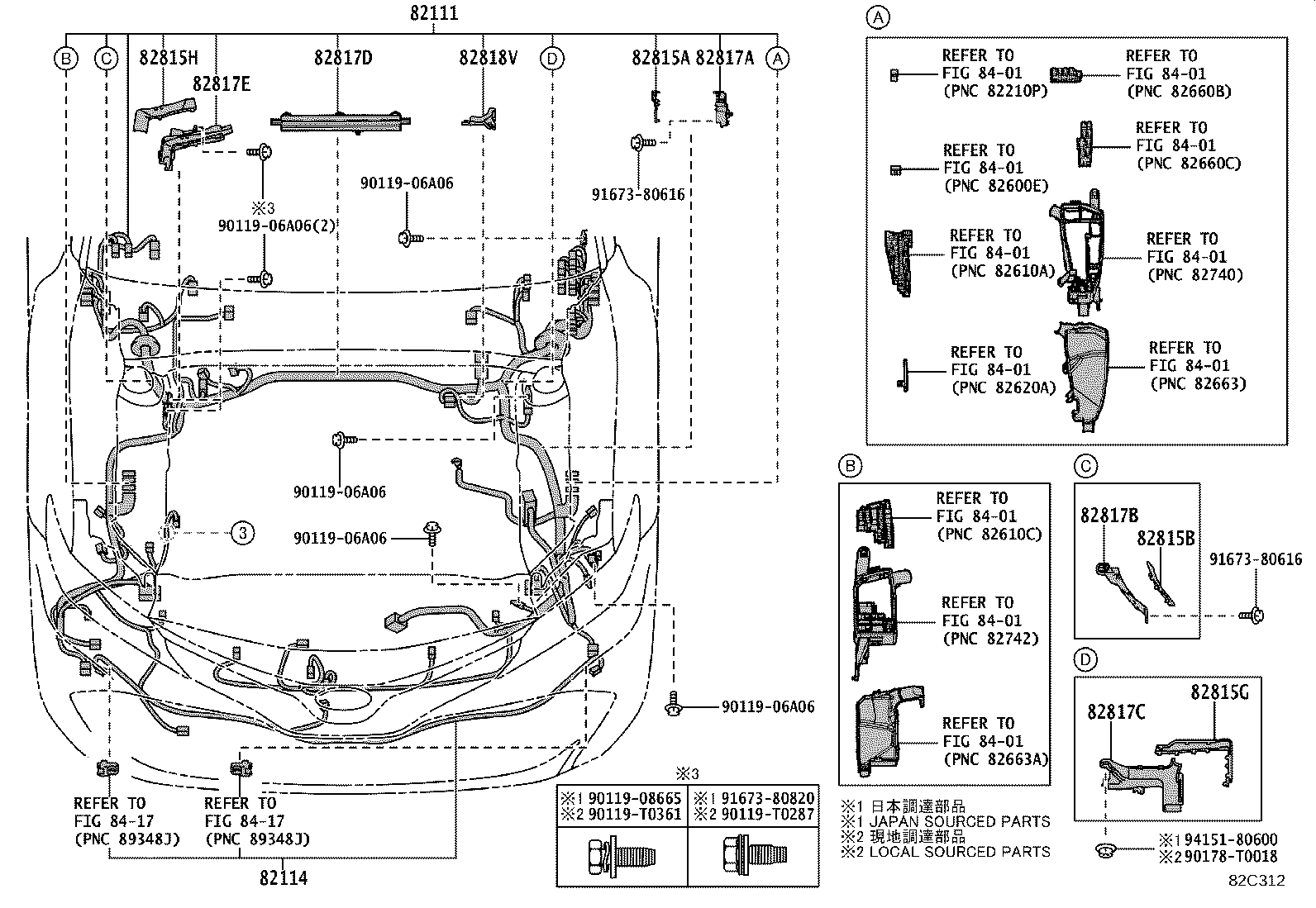

| 82111 | Wire, Engine Room Main |
| 82114 | Wire, Engine Room, NO.4 |

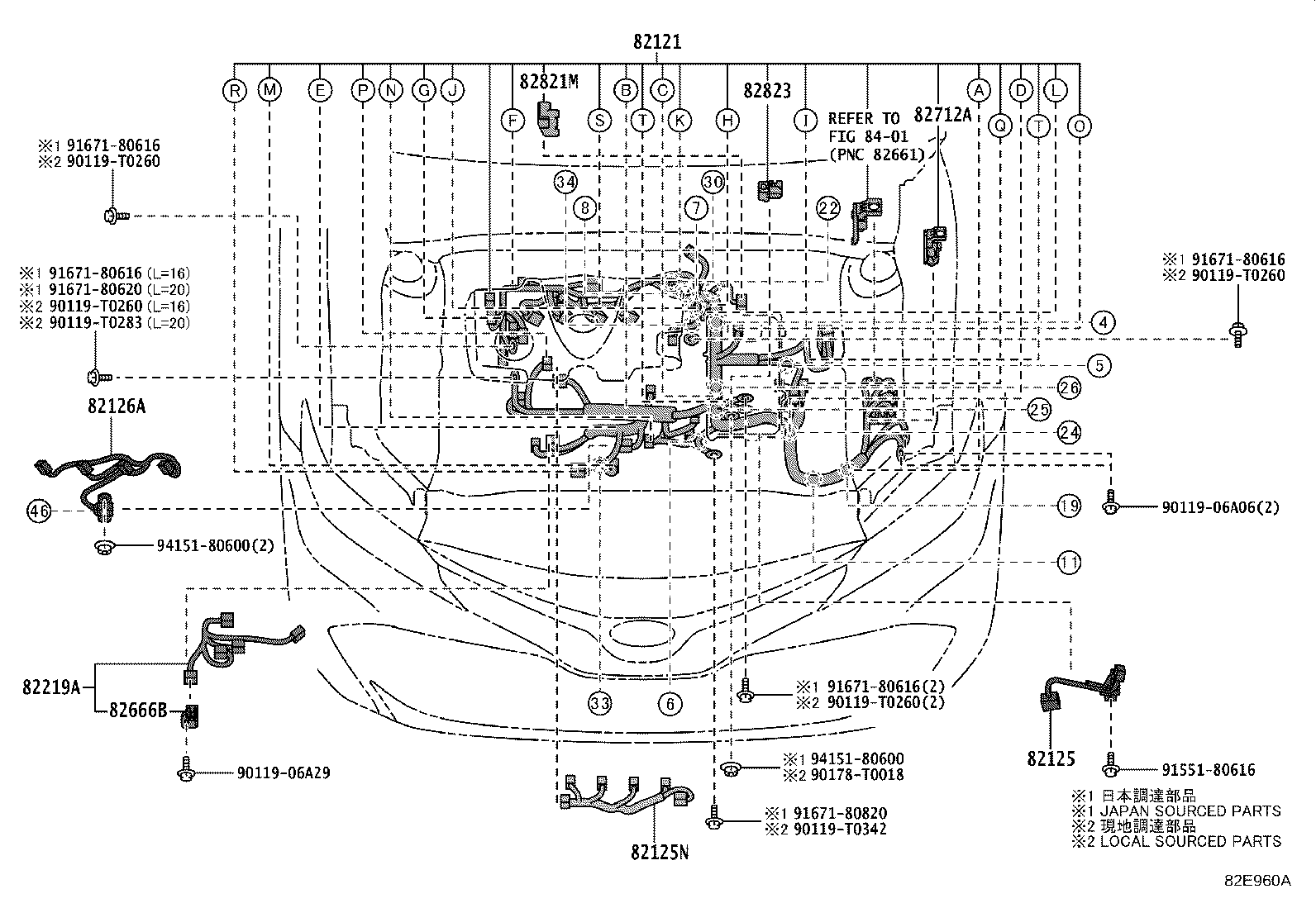

| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82123 | Wire, Engine, NO.3 |
| 82125 | Wire, Transmission |
| 82125N | Wire, Engine, NO.5 |
| 82126A | Wire, Engine, NO.6 |
| 82128A | Wire, Engine, NO.8 |

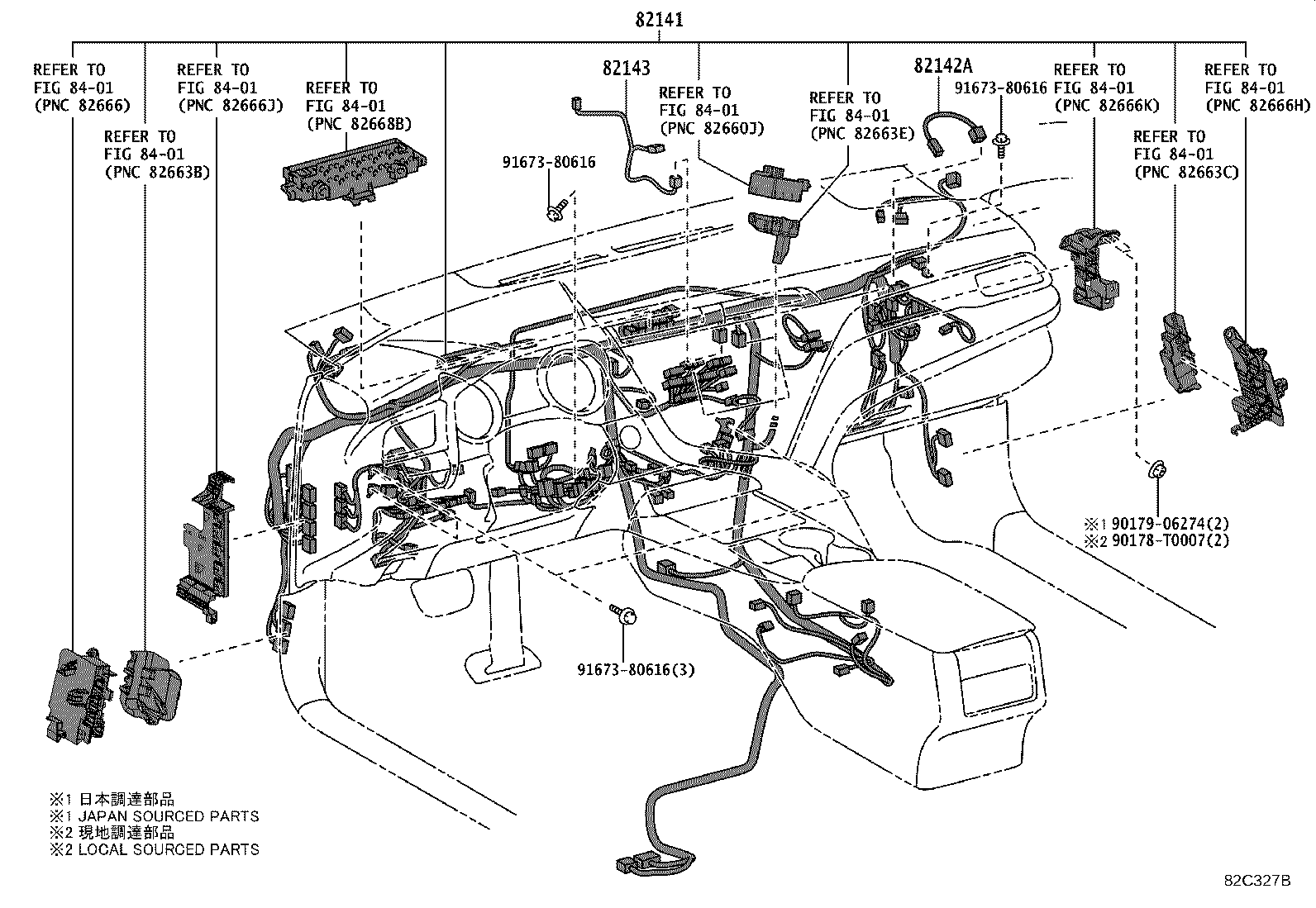

| 82141 | Wire, Instrument Panel |
| 82142A | Wire, Instrument Panel, NO.2 |
| 82143 | Wire, Instrument Panel, NO.3 |
| 82144 | Wire, Instrument Panel, NO.4 |
| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153A | Wire, Rear Door, RH |
| 82154A | Wire, Rear Door, LH |
| 82161 | Wire, Floor |
| 82163 | Wire, Floor, NO.3 |
| 82165 | Wire, Frame, NO.2 |
| 82169A | Wire, Floor, NO.6 |
| 82171 | Wire, Roof, NO.1 |
| 82176 | Wire, Rear Console Box |
| 82181 | Wire, Luggage Room, NO.1 |
| 82182 | Wire, Luggage Room, NO.2 |

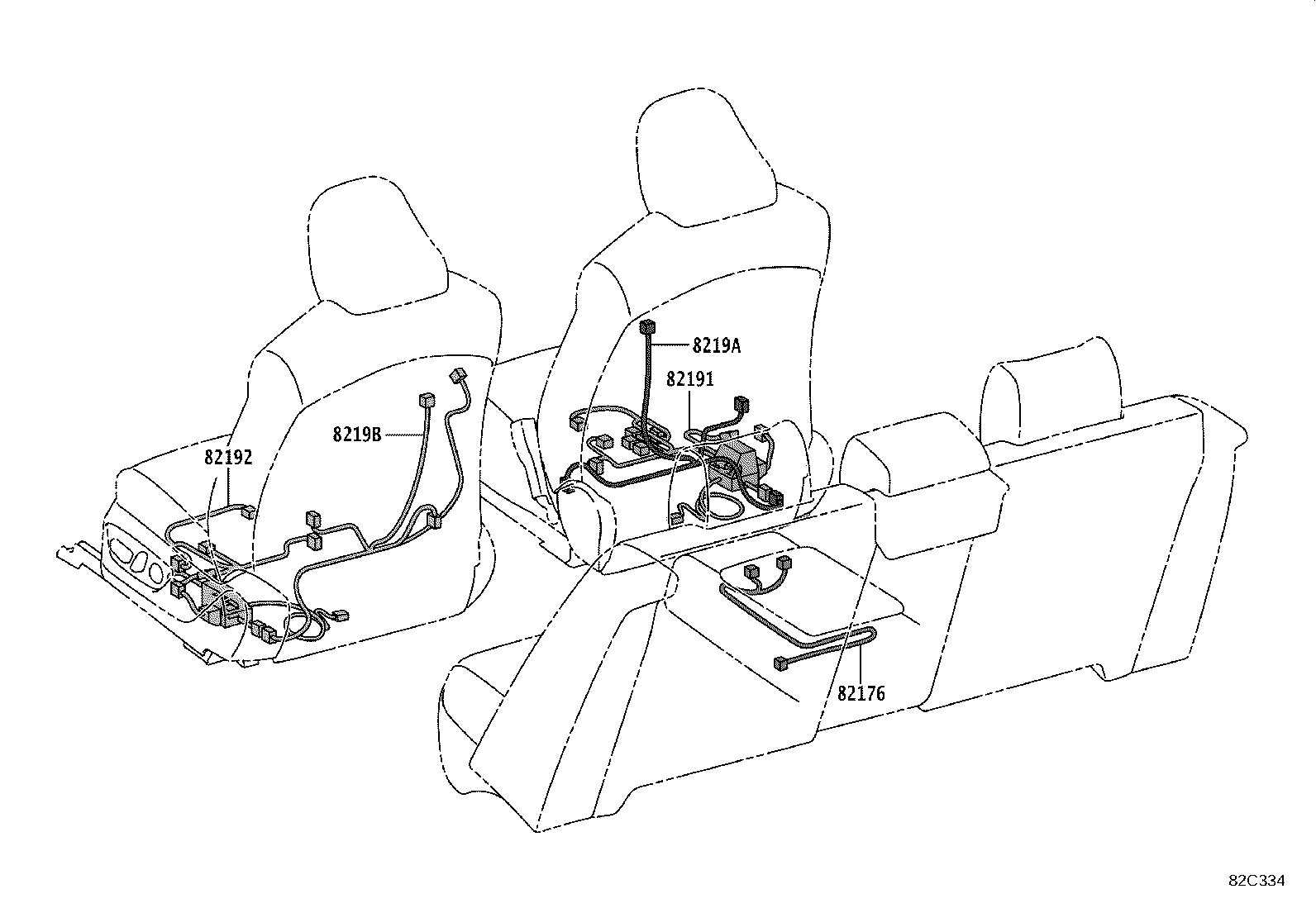

| 82191 | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 8219A | Wire, Front Seat, RH NO.2 |
| 8219B | Wire, Front Seat, LH NO.2 |
| 821H1 | Wire, Floor Under |
| 821H2 | Wire, HV Air Conditioner |
| 82219A | Wire, Sensor |
| 82284 | Wire, Earth |
| 82286A | Wire, Earth, NO.2 |
| 82413A | Wire, Fuel Tank |
| 82666B | Holder, Connector NO.3 |
| 82666V | Holder, Connector NO.15 |
| 82666W | Holder, Connector NO.16 |
| 82666X | Holder, Connector NO.17 |
| 82712A | Support, Wiring Harness |

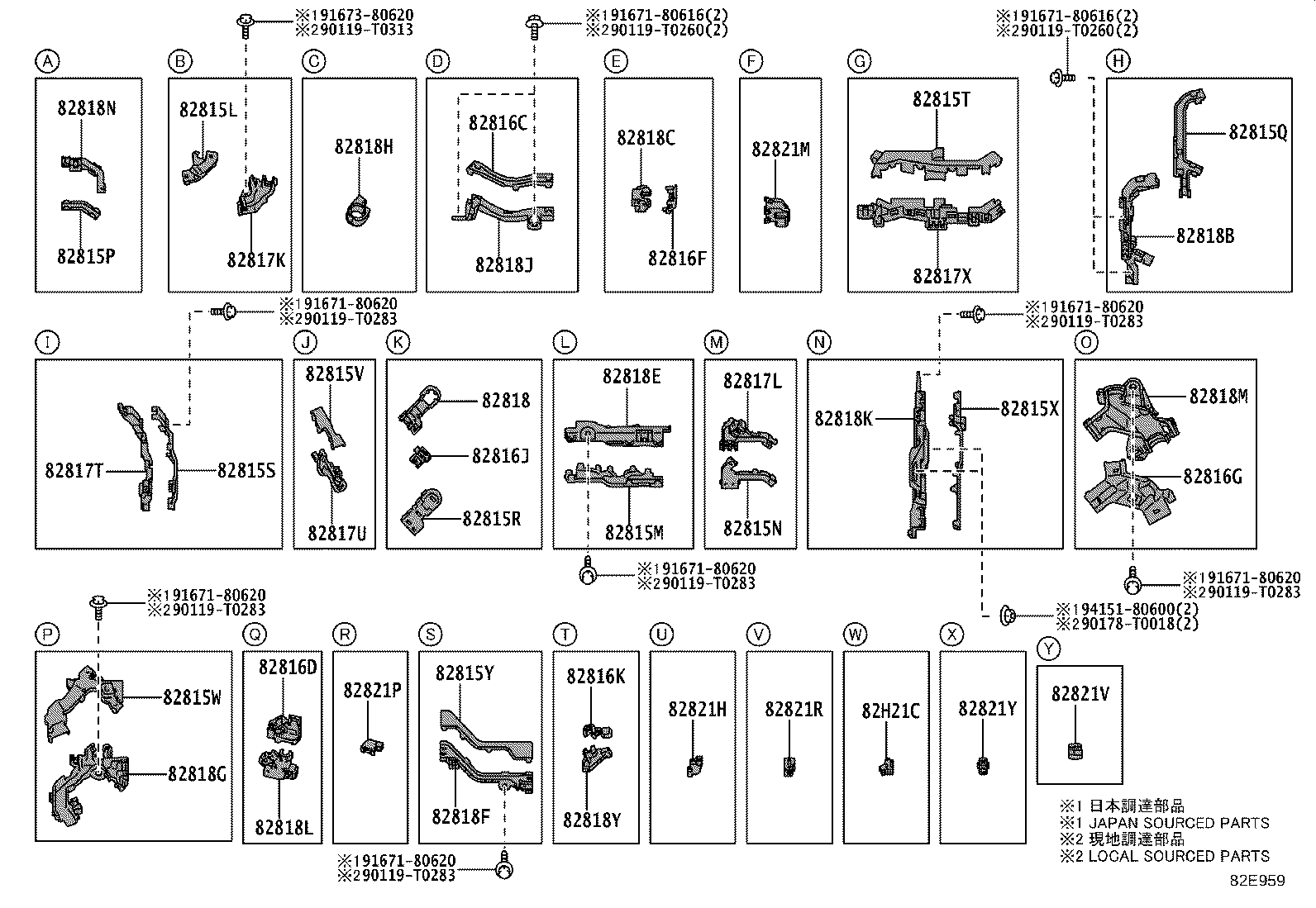

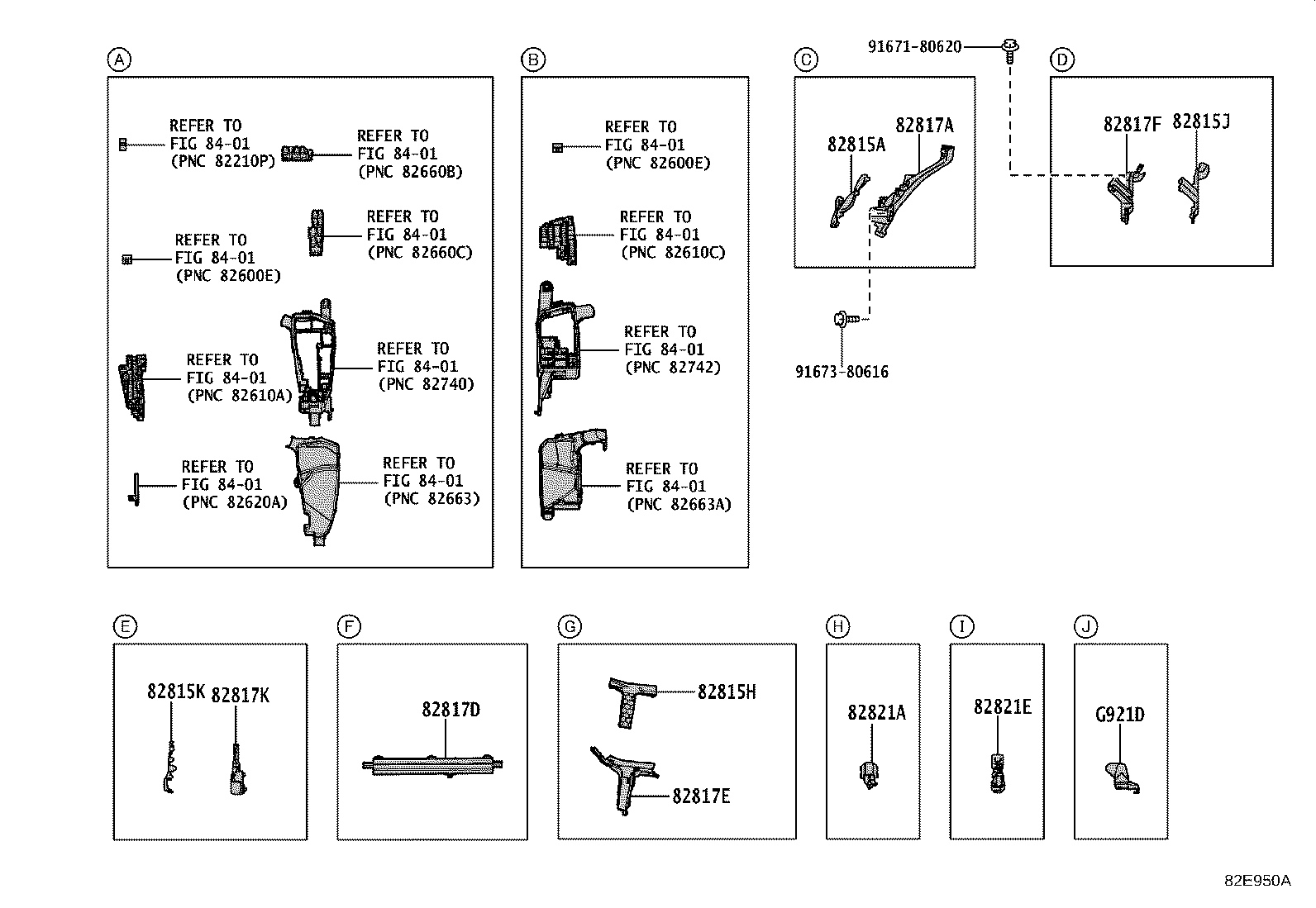

| 82815A | Cover, Wiring Harness Protector |
| 82815B | Cover, Wiring Harness Protector |
| 82815G | Cover, Wiring Harness Protector NO.5 |
| 82815H | Cover, Wiring Harness Protector NO.6 |
| 82815J | Cover, Wiring Harness Protector, NO.7 |
| 82815K | Cover, Wiring Harness Protector, NO.8 |
| 82815L | Cover, Wiring Harness Protector, NO.9 |
| 82815M | Cover, Wiring Harness Protector, NO.10 |
| 82815N | Cover, Wiring Harness Protector, NO.11 |
| 82815P | Cover, Wiring Harness Protector, NO.12 |
| 82815Q | Cover, Wiring Harness Protector, NO.13 |
| 82815R | Cover, Wiring Harness Protector, NO.14 |
| 82815S | Cover, Wiring Harness Protector, NO.15 |
| 82815T | Cover, Wiring Harness Protector, NO.16 |
| 82815U | Cover, Wiring Harness Protector, NO.17 |
| 82815V | Cover, Wiring Harness Protector, NO.1 |
| 82815W | Cover, Wiring Harness Protector, NO.2 |
| 82815X | Cover, Wiring Harness Protector, NO.3 |
| 82815Y | Cover, Wiring Harness Protector, NO.4 |
| 82815Z | Cover, Wiring Harness Protector, NO.18 |
| 82816B | Cover, Wiring Harness Protector, NO.1 |
| 82816C | Cover, Wiring Harness Protector, NO.2 |
| 82816D | Cover, Wiring Harness Protector, NO.3 |
| 82816F | Cover, Wiring Harness Protector, NO.4 |
| 82816G | Cover, Wiring Harness Protector, NO.5 |
| 82816H | Cover, Wiring Harness Protector, NO.6 |
| 82816J | Cover, Wiring Harness Protector, NO.7 |
| 82816K | Cover, Wiring Harness Protector, NO.8 |

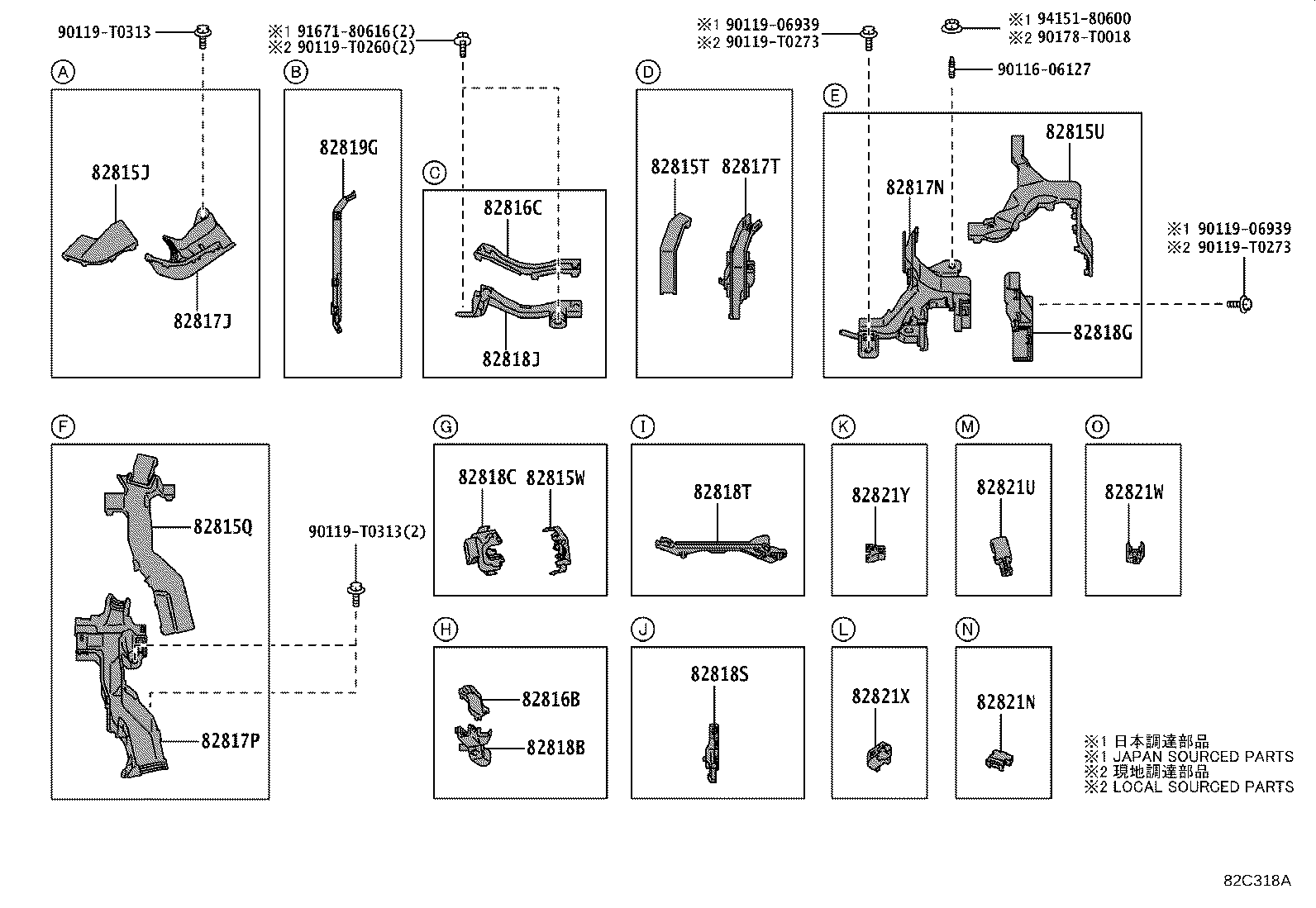

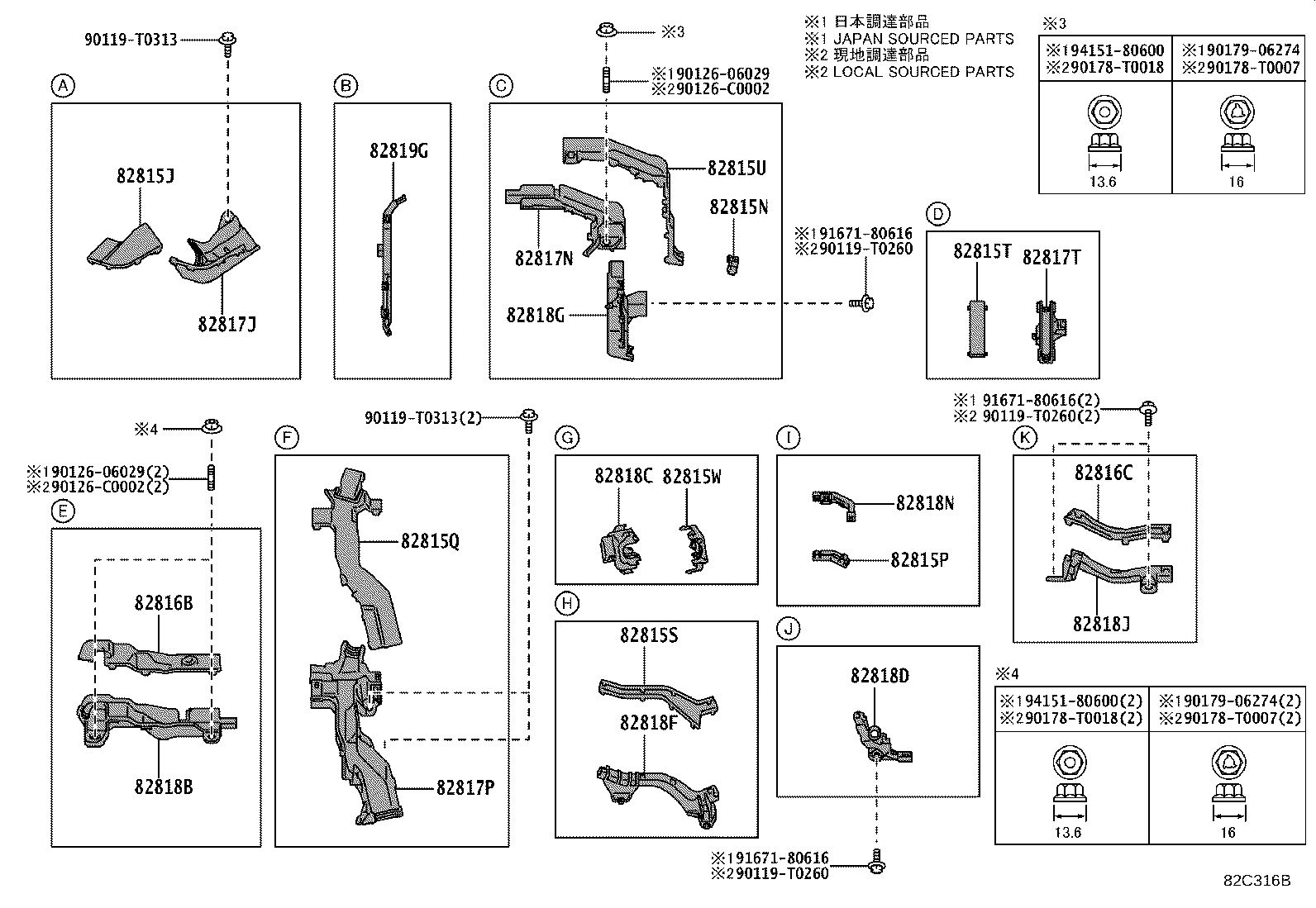

| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82817K | Protector, Wiring Harness, NO.10 |
| 82817L | Protector, Wiring Harness, NO.11 |
| 82817M | Protector, Wiring Harness, NO.12 |
| 82817N | Protector, Wiring Harness, NO.13 |
| 82817P | Protector, Wiring Harness, NO.14 |
| 82817T | Protector, Wiring Harness, NO.15 |
| 82817U | Protector, Wiring Harness, NO.16 |
| 82817X | Protector, Wiring Harness, NO.17 |
| 82818 | Protector, Wiring Harness, NO.2 |
| 82818B | Protector, Wiring Harness, NO.3 |
| 82818C | Protector, Wiring Harness, NO.4 |
| 82818D | Protector, Wiring Harness, NO.5 |
| 82818E | Protector, Wiring Harness, NO.6 |
| 82818F | Protector, Wiring Harness, NO.7 |
| 82818G | Protector, Wiring Harness, NO.8 |
| 82818H | Protector, Wiring Harness, NO.9 |
| 82818J | Protector, Wiring Harness, NO.10 |
| 82818K | Protector, Wiring Harness, NO.11 |
| 82818L | Protector, Wiring Harness, NO.12 |
| 82818M | Protector, Wiring Harness, NO.13 |
| 82818N | Protector, Wiring Harness, NO.14 |
| 82818S | Protector, Wiring Harness, NO.15 |
| 82818T | Protector, Wiring Harness, NO.16 |
| 82818U | Protector, Wiring Harness, NO.17 |
| 82818V | Protector, Wiring Harness, NO.18 |
| 82818W | Protector, Wiring Harness, NO.19 |
| 82818Y | Protector, Wiring Harness, NO.21 |
| 82819G | Protector, Wiring Harness, NO.23 |
| 82821A | Cover, Connector |
| 82821E | Cover, Connector |
| 82821H | Cover, Connector |
| 82821M | Cover, Connector |
| 82821N | Cover, Connector |
| 82821P | Cover, Connector |
| 82821R | Cover, Connector |
| 82821U | Cover, Connector |
| 82821V | Cover, Connector |
| 82821W | Cover, Connector |
| 82821X | Cover, Connector |
| 82821Y | Cover, Connector |
| 82823 | Cap, Terminal, NO.1 |
| 82823S | Cap, Starter Terminal |
| 82823T | Cap, Alternator Terminal |
| 82824D | Connector, Wiring Harness |
| 82H21C | Cover, Connector |
| 82H21G | Cover, Connector |
| 82H21H | Cover, Connector |
| 890C0 | Wire Assy, Parking Brake, NO.1 |
| 890C0A | Wire Assy, Parking Brake, NO.2 |
| G921D | Protector, Inverter Connector Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
