Toyota Crown

1987-09 → 1991-10 · chassis YS132,MS13#,GS131,LS130 · catalogue 331260 · General

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

44 part groups · 17 illustrations

Illustrations

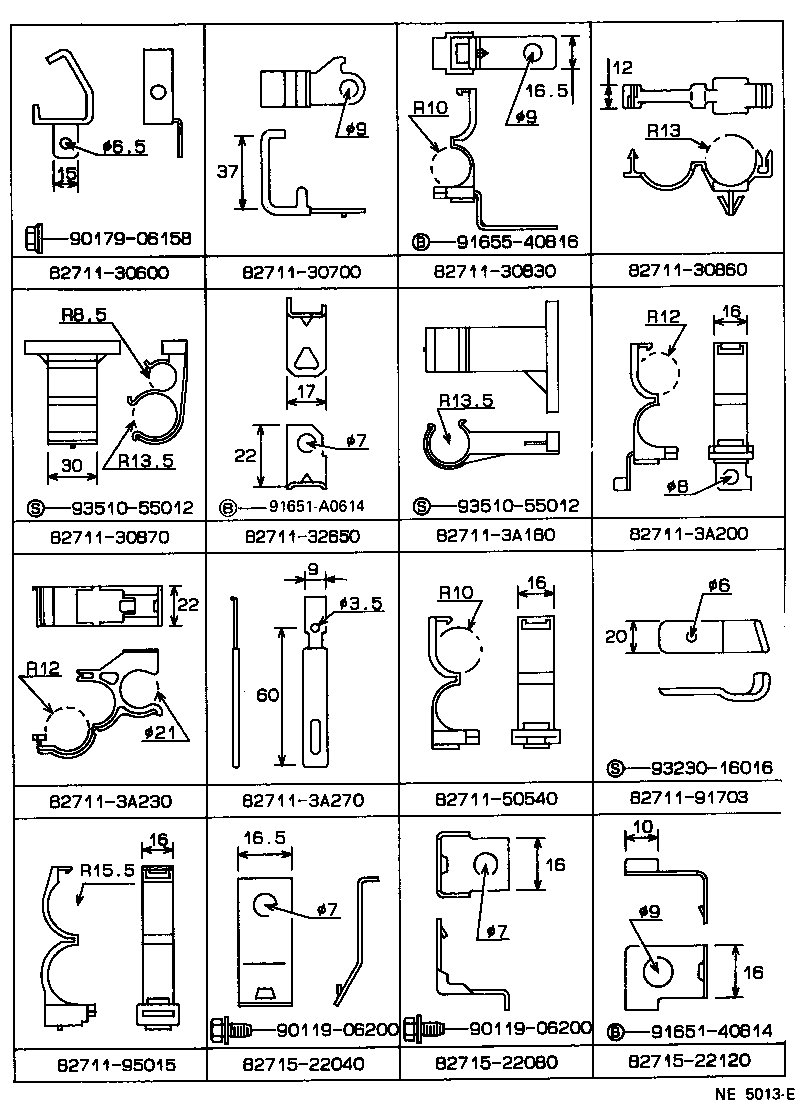

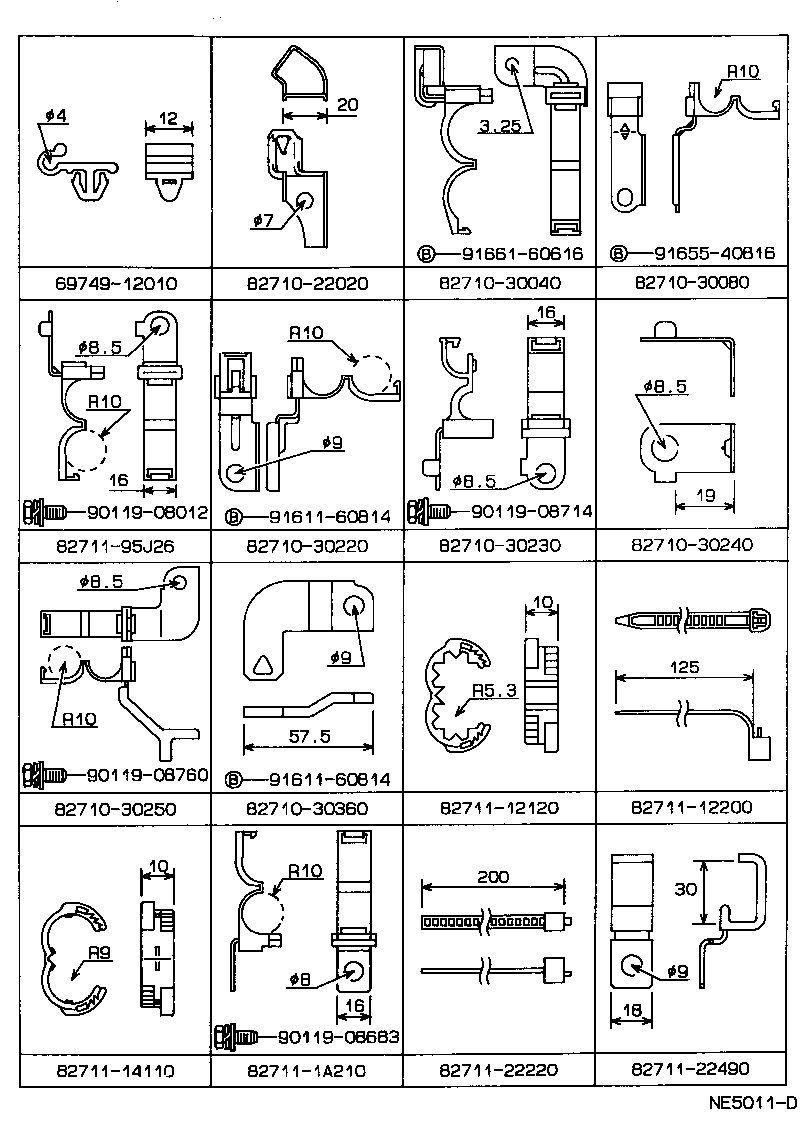

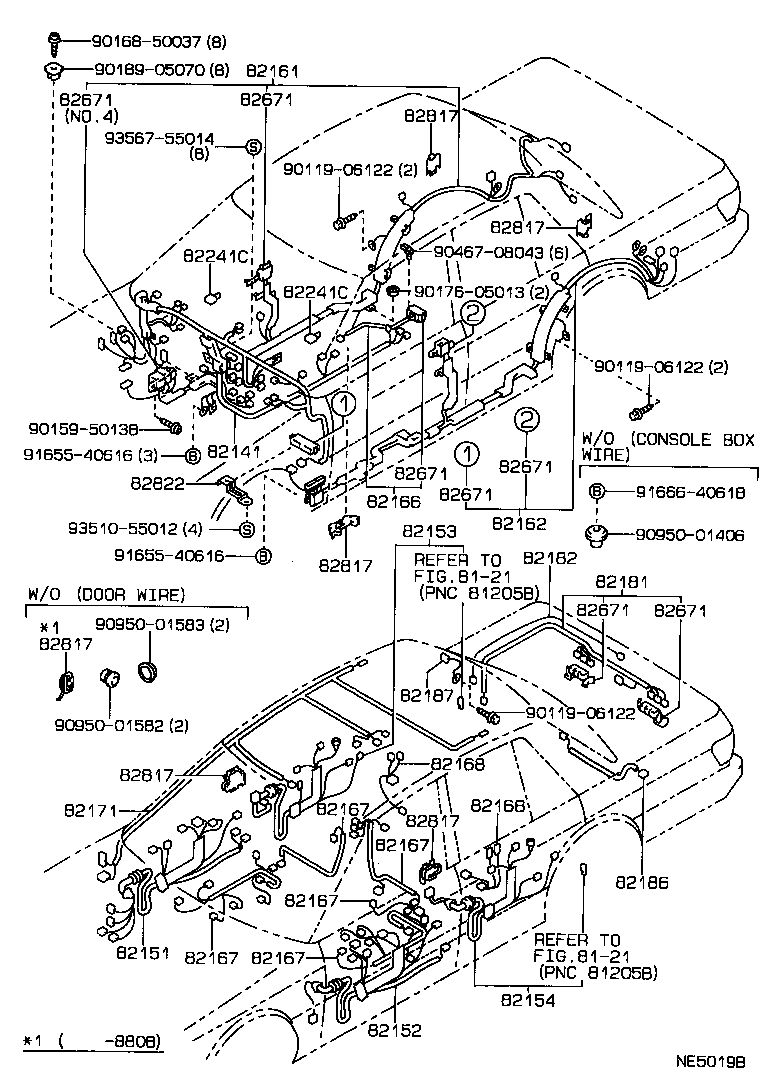

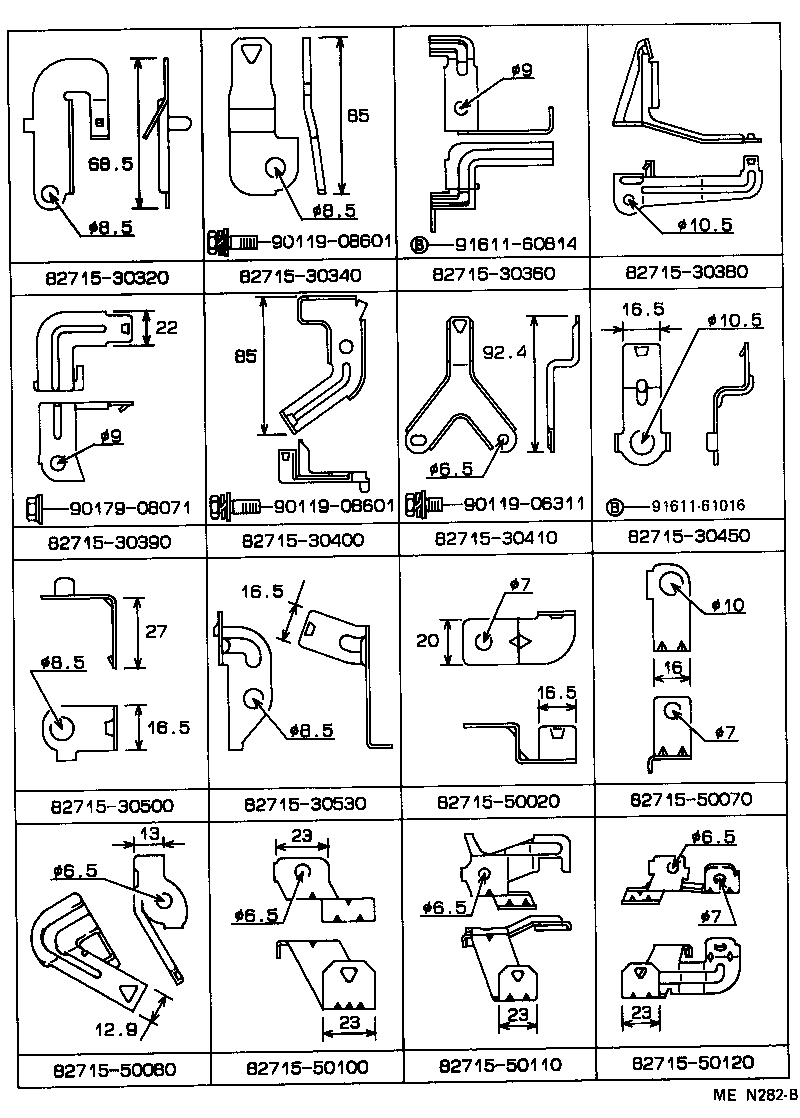

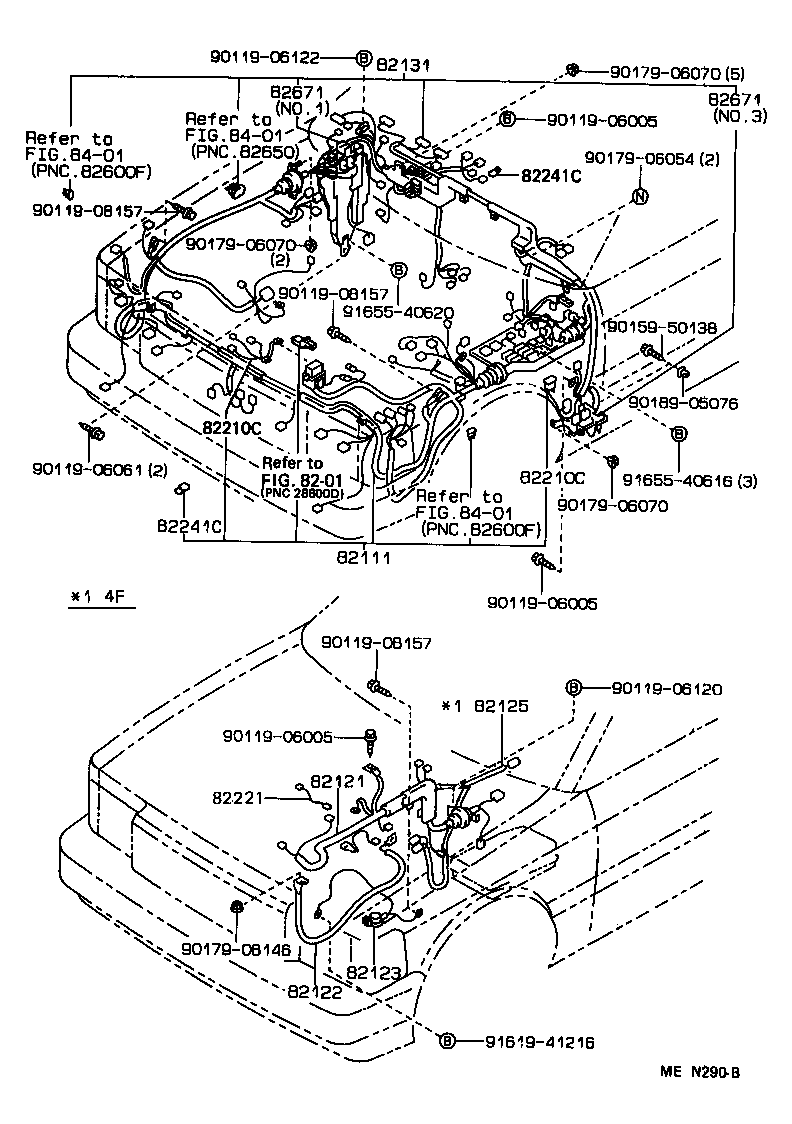

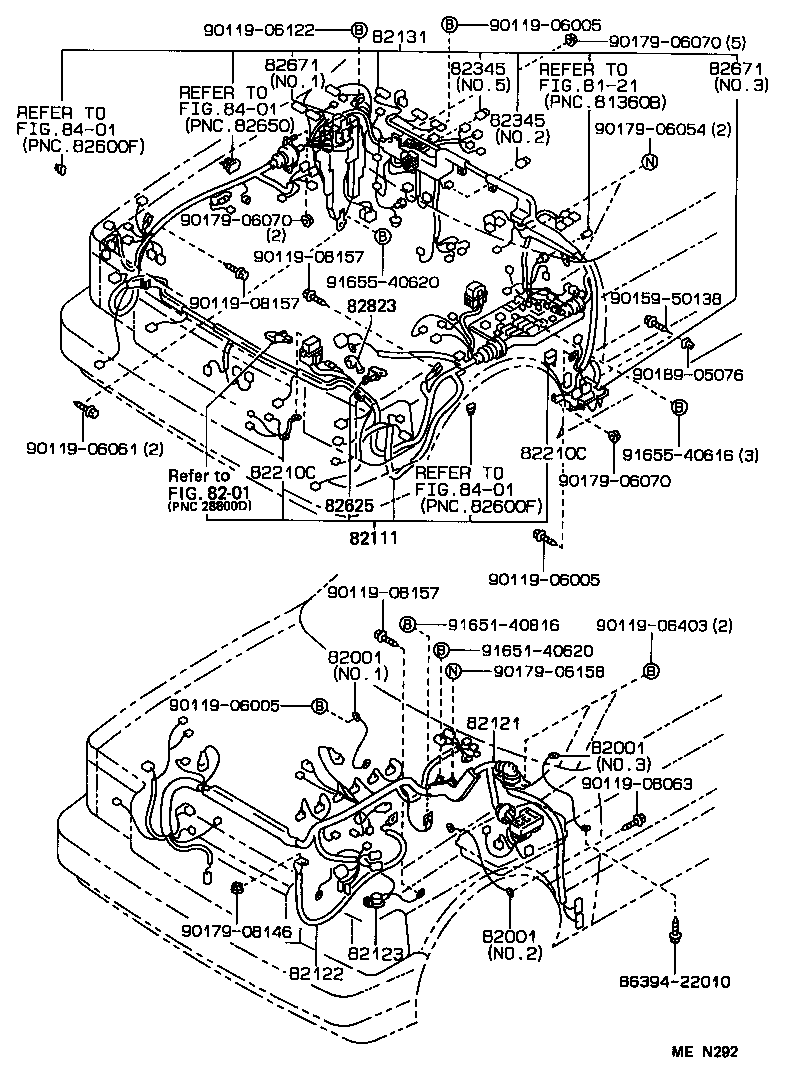

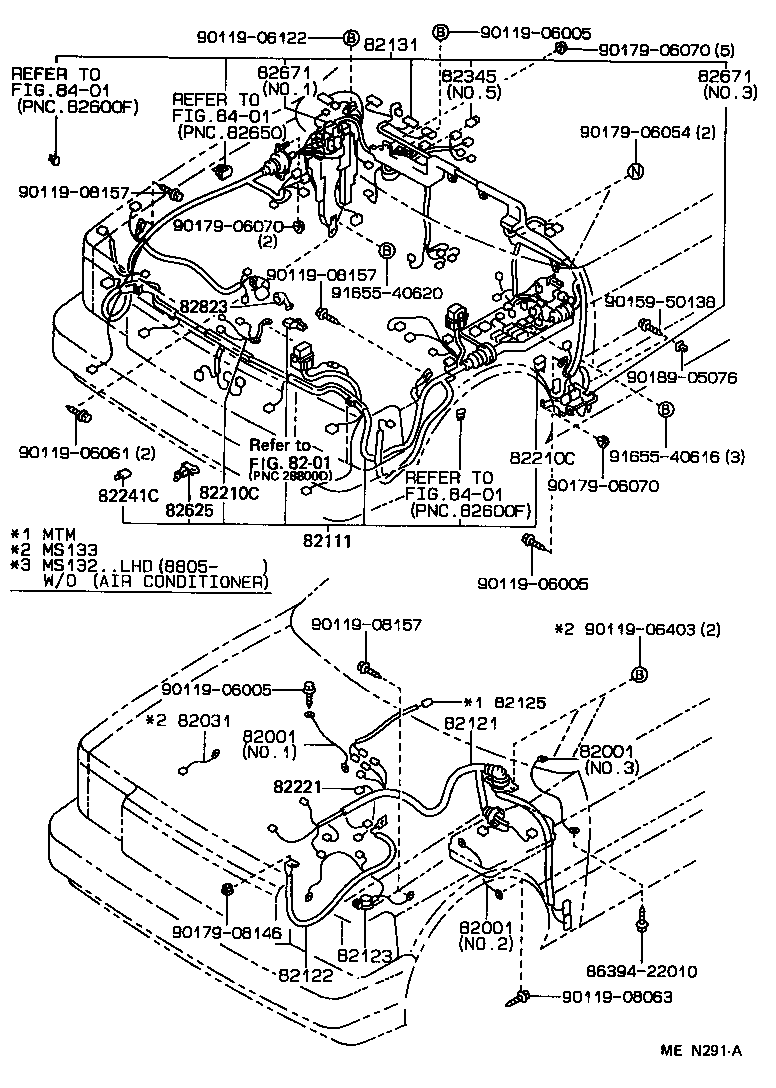

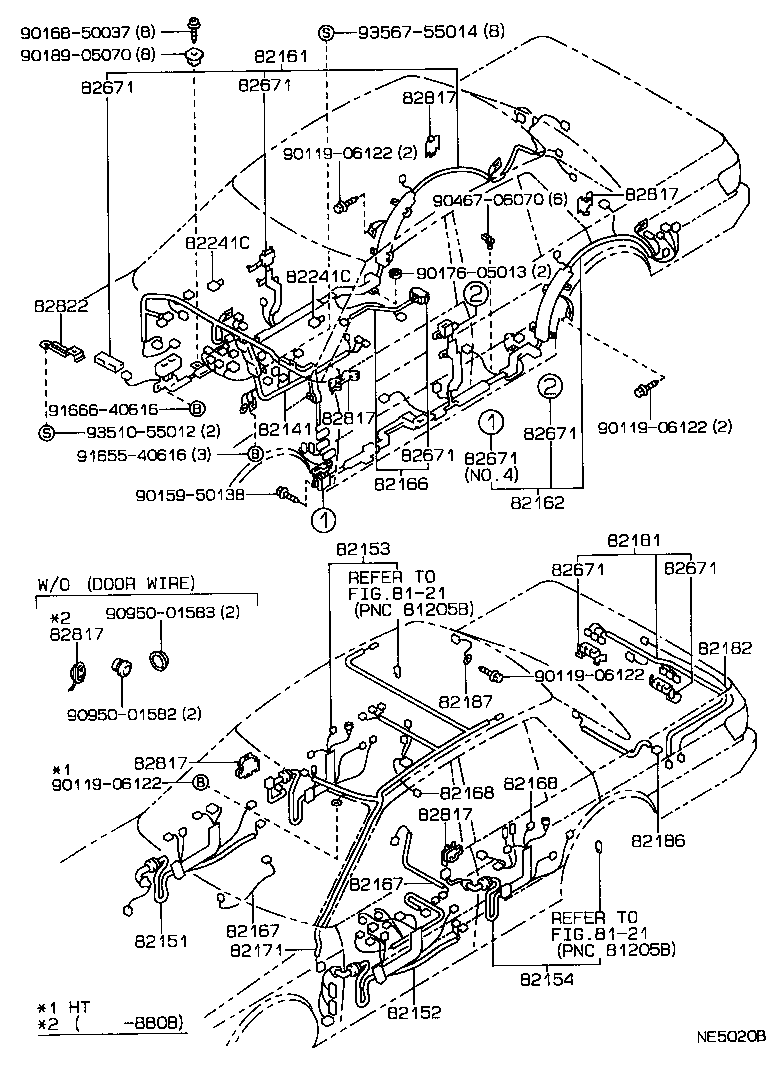

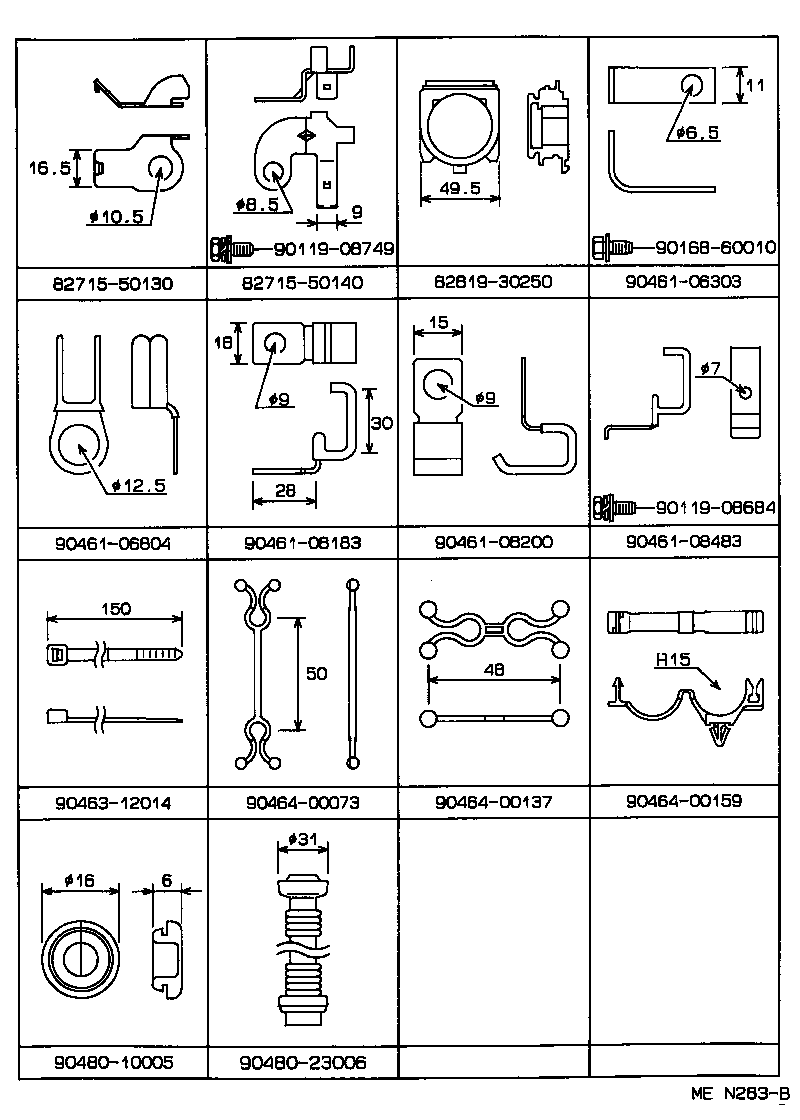

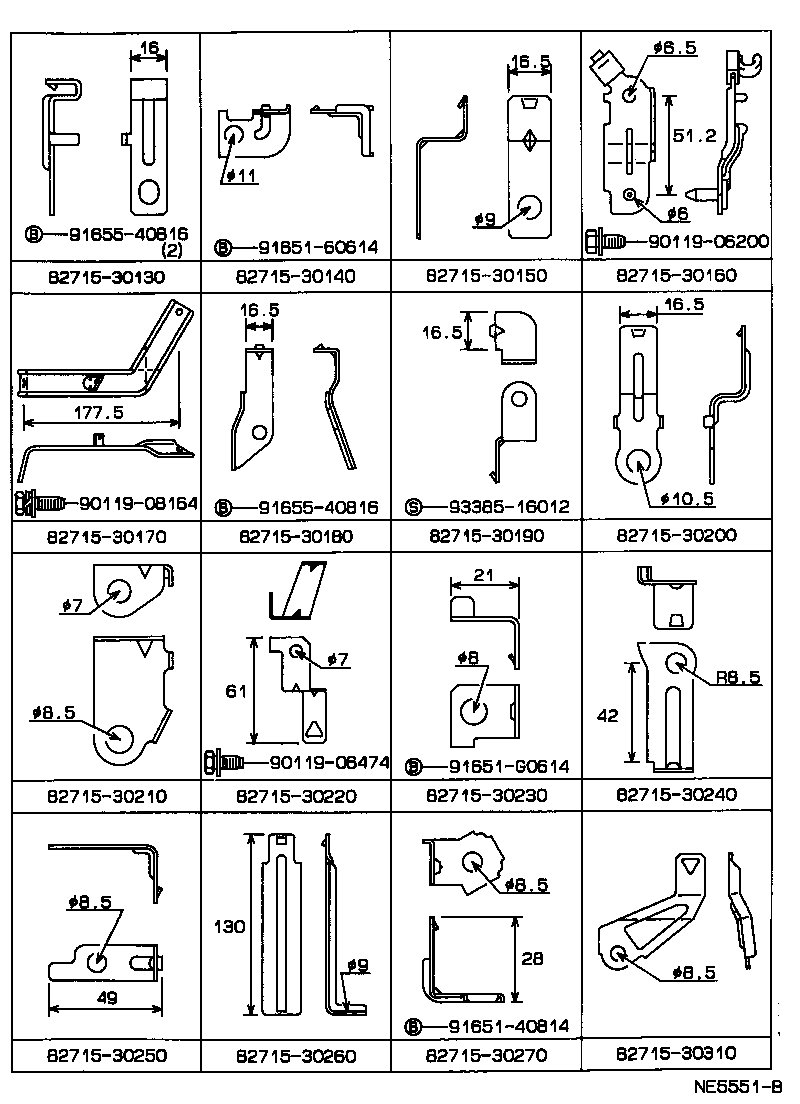

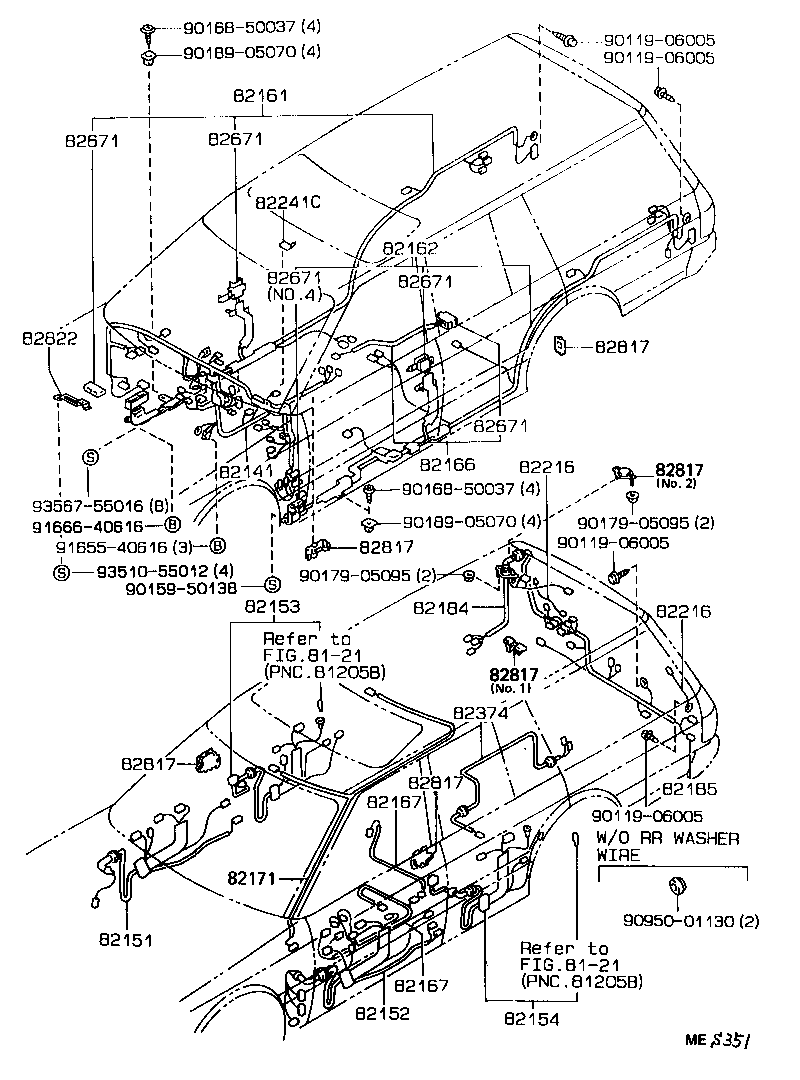

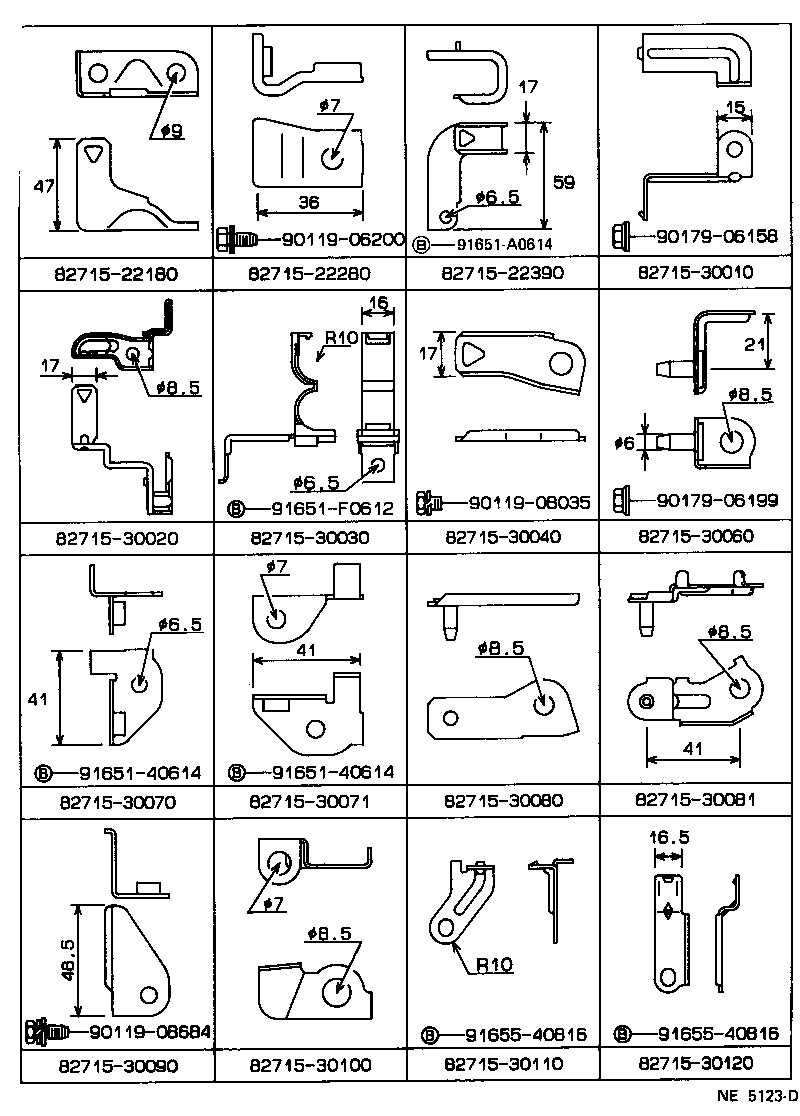

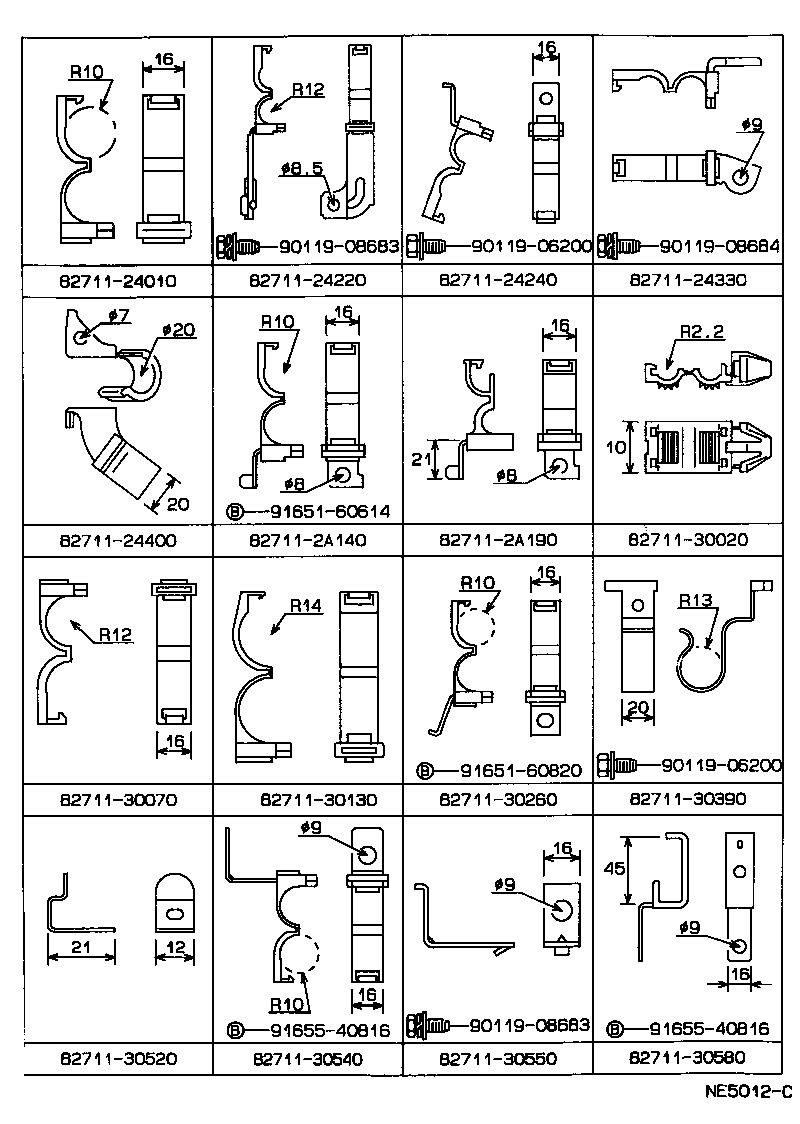

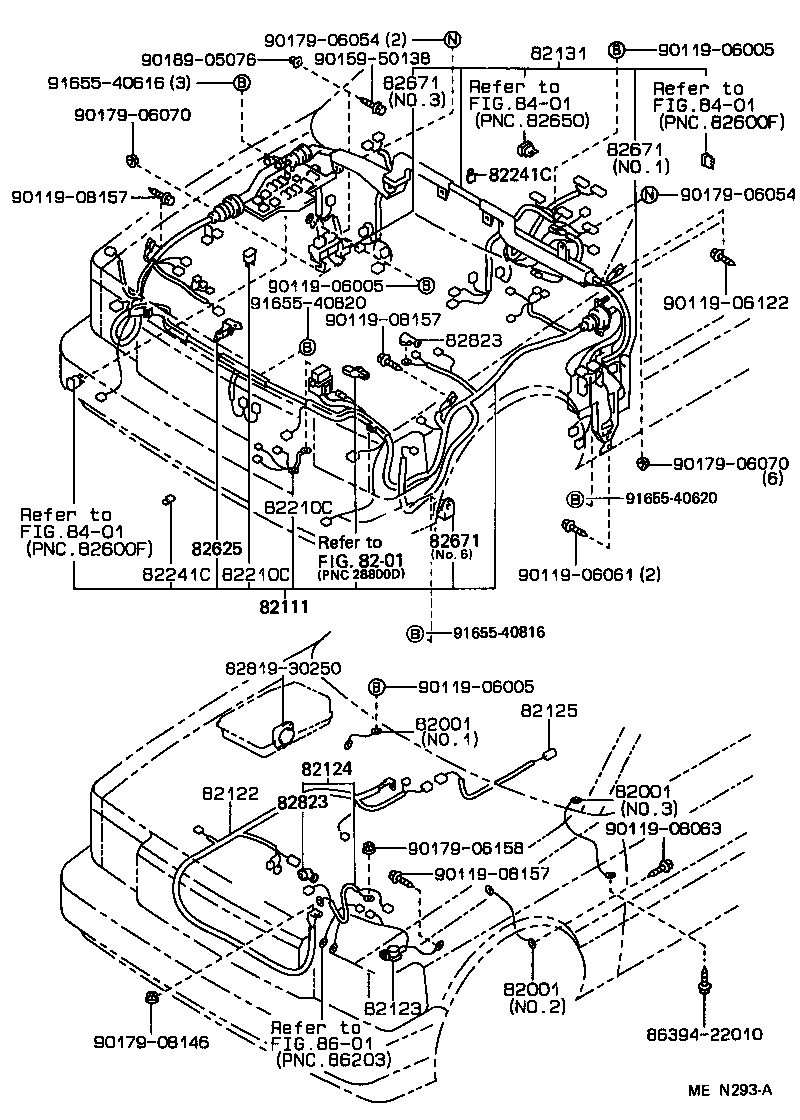

Figure MEN289A MEN289A 1988-12 → — Figure MEN290B MEN290B 1987-09 → — Figure MEN291A MEN291A 1987-09 → — Figure MEN292 MEN292 1987-09 → — Figure MEN293A MEN293A 1987-09 → — Figure NE5019B NE5019B 1987-09 → — Figure NE5020B NE5020B 1987-09 → — Figure MES351 MES351 1987-09 → — Figure NE5011D NE5011D 1987-09 → — Figure NE5012C NE5012C 1987-09 → — Figure NE5013E NE5013E 1987-09 → — Figure NE5123D NE5123D 1987-09 → — Figure NE5551B NE5551B 1987-09 → — Figure MEN282B MEN282B 1987-09 → — Figure MEN283B MEN283B 1987-09 → — Figure NE5024B NE5024B 1987-09 → — Figure NE5048B NE5048B 1987-09 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82031 Wire Sub-assy, Ignition Coil
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82166 Wire, Console Box
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82216 Wire, Rear Window Defogger
82221 Wire, Oil Pressure Switch
82241C Wire, Relay
82345 Diode
82374 Wire, Washer
82625 Terminal, Fusible Link
82671 Block, Junction
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82822 Bracket,Connector Block
82823 Cap, Terminal, NO.1

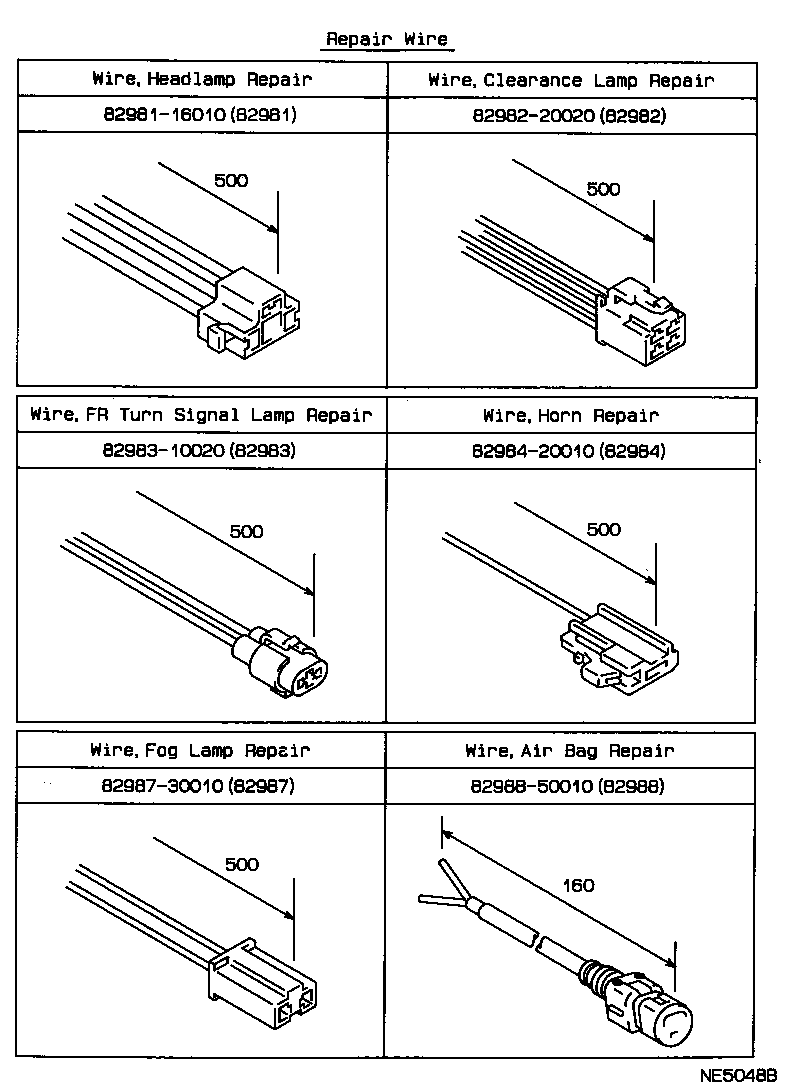

82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82987 Wire, Fog Lamp Repair
82988 Wire, Airbag Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
