Toyota Crown
1991-10 → 2001-04 · chassis GS131,JZS133,LS130,YS132 · catalogue 331270 · General
Discontinued model
Data version 2002-01

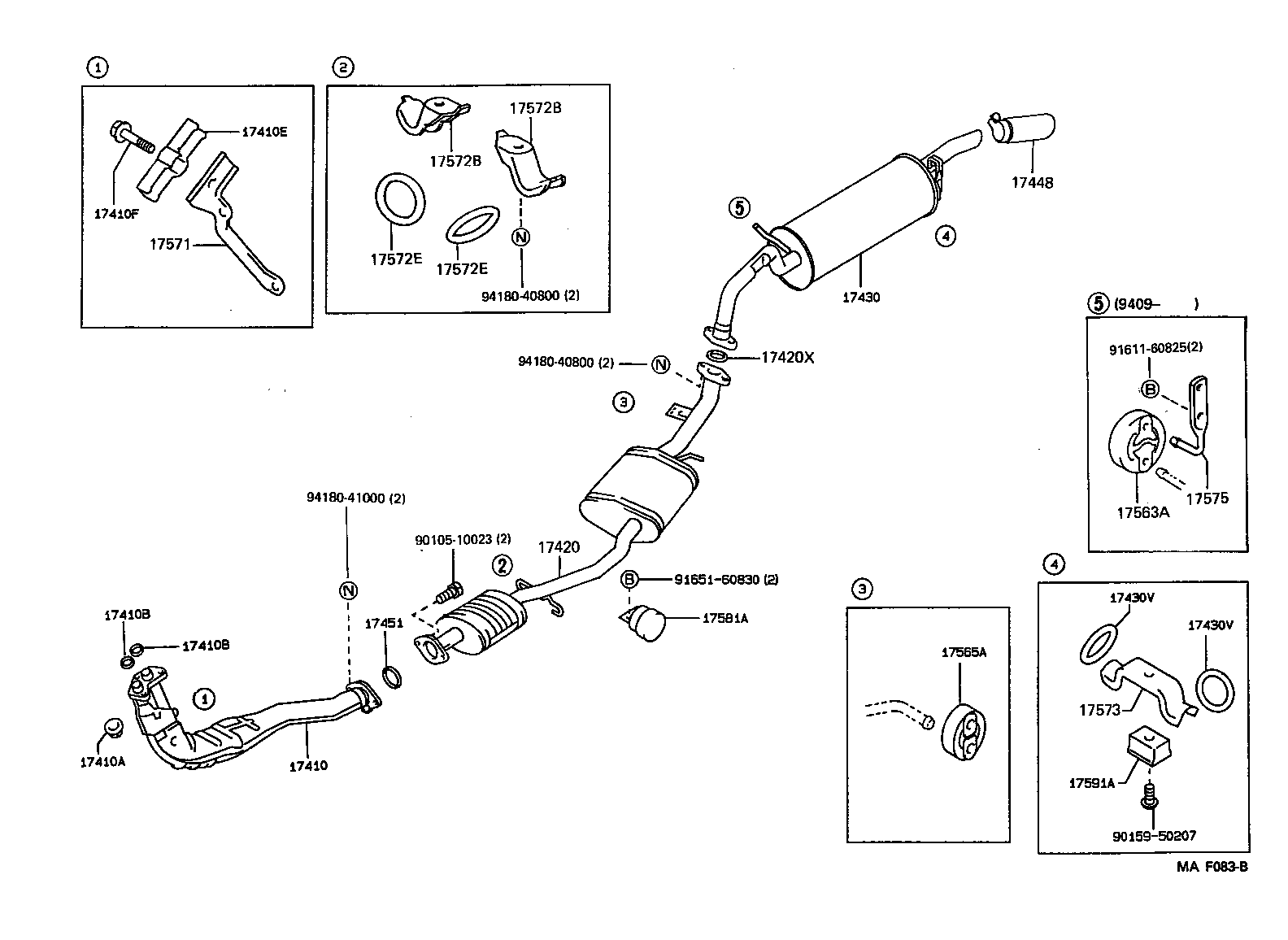

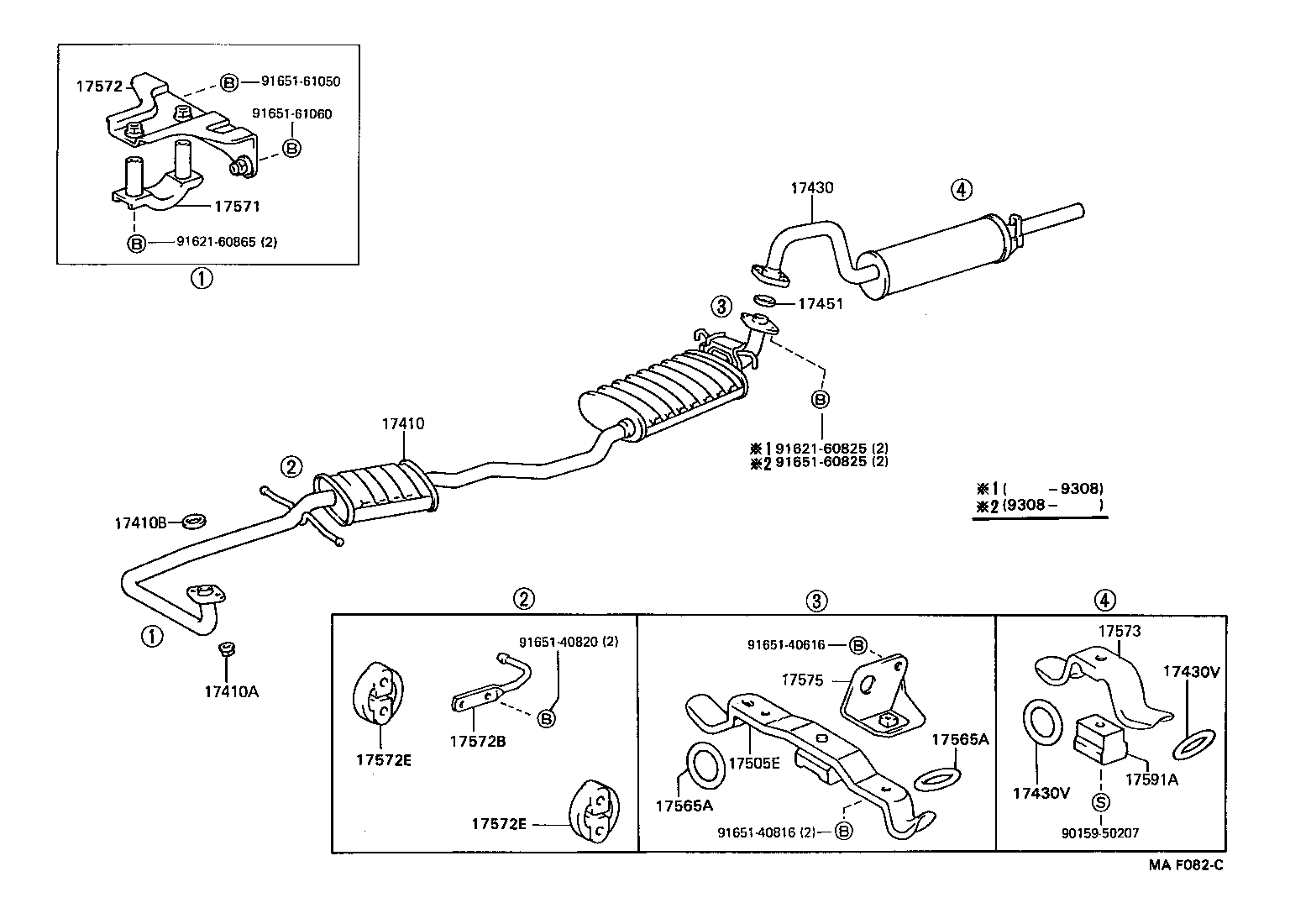

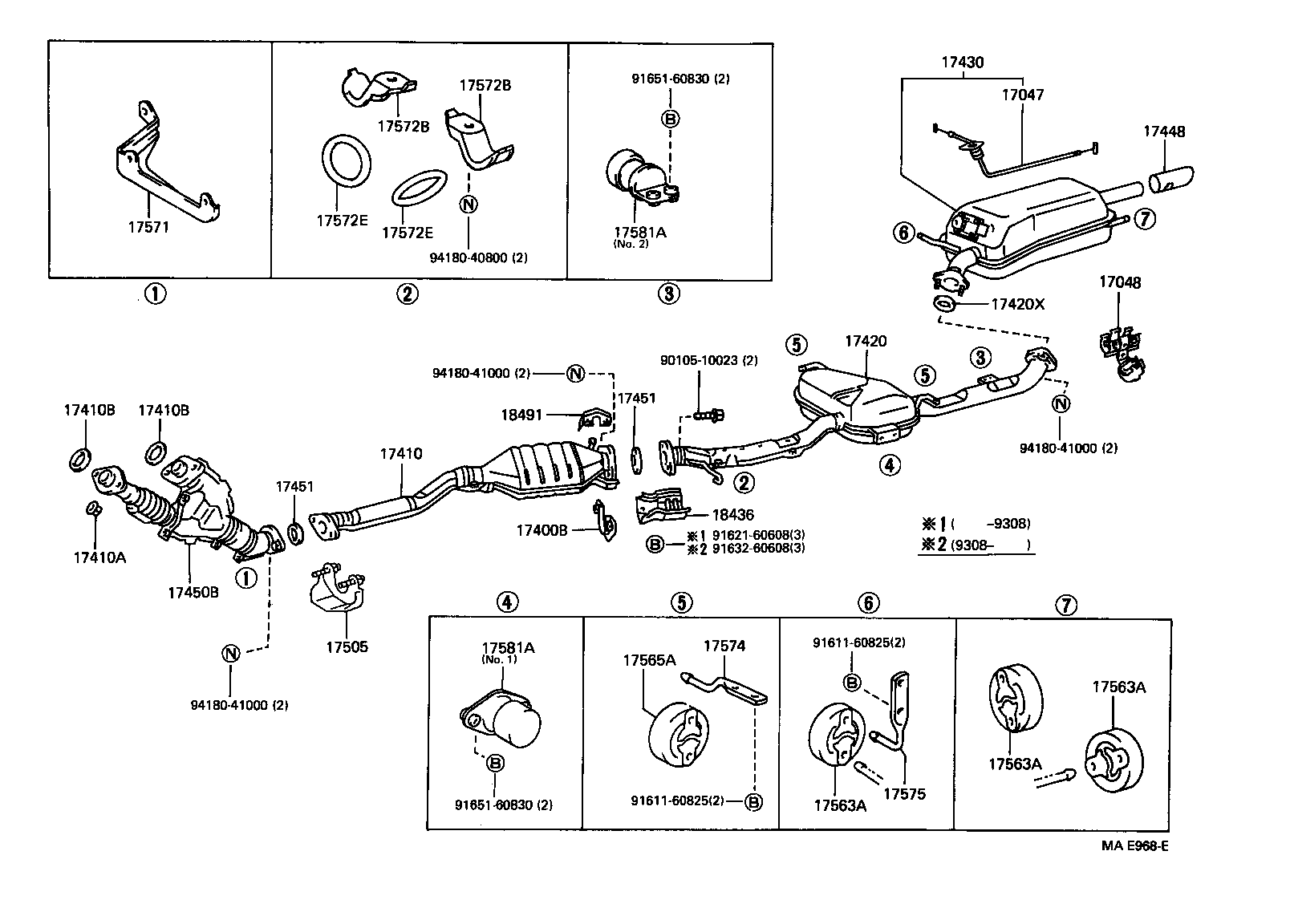

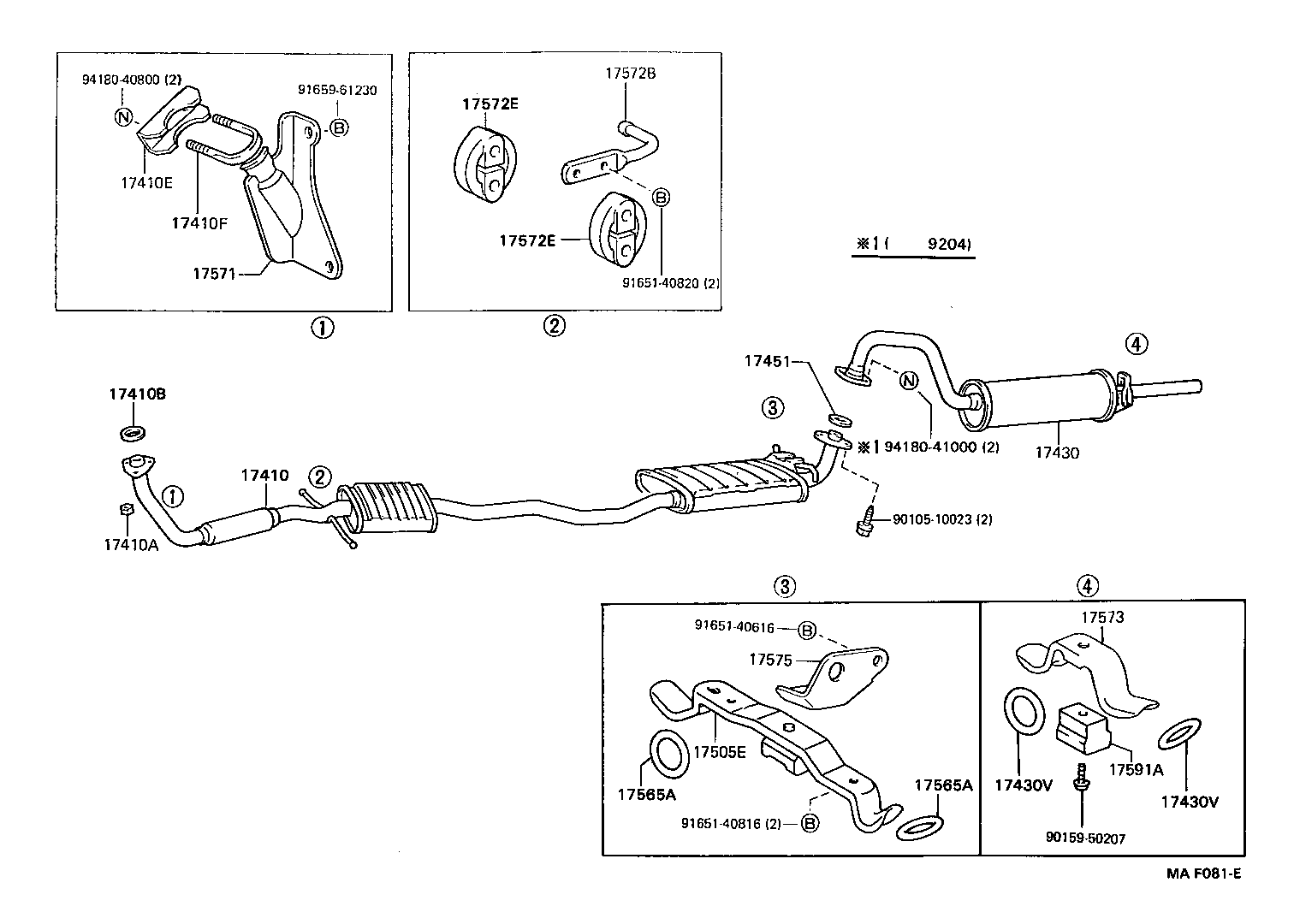

Exhaust Pipe
30 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 17047 | Cable Sub-assy, Exhaust Pipe Gas Control |
| 17048 | Clamp Sub-assy, Exhaust Pipe Gas Control Cable |
| 17400B | Retainer, Exhaust Pipe |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17410E | Clamp NO.1, Exhaust Pipe Front (FOR FRONT) |
| 17410F | Bolt OR Ring, Exhaust Pipe Front (FOR FRONT) |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17430V | Bolt OR Ring, Exhaust Tailpipe (FOR REAR) |
| 17448 | Baffle, Tailpipe |
| 17450B | Pipe Assy, Exhaust, Front NO.2 |
| 17451 | Gasket, Exhaust Pipe |
| 17505 | Insulator Sub-assy, Exhaust Pipe Heat NO.1 |
| 17505E | Support Sub-assy, Catalytic Converter |
| 17563A | Support, Exhaust Pipe, NO.3 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17572 | Bracket, Exhaust Pipe NO.1 Support |
| 17572B | Bracket, Exhaust Pipe Support, NO.2 |
| 17572E | Ring,O(FOR BRACKET, EXHAUST PIPE SUPPORT, NO.2) |
| 17573 | Bracket, Exhaust Pipe NO.1 Support, Lower |
| 17574 | Bracket, Exhaust Pipe Support, NO.4 |
| 17575 | Bracket, Exhaust Pipe Support, NO.5 |
| 17581A | Damper, Exhaust Pipe |
| 17591A | Stopper, Exhaust Pipe Support |
| 18436 | Protector, Monolithic Converter, NO.1 |
| 18491 | Flange, Thermosensor Inlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
