Toyota Crown

1991-10 → 2001-04 · chassis GS131,JZS133,LS130,YS132 · catalogue 331270 · General

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

21 part groups · 8 illustrations

Illustrations

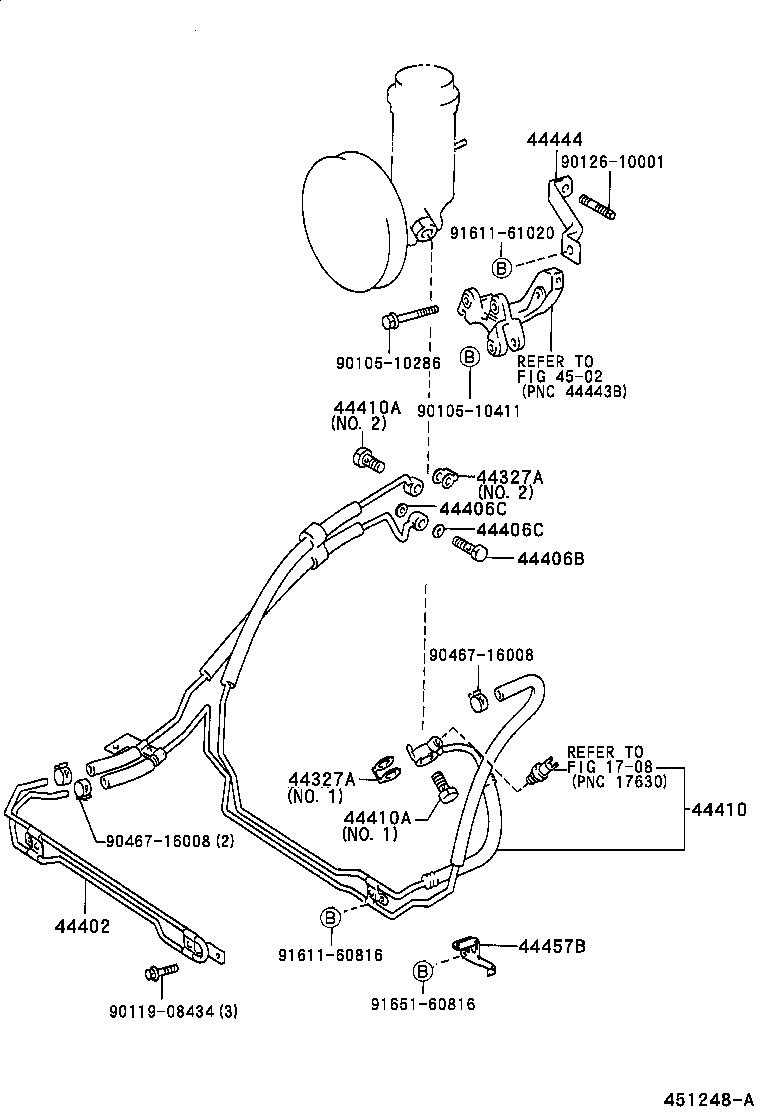

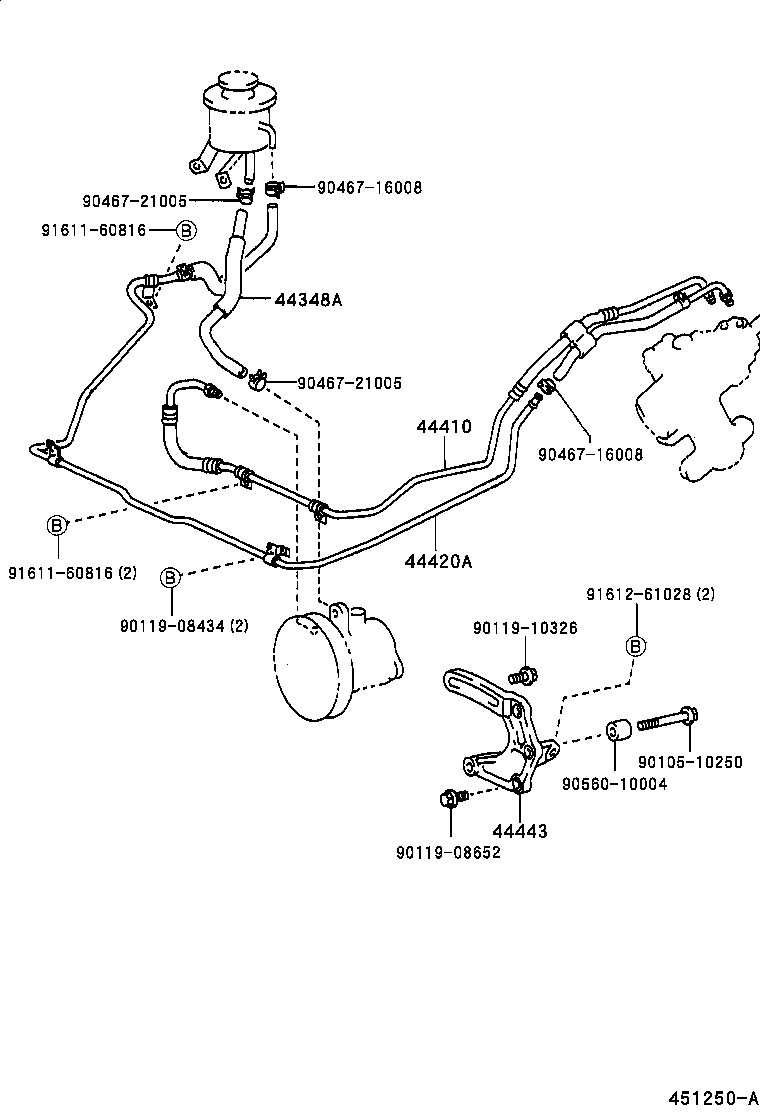

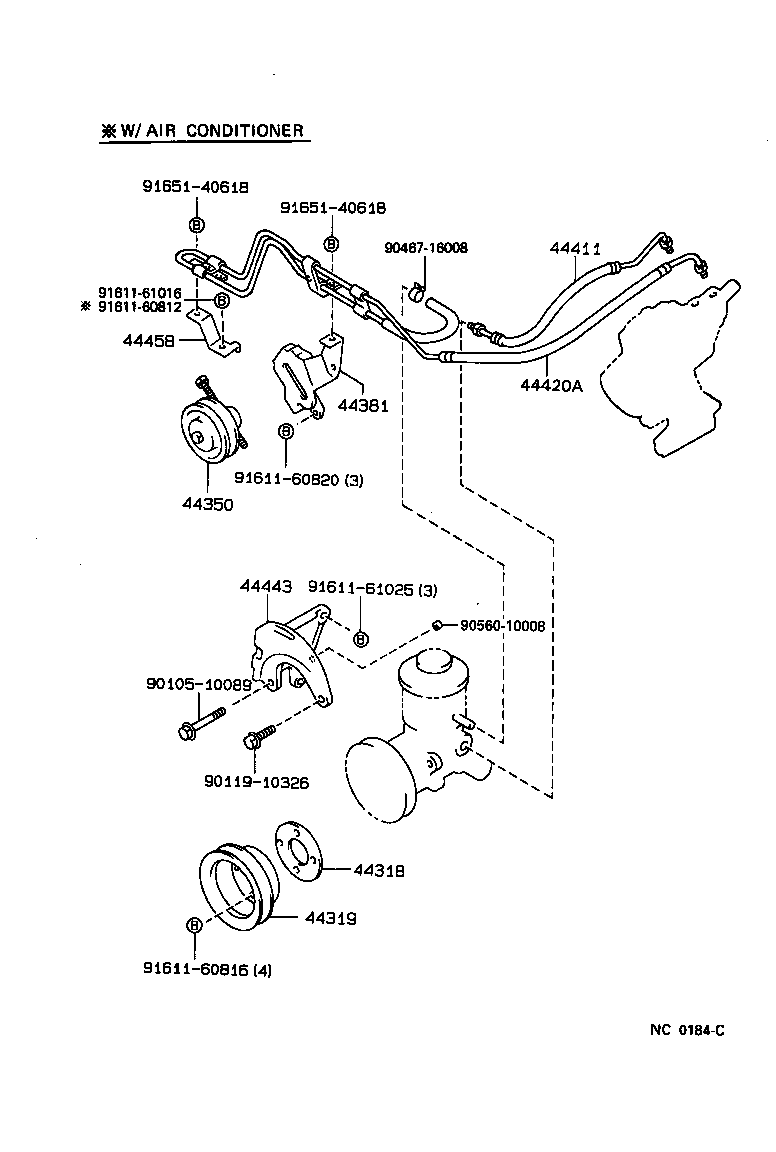

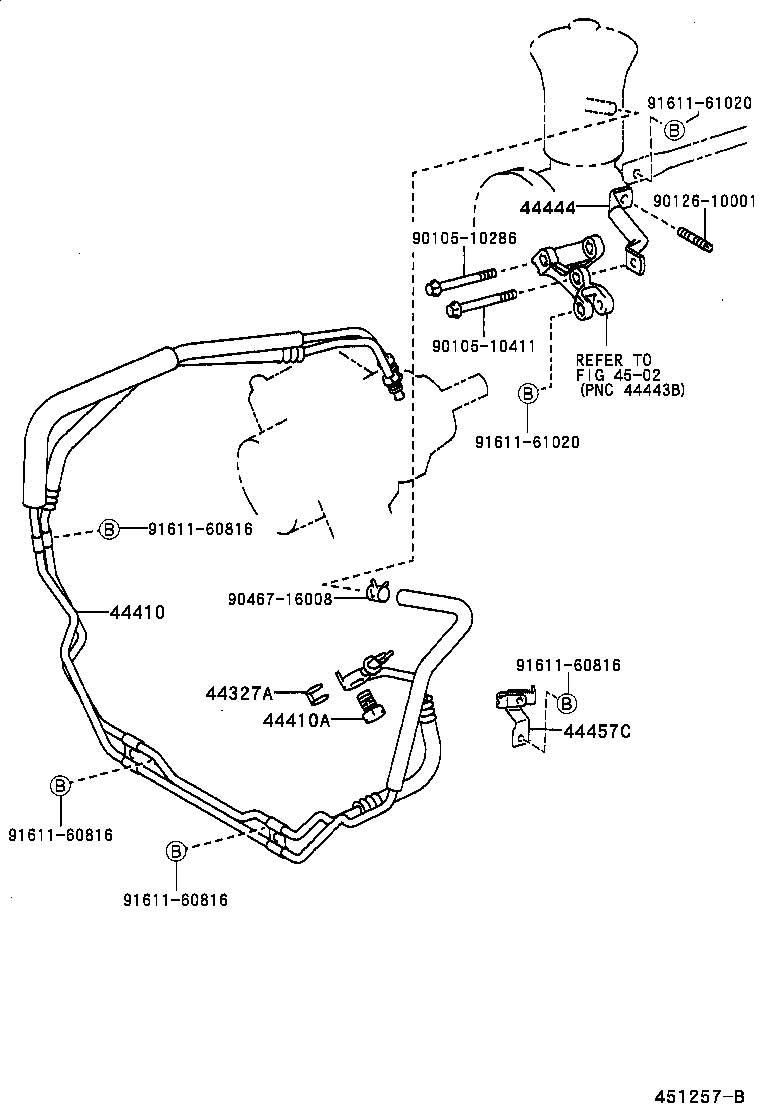

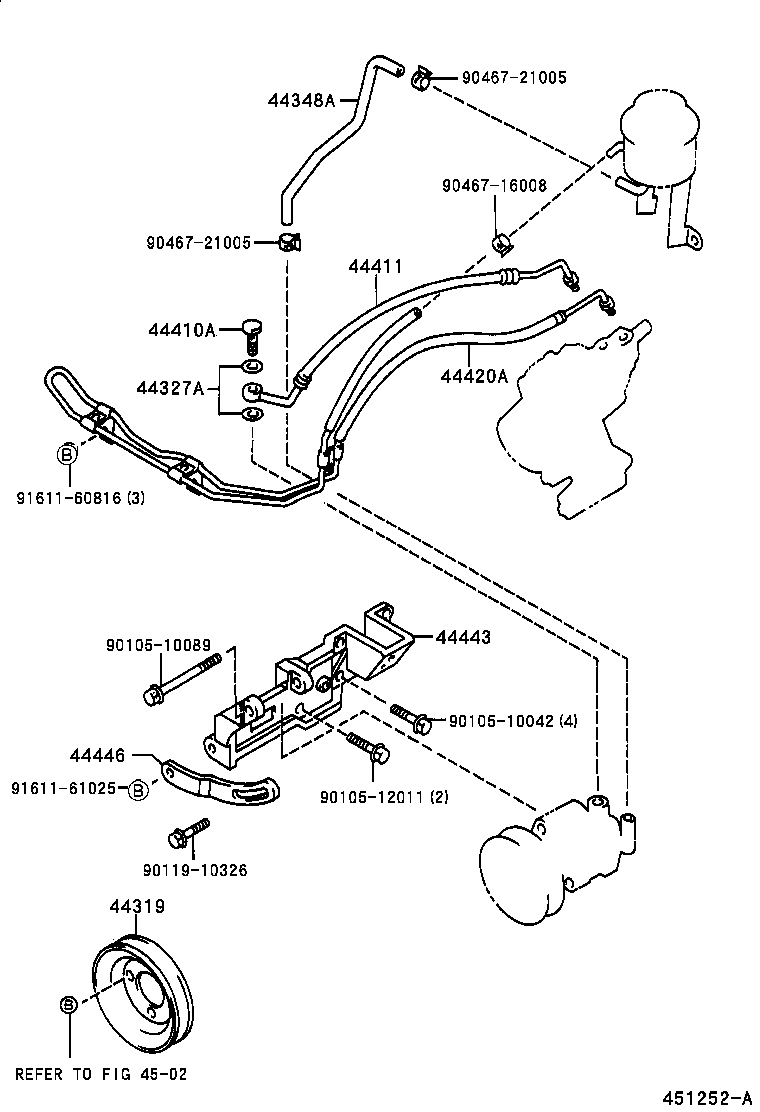

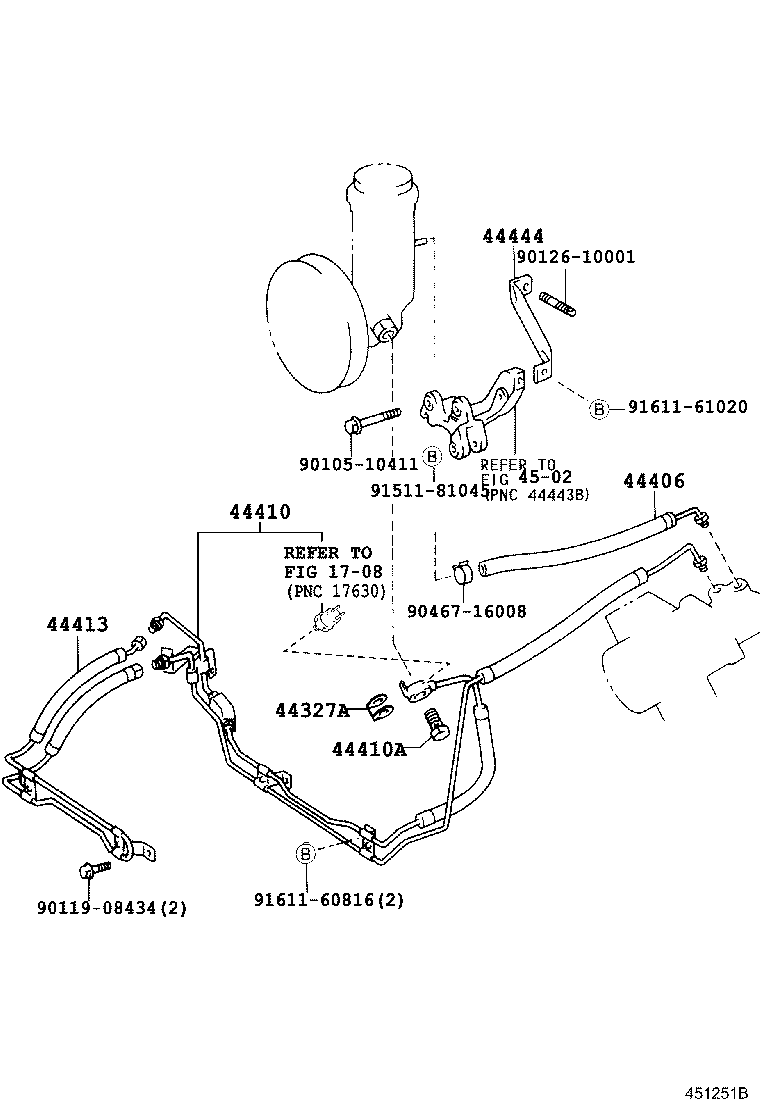

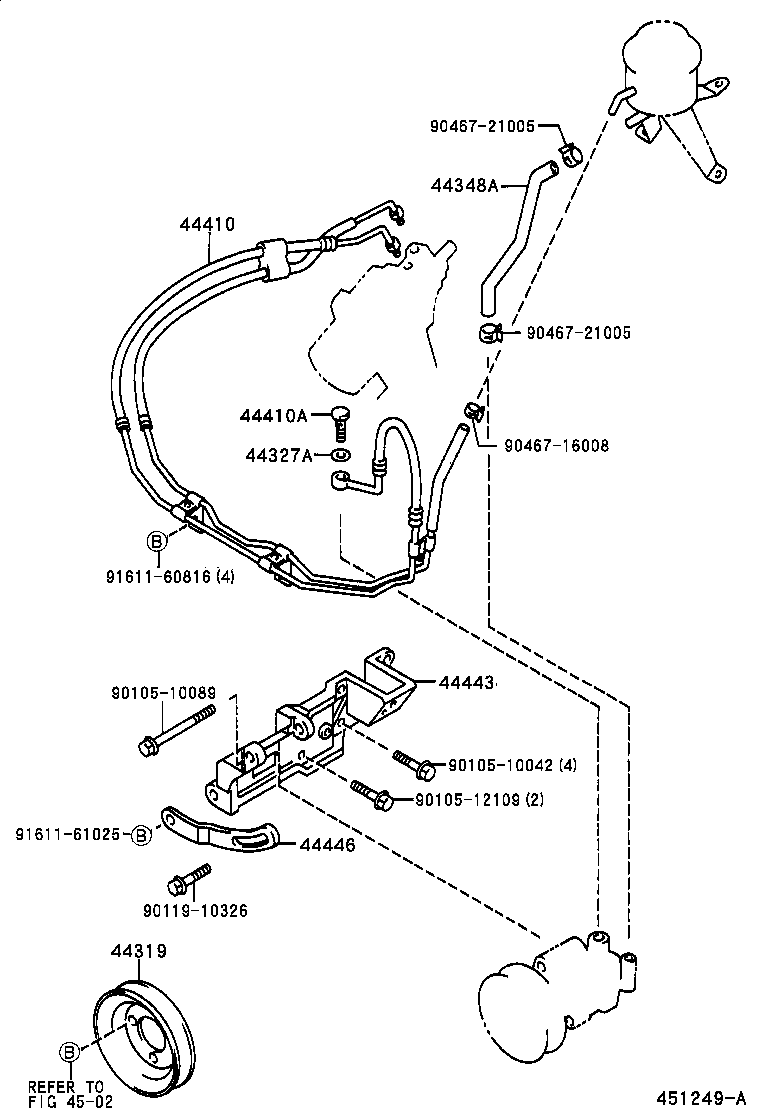

Figure 451245A 451245A 1991-10 → 1995-12 Figure 451250A 451250A 1991-10 → — Figure 451257B 451257B 1991-10 → — Figure 451251B 451251B 1991-10 → — Figure 451248A 451248A 1991-10 → — Figure 451249A 451249A 1991-10 → — Figure 451252A 451252A 1991-10 → 1993-08 Figure NC0184C NC0184C 1991-10 → —

Part groups

PNCDescription
44318 Spacer, Vane Pump Drive Pulley
44319 Pulley, Vane Pump Drive
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44381 Bracket, Power Steering Idle Pulley
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44406 Tube Sub-assy, Return
44406B Bolt, Union(FOR RETURN TUBE)
44406C Gasket(FOR RETURN TUBE)
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44413 Tube, Pressure Feed, NO.1
44420A Tube Assy, Return
44443 Bracket, Pump
44444 Stay, Pump, Rear
44446 Strut, Adjusting
44457B Bracket, Power Steering Tube Support, NO.2
44457C Bracket, Power Steering Tube Support, NO.1
44458 Bracket, Tube Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
