Toyota Avalon (CHINA)

2019-03 → present · chassis AXXA50,AXXH5#,MXXA50,MXXH50 · catalogue 360310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

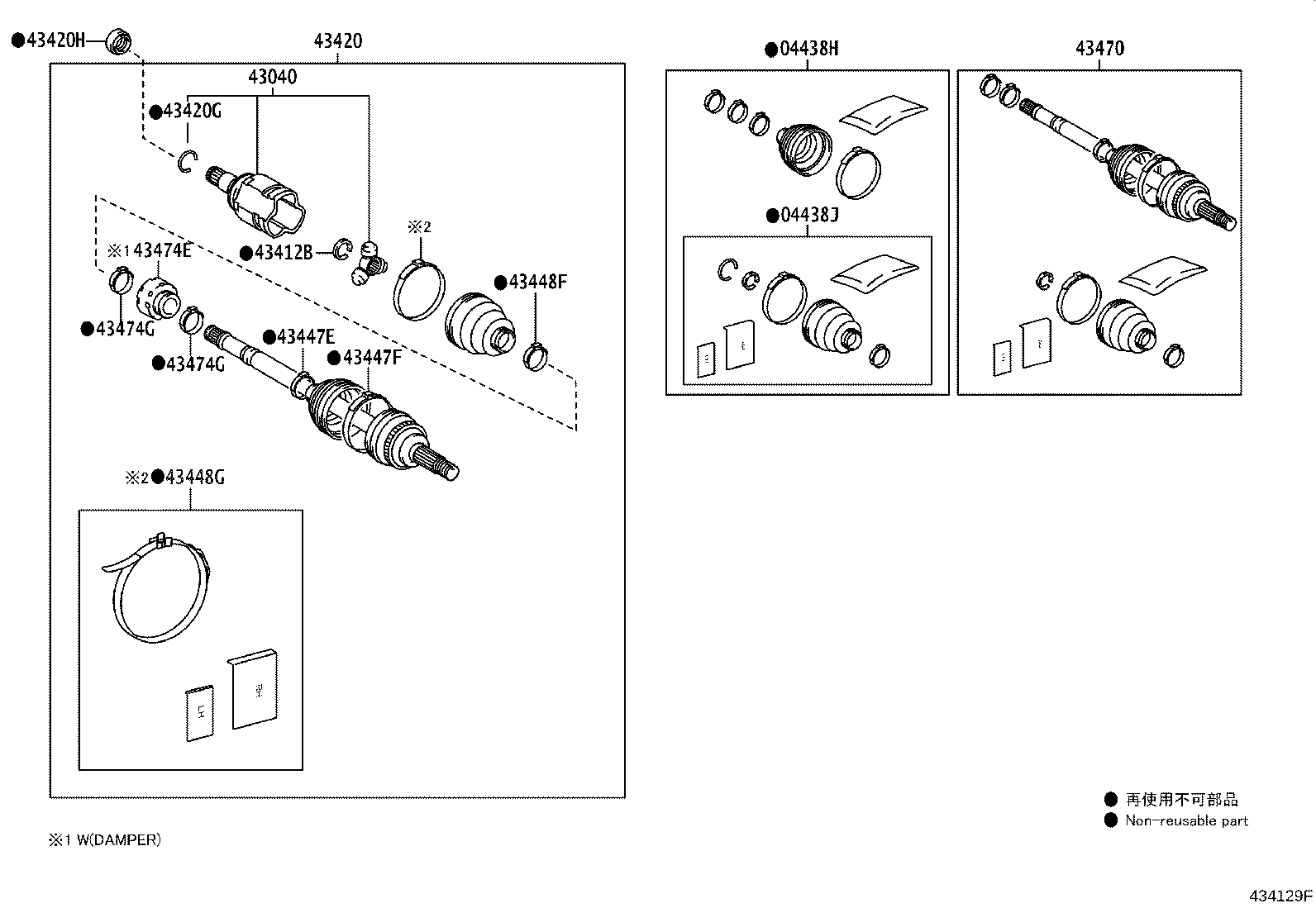

Exploded illustration 434129F 43420 — SHAFT ASSY, FRONT DRIVE, LH (14 parts) 43040 — JOINT ASSY, FRONT DRIVE INBOARD, LH (7 parts) 43420G — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) (15 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (18 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (6 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (6 parts) 43474E — DAMPER, FRONT DRIVE SHAFT, LH (9 parts) 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (14 parts) 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (14 parts) 43420H — OIL SEAL, FRONT DRIVE SHAFT, LH (13 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (19 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (6 parts) 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (11 parts) 43470 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH (2 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (7 parts)
434129F · 15 callouts Full size ↗
147 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04427-02740 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
04427-02750 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2019-03 → 2021-07 ended
AXXH50 —
04427-02740 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2021-06 → 2023-03 ended
AXXA50,MXXA50 —
04427-02750 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2021-07 → 2022-03 ended
AXXH50 B,G,Q —
04427-02750 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2021-07 → 2022-02 ended
AXXH50 E —
04427-02A80 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2022-03 → 2023-03 ended
AXXH50 —
04427-02740 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2023-04 → 2024-07 ended
MXXA50 B,E —
04427-02740 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2023-04 → —
AXXA50;MXXA50 G —
04427-02A80 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2023-04 → —
AXXH50 —
04427-02740 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2024-07 → —
MXXA50 B,E —
04427-02A80 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2024-07 → —
AXXH52,MXXH50 —
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04437-02670 Boot Kit, Front Drive Shaft Inboard Joint, LH
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
04437-02670 Boot Kit, Front Drive Shaft Inboard Joint, LH
2019-03 → 2021-07 ended
AXXH50 —
04437-02670 Boot Kit, Front Drive Shaft Inboard Joint, LH
2021-06 → 2022-02 ended
AXXH50 E —
04437-02670 Boot Kit, Front Drive Shaft Inboard Joint, LH
2021-06 → 2023-03 ended
AXXA50,MXXA50;AXXH50 B,G,Q —
04437-02670 Boot Kit, Front Drive Shaft Inboard Joint, LH
2023-04 → 2024-07 ended
MXXA50 B,E —
04437-02670 Boot Kit, Front Drive Shaft Inboard Joint, LH
2023-04 → —
MXXA50 G;AXXA50,AXXH50 —
04437-02670 Boot Kit, Front Drive Shaft Inboard Joint, LH
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
43040 — Joint Assy, Front Drive Inboard, LH
43040-06350 Joint Assy, Front Drive Inboard, LH
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
43040-06350 Joint Assy, Front Drive Inboard, LH
2019-03 → 2021-07 ended
AXXH50 —
43040-06350 Joint Assy, Front Drive Inboard, LH
2021-06 → 2023-03 ended
AXXA50,MXXA50;AXXH50 B,G,Q —
43040-06350 Joint Assy, Front Drive Inboard, LH
2021-06 → 2022-02 ended
AXXH50 E —
43040-06350 Joint Assy, Front Drive Inboard, LH
2023-04 → 2024-07 ended
MXXA50 B,E —
43040-06350 Joint Assy, Front Drive Inboard, LH
2023-04 → —
MXXA50 G;AXXA50,AXXH50 —
43040-06350 Joint Assy, Front Drive Inboard, LH
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-28010 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
43425-28010 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2019-03 → 2021-07 ended
AXXH50 —
90520-C0030 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
90520-C0030 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2019-03 → 2021-07 ended
AXXH50 —
43425-28010 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2021-06 → 2022-02 ended
AXXH50 E —
43425-28010 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2021-06 → 2022-03 ended
AXXH50 B,G,Q —
43425-28010 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2021-06 → 2023-03 ended
AXXA50,MXXA50 —
90520-C0030 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2021-06 → 2022-02 ended
AXXH50 E —
90520-C0030 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2022-03 → 2023-03 ended
AXXH50 —
90520-C0030 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2021-06 → 2023-03 ended
AXXA50,MXXA50 —
90520-C0030 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2021-06 → 2022-03 ended
AXXH50 B,G,Q —
43425-28010 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2023-04 → 2024-07 ended
MXXA50 B,E —
43425-28010 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2023-04 → —
AXXA50;MXXA50 G —
90520-C0030 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2023-04 → 2024-07 ended
MXXA50 B,E —
90520-C0030 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2023-04 → —
AXXA50;MXXA50 G —
90520-C0030 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2023-04 → —
AXXH50 —
43425-28010 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
90520-C0030 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
43420 — Shaft Assy, Front Drive, LH
43420-06B90 Shaft Assy, Front Drive, LH
2019-03 → 2021-07 ended
AXXH50 —
43420-06C00 Shaft Assy, Front Drive, LH
2019-03 → 2021-06 ended
AXXA50 —
43420-07110 Shaft Assy, Front Drive, LH
2019-10 → 2021-06 ended
MXXA50 —
43420-06B60 Shaft Assy, Front Drive, LH
2022-03 → 2023-03 ended
AXXH50 —
43420-06B90 Shaft Assy, Front Drive, LH
2021-07 → 2022-02 ended
AXXH50 E —
43420-06B90 Shaft Assy, Front Drive, LH
2021-07 → 2022-03 ended
AXXH50 B,G,Q —
43420-06C00 Shaft Assy, Front Drive, LH
2021-06 → 2023-03 ended
AXXA50 —
43420-07110 Shaft Assy, Front Drive, LH
2021-06 → 2023-03 ended
MXXA50 —
43420-06B60 Shaft Assy, Front Drive, LH
2023-04 → —
AXXH50 —
43420-06C00 Shaft Assy, Front Drive, LH
2023-04 → —
AXXA50 —
43420-07110 Shaft Assy, Front Drive, LH
2023-04 → 2024-07 ended
MXXA50 B,E —
43420-07110 Shaft Assy, Front Drive, LH
2023-04 → —
MXXA50 G —
43420-06B60 Shaft Assy, Front Drive, LH
2024-07 → —
AXXH52,MXXH50 —
43420-07110 Shaft Assy, Front Drive, LH
2024-07 → —
MXXA50 B,E —
43420G — Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
90520-C0040 note Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2019-09 → 2021-06 ended
AXXA50,MXXA50 —
90520-C0040 note Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2019-09 → 2021-07 ended
AXXH50 —
90521-33002 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2019-03 → 2019-09 ended
AXXA50,AXXH50 —
90521-33002 note Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2019-09 → 2021-06 ended
AXXA50,MXXA50 —
90521-33002 note Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2019-09 → 2021-07 ended
AXXH50 —
90520-C0040 note Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2021-06 → 2022-02 ended
AXXH50 E —
90520-C0040 note Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2021-06 → 2023-03 ended
AXXA50,MXXA50;AXXH50 B,G,Q —
90521-33002 note Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2021-06 → 2022-02 ended
AXXH50 E —
90521-33002 note Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2021-06 → 2023-03 ended
AXXA50,MXXA50;AXXH50 B,G,Q —
90520-C0040 note Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2023-04 → 2024-07 ended
MXXA50 B,E —
90520-C0040 note Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2023-04 → —
MXXA50 G;AXXA50,AXXH50 —
90521-33002 note Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2023-04 → 2024-07 ended
MXXA50 B,E —
90521-33002 note Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2023-04 → —
MXXA50 G;AXXA50,AXXH50 —
90520-C0040 note Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
90521-33002 note Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
43420H — Oil Seal, Front Drive Shaft, LH
90311-50058 note Oil Seal, Front Drive Shaft, LH
2019-03 → 2021-07 ended
AXXH50 —
90311-50058 Oil Seal, Front Drive Shaft, LH
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
90311-C0058 note Oil Seal, Front Drive Shaft, LH
2020-06 → 2021-07 ended
AXXH50 —
90311-50058 Oil Seal, Front Drive Shaft, LH
2021-06 → 2023-03 ended
AXXA50,MXXA50 —
90311-50058 note Oil Seal, Front Drive Shaft, LH
2021-07 → 2023-03 ended
AXXH50 B,G,Q —
90311-50058 note Oil Seal, Front Drive Shaft, LH
2021-07 → 2022-02 ended
AXXH50 E —
90311-C0058 note Oil Seal, Front Drive Shaft, LH
2021-07 → 2022-02 ended
AXXH50 E —
90311-C0058 note Oil Seal, Front Drive Shaft, LH
2021-07 → 2023-03 ended
AXXH50 B,G,Q —
90311-50058 note Oil Seal, Front Drive Shaft, LH
2023-04 → —
AXXH50 —
90311-50058 Oil Seal, Front Drive Shaft, LH
2023-04 → —
AXXA50,MXXA50 —
90311-C0058 note Oil Seal, Front Drive Shaft, LH
2023-04 → —
AXXH50 —
90311-50058 Oil Seal, Front Drive Shaft, LH
2024-07 → —
MXXA50 B,E —
90311-C0045 Oil Seal, Front Drive Shaft, LH
2024-07 → —
AXXH52,MXXH50 —
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-42100 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
42345-42120 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2019-03 → 2021-07 ended
AXXH50 —
42345-42100 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2021-06 → 2023-03 ended
AXXA50,MXXA50;AXXH50 B,G,Q —
42345-42100 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2023-04 → 2024-07 ended
MXXA50 B,E —
42345-42100 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2023-04 → —
MXXA50 G;AXXA50,AXXH50 —
42345-42100 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-42090 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
42345-42110 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2019-03 → 2021-07 ended
AXXH50 —
42345-42090 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2021-06 → 2023-03 ended
AXXA50,MXXA50;AXXH50 B,G,Q —
42345-42090 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2023-04 → —
MXXA50 G;AXXA50,AXXH50 —
42345-42090 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2023-04 → 2024-07 ended
MXXA50 B,E —
42345-42090 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-06B90 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
42345-06B90 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2019-03 → 2021-07 ended
AXXH50 —
42345-33120 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
42345-33120 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2019-03 → 2021-07 ended
AXXH50 —
42345-06B90 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2021-06 → 2022-03 ended
AXXH50 B,G,Q —
42345-06B90 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2022-03 → 2023-03 ended
AXXH50 —
42345-06B90 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2021-06 → 2023-03 ended
AXXA50,MXXA50 —
42345-06B90 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2021-06 → 2022-02 ended
AXXH50 E —
42345-33120 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2021-06 → 2022-03 ended
AXXH50 B,G,Q —
42345-33120 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2021-06 → 2022-02 ended
AXXH50 E —
42345-33120 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2021-06 → 2023-03 ended
AXXA50,MXXA50 —
42345-06B90 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2023-04 → 2023-06 ended
AXXH50 —
42345-06B90 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2023-04 → 2023-06 ended
AXXA50,MXXA50 —
42345-28090 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2023-06 → 2024-07 ended
MXXA50 B,E —
42345-28090 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2023-06 → —
MXXA50 G;AXXA50,AXXH50 —
42345-33120 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2023-04 → 2023-06 ended
AXXA50,MXXA50 —
42345-06B90 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
42345-28090 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
42345-33120 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-33140 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
42345-33140 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2019-03 → 2021-07 ended
AXXH50 —
42345-33140 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2021-06 → 2023-03 ended
AXXA50,MXXA50;AXXH50 B,G,Q —
42345-33140 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2023-04 → 2024-07 ended
MXXA50 B,E —
42345-33140 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2023-04 → —
MXXA50 G;AXXA50,AXXH50 —
42345-33140 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
43470 — Shaft Assy, Front Drive Outboard Joint, LH
43470-8Z299 Shaft Assy, Front Drive Outboard Joint, LH
2021-07 → 2022-02 ended
AXXH50 E —
43470-8Z299 Shaft Assy, Front Drive Outboard Joint, LH
2021-07 → 2022-03 ended
AXXH50 B,G,Q —
43474E — Damper, Front Drive Shaft, LH
43474-06190 Damper, Front Drive Shaft, LH
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
43474-0R110 Damper, Front Drive Shaft, LH
2019-03 → 2021-07 ended
AXXH50 —
43474-06190 Damper, Front Drive Shaft, LH
2021-06 → 2023-03 ended
AXXA50,MXXA50 —
43474-0R110 Damper, Front Drive Shaft, LH
2022-03 → 2023-03 ended
AXXH50 —
43474-06190 Damper, Front Drive Shaft, LH
2023-04 → 2024-07 ended
MXXA50 B,E —
43474-06190 Damper, Front Drive Shaft, LH
2023-04 → —
AXXA50;MXXA50 G —
43474-0R110 Damper, Front Drive Shaft, LH
2023-04 → —
AXXH50 —
43474-06190 Damper, Front Drive Shaft, LH
2024-07 → —
MXXA50 B,E —
43474-0R110 Damper, Front Drive Shaft, LH
2024-07 → —
AXXH52,MXXH50 —
43474G — Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-06420 note Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
42345-06420 note Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2019-03 → 2021-07 ended
AXXH50 —
42345-12090 note Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2019-03 → 2021-06 ended
AXXA50,MXXA50 —
42345-12090 note Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2019-03 → 2021-07 ended
AXXH50 —
42345-06420 note Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2021-06 → 2022-02 ended
AXXH50 E —
42345-06420 note Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2021-06 → 2023-03 ended
AXXA50,MXXA50;AXXH50 B,G,Q —
42345-12090 note Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2021-06 → 2022-02 ended
AXXH50 E —
42345-12090 note Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2021-06 → 2023-03 ended
AXXA50,MXXA50;AXXH50 B,G,Q —
42345-06420 note Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2023-04 → 2024-07 ended
MXXA50 B,E —
42345-06420 note Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2023-04 → —
MXXA50 G;AXXA50,AXXH50 —
42345-12090 note Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2023-04 → 2024-07 ended
MXXA50 B,E —
42345-12090 note Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2023-04 → —
MXXA50 G;AXXA50,AXXH50 —
42345-06420 note Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
42345-12090 note Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2024-07 → —
MXXA50 B,E;AXXH52,MXXH50 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
