Toyota Avalon (CHINA)

2019-03 → present · chassis AXXA50,AXXH5#,MXXA50,MXXH50 · catalogue 360310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

19 part groups · 8 illustrations

Illustrations

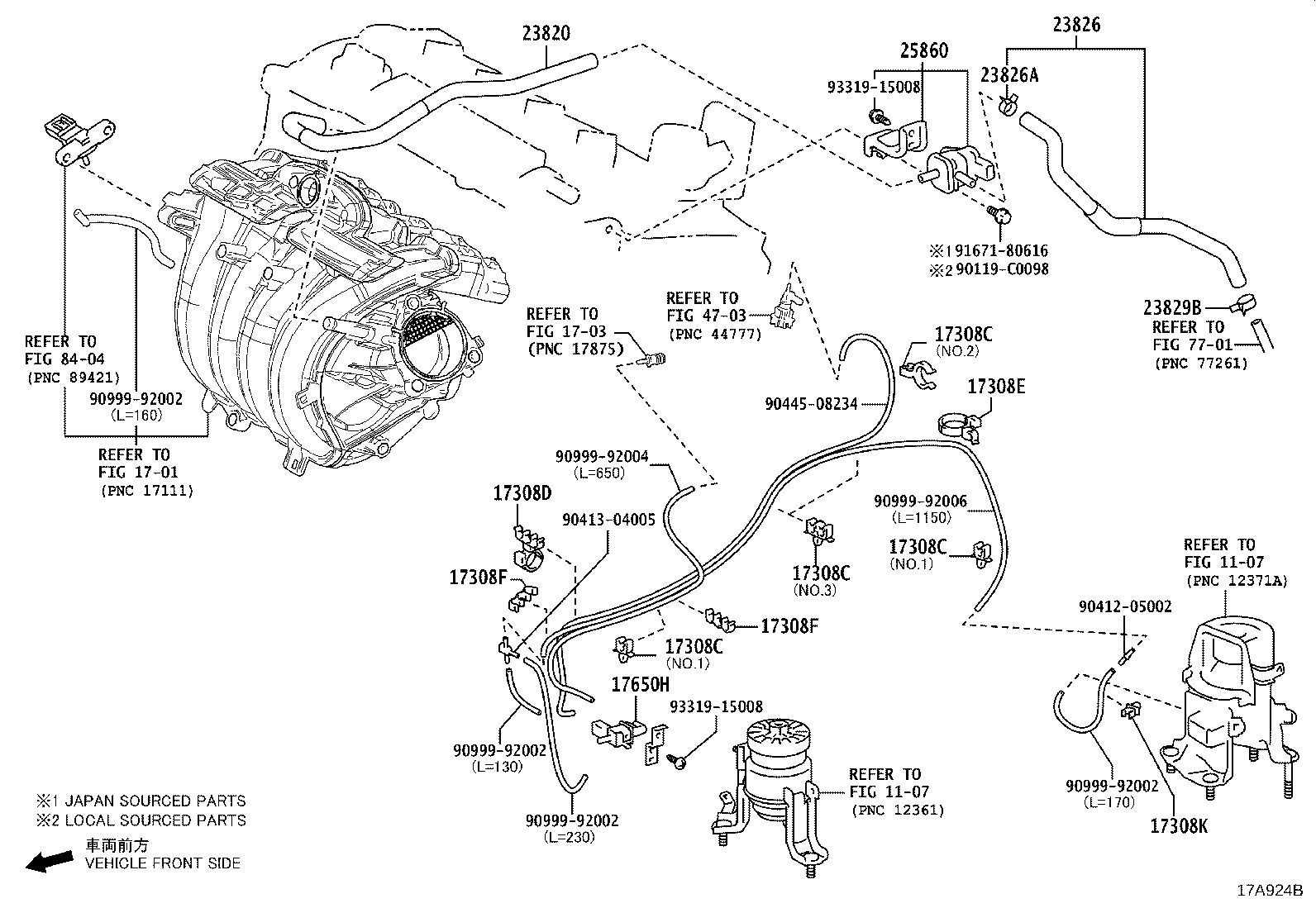

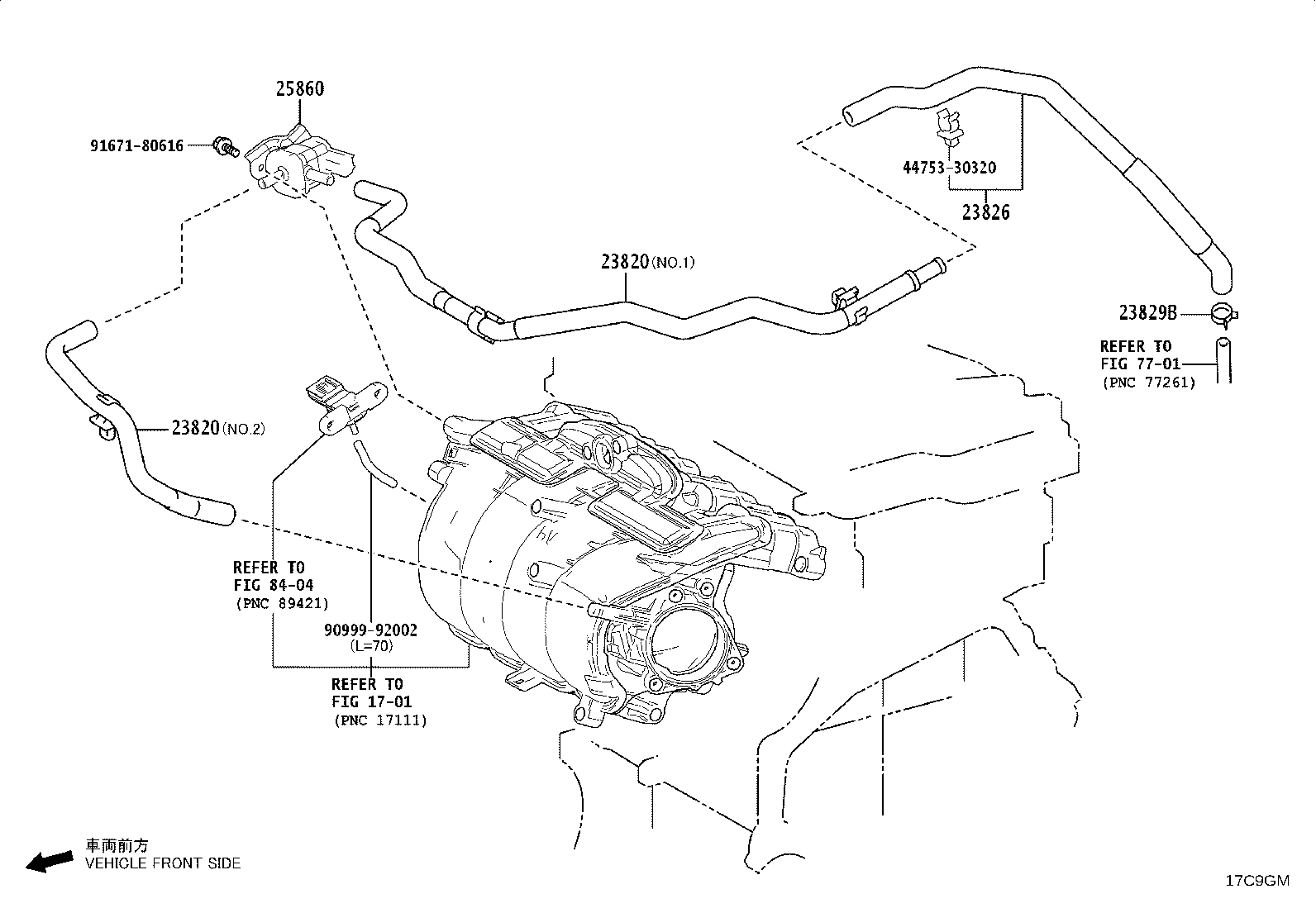

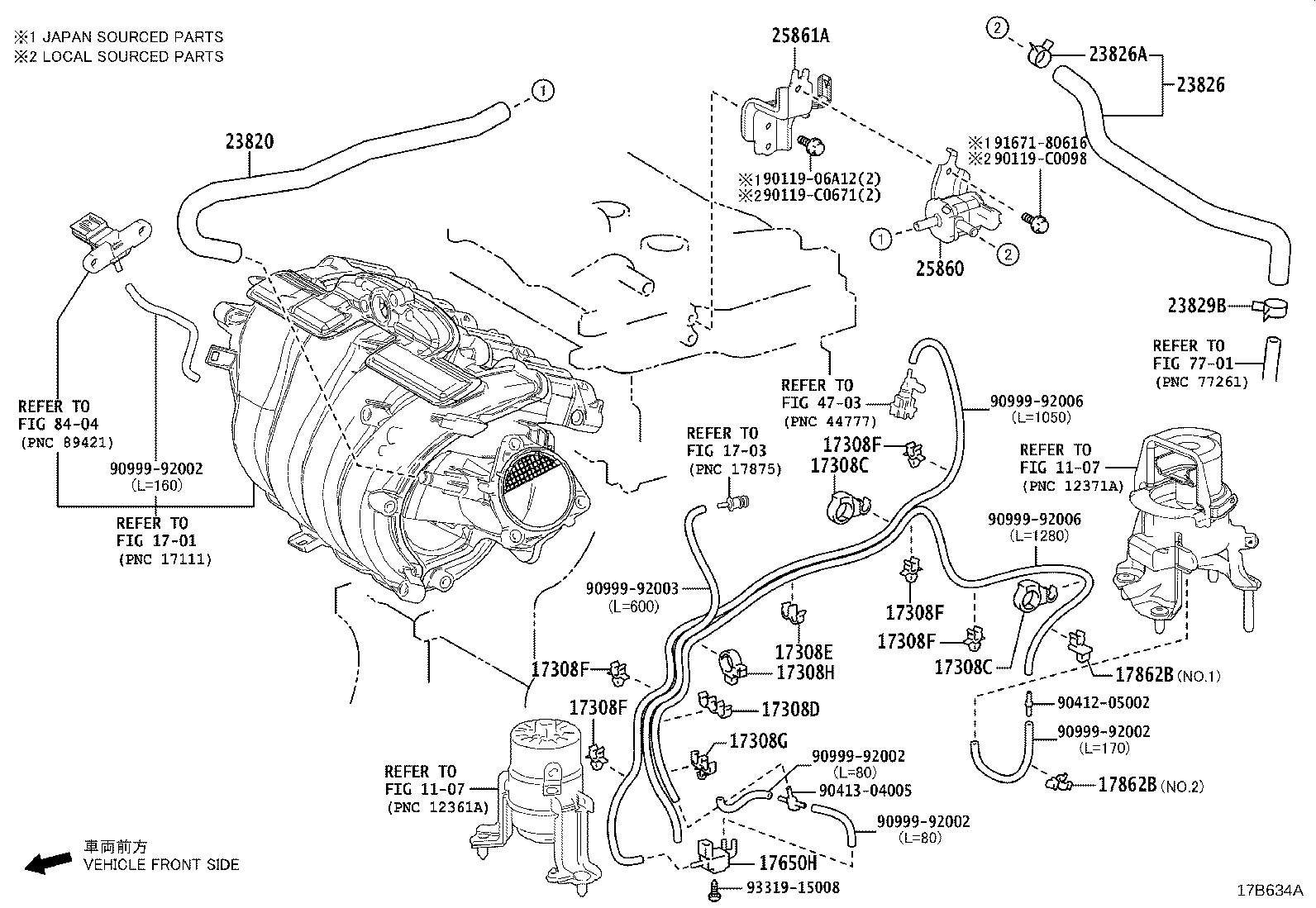

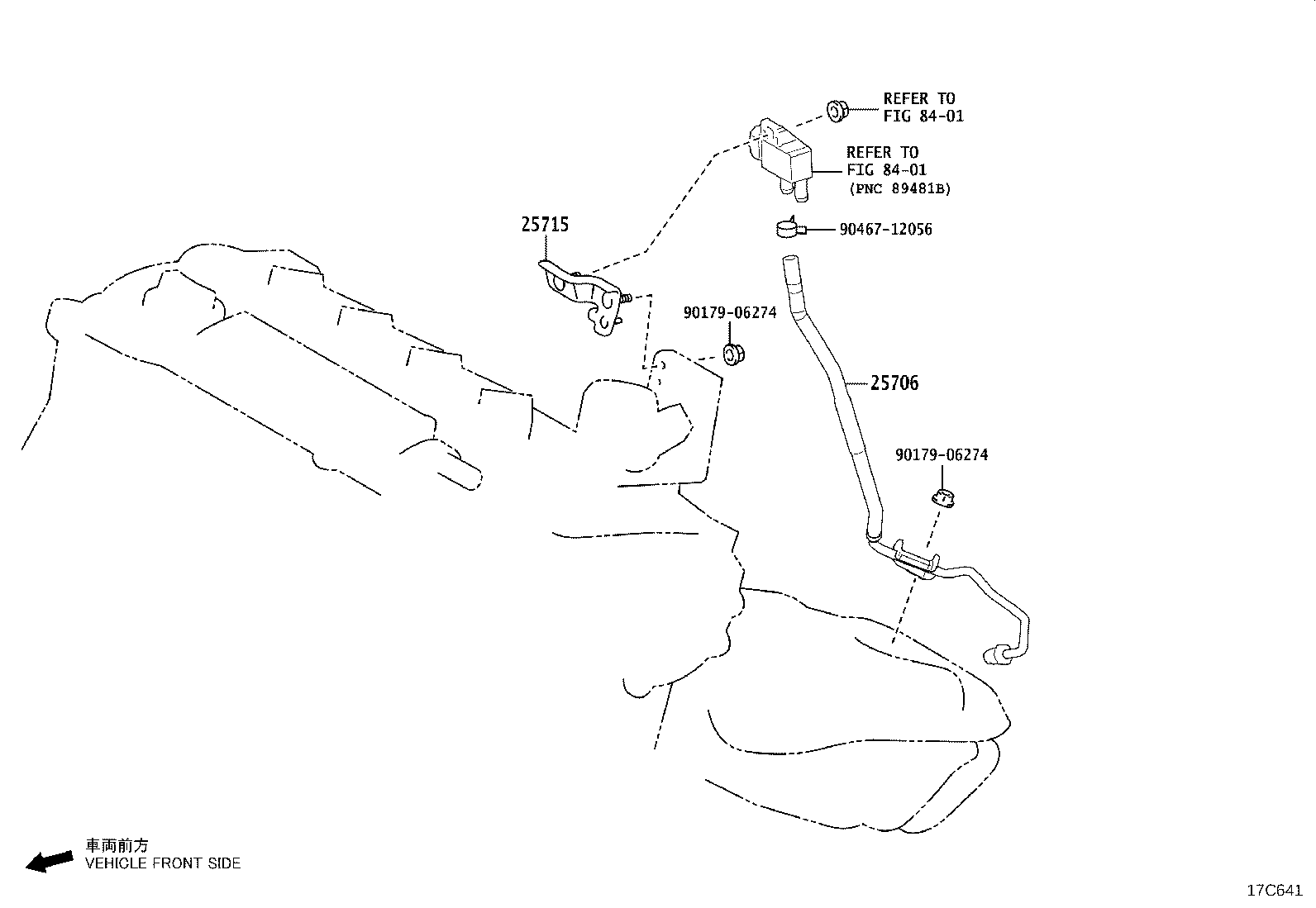

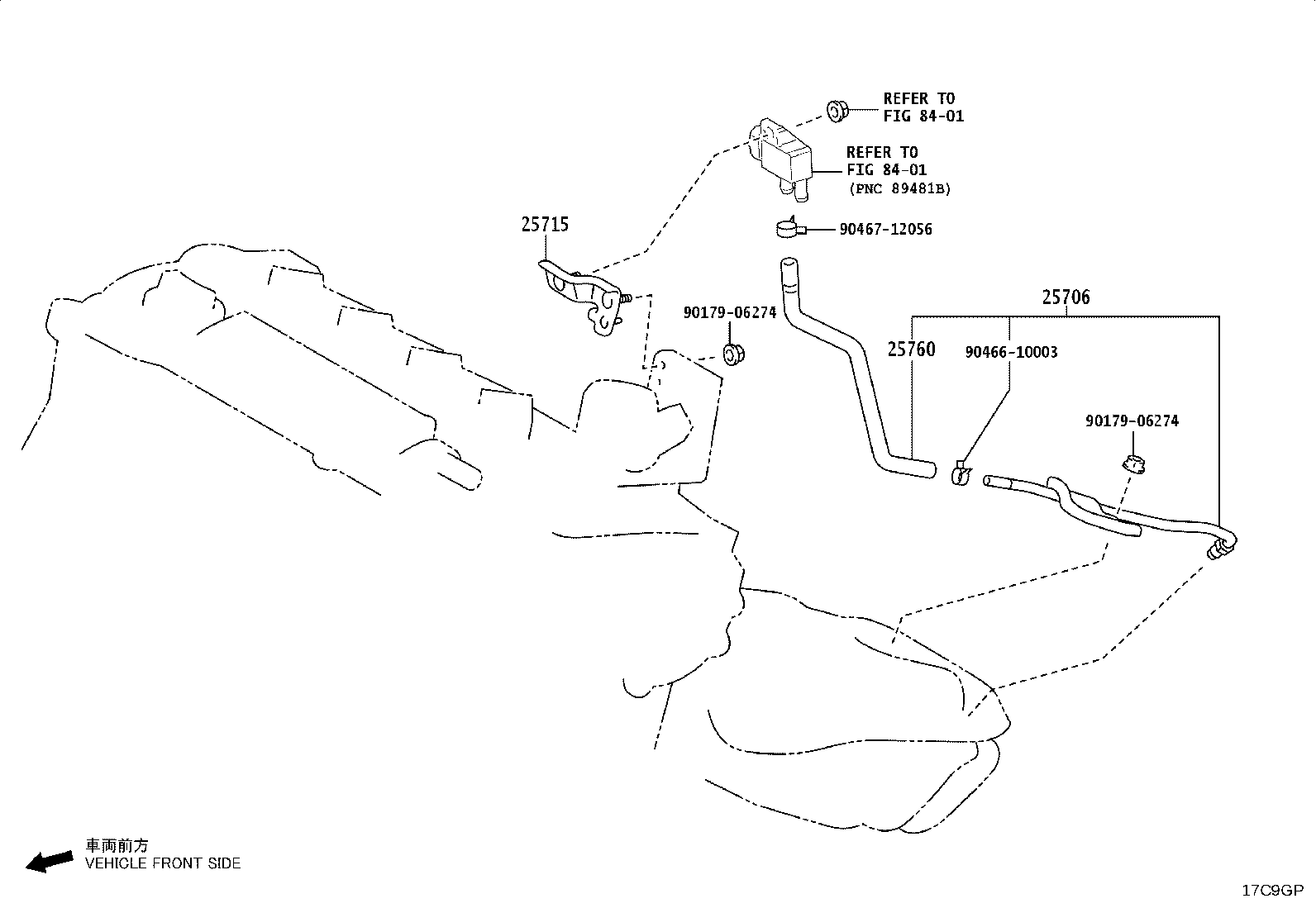

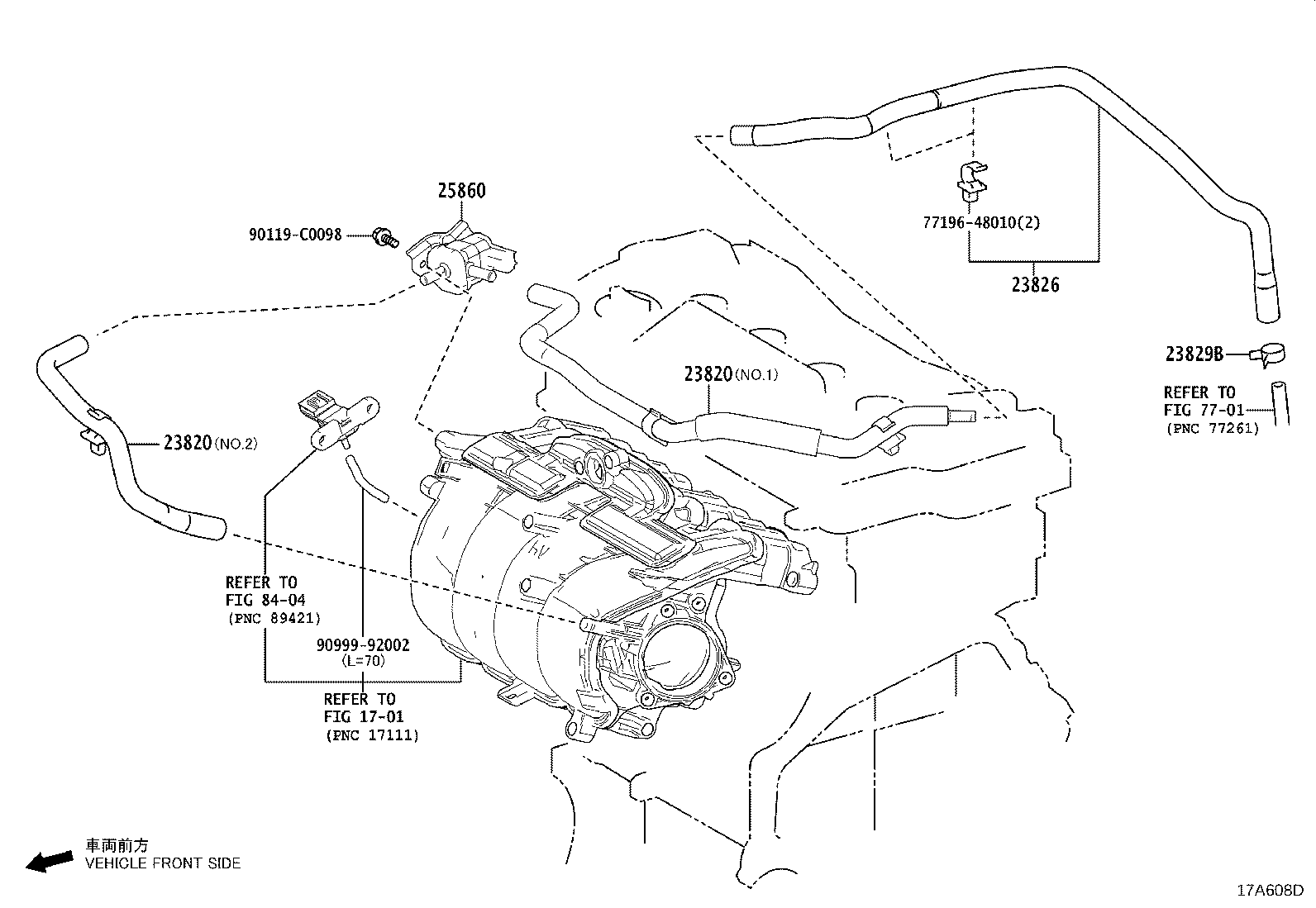

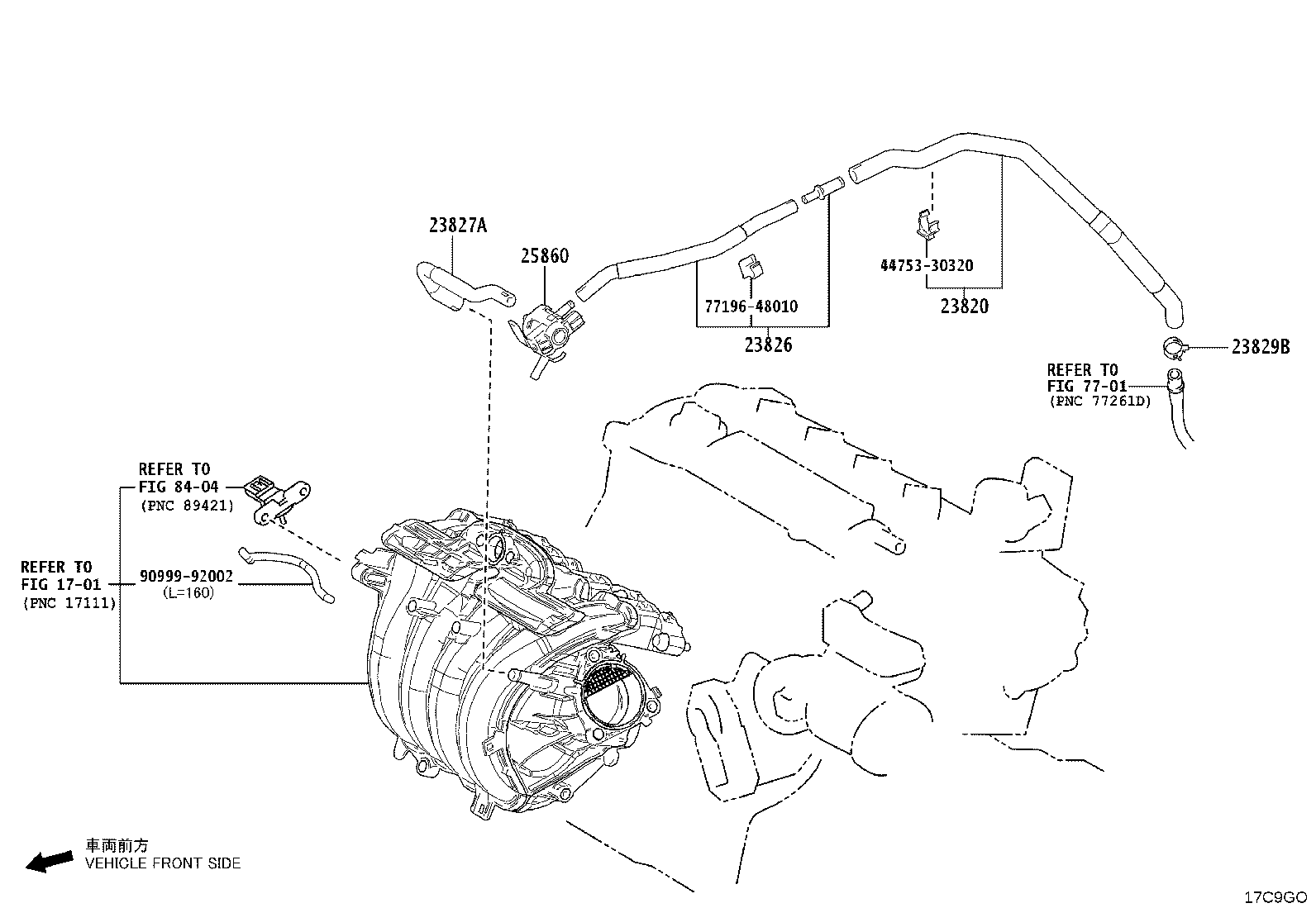

Figure 17A607D 17A607D 2019-03 → 2021-06 Figure 17B634A 17B634A 2021-06 → — Figure 17A608D 17A608D 2019-03 → — Figure 17C9GM 17C9GM 2024-07 → — Figure 17C641 17C641 2023-04 → — Figure 17A924B 17A924B 2019-10 → — Figure 17C9GO 17C9GO 2024-07 → — Figure 17C9GP 17C9GP 2024-07 → —

Part groups

PNCDescription
17308C Clamp(FOR VACUUM HOSE)
17308D Clamp, NO.2(FOR VACUUM HOSE)
17308E Clamp, NO.3(FOR VACUUM HOSE)
17308F Clamp, NO.4(FOR VACUUM HOSE)
17308G Clamp, NO.5(FOR VACUUM HOSE)
17308H Clamp, NO.6(FOR VACUUM HOSE)
17308K Clamp, NO.7(FOR VACUUM HOSE)
17650H Valve, Vacuum Switching
17862B Clamp, Hose
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25715 Bracket, Emission Control Valve
25760 Hose Assy, Vacuum Transmitting
25860 Valve Assy, Vacuum Switching, NO.1
25861A Bracket, Vacuum Switching Valve, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
