Toyota Avalon (CHINA)

2019-03 → present · chassis AXXA50,AXXH5#,MXXA50,MXXH50 · catalogue 360310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

79 part groups · 13 illustrations

Illustrations

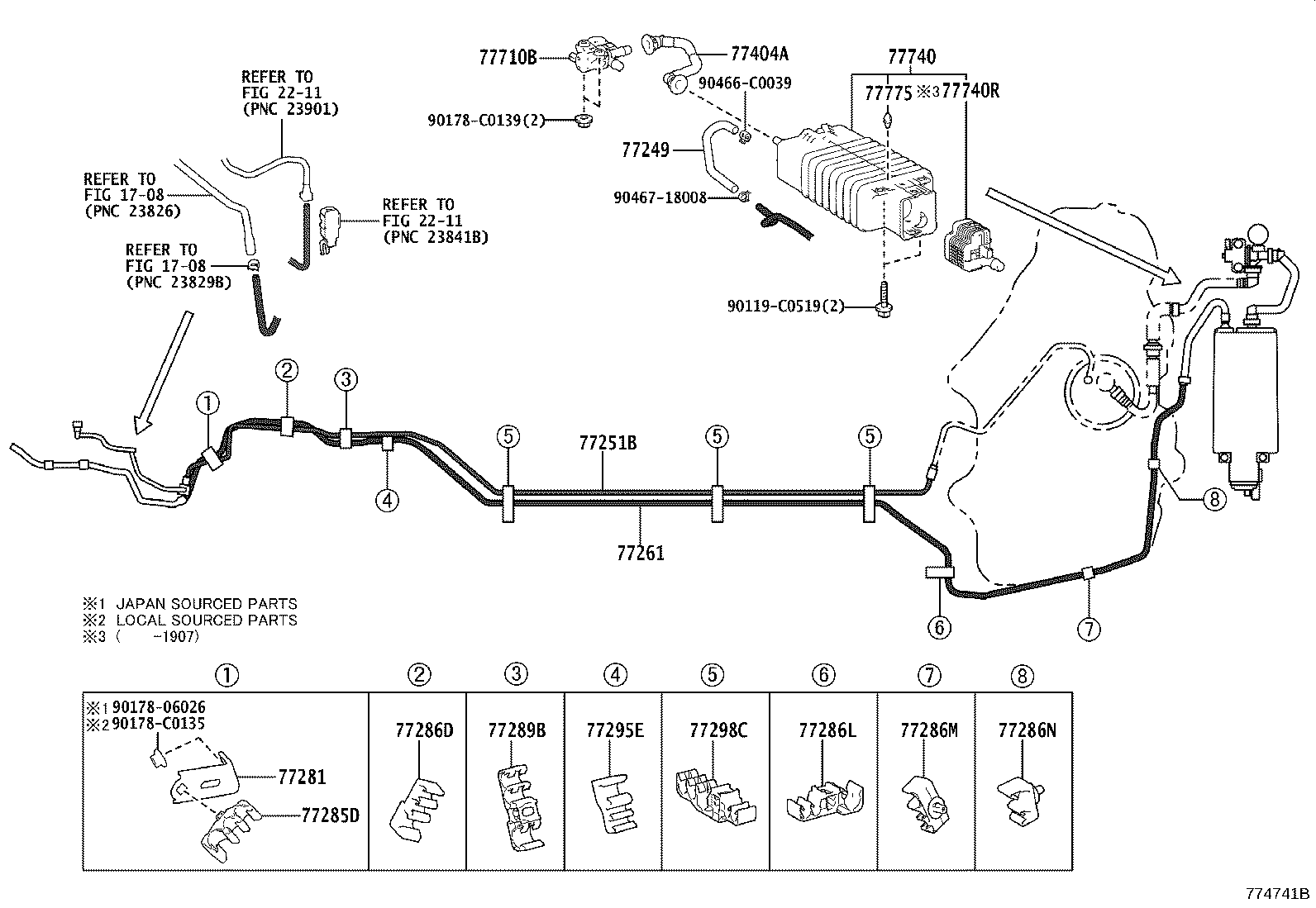

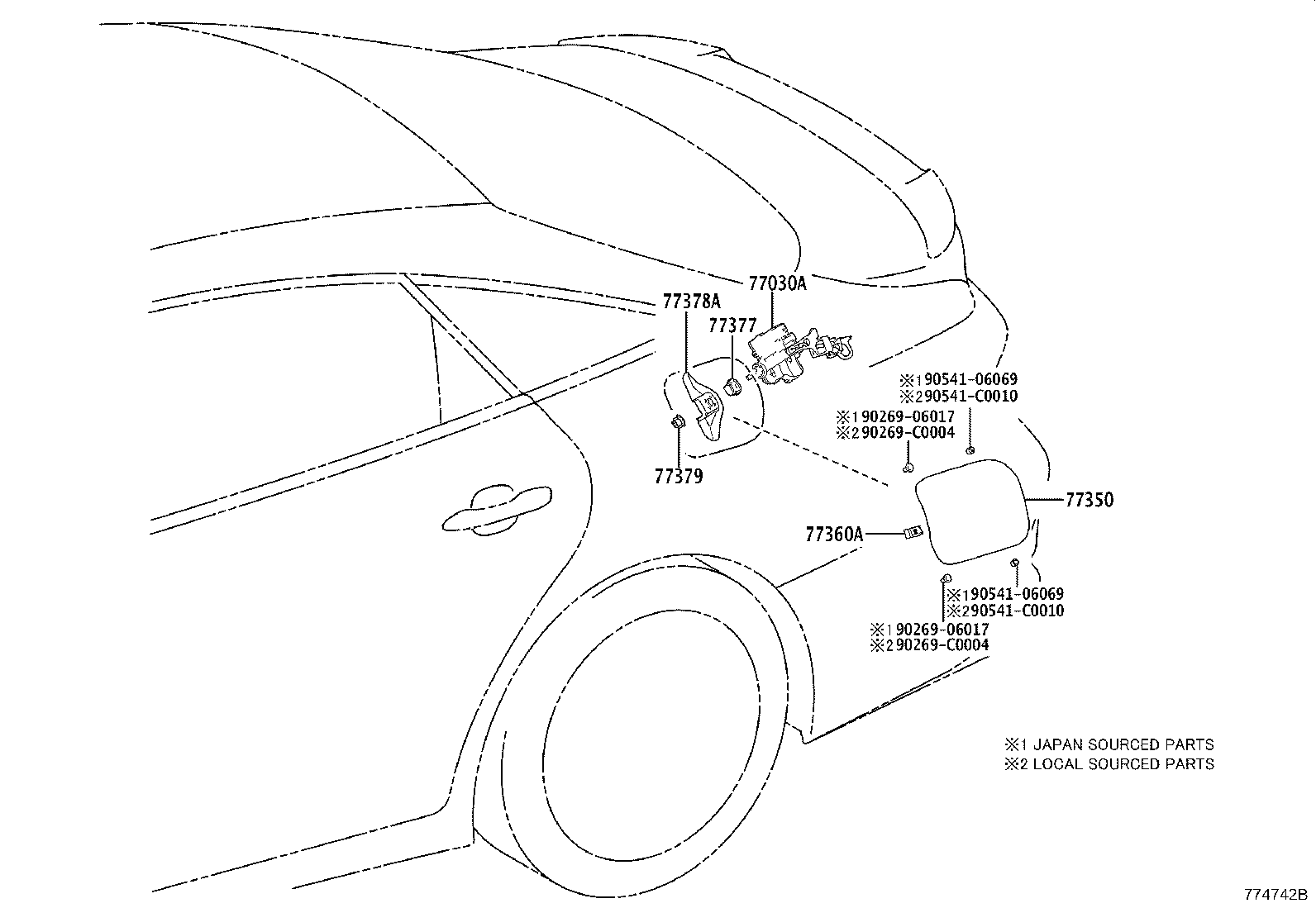

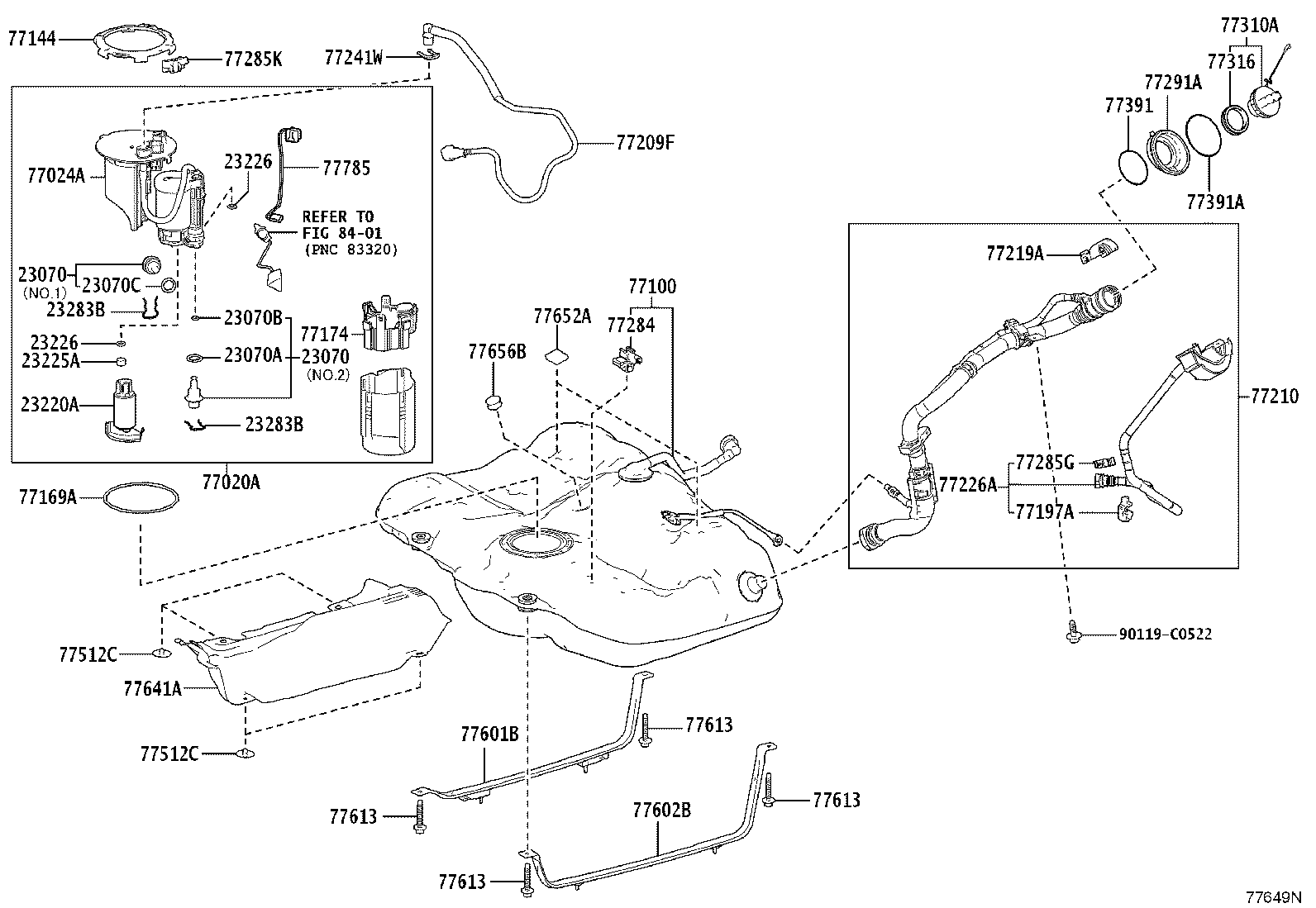

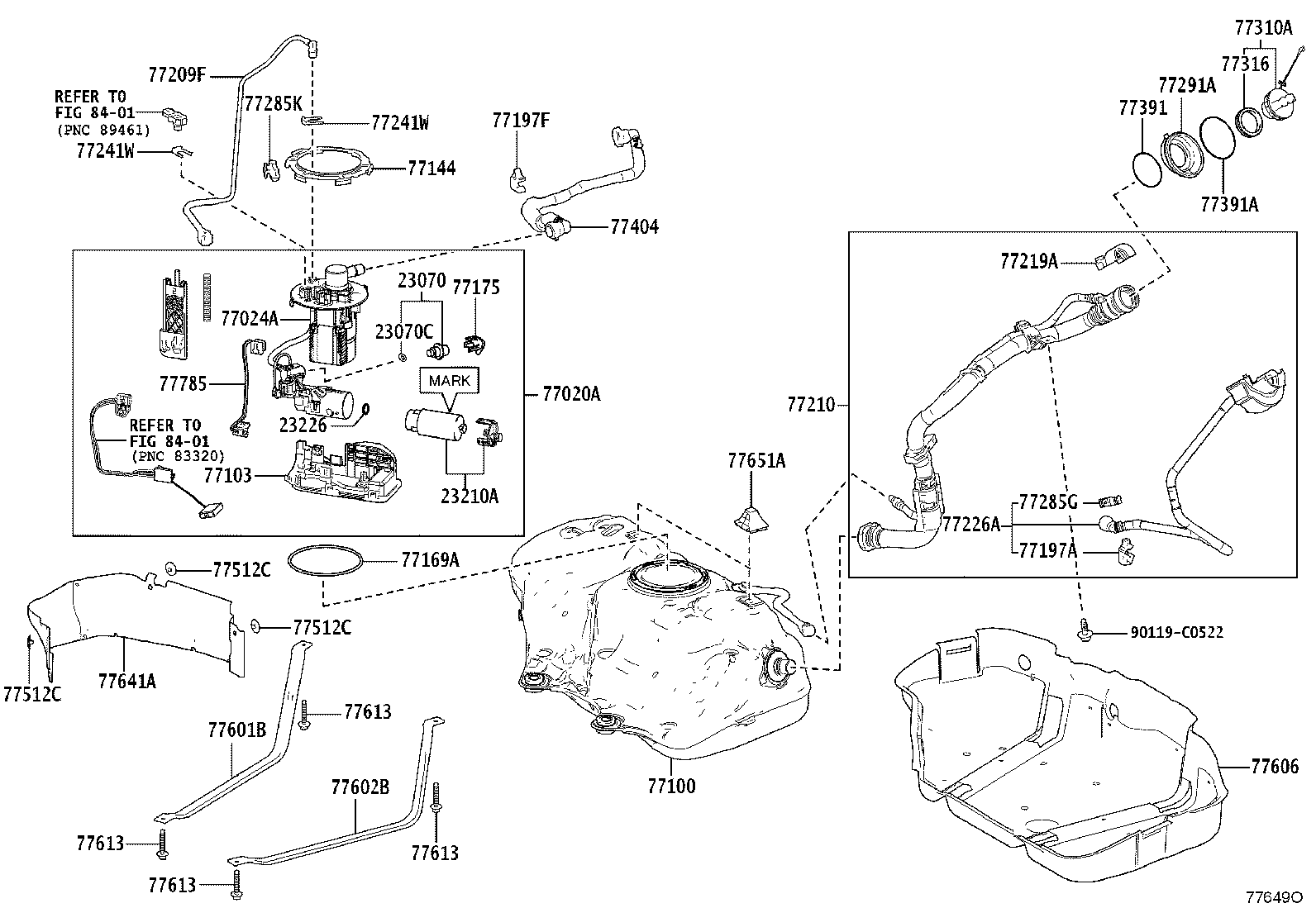

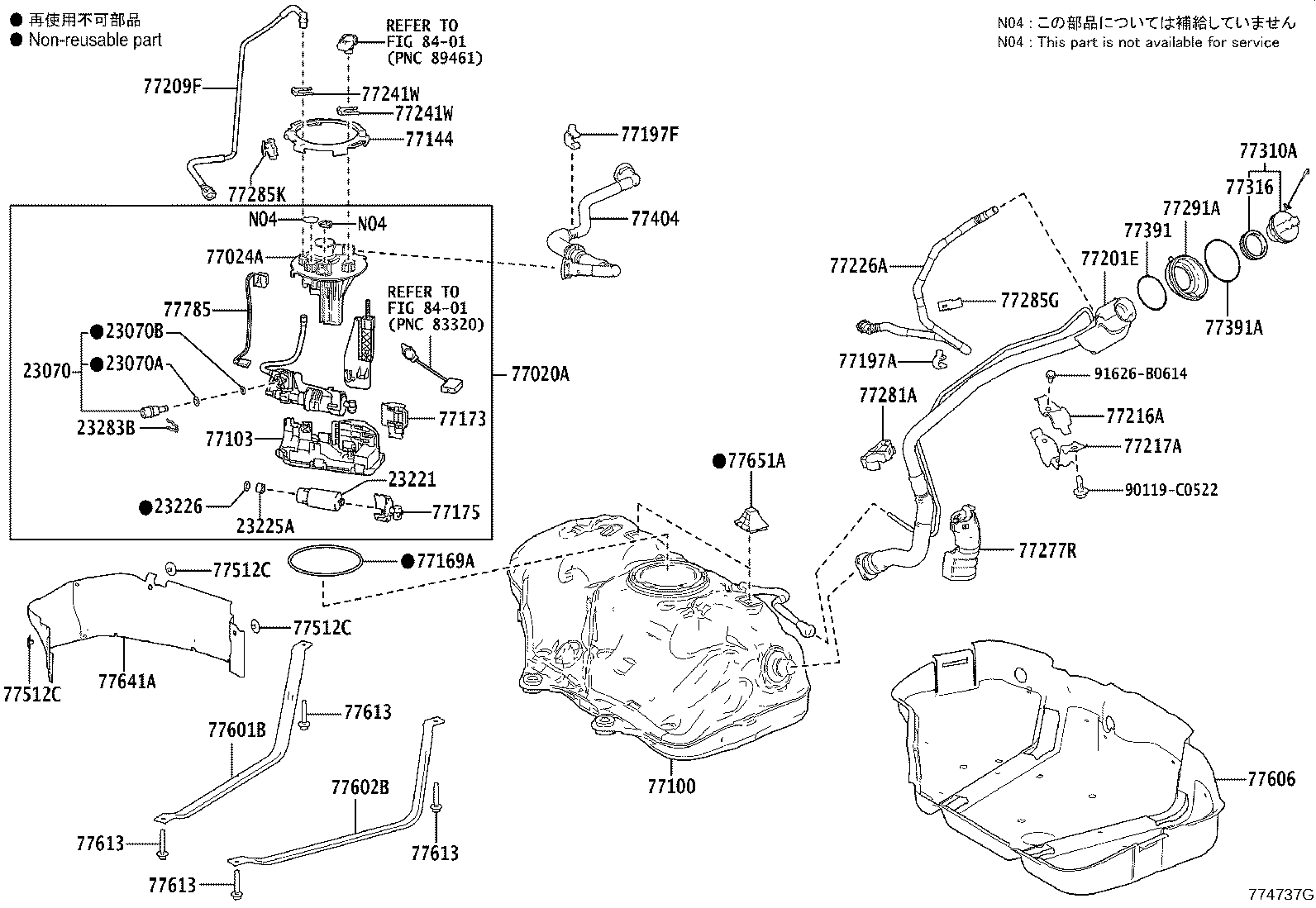

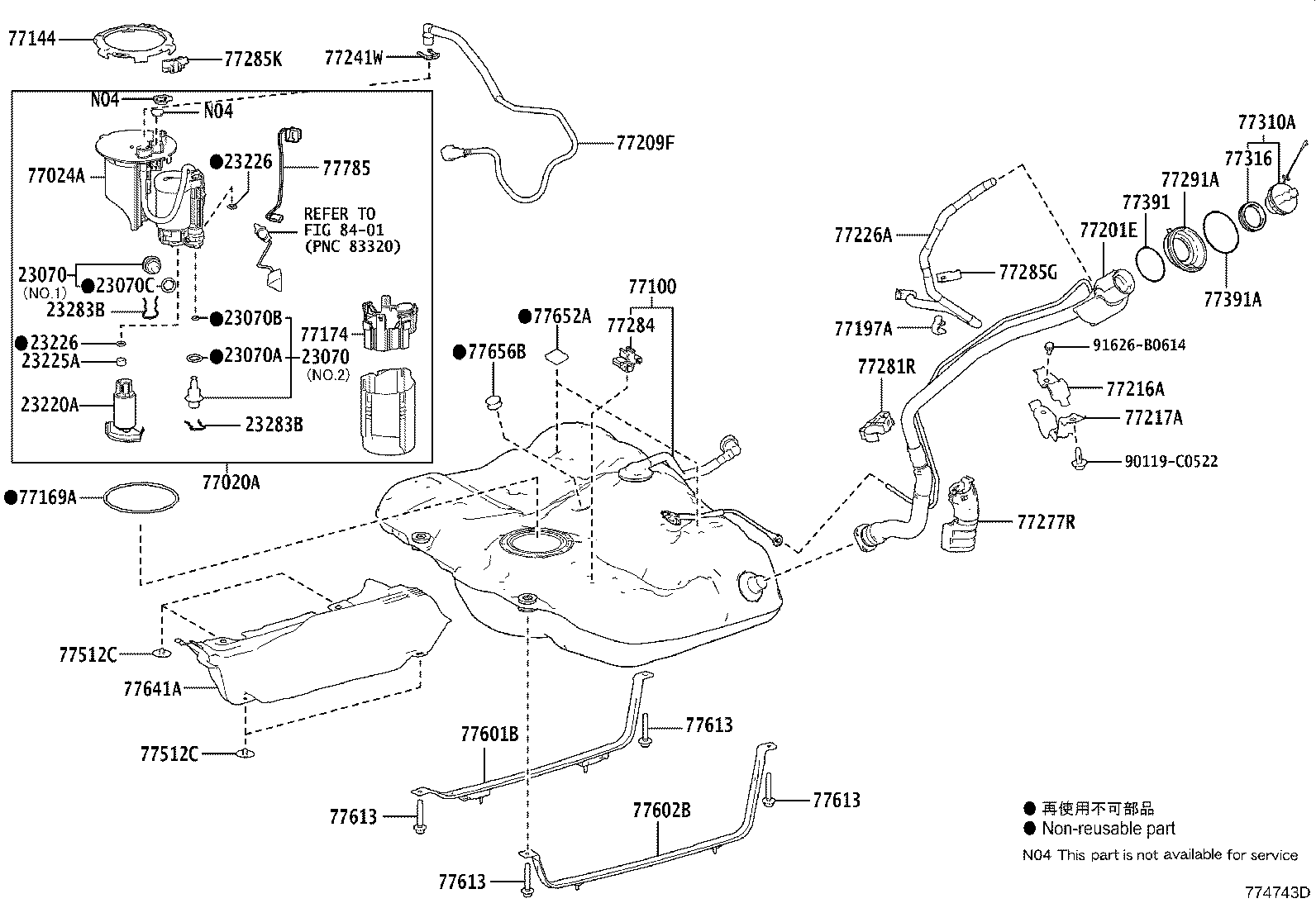

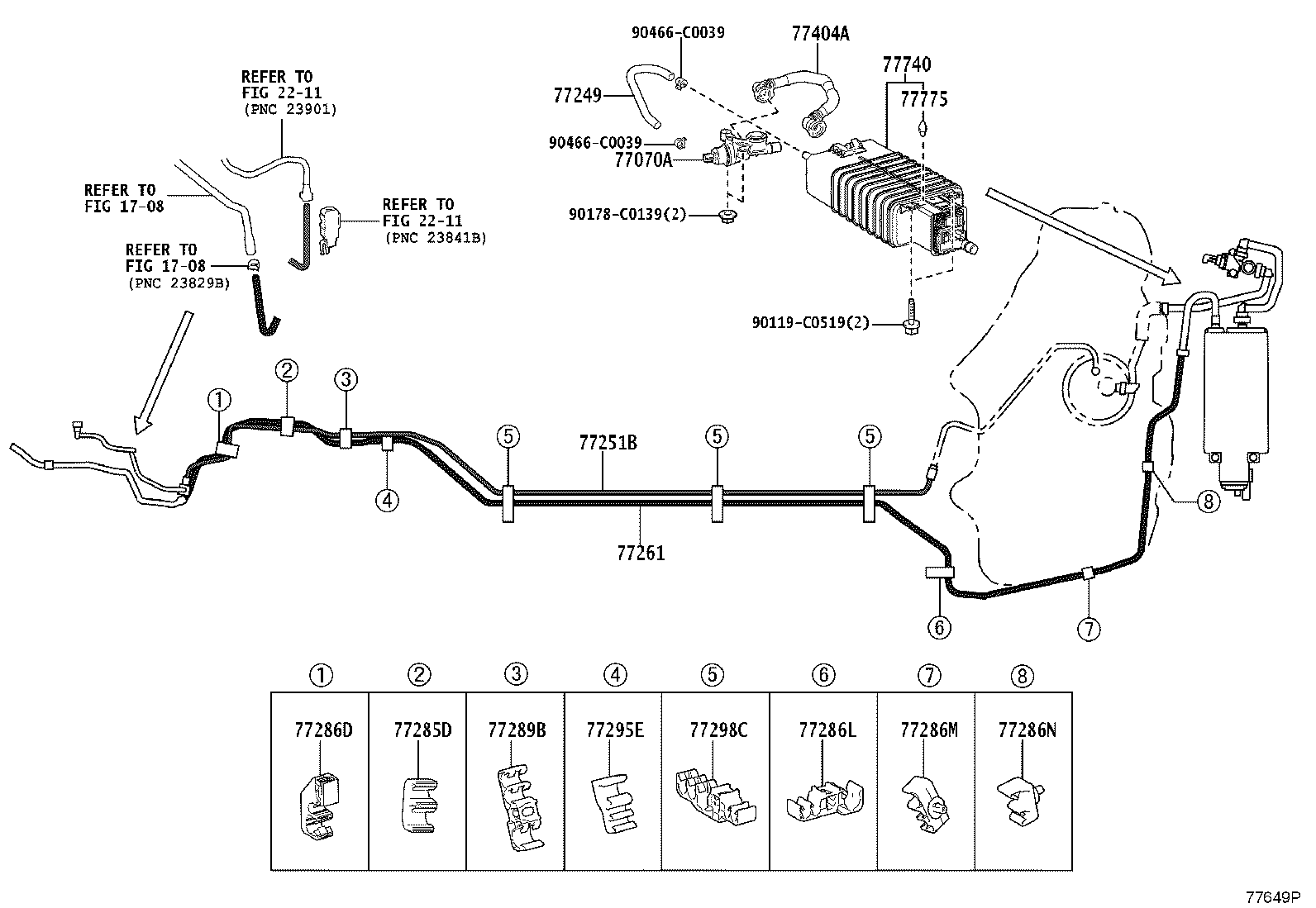

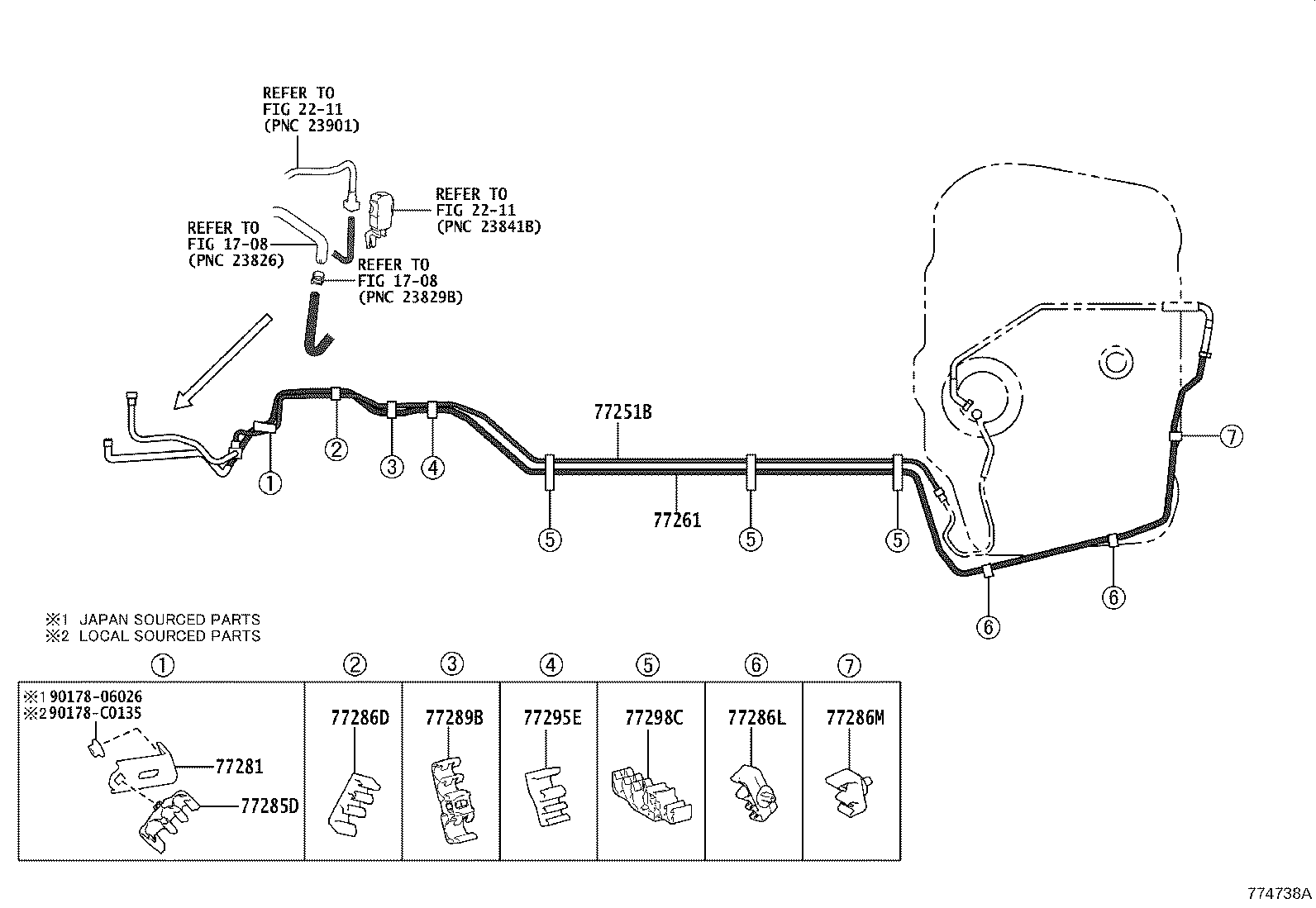

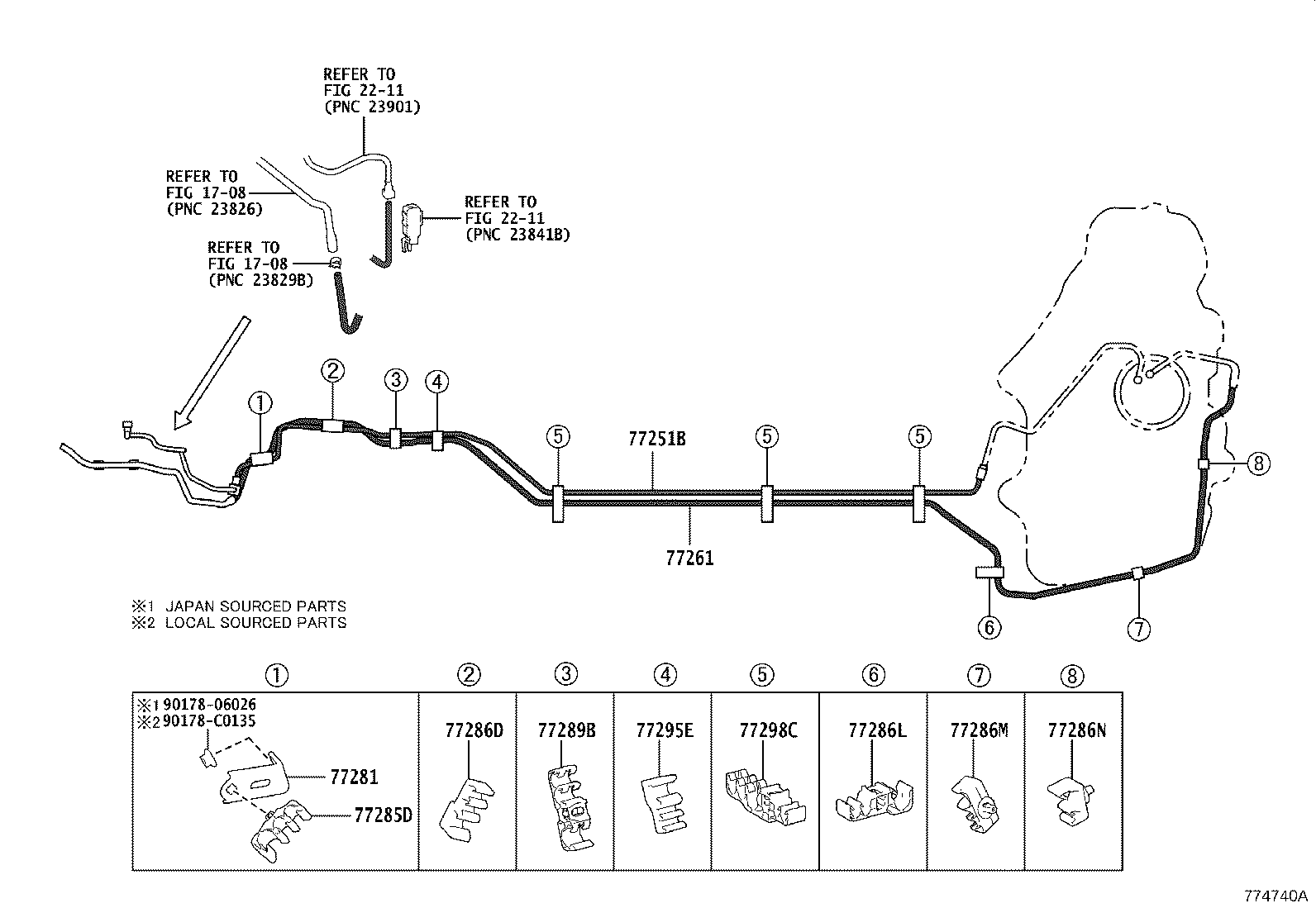

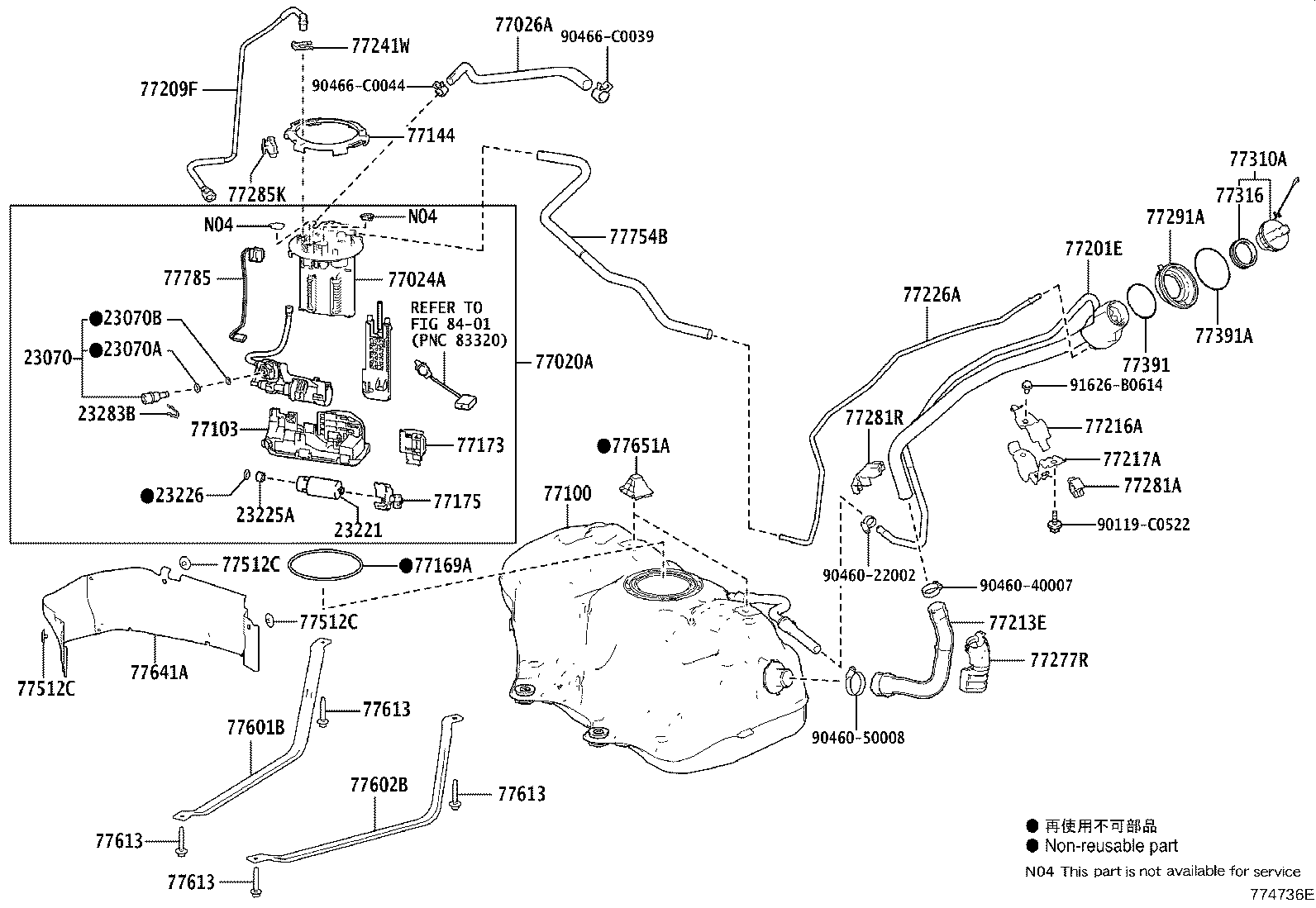

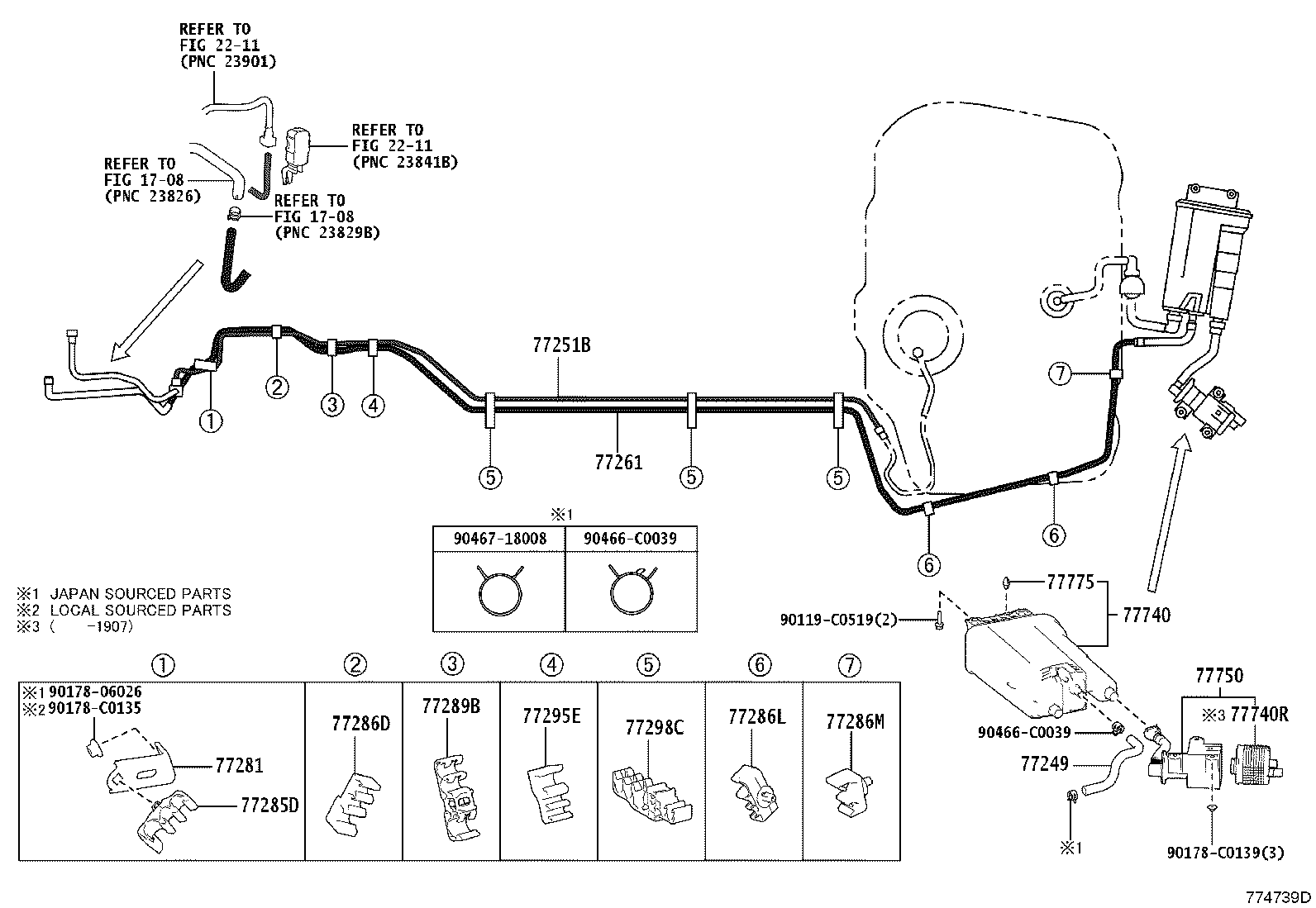

Figure 774734C 774734C 2019-03 → — Figure 774743D 774743D 2019-03 → 2024-07 Figure 774743D 774743D 2024-07 → — Figure 77649N 77649N 2024-07 → — Figure 774736E 774736E 2019-03 → — Figure 774737G 774737G 2019-03 → — Figure 77649O 77649O 2024-07 → — Figure 774738A 774738A 2019-03 → — Figure 774739D 774739D 2019-03 → — Figure 774740A 774740A 2019-03 → — Figure 774741B 774741B 2019-03 → — Figure 77649P 77649P 2024-07 → — Figure 774742B 774742B 2019-03 → —

Part groups

PNCDescription
23070 Valve Assy, Fuel Main
23070A Ring, O, NO.1(FOR FUEL MAIN VALVE)
23070B Ring, O, NO.2(FOR FUEL MAIN VALVE)
23070C Ring, O, NO.3(FOR FUEL MAIN VALVE)
23210A Pump Assy, Fuel W/Motor & Bracket
23220A Pump Assy, Fuel W/Filter
23221 Pump, Fuel
23225A Spacer, Fuel Pump
23226 Ring, O(FOR FUEL PUMP)
23283B Holder, Fuel Pressure Regulator
77020A Tube Assy, Fuel Suction W/Pump & Gage
77024A Plate Sub-assy, Fuel Suction
77026A Tube Sub-assy, Fuel Evaporation, NO.1
77030A Lock Assy, Fuel Lid W/Motor
77070A Valve Assy, Close Tank
77100 Tank Assy, Fuel
77103 Sub-tank Sub-assy, Fuel
77144 Retainer, Fuel Pump Gauge
77169A Gasket, Fuel Suction Tube Set
77173 Bracket, Fuel Gage
77174 Support, Fuel Suction, NO.1
77175 Support, Fuel Suction, NO.2
77197A Clamp, Evaporation Vent Tube, NO.2
77197F Clamp, Evaporation Vent Tube, NO.2
77201E Pipe Sub-assy, Fuel Tank Filler
77209F Tube Sub-assy, Fuel Tank Main
77210 Pipe Assy, Fuel Tank Filler
77213E Hose, Fuel Tank TO Filler Pipe
77216A Support, Fuel Tank Filler Pipe, NO.1
77217A Support, Fuel Tank Filler Pipe, NO.2
77219A Cover, Fuel Tank Filler Pipe
77226A Tube, Fuel Tank Breather, NO.6
77241W Clip, Tube Joint
77249 Hose, Fuel Emission
77251B Tube, Fuel Main
77261 Tube Sub-assy, Fuel Emission
77277R Protector, Fuel Tank Filler Pipe
77281 Bracket, Fuel Main Tube, NO.1
77281A Clamp, Fuel Filler Pipe
77281R Clamp, Fuel Filler Pipe, NO.2
77284 Clamp, Fuel Tube
77285D Clamp, Fuel Tube, NO.1
77285G Clamp, Fuel Tube, NO.1
77285K Clamp, Fuel Tube, NO.1
77286D Clamp, Fuel Tube, NO.2
77286L Clamp, Fuel Tube, NO.5
77286M Clamp, Fuel Tube, NO.6
77286N Clamp, Fuel Tube, NO.7
77289B Clamp, Fuel Tube, NO.3
77291A Shield, Fuel Tank Filler Pipe
77295E Grommet, Fuel Tube
77298C Clamp, Fuel Tube, NO.4
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77360A Spring Assy, Fuel Filler Opening Lid
77377 Retainer, Fuel Filler Opening Lid Lock
77378A Cover, Fuel Filler Opening Lid Lock
77379 Spacer, Fuel Inlet Box Cover, NO.2
77391 Ring, Fuel Inlet Box
77391A Ring, Fuel Inlet Box
77404 Hose Sub-assy, Fuel Tank Vent
77404A Hose Sub-assy, Fuel Tank Vent
77512C Bracket, Fuel Tank
77601B Band Sub-assy, Fuel Tank, NO.1 RH
77602B Band Sub-assy, Fuel Tank, NO.1 LH
77606 Protector Sub-assy, Fuel Tank, NO.1
77613 Bolt, Fuel Tank Band Set
77641A Protector, Fuel Tank, NO.1
77651A Cushion, Fuel Tank, NO.1
77652A Cushion, Fuel Tank, NO.2
77656B Cushion, Fuel Tank, NO.6
77710B Valve Assy, Fuel Tank Solenoid Main
77740 Canister Assy, Charcoal
77740R Pump Sub-assy, Leak Detection
77750 Canister Assy, Charcoal
77754B Hose, Charcoal Canister Outlet
77775 Guide, Charcoal Canister Outlet
77785 Harness, Fuel Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
