Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

44 part groups · 18 illustrations

Illustrations

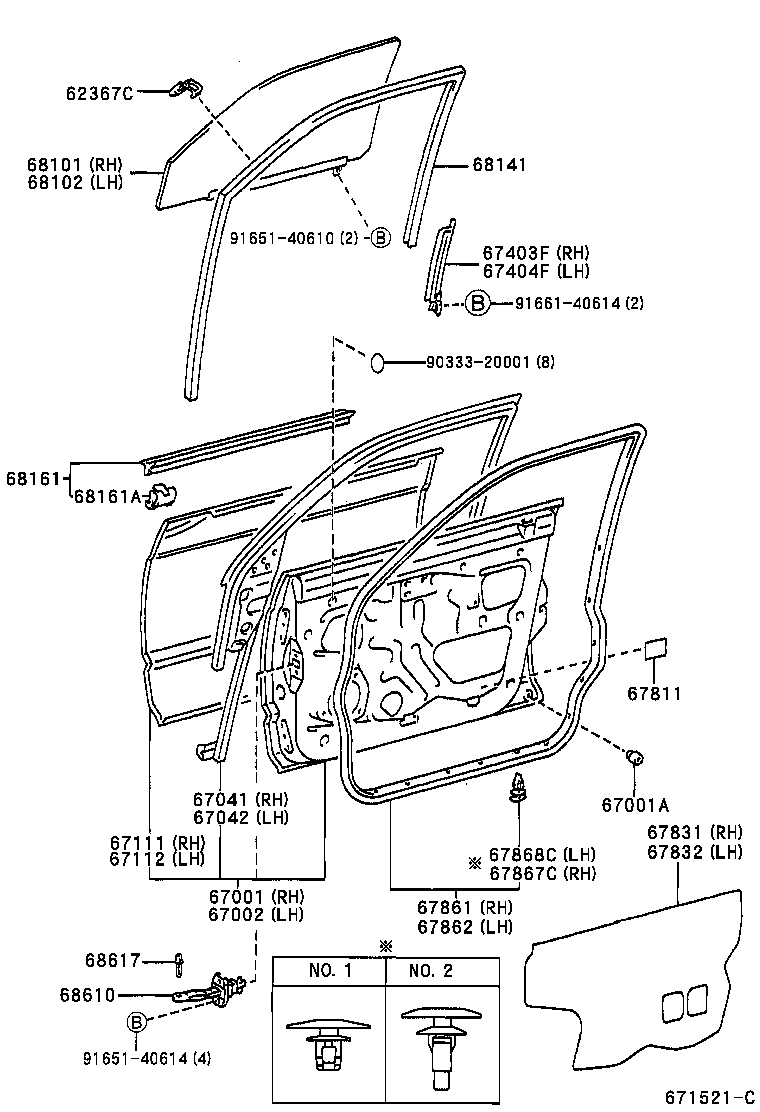

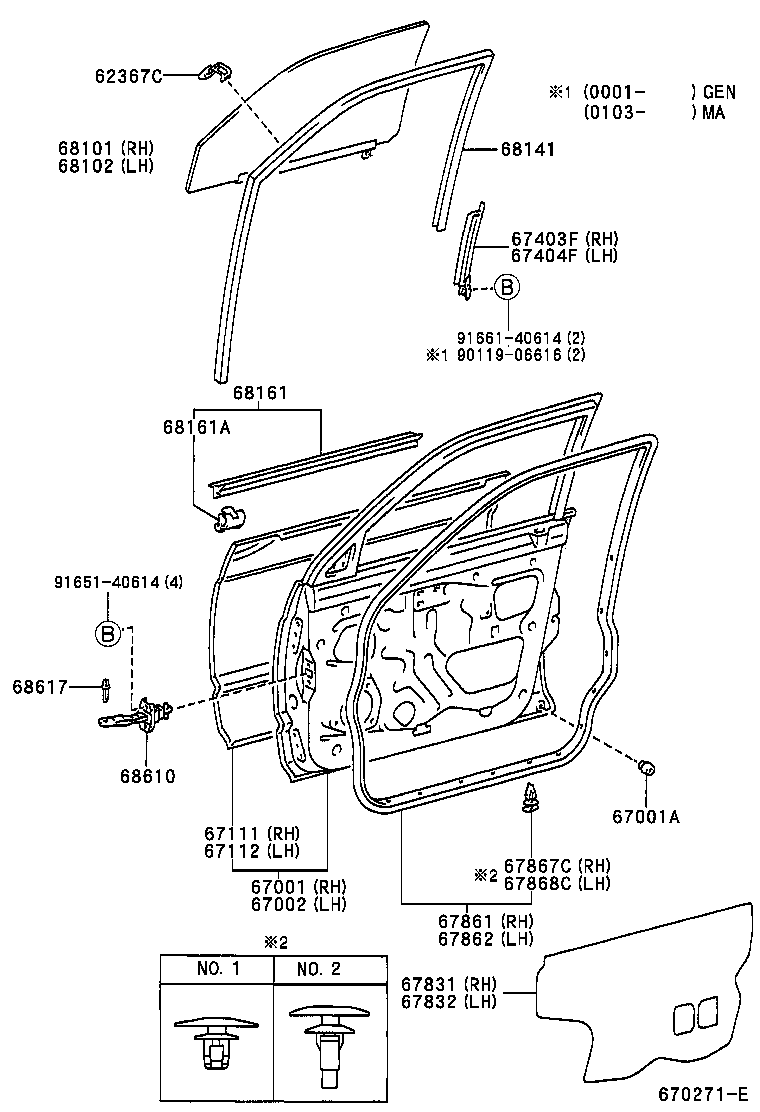

Figure 670269I 670269I 1996-12 → 2002-08 Figure 670269I 670269I 2002-08 → 2002-10 Figure 670269I 670269I 2002-08 → 2003-06 Figure 670269I 670269I 2002-08 → — Figure 670269I 670269I 2002-10 → 2002-12 Figure 670269I 670269I 2002-10 → — Figure 670269I 670269I 2002-12 → 2003-06 Figure 670269I 670269I 2003-06 → — Figure 672793A 672793A 2002-08 → — Figure 672793A 672793A 2002-10 → — Figure 672793A 672793A 2002-11 → — Figure 672793A 672793A 2002-12 → — Figure 673201 673201 2003-06 → — Figure 670271E 670271E 1996-12 → — Figure 671521C 671521C 1998-10 → — Figure 672965A 672965A 2002-11 → — Figure 672965A 672965A 2002-12 → — Figure 672965A 672965A 2003-06 → —

Part groups

PNCDescription
62367C Clip, Door Window Glass
67001 Panel Sub-assy, Front Door, RH
67001A Cushion, Front Door Panel
67002 Panel Sub-assy, Front Door, LH
67041 Frame Sub-assy, Front Door Window, RH
67042 Frame Sub-assy, Front Door Window, LH
67111 Panel, Front Door, Outer RH
67112 Panel, Front Door, Outer LH
67403F Frame Sub-assy, Front Door, Rear Lower RH
67404F Frame Sub-assy, Front Door, Rear Lower LH
67491A Garnish, Front Door Lower Frame Bracket, RH
67492A Garnish, Front Door Lower Frame Bracket, LH
67601 Board Sub-assy, Front Door Trim, RH
67601A Retainer(FOR FRONT DOOR TRIM BOARD)
67602 Board Sub-assy, Front Door Trim, LH
67625A Bracket, Front Door Trim, NO.1
67651B Grille, Speaker Door, RH
67651H Grille, Speaker Door, RH
67652B Grille, Speaker Door, LH
67652C Grille, Speaker Door, LH
67661C Base, Door Speaker Grille, RH
67662A Base, Door Speaker Grille, LH
67710 Panel Assy, Front Door Trim, Upper RH
67720 Panel Assy, Front Door Trim, Upper LH
67777 Pocket, Front Door Trim, RH
67778 Pocket, Front Door Trim, LH
67811 Pad, Front Door Silencer
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
67867C Retainer, Front Door Weatherstrip, RH
67868C Retainer, Front Door Weatherstrip, LH
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141 Run, Front Door Glass
68161 Weatherstrip, Front Door Glass, Outer
68161A Clip(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68170F Weatherstrip Assy, Front Door Glass, Inner RH
68211A Clip, Door Belt Moulding
68220A Weatherstrip Assy, Front Door Glass, Inner LH
68610 Check Assy, Front Door
68617 Pin, Front Door Check
69751E Holder, Front Door Lock Control Knob
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
