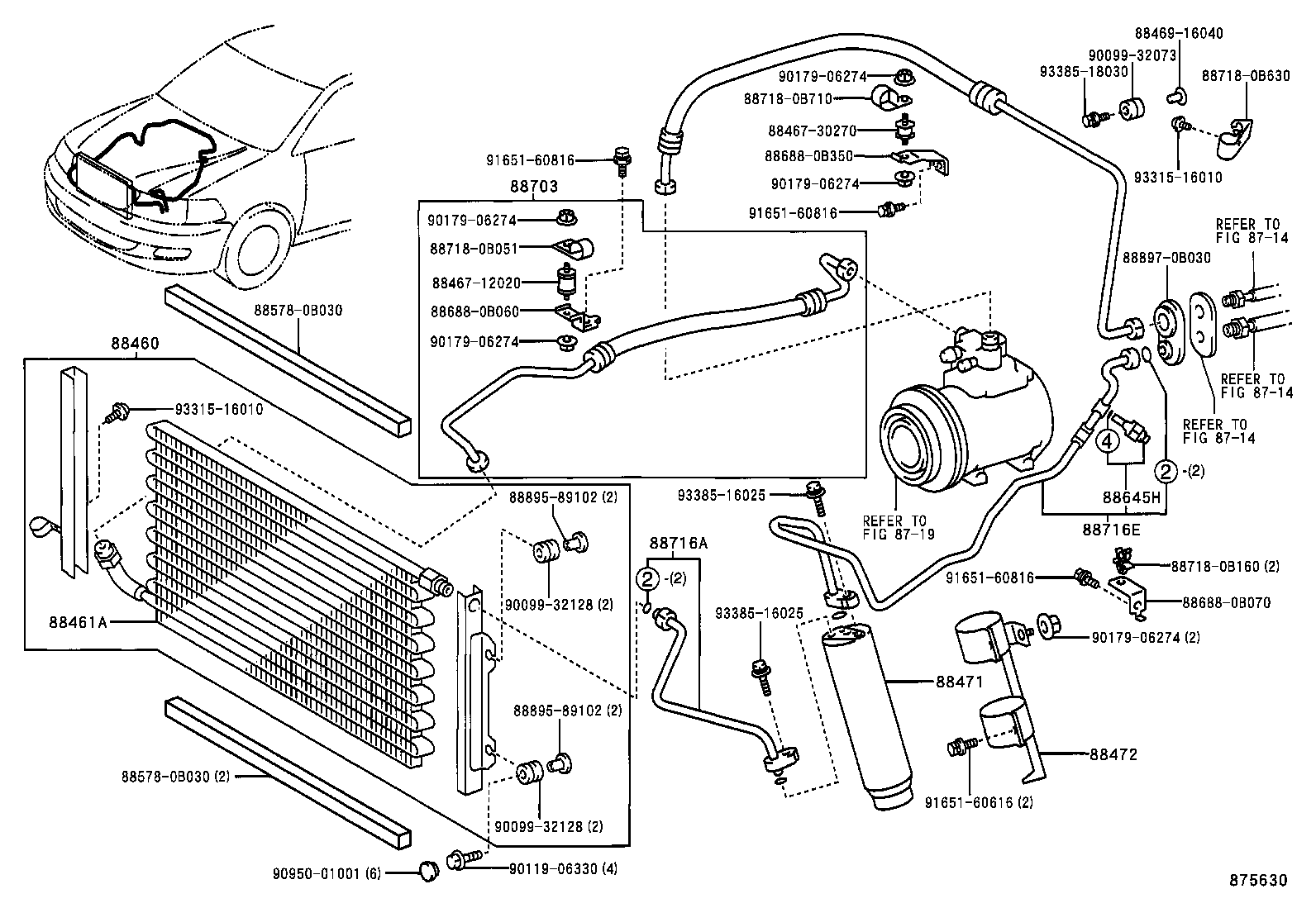

Heating & Air Conditioning - Cooler Piping

32 part groups · 59 illustrations

Illustrations

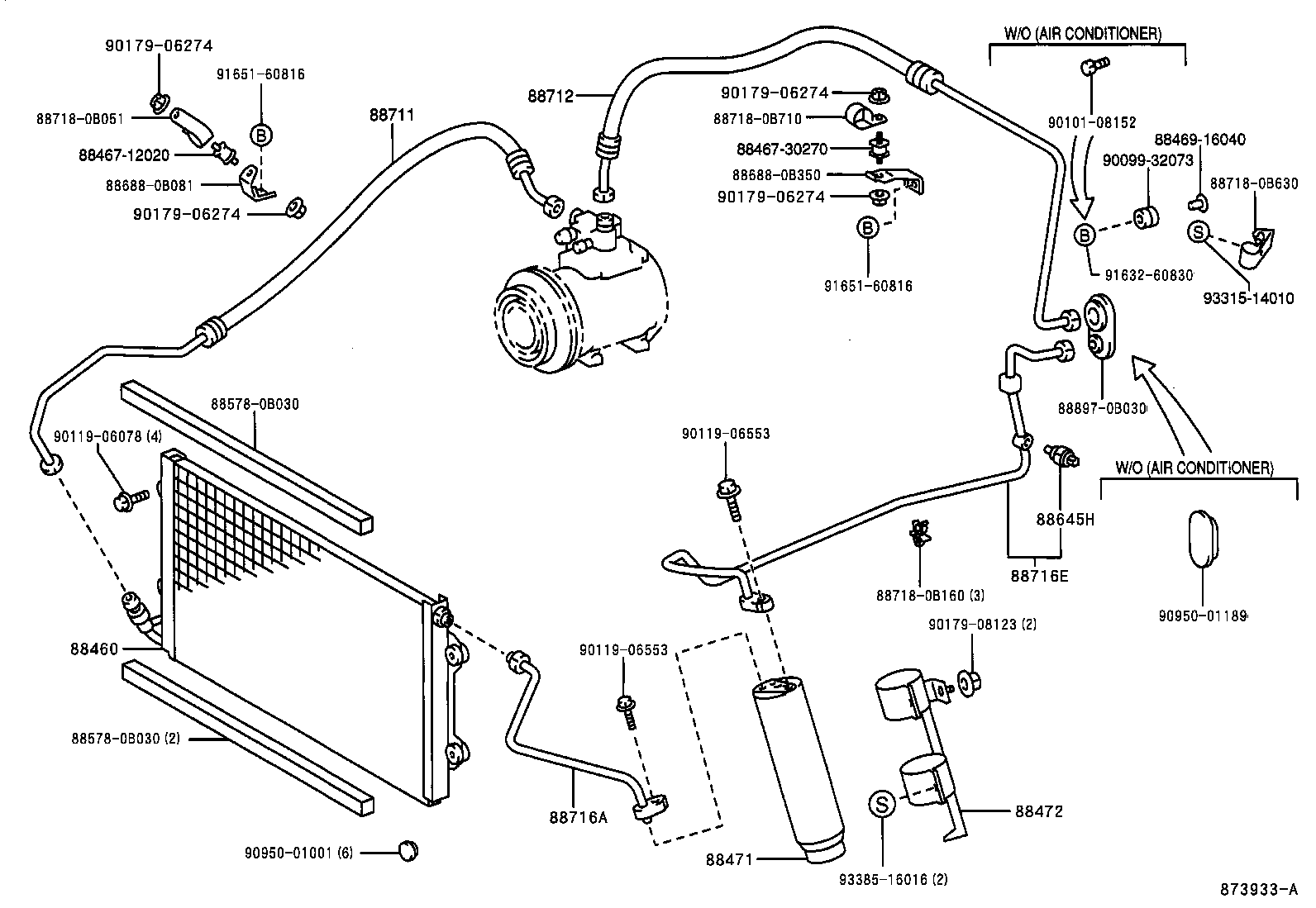

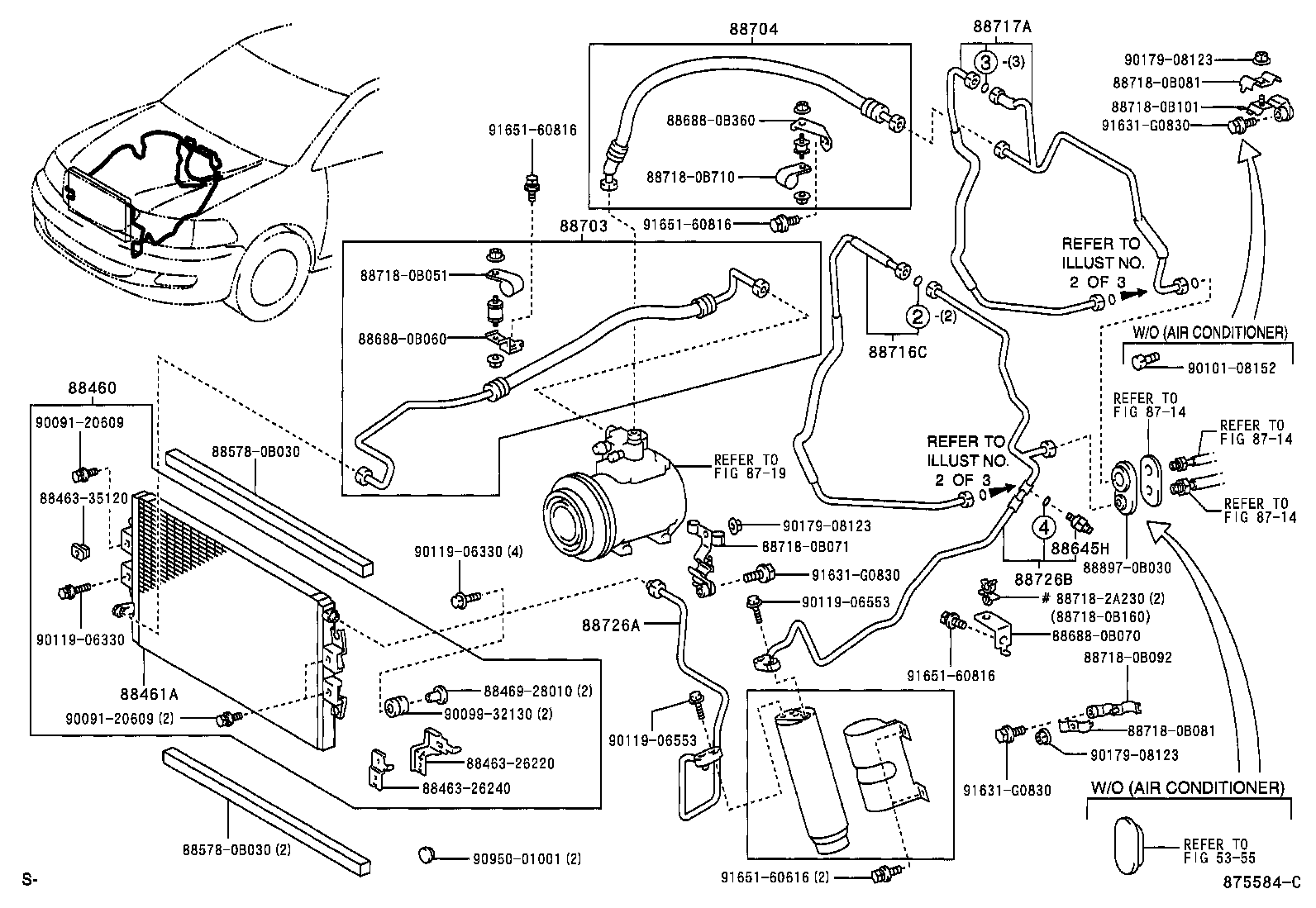

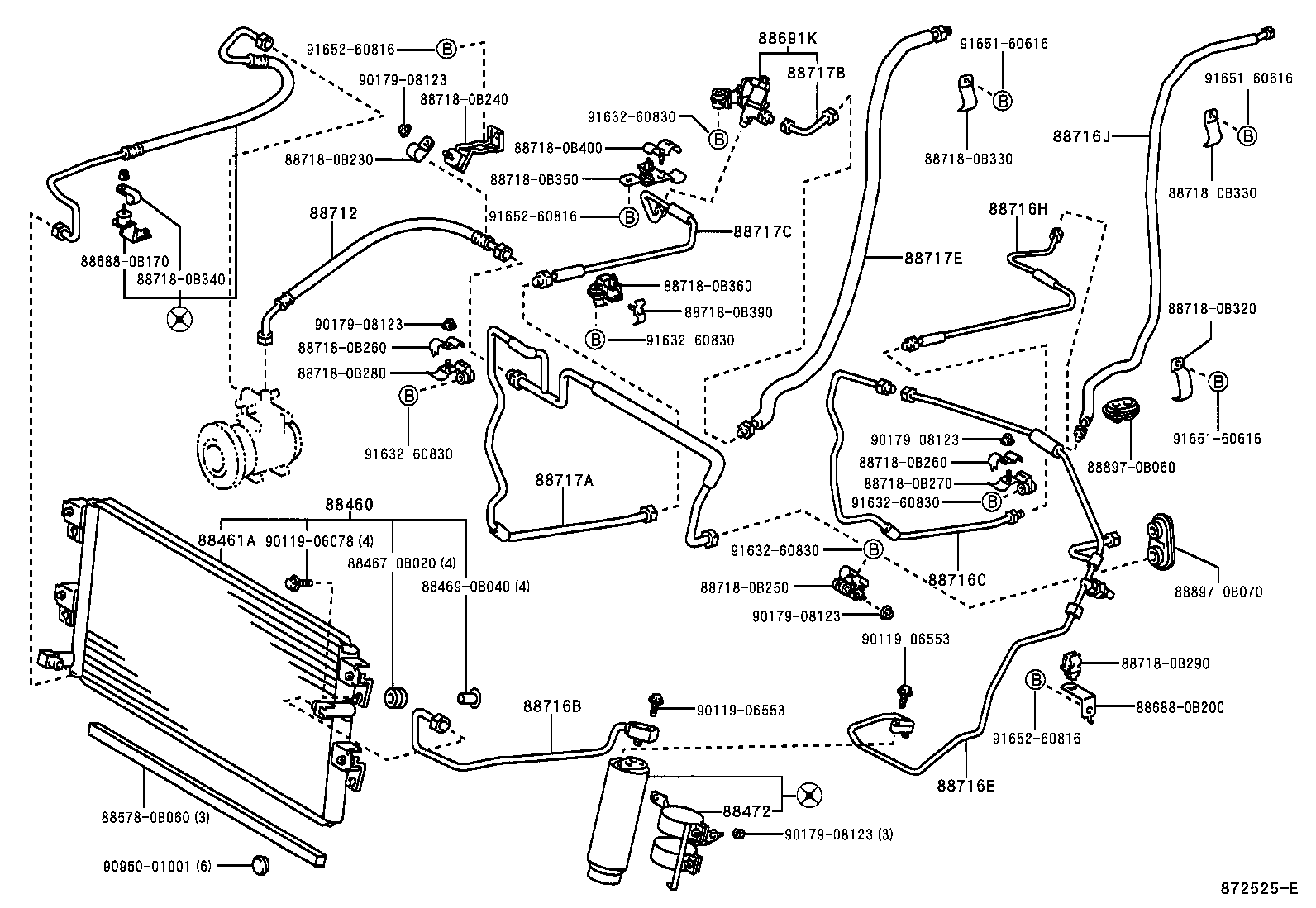

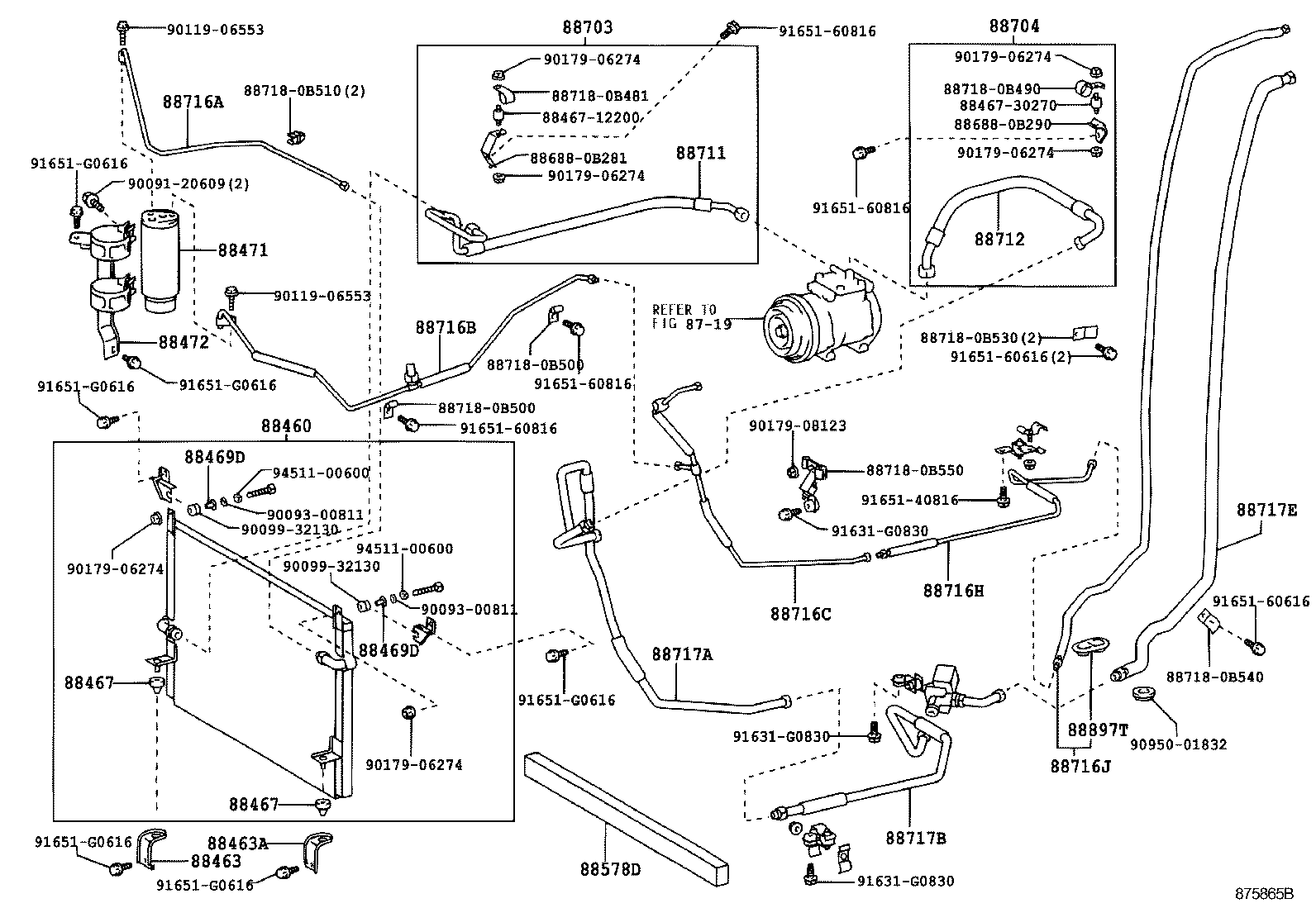

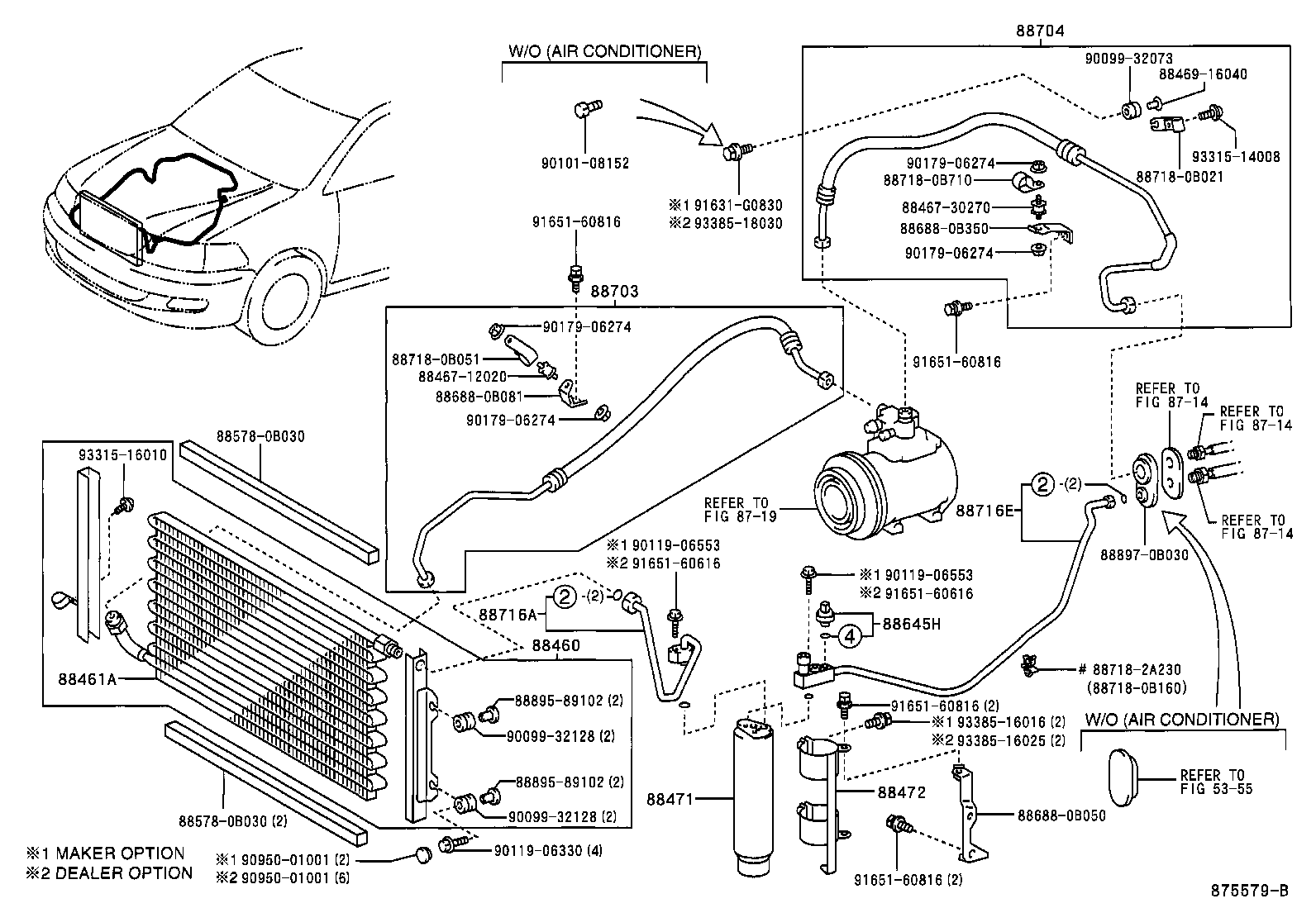

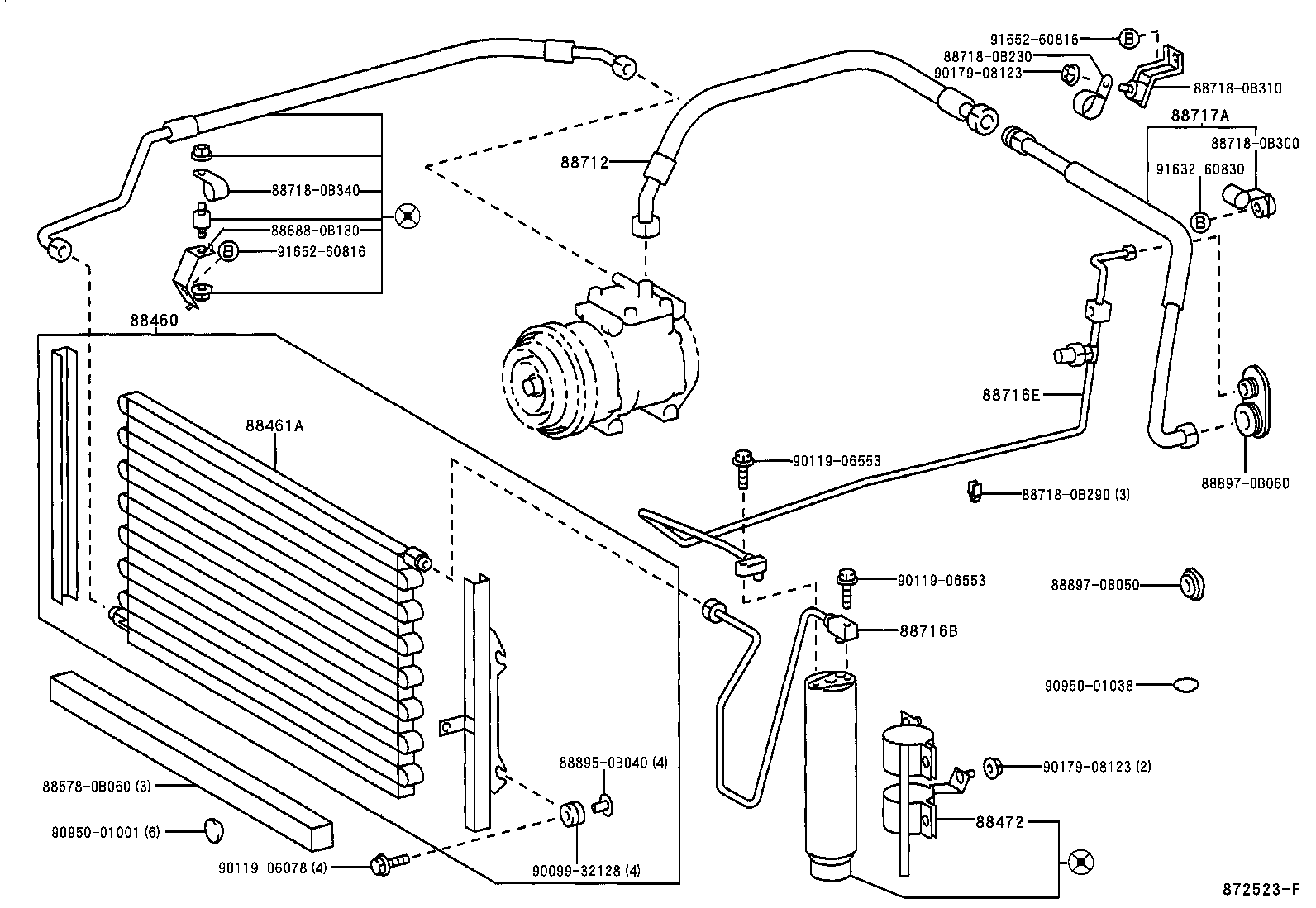

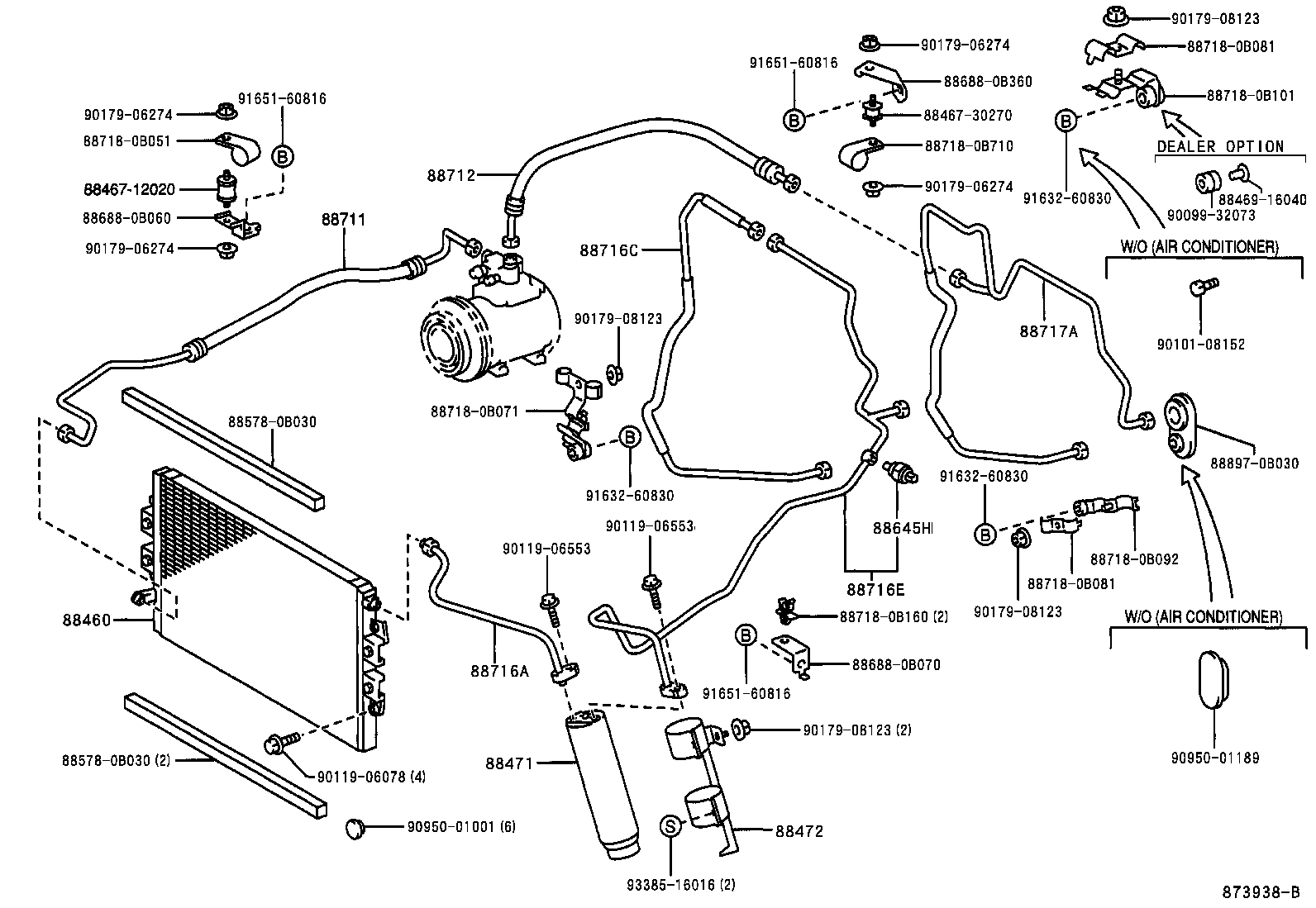

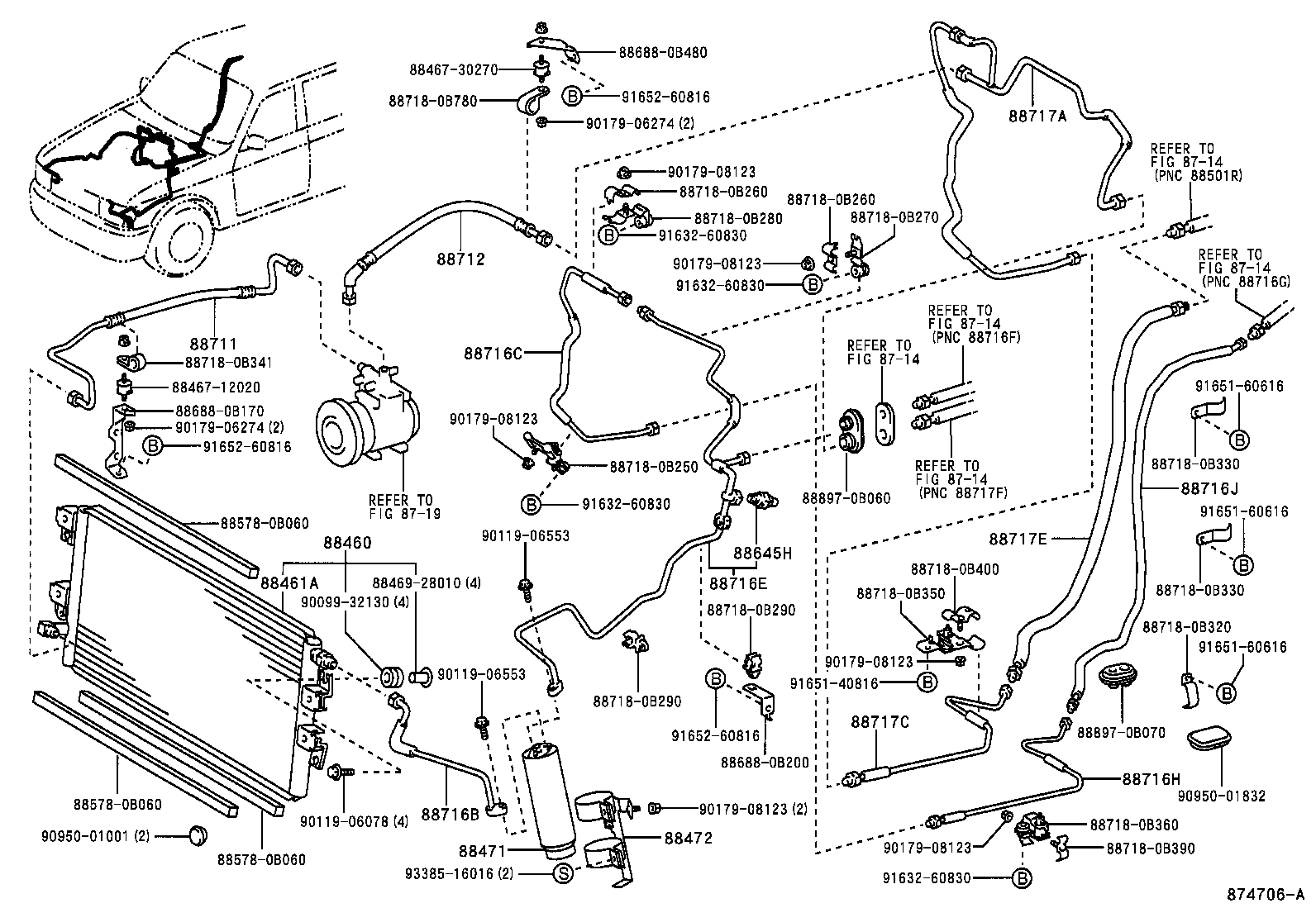

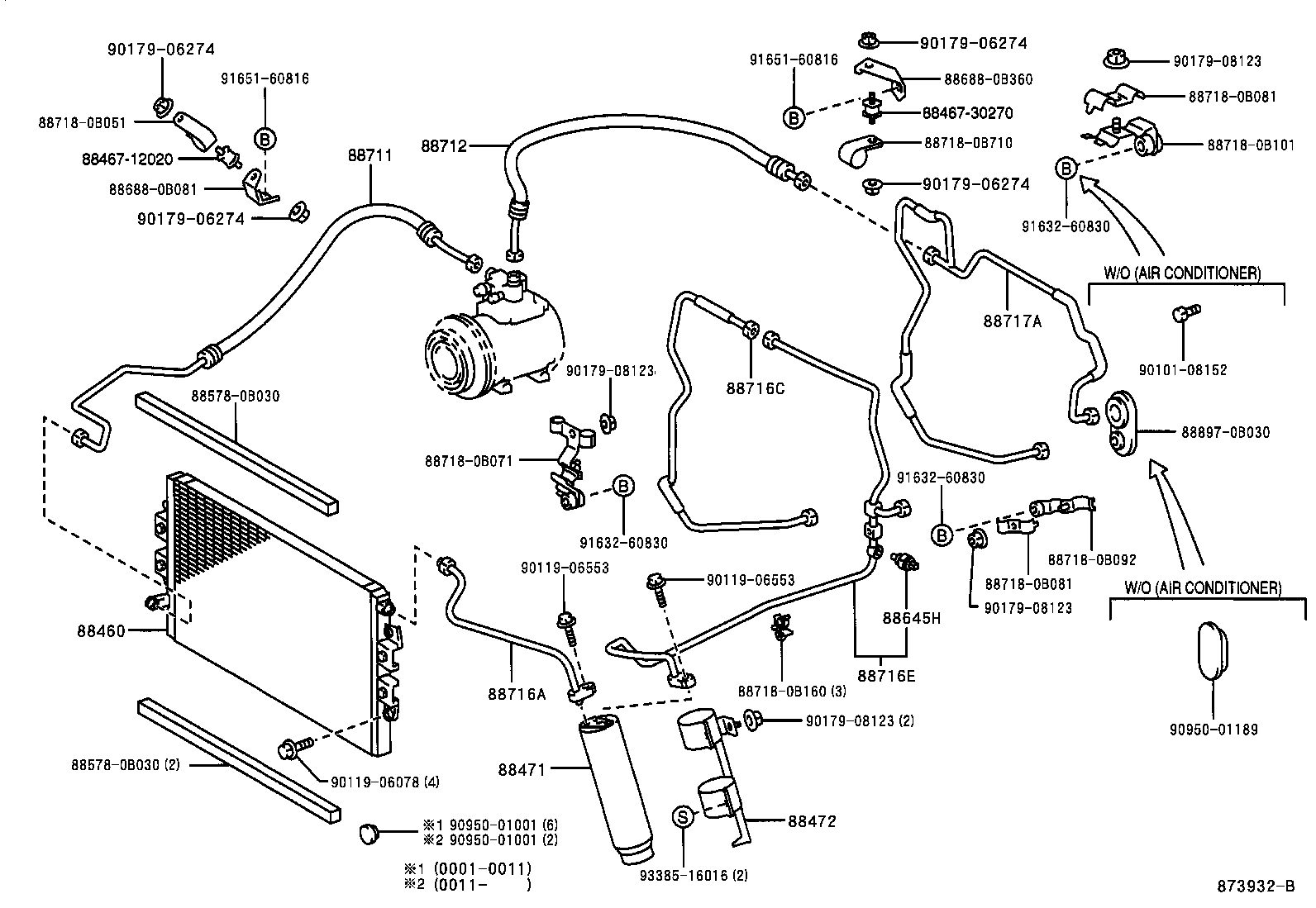

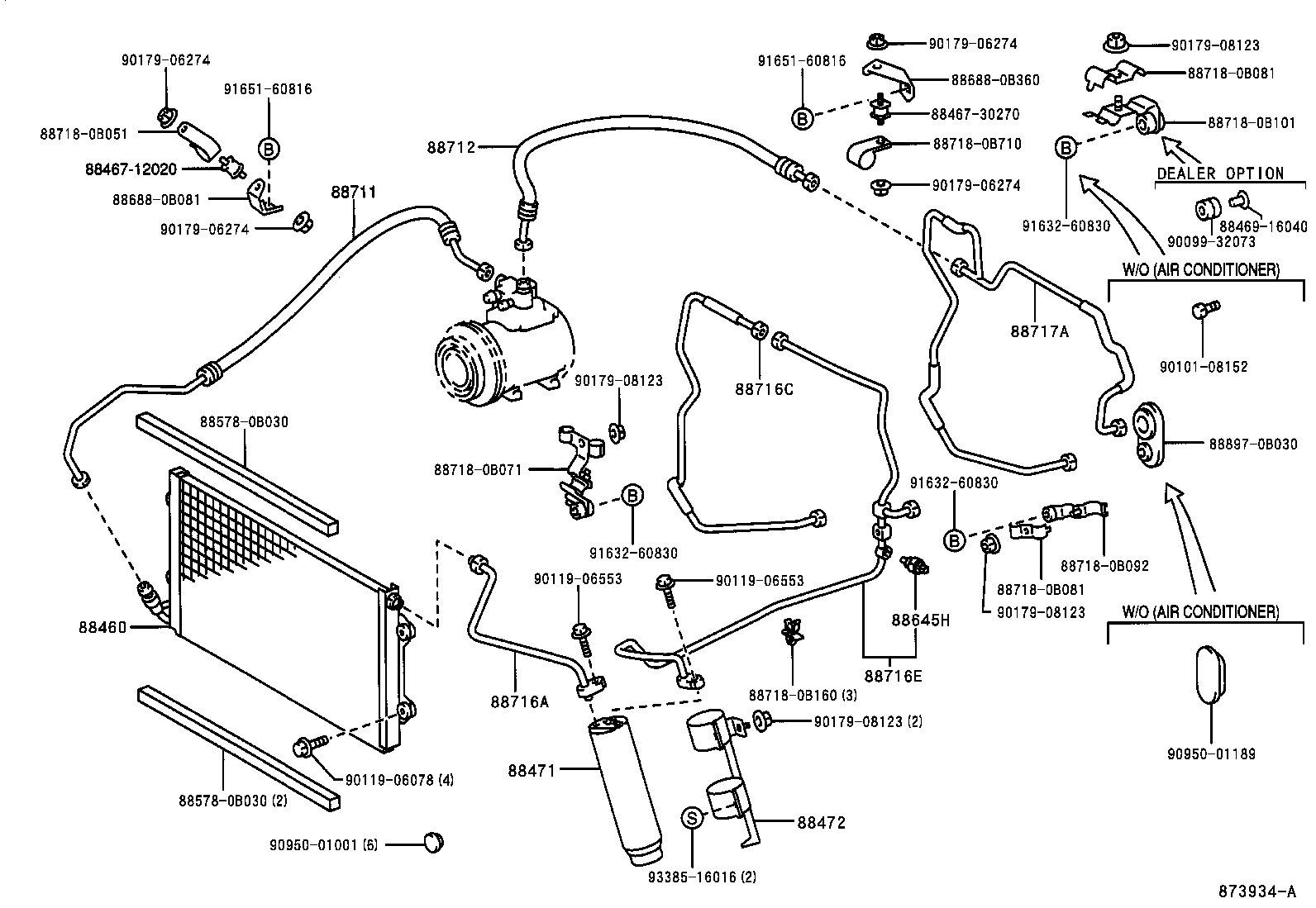

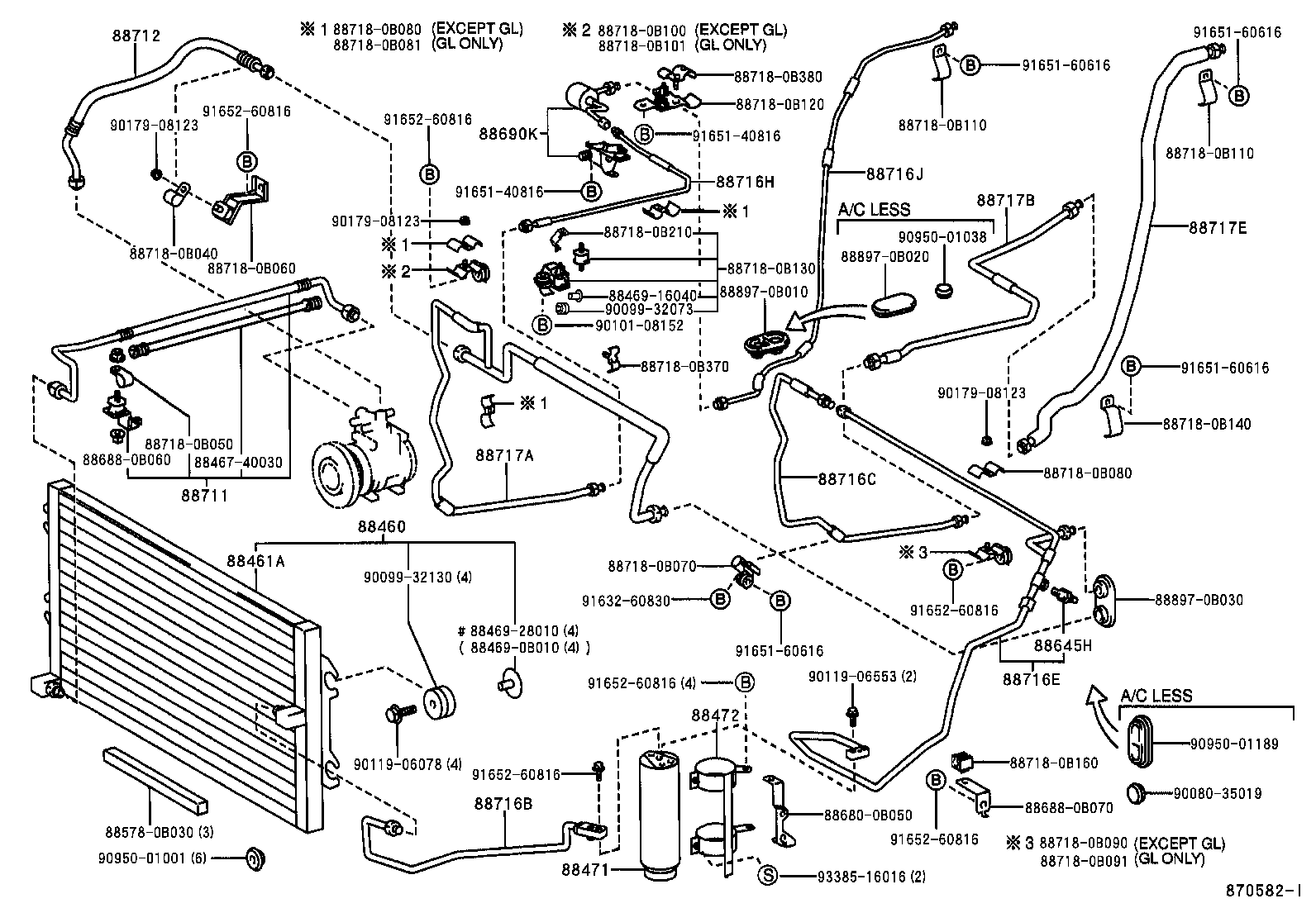

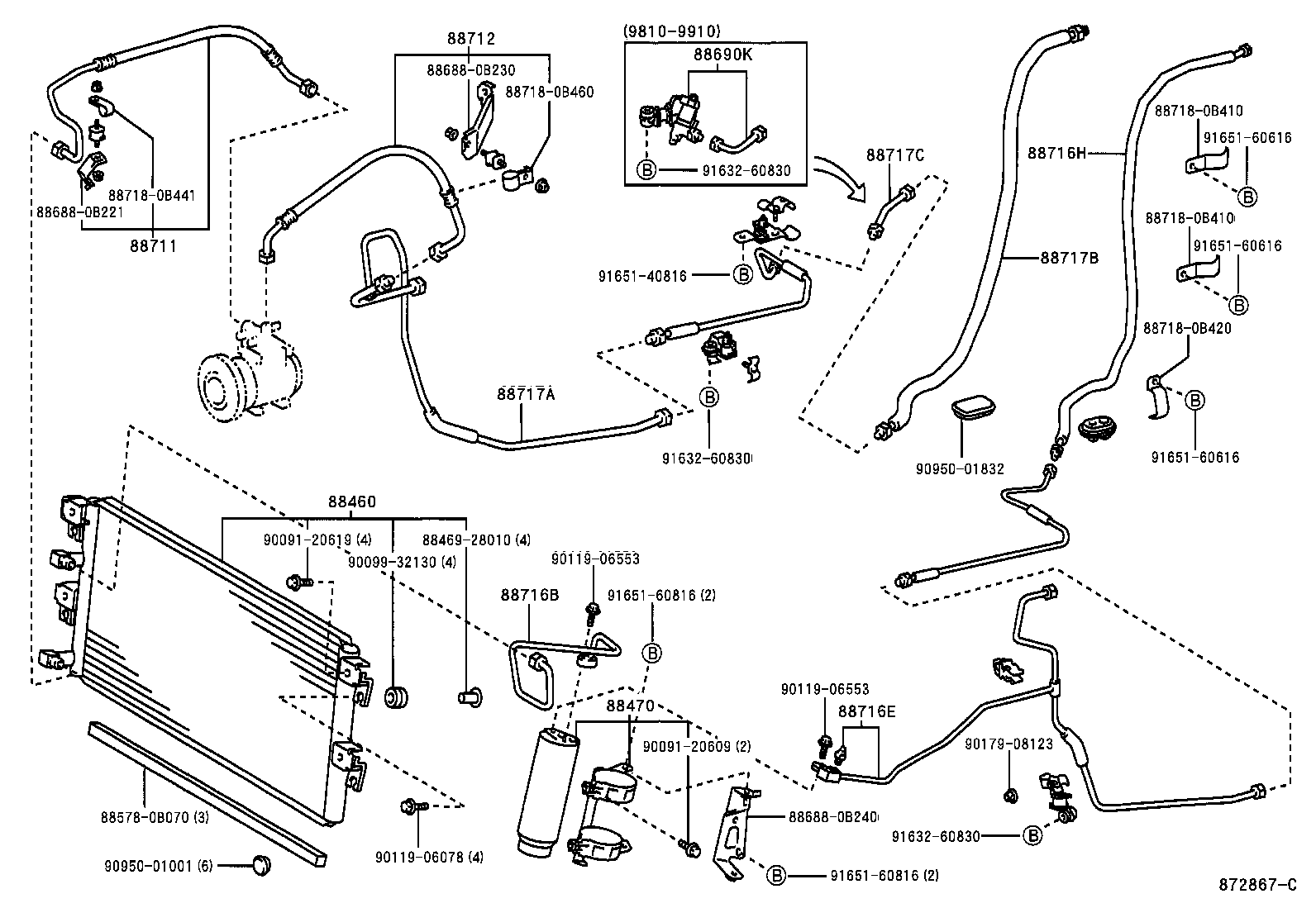

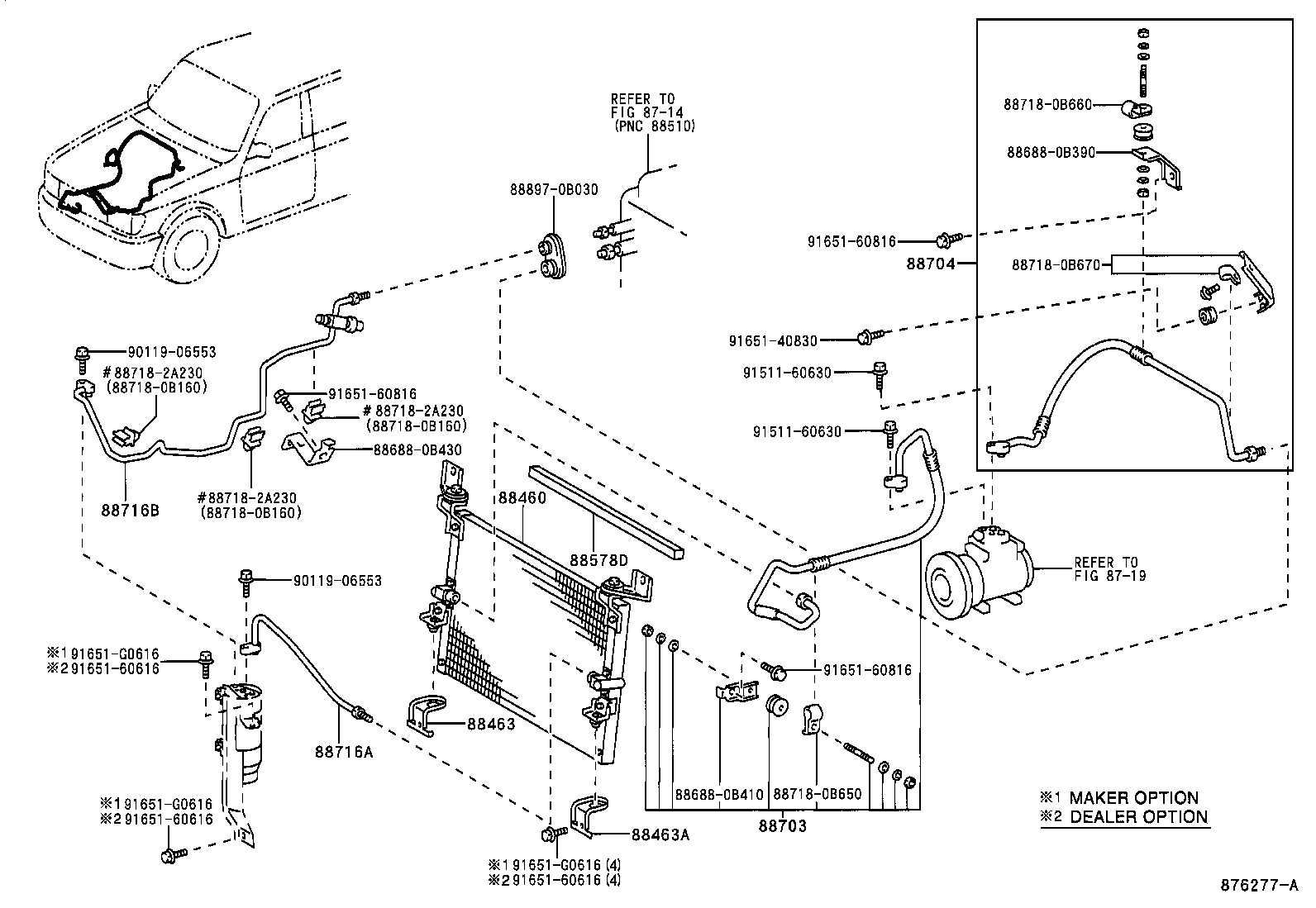

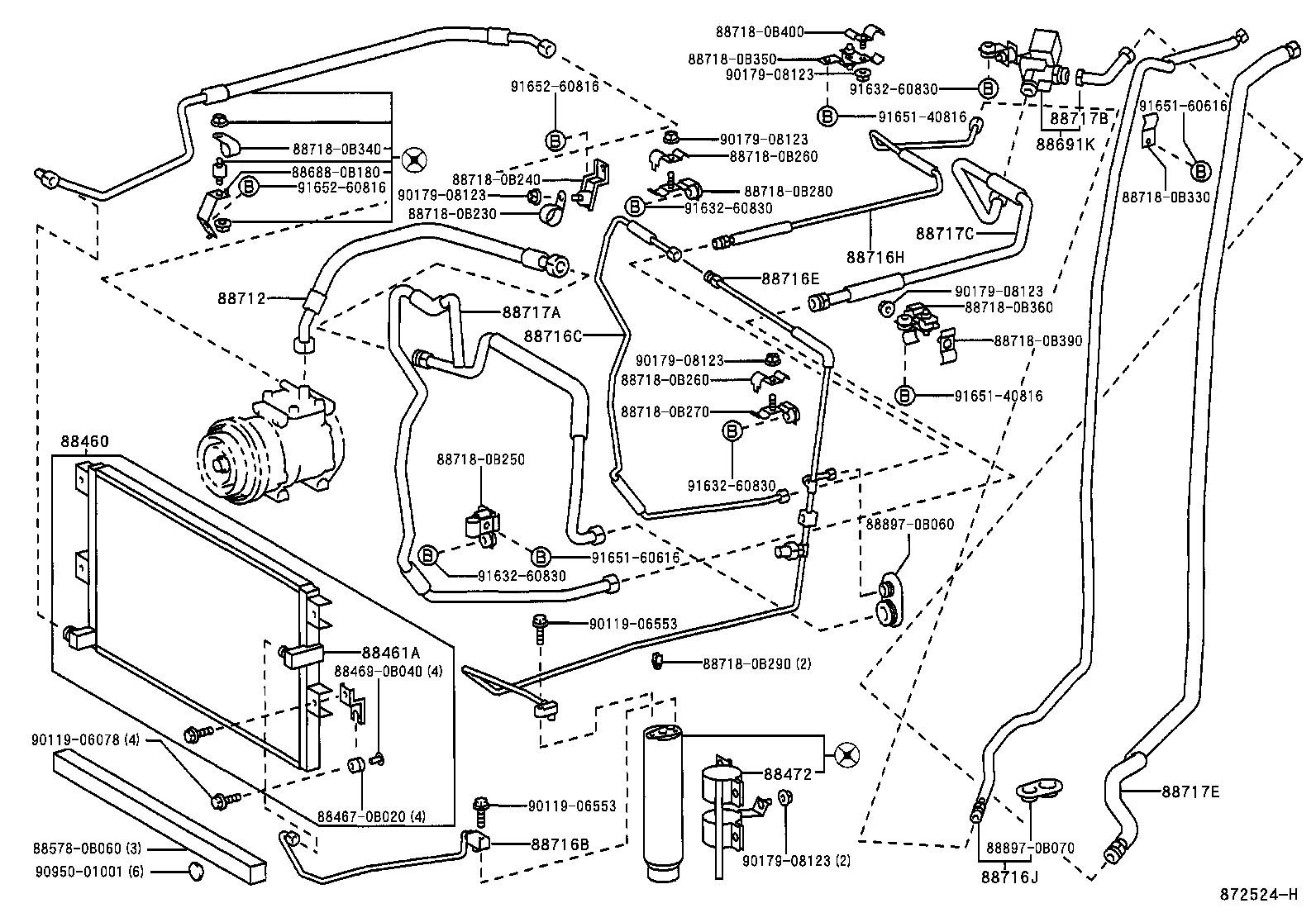

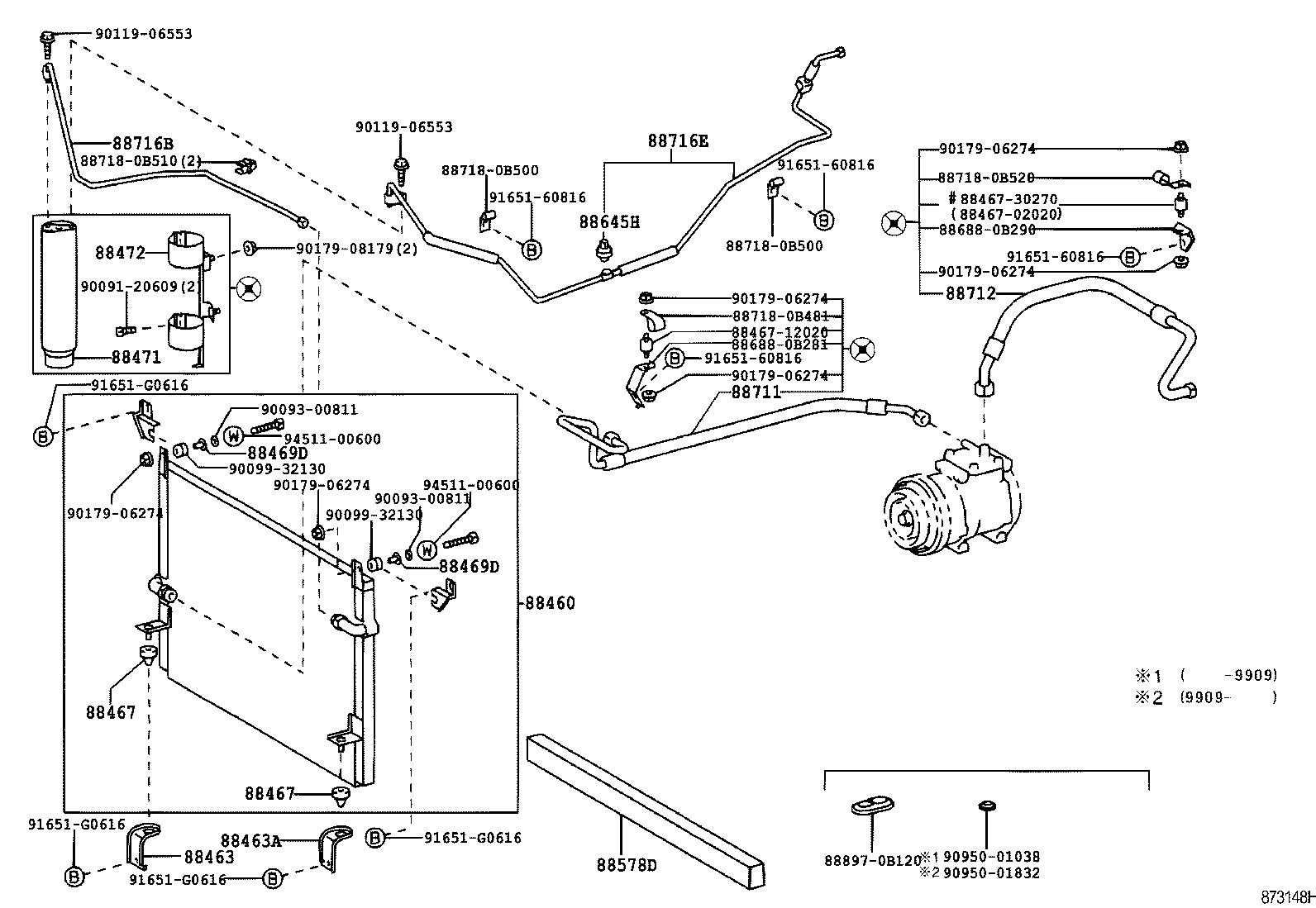

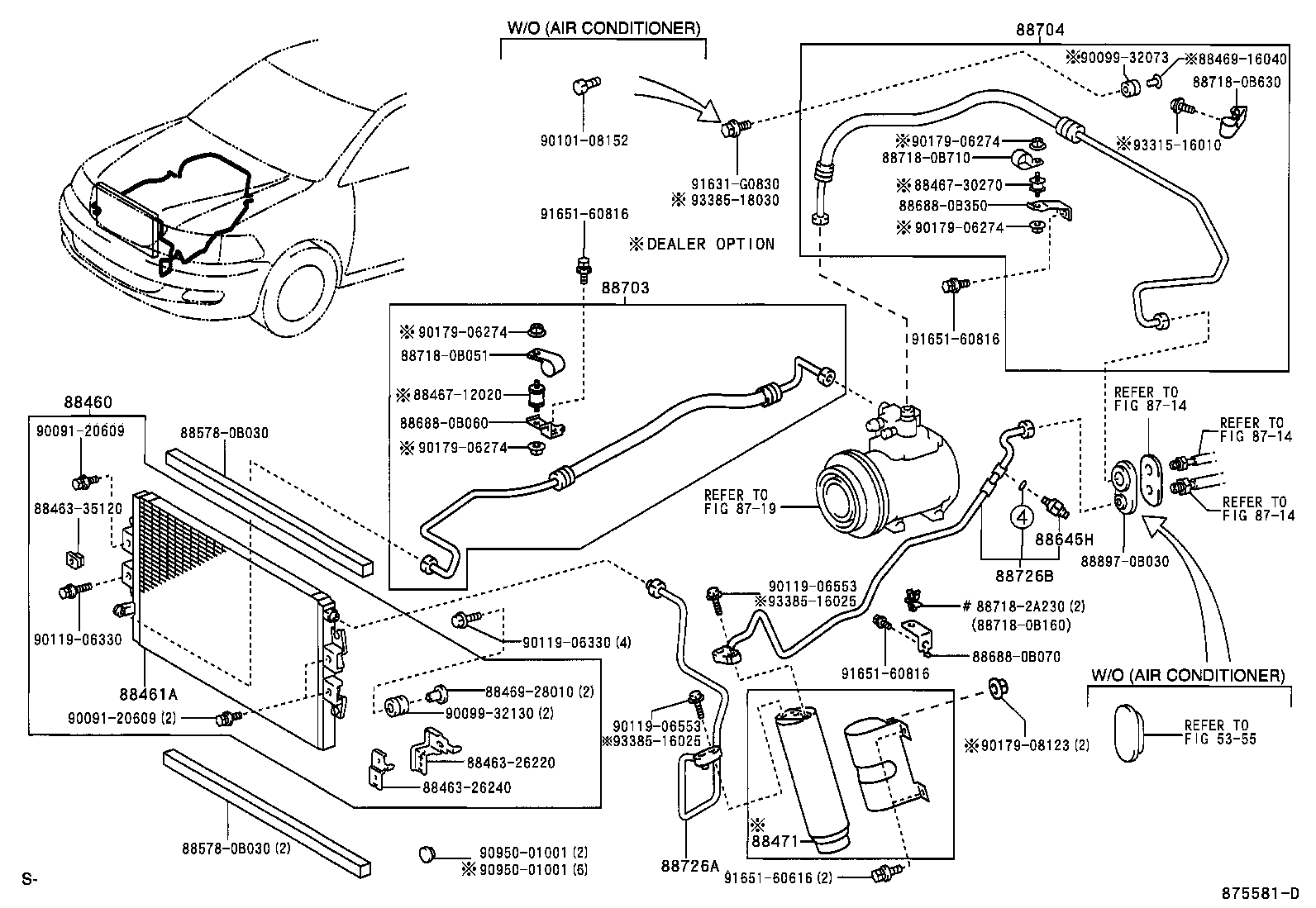

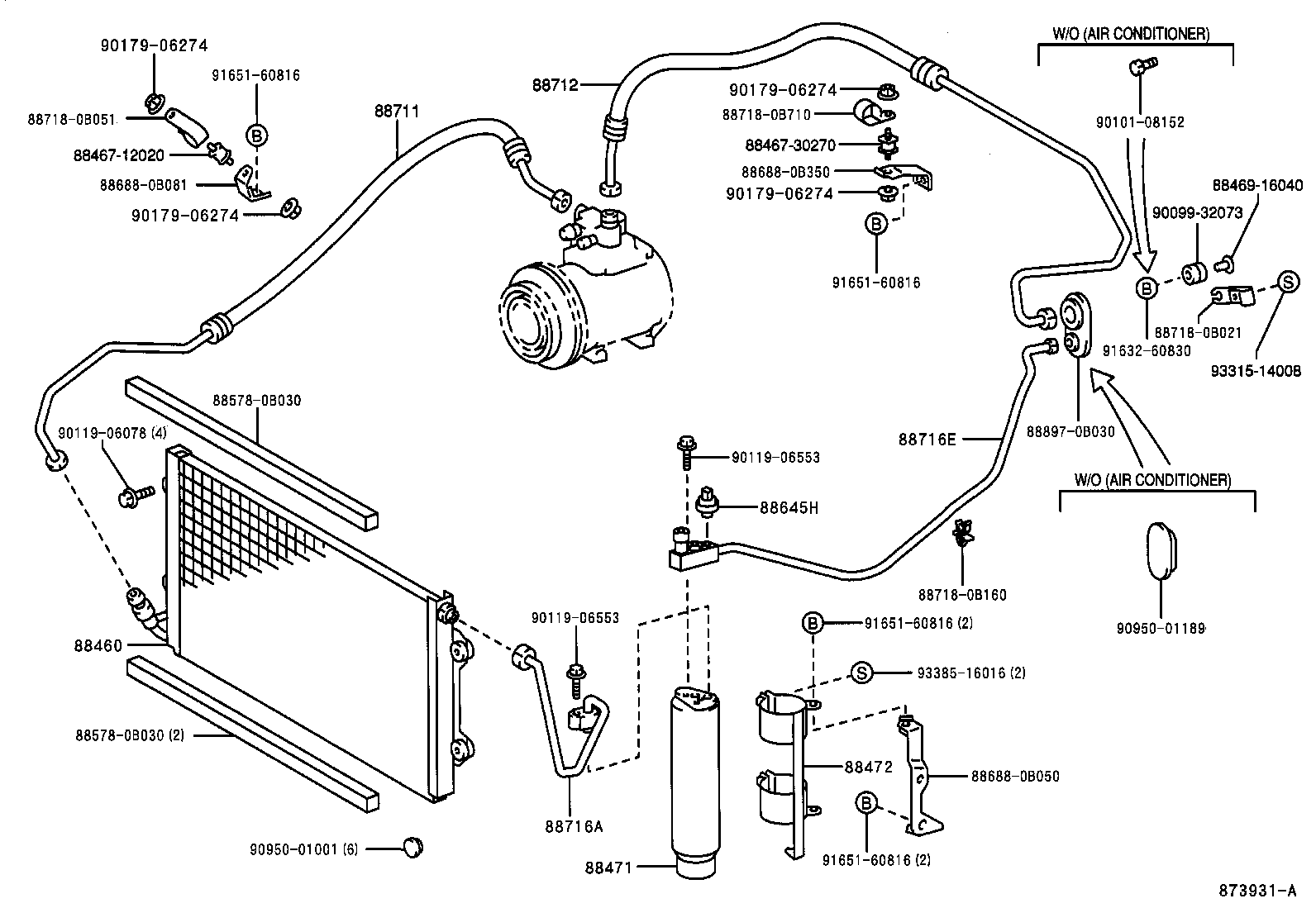

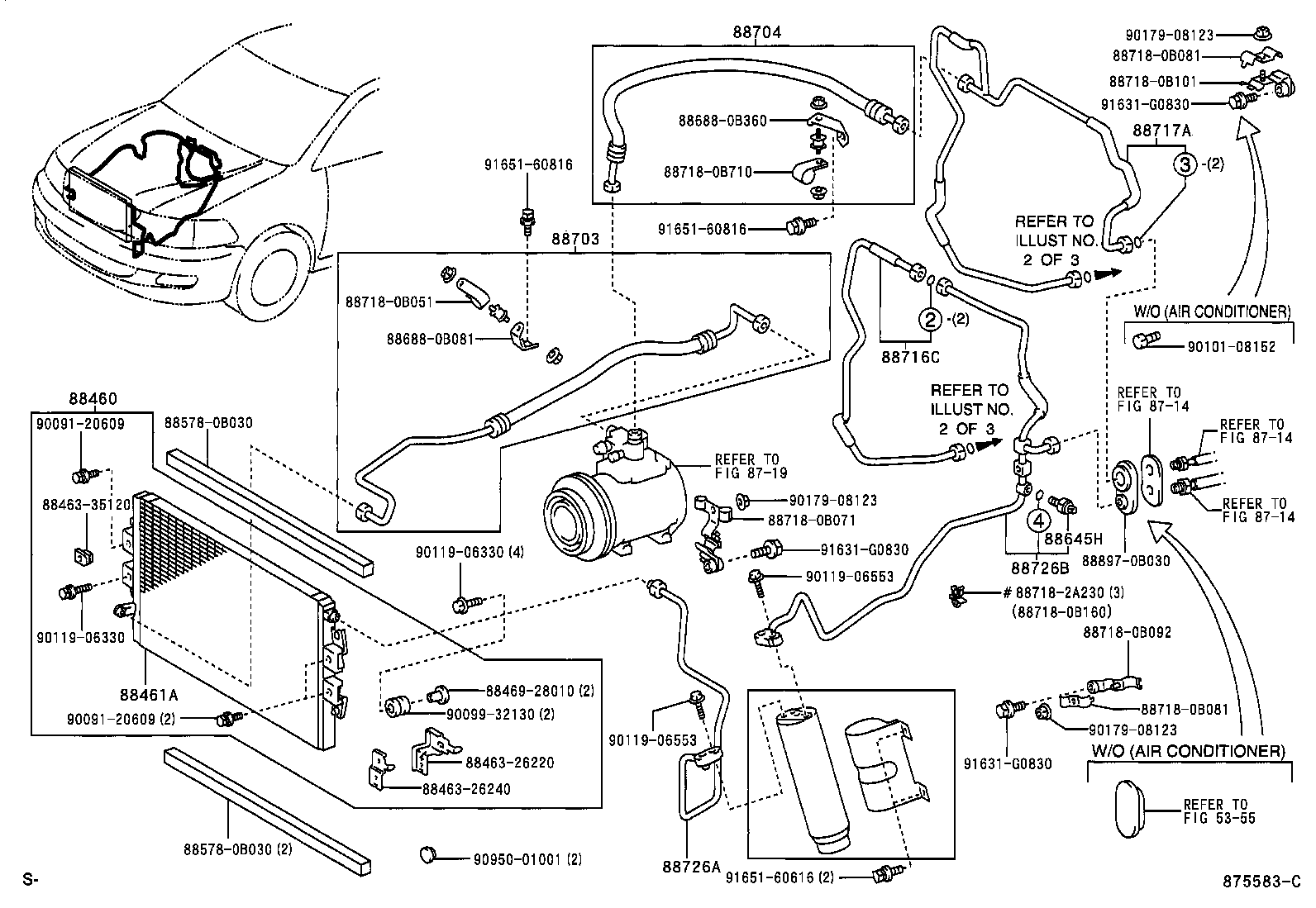

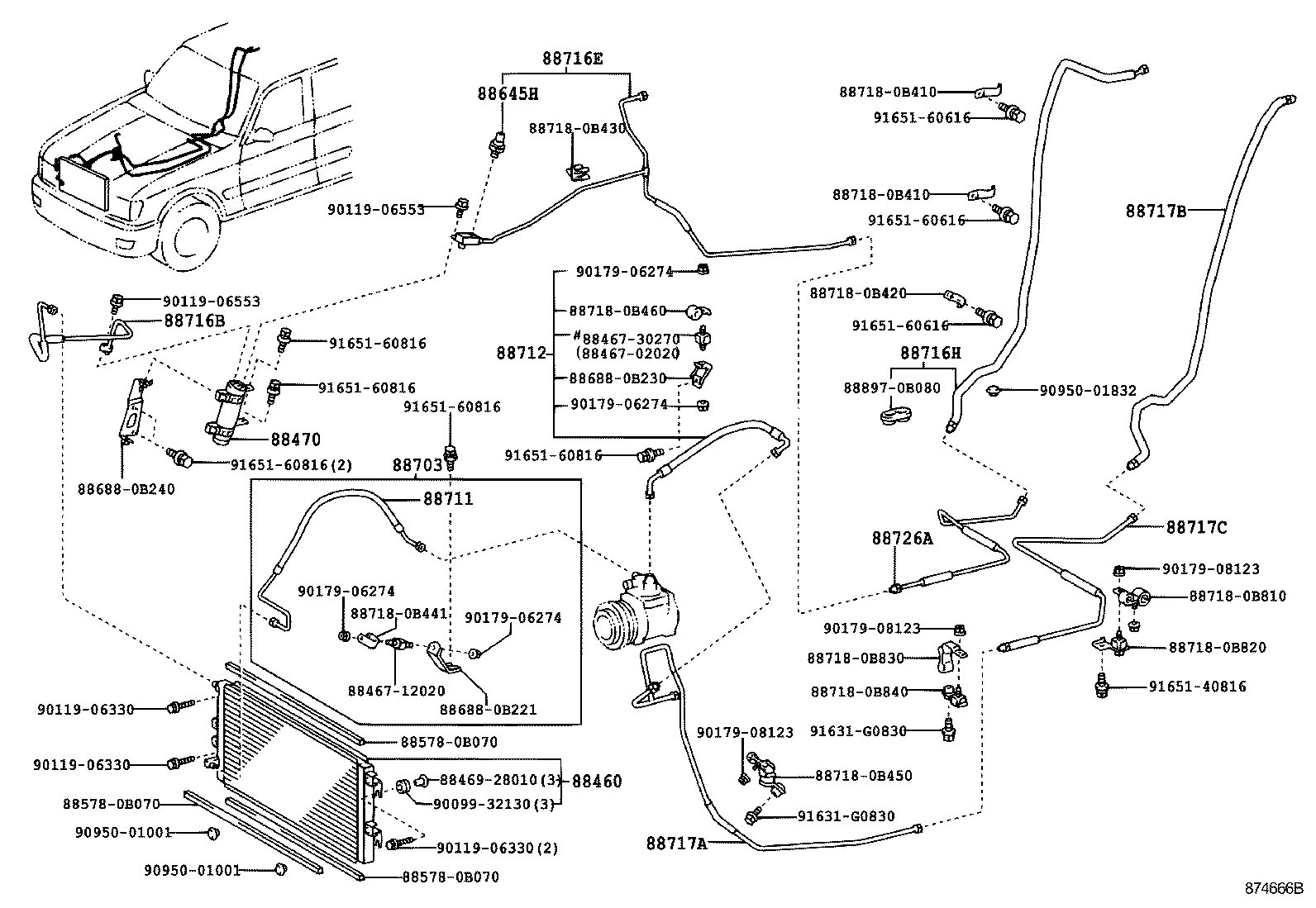

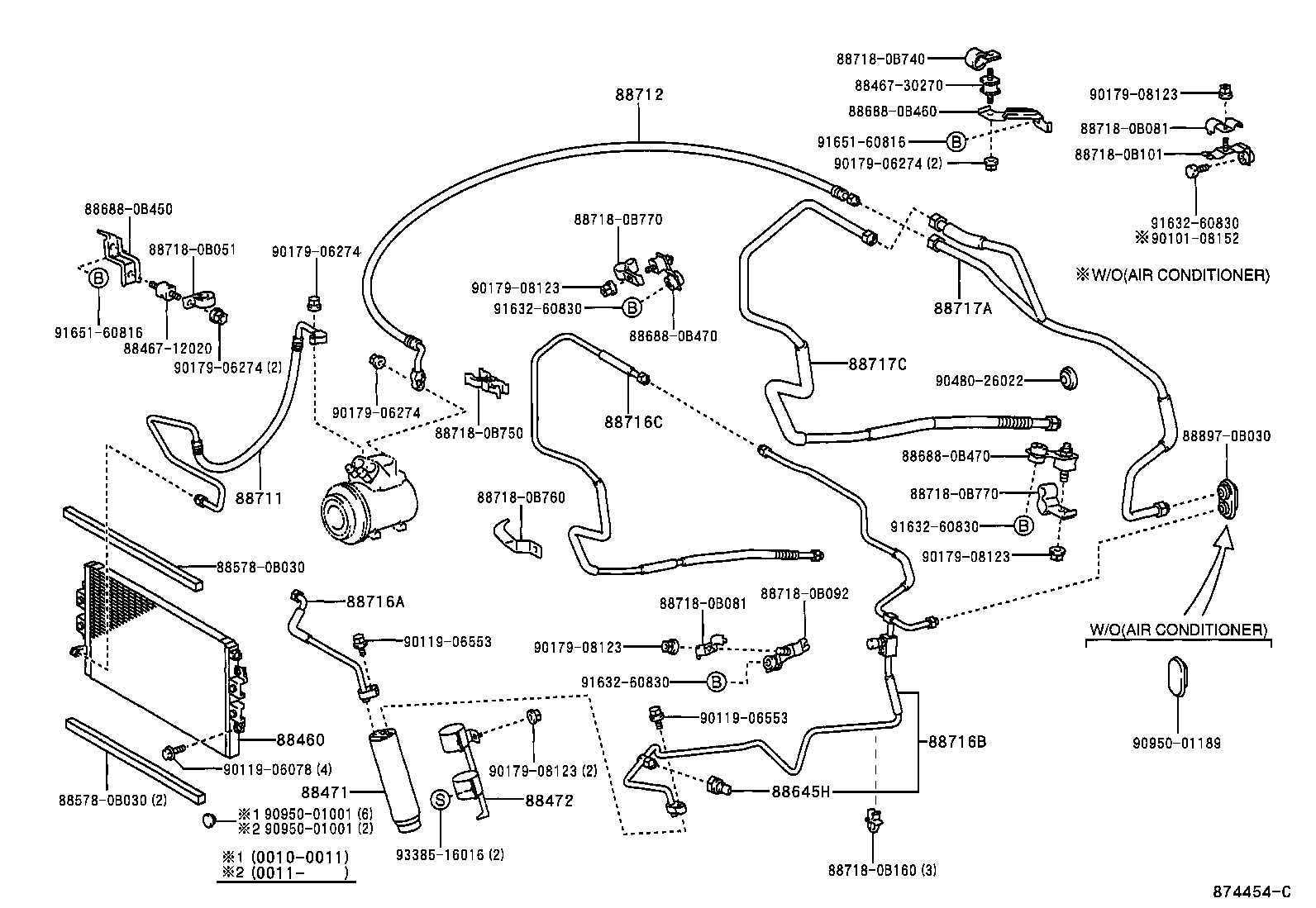

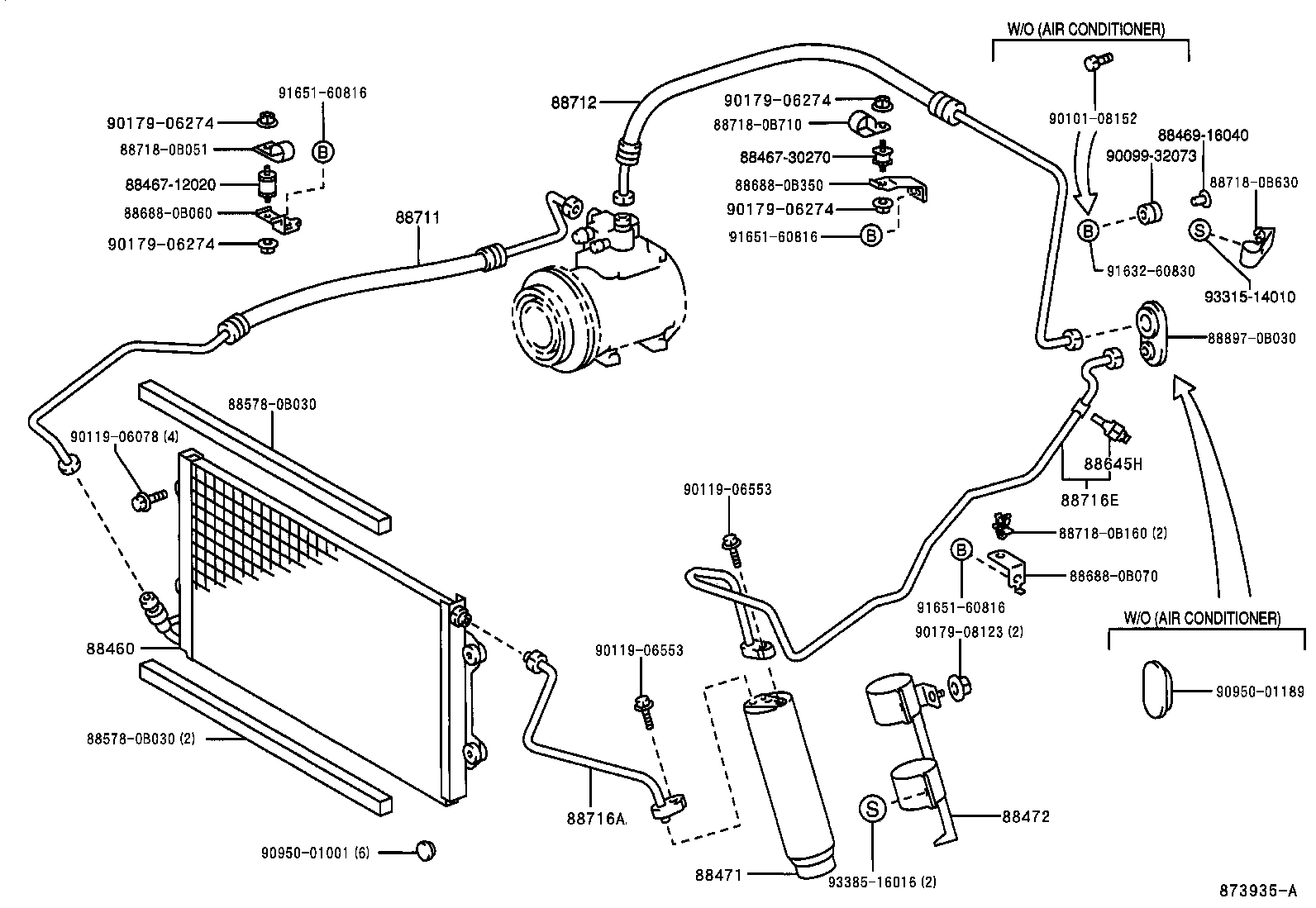

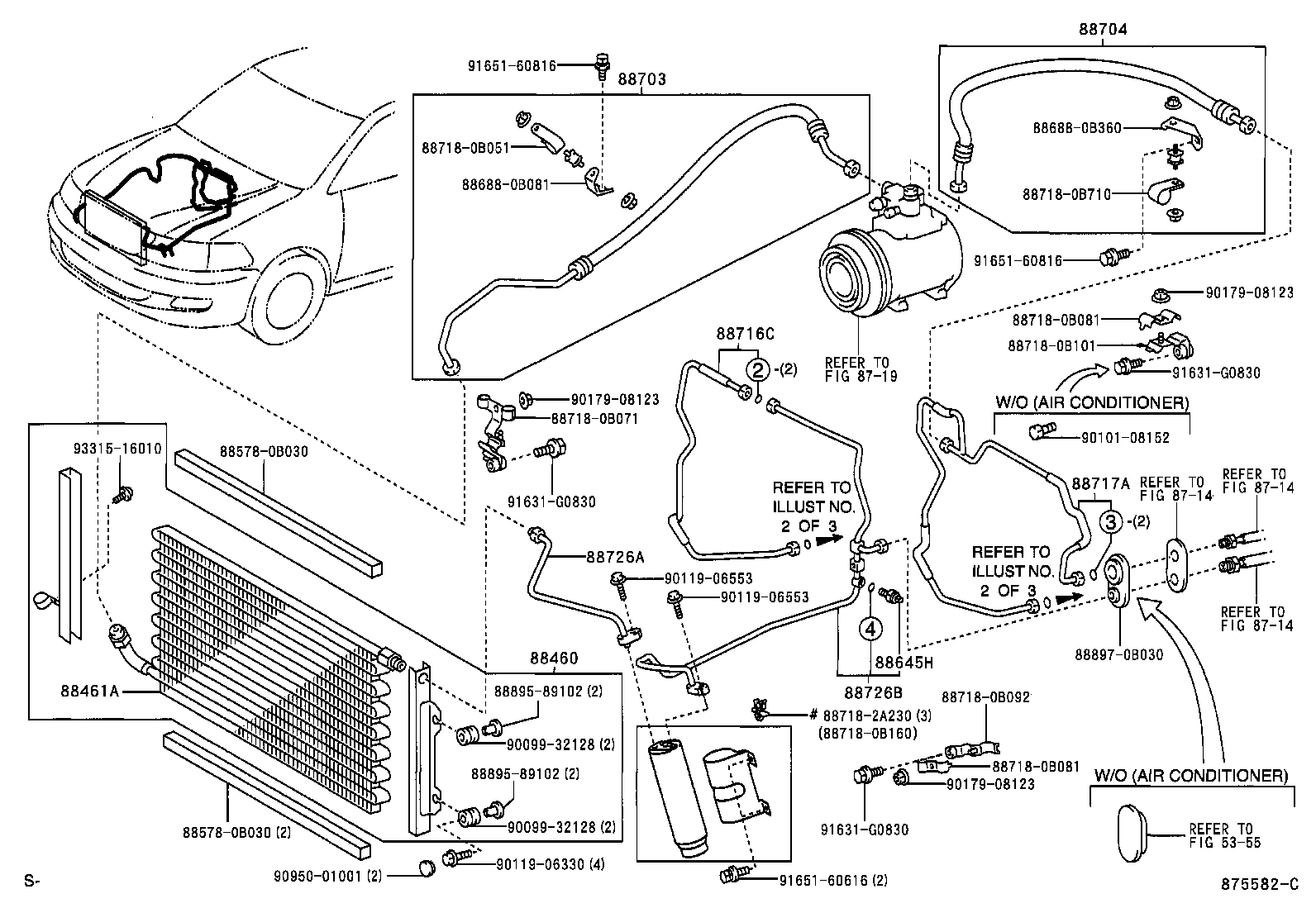

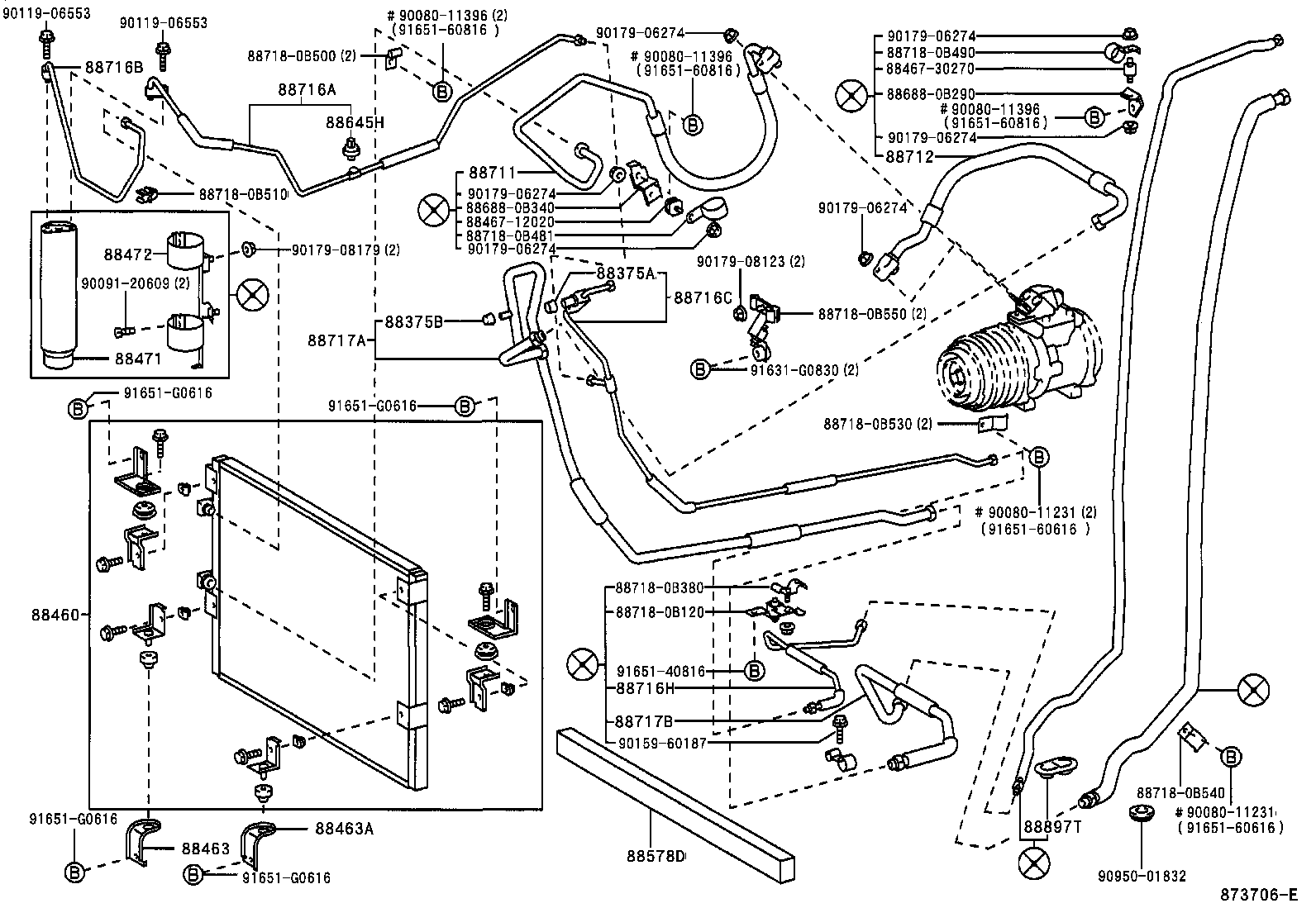

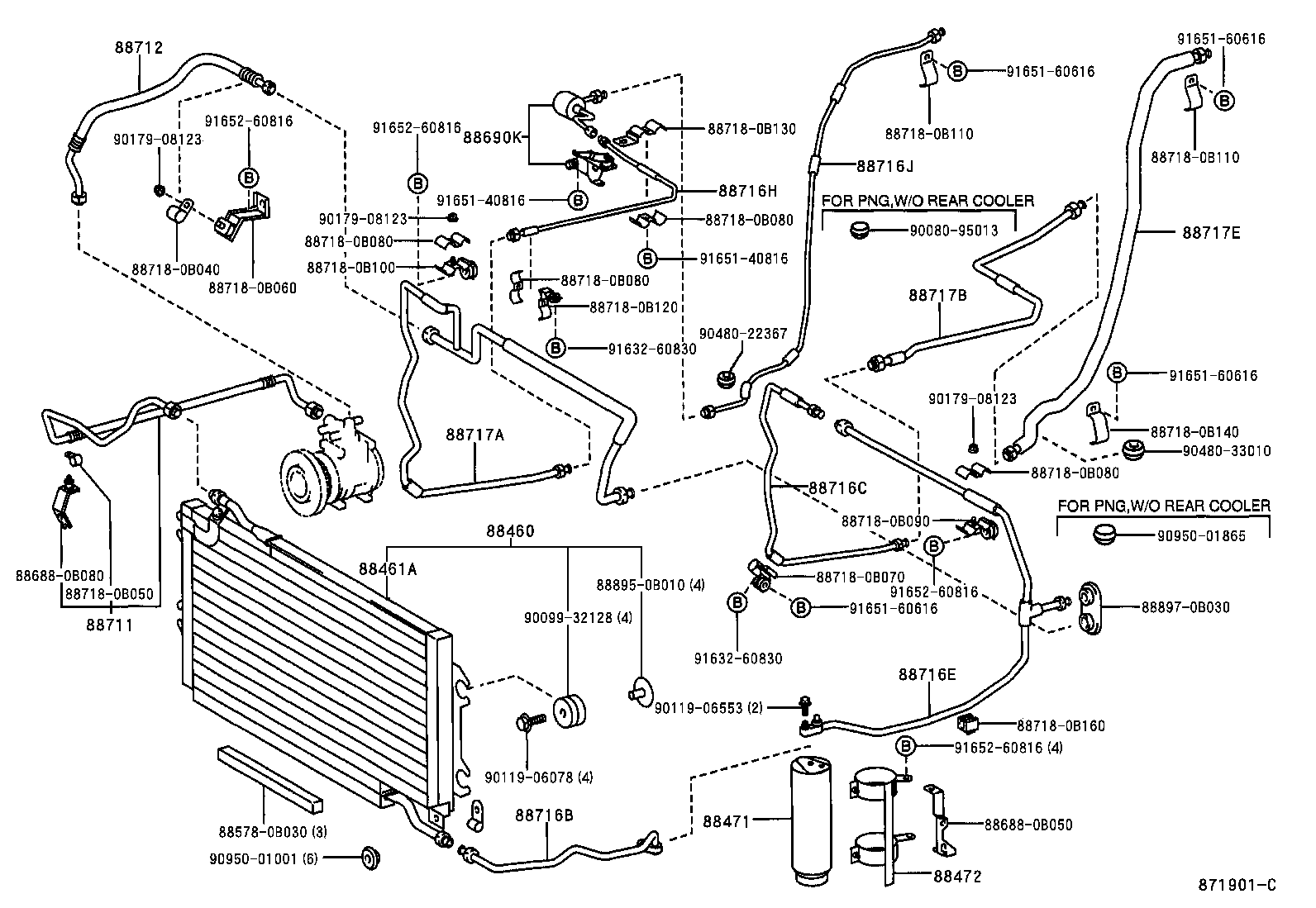

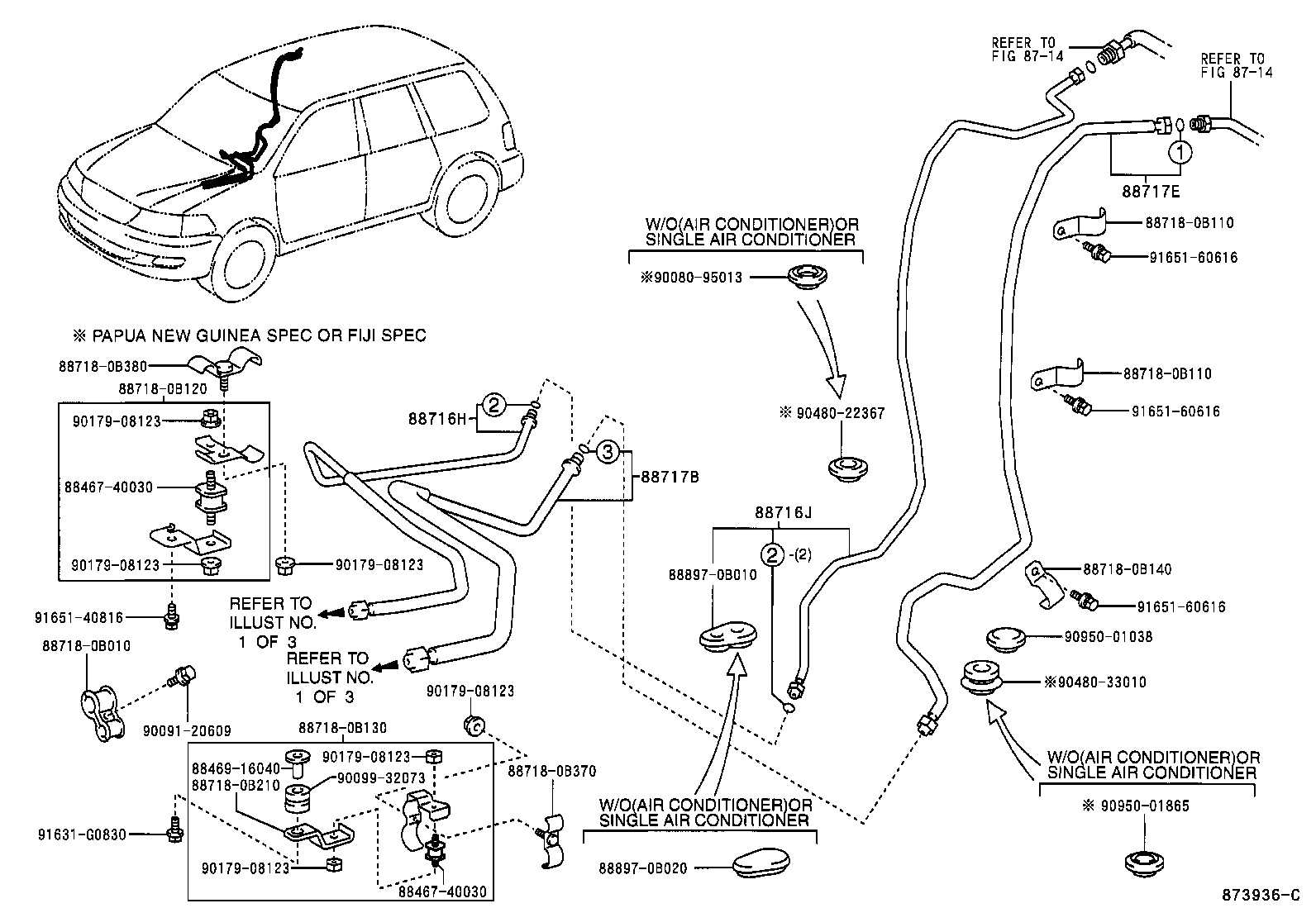

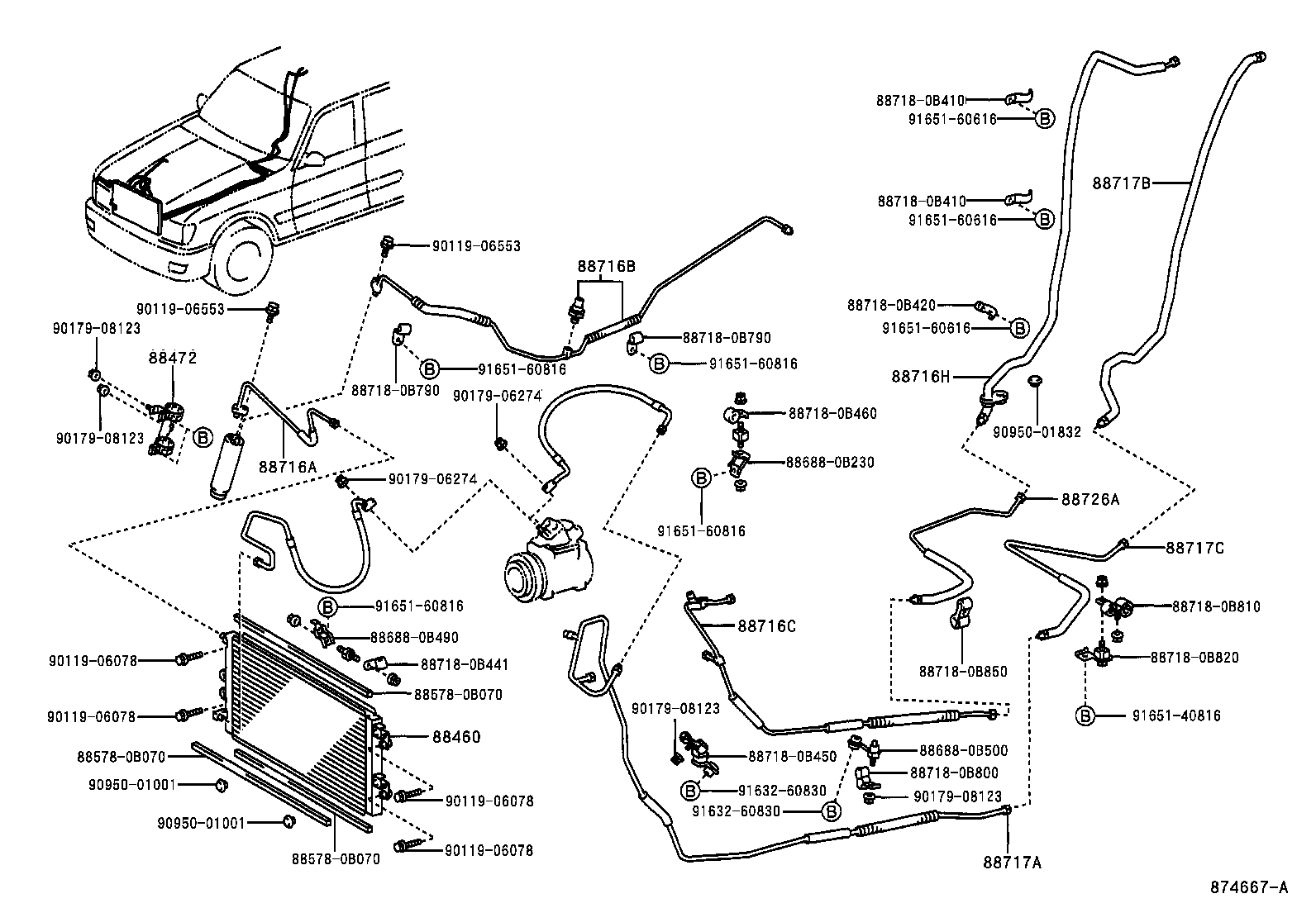

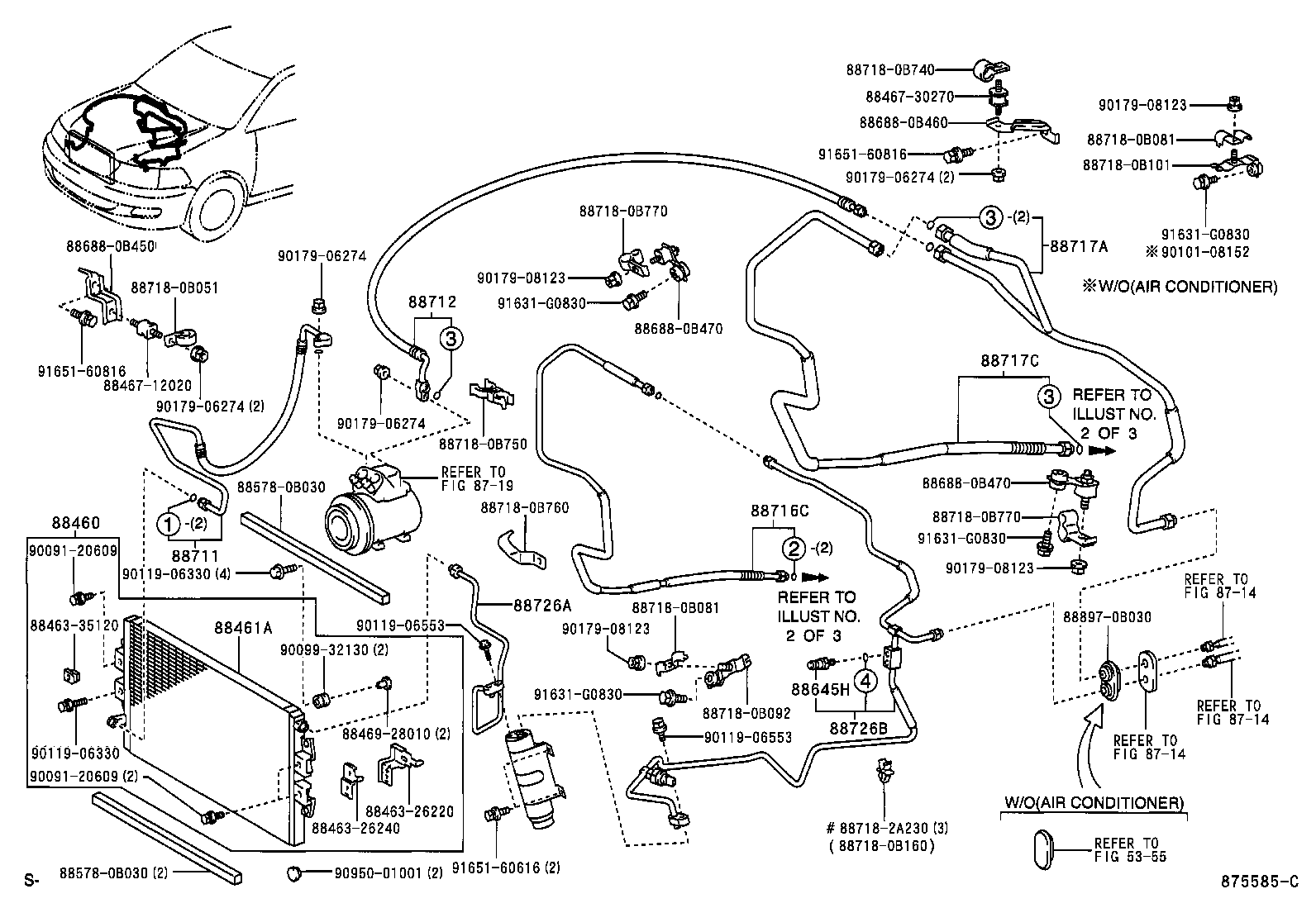

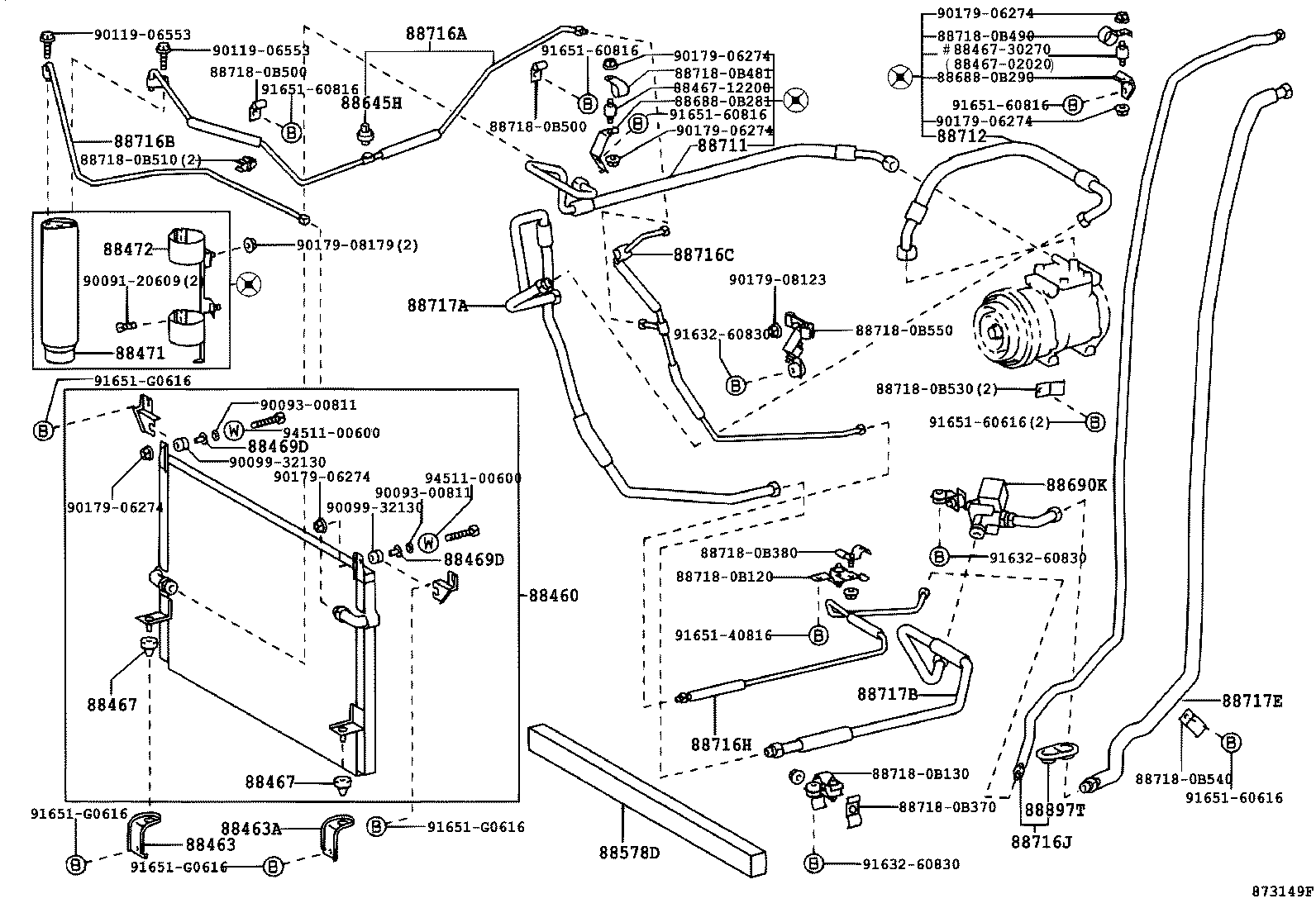

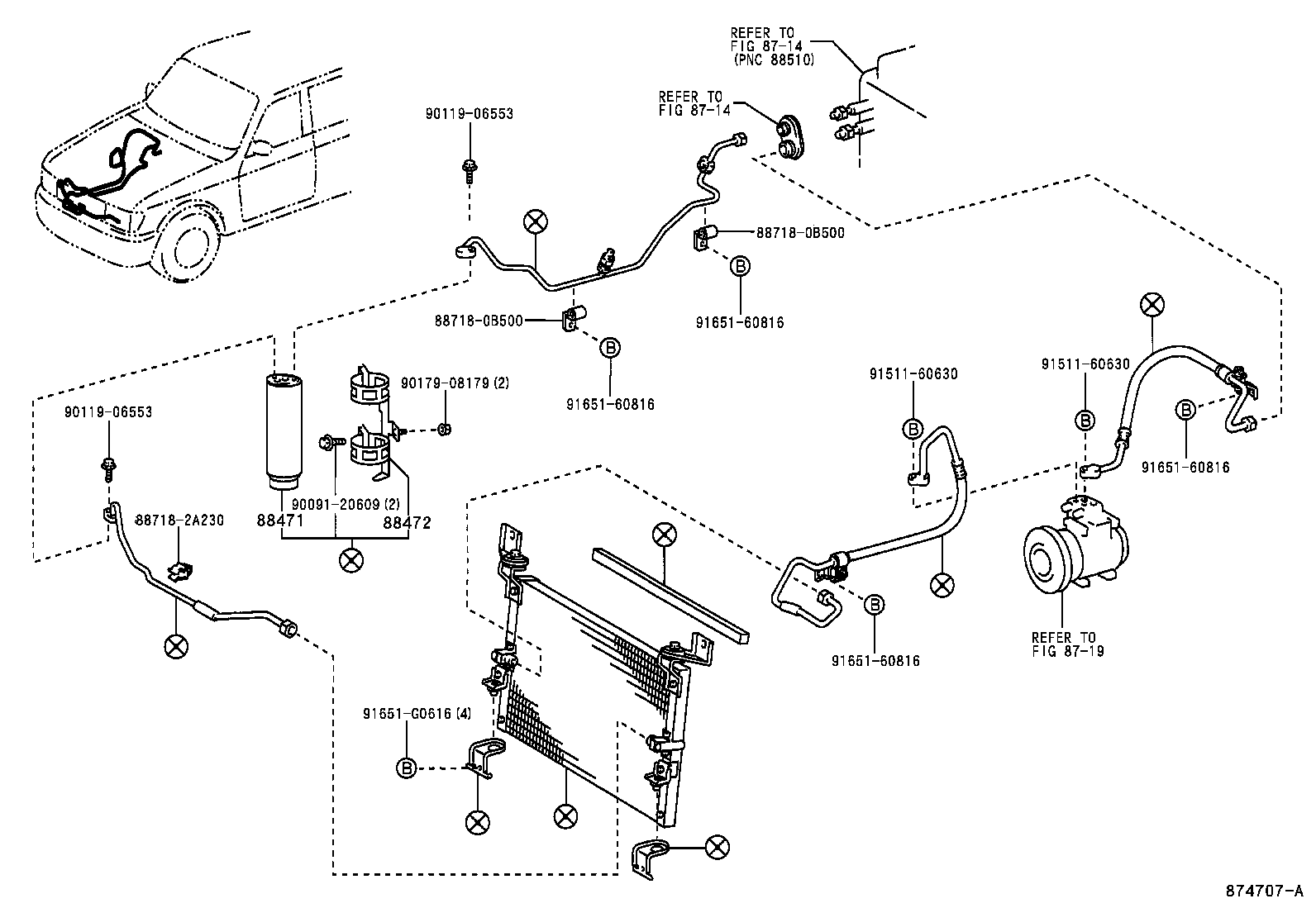

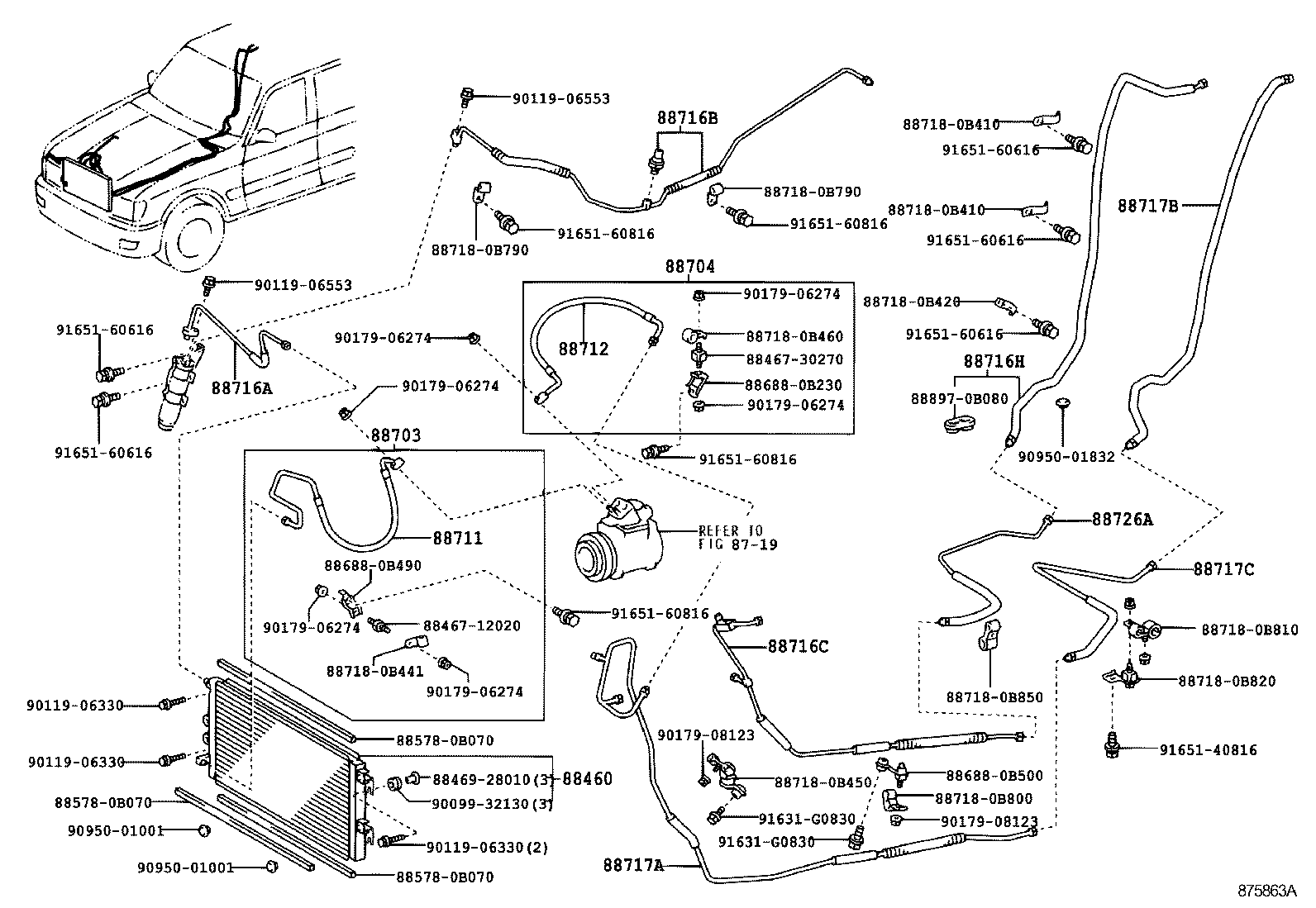

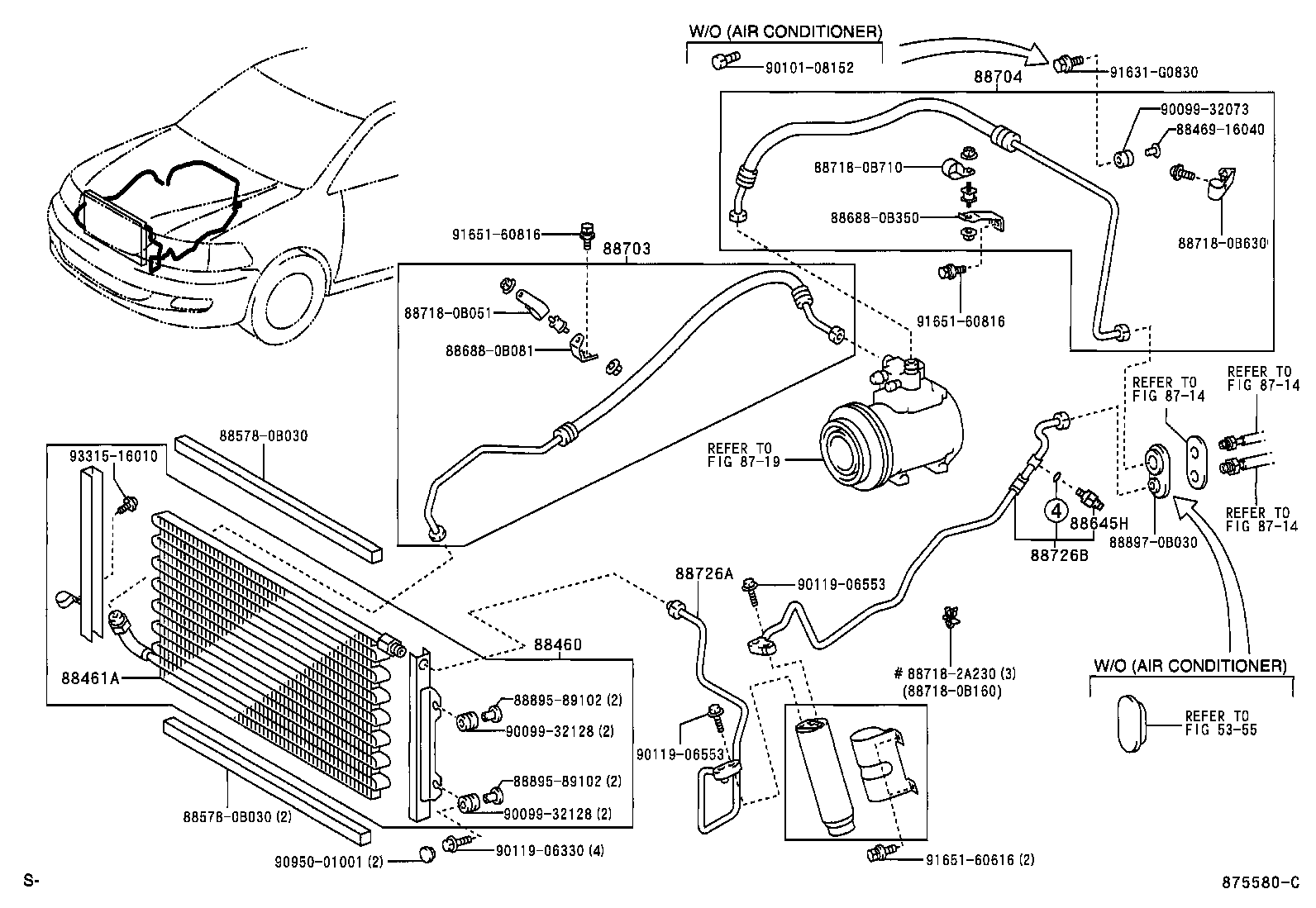

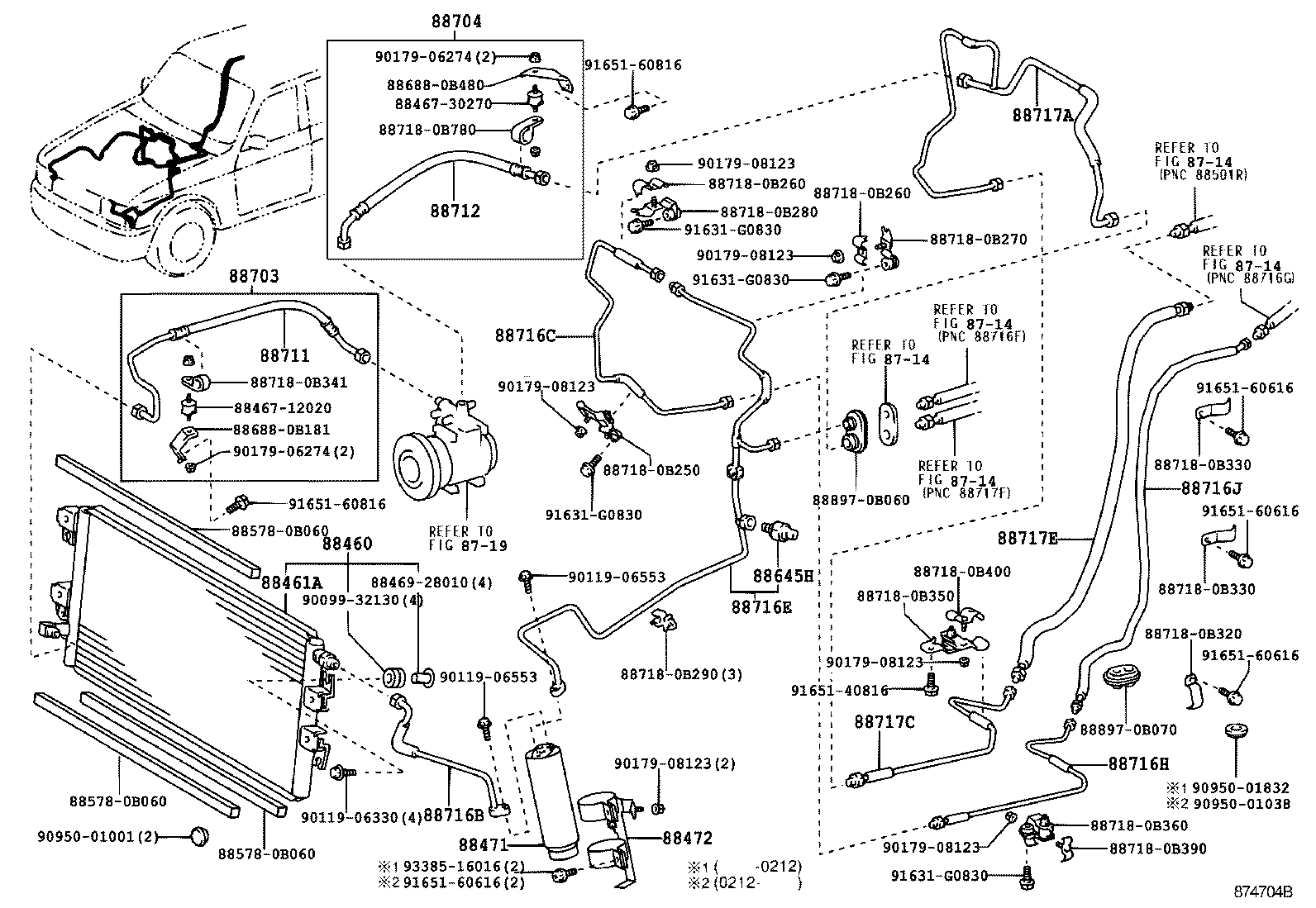

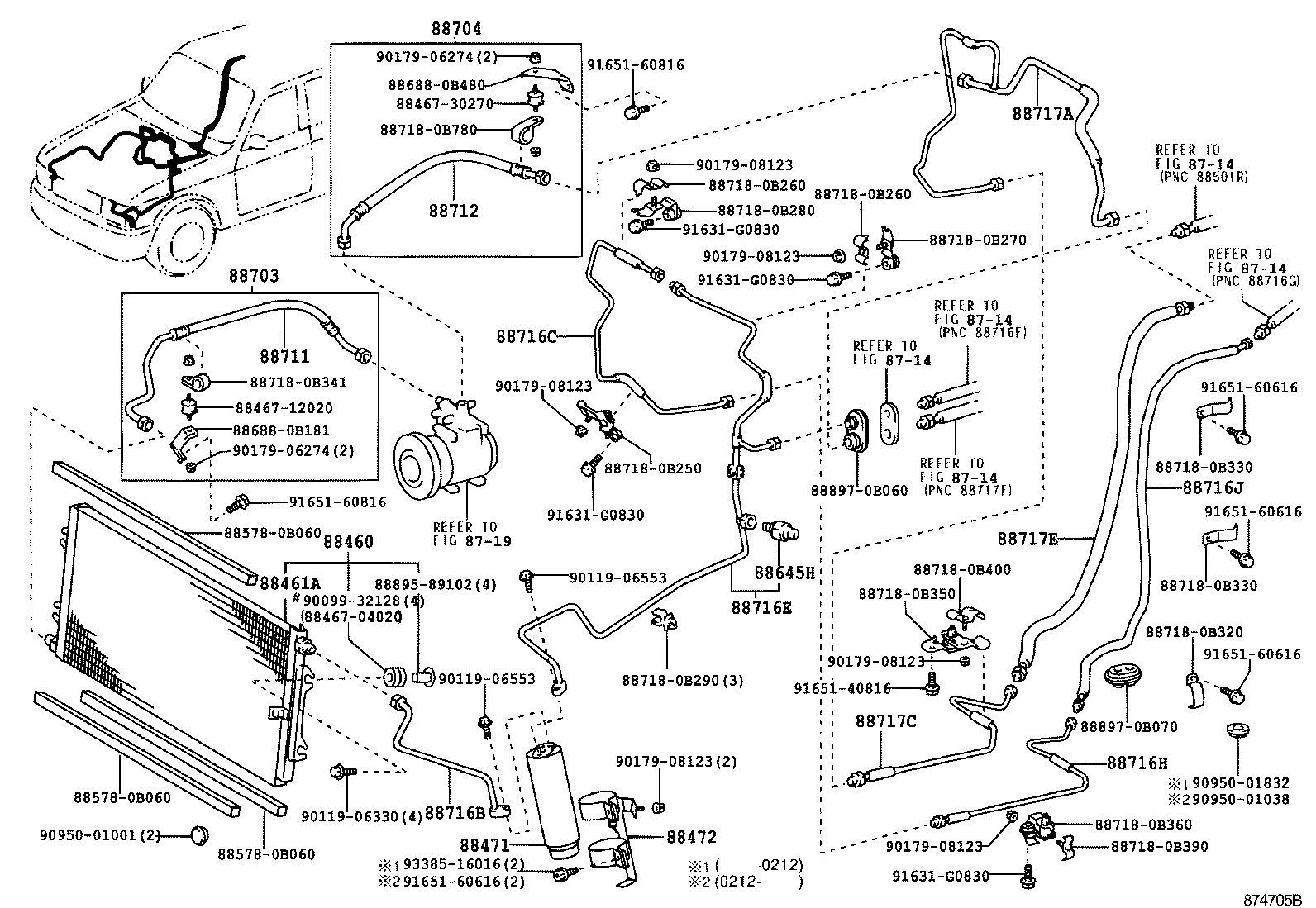

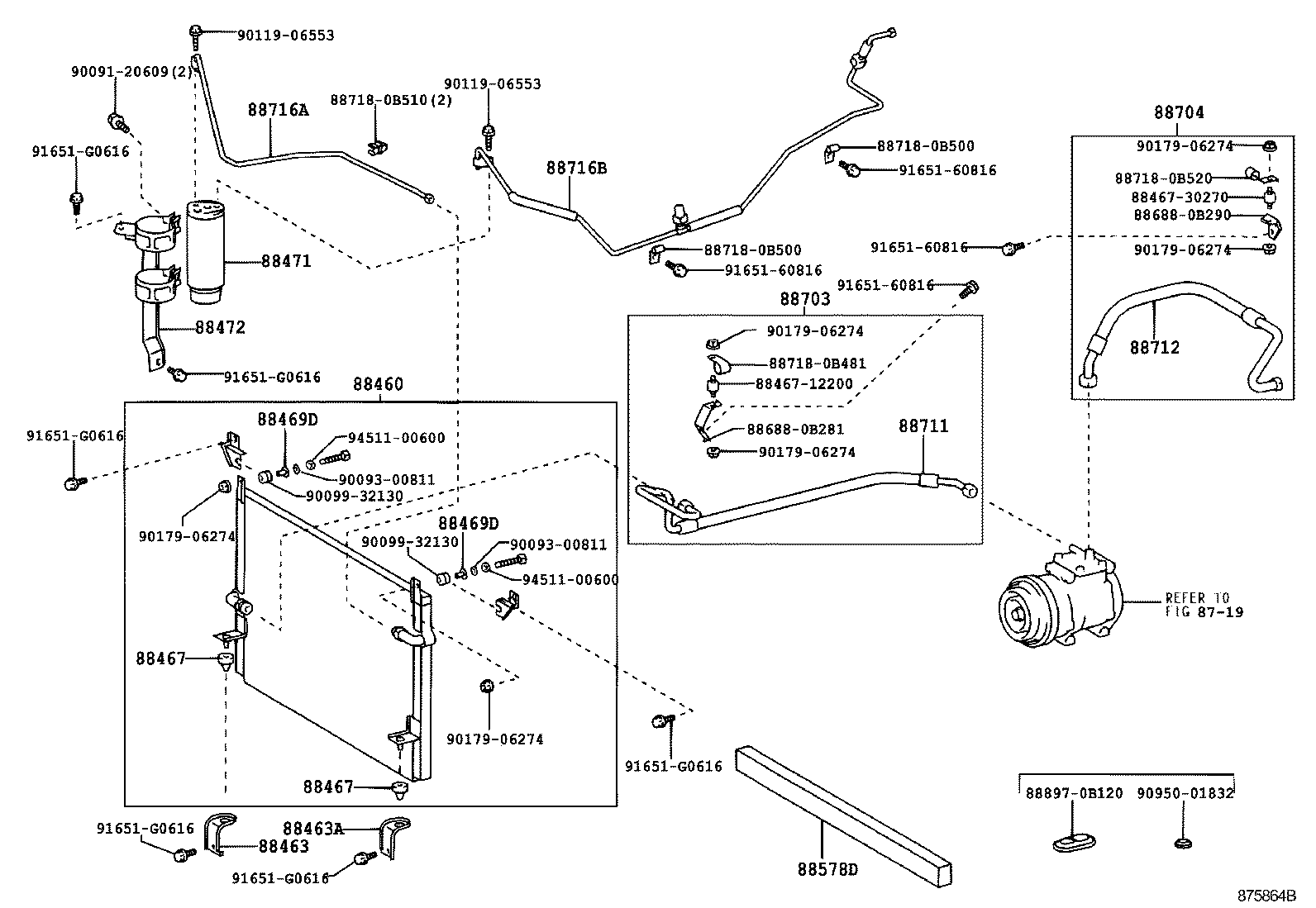

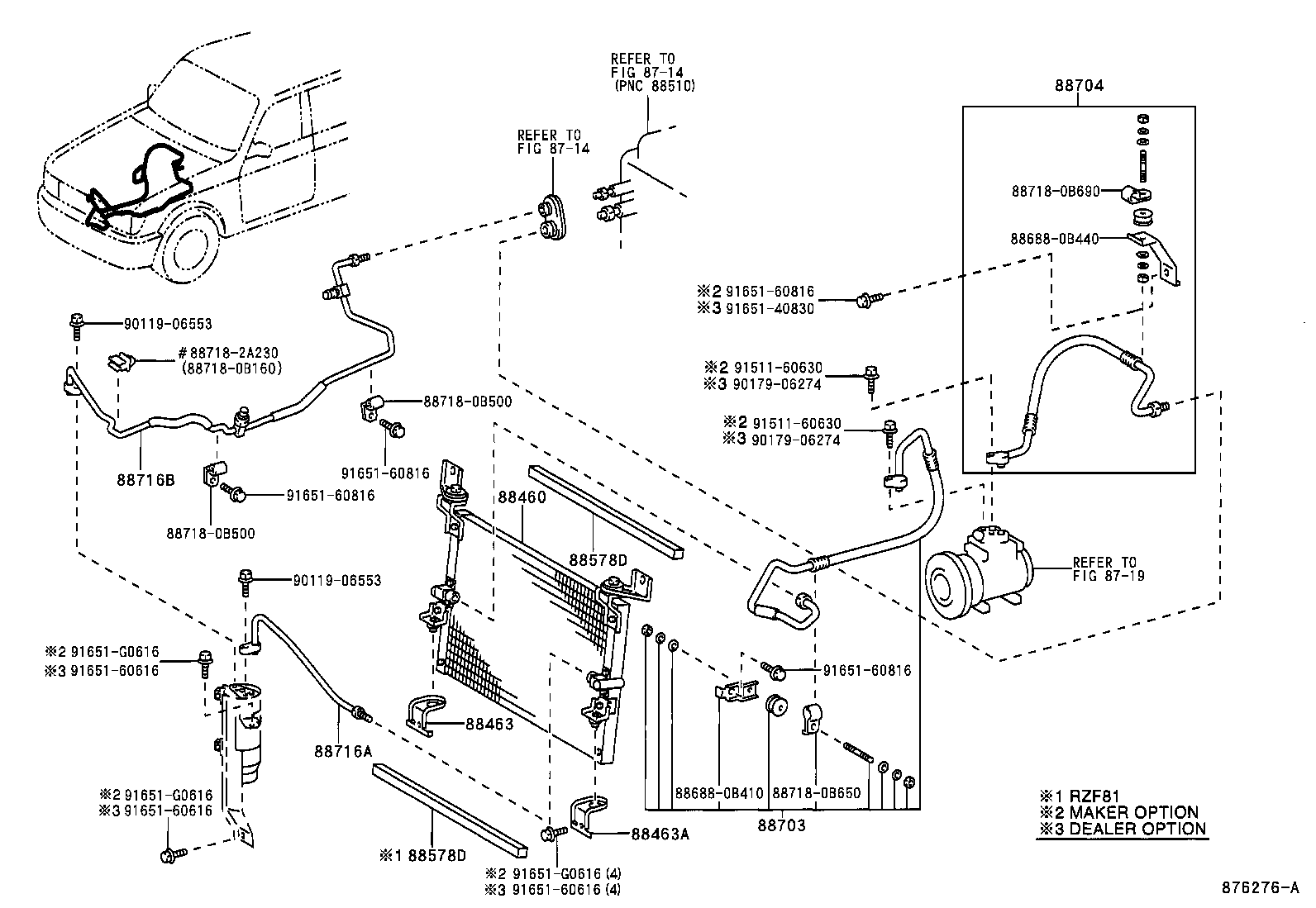

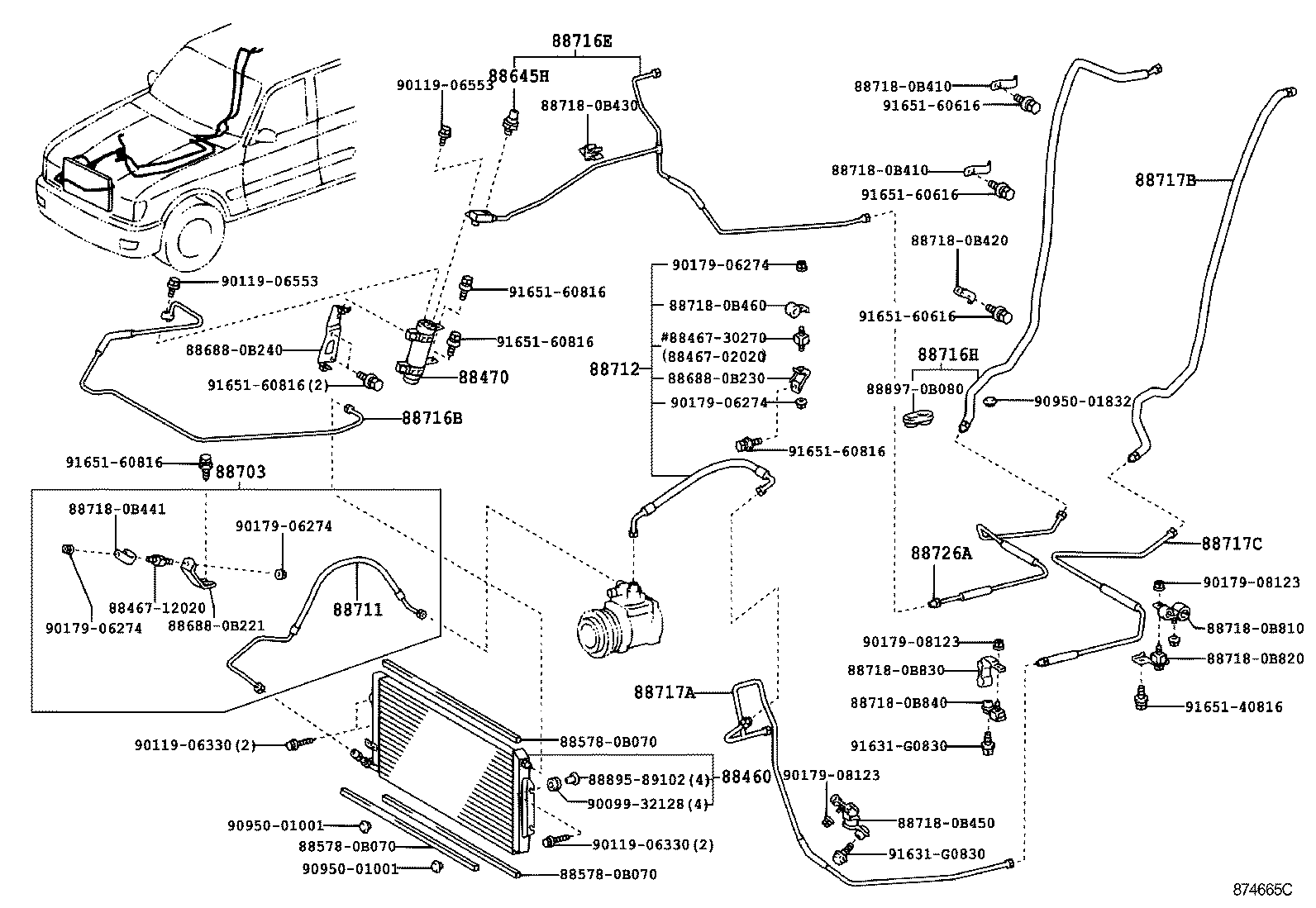

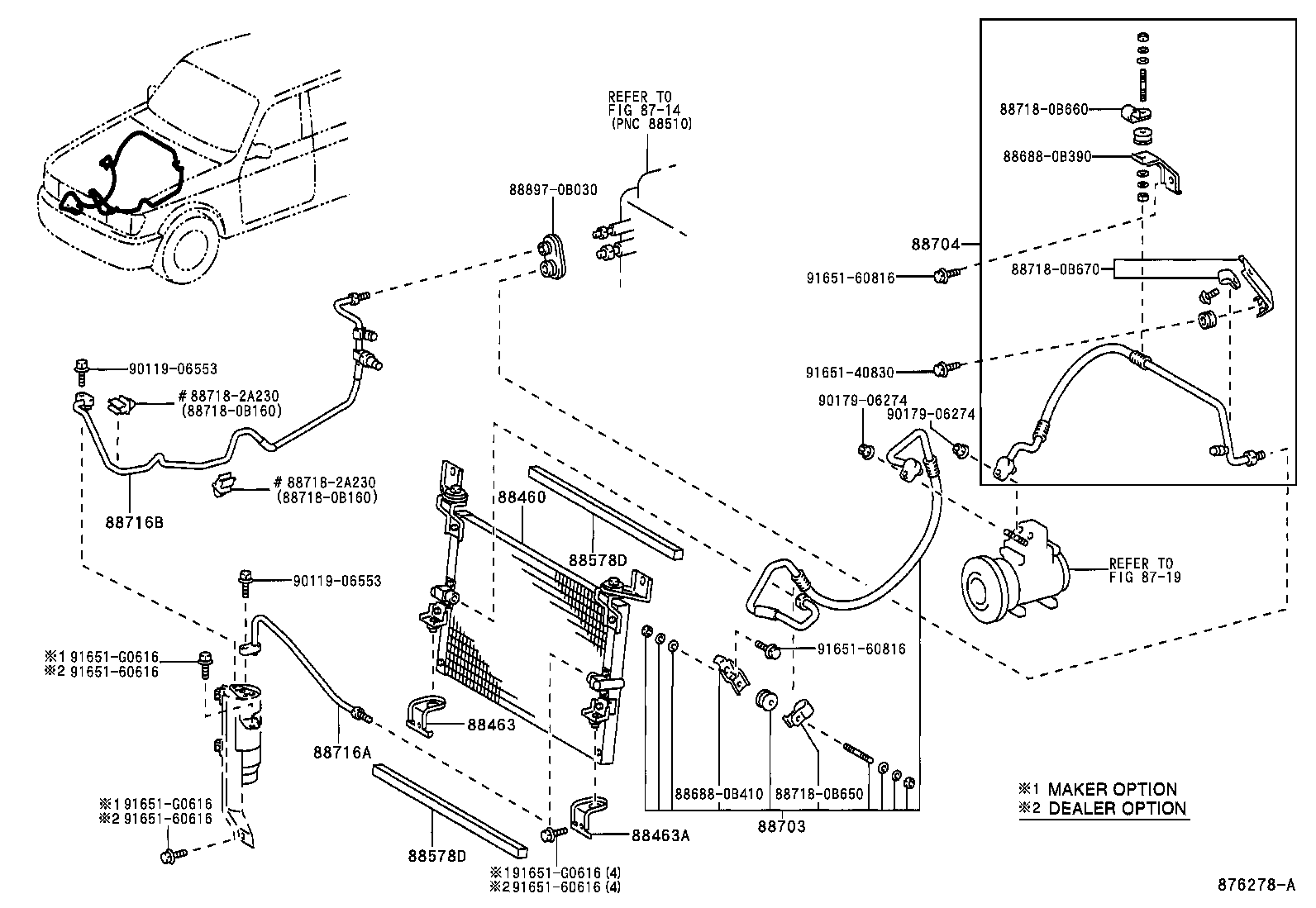

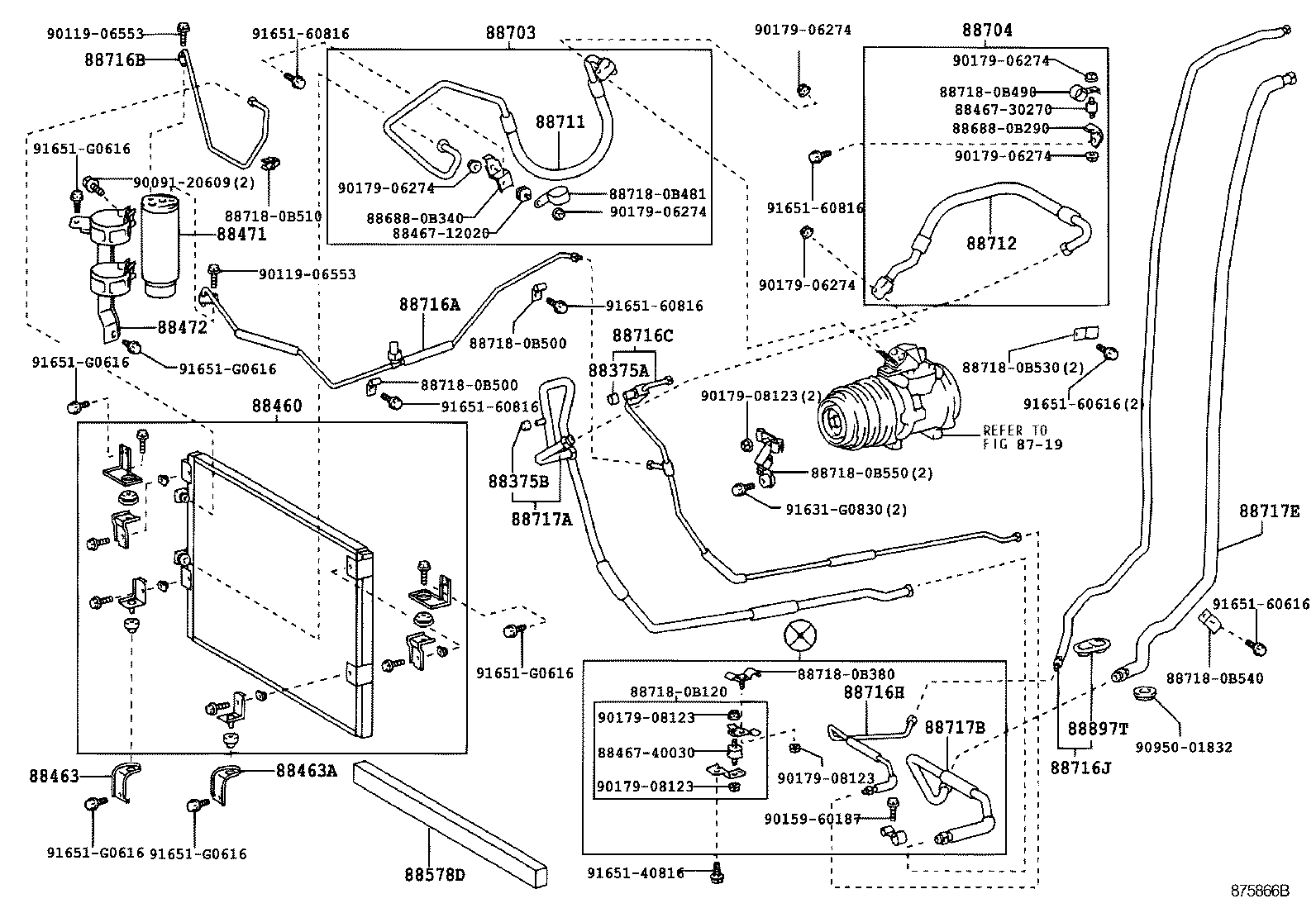

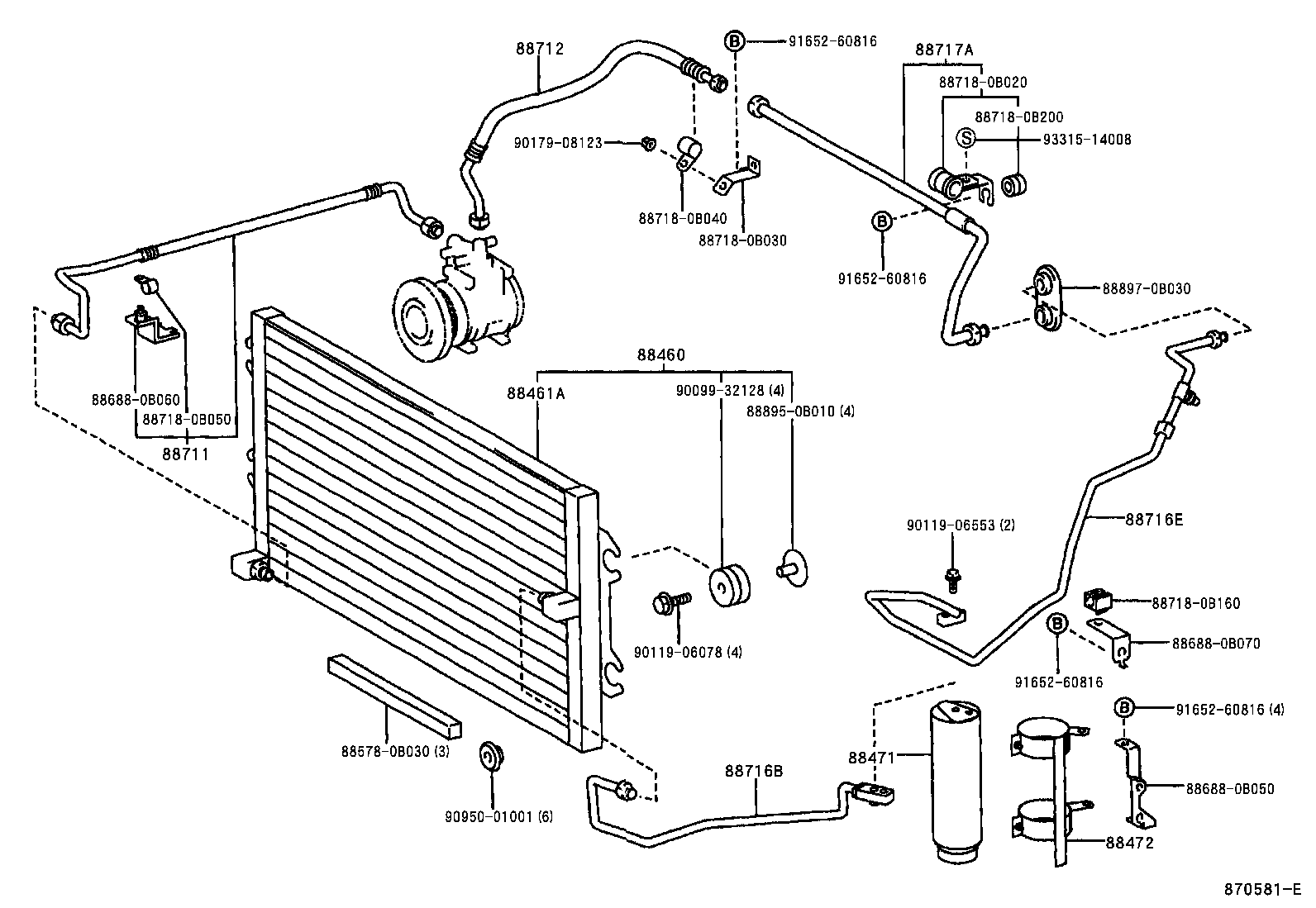

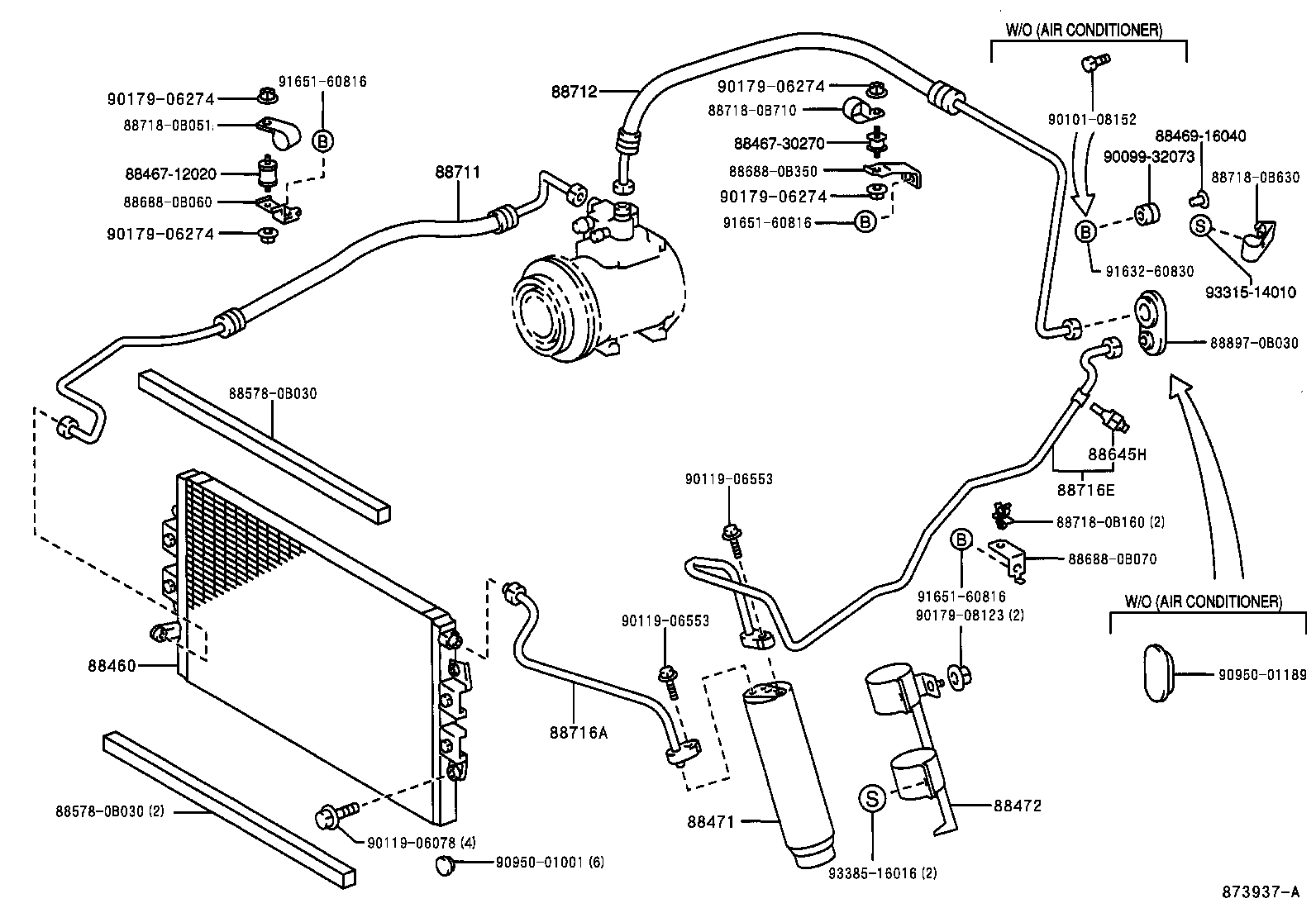

Figure 870579E 870579E 1996-12 → 2000-01 Figure 873931A 873931A 2000-01 → 2002-08 Figure 873931A 873931A 2000-01 → — Figure 873932B 873932B 2000-01 → 2002-08 Figure 873932B 873932B 2000-01 → — Figure 873933A 873933A 2000-01 → 2002-08 Figure 873933A 873933A 2000-01 → — Figure 873934A 873934A 2000-01 → 2002-08 Figure 873934A 873934A 2000-01 → — Figure 870581E 870581E 1996-12 → 2000-01 Figure 873935A 873935A 2000-01 → 2002-08 Figure 873935A 873935A 2002-08 → — Figure 873937A 873937A 2000-01 → 2002-08 Figure 873937A 873937A 2000-01 → 2003-06 Figure 873937A 873937A 2003-06 → — Figure 873938B 873938B 2000-01 → 2002-08 Figure 873938B 873938B 2000-01 → — Figure 872523F 872523F 1998-04 → 2001-03 Figure 872524H 872524H 1998-04 → 2001-03 Figure 872525E 872525E 1998-04 → 2001-03 Figure 873148H 873148H 1999-02 → 2002-10 Figure 873148H 873148H 2002-10 → — Figure 871901C 871901C 1996-12 → 2000-01 Figure 870582I 870582I 1996-12 → 2000-01 Figure 872867C 872867C 1998-10 → 2001-02 Figure 873149F 873149F 1999-02 → 2002-10 Figure 873149F 873149F 2002-10 → — Figure 873706E 873706E 1999-11 → 2002-10 Figure 873706E 873706E 2002-10 → — Figure 874454C 874454C 2000-10 → 2002-08 Figure 874454C 874454C 2000-10 → — Figure 874665C 874665C 2001-02 → — Figure 874665C 874665C 2002-11 → — Figure 874666B 874666B 2001-02 → — Figure 874666B 874666B 2002-11 → — Figure 874667A 874667A 2001-02 → — Figure 874704B 874704B 2001-03 → — Figure 874705B 874705B 2001-03 → — Figure 874706A 874706A 2001-03 → — Figure 874707A 874707A 2001-04 → 2003-06 Figure 875579B 875579B 2002-08 → — Figure 875580C 875580C 2002-08 → — Figure 875582C 875582C 2002-08 → — Figure 875583C 875583C 2002-08 → — Figure 875630 875630 2002-08 → — Figure 875581D 875581D 2002-08 → — Figure 875584C 875584C 2002-08 → — Figure 875585C 875585C 2002-08 → — Figure 875864B 875864B 2002-10 → — Figure 875864B 875864B 2003-02 → — Figure 875865B 875865B 2002-10 → — Figure 875865B 875865B 2003-02 → — Figure 875866B 875866B 2002-10 → — Figure 875863A 875863A 2002-11 → — Figure 876276A 876276A 2003-06 → — Figure 876277A 876277A 2003-06 → — Figure 876278A 876278A 2003-06 → — Figure 873936C 873936C 2000-01 → — Figure 870647B 870647B 1996-12 → —

Part groups

PNCDescription
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88460 Condenser Assy, Cooler
88461A Core, Cooler Condenser
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88467 Cushion, Cooler Condenser, NO.1
88469D Collar, Condenser Bracket, NO.1
88470 Receiver & Dryer Assy, Cooler
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88578D Packing, Cooler Pipe, NO.1
88645H Switch, Pressure NO.1
88690K Valve Assy, Magnet
88691K Valve Assy, Magnet
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88716H Pipe, Cooler Refrigerant Liquid, H
88716J Pipe, Cooler Refrigerant Liquid, J
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88717E Pipe, Cooler Refrigerant Suction, E
88726A Pipe, Cooler Refrigerant Liquid, A
88726B Pipe, Cooler Refrigerant Liquid, B
88897T Grommet, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
