Toyota Innova/Kijang Innova
2004-08 → 2016-06 · chassis KUN40,TGN4# · catalogue 611260 · General
Supported model
Data version 2016-12
Heating & Air Conditioning - Control & Air Duct
37 part groups · 11 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|

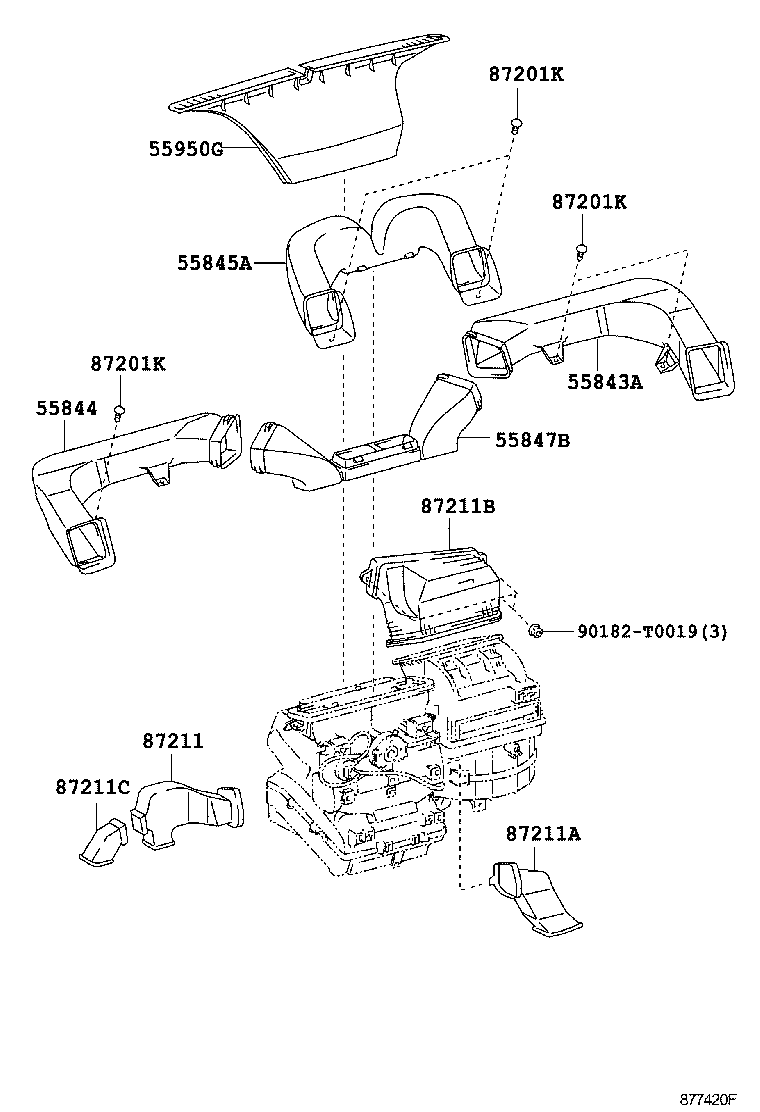

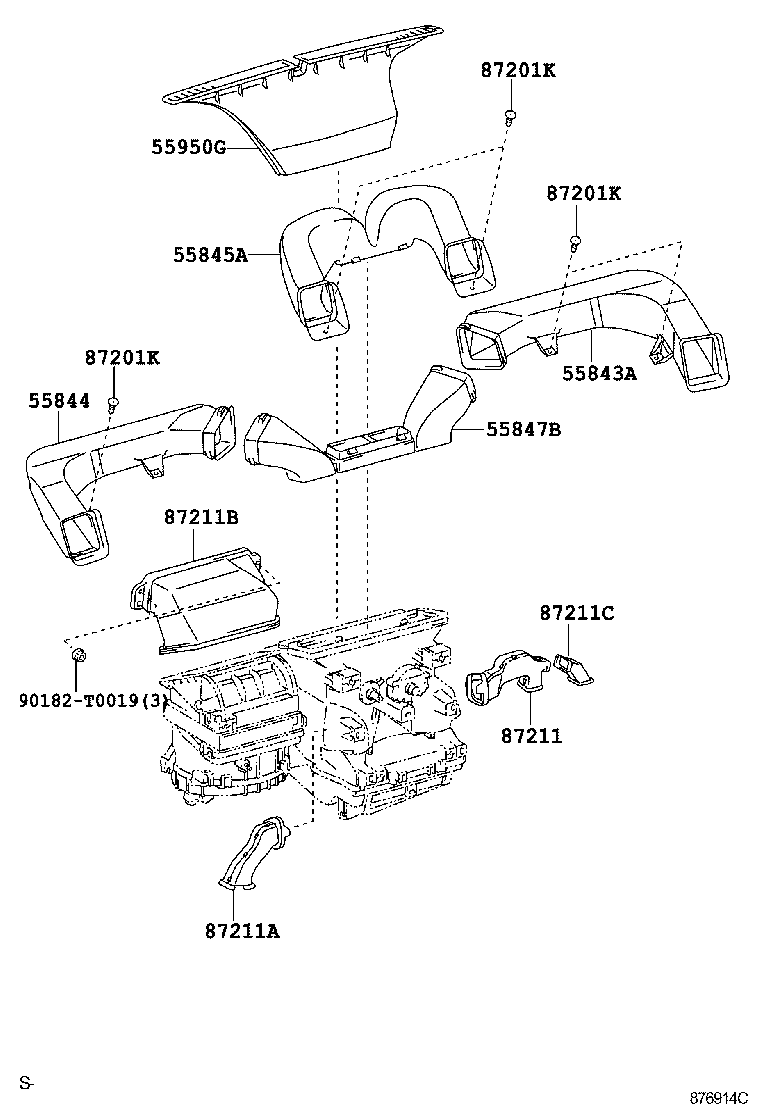

| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55847B | Duct, Heater TO Register, NO.5 |
| 55900 | Control Assy, Air Conditioner |
| 55905A | Knob, Heater Control |
| 55905B | Knob, Heater Control, NO.2 |
| 55906 | Cable Sub-assy, Heater Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55910B | Bulb, Heater Control |

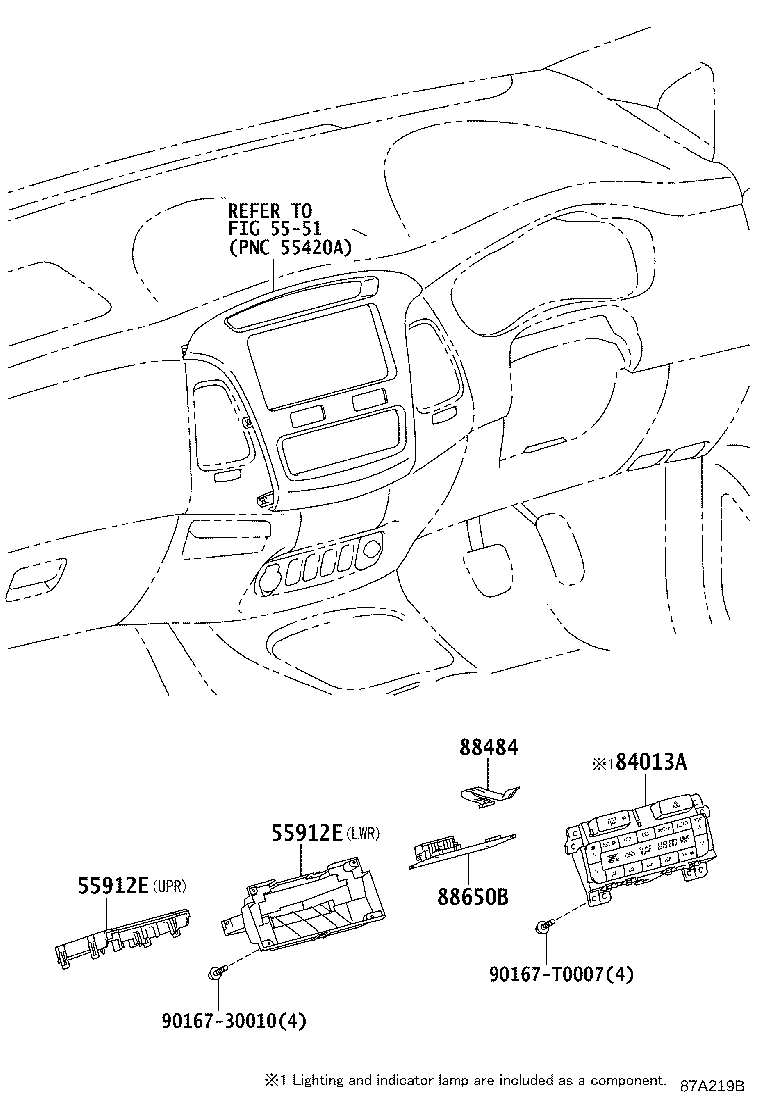

| 55912E | Base, Heater Control, Lower |
| 55950G | Nozzle Assy, Defroster |
| 81942A | Sheet, Heater Control Name, NO.1 |
| 81942B | Sheet, Heater Control Name, NO.2 |
| 81942H | Sheet, Heater Control Name, NO.3 |
| 81942J | Sheet, Heater Control Name, NO.4 |
| 81942K | Sheet, Heater Control Name, NO.5 |

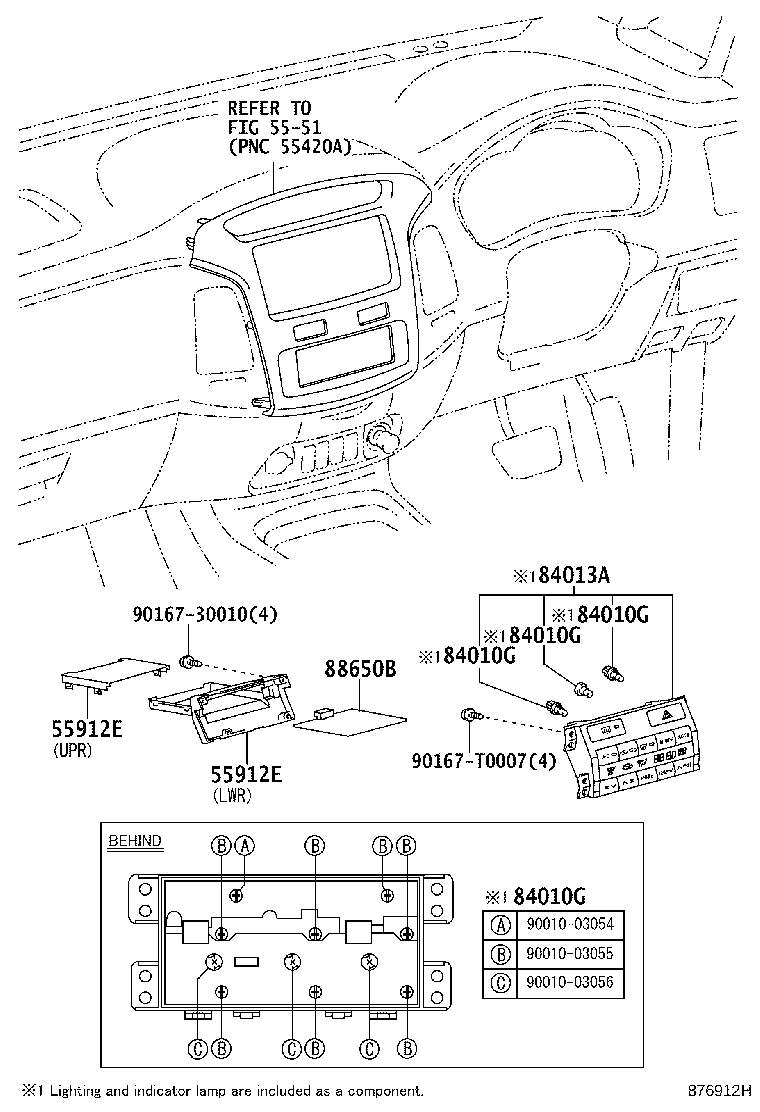

| 84010G | Bulb, Integration Control & Panel |
| 84013A | Panel Sub-assy, Integration |

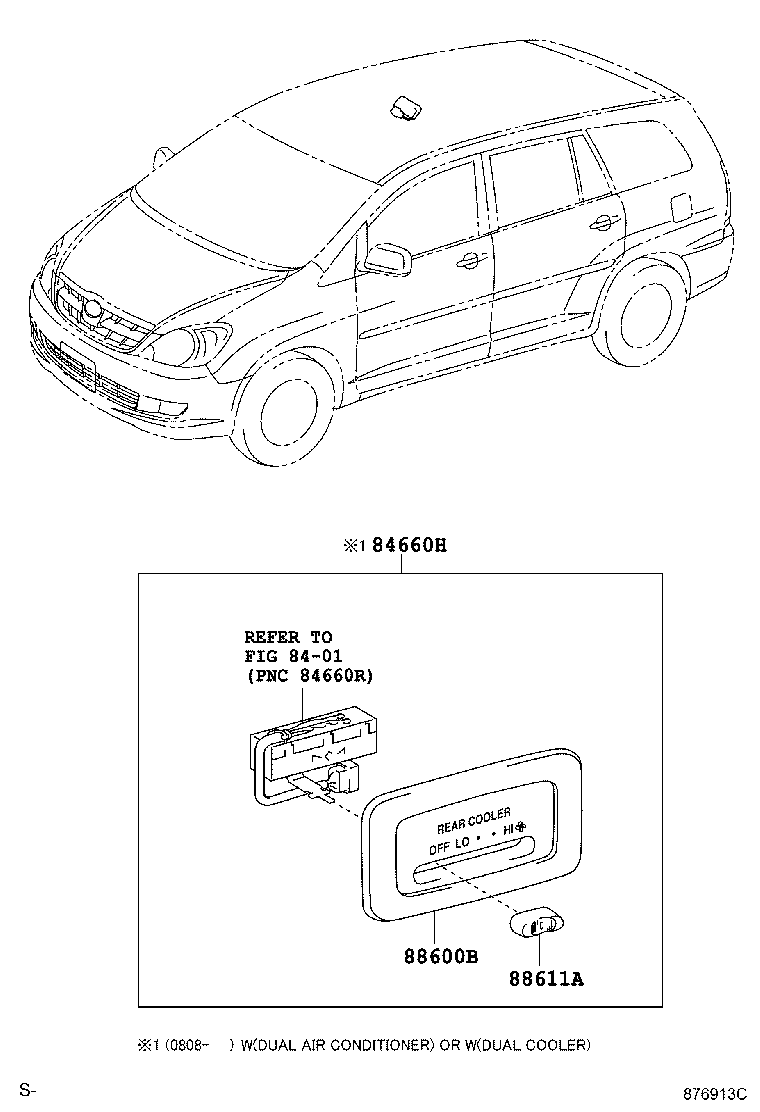

| 84660H | Switch Assy, Cooler Control |
| 87201K | Clip (FOR AIR DUCT) |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87211B | Duct, Air, NO.3 |
| 87211C | Duct, Air, NO.4 |
| 88484 | Wire, Cooler, NO.1 |
| 88505 | Duct Sub-assy,Air Conditioner |
| 88566A | Duct, Cooler Air, NO.1 |
| 88566B | Duct, Cooler Air, NO.2 |
| 88566C | Duct, Cooler Air, NO.3 |
| 88600B | Panel Assy, Control |
| 88611A | Knob, Cooler Control Switch |

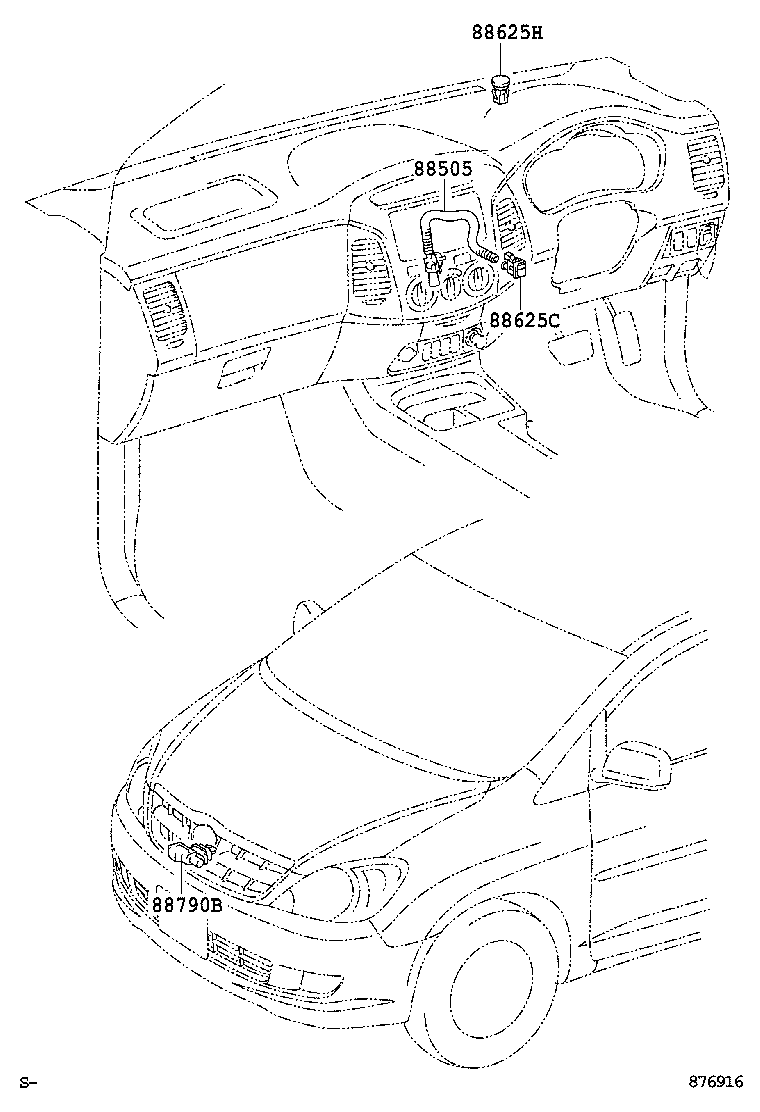

| 88625C | Thermistor, Cooler |
| 88625H | Thermistor, Cooler (SOLAR SENSOR) |
| 88650B | Amplifier Assy, Airconditioner |
| 88790B | Thermistor Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
