Toyota Innova
2015-11 → present · chassis GUN14#,TGN14# · catalogue 611280 · General
Supported model
Data version 2021-11

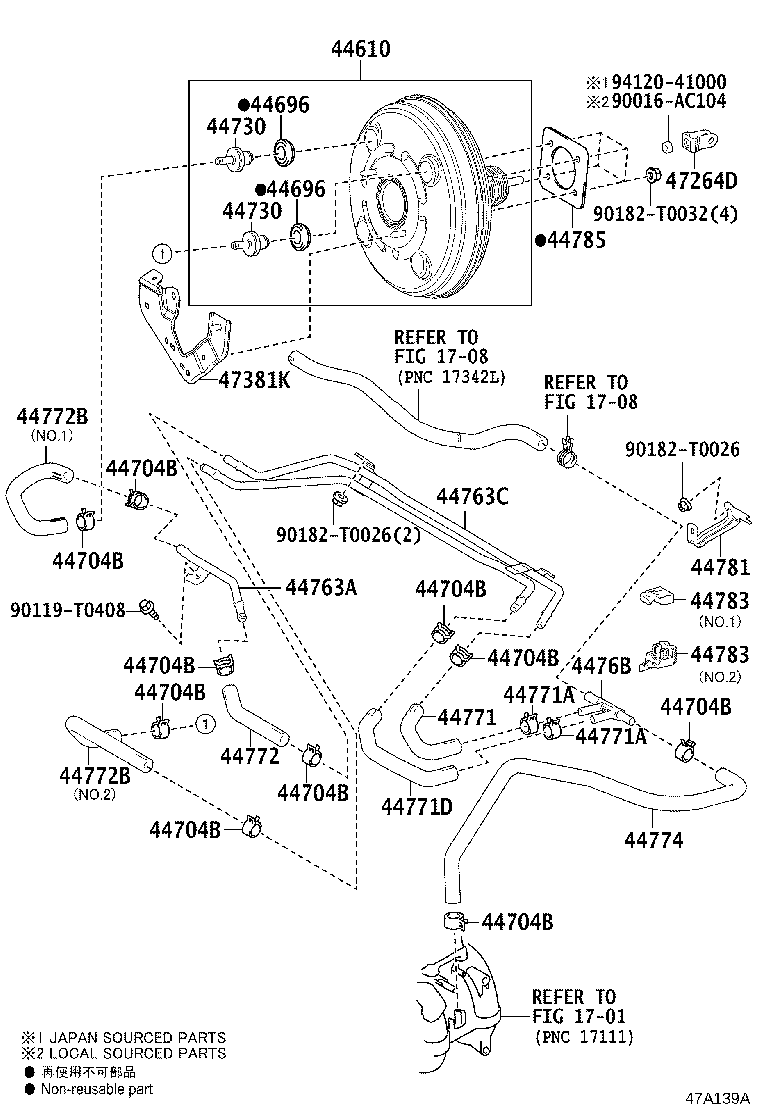

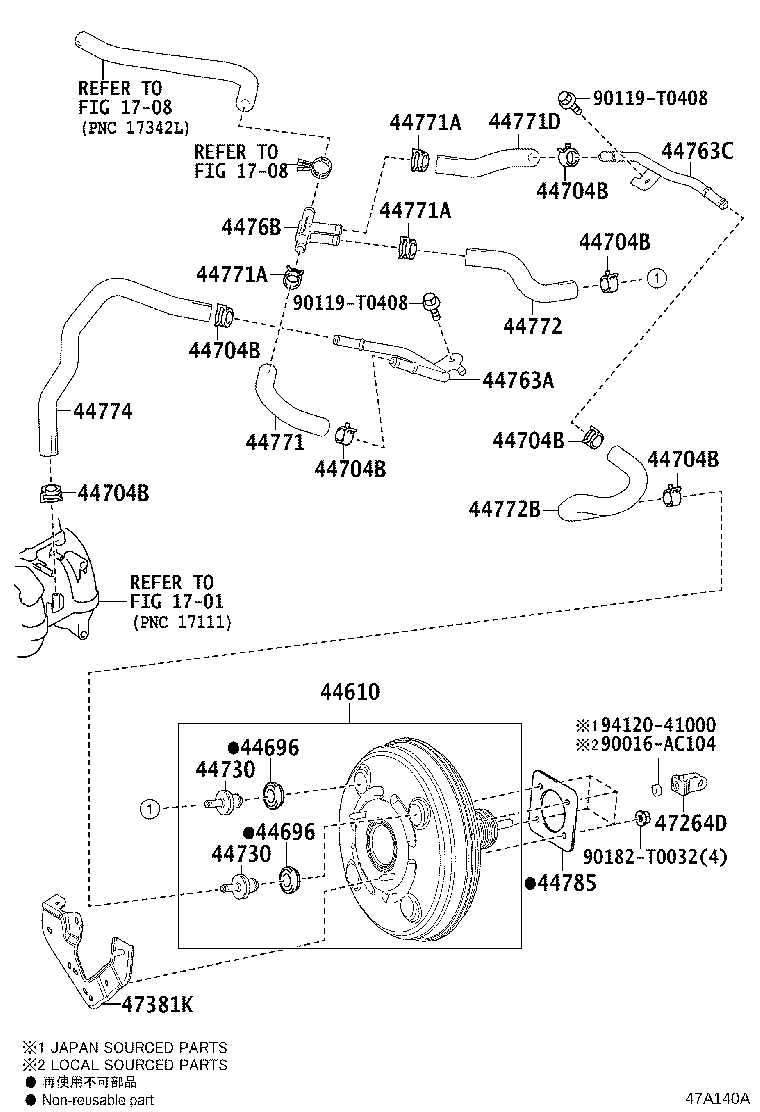

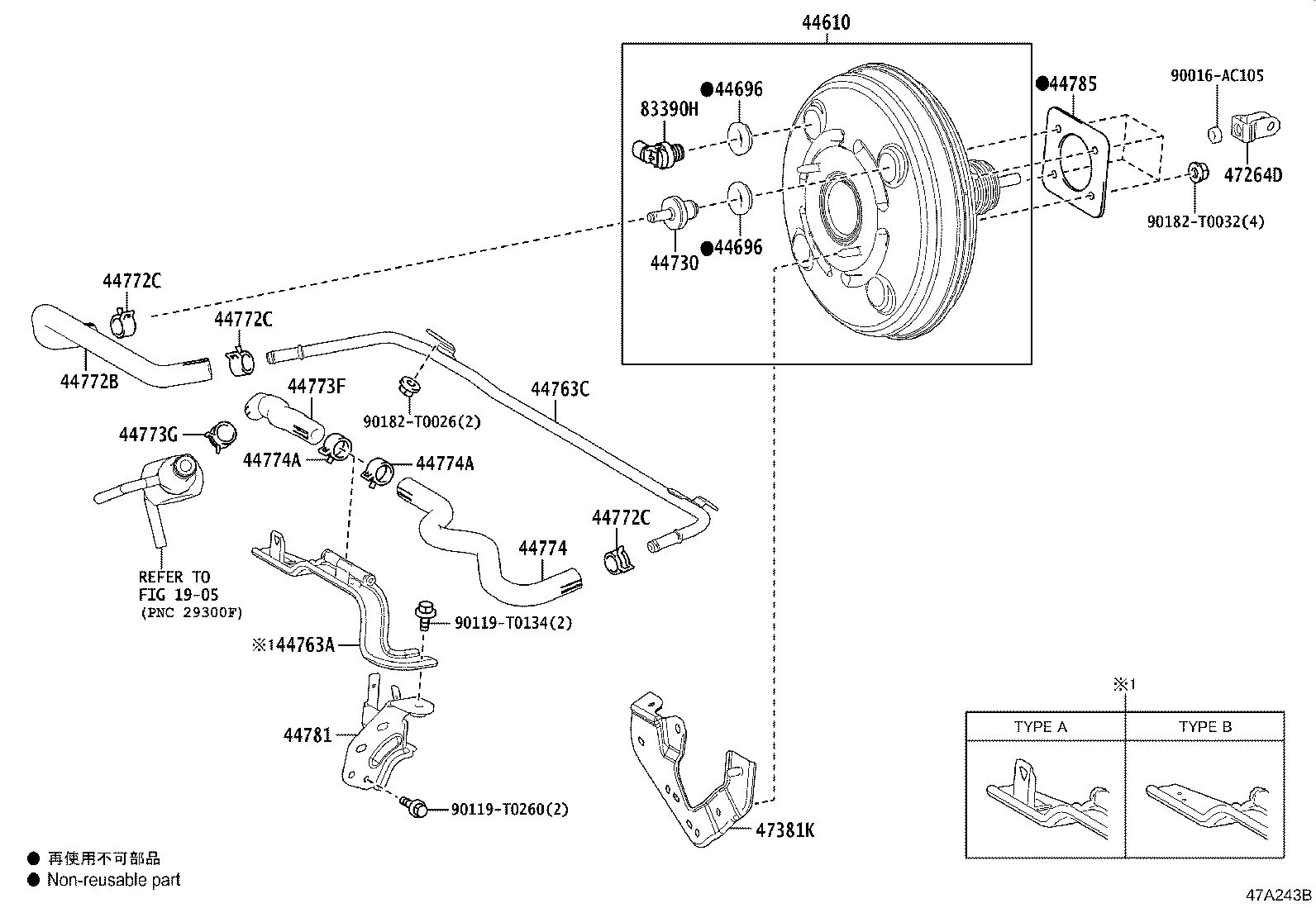

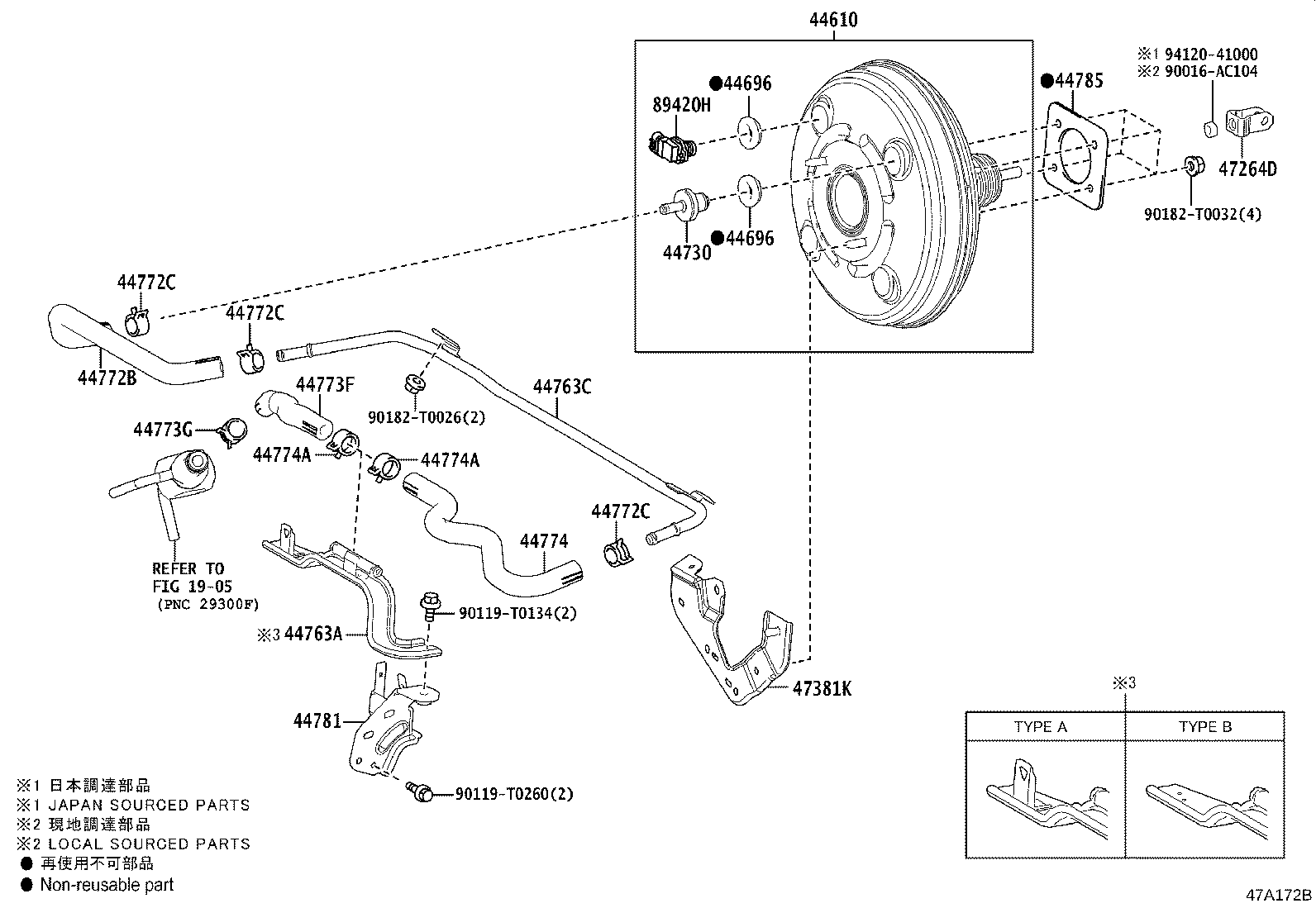

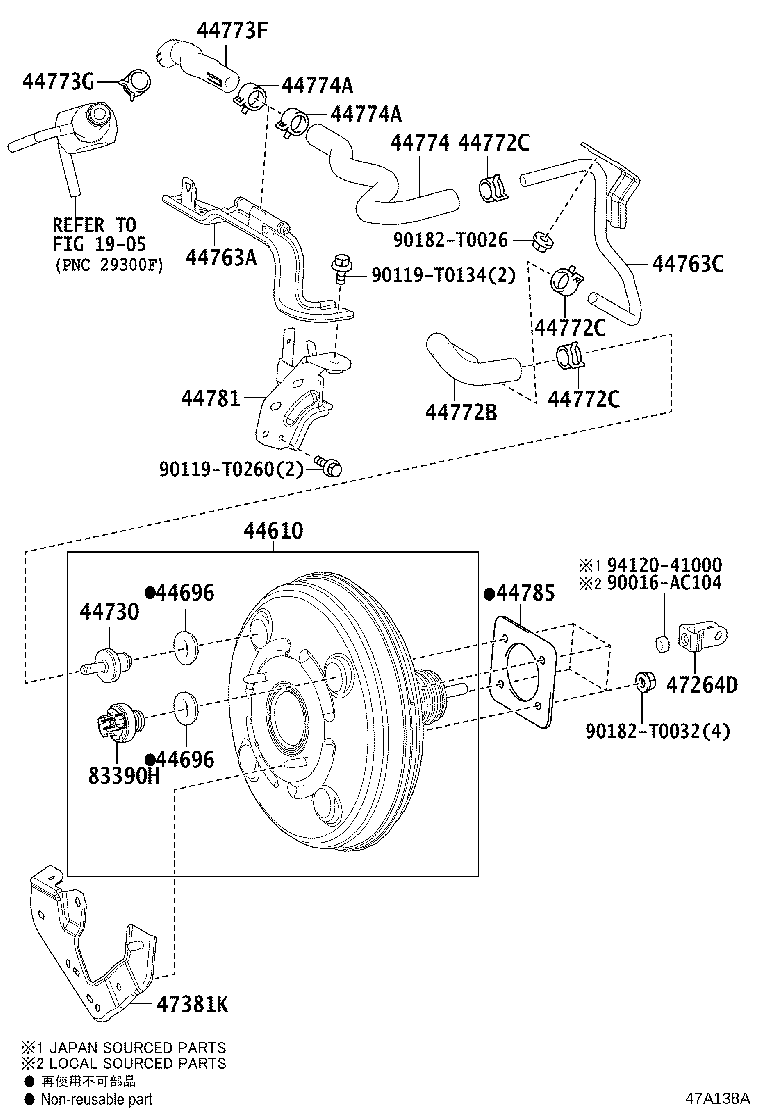

Brake Booster & Vacuum Tube
24 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44696 | Grommet, Check Valve |
| 44704B | Clip(FOR HOSE) |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44763A | Tube, Hose TO Hose, NO.1 |
| 44763C | Tube, Hose TO Hose, NO.2 |
| 4476B | Ejector, Brake Booster Vacuum |
| 44771 | Hose, Vacuum Tube Connector |
| 44771A | Clip(FOR VACUUM TUBE CONNECTOR HOSE) |
| 44771D | Hose, Vacuum Tube Connector |
| 44772 | Hose, Check Valve TO Connector Tube |
| 44772B | Hose, Check Valve TO Brake Booster |
| 44772C | Clip(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) |
| 44773F | Hose, Union TO Check Valve |
| 44773G | Clip(FOR UNION TO CHECK VALVE HOSE) |
| 44774 | Hose, Union TO Connector Tube |
| 44774A | Clip(FOR UNION TO CONNECTOR TUBE HOSE) |
| 44781 | Bracket, Hose |
| 44783 | Clamp, Vacuum Hose |
| 44785 | Gasket, Brake Booster |
| 47264D | Clevis, Brake Master Cylinder Push Rod |
| 47381K | Bracket, Brake Booster Tube Clamp |
| 83390H | Switch Assy, Vacuum Warning |
| 89420H | Sensor Assy, Vacuum |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
