Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · General

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

20 part groups · 17 illustrations

Illustrations

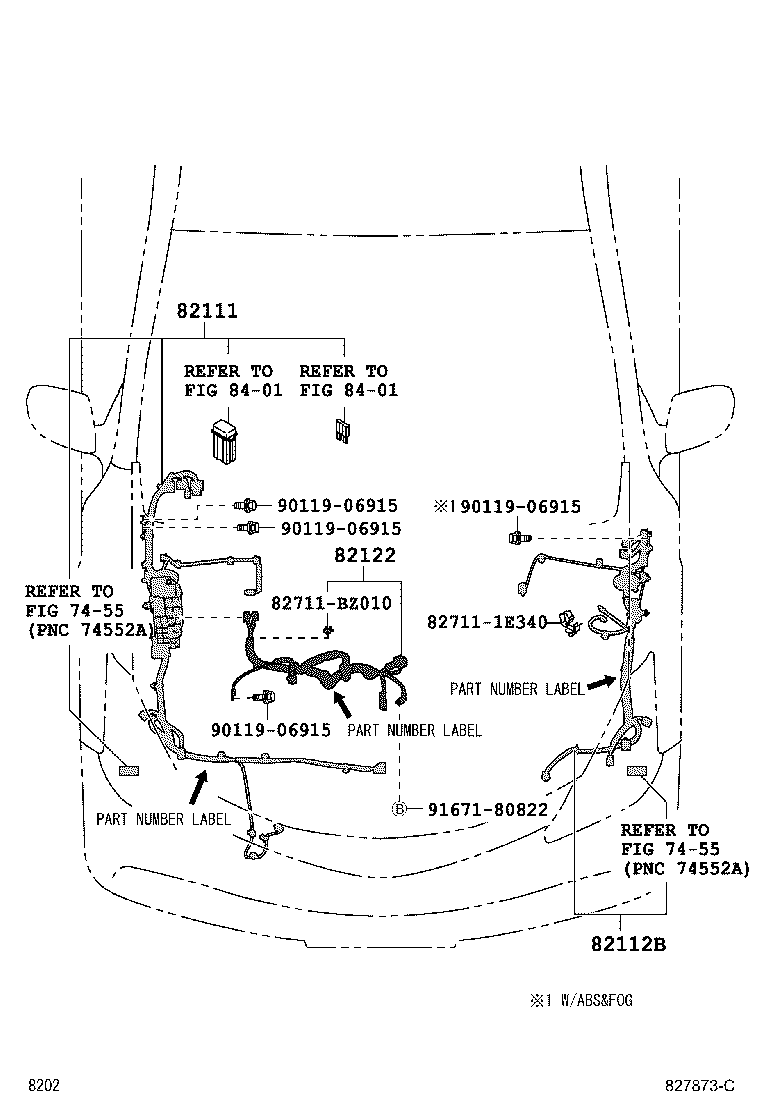

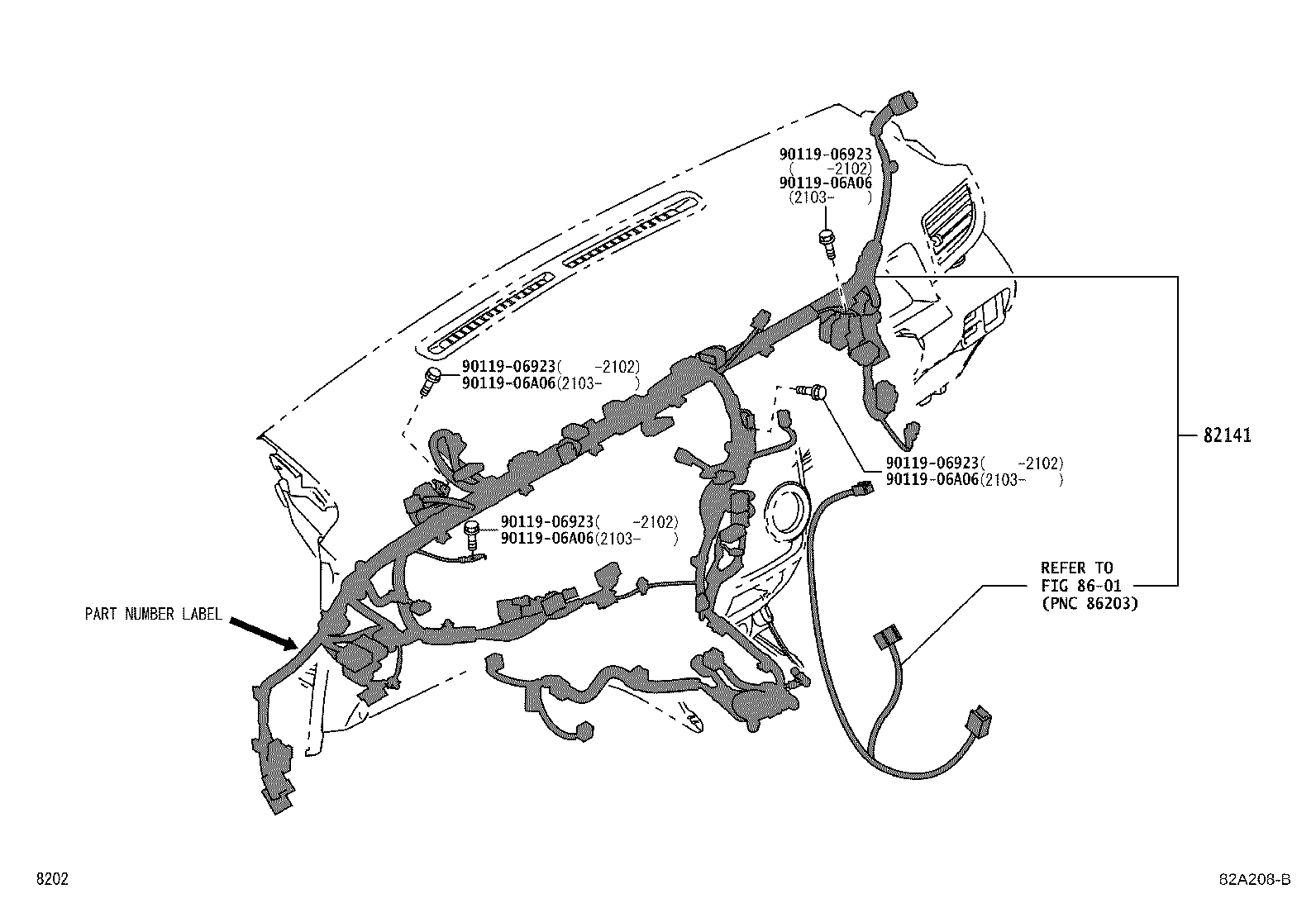

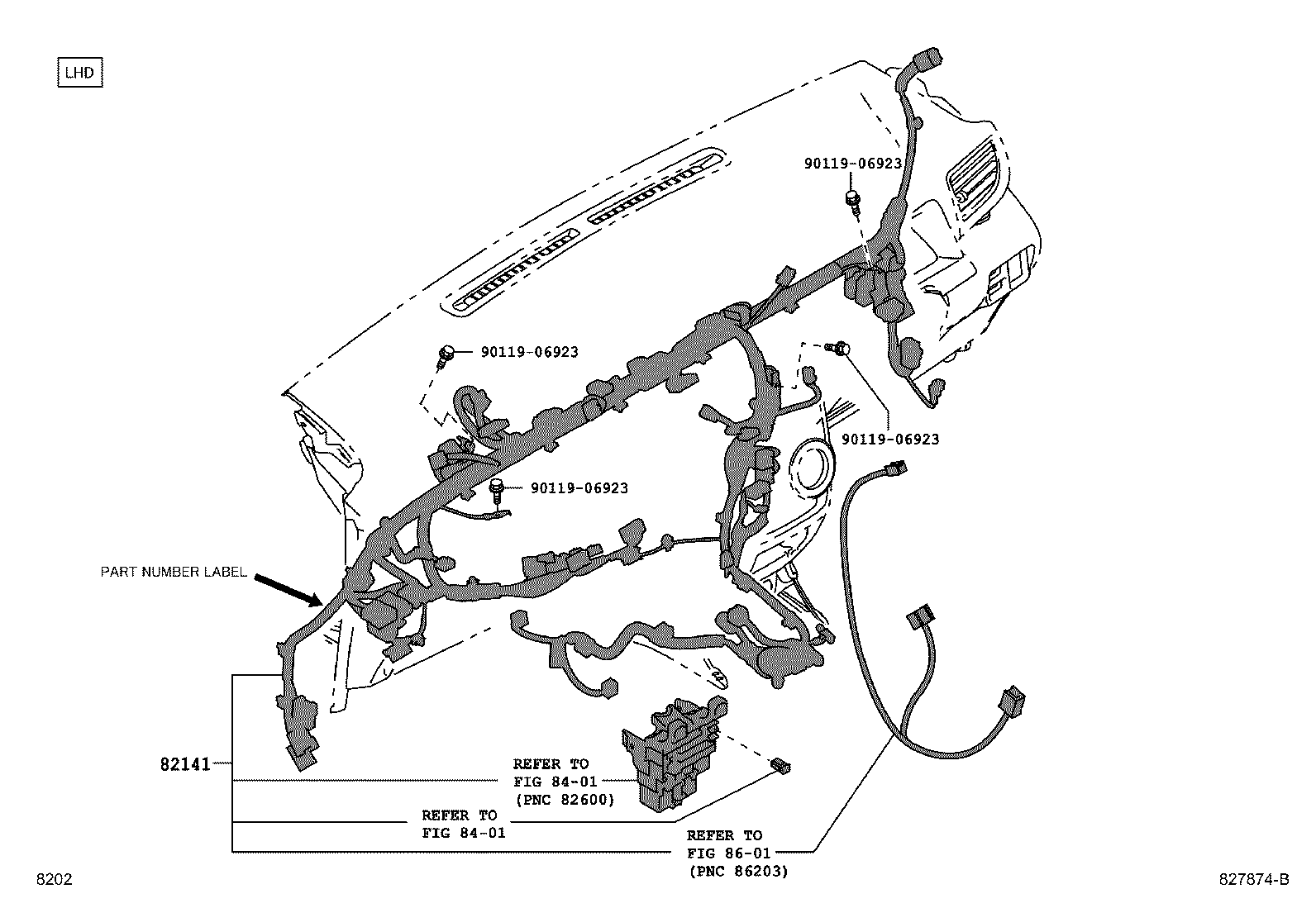

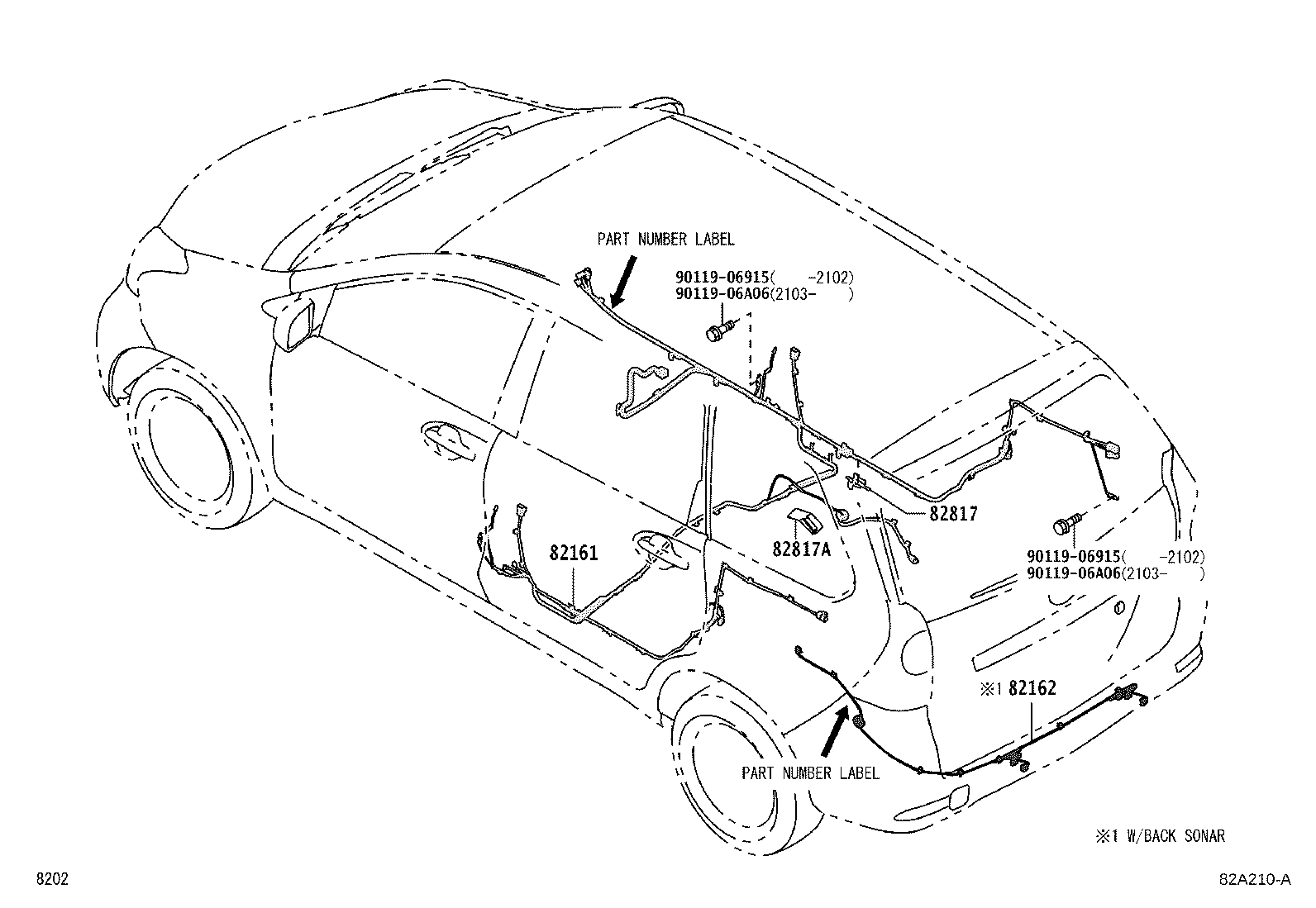

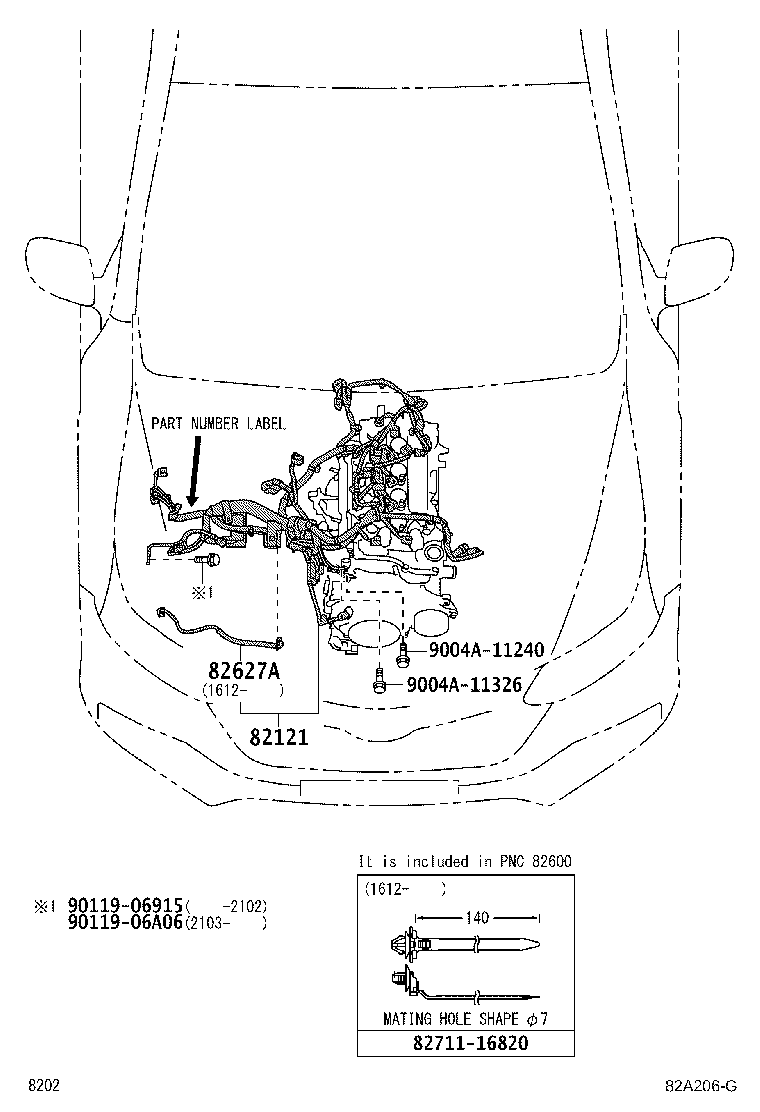

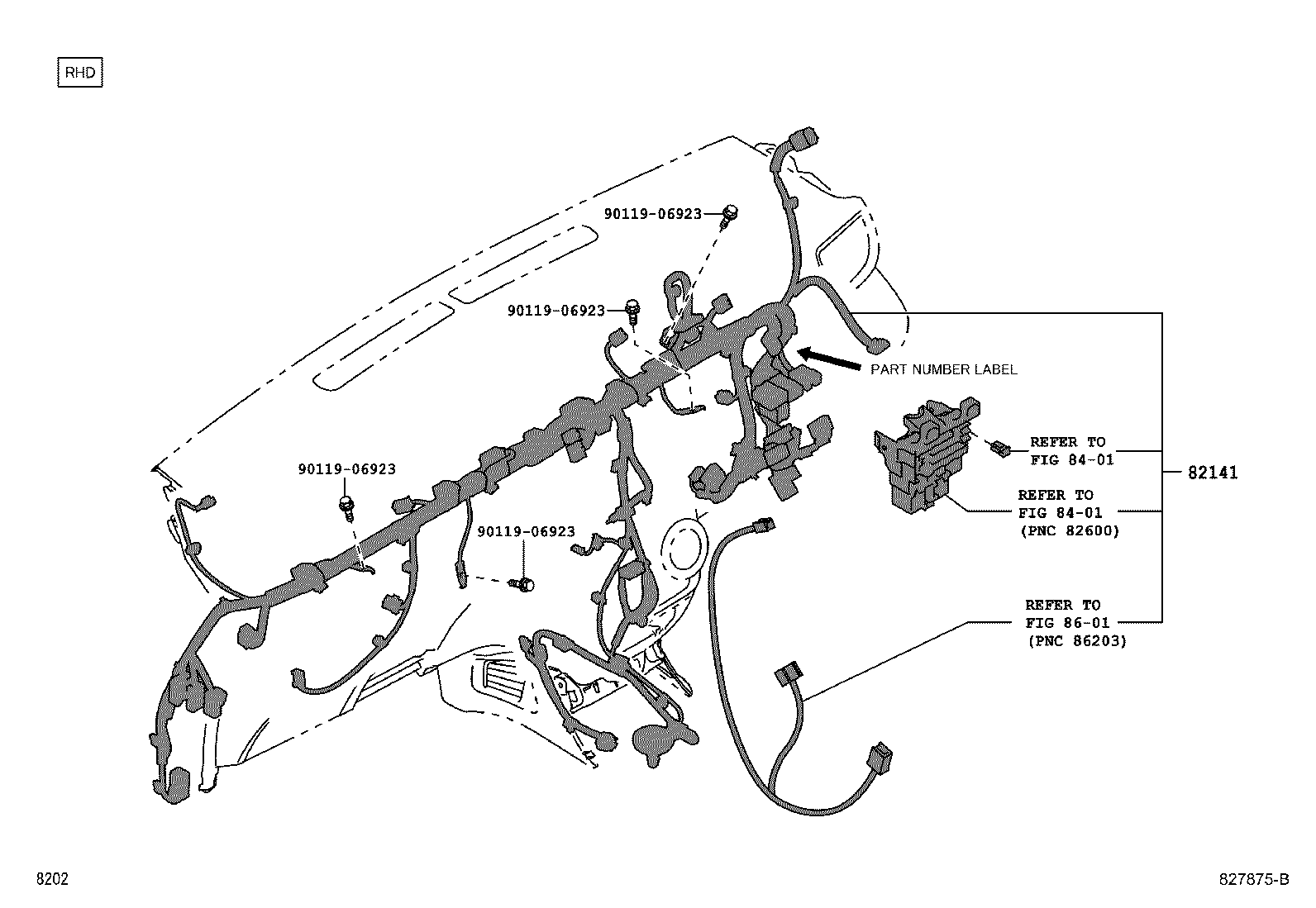

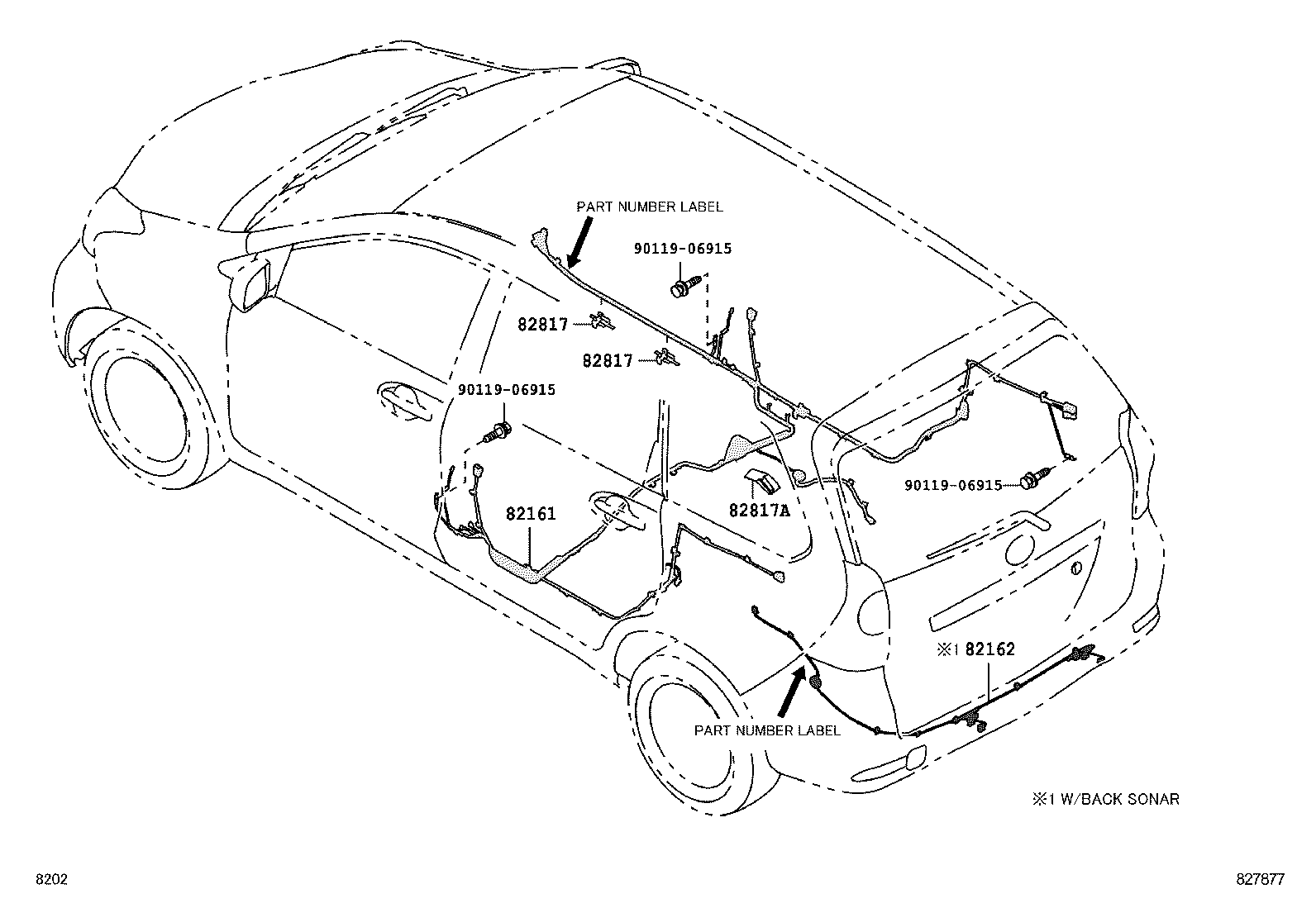

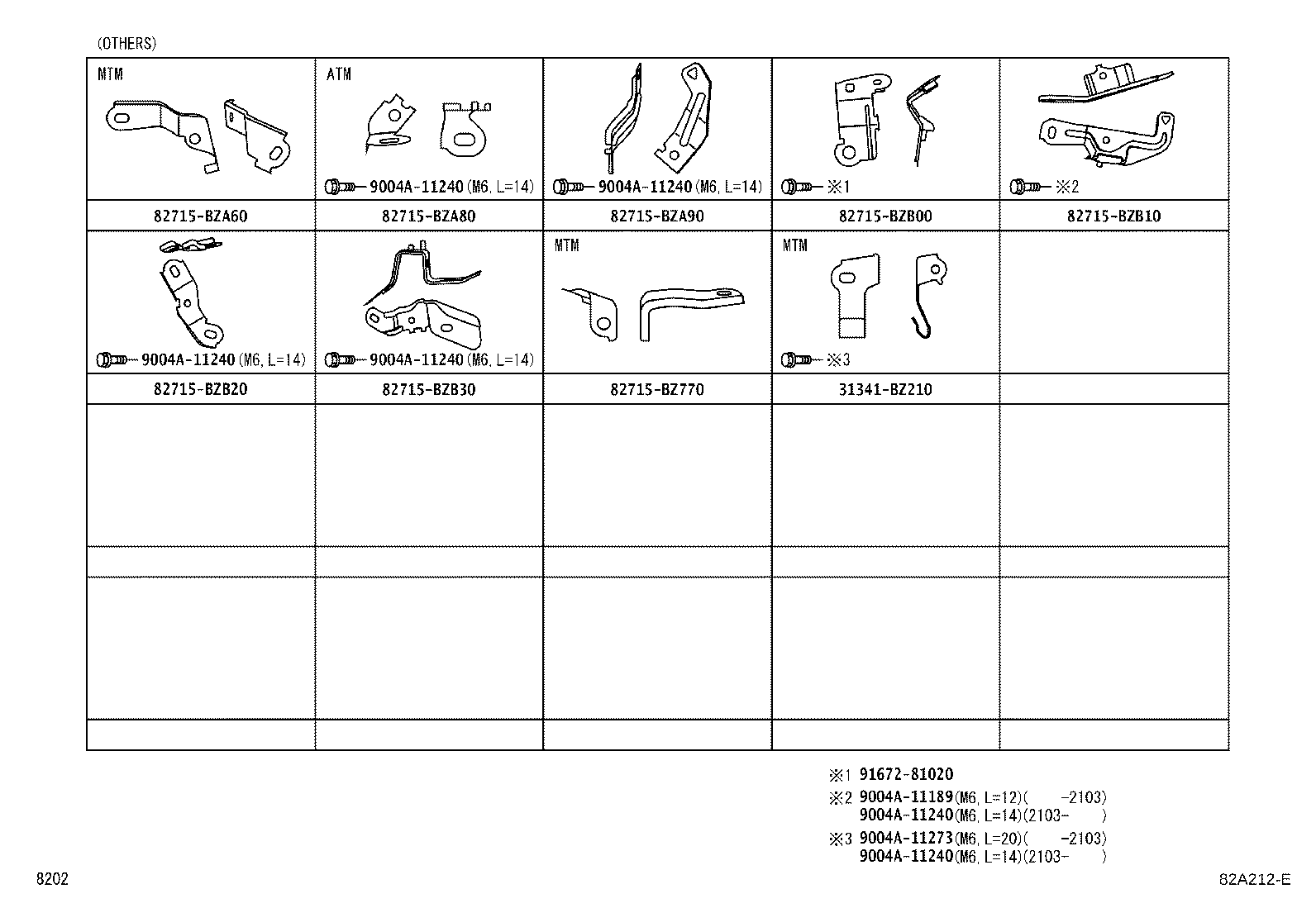

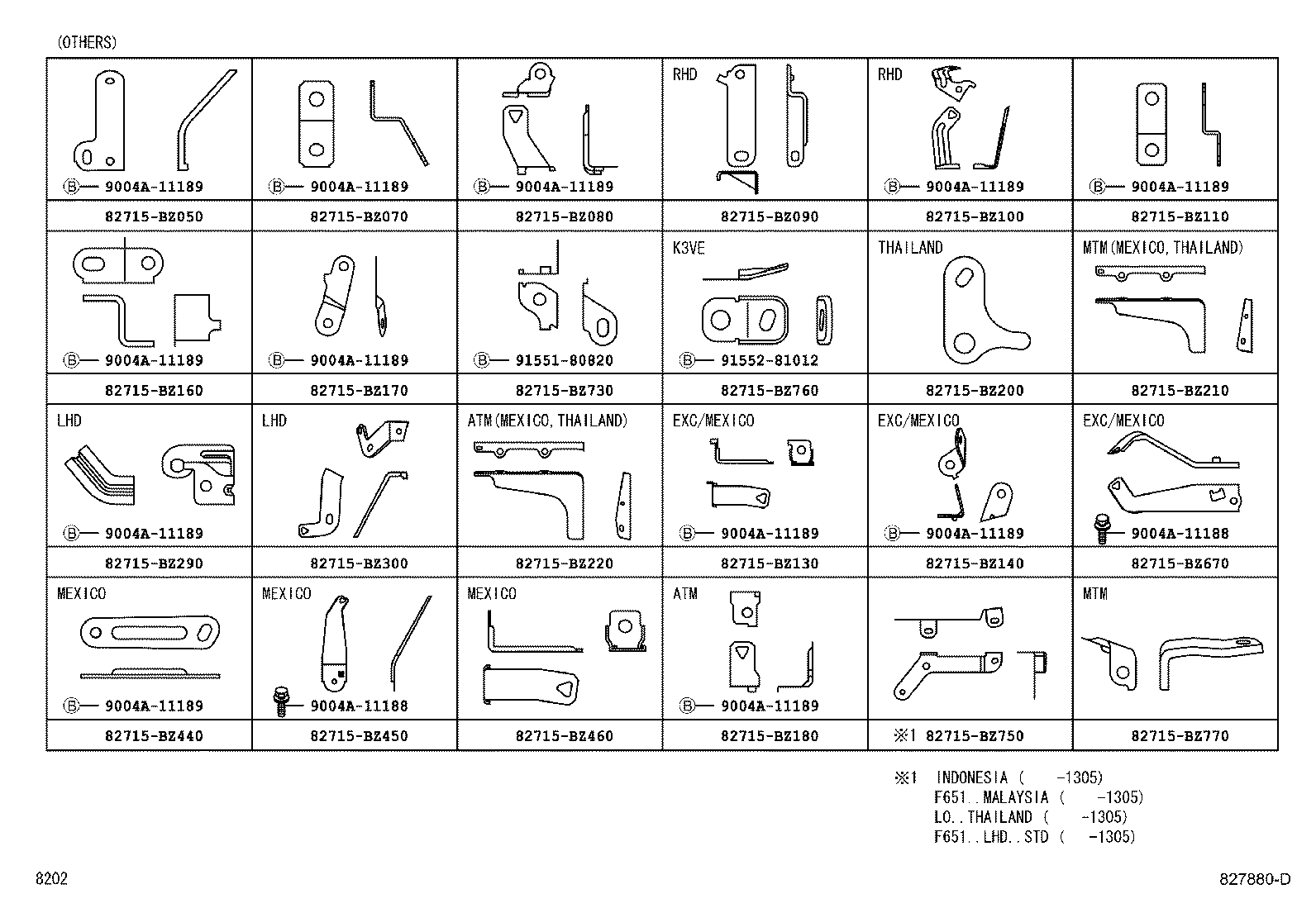

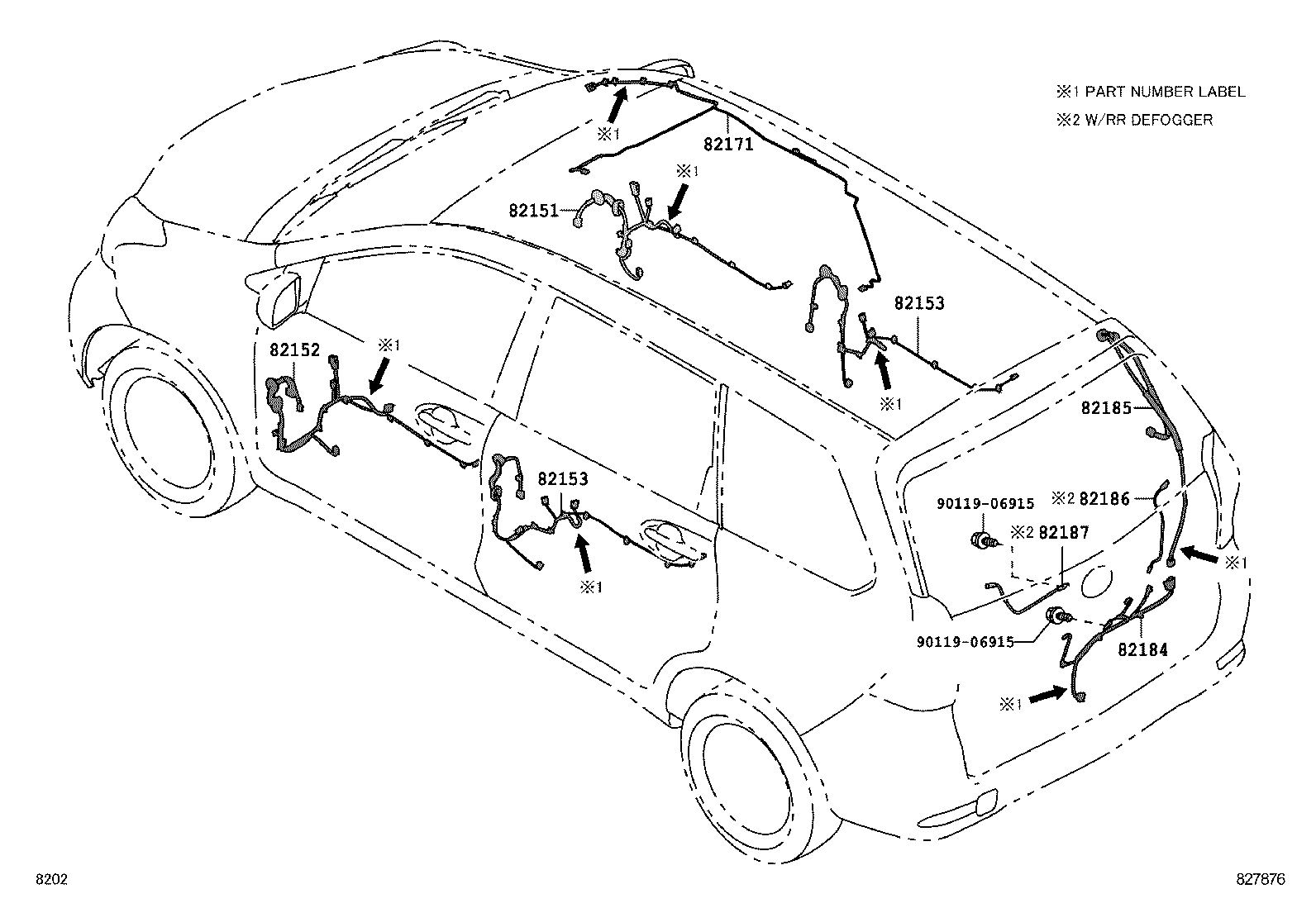

Figure 827871A 827871A 2011-11 → 2015-08 Figure 82A206G 82A206G 2015-07 → — Figure 827873C 827873C 2011-11 → 2015-08 Figure 82A207B 82A207B 2015-07 → — Figure 827875B 827875B 2011-11 → 2015-08 Figure 82A209B 82A209B 2015-07 → — Figure 827874B 827874B 2011-11 → 2015-08 Figure 82A208B 82A208B 2015-08 → — Figure 827876 827876 2011-11 → — Figure 827877 827877 2011-11 → 2015-08 Figure 82A210A 82A210A 2015-07 → — Figure 827878 827878 2011-11 → — Figure 827879 827879 2011-11 → 2015-08 Figure 82A211 82A211 2015-07 → 2019-01 Figure 82A211 82A211 2015-08 → 2019-04 Figure 827880D 827880D 2011-11 → 2015-08 Figure 82A212E 82A212E 2015-07 → —

Part groups

PNCDescription
82046D Wire, Body Ground

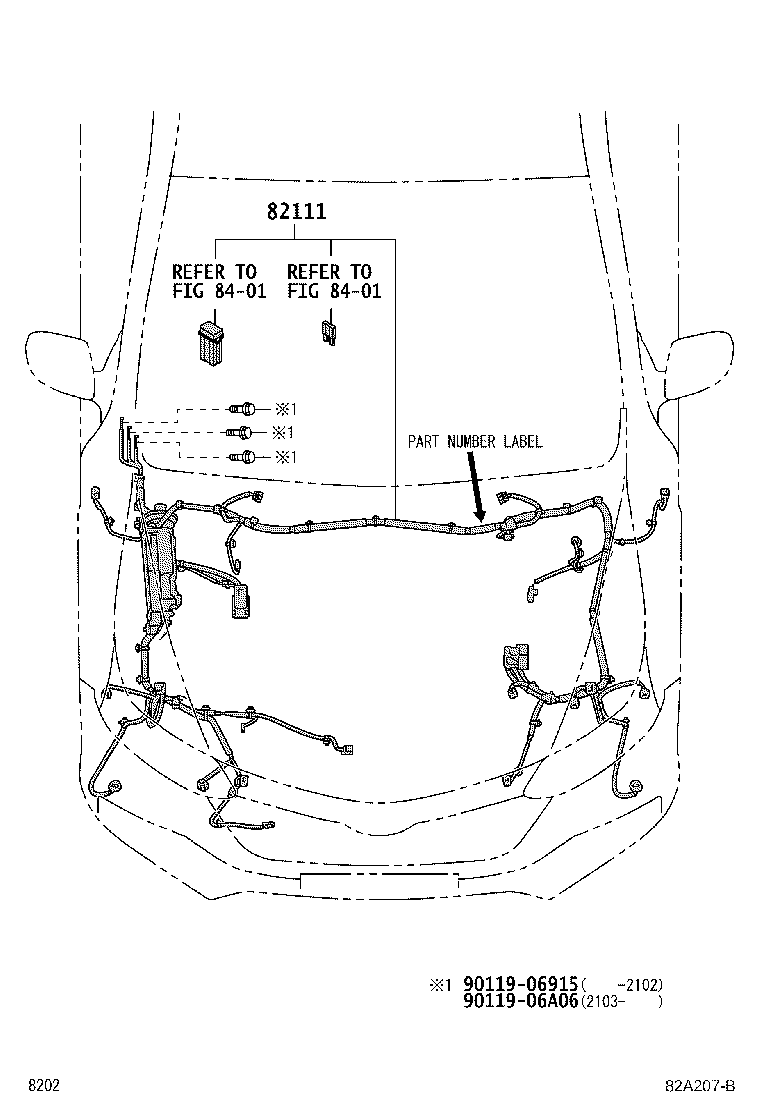

82111 Wire, Engine Room Main
82112B Wire, Engine Room, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2

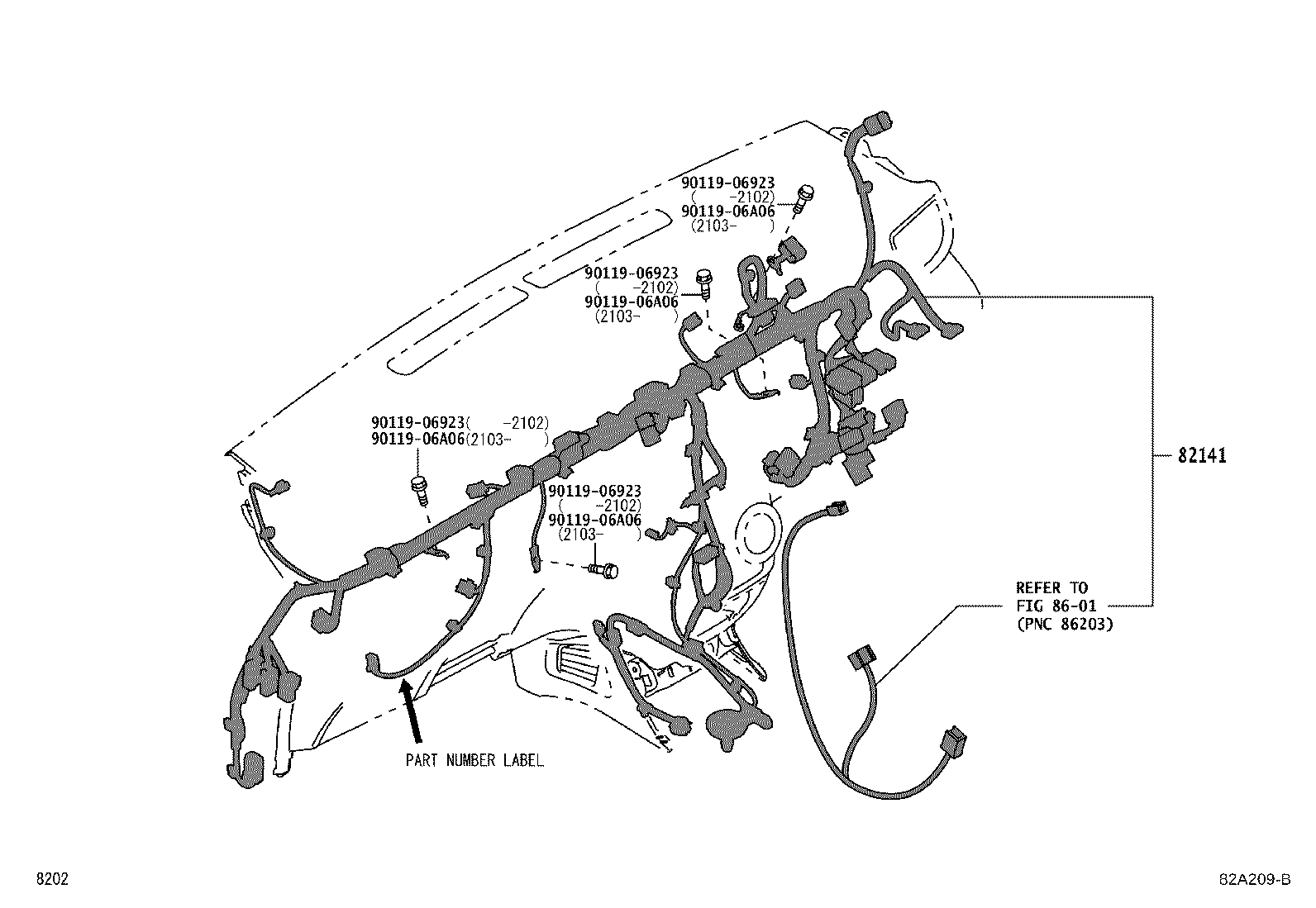

82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2

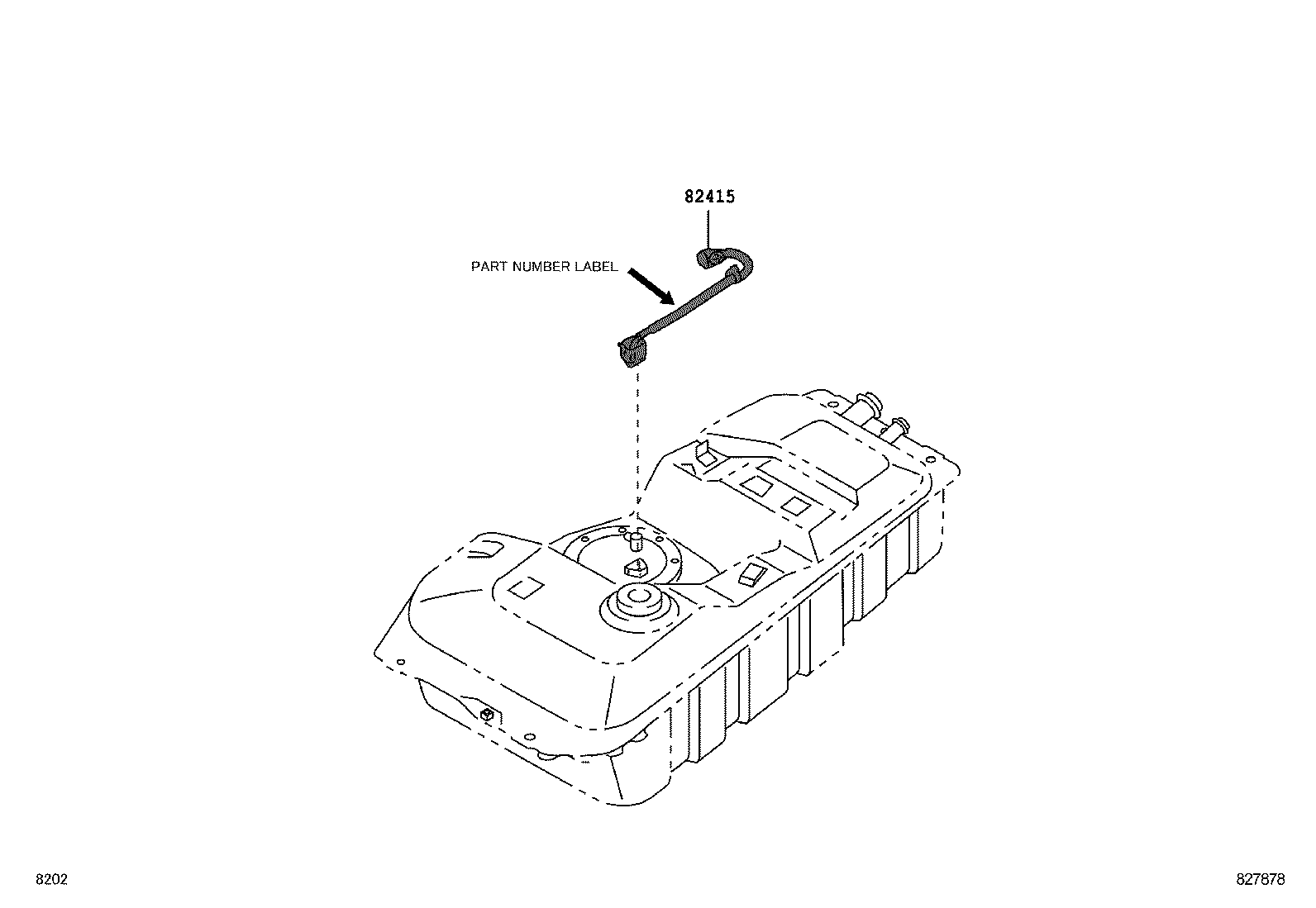

82415 Wire, Fuel Pump
82627A Wire, Fusible Link
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
