Toyota Fortuner

2005-01 → 2012-04 · chassis GGN50,60,KUN5#,6#,LAN50,TGN51,61 · catalogue 671380 · General

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

11 part groups · 9 illustrations

Illustrations

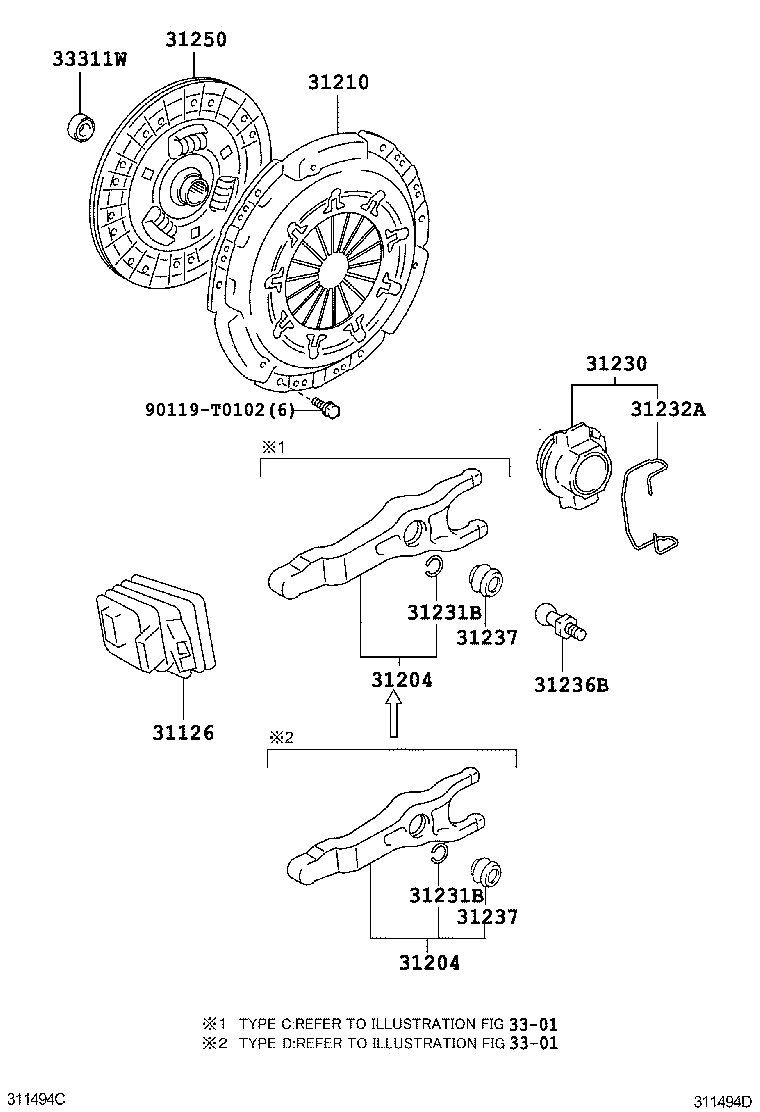

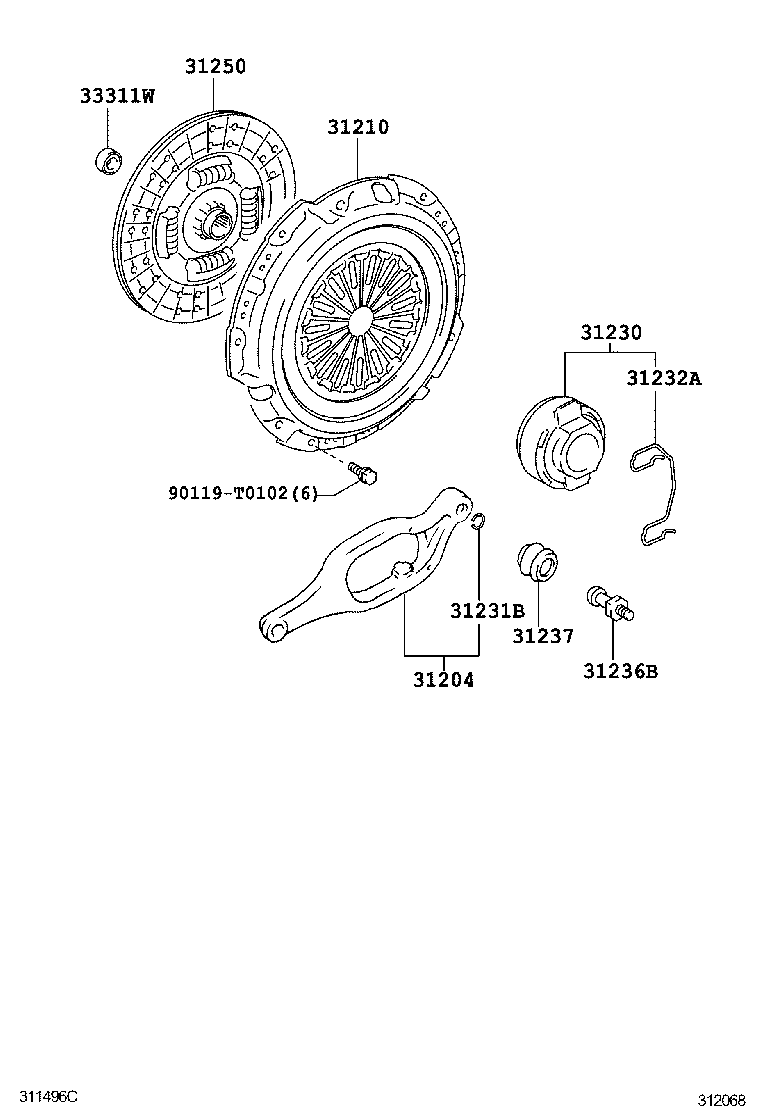

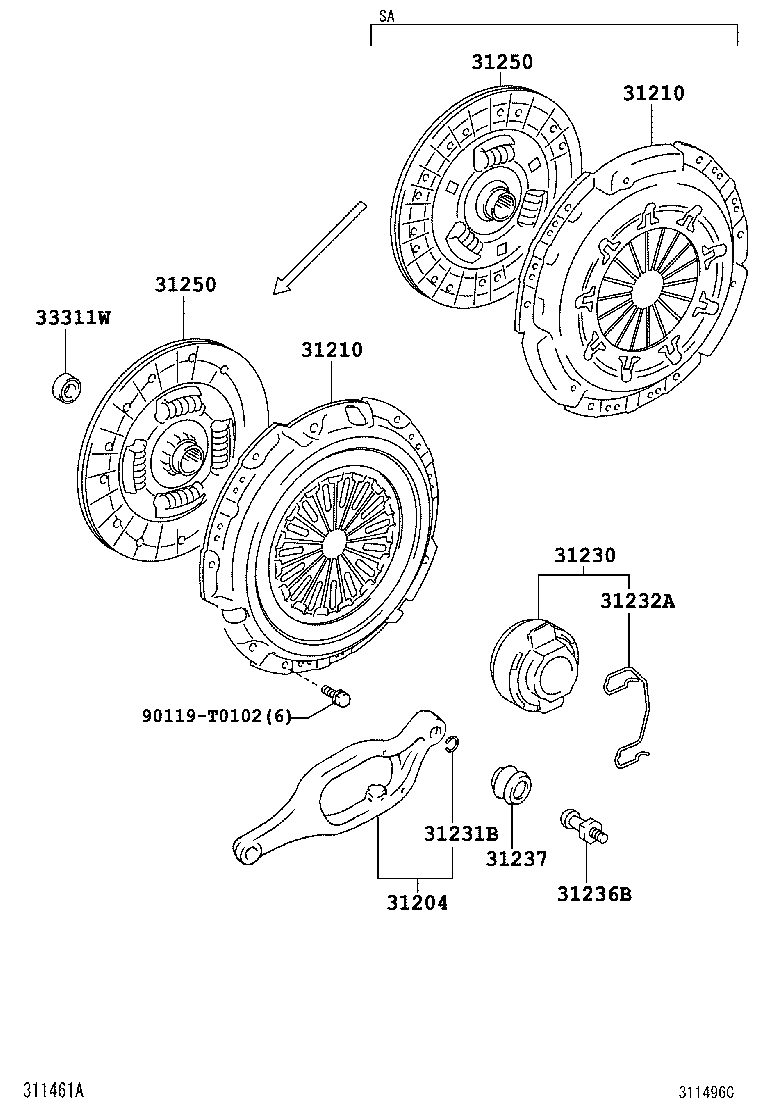

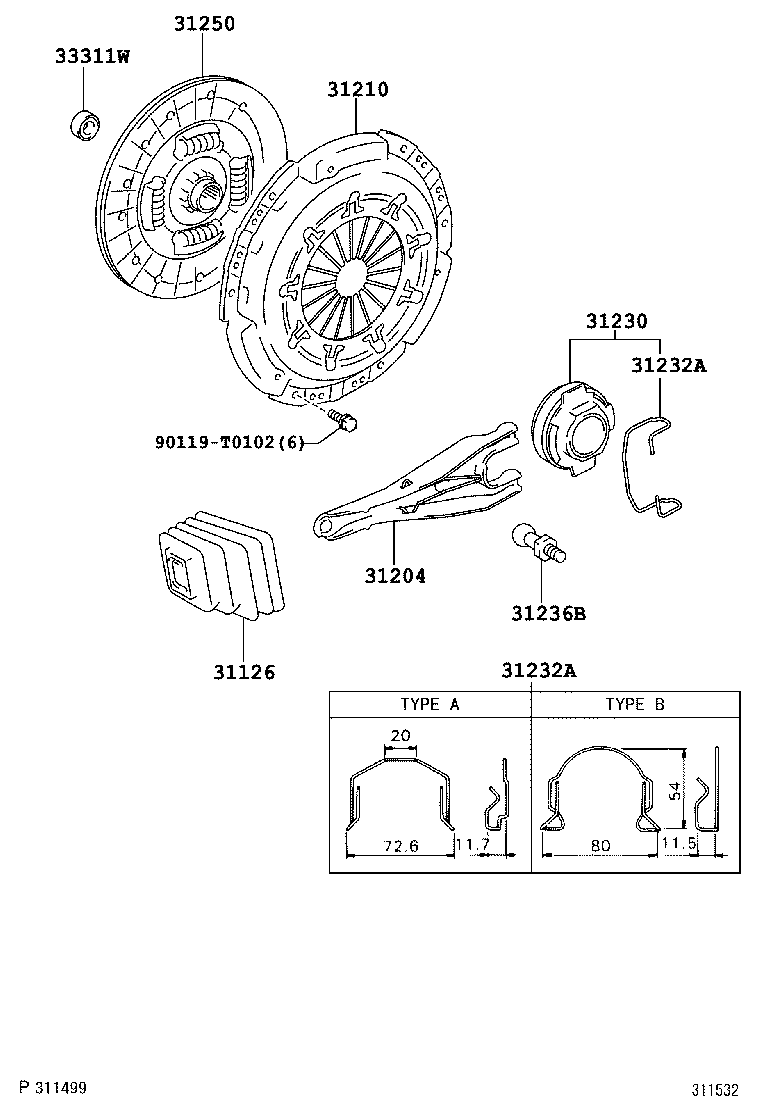

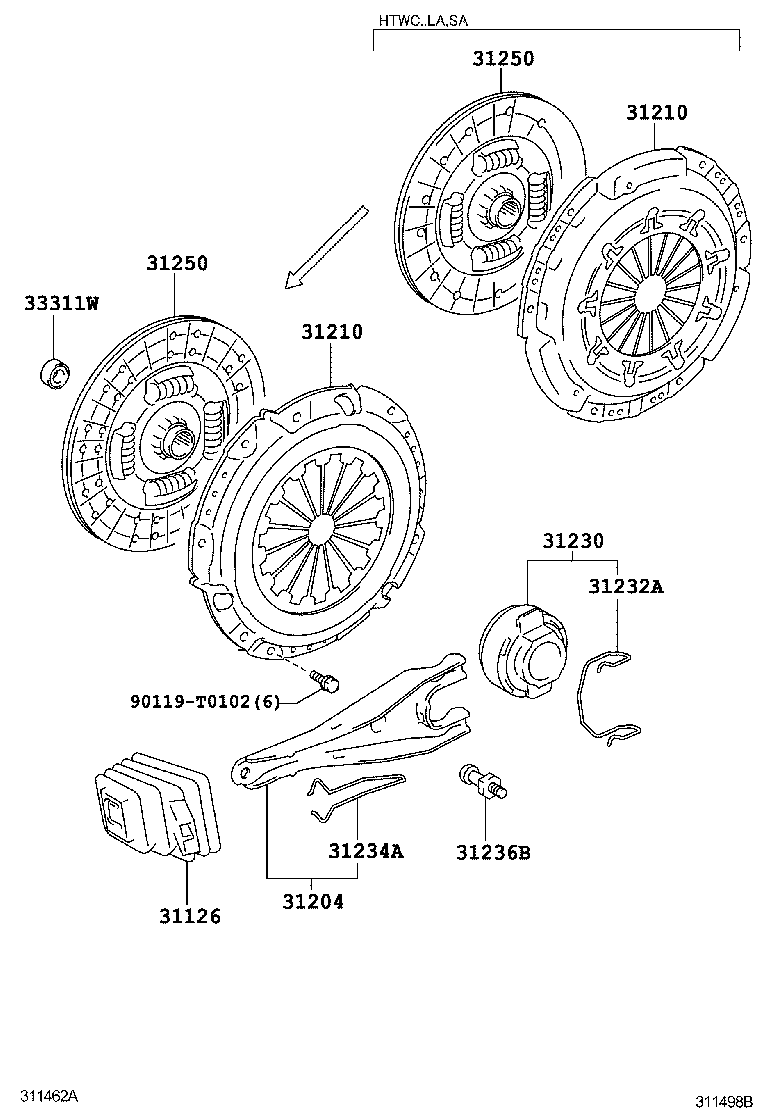

Figure 311482H 311482H 2005-01 → — Figure 311498B 311498B 2005-07 → — Figure 311496C 311496C 2005-07 → 2008-08 Figure 311496C 311496C 2006-02 → 2009-03 Figure 311496C 311496C 2006-02 → — Figure 311494D 311494D 2005-09 → — Figure 311532 311532 2005-11 → — Figure 312068 312068 2008-08 → — Figure 312068 312068 2009-03 → —

Part groups

PNCDescription
31126 Boot, Clutch Release Fork
31204 Fork Sub-assy, Clutch Release
31210 Cover Assy, Clutch
31230 Bearing Assy, Clutch Release
31231B Ring, Snap(FOR CLUTCH RELEASE HUB)
31232A Clip, Release Bearing Hub
31234A Spring, Release Fork Support
31236B Support, Release Fork
31237 Boot, Clutch Release Fork Support
31250 Disc Assy, Clutch
33311W Bearing (FOR INPUT SHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
