Toyota Fortuner

2005-01 → 2012-04 · chassis GGN50,60,KUN5#,6#,LAN50,TGN51,61 · catalogue 671380 · General

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board

41 part groups · 7 illustrations

Illustrations

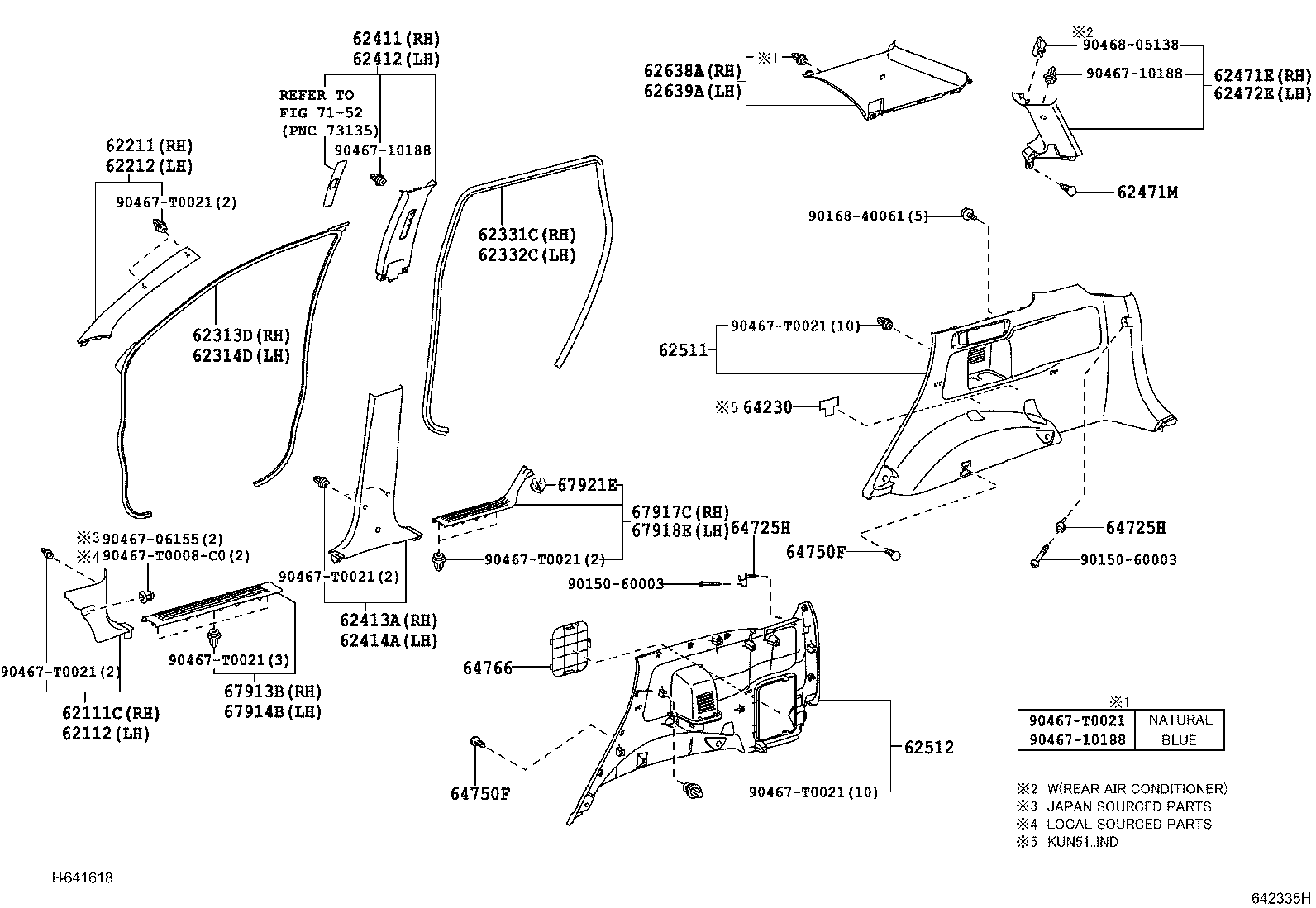

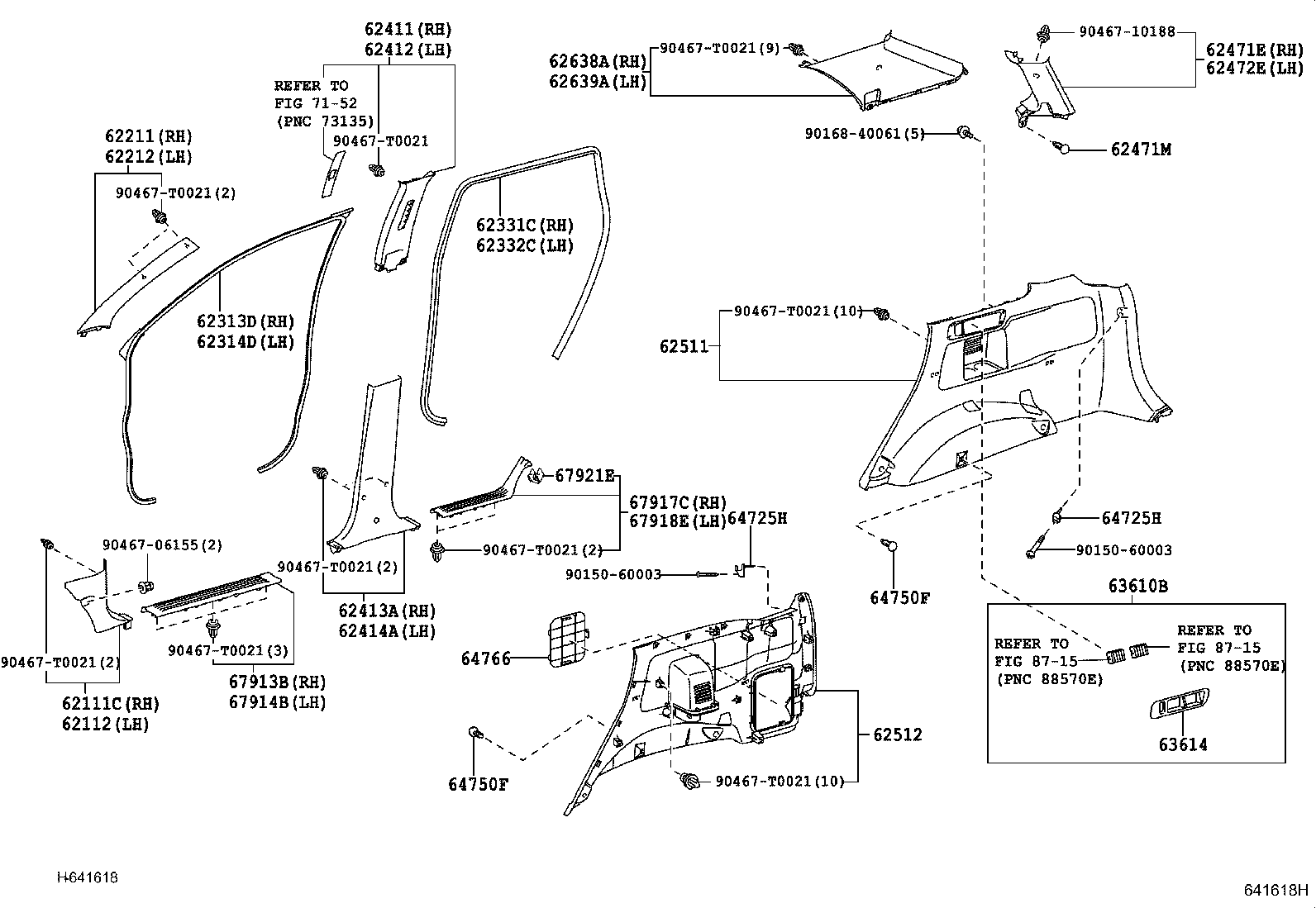

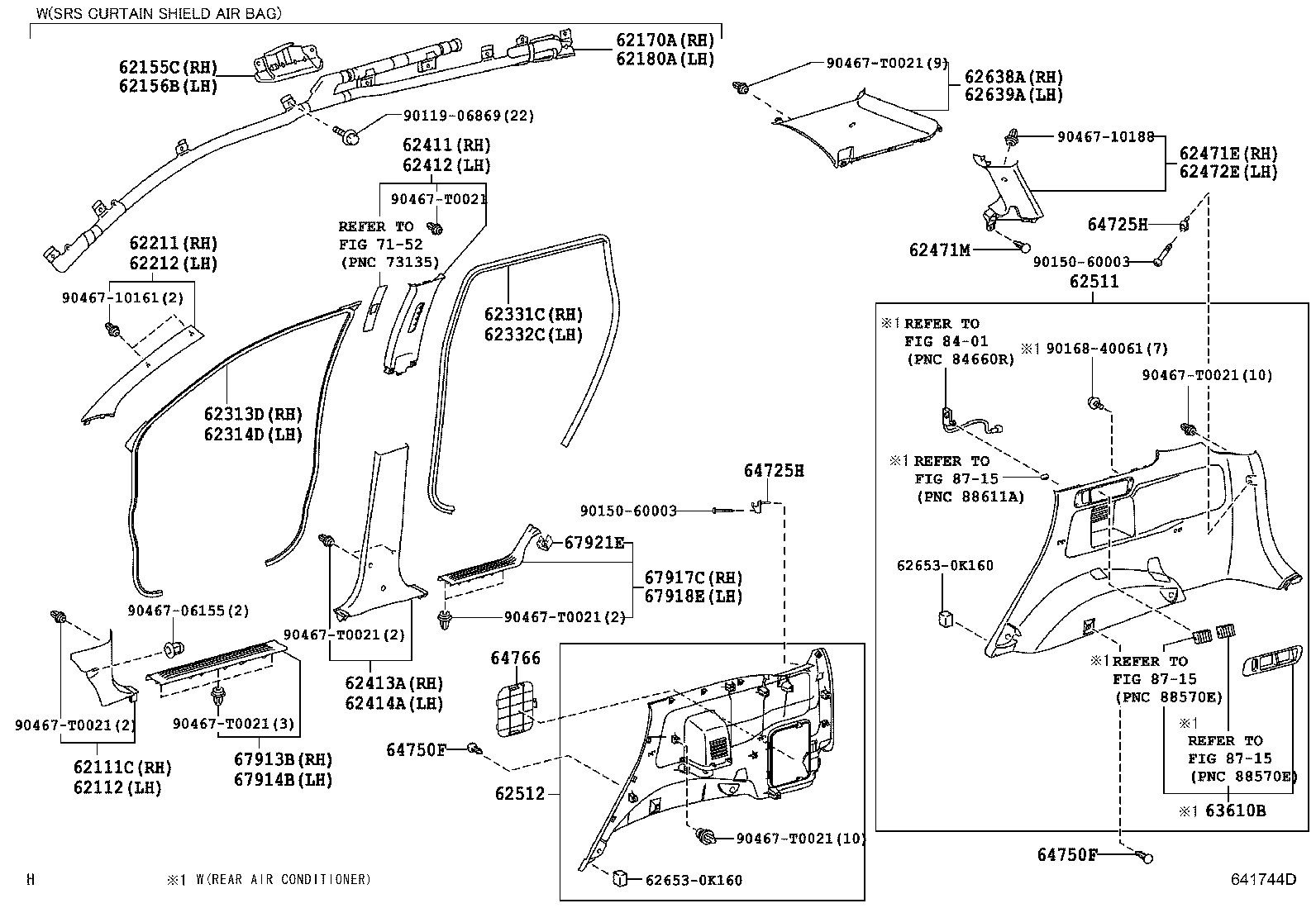

Figure 641671E 641671E 2005-09 → — Figure 641744D 641744D 2006-02 → — Figure 641618H 641618H 2005-01 → 2007-08 Figure 641618H 641618H 2005-01 → 2008-08 Figure 641618H 641618H 2005-01 → 2008-09 Figure 642335H 642335H 2008-08 → — Figure 642335H 642335H 2008-09 → —

Part groups

PNCDescription
61653C Bracket, Deck Side Trim, RH
61654D Bracket, Deck Side Trim, NO.2
62111C Board, Cowl Side Trim, RH
62112 Board, Cowl Side Trim, LH
62155C Bracket, Curtain Shield Airbag, RH
62156B Bracket, Curtain Shield Airbag, LH
62170A Airbag Assy, Curtain Shield, RH
62180A Airbag Assy, Curtain Shield, LH
62211 Garnish, Front Pillar, RH
62212 Garnish, Front Pillar, LH
62313D Trim, Front Door Opening, RH
62314D Trim, Front Door Opening, LH
62331C Weatherstrip, Rear Door Opening Trim, RH
62332C Weatherstrip, Rear Door Opening Trim, LH
62411 Garnish, Center Pillar, RH
62412 Garnish, Center Pillar, LH
62413A Garnish, Center Pillar, Lower RH
62414A Garnish, Center Pillar, Lower LH
62471E Garnish, Roof Side, Inner Upper RH
62471M Clip
62472E Garnish, Roof Side, Inner Upper LH
62511 Board, Quarter Inside Trim, RH
62512 Board, Quarter Inside Trim, LH
62638A Garnish, Quarter Pillar, RH
62639A Garnish, Quarter Pillar, LH
63610B Register Assy, Air Outlet, RH
63614 Register, Air Outlet, RH
64230 Net Assy, Room Partition
64725H Hook, Quarter Trim,
64750F Clip(FOR DECK SIDE TRIM PANEL)
64766 Cover Sub-assy, Quarter Trim Jack
64910M Cover Assy, Tonneau
64931D Hanger, Tonneau Cover, RH
64932C Hanger, Tonneau Cover, LH
64935A Holder, Tonneau Cover
64936A Holder, Tonneau Cover, LH
67913B Plate, Front Door Scuff, RH
67914B Plate, Front Door Scuff, LH
67917C Plate, Rear Door Scuff, RH
67918E Plate, Rear Door Scuff, LH
67921E Retainer, Rear Door Scuff Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
