Toyota Fortuner

2005-01 → 2012-04 · chassis GGN50,60,KUN5#,6#,LAN50,TGN51,61 · catalogue 671380 · General

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

47 part groups · 45 illustrations

Illustrations

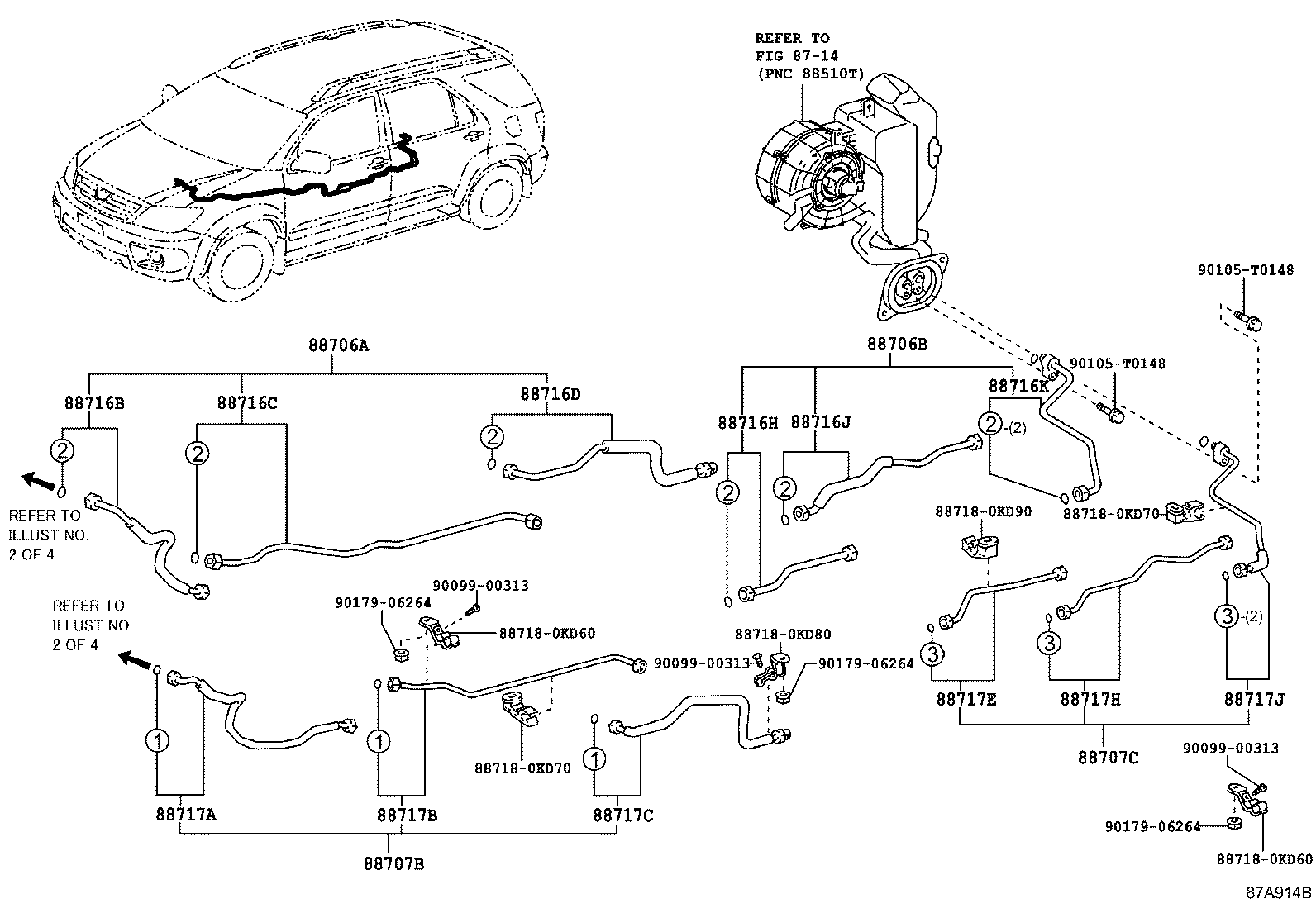

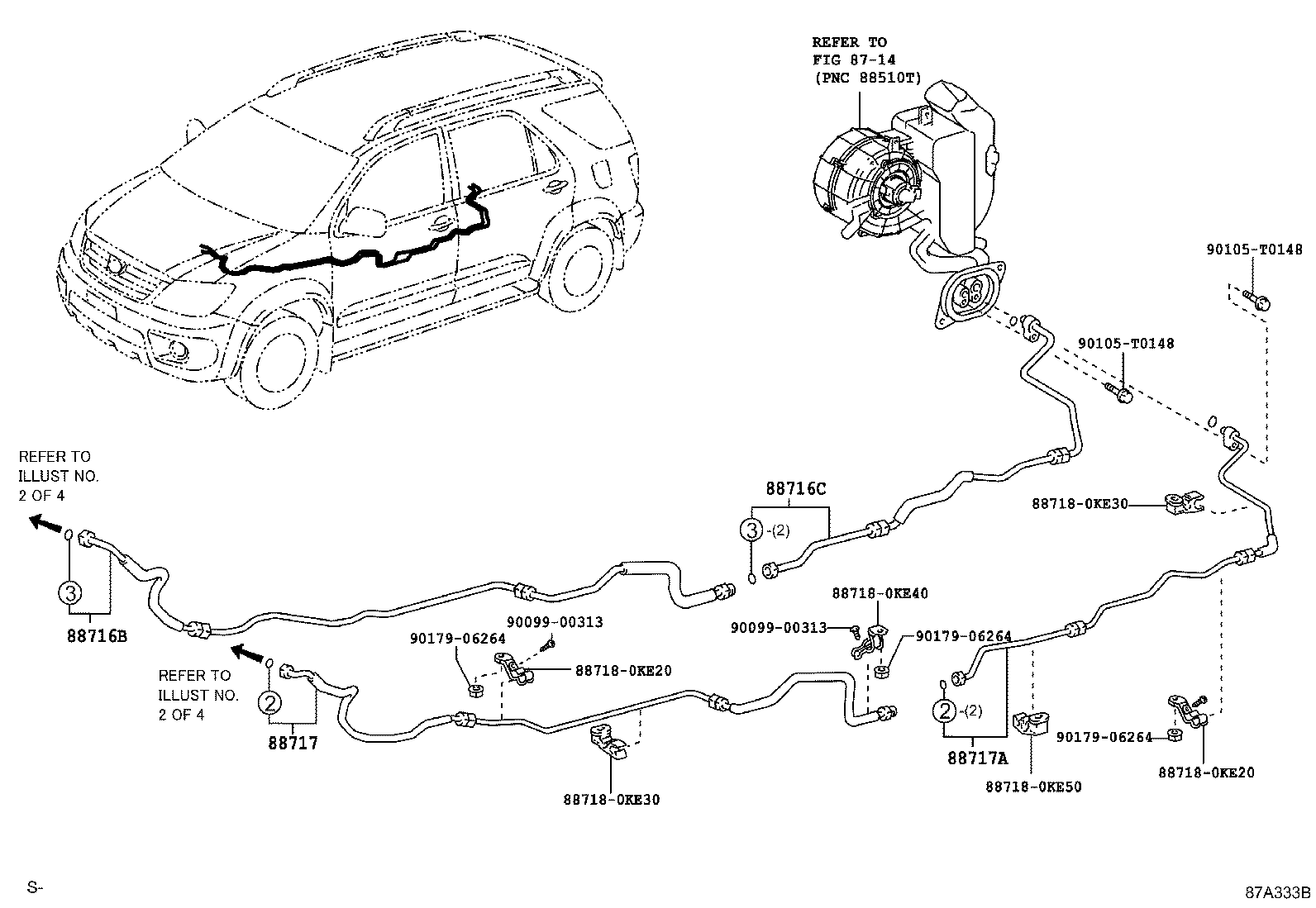

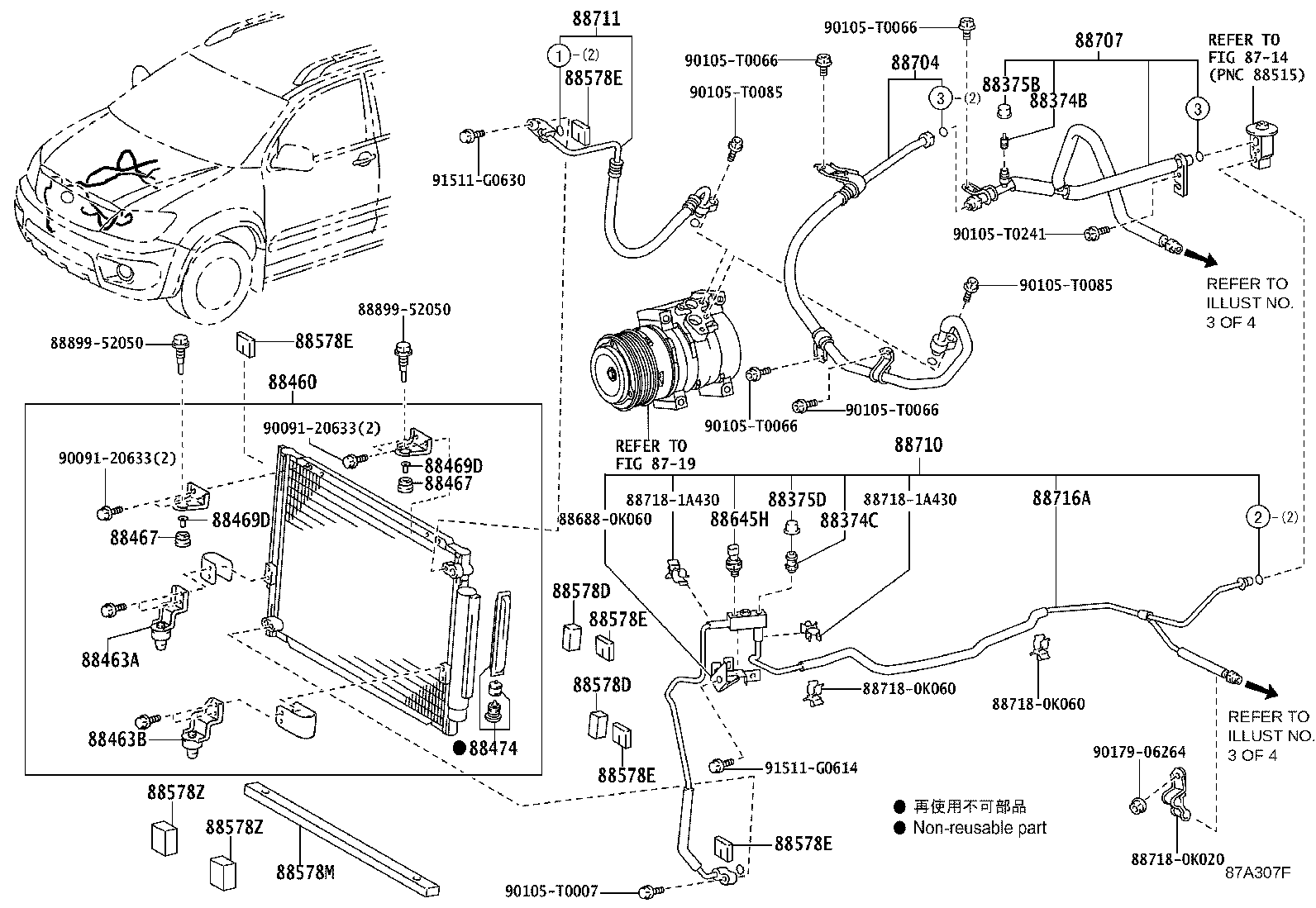

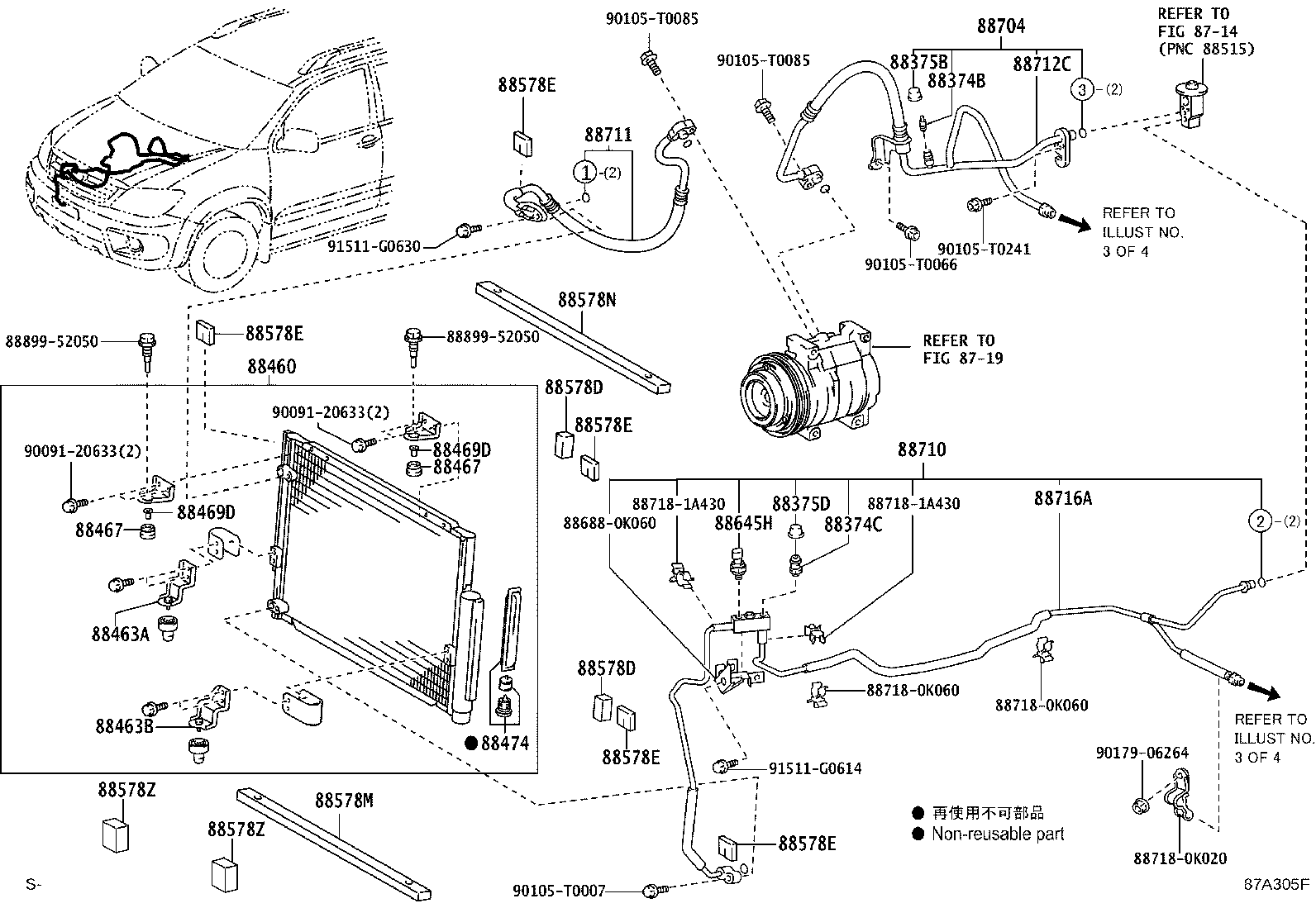

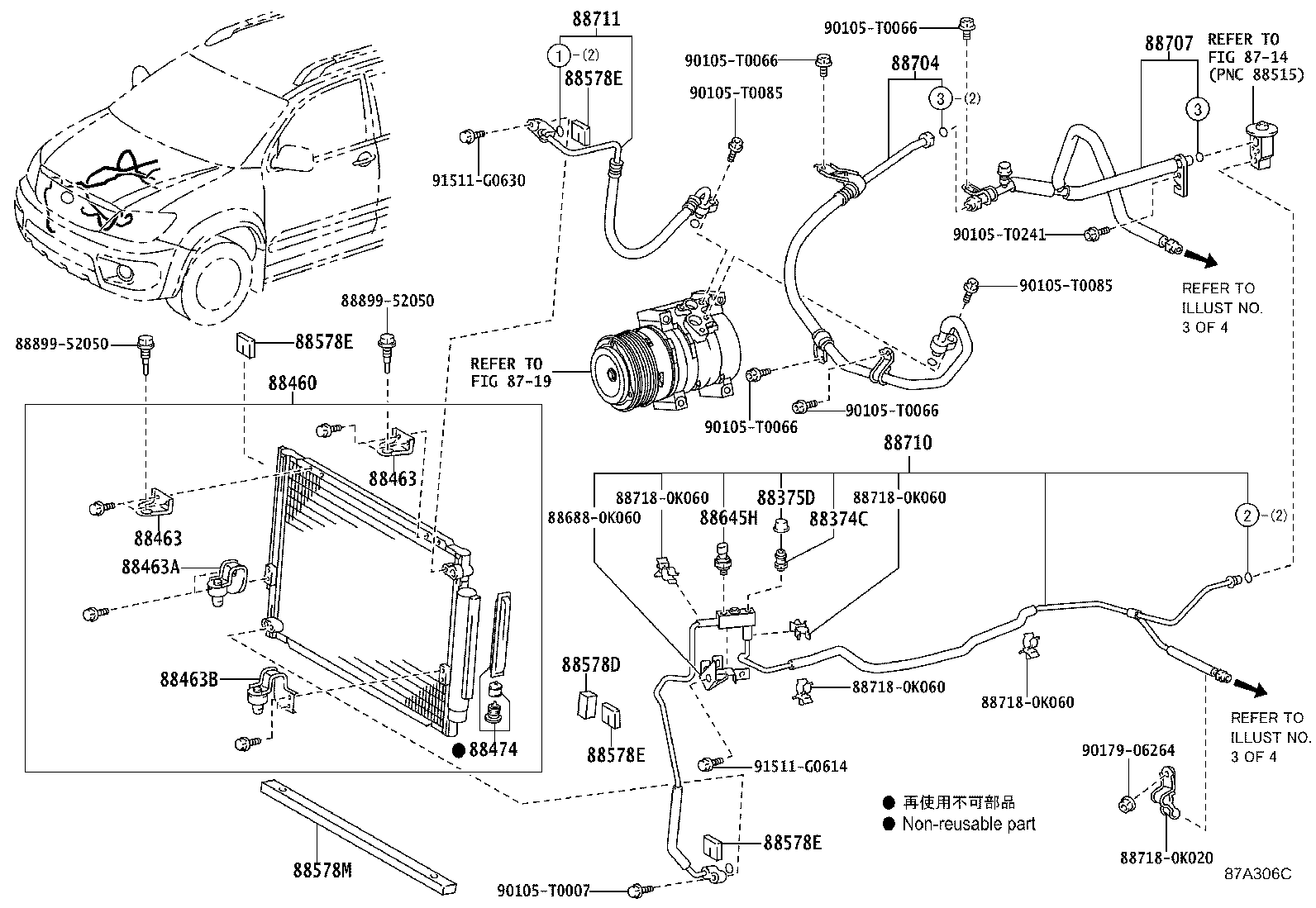

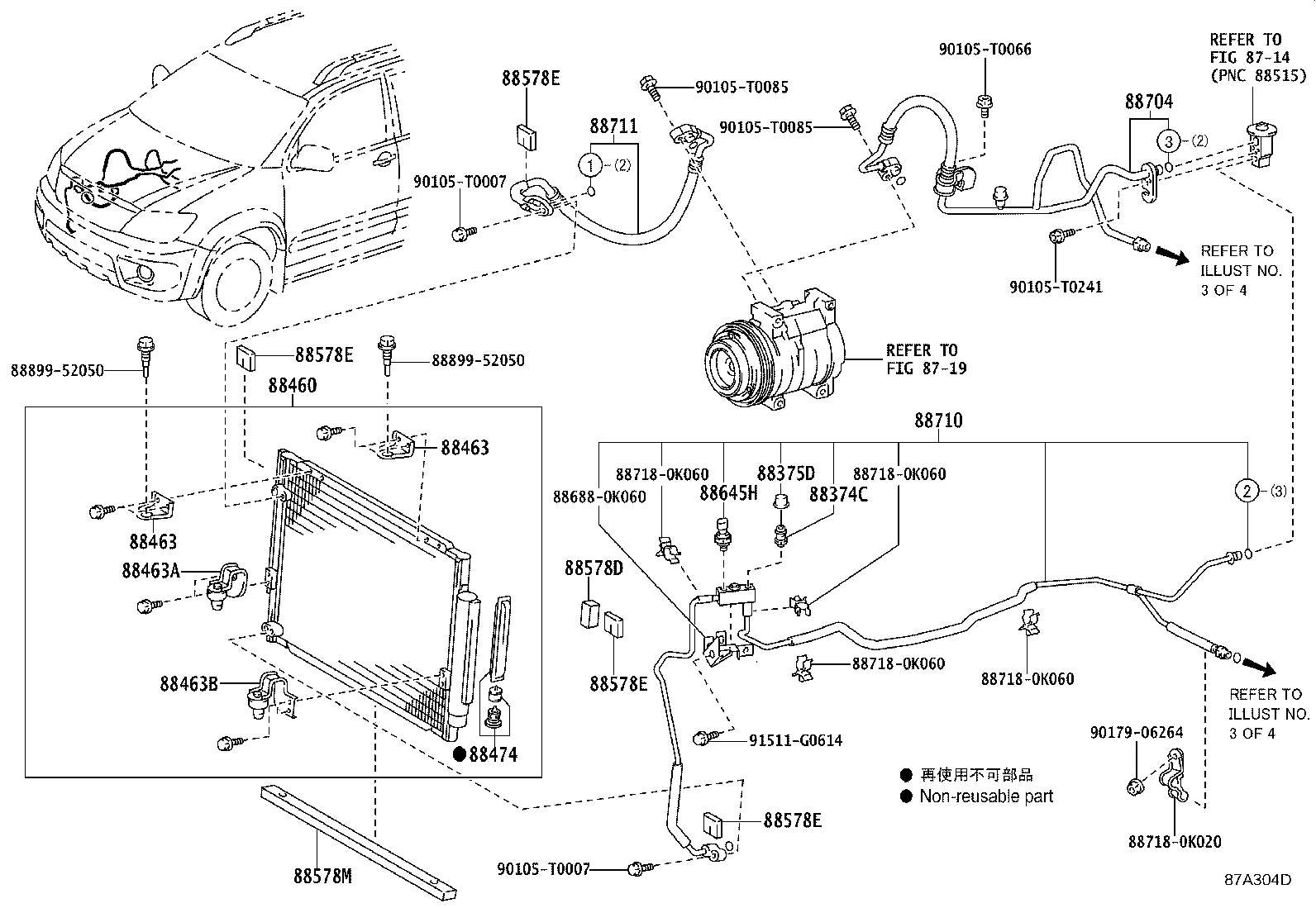

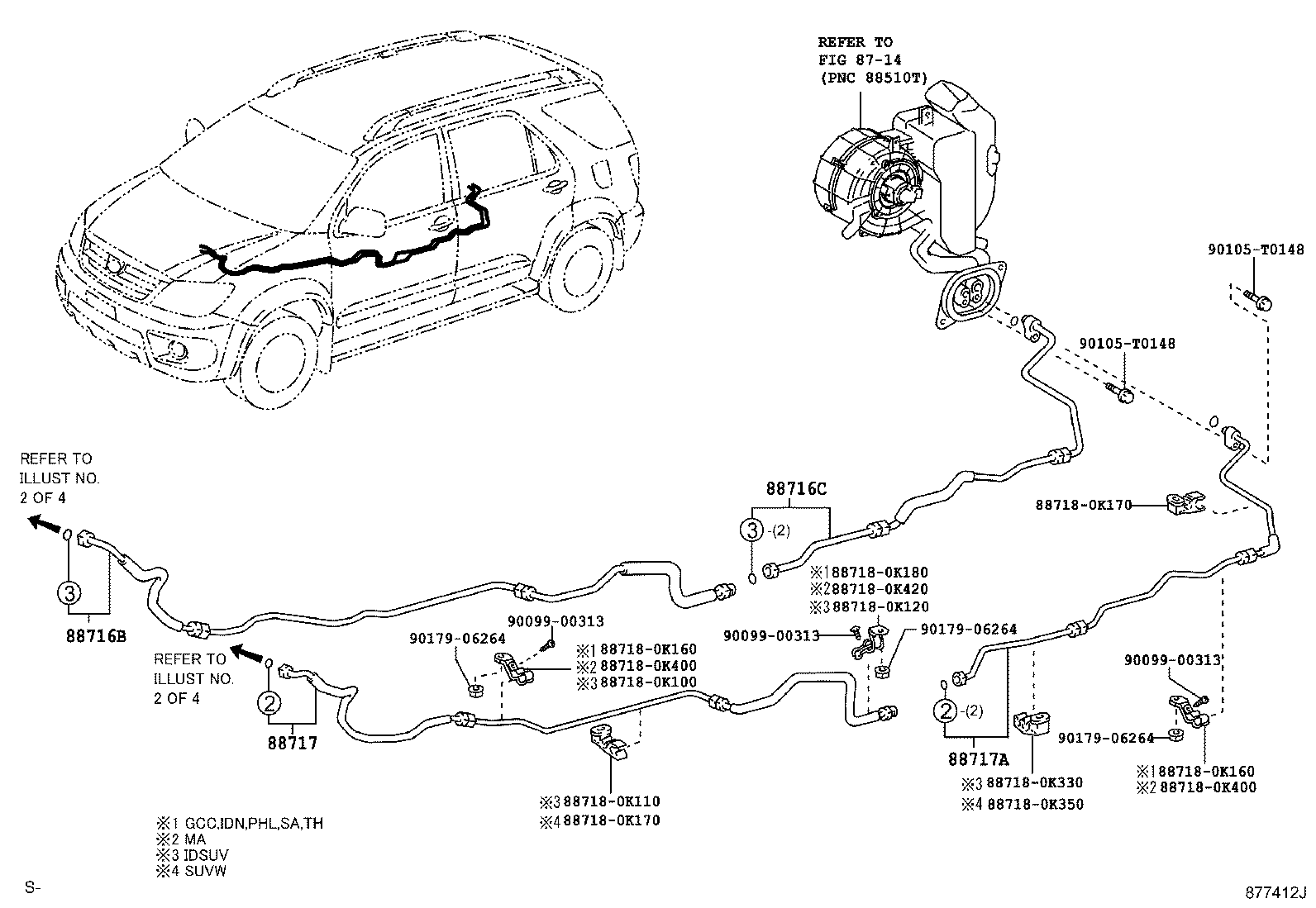

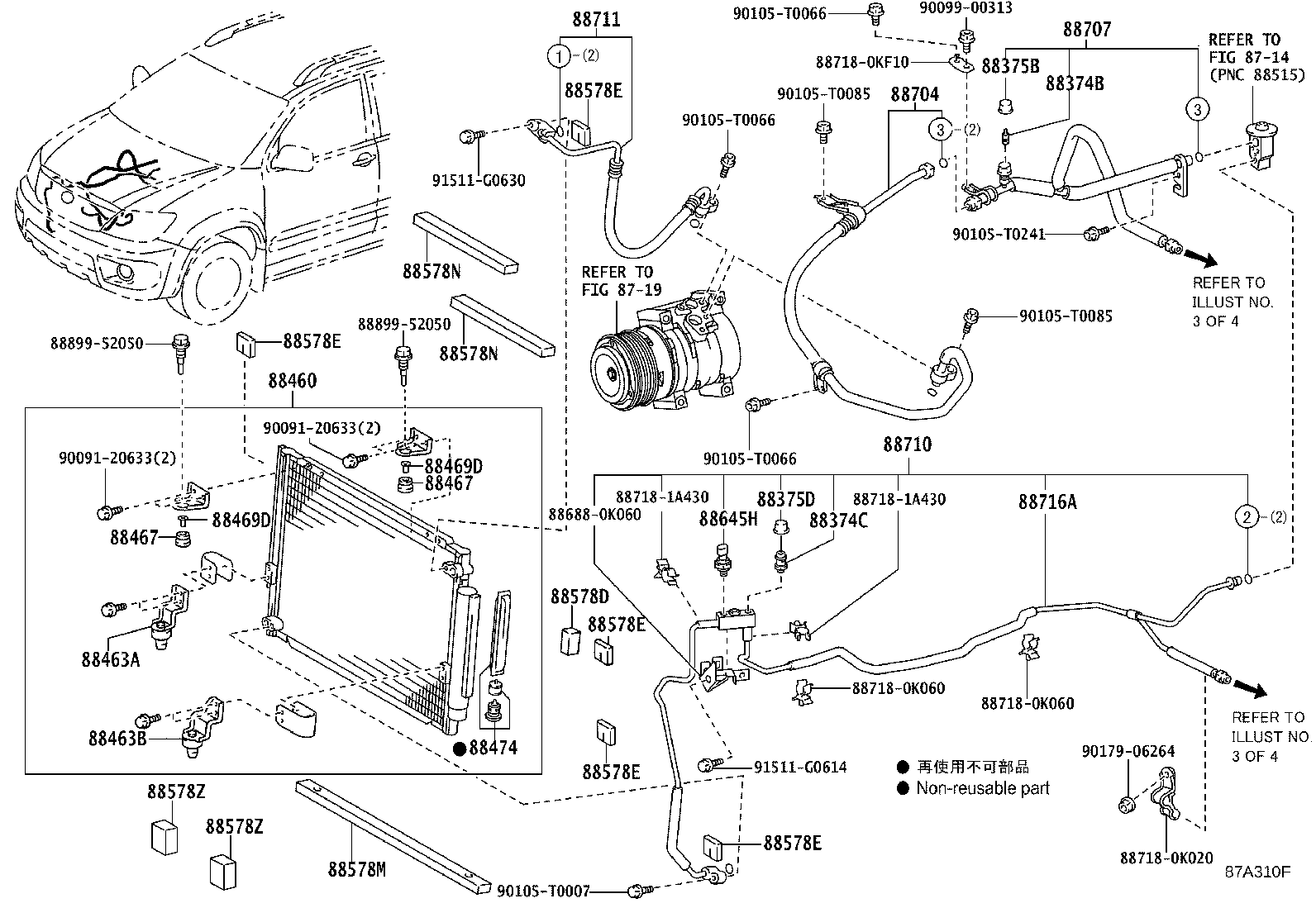

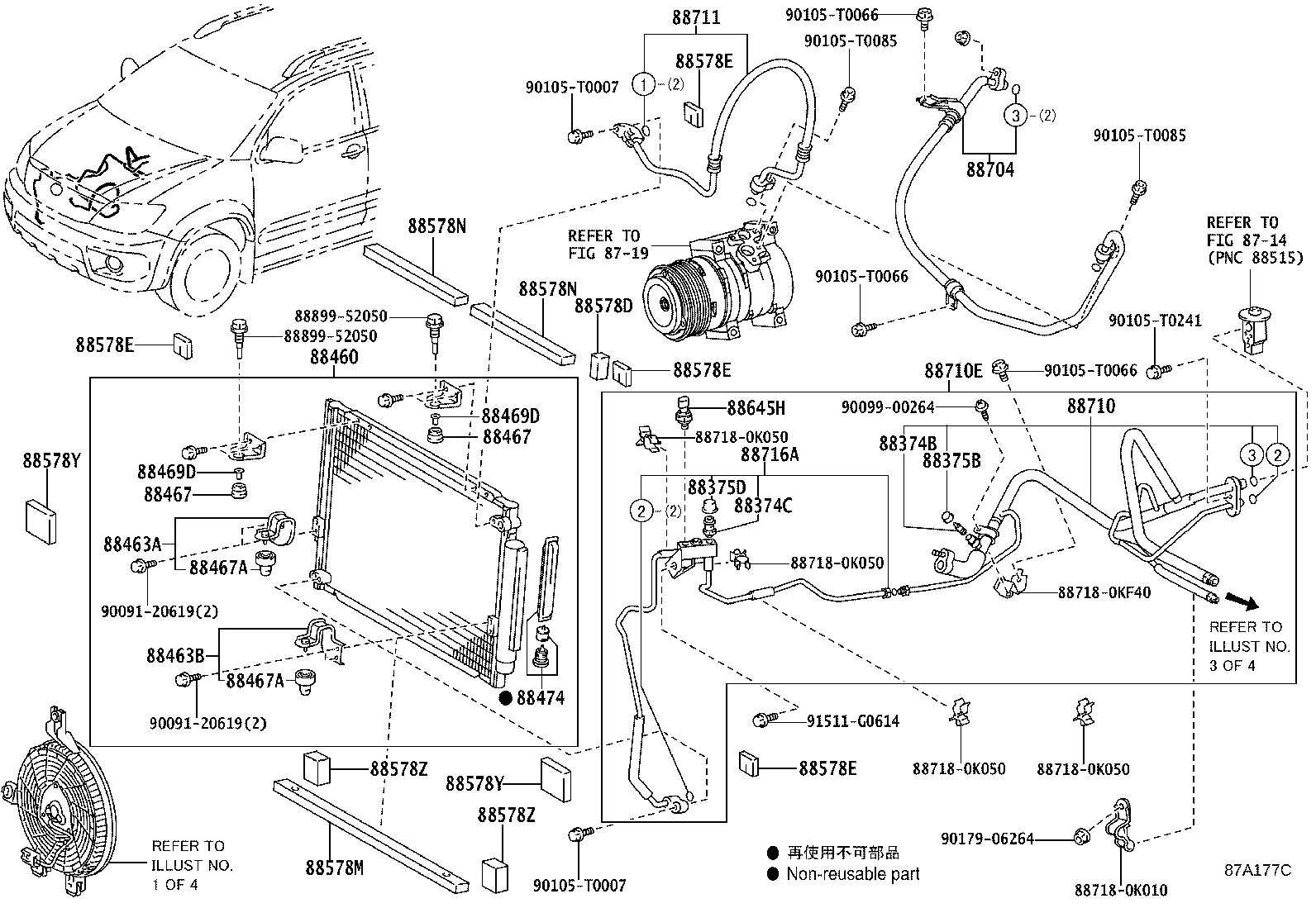

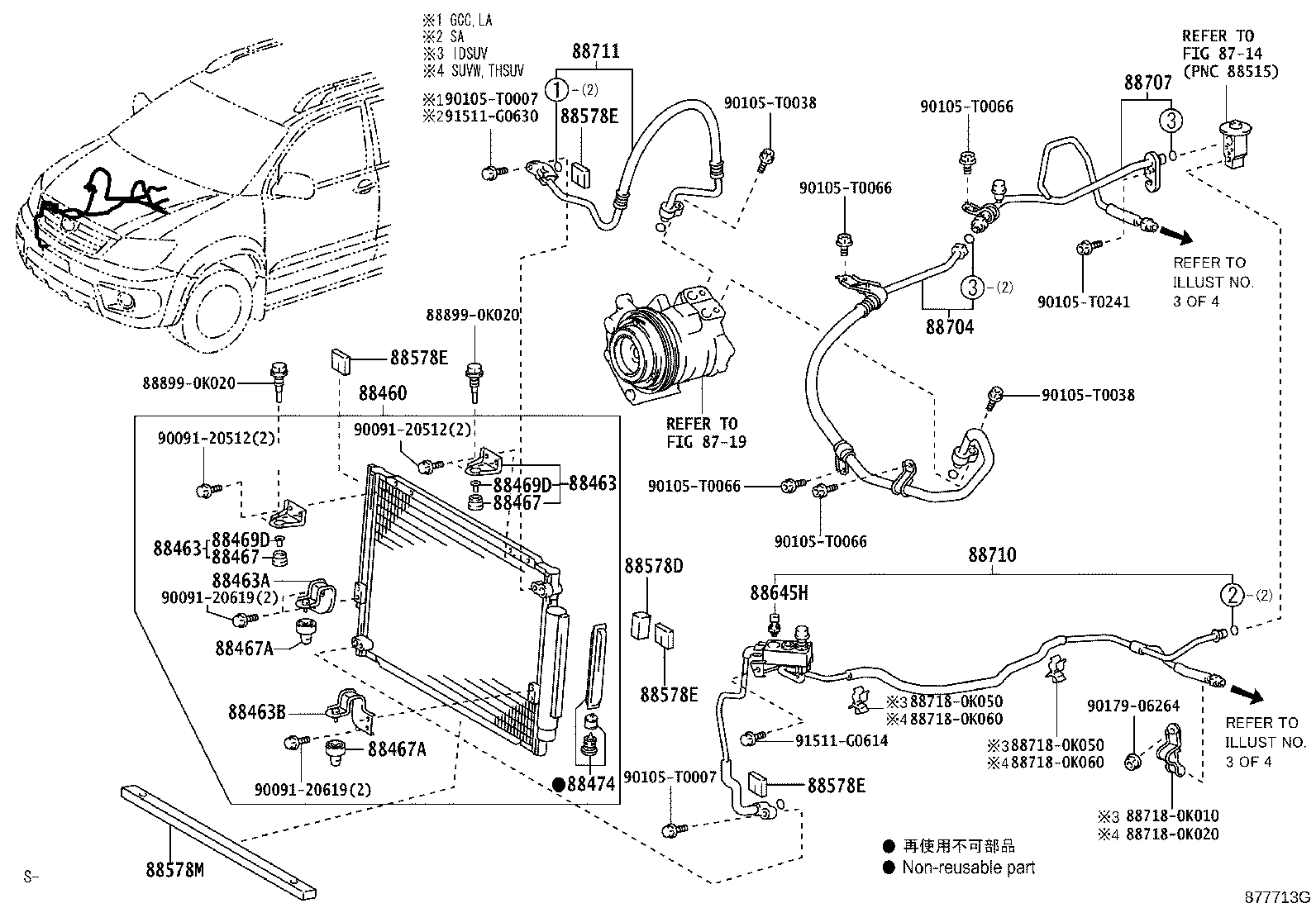

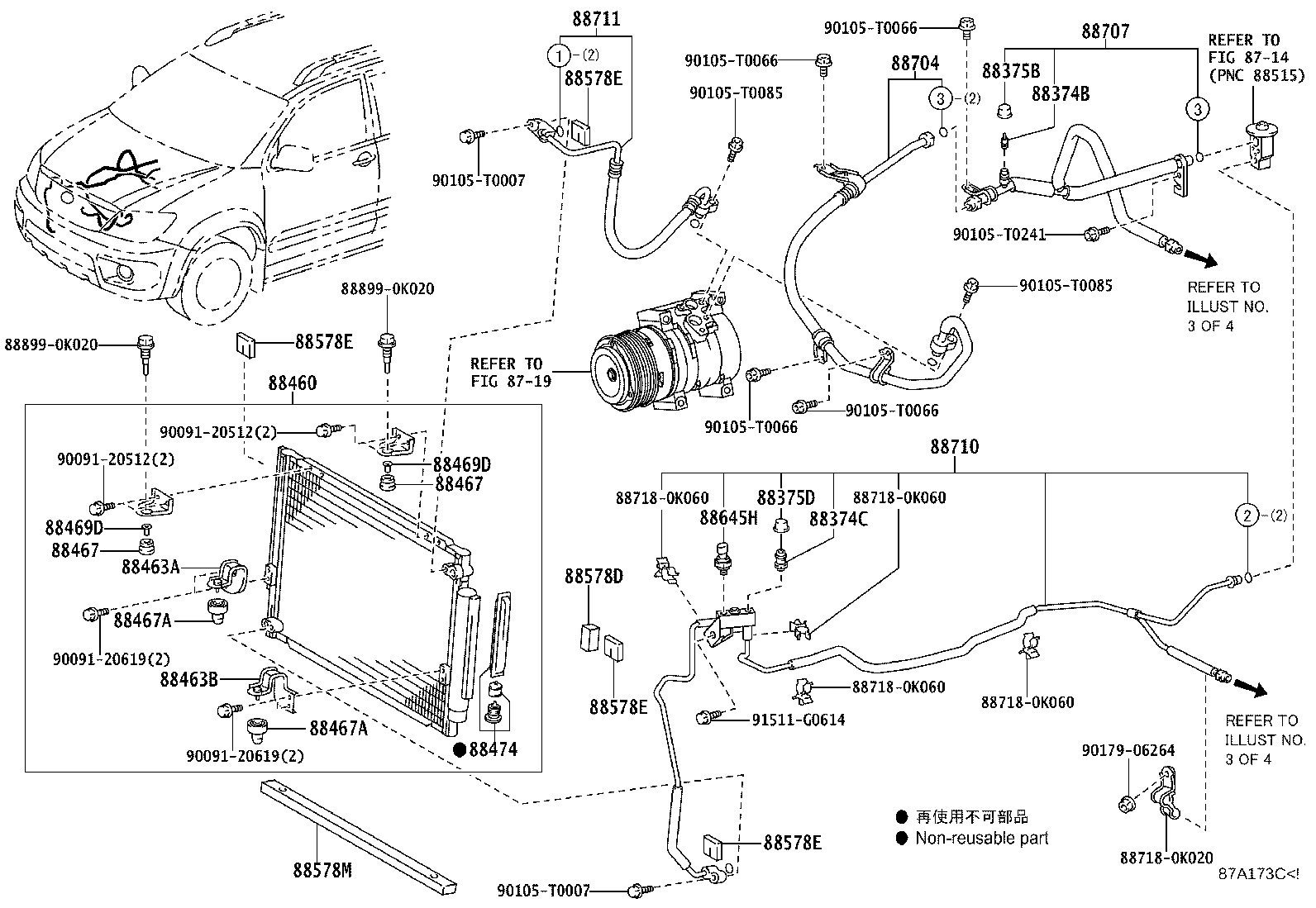

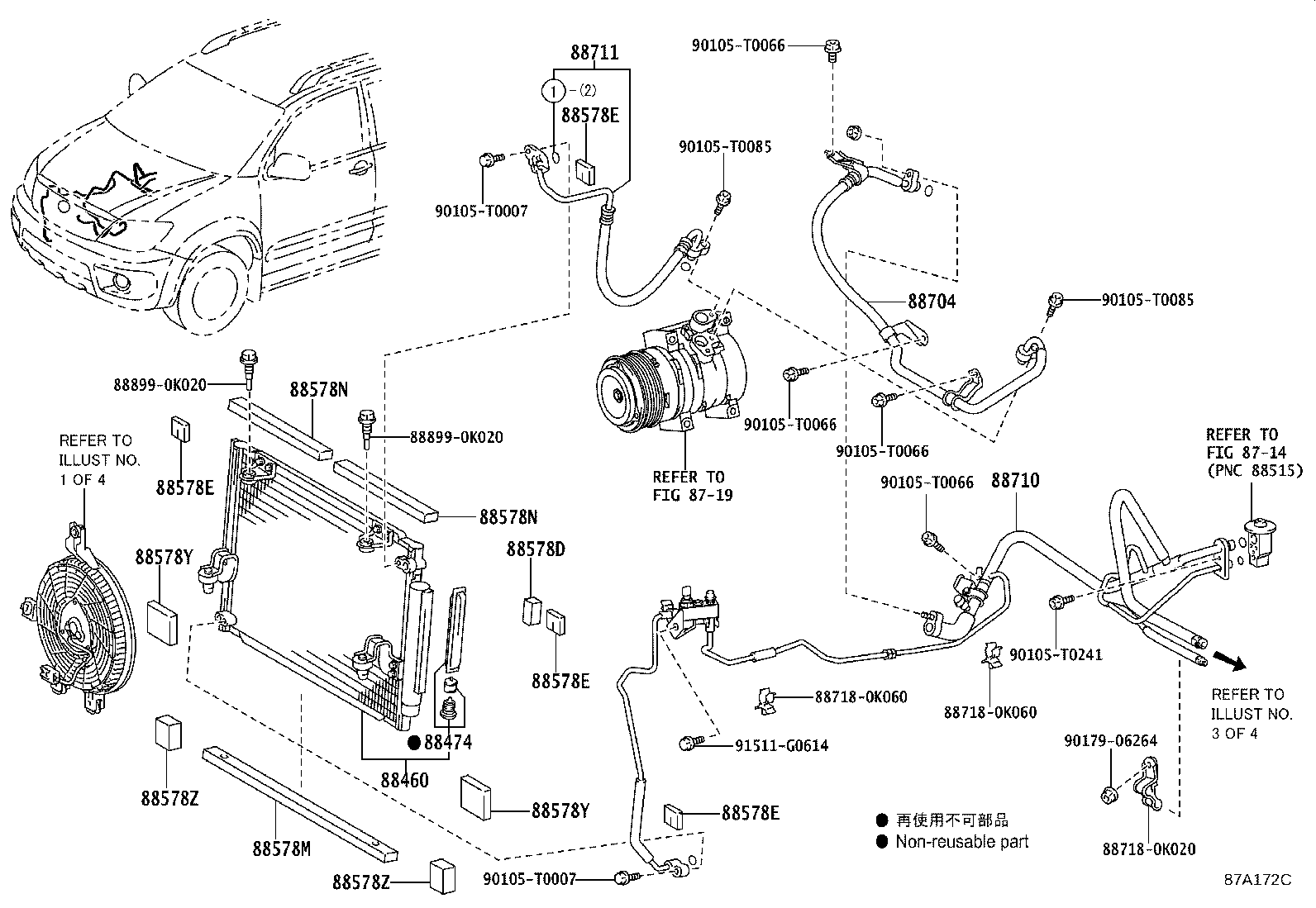

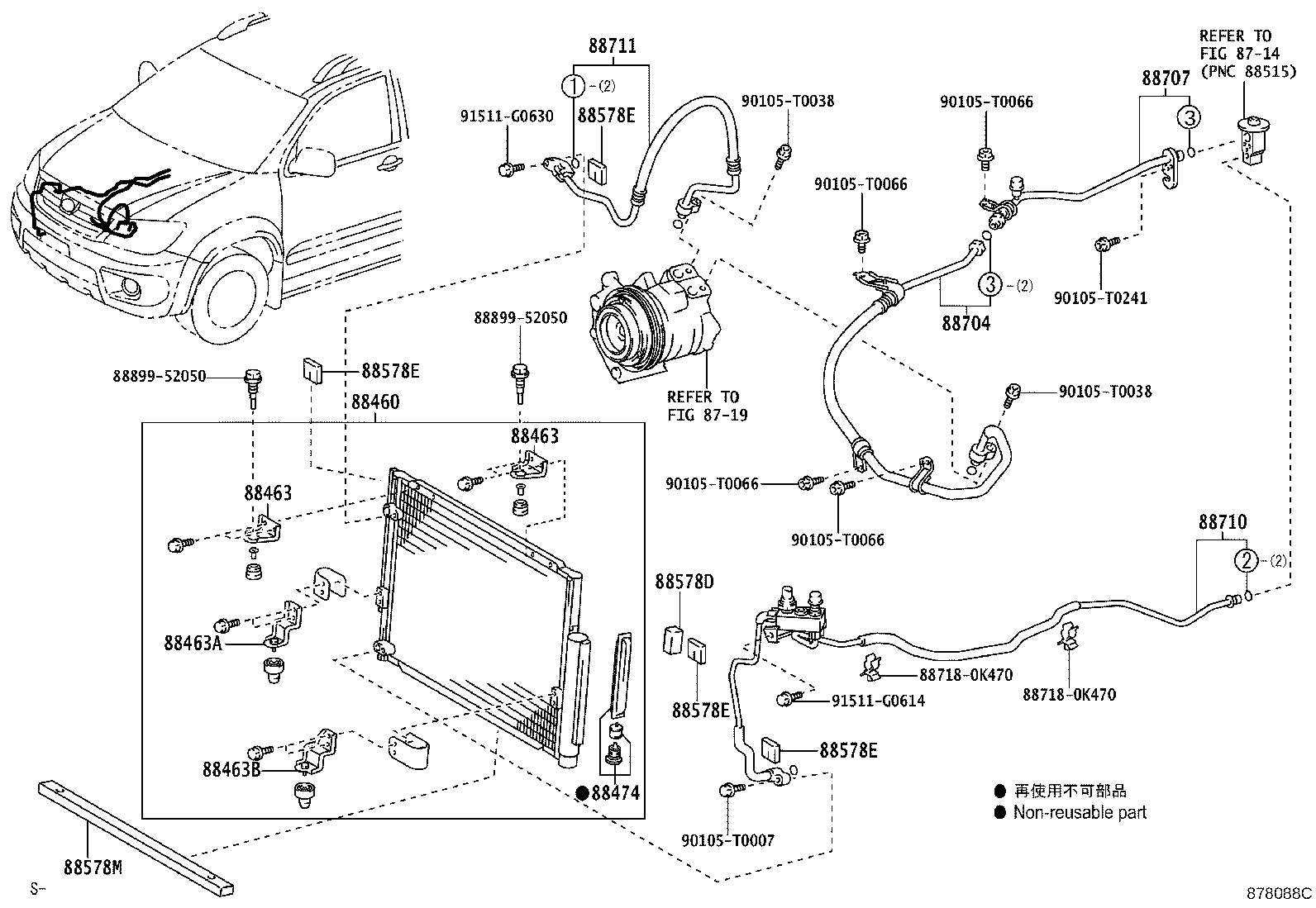

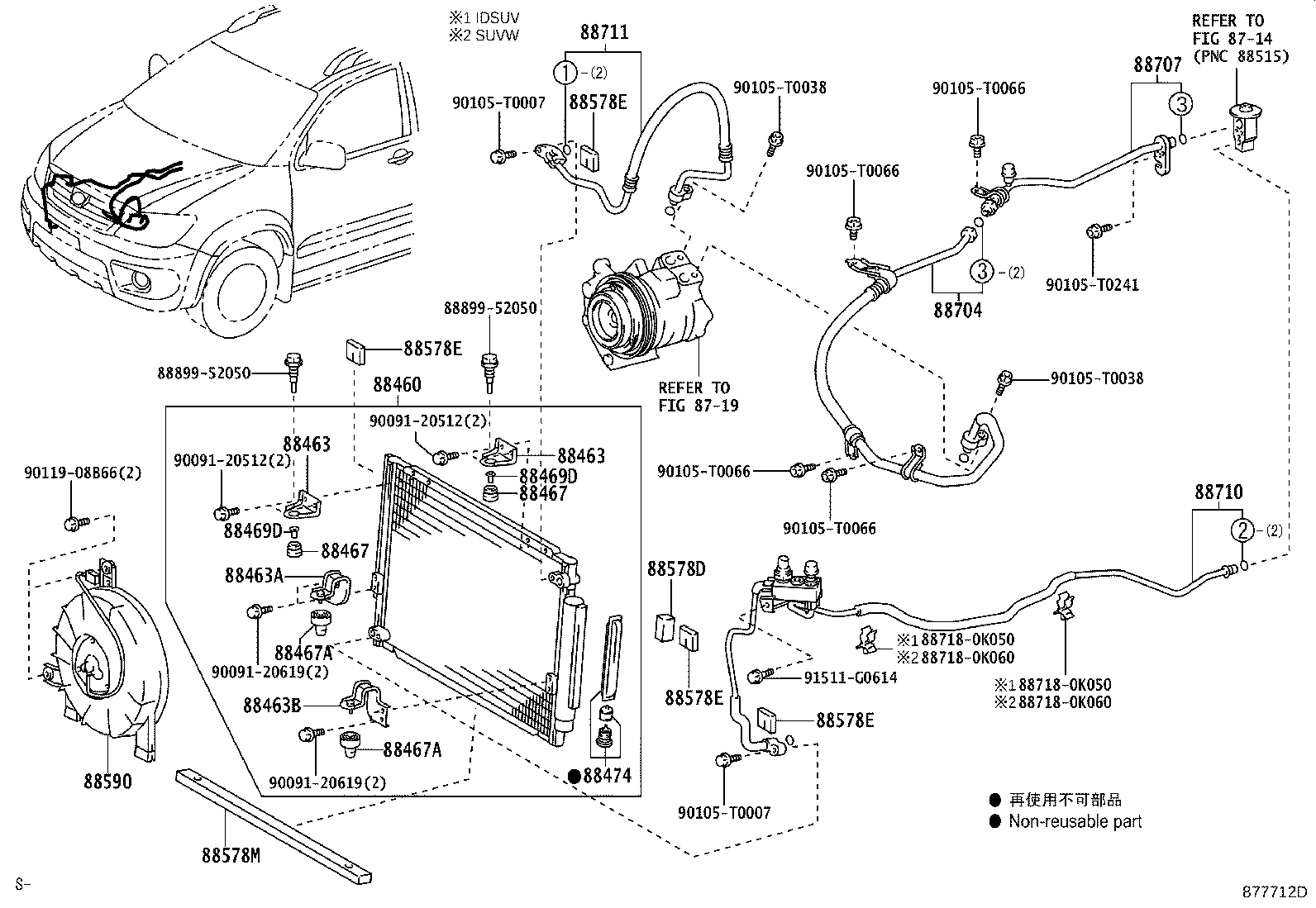

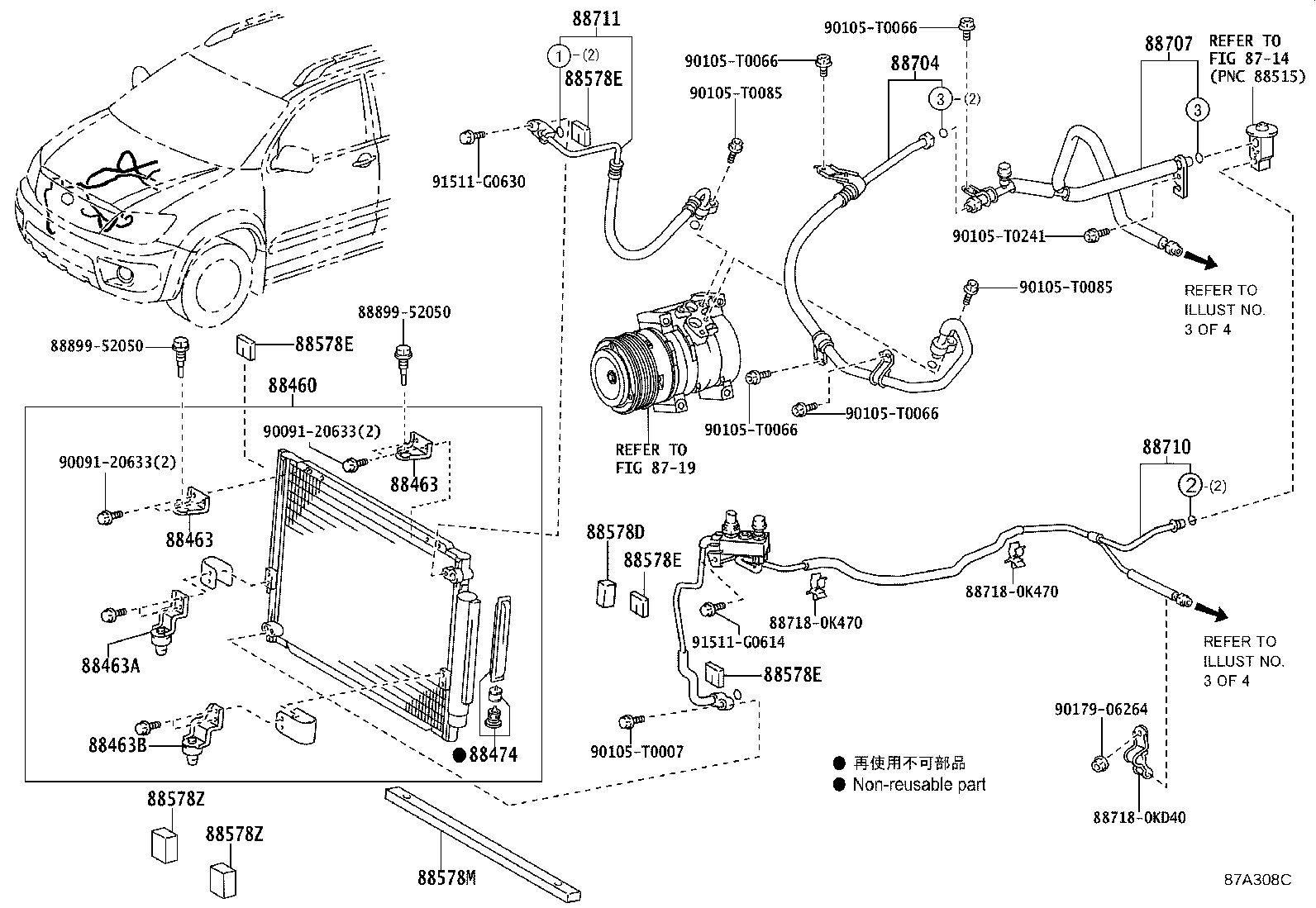

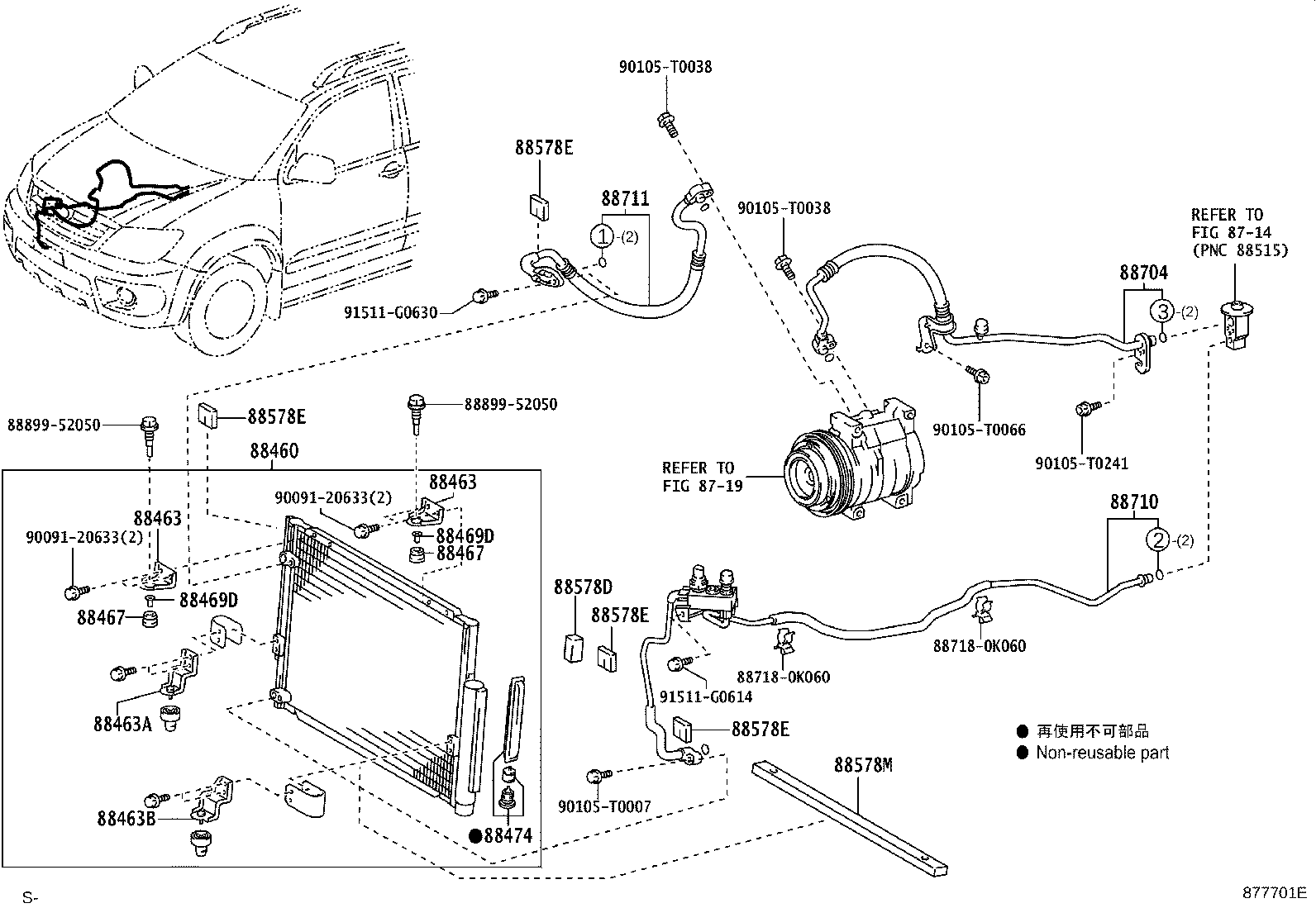

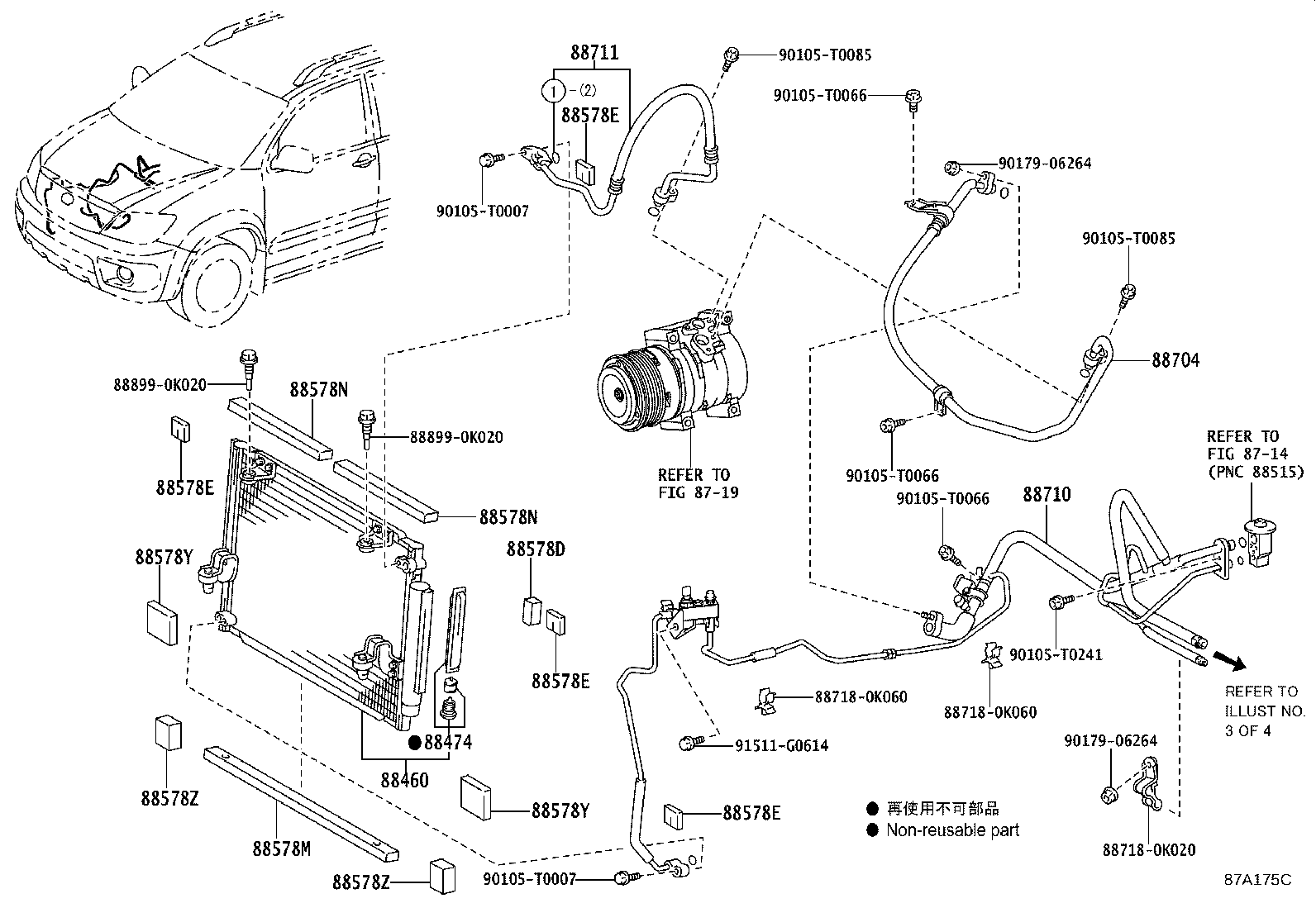

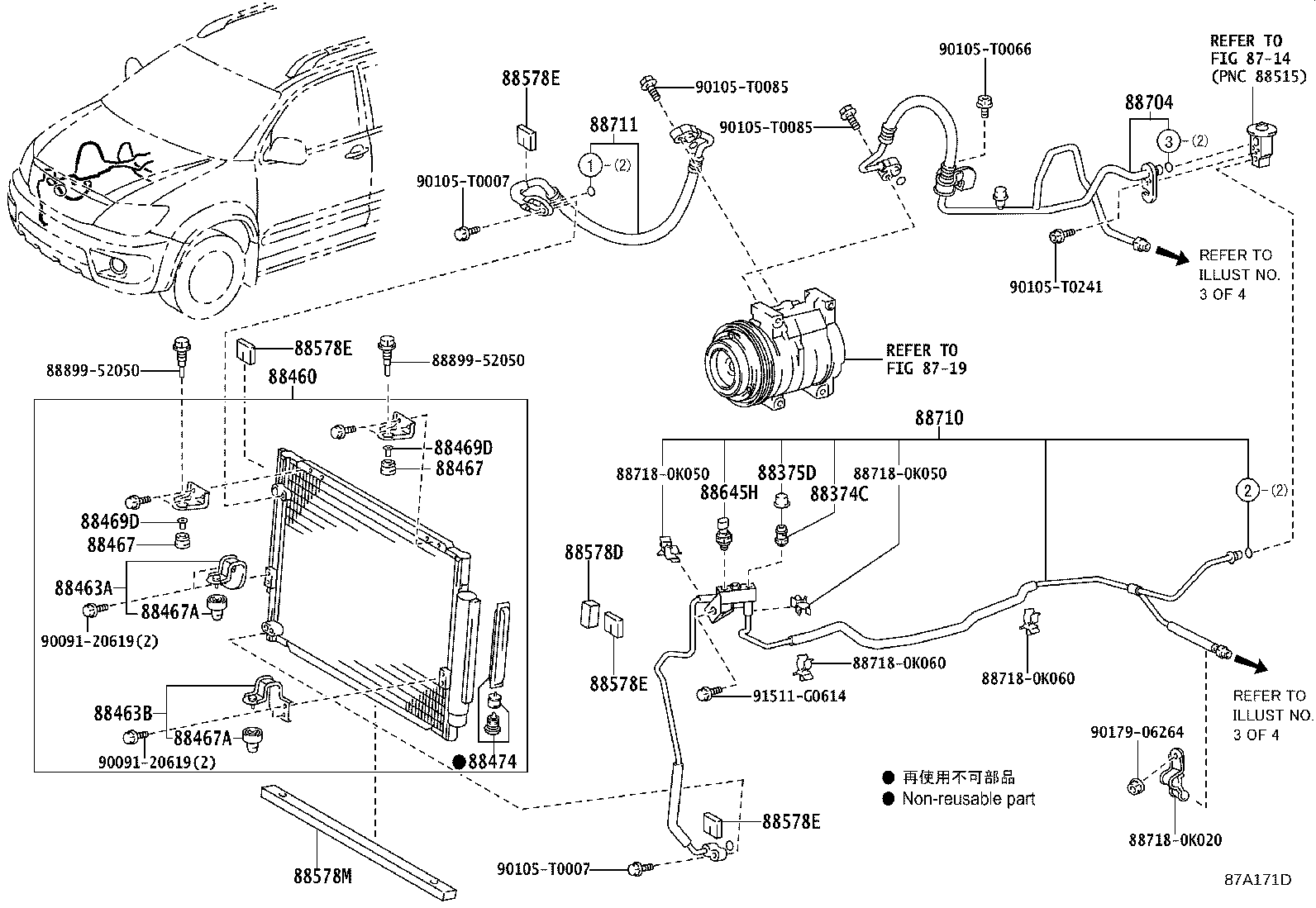

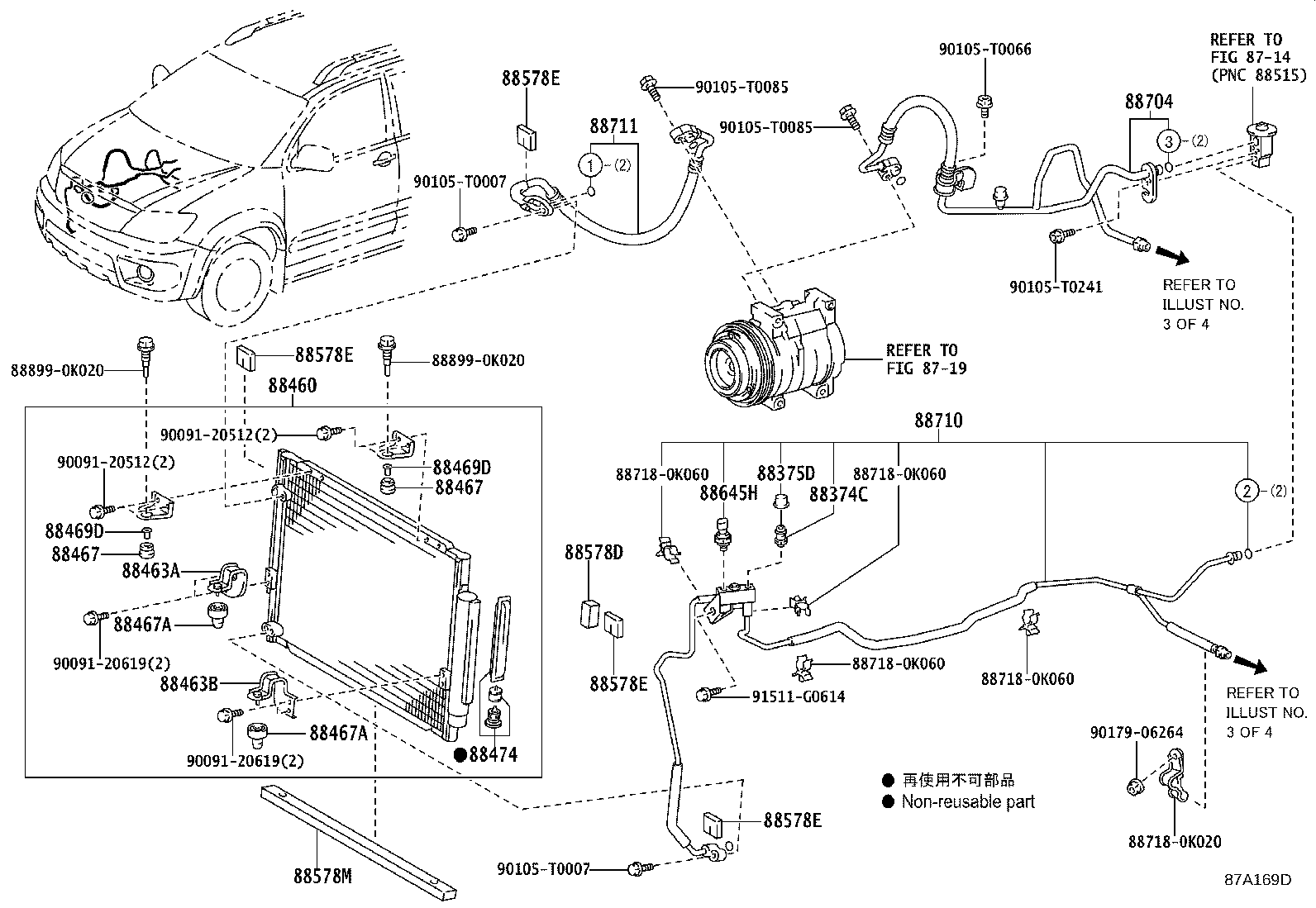

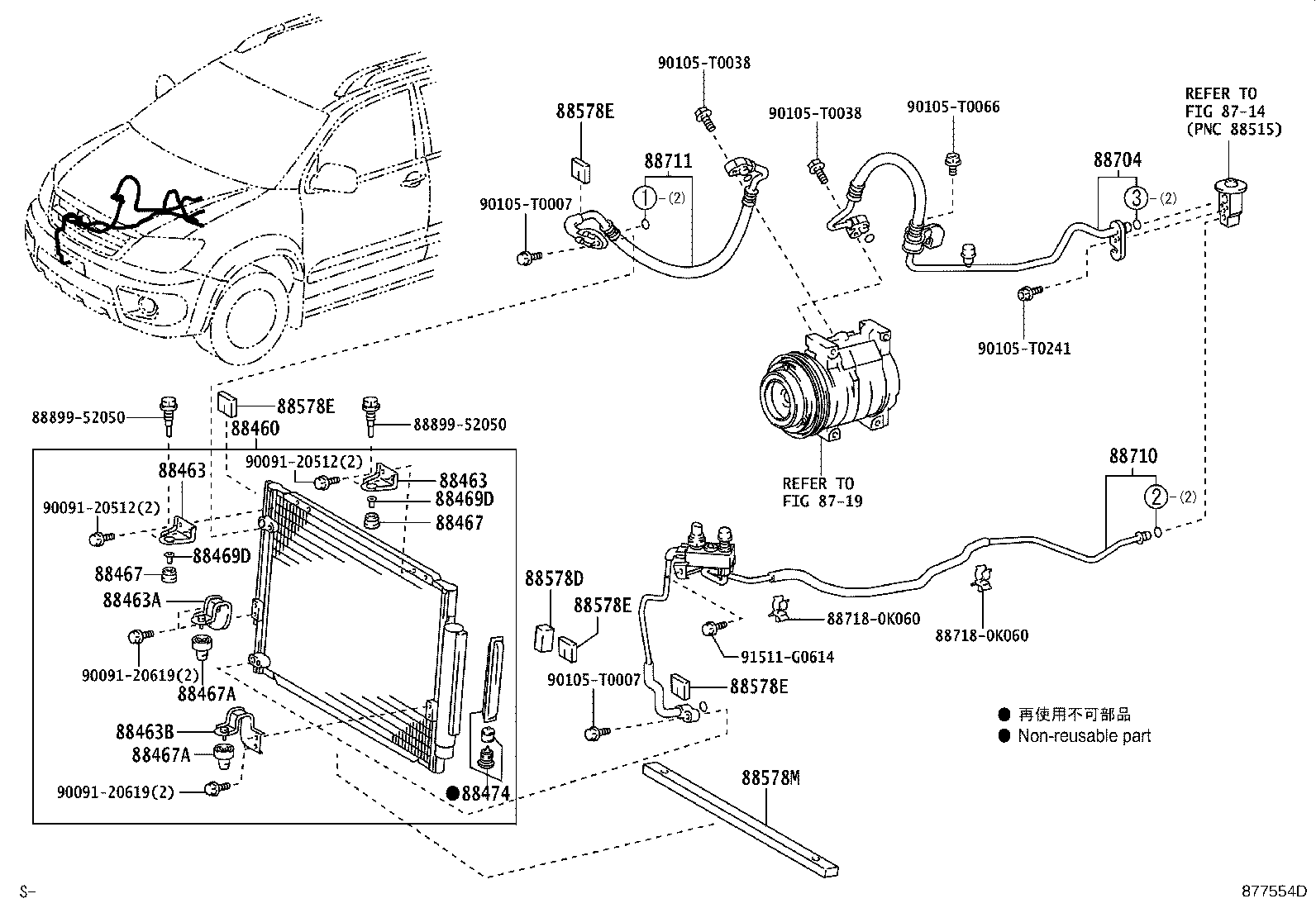

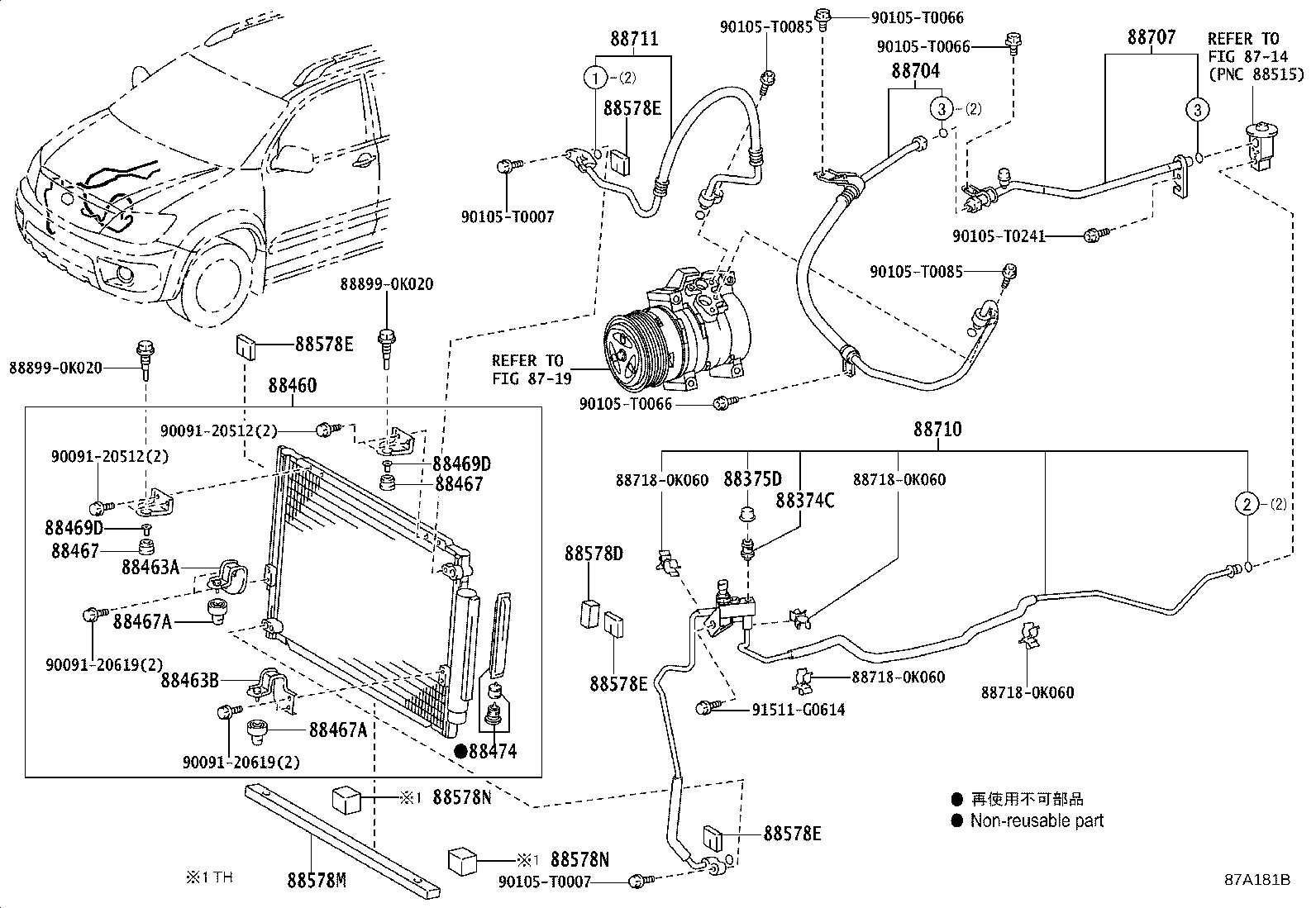

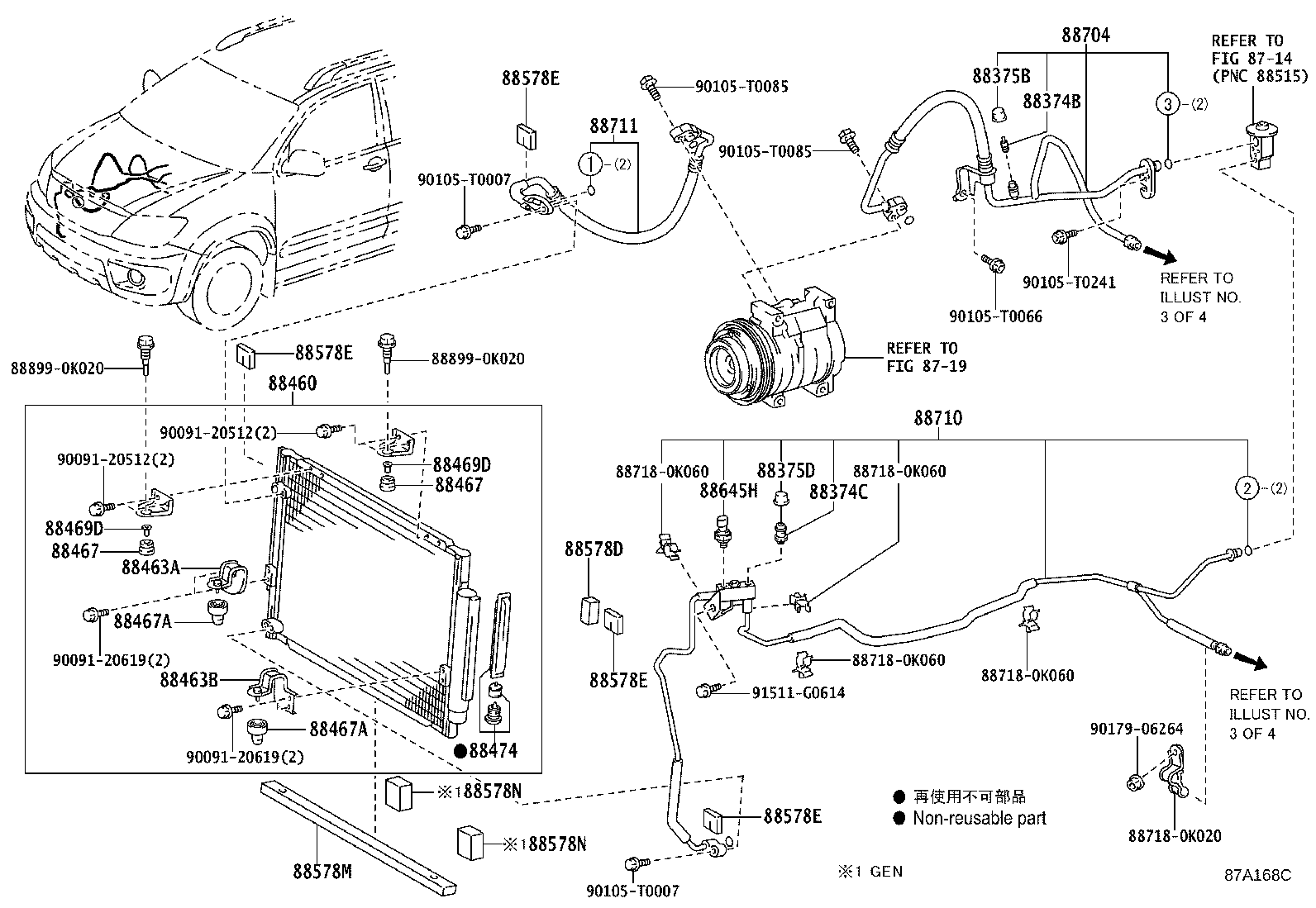

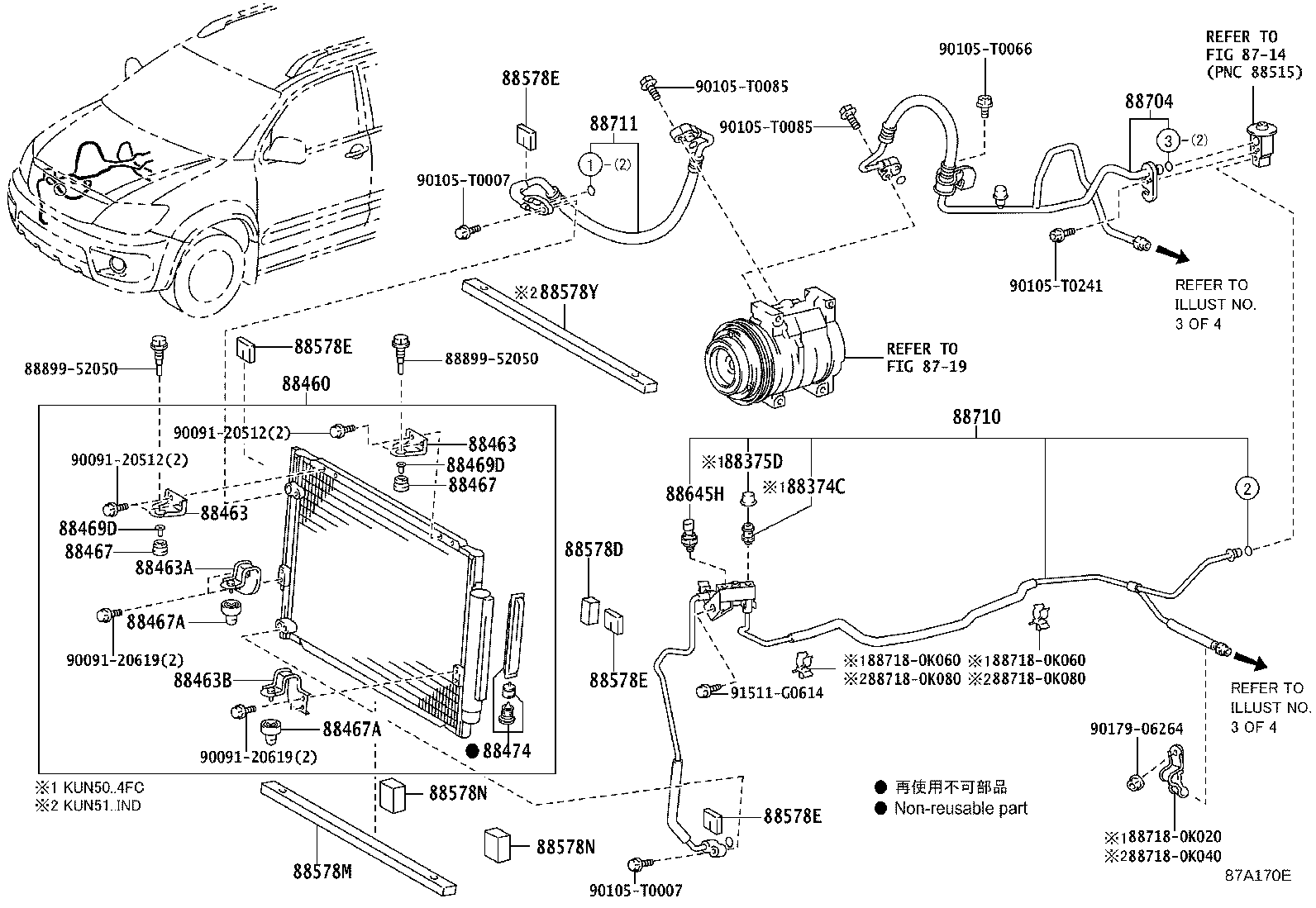

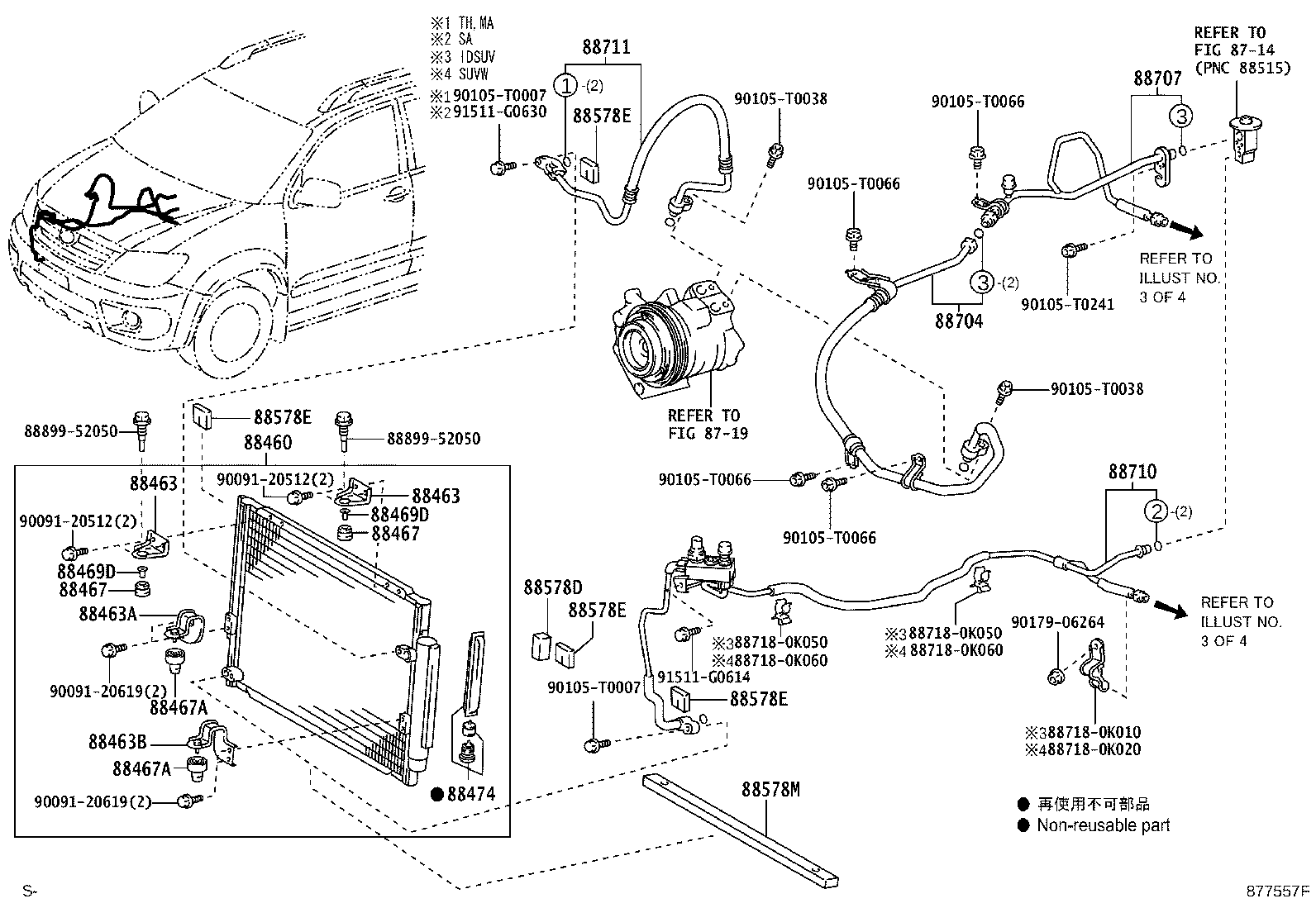

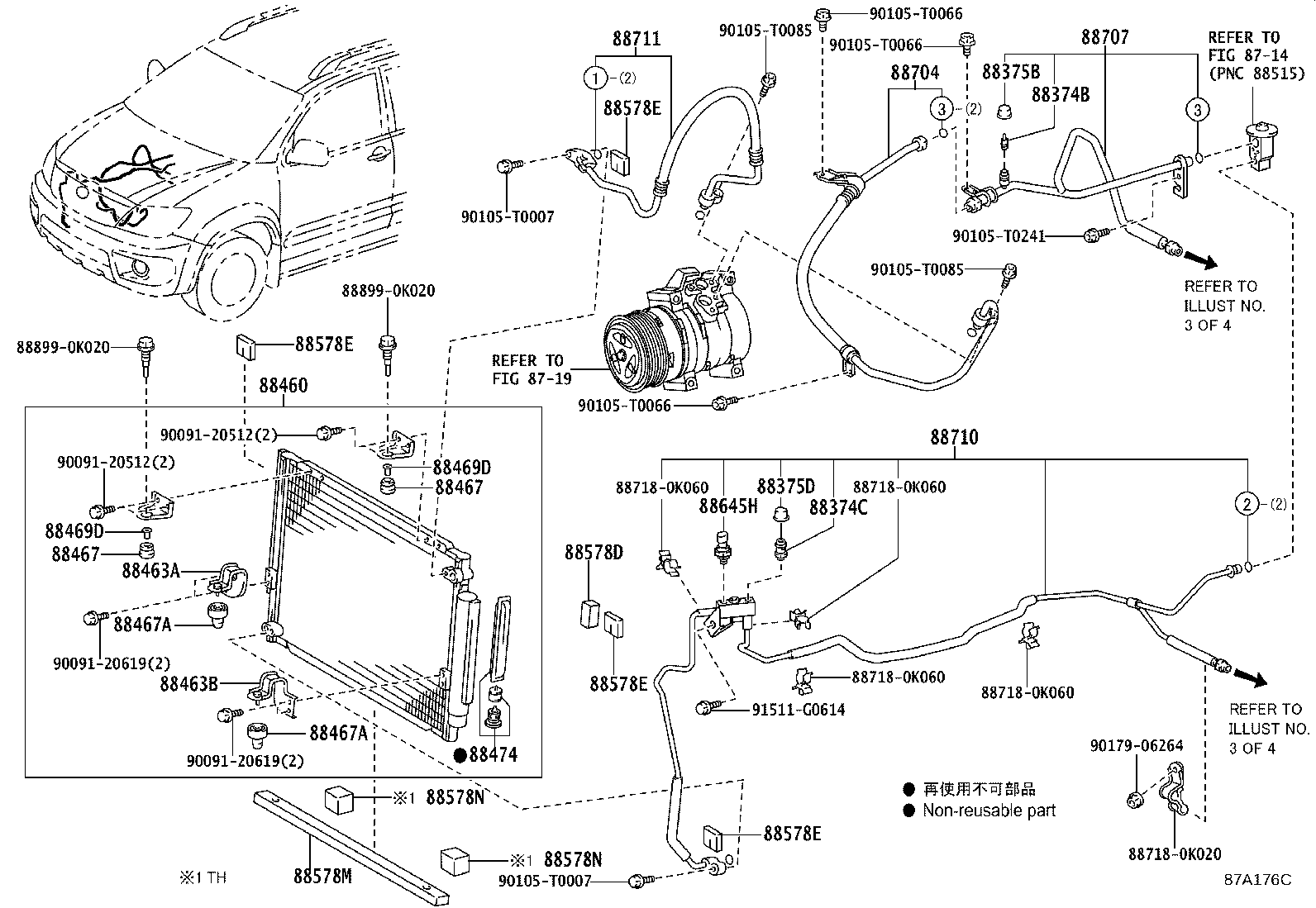

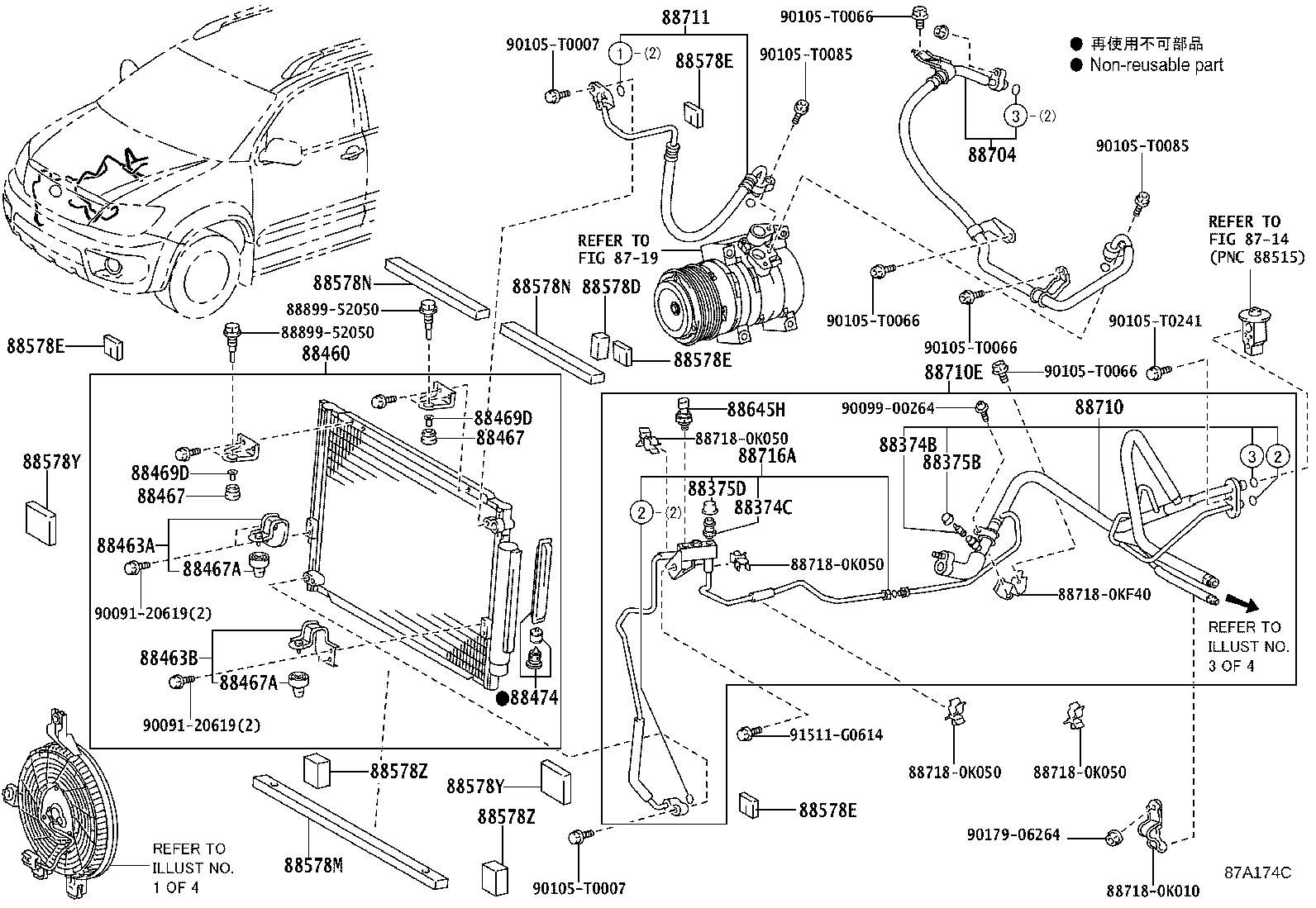

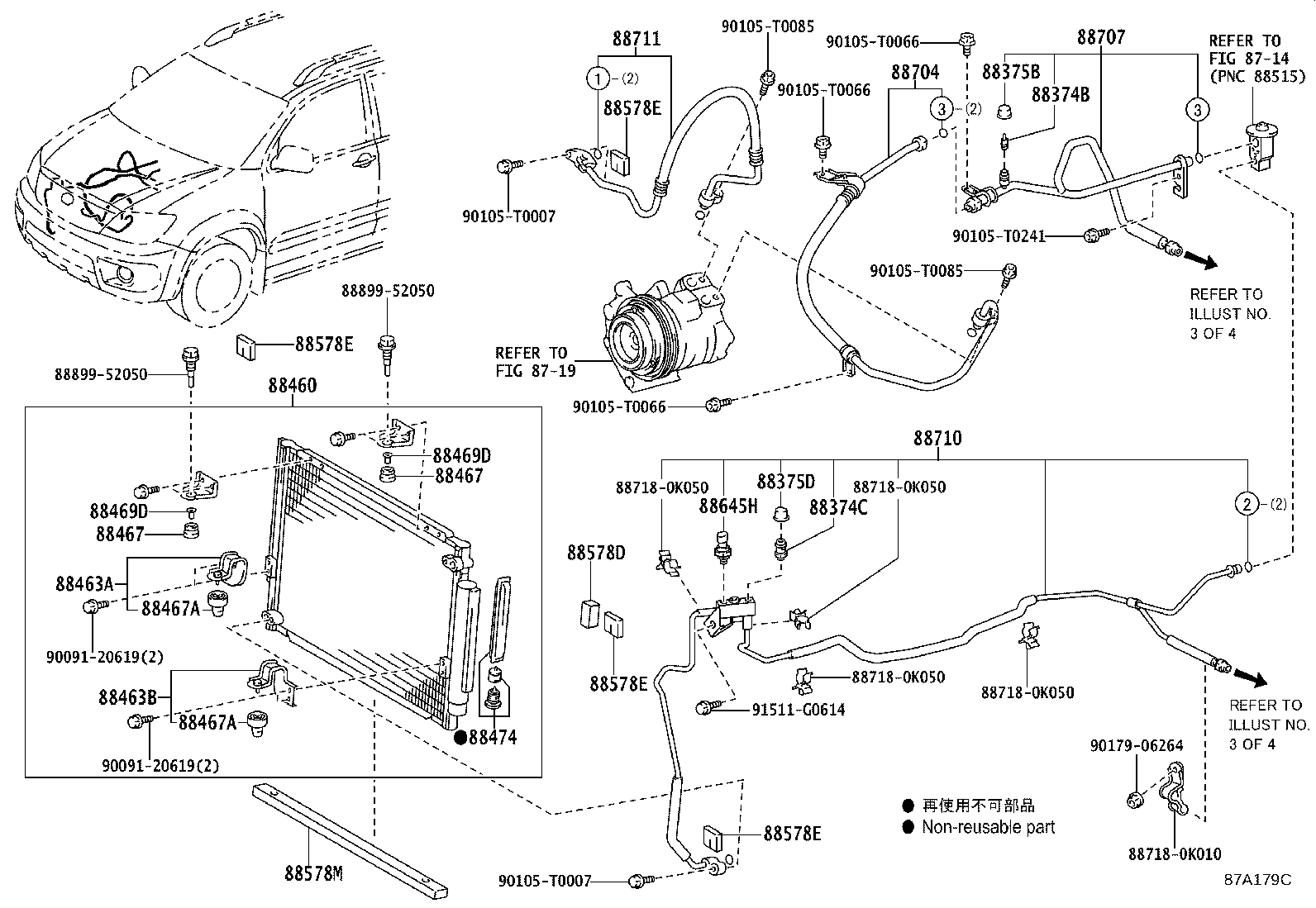

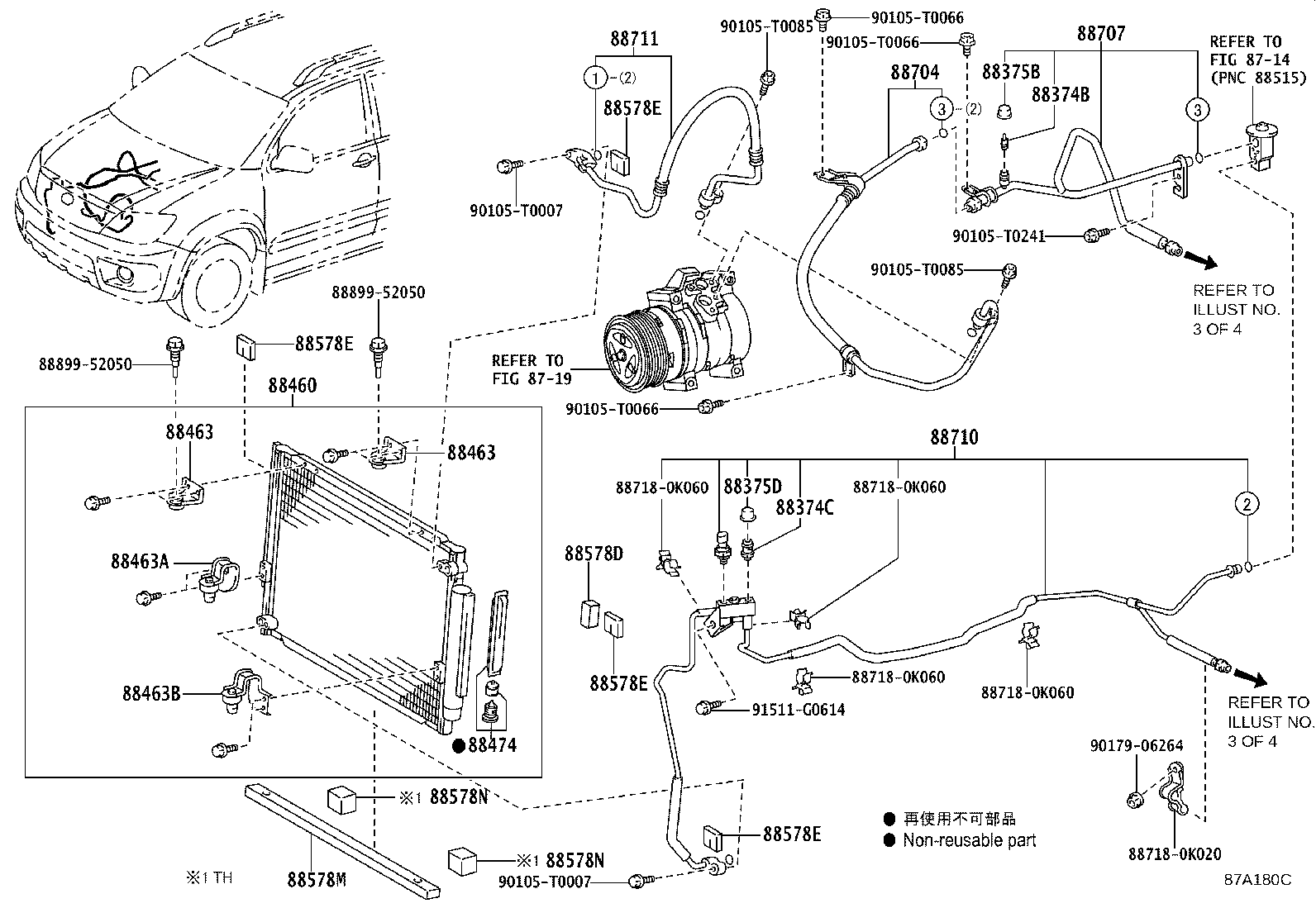

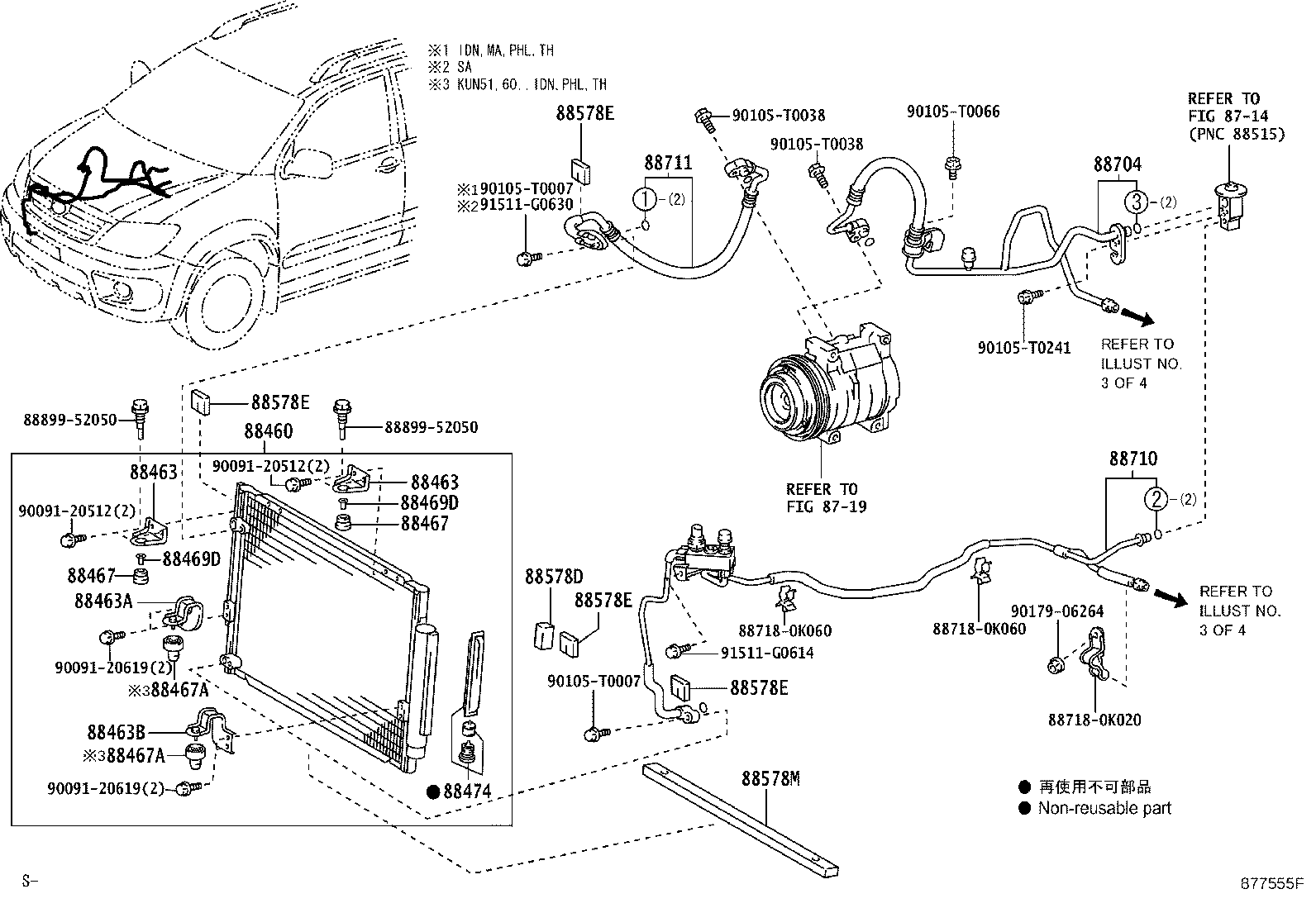

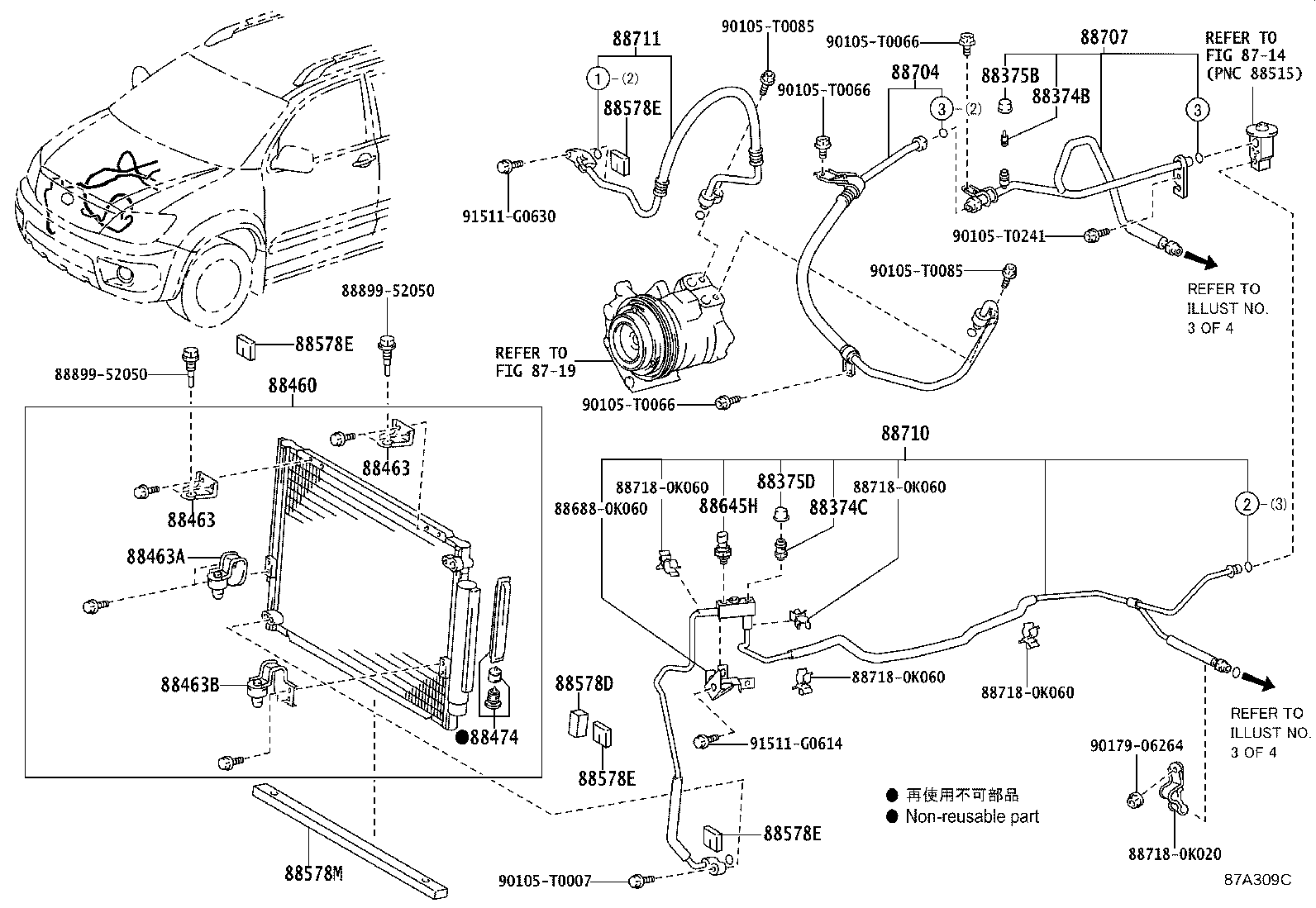

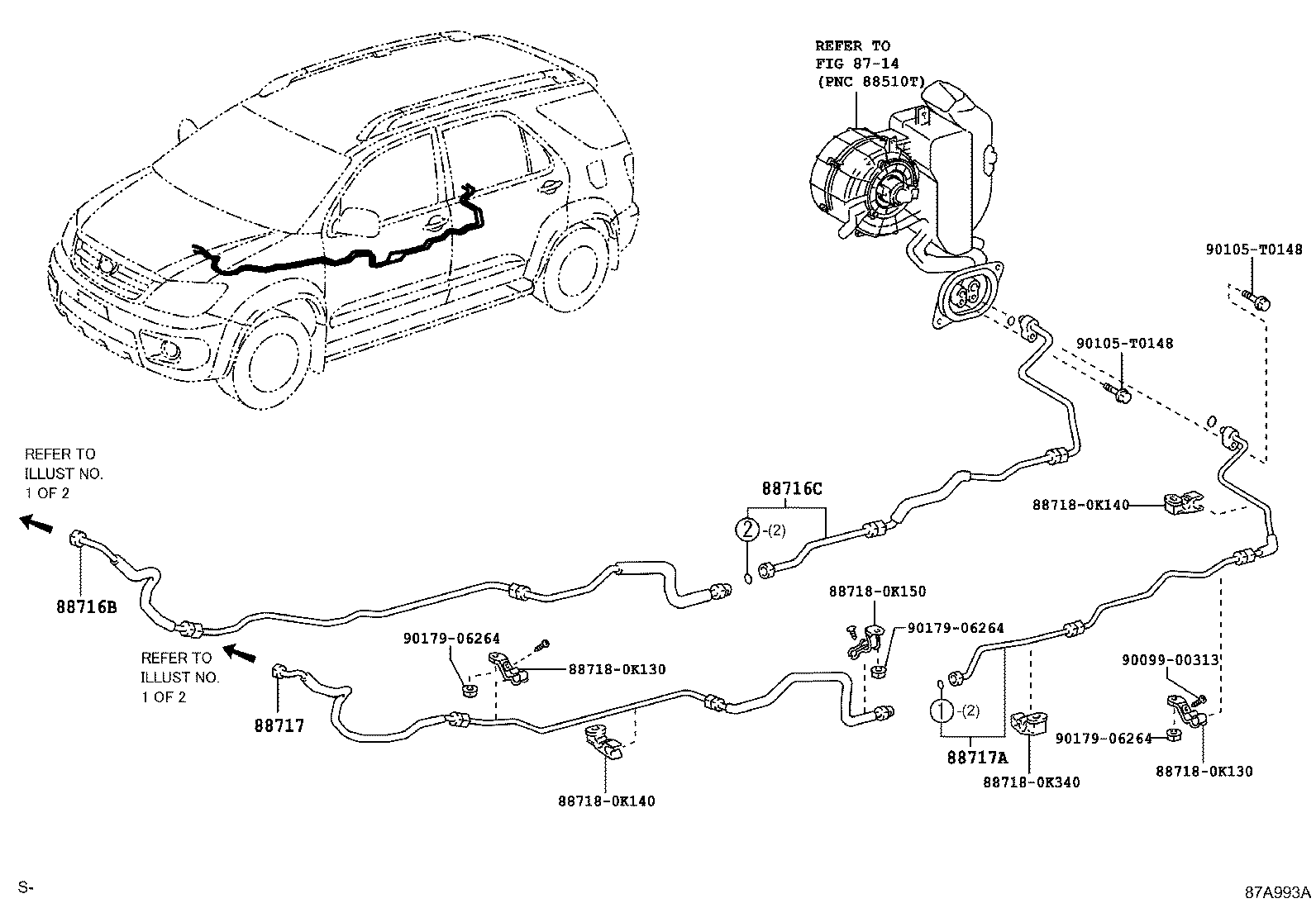

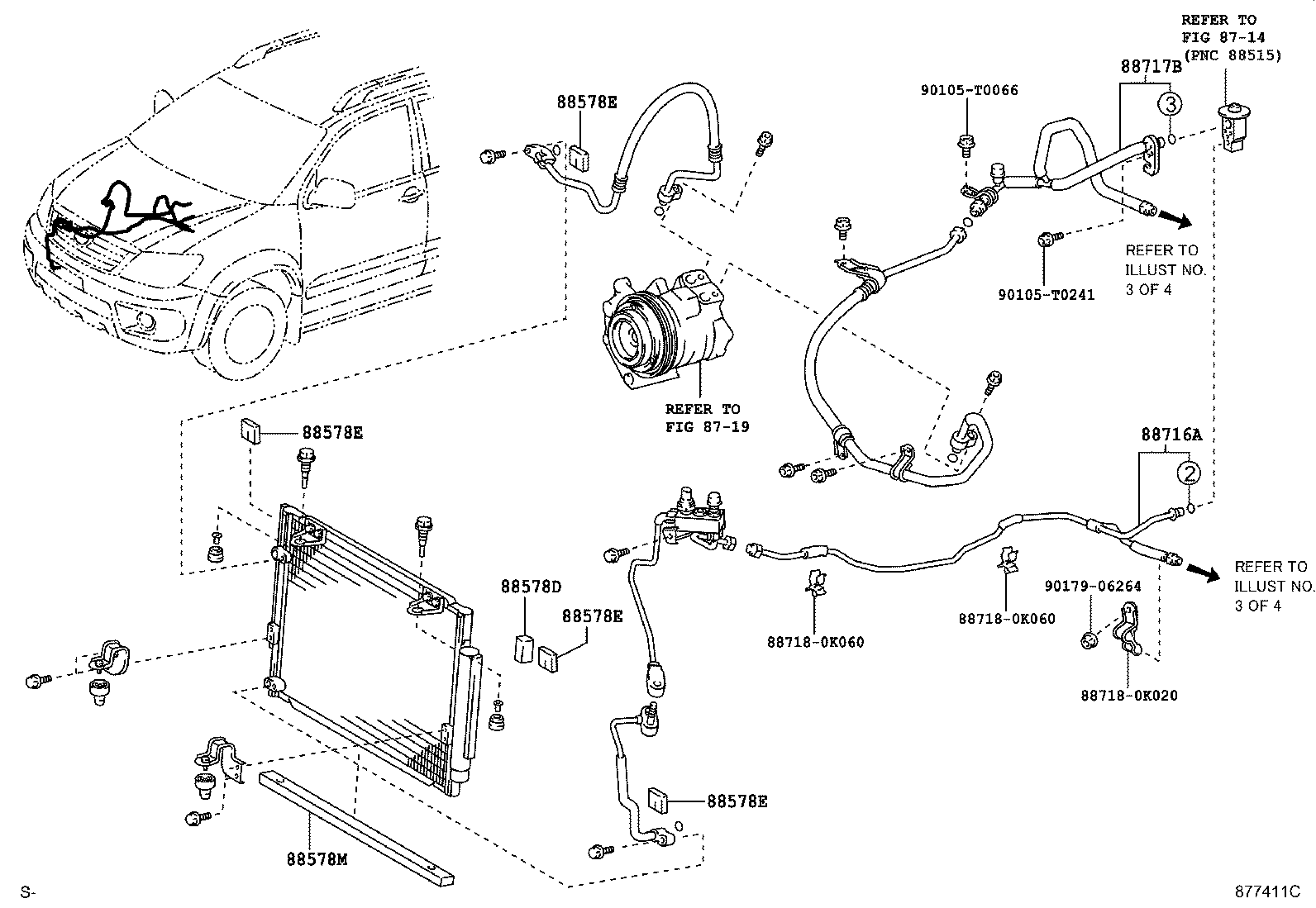

Figure 879510E 879510E 2005-07 → — Figure 87A006B 87A006B 2006-11 → — Figure 877554D 877554D 2005-01 → 2008-08 Figure 877555F 877555F 2005-01 → 2008-08 Figure 877555F 877555F 2005-01 → 2008-10 Figure 877555F 877555F 2005-01 → — Figure 877701E 877701E 2005-09 → 2008-10 Figure 877557F 877557F 2005-01 → 2008-08 Figure 877557F 877557F 2005-01 → 2008-10 Figure 877411C 877411C 2005-01 → 2008-08 Figure 877712D 877712D 2005-07 → 2008-08 Figure 877712D 877712D 2005-07 → 2008-10 Figure 877713G 877713G 2005-07 → 2008-08 Figure 877713G 877713G 2006-02 → 2008-10 Figure 878088C 878088C 2006-02 → 2008-12 Figure 878088C 878088C 2006-02 → 2009-03 Figure 87A173C 87A173C 2008-08 → — Figure 87A172C 87A172C 2008-08 → — Figure 87A174C 87A174C 2008-08 → — Figure 87A168C 87A168C 2008-08 → — Figure 87A168C 87A168C 2010-08 → — Figure 87A169D 87A169D 2008-08 → — Figure 87A170E 87A170E 2008-08 → — Figure 87A170E 87A170E 2009-09 → — Figure 87A171D 87A171D 2008-08 → — Figure 87A177C 87A177C 2008-08 → — Figure 87A179C 87A179C 2008-08 → — Figure 87A175C 87A175C 2008-08 → — Figure 87A176C 87A176C 2008-08 → — Figure 87A181B 87A181B 2008-08 → — Figure 87A180C 87A180C 2008-09 → — Figure 87A308C 87A308C 2008-12 → — Figure 87A308C 87A308C 2009-03 → — Figure 87A307F 87A307F 2008-10 → — Figure 87A306C 87A306C 2008-10 → — Figure 87A304D 87A304D 2008-10 → — Figure 87A304D 87A304D 2010-10 → — Figure 87A305F 87A305F 2008-10 → — Figure 87A309C 87A309C 2008-10 → — Figure 87A310F 87A310F 2008-10 → — Figure 877412J 877412J 2005-01 → — Figure 87A333B 87A333B 2008-10 → — Figure 87A914B 87A914B 2008-10 → — Figure 87A993A 87A993A 2009-08 → — Figure 877126F 877126F 2005-01 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88469D Collar, Condenser Bracket, NO.1
88474 Dryer, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88578D Packing, Cooler Pipe, NO.1
88578E Packing, Cooler Pipe, NO.2
88578M Packing, Cooling Pipe, NO.3
88578N Packing, Cooling Pipe, NO.4
88578Y Packing, Cooling Pipe, NO.5
88578Z Packing, Cooler, NO.1
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88704 Hose Sub-assy, Suction
88706A Tube Sub-assy, Liquid, A
88706B Tube Sub-assy, Liquid, B
88707 Pipe Sub-assy, Suction
88707B Tube Sub-assy, Suction, B
88707C Tube Sub-assy, Suction, C
88710 Tube Assy, Air Conditioner
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712C Hose, Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716H Pipe, Cooler Refrigerant Liquid, H
88716J Pipe, Cooler Refrigerant Liquid, J
88716K Pipe, Cooler Refrigerant Liquid, K
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88717E Pipe, Cooler Refrigerant Suction, E
88717H Ring, O(FOR COOLER REFRIGERANT SUCTION PIPE)
88717J Pipe, Cooler Refrigerant Suction, J
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
